LC-42A85M/LC-46A85M/LC-52A85M

ENGLISH

LC-42A85M LC-46A85M LC-52A85M

OPERATION MANUAL

使用說明書使用說明書

LC-42A85M LC-46A85M

中文 (繁體)中文 (簡體)

LC-52A85M

LCD COLOUR TELEVISION

液晶彩色電視機

OPERATION MANUAL

使用說明書

TINS-D820WJZZ 08P08-MA-NP

Printed in Malaysia

馬來西亞印刷

TINS-D820WJZZ 08P08-MA-NP

OPERATION MANUAL

Dear SHARP customer

ENGLISH

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

Contents

Introduction

Dear SHARP customer ................................................................................................ 1

Contents .......................................................................................................................1

Important Safety Precautions ..................................................................................... 4

Supplied accessories .................................................................................................. 5

Trademarks .................................................................................................................. 5

Preparation

Attaching the stand ..................................................................................................... 6

Part names ................................................................................................................... 7

TV (Front/Side) ................................................................................................. 7

TV (Rear) ........................................................................................................... 8

Remote control unit .......................................................................................... 9

Before turning on the power ..................................................................................... 10

Connecting external devices .................................................................................... 11

Connecting a VCR, game console or camcorder .......................................... 11

Connecting a DVD player ............................................................................... 11

Connecting a Digital TV STB (Set Top Box) ................................................... 12

Connecting a PC ............................................................................................ 12

Using Digital Audio Output ............................................................................ 12

Inserting the batteries ............................................................................................... 13

Using the remote control unit ................................................................................... 13

Cautions regarding the remote control unit ................................................... 13

Turning the TV on/off ................................................................................................. 14

Turning on the power ..................................................................................... 14

Turning off the power ..................................................................................... 14

About Menu operations ............................................................................................. 15

What is Menu? ............................................................................................... 15

Basic Menu operations .................................................................................. 15

About Guide Display ...................................................................................... 15

TV/AV input mode menu items ...................................................................... 16

PC input mode menu items ........................................................................... 17

Watching TV

Setting channels automatically ................................................................................ 18

Selecting programmes .............................................................................................. 19

Adjusting the volume ................................................................................................. 19

Menu language settings ............................................................................................ 19

Setting channels to your preference ........................................................................ 20

Auto search .................................................................................................... 20

Manual setting for each channel .................................................................... 20

Sorting programmes ...................................................................................... 23

Erasing programmes ...................................................................................... 23

Useful viewing functions ........................................................................................... 24

Split-screen viewing ...................................................................................... 24

Returning to the previously selected channel ................................................ 25

Muting the audio temporarily ......................................................................... 25

Outputting only audio ..................................................................................... 25

Switching the analogue audio format ............................................................ 26

ENGLISH

Contents

Watching TV (Continued)

Reducing the start-up time ............................................................................ 26

Energy conservation settings ................................................................................... 28

Picture size settings .................................................................................................. 30

Selecting a preset AV Mode...................................................................................... 32

Manual picture settings ............................................................................................. 33

Other picture settings................................................................................................ 35

Audio adjustment ....................................................................................................... 36

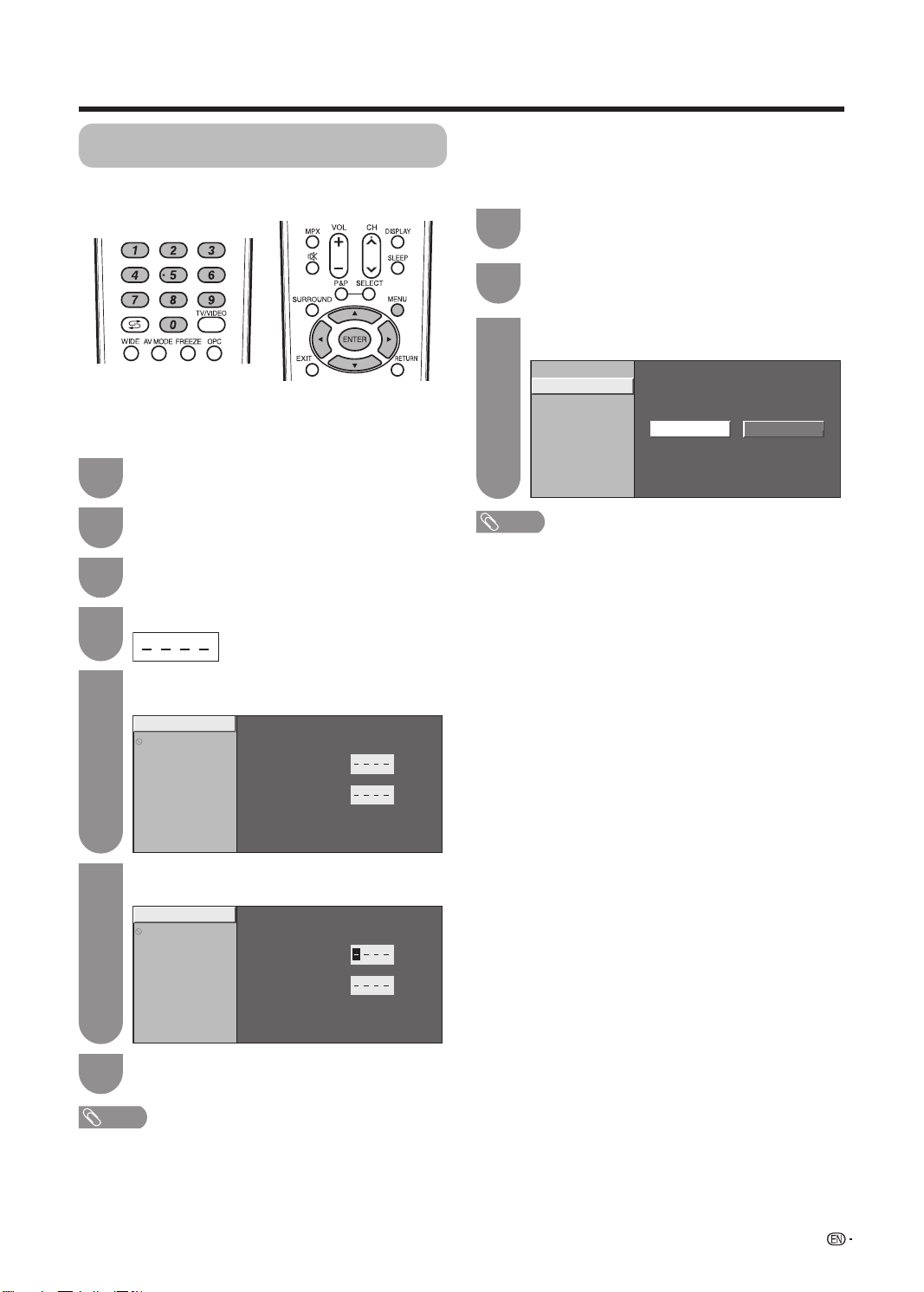

Password setting for the child lock (for TV input mode) ................................ 27

Auto power-off at a designated time ............................................................. 28

Auto power-off after the end of broadcast .................................................... 28

Auto power-off when there are no operations performed ............................. 28

Power Management ....................................................................................... 29

Ecology .......................................................................................................... 29

Selecting the Wide Screen Signalling (WSS) picture size automatically ........ 30

Selecting the Wide Screen Signalling (WSS) picture size manually ............... 30

Selecting the picture size manually ................................................................ 31

Picture adjustment ......................................................................................... 33

Advanced picture settings ............................................................................. 34

Adjusting the image position .......................................................................... 35

Game Play Time ............................................................................................. 35

Output Volume Select ................................................................................... 36

Settings when using external devices

Settings when using HDMI output devices ............................................................. 37

Selecting the input source and signal type ............................................................. 38

Labelling input sources ............................................................................................. 39

Skipping HDMI/RGB input ........................................................................................ 39

Colour system settings ............................................................................................. 39

Selecting input source ................................................................................... 38

Selecting input signal type ............................................................................. 38

AQUOS LINK

Controlling HDMI devices using AQUOS LINK ...................................................... 40

AQUOS LINK connection ......................................................................................... 41

AQUOS LINK Setup .................................................................................................. 41

Operating an AQUOS LINK device .......................................................................... 42

Connecting an AQUOS BD Player via the AQUOS LINK-compatible

audio system ............................................................................................ 41

Connecting an AQUOS BD Player only......................................................... 41

AQUOS LINK Auto power on ........................................................................ 41

Selecting recorder ......................................................................................... 42

Listening with the AQUOS LINK-compatible audio system .......................... 42

Listening with the AQUOS TV speaker system ............................................. 43

Manually changing the AQUOS LINK-compatible audio system’s sound

mode ......................................................................................................... 43

Calling up the menu of an external device connected with the TV via

HDMI .......................................................................................................... 43

Playback of titles using AQUOS LINK ........................................................... 43

Selecting media type for CEC-compatible recorder ..................................... 44

HDMI device selection .................................................................................. 44

Recording via the CEC-compatible recorder’s EPG (only for recorders) ...... 44

Connecting a PC

Displaying a PC image on the screen ...................................................................... 45

Input resolution settings ........................................................................................... 48

Selecting the picture size ............................................................................... 46

Adjusting the PC image automatically ........................................................... 47

Adjusting the PC image manually .................................................................. 47

Selecting the input resolution......................................................................... 48

Contents

Connecting a PC (Continued)

PC Control of the TV .................................................................................................. 49

PC compatibility chart ............................................................................................... 50

RS-232C commands list ............................................................................................ 50

Teletext function

About Teletext ............................................................................................................ 51

Displaying Subtitles ................................................................................................... 52

Displaying Subpages ................................................................................................. 52

Teletext language setting .......................................................................................... 53

Appendix

Troubleshooting ......................................................................................................... 54

Error messages about recording using AQUOS LINK ........................................... 55

Reset ........................................................................................................................... 56

Identiﬁ cation .............................................................................................................. 56

Speciﬁ cations ............................................................................................................. 57

Optional accessory ................................................................................................... 57

Dimensional drawings ............................................................................................... 58

Mounting the TV on the wall .................................................................................... 60

CLEARING THE PASSWORD .................................................................................... 61

Removing the stand ...................................................................................... 60

Handling and precautions with the wall-mounted TV ................................... 60

Important Safety Precautions

• Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Do not place vases or any other water-ﬁ lled containers on this product.

The water may spill onto the product

causing ﬁ re or electric shock.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including ampliﬁ ers)

• To prevent ﬁ re, never place any type of candle or naked ﬂ ames on the top or near the TV set.

• To prevent ﬁ re or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special care near children and pets.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven ﬂ oor surface can cause the product to fall from the cart.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufﬁ cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

The LCD panel is a very high technology product with 2,073,600 pixels, giving you ﬁ ne picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a ﬁ xed point of blue, green or red. This is within product speciﬁ cations and does not constitute a fault.

Precautions when transporting the TV

Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal on the rear of the product.

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit “AAA” size battery (g2) AC cord

Used with batteries inserted.

Page 9 Page 13 Page 10

Cable clamp

For bundling cables.

Page 10

Operation manual

Always use the AC cord supplied with the TV.

Stand unit

LC-42A85M

Stand base

Stand post Hex key

Put all parts of the stand unit together and then attach it to the TV.

LC-46A85M/LC-52A85M

Stand base

Short screws (g4)

Long screws (g4)

Page 6

Stand unit

Short screws (g4)

Long screws (g4)

Cloth

Stand post Hex key Cloth

Put all parts of the stand unit together and then attach it to the TV.

Page 6

Trademarks

• TruSurround XT, SRS and TruSurround XT technology is incorporated under license from SRS Labs, Inc.

• “HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

symbol are trademarks of SRS Labs, Inc.

Preparation

Attaching the stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

CAUTION

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Conﬁ rm the 8 screws supplied with the TV.

1 3

Short screws (g4)

(used in step 3)

Attach the supporting post for the stand unit

onto the base as shown below.

LC-42A85M

LC-46A85M/LC-52A85M

Long screws (g4)

(used in step 2)

Long screw

Hex key

• To detach the stand, perform the steps in reverse order.

Insert the stand into the openings on the

bottom of the TV.

Insert and tighten the 4 short screws into

the 4 holes on the rear of the TV.

NOTE

Hex key

Short screw

Soft cushion

Hex key

LC-42A85M

15°

CAUTION

• Adjust the screen with both hands. Put one hand on the TV and rotate the screen while steadying the stand with your other hand.

The TV can be rotated up to 15 degrees to the right or left.

NOTE

• Angle adjustment is not available with the LC-46A85M/ LC-52A85M.

Preparation

Part names

TV (Front/Side)

POWER (On/Off) button

MENU button

TV/VIDEO button

Channel up (r)/down (s) buttons

Volume up (e)/down (f) buttons

Remote control sensor

OPC sensor

POWER indicator**

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• The illustrations used throughout this manual are based on LC-42A85M.

SLEEP timer indicator

OPC indicator*

*OPC: Optical Picture Control (See page 33.) ** See page 14 for the TV status indicator.

Preparation

TV (Rear)

INPUT4 terminals

INPUT3 (HDMI) terminal

RS-232C terminal

INPUT2 (HDMI) terminal

INPUT1 (HDMI) terminals

INPUT7 (PC) terminals

Headphone jack

INPUT6 terminals

INPUT5 terminals

Antenna input terminal

Regarding the headphone jack

• Use headphones with a stereo mini plug (Ø 3.5 mm).

• Be sure to unplug headphones from the jack when they are not in use.

• The speakers do not output volume when headphones are plugged in.

• The “Audio” menu cannot be operated when headphones are plugged in.

• You can set the volume to different levels for each input source.

AC INPUT terminal

DIGITAL AUDIO OUTPUT terminal

MONITOR OUT terminals

Volume display when headphones are plugged in

Preparation

Remote control unit

4 5

6 7

8 9

15 16 17

18 19

20 21 22

23 24

1 POWER (STANDBY/ON)

To switch the power on and off. (See page 14.)

2 0 – 9

Set the channel. (See page 19.) TELETEXT mode: Set the page. (See pages 51 and 52.)

3 A (Flashback)

Press to return to the previous selected channel or

external input mode. (See page 25.)

4 WIDE

Change the wide image mode. (See pages 31 and 46.)

5 AV MODE

Select an audio and video setting: AV Mode (STANDARD,

MOVIE, GAME, PC, USER, DYNAMIC (FIXED), DYNAMIC), PC Mode (PC, STANDARD, USER). (See page 32.)

6 MPX

Select the sound multiplex mode. (See page 26.)

7 VOLk/VOL

Set the volume. (See page 19.)

8 e (Mute)

Mute the sound. (See page 25.)

9 P&P

Set the split-screen picture mode. Press P&P again to

return to normal view. (See page 24.)

10 SURROUND

Select SRS TS XT settings. (See page 36.)

11 EXIT

Return to the default screen.

12 AQUOS LINK buttons

If external equipment such as a AQUOS BD Player is connected via HDMI cables and is AQUOS LINK compatible, you can use these AQUOS LINK buttons. (See pages 40 to 44 for details.)

13 m (TELETEXT)

Select the TELETEXT mode. (all TV image, all TEXT

image, TV/TEXT image) (See pages 51 and 52.)

(Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters. (See page

51.)

(SUBTITLE for TELETEXT)

[

To turn the subtitles on and off. (See page 52.)

(Hold)

TELETEXT mode: Stop updating Teletext pages

automatically. Press 3 again to release the hold mode. (See pages 51 and 52.)

(Subpage)

Display the Teletext subpage directly. (See page 52.)

(Top/Bottom/Full)

TELETEXT mode: Set the area of magniﬁ cation. (See

page 51.)

14 TV/VIDEO (INPUT SOURCE)

Select an input source. (TV, INPUT1, INPUT2, INPUT3,

INPUT4, INPUT5, INPUT6, INPUT7 (PC)) (See pages 11, 24, 37 to 39, 45.)

15 OPC

To switch the Optical Picture Control on and off. (See

page 33.)

16 FREEZE

Freeze a motion picture on the screen. (See page 24.)

17 DISPLAY

Display the channel or input information.

18 CHr/CH

TV input mode: Select the channel. (See page 19.) TELETEXT mode: Select the page. (See page 51.)

19 SLEEP

Set the Sleep timer. (See page 28.)

20 SELECT

To select either screen to be active in split-screen mode.

(See page 24.)

21 MENU

Display the menu screen. (See page 15.)

22 a/b/c/d (Cursor)

Select a desired item on the setting screen. ENTER

Execute a command.

23 RETURN

MENU mode: Return to the previous menu screen. (See

page 15.)

24 Colour (Red/Green/Yellow/Blue)

TELETEXT mode: Select a page. (See page 51.)

Preparation

Before turning on the power

Notes on installing the TV

• Avoid direct sunlight and place the TV in a well-ventilated location.

• Place the TV in a level location.

• Do not turn on the power of the TV before connecting the AC cord.

Connecting the antenna cable

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial cable.

Standard DIN45325 plug (IEC169-2) 75-ohm coaxial cable (round cable)

Antenna cable (commercially available)

Room antenna terminal (75-ohm type)

Connecting external devices

See pages 11 to 12 for connecting external equipment, such as a VCR and DVD player.

Connecting the AC cord

AC outlet

• Place the TV close to the AC outlet, and keep the power plug within reach.

• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.

Bundling the cables

Insert the cable clamp in the hole on the TV as shown.

To antenna terminal

TV (rear view)

AC cord

Cable clamp

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Preparation

Connecting external devices

You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from TV/

VIDEO on the remote control unit or TV/VIDEO on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital TV STB (Set Top Box), PC or other external equipment.

• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using the INPUT4 or INPUT5/INPUT6 terminals.

When using component cable (commercially available)

When using composite cable or S-VIDEO cable (commercially available)

VCR/ Game console/ Camcorder

R – AUDIO – L Y

(CB)

(CR)

S-VIDEO

VIDEO

AUDIO

VCR/ Game console/ Camcorder

Connecting a DVD player

You can use the INPUT1/INPUT2/INPUT3 (HDMI), INPUT4 or INPUT5/INPUT6 terminals when connecting to a DVD player and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT1. (See page 37.)

When using HDMI cable (commercially available)

When using component cable (commercially available)

DVD player

R – AUDIO – L Y

(CB)

(CR)

Preparation

Connecting a Digital TV STB (Set Top Box)

You can use the INPUT1/INPUT2/INPUT3 (HDMI) or INPUT5/INPUT6 terminals when connecting to a Digital TV STB (Set Top Box) and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT1. (See page 37.)

When using HDMI cable (commercially available)

Digital TV STB (Set Top Box)

Connecting a PC

You can use the INPUT7 (PC) terminal when connecting to a PC. (See page 45.)

ANALOG

RGB

AUDIO

(R/L)

When using component cable (commercially available)

Digital TV STB (Set Top Box)

R – AUDIO – L Y

(CB)

(CR)

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. PCM audio outputs from the terminal.

Optical ﬁ bre cable (commercially available)

To optical digital input of external audio devices

NOTE

• The DIGITAL AUDIO OUTPUT terminal usually outputs the same audio from the speakers. (The audio of the content you are viewing is output from the terminal.)

• The DIGITAL AUDIO OUTPUT terminal does not output some signals, depending on devices and software.

Preparation

Inserting the batteries

Before using the TV for the ﬁ rst time, insert two “AAA” size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you ﬁ nd any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

2 Insert the two supplied “AAA” size

batteries.

• Place batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may prevent proper operation.

Remote control sensor

Cautions regarding the remote control unit

• Do not subject the remote control unit to shock. In addition, do not soak the remote control unit with liquids or place it in

an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or TV, or operate the remote control unit closer to the remote sensor window.

30º

5 m

30º 30º

30º

Preparation

Turning the TV on/off

Turning on the power

Press POWER on the TV.

• POWER indicator (Green): The TV is on. (After a few seconds, an image appears with sound.)

• After turning the power “ON” by pressing POWER on the TV, you can turn the power ON/OFF by pressing POWER on the remote control.

POWER button

Turning off the power

POWER button

Press POWER on the remote control.

• The TV enters standby mode and the image on the screen disappears.

• The POWER indicator on the TV changes from green to red.

Press POWER on the TV.

• The POWER indicator on the TV turns off.

• When the TV is turned off by POWER on the TV, you cannot turn on the power by pressing POWER on the remote control.

POWER indicator

Light off Power off

Lighted (Red) The TV is in standby mode.

Lighted (Green) The TV is on.

POWER indicator

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.

• Minor power is consumed when the unit is in standby mode.

Preparation

About Menu operations

What is Menu?

• You need to bring up the On-Screen Display to perform settings for the TV. The On-Screen Display for the settings is called “Menu”.

• The Menu enables various settings and adjustments. (See pages 16 and 17.)

• The Menu can be operated with the remote control unit.

Basic Menu operations

Press MENU and the MENU screen displays.

[

]


Picture Audio Power Control Setup

AV Mode [STANDARD]

OPC [Off]

Backlight [ +16]–16 +16

Contrast

[ +30] 0 40

Brightness

[ 0]–30 +30

Colour

[ 0]–30 +30

Tint

[ 0]–30 +30

Sharpness

[ 0]–10 +10

Advanced

Reset

Press c/d to select the desired menu, and

then press ENTER.

Audio

STANDARD

Treble

[ 0] –15

Bass

[ 0] –15

Balance

[0]L

SRS TS XT [Off]

Bass Enhancer [On]

Reset

Press a/b to select the desired menu item.

Press ENTER to proceed if necessary.

Audio

STANDARD

Treble

[ 0] –15

Bass

[ 0] –15

Balance

[0]L

SRS TS XT

Bass Enhancer

Reset

Press a/b or c/d to select the desired item

or adjust the item to the desired level. Press ENTER if necessary.

Press EXIT or MENU to exit the MENU.

Press RETURN as necessary to return to the previous MENUs.

Power Control

+15

Power Control

+15

[Off]

[On]

Using the control panel of the TV

You can also operate the Menu using the control panel of the TV. Button operations on the control panel correspond to the ones on the remote control as shown below.

TV control panel buttons Remote control buttons

TV/VIDEO ENTER

r a

s b

VOL

NOTE

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

About Guide Display

The Guide Display at the bottom of the screen shows operations with an On-Screen Display.

ENTER MENU

The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen.

RETURN

Preparation

TV/AV input mode menu items

List of TV/AV menu items to help you with operations


AV Mode ...................................................................... Page 32

OPC .............................................................................. Page 33

Backlight ..................................................................... Page 33

Contrast ....................................................................... Page 33

Brightness ................................................................... Page 33

Colour .......................................................................... Page 33

Tint ............................................................................... Page 33

Sharpness ................................................................... Page 33

Advanced

Colour Temp. .................................................. Page 34

Fine Motion Advanced .................................... Page 34

Film Mode ........................................................ Page 34

Black ................................................................ Page 34

3D-Y/C ............................................................. Page 34

Monochrome ................................................... Page 34

DNR .................................................................. Page 34

Reset ............................................................................ Page 33

Audio

AV Mode ...................................................................... Page 32

Treble ........................................................................... Page 36

Bass ............................................................................. Page 36

Balance ........................................................................ Page 36

SRS TS XT ................................................................... Page 36

Bass Enhancer ............................................................ Page 36

Reset ............................................................................ Page 36

Setup

Auto Installation .......................................................... Page 18

Programme Setup ...............................................Pages 20-23

Child Lock ................................................................... Page 27

Input Skip .................................................................... Page 39

Input Label .................................................................. Page 39

Position ........................................................................ Page 35

HDMI Auto View .......................................................... Page 37

WSS ............................................................................. Page 30

4:3 Mode ...................................................................... Page 30

Standby Mode ............................................................. Page 26

Language ..................................................................... Page 19

Text Language ............................................................ Page 53

Identiﬁ cation ............................................................... Page 56

Reset ............................................................................ Page 56

Option

AQUOS LINK Setup .................................................... Page 41

Input Select

INPUT4 ............................................................. Page 38

INPUT5 ............................................................. Page 38

INPUT6 ............................................................. Page 38

HDMI Audio Select ..................................................... Page 37

Output Volume Select ................................................ Page 36

Audio Only ................................................................... Page 25

Game Play Time .......................................................... Page 35

Colour System ............................................................ Page 39

Power Control

No Signal Off ............................................................... Page 28

No Operation Off ........................................................ Page 28

Ecology ........................................................................ Page 29

NOTE

• Some menu items may not be displayed depending on the selected input source.

Preparation

PC input mode menu items

List of PC menu items to help you with operations


AV Mode ...................................................................... Page 32

OPC .............................................................................. Page 33

Backlight ..................................................................... Page 33

Contrast ....................................................................... Page 33

Brightness ................................................................... Page 33

Advanced

Colour Temp. .................................................. Page 34

Reset ............................................................................ Page 33

Audio

AV Mode ...................................................................... Page 32

Treble ........................................................................... Page 36

Bass ............................................................................. Page 36

Balance ........................................................................ Page 36

SRS TS XT ................................................................... Page 36

Bass Enhancer ............................................................ Page 36

Reset ............................................................................ Page 36

Power Control

Power Management ................................................... Page 29

No Operation Off ........................................................ Page 28

Ecology ........................................................................ Page 29

Setup

Input Skip ................................................................... Page 39

Input Label ................................................................. Page 39

Standby Mode ............................................................ Page 26

Language .................................................................... Page 19

Reset ........................................................................... Page 56

Option

AQUOS LINK Setup .................................................... Page 41

Input Select

INPUT4 ............................................................. Page 38

INPUT5 ............................................................. Page 38

INPUT6 ............................................................. Page 38

Output Volume Select ................................................ Page 36

Audio Only ................................................................... Page 25

Fine Sync.

Input Signal...................................................... Page 48

Auto Sync. ...................................................... Page 47

H-Position ........................................................ Page 47

V-Position ........................................................ Page 47

Clock ................................................................ Page 47

Phase ............................................................... Page 47

Reset ................................................................ Page 47

NOTE

• Some menu items may not be displayed depending on the selected input source.

Watching TV

Setting channels automatically

You can run auto installation again, even after setting up the preset channels.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

If you have already set the password, enter it

here.

• See page 27 for setting a password.

Press c/d to select “Yes”, and then press

ENTER.

Press a/b to select the desired language

listed on the screen, and then press ENTER. Press a/b to select the desired sound system, and then press ENTER. You do not need to do anything during the auto search. “Search is completed.” is displayed. Press MENU to exit.

Press a/b to select “Auto Installation”, and

then press ENTER.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Input Skip

Input Label

Position

HDMI Auto View

WSS

4:3 Mode

Standby Mode

Language

Text Language [West Europe]

Identification

Reset

Auto Installation

[Panorama]

]

[Off]

[Mode1]

[English]

Watching TV

Selecting programmes Adjusting the volume

You can change channels in several ways.

Using CHr/s on the remote control unit

• Press CHr to increase the channel number.

• Press CHs to decrease the channel number.

NOTE

• CHr/s on the TV operates the same as CHr/s on

the remote control unit.

Changing the volume

You can change the volume on the TV or on the remote control unit.

• To increase the volume, press VOLk.

• To decrease the volume, press VOLl.

Using 0 — 9 on the remote control unit Select the channels directly by pressing buttons 0 to 9.

To select a 1-digit channel (e.g. channel 2):

• Press 0, followed by 2. To select a 2-digit channel (e.g. channel 12):

• Press 1, followed by 2.

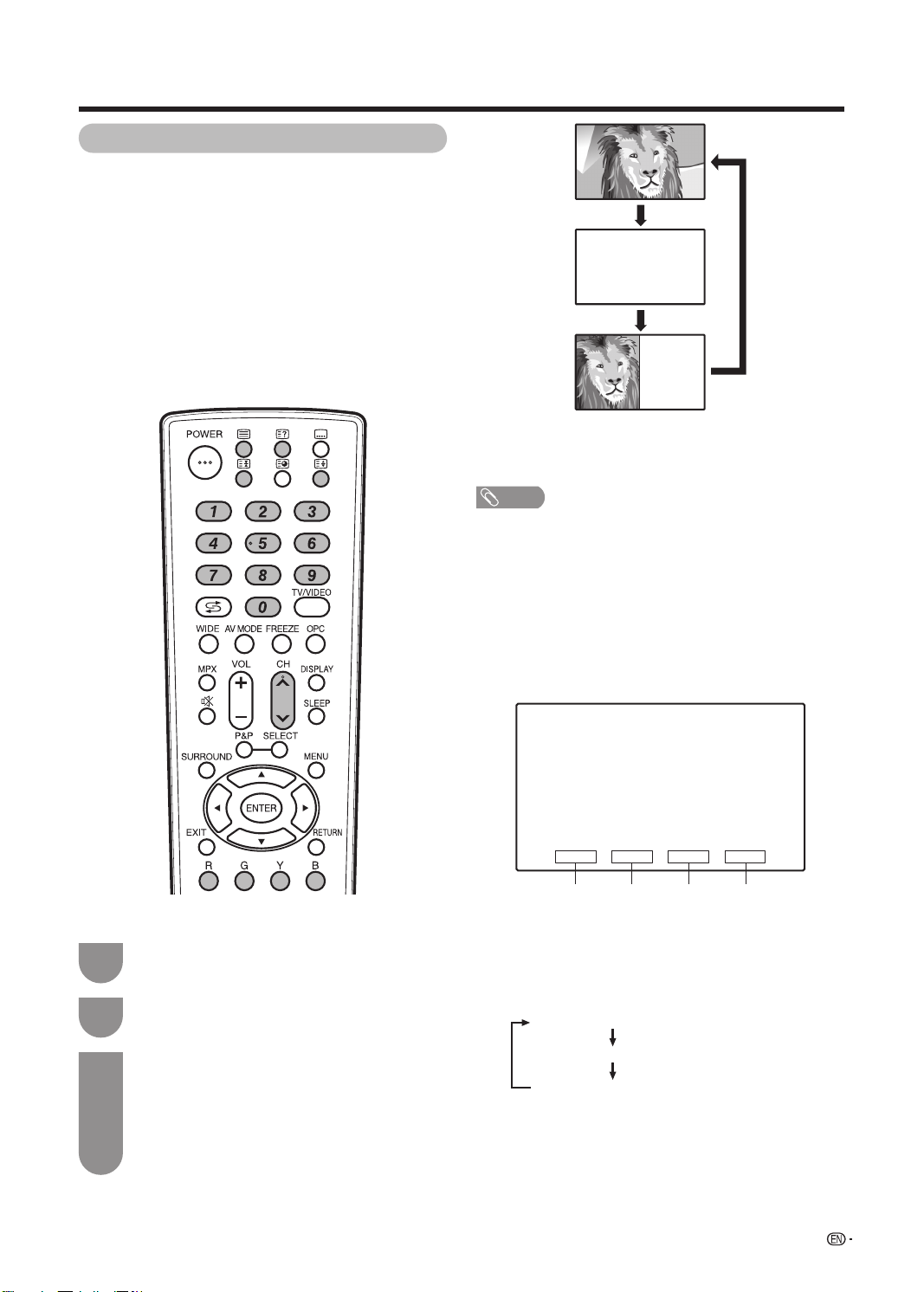

When viewing Teletext information

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9.

Channel display

(Example)

SAT.1

PAL

B/G

MONO

NOTE

• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4”, “INPUT5”, “INPUT6” and “INPUT7” (PC) modes can store volume adjustment values separately.

Menu language settings

You can also select a language from setup menu. Select from among 4 languages: English, Simpliﬁ ed Chinese, Traditional Chinese and Arabic.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then

press ENTER.

Press a/b to select the desired language

listed on the screen, and then press ENTER.

Watching TV

Setting channels to your preference

You can run the auto search procedure again at any time by accessing the Setup menu and Programme Setup. Channels can be tuned automatically or manually.

Auto search

You can also automatically search by performing the procedure below. This is the same function as programme auto search in auto installation.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and

then press ENTER. If you have already set the password, enter it

here.

• See page 27 for setting a password.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Input Skip

Input Label

Position

HDMI Auto View

WSS

4:3 Mode

Standby Mode

Language

Text Language [West Europe]

Identification

Reset

Programme Setup

[Panorama]

[Mode1]

[English]

]

[Off]

Manual setting for each channel

You can set some channel items manually. They are Search, Fine (TV frequency), Colour System, Sound System, Label (Network name), Skip and Lock (Child Lock).

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and

then press ENTER. If you have already set the password, enter it here.

• See page 27 for setting a password.

Press a/b to select “Manual Adjust”, and

then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Programme Setup “Manual Adjust” menu

Please select channel to be edited

01 SAT.1 02 PR07 03 04 05

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

You can select one of the following settings.

KABEL

Press a/b to select “Auto Search”, and then

press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Press a/b to select the desired sound system, and then press ENTER.

“Search is completed.” is displayed. Press MENU to exit.

Search (See page 21.)

Fine (See page 21.)

Colour System (See page 21.)

Sound System (See page 21.)

Label (See page 22.)

Skip (See page 22.)

Lock (See page 22.)

Watching TV

Manual setting for each channel (continued)

Search tuning

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Search”, and then press

ENTER.

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b to select item and press ENTER.

• Next: Search the next channel.

• Store: Memorise the current display channel.

• Cancel: Return to the previous screen.

(The search result will not be stored.)

Fine tuning

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Fine”, and then press

ENTER.

Press c/d to adjust the frequency, and then

press ENTER.

• Adjust while checking the background picture as a reference.

Fine

Colour System

Sound System

Label

Skip

Lock

[

Setup

...

Programme Setup

[Auto]

[B/G]

[SAT.1]

[Off]

[Auto]

[B/G]

[SAT.1]

[Off]

]

Channel frequency settings

179.25 MHz

Store

Cancel

Channel frequency settings

179.25 MHz

Colour System

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Colour System” and

then press ENTER.

• Receivable colour systems are listed.

Colour system menu

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b to select the optimum colour

system, and then press ENTER.

[Auto]

[B/G]

[SAT.1]

[Off]

Colour system settings

Auto

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

Sound System (Broadcasting system)

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Sound System”, and

then press ENTER.

• Receivable sound systems (Broadcasting systems) are listed.

Sound system menu

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b to select the optimum sound

system, and then press ENTER.

[Auto]

[B/G]

[SAT.1]

[Off]

Sound system settings

B/G

D/K

• Instead of the method above, you can also set by directly entering the frequency number of the channel with 0 — 9.

• When setting a frequency on the “Fine” screen, the last ﬁ gure of the frequency needs to be “0” or “5”.

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

NOTE

• Check the sound system if the sound output were not correct.

Watching TV

Manual setting for each channel (continued)

Labelling channels

When a TV channel sends its Network Name, the auto installation detects the information and assigns a name to it. However, you can change individual channel names.

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Label”, and then press

ENTER.

• The alphabet and numbers are listed.

Labelling menu

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b/c/d to select each character of

the new name for the channel, and then press

[Auto]

[B/G]

[SAT.1]

[Off]

Broadcasting station name settings

CLEAR

BACK

END

ENTER.

Repeat until the name is fully spelt out.

• The name can be 5 characters or less.

• When you want to set a channel name of less than 5 characters, select “END”.

Skipping channels

Channels with “Skip” set to “On” are passed over when using CHr/s even if selected while watching the image from the TV.

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information will be displayed.

Setting the child lock

You can block the viewing of any channel.

Press a/b/c/d to select the channel you

want to edit, and then press ENTER.

• The selected channel information will be displayed.

Press a/b to select “Lock”, and then press

ENTER.

• Child lock menu will be displayed.

Lock menu

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b to set “Lock” to “On”, and then

press ENTER.

[Auto]

[B/G]

[SAT.1]

[Off]

NOTE

• See page 27 for setting a password.

• If “Lock” is set to “On” for a channel, “Child lock has been activated” is displayed when you select the channel, and the image and sound of the channel is blocked.

• When pressing ENTER while “Child lock has been activated” is displayed, password input menu will be displayed. Inputting the correct password lifts the child lock temporarily until the power is turned off.

Applies child lock to this channel

Off

Press a/b to select “Skip”, and then press

ENTER.

• Skip menu displays.

Skip menu

Fine

Colour System

Sound System

Label

Skip

Lock

Press a/b to set “Skip” to “On”, and then

press ENTER.

[Auto]

[B/G]

[SAT.1]

[Off]

Channel skip settings

Off

Watching TV

Sorting programmes

Channel positions can be sorted freely.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and

then press ENTER. If you already set the password, enter it here.

• See page 27 for setting a password.

Press a/b to select “Sort”, and then press

ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Press a/b/c/d to select the channel you

want to move, and then press ENTER.

Move it to the desired position by pressing

a/b/c/d

Repeat the steps 6 and 7 until all desired

channels are sorted.

, and then press ENTER.

Sort menus

Please select channel to replace

01 SAT.1

SAT.1 KABEL

11 12 13 14 15

16 17 18 19 20

03 02 04 05

07 08 09 10

Erasing programmes

The individual programme can be erased.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and

then press ENTER. If you already set the password, enter it here.

• See page 27 for setting a password.

Press a/b to select “Erase Programme”, and

then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Press a/b/c/d to select the channel you

want to erase, and then press ENTER.

Press ENTER to erase the channel.

All the subsequent programmes move up.

Repeat the steps 6 and 7 until all desired

channels are erased.

Erase programme menus

Please select channel to erase

01 SAT.1

SAT.1 PRO7 02 KABEL 03 04 05

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Please select channel to replace

SAT.1 KABEL

07 08 09 10

11 12 13 14 15

16 17 18 19 20

Please select channel to replace

KABEL SAT.1

07 08 09 10

11 12 13 14 15

16 17 18 19 20

02 KABEL

01 SAT.1

03 02 04 05

01 KABEL

03 02 04 05

Please select channel to erase

02 PRO7

01 SAT.1 03 KABEL PRO7 02

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Please select channel to erase

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

04 05

02 KABEL

03 04 05

Watching TV

Useful viewing functions

Split-screen viewing

This function is conveniently used when, for instance, watching cooking programmes and taking notes.

Split-screen

You can display two pictures except when inputting from the RS-232C or PC INPUT terminal.

Press P&P.

• Split-screen displays and a selected input source image displays.

Press SELECT to set either screen to be

active.

• “z” displays on the active screen, which has sound output.

Press TV/VIDEO to select another input

source on the active screen.

• A selected image displays.

Press P&P to exit split-screen.

NOTE

• This function does not work under the following input conditions:

Two pictures from the same source (e.g. INPUT1 and

INPUT1), Two pictures with different vertical frequency (e.g. PAL

and PAL-60, PAL (50 Hz) and NTSC (60 Hz))

• When you press P&P, the current input is moved to the left side screen display, and the other input appears on the right side screen display.

When you cannot acquire split-screen capability, perform

the operation below.

— Select another input whose vertical frequency is same as one of the current inputs (e.g. PAL and PAL).

• When this function is not available, “No dual screen display available.” will display.

• Split-screen function is only applicable with combination of “HDMI input” and “other type inputs (except PC input)” or “HDMI input” and “TV input”.

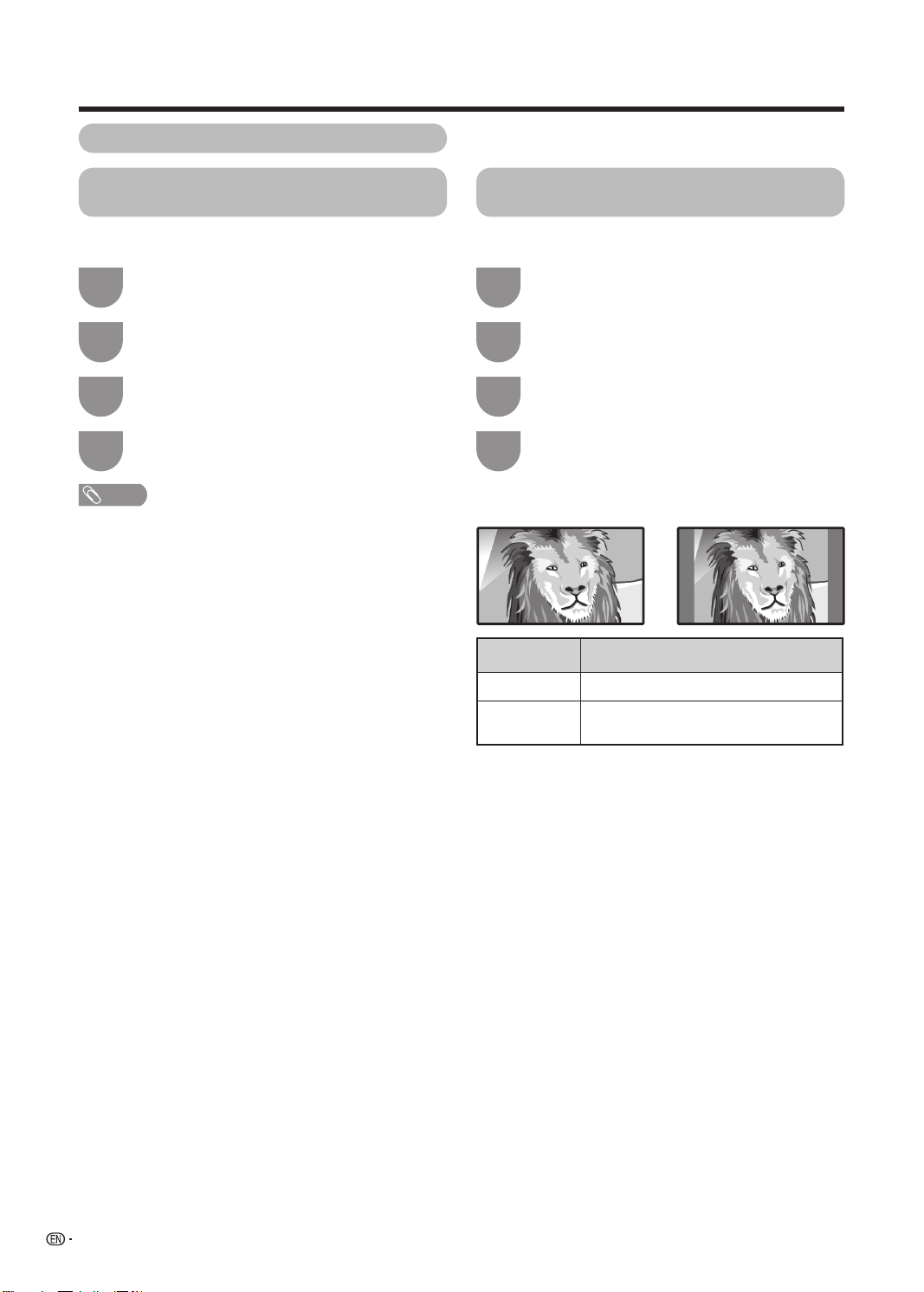

Picture and still image

You can freeze a motion picture on the Display.

Press FREEZE.

• A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press FREEZE.

FREEZE

(Example)

Reshoot the still image by pressing ENTER.

• Each time you press ENTER, the image on the right screen updates.

Press RETURN to exit still image.

NOTE

• The still image automatically goes out after 30 minutes.

Watching TV

Returning to the previously selected channel

Press A to switch the currently tuned channel to the previously tuned channel. Press A again to switch back to the currently tuned channel.

Press A to toggle between the currently selected input source and the previously selected one.

Press A to return to the previous page in TELETEXT mode.

Muting the audio temporarily

Using Mute (e) on the remote control unit

mutes the current sound output.

Press e.

• The sound is silenced.

• “M” is displayed while the mute function is on.

Mute

Outputting only audio

When listening to music from a music programme, you can set the display off and enjoy audio only.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Only”, and then

press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item Description

On Audio is output without screen image.

Off

NOTE

• When you make operations that change the picture on the TV such as by changing the input source, the Audio Only function is set to “Off”.

Both screen images and audio are output.

Press e again within 30 minutes to cancel the

mute.

• Before 30 minutes, the volume level returns to the previous setting.

NOTE

• Mute will be cancelled after 30 minutes. However, the TV will not suddenly output loud sound as the volume level will be set to 0 automatically. Increase the volume level by pressing VOLk.

Watching TV

Switching the analogue audio format

You can switch between multiple audio modes when watching a multiple audio or stereo broadcast programme.

When receiving a bilingual signal

Each time you press MPX, the mode switches among CH A, CH B and CH AB.

Bilingual mode

PAL

BBC2

B/G

CH A

PAL

BBC2

B/G

CH B

In the NICAM TV broadcasts When receiving a stereo signal

Each time you press MPX, the mode switches between NICAM STEREO and MONO.

Stereo mode

BBC2

MONO

NICAM

BBC2

B/G PAL B/G PAL

STEREO

When receiving a bilingual signal

Each time you press MPX, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

PAL

NICAM

BBC2

B/G

CH A

BBC2

MONO

PAL

NICAM

BBC2

B/G

CH B

BBC2

B/G PAL B/G PAL

CH AB

When receiving a monaural signal

Each time you press MPX, the mode switches between NICAM MONO and MONO.

Monaural mode

NICAM

BBC2

B/G PAL B/G PAL

MONO

BBC2

MONO

BBC2

PAL

B/G

CH AB

When receiving a monaural signal When you press MPX, “MONO” displays.

Monaural mode

BBC2

B/GPA L

MONO

NOTE

• “BBC2” and “99” are tentative network name and channel.

Reducing the start-up time

You can reduce the TV's start-up time after the turning on the power with the remote control unit.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Standby Mode”, and

then press ENTER.

Press c/d to select “Mode1” or “Mode2”,

and then press ENTER.

Selected item Description

In the TV mode of A2 TV broadcasts When receiving a stereo signal

Each time you press MPX, the mode switches between STEREO and MONO.

Stereo mode

BBC2

PAL

B/G

STEREO

PAL

BBC2

B/G

MONO

Mode1 Starting the TV is quick from standby.

Mode2 Power consumption is small during

standby.

Press MENU to exit.

Watching TV

Password setting for the child lock (for TV input mode)

Allows you to use a password to protect certain settings from being accidentally changed.

Setting a password

Press MENU and the MENU screen displays.

Clearing the password

Allows you to clear your password.

Repeat steps 1 to 4 in Setting a password.

Press a/b to select “Clear password”, and

then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Change password

Clear password

Yes

Clear password

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then

press ENTER.

If you already set the password, enter it here.

Press a/b to select “Change password”, and

then press ENTER.

Change password Change password

Clear password

New Password

Reconfirm

Enter the 4-digit number as a password using

0 — 9.

Change password

Clear password

Enter your new password. Use 4 digits

New Password

Reconfirm

NOTE

• As a precautionary measure, make a note of your password on the back of this operation manual, cut it out and keep it in a safe place that children cannot reach.

• This function is only available for TV input mode.

• To relock a channel which has been temporarily unlocked by inputting the correct password, turn power off and then on again.

Enter the same 4-digit number as in step 6 to

conﬁ rm.

NOTE

• To view a locked channel (Lock setting in Programme Setup “Manual Adjust” is set to “On”), you must enter a password. (See page 22.) When you select a locked channel, a password prompt message pops up.

• Press ENTER to display the password input window.

Watching TV

Energy conservation settings

Auto power-off at a designated time

This function is conveniently used when, for instance, going to bed while watching TV.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Sleep timer: Remain 2 hr. 00 min.

Each time you press SLEEP, the remaining

time switches as shown below.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

• When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the remaining time displays each minute.

• Select “Off” by pressing SLEEP to cancel the sleep timer.

2 hr. 30 min. 2 hr. 00 min.

Auto power-off after the end of broadcast

You can set the TV to automatically power off in about 15 minutes after the TV goes into a state of receiving no programme signals, such as the end of a broadcast day.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “No Signal Off”, and then

press ENTER.

Press c/d to select “Enable”.

• Five minutes before the power shuts down, the remaining time displays every minute.

NOTE

• “Disable” is the factory preset value.

• When a TV programme ﬁ nishes, and the TV receives signal input, this function may not operate.

Auto power-off when there are no operations performed

You can set the TV to automatically power off when no TV operation is performed for more than 3 hours.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “No Operation Off”, and

then press ENTER.

Press a/b to select “30min.” or “3hr.”.

• Five minutes before the power shuts down, the remaining time displays every minute.

NOTE

• “Disable” is the factory preset value.

Watching TV

Power Management

You can set the TV to automatically power off when no image is displayed on PC.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “Power Management”,

and then press ENTER.

Press a/b to select “Mode1” or “Mode2”,

and then press ENTER.

Power saving mode settings

Off

Mode1

Mode2

Selected item

Off

• No power management

• Factory preset value.

Description

Ecology

When set to “Yes”, the TV activates the following power saving mode.

• “OPC” set to “On” (Page 33)

• “Standby Mode” set to “Mode2” (Page 26)

• “No Signal Off” set to “Enable” (Page 28)

• “No Operation Off” set to “3hr.” (Page 28)

• “Power Management” set to “Mode1” (Page 29)

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “Ecology”, and then

press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

• Ecology mode cannot be deactivated by selecting “No”. Each setting must be changed individually to deactivate Ecology mode.

Mode1

Mode2

NOTE

• If you turn off the power by disconnecting AC cord when setting “Mode2” in power management, the TV may not function properly after turning the power on again. In such case, press POWER on the remote control unit.

• Pressing POWER on the display will have the same result.

• If no signal inputs for approximately 8 minutes, the power shuts down.

• Even if you start using the PC and the signal inputs again, the TV stays off.

• The TV turns on again by pressing POWER. (See page 14.)

• If no signal inputs for approximately 8 seconds, the power shuts down.

• When you start using the PC and the signal inputs again, the TV turns on.

• The TV turns on again by pressing POWER. (See page 14.)

Watching TV

Picture size settings

Selecting the Wide Screen Signalling (WSS) picture size automatically

WSS allows a television to switch automatically among the different screen formats.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “WSS”, and then press

ENTER.

Press c/d to select “On” or “Off”, and then

press ENTER.

NOTE

• Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled.

Selecting the Wide Screen Signalling (WSS) picture size manually

The WSS signal has 4:3 auto-switching that allows you to select between Panorama and Normal.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “4:3 Mode”, and then

press ENTER.

Press c/d to select “Panorama” or “Normal”,

and then press ENTER.

WSS signal 4:3 screen

4:3 mode “Panorama” 4:3 mode “Normal”

Selected item Description

Panorama Wide image without side bars

Normal Normal range keeping 4:3 or 16:9 aspect

ratio

Watching TV

Selecting the picture size manually

Manual Selection

You can select different picture sizes that account for the kind of each picture.

Press WIDE.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable for the type of video signal currently received.

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Press WIDE or a/b while the WIDE MODE

menu displays on the screen.

• As you toggle down the options, each mode is immediately reﬂ ected on the TV.

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on page 30, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu to “On”. (See page 30.)

“4:3 Mode” menu

To set the type of the wide screen, select “Panorama” or “Normal” in the 4:3 Mode menu. (See page 30.)

4:3 Mode set to “Panorama” 4:3 Mode set to “Normal”

NOTE

• If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.

Selected item Description

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Dot by Dot

Underscan

Normal

Cinema 14:9 Cinema 16:9 Full

For 4:3 “standard” pictures. A side bar appears on each side.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

In this mode the picture is progressively stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Displays an image with the same number of pixels on the screen (only when receiving a 1080i/1080p/SXGA/SXGA+ signal).

Display with an Underscan image only when receiving a 720p signal. Display with the High-Deﬁ nition image adjusted optimally. Noise may appear on the edge of the screen with some programmes.

Zoom 14:9 Panorama

NOTE

• Some picture sizes may not be displayable depending on the input signal.

Watching TV

Selecting a preset AV Mode

The AV Mode function enables you to select appropriate settings for audio and video to account for the system environment which can vary due to factors like room brightness, type of programme watched or the type of image input from external equipment.

Using AV MODE on the remote control unit

Press AV MODE.

• Present AV Mode displays.

Press AV MODE again before the mode

displayed on the screen disappears.

• The mode changes as shown below.

AV input mode

AV Mode: STANDARD

AV Mode: DYNAMIC

AV Mode: MOVIE

AV Mode: GAME

Selected item Description

STANDARD For a highly deﬁ ned image in a normally

MOVIE For a movie

GAME Lowers image brightness for easier

PC For PC. (Available only when inputting an

USER Allows the user to customise settings as

DYNAMIC (FIXED)

DYNAMIC For a clear-cut image emphasising high

NOTE

• You can select a different AV Mode item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

• During PC input mode, only “PC”, “STANDARD” and “USER” can be selected under the AV mode selection.

bright room

viewing.

HDMI or PC signal.)

desired. You can set the mode for each input source.

Changes the image and sound settings to the factory preset values. No adjustments are allowed.

contrast for sports viewing.

AV Mode: DYNAMIC (FIXED)

AV Mode: USER (TV)

AV Mode: PC

PC input mode

AV Mode: PC

AV Mode: USER ( )

AV Mode: STANDARD

Using AV Mode on the menu screen

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “AV Mode”, and then

press ENTER.

Press a/b/c/d to select the desired item,

and then press ENTER.

Watching TV

Manual picture settings

Picture adjustment

You can adjust the picture to your preference. Follow the steps to adjust the picture.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

[

]


Picture Audio

AV Mode [STANDARD]

OPC [Off]

Backlight [ +16] –16

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

[ +30] 0

[ 0] –30

[ 0] –10

+16

+30

+10

Selected item

OPC Sets whether or not the screen brightness

Backlight The screen dims The screen

Contrast For less contrast For more contrast

Brightness For less brightness

Colour For less colour

Tint Skin tones become

Sharpness For less sharpness

Advanced

Reset Resets all picture adjustment items to the

OPC (Optical Picture Control) setting

button

is automatically adjusted according to the lighting condition in the room. (OPC setting: See this page.)

intensity

purplish

For ﬁ ner picture adjustments. (See page 34.)

factory preset values.

button

brightens

For more brightness

For more colour intensity

Skin tones become greenish

For more sharpness

You can set the TV to automatically adjust the screen to suitable backlight brightness according to the lighting conditions.

OPC indicator

Using OPC on the remote control unit

Press a/b to select the desired menu item.

Press ENTER to proceed if necessary.

Press a/b or c/d to select the desired item

or adjust the item to the desired level. Press

ENTER if necessary.

NOTE

• For resetting all adjustment items to factory preset values, pressa/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

• Select “Advanced” and then press ENTER to set “Colour Temp.”, “Fine Motion Advanced”, “Film Mode”, “Black”, “3D-Y/C”, “Monochrome” or “DNR”. See page 34.

Press OPC to switch the OPC function on or off.

Using OPC on the menu screen

Selected item Description

On:Display Displays the OPC effect on the screen

On Automatically adjusts

Off The brightness is ﬁ xed at the value set in

while adjusting the brightness of the screen.

“Backlight” (See this page).

OPC indicator

Light off

Lighted (Green)

NOTE

• Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

“Off” is selected in the OPC setting.

“On” or “On:Display” is selected in the OPC setting.

Watching TV

Advanced picture settings

The advanced settings enable you to set the picture adjustment in more detail. There are seven options you can choose from.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then

press ENTER.

Press a/b to select the desired menu, and

then press ENTER.

Press a/b or c/d to select the desired level,

and then press ENTER if necessary.

Colour Temp. (Colour Temperature)

Adjusts the colour temperature to give the best white image.

Selected item Description

High Mid-High Middle Mid-Low Low

Fine Motion Advanced

Use Fine Motion Advanced to view fast-action images more clearly.

Selected item Description

On For obtaining a clear image

Off Normal image

NOTE

• Fine Motion Advanced may cause image noise. If this occurs, set the function to “Off”.

White with bluish tone

White with reddish tone

H Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Selected item Description

On For high detail in black portions

Off No adjustment

3D-Y/C

Provides high quality images with minimal dot crawl and cross colour noise.

Selected item Description

Standard Normal adjustment

Fast For movie image

Slow For still image

Off 3D-Y/C off

NOTE

• 3D-Y/C is not selectable depending on the input signal type.

• 3D-Y/C may not operate depending on the input signal type or noisy input signal.

Monochrome

For viewing images in monochrome.

DNR (Digital Noise Reduction)

Reduces noise on the screen and produces a clearer video image.

Selected item Description

Off DNR setting off

High Higher noise reduction

Low Lower noise reduction

Film Mode

Automatically detects a ﬁ lm-based source (originally encoded at 24/25 frames/second, depending on the vertical frequency), analyses it then recreates each still ﬁ lm frame for high-deﬁ nition picture quality.

Watching TV

Other picture settings

Adjusting the image position

For adjusting a picture's horizontal and vertical position.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then

press ENTER.

Press a/b to select “H-Position” or

“V-Position”.

or right.

down.

Display position adjustment

[ 0]-20

Reset

+20

H-Position [ 0]-10 +10

V-Position

Selected item Description

H-Position Centres the image by moving it to the left

V-Position Centres the image by moving it up or

Game Play Time

This function displays the elapsed game time so you do not lose track of the time. To display the elapsed time, select “GAME” under “AV Mode” for the input mode of the terminal connected to the game console before starting the game.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Game Play Time”, and

then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item Description

On The elapsed time is displayed every 30

Off No adjustment

minutes when you switch to GAME mode in external input mode.

Press c/d to adjust the item to your desired

position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

• Adjustments are stored separately according to input

source.

• Images may not be displayed properly depending on the settings and/or signals.

Watching TV

Audio adjustment

You can adjust the audio of the selected AV mode.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Audio

STANDARD

Treble

Bass

Balance

SRS TS XT

Bass Enhancer

Reset

[ 0] –15

[0]L

Power Control

+15

[Off]

[On]

Press a/b to select the desired menu item. Press ENTER to proceed if necessary.

Press c/d to select the desired item or adjust the item to the desired level. Press ENTER if necessary.

Selected item

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decrease audio from

button

the right speaker

dbutton

Decrease audio from the left speaker

Bass Enhancer

This function allows you to enjoy bass-enhanced sound.

Repeat steps 1 to 2 in Audio Adjustment.

Press a/b to select “Bass Enhancer”, and

then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item Description

On Bass Enhancer function is on.

Off Outputs the normal sound.

Output Volume Select

Allows you to select what controls the audio output.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, press ENTER, press

to select “Yes”, and then press ENTER.

c/d

H SRS TruSurround (TS) XT

You can enjoy SRS TruSurround XT sound, the same as if you were in a movie theatre.

Using SURROUND on the remote control unit

Press SURROUND to switch the SRS TS XT function on or off.

Using SRS TS XT on the menu screen

You can produce SRS TruSurround XT effects from the “Audio” setting.

Selected item Description

On SRS TruSurround XT creates a high

Off Outputs the normal sound.

quality surround sound experience, when watching DVD movies and TV programmes broadcast in surround sound.

Press a/b to select “Output Volume Select”,

and then press ENTER.

Press c/d to select “Fixed” or “Variable”, and

then press ENTER.

Audio output terminal setting

Fixed

Selected item Description

Fixed • Sound via speakers is adjusted with VOL

Variable • Sound via the MONITOR OUT terminal is

NOTE

• The “Audio” menu cannot be operated when headphones are plugged in or when “Variable” is selected.

on the remote control unit or the

e/f

TV.

• Sound via the MONITOR OUT terminal is not adjustable and constantly outputs.

adjusted with VOL e/f on the remote control unit or the TV.

• Sound via speakers is muted.

Variable

Settings when using external devices

Settings when using HDMI output devices

HDMI terminals can carry audio and visual signals to the TV with an HDMI certiﬁ ed cable. When you want to output the audio and picture from an HDMI output device on the TV, select “INPUT1”, “INPUT2” or “INPUT3” by switching the input source.

nnecting an HDMI output device

HDMI cable (commercially available)

HDMI output device

HDMI (High-Deﬁ nition Multimedia Interface)

Auto View

To watch an HDMI equipment image, select

“INPUT1”, “INPUT2” or “INPUT3” using TV/ VIDEO on the remote control unit or on the TV.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “HDMI Auto View”, and

then press ENTER.

• The HDMI Auto View can be selected only when “INPUT1”, “INPUT2” or “INPUT3” is selected.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Input Skip

Input Label

Position

HDMI Auto View [Enable]

Press c/d to select the desired item, and

then press ENTER.

Selected items Description

Enable/ Disable

HDMI Auto View

Set whether or not to use WIDE MODE based on signal recognition, including an HDMI signal.

]

[DVD]

HDMI Audio Select

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “HDMI Audio Select”,

and then press ENTER.

• The HDMI Audio Select can be selected only when “INPUT1” is selected.

Option

AQUOS LINK Setup

Input Select

HDMI Audio Select

Output Volume Select

Audio Only

Game Play Time

Colour System

Fine Sync.

Press c/d to select the desired setting, and

then press ENTER.

Selected items Description

Digital/ Analogue

NOTE

• Refer to your external equipment operation manual for the above settings.

• When connecting a DVI-HDMI conversion adaptor/cable to the HDMI terminal, the image may not come in clearly.

• “HDMI Audio Select” is only available for INPUT1.

Select “Digital” for audio signal via the HDMI terminal. Select “Analogue” for audio signal via the AUDIO jack.

[Digital]

[Fixed]

[On]

Settings when using external devices

Selecting the input source and signal type

Selecting input source

Can use for selecting the input source.

Using TV/VIDEO on the remote control unit or on the TV

TV/VIDEO allows you to choose from the available

input sources.

Press TV/VIDEO on the remote control unit or

on the TV.

Press TV/VIDEO on the remote control unit or

on the TV to select the input source.

• The image and sound from the selected source are output on the TV.

• You can also select the input source by pressing

a/b

Selecting input signal type

For setting the signal type of external equipment.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then

press ENTER.

Press a/b to select a signal type you want to

set, and then press ENTER.

Input source Selectable item

INPUT4 Auto, S-VIDEO, VIDEO

INPUT5 Auto, COMPONENT, VIDEO

INPUT6 Auto, COMPONENT, VIDEO

NOTE

•

If no colour image displays, try changing the other signal type.

• Check the operation manual of the external equipment for the signal type.

• When the signal type is set to “Auto”, the input terminal where a cable is connected is automatically selected.

• When the signal type is set to “Auto” and multiple video signal cables are connected, the signal type is selected in the following prioritised order:

INPUT4: S-VIDEO s VIDEO INPUT5/INPUT6: COMPONENT s VIDEO

Settings when using external devices

Labelling input sources

You can assign each input source a label as you prefer.

Press TV/VIDEO to select the desired input

source.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then

press ENTER.

Press a/b/c/d to select each character of

the new name for the input source, and then press ENTER.

External equipment name settings

Skipping HDMI/RGB input

This setting allows you to skip the HDMI or RGB input on the “Input Select” menu.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Skip”, and then

press ENTER.

Press a/b to select the Input (INPUT1 to

INPUT3 and INPUT7) you wish to skip, and then press ENTER.

INPUT1 (HDMI)

INPUT2 (HDMI)

INPUT3 (HDMI)

INPUT7 (RGB)

Press c/d to select “Yes”, and then press

ENTER.

Press MENU to exit.

Skip input selection of HDMI

Yes

CLEAR

BACK

END

(Example)

Repeat until the name is fully spelt out.

• The name can be 6 characters or less.

• When you want to set an input source name of less than 6 characters, select “END”, then press ENTER to exit from the labelling menu.

INPUT SOURCE

DVD

INPUT2

INPUT3

INPUT4

INPUT5

INPUT6

INPUT7

(Example)

NOTE

• You cannot change labels if the input source is TV.

Colour system settings

You can change the colour system to one that is compatible with the image on the screen.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Colour System”, and

then press ENTER.

Press a/b to select a compatible video signal

system of your equipment, and then press ENTER.

Colour system settings

AUTO

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

NOTE

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).

• “Colour System” is selectable only when inputting an S-VIDEO or composite signal.

AQUOS LINK

Controlling HDMI devices using AQUOS LINK

What is AQUOS LINK?

Using the HDMI CEC (Consumer Electronics Control) protocol, with AQUOS LINK you can interactively operate compatible system devices (AV ampliﬁ er, DVD, Blu-ray Disc device) using a single remote control. By connecting AQUOS LINK-compatible devices with HDMI-certiﬁ ed cables to the TV, you can control a recorder or AV ampliﬁ er using the remote control of the TV. AQUOS LINK allows you to operate the HDMI-connected equipment with one remote control.

NOTE

• Please check the availability of AQUOS LINK-compatible AQUOS BD Players and AQUOS LINK-compatible audio systems via the sole agent in your country.

What you can do with AQUOS LINK

One Touch Play

✔

While the TV is in standby mode, it automatically turns on and plays back the image from the HDMI source.

Single remote control operation

✔

The AQUOS LINK automatically recognises the connected HDMI device and you can control the TV and the devices as if using a universal remote control.

Operating Title list of external devices

✔

You can also call up the external player’s Top menu or AQUOS BD Player’s Title list provided that the devices support AQUOS LINK.

Multiple control of HDMI devices

✔

You can select which HDMI device to operate using OPTION.

Controlling the AQUOS LINK-compatible audio system

✔

You can adjust the volume and select the sound mode of the AQUOS LINK-compatible audio system.

NOTE

• Point the remote control toward the TV, not to the connected HDMI device.

• Video noise may occur depending on the type of HDMI-certiﬁ ed cable used. Make sure to use a HDMI-certiﬁ ed cable.

• Up to 3 pieces of HDMI recording equipment and one AV ampliﬁ er can be connected using this system.

• These operations affect the HDMI device selected as the current input source. If the device does not operate, turn on the device and select the appropriate input source using TV/VIDEO.

• When you insert/remove HDMI-certiﬁ ed cables or change connections, turn on all connected HDMI devices before turning on the TV. Conﬁ rm that picture and audio are correctly output by selecting “INPUT1”, “INPUT2” or “INPUT3” from the INPUT SOURCE menu.

AQUOS LINK

AQUOS LINK connection

First connect the AQUOS LINK-compatible audio system or an AQUOS BD Player that supports the HDMI CEC protocol.

NOTE

• Refer to the operation manual of the device to be connected for further details.

• After unplugging connection cables or changing the connection pattern, ﬁ rst turn on the power of the TV with all relevant

device’s power turned on. Change the external input source by pressing TV/VIDEO, select the appropriate input source and verify the audiovisual output.

• The cables illustrated in the following explanation are commercially available items.

Connecting an AQUOS BD Player via the AQUOS LINKcompatible audio system

Optical ﬁ bre

HDMI-certiﬁ ed cable

AQUOS BD Player AQUOS LINK-compatible

audio system

cable

AQUOS LINK Setup

Connecting an AQUOS BD Player only

HDMI-certiﬁ ed cable

AQUOS BD Player

AQUOS LINK Auto power on

If this is activated, the One Touch Play function is enabled. While the TV is in standby mode, it automatically turns on and plays back the image from the HDMI source.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “AQUOS LINK Setup”,

and then press ENTER.

Press a/b to select “Auto Power On”, and

then press ENTER.

Auto Power On

Selecting Recorder

Press c/d to select “On”, and then press

ENTER.

Press MENU to exit.

NOTE

• The factory default for this item is “Off”.

Setting auto power on by AQUOS LINK

Off

AQUOS LINK

Selecting recorder

You can select a recorder for the recording from several connected recorders.

Repeat steps 1 to 3 in AQUOS LINK Auto

power on.

Press a/b to select “Selecting Recorder”,

and then press ENTER.

Auto Power On

Selecting Recorder

Select the recorder, and then press ENTER.

Press MENU to exit.

NOTE

• If you have connected the AQUOS LINK-compatible audio system between the TV and a CEC compatible-recorder, the input source’s indication changes from “INPUT1” to “INPUT1 (Sub)” as it is shown below.

Auto Power On

Selecting Recorder

Selecting recorder for recording by [REC] button

INPUT1

INPUT2

Selecting recorder for recording by [REC] button

[1. 0. 0. 0]

[2. 0. 0. 0]

Operating an AQUOS LINK device

AQUOS LINK allows you to operate the HDMIconnected device with one remote control.

Use the following procedure to start playback.

Press PLAY I to start playback of a title.

• See page 43, section “Playback of titles using AQUOS LINK” if you want to start playback using

the list of the titles of the AQUOS BD Player.

Press FWD J to fast forward.

Press REV G to reverse. Press STOP H to stop. Press POWER to turn the HDMI-connected

device on/off.

Use the following procedure to start recording.

Check the following items before recording.

• Make sure the antenna cable is connected properly.

• Check if the recording media (HDD, DVD, etc.) has enough capacity for recording a programme.

• Select the equipment for recording in “Selecting Recorder”.

After you selected recording media (HDD,

DVD, etc.) in the menu, please make sure the recording menu in the ready condition.

Press REC E to record a programme.

Press REC STOP H to stop recording.

INPUT1

INPUT1 (Sub)

INPUT2

[1. 0. 0. 0]

[1. 1. 0. 0]

[2. 0. 0. 0]

Listening with the AQUOS LINKcompatible audio system

You can opt to listen to the TV sound only from the AQUOS LINK-compatible audio system.

Open the remote control unit’s ﬂ ip cover. Press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “By AQUOS Audio SP”,

and then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS Audio SP

By AQUOS SP

Sound mode change

Setup Menu

Model select

• The sound from the TV speaker and headphone terminal is silenced and only the sound from the AQUOS LINK-compatible audio system is audible.

• You can use VOL k/l and MUTE (e).

AQUOS LINK

Listening with the AQUOS TV speaker system

You can opt to listen to the TV sound only from the AQUOS TV speaker system.

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “By AQUOS SP”, and

then press ENTER.

Manually changing the AQUOS LINKcompatible audio system’s sound mode

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “Sound mode change”.

The sound mode changes every time you

press ENTER.

• Refer to the operation manual of the AQUOS audio speaker system for details.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS Audio SP

By AQUOS SP

Sound mode change

Setup Menu

Model select

Calling up the menu of an external device connected with the TV via HDMI

You can call up the menu of an HDMI CEC-compatible external device (player, recorder, decoder, etc.) using the “Setup Menu” function.

Open the remote control unit’s ﬂ ip cover, and

then press OPTION.

Playback of titles using AQUOS LINK

This section explains how to play back a title in the AQUOS BD Player.

Power on the AQUOS BD player, and select

the appropriate external input.

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “Top Menu/Title List”,

and then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS Audio SP

By AQUOS SP

Sound mode change

Setup Menu

Model select

• The linked recorder now powers on and the TV automatically selects the appropriate external input source.

• The title list data from the connected AQUOS BD Player displays.

Press a/b to select “Setup Menu”, and then

press ENTER.

NOTE

• If a connected device does not have this function or the device is in a status where the menu cannot be displayed (recording, entering standby, etc.), this function may not be available.

Select the title with a/b/c/d, and then

press PLAY I to start playback.

AQUOS LINK

Selecting media type for CEC-compatible recorder

If your recorder has multiple storage media, select the media type here.

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “Media change”, and

then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS Audio SP

By AQUOS SP

Sound mode change

Setup Menu

Model select

Select the desired medium, such as DVD or

HDD. The media type changes every time you press ENTER.

HDMI device selection

If multiple HDMI devices are connected in a daisy chain, you can specify which device to control here.

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Recording via the CEC-compatible recorder’s EPG (only for recorders)

You can call up the CEC-compatible recorder’s EPG and preset timer recordings using the TV’s remote control.

Open the remote control unit’s ﬂ ip cover, press

OPTION and the AQUOS LINK menu screen

displays.

Press a/b to select “Recorder EPG”, and

then press ENTER.

• The external input source switches and the recorder’s EPG is displayed.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS Audio SP

By AQUOS SP

Sound mode change

Setup Menu

Model select

Select the programme to record.

• You can use a/b/c/d, RETURN, EXIT and the coloured buttons.

NOTE

• Refer to the operation manual of the recorder for details.

Press a/b to select “Model select”, and then

press ENTER. The HDMI device changes every time you press ENTER.

Connecting a PC

Use the PC terminals to connect a PC.

NOTE

• The PC INPUT terminals are DDC1/2B-compatible.

• Refer to page 50 for a list of PC signals compatible with the TV.

ANALOG

RGB

RGB cable (commercially available)

Ø 3.5 mm stereo minijack cable (commercially available)

AUDIO

(R/L)

Signal names for 15-pin mini D-sub connector

4 3 2 1

Pin No. Signal name Pin No. Signal name Pin No. Signal name

R GND (Ground) Not connected G GND (Ground) SDA B GND (Ground) HD

Not connected +5V VD

CSYNC GND (Ground) SCL

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.

• Pin No. 5 is not used for inputting the signal.

Displaying a PC image on the screen

To view an image from a PC, select “INPUT7” using TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

INPUT6

INPUT7

When connecting to a PC, the correct input signal type is automatically detected. (See page 48.)

NOTE

• Each time TV/VIDEO is pressed, the input source toggles.

Connecting a PC

Selecting the picture size

You can select the picture size as illustrated below.

NOTE

• Connect the PC before making adjustments.

• Selectable picture size may vary with input signal type.

Connecting a PC

ANALOG

RGB

RGB cable (commercially available)

Ø 3.5 mm stereo minijack cable (commercially available)

AUDIO

(R/L)

Picture size images.

Input Signal FullNormal

1024 x 768 1280 x 1024

Keeps the original aspect ratio in a full screen display.

Press WIDE.

• The WIDE MODE menu displays.

WIDE MODE

Full

Normal

(Example)

Press WIDE or a/b to select a desired item

on the menu.

An image fully ﬁ lls the screen.

WIDE MODE

Full

Dot by Dot

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Connecting a PC

Adjusting the PC image automatically Adjusting the PC image manually

This function enables the screen to be automatically adjusted to its best possible condition when the analogue terminals of the TV and PC are connected with a commercially available RGB cable, etc.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Fine Sync.”, and then

press ENTER.

Press a/b to select “Auto Sync.”, and then

press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

• Auto Sync. starts.

Input Signal

Auto Sync.

H-Position [ 0]

V-Position [ 0]

Clock [ 0]

Phase

Reset

Auto adjustment of image display parameters

Yes

[ 0]

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimise the image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Fine Sync.”, and then

press ENTER.

Press a/b to select a speciﬁ c adjustment

item among “H-Position”, “V-Position”, “Clock” and “Phase”.

Input Signal

Auto Sync.

H-Position

V-Position

Clock

Phase

Reset

[ 90]

[ 60]

[ 90]

[ 8]

Selected item Description

Image position adjustment, etc.

NOTE

• Auto Sync. is likely to succeed when an input PC image has wide vertical stripes (e.g. pattern with high contrast stripes, or cross-hatched).

It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the TV and switch it on before starting Auto Sync.

H-Position Centres the image by moving it to the left

or right.

V-Position Centres the image by moving it up or

down.

Clock Adjusts when the image ﬂ ickers with

vertical stripes.

Phase Adjusts when characters have low

contrast or when the image ﬂ ickers.

Press c/d to adjust the item to your desired

position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, press ENTER, press

to select “Yes”, and then press ENTER.

c/d

• Images may not be displayed properly depending on the settings and/or input signals.

Connecting a PC

Input resolution settings

Selecting the input resolution

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

1024 x 768 1360 x 768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 2 input signals listed above.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Fine Sync.”, and then

press ENTER.

Press a/b to select “Input Signal”, and then

press ENTER.

Press c/d to select the desired input signal

on the display, and then press ENTER.

Input Signal

Auto Sync.

H-Position [ 90]

V-Position [ 60]

Clock [ 90]

Phase

Reset

[ 8]

Manually selecting the resolution

of the picture input signal

1024 x 768

(Example)

1360 x 768

Connecting a PC

PC Control of the TV

• When a programme is set, the TV can be controlled from the PC using the RS-232C terminal.

The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and

settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the Din/D-sub RS-232C for the connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the communications conditions of the TV. The communications settings of the TV are as follows:

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

9,600 bps

8 bits

None

1 bit

None

Communication procedure

Send the control commands from the PC via the RS-232C connector. The TV operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digits Parameter 4-digits Return code

Parameter

Input the parameter values, aligning left, and ﬁ ll with space(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not correct, “ERR” returns. (Refer to “Response code format”.)

Command 4-digits: Command. The text of four characters. Parameter 4-digits: Parameter 0 — 9, space, ?

0 0 0 9

a 3 0

1 0 0

0 0 5 5

When “?” is input for some commands, the present setting value responds.

? ? ? ?

Response code format

Normal response

O K

Return code (0DH)

Problem response (communication error or incorrect command)

E R R

Return code (0DH)

Connecting a PC

PC compatibility chart

Resolution

VGA

SVGA

720 g 400

640 g 480

800 g 600

Horizontal

Frequency

31.5 kHz

37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

Vertical

Frequency

70 Hz

60 Hz

72 Hz

75 Hz

56 Hz

60 Hz

72 Hz

75 Hz

VESA

Standard

✓

Resolution

XGA

WXGA

SXGA

SXGA+

1024 g 768

1360 g 768

1280 g 1024

1400 g 1050

DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Corp.

RS-232C commands list

Commands

• Commands not indicated here are not guaranteed to operate.

CONTROL ITEM COMMAND PARAMETER

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE SELECTION

POWER OFF (STANDBY)

INPUT SWITCHING (TOGGLE)

TV (CHANNEL FIXED)

INPUT1—7 (1—7)

TV DIRECT CHANNEL (1—99)

CHANNEL UP

CHANNEL DOWN

INPUT4 (Auto)

INPUT4 (S-VIDEO)

INPUT4 (VIDEO)

INPUT5 (Auto)

INPUT5 (COMPONENT)

INPUT5 (VIDEO)

INPUT6 (Auto)

INPUT6 (COMPONENT)

INPUT6 (VIDEO)

TOGGLE

STANDARD

MOVIE

GAME

USER

DYNAMIC (FIXED)

DYNAMIC

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

CONTROL

CONTENTS

CONTROL ITEM COMMAND PARAMETER

VOLUME

POSITION

WIDE MODE

MUTE

SURROUND

AUDIO CHANGE

SLEEP TIMER

Horizontal Frequency

48.4 kHz

56.5 kHz

60.0 kHz

47.7 kHz

64.0 kHz

65.3 kHz

Vertical

Frequency

60 Hz

70 Hz

75 Hz

60 Hz

CONTENTS

VOLUME (0—60)

H-POSITION (AV) (f10—10)

H-POSITION (PC) (0—180)

V-POSITION (AV) (f20—20)

V-POSITION (PC) (0—120)

CLOCK (0—180)

PHASE (0—15)

TOGGLE

NORMAL

ZOOM 14:9

PANORAMA

FULL

CINEMA 16:9

CINEMA 14:9

UNDERSCAN

DOT BY DOT

TOGGLE

MUTE ON

MUTE OFF

SURROUND TOGGLE

SURROUND ON

SURROUND OFF

TOGGLE

OFF

SLEEP TIMER 30 MIN

SLEEP TIMER 1 HOUR

SLEEP TIMER 1 HOUR 30 MIN

SLEEP TIMER 2 HOUR

SLEEP TIMER 2 HOUR 30 MIN

VESA

Standard

✓

CONTROL

Teletext function

About Teletext

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your TV receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather reports, sports information, stock exchange prices and programme previews are among the many services available.

Teletext mode

Teletext is turned on/off with m on the remote control unit. You can operate your TV in Teletext mode directly by inputting commands with the remote control unit.

TELETEXT

When viewing the Teletext information

• Press CHr to increase the page number.

• Press CHs to decrease the page number.

NOTE

• When you turn TELETEXT on and change a Teletext page right after changing channels, the relevant page may not be displayed until the TV ﬁ nishes reading all the Teletext information.

Button functions Colour (Red/Green/Yellow/Blue):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding Colour (Red/Green/

Yellow/Blue) on the remote control unit.

Turning on and off Teletext

Select a TV channel or external input source

providing the Teletext programme.

Press m to display the Teletext.

Press m again to display the Teletext on

the right screen and normal image on the left screen.

• Each time you press m, the screen switches as shown upper right.

• If you select a programme with no Teletext signal, “No Teletext available.” is displayed.

TELETEXT

Red Green Yellow Blue

0 — 9: Directly select any page from 100 to 899 by using 0 — 9.

(Top/Bottom/Full):

Each time you press v, the TELETEXT image switches as shown below.

Full (Displays in full screen)

Top (Displays in the upper half of the screen)

Bottom (Displays in the lower half of the screen)

(Reveal hidden for TELETEXT):

To reveal hidden information such as an answer to a quiz, press k.

• Press k again to hide the information.

(Hold):

To stop updating Teletext pages automatically, press 3.

• Press 3 again to release the hold mode.

Teletext function

Displaying Subtitles

You can display subtitles as they are transmitted.

Press [ to display the subtitle.

• Subtitle is updated by information sent by the broadcasting station.

• To stop updating subtitle automatically, press 3.

Press [ to exit the subtitle screen.

NOTE

• Subtitle will not be displayed when the service does not contain subtitle information.

Displaying Subpages

You can display subpages as they are transmitted.

Press m to display Teletext.

Press 1 to display the subpage as shown

below.

Subpage screen

0002

0 — 9 directly selects the desired subpage.

Press 1 to exit the subpage screen.

Teletext function

Teletext language setting

If Teletext information does not display correctly, perform the procedure below. Select from among 4 kinds of language tables: West Europe, East Europe, Greek/Turkish, Cyrillic. Each table is compatible with the Teletext languages listed below.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Text Language”, and

then press ENTER.

Press a/b to select receivable teletext

broadcasting language in your country, and then press ENTER.

...

[

Setup

Text Language

Display language settings

West Europe

East Europe

Greek/Turkish

]

Cyrillic

NOTE

• Teletext can display only when it is sent by a network. Not used to convert between languages.

Appendix

Troubleshooting

The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced.

Problem Possible Solution

• No power. • Check if you pressed POWER on the remote control unit. (See page 14.)

• Unit cannot be operated. • External inﬂ uences such as lightning, static electricity, etc., may cause improper

• Remote control unit does not operate.

• Picture is cut off. • Is the image position correct? (See page 35.)

• Strange colour, light colour, or dark, or colour misalignment.

• Power is suddenly turned off. • The unit’s internal temperature has increased.

• No picture. • Is the connection to external equipment correct? (See pages 11, 12, 37, 45 and

If the indicator on the TV lights up red, press POWER.

• Is the AC cord disconnected? (See page 10.)

• Has the power been turned on? (See page 14.)

operation. In this case, operate the unit after ﬁ rst turning the power off the TV or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 13.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or ﬂ uorescent lighting?

• Is a ﬂ uorescent light shining on the remote control sensor?

• Are screen mode adjustments such as picture size made correctly? (See pages 30, 31 and 46.)

• Adjust the picture tone. (See pages 33 to 35.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 21 and 39.)

• Check the input signal setting. (See page 48.)

• Check the HDMI Auto View setting. (See page 37.)

Remove any objects blocking the vent or clean.

• Check the power control setting. (See pages 28 and 29.)

• Is the sleep timer set? (See page 28.)

46.)

• Has the input signal setup been performed correctly after connection? (See page

48.)

• Is the correct input selected? (See page 38.)

• Is the picture adjustment correct? (See pages 33 to 35.)

• Is the antenna connected properly? (See page 10.)

• Is “On” selected in “Audio Only”? (See page 25.)

• No sound. • Is the volume too low? (See page 19.)

• The TV sometimes makes a cracking sound.

• Make sure that headphones are not connected. (See page 8.)

• This is not a malfunction. This happens when the cabinet slightly expands and contracts according to changes in temperature. This does not affect the TV's performance.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, ofﬁ ce), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.

Storage temperature: f20°C to e60°C.

Appendix

Error messages about recording using AQUOS LINK

The example of an error message

displayed on a screen

Failed to record Cannot record the broadcast.

Failed to record

Failed to record Cannot record the programme.

Failed to record No record media available.

Failed to record Cannot record while playback.

Failed to record Cannot record while recording other programme.

Failed to record No record media available.

Failed to record Cannot record while not receiving broadcast.

Failed to record No record media available.

Failed to record No recordable memory available.

Failed to record Age limitation is set.

Failed to record Cannot record with the recorder.

Error code Possible Solution

S05

S06

S07

S09

S10

S11

S12

S13

S14

S16

S17

S18

S19 Check the recording medium.

S20

S21 Recording to the medium is not possible. Check

S22

S23 Deactivate the child lock and set up the

S31

Check the content (broadcast or programme) or the recording medium such as HDD or DVD. Either the content or the recording medium may be incompatible.

This network cannot be recorded. Use the recording function of your recording device, not the AQUOS LINK function.

Use the recording function of your recording device, not the AQUOS LINK function.

Check the content (broadcast or programme). It may be incompatible.

Check the recording medium.

Stop playback and set up the recording again.

During recording, another recording is not possible.

Writing to the medium is prohibited.

Please check if the settings are properly set. Broadcasts are not receivable.

the recording medium.

Check the capacity of the recording medium.

recording again.

Check your recording device.

Appendix

Reset

If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Reset”, and then press

ENTER.

Press c/d to select “Yes”, and then press

ENTER.

• When “Reset” is completed, the backlight will turn off and then on in a short period of time.

• The screen will be returned to its original state.

• “Execute auto installation” displays on the screen.

Press c/d to select “Yes” and then press

ENTER.

• “Auto installation” will be executed.

NOTE

• If you execute “Reset”, all the settings such as Picture, Audio, Programme and Language will be reset to the factory preset values.

Identiﬁ cation

You can check the current version of the software on the screen.

Appendix

Speciﬁ cations

Model

Item

LCD panel 42o (1070 mm) Advanced

Resolution

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV Function

Brightness 450 cd/m

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 176º V : 176º

Audio ampliﬁ er 15W g 2

Speakers 10 g 4 cm 4pcs

Terminals

OSD language English/Simpliﬁ ed Chinese/Traditional Chinese/Arabic

Power Requirement AC 110—240 V, 50/60 Hz

Power Consumption 213 W (0.5 W Standby) 272 W (0.5 W Standby) 295 W (0.5 W Standby)

Weight

Operating Temperature 0°C — 40°C

TV-Standard PAL: B/G, D/K, I SECAM: B/G, D/K, K/K

Receiving Channel

TV-Tuning System Auto Preset 99 ch

STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G

Rear Antenna input UHF/VHF 75 q DIN type

VHF/UHF 44.25—863.25 MHz

CATV S1—S41ch (including Hyperband)

INPUT1

INPUT2

INPUT3

INPUT4 S-VIDEO in, VIDEO in, AUDIO in

INPUT5 VIDEO in, AUDIO in,

INPUT6 VIDEO in, AUDIO in,

INPUT7 (PC input) 15 pin mini D-sub, AUDIO in (Ø 3.5 mm jack)

MONITOR OUT VIDEO out, AUDIO out

RS-232C 9 pin D-sub male connector

DIGITAL AUDIO OUTPUT

without stand 21.0 kg 24.5 kg 29.0 kg

with stand 26.0 kg 30.0 kg 34.0 kg

LC-42A85M LC-46A85M LC-52A85M

Super View & BLACK TFT LCD

2,073,600 pixels (1920 g 1080)

HDMI (HDMI input) (480P, 576P, 720P/50Hz, 720P/60Hz, 1080 1080P/24Hz), AUDIO in (Ø 3.5 mm jack)

HDMI (HDMI input) (480P, 576P, 720P/50Hz, 720P/60Hz, 1080

COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)

Optical Digital Audio output

46o (1170 mm) Advanced Super View & BLACK TFT LCD

NTSC: M

/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz,

/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

52o (1320 mm) Advanced Super View & BLACK TFT LCD

• As a part of policy of continuous improvement, SHARP reserves the right to make design and speciﬁ cation changes for product improvement without prior notice. The performance speciﬁ cation ﬁ gures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Optional accessory

The listed optional accessory is available for the LCD colour TV. Please purchase it at your nearest shop.

• Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability.

Wall mount bracket

(for LC-42A85M/

LC-46A85M/

LC-52A85M)

Model numberPart name

AN-52AG4

Appendix

Dimensional drawings

LC-42A85M

933.2

646 62

708

1004

526.2 409

Unit: mm

550

400

200

400

114

305

Appendix

Dimensional drawings

LC-46A85M

698

760

1023.4

1101

575.6 434

Unit: mm

550

LC-52A85M

836

400

774 62 137

175

1157.0

400

1237

651.6 472

124 95

325

550

400

124 95

325

Appendix

Mounting the TV on the wall

Removing the stand

For wall mounting with the optional bracket, remove the stand.

Before detaching/attaching the stand

• Before detaching (or attaching) the stand, unplug the AC cord from the AC outlet.

• Remove all terminal covers and connected cables.

• Lay the TV down on cushioning (such as a blanket) over a table.

• Make sure two or more people perform the operation.

CAUTION

• Do not remove the stand from the TV unless using an optional bracket to mount it.

Hex key

Stand post

Detach the stand from the TV. (Hold the stand so

Unfasten the four screws used to secure the stand in place.

it will not drop from the edge of the base area.)

Remove the stand post from the stand base and

attach it to the TV.

NOTE

• To attach the stand, perform the above steps in reverse order.

Handling and precautions with the wall-mounted TV

• You can mount the TV on the wall using the optional AN-52AG4 bracket.

• For details, refer to the instructions supplied with the optional bracket.

CAUTION

• This TV should be mounted on the wall only with the AN-52AG4 (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualiﬁ ed service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

• You can ask a qualiﬁ ed service personnel about using an optional AN-52AG4 bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-52AG4 wall mount bracket. (See the bracket instructions for details.)

About setting the TV angle

Vertical mounting Angular mounting

AN-52AG4

NOTE

• Detach the cable clamps on the rear of the TV when using the optional mount bracket.

• To use this TV mounted on a wall, ﬁ rst remove the cover at the 4 locations on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.

Appendix

CLEARING THE PASSWORD

If you forget your password, set a new password using the following procedure.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press ENTER.

The password input screen displays.

If you enter “3001” using 0 — 9, the “Child Lock” setting menu will be displayed.

Enter the 4-digit number as a password using 0 — 9. (See page 27.)

The new password is now set.

The Password is .

NOTE

• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.
