LC-32G4U/G4D

LC-32G4U/G4D LC-37G4U/G4D

SERVICE MANUAL

S44S4LC-37G4U

LCD COLOR

TELEVISION (Display)

LC-32G4U/G4D

MODELS

LC-37G4U/G4D

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

Page

» IMPORT ANT SER VICE SAFETY PRECAUTION .....2

» SPECIFICATIONS................................................5

» OPERA TION MANUAL ........................................6

» DIMENSIONS ....................................................10

» REMOVING OF MAJOR PARTS .......................12

» ADJUSTMENT PROCEDURES.........................20

» TROUBLE SHOOTING TABLE.......................... 26

» MAJOR IC INFORMATIONS..............................30

LC-37G4U/G4D

Page

» CHASSIS LAYOUT ............................................40

» OVERALL WIRING DIAGRAM .......................... 42

» BLOCK DIAGRAM ............................................. 44

» DESCRIPTION OF SCHEMATIC DIAGRAM..... 46

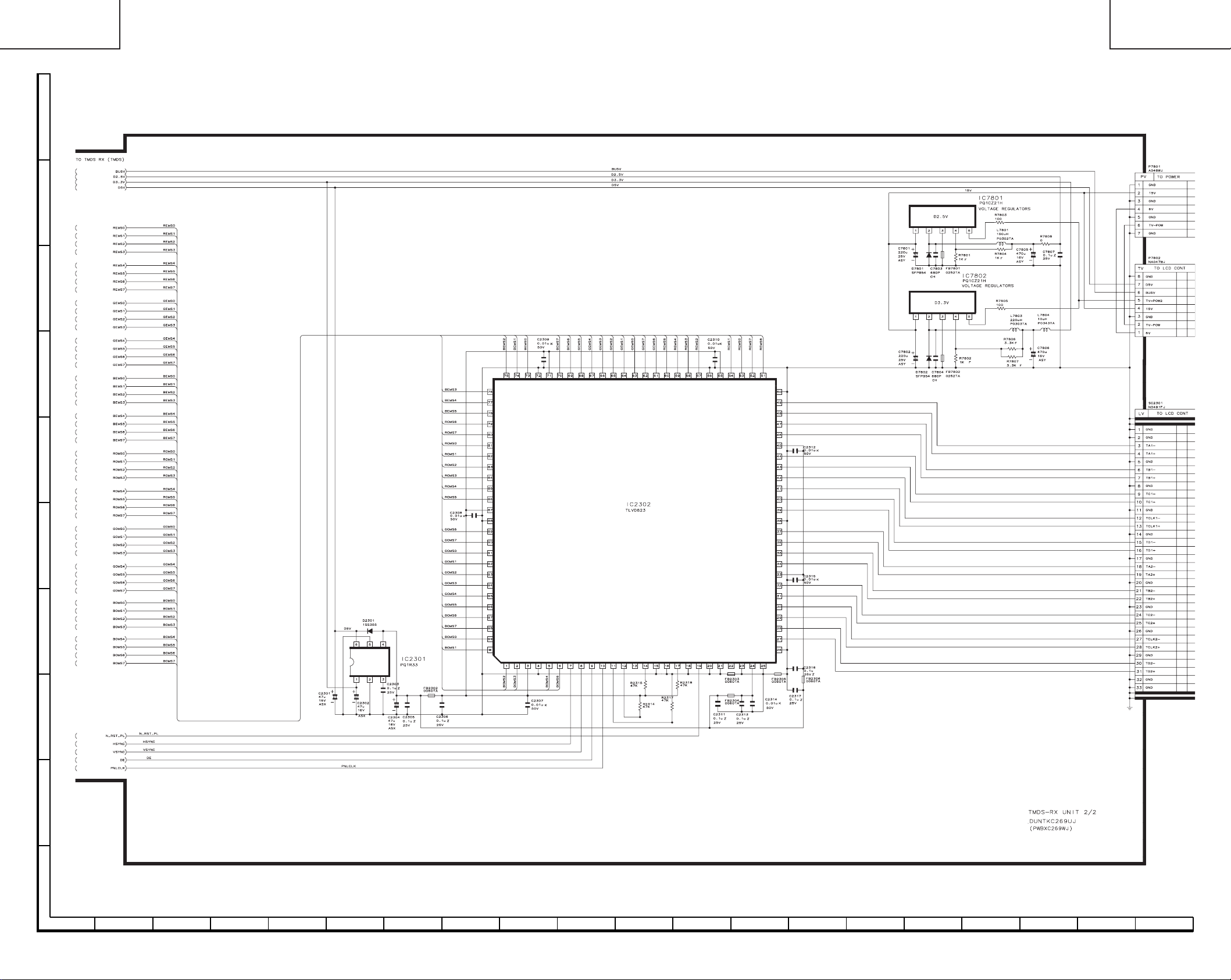

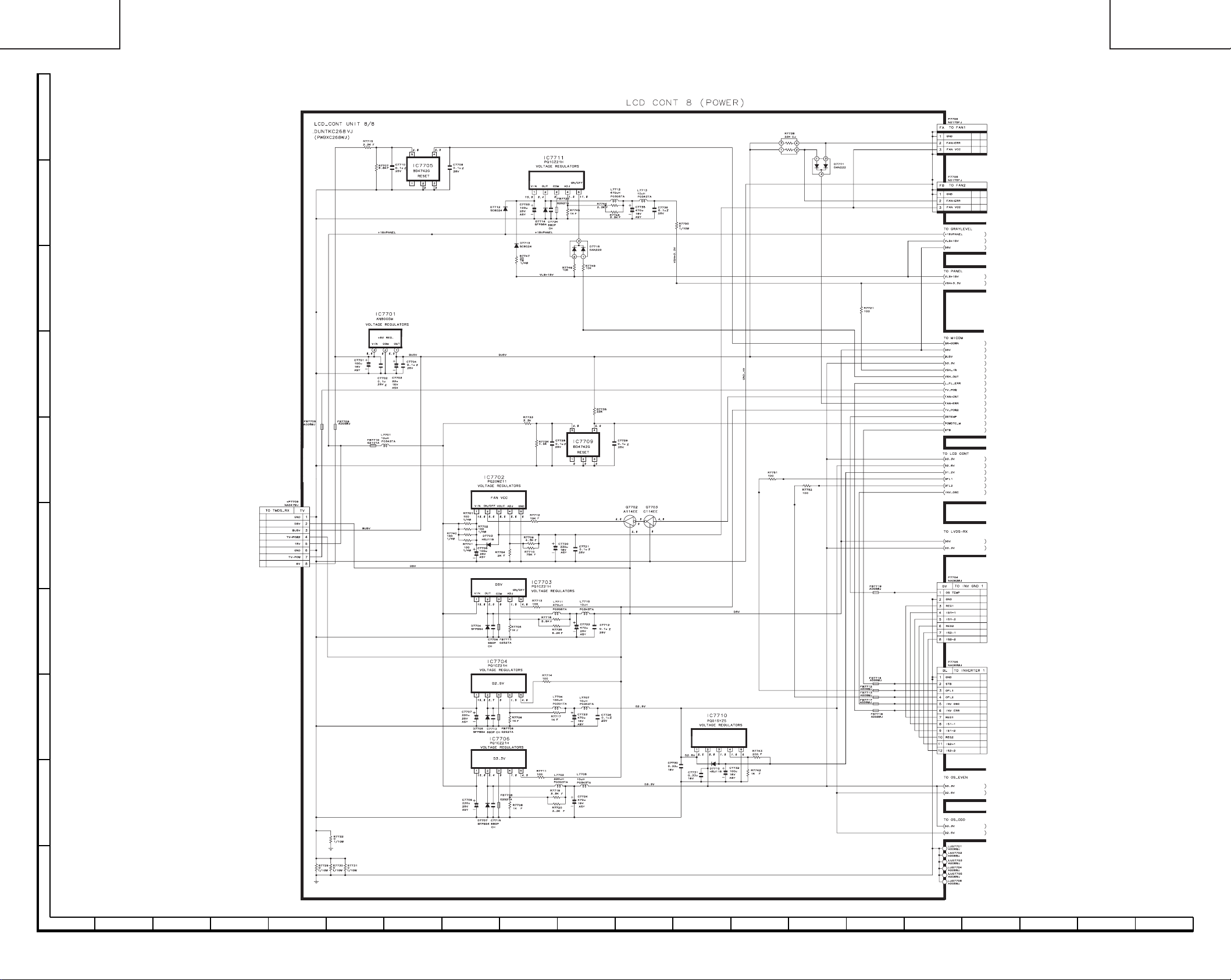

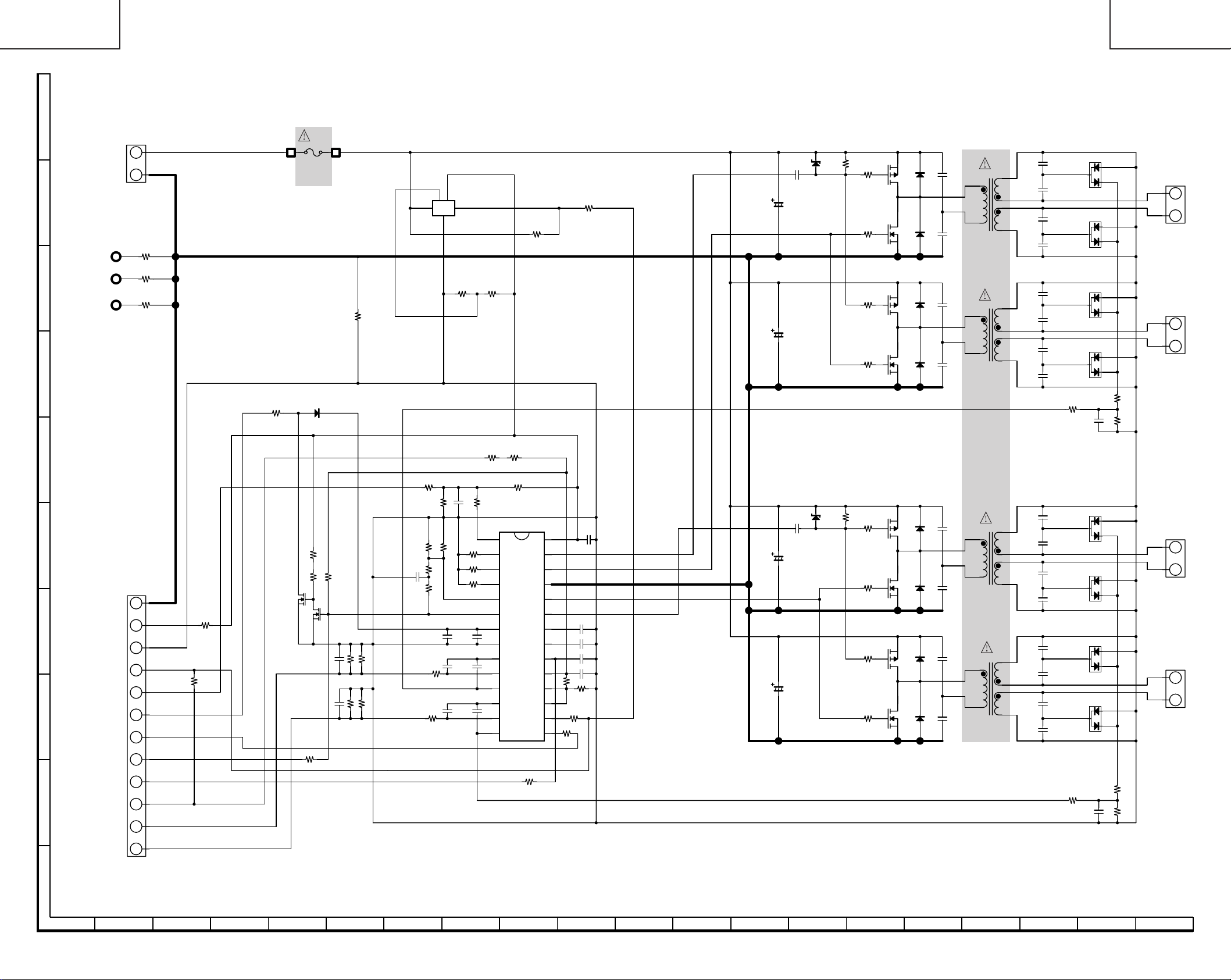

» SCHEMATIC DIAGRAM .................................... 47

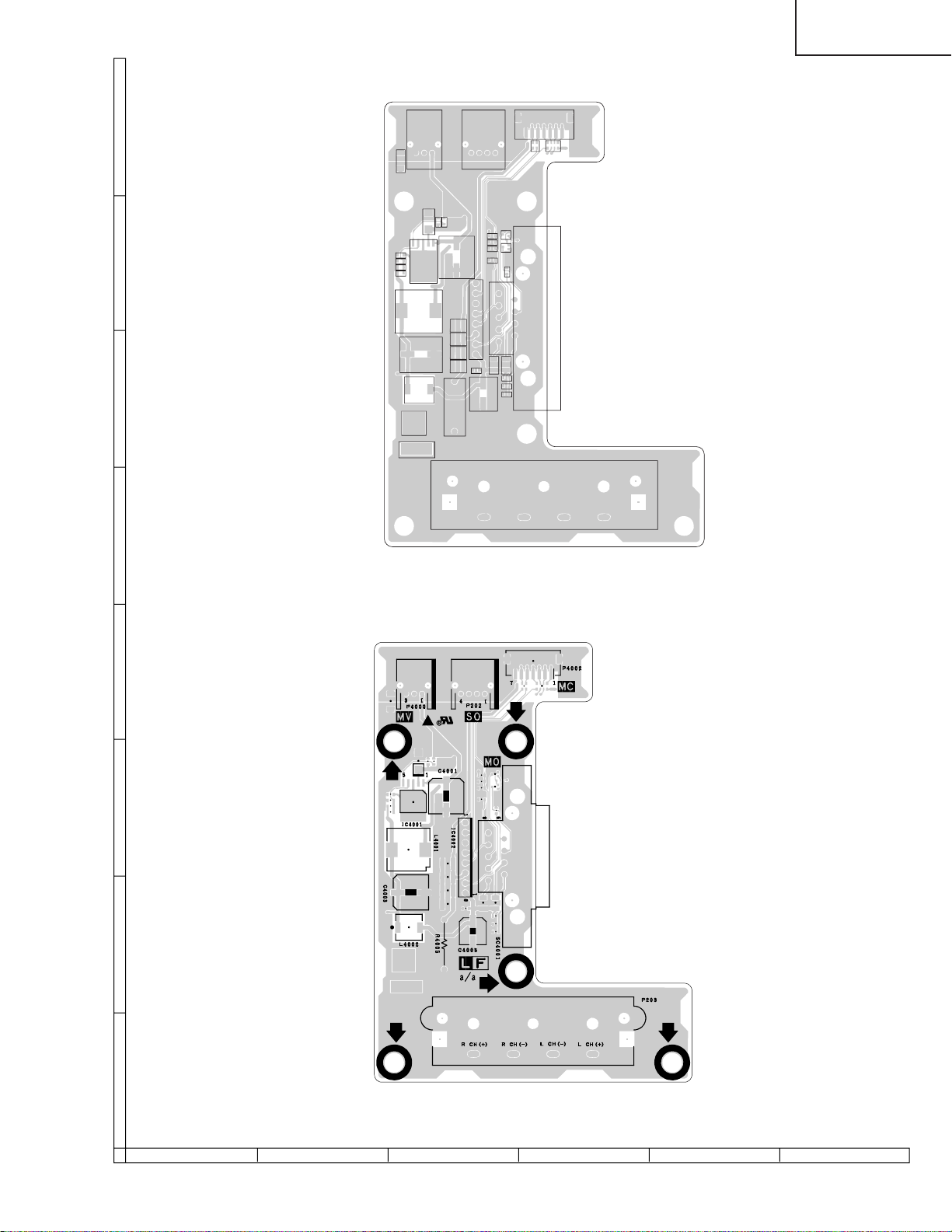

» PRINTED WIRING BOARD ASSEMBLIES .......88

» PARTS LIST.....................................................104

» PACKING OF THE SET ................................... 133

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

LC-32G4U/G4D

2 2

LC-37G4U/G4D

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

» Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity or measure the AC voltage drop

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

across the resistor.

» Connect the resistor connection to all exposed metal

parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 0.75V rms (this corresponds to 0.5 mA rms AC.) or more is excessive and indicates a

A V

CAUTION: FOR CONTINUED

PROTECTION AGAINST A RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE. LCD SIDE:F2701, F2702 (4A, 250V),

F2703 (2A, 250V)

LC-32G4U/G4D:F7401,F7501(6.3A,250V) LC-37G4U/G4D:F7401,F7501(10A,250V)

potential shock hazard which must be corrected before returning the monitor to the owner.

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

» Plug the AC cord directly into a 110~240 volt AC outlet. » Using two clip leads, connect a 1.5k ohm, 10 watt

TO EXPOSED METAL PARTS

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

DVM

AC SCALE

1.5k ohm 10W

0.15 F

TEST PROBE

CONNECT TO KNOWN EARTH GROUND

SAFETY NOTICE

Many electrical and mechanical parts in Liquid Crystal color television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

components having such features are identified by “ å” and shaded areas in the Replacement Parts List and

Schematic Diagrams.

For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

LC-32G4U/G4D

LC-37G4U/G4D

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

1. N'entreprendre aucune modification de tout circuit. C'est dangereux.

2. Débrancher le récepteur avant toute réparation.

PRECAUTION: POUR LA PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE

CÔTÉ LCD: F2701,F2702(4A,250V),

A V

LC-32G4U/G4D:F7401,F7501(6.3A,250V) LC-37G4U/G4D:F7401,F7501(10A,250V)

F2703 (2A, 250V)

VERIFICA TIONS CONTRE L'INCEN-DIE ET LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur, effectuer les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer que les fils ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme les boutons de commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux de résistancecapacité, les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la fuite de courant, de la facon suivante:

• Brancher le cordon d'alimentation directem-ent à une prise de courant de 110-240V. (Ne pas utiliser de transformateur d'isolation pour cet essai).

• A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ 10 watts en parallèle avec un condensateur de 0,15µF en série avec toutes les pièces métalliques exposées du coffret et une terre connue comme une

conduite électrique ou une prise de terre branchée à la terre.

• Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour mesurer la chute de tension en travers de la résistance.

• Toucher avec la sonde d'essai les pièces métalliques exposées qui présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson, etc.) et mesurer la chute de tension CA en-travers de la résistance. Toutes les vérifications doivent être refaites après avoir inversé la fiche du cordon d'alimentation. (Si nécessaire, une prise d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.) Tous les courants mesurés ne doivent pas dépasser

0.7 mA. Dans le cas contraire, il y a une possibilité de choc électrique qui doit être supprimée avant de rendre le récepteur au client.

DVM

ECHELLE CA

1.5k ohm 10W

0.15 F

SONDE D’ESSAI

AUX PIECES METALLIQUES EXPOSEES

BRANCHER A UNE TERRE CONNUE

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans les téléviseurs présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des pièces de remplacement étalonnées pour haute tension, puissance, etc. Les pièces de remplacement qui présentent ces caractéristiques sont identifiées dans ce manuel; les pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la liste des pièces de remplacement et les diagrammes schématiques. Pour assurer la protection, ces pièces doivent être identiques à celles utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas les mêmes caractéristiques que les pièces recommandées par l'usine, indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.

LC-32G4U/G4D LC-37G4U/G4D

Precautions for using lead-free solder

1 Employing lead-free solder

"PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder. Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks. As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition. Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required. If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder . Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code ZHNDAi123250E J φ0.3mm 250g(1roll) BL ZHNDAi126500E J φ0.6mm 500g(1roll) BK ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

LC-32G4U/G4D LC-37G4U/G4D

Specifications

Item 32” LIQUID CRYSTAL TELEVISION, 37” LIQUID CRYSTAL TELEVISION,

Model: LC-32G4U/G4D (Display) Model: LC-37G4U/G4D (Display)

LCD panel Number of dots TV TV-standard (CCIR) American TV Standard NTSC System Function Receiving VHF/UHF VHF 2-13ch, UHF 14-69ch

Channel CATV 1-125ch

Audio multiplex BTSC System Brightness Viewing angles H : 170° V : 170° Audio amplifier 10W x 2 Speakers Ø 8cm 2pcs, Ø 2.5cm 2pcs OSD language English/French/Spanish Power Requirement AC 110-240 V, 50/60 Hz Power Consumption Weight Display 28.7 lbs./13 kg (Display only), 38.6 32.0 lbs./14.5 kg (Display only), 43 lbs./

Display 127W(0.2W Standby with AC 120 V) 168W (0.2W Standby with AC 120 V)

32” Advanced Super View & BLACK TFT LCD 37” Advanced Super View & BLACK TFT LCD 3,147,264 dots (1366 x 768 x 3 dots)

450 cd/m2

lbs./17.5 kg (with Display and 19.5 kg (with Display and speaker), speaker), 48.5 lbs./22 kg (with Display, 52.9 lbs./24 kg (with Display, speaker speaker and stand) and stand)

Specifications are subject to change without prior notice.

LC-32G4U/G4D LC-37G4U/G4D

Operation Manual

LC-32G4U/G4D LC-37G4U/G4D

LC-32G4U/G4D

Dimensions

LC-37G4U/G4D

LC-32G4U/G4D LC-37G4U/G4D

REMOVING OF MAJOR PARTS

LC-32G4U/G4D

1. Remove the terminal covers 1 and 2.

2. Remove the 2 SP terminal rubber covers 3 to disconnect each SP wires.

3. Remove the 2 SP bracket cover mounting screws 4 to detach the SP bracket covers.

4. Remove the 6 speaker mounting screws 5 to detach the speakers.

5. Remove the 4 stand mounting screws 6 to detach the stand.

6. Disconnect each SP wire cover.

7. To detach cabinet B, remove the cabinet lock screws, the 13 M4 plastic screws 7, the 2 M4 machine screws 8, the 3 M3 plastic screws 9, and the 2 M3 machine screws 0.

Speaker

SP Terminal Rubber Cover

SP Wire

SP Bracket Cover

Cabinet B

Terminal Cover (Top)

Speaker

SP Wire Cover

SP Wire

Stand

SP Wire Cover

SP Terminal Rubber Cover

Terminal Cover (Bottom)

SP Bracket Cover

LC-32G4U/G4D

Top Operation Section Assembly

Wire Holder

FPC

Shield Plate

Earth Plate

LC-37G4U/G4D

8.Remove the Earth Plate and the 13 Shielding Plate mounting screws q to detach the Earth Plate, the Shielding Plate and the wire holder.

9.Remove the 2 top operation section assembly mounting screws w.

10.Remove the FPC. (with ferrite core)

11.Remove the 16 leads from fluorescent lights e.

12.Remove the 4 angles r.

13.Remove the 1 TMDS RX PWB mounting screw t.

TMDS RX PWB

LC-32G4U/G4D LC-37G4U/G4D

14. Remove the LCD CONT PWB mounting screw y to detach the LCD CONT PWB.

15. Remove the 6 POWER SUPPLY PWB mounting screws u to detach the POWER SUPPLY PWB.

16. Remove the 2 R/C LED PWB mounting screws i to detach the R/C LED PWB.

17. Remove the 4 INVERTER-1 PWB mounting screws o to detach the INVERTER-1 PWB.

18. Remove the 4 INVERTER-2 PWB mounting screws p to detach the INVERTER-2 PWB.

19. Remove the 3 INVERTER-1 GND PWB mounting screws a to detach the INVERTER-1 GND PWB.

20. Remove the 3 INVERTER-2 GND PWB mounting screws s to detach the INVERTER-2 GND PWB.

21. Remove the 4 SPEAKER TERMINAL PWB mounting screws d to detach the SPEAKER TERMINAL PWB.

22. Remove the 4 fan mounting screws f to detach the 2 fans.

23. Remove the 4 chassis mounting screws g, and remove the backlight chassis from cabinet A.

POWER SUPPLY PWB

INVERTER-1 GND PWB

INVERTER-2 GND PWB

FAN

LCD CONT PWB

FAN

Backlight Chassis

INVERTER-1 PWB

INVERTER-2 PWB

R/C LED PWB

Remove the connector.

SPEAKER TERMINAL PWB

LC-32G4U/G4D LC-37G4U/G4D

• Precautions in handling the LCD panel

1. Handle the liquid crystal panel in a clean room (Humidity: 50% or more).

2. Be sure to wear an earth wristband.

3. Be careful not to drop and shock the liquid crystal panel.

4. Use an ionizer (within 30 cm).

24. Remove the 5 screws h (LX-BZA051WJFN).

25. Remove the LCD panel unit.

26. Remove the 8 screws j (LX-BZA052WJFN).

27. Remove the sheet presser angles.

28. Remove the 6 screws k (XBPSN30P10000).

29. Remove the sheet presser angles.

30. Detach the reflection/deflection sheet, prism sheet, diffusion sheet, and diffusion plate.

31. Remove the 6 screws l (XBBSN30P08000).

32. Remove the 2 lamp holders (top).

33. Detach the lamps.

* The reflection plate (PMIR-S040WJZZ) is attached to the backlight chassis using clips and two-sided tape, and it

cannot be disassembled.

LCD Panel Unit

Lamp Holder (Top)

Lamp

Lamp Holder (Bottom)

Backlight Chassis

Lamp Holder (Bottom)

Lamp Holder (Top)

Sheet Presser Angle

Diffusion Panel

Diffusion Sheet

Prism Sheet

Reflection/Deflection Sheet

LC-32G4U/G4D LC-37G4U/G4D

LC-37G4U/G4D

1. Remove the terminal covers 1 and 2.

1.1.

2. Remove the SP terminal rubber covers 3 to disconnect each SP wires.

Re-

3. Remove the 2 SP bracket cover mounting screws 4 to detach the SP bracket covers.

4. Remove the 4 speaker mounting screws 5 to detach the speakers.

move

5. Remove the 4 stand mounting screws 6 to detach the stand.

the

6. Disconnect each SP wire covers.

ter-

7. To detach cabinet B, remove the cabinet lock screw, the 13 M4 plastic screws 7, the 2 M4 machine screws 8,

mi-

the 3 M3 plastic screws 9, and the 2 M3 machine screws 0.

nal covers (1) and (2)

SP Terminal

Rubber Cover

2. Re-

move the 4 stand

mounting screws (3) , and separate the stand from the

SP Bracket Cover

Speaker

SP Wire

Terminal Cover (Top)

SP Wire Cover

Stand

Cabinet B

Speaker

SP Wire Cover

Terminal Cover (Bottom)

SP Bracket Cover

SP Wire

SP Terminal Rubber Cover

main unit. Then, put the main unit in

LC-32G4U/G4D

Top Operation Section Assembly

FPC

Shield Plate

Earth Plate

LC-37G4U/G4D

8. Remove the Earth Plate and the 13 Shielding Plate mounting screws q to detach the Earth Plate and the Shielding Plate.

9. Remove the 2 top operation section assembly mounting screws w.

10. Remove the FPC. (with ferrite core)

11. Remove the 18 leads from fluorescent lights e.

12. Remove the 4 angles r.

13. Remove the 1 TMDS RX PWB mounting screw t.

TMDS RX PWB

LC-32G4U/G4D LC-37G4U/G4D

14. Remove the LCD CONT PWB mounting screw y to detach the LCD CONT PWB.

15. Remove the 6 POWER SUPPLY PWB mounting screws u to detach the POWER SUPPLY PWB.

16. Remove the 2 R/C LED PWB mounting screws i to detach the R/C LED PWB.

17. Remove the 4 INVERTER-1 PWB mounting screws o to detach the INVERTER-1 PWB.

18. Remove the 4 INVERTER-2 PWB mounting screws p to detach the INVERTER-2 PWB.

19. Remove the 4 INVERTER-1 GND PWB mounting screws a to detach the INVERTER-1 GND PWB.

20. Remove the 4 INVERTER-2 GND PWB mounting screws s to detach the INVERTER-2 GND PWB.

21. Remove the 4 SPEAKER TERMINAL PWB mounting screws d to detach the SPEAKER TERMINAL PWB.

22. Remove the 4 fan mounting screws f to detach the 2 fans.

23. Remove the 4 chassis mounting screws g, and remove the backlight chassis from cabinet A.

POWER SUPPLY PWB

INVERTER-1 GND PWB

INVERTER-2 GND PWB

FAN

LCD CONT PWB

FAN

Backlight Chassis

INVERTER-1 PWB

INVERTER-2 PWB

R/C LED PWB

Remove the connector.

SP TERMINAL PWB

LC-32G4U/G4D LC-37G4U/G4D

• Precautions in handling the LCD panel

1. Handle the liquid crystal panel in a clean room (Humidity: 50% or more).

2. Be sure to wear an earth wristband.

3. Be careful not to drop and shock the liquid crystal panel.

4. Use an ionizer (within 30 cm).

24. Remove the 5 screws h (LX-BZA051WJFN).

25. Remove the LCD panel unit.

26. Remove the 8 screws j (XBPSN30P06000).

27. Remove the sheet presser angles.

28. Remove the 6 screws k (XBPSN30P10000).

29. Remove the sheet presser angles.

30. Detach the reflection/deflection sheet, prism sheet, diffusion sheet, and diffusion plate.

31. Remove the 6 screws l (XBBSN30P08000).

32. Remove the lamp holders (top).

33. Detach the lamps.

* The reflection plate (PMIR-S041WJZZ) is attached to the backlight chassis using clips and two-sided tape, and it

cannot be disassembled.

LCD Panel Unit

Lamp Holder (Top)

Lamp

Lamp Holder (Bottom)

Backlight Chassis

Lamp Holder (Bottom)

Lamp Holder (Top)

Sheet Presser Angle

Diffusion Panel

Diffusion Sheet

Prism Sheet

Reflection/Deflection Sheet

LC-32G4U/G4D LC-37G4U/G4D

ADJUSTMENT PROCEDURES

The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is required due to part replacement, make an adjustment according to the following procedure.

(On the display)

1. If the monitor microcomputer (IC2004), receiver IC (IC2206), or HDCP key ROM (IC2208) are replaced, please note that the display unit must be replaced. Applicable unit : DKEYHC269VJ

2. Adjusting procedure Entering the adjustment process mode → COM BIAS adjustment → White adjustment

3. Entering the adjustment process mode (1) When the AVC system is not connected

• While the main power to the display is off, hold down the "CH(Ù)" key and "VOL (+)" key on the upper part of the display and then turn the"MAIN POWER" "ON". The display will run in the "Display process mode".

(2) When the AVC system is connected

• While the main power of the display is off, hold down the "CH(Ù)"key and "VOL (+)" key on the upper

part of the display and then turn the "MAIN POWER" "ON". The display will run in the "Display process mode".

∗∗

In each case of (1) and (2), "<K>" is displayed in the upper left portion of the screen.

Then, pressing any key will bring you to the first page of the "Display Adjustment mode".

~ To exit the adjustment process mode, turn OFF the main power.

4. Adjustment process mode key operation table

Key Cursor UP

Cursor DOWN

Cursor RIGHT

Cursor LEFT

ENTER

INPUT CH (ù)

CH (Ù)

VOL (+)

VOL (–)

Function 1 (when on the left side of a page) Moving up by one item or moving to the previous page (when at the top) Moving down by one item or moving to the next page (when at the bottom) Moving to the right by one item or moving to another page (in the case of the initial page) Moving to the left by one item or moving to another page (in the case of the initial page) Test pattern off

Moving to the next page Moving up by one item or moving to the previous page (when at the top) Moving down by one item or moving to the next page (when at the bottom) Moving to the right by one item or moving to another page (in the case of the initial page) Moving to the left by one item or moving to another page (in the case of the initial page)

Function 2 (when changing a numeric value) Incrementing the adjustment value by one or executing the item (in the case of W or R items) Decrementing the adjustment value by one or executing the item (in the case of W or R items) Moving to the right by one item

Moving to the left by one item

Executing the item (in the case of W or R items)

Moving to the next page Incrementing the adjustment value by one or executing the item (in the case of W or R items) Decrementing the adjustment value by one or executing the item (in the case of W or R items) Moving to the right by one item

Moving to the left by one item

LC-32G4U/G4D LC-37G4U/G4D

5. Adjustment 5-1.COM BIAS adjustment

Shift to the "COM BIAS" item with the cursor UP/DOWN key and select a numeric value with the cursor RIGHT/LEFT key. Changing the numeric value with the cursor UP/DOWN key will make appear the test pattern. Make an adjustment so that the flicker near the center of the screen is minimized.

5-2.White balance adjustment

Connect the AVC system, start the unit, and then perform a white balance adjustment on the display. Changing the numeric value with the cursor UP/DOWN key will make appear the test pattern. Make an adjustment so that the flicker near the center of the screen is minimized.

• Procedure

• Bring up the adjustment display (High side: 200 gradations, Low side: 48 gradations).

• Adjust "R GAMMAL" "G GAMMAL" "B GAMMAL" so that the 48 gradation pattern becomes normal.

Adjust the chromaticity of the Low pattern (on the right of the display) so that it is set to x = 0.276 and y = 0.283.

• Adjust "R GAMMAH" "G GAMMAH" "B GAMMAH" so that the 200 gradation pattern becomes normal. Adjust the chromaticity of the High pattern (on the left of the display) so that it is set to x = 0.295 and y = 0.305.

6. Software Upgrade for Monitor Microcomputer.

For this model, the software version of the monitor microcomputer can be upgraded via the AVC system. An SD card is used to upgrade the version. For details of the procedure, method etc., refer to the Service

Manual for LC-32/37G4U (AVC SYSTEM).

LC-32G4U/G4D LC-37G4U/G4D

Lamp error detection

1. Feature description This liquid-crystal color TV incorporates a lamp error detection feature (lamp error detection) that automatically turns OFF the power for safety under abnormal lamp or lamp circuit conditions. If anything is wrong with the lamp or lamp circuit or the lamp error detection feature is activated for some reason, the following will result.

1 The power of TV main body is turned OFF about six seconds after it is turned ON. (The power LED on

the front of the TV turns red from green and keeps blinking in red (ON for 250ms and OFF for 1sec).)

2 If 1 occurs five times consecutively, it becomes impossible to turn ON the power. (The power LED

keeps blinking in red (ON for 250ms and OFF for 1sec).)

2. Measures 2-1.Checking with lamp error detection OFF

While the "MAIN POWER" switch is off, hold down the "CH(Ù)" and "VOL(+)" keys and then turn the "MAIN

POWER" on. The display will run in the "Display process mode" ("<K>" will appear.). If there is a problem with a lamp or a lamp circuit, the lamp will go out. (The power LED is green.) Then, you can check the operation to see if the lamp and lamp circuit are abnormal.

2-2.Resetting the lamp error count

After you have finished checking whether the lamp and lamp circuit are abnormal, reset the lamp error

count. If a lamp error is detected five consecutive times, the power cannot be turned on. Therefore, move to the "L ERR RESET" line, the fourth line on the first page of the "Display adjustment mode",using the Cursor UP/DOWN key. Then, reset the "L ERR RESET" value using the "Cursor LEFT/

RIGHT" key.

In this case, press the "Cursor UP/DOWN" key to reset it to "0".

First page of the display ajustment process

SERVICE GRAYLEVEL COMBIAS VLSBIAS L ERR RESET LCD PATTERN MOTOR AND FAN OTHER VER M1.∗∗

Then perform operation checking and check that the lamp error detection feature is not activated.

32/37GA2U 100 177 041 5

CEEPD

Normal values of individual displays

Reset to "0"

Tableofcontentsofprocessmode Page0 LCD Page1

LCD Page2

LCD Page3

LCD Page4

PATTERN Page1

PATTERN Page2

OTHER  Page1

SERVICE   32/37GA2U →ＧＲＡＹＬＥＶＥＬ ０００ ＣＯＭＢＩＡＳ ０００ ＶＬＳＢＩＡＳ ０００ ＬＥＲＲＲＥＳＥＴ ０ ＬＣＤ ＰＡＴＴＥＲＮ ＳＯＵＮＤＡＮＤＦＡＮ ＯＴＨＥＲ ＶＥＲＭ１００ＣＥＥＰ７

ＬＣＤ3 →ＯＰＣ０ ００ ＯＰＣ１ ００ ＯＰＣ２ ００ ＯＰＣ３ ００ ＯＰＣ４ ００ ＯＰＣ５ ００ ＯＰＣ６ ００ ＯＰＣ７ ００ ＯＰＣ８ ００

ＬＣＤ4 →ＯＰＣ ９  ００ ＯＰＣ１０  ００ ＯＰＣ１１ ００ ＯＰＣ１２ ００ ＯＰＣ１３ ００ ＯＰＣ１４ ００ ＯＰＣ１５ ００ ＯＰＣ１６ ００ 

OTHER1 →CLRMODE ０００  W０ LCDDATA ０００  R０W０ EEPC ０００００００  R０W０ SII861 ００００００  R０W０ 

ＬＣＤ2 →ＭＯＤＥ 60Hz ０ QＳＳＷ ００００ QＳＤ１  ００  QＳＤ２  ００ QＳＤ３  ００ QＳＤ４  ００ QＳＤ５  ００ QＳＤ６  ００ QＳＤ７  ００

ＬＣＤ1 →ＭＯＤＥ 60Hz０ ＰＷＭＣＴＲＬ  ００００ ＰＷＭＦＲＥＱ  ００００ ＰＷＭＤＵＴＹ  ００００ ＰＨＡＳＥＤＩＦ  ０００ ＰＣＬＫ１   ＰＣＬＫ２  

ＰＡＴＴＥＲＮ1 →ＰＡＴＴＥＲＮ１  ００ ＰＡＴＴＥＲＮ２  ００ ＰＡＴＴＥＲＮ３  ００ ＰＡＴＴＥＲＮＲ  ００ ＰＡＴＴＥＲＮＧ  ００ ＰＡＴＴＥＲＮＢ  ００ ＰＡＴＴＥＲＮA  ００ 

ＰＡＴＴＥＲＮ2 →RESERVE  ００ RESERVE ００ RGAMMAL  ００ GGAMMAL  ００ BGAMMAL  ００ RGAMMAH ００ GGAMMAH ００ BGAMMAH ００ 

•List of process adjustment modes

LC-32G4U/G4D LC-37G4U/G4D

Process adjustment list

1st level Page Item Setting range Initial value

Contents 1 GRAYLEVEL 0~255 100

COMBIAS 0~255 160 VLSBIAS 0~255 41 L ERR RESET Zero clear 0

LCD 1 MODE 50Hz, 60Hz, PC 60Hz

PWMCTRL 0~7 3 PWMFREQ 0~4095 1289 PWMDUTY1 0~4095 167 PWMDUTY2 0~4095 167 PHASEDIF 0~255 0 PCLK1 0~3 0 PCLK2 0~7 0

2 MODE 50Hz, 60Hz, PC 60Hz

QS SW 0~255 0 QS D1 0~255 84 QS D2 0~255 98 QS D3 0~255 109 QS D4 0~255 120 QS D5 0~255 132 QS D6 0~255 145 QS D7 0~255 157

3 OPC 0 0~99 0

OPC 1 0~99 5 OPC 2 0~99 9 OPC 3 0~99 13 OPC 4 0~99 18 OPC 5 0~99 22 OPC 6 0~99 27 OPC 7 0~99 31 OPC 8 0~99 36

4 OPC 9 0~99 40

OPC 10 0~99 45 OPC 11 0~99 49 OPC 12 0~99 53 OPC 13 0~99 58 OPC 14 0~99 62 OPC 15 0~99 67 OPC 16 0~99 71

5 VH0 0~1023 162

VL0 0~1023 939 VH1 0~1023 403 VL1 0~1023 694 VH20 0~1023 467 VL20 0~1023 619 VH47 0~1023 479 VL47 0~1023 580

6 VH63 0~1023 510

VL63 0~1023 548 VH95 0~1023 555 VH95 0~1023 502 VH127 0~1023 597 VL127 0~1023 462 VH191 0~1023 930 VL191 0~1023 107

LC-32G4U/G4D LC-37G4U/G4D

1st level Page Item Setting range Initial value

PATTERN 1 PATTERN 1 0~14 0

PATTERN 2 0~12 0 PATTERN 3 0~5 0 PATTERN 4 0~5 0 PATTERN R 0~255 0 PATTERN G 0~255 0 PATTERN B 0~255 0 PATTERN A 0~255 0

2 R GAMMA L 0~255 48

G GAMMA L 0~255 48 B GAMMA L 0~255 48

R GAMMA H 0~255 200 G GAMMA H 0~255 200 B GAMMA H 0~255 200

MOTOR 1 FAN START 0~255 224

FAN STOP 0~255 230 TEMP ERR 0~255 55

OTHER 1 CLR MODE 0~4 -

LCD DATA 0~FF EEP C 0~FF SII861 0~FF -

2 L ERR STOP 0~1 -

MOEL 0~15 REMOCON 0~1 OSTEMP AD 0~255 AD value OPC AD 0~255 AD value

LC-32G4U/G4D

No picture and no sound

Is the power LED lit green? Is the power LED flashing red?

Did it flash once?

Did it flash twice?

Did it flash five times?

Did it flash six times?

Does the message "LOSS OF

SYNC" appear?

Go to "No picture".

Does the backlight fail to light?

Check the lamp and the peripheral

lamp circuit.

Is the power cord normal? Replace the power cord.

Go to "The backlight does not light."

Check the power unit.

Check the temperature of the unit.

Check the fan connection.

Check the peripheral parts around

the TMDS PWB.

Yes

LC-37G4U/G4D

TROUBLE SHOOTING TABLE

LC-32G4U/G4D

Type of error LED operation (1 cycle)

Cable error

AVC power error

Flashes once: Slow

H: Lit

L: Not lit

Lamp error

Flashes once: Fast

H: Lit

L: Not lit

Monitor power error

Flashes twice

H: Lit

L: Not lit

AVC FAN error

Flashes four times

H: Lit

L: Not lit

Monitor temperature error

Flashes five times

H: Lit

L: Not lit

Monitor FAN error

Flashes 6 times

H: Lit

L: Not lit

AVC temperature error

Flashes three times

H: Lit

L: Not lit

LED flashing timing chart

250ms 1s

No picture

Is the RESET terminal on pin 3 of

IC2206 H?

Is X2201 oscillating?

Check its peripheral circuits.

Is the clock output present at pin

102 on IC2206?

Check the IC2206 peripheral circuit.

Is the clock output present at pin 40

on IC4602?

Check the FFC connection between

the TMDS PWB and the LCD

CONT PWB.

Does the adjustment process menu

appear?

Check the IC4701 and IC4901

peripheral circuits.

Check the IC4501 peripheral circuit.

Yes

LC-37G4U/G4D

LC-32G4U/G4D

A data bit is missing.

When PATTERN1 is selected from

the adjustment process menu and it

is set to 2, is the gradation pattern

displayed correctly?

Connect SC4651 and SC4652, and

check the IC4501 peripheral circuit.

When PATTERN1 is selected from

the adjustment process menu and

PATTERN3 is set to 1, is the

gradation pattern displayed

correctly?

Check IC4702, IC4902, and their

peripheral circuits.

When PATTERN3 in the adjustment

process menu is set to 4, is the

pattern correctly displayed at one-

dot intervals?

Check between IC4701 and IC4501.

When PATTERN3 in the adjustment

process menu is set to 5, is the

pattern correctly displayed at one-

dot intervals?

Check the IC2206 peripheral circuit.

Check between IC4901 and IC4501.

Yes

When the QS driver is activated,

noise is seen in the images.

Check IC4701, IC4901, and the

peripheral circuits.

Are the GND1 PWB and the LCD

CONT PWB properly connected

with a cable?

Is the OSTEMP AD value on the

third page of the process

adjustment mode set to 255?

Connect them properly or replace

the cable.

Are the GND1 PWB and the GND2

PWB properly connected with a

board-to-board connector?

Connect them properly.

Is 5V present at pin 62 on IC2004

(the microcomputer)?

The thermistor on the GND2 PWB

is defective.

Pin 62 on IC2004 is defective.

Yes

The backlight does not light.

Has the fuse for F7401 or F7501

blown?

Check the circuits after replacing

the fuse.

Is power supplied to each inverter

PWB?

Is the control signal being output at

pins 3, 4, and 5 of P7705 on the

LCD CONT PWB?

Check the fluorescent lamp

connector and the inverter circuit.

See if the cable is connected

between PWBs.

Check the IC4501 peripheral

circuits.

Yes

LC-37G4U/G4D

LC-32G4U/G4D

No sound. (Connect the AVC system

and check.)

Connect them correctly, or replace

the cable.

Are P2201 and P202 connected

correctly with a cable?

Are the speaker and the audio

output terminal connected correctly

with a cable?

Connect them correctly, or replace

the cable.

Is the audio signal output to P2201?

Check if sound is heard from the

AVC system.

Replace the cable between the

TMDS PWB and the audio output

terminal PWB.

Yes

The display is entirely whitish or

dark. (LCD power)

When the AVC system is connected

and the picture is checked, is the

display all white or all black?

Check the AVC system.

Check the supply voltage supplied

to the panel.

(Check it at SC4651 and SC4652.)

Remove the FPC that is connected

to SC4651 and SC4652.

(To prevent the panel from breaking)

When PATTERN1 is selected from

the adjustment process menu and

PATTERN1 is set to 2, is the

gradation pattern displayed

correctly?

(Is it too light or too dark?)

Yes

LC-37G4U/G4D

LC-32G4U/G4D LC-37G4U/G4D

MAJOR IC INFORMATIONS

•IC2004 (IXA870WJ) This is a microcomputer monitor. It controls the OSD on the monitor, the panel temperature detected by a thermistor, the temperature parameter setting for the QS driver, the timing for a liquid crystal controller, dimmer control data settings, power on the monitor, and it monitors each power line, decodes the remote control, and the OPC control.

•IC2206 (SII861) This is a DVI receiver. A 24-bit RGB signal, H and V synchronized signals, and a DE signal are output on ODD and EVEN from the TMDS differential signal that is transmitted by the system cable.

•IC4501 (IXA865WJ) This is a liquid crystal controller. Using the 24-bit RGB signal, H and V synchronized signals, and DE signal that are extracted from the QS driver (ODD, EVEN), the picture data is divided into ODD and EVEN on the left and right of the liquid crystal panel, and a control signal is output to drive the liquid crystal panel. A control signal for dimmer control is also created here.

•IC2302 (TLVD823) This is an LVDS transmitter. It outputs a 24-bit RGB signal on ODD and EVEN, Hand V synchronized signals, and a DE signal, which are converted to an LVDS signal before being output.

•IC4602 (TLVD824) This is an LVDS receiver. An L VDS signal is converted to a 24-bit RGB signal on ODD and EVEN, H and V synchronized signals, and a DE signal, and then they are output.

•IC4101 (IXA706WJ) This is a gradated reference power supply for TFT liquid crystal. It incorporates a gradated output buffer amplifier (18 circuits), a CMOS buffer amplifier, and a reference voltage source.

•IC4701 (IXA332WJ) This is a QS driver for EVEN. The QS (Quick Shoot) is driven by the input signal according to the temperature parameter setting from the microcomputer monitor.Since the terminal function is the same as for IC4701 in LC-37AD1, refer to the LC-37AD1

service manual.

•IC4901 (IXA332WJ) This is a QS driver for ODD. The QS (Quick Shoot) is driven by the input signal according to the temperature parameter setting from the microcomputer monitor. The H and V synchronized signals and the DE signal are all output after QS is driven. Since the terminal function is the same as for IC4901 in LC-37AD1, refer to the

LC-37AD1 service manual.

・IC2302(TLVD823)

ThisisanLVDStransmitter.Itoutputsa24-bitRGBsignalonODDandEVEN,H andVsynchronizedsignals,andaDEsignal,whichareconvertedtoanLVDS signalbeforebeingoutput.

・IC4602(TLVD824)

LC-32G4U/G4D

 



Pin No Terminal Name I/O Description



Pin No Terminal Name I/O Description

1 OPC OPC input

2 CCKM Cable connection detection

3 AVCC 5 V input

4 X_OUT Sub clock terminal

5 X_IN Sub clock terminal

6 VCL Not used

7 RES Reset input

8 TEST Not used

9 VSS GND

10 OSC2 System clock terminal

11 OSC1 System clock terminal

12 VCC 5 V input

13 TMDS_VSH_IN Power supply detection

14 CSEN1 Power failure detection

15 SMPOW Power supply control output

16 PANELPOW Panel power supply control

17 FREERUN Freerun switching

18 L_FL_ERR Lamp error detection

19 POWDTC_M Power failure detection

20 DDC_POW Cable connection detection

21 QS_DLL_CHK QS operation detection

22 OPT2 Not used

23 OPT1 Not used

24 FAN_ERR Fan error detection

25 W_PROT_M Write control output

26 CONFIG_SDA I2C_SDA

27 CONFIG_SCL I2C_SCL

28 TMDS_RST Reset output

29 MSTATE Startup detection

30 LSYNC No signal detection

31 DDC_SDA Control bus line data

32 TV_POW Power supply control 1

33 TV_POW2 Power supply control 2

34 REQ Transmission control

35 F_MODE1 Write control input

36 VSH_OUT Power control

37 DACCS1 DAC control CS output 1

38 DACCS2 DAC control CS output 2

39 PMUTE Image mute control output

40 DDCRST Reset output

41 F_MODE2 Pull-up to H

42 MOTOR+ Not used

43 MOTOR- Not used

44 PHOTO Not used

45 RXD0_M Asynchronous receive input

46 TXD0_M Asynchronous send output

47 DDC_SCL Control bus line CLK

48 MP_CLK Three-wire serial bus clock

49 MP_CS Three-wire serial bus chip select

50 MP_DA Three-wire serial bus data

51 IREM Remote control signal input

52 CSEN2 Startup detection input

53 SR_UP Power supply detection

54 STBY_POW Power standby key input

55 POWG_LED Power supply LED (green) control

56 POWR_LED Power supply LED (red) control

57 HDCP_SDA IIC SDA

58 HDCP_SCL IIC SCL

59 AREA1 Model setting input

60 KEY2 Key input 2

61 KEY1 Key input 1

62 OSTEMP Temperature detection input

63 AREA2 Model setting input

64 MOTOR_CHK Not used

LC-37G4U/G4D

IC2004 (IXA870WJ)

microcomputer monitor

Terminal function

LC-32G4U/G4D

 



PinNo TerminalName I/O Description

1 GND GND 

2 DVCC 2.5V 

3 RESET# Resetinput 

4 PD# Powerdownmodeinput 

5 STDBY/PWM0 Notused 

6 SUSPD/ORNG Notused 

7 ONOFF/LSYNC# Syncsignaljudgmentoutput 

8 TSTMD GND 

9 TSTEN GND 

10 GND GND 

11 DVCC 2.5V 

12 OVCC 3.3V 

13 OGND GND 

14 NC Notused

15 NC Notused

16 OE0 EVENB0output

17 OE1 EVENB1output

18 OE2 EVENB2output

19 OE3 EVENB3output

20 OE4 EVENB4output

21 OE5 EVENB5output

22 OE6 EVENB6output

23 OE7 EVENB7output

24 OVCC 3.3V

25 OGND GND

26 GND GND

27 DVCC 2.5V

28 OE8 EVENG0output

29 OE9 EVENG1output

30 OE10 EVENG2output

31 OE11 EVENG3output

32 OE12 EVENG4output

33 OE13 EVENG5output

34 NC Notused

35 NC Notused

36 NC Notused

37 PD23 Notused

38 PD22 Notused

39 PD21 Notused

40 PD20 Notused

41 PD19 Notused

42 PD18 Notused

43 PD17 Notused

44 PD16 Notused

45 PD15 Notused

46 PD14 Notused

47 PD13 Notused

48 PD12 Notused

49 PD11 Notused

50 PD10 Notused

51 PD9 Notused

52 PD8 Notused

53 PD7 Notused

54 PD6 Notused

55 PD5 Notused

56 PD4 Notused

57 PD3 Notused

58 PD2 Notused

59 PD1 Notused

60 PD0 Notused

61 PDE Notused

62 PHS Notused

63 PVS Notused

64 PCLK Notused

65 OGND GND

66 NC Notused

67 NC Notused

68 NC Notused

69 OGND GND

70 ADE Notused

71 NC Notused

72 NC Notused

73 OE14 EVENG6output

74 OE15 EVENG7output

75 DVCC 2.5V

76 GND GND

77 OGND GND

78 OVCC 3.3V

79 OE16 EVENR0output

80 OE17 EVENR1output

81 OE18 EVENR2output

82 OE19 EVENR3output

83 OE20 EVENR4output

84 OE21 EVENR5output

85 OE22 EVENR6output

86 OE23 EVENR7output

87 DVCC 2.5V

88 GND GND

89 CTL1/IVS Notused

90 CTL2/HIS Notused

91 CTL3/IDE Notused

92 OVCC 3.3V

93 ODCK Clockoutput

94 OGND GND

95 DE Dataenableoutput

96 VSYNC Verticalsyncsignaloutput

97 HSYNC Horizontalsyncsignaloutput

98 OO0 ODDB0output

99 OO1 ODDB1output

100 NC Notused

PinNo TerminalName I/O Description



LC-37G4U/G4D

IC2206 (SII861)

DVI receiver

Terminal function

LC-32G4U/G4D

 



PinNo TerminalName I/O Description



PinNo TerminalName I/O Description

101 OGND GND

102 ODCK_D Delay clock output

103 GND GND

104 DVCC 2.5 V

105 TPCLK Not used

106 PWM1 Not used

107 PWM0 Not used

108 BUT0+ Not used

109 BUT0- Not used

110 BUT1+ Not used

111 BUT1- Not used

112 TMDS_SEL Panel link/parallel selection input

113 DVCC 2.5 V

114 GND GND

115 NC Not used

116 NC Not used

117 OO2 ODD B2 output

118 OO3 ODD B3 output

119 OO4 ODD B4 output

120 OO5 ODD B5 output

121 OO6 ODD B6 output

122 OO7 ODD B7 output

123 OVCC 3.3 V

124 OGND GND

125 OO8 ODD G0 output

126 OO9 ODD G1 output

127 OO10 ODD G2 output

128 OO11 ODD G3 output

129 OO12 ODD G4 output

130 OO13 ODD G5 output

131 OO14 ODD G6 output

132 OO15 ODD G7 output

133 NC Not used

134 NC Not used

135 OVCC 3.3 V

136 OGND GND

137 DVCC 2.5 V

138 GND GND

139 OO16 ODD R0 output

140 OO17 ODD R1 output

141 OO18 ODD R2 output

142 OO19 ODD R3 output

143 OO20 ODD R4 output

144 OO21 ODD R5 output

145 OO22 ODD R6 output

146 NC Not used

147 DVCC 2.5 V

148 GND GND

149 KEY_SDA SDA for HDCP KEY EEPROM

150 KEY_SCL SCL for HDCP KEY EEPROM

151 DDC_SDA SDA for DDC EEPROM

152 DDC_SCL SCL for DDC EEPROM

153 GND GND

154 XTAL1 GND

155 XTZL2 Not used

156 GND GND

157 OGND GND

158 OO23 ODD R7 output

159 OVCC 3.3 V

160 GND GND

161 XCLK External clock input

162 GND GND

163 DVCC 2.5 V

164 MSTATE I2C master output

165 SCL Config SCL

166 SDA Config SDA

167 PGND GND

168 PVCC 3.3 V

169 AGND GND

170 AVDD 3.3 V

171 TX_3+ Not used

172 TX_3- Not used

173 TX_CK+ Not used

174 TX_CK- Not used

175 TX_2+ Not used

176 TX_2- Not used

177 AGND GND

178 AVDD 3.3 V

179 TX_1+ Not used

180 TX_1- Not used

181 TX_0+ Not used

182 TX_0- Not used

183 PVCC 3.3 V

184 PGND GND

185 AGND GND

186 RX2+ TMDS RX2+ signal input

187 RX2- TMDS RX2- signal input

188 AVCC 3.3 V

189 AGND GND

190 AVCC 3.3 V

191 RX1+ TMDS RX1+ signal input

192 RX1- TMDS RX1- signal input

193 AGND GND

194 AVDD 3.3 V

195 AGND GND

196 RX0+ TMDS RX0+ signal input

197 RX0- TMDS RX0- signal input

198 AGND GND

199 RXC+ TMDS RXC+ signal input

200 RXC- TMDS RXC- signal input



LC-37G4U/G4D

LC-32G4U/G4D



201 AVCC 3.3 V

202 X_RES Impedance matching control input

203 PVCC 3.3 V

204 PGND GND

205 NC Not used

206 NC Not used

207 GND GND

208 DVCC 2.5 V

Pin No Terminal Name I/O Description

A1 GND GND

A2 TDI Pull-up

A3 DDC_RST Reset input

A4 MP_DA Three-wire serial bus data input

A5 INV_OSC Inverter oscillating frequency output

A6 VCC2.5 VCC 2.5 V input

A7 BE0 BE0 input

A8 MP_CLK Three-wire serial bus CLK input

A9 DEO Data enable input

A10 HSYO Horizontal sync input

A11 VCC2.5 VCC 2.5 V input

A12 OFL2 Dimmer control signal output 2

A13 BO0 BO0 input

A14 OFL1 Dimmer control signal output 1

A15 TD0 NC

A16 GND GND

B1 RE2 RE2 input

B2 GND GND

B3 PROG_B CONFIG reset input

B4 BE4 BE4 input

B5 BE3 BE3 input

B6 BE2 BE2 input

B7 BE1 BE1 input

B8 PNLCLK CLK input

B9 GND GND

B10 BO4 BO4 input

B11 BO3 BO3 input

B12 BO2 BO2 input

B13 BO1 BO1 input

B14 VSYO Vertical sync input

B15 GND GND

B16 FREERUN FREERUN switching input

C1 RE0 RE0 input

C2 RE1 RE1 input

C3 GE0 GE0 input

C4 HSWAP_EN Pull-up

C5 BE7 BE7 input

C6 BE6 BE6 input

C7 BE5 BE5 input

C8 GO2 GO2 input

C9 GCK2 CLK input 2

C10 GO1 GO1 input

C11 BO6 BO6 input

C12 BO5 BO5 input

C13 TMS Pull-up

C14 TCK Pull-up

C15 RO3 RO3 input

C16 RO0 RO0 input

D1 RE4 RE4 input

D2 RE3 RE3 input

Pin No Terminal Name I/O Description

LC-37G4U/G4D

IC4501 (IXA865WJ)

LVDS transmitter

Terminal function

LC-32G4U/G4D



Pin No Terminal Name I/O Description 

Pin No Terminal Name I/O Description

D3 GE1 GE1 input

D4 VCC1.2 VCC 1.2 V input

D5 GE5 GE5 input

D6 GE4 GE4 input

D7 GE3 GE3 input

D8 GE2 GE2 input

D9 MP_CS Three-wire serial bus CS input

D10 GO4 GO4 input

D11 GO3 GO3 input

D12 BO7 BO7 input

D13 VCC1.2 VCC 1.2 V input

D14 GO0 GO0 input

D15 RO2 RO2 input

D16 RO1 RO1 input

E1 PMUTE PMUTE output

E2 RE7 RE7 input

E3 RE6 RE6 input

E4 RE5 RE5 input

E5 VCC1.2 VCC 1.2 V input

E6 GE7 GE7 input

E7 GE6 GE6 input

E8 VCC3.3 VCC 3.3 V input

E9 VCC3.3 VCC 3.3 V input

E10 GO7 GO7 input

E11 GO6 GO6 input

E12 VCC1.2 VCC 1.2 V input

E13 RO7 RO7 input

E14 RO6 RO6 input

E15 RO5 RO5 input

E16 RO4 RO4 input

F1 VCC2.5 VCC 2.5 V input

F2 INT_H INT_H output

F3 INT_DE INT_DE output

F4 INT_CKE INT_CKE output

F5 INT_CKO INT_CKO output

F6 GND GND

F7 VCC3.3 VCC 3.3 V input

F8 VCC3.3 VCC 3.3 V input

F9 VCC3.3 VCC 3.3 V input

F10 VCC3.3 VCC 3.3 V input

F11 GND GND

F12 GO5 GO5 input

F13 NC NC

F14 NC NC

F15 OGSP1 Panel control signal output

F16 VCC2.5 VCC2.5V input

G1 LSPOI1 Panel control signal output

G2 LSPIO1 Panel control signal output

G3 OLS Panel control signal output

G4 INT_V INT_V output

G5 OLBR Panel control signal output

G6 VCC3.3 VCC 3.3 V input

G7 GND GND

G8 GND GND

G9 GND GND

G10 GND GND

G11 VCC3.3 VCC 3.3 V input

G12 NC NC

G13 NC NC

G14 NC NC

G15 OGCK Panel control signal output

G16 OGSP2 Panel control signal output

H1 RSPOI1 Panel control signal output

H2 GND GND

H3 RSPIO1 Panel control signal output

H4 OREV Panel control signal output

H5 VCC3.3 VCC 3.3 V input

H6 VCC3.3 VCC 3.3 V input

H7 GND GND

H8 GND GND

H9 GND GND

H10 GND GND

H11 VCC3.3 VCC 3.3 V input

H12 VCC3.3 VCC 3.3 V input

H13 NC NC

H14 OGLBR2 Panel control signal output

H15 OPOW Panel control signal output

H16 OGLBR1 Panel control signal output

J1 LR0PA LR0PA (differential output)

J2 LR0NA LR0NA (differential output)

J3 LR1PA LR1PA (differential output)

J4 LR1NA LR1NA (differential output)

J5 VCC2.5 VCC 2.5 V input

J6 VCC2.5 VCC 2.5 V input

J7 GND GND

J8 GND GND

J9 GND GND

J10 GND GND

J11 VCC2.5 VCC 2.5 V input

J12 VCC2.5 VCC 2.5 V input

J13 RB3PA RB3PA (differential output)

J14 RB3NA RB3NA (differential output)

J15 GND GND

J16 RB0NA RB0NA (differential output)

K1 NC NC

K2 LR2PA LR2PA (differential output)

K3 LR2NA LR2NA (differential output)

K4 LR3PA LR3PA (differential output)

K5 LR3NA LR3NA (differential output)

K6 VCC2.5 VCC 2.5 V input



LC-37G4U/G4D

LC-32G4U/G4D



Pin No Terminal Name I/O Description 

Pin No Terminal Name I/O Description

K7 GND GND

K8 GND GND

K9 GND GND

K10 GND GND

K11 VCC2.5 VCC 2.5 V input

K12 RB2NA RB2NA (differential output)

K13 RB1PA RB1PA (differential output)

K14 RB1NA RB1NA (differential output)

K15 NC NC

K16 RB0PA RB0PA (differential output)

L1 VCC2.5 VCC 2.5 V input

L2 LCKPA LCKPA (differential output)

L3 LCKNA LCKNA (differential output)

L4 LG0PA LG0PA (differential output)

L5 LG0NA LG0NA (differential output)

L6 GND GND

L7 VCC2.5 VCC 2.5 V input

L8 VCC2.5 VCC 2.5 V input

L9 VCC2.5 VCC 2.5 V input

L10 VCC2.5 VCC 2.5 V input

L11 GND GND

L12 RB2PA RB2PA (differential output)

L13 RG2NA RG2NA (differential output)

L14 RG3PA RG3PA (differential output)

L15 RG3NA RG3NA (differential output)

L16 VCC2.5 VCC 2.5 V input

M1 LG1PA LG1PA (differential output)

M2 LG1NA LG1NA (differential output)

M3 LG2PA LG2PA (differential output)

M4 LG2NA LG2NA (differential output)

M5 VCC1.2 VCC 1.2 V input

M6 NC NC

M7 LB3PA LB3PA (differential output)

M8 VCC2.5 VCC 2.5 V input

M9 VCC2.5 VCC 2.5 V input

M10 RR0NA RR0NA (differential output)

M11 DIN CONFIG DIN input

M12 VCC1.2 VCC 1.2 V input

M13 RG2PA RG2PA (differential output)

M14 RG0NA RG0NA (differential output)

M15 RG1PA RG1PA (differential output)

M16 RG1NA RG1NA (differential output)

N1 LG3PA LG3PA (differential output)

N2 LG3NA LG3NA (differential output)

N3 LB0PA LB0PA (differential output)

N4 VCC1.2 VCC 1.2 V input

N5 NC NC

N6 NC NC

N7 LB3NA LB3NA (differential output)

N8 NC NC

N9 CPLD_RST CONFIG_RST input

N10 RR0PA RR0PA (differential output)

N11 NC NC

N12 NC NC

N13 VCC1.2 VCC 1.2 V input

N14 RG0PA RG0PA (differential output)

N15 RCKPA RCKPA (differential output)

N16 RCKNA RCKNA (differential output)

P1 OOEM_INV OEM_INV output

P2 LB0NA LB0NA (differential output)

P3 M0 Mode setting terminal

P4 M2 Mode setting terminal

P5 LB1PA LB1PA (differential output)

P6 LB2PA LB2PA (differential output)

P7 NC NC

P8 NC NC

P9 CPLD_D1 CONFIG_D1 input

P10 NC NC

P11 RR1NA RR1NA (differential output)

P12 RR2NA RR2NA (differential output)

P13 NC NC

P14 RR3PA RR3PA (differential output)

P15 RR3NA RR3NA (differential output)

P16 NC NC

R1 OOEM OEM output

R2 GND GND

R3 NC NC

R4 NC NC

R5 LB1NA LB1NA (differential output)

R6 LB2NA LB2NA (differential output)

R7 NC NC

R8 GND GND

R9 NC NC

R10 NC NC

R11 RR1PA RR1PA (differential output)

R12 RR2PA RR2PA (differential output)

R13 NC NC

R14 CPLD_DONE CONFIG_DONE output

R15 GND GND

R16 NC NC

T1 GND GND

T2 M1 Mode setting terminal

T3 NC NC

T4 NC NC

T5 NC NC

T6 VCC2.5 VCC 2.5 V input

T7 NC NC

T8 NC NC

T9 NC NC

T10 NC NC



LC-37G4U/G4D

LC-32G4U/G4D



T11 VCC2.5 VCC 2.5 V input

T12 NC NC

T13 NC NC

T14 NC NC

T15 CPLD_CLK CONFIG_CLK output

T16 GND GND

Pin No Terminal Name I/O Description

LC-37G4U/G4D

LC-32G4U/G4D



Pin No Terminal Name I/O Description

51 R10 R data input

52 R11 R data input

53 R12 R data input

54 R13 R data input

55 VCC Power supply

56 GND GND

57 R14 R data input

58 R15 R data input

59 R16 R data input

60 R17 R data input

61 G10 G data input

62 G11 G data input

63 G12 G data input

64 G13 G data input

65 G14 G data input

66 G15 G data input

67 G16 G data input

68 G17 G data input

69 B10 B data input

70 B11 B data input

71 VCC Power supply

72 GND GND

73 B12 B data input

74 B13 B data input

75 B14 B data input

76 B15 B data input

77 B16 B data input

78 B17 B data input

79 R20 R data input

80 R21 R data input

81 R22 R data input

82 R23 R data input

83 R24 R data input

84 R25 R data input

85 R26 R data input

86 R27 R data input

87 VCC Power supply

88 GND GND

89 G20 G data input

90 G21 G data input

91 G22 G data input

92 G23 G data input

93 G24 G data input

94 G25 G data input

95 G26 G data input

96 G27 G data input

97 B20 B data input

98 B21 B data input

99 B22 B data input

100 B23 B data input



Pin No Terminal Name I/O Description

1 B24 B data input

2 B25 B data input

3 VCC Power supply

4 GND GND

5 B26 B data input

6 B27 B data input

7 HSYNC Horizontal sync signal input

8 VSYNC Vertical sync signal input

9 DE Data enable input

10 CLKIN Clock input

11 R/F Clock trigger switching terminal

12 RS Amplitude switching

13 TEST1 Test terminal

14 TEST2 Test terminal

15 MODE1 Mode switching terminal

16 MODE0 Mode switching terminal

17 OE Output enable terminal

18 6/8 Bit selection terminal

19 /PDWN Power down terminal

20 TEST3 Test terminal

21 TEST4 Test terminal

22 TEST5 Test terminal

23 PLL GND PLLGND terminal

24 PLL VCC PLL power supply terminal

25 PLL GND PLLGND terminal

26 LVDS GND LVDS output GND

27 TD2+ LVDS output

28 TD2- LVDS output

29 TCLK2+ LVDS CLK output

30 TCLK2- LVDS CLK output

31 TC2+ LVDS output

32 TC2- LVDS output

33 LVDS VCC LVDS output power supply terminal

34 TB2+ LVDS output

35 TB2- LVDS output

36 TA2+ LVDS output

37 TA2- LVDS output

38 LVDS GND LVDS output GND

39 TD1+ LVDS output

40 TD1- LVDS output

41 TCLK1+ LVDS CLK output

42 TCLK1- LVDS CLK output

43 TC1+ LVDS output

44 TC1- LVDS output

45 LVDS VCC LVDS output power supply terminal

46 TB1+ LVDS output

47 TB1- LVDS output

48 TA1+ LVDS output

49 TA1- LVDS output

50 LVDS GND LVDS output GND

LC-37G4U/G4D

IC2302 (TLVD823)

LVDS transmitter

Terminal function

LC-32G4U/G4D



Pin No Terminal Name I/O Description

1 PLL GND PLL GND

2 PLL VCC PLL power supply terminal

3 GND GND

4 /PDWN Power down terminal

5 MODE0 Mode switching terminal

6 MODE1 Mode switching terminal

7 GND GND

8 R/F Clock trigger switching terminal

9 DRVSEL Output drive switching

10 R20 R data output

11 R21 R data output

12 R22 R data output

13 R23 R data output

14 R24 R data output

15 VCC Power supply terminal

16 GND GND

17 R25 R data output

18 R26 R data output

19 R27 R data output

20 G20 G data output

21 G21 G data output

22 G22 G data output

23 G23 G data output

24 G24 G data output

25 G25 G data output

26 G26 G data output

27 VCC Power supply terminal

28 GND GND

29 G27 G data output

30 B20 B data output

31 B21 B data output

32 B22 B data output

33 VCC Power supply terminal

34 GND GND

35 B23 B data output

36 B24 B data output

37 B25 B data output

38 B26 B data output

39 B27 B data output

40 CLKOUT Clock output

41 VCC Power supply terminal

42 GND GND

43 R10 R data output

44 R11 R data output

45 R12 R data output

46 R13 R data output

47 R14 R data output

48 VCC Power supply terminal

49 GND GND

50 R15 R data output



Pin No Terminal Name I/O Description

51 R16 R data output

52 R17 R data output

53 G10 G data output

54 G11 G data output

55 G12 G data output

56 VCC Power supply terminal

57 GND GND

58 G13 G data output

59 G14 G data output

60 G15 G data output

61 G16 G data output

62 G17 G data output

63 B10 B data output

64 B11 B data output

65 B12 B data output

66 B13 B data output

67 B14 B data output

68 B15 B data output

69 VCC Power supply terminal

70 GND GND

71 B16 B data output

72 B17 B data output

73 HSYNC Horizontal sync output

74 VSYNC Vertical sync output

75 DE Data enable output

76 LVDS GND LVDS input GND

77 RA1- LVDS input

78 RA1+ LVDS input

79 RB1- LVDS input

80 RB1+ LVDS input

81 LVDS VCC LVDS input power supply terminal

82 RC1- LVDS input

83 RC1+ LVDS input

84 RCLK1- LVDS CLK input

85 RCLK1+ LVDS CLK input

86 RD1- LVDS input

87 RD1+ LVDS input

88 LVDS GND LVDS input GND

89 RA2- LVDS input

90 RA2+ LVDS input

91 RB2- LVDS input

92 RB2+ LVDS input

93 LVDS VCC LVDS input power supply terminal

94 RC2- LVDS input

95 RC2+ LVDS input

96 RCLK2- LVDS CLK input

97 RCLK2+ LVDS CLK input

98 RD2- LVDS input

99 RD2+ LVDS input

100 LVDS GND LVDS input GND

LC-37G4U/G4D

IC4602 (TLVD824)

LVDS receiver

Terminal function

LC-32G4U/G4D LC-37G4U/G4D

CHASSIS LAYOUT

LC-32G4U/G4D LC-37G4U/G4D

KEY Unit

LCD CONT Unit

TMDS RX Unit

SP TERMINAL Unit

R/C,LED Unit

12345678910

11 12 13 14 15 16 17 18 19

4140

LC-32G4U/G4D LC-37G4U/G4D

OVERALL WIRING DIAGRAM

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

4342

LC-32G4U/G4D LC-37G4U/G4D

BLOCK DIAGRAM

LC-32G4U/G4D LC-37G4U/G4D

System connector

Various detection power supply control

Main communication UART

FLASH Writing control

Various detection

Power supply control

Receiver

Connector

Monitor microcomputer

Power supply control Remote control Key

PWB

Gradation power supply buffer

Controller

Audio connector

Audio output

Speaker terminal

Inverter circuit

INVERTER UNIT

12345678910

11 12 13 14 15 16 17 18 19

4544

LC-32G4U/G4D LC-37G4U/G4D

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. The voltage of each part is the value on operation of the monitor only . It is measured using a 20 kΩ/V tester.

INDICATION OF RESISTOR & CAPACITOR:

RESISTOR

1. The unit of resistance “Ω” is omitted. (K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted. (J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are Carbon type, unless otherwise noted.

C : Solid W : Cement S : Oxide Film T : Special N : Metal Coating

CAPACITOR

1. All capacitors are mF, unless otherwise noted. (P=pF=mmF).

2. All capacitors are Ceramic type, unless otherwise noted. (ML) : Mylar (TA) : Tantalum (PF) : Polypro Film (ST) : Styrol

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

IMPORTANT SAFETY NOTICE:

P ARTS MARKED WITH FOR MAINT AINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE P ARTS WITH SPECIFIED ONES FOR

MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

“å”

( )ARE IMPORT ANT

WICHTIGE SICHERHEITSANMERKUNGEN:

MIT

“å ”

( )BEZEICHNETEN TEILE SIND

BESONDERS WICHTIG FÜR DIE AUFRECHTERHAL TUNG

DER SICHERHEIT . BEIM WECHDIESER TEILE SOLL TEN DIE VORGESCHRIEBENEN TEILE IMMER VERWENDET WERDEN, UM SOWOHL DIE SICHERHEIT ALS AUCH DIE LEISTUNG DES GERÄTES AUFRECHTZUERHALTEN.

654321

LC-32G4U/G4D LC-37G4U/G4D

KEY Unit

654321

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-1/8

12345678910

11 12 13 14 15 16 17 18 19

4948

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-2/8

12345678910

11 12 13 14 15 16 17 18 19

5150

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-3/8

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

5352

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-4/8

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

5554

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-5/8

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

5756

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-6/8

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

5958

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-7/8 (LC-32G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

6160

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-7/8 (LC-37G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

6362

LC-32G4U/G4D LC-37G4U/G4D

LCD CONTROL Unit-8/8

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

6564

LC-32G4U/G4D LC-37G4U/G4D

R/C LED Unit

654321

LC-32G4U/G4D LC-37G4U/G4D

SP TERMINAL Unit

654321

LC-32G4U/G4D LC-37G4U/G4D

TMDS RX-1/2

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

6968

LC-32G4U/G4D LC-37G4U/G4D

TMDS RX-2/2

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

7170

LC-32G4U/G4D LC-37G4U/G4D

POWER SUPPLY Unit (LC32/37G4U)

12345678910

11 12 13 14 15 16 17 18 19

7372

LC-32G4U/G4D LC-37G4U/G4D

POWER SUPPLY Unit (LC32/37G4D)

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

7574

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-1 Unit (LC-32G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

CN7501

Vin

N.C

GND

CN7502

S GND

STB

OFL

N.C

INV OSC

INV ERR

REG

IS1

IS2

N.C

C7553

R7510

123

D7501

R7538

R7542

R7539

R7541

F7502

F7501

R7540

Q7513

R7543

JP7502

R7516

R7515

R7501

R7502

C7554

R7511

R7512

R7513

R7514

C7512

R7508

C7501

R7504

R7505

R7506

R7507

R7545

C7502

C7503

C7505

D7518

IC7502

R7509

R7503

C7504

C7506

U.CODE RUNTKA069WJZZ

C7513

R7524

R7523

IC7501

DUTY

VCC

BRT

BCT

RDIS

PGND

SRT

P2 CT GND FB1 IS1 VS1 FB2 IS2 VS2

SCP2 SCP1

REG COMP2 COMP1

STB

FAIL

C7510 C7509 C7508

C7507

R7520 R7519

R7518

R7517

C7514

R7525

R7522 R7521

C7511

(3216)

C7515

R7527

(2125)

R7526

(3216)

Q7509

Q7510

R7528

(3216)

Q7511

Q7512

C7516

C7517

C7518

C7519

C7520

R7544

R7533

ZD7502

ZD7501

R7529

(3216) C7555

(3216) R7530

R7531

(3216)

C7556

(3216) R7532

R7534

(3216)

C7557

(3216) R7535

R7536

(3216)

C7558

R7537

(3216)

T7501

4,5

D7510

D7511

D7512

D7513

D7514

D7515

D7516

D7517

(3216) C7521

C7522

(3216)

(3216) C7523

C7524

(3216)

(3216) C7525

C7526

(3216)

(3216) C7527

C7528 (3216)

1,2

4,5

1,2

4,5

1,2

4,5

1,2

4,5

1,2

4,5

1,2

4,5

1,2

4,5

T7502

T7503

T7504

T7505

T7506

T7507

T7508

C7531

C7534

(3216)

C7537

C7540

(3216)

C7543

C7546

(3216)

C7549

C7552

(3216)

1,2,3 Q7501

5,6,7,8

5,6,7,8 Q7502

1,2,3

R7547

LUG7502

1,2,3 Q7503

5,6,7,8

5,6,7,8 Q7504

1,2,3

1,2,3 Q7505

5,6,7,8

5,6,7,8 Q7506

1,2,3

1,2,3 Q7507

5,6,7,8

5,6,7,8 Q7508

1,2,3

R7546

(3216)

C7529

C7530

C7532

C7533

C7535

C7536

C7538

C7539

C7541

C7542

C7544

C7545

C7547

C7548

C7550

C7551

D7502

D7503

D7504

D7505

D7506

D7507

D7508

D7509

CN7504

CN7505

CN7506

CN7507

12 345

VS2 VCC GND

N2 P2

CN7503

12345678910

LUG7501

11 12 13 14 15 16 17 18 19

7776

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-2 Unit (LC-32G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

CONFIDENTIAL

VS2 VCC GND N2

CN7402

U.CODE RUNTKA070WJZZ

CN7401

Vin

GND

F7401

JP7401

F7402

123

R7401

C7401

R7403

C7402

R7405

R7404

R7406

(3216)

R7402

(3216)

Q7409

Q7410

Q7411

Q7412

C7403

C7404

C7405

C7406

R7407

R7416

ZD7401

ZD7402

R7409

R7408

(3216)

C7440

(3216)

R7410

(3216)

C7441

R7411

(3216)

R7412

(3216)

C7442

R7413 (3216)

T7401

4,5

1,2,3

Q7401

5,6,7,8

Q7402 1,2,3

R7420

LUG7404

1,2,3 Q7403

5,6,7,8

5,6,7,8 Q7404

1,2,3

R7417

LUG7401

1,2,3

Q7405

5,6,7,8

Q7406

1,2,3

R7418

D7409

D7410

(3216)

D7411

D7412

(3216)

D7413

D7414

(3216)

C7408

(3216)

C7409 (3216)

4,5

C7410

1,2

(3216)

C7411 (3216)

C7412

(3216)

C7413

(3216)

C7418

1,2

4,5

T7402

C7421

1,2

(3216)

T7403

(3216)

C7424

T7404

4,5

C7427

1,2

(3216)

4,5

T7405

C7430

1,2

T7406

4,5

C7433

1,2

(3216)

C7416

C7417

C7419

C7420

C7422

C7423

C7425

C7426

C7428

C7429

C7431

C7432

D7401

D7402

D7403

D7404

D7405

D7406

CN7403

CN7404

CN7405

12345678910

LUG7402

4,5

C7407

R7414

(3216)

C7443

R7415

(3216)

T7407

1,2,3

Q7407

5,6,7,8

Q7408

1,2,3

R7419

LUG7403

D7415

D7416

(3216)

C7414

(3216)

C7415

(3216)

C7436

1,2

4,5

T7408

C7439

1,2

(3216)

C7434

C7435

C7437

C7438

D7407

D7408

11 12 13 14 15 16 17 18 19

7978

CN7406

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-1 GND Unit (LC-32G4U/G4D)

RUNTKA071WJZZ

CN7603

LUG7601

JP7601

CN7604

TH7601

R7628

R7630

R7627R7626

R7629

R7631

TH7602

R7632

R7636

R7634

R7638

R7633

R7635

R7637

R7639

JP7602

LUG7602

LUG7603

CN7605

TH7603

JP7603

CN7606

D7610

D7611

D7612

D7613

D7605

D7614

D7615

D7601

D7602

D7603

D7604

D7609

D7606

D7607

R7601

R7603

R7605

R7607

R7609

R7611

R7613

R7617

R7619

R7621

R7623

R7610

R7643

R7645

D7608

TH7604

D7616

R7641R7640

R7615

R7647

R7618

C7601

R7620

C7602

R7622

C7603

R7624

C7604

C7605

C7606

R7646

C7607

R7648

C7608

R7625

R7644

Q7601

Q7602

Q7603

Q7604

Q7608

Q7605

Q7606

Q7607

R7602

R7606

R7642

R7612

R7614

R7616

R7604

R7608

OSTEMP SGND

REG

OSTEMP

IS2

N.C

IS2

IS1

REG

SGND

N.C

CN7601

CN7602

654321

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-2 GND Unit (LC-32G4U/G4D)

U.CODE

LUG7653

RUNTKA072WJZZ

CN7652

JP7653

CN7653

JP7651

SGND

CN7651

R7668

R7667

C7651

R7670

C7652

R7672

C7653

R7690

C7654

R7691

R7652

R7654

R7656

R7658

R7675

R7679

D7661

D7662

D7663

D7651

D7660

D7652

D7654

D7653

R7651

R7669

R7653

R7671

R7655

R7673

R7657

TH7651

TH7652

R7674

R7676

R7677

R7678

R7680

R7681

Q7651

Q7652

Q7653

Q7654

REG

N.C

IS2OSTEMP

C7655

R7694

C7656

C7657

R7698

C7658

R7692

R7662

R7696

R7664

R7666

Q7658

Q7655

Q7656

Q7657

JP7652

CN7654

CN7655

TH7653

R7684

R7682

R7686

R7685

R7683

R7687

D7655

D7656

D7664

D7665

D7659

D7657

R7659

R7661

R7663

R7660

R7693

R7695

LUG7651

LUG7652

R7688

R7689

D7658

D7666

R7697

R7665

654321

LC-32G4U/G4D

U.CODE RUNTKA080WJZZ

CONFIDENTIAL

GND

Vin

P7501

1717823-1

C7523

4.7u 25V

C7503

0.022uF 25V

C7506

0.022uF 25V

D7501

DAN217U

D7502

DAN217U

N.C

S GND

STB

OFL1

INV OSC

INV ERR

REG1

IS1-2

REG2

IS2-1

IS2-2

IS1-1

P7506

B12B-PASK-1

C7524

4.7u 25V

1,2,3

5,6,7,8

DUTY BRT BCT RDIS RT SRT CT GND FB1 IS1 VS1 FB2 IS2 VS2

VCC

P1 N1

PGND

P2 SCP2 SCP1

SS REG

COMP2 COMP1

STB FAIL

IC7501

BD9766FV

D7512

RB070M30

D7511

RB070M30

R7509

68K F

C7544

330p CH

R7523

100K F

R7516

R7533 1K F

R7524

N.M

R7511

1K F

R7527 10K F R7528

10K F

R7512

36k

C7543

0.1u 16V

C7540

2.2u 10V

C7548

N.M

C7541

2.2u 10V

C7539

4.7u 25V

C7542

0.22u 16V

C7547

2200pF

C7546

4700pF/50V

C7550

2200pF

C7549

4700pF/50V

R7530

100K F

R7534

100 F

R7526

100

D7523

1SS355

F7501

TLC 10A 250V

R7517

100 F

R7540 0

C7534

330uF 25V KZE

R7510

68K F

(3216)

Q7506

RSS100N03

Q7501

RSS075P03

(2125) (2125)

P7505

B3PS-VH

R7539

51kF

Q7511 UM6K1N

3 4

R7555 51k F

R7507

10K F

D7521

HZU5.1B

R7549

0 (3225)

R7548 0 (3225)

T7501

BLCP4220

C7504

12pF 5kV

C7505

12pF 5kV

P7508

1717823-1

C7531

4.7u 25V

C7519

0.022uF 25V

C7522

0.022uF 25V

D7509

DAN217U

D7510

DAN217U

C7532

4.7u 25V

1,2,3

5,6,7,8

D7520

RB070M30

D7519

RB070M30

C7538

330uF 25V

(3216)

Q7510

RSS100N03

Q7505

RSS075P03

P7502

1717823-1

C7525

4.7u 25V

C7507

0.022uF 25V

C7510

0.022uF 25V

D7503

DAN217U

D7504

DAN217U

C7526

4.7u 25V

1,2,3

5,6,7,8

D7514

RB070M30

D7513

RB070M30

C7535

330uF 25V KZE

(3216)

Q7507

RSS100N03

Q7502

RSS075P03

P7504

1717823-1

C7529

4.7u 25V

C7515

0.022uF 25V

C7518

0.022uF 25V

D7507

DAN217U

D7508

DAN217U

C7530

4.7u 25V

1,2,3

5,6,7,8

D7518

RB070M30

D7517

RB070M30

C7555

330uF 25V

(3216)

Q7509

RSS100N03

Q7504

RSS075P03

P7503

1717823-1

C7527

4.7u 25V

C7511

0.022uF 25V

C7514

0.022uF 25V

D7505

DAN217U

D7506

DAN217U

C7528

4.7u 25V

1,2,3

5,6,7,8

D7516

RB070M30

D7515

RB070M30

C7537

330uF 25V KZE

(3216)

Q7508

RSS100N03

Q7503

RSS075P03

R7508

10K F

D7522

HZU5.1B

R7501 33K F

R7502 68K F

R7505

C7501 N.M

R7503 33K F

R7504 68K F

R7506

C7502

N.M

P7507

12PL-FJ

1,2,3,4

5,6,7,8

C7533

0.047uF 16V

C7536

0.047uF 16V

R7518

R7519

OFL2

REG2

IS2-1

IS2-2

INV OSC

INV ERR

GND

+B5-12V

S GND

OFL2

STB

SRT

IC7502

BA00ASFP

R7545 0

R7543

R7544 N.M

R7525 0

R7529 100

R7521

75KF

R7556 75KF

R7522

N.M

C7567 N.M

C7545 N.M

R7513 47K F

R7537

1.1K F

R7532 N.M

R7536

1.1K F

R7531

N.M

C7552

N.M

C7551 N.M

R7520 N.M

R7514

2.2K F

R7515

6.8K F

R7535 N.M

R7541 N.M

R7538 N.M

R7546 N.M

R7547

N.M

LUG7502

SD01138-21

LUG7501

SD01138-21

T7502

BLCP4220

1,2,3,4

5,6,7,8

12 13

T7503

BLCP4220

1,2,3,4

5,6,7,8

12 13

T7504

BLCP4220

1,2,3,4

5,6,7,8

12 13

T7505

BLCP4220

1,2,3,4

5,6,7,8

12 13

R7559

R7560

R7561

R7562 0

(3216)

R7563

R7564

R7565

R7566

(3216)

R7567

R7568

(3216)

R7557 0

R7558 N.M

(1608)

C7566

0.01uF 50V

FH7502

H-0017-2

FH7501

H-0017-2

R7569

N.M

R7570 N.M

LUG7503

SD01138-21

LUG7504 SD01138-21

C7508

12pF 5kV

C7509 12pF 5kV

C7512

12pF 5kV

C7513

12pF 5kV

C7516

12pF 5kV

C7517

12pF 5kV

C7520

12pF 5kV

C7521

12pF 5kV

(ECC)

KZE

LC-37G4U/G4D

INVERTER-1 Unit (LC-37G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

12345678910

11 12 13 14 15 16 17 18 19

8382

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-2Unit (LC-37G4U/G4D)

P7404

Vin

B2PS-VH

GND

LUG7402 SD01138-21

SD01138-21

LUG7401

LUG7403

R7424 N.M

R7437 N.M R7458 N.M

P7405

GND

+B5-12V

12R-FJ

S GND

STB

OFL2

INV OSC

INV ERR

SRT

REG2

IS2-1

IS2-2

U.CODE RUNTKA081WJZZ

R7444 0

(3225)

R7439 N.M

FH7401

H-0017-2

R7429 1K F

R7441

TLC 10A 250V

51kF

3 4

R7433

F7401

C7446

C7445

N.M

1SS355

D7415

N.M

CONFIDENTIAL

FH7402 H-0017-2

IC7403

R7445 0

(3225)

R7412

100 F

R7414

N.M

R7420

R7442 51k F

R7440

47K F

Q7402 UM6K1N

R7417

N.M

R7410

N.M

R7422

1.1K F

R7411

1.1K F

N.M

R7418

75K F

C7455

N.M

R7443

75KF

C7437 N.M

100K F

R7407

100K F

R7408

R7419

36k F

N.M123

R7446 N.M

C7425

N.M

R7416

R7428 R74211K F

C7438

330p CH

4700pF/50V

C7427

2200pF

4700pF/50V

C7429

2200pF

R7447 N.M

R7438 0

R7415

68K F

C7426

C7428

IC7402

DUTY BRT BCT RDIS RT SRT CT GND FB1 IS1 VS1 FB2 IS2 VS2

R7430 100

R7413 N.M

BD9766FV

R7448 N.M

VCC

P1 N1

PGND

P2 SCP2 SCP1

SS REG

COMP2 COMP1

STB FAIL

R7432

C7432

C7433 C7434 C7435 C7436

R7426 10K F

R7427

R7435

100

R7431

100

R7449 N.M

4.7u 25V

(3216)

2.2u 10V (2125)

2.2u 10V

(2125)

0.22u 16V

0.1u 16V

10K F

C7423

C7408

C7415

C7444

D7414

HZU5.1B

C7422

0.047uF 16V

330uF 25V KZE

D7417

HZU5.1B

C7431

0.047uF 16V

330uF 25V KZE

330uF 25V

KZE

R7409

10K F

R7436

10K F

R7450

(3216)

R7451

(3216)

RSS100N03

R7452

(3216)

R7453 0

(3216)

RSS100N03

R7454

(3216)

R7455

(3216)

RSS100N03

R7456

(3216)

R7457 0

(3216)

RSS100N03

RSS075P03

1,2,3 Q7407

5,6,7,8

Q7409

1,2,3

RSS075P03

1,2,3 Q7401

5,6,7,8

Q7403

1,2,3

RSS075P03

1,2,3 Q7404

5,6,7,8

Q7406

1,2,3

RSS075P03

1,2,3 Q7410

5,6,7,8

Q7411

1,2,3

RB070M30

D7412

D7413

RB070M30 RB070M30

D7403

D7404

RB070M30

D7408

D7409

RB070M30

D7420

D7421

RB070M30

4.7u 25V (3216)

C7420

C7421

4.7u 25V (3216)

4.7u 25V

(3216) C7405

C7406

4.7u 25V

(3216)

4.7u 25V

(3216) C7413

C7414

4.7u 25V (3216)

4.7u 25V

(3216) C7424

C7430

4.7u 25V (3216)

5,6,7,8

1,2,3,4

BLCP4220

5,6,7,8

1,2,3,4

BLCP4220

5,6,7,8

1,2,3,4

BLCP4220

5,6,7,8

1,2,3,4

BLCP4220

T7403

T7401

T7402

T7404

C7417

12 13

C7418

C7402

12 13

C7403 12pF 5kV

C7410

12 13

C7411

C7440

12 13

C7441

C7416

0.022uF 25V

12pF 5kV

(ECC)

12pF 5kV

(ECC)

C7419

0.022uF 25V

C7401

0.022uF 25V

12pF 5kV

(ECC)

C7404

0.022uF 25V

R7403

C7409

0.022uF 25V

12pF 5kV

(ECC)

12pF 5kV

(ECC)

C7412

0.022uF 25V

C7439

0.022uF 25V

12pF 5kV

(ECC)

12pF 5kV

(ECC)

C7442

0.022uF 25V

R7406

DAN217U

C7407 N.M

DAN217U

C7443 N.M

D7410

D7411

DAN217U

D7401

D7402

DAN217U

D7406

D7407

DAN217U

D7418

D7419

DAN217U

R7401 33K F

R7402 68K F

R7404 33K F

R7405 68K F

P7401

1717823-1

P7402

1717823-1

P7403

1717823-1

P7406

1717823-1

12345678910

11 12 13 14 15 16 17 18 19

8584

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-1 GND Unit (LC-37G4U/G4D)

RUNTKA082WJZZ

D7608

R7627

1.3KF

R7628 0

DAN217U

D7601

D7603

DAN217U

D7605

D7607

DAN217U

D7602

R7602

R7608

R7613

R7619

R7604

R7624 N.M

C7608 N.M

C7601

1u 25V

(3216)

C7603

1u 25V

(3216)

C7605

1u 25V

(3216)

C7607

1u 25V

(3216)

C7602

1u 25V

(3216)

R7601

100K F

UM6K1N

R7607

100K F

UM6K1N

R7612

100K F

UM6K1N

R7617

100K F

UM6K1N

R7603

100K F

UM6K1N

Q7601

Q7603

Q7605

Q7607

Q7602

P7601

1717823-1

R7605

TH7601 N.M

P7602

1717823-1

TH7602 N.M

R7618

R7609

P7603

TH7603

N.M

R7606

R7623

1717823-1

OSTEMP

SGND

REG1

IS1-1

IS1-2

REG2

IS2-1

IS2-2

OSTEMP

SGND

REG1

IS1-1

IS1-2

REG2

IS2-1

IS2-2

S8B-PASK-2

P7608

N.M

P7606

OSTEMP

SGND

REG2

IS2-1

IS2-2

N.C

P7607

06PL-FJ

LUG7604

SD01138-21 LUG7603

SD01138-21

LUG7602 SD01138-21

LUG7601

SD01138-21

UM6K1N

C7604

1u 25V

(3216)

UM6K1N

C7606

1u 25V

(3216)

R7610

100K F

R7614

100K F

UM6K1N

C7609

1u 25V

(3216)

C7610

N.M

R7620

100K F

Q7604

Q7606

Q7608

3 4

R7634 0

(3225)

R7633 0

(3225)

R7632 0

(3225)

R7631 0

(3225)

R7625

R7630 0

D7604

DAN217U

D7606

DAN217U

D7610

DAN217U

R7611

R7616

D7609

DAN217U

R7622

R7626

N.M

P7604

TH7604

N.M

R7621

R7629

1.3KF

R7615

1717823-1

P7605

1717823-1

654321

INVERTER-1 GND Unit (LC-37G4U/G4D)

RUNTKA083WJZZ

PSD-0376-D

LC-32G4U/G4D LC-37G4U/G4D

ONFIDENTIAL

1717823-1

P7651

P7652

R7667

TH7651

NCP18XH103J03RB

R7661

R7654

TH7652 N.M

R7670

1.3KF

R7671 0

DAN217U

D7657

DAN217U

D7655

D7653

DAN217U

D7651

R7666

R7658

R7653

R7669 N.M

C7657 N.M

C7655

1u 25V

(3216)

C7653

1u 25V

(3216)

C7651

1u 25V

(3216)

R7665

100K F

UM6K1N

R7657

100K F

UM6K1N

R7652

100K F

UM6K1N

Q7655

P7655

OSTEMP

Q7653

Q7651

SGND

REG2

IS2-1

IS2-2

N.C

06R-FJ

P7653

TH7653

N.M

TH7654

N.M

R7656

R7663

R7668

R7673

1.3KF R7674

1717823-1

P7654

1717823-1

DAN217U

D7652

DAN217U

D7658

DAN217U

D7654

D7656

DAN217U

R7660

R7655

R7664

R7672

N.M

UM6K1N

C7654

1u 25V

(3216)

UM6K1N

C7652

1u 25V

(3216)

UM6K1N

C7656

1u 25V

(3216)

C7658

N.M

R7659

100K F

R7651

100K F

R7662

100K F

Q7654

Q7652

Q7656

R7678 0

(3225)

R7677 0

(3225)

R7676 0

R7675 0

(3225)

LUG7654

SD01138-21

LUG7653

SD01138-21

LUG7652 SD01138-21

LUG7651 SD01138-21

654321

LC-32G4U/G4D

P7706

LUG7702

P7704

R7728

R7726

R7739

R7727

C7733

C7720

C7705

P2004

C7735

C4117

C7736

MARK1

R7750

L7713

L4103

C4146

C4138

L4106

L4102

TP4101

L4101

C4180

L4109 C4169

C4136

TP4104

C4902

C4901

P7709

R4917

C4936

C4934

R4918

R4916 R4915

C4935

IC4902

R4925 R4924 R4920 R4919

LUG7704

R4538

C4527

P4501

IC4503

C4502

TP4902 C4526

TP4901

IC4502

R4543

R4536

TP4557

TP4559

TP4561

TP4560

R4545

R4508

C4531

R4544

C4511

TP4512

IC4505

TP4506

R4504

TP4509

FB4602

C4530

C4612

C4607

TP4510

D4501R4505

C4503

TP4552

C4620

C4606

TP4502

TP4550

SC4601

C4605

TP4501

R4502

R4501

TP4551

TP4503

FB4601

C4611

C4610

TP4507

R4507

C4522

TP4554

TP4504

C4609

FB4603

R4510

C4608

C4613

TP4505

TP4508

R4503

R4546 R4547

C4533

R4509

C4532

IC4506

TP4511

TP4517

TP4513

R4532

C4601

C4518

C4525

C4602

D4601

C4603

IC4601

R4718

C4604

C4732

C4730

R4719

R4717 R4716

C4731

IC4702

P2001

TP2011

R4723 R4722 R4721 R4720

SC2001

TP4704

TP4703

R2617

R2097

R2011

R2096

TH2001

R2039

C2012

R2024

C2013

R2025

C2010

C4196

R2037

R2028

R2047

C2009

R2050

R2006

R2027

R2016

R2038

C2015

R2040

R2046

R2013

R2029

R2026

R2030

R2014

R2094

R2015

X2001

R2012

R2054

P2006

R2007

R4273

R2055 R2074

C2014

TP4102

R2056

TL2017

R2057

C2007

C2006

R2017

R2018

C2003

R2058

TL2018

IC2004

TL2021

TL2020

R2059

C4147R4279

R2019

TP2012

R2072

R4176R4175

TP2013

R2060

FL2001

R4172R4171

R2061

C2016 R4169R4168

R2062

R2009 R4164R4163

R2063

R2620 R4159R4158

D2005

R2064

R4154R4153

C2025

R2021

R4150R4149

IC2003

R2020

R2051

R2052

R2065 R4145R4144

R2005

R2022

R2032

R2031

R4142R4141

R2067

C2032

R2002

R2033

R2041

R2042

R2036

R2044

R2043

R4138R4137

R2053

R2045

C4125R4280

R2035

R2034

Q2005

D2003

D2002

R4133

Q2010 R2616

Q2006

Q2012

P2003

R2078

C2033

R4134

Q2003

Q2009

Q2008

IC2008

C2017

R2079

R2080

C2023

C2022

FB2001

L7704

C7707

P2005

C7716

C7719

L7701

L7710

C7723

FB7710

P7707

C7701

C7722

L7711

C7703

P7705

LUG7706

LUG7705

P7708

C7709

C7724

L7702

L7708

L7707

C7732

R4117

Q4102

C4111

R4107

IC4105

C4113

R4173

R4127

R4240

C4121

R4205

R4203

C4102

R4288

R4281

R4118

R4119

R4126

R4204

R4125

R4111

R4131

R4135

C4114

C4124

R4139

R4130

C4115

R4146

R4147

C4129

R4155

R4156 C4135

C4137

IC4101

C4139

R4161

R4160

R4165

R4177

R4185

R4166

R4109

R4182

C4155

R4186

R4190

R4191

R4192

R4187

R4188

C4141

R4202

C4156R4196

C4110

R4200

R4201

C4119

R4283

D4110

C4702

TP4702TP4701

C4701

SC4652

C4655

C4729

FL4653

FL4654

C4657

R4531

C4520

R4525

TP4527

TP4531

TP4521

TP4528

TP4530

TP4515

TP4518

TP4522

TP4524

TP4549TP4535

TP4547

TP4548

TP4546

TP4545

TP4544

IC4501

TP4543

TP4542

TP4540

LUG7703

TP4541

TP4539

TP4538

TP4537

TP4536

TP4533

TP4534

C4540

TP4520

TP4556

TP4529

TP4525

TP4532

TP4519

TP4523

TP4526

TP4516

R4526

TP4558

R4524

TP4904

C4501

TP4903

TP4905

TP4906

TP4907

C4651

SC4651

FL4651

FL4652

C4933

C4653

C4177

TP4103

L4104

C4159

C4160

MARK2

L7712

P2002

LUG7701

LC-37G4U/G4D

PRINTED WIRING BOARD ASSEMBLIES

LCD CONT Unit

LC-32G4U/G4D LC-37G4U/G4D

(Chip Parts Side-A)

(Component Parts Side-A)

12345678910

8988

11 12 13 14 15 16 17 18 19

LC-32G4U/G4D LC-37G4U/G4D

TL7714

TL7711 TL7708

LCD CONT Unit

R7720

R7719

R7708

FB7708

D7707

C7715

IC7706

R7711

R7729

TL7719 TL7718 TL7713 TL7712 TL7717 TL7720

FB7702

R7705

R7716

FB7711

FB7718 FB7717 FB7713 FB7712 FB7716

R7713

R7736

Q7705

R7752

Q7704

R7751

TL7701

D7704

C7704

IC7703

IC7701

TL7702

C7706

FB7709

C7702

TL7704

R7715

IC7707

C7710

TL7703

R7714

R7707

C7708

FB7705

D7708 R7721

R7733

IC7705

R7706

R7735

R7734

R7717

IC7704

C7729

IC7709

C7713

C7728

R7742

R7723 D7709 R7724

R7743

FB7706

C7712

IC7710

D7705

TL2058

C7731

D7701D7702R7703

FB2015

TL2057

C7730

FB2014

TL2056

D7710C7726

FB2013

TL2055

R7730

FB7703 R7731

FB7704

R7732

FB2012

TL2054

FB2011

TL2053

FB7701

FB2010

R4151

R4212

TL2059

R4195

R4106

R4215

C4126

R4108

C4131

TL4101

TL2044

C4122

R4110

C4123

R4275

TL2022

TL2061

C4184

R4114

TL2062

R4179

R2098

R4129

R4286

R4132

R2095

R4136

R2619 TL2046

TL2038

TL2064

R2099

R4197

R4140

TL2011

R2001

R4143

R2618

R2010 R2008 R2023

R2600 C2034

C2035

R4104 C4104 C4183

R4148

R4282

R2068C2024

R4152

Q2013

C4127

R4157

IC2015

C2004R2092

R4103R4102

C2021

C4105

R4189

R4162

IC2016

R2003

TL2050

IC4104

R4167

Q2014

IC2001

C4130

IC2019

R4207

R4170

C4107

IC2010

R2093

C2001

R4174

C4153

R2075

R4214

R4274

R2066

R2077

Q2002

TL2065

TL4104

R2623

R2081

R4208

C2002

R2071

Q2007

TL2066

R2073

R2622

R2076

D2004

R2603

Q2004

R2087

R4181 R4180 R4184 R4183

R2624

R2069

TL2067

R2070

R2086

TL2025

TL2068

D2010C4197

C2020

TL2019

R2085

TL2069

C4108

R4105

R2621

IC2002

R2083

TL2070

Q2001

R4178

C4195 R4272 R2048 R2049

R2604

TL2072

TL2071

C4106

IC4107

IC2017

TL2073

R2082

R4261

R4115

R4271 R4101

FB2002C2005

TL2075

TL2074

Q4101

R2084

TL92

C2019

C4192 R4262 R4263

R4270

R2601

TL2076

Q4112

C2036

IC2014

TL91

C4103

R2614

R2602

TL2012 TL2009

R4264

TL90 R4121

R4124 R4112 R4122 C4112 R4123

TL2010

TL2040

TL2008

TL89

C4101

R2609

TL2023

TL88

TL87

R4120

C4109 R4116

IC4102

FB4701

C4706 C4703

R4703 C4707 C4704

C4705 C4708

C2008

R2607

R2605

R4702

TL86

R4701

IC2006

R2608

TL82

R4113

R2089

TL85

R2610R2606

TL2024

R2088

R2090

TL84

TL80

TL81

TL2007

TL2027 TL2026

TL83

TL78

TL79

C4709

R2615

TL2029 TL2028

TL75

TL2006

R2091

TL73 TL77

TL76

TL74

R2613

TL2039

TL71

TL70

TL2005

TL2043

TL2041

TL2042

R2612

TL72

TL69

TL94

TL2045

TL68

C4712

C4710

TL2048 TL2004

R2004

TL2047

R4656

TL64

TL93

C4711

TL2003

TL95

TL65

TL2052

TL61

TL62

FB4702

TL2002

LC-32G4U/G4D LC-37G4U/G4D

TL34

TL36

TL38

TL40

TL42

TL43

TL49

R4250

TL52

TL47

TL59

TL46

TL51

TL57

TL55

TL48

TL50

C4658

TL53

TL56

TL58

TL60

TL67

TL63

C4656

TL45

TL54

TL44

C4719

C4717

C4715

C4716

IC4701

C4713

C4714

C4720

C4718

R4620

R4621

TL2001

Q4602

Q4601

R2611

C4622

TL2049

TL2051

TL39 TL41

R4706

C4623

TL37

IC4603

R4619

R4705

TL27

TL29

TL35

TL25

TL26

TL28

TL30

R4654

R4655

TL24

TL31

TL32

TL33

FB4502

R4517

R4534

C4521

R7738D7711

R4515

FB4501

C4617

C4614

R4617

R4622

C4537 C4536

R4606

C4516

C4504

R4518

R4516

R4605C4615

C4509

C4507

R4609

C4513

C4535

R4608

C4618

C4515 C4514

X4501

IC4602

R4618C4519

R4607

C4508

C4505

C4512

C4506

R4506

R4610

C4523

C4538

R4602C4619

C4539

R4601

C4524

R4604C4616

C4510 C4534

R4603

IC4504

C4621

R4611R4614R4613

C4528

R4615 R4616 R4612

R4704

C4721

C4624

IC4604

C4725 C4726

C4722 C4727

C4728 C4723

R4712 R4713

C4724

R4623R4624

R4711R4710

FB4504

R4715R4714

TL4501

C4529

TL4502

R4535R4904R4930

TL14

TL16

TL18

TL20

TL11

TL9

TL7

TL4695

TL2

TL97

TL21

TL15

TL17

TL22

R4929R4903

TL4504

TL19

C4906 C4903

C4907 C4904

C4905 C4908

TL4503

TL13

R4901

R4902

TL4505

TL96

TL5

TL4691

TL4699

TL4689

TL4681

TL4687

TL4692

TL4694

C4912

C4652

TL4693

TL4506

C4911

R4653

TL4688

TL4690

TL4686

TL4683

TL4685

TL4684

IC4901

TL4682

C4916

C4913

TL4697

C4915

C4914

TL4680

TL4678

TL4679

TL7733TL7728

TL6

TL10

TL8

TL4

TL4698 TL1

TL12

TL4696

TL3

R4907

R4906

C4909

R4926

C4910

TL4671

TL4677

TL4676

TL4675

TL4670

TL4674

C4918

TL4666

TL4668

TL4669

TL4665

TL4667

TL4673

C4920

C4919

C4917

TL7729TL7730TL7731

TL4664

TL4663

TL4662

TL4672

TL4661

C4921

R4905

TL4657 TL4658

R4652

TL4660

TL4659

C4654

R4651

TL7727

TL4655TL4656

C4925 C4926

R4911 C4922

C4927

C4928 C4923

R4932 R4931

C4924

TL4653

FL4103

C4171

TL7732

TL4651

C4179

FB4902

TL4652

FB4901

R4235

R4234

L4110

R4226

C4158

C4176

C4170

Q4109

IC4114R4233

C4168

C4174

Q4106

C4161

C4164

D4107

C4163

R4227

TL4146

L4108

L4107

R4224 D4106

Q4105

D4108

R4238 R4229

R4210 R4211

D4109

R4206

R4222

C4157

D4104

IC4109

C4145

C4162

D4103

R4244

Q4108

R4223

C4181

R4194

R4256

D4105

Q4110

R4198

IC4108

R4239

Q4104

R4220

IC4116

D4102

Q4103

L4105

C4120 R4216 R4230

R4225

R4199

R4218

R4193

C4116R4221

R4260 C4165

C4166 R4228

FB4101

D4101

R4217R4219

FB4102

C4142

R4231

MARK3

MARK4

TL2030

FB2003

TL2031

FB2004

TL2037

Q7702

Q7703

R7748

D7715

TL2032

R7749R7747

R7741

R7712 C7721

R7709

R7704

FB2005

TL2033

R7746

R7744

R7710

FB2006

TL2034

D7713

D7714

R7745

IC7711

R7740

FB2007

TL2035

FB7720

FB2008

TL2036

C7734

R7702

IC7702

FB2009

TL2060

D7703

D7712

FB2017

R7701

FB2016 FB2021 FB2022 FB2023

FB7719

TL2077 TL2013 TL2014 TL2015 TL2016

TL7721 TL7715 TL7716 TL7722 TL7723 TL7724 TL7725 TL7726

TL7705 TL7706 TL7707

TL7709 TL7710

(Chip Parts Side-B)

(Component Parts Side-B)

12345678910

11 12 13 14 15 16 17 18 19

9190

LC-32G4U/G4D LC-37G4U/G4D

TMDS RX Unit

R7805

FB7802

J2201

R7806

R7802

R7807

C7804 D7802

L7803

D2223 D2221

P7802

L7804

C2258

C2255

Q2217 Q2218

R2248 R2249

FB2209

IC2208

R2246 R2247

R2245

R2259

C2254

R2258

C2239

R2250

C2304

C2301

C2302

R2256 R2257

C2238

FL2208FL2207

FL2212FL2211 FL2210 FL2209

R2229

C2245

X2201

R2260

C2247

C2243

C2282 C2260 R2251 R2252

LUG2202

FL2216 TL2201

C2280

C2259 C2281

C2220

R2204

FL2213

FB2211

R2291

R2279 TL2202

C2279 C2252

FB2212

R2282

TL2203

FL4904

R2288

FL2214

R2289

R2238

R2287

TL2204

R2239

R2290

R2280

C2256

C7806

C2211

R2203

LUG2205

IC7802

C7802

P7801

P2202

FB2218 D2222 D2224

LUG2201

FB2210

R2284

FL2206

C2278 C2249

C2248

C2253C2231

FL2205

IC2206

C2250

C2233

C2315

C2277 C2251

SC2301

FL2215

C2234

R2283

C2312

C2223

SC2201

C2229

C2230

C2213

C2224 C2273

C2236

C2242

C2262

R2262 R2278 R2276

C2261 C2244

C2274

R2205

SC2203

C2215

C7807

C7805

R2206

R2297

L7801

R7804

C2207

R2214

C2208

R2215

D7801

R7801

D2216 D2211

C7803

FB7801

R7803

R2220 C2206

SC2202

R7808

L7802

C2266

C2265

C2212

FB2207

D2210

FL2204

R2285

R2286

R2281 FL2201FL2202 FL2203 C2237

C2275 C2276

IC2205

R2244

C2235 C2232 C2225

IC2204

C2222 C2221

LUG2203

C2204

D2217

LUG2206

C7801

IC7801

P2201 P7803

LUG2204

(Chip Parts Side-A)

(Component Parts Side-A)

654321

LC-32G4U/G4D LC-37G4U/G4D

TL2243

TL2235

TL2227

TL2239

TL2231

TL2223

TL2225

TL2221

R2212

TL2222

TL2226

TL2224

TL2228

TL2229

TL2230

TL2232

TL2233

TL2234

TL2236

TL2237

TL2238

TL2240

TL2241

TL2242

TL2244

TL2245

TL2246

TL2247

TL2248

TL2249

TL2265

R2202

IC2302

C2309C2310

C2308

FB2303

FB2305

C2316

C2317

FB2306

C2311

C2314

C2313

R2318

FB2304

R2315 R2314 R2316 R2319 R2317

C2307

TL7806

TL7812

C2306

C2305

C2303

D2301FB2302

IC2301

TL7811

TL7810

TL7809

TL7808

TL7807

TL2217 TL2218 TL2219 TL2220

R2216

D2206

C2219

Q2201

IC2201

R2228

Q2203

R2213

R2217

R2209

TL2266

TL2206

D2201

C2201

D2214

D2215

D2209

R2221C2205

R2222FB2201

R2224FB2202R2296

R2210D2202

R2298

TL2210

TL2207

TL2208

TL2209

TL2279

TL2264

TL2214

TL2278

TL2213

TL2215

D2225

R2218C2210

R2219C2209

R2201C2203

TL2211

R2273

D2207

D2213

D2226

TL2205

TL2212

TL2216

Q2208 Q2205

C2268

D2218

Q2211

R2269R2270

Q2212 R2268

C2271

Q2207

R2293

Q2206

Q2214

Q2213

R2274

D2212

C2214

IC2203

R2267

R2265

Q2210

C2272

R2275

Q2215

R2261

R2232

R2233

R2234

R2235

D2203

D2205

R2225

FB2205

R2226

D2204

IC2202

R2271

Q2209

R2266

Q2216

FB2208R2292

R2242R2243

R2240R2241

R2263 Q2219

R2230

Q2204

R2255 C2226

R2253

R2231

Q2202

R2254

R2264

Q2220

FB2206

FB2203

C2269C2264

FB2204

C2263

C2228

C2218

D2220

D2219

C2216

C2270

D2208

C2227

C2217

TL2262

TL2258

TL2260

TL2259

TL2261

TL2256

TL2263

TL2257

TL7805 TL7804

TL7803

TL7802 TL7801

(Chip Parts Side-B)

(Component Parts Side-B)

654321

LC-32G4U/G4D LC-37G4U/G4D

KEY Unit

S154

S155

R153

D152

P151

P152

S152

D151

R151

R152

(Chip Parts Side)

S153S151

S156

D153

S157

P153

(Component Parts Side)

RC LED Unit

R117

P102

Q104

C101

R105 R110

P101

D101

Q105

R106

SLD101

RMC101

C102 R101 C105

IC101

C104

R104

R107

Q102

R108

D103

Q103

R109

(Chip Parts Side)

(Component Parts Side)

654321

SP TERMINAL Unit

LC-32G4U/G4D LC-37G4U/G4D

FB4002 R4001 R4003 R4002

P4000

FB4001

D4001

IC4001

L4001

C4003

L4002

P202

R4004

C4002

R4006 R4010 C4008

C4001

C4006

IC4002

R4014

R4015

R4016

R4017

C4004

C4005

R4005

P4002

R4012

R4013

Q4001

Q4002

C4007

SC4001

R4007

R4009

R4008 C4009 R4011

P203

(Chip Parts Side)

(Component Parts Side)

654321

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-1 Unit

(LC-32G4U/G4D)

(Component Parts Side)

(Wiring Side)

654321

INVERTER-2 Unit

(LC-32G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

(Component Parts Side) (Wiring Side)

654321

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-1 GND Unit

(LC-32G4U/G4D)

(Component Parts Side)

INVERTER-2 GND Unit

(LC-32G4U/G4D)

(Wiring Side)

(Component Parts Side)

(Wiring Side)

654321

INVERTER-1 Unit

(LC-37G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

(Component Side)

(Chip Parts Side)

654321

LC-32G4U/G4D LC-37G4U/G4D

INVERTER-2 Unit

(LC-37G4U/G4D)

(Component Side)

(Chip Parts Side)

654321

100

INVERTER-1 GND Unit

(LC-37G4U/G4D)

LC-32G4U/G4D LC-37G4U/G4D

(Component Parts Side)

INVERTER-2 GND Unit

(Wiring Side)

(LC-37G4U/G4D)

(Component Parts Side)

(Wiring Side)

654321

101

LC-32G4U/G4D LC-37G4U/G4D

POWER SUPPLY Unit

(Side-A)

102

654321

LC-32G4U/G4D LC-37G4U/G4D

(Side-B)

103

654321

LC-32G4U/G4D LC-37G4U/G4D

PARTS LIST

P ARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual; electrical components having such features are identified by å and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which dose no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor, Please call TollFree; 1-800-BE-SHARP

★ MARK: SPARE PARTS-DELIVERY SECTION

Ref. No. Part No. ★ Description Code

LISTE DES PIECES

CHANGE DES PIECES

Les pi`eces de rechange qui pr élelesentent ces caract éleristiques sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : lespi`eces élelectriques qui pr élesentent ces particularit éles, sont rep éler élee par la marque ået sont hachur élees dans les listes de pi`eces et dans les diagrammes sch élematiques. La substitution d'une pi`ece de rechange par une autre qui ne pr éLesente pas les m éoemes caract éLeristiques de s élecurit éle que la pi`ece recommand élee parl'usine et dans ce manuel de service, peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.

"COMMENT COMMANDER LES PIECES DE

RECHANGE"

Pour que votre commande soit rapidement et correctement remplie, veuillez fournir les renseignements suivants.

1. NUMERO DU MODELE 2. NO. DE REF

3. NO. DE PIECE 4. DESCRIPTION

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100

★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

LC-32G4U / LC-32G4D

DUNTKC268VJ04 J LCD CONT Unit CK DKEYHC269VJ12 J TMDS RX Unit BU DUNTKC274UJ02 – KEY Unit — DUNTKC275UJ02 – R/C LED Unit — DUNTKC276UJ02 – SP TERMINAL Unit — RDENCA058WJZZ – POWER SUPPLY Unit —

(LC-32G4U)

RDENCA059WJZZ – POWER SUPPLY Unit —

(LC-32G4D) RUNTKA069WJZZ – INVERTER-1Unit — RUNTKA070WJZZ – INVERTER-2Unit — RUNTKA071WJZZ – INVERTER-1 GND Unit — RUNTKA072WJZZ – INVERTER-2 GND Unit —

LC-37G4U / LC-37G4D

DUNTKC268VJ03 J LCD CONT Unit CK DKEYHC269VJ11 J TMDS RX Unit BV DUNTKC274UJ02 – KEY Unit — DUNTKC275UJ02 – R/C LED Unit — DUNTKC276UJ02 – SP TERMINAL Unit — RDENCA058WJZZ – POWER SUPPLY Unit —

(LC-37G4U) RDENCA059WJZZ – POWER SUPPLY Unit —

(LC-37G4D) RUNTKA080WJZZ – INVERTER-1 Unit — RUNTKA081WJZZ – INVERTER-2 Unit — RUNTKA082WJZZ – INVERTER-1 GND Unit — RUNTKA083WJZZ – INVERTER-2 GND Unit —

LCD PANEL

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

RLCDTA028WJZZ J 32”Wide LCD Panel Unit ER

(LC-32G4U/G4D)

RLCDTA027WJZZ J 37”Wide LCD Panel Unit FS

(LC-37G4U/G4D)

104

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit

INTEGRATED CIRCUITS

IC2001 VHiBD4742G+-1Y J BD4742G-TR AD IC2002 RH-iXA757WJN1Y J M24128-BWMN6T AN IC2003 VHiLTC1694C-1Y J LTC1694CS5#TR AM IC2004 RH-iXA870WJZZQ J HD64F3687H AY IC2008 VHiBR24C08F-1Y J BR24C08F-E2 AF IC2010 VHiM62392FP-1Y J M62392FP AM IC2014 VHiTC7W34U/-1Y J TC7W34FU AE IC2015 VHiSN2G66CT -1Y J SN74AHC2G66HDC AE IC2016 VHiLVX125FT-1Y J TC74LVX125FT AG IC2017 VHiLVX125FT-1Y J TC74LVX125FT AG IC4101 RH-iXA706WJZZQ J IR3E12M1 AN IC4102 VHiNJM4580V-1Y J NJM4580V AE IC4107 VHiLP2951CM-1Y J LP2951CMX AL IC4108 VHiPQ1CZ41H-1Y J PQ1CZ41H2ZP AG IC4109 VHiLT1615ES-1Y J LT1615ES5 AP IC4114 VHiLT1617ES-1Y J LT1617ES5 AP IC4116 VHiLTC1872+-1Y J LTC1872ES6 AR IC4501 RH-iXA865WJZZQ J I.C. BH IC4502 VHiTC7W34U/-1Y J TC7W34FU AE IC4503 VHiTC7W34U/-1Y J TC7W34FU AE IC4505 RH-iXA866WJN3Y J I.C.(LC-37G4U/G4D) AY IC4505 RH-iXA962WJN3Y J I.C.(LC-32G4U/G4D) AY IC4506 VHiPST3629N-1Y J PST3629NR AD IC4601 VHiPQ1R33//-1Y J PQ1R33 AE IC4602 VHiTLVD824+-1Q J THC63LVD824 AY IC4701 RH-iXA332WJZZQ J XC2S150-5PQ208 BM IC4702 RH-iXA312WJN1Q J MT48LC2M32B2TG AX IC4901 RH-iXA332WJZZQ J XC2S150-5PQ208 BM IC4902 RH-iXA312WJN1Q J MT48LC2M32B2TG AX IC7701 VHiAN8005M/-1Y J AN8005M AD IC7702 VHiPQ20WZ11-1Y J PQ20WZ1U AF IC7703 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH IC7704 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH IC7705 VHiBD4742G+-1Y J BD4742G-TR AD IC7706 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH IC7709 VHiBD4742G+-1Y J BD4742G-TR AD IC7710 VHiPQ015YZ5-1Y J PQ015YZ5MZP AF IC7711 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH

TRANSISTORS

Q2001 VSDTC114EE/-1Y J DTC114EE AB Q2002 VSDTC144EE/-1Y J DTC144EE AA Q2003 VSDTC144EE/-1Y J DTC144EE AA Q2004 VSDTC144EE/-1Y J DTC144EE AA Q2005 VS2SK536///-1Y J 2SK536 AE Q2006 VS2SK536///-1Y J 2SK536 AE Q2007 VS2SC3928AR-1Y J 2SC3928AR AB Q2008 VS2SA1530AR-1Y J 2SA1530AR AB Q2009 VSDTC144EE/-1Y J DTC144EE AA Q2010 VSDTC114EE/-1Y J DTC114EE AB Q2012 VSDTC144EE/-1Y J DTC144EE AA Q2013 VS2SK536///-1Y J 2SK536 AE Q2014 VS2SK536///-1Y J 2SK536 AE Q4101 VS2SD1664Q+-1Y J 2SD1664Q AC Q4103 VS2SA1530AR-1Y J 2SA1530AR AB Q4104 VS2SC3928AR-1Y J 2SC3928AR AB Q4105 VSTP0610T++-1Y J TP0610T AD Q4106 VS2SC3928AR-1Y J 2SC3928AR AB Q4108 VS2SK1826++-1Y J 2SK1826 AC Q4109 VS2SK1826++-1Y J 2SK1826 AC Q4110 VSSi4884DY+-1Y J SI4884DY-T1 AG Q4112 VS2SB1132Q/-1Y J 2SB1132Q AC Q7702 VSDTA114EE/-1Y J DTA114EE AB Q7703 VSDTC114EE/-1Y J DTC114EE AB

DIODES AND LED'S

D2002 VHD1SS355//-1Y J 1SS355 AB D2003 VHD1SS355//-1Y J 1SS355 AB

D2004 VHDMA157A//-1Y J MA157A AC D2005 VHD1SS355//-1Y J 1SS355 AB D4101 VHDHSU119//-1Y J HSU119 AB D4102 VHDSFPB74//2EY J SFPB74 AD D4103 VHDHSU119//-1Y J HSU119 AB D4104 VHDHSU119//-1Y J HSU119 AB D4105 VHDSFPB54//2EY J SFPB54 AC D4106 RH-EX1274CEZZY J Zener Diode AB D4107 VHDHSU119//-1Y J HSU119 AB D4108 VHDSFPB54//2EY J SFPB54 AC D4109 VHDSFPB74//2EY J SFPB74 AD D4110 VHDDA221///-1Y J DA221 AB D4501 VHDDAN222//-1Y J DAN222 AA D4601 VHD1SS355//-1Y J 1SS355 AB D7703 VHDHSU119//-1Y J HSU119 AB D7704 VHDSFPB54//2EY J SFPB54 AC D7705 VHDSFPB54//2EY J SFPB54 AC D7707 VHDSFPB54//2EY J SFPB54 AC D7710 VHDHSU119//-1Y J HSU119 AB D7711 VHDDAN222//-1Y J DAN222 AA D7712 VHDSC8024//-1Y J SC8024 AC D7713 VHDSC8024//-1Y J SC8024 AC D7714 VHDSFPB54//2EY J SFPB54 AC D7715 VHDDAN222//-1Y J DAN222 AA

P ACKAGED CIRCUITS

X2001 RCRSC0032TAZZY J Crystal AG X4501 RCRSZA025WJZZY J Crystal AM

FIL TERS

FL2001 RFiLZ0169TAZZY J Filter AD FL4103 RFiLNA002WJZZY J Filter AD FL4651 RFiLNA002WJZZY J Filter AD FL4652 RFiLNA002WJZZY J Filter AD FL4653 RFiLNA002WJZZY J Filter AD FL4654 RFiLNA002WJZZY J Filter AD

COILS

L4101 RCiLP0343TAZZY J Coil AD L4102 RCiLP0402CEZZY J Coil AF L4103 RCiLP0355TAZZY J Coil AD L4104 RCiLP0343TAZZY J Coil AD L4105 VPD9M4R7J1R4NY J Peaking, 4.7µH AB L4106 RCiLPA001WJZZY J Coil AF L4107 VPBWM220K1R2NY J Peaking, 22µH AC L4108 VPBWM220K1R2NY J Peaking, 22µH AC L4109 RCiLP0343TAZZY J Coil AD L4110 VPD9M4R7J1R4NY J Peaking, 4.7µH AB L7701 RCiLP0343TAZZY J Coil AD L7702 RCiLP0303TAZZY J Coil AG L7704 RCiLP0301TAZZY J Coil AF L7707 RCiLP0343TAZZY J Coil AD L7708 RCiLP0343TAZZY J Coil AD L7710 RCiLP0343TAZZY J Coil AD L7711 RCiLP0305TAZZY J Coil AE L7712 RCiLP0305TAZZY J Coil AE L7713 RCiLP0343TAZZY J Coil AD

CAPACIT ORS

C2001 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2003 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2004 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2005 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2006 VCCCCY1HH220JY J 22p 50V Ceramic AA C2007 VCCCCY1HH220JY J 22p 50V Ceramic AA C2009 VCKYCY1HB102KY J 1000p 50V Ceramic AA C2010 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2012 VCKYCY1HB102KY J 1000p 50V Ceramic AA C2013 VCKYCY1HB102KY J 1000p 50V Ceramic AA C2014 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2015 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2016 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2017 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2019 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2020 VCKYCY1HB103KY J 0.01 50V Ceramic AA

105

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

C2021 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2022 VCEASX1CN107MY J 100 16V Electrolytic AC C2023 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2024 VCCCCY1HH102JY J 1000p 50V Ceramic AB C2025 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2032 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2033 VCKYCY0JB105KY J 1 6.3V Ceramic AC C2034 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2035 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2036 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4101 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4103 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4104 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4105 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4106 RC-KZ0070TAZZY J 4.7 16V Ceramic AD C4107 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4108 RC-KZ0070TAZZY J 4.7 16V Ceramic AD C4109 VCCCCY1HH680JY J 68p 50V Ceramic AA C4110 RC-KZA097WJZZY J 1 16V Ceramic AD C4112 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4114 RC-KZA097WJZZY J 1 16V Ceramic AD C4115 RC-KZA097WJZZY J 1 16V Ceramic AD C4116 RC-KZA047WJZZY J 1 50V Ceramic AC C4117 VCEASY1CN477MY J 470 16V Electrolytic AD C4119 VCAAPF1DJ226MY J 22 20V Electrolytic AF C4120 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C4122 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4123 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4124 VCCCCY1HH680JY J 68p 50V Ceramic AA C4126 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4129 RC-KZA097WJZZY J 1 16V Ceramic AD C4130 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4131 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4135 VCKYTV1CB105KY J 1 16V Ceramic AC C4136 VCAAPF1DJ226MY J 22 20V Electrolytic AF C4137 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4138 VCEASY1EN227MY J 220 25V Electrolytic AD C4139 VCKYTV1CB105KY J 1 16V Ceramic AC C4141 RC-KZA097WJZZY J 1 16V Ceramic AD C4142 VCKYCY1HB102KY J 1000p 50V Ceramic AA C4145 RC-KZ0070TAZZY J 4.7 16V Ceramic AD C4146 VCAAPF1CJ396MY J 39 16V Electrolytic AF C4153 RC-KZA097WJZZY J 1 16V Ceramic AD C4155 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4156 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4159 VCEASY1EN476MY J 47 25V Electrolytic AC C4160 VCEASY1HN106MY J 10 50V Electrolytic AC C4161 RC-KZ0070TAZZY J 4.7 16V Ceramic AD C4162 VCCCCY1HH391JY J 390p 50V Ceramic AB C4163 RC-KZA047WJZZY J 1 50V Ceramic AC C4164 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C4165 VCCCCY1HH101JY J 100p 50V Ceramic AA C4166 VCCCCY1HH221JY J 220p 50V Ceramic AA C4168 RC-KZ0053TAZZY J 10 10V Ceramic AD C4169 VCAAPF1DJ396MY J 39 20V Electrolytic AF C4170 VCCCCY1HH101JY J 100p 50V Ceramic AA C4174 RC-KZ0053TAZZY J 10 10 Ceramic AD C4176 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4177 VCAAPF1DJ226MY J 22 20V Electrolytic AF C4179 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4180 VCEASY1EN227MY J 220 25V Electrolytic AD C4181 RC-KZ0070TAZZY J 4.7 16V Ceramic AD C4183 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4184 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4192 VCKYCY1HB152KY J 1500p 50V Ceramic AA C4195 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4196 VCEASX1VN226MY J 22 35V Electrolytic AC C4197 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4501 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG

C4502 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4503 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4504 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4505 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4506 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4507 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4508 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4509 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4510 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4511 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4512 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4513 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4514 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4515 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4516 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4518 VCEASX1CN476MY J 47 16V Electrolytic AC C4519 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4520 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4521 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4522 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4523 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4524 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4525 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4526 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4527 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4528 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4529 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4530 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4531 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4532 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4533 VCKYCY1CB104KY J 0.1 16V Ceramic AB C4534 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4535 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4536 VCKYCY1HB472KY J 4700p 50V Ceramic AA C4537 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4538 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4539 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4540 VCCCCY1HH101JY J 100p 50V Ceramic AA C4601 VCEASX1CN476MY J 47 16V Electrolytic AC C4602 VCEASX1CN476MY J 47 16V Electrolytic AC C4603 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4604 VCEASX1CN476MY J 47 16V Electrolytic AC C4605 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4606 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4607 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4608 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4609 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4610 VCKYCY1HB102KY J 1000p 50V Ceramic AA C4611 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4612 VCKYCY1HB102KY J 1000p 50V Ceramic AA C4613 VCKYCY1HB102KY J 1000p 50V Ceramic AA C4614 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4615 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4616 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4617 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4618 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4619 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4620 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4621 VCKYCY1HB103KY J 0.01 50V Ceramic AA C4651 VCAAPF0JJ107MY J 100 6.3V Electrolytic AF C4652 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4653 VCAAPF1DJ226MY J 22 20V Electrolytic AF C4654 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4655 VCAAPF0JJ107MY J 100 6.3V Electrolytic AF C4656 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4657 VCAAPF1DJ226MY J 22 20V Electrolytic AF C4658 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4701 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4702 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4703 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4704 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4705 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4706 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4707 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4708 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

106

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

C4709 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4710 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4711 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4712 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4713 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4714 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4715 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4716 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4717 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4718 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4719 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4720 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4721 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4722 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4723 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4724 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4725 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4726 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4727 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4728 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4729 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4730 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4731 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4732 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4901 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4902 VCAAPF0JJ227MY J 220 6.3V Electrolytic AG C4903 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4904 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4905 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4906 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4907 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4908 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4909 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4910 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4911 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4912 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4913 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4914 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4915 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4916 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4917 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4918 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4919 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4920 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4921 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4922 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4923 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4924 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4925 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4926 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4927 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4928 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4933 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4934 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4935 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C4936 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7701 VCEASX1CN107MY J 100 16V Electrolytic AC C7702 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7703 VCEASX1CN226MY J 22 16V Electrolytic AC C7704 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7705 VCEASY1EN107MY J 100 25V Electrolytic AC C7706 VCCCCY1HH681JY J 680p 50V Ceramic AB C7707 VCEASY1EN227MY J 220 25V Electrolytic AD C7708 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7709 VCEASY1EN227MY J 220 25V Electrolytic AD C7710 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7712 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7713 VCCCCY1HH681JY J 680p 50V Ceramic AB C7715 VCCCCY1HH681JY J 680p 50V Ceramic AB

C7720 VCEASY1CN337MY J 330 16V Electrolytic AD C7721 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7722 VCEASY1EN477MY J 470 25V Electrolytic AE C7723 VCEASY1CN477MY J 470 16V Electrolytic AD C7724 VCEASY1CN477MY J 470 16V Electrolytic AD C7726 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7728 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7729 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7730 VCKYCY1CF334ZY J 0.33 16V Ceramic AB C7731 VCKYCY1CF334ZY J 0.33 16V Ceramic AB C7732 VCEASY1CN107MY J 100 16V Electrolytic AC C7733 VCEASY1EN107MY J 100 25V Electrolytic AC C7734 VCCCCY1HH681JY J 680p 50V Ceramic AB C7735 VCEASY1CN477MY J 470 16V Electrolytic AD C7736 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

RESISTORS

R2002 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2003 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2004 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2005 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2006 VRS-CJ1JF333JY J 33k 1/16W Metal Oxide AA R2007 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2008 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2009 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2010 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2011 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2012 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2013 VRS-CY1JF393JY J 39k 1/16W Metal Oxide AA R2014 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2016 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R2017 VRS-CY1JF394JY J 390k 1/16W Metal Oxide AA R2018 VRS-CY1JF106JY J 10M 1/16W Metal Oxide AA R2019 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R2020 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2021 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2022 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2023 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2024 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2025 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2027 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2028 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2029 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2030 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2031 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2035 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2036 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2037 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R2038 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2039 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2040 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2041 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2042 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2043 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2044 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2045 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2046 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2047 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R2048 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2049 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2050 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA R2051 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2052 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2053 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2054 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2055 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2056 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2060 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2061 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2062 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2063 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2064 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2065 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2066 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA

107

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

R2068 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2070 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2072 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2073 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2074 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2075 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R2076 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2077 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2078 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2079 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2080 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2081 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2083 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2084 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2085 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2086 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2087 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2088 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2089 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2092 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2093 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R2095 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2600 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2604 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R2605 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2606 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2612 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA R2613 VRS-CY1JF222FY J 2.2k 1/16W Metal Oxide AA R2614 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2618 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2620 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R4101 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R4102 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R4103 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R4109 VRS-CY1JF562FY J 5.6k 1/16W Metal Oxide AA R4112 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R4113 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R4114 VRS-CY1JF623FY J 62k 1/16W Metal Oxide AA

(LC-32G4U/G4D)

R4114 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4115 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4118 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA R4119 VRS-CY1JF362FY J 3.6k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4119 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4120 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4121 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R4122 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA R4123 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R4124 VRS-CY1JF392FY J 3.9k 1/16W Metal Oxide AA R4125 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R4126 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA R4129 VRS-CY1JF330FY J 33 1/16W Metal Oxide AA R4130 VRS-CH1JF100JY J 10 1/16W Metal Oxide AA R4132 VRS-CY1JF753FY J 75k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4132 VRS-CY1JF913FY J 91k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4133 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4133 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4134 VRS-CY1JF221FY J 220 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4134 VRS-CY1JF751FY J 750 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4135 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA

R4136 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA

(LC-32G4U/G4D)

R4136 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA

(LC-37G4U/G4D)

R4137 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA

(LC-32G4U/G4D)

R4137 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-37G4U/G4D)

R4138 VRS-CY1JF122FY J 1.2k 1/16W Metal Oxide AA

(LC-37G4U/G4D)

R4138 VRS-CY1JF160FY J 16 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4139 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4140 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4140 VRS-CY1JF623FY J 62k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4141 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4141 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4142 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD

(LC-32G4U/G4D) R4142 VRS-CY1JF122FY J 1.2k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4143 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4143 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4144 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4144 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4145 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4145 VRS-CY1JF431FY J 430 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4146 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4147 VRS-CH1JF100JY J 10 1/16W Metal Oxide AA R4148 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4148 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4149 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4149 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4150 VRS-CY1JF221FY J 220 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4150 VRS-CY1JF391FY J 390 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4151 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R4152 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4152 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4153 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4153 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4154 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4154 VRS-CY1JF431FY J 430 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4155 VRS-CY1JF330FY J 33 1/16W Metal Oxide AA R4156 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R4157 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4157 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4158 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4158 VRS-CY1JF623FY J 62k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4159 VRS-CY1JF362FY J 3.6k 1/16W Metal Oxide AA

(LC-37G4U/G4D)

108

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

R4159 VRS-CY1JF681FY J 680 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4160 VRS-CY1JF330FY J 33 1/16W Metal Oxide AA R4161 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R4162 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4162 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4163 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4163 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4164 VRS-CY1JF331FY J 330 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4164 VRS-CY1JF621FY J 620 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4165 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4166 VRS-CH1JF100JY J 10 1/16W Metal Oxide AA R4167 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4167 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4168 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4168 VRS-CY1JF623FY J 62k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4169 VRS-CY1JF391FY J 390 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4169 VRS-CY1JF471FY J 470 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4170 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4170 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4171 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4171 VRS-CY1JF433FY J 43k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4172 VRS-CY1JF111FY J 110 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4172 VRS-CY1JF911FY J 910 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4174 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4174 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4175 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4175 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4176 VRS-CY1JF361FY J 360 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4176 VRS-CY1JF681FY J 680 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4177 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4178 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4179 VRS-CY1JF513FY J 51k 1/16W Metal Oxide AA R4180 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4180 VRS-CY1JF392FY J 3.9k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4181 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA R4182 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R4183 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-37G4U/G4D) R4183 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA

(LC-32G4U/G4D) R4184 VRS-CY1JF133FY J 13k 1/16W Metal Oxide AA

(LC-32G4U/G4D)

R4184 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA R4185 VRS-CY1JF330FY J 33 1/16W Metal Oxide AA

R4186 VRS-CH1JF100JY J 10 1/16W Metal Oxide AA R4187 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R4188 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R4190 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA

R4190 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA R4191 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA R4191 VRS-CY1JF913FY J 91k 1/16W Metal Oxide AA R4192 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA R4192 VRS-CY1JF623FY J 62k 1/16W Metal Oxide AA R4193 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA

R4194 VRS-CY1JF121JY J 120 1/16W Metal Oxide AA R4196 VRS-CY1JF750FY J 75 1/16W Metal Oxide AA R4198 VRS-CY1JF562FY J 5.6k 1/16W Metal Oxide AA R4199 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R4200 VRS-CY1JF121FY J 120 1/16W Metal Oxide AA

R4200 VRS-CY1JF222FY J 2.2k 1/16W Metal Oxide AA R4201 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R4201 VRS-CY1JF621FY J 620 1/16W Metal Oxide AA R4202 VRS-CY1JF151FY J 150 1/16W Metal Oxide AA R4202 VRS-CY1JF272FY J 2.7k 1/16W Metal Oxide AA R4203 VRS-CY1JF121FY J 120 1/16W Metal Oxide AA R4203 VRS-CY1JF751FY J 750 1/16W Metal Oxide AA R4204 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA

R4205 VRS-CY1JF471FY J 470 1/16W Metal Oxide AA R4205 VRS-CY1JF820FY J 82 1/16W Metal Oxide AA R4206 VRS-TV1JD102JY J 1k 1/16W Metal Oxide AA

R4210 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4211 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4212 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4216 VRS-CY1JF105FY J 1M 1/16W Metal Oxide AA R4217 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4218 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA R4219 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4220 VRS-CY1JF105FY J 1M 1/16W Metal Oxide AA R4221 VRS-TW2ED153JY J 15k 1/4W Metal Oxide AA R4222 VRS-TW2ED562JY J 5.6k 1/4W Metal Oxide AB R4223 RR-NZ0027TAZZY J R4224 VRS-TV1JD222JY J 2.2k 1/16W Metal Oxide AA R4225 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4226 VRS-TV1JD222JY J 2.2k 1/16W Metal Oxide AA R4227 VRS-TW2ED821JY J 820 1/4W Metal Oxide AB R4228 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4229 VRS-CY1JF105FY J 1M 1/16W Metal Oxide AA R4230 VRS-CY1JF202FY J 2k 1/16W Metal Oxide AA R4231 VRS-CY1JF513FY J 51k 1/16W Metal Oxide AA R4233 VRS-CY1JF393FY J 39k 1/16W Metal Oxide AA R4234 VRS-CY1JF154FY J 150k 1/16W Metal Oxide AA R4235 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R4238 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R4239 VRS-TW2ED682JY J 6.8k 1/4W Metal Oxide AA R4244 VRS-TW2ED562JY J 5.6k 1/4W Metal Oxide AB R4250 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R4256 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R4260 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R4261 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R4262 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-37G4U/G4D)

(LC-37G4U/G4D) (LC-32G4U/G4D) (LC-32G4U/G4D) (LC-37G4U/G4D) (LC-37G4U/G4D) (LC-32G4U/G4D)

(LC-32G4U/G4D) (LC-37G4U/G4D) (LC-37G4U/G4D) (LC-32G4U/G4D) (LC-32G4U/G4D) (LC-37G4U/G4D) (LC-32G4U/G4D) (LC-37G4U/G4D)

(LC-37G4U/G4D) (LC-32G4U/G4D)

0.056

1/2W AC

109

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

R4263 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R4264 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R4270 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R4271 VRS-CY1JF911FY J 910 1/16W Metal Oxide AA R4272 VRS-CY1JF243FY J 24k 1/16W Metal Oxide AA R4273 VRS-CY1JF513JY J 51k 1/16W Metal Oxide AA R4274 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R4275 VRS-CY1JF562FY J 5.6k 1/16W Metal Oxide AA R4501 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R4502 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4503 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R4504 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R4505 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R4506 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4507 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4508 VRS-CJ1JF472JY J 4.7k 1/16W Metal Oxide AA R4509 VRS-CJ1JF472JY J 4.7k 1/16W Metal Oxide AA R4510 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R4515 VRS-CY1JF560JY J 56 1/16W Metal Oxide AA R4516 VRS-CY1JF560JY J 56 1/16W Metal Oxide AA R4517 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4524 VRS-CJ1JF330JY J 33 1/16W Metal Oxide AA R4525 VRS-CJ1JF330JY J 33 1/16W Metal Oxide AA R4526 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4531 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4532 VRS-CJ1JF330JY J 33 1/16W Metal Oxide AA R4534 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4535 VRS-CH1JF472JY J 4.7k 1/16W Metal Oxide AA R4536 VRS-CH1JF472JY J 4.7k 1/16W Metal Oxide AA R4538 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4543 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4544 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R4545 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R4546 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R4547 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4601 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4602 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4603 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4604 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4605 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4606 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4607 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4608 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4609 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4610 VRS-CY1JF101FY J 100 1/16W Metal Oxide AD R4613 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R4614 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R4617 VRS-CH1JF330JY J 33 1/16W Metal Oxide AA R4618 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R4622 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4651 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4652 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4653 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4654 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4655 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4656 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4701 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4702 VRS-CJ1JF472JY J 4.7k 1/16W Metal Oxide AA R4703 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4704 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4705 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R4706 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R4710 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4711 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4712 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4713 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4714 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4715 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4716 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC

R4717 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4718 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4719 VRS-CH1JF390JY J 39 1/16W Metal Oxide AA R4720 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4721 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4722 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4723 VRS-CH1JF390JY J 39 1/16W Metal Oxide AA R4901 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4902 VRS-CJ1JF472JY J 4.7k 1/16W Metal Oxide AA R4903 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4904 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4905 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4906 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R4907 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R4911 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4915 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4916 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4917 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4918 VRS-CH1JF390JY J 39 1/16W Metal Oxide AA R4919 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4920 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4924 VRK-CD1JJ390JY J 39 1/16W Metal Compo.AC R4925 VRS-CH1JF390JY J 39 1/16W Metal Oxide AA R4926 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R4929 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R4930 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R7701 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R7702 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R7704 VRS-CY1JF202FY J 2k 1/16W Metal Oxide AA R7705 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7706 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7707 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA R7708 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7709 VRS-CY1JF432FY J 4.3k 1/16W Metal Oxide AA R7710 VRS-CY1JF753FY J 75k 1/16W Metal Oxide AA R7711 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7712 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R7713 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7714 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7715 VRS-CY1JF222FY J 2.2k 1/16W Metal Oxide AA R7716 VRS-CY1JF562FY J 5.6k 1/16W Metal Oxide AA R7717 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7719 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7720 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7721 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7729 VRS-TV1JD000JY J 0 1/16W Metal Oxide AA R7730 VRS-TV1JD000JY J 0 1/16W Metal Oxide AA R7731 VRS-TV1JD000JY J 0 1/16W Metal Oxide AA R7732 VRS-TV1JD000JY J 0 1/16W Metal Oxide AA R7733 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R7734 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R7735 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R7736 VRS-CY1JF622FY J 6.2k 1/16W Metal Oxide AA R7738 VRS-CJ1JF223JY J 22k 1/16W Metal Oxide AA R7740 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R7741 VRS-TW2ED101JY J 100 1/4W Metal Oxide AA R7742 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7743 VRS-CY1JF201FY J 200 1/16W Metal Oxide AA R7744 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7745 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7746 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7747 VRS-TW2ED330JY J 33 1/4W Metal Oxide AA R7748 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7749 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7750 VRS-TV1JD000JY J 0 1/16W Metal Oxide AA R7751 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7752 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

MISCELLANEOUS P ARTS

FB2001 RBLN-0006TAZZY J Ferrite Bead AB FB2002 RBLN-0006TAZZY J Ferrite Bead AB FB2003 RBLN-A005WJZZY J Ferrite Bead AA FB2004 RBLN-A005WJZZY J Ferrite Bead AA FB2005 RBLN-A005WJZZY J Ferrite Bead AA FB2006 RBLN-A005WJZZY J Ferrite Bead AA

110

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC268VJ04 (LC-32G4U/G4D) DUNTKC268VJ03 (LC-37G4U/G4D)

LCD CONT Unit(Continued)

FB2007 RBLN-A005WJZZY J Ferrite Bead AA FB2008 RBLN-A005WJZZY J Ferrite Bead AA FB2009 RBLN-A005WJZZY J Ferrite Bead AA FB2021 RBLN-A005WJZZY J Ferrite Bead AA FB2022 RBLN-A005WJZZY J Ferrite Bead AA FB2023 RBLN-A005WJZZY J Ferrite Bead AA FB4101 RBLN-0252TAZZY J Ferrite Bead AA FB4102 RBLN-0252TAZZY J Ferrite Bead AA FB4501 RBLN-0095CEZZY J Ferrite Bead AD FB4502 RBLN-0095CEZZY J Ferrite Bead AD FB4504 RBLN-0095CEZZY J Ferrite Bead AD FB4601 RBLN-0060TAZZY J Ferrite Bead AB FB4602 RBLN-0060TAZZY J Ferrite Bead AB FB4603 RBLN-0060TAZZY J Ferrite Bead AB FB4701 RBLN-0095CEZZY J Ferrite Bead AD FB4702 RBLN-0095CEZZY J Ferrite Bead AD FB4901 RBLN-0095CEZZY J Ferrite Bead AD FB4902 RBLN-0095CEZZY J Ferrite Bead AD FB7705 RBLN-A005WJZZY J Ferrite Bead AA FB7706 RBLN-0252TAZZY J Ferrite Bead AA FB7708 RBLN-0252TAZZY J Ferrite Bead AA FB7709 RBLN-A005WJZZY J Ferrite Bead AA FB7710 RBLN-0210TAZZY J Ferrite Bead AB FB7711 RBLN-0252TAZZY J Ferrite Bead AA FB7712 RBLN-A005WJZZY J Ferrite Bead AA FB7713 RBLN-A005WJZZY J Ferrite Bead AA FB7716 RBLN-A005WJZZY J Ferrite Bead AA FB7717 RBLN-A005WJZZY J Ferrite Bead AA FB7718 RBLN-A005WJZZY J Ferrite Bead AA FB7719 RBLN-A005WJZZY J Ferrite Bead AA FB7720 RBLN-0252TAZZY J Ferrite Bead AA P2001 QPLGN0544FJZZY J Plug, 7Pin AD P2002 QPLGNA059WJZZ J Plug, 5Pin AC P2004 QPLGNA048WJZZ J Plug, 9Pin AC P4501 QPLGN0547FJZZY J Plug, 10Pin AE P7704 QPLGNA062WJZZ J Plug, 8Pin AC P7705 QPLGNA066WJZZ J Plug, 12Pin AD P7706 QPLGN0175FJZZY J Plug, 3Pin AC P7708 QPLGN0175FJZZY J Plug, 3Pin AC P7709 QPLGNA047WJZZ J Plug, 8Pin AC SC2001 QSOCN0490FJZZY J Socket, 30Pin AF SC4601 QSOCN0491FJZZY J Socket, 33Pin AF SC4651 QSOCNA222WJZZY J Socket, 80Pin AH SC4652 QSOCNA222WJZZY J Socket, 80Pin AH LUG7701 LUG7702 LUG7703 LUG7704 LUG7705 LUG7706

QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC

DUNTKC269VJ04 (LC-32G4U/G4D) DUNTKC269VJ03 (LC-37G4U/G4D)

TMDS RX Unit

INTEGRATED CIRCUITS

IC2201 VHiTC7W34U/-1Y J TC7W34FU AE IC2203 VHiBR24C01F-1Y J BR24C01AF-WE2 AE IC2204 VHiPST9221N-1Y J PST9221NR AE IC2205 VHiPST9228N-1Y J PST9228NR AE IC2206 VHiSii861++-1Q J SII861CM208 BE IC2208 VHiM24C32WN-1Y J M24C32-WMN6T AG IC2301 VHiPQ1R33//-1Y J PQ1R33 AE IC2302 VHiTLVD823+-1Q J THC63LVD823 AY IC7801 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH IC7802 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH

TRANSISTORS

Q2201 VSDTC114EE/-1Y J DTC114EE AB Q2202 VS2SK536///-1Y J 2SK536 AE Q2203 VSDTA114EE/-1Y J DTA114EE AB Q2204 VS2SK536///-1Y J 2SK536 AE Q2205 VSDTC114EE/-1Y J DTC114EE AB Q2206 VSDTC114EE/-1Y J DTC114EE AB Q2207 VSDTA114EE/-1Y J DTA114EE AB Q2208 VSDTC114EE/-1Y J DTC114EE AB Q2209 VS2SA1530AR-1Y J 2SA1530AR AB Q2210 VSDTC114EE/-1Y J DTC114EE AB Q2211 VSDTC114EE/-1Y J DTC114EE AB Q2212 VS2SA1530AR-1Y J 2SA1530AR AB Q2213 VSDTC114EE/-1Y J DTC114EE AB Q2214 VSDTC114EE/-1Y J DTC114EE AB Q2215 VSDTC114EE/-1Y J DTC114EE AB Q2216 VSDTA114EE/-1Y J DTA114EE AB Q2217 VS2SK536///-1Y J 2SK536 AE Q2218 VS2SK536///-1Y J 2SK536 AE Q2220 VSDTC114EE/-1Y J DTC114EE AB

DIODES AND LED'S

D2201 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2202 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2203 VHDDA221///-1Y J DA221 AB D2204 VHDDAN202K/-1Y J DAN202K AB D2205 VHDDA221///-1Y J DA221 AB D2206 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2207 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2208 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2209 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2210 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2211 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2212 VHDHSU119//-1Y J HSU119 AB D2213 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2214 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2215 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2216 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2217 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2218 VHDHSU119//-1Y J HSU119 AB D2219 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2220 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2225 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2226 RH-EX1249CEZZY J Zener Diode, 6.2V AB D2301 VHD1SS355//-1Y J 1SS355 AB D7801 VHDSFPB54//2EY J SFPB54 AC D7802 VHDSFPB54//2EY J SFPB54 AC

FL2201 RFiLNA087WJZZY J Filter AD FL2202 RFiLNA087WJZZY J Filter AD FL2203 RFiLNA087WJZZY J Filter AD FL2204 RFiLNA087WJZZY J Filter AD FL2205 RFiLNA087WJZZY J Filter AD FL2206 RFiLNA087WJZZY J Filter AD FL2207 RFiLNA087WJZZY J Filter AD FL2208 RFiLNA087WJZZY J Filter AD

111

FILTERS

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC269VJ04 (LC-32G4U/G4D) DUNTKC269VJ03 (LC-37G4U/G4D)

TMDS RX Unit(Continued)

FL2209 RFiLNA087WJZZY J Filter AD FL2210 RFiLNA087WJZZY J Filter AD FL2211 RFiLNA087WJZZY J Filter AD FL2212 RFiLNA087WJZZY J Filter AD FL2213 RFiLNA087WJZZY J Filter AD FL2214 RFiLNA087WJZZY J Filter AD FL2215 RFiLNA087WJZZY J Filter AD

COILS

L7801 RCiLP0302TAZZY J Coil, 150uH AE L7803 RCiLP0303TAZZY J Coil, 220uH AG L7804 RCiLP0343TAZZY J Coil, 10uH AD

CAPACITORS

C2201 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2203 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2204 VCEASX1EN336MY J 33 25V Electrolytic AC C2205 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2206 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2207 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2208 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2209 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2210 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2213 VCEASX1CN476MY J 47 16V Electrolytic AC C2214 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2215 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2216 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2217 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2218 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2219 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2220 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2221 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2222 VCKYCY1HB682KY J 6800p 50V Ceramic AA C2223 VCCCCY1HH820JY J 82p 50V Ceramic AA C2224 VCCCCY1HH820JY J 82p 50V Ceramic AA C2225 VCCCCY1HH471JY J 470p 50V Ceramic AA C2227 VCCCCY1HH331JY J 330p 50V Ceramic AA C2228 VCCCCY1HH331JY J 330p 50V Ceramic AA C2229 VCCCCY1HH820JY J 82p 50V Ceramic AA C2230 VCCCCY1HH820JY J 82p 50V Ceramic AA C2231 VCCCCY1HH820JY J 82p 50V Ceramic AA C2232 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2233 VCCCCY1HH820JY J 82p 50V Ceramic AA C2234 VCCCCY1HH820JY J 82p 50V Ceramic AA C2235 VCKYCY1HB472KY J 4700p 50V Ceramic AA C2236 VCCCCY1HH820JY J 82p 50V Ceramic AA C2237 VCCCCY1HH471JY J 470p 50V Ceramic AA C2242 VCCCCY1HH331JY J 330p 50V Ceramic AA C2243 VCCCCY1HH331JY J 330p 50V Ceramic AA C2244 VCCCCY1HH820JY J 82p 50V Ceramic AA C2245 VCCCCY1HH331JY J 330p 50V Ceramic AA C2247 VCCCCY1HH820JY J 82p 50V Ceramic AA C2248 VCCCCY1HH331JY J 330p 50V Ceramic AA C2249 VCCCCY1HH820JY J 82p 50V Ceramic AA C2250 VCCCCY1HH331JY J 330p 50V Ceramic AA C2251 VCCCCY1HH820JY J 82p 50V Ceramic AA C2252 VCCCCY1HH820JY J 82p 50V Ceramic AA C2253 VCCCCY1HH820JY J 82p 50V Ceramic AA C2254 VCKYCY1CB104KY J 0.1 16V Ceramic AB C2256 VCCCCY1HH820JY J 82p 50V Ceramic AA C2259 VCCCCY1HH820JY J 82p 50V Ceramic AA C2260 VCCCCY1HH820JY J 82p 50V Ceramic AA C2261 VCCCCY1HH820JY J 82p 50V Ceramic AA C2262 VCCCCY1HH331JY J 330p 50V Ceramic AA C2263 VCCCCY1HH820JY J 82p 50V Ceramic AA C2264 VCCCCY1HH820JY J 82p 50V Ceramic AA C2265 VCCCCY1HH101JY J 100p 50V Ceramic AA C2266 VCCCCY1HH101JY J 100p 50V Ceramic AA C2268 VCKYCY1HB103KY J 0.01 50V Ceramic AA

C2269 VCCCCY1HH331JY J 330p 50V Ceramic AA C2270 VCCCCY1HH820JY J 82p 50V Ceramic AA C2271 VCKYCY0JB105KY J 1 6.3V Ceramic AC C2272 VCKYCY1AB474KY J 0.47 10V Ceramic AC C2273 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2274 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2275 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2276 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2277 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2278 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2279 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2280 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2281 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2282 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2301 VCEASX1CN476MY J 47 16V Electrolytic AC C2302 VCEASX1CN476MY J 47 16V Electrolytic AC C2303 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2304 VCEASX1CN476MY J 47 16V Electrolytic AC C2305 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2306 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2307 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2308 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2309 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2310 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2311 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2312 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2313 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2314 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2315 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2316 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2317 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7801 VCEASY1EN227MY J 220 25V Electrolytic AD C7802 VCEASY1EN227MY J 220 25V Electrolytic AD C7803 VCCCCY1HH681JY J 680p 50V Ceramic AB C7804 VCCCCY1HH681JY J 680p 50V Ceramic AB C7805 VCEASY1CN477MY J 470 16V Electrolytic AD C7806 VCEASY1CN477MY J 470 16V Electrolytic AD C7807 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

RESISTORS

R2201 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2202 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2203 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2205 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2206 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2209 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2210 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2212 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2213 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2214 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2215 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2216 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2217 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2218 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2219 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2220 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2222 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2228 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2229 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2230 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA R2231 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA R2232 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2233 VRS-CY1JF100FY J 10 1/16W Metal Oxide AB R2234 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2235 VRS-CY1JF100FY J 10 1/16W Metal Oxide AB R2238 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2239 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R2240 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2242 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2244 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2245 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2246 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2247 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2248 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2249 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

112

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC269VJ04 (LC-32G4U/G4D) DUNTKC269VJ03 (LC-37G4U/G4D)

TMDS RX Unit(Continued)

R2251 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2252 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2253 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R2254 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R2256 VRK-CD1JJ680JY J 68 1/16W Metal Compo.AC R2257 VRK-CD1JJ680JY J 68 1/16W Metal Compo.AC R2258 VRS-CH1JF680JY J 68 1/16W Metal Oxide AA R2259 VRS-CJ1JF680JY J 68 1/16W Metal Oxide AA R2260 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2261 VRS-CY1JF511JY J 510 1/16W Metal Oxide AA R2262 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2264 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2265 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2266 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2267 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2268 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2269 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2270 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2273 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2274 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2275 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2276 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R2278 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R2279 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2280 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2281 VRK-CD1JJ680JY J 68 1/16W Metal Compo.AC R2282 VRS-CH1JF680JY J 68 1/16W Metal Oxide AA R2283 VRS-CJ1JF680JY J 68 1/16W Metal Oxide AA R2284 VRK-CD1JJ680JY J 68 1/16W Metal Compo.AC R2285 VRS-CJ1JF680JY J 68 1/16W Metal Oxide AA R2286 VRS-CH1JF680JY J 68 1/16W Metal Oxide AA R2287 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2288 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2289 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2291 VRS-CJ1JF680JY J 68 1/16W Metal Oxide AA R2292 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2293 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2297 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2298 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2314 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2315 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2317 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R2318 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R7801 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7802 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7803 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7804 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R7805 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7806 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7807 VRS-CY1JF332FY J 3.3k 1/16W Metal Oxide AA R7808 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

J2201 QSOCDA016WJZZ J Socket, 8Pin AG P2201 QPLGNA043WJZZ J Plug, 4Pin AB P7801 QPLGNA046WJZZ J Plug, 7Pin AC P7802 QPLGNA047WJZZ J Plug, 8Pin AC SC2201 QSOCZA017WJZZ J Socket, 34Pin AM SC2202 QSOCZ2015CEZZ J Socket, 22Pin AG SC2203 QSOCN0490FJZZY J Socket, 30Pin AF SC2301 QSOCN0491FJZZY J Socket, 33Pin AF LUG2201 LUG2202 LUG2203 LUG2204 LUG2205 LUG2206 X2201 RCRUAA034WJZZY J 16.713MHz AL

QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC

GCOVAA685WJKB J Cover AG

DUNTKC274UJ02

KEY Unit

D151 RH-EXA092WJZZY J Zener Diode, 12V AB D152 RH-EXA092WJZZY J Zener Diode, 12V AB D153 RH-EXA092WJZZY J Zener Diode, 12V AB

R151 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA R152 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA R153 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA

S151 QSW-K0095CEZZ J CH (ù)AB S152 QSW-K0095CEZZ J CH (Ù)AB S153 QSW-K0095CEZZ J INPUT AB S154 QSW-K0095CEZZ J VOL (+) AB S155 QSW-K0095CEZZ J VOL (–) AB S156 QSW-K0095CEZZ J POWER AB S157 QSW-P0591CEZZ J MAIN POWER AQ

MISCELLANEOUS P ARTS

P151 QPLGN0564TAZZY J Plug, 5Pin AC P153 QPLGNA007WJZZ J Plug, 10Pin AE

DIODES

RESISTORS

SWITCHES

FB2201 RBLN-0006TAZZY J Ferrite Bead AB

MISCELLANEOUS P ARTS

FB2203 RBLN-0210TAZZY J Ferrite Bead AB FB2204 RBLN-0210TAZZY J Ferrite Bead AB FB2205 RBLN-0006TAZZY J Ferrite Bead AB FB2206 RBLN-0006TAZZY J Ferrite Bead AB FB2207 RBLN-0210TAZZY J Ferrite Bead AB FB2209 RBLN-0006TAZZY J Ferrite Bead AB FB2211 RBLN-A005WJZZY J Ferrite Bead AA FB2212 RBLN-A005WJZZY J Ferrite Bead AA FB2218 RBLN-A005WJZZY J Ferrite Bead AA FB2302 RBLN-0060TAZZY J Ferrite Bead AB FB2303 RBLN-0060TAZZY J Ferrite Bead AB FB2304 RBLN-0060TAZZY J Ferrite Bead AB FB2305 RBLN-0060TAZZY J Ferrite Bead AB FB2306 RBLN-0060TAZZY J Ferrite Bead AB FB7801 RBLN-0252TAZZY J Ferrite Bead AA FB7802 RBLN-0252TAZZY J Ferrite Bead AA

113

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC275UJ02

R/C LED Unit

IC101 VHiTPS850++-1Y J TPS850 AG

Q102 VS2SC2712Y/-1Y J 2SC2712Y AB Q103 VS2SC2712Y/-1Y J 2SC2712Y AB Q104 VS2SC3928AR-1Y J 2SC3928AR AB Q105 VS2SC3928AR-1Y J 2SC3928AR AB

D101 RH-EXA092WJZZY J Zener Diode, 12V AB D103 RH-PX0421CEZZY J PhotoDiode AD

C101 VCEASX0JN107MY J 100 6.3V Electrolytic AC C102 VCKYTV1CF225ZY J 2.2 16V Ceramic AB C104 VCEASX1CN106MY J 10 16V Electrolytic AC C105 VCKYCY1HF103ZY J 0.01 50V Ceramic AA

R101 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R104 VRS-CY1JF273JY J 27k 1/16W Metal Oxide AA R105 VRS-CY1JF393JY J 39k 1/16W Metal Oxide AA R106 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA R108 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R109 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R117 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

P101 QPLGN0874TAZZY J Plug, 8Pin AD RMC101 SLD101 PSLDM4646CEFW J Shield AD

INTEGRA TED CIRCUIT

TRANSISTORS

DIODES AND LED'S

CAPACIT ORS

RESISTORS

MISCELLANEOUS P ARTS

RRMCU0239CEZZ J Remote Receiver AG

RDENCA058WJZZ (LC-32/37G4U) RDENCA059WJZZ (LC-32/37G4D)

POWER SUPPLY Unit

INTEGRATED CIRCUITS

IC2701 95CH1151AS001 J MIP0255SPSCF AV IC2702 95CH3151AC001 J FA5502M-TE1 AZ IC2751 95CH10Q3AQ001 J TA76431 AL IC3751 95CH10Q3AQ001 J TA76431 AL IC4751 95CH10Q3AQ001 J TA76431 AL

TRANSISTORS

Q2701 95CT2843KL001 J 2SK2843 AU Q2702 95CT2843KL001 J 2SK2843 AU Q2703 95CT1858DR001 J 2SD1858 AH Q2704 95CT1237BR001 J 2SB1237 AH Q2705 95CT1576AC002 J 2SA1576A AD Q2706 95CT4081CC002 J 2SC4081 AD Q2707 95CT1443BR002 J 2SB1443 TV2 AL Q2708 95CT1576AC002 J 2SA1576A AD Q2709 95CT4081CC002 J 2SC4081 AD Q2751 95CT4081CC002 J 2SC4081 AD Q2752 95CT1577AC002 J 2SA1577 AE Q2755 95CT4081CC002 J 2SC4081 AD Q3701 95CT4081CC002 J 2SC4081 AD Q3702 95CT4081CC002 J 2SC4081 AD Q3703 95CT3326KL002 J 2SK3326(2) AQ Q3704 95CT3326KL002 J 2SK3326(2) AQ Q3705 95CT4097CC002 J 2SC4097 AE Q3706 95CT4097CC002 J 2SC4097 AE Q4701 95CT4081CC002 J 2SC4081 AD Q4702 95CT4081CC002 J 2SC4081 AD Q4703 95CT3326KL002 J 2SK3326(2) AQ Q4704 95CT3326KL002 J 2SK3326(2) AQ Q4705 95CT4097CC002 J 2SC4097 AE Q4706 95CT4097CC002 J 2SC4097 AE

DUNTKC276UJ02

SP TERMINAL Unit

MISCELLANEOUS P ARTS

P202 QPLGNA058WJZZ J Plug, 4Pin AC P203 QTANAA005WJZZ J Terminal, 4Pin AG

å D2701 95CD1132AL006 J D25XB60 AU

DIODES

å D2702 95CD1057AQ006 J ERA15-06 AE åD2703 95CD1057AQ006 J ERA15-06 AE

D2704 95CD2095AQ008 J 1SS355 AD D2706 95CD2172AL006 J SF10L60U AR D2707 95CD2067AQ006 J ERA22-06 AF D2708 95CD2067AQ010 J ERA22-10 AG D2709 95CD4091AQ005 J Zener Diode UDZ 3.0B AF D2710 95CD4091AQ025 J Zener Diode UDZ 20B AF D2711 95CD2095AQ008 J 1SS355 AD D2712 95CD2071AQ002 J ERA92-02 AG D2713 95CD4091AQ025 J Zener Diode UDZ 20B AF D2714 95CD4091AQ028 J Zener Diode UDZ 27B AF D2715 95CD2095AQ008 J 1SS355 AD D2716 95CD4092AQ002 J Zener Diode UDZS 5.6B AE D2751 95CD2005BQ206 J ERC81-006 AL D2752 95CD4092AQ002 J Zener Diode UDZS 5.6B AE D2753 95CD2095AQ008 J 1SS355 AD D2754 95CD4091AQ024 J Zener Diode UDZ 18B AF D2755 95CD2095AQ008 J 1SS355 AD D2756 95CD4091AQ024 J Zener Diode UDZ 18B AF D2757 95CD2095AQ008 J 1SS355 AD D2758 95CD3114AC004 J MA1070000L D3701 95CD4092AQ007 J Zener Diode UDZ S 9.1B AE D3702 95CD4092AQ004 J Zener Diode UDZS 6.8B AE D3703 95CD2095AQ008 J 1SS355 AD D3704 95CD2095AQ008 J 1SS355 AD D3705 95CD2095AQ008 J 1SS355 AD D3706 95CD4061AQ320 J Zener Diode HZ-30CP D3707 95CD4061AQ320 J Zener Diode HZ-30CP D3708 95CD4092AQ004 J Zener Diode UDZS 6.8B AE D3709 95CD2095AQ008 J 1SS355 AD D3710 95CD2095AQ008 J 1SS355 AD D3711 95CD2095AQ008 J 1SS355 AD D3712 95CD2095AQ008 J 1SS355 AD D3713 95CD2095AQ008 J 1SS355 AD

114

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RDENCA058WJZZ (LC-32/37G4U) RDENCA059WJZZ (LC-32/37G4D)

POWER SUPPLY Unit(Continued)

D3714 95CD2095AQ008 J 1SS355 AD D3751 95CD2027BQ006 J YG805C06R AP D3752 95CD2027BQ006 J YG805C06R AP D3753 95CD2027BQ006 J YG805C06R AP D4701 95CD4092AQ007 J Zener Diode UDZ S 9.1B AE D4702 95CD4092AQ004 J Zener Diode UDZS 6.8B AE D4703 95CD2095AQ008 J 1SS355 AD D4704 95CD2095AQ008 J 1SS355 AD D4705 95CD2095AQ008 J 1SS355 AD D4706 95CD4061AQ320 J Zener Diode HZ-30CP D4707 95CD4061AQ320 J Zener Diode HZ-30CP D4708 95CD4092AQ004 J Zener Diode UDZS 6.8B AE D4709 95CD2095AQ008 J 1SS355 AD D4710 95CD2095AQ008 J 1SS355 AD D4711 95CD2095AQ008 J 1SS355 AD D4712 95CD2095AQ008 J 1SS355 AD D4713 95CD2095AQ008 J 1SS355 AD D4714 95CD2095AQ008 J 1SS355 AD D4751 95CD2027BQ006 J YG805C06R AP D4752 95CD2027BQ006 J YG805C06R AP D4753 95CD2027BQ006 J YG805C06R AP Z2701 95CD7058AQ471 J Zener Diode ENC471 AG

åL2701 95CL1197RS602 J Coil SC-02-E60JH-A AQ åL2702 95CL1197RS602 J Coil SC-02-E60JH-A AQ åL2703 95CL1197RS602 J Coil SC-02-E60JH-A AQ

L2704 95CL1185RS640 J Coil SN12-400JH AR L2705 95CL1184RS401 J Coil SHB-03-401JH AY L2706 95CL1184RS401 J Coil SHB-03-401JH AY

åT2701 95CL2000BS040 J 2BS040 AT åT3701 95CL2000MS018 J 2MS018 AZ åT4701 95CL2000MS018 J 2MS018 AZ

åC2703 95CC1076QQ222 J VA3 2200p Ceramic AE åC2703 95CC1076QQ152 J VA3 1500p Ceramic

å C2704 95CC1076QQ222 J VA3 2200p Ceramic AE

åC2704 95CC1076QQ152 J VA3 1500p Ceramic

å C2705 95CC2045QQ104 J

åC2706 95CC1076QQ102 J VA3 1000p Ceramic AE åC2707 95CC1076QQ102 J VA3 1000p Ceramic AE åC2708 95CC1076QQ222 J VA3 2200p Ceramic AE

å C2708 95CC1076QQ152 J VA3 1500p Ceramic

åC2709 95CC1076QQ102 J VA3 1000p Ceramic AE

C2710 95CC2047MQ224 J 0.22 450V Film AN C2711 95CC2047MQ224 J 0.22 450V Film AN C2712 95CC2047MQ224 J 0.22 450V Film AN C2713 95CC2047MQ224 J 0.22 450V Film AN C2714 95CC1101RR101 J 100p 1kV Ceramic AD

åC2715 95CC2045QQ104 J

C2716 95CC1101RR101 J 100p 1kV Ceramic AD C2717 95CC3138YR100 J C2718 95CC3138YR100 J C2719 95CC10A9RQ102 J 1000p 1kV Ceramic AE C2720 95CC1095EQ104 J 0.1 50V Ceramic AC C2721 95CC10B2SQ470 J 47p 2kV Ceramic AD C2722 95CC1095EQ473 J 0.047 50V Ceramic AC C2724 95CC1094EQ471 J 470p 50V Ceramic AC C2725 95CC1095EQ104 J 0.1 50V Ceramic AC

COILS

or SC-02-E60JKH

TRANSFORMERS

CAPACITORS

(LC-32/37G4U)

(LC-32/37G4D)

(LC-32/37G4U)

(LC-32/37G4D)

0.1(RE-C)AC250V

(LC-32/37G4U)

(LC-32/37G4D)

0.1(RE-C)AC250V

10(KMQ) 450V Electrolytic

Film AF

C2726 95CC1094EQ101 J 100p 50V Ceramic AC C2727 95CC1094EQ471 J 470p 50V Ceramic AC C2728 95CC1095EQ104 J 0.1 50V Ceramic AC C2729 95CC1095EQ104 J 0.1 50V Ceramic AC C2730 95CC1095EQ104 J 0.1 50V Ceramic AC C2731 95CC1095EQ103 J 0.01 50V Ceramic AC C2732 95CC1095EQ104 J 0.1 50V Ceramic AC C2733 95CC10Q0CQ105 J 1 25V Ceramic AE C2734 95CC10Q0CQ105 J 1 25V Ceramic AE C2735 95CC1094EQ102 J 1000p 50V Ceramic AD C2736 95CC30A0EQ221 J C2737 95CC10Q0CQ105 J 1 25V Ceramic AE

åC2738 95CC2045QQ104 J

C2739 95CC2047MQ224 J 0.22 450V Film AN C2741 95CC1095EQ104 J 0.1 50V Ceramic AC

åC2749 95CC1076QQ222 J 2200p VA3 Ceramic AE

å C2749 95CC1076QQ102 J 1000p VA3 Ceramic AE

åC2750 95CC1076QQ222 J 2200p VA3 Ceramic AE

å C2750 95CC1076QQ102 J 1000p VA3 Ceramic AE

C2751 95CC10A9RQ102 J 1000p 1kV Ceramic AE C2752 95CC30A0DQ331 J C2753 95CC30A0DQ331 J C2754 95CC1095EQ104 J 0.1 50V Ceramic AC C2755 95CC1095EQ104 J 0.1 50V Ceramic AC C2758 95CC1095EQ103 J 0.01 50V Ceramic AC C3701 95CC3042MQ820 J C3703 95CC2047MQ224 J 0.22 450V Film AN C3705 95CC1093AQ472 J 4700p 50V Ceramic AE C3706 95CC1094EQ222 J 2200p 50V Ceramic AE C3707 95CC1094EQ101 J 100p 50V Ceramic AC C3708 95CC1095EQ103 J 0.01 50V Ceramic AC C3709 95CC1093AQ472 J 4700p 50V Ceramic AE C3749 95CC1076QQ222 J 2200p VA3 Ceramic AE

C3750 95CC1076QQ222 J 2200p VA3 Ceramic AE C3751 95CC10A9RQ102 J 1000p 1kV Ceramic AE

C3752 95CC30A0DQ331 J C3753 95CC30A0DQ331 J C3754 95CC30A0DQ331 J C3756 95CC10Q0CQ105 J 1 25V Ceramic AE C3757 95CC30A0DQ331 J C3758 95CC10Q0CQ105 J 1 25V Ceramic AE C4701 95CC3042MQ820 J C4703 95CC2047MQ224 J 0.22 450V Film AN C4705 95CC1093AQ472 J 4700p 50V Ceramic AE C4706 95CC1094EQ222 J 2200p 50V Ceramic AE C4707 95CC1094EQ101 J 100p 50V Ceramic AC C4708 95CC1095EQ103 J 0.01 50V Ceramic AC C4709 95CC1093AQ472 J 4700p 50V Ceramic AE C4751 95CC10A9RQ102 J 1000p 1kV Ceramic AE C4752 95CC3135DS102 J C4753 95CC30A0DQ331 J 330(ZL)35V Electrolytic AH C4754 95CC30A0DQ331 J 330(ZL)35V Electrolytic AH C4756 95CC10Q0CQ105 J 1 25V Ceramic AE C4757 95CC30A0DQ331 J C4758 95CC10Q0CQ105 J 1 25V Ceramic AE

220(ZL)

50V Electrolytic AK

0.1(RE-C)AC250V

(LC-32/37G4U) (LC-32/37G4D) (LC-32/37G4U) (LC-32/37G4D) 330(ZL) 35V

330(ZL) 35V

82(KMG) 450V

(LC-32/37G4U) (LC-32/37G4U) 330(ZL) 35V

330(ZL) 35V 330(ZL) 35V

330(ZL) 35V 82(KMG) 450V

1000(ZL)

330(ZL) 35V

Film AF

Electrolytic AH Electrolytic AH

Electrolytic AU

Electrolytic AH Electrolytic AH Electrolytic AH

Electrolytic AH Electrolytic AU

35V

Electrolytic

Electrolytic AH

RESISTORS

å R2701 95CR1063BQ564 J 560k 1/2W Resistor AD

R2702 95CR3133AC274 J 270k 1/4W Resistor AC R2703 95CR3133AC274 J 270k 1/4W Resistor AC R2704 95CR3133AC274 J 270k 1/4W Resistor AC R2705 95CR5101ELR22 J 0.22 3W Resistor AM R2706 95CR5101ELR22 J 0.22 3W Resistor AM R2708 95CR3131AC100 J 10 1/4W Resistor AB R2709 95CR3131AC100 J 10 1/4W Resistor AB R2710 95CR3121TC103 J 10k 1/8W Resistor AB R2711 95CR3121TC103 J 10k 1/8W Resistor AB R2713 95CR3136AC224 J 220k 1/4W Resistor AC R2714 95CR3136AC224 J 220k 1/4W Resistor AC R2715 95CR3136AC224 J 220k 1/4W Resistor AC

115

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RDENCA058WJZZ (LC-32/37G4U) RDENCA059WJZZ (LC-32/37G4D)

POWER SUPPLY Unit (Continued)

R2716 95CR3136AC224 J 220k 1/4W Resistor AC R2717 95CR3136AC224 J 220k 1/4W Resistor AC R2718 95CR3136AC224 J 220k 1/4W Resistor AC R2719 95CR4051CQ104 J 100k 1W Resistor AD R2720 95CR3127TC270 J 27 1/10W Resistor AC R2721 95CR3127TC333 J 33k 1/10W Resistor AC R2722 95CR3121TC103 J 10k 1/8W Resistor AB R2723 95CR3121TC221 J 220 1/8W Resistor AB R2724 95CR3127TC183 J 18k 1/10W Resistor AC R2725 95CR3129TC224 J 220k 1/8W Resistor AC R2726 95CR3121TC221 J 220 1/8W Resistor AB R2727 95CR3127TC333 J 33k 1/10W Resistor AC R2728 95CR3127TC332 J 3.3k 1/10W Resistor AC R2729 95CR3062UQ101 J 100 1/6W R2730 95CR3127TC272 J 2.7k 1/10W Resistor AC R2731 95CR3127TC471 J 470 1/10W Resistor AC R2732 95CR3127TC222 J 2.2k 1/10W Resistor AC R2733 95CR3121TC472 J 4.7k 1/8W Resistor AB R2734 95CR3121TC472 J 4.7k 1/8W Resistor AB R2735 95CR3121TC103 J 10k 1/8W Resistor AB R2736 95CR3121TC103 J 10k 1/8W Resistor AB R2737 95CR4051CQ222 J 2.2k 1W Resistor AD R2738 95CR3121TC103 J 10k 1/8W Resistor AB R2739 95CR3121TC103 J 10k 1/8W Resistor AB R2740 95CR3121TC103 J 10k 1/8W Resistor AB R2741 95CR3121TC473 J 47k 1/8W Resistor AB R2742 95CR3121TC473 J 47k 1/8W Resistor AB R2743 95CR3121TC103 J 10k 1/8W Resistor AB R2744 95CR3123TC104 J 100k 1/8W Resistor AB R2745 95CR4051CQ222 J 2.2k 1W Resistor AD

åR2746 95CR3079CQ395 J 3.9M 1W Resistor AH åR2747 95CR3079CQ395 J 3.9M 1W Resistor AH

R2748 95CR3121TC100 J 10 1/8W Resistor AB R2751 95CR3121TC221 J 220 1/8W Resistor AB R2752 95CR3121TC333 J 33k 1/8W Resistor AB R2753 95CR3121TC102 J 1k 1/8W Resistor AB R2754 95CR3127TC821 J 820 1/10W Resistor AC R2755 95CR3127TC392 J 3.9k 1/10W Resistor AC R2756 95CR3127TC332 J 3.3k 1/10W Resistor AC R2757 95CR3121TC102 J 1k 1/8W Resistor AB R2758 95CR3121TC103 J 10k 1/8W Resistor AB R2759 95CR3121TC102 J 1k 1/8W Resistor AB R2760 95CR3121TC102 J 1k 1/8W Resistor AB R2761 95CR3121TC102 J 1k 1/8W Resistor AB R2762 95CR3121TC103 J 10k 1/8W Resistor AB R2763 95CR3121TC102 J 1k 1/8W Resistor AB R2764 95CR3121TC102 J 1k 1/8W Resistor AB R2771 95CR3121TC103 J 10k 1/8W Resistor AB R2772 95CR3121TC472 J 4.7k 1/8W Resistor AB R3701 95CR3133AC474 J 470k 1/4W Resistor AC R3702 95CR3133AC474 J 470k 1/4W Resistor AC R3703 95CR3133AC474 J 470k 1/4W Resistor AC R3704 95CR3121TC393 J 39k 1/8W Resistor AB R3705 95CR3129TC104 J 100k 1/8W Resistor AC R3706 95CR3133AC474 J 470k 1/4W Resistor AC R3707 95CR3133AC474 J 470k 1/4W Resistor AC R3708 95CR3133AC474 J 470k 1/4W Resistor AC R3709 95CR3121TC223 J 22k 1/8W Resistor AB R3710 95CR3121TC333 J 33k 1/8W Resistor AB R3711 95CR3133AC474 J 470k 1/4W Resistor AC R3712 95CR3133AC474 J 470k 1/4W Resistor AC R3713 95CR3133AC474 J 470k 1/4W Resistor AC R3714 95CR3133AC184 J 180k 1/4W Resistor AC R3715 95CR3133AC184 J 180k 1/4W Resistor AC R3716 95CR3133AC184 J 180k 1/4W Resistor AC R3717 95CR3121TC223 J 22k 1/8W Resistor AB R3718 95CR3131AC471 J 470 1/4W Resistor AB R3719 95CR3121TC332 J 3.3k 1/8W Resistor AB R3720 95CR3127TC822 J 8.2k 1/10W Resistor AC R3721 95CR3127TC473 J 47k 1/10W Resistor AC R3722 95CR3127TC222 J 2.2k 1/10W Resistor AC

Resistor(Fuse)

R3723 95CR3131AC823 J 82k 1/4W Resistor AB R3725 95CR3121TC101 J 100 1/8W Resistor AB R3726 95CR3121TC273 J 27k 1/8W Resistor AB R3727 95CR3131AC000 J 0 1/4W Resistor AB R3728 95CR3121TC331 J 330 1/8W Resistor AB R3729 95CR3131AC222 J 2.2k 1/4W Resistor AB R3730 95CR3131AC222 J 2.2k 1/4W Resistor AB R3731 95CR3121TC332 J 3.3k 1/8W Resistor AB R3732 95CR3127TC562 J 5.6k 1/10W Resistor AC R3733 95CR3127TC393 J 39k 1/10W Resistor AC R3734 95CR3121TC222 J 2.2k 1/8W Resistor AB R3735 95CR3121TC561 J 560 1/8W Resistor AB R3751 95CR3121TC152 J 1.5k 1/8W Resistor AB R3752 95CR3121TC222 J 2.2k 1/8W Resistor AB R3753 95CR3121TC103 J 10k 1/8W Resistor AB R3754 95CR3127TC101 J 100 1/10W Resistor AC R3755 95CR3127TC392 J 3.9k 1/10W Resistor AC R3756 95CR3127TC102 J 1k 1/10W Resistor AC R3757 95CR3127TC102 J 1k 1/10W Resistor AC R4701 95CR3133AC474 J 470k 1/4W Resistor AC R4702 95CR3133AC474 J 470k 1/4W Resistor AC R4703 95CR3133AC474 J 470k 1/4W Resistor AC R4704 95CR3121TC393 J 39k 1/8W Resistor AB R4705 95CR3129TC104 J 100k 1/8W Resistor AC R4706 95CR3133AC474 J 470k 1/4W Resistor AC R4707 95CR3133AC474 J 470k 1/4W Resistor AC R4708 95CR3133AC474 J 470k 1/4W Resistor AC R4709 95CR3121TC223 J 22k 1/8W Resistor AB R4710 95CR3121TC333 J 33k 1/8W Resistor AB R4711 95CR3133AC474 J 470k 1/4W Resistor AC R4712 95CR3133AC474 J 470k 1/4W Resistor AC R4713 95CR3133AC474 J 470k 1/4W Resistor AC R4714 95CR3133AC184 J 180k 1/4W Resistor AC R4715 95CR3133AC184 J 180k 1/4W Resistor AC R4716 95CR3133AC184 J 180k 1/4W Resistor AC R4717 95CR3121TC223 J 22k 1/8W Resistor AB R4718 95CR3131AC471 J 470 1/4W Resistor AB R4719 95CR3121TC332 J 3.3k 1/8W Resistor AB R4720 95CR3127TC822 J 8.2k 1/10W Resistor AC R4721 95CR3127TC473 J 47k 1/10W Resistor AC R4722 95CR3127TC222 J 2.2k 1/10W Resistor AC R4723 95CR3131AC823 J 82k 1/4W Resistor AB R4725 95CR3121TC101 J 100 1/8W Resistor AB R4726 95CR3121TC273 J 27k 1/8W Resistor AB R4727 95CR3131AC000 J 0 1/4W Resistor AB R4728 95CR3121TC331 J 330 1/8W Resistor AB R4729 95CR3131AC222 J 2.2k 1/4W Resistor AB R4730 95CR3131AC222 J 2.2k 1/4W Resistor AB R4731 95CR3121TC332 J 3.3k 1/8W Resistor AB R4732 95CR3127TC562 J 5.6k 1/10W Resistor AC R4733 95CR3127TC393 J 39k 1/10W Resistor AC R4734 95CR3121TC222 J 2.2k 1/8W Resistor AB R4735 95CR3121TC561 J 560 1/8W Resistor AB R4751 95CR3121TC152 J 1.5k 1/8W Resistor AB R4752 95CR3121TC222 J 2.2k 1/8W Resistor AB R4753 95CR3121TC103 J 10k 1/8W Resistor AB R4754 95CR3127TC101 J 100 1/10W Resistor AC R4755 95CR3127TC392 J 3.9k 1/10W Resistor AC R4756 95CR3127TC102 J 1k 1/10W Resistor AC R4757 95CR3127TC102 J 1k 1/10W Resistor AC

RERAY

åRL2701 95CK3107AS001 J Relay FTR-H1AA005T AV

MISCELLANEOUS PARTS

åF2701 95CK7018AQ4R0 J Fuse, AC250V 4.0AH 215 AH åF2702 95CK7018AQ4R0 J Fuse, AC250V 4.0AH 215 AH åF2703 95CK7101AR2R0 J Fuse, AC250V 2.0A (382) AK

FH1 95CM8050AQ001 J Fuse Holder, TP00351-51 AD FH2 95CM8050AQ001 J Fuse Holder, TP00351-51 AD FH3 95CM8050AQ001 J Fuse Holder, TP00351-51 AD FH4 95CM8050AQ001 J Fuse Holder, TP00351-51 AD BEA2701 BEA2706 BEA2707 BEA2704

95CL5051AQ001 J 95CL5051AQ001 J 95CL5051AQ001 J 95CL5051AQ002 J

BL02RN1-R62 T2, Ferrite Beads BL02RN1-R62 T2, Ferrite Beads BL02RN1-R62 T2, Ferrite Beads BL02RN2-R62 T2, Ferrite Beads

AD AD AD AD

116

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RDENCA058WJZZ (LC-32/37G4U) RDENCA059WJZZ (LC-32/37G4D)

POWER SUPPLY Unit(Continued)

BEA2705 BEA2751 BEA3751 BEA4751 NTC2701

NTC2702 NTC2703 NTC2704 PTC2701

CN2701 CN2702

CN4701 CN3701

FG1 95CK2052PQ005 J Connector, EARTH AE FG2 95CK2052PQ005 J Connector, EARTH AE FG3 95CK2052PQ005 J Connector, EARTH AE FG4 95CK2052PQ005 J Connector, EARTH AE

PC2701

PC2702

PC2703

PC3701 PC4701

95CL5051AQ002 J 95CL5051AQ002 J 95CL5051AQ002 J 95CL5051AQ002 J 95CD8118AR001 J NTC Thermistor AP

95CD8118AR001 J NTC Thermistor AP 95CD7059AQ4R0 J NTC Thermistor AK 95CD7059AQ4R0 J NTC Thermistor AK 95CD8002AQ110 J Posistor AM 95CK2108SL001 J Plug, NC-133L-D-1 AL

95CK2120BS003 J Connector AN 95CK2025BQ004 J Connector, B4PS-VH AL

95CK2144BS007 J Connector AM

95CH7148AS001 J PC123Y82FZ AH 95CH7148AS001 J PC123Y82FZ AH 95CH7148AS001 J PC123Y82FZ AH 95CH7148AS001 J PC123Y82FZ AH 95CH7148AS001 J PC123Y82FZ AH

BL02RN2-R62 T2, Ferrite Beads

NTPAD3R9LD6AZ

NTH7D4R0LHT62A

PTH9M04BC222TS2F333

B5P(10-2,3,5,7,9)S-VH

Connector S07B-PASK-2

TERMINAL(M3) TP00370-41

RUNTKA069WJZZ (LC-32G4U/G4D)

INVERTER-1 Unit

IC7501 VHIBD9766FV/-1 J BD9766FV AR IC7502 VHINJM78L08UA J NJM78L08UA(TA7808F) AE

Q7501 VSRSS050P03-1 J RSS050P03 AG Q7502 VSRSS065N03-1 J RSS065N03 Q7503 VSRSS050P03-1 J RSS050P0 AG Q7504 VSRSS065N03-1 J RSS065N03 Q7505 VSRSS050P03-1 J RSS050P03 AG Q7506 VSRSS065N03-1 J RSS065N03 Q7507 VSRSS050P03-1 J RSS050P03 AG Q7508 VSRSS065N03-1 J RSS065N03 Q7513 VSUM6K1N///-1 J UM6K1N, MOSFET AD

D7501 VHD1SS355//-1 J 1SS355 AB D7502 VHD1SS362//-1 J 1SS362 AC D7503 VHD1SS362//-1 J 1SS362 AC D7504 VHD1SS362//-1 J 1SS362 AC D7505 VHD1SS362//-1 J 1SS362 AC D7506 VHD1SS362//-1 J 1SS362 AC D7507 VHD1SS362//-1 J 1SS362 AC D7508 VHD1SS362//-1 J 1SS362 AC D7509 VHD1SS362//-1 J 1SS362 AC ZD7501 VHEHZU8.2B2-1 J Zener Diode, HZU8.2B2 AC

INTEGRATED CIRCUITS

TRANSISTORS

DIODES

AD AD AD AD

T7501 RTRNZ1257SNEZ J RT990TN-1218 AM

TRANSFORMERS

T7502 RTRNZ1256SNEZ J T990TN-1217 AM T7503 RTRNZ1257SNEZ J RT990TN-1218 AM T7504 RTRNZ1256SNEZ J T990TN-1217 AM T7505 RTRNZ1257SNEZ J RT990TN-1218 AM T7506 RTRNZ1256SNEZ J T990TN-1217 AM T7507 RTRNZ1257SNEZ J RT990TN-1218 AM T7508 RTRNZ1256SNEZ J T990TN-1217 AM

CAPACITORS

C7502 VCCCCY1HH331J J 330p 50V Ceramic AA C7503 VCKYCY1HB222K J 2200p 50V Ceramic AA C7504 VCKYCY1HB332K J 3300p 50V Ceramic AA C7505 VCKYCY1HB222K J 2200p 50V Ceramic AA C7506 VCKYCY1HB332K J 3300p 50V Ceramic AA C7507 VCKYCY1EB104K J 0.1 25V Ceramic AA C7508 VCKYCY1CB224K J 0.22 16V Ceramic AB C7509 VCKYTV1AB225K J 2.2 10V Ceramic AC C7510 VCKYTV1AB225K J 2.2 10V Ceramic AC C7511 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7512 VCKYCY1EB104K J 0.1 25V Ceramic AA C7513 VCKYCY1EB104K J 0.1 25V Ceramic AA C7516 VCKYCY1EB473K J 0.047 25V Ceramic AA C7517 RC-E1E337KZES J 330 25V Electrolytic AE C7518 RC-E1E337KZES J 330 25V Electrolytic AE C7519 RC-E1E337KZES J 330 25V Electrolytic AE C7520 RC-E1E337KZES J 330 25V Electrolytic AE C7521 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7522 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7523 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7524 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7525 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7526 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7527 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7528 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7529 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7530 VCKYCY1EB223K J 0.022 25V Ceramic AA C7531 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7532 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7533 VCKYCY1EB223K J 0.022 25V Ceramic AA C7534 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7535 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7536 VCKYCY1EB223K J 0.022 25V Ceramic AA C7537 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7538 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7539 VCKYCY1EB223K J 0.022 25V Ceramic AA C7540 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7541 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7542 VCKYCY1EB223K J 0.022 25V Ceramic AA C7543 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7544 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7545 VCKYCY1EB223K J 0.022 25V Ceramic AA C7546 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7547 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7548 VCKYCY1EB223K J 0.022 25V Ceramic AA C7549 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7550 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7551 VCKYCY1EB223K J 0.022 25V Ceramic AA C7552 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7553 VCKYCY1HB103K J 0.01 50V Ceramic AA

RESISTORS

R7501 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7504 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7505 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7506 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7507 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7508 VRS-CY1JD363F J 36K 1/10W Metal Oxide AA R7509 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA R7510 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7511 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7512 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7513 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7514 VRS-CY1JD000J J 0 1/10W Metal Oxide AA

117

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RUNTKA069WJZZ (LC-32G4U/G4D)

INVERTER-1 Unit (Continued)

R7515 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7516 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7517 VRS-CY1JD221J J 220 1/10W Metal Oxide AA R7518 VRS-CY1JD221J J 220 1/10W Metal Oxide AA R7519 VRS-CY1JD103J J 10K 1/10W Metal Oxide AA R7520 VRS-CY1JD103J J 10K 1/10W Metal Oxide AA R7521 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7522 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7523 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7526 VRS-TP2BD000J J 0 1/4W AA R7528 VRS-TP2BD000J J 0 1/4W AA R7529 VRS-TP2BD220J J 22 1/4W AA R7530 VRS-TP2BD220J J 22 1/4W AA R7531 VRS-TP2BD220J J 22 1/4W AA R7532 VRS-TP2BD220J J 22 1/4W AA R7533 VRS-CY1JD103J J 10K 1/10W Metal Oxide AA R7534 VRS-TP2BD220J J 22 1/4W AA R7535 VRS-TP2BD220J J 22 1/4W AA R7536 VRS-TP2BD220J J 22 1/4W AA R7537 VRS-TP2BD220J J 22 1/4W AA R7538 VRS-CY1JD513J J 51K 1/10W Metal Oxide AA R7541 VRS-CY1JD473F J 47K 1/10W Metal Oxide AA R7542 VRS-CY1JD513J J 51K 1/10W Metal Oxide AA R7545 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA

åF7501 QFS-A1152SNEZ J Fuse, BL6.3A/250V AD

MISCELLANEOUS PARTS

CN7501 QCNCM1818SNEZ J Plug, 3Pin, B3P-VH AC CN7502 QCNCM1819SNEZ J Plug, 12Pin, B12B-PASK-1 AD CN7503 QCNCM1822SNEZ J Plug, 5Pin, 05PL-FJ AD CN7504 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7505 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD

CN7506 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7507 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD LUG7501 LUG7502 JP7502 QJUM-1003SNEZ J Jumper, MJ-0.1-T

QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD

FUSE

T7403 RTRNZ1257SNEZ J RT990TN-1218 AM T7404 RTRNZ1256SNEZ J T990TN-1217 AM T7405 RTRNZ1257SNEZ J RT990TN-1218 AM T7406 RTRNZ1256SNEZ J T990TN-1217 AM T7407 RTRNZ1257SNEZ J RT990TN-1218 AM T7408 RTRNZ1256SNEZ J T990TN-1217 AM

CAPACITORS

C7403 VCKYCY1EB473K J 0.047 25V Ceramic AA C7404 RC-E1E337KZES J 330 25V Electrolytic AE C7405 RC-E1E337KZES J 330 25V Electrolytic AE C7406 RC-E1E337KZES J 330 25V Electrolytic AE C7407 RC-E1E337KZES J 330 25V Electrolytic AE C7408 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7409 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7410 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7411 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7412 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7413 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7414 VCKYTQ1EB475K J 4.7uF 25V Ceramic AD C7415 VCKYTQ1EB475K J 4.7uF 25V Ceramic AD C7416 RC-CF180J3KV1 J 18pF 3kV Ceramic AE C7417 VCKYCY1EB223K J 0.022 25V Ceramic AA C7418 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7419 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7420 VCKYCY1EB223K J 0.022 25V Ceramic AA C7421 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7422 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7423 VCKYCY1EB223K J 0.022 25V Ceramic AA C7424 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7425 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7426 VCKYCY1EB223K J 0.022 25V Ceramic AA C7427 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7428 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7429 VCKYCY1EB223K J 0.022 25V Ceramic AA C7430 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7431 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7432 VCKYCY1EB223K J 0.022 25V Ceramic AA C7433 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7434 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7435 VCKYCY1EB223K J 0.022 25V Ceramic AA C7436 VCKYTQ2AB473K J 0.047 100V Ceramic AC C7437 RC-CF180J3KV1 J 18p 3kV Ceramic AE C7438 VCKYCY1EB223K J 0.022 25V Ceramic AA C7439 VCKYTQ2AB473K J 0.047 100V Ceramic AC

RUNTKA070WJZZ (LC-32G4U/G4D)

INVERTER-2 Unit

TRANSISTORS

Q7401 VSRSS050P03-1 J RSS050P03 AG Q7402 VSRSS065N03-1 J RSS065N03 Q7403 VSRSS050P03-1 J RSS050P03 AG Q7404 VSRSS065N03-1 J RSS065N03 Q7405 VSRSS050P03-1 J RSS050P03 AG Q7406 VSRSS065N03-1 J RSS065N03 Q7407 VSRSS050P03-1 J RSS050P03 AG Q7408 VSRSS065N03-1 J RSS065N03

DIODES

D7401 VHD1SS362//-1 J 1SS362 AC D7402 VHD1SS362//-1 J 1SS362 AC D7403 VHD1SS362//-1 J 1SS362 AC D7404 VHD1SS362//-1 J 1SS362 AC D7405 VHD1SS362//-1 J 1SS362 AC D7406 VHD1SS362//-1 J 1SS362 AC D7407 VHD1SS362//-1 J 1SS362 AC D7408 VHD1SS362//-1 J 1SS362 AC ZD7401 VHEHZU8.2B2-1 J HZU8.2B2, Zener Diode AC

TRANSFORMERS

T7401 RTRNZ1257SNEZ J RT990TN-1218 AM T7402 RTRNZ1256SNEZ J T990TN-1217 AM

R7402 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7404 VRS-TP2BD000J J 0 1/4W AA R7406 VRS-TP2BD000J J 0 1/4W AA R7407 VRS-CY1JD103J J 10K 1/10W Metal Oxide AA R7408 VRS-TP2BD220J J 22 1/4W AA R7409 VRS-TP2BD220J J 22 1/4W AA R7410 VRS-TP2BD220J J 22 1/4W AA R7411 VRS-TP2BD220J J 22 1/4W AA R7412 VRS-TP2BD220J J 22 1/4W AA R7413 VRS-TP2BD220J J 22 1/4W AA R7414 VRS-TP2BD220J J 22 1/4W AA R7415 VRS-TP2BD220J J 22 1/4W AA

FUSE

RESISTORS

åF7401 QFS-A1152SNEZ J Fuse, BL6.3A/250V AD

MISCELLANEOUS PARTS

CN7401 QCNCM1817SNEZ J Plug, 2Pin, B2P-VH AC CN7402 QCNCM1823SNEZ J Plug, 5Pin, 05R-FJ AC CN7403 QCNCM1821SNEZ J Plug, 2Pin,1717823-1 AD CN7404 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7405 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7406 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD LUG7401 LUG7402 LUG7403 LUG7404 JP7401 QJUM-1003SNEZ J Jumper, MJ-0.1-T

QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD

118

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RUNTKA071WJZZ (LC-32G4U/G4D)

INVERTER-1 GND Unit

Q7601 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7602 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7603 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7604 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7605 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7606 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7607 VSUM6K1N///-1 J UM6K1N, MOSFET AD

D7601 VHD1SS355//-1 J 1SS355 AB D7602 VHD1SS355//-1 J 1SS355 AB D7603 VHD1SS355//-1 J 1SS355 AB D7604 VHD1SS355//-1 J 1SS355 AB D7605 VHD1SS362//-1 J 1SS362 AC D7606 VHD1SS355//-1 J 1SS355 AB D7607 VHD1SS355//-1 J 1SS355 AB D7608 VHD1SS355//-1 J 1SS355 AB

C7601 VCKYCY1CB224K J 0.22 16V Ceramic AB C7602 VCKYCY1CB224K J 0.22 16V Ceramic AB C7603 VCKYCY1CB224K J 0.22 16V Ceramic AB C7604 VCKYCY1CB224K J 0.22 16V Ceramic AB C7606 VCKYCY1CB224K J 0.22 16V Ceramic AB C7607 VCKYCY1CB224K J 0.22 16V Ceramic AB C7608 VCKYCY1CB224K J 0.22 16V Ceramic AB

R7601 VRS-CY1JD155J J 1.5M 1/10W AA R7602 VRS-CY1JD104J J 100K1/10W AA R7603 VRS-CY1JD155J J 1.5M 1/10W AA R7604 VRS-CY1JD104J J 100K1/10W AA R7605 VRS-CY1JD155J J 1.5M 1/10W AA R7606 VRS-CY1JD104J J 100K1/10W AA R7607 VRS-CY1JD155J J 1.5M 1/10W AA R7608 VRS-CY1JD104J J 100K1/10W AA R7609 VRS-CY1JD911F J 910 1/10W AA R7610 VRS-CY1JD242F J 2.4K 1/10W AA R7611 VRS-CY1JD155J J 1.5M 1/10W AA R7612 VRS-CY1JD104J J 100K1/10W AA R7613 VRS-CY1JD155J J 1.5M 1/10W AA R7614 VRS-CY1JD104J J 100K1/10W AA R7615 VRS-CY1JD155J J 1.5M 1/10W AA R7616 VRS-CY1JD104J J 100K1/10W AA R7625 VRS-CY1JD000J J 0 1/10W AA R7626 VRS-CY1JD202J J 2K 1/10W AA R7627 VRS-CY1JD202J J 2K 1/10W AA R7628 VRS-CY1JD202J J 2K 1/10W AA R7629 VRS-CY1JD202J J 2K 1/10W AA R7630 VRS-CY1JD202J J 2K 1/10W AA R7631 VRS-CY1JD202J J 2K 1/10W AA R7632 VRS-CY1JD202J J 2K 1/10W AA R7633 VRS-CY1JD202J J 2K 1/10W AA R7634 VRS-CY1JD103F J 10K 1/10W AA R7636 VRS-CY1JD202J J 2K 1/10W AA R7637 VRS-CY1JD202J J 2K 1/10W AA R7638 VRS-CY1JD202J J 2K 1/10W AA R7639 VRS-CY1JD202J J 2K 1/10W AA R7640 VRS-CY1JD202J J 2K 1/10W AA R7641 VRS-CY1JD202J J 2K 1/10W AA

CN7601 QCNCM1796SNEZ J Plug, 8Pin, S08B-PASK-2 AD CN7602 QCNCM1822SNEZ J Plug, 5Pin, 05PL-FJ AD CN7603 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7604 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7605 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7606 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD LUG7601 LUG7602

QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD

TRANSISTORS

DIODES

CAPACITORS

RESISTORS

MISCELLANEOUS PARTS

LUG7603 JP7601 VRS-TP2BD000J J 1/4W 0 AA JP7602 VRS-TP2BD000J J 1/4W 0 AA JP7603 VRS-TP2BD000J J 1/4W 0 AA

QTAND1019SNEZ J GND Lug, SD01138-21 AD

RUNTKA072WJZZ (LC-32G4U/G4D)

INVERTER-2 GND Unit

Q7651 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7652 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7653 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7654 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7655 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7656 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7657 VSUM6K1N///-1 J UM6K1N, MOSFET AD

D7651 VHD1SS355//-1 J 1SS355 AB D7652 VHD1SS355//-1 J 1SS355 AB D7653 VHD1SS355//-1 J 1SS355 AB D7654 VHD1SS355//-1 J 1SS355 AB D7655 VHD1SS362//-1 J 1SS362 AC D7656 VHD1SS355//-1 J 1SS355 AB D7657 VHD1SS355//-1 J 1SS355 AB D7658 VHD1SS355//-1 J 1SS355 AB

C7651 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7652 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7653 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7654 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7656 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7657 VCKYCY1CB224K J 0.22uF 16V Ceramic AB C7658 VCKYCY1CB224K J 0.22uF 16V Ceramic AB

R7651 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7652 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7653 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7654 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7655 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7656 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7657 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7658 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7659 VRS-CY1JD911F J 910 1/10W Metal Oxide AA R7660 VRS-CY1JD242F J 2.4K 1/10W Metal Oxide AA R7661 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7662 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7663 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7664 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7665 VRS-CY1JD155J J 1.5M 1/10W Metal Oxide AA R7666 VRS-CY1JD104J J 100K1/10W Metal Oxide AA R7674 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7675 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7676 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7677 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7678 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7679 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7680 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7681 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7682 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7684 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7685 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7686 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7687 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7688 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7689 VRS-CY1JD202J J 2K 1/10W Metal Oxide AA R7691 VRS-CY1JD000J J 0 1/10W Metal Oxide AA

TRANSISTORS

DIODES

CAPACITORS

RESISTORS

119

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RUNTKA072WJZZ (LC-32G4U/G4D)

INVERTER-2 GND Unit(Continued)

TH7653 VHH18XH103J03 J NCP18XH103J03RB AC

CN7651 QCNCM1823SNEZ J Plug, 5Pin, 05R-FJ AC CN7652 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7653 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7654 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD CN7655 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD LUG7651 LUG7652 LUG7653 JP7651 VRS-TP2BD000J J GND Lug, 0, 1/4W AA JP7652 VRS-TP2BD000J J GND Lug, 0, 1/4W AA JP7653 VRS-TP2BD000J J GND Lug, 0, 1/4W AA

QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD

THERMISTOR

MISCELLANEOUS PARTS

RUNTKA080WJZZ (LC-37G4U/G4D)

INVERTER-1 Unit

IC7501 VHIBD9766FV/-1 J BD9766FV AR IC7502 VHIBA00ASFP/-1 J BA00ASFP AK

Q7501 VSRSS075P03-1 J RSS075P03 AH Q7502 VSRSS075P03-1 J RSS075P03 AH Q7503 VSRSS075P03-1 J RSS075P03 AH Q7504 VSRSS075P03-1 J RSS075P03 AH Q7505 VSRSS075P03-1 J RSS075P03 AH Q7506 VSRSS100N03-1 J RSS100N03 AG Q7507 VSRSS100N03-1 J RSS100N03 AG Q7508 VSRSS100N03-1 J RSS100N03 AG Q7509 VSRSS100N03-1 J RSS100N03 AG Q7510 VSRSS100N03-1 J RSS100N03 AG Q7511 VSUM6K1N///-1 J UM6K1N, MOS FET AD

D7501 VHDDAN217U/-1 J DAN217U AC D7502 VHDDAN217U/-1 J DAN217U AC D7503 VHDDAN217U/-1 J DAN217U AC D7504 VHDDAN217U/-1 J DAN217U AC D7505 VHDDAN217U/-1 J DAN217U AC D7506 VHDDAN217U/-1 J DAN217U AC D7507 VHDDAN217U/-1 J DAN217U AC D7508 VHDDAN217U/-1 J DAN217U AC D7509 VHDDAN217U/-1 J DAN217U AC D7510 VHDDAN217U/-1 J DAN217U AC D7511 VHDRB070M30-1 J RB070M-30 AD D7512 VHDRB070M30-1 J RB070M-30 AD D7513 VHDRB070M30-1 J RB070M-30 AD D7514 VHDRB070M30-1 J RB070M-30 AD D7515 VHDRB070M30-1 J RB070M-30 AD D7516 VHDRB070M30-1 J RB070M-30 AD D7517 VHDRB070M30-1 J RB070M-30 AD D7518 VHDRB070M30-1 J RB070M-30 AD D7519 VHDRB070M30-1 J RB070M-30 AD D7520 VHDRB070M30-1 J RB070M-30 AD D7521 VHEHZU5.1B/-1 J D7522 VHEHZU5.1B/-1 J D7523 VHD1SS355//-1 J 1SS355 AB

INTEGRATED CIRCUITS

TRANSISTORS

DIODES

Zener Diode, HZU5.1B(RD5.1SB) Zener Diode, HZU5.1B(RD5.1SB)

T7501 RTRNZA046WJZZ J 1048HG-1001 AU

TRANSFORMERS

T7502 RTRNZA046WJZZ J 1048HG-1001 AU T7503 RTRNZA046WJZZ J 1048HG-1001 AU T7504 RTRNZA046WJZZ J 1048HG-1001 AU T7505 RTRNZA046WJZZ J 1048HG-1001 AU

CAPACITORS

C7503 VCKYCY1EB223K J 0.022 25V Ceramic AA C7504 RC-ECC3H120JM J 12p 5kV Ceramic AF C7505 RC-ECC3H120JM J 12p 5kV Ceramic AF C7506 VCKYCY1EB223K J 0.022 25V Ceramic AA C7507 VCKYCY1EB223K J 0.022 25V Ceramic AA C7508 RC-ECC3H120JM J 12p 5kV Ceramic AF C7509 RC-ECC3H120JM J 12p 5kV Ceramic AF C7510 VCKYCY1EB223K J 0.022 25V Ceramic AA C7511 VCKYCY1EB223K J 0.022 25V Ceramic AA C7512 RC-ECC3H120JM J 12p 5kV Ceramic AF C7513 RC-ECC3H120JM J 12p 5kV Ceramic AF C7514 VCKYCY1EB223K J 0.022 25V Ceramic AA C7515 VCKYCY1EB223K J 0.022 25V Ceramic AA C7516 RC-ECC3H120JM J 12p 5kV Ceramic AF C7517 RC-ECC3H120JM J 12p 5kV Ceramic AF C7518 VCKYCY1EB223K J 0.022 25V Ceramic AA C7519 VCKYCY1EB223K J 0.022 25V Ceramic AA C7520 RC-ECC3H120JM J 12p 5kV Ceramic AF C7521 RC-ECC3H120JM J 12p 5kV Ceramic AF C7522 VCKYCY1EB223K J 0.022 25V Ceramic AA C7523 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7524 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7525 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7526 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7527 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7528 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7529 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7530 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7531 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7532 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7533 VCKYCY1CB473K J 0.047 16V Ceramic AA C7534 RC-E1E337KZES J 330 25V Electrolytic AE C7535 RC-E1E337KZES J 330 25V Electrolytic AE C7536 VCKYCY1CB473K J 0.047 16V Ceramic AA C7537 RC-E1E337KZES J 330 25V Electrolytic AE C7538 RC-E1E337KZES J 330 25V Electrolytic AE C7539 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7540 VCKYTV1AB225K J 2.2 10V Ceramic AC C7541 VCKYTV1AB225K J 2.2 10V Ceramic AC C7542 VCKYCY1CB224K J 0.22 16V Ceramic AB C7543 VCKYCY1CB104K J 0.1 16V Ceramic AB C7544 VCCCCY1HH331J J 330p 50V Ceramic AA C7546 VCKYCY1HB472K J 4700p 50V Ceramic AA C7547 VCKYCY1HB222K J 2200p 50V Ceramic AA C7549 VCKYCY1HB472K J 4700p 50V Ceramic AA C7550 VCKYCY1HB222K J 2200p 50V Ceramic AA C7555 RC-E1E337KZES J 330 25V Electrolytic AE C7566 VCKYCY1HB103K J 0.01 50V Ceramic AA

RESISTORS

R7501 VRS-CY1JD333F J 33K 1/10W Metal Oxide AA R7502 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7503 VRS-CY1JD333F J 33K 1/10W Metal Oxide AA R7504 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7505 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7506 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7507 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7508 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7509 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7510 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7511 VRS-CY1JD102F J 1K 1/10W Metal Oxide AA R7512 VRS-CY1JD363F J 36K 1/10W Metal Oxide AA R7513 VRS-CY1JD473F J 47K 1/10W Metal Oxide AA R7514 VRS-CY1JD222F J 2.2K 1/10W Metal Oxide AA R7515 VRS-CY1JD682F J 6.8K 1/10W Metal Oxide AA R7516 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7517 VRS-CY1JD101F J 100 1/10W Metal Oxide AA R7518 VRS-CY1JD000J J 0 1/10W Metal Oxide AA

120

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RUNTKA080WJZZ (LC-37G4U/G4D)

INVERTER-1 Unit(Continued)

R7519 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7521 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA R7523 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7525 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7526 VRS-CY1JD101J J 100 1/10W Metal Oxide AA R7527 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7528 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7529 VRS-CY1JD101J J 100 1/10W Metal Oxide AA R7530 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7533 VRS-CY1JD102F J 1K 1/10W Metal Oxide AA R7534 VRS-CY1JD101F J 100 1/10W Metal Oxide AA R7536 VRS-CY1JD112F J 1.1K 1/10W Metal Oxide AA R7537 VRS-CY1JD112F J 1.1K 1/10W Metal Oxide AA R7539 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7540 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7543 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7545 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7548 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7549 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7555 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7556 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA R7557 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7559 VRS-TP2BD000J J 0 1/4W AA R7560 VRS-TP2BD000J J 0 1/4W AA R7561 VRS-TP2BD000J J 0 1/4W AA R7562 VRS-TP2BD000J J 0 1/4W AA R7563 VRS-TP2BD000J J 0 1/4W AA R7564 VRS-TP2BD000J J 0 1/4W AA R7565 VRS-TP2BD000J J 0 1/4W AA R7566 VRS-TP2BD000J J 0 1/4W AA R7567 VRS-TP2BD000J J 0 1/4W AA R7568 VRS-TP2BD000J J 0 1/4W AA

åF7501 QFS-A1153SNEZ J Fuse, TLC N4 10A/250V AF

FH7501 QFSHA1012SNEZ J Fuse Holder, H-0017-2 AD FH7502 QFSHA1012SNEZ J Fuse Holder, H-0017-2 AD

P7501 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7502 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7503 QCNCM1821SNEZ J Plug, 3Pin, 1717823-1 AD P7504 QCNCM1821SNEZ J Plug, 3Pin, 1717823-2 AD P7505 QCNCM1828SNEZ J Plug, 2Pin, 1717823-3 AC P7506 QCNCM1819SNEZ J Plug, 12Pin, 1717823-4 AD P7507 QCNCM1826SNEZ J Plug, 12Pin, 1717823-5 AE P7508 QCNCM1821SNEZ J Plug, 2Pin, 1717823-6 AD LUG7501 LUG7502 LUG7503 LUG7504

FUSES AND FUSE HOLDERS

MISCELLANEOUS PARTS

QTAND1019SNEZ J GND Lug, 1717823-7 AD QTAND1019SNEZ J GND Lug, 1717823-8 AD QTAND1019SNEZ J GND Lug, 1717823-9 AD QTAND1019SNEZ J GND Lug, 1717823-10 AD

RUNTKA081WJZZ (LC-37G4U/G4D)

INVERTER-2 Unit

INTEGRATED CIRCUIT

IC7402 VHIBD9766FV/-1 J BD9766FV AR

TRANSISTORS

Q7401 VSRSS075P03-1 J RSS075P03 AH Q7402 VSUM6K1N///-1 J UM6K1N, MOSFET AD Q7403 VSRSS100N03-1 J RSS100N03 AG Q7404 VSRSS075P03-1 J RSS075P03 AH Q7406 VSRSS100N03-1 J RSS100N03 AG Q7407 VSRSS075P03-1 J RSS075P03 AH Q7409 VSRSS100N03-1 J RSS100N03 AG Q7410 VSRSS075P03-1 J RSS075P03 AH Q7411 VSRSS100N03-1 J RSS100N03 AG

DIODES

D7401 VHDDAN217U/-1 J DAN217U AC D7402 VHDDAN217U/-1 J DAN217U AC D7403 VHDRB070M30-1 J RB070M-30 AD D7404 VHDRB070M30-1 J RB070M-30 AD D7406 VHDDAN217U/-1 J DAN217U AC D7407 VHDDAN217U/-1 J DAN217U AC D7408 VHDRB070M30-1 J RB070M-30 AD D7409 VHDRB070M30-1 J RB070M-30 AD D7410 VHDDAN217U/-1 J DAN217U AC D7411 VHDDAN217U/-1 J DAN217U AC D7412 VHDRB070M30-1 J RB070M-30 AD D7413 VHDRB070M30-1 J RB070M-30 AD D7414 VHEHZU5.1B/-1 J Zener Diode

HZU5.1B(RD5.1SB) D7415 VHD1SS355//-1 J 1SS355 AB D7417 VHEHZU5.1B/-1 J Zener Diode

HZU5.1B(RD5.1SB) D7418 VHDDAN217U/-1 J DAN217U AC D7419 VHDDAN217U/-1 J DAN217U AC D7420 VHDRB070M30-1 J RB070M-30 AD D7421 VHDRB070M30-1 J RB070M-30 AD

TRANSFORMERS

T7401 RTRNZA046WJZZ J 1048HG-1001 AU T7402 RTRNZA046WJZZ J 1048HG-1001 AU T7403 RTRNZA046WJZZ J 1048HG-1001 AU T7404 RTRNZA046WJZZ J 1048HG-1001 AU

CAPACITORS

C7401 VCKYCY1EB223K J 0.022 25V Ceramic AA C7402 RC-ECC3H120JM J 12p 5kV Ceramic AF C7403 RC-ECC3H120JM J 12p 5kV Ceramic AF C7404 VCKYCY1EB223K J 0.022 25V Ceramic AA C7405 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7406 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7408 RC-E1E337KZES J 330 25V Electrolytic AE C7409 VCKYCY1EB223K J 0.022 25V Ceramic AA C7410 RC-ECC3H120JM J 12p 5kV Ceramic AF C7411 RC-ECC3H120JM J 12p 5kV Ceramic AF C7412 VCKYCY1EB223K J 0.022 25V Ceramic AA C7413 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7414 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7415 RCE1E337KZEBC J 330 25V Electrolytic AE C7416 VCKYCY1EB223K J 0.022 25V Ceramic AA C7417 RC-ECC3H120JM J 12p 5kV Ceramic AF C7418 RC-ECC3H120JM J 12p 5kV Ceramic AF C7419 VCKYCY1EB223K J 0.022 25V Ceramic AA C7420 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7421 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7422 VCKYCY1CB473K J 0.047 16V Ceramic AA C7423 RC-E1E337KZES J 330 25V Electrolytic AE C7424 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7426 VCKYCY1HB472K J 4700p 50V Ceramic AA C7427 VCKYCY1HB222K J 2200p 50V Ceramic AA C7428 VCKYCY1HB472K J 4700p 50V Ceramic AA C7429 VCKYCY1HB222K J 2200p 50V Ceramic AA

121

LC-32G4U/G4D LC-37G4U/G4D

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

RUNTKA081WJZZ (LC-37G4U/G4D)

INVERTER-2 Unit(Continued)

C7430 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7431 VCKYCY1CB473K J 0.047 16V Ceramic AA C7432 VCKYTQ1EB475K J 4.7 25V Ceramic AD C7433 VCKYTV1AB225K J 2.2 10V Ceramic AC C7434 VCKYTV1AB225K J 2.2 10V Ceramic AC C7435 VCKYCY1CB224K J 0.22 16V Ceramic AB C7436 VCKYCY1CB104K J 0.1 16V Ceramic AB C7438 VCCCCY1HH331J J 330p 50V Ceramic AA C7439 VCKYCY1EB223K J 0.022 25V Ceramic AA C7440 RC-ECC3H120JM J 12p 5kV Ceramic AF C7441 RC-ECC3H120JM J 12p 5kV Ceramic AF C7442 VCKYCY1EB223K J 0.022 25V Ceramic AA C7444 RCE1E337KZEBC J 330 25V Electrolytic AE

R7401 VRS-CY1JD333F J 33K 1/10W Metal Oxide AA R7402 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7403 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7404 VRS-CY1JD333F J 33K 1/10W Metal Oxide AA R7405 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7406 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7407 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7408 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7409 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7411 VRS-CY1JD112F J 1.1K 1/10W Metal Oxide AA R7412 VRS-CY1JD101F J 100 1/10W Metal Oxide AA R7415 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7416 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7418 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA R7419 VRS-CY1JD363F J 36K 1/10W Metal Oxide AA R7421 VRS-CY1JD102F J 1K 1/10W Metal Oxide AA R7422 VRS-CY1JD112F J 1.1K 1/10W Metal Oxide AA R7426 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7427 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7428 VRS-CY1JD683F J 68K 1/10W Metal Oxide AA R7429 VRS-CY1JD102F J 1K 1/10W Metal Oxide AA R7430 VRS-CY1JD101J J 100 1/10W Metal Oxide AA R7431 VRS-CY1JD101J J 100 1/10W Metal Oxide AA R7432 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7435 VRS-CY1JD101J J 100 1/10W Metal Oxide AA R7436 VRS-CY1JD103F J 10K 1/10W Metal Oxide AA R7438 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7440 VRS-CY1JD473F J 47K 1/10W Metal Oxide AA R7441 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7442 VRS-CY1JD513F J 51K 1/10W Metal Oxide AA R7443 VRS-CY1JD753F J 75K 1/10W Metal Oxide AA R7444 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7445 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7450 VRS-TP2BD000J J 0 1/4W AA R7451 VRS-TP2BD000J J 0 1/4W AA R7452 VRS-TP2BD000J J 0 1/4W AA R7453 VRS-TP2BD000J J 0 1/4W AA R7454 VRS-TP2BD000J J 0 1/4W AA R7455 VRS-TP2BD000J J 0 1/4W AA R7456 VRS-TP2BD000J J 0 1/4W AA R7457 VRS-TP2BD000J J 0 1/4W AA

FUSES AND FUSE HOLDERS

åF7401 QFS-A1153SNEZ J Fuse, TLCN4 10A/250V AF

FH7401 QFSHA1012SNEZ J Fuse Holder, H-0017-2 AD FH7402 QFSHA1012SNEZ J Fuse Holder, H-0017-2 AD

MISCELLANEOUS PARTS

P7401 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7402 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7403 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7404 QCNCM1775SNEZ J Plug, 2Pin, B2PS-VH AD P7405 QCNCM1827SNEZ J Plug, 12Pin, 12R-FJ AD P7406 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD LUG7401 LUG7402 LUG7403

QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD QTAND1019SNEZ J GND Lug, SD01138-21 AD

RESISTORS

RUNTKA082WJZZ (LC-37G4U/G4D)

INVERTER-1 GND Unit

TRANSISTORS

DIODES

D7601 VHDDAN217U/-1 J DAN217U AC D7602 VHDDAN217U/-1 J DAN217U AC D7603 VHDDAN217U/-1 J DAN217U AC D7604 VHDDAN217U/-1 J DAN217U AC D7605 VHDDAN217U/-1 J DAN217U AC D7606 VHDDAN217U/-1 J DAN217U AC D7607 VHDDAN217U/-1 J DAN217U AC D7608 VHDDAN217U/-1 J DAN217U AC D7609 VHDDAN217U/-1 J DAN217U AC D7610 VHDDAN217U/-1 J DAN217U AC

CAPACITORS

C7601 VCKYTQ1EB105K J 1 25V Ceramic AC C7602 VCKYTQ1EB105K J 1 25V Ceramic AC C7603 VCKYTQ1EB105K J 1 25V Ceramic AC C7604 VCKYTQ1EB105K J 1 25V Ceramic AC C7605 VCKYTQ1EB105K J 1 25V Ceramic AC C7606 VCKYTQ1EB105K J 1 25V Ceramic AC C7607 VCKYTQ1EB105K J 1 25V Ceramic AC C7609 VCKYTQ1EB105K J 1 25V Ceramic AC

RESISTORS

R7601 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7602 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7603 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7604 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7605 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7606 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7607 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7608 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7609 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7610 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7611 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7612 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7613 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7614 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7615 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7616 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7617 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7618 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7619 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7620 VRS-CY1JD104F J 100K 1/10W Metal Oxide AA R7621 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7622 VRS-CY1JD105J J 1M 1/10W Metal Oxide AA R7623 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7625 VRS-CY1JD102J J 1K 1/10W Metal Oxide AA R7627 VRS-CY1JD132F J 1.3K 1/10W Metal Oxide AA R7628 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7629 VRS-CY1JD132F J 1.3K 1/10W Metal Oxide AA R7630 VRS-CY1JD000J J 0 1/10W Metal Oxide AA R7631 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7632 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7633 VRS-TW2ED000J J 0 1/4W Metal Oxide AB R7634 VRS-TW2ED000J J 0 1/4W Metal Oxide AB

MISCELLANEOUS PARTS

P7601 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7602 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7603 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD P7604 QCNCM1821SNEZ J Plug, 2Pin, 1717823-1 AD

122

SHARP LC-32G4U, LC-32G4D, LC-37G4U, LC-37G4D. Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
