Sharp LC-32DH77E, LC-32DH77V, LC-42DH77E, LC-42DH77V, LC-46DH77E Operating Manual

LC-32DH77E LC-32DH77V
LC-42DH77E LC-42DH77V

POLSKI

LC-46DH77E LC-46DH77V
LC-52DH77E LC-52DH77V

TELEWIZOR KOLOROWY LCD
LCD SZÍNESTELEVÍZIÓ
TELEVIZOR S BAREVNOU LCD OBRAZOVKOU
TELEVÍZOR S FAREBNOU LCD OBRAZOVKOU

КОЛЬОРОВИЙ ТЕЛЕВІЗОР З

РІДКОКРИСТАЛІЧНИМ ДИСПЛЕЄМ

VÄRVILINE LCD-TELER
ŠĶIDRO KRISTĀLU EKRĀNA (LCD)

KRĀSU TELEVIZORS

SPALVINIS LCD TELEVIZORIUS

ΤΗΛΕΟΡΑΣΗ ΜΕ ΕΓΧΡΩΜΗ ΟΘΟΝΗ LCD

(ΥΓΡΩΝ ΚΡΥΣΤΑΛΛΩΝ)

LCD RENKLİ TELEVİZYON

LCD COLOUR TELEVISION

INSTRUKCJA OBSŁUGI
KEZELÉSI ÚTMUTATÓ
NÁVOD K OBSLUZE
NÁVOD NA OBSLUHU

ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ

KASUTUSJUHEND
LIETOŠANAS ROKASGRĀMATA
NAUDOJIMO INSTRUKCIJA

ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

KULLANMA KILAVUZU
OPERATION MANUAL

MAGYAR

ČESKY

SLOVENSKY

УКРАЇНСЬКА

EESTI

LATVISKI

LIETUVIŠKA

ΕΛΛΗΝΙΚΑ

TÜRKÇE

ENGLISH

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse.
Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked
the same rating as above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut
off the mains plug and fit an appropriate type.

or

ASA

and of

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and
disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a
serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral
Brown: Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the plug terminal which is marked N or
coloured black.

• The wire which is coloured brown must be connected to the plug terminal which is marked L or
coloured red.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin

plug.

Before replacing the plug cover make sure that:

• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.

• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

OPERATION MANUAL

The illustrations and the OSD in this operation manual are for explanation purposes and may vary slightly from the actual

•
operations.
The examples used throughout this manual are based on the LC-32DH77E model.

•
LC-32DH77E, LC-32DH77V, LC-42DH77E, LC-42DH77V, LC-46DH77E, LC-46DH77V, LC-52DH77E and LC-52DH77V

•
models are compatible with H.264 (MPEG4 H.264, MPEG4 AVC, MPEG4 AVC/H.264) compressed broadcasts.

ENGLISH

Contents

Contents ............................................................................. 1

Introduction ........................................................................ 2

Dear SHARP customer .................................................2

Important Safety Precautions ........................................ 2

Trademarks ...................................................................2

Remote control unit....................................................... 3

TV (Front view) .............................................................. 4

TV (Rear view) ...............................................................4

Preparation ........................................................................ 5

Supplied accessories .................................................... 5

Attaching the stand unit ................................................ 5

Inserting the batteries .................................................... 6

Using the remote control unit ........................................ 6

Cautions regarding the remote control unit ............... 6

Quick guide ........................................................................ 7

Initial installation overview .............................................. 7

Before turning on the power.......................................... 8

Bundling the cables .................................................8

Initial auto installation ....................................................9

Checking signal strength and channel strength ........ 9

Watching TV .....................................................................10

Daily operation ............................................................ 10

Switching on/off ..................................................... 10

Switching between analogue and

digital broadcasts ................................................10

Changing channels ................................................ 10

Selecting an external video source .........................10

Selecting a sound mode ........................................ 10

EPG ............................................................................ 11

EPG Overview ............................................................. 11

Useful settings for using EPG ......................................11

Selecting a programme using EPG.............................. 12

Teletext ....................................................................... 13

Using the MHEG-5 application (UK only) ..................... 13

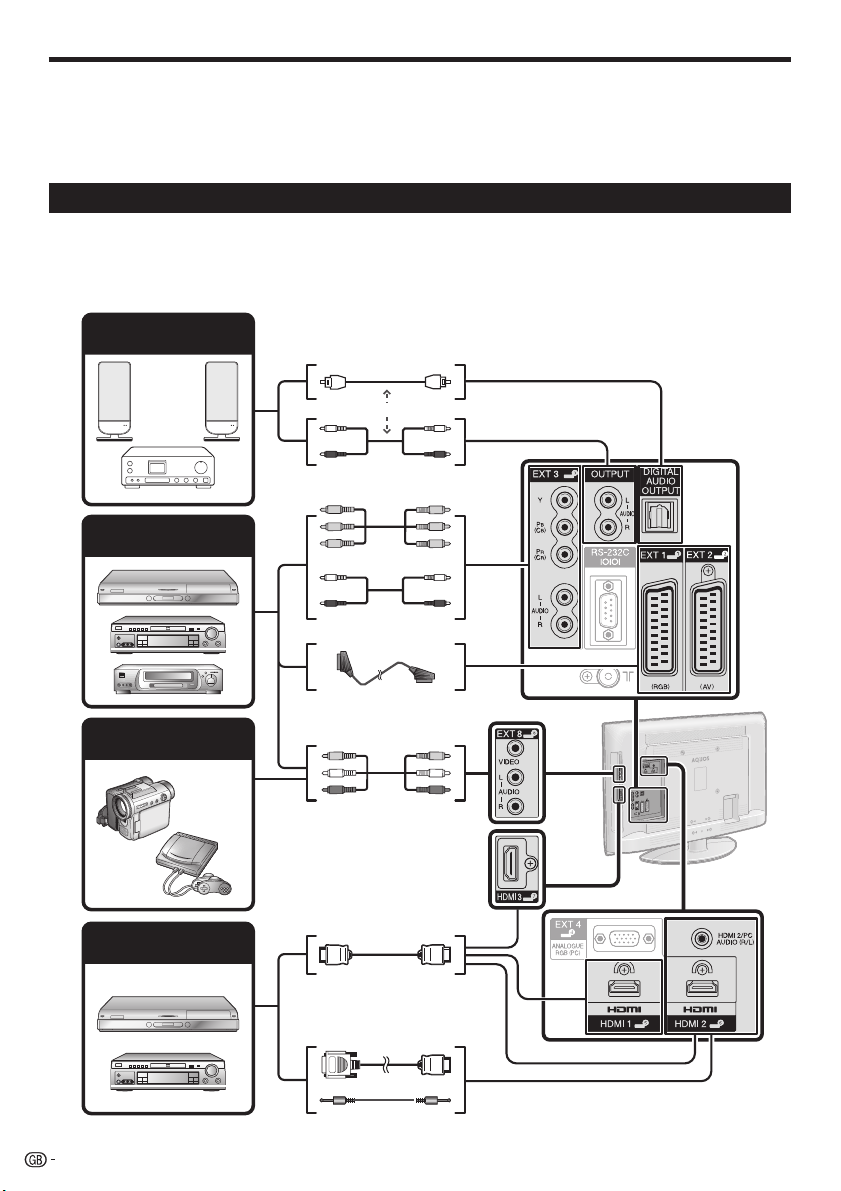

Connecting external devices .......................................... 14

Introduction to connections ......................................... 14

HDMI connection ...................................................15

Component connection .........................................15

VIDEO connection ................................................. 15

SCART connection ................................................16

Controlling devices with SCART using AV Link ....... 16

Speaker/amplifier connection ................................. 17

Inserting a CA Card ..................................................... 18

AQUOS LINK .................................................................... 19

Controlling HDMI devices using AQUOS LINK ............. 19

AQUOS LINK connection ............................................19

AQUOS LINK Setup .................................................... 20

Operating an AQUOS LINK device ..............................21

Menu operation................................................................ 22

What is the MENU? .................................................... 22

Common operations .............................................. 22

Basic adjustment ............................................................. 23

Picture Settings ........................................................... 23

AV MODE .............................................................. 24

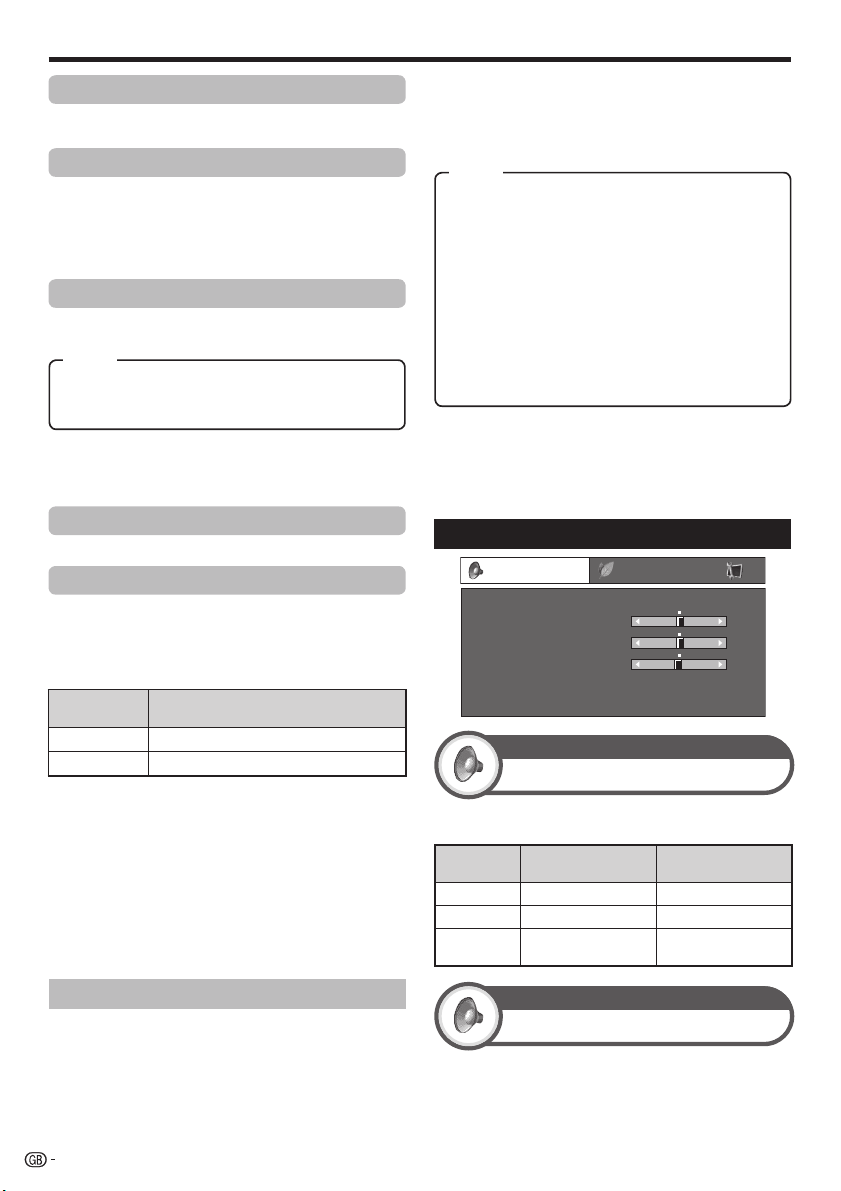

Audio Settings ............................................................ 24

Power Save Settings ................................................... 25

Channel Settings ......................................................... 26

Auto Installation .....................................................26

Digital channel settings ..........................................26

Analogue channel settings ..................................... 27

Password/Parental lock settings ............................ 28

Language Settings (language, subtitle, multi audio) ..... 28

Useful viewing functions ................................................. 29

Selecting the picture size ............................................29

Selecting the WSS picture size automatically .........29

Selecting the WSS picture size manually ................29

Selecting the picture size manually ......................... 29

Selecting the recording picture size manually ......... 30

Selecting the HDMI picture size automatically ........30

Other picture and audio settings .................................30

Adjusting image position ........................................ 30

Automatic volume adjustment ................................ 30

Emphasising dialogue ............................................ 30

Outputting audio only ............................................. 30

Display Settings .......................................................... 31

Channel display .....................................................31

Time and Title display ............................................ 31

Other useful features ...................................................... 32

Setting when using external devices ........................... 32

Input source settings ............................................. 32

Skipping specified inputs .......................................32

Colour system settings .......................................... 32

Additional features ......................................................32

Connecting a USB device ........................................... 33

USB Photo Viewer/Music Player .................................33

Photo Mode ........................................................... 33

Music Mode ........................................................... 34

USB device compatibility ............................................ 34

Connecting a PC .............................................................. 35

Connecting a PC ........................................................ 35

Setting audio input ................................................. 35

Displaying a PC image on the screen ..........................35

Selecting the picture size .......................................35

Adjusting the PC image automatically ....................36

Adjusting the PC image manually ...........................36

Selecting input resolution ............................................ 36

RS-232C port specifications .......................................37

PC compatibility chart .................................................38

RS-232C command list............................................... 38

Appendix .......................................................................... 39

Troubleshooting .......................................................... 39

Updating your TV via DVB-T ....................................... 40

Reset .......................................................................... 40

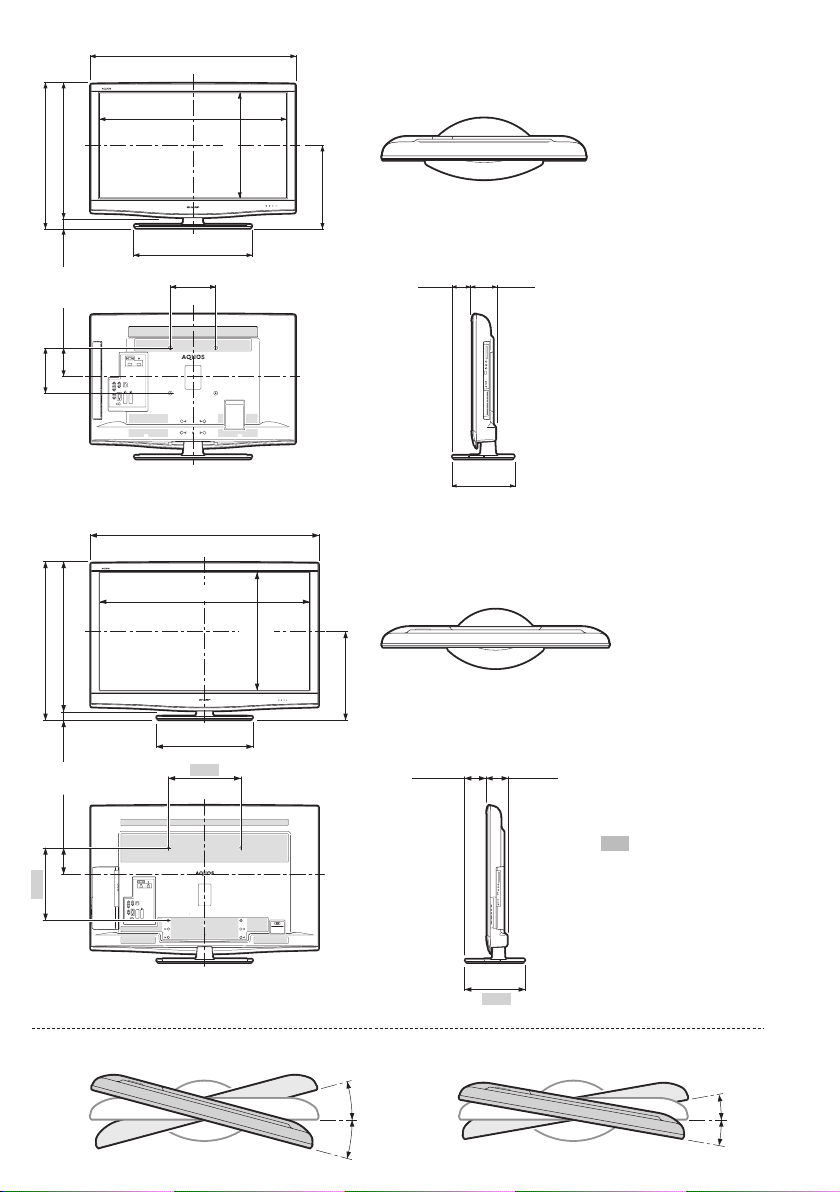

Identification................................................................ 40

Specifications ............................................................. 41

Optional accessory .....................................................42

End of life disposal ......................................................43

Abbreviation list ........................................................... 44

ENGLISH

1

Introduction

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble­free operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product.

•
Do not use liquid cleaners or aerosol cleaners.
Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,

•
swimming pool and in a wet basement.
Do not place vases or any other water-filled containers on this product. The water may spill onto the

•
product causing fire or electric shock.
Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the

•
product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When
mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting
hardware recommended by the manufacturer.
When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops,

•
excessive force and uneven floor surface can cause the product to fall from the cart.
Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or

•
block these vents and openings since insufficient ventilation can cause overheating and/or shorten the
life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they
can block ventilation openings. This product is not designed for built-in installation; do not place the
product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
The LCD panel used in this product is made of glass. Therefore, it can break when the product is

•
dropped or impact applied. If the LCD panel is broken, be careful not to be injured by broken glass.
Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating

•
products (including amplifiers).
Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at

•
high volume levels.
To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

•
To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

•
Do not display a still picture for a long time, as this could cause an afterimage to remain.

•
There is power consumption always if main plug is connected.

•
Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high

•
voltage and other dangerous conditions. Request a qualified person to perform servicing.

The LCD panel is a very high technology product, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of
blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

When transporting the TV, never carry it by holding onto the speakers. Be sure to always carry the TV by two people holding
it with two hands—one hand on each side of the TV.

Trademarks

“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”•

Manufactured under license from Dolby Laboratories.

•
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

•

The “HD ready” Logo is a trademark of EICTA.

•

The DVB logo is the registered trademark of the Digital Video Broadcasting—DVB—project.

•

“x.v.Colour” and

2

are trademarks of Sony Corporation.•

Introduction

Remote control unit

B (Standby/On)

1

(Page 10)

Buttons for useful operations

2

m (Teletext)

ATV: Display analogue teletext (Page

13).
DTV: Select MHEG-5 and teletext for
DTV (Page 13).

k (Reveal hidden Teletext)

(Page 13)

[ (Subtitle)

Switch subtitle languages on/off
(Pages 13 and 28).

3 (Freeze/Hold)

Press to freeze a moving image on
the screen.
Teletext: Stop updating teletext
pages automatically or release the
hold mode.

1 (Subpage)

(Page 13)

v (Top/Bottom/Full)

Set the area of magnification in
teletext mode (Page 13).

0–9 numeric buttons

3

Set the channel.
Enter desired numbers.
Set the page in teletext mode.

When the five Nordic countries

•
(Sweden, Norway, Finland,
Denmark, or Iceland) are selected
in the country setting from “Auto
Installation” (page 26), DTV
services are four digits. When
another country is selected, DTV
services are three digits.

A (Flashback)

4

Press to return to the previously
selected channel or external input.

DTV

5

Press to access digital TV mode.

ATV

6

Press to access conventional
analogue TV mode.

2 (Sound mode)

7

Select a sound multiplex mode
(Page 10).

ik/l (Volume)

8

Increase/decrease TV volume.

e (Mute)

9

TV sound on/off.

f (WIDE MODE)

0

Select a wide mode (Pages 29 and

35).

AV MODE

Q

Select a video setting (Page 24).

1

2

3

4
5

6
7

8
9

10

11

12

13

14

a/b/c/d (Cursor)

W

Select a desired item on the setting
screen.

OK

Execute a command within the
“MENU” screen.
ATV/DTV: Display the programme
list when no other “MENU” screen is
running.

END

E

Exit the “MENU” screen.

R/G/Y/B (Colour) buttons

R

The coloured buttons are
correspondingly used to select the
coloured items on the screen (e.g.
EPG, MHEG-5, Teletext).

b (INPUT SOURCE)

T

Select an input source (Page 10).

15

EPG

Y

DTV: Display the EPG screen (Pages

16

11–12).

17

RADIO

U

18

DTV: Switch between Radio and

19

Data mode.

When only data broadcasting (no

•

20
21

22

23

24

25

radio broadcasting) is transmitted
by DVB, the radio broadcasting
will be skipped.

P. INFO

I

Press to display programme
information which is transmitted
through digital video broadcasting in
the upper left corner of the screen
(DTV only).

Pr/s

O

Select the TV channel.

p (Display information)

P

Press to display the station
information (channel number, signal,
etc.) in the upper right corner of the
screen (Page 31).

A

ECO (Standard/Advanced/Off)

Select “Energy Save” setting (Page

25).

S

MENU

“MENU” screen on/off.

D

6 (Return)

Return to the previous “MENU”
screen.

F

SLEEP

Press to schedule a time for the TV
to automatically standby (Page 25).

G

AQUOS LINK buttons

If external equipment such as a
AQUOS BD Player is connected via
HDMI cables and is AQUOS LINK
compatible, you can use these
AQUOS LINK buttons. See pages 19
and 21 for details.

3

Introduction

TV (Front view)

TV (Rear view)

1

OPC sensor

OPC indicatorRemote control sensor

B (Standby/On) indicator

11

16

2

3

4 56

12

13

14

15

7 8 9 10

WARNING

Excessive sound pressure from earphones and headphones can cause hearing loss.

•
Do not set the volume at a high level. Hearing experts advise against extended listening at

•
high volume levels.

EXT4 (ANALOGUE RGB/AUDIO)

1

terminals*
HDMI1 (HDMI) terminal

2

HDMI2 (HDMI/AUDIO) terminals*

3

EXT3 (COMPONENT/AUDIO)

4

terminals
OUTPUT (AUDIO) terminals

5
6

DIGITAL AUDIO OUTPUT terminal

Antenna terminal

7

RS-232C terminal

8

EXT1 (RGB) terminal

9

EXT2 (AV) terminal

10

COMMON INTERFACE slot

11

EXT8 terminals

12

HDMI3 (HDMI) terminal

13

USB terminal

14

Headphones

15

AC INPUT terminal

16

4

The terminal layout may differ depending

*

on the model.

a (Power) button

MENU button

b (INPUT SOURCE)
button

Pr/s
Programme (channel)
buttons

ik/l Volume
buttons

The HDMI2 and EXT4 terminals

*

can both use the same audio input
terminal. However, the proper item
must be selected in the “PC Audio
Select” menu (Refer to page 35 for
details).

Preparation

Supplied accessories

Remote control unit

(g1)

Pages 3 and 6 Page 5

Operation manual (This publication)•

AC cord (g1) Stand unit (g1)

Product shape varies in

some countries.

Cable clamp (g1)

LC-32DH77E, LC-32DH77V• LC-42DH77E, LC-42DH77V/

Page 8Page 8

“AAA” size zinc-carbon battery (g2) ... Page 6•

•
LC-46DH77E, LC-46DH77V/
LC-52DH77E, LC-52DH77V

Attaching the stand unit

Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

•
Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being

•
damaged.

CAUTION

Attach the stand in the correct direction.

•

Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

•

LC-32DH77E, LC-32DH77V:

Confirm that there are eight screws with the

1

stand unit.

2

Attach the supporting post for the stand unit
onto the base using the four screws with the
screw driver (supplied) as shown.

Supporting
post

LC-42DH77E, LC-42DH77V/LC-46DH77E,
LC-46DH77V/LC-52DH77E, LC-52DH77V:

Confirm that there are eight screws (four short

1

screws and four long screws) with the stand unit.

2

Attach the supporting post for the stand unit
onto the base using the four long screws with
the hex key (supplied) as shown.

Hex key

Long screw

Inserting the stand.

3

Insert the stand into the openings on the

1

bottom of the TV (Hold the stand so it will
not drop from the edge of the base area).

Insert and tighten the four screws into the

2

four holes on the rear of the TV.

Soft cushion

2

1

NOTE

To detach the stand unit, perform the steps in reverse

•
order.

Supporting
post

3

Inserting the stand.

Insert the stand into the openings on the

1

bottom of the TV (Hold the stand so it will
not drop from the edge of the base area).

Insert and tighten the four short screws into

2

the four holes on the rear of the TV.

Soft cushion

Short screw

NOTE

To detach the stand unit, perform the steps in reverse

•
order.

2 2

1

1

Hex key

5

Preparation

Inserting the batteries

Before using the TV for the first time, insert two supplied “AAA” size zinc-carbon batteries. When the batteries
become depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.

1

Open the battery cover.

2

Insert two supplied “AAA” size zinc-carbon
batteries.

Place batteries with their terminals corresponding to the

•

(e) and (f) indications in the battery compartment.

Close the battery cover.

3

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

Do not mix batteries of different types. Different types of batteries have different characteristics.

•
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause

•
chemical leakage in old batteries.
Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you

•
find any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

•
If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

•
When replacing the batteries, use zinc-carbon batteries instead of alkaline ones.

•

Note on disposing batteries:

The batteries provided contain no harmful materials such as cadmium, lead or mercury.
Regulations concerning used batteries stipulate that batteries may no longer be thrown out with the household
rubbish. Deposit any used batteries free of charge into the designated collection containers set up at commercial
businesses.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control
unit and sensor may prevent proper operation.

5 m

30° 30°

Cautions regarding the remote control unit

•

Do not expose the remote control unit to shock. In addition, do not expose the
remote control unit to liquids, and do not place in an area with high humidity.

•

Do not install or place the remote control unit under direct sunlight. The heat
may cause deformation of the unit.

•

The remote control unit may not work properly if the remote control sensor of
the TV is under direct sunlight or strong lighting. In such cases, change the
angle of the lighting or the TV, or operate the remote control unit closer to the
remote control sensor.

6

Remote control sensor

Quick guide

Initial installation overview

Follow the steps below one by one when using the TV for the first time. Some steps may not be necessary
depending on your TV installation and connection.

1 2 3

Power on and

Preparation

n

Connect an antenna cable to
the antenna terminal (Page 8).

o

If necessary, insert a CA card
into the CI slot to watch
scrambled broadcasts (Pages
8 and 18).

run the auto

installation

Turn on the power using a on

n

the TV (Page 10).

The terminal layout may

*

differ depending on the
model.

o

Run the initial auto installation
(Page 9).

Language setting

✔

English

Italiano

Svenska

Watch TV

n

Congratulations!
Now you can watch TV.

o

If necessary, adjust the
antenna to attain maximum
signal reception (Page 9).

Connect

external devices

n

Connect external
devices such as a
DVD player/recorder
as instructed (Pages
14–16).

p

Connect the AC cord to the TV
(Page 8).

Product shape varies in some countries.

Home/Store setting

✔

STOREHOME

Country setting

✔

Austria A B/G

Finland

FIN

B/G

Greece GR B/G

Channel search setting

✔

Analogue SearchDigital Search

Start searching

channels

o

Connect external
audio devices such as
speakers/amplifier as
instructed (Pages 14
and 17).

7

Quick guide

Before turning on the power

Carefully insert the CI

1

Module in the CI slot
with the contact side
forward.
The logo on the CI

2

Standard
DIN45325 plug
(IEC 169-2) 75 q
coaxial cable

Supplying power to the antenna

You must supply power to the antenna in order to receive
digitally/terrestrially broadcast stations after connecting the
antenna cable to the antenna terminal on the rear of the TV.

Press MENU and the “MENU” screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Antenna Setup-DIGITAL”, and then press

3

OK.
Press a/b to select “Supply Voltage”, and then press OK.

4

Press c/d to select “On”, and then press OK.

5

Mounting the TV on a wall

This TV should be mounted on a wall only with the wall mount bracket available from SHARP (Page 42). The use

•

of other wall mount brackets may result in an unstable installation and may cause serious injuries.
Mounting the LCD colour TV requires special skills and should only be performed by qualified service personnel.

•

Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting
or mounting that results in accident or injury.

You can ask qualified service personnel about using an optional bracket to mount the TV to a wall.

•
To use this TV mounted on a wall, first remove the adhesive tape at the two locations on the rear of the TV, and then use the

•
screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.
When you mount the TV on a wall, you should attach the supporting post.

•

When using wall mount bracket AN-37AG5 or AN-52AG4

You can check the centre of the TV screen using the mark engraved on the wall mount bracket when mounting the TV on the
wall.

AN-37AG5

LC-32DH77E, LC-32DH77V: The centre of the TV screen is 13 mm below the mark “B” on the wall bracket.

AN-52AG4

LC-42DH77E, LC-42DH77V: The centre of the TV screen is at the mark “c” on the wall bracket.
LC-46DH77E, LC-46DH77V: The centre of the TV screen is at the mark “b” on the wall bracket.
LC-52DH77E, LC-52DH77V: The centre of the TV screen is 7.3 mm below the mark “f” on the wall bracket.

Module must be
facing outward from
the rear of the TV.

Place the TV close to the
AC outlet, and keep the
power plug within reach.

AC cord

Product shape varies in some countries.

Bundling the cables

Cable clamp

Bundle the cables with

8

the clamp.

Quick guide

Initial auto installation

When the TV is powered on for the first time after purchase,
the initial auto installation wizard appears. Follow the menus
and make the necessary settings one after another.

Confirm the following before turning
on the power

Is the antenna cable connected?

E

Is the AC cord plugged in?

E

Press a on the TV.

1

The initial auto installation wizard appears.

•

Setting the OSD language.

2

English

Italiano

Svenska

Press a/b/c/d to select the desired language, and
then press OK.

Selecting the location of the TV.

3

STOREHOME

Press c/d to select where you will use this TV, and
then press OK.

HOME: “STANDARD” will be the default value for the “AV

•
MODE” setting.

•

STORE: “DYNAMIC (Fixed)” will be the default value for the
“AV MODE” setting. If the “AV MODE” is changed, the TV will
automatically switch back to “DYNAMIC (Fixed)” when there
is no signal input from the TV or remote control unit for 30
minutes.

•

A demonstration image will be displayed after initial auto
installation is completed. If you have chosen “STORE” by
mistake, go to “Setup” > “Reset” > select “HOME” again.

Setting the country.

4

Austria A B/G

Finland

FIN

B/G

Greece GR B/G

Press a/b/c/d to select your country or area, and
then press OK.

This setting screen only appears during the first installation.

•

Starting channel search.

5

Analogue SearchDigital Search

Press c/d to select “Digital Search” or “Analogue
Search”, and then press OK.

If you want to search for more broadcasts, execute

•
“Additional Search” from the “Programme Setup” menu
(Pages 26 and 27).

•

To watch both analogue broadcasts and digital broadcasts,
you should perform the channel search setting for each
format.

EXAMPLE

If you execute “Digital Search” in the initial auto installation

•
wizard, you should perform “Analogue Search” from “Auto
Installation” under the “Setup” menu (Pages 26 and 27).

The TV searches for, sorts and stores all the

6

receivable TV stations according to their settings
and the connected antenna.

To abort the initial auto installation in progress, press 6.

•

NOTE

•

If you turn off the power on the TV after performing step 5, the
initial auto installation wizard does not appear. The auto installation
function allows you to execute the installation again from the
“Setup” menu (Page 26).

•

The initial auto installation wizard will go off if you leave the TV
unattended for 30 minutes before searching for channels in step 6.

•

After initial auto installation is completed, the default PIN is
automatically set to “1234”. To change the PIN setting, refer to
Password/Parental lock settings on page 28. To clear the PIN
setting (PIN input will no longer be needed), refer to CLEARING
THE PIN on page 40.

•

When “Italy” is selected in the country setting, the default PIN is
automatically set to “1234” and the default age restriction value is
set to 18.

Checking signal strength and channel strength

If you install a DVB-T antenna for the first time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.

Press MENU and the “MENU” screen displays.

1

Press c/d to select “Setup”.

2
3

Press a/b to select “Antenna Setup-DIGITAL”,
and then press OK.

Checking signal strength

E

Press a/b to select “Signal Strength”.

Supply Voltage

Signal Strength

Channel Strength

E

Checking channel strength

Press a/b to select “Channel Strength”, and
then press OK.

You can input a specified frequency band using the 0–9

•
numeric buttons.

Supply Voltage

Signal Strength

Channel Strength

Position and align the antenna so that the

4

maximum possible values for “Signal Strength”
and “Quality” are obtained.

NOTE

The values of “Signal Strength” and “Quality” indicate when to

•
check the appropriate alignment of the antenna.

CH No. 21

Signal Strength

Current Max 0

Quality

Current Max 0 0

474. 0

CH No. 21

Signal Strength

Current Max0

Quality

Current Max00

0

MHz

0

9

Watching TV

Daily operation

Switching on/off

Turning on/off the power

Press a on the TV.
Switch it off by pressing a on the TV.

NOTE

When turning off the power using

•

a on the TV, EPG data will be lost,
and programmed timer recordings
will not be performed by the TV.

The terminal layout may differ

*

depending on the model.

Standby mode

To standby mode

E

If the TV is switched on, you can switch it to standby
by pressing B on the remote control unit.

E

Switching on from standby

From standby, press B on the remote control unit.

TV indicator status

B indicator

Off

Green

Red

NOTE

If you are not going to use this TV for a long period of time, be sure

•
to remove the AC cord from the AC outlet.

•

A small amount of electric power is still consumed even when a is
turned off.

Power off

Power on

Standby

Status

Switching between analogue and digital broadcasts

Watching analogue

E

broadcasts

EWatching digital

broadcasts

Changing channels

With Pr/s:

With 0–9:

Selecting an external video source

Once the connection is made, press
b to display the “INPUT SOURCE”
screen, and then press a/b to
switch over to the appropriate
external source with OK.

INPUT SOURCE
TV

EXT1
EXT2
EXT3

EXT4

HDMI1

Selecting a sound mode

DTV mode:

E

If multi sound modes are received, each time you
press 2 the mode switches as follows.

Audio (ENG) : STEREO

L/R LRLR

Audio (ENG) : CH A

CH A CH B CH AB

Audio (ENG) : MONO

Press c/d to select L or R sound when the STEREO
or DUAL MONO screen is displayed.

Audio (ENG) : STEREO

L/R L RLR

NOTE

The sound mode screen disappears in six seconds.

•
Selectable items vary depending on the received broadcasts.

•

ATV mode:

E

Each time you press 2, the mode switches as
shown in the following tables.

Signal Selectable items
Stereo
Bilingual
Monaural

Signal Selectable items
Stereo
Bilingual
Monaural

NOTE

When no signal is input, the sound mode will display “MONO”.

•

NICAM TV broadcasts selection

NICAM STEREO, MONO
NICAM CH A, NICAM CH B, NICAM CH AB, MONO
NICAM MONO, MONO

A2 TV broadcasts selection

STEREO, MONO
CH A, CH B, CH AB
MONO

10

Watching TV

EPG

EPG is a programme list that is displayed on the screen. With the EPG, you can check the schedule of DTV/
RADIO/DATA, view detailed information about them, tune to an event currently on-air and set a timer for future
events.

EPG Overview

Basic functionsE

Select a programme using EPG (Page 12)

E

Check programme information (Page 12)

E

Useful functionsE

Search for a programme by category (Page 12)

E

Search for a programme by date and time

E

(Page 12)

Useful settings for using EPG

Common Operation

Press MENU and the “MENU” screen displays.

1

Press c/d to select “Digital Setup”.

2

Press a/b to select “EPG Setup”, and then

3

press OK.

Digital Setup

REC Picture Size

Download Setup

EPG Setup

Subtitle

CI Menu

Press a/b to select the desired item, and then

4

press OK (Example: “EPG Setup”, “Display
Range Setup”, etc.).

EPG Setup

Display Range Setup

Genre Icon Setup

Press a/b/c/d to select or adjust the desired

5

item, and then press OK (Example: “Yes”, “No”,
etc.).

[16:9 TV]

[Yes]

Yes No

EPG display settings

EPG Setup (setting for receiving EPG

E

data)

If you want to use the EPG for digital stations, select
“Yes”. The EPG data must be automatically captured
while the TV is in standby mode. After setting to “Yes”,
it may take some time to turn off the power using the
remote control unit due to the process of the data
capture.

NOTE

If the TV main power is switched off, the EPG data will not

•
be captured.

Display Range Setup

E

The “Display Range Setup” allows you to select three
types of time spans for display on the screen.

Item

Mode1: Displays six hours of programme information.
Mode2: Displays three hours of programme information.
Mode3: Changes to the EPG display format with a

vertical time span.

Genre Icon Setup

E

You can grey out or place a mark on desired genres
and smoothly search for programmes you frequently
watch.

E

Genre Icon List

Icon Genre Icon Genre

Movie/Drama Music/Ballet/Dance

News/Current affairs

Show/Game show

Sports

Children’s/Youth
programmes

Arts/Culture (without
music)

Social/Political
Issues/Economics

Education/Science/
Factual topics

Leisure hobbies

11

Watching TV

Selecting a programme using EPG

Basic Operation

The illustrations on this page are explained using three digit services.

Display/Close the EPG screen

E

Press EPG.

Select a programme

E

Select the time span

1

Press c/d to select the time span you want to search.

Continue to press d to display programmes in the next time span.

•

Select the desired programme

2

Press a/b to select the desired programme.

If a or b are displayed on the left of the services, continue to press a/b to display next or previous screen.

•

Selecting a programme

Check programme information

3

Press a/b/c/d to select the programme you

1

want to check.

2

Press R.

040

BBC News 24 BBC News

10 : 00AM - 1 : 00 AM

BBC TWO 002

BBC THREE 007

BBC FOUR 010

BBC FIVE 012

CBBC Channel 030

BBC 1 061

BB22 062

BBC NEWS 24 340

BBCi 351

3

Press OK to tune to the selected programme.

Search a programme in a category

4

Press G.

1

Press a/b to select the desired genre, and then

2

press OK.

3

Press a/b to select a programme you want to
watch, and then press OK.

Genre

Programme Information

Programme Info.

Programme Info.

Back to EPG

R

R

The BBC’s rolling news service with headlines every 15 minutes.

The BBC’s rolling news service with headlines every 15 minutes.

Next

B

Back to EPG

Next

B

10 AM 11 0 PM 1 2 3

This is BBC THREE

BBC NEWS BBC NEWS

BBC NEWS BBC NEWS

BBCi BBCi

This is BBC THREE

EPG [Mon]16/04 10:57 AM[DTV-TV] Toda y (Tue)20 (Wed)21 (Thu)22 (Fri)23 (Sat)24 (Sun)25 (Mon)26

040

BBC News 24 BBC News

2

10 : 00AM - 1 : 00 AM

BBC TWO 002

BBC THREE 007

BBC FOUR 010

BBC FIVE 012

CBBC Channel 030

BBC 1 061

BB22 062

BBC NEWS 24 340

BBCi 351

SIT 1 994

SIT 2 995

SIT 3 996

SIT 4 997

SIT 5 998

BBC ONE 999

OK

: Select : Enter6: Back

10 AM 11 0 PM 1 2 3

This is BBC THREE

BBC NEWS BBC NEWS

BBC NEWS BBC NEWS

BBCi BBCi

This is BBC THREE

EPG

RGYB

: Exit Programme info. Search By Genre Search By Date Timer List

345

Search for a programme by date/time

5

Press Y.

1

Press c/d to select the desired time span, and

2

then press OK.

Search by Time

Search by Time

BBC TWO 002

BBC THREE 007

BBC FOUR 010

BBC FIVE 012

CBBC Channel 030

BBC 1 061

BB22 062

BBC NEWS 24 340

SIT 1 994

3

0 AM -

0 AM -

6 AM

6 AM

OK

: Select Time

: Select Time

: Enter

OK

10 AM 11 0 PM 1 2 3

This is BBC THREE

BBC NEWS BBC NEWS

Press a/b to select the desired programme,
and then press OK.

This is BBC THREE

Date/Time

6 AM -

6 AM -

0 PM

0 PM

Back to EPG

R

Back to EPG

: Enter

R

BBC NEWS BBC NEWS

Today

Today

This is BBC THREE

0 PM -

0 PM -

6 PM

6 PM

Enter G +1 Week

Enter G +1 Week

Y

6 PM -
0 AM

Y

6 PM -
0 AM

1

Next

Next

Next

B

Next

B

Movie/Drama

Movie/Drama

News/Current affairs

News/Current affairs

Show/Game show

Show/Game show

Sports

Sports

Children’s/Youth programmes

Children’s/Youth programmes

Music/Ballet/Dance

Music/Ballet/Dance

Arts/Culture (without music)

Arts/Culture (without music)

Social/Political Issues/Economics

Social/Political Issues/Economics

Education/Science/Factual Topics

Education/Science/Factual Topics

Leisure hobbies

Leisure hobbies

Refer to page 11 for the genre setting.

•

[Today] AM [Today] PM [Tue] 20 AM [Tue] 20 PM

12

10 : 50 AM - 11 : 05 AMMon 19/05CBBC Cahnnel 030 time

10 : 50 AM - 11 : 10 AMMon 19/05BBC TWO 002 School is Lock

11 : 05 AM - 11 : 20 AMMon 19/05CBBC Cahnnel 030 Words and Pictures

Watching TV

Teletext

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped TV. Your TV
receives teletext signals broadcast by a TV network,
and decodes them into graphical format for viewing.
News, weather and sports information, stock
exchange prices and programme previews are among
the many services available.

Turning Teletext on/off

Select a TV channel or external source providing

1

a teletext programme.

2

Press m to display the Teletext.

Many stations use the TOP operating system, while

•
some use FLOF (e.g. CNN). Your TV supports both
these systems. The pages are divided into topic
groups and topics. After switching on the teletext, up
to 2,000 pages are stored for fast access.
Each time you press m, the screen switches as

•
shown below.
Press m again to display the teletext on the right

•
screen and the normal image on the left screen.
If you select a programme with no teletext signal, “No

•
Teletext available” displays.
The same message displays during other modes if no

•
teletext signal is available.

TELETEXT

TELETEXT

Buttons for teletext operations

Buttons Description

Pr/s

Colour (R/G/
Y/B)

0–9

v (Top/
Bottom/Full)

k (Reveal
hidden
Teletext)

3 (Freeze/
Hold)

[ (Subtitle
for Teletext)

1 (Subpage)

Increase or decrease the page number.

Select a group or block of pages
displayed in the coloured brackets at the
bottom of the screen by pressing the
corresponding Colour (R/G/Y/B) on the
remote control unit.

Directly select any page from 100 to 899
by using the 0–9 numeric buttons.

Switch the teletext image to Top, Bottom
or Full.

Reveal or hide hidden information such
as an answer to a quiz.

Stop updating teletext pages
automatically or release the hold mode.

Display the subtitle or exit the subtitle
screen.

Subtitles will not be displayed when

•
the service does not contain subtitle
information.

Reveal or hide subpages.

R button: Move to the previous

•
subpage.
G button: Move to the following

•
subpage.
These two buttons are shown on the

•
screen by the symbols “e” and “f”.

Using the MHEG-5 application (UK only)

Some services bring you programmes with the MHEG
application encoded, letting you experience DTV
interactively.
When provided, the MHEG-5 application will start
when you press m.

Sample MHEG-5 screen

NOTE

Teletext will not work if the selected signal type is

•
RGB (Page 32).

13
