Contents

Features ................................................................. 3

Dear SHARP customer ........................................... 3

Introduction ............................................................. 3

Preparation ............................................................. 3

Important safety precautions .................................. 4

Safety Precautions ................................................. 5

Connection to a Television Distribution System

(Cable TV etc.) from Tuner ................................. 6

Package Contents .................................................. 7

Environmental Information ..................................... 7

Repair Information .............................................. 7

Remote Control Buttons ......................................... 8

LCD TV and Operating Buttons .............................. 9

Viewing the Connections - Back Connectors ......... 9

Viewing the Connections - Side Connectors ........ 10

Power Connection ................................................ 10

Aerial Connection ............................................. 10

Using USB Inputs ..................................................11

Connecting to a DVD Player via HDMI ................. 12

Connecting to a DVD Player via Component

Sockets (YPbPr) or Scart Cable ........................... 12

Connecting the LCD TV to a PC ........................... 13

Using Side AV Connectors ................................... 13

Remote Control Handset ...................................... 13

Inserting Batteries ............................................. 13

Switching On/Off ................................................... 13

To Switch the TV On ......................................... 13

To Switch the TV to Standby ............................. 13

To Switch the TV Off ......................................... 13

Input Selection ...................................................... 14

Basic Operations .................................................. 14

Operation with the Buttons on the TV ............... 14

Volume Setting .............................................. 14

Programme Selection ................................... 14

AV Mode ....................................................... 14

Operation with the Remote Control .................. 14

Volume Setting .............................................. 14

Programme Selection (Previous or Next

Programme) .................................................. 14

Programme Selection (Direct Access) .......... 14

Viewing Electronic Programme Guide (EPG) ....... 14

Recording via EPG Screen ............................... 15

Programme Options.......................................... 15

First Time Installation............................................ 16

Installation ............................................................ 17

Auto Channel Scan (Retune) Menu Operation . 17

Manual Tuning ..................................................... 17

Digital Aerial Manual Search............................. 17

Digital Cable Manual Search ............................ 18

Analogue Manual Search ................................. 18

Analogue Fine Tune.......................................... 18

Network Channel Scan ..................................... 18

Clear Service List (*) ......................................... 18

Managing Stations: Channel List .......................... 19

Operating the Channel List ............................... 19

Moving a Channel ............................................. 19

Deleting a Channel ........................................... 19

Renaming a Channel ........................................ 19

Locking a Channel ............................................ 19

Managing Stations: Favourites ............................. 20

Button Functions ............................................... 20

Managing Stations: Sorting Channel List ............. 20

On-Screen Information ......................................... 20

Media Playback Using Media Browser ................. 20

Viewing Videos via USB .................................. 21

Viewing Photos via USB ................................... 21

Slideshow Options ............................................ 21

Playing Music via USB ..................................... 22

Recordings Library............................................ 22

Media Browser Settings .................................... 22

Timeshift Recording ............................................. 23

Instant Recording ................................................. 23

Watching Recorded Programmes ....................... 23

Changing Image Size: Picture Formats ................ 24

Conﬁ guring Picture Settings ................................. 25

Operating Picture Settings Menu Items ............ 25

Picture Settings Menu Items ............................. 25

PC Picture Settings........................................... 26

Conﬁ guring Sound Settings .................................. 26

Operating Sound Settings Menu Items ............. 26

Sound Settings Menu Items.............................. 26

Conﬁ guring Your TV’s Settings ............................. 27

Operating Settings Menu Items ........................ 27

Settings Menu Items ......................................... 27

Using a Conditional Access Module ..................... 27

Viewing Conditional Access Menu (*) ............... 27

Conﬁ guring Language Preferences ...................... 28

Language Settings ............................................ 28

Parental Control.................................................... 28

Parental Settings Menu Operation ................... 29

Timers ................................................................... 29

Setting Sleep Timer .......................................... 29

Setting Programme Timers ............................... 29

Adding a Timer .............................................. 29

Editing a Timer .............................................. 29

Deleting a Timer ............................................ 29

Recording Conﬁ guration ....................................... 30

Conﬁ guring Date/Time Settings ............................ 30

Conﬁ guring Source Settings ................................. 31

Conﬁ guring Other Settings ................................... 31

Operation .......................................................... 31

Other Features ..................................................... 32

Teletext ................................................................. 32

Tips ....................................................................... 33

Appendix A: PC Input Typical Display Modes ....... 34

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 34

Appendix C: Supported DVI Resolutions.............. 35

Appendix D: Supported File Formats for USB

Mode..................................................................... 35

Appendix E: Software Upgrade ............................ 36

Speciﬁ cations ....................................................... 37

Digital Reception (DVB-C) .................................... 37

Dimensional Drawings .......................................... 38

End of life disposal ............................................... 39

Detachable Stand Uninstallation Method ............. 40

Screw Dimensions ................................................ 41

English - 1 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 1A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 1 19.08.2011 14:56:1719.08.2011 14:56:17

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is ﬁ tted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked

as above, which is also indicated on the pin face of the plug, must be used. Always reﬁ t the fuse cover after replacing the fuse. Never use the plug without the fuse cover ﬁ tted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the

mains plug and ﬁ t an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious electric shock may occur.

To ﬁ t an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured • black.

The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured •

red. Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three pin plug. Before replacing the plug cover make sure that:

If the new ﬁ tted plug contains a fuse, its value is the same as that removed from the cut-off plug.•

The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.•

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

ASA

or and of the same rating

English - 2 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 2A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 2 19.08.2011 14:56:1819.08.2011 14:56:18

Features

Remote controlled colour LCD TV.• Fully integrated Terrestrial digital-cable TV (DVB-•

T-C- MPEG2) (DVB-T-C MPEG4). HDMI connectors for digital video and audio. This •

connection is also designed to accept high deﬁ nition signals.

USB input.• Programme recording• Programme timeshifting• 1000 programmes (analogue+digital).• OSD menu system.• Integrated tuner DVB-T-C HD, MPEG 2 / MPEG 4 •

compatible. Scart socket for external devices (such as video, •

video games, audio set, etc.). Stereo sound system. (German+Nicam)• Teletext, fastext, TOP text.• Headphone connection.• Automatic programming system.• Forward or backward manual tuning.• Sleep timer / Child lock.• Automatic sound mute when no transmission.• NTSC playback. • AVL (Automatic Volume Limiting).• Auto power down.• PLL (Frequency Search).• PC input. • Plug&Play for Windows 98, ME, 2000, XP, Vista, •

Windos 7. Game Mode •

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read Important safety precautions carefully before using this product.

Introduction

Please read the corresponding instructions of this handbook prior to the ﬁ rst usage of the device, even when the usage of electronic devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use.

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references.

This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modiﬁ cations have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device.

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

The illustrations and the OSD in this operation • manual are for explanation purposes and may vary slightly from the actual operations.

The examples used throughout this manual are • based on the LC-24DV510E model.

English - 3 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 3A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 3 19.08.2011 14:56:1819.08.2011 14:56:18

10 cm

Important safety precautions

Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean •

the product. Do not use liquid cleaners or aerosol cleaners.

Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical •

cloth to clean it. Chemicals may cause damage or cracks in the cabinet of the TV.

Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry •

tub, swimming pool and in a wet basement.

Do not place vases or any other water-ﬁ lled containers on this product. The water may spill onto the product •

causing ﬁ re or electric shock.

Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can •

cause the product to fall, resulting in serious personal injuries as well as damage to the product.

Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold

with the product. When mounting the product on a wall, be sure to follow the manufacturer’s

instructions. Use only the mounting hardware recommended by the manufacturer.

When relocating the product placed on a cart, it must be moved with utmost care. Sudden •

stops, excessive force and uneven ﬂ oor surface can cause the product to fall from the cart.

Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not •

cover or block these vents and openings since insufﬁ cient ventilation can cause overheating

and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other

similar surface, since they can block ventilation openings. This product is not designed for

built-in installation; do not place the product in an enclosed place such as a bookcase or rack,

unless proper ventilation is provided or the manufacturer’s instructions are followed.

The LCD panel used in this product is made of glass. Therefore, it can break when the •

product is dropped or impact applied. If the LCD panel is broken, be careful not to be injured

by broken glass.

Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves •

and other heat-generating products (including ampliﬁ ers).

To prevent ﬁ re, never place any type of candle or naked ﬂ ames on the top or near the TV •

set.

To prevent ﬁ re or shock hazard, do not place the AC cord under the TV set or other heavy items.•

Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at •

high volume levels.

Do not display a still picture for a long time, as this could cause an afterimage to remain.•

There is power consumption always if main plug is connected.•

Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage •

and other dangerous conditions. Request a qualiﬁ ed person to perform servicing.

The LCD panel is a very high technology product, giving you ﬁ ne picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a

ﬁ xed point of blue, green or red. This is within product speciﬁ cations and does not constitute a fault.

Precautions when transporting the TV

When transporting the TV, never carry it by holding onto the speakers. Be sure to always carry the TV by two people holding it with two hands—one hand on each side of the TV.

WARNING

To prevent the spread of ﬁ re, keep candles or other open ﬂ ames away from this product at all times.

English - 4 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 4A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 4 19.08.2011 14:56:1919.08.2011 14:56:19

Safety Precautions

Read the following recommended safety

precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240V

AC, 50Hz outlet. Ensure that you select the correct

voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the

power cord (mains lead) or pinch the cord. Handle the

power cord by the plug. Do not unplug the appliance

by pulling from the power cord and never touch the

power cord with wet hands as this could cause a short

circuit or electric shock. Never make a knot in the cord

or tie it with other cords. The power cords should be

placed in such a way that they are not likely to be

stepped on. A damaged power cord can cause ﬁ re or

give you an electric shock. When it is damaged and

needs to be replaced, it should be done by qualiﬁ ed

personnel.

Moisture and Water

Do not use this device in a humid and

damp place (avoid the bathroom, the

sink in the kitchen, and near the washing

machine). Do not expose this device to

rain or water, as this may be dangerous

and do not place objects filled with

liquids, such as ﬂ ower vases, on top.

Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug

the TV and have it checked by qualiﬁ ed personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV set

from the wall outlet. Do not use liquid

or aerosol cleaners. Use soft and dry

cloth.

Ventilation

The slots and openings on the TV set are intended for

ventilation and to ensure reliable operation. To prevent

overheating, these openings must not be blocked or

covered in anyway.

Heat and Flames

The set should not be placed near to

open ﬂ ames and sources of intense heat

such as an electric heater. Ensure that

no open ﬂ ame sources, such as lighted

candles, are placed on top of the TV. Batteries should

not be exposed to excessive heat such as sunshine,

ﬁ re or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are speciﬁ ed by the manufacturer or have the same speciﬁ cations as the original one. Unauthorized substitutions may result in ﬁ re, electrical shock or other hazards.

Servicing

Please refer all servicing to qualiﬁ ed personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Packaging and packaging aids are recyclable • and should principally be recycled. Packaging materials, such as a foil bag should be kept away from children

Batteries, including those which are heavy metal • free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally friendly manner. Find out about the legal regulations which apply in your area.

Do not try to recharge batteries, there is a danger • of explosion. Replace batteries only with the same or equivalent type.

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

English - 5 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 5A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 5 19.08.2011 14:56:1919.08.2011 14:56:19

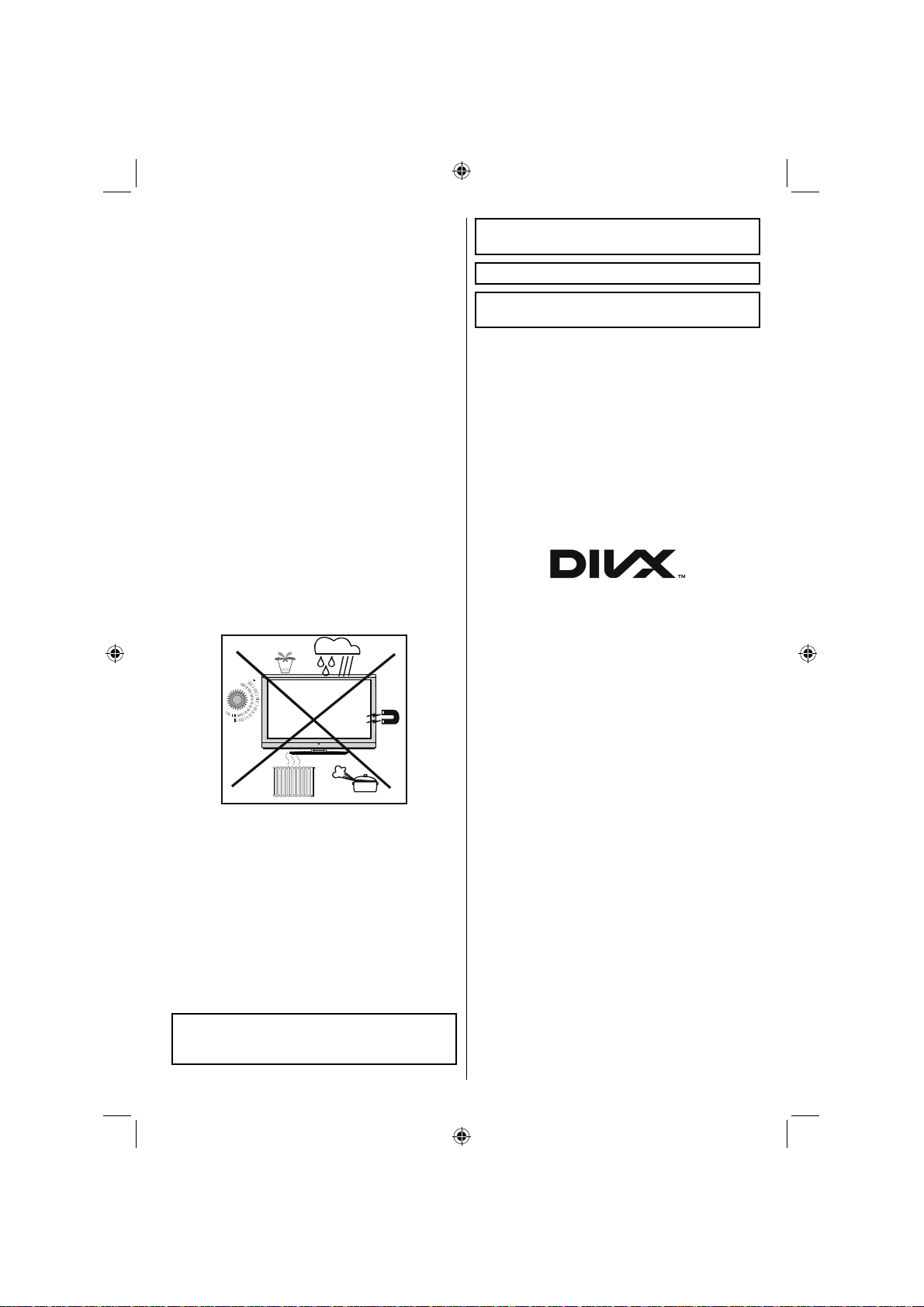

LCD Screen

The LCD panel is a very high technology product with about a million thin ﬁ lm transistors, giving you ﬁ ne picture details. Occasionally, a few non-active pixels may appear on the screen as a ﬁ xed blue, green or red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a ﬁ re hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Note:The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.

Manufactured under license from Dolby • Laboratories.

The “HD TV 1080p” Logo is a trademark of EICTA.•

The DVB logo is the registered trademark of the • Digital Video Broadcasting—DVB—project.

Electrical device not in the hands of children

Never let children use any electrical device unsupervised. Children cannot always recognise possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children as there is danger of suffocation.

Licence Notiﬁcation

DivX®, DivX Certiﬁed® and associated logos are trade-marks of DivX®, Inc. and are used under license.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX®, Inc. This is an ofﬁcial DivX Certiﬁed® device that plays DivX® video. Visit divx.com for more information and software tools to convert your ﬁles into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed® device must be registered in order to play purchased DivX® Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX® VOD sec-tion in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

The Standby Off/On button doesn´t separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. To exclude the danger of ﬁ re, the power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations.

“HDMI, the HDMI logo and High-Definition • Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

English - 6 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 6A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 6 19.08.2011 14:56:2019.08.2011 14:56:20

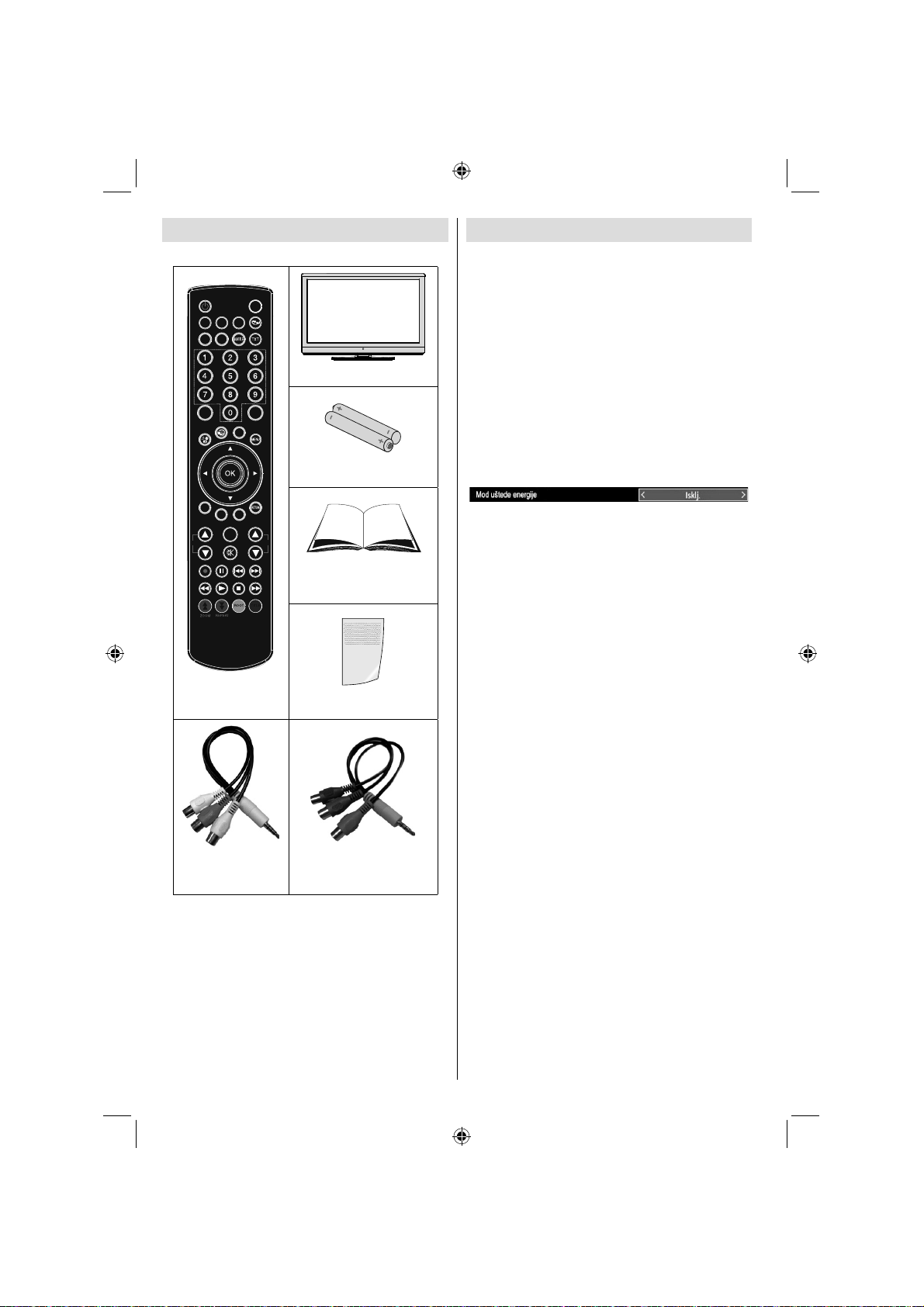

Package Contents

PRESETS

SCREEN

SLEEP

FAV

LANG.

EPG

SWAP

SOURCE

Batteries: 2 X AAA

LCD TV

Environmental Information

This television is designed to consume less energy • to save environment.

You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efﬁ ciency feauture of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in • the Other Settings menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

DISP.

MODE

INFO

Instruction Book

Remote Control

1 X Video & Audio Connection Cable

Quick Guide

1 X Component Video

Connection Cable

Note: You should check the accessories after

purchasing. Make sure that each accessory is

included.

As the manufacturer’s specification supports

communication on cable lengths shall be smaller

than 3m.

When the TV is not used, please switch off at • the rear rocker switch to further reduce power consumption.

Disconnect the TV from the mains socket when it • will not be used for prolonged periods.

When the TV is left in stand-by it consumes a small • amount of power switching off at the rear rocker switch or disconnect the TV from the mains will make further energy savings. Note activating the “Power Save Mode” saves on an annual bases more energy than switching off the mains when the TV is not used, to save most energy it is highly recommended that “Power Save Mode” is switch on.

Repair Information

Please refer all servicing to qualiﬁ ed personnel. Only qualiﬁ ed personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

English - 7 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 7A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 7 19.08.2011 14:56:2019.08.2011 14:56:20

Remote Control Buttons

Standby1. Image size / Zooms videos (in Media Browser 2.

video mode) Sleep Timer3. Mono / Stereo - Dual I-II / Currrent Language (*) 4.

(in DVB channels) Favourite Mode Selection (in DVB channels)5. Numeric buttons6. Electronic programme guide (in DVB channels)7. No function8. Media Browser9. Navigation buttons (Up/Down/Left/Right)10. No function11. Recordings Library12. Programme Down / Page up - Programme Up / 13.

Page down Mute14. Programme recording15. Pause (in Media Browser mode) / Timeshift 16.

recording Rapid reverse (in Media Browser mode)17. Play (in Media Browser mode)18. Red button19. Green button / List Schedule (in EPG) / Tag 20.

/ Untag All (in favourite list) / Play-Slideshow (in Media Browser) / Loop-Shufﬂ e (in Media Browser)

Picture mode selection / Changes picture mode 21. (in Media Browser video mode)

No function22. Teletext / Mix (in TXT mode)23. Subtitle on-off (in DVB channels)24. Previous programme25. AV / Source selection26. Menu on-off27. Okay (Conﬁ rm) / Hold (in TXT mode) / Edit 28.

Channel List Exit / Return / Index page (in TXT mode)29. No function30. Info / Reveal (in TXT mode)31. Volume Up / Down32. No function33. No function34. Rapid advance (in Media Browser mode)35.

SCREEN

SLEEP

FAV

LANG.

EPG

DISP.

Stop (in Media Browser mode)36. Blue button / Edit Channel List / Filter (In 37.

Favourite List&EPG) Yellow button / Timeline Schedule (in EPG)38.

INFO

PRESETS

SOURCE

MODE

SWAP

English - 8 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 8A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 8 19.08.2011 14:56:2119.08.2011 14:56:21

LCD TV and Operating Buttons

FRONT and REAR VIEW Control buttons VIEW Control Buttons

1. Standby Off/On button

2. TV/AV button

3. Programme Up/Down buttons-

Volume Up/Down buttons

Note:You can use +/- buttons to change volume. If you want

P\V-A

to change channels, press P/V/ AV button once and then use +/- buttons. If you hold the P/V/ AV button about a few seconds, source OSD will be displayed. Main menu OSD cannot be displayed via control buttons.

Viewing the Connections - Back Connectors

SPDIF

Coax.OUT

VGA

SCART

HDMI 1: HDMI Input1. HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of

displaying High Deﬁ nition pictures from devices such as a High Deﬁ nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection.

RF Input2. connects to an aerial antenna system or a cable. Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

SCART 3. input or output for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Note: S-VHS signal is supported via the scart socket.

PC Input4. is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

SPDIF Coaxial Out5. outputs digital audio signals of the currently watched source. Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input

English - 9 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 9A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 9 19.08.2011 14:56:2219.08.2011 14:56:22

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that 1. you subscribe to. For more information, see “Conditional Access” section.

USB Inputs. 2.

Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to this input.

TV control buttons.3. Component Video Input (YPbPr)4. is used for connecting component video.

You can connect the component video and audio sockets with a device that has component output. To do this, you must use the supplied component video connection cable for enabling connection. First, plug single jack of the cable to the TV’s YPbPr socket (side). Afterwards, insert your component cable’s (not supplied) connectors into the plural part of the Component video connection cable. Colours of the connected jacks should match.

Side audio-video connection5. input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV’s Side AV socket. Afterwards, insert your video cable’s (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match. To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device’s audio cable’s connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.

Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.

Headphone jack is used for connecting an external headphone to the 6. system. Connect to the HEADPHONE jack to listen to the TV from headphones (optional).

7. , switch is used for turning the TV on or off.

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz.

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the •

mains. Plug the power cable to the mains socket outlet.

Aerial Connection

Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.•

USB

Max:500mA

P\V-AV

5Vdc

SIDE AV YPbPr

Aerial or Cable

VGA

SPDIF

Coax.OUT

SCART

English - 10 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 10A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 10 19.08.2011 14:56:2919.08.2011 14:56:29

Using USB Inputs

USB Connection

You can connect a USB hard disk drive or USB • memory stick to your TV by using the USB inputs of the TV. This feature allows you to play ﬁ les stored in a USB drive or record programmes.

2.5” and 3.5” inch (hdd with external power supply) • external hard disk drives are supported.

To record a programme, you should ﬁ rst connect • a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

IMPORTANT !

You may back up your ﬁ les before making any • connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any ﬁ le damage or dataloss.

It is possible that certain types of USB devices (e.g. • MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.

IMPORTANT: The TV supports only FAT32 disk

formatting. NTFS format is not supported. If you

connect a USB disk with NTFS format, the TV will ask

you to format the content. See the section, “Format

Disk” in the following pages for more information on

disk formatting.

Note that ALL the data stored on the USB disk will

be lost and then the disk format will be converted to

FAT32 in such a case.

USB Disk Connection

• Plug your USB device to the USB input of the TV.

Note: Plug or unplug your USB disk while the TV is

switched off.

Note: If you are going to connect a USB hard disk drive

to the TV set, USB connection cable used between

the disk drive and the TV should have a USB logo

and should be as short as possible.

Note: While formatting a USB hard disk that has 1TB

(Tera Byte) or more ﬁ le capacity, you can experience

problems with the formatting process. In such a

case, you should format the disk with your personal

computer and the formatted disk type should be

FAT32.

SIDE VIEW USB MEMORY

USB

5Vdc

Max:500mA

CAUTION !

Quickly plugging and unplugging USB devices, • is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

Do not pull out USB module while playing or • recording a ﬁ le.

Programme Recording

To record a programme, you should ﬁ rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

IMPORTANT: When using a new USB hard disk drive, it is recommended that you ﬁ rst format the disk using your TV’s “Format Disk” option.

To use the recording function a USB 2.0 certiﬁ ed • device of at least 1GB should be used, If the connected USB device is not USB 2.0 an error message will be displayed.

Recorded programmes are saved into the connected • USB disk in .TS format (MPEG-2 transport stream). If desirable, you can back up / copy these saved recordings into a personal computer.

Note: It is possible that recorded broadcasts in .TS format may not be supported by your media playback software. In such a case, you should install an appropriate media playback software to your computer.

An hour of the recordings stored occupies • approximately 2 GB of space.

For more information on recording programmes, • see sections “Instant Recording”, “Timeshifting”, “Electronic Programme Guide”, “Recordings Library” or “Recording Timers” in the following parts.

Recorded programmes are split into 1GB partitions. • Names of the stored recordings’ last three digits indicates this: Such as 4801-000.ts , 4801-001.ts.

Recorded programmes are stored in the following • directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number (such as 4801-000.ts). A text (txt) ﬁ le is created for each recording. This text ﬁ le includes information such as broadcaster, programme, and recording time.

If the writing speed of the connected USB disk is not • sufﬁ cient, recording may fail and timeshifting feaute may not be available.

Recordings of HD programmes can occupy bigger • size on the USB disk depending on the broadcast’s resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

English - 11 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 11A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 11 19.08.2011 14:56:3519.08.2011 14:56:35

Do not plug out the USB/HDD during the recording. •

This may harm the connected USB/HDD.

Only two partitions on a HDD unit can be •

supported.

Some stream packets may not be recorded because •

of signal problems, so sometimes video may freezes

during playback.

Record, Play, Pause, Display (for PlayListDialog) •

keys could not be used when teletext is ON. If a

recording starts from timer when teletext is ON,

teletext is automatically turned off. Also teletext

usage is disabled when there is ongoing recording

or playback.

If the recording time of an event is longer than the memory capacity, the following message will appear on the screen: “There is not enough space for ‘event’ but it will be recorded until the drive is full”.

Connecting to a DVD Player via HDMI

Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Not all cables shown in the illustration are

supplied.

If your DVD player has an • HDMI socket, you can

connect via HDMI for better video and audio quality.

VGA

SPDIF

Coax.OUT

SCART

When you connect to DVD player as illustrated above, •

switch to the connected HDMI source. See, Input

Selection section for more information on changing

sources.

HDMI Cable

(not supplied)

External device

Connecting to a DVD Player via Component Sockets (YPbPr) or Scart Cable

Some DVD players are connected through • COMPONENT SOCKETS (YPbPr). In this case, you must use the supplied Component video connection cable for enabling connection. First, plug single jack of the cable to the TV’s YPbPr socket (side). Afterwards, insert your component cable’s (not supplied) connectors into the socket part of the Component video connection cable (see illustration below). Colours of the connected jacks should match.

To enable audio connection, use the • VGA/Component Audio cable. First, plug single jack of the cable to the TV. Afterwards, insert your DVD player’s audio cable’s connectors into the socket part of the

VGA/Component audio connection cable (see illustration below). Colours of the connected jacks

should match.

Side view

YPbPr

Connection Cable

(supplied)

YPbPr Video Cable

(Not supplied)

When the connection is made, switch to •

YPbPr source. See, Input selection section. Note: To connect YPb Pr device, you should use supplied

component (YPbPr) connection cable

You may also connect through the • SCART input.

VGA

SPDIF

Coax.OUT

SCART

DVD Player

Scart Cable

(not supplied)

External device

Note• : These three methods of connection perform the same function but in different levels of quality. It is not

necessary to connect by all three methods.

English - 12 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 12A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 12 19.08.2011 14:56:3619.08.2011 14:56:36

Connecting the LCD TV to a PC

For displaying your computer’s screen image on your

LCD TV, you can connect your computer to the TV set.

Power off both computer and display before making

any connections. Use 15-pin D-sub display cable to

connect a PC to the LCD TV. When the connection

is made, switch to PC source. See “Input selection”

section. Set the resolution that suits your viewing

requirements. Resolution information can be found

in the appendix parts

PC VGA Cable (Not supplied)

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of • the handset by gently pulling backwards from the indicated part.

Insert two • AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

PC Input

(back)

Side AV Input

SIDE AV

Side Audio/Video

Connection Cable

(Supplied)

PC Audio Cable

(Not supplied)

Using Side AV Connectors

You can connect a range of optional equipment to your

LCD TV using side connectors of the TV.

For connecting a camcorder or camera , you should • use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV’s AV I N socket (side). Afterwards, insert your camera cable’s (not

supplied) connectors into the plural part of the video/ audio connection cable. Colours of the connected

jacks should match. See illustration below. Afterwards, you should switch to • Side AV source. See

the section Input selection in the following sections for more information.

AVConnection

Cable (supplied)

SIDE AV

Headphone

To listen the TV sound from headphones, you • should connect headphones to your TV by using the

HEADPHONE jack as illustrated above..

AVCable

(not supplied)

Camera

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC 50 Hz.

Switch the “• ” button on the bottom right hand side under the screen to position “|” so the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:• Press the “•

button on the remote control. Press the “•

The TV will then switch on.•

Note : If you switch on your TV via CH on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV to Standby

To switch the TV to low power stand by press the

” button on the remote control or right hand side

“ of the TV.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

To Switch the TV Off

Switch the “• ” button on the bottom right hand side under the screen to position 2 as illustrated,

” button, CH / CH or a numeric

” or +/- button on the TV.

/ CH buttons

to isolate the TV from the mains, the LED will

go out.

English - 13 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 13A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 13 19.08.2011 14:56:3619.08.2011 14:56:36

If the TV will not be used for a long period i.e. •

holidays, then unplug the power cord from the

mains socket.

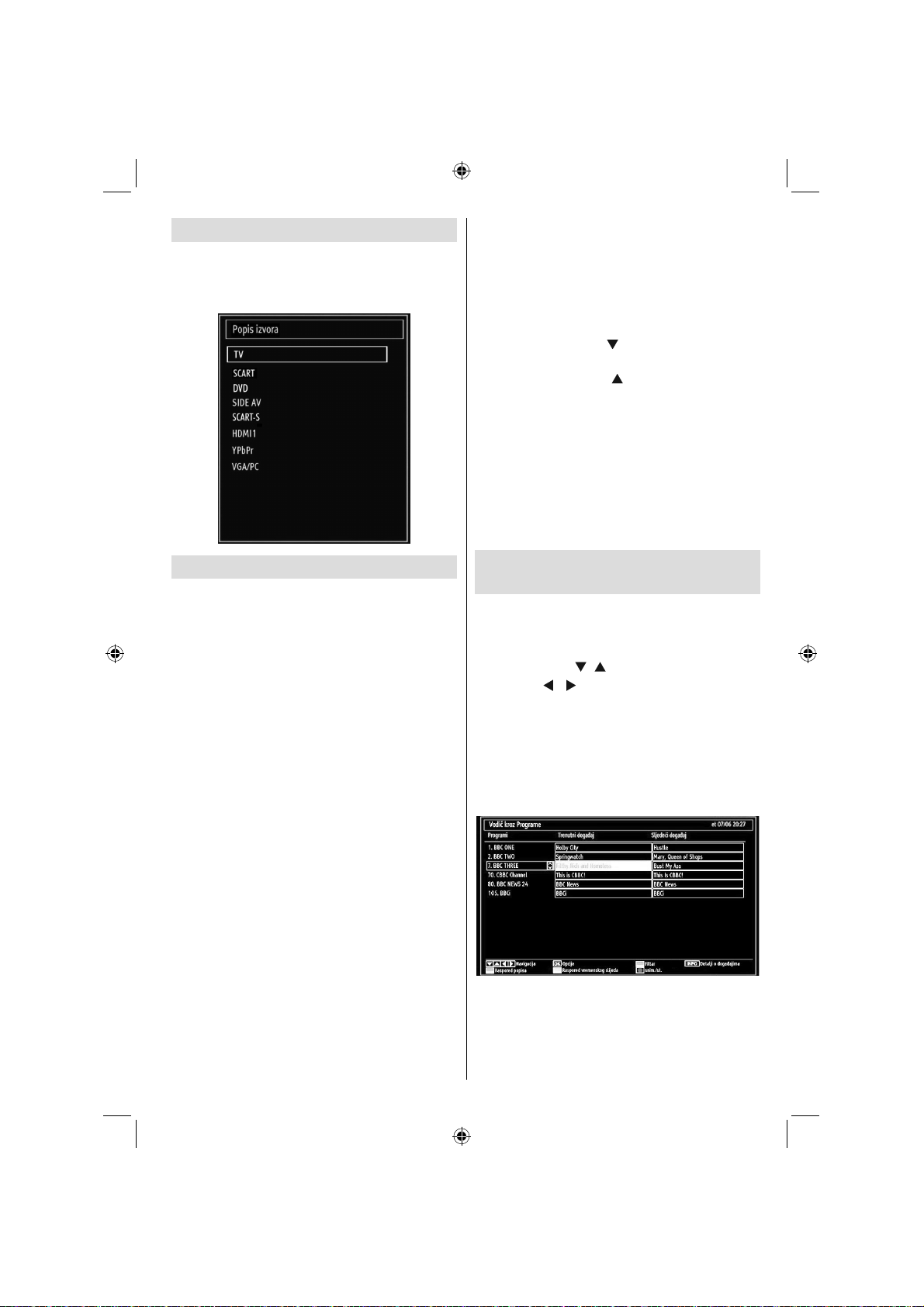

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE” button on your remote control consecutively for directly changing sources.

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Main menu OSD cannot be displayed via control buttons. “+/-” buttons will function as volume up/down as default. Even if you set other functions for these buttons, “+/-” buttons will perform as default after a short while.

Volume Setting

Press “• P/V/AV” button once and then use “+/-”

buttons to increase or decrease volume, so a volume

level scale (slider) will be displayed on the screen.

While Tv is on, +/- button can use as volume + or

volume - as default.

Programme Selection

Press “• P/V/AV” button once and then use “+/-” buttons

to change channel. By pressing “+/-” button,you can

select the next or previous programme.

AV Mode

Hold the “• P/V/AV” button, source OSD will be displayed

in a few second.

Operation with the Remote Control

The remote control of your TV is designed to control •

all the functions of the model you selected. The

functions will be described in accordance with the

menu system of your TV.

Volume Setting

Press “• V+” button to increase the volume. Press “V-” button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

Press “CH• ” button to select the previous programme.

Press “CH•

” button to select the next programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second numeric button, only the ﬁ rst digit programme will be displayed. Press directly the programme number to reselect single digit programmes.

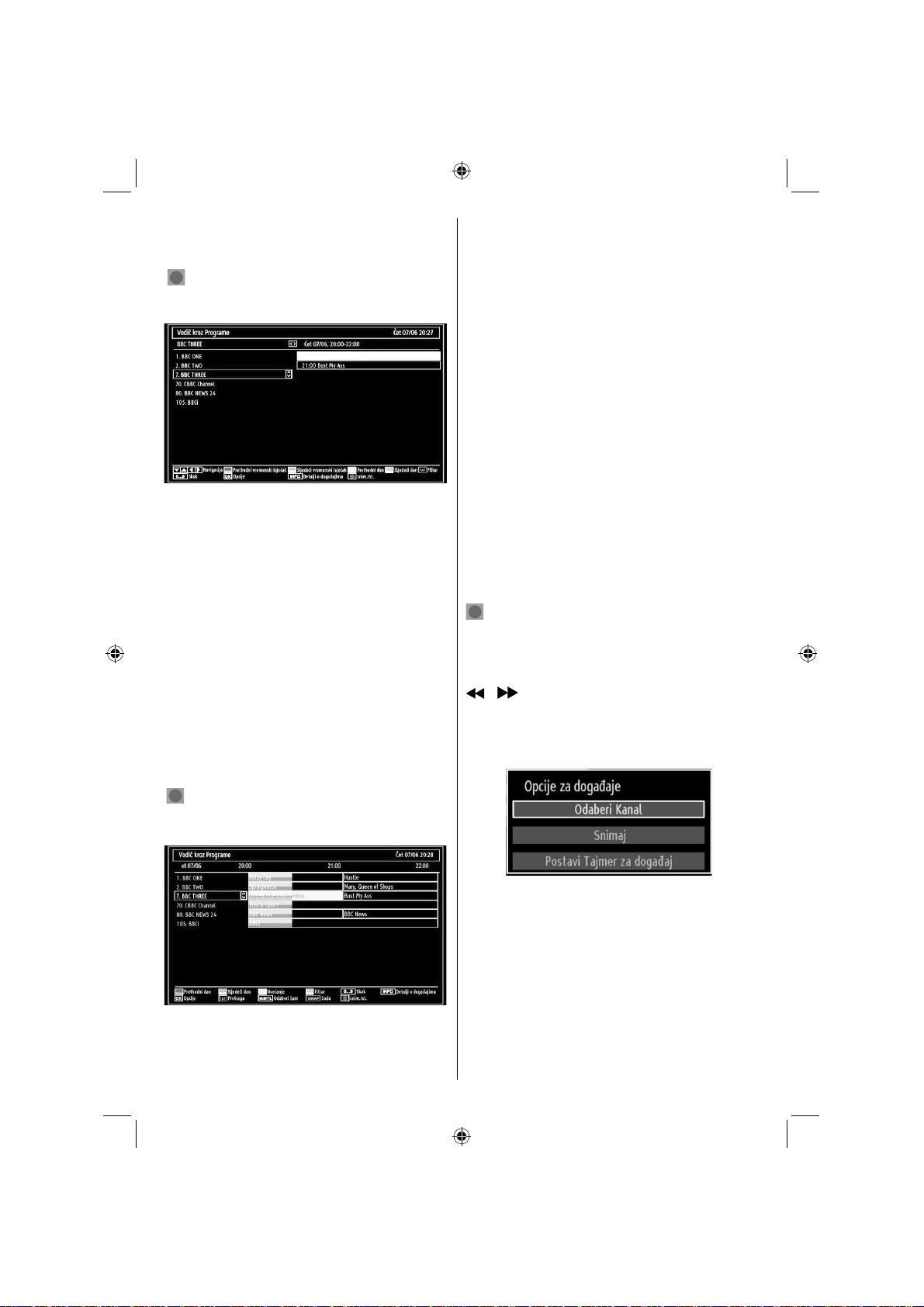

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG) to view information about available programmes.To view the EPG menu please press EPG button on the remote control.

Press “• Press “•

programme list. EPG menu displays available information on all •

channels. Please note that event information is updated •

automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

Up/Down/Left/Right: Navigate. OK (Options): views/records or sets timer for future

programs. INFO (Event Details): Displays the programmes in

detail. Green button: Programme schedule will be listed

”/“ ” buttons to navigate through channels.

”/“ ” buttons to navigate through the

English - 14 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 14A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 14 19.08.2011 14:56:3719.08.2011 14:56:37

Yellow button: Display EPG data in accordane with

timeline schedule

Blue button (Filter): Views ﬁ ltering options.

(RECORD): the TV will start to record the selected progamme. You can press again to stop the recording.

Up/Down/Left/Right: Navigate. Red button (Prev Time Slice): Displays the

programmes of previous time slice. Green button (Next Time Slice): Displays the

programmes of the next time slice. Yellow button (Prev Day): Displays the programmes

of previous day. Blue button (Next day): Displays the programmes

of the next day. Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons. OK (Options): views/records or sets timer for future

programs.

Text button (Filter): Views ﬁ ltering options. INFO (Details): Displays the programmes in detail.

(RECORD): the TV will start to record the selected progamme. You can press again to stop the recording.

Blue button (Filter): Views ﬁ ltering options. INFO (Details): Displays the programmes in detail. Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons. OK (Options): views/records or sets timer for future

programs.

Text (Search): Displays “Guide Search” menu. SUBTTL: Press SUBTITLE button to view Select

Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

SWAP (Now) : Shows the current programme.

Recording via EPG Screen

IMPORTANT: To record a programme, you should ﬁ rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

(RECORD): the TV will start to record the selected progamme. You can press again to stop the recording.

Note: Switching to a different broadcast or source is not available during the recording.

/ : Page left / Page right.

Programme Options

In EPG menu, press the OK button to enter the “Event Options” menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

English - 15 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 15A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 15 19.08.2011 14:56:3819.08.2011 14:56:38

After you have selected a programme in EPG menu, • press the OK button and and Options screen will be displayed. Select “Record” option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that • programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled.

Note: You cannot switch to any other channel or source while there is an active recording on the current channel.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select “Set Timer on Event” option and press OK button. You can set a timer for future programmes.

To cancel an already set reminder, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

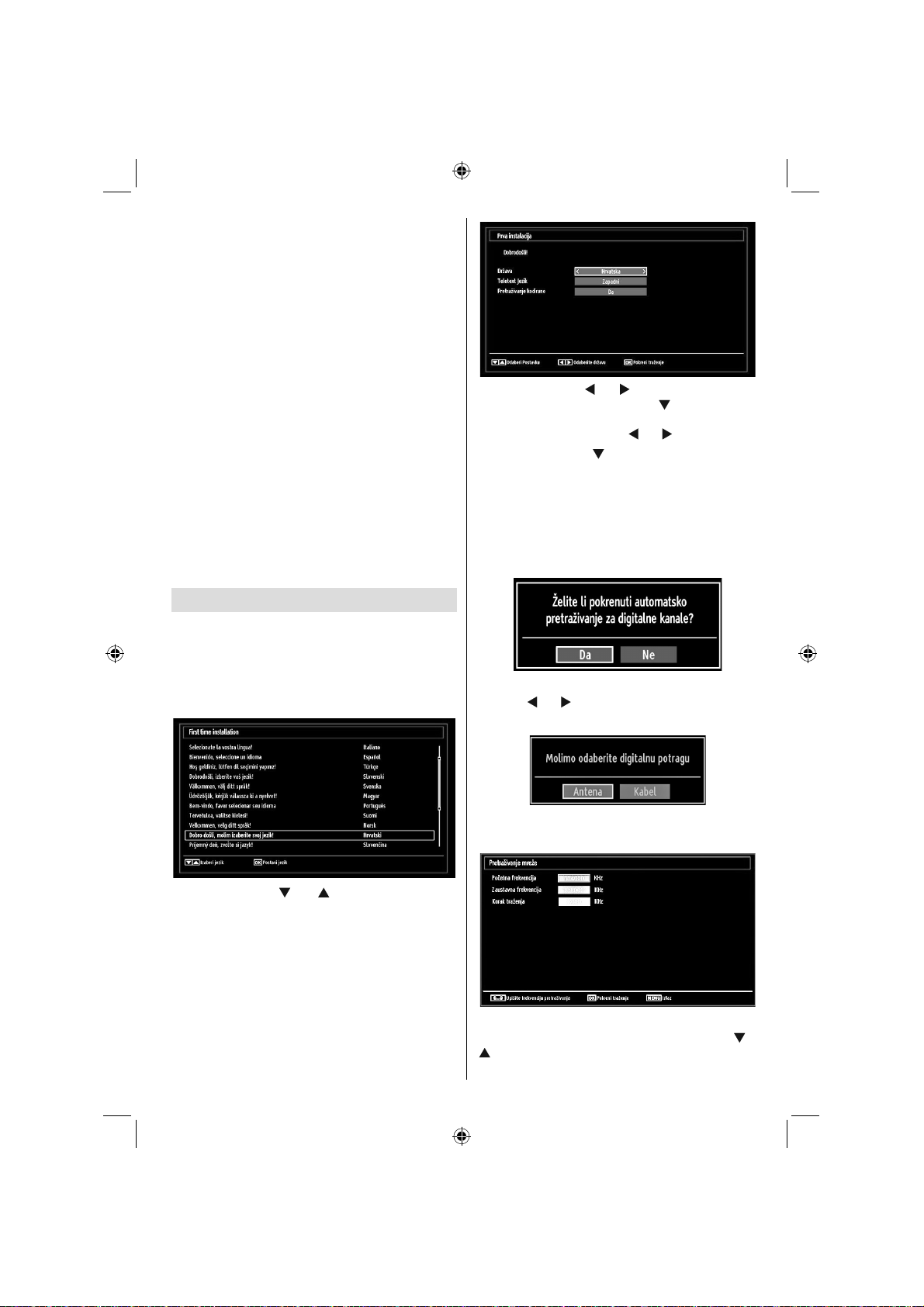

First Time Installation

IMPORTANT: Ensure that the aerial or cable is connected before switching on the TV for the ﬁ rst time installation.

When the TV is operated for the ﬁ rst time, installation • wizard will guide you through the process. First, language selection screen will be displayed:

By pressing “• ” or “ ” button, select the country you want to set and press “ ” button to highlight Teletext Language option. Use “ ” or “ ” button to select desired Teletext Language.

Press “• option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations.Afterwards select the desired Teletext Language.

Press • OK button on the remote control to continue and the following message will be displayed on the screen:

To select the “Yes” or “No” option, highlight the item by using “ ” or “ ” buttons and press OK button.

Afterwards, the following OSD will be displayed on the screen:

If you select CABLE option, the following screen will be displayed:

” button after setting Teletext Language

Use “• ” or “ ” buttons to select your language and press OK button to set selected language and continue.

After selecting the language, “• Welcome!” screen will be displayed, requiring you to set Country,Teletext

Language and Scan Encrypted options.

English - 16 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 16A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 16 19.08.2011 14:56:3819.08.2011 14:56:38

You can select frequency ranges from this screen. For highlighting lines you see, use “ ” or “ ” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When ﬁ nished, press OK button to start automatic search.

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Note: You can press “MENU” button to cancel.

After all the available stations are stored, Channel • List will be displayed on the screen. If you like the sort channels, according to the LCN,please select “Yes” and than press “OK”.

Press • OK button to quit channel list and watch TV.

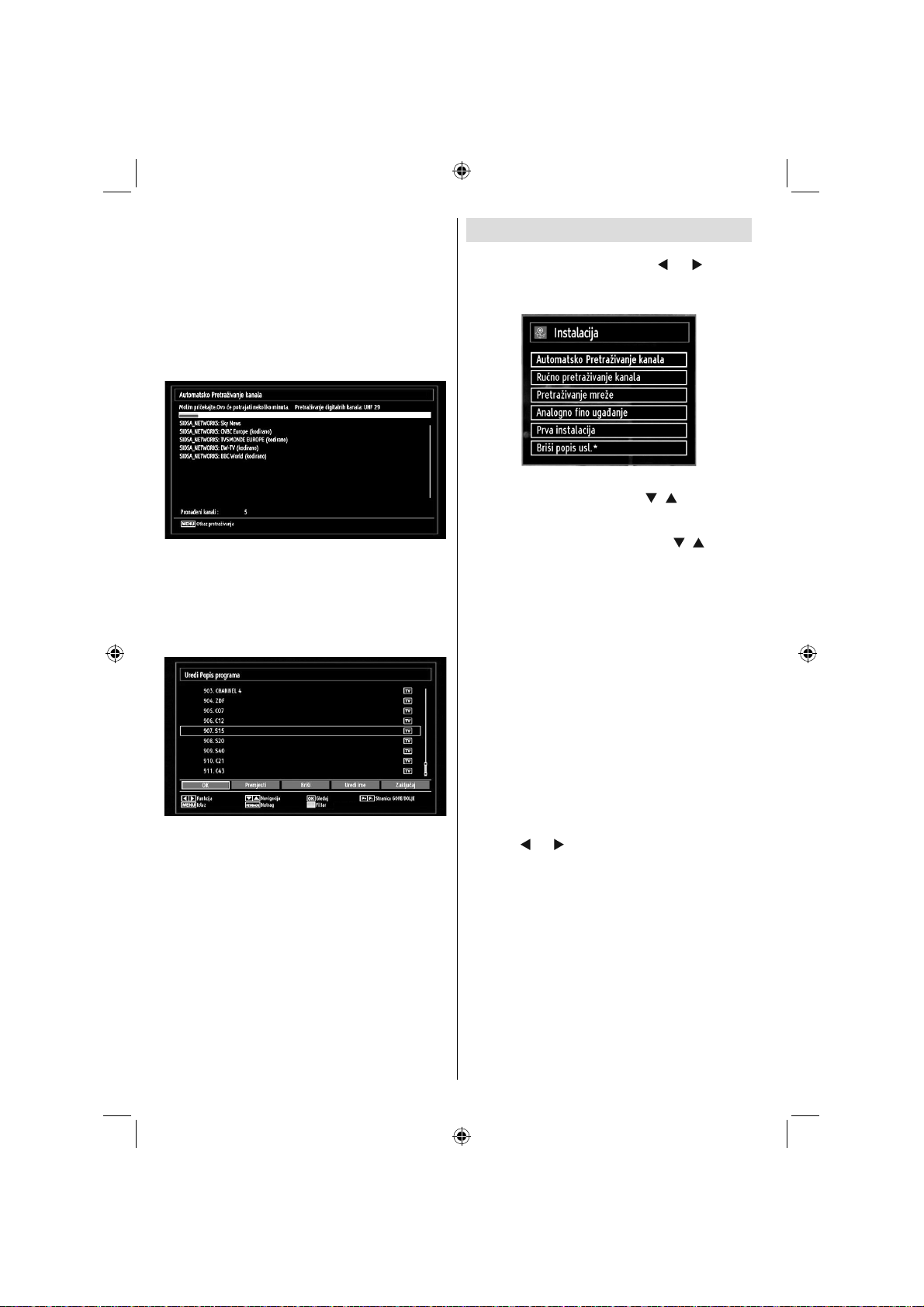

Installation

Press “MENU” button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed.

Auto Channel Scan (Retune) Menu Operation

Digital Aerial: Searches and stores aerial DVB stations.

Digital Cable: Searches and stores cable DVB stations.

Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores both

analogue and aerial DVB stations. Digital Cable & Analogue: Searches and stores both

analogue and cable DVB stations.

Whenever you select an automatic search type and • press OK button, a conﬁ rmation screen will appear on the screen. To start installation process, select

Yes, to cancel select No by using .“ OK button.

After auto channel scan type is set and selected • and conﬁ rmed, installation process will start and progress bar will move along. Press “MENU” button to cancel process. In such a case, located channels are not stored.

” or “ ” and

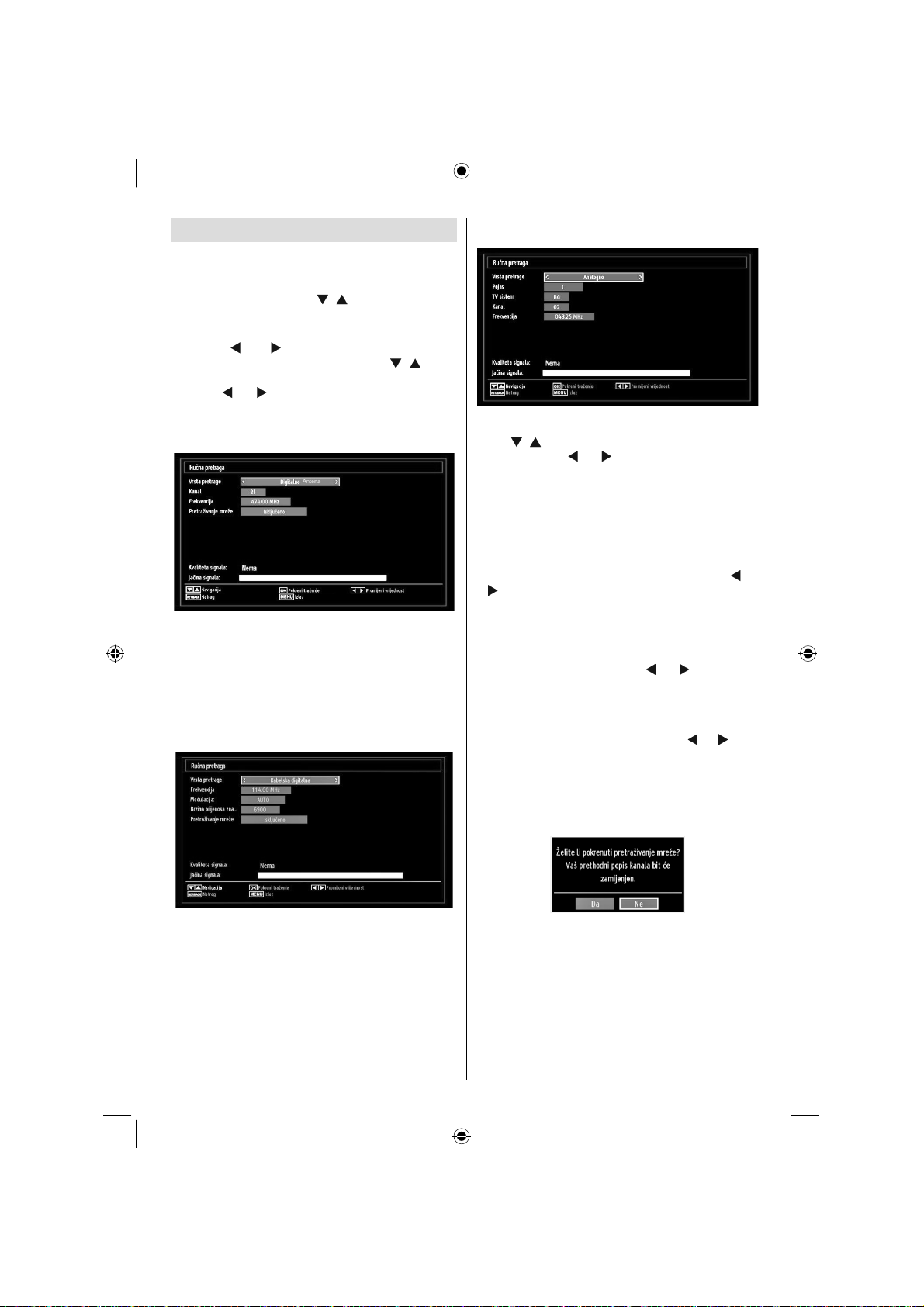

Manual Tuning

HINT: This feature can be used for direct broadcast entry.

Select • Manual Channel Scan from the Installation menu by using “ Scan options screen will be displayed.

Select the desired • Search Type using “

” button. Manual search options will change accordingly. Use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. You can press “MENU” button to cancel.

Digital Aerial Manual Search

”/“ ” and OK buttons. Manual

” or “

Select Automatic Channel Scan (Retune) by using “ ”/“ ” button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select options by using “ ”/“ ” and OK buttons.

English - 17 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 17A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 17 19.08.2011 14:56:3919.08.2011 14:56:39

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital Aerial, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Digital Cable Manual Search

In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.

Analogue Manual Search

After selecting search type as analogue, you can use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analogue Fine Tune

Select • Analogue Fine Tune from the Installation menu by using “ ” or “ ” and OK buttons. Analogue ﬁ ne tune screen will be displayed. Analogue Fine Tune feature will not be available if there are no analogue channels, digital channels and external

sources stored. Press • OK button to proceed. Use “

to set Fine Tune. When ﬁ nished, press OK button again.

” or “ ” button

Network Channel Scan

Select Network Channel Scan from the installation menu by using “ ” or “ ” and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will

be asked. Select Yes to continue or select No to cancel.

If you start Digital Aerial scan process, automatic scanning will start. You can press MENU button to cancel.

If you start Digital Cable scan process, the following screen will be displayed.

Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time.

Clear Service List (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press “ ” or “ ” button to select Clear Service List and then press OK. The following OSD will be displayed on the screen:

English - 18 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 18A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 18 19.08.2011 14:56:3919.08.2011 14:56:39

Select YES and press OK to continue or select NO and press OK button to cancel.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

Press • “MENU” button to view main menu. Select Channel List item by using “ OK to view menu contents.

Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select Edit Channel List.

Operating the Channel List

” or “ ” button. Press

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select • Delete option. Press OK button to continue.

A warning screen will appear. Select • YES to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and • select Edit Name option. Press OK button to continue.

Pressing “• next character. Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

When ﬁ nished, press • OK button to save. Press “MENU” to cancel.

” or “ ” button moves to the previous/

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock and select • Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. • Default PIN is set as 0000. Enter the PIN number.

Press “• ” or “ ” button to select the channel that will be processed. Press “ ” or “ ” button to select a function on Channel List menu.

Use CH• Press • BLUE button to view ﬁ ltering options. Press • “MENU” button to exit.

/CH buttons to move page up or down.

Press • OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

Moving a Channel

First select the desired channel. Select Move option • in the channel list and press OK button.

Edit Number screen will be displayed. Enter the • desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.

Press • OK button to process. Selected channel is now moved.

English - 19 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 19A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 19 19.08.2011 14:56:4019.08.2011 14:56:40

Managing Stations: Favourites

You can create a list of favourite programmes.

Press • “MENU” button to view main menu. Select Channel List item by using “

OK to view menu contents. Select • Favourites to manage favourite list. Use “

”/“ ” and OK buttons to select Favourites. You can set various channels as favourites so that •

only the favourite channels are navigated.

Select a channel by using “• ” or “ ” button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

OK• : Add/remove a station. YELLOW• : Tag/untag a channel. GREEN• : Tag/untag all channels. BLUE• : Displays ﬁ ltering options.

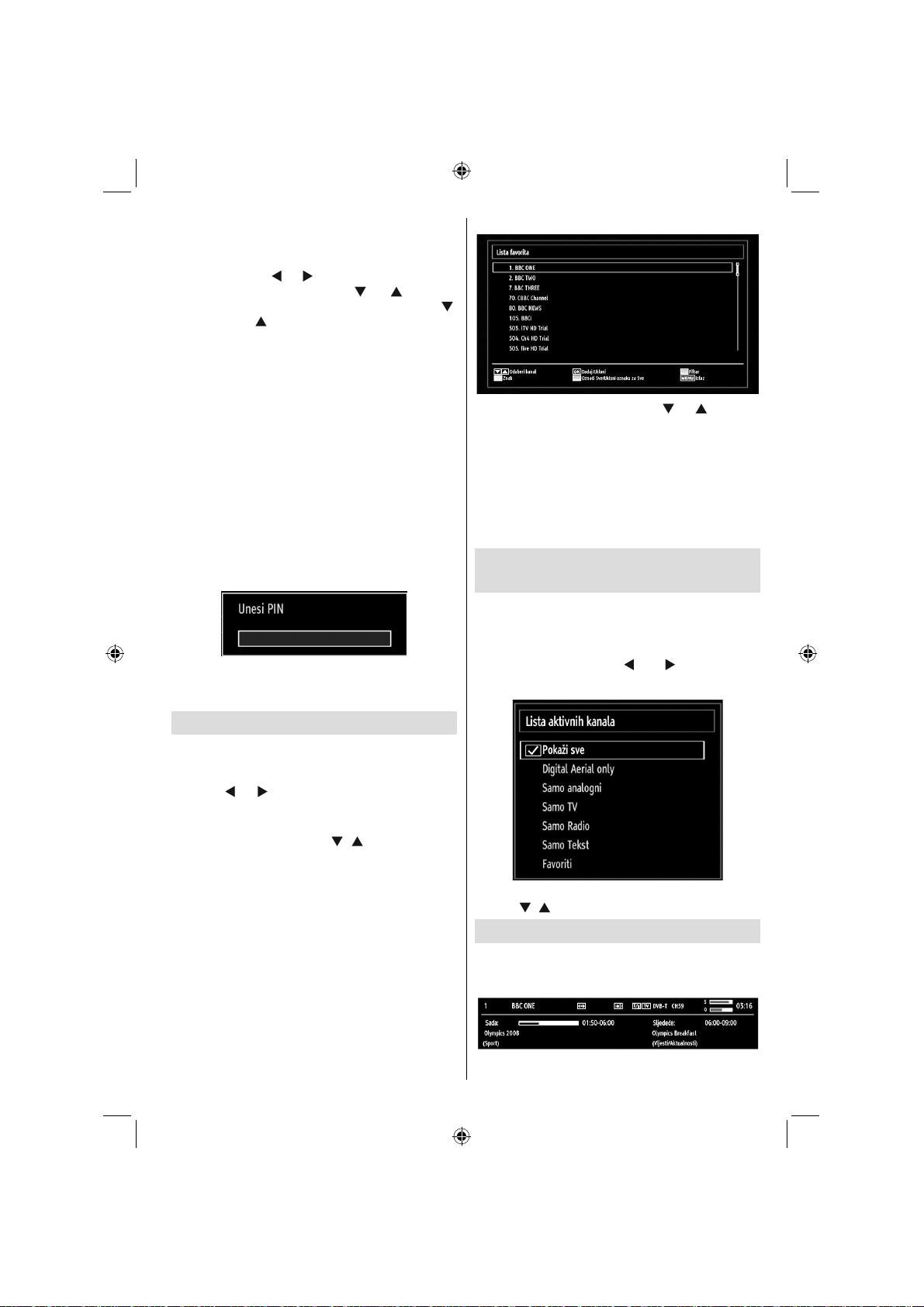

Managing Stations: Sorting Channel List

You can select broadcasts to be listed in the channel list. To display speciﬁ c types of broadcast, you should use Active channel list setting.

Select Active channel list from the Channel list menu by using “ to continue.

” or “ ” button. Press OK button

” or “ ” button. Press

You can select a broadcast type option from the list by using “ ” /“ ” and OK buttons.

On-Screen Information

You can press “INFO” button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number. Hint: Not all channels broadcast

the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). “Enter PIN” will be displayed on the screen in such a case:

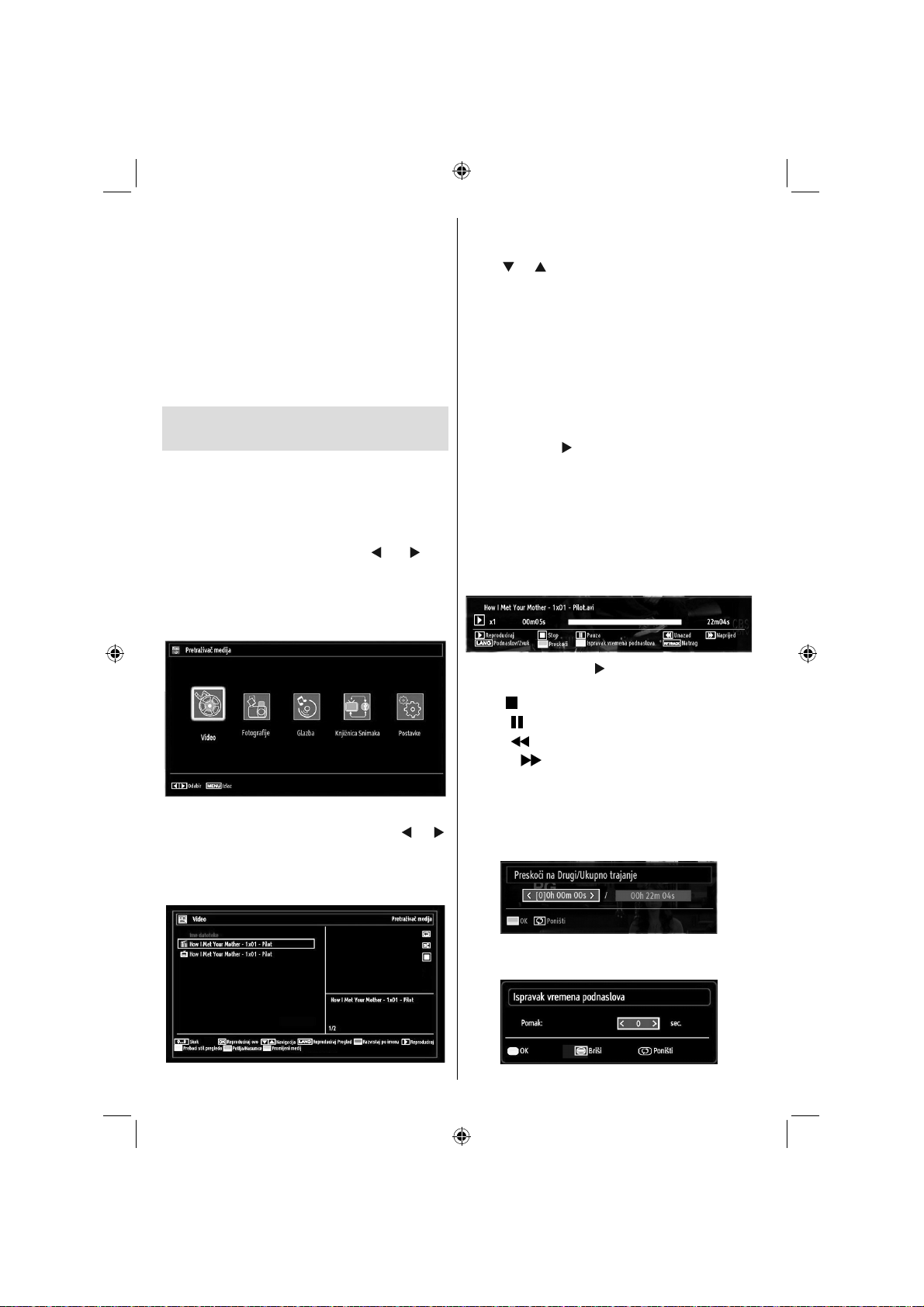

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on or First Time Installation, ﬁ rst, plug the USB device out and power off/on the TV set. Plug the USB device in again.

To display Media Browser window, press either “MENU” button on the remote control and then select Media Browser by pressing “ OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, media browser screen will be displayed automatically:

” or “ ” button. Press

You can play music, picture and video ﬁ les from the connected USB memory stick. Use “ ” or “ ” button to select Videos, Photos, Music, Recording Library or Settings.

English - 20 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 20A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 20 19.08.2011 14:56:4119.08.2011 14:56:41

Viewing Videos via USB

When you select Videos from the main options, available video ﬁ les will be ﬁ ltered and listed on this screen. You can use “ ” or “ ” button to select a video ﬁ le and press OK button to play a video. If you select a subtitle ﬁ le and press OK button, you can select or deselect that subtitle ﬁ le. The following menu will be displayed while playing a video ﬁ le:

Jump (Numeric buttons):The TV will jump to the ﬁ le starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button) : Plays the selected ﬁ le. Up/Down: Navigate.

button) : Plays all media ﬁ les starting with

Play (

the selected one. Lang (Play Preview): Displays selected ﬁ le in a small

preview screen.

RED button: Sorts ﬁ les by name. YELLOW button: Toggles viewing style. GREEN button: Activates Loop/Shufﬂ e functions. BLUE button: Changes media type.

Play ( button): Starts the video playback. Stop ( Pause ( Rewind ( Forward ( button): Goes forward. Subtitle/Audio (LANG. button): Sets subtitle/Audio. Jump (GREEN button): Jumps to time. Use numeric

buttons to type the desired time and press GREEN button again to proceed.

button): Stops the video playback.

button): Pause the video playback.

button): Goes backward.

English - 21 -

Yellow: Opens subtitle time correction menu

Press SWAP button to switch back to previous menu.

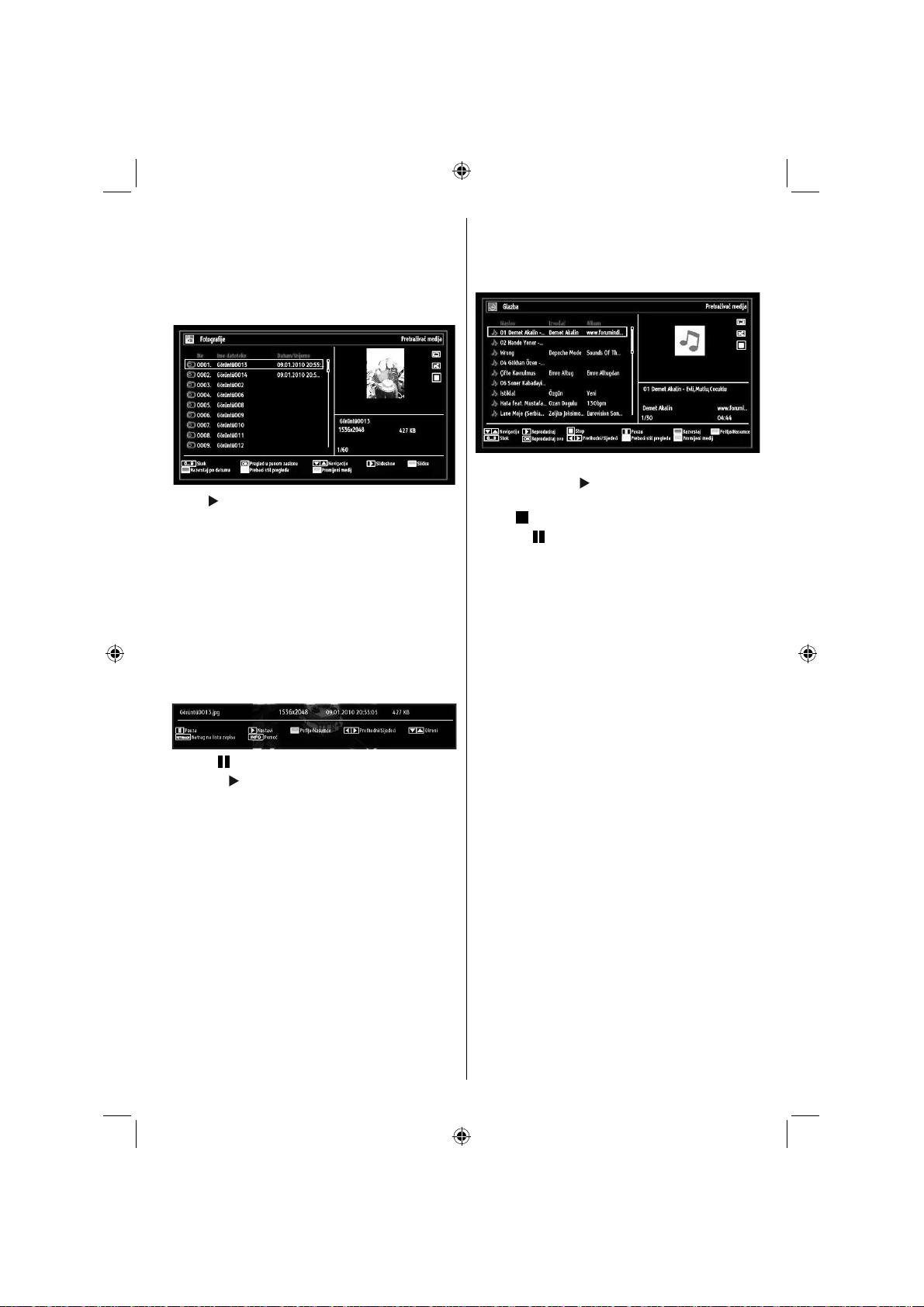

Viewing Photos via USB

When you select Photos from the main options, available image ﬁ les will be ﬁ ltered and listed on this screen.

Jump (Numeric buttons): Jump to selected ﬁ le using the numeric buttons.

OK: Views the selected picture in full screen. Up/Down: Navigate. Slideshow ( button): Starts the slideshow using

all images.

GREEN button: Views images in thumbnails. RED button: Sorts ﬁ les by date. YELLOW button: Toggles viewing style. BLUE button: Changes media type.

Slideshow Options

Pause ( button): Pauses the slideshow. Continue ( Loop/Shufﬂ e (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufﬂ e. Press once more to enable only Shufﬂ e. Press again

button): Continues the slideshow.

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 21A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 21 19.08.2011 14:56:4219.08.2011 14:56:42

to enable all. You can follow the disabled functions with the change of the icons.

Previous/Next (Left/Right buttons): Jumps to previous or next ﬁ le on slideshow.

Rotate (Up/Down buttons): Rotates the image using up/down buttons.

RETURN: Back to ﬁ le list. INFO: Displays help screen.

Playing Music via USB

When you select Music from the main options, available audio ﬁ les will be ﬁ ltered and listed on this

screen.

Up/Down: Navigate.

button): Plays all media ﬁ les starting with

Play (

the selected one.

Stop ( Pause ( RED: Sorts ﬁ les by Title,Artist or Album. Loop/Shufﬂ e (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufﬂ e. Press once more to enable only Shufﬂ e. Press again to enable all. You can follow the disabled functions with the change of the icons.

0..9 (Numeric buttons): The TV will jump to the ﬁ le starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected ﬁ le. Previous/Next (Left/Right buttons): Jumps to

previous or next ﬁ le to play.

YELLOW: Toggles viewing style. BLUE: Changes media type.

button): Stops playback.

button): Pauses the selected playback.

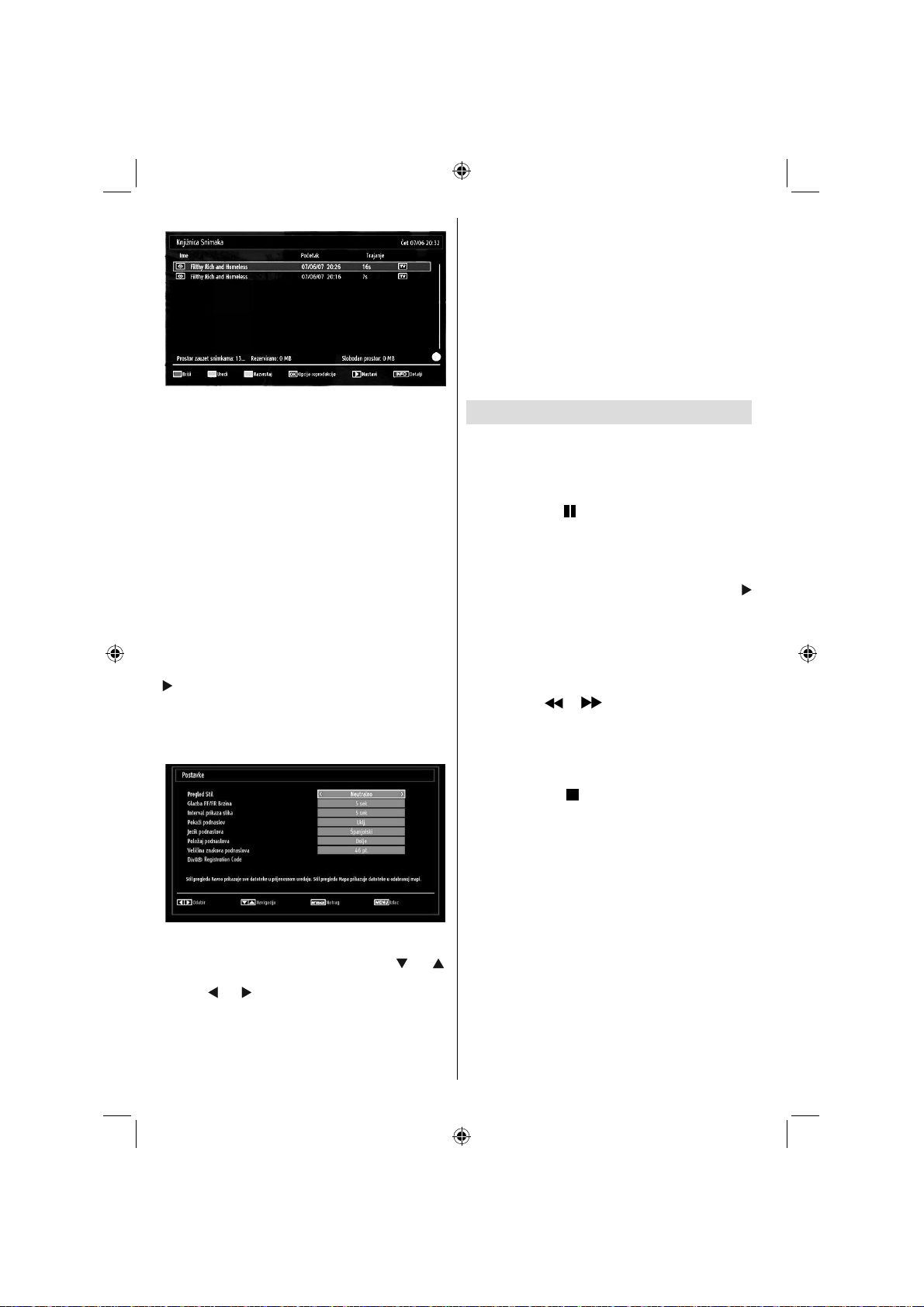

Recordings Library

IMPORTANT: To view recordings library, you should ﬁ rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

To view the list of recordings, select “Recordings Library” and press the OK button. Recordings Library

will then be displayed with available recordings.

English - 22 -

All the recordings are kept in a list in the recordings library.

RED button (Delete): Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

• Play from start: Plays the recording from the beginning.

• Resume: Recommences the recordings.

• Play from offset: Speciﬁ es a playing point. Note: Viewing main menu and menu items will not ve

available during the playback.

(Resume): Recommences the recordings.

INFO (Details): Displays the short extended

programmes in detail.

Media Browser Settings

You can set your Media Browser preferences by using the Settings dialog. Press “ ” or “ ” button to highlight an item and use “ ” or “ ” button to set.

View Style: Sets default browsing mode. Music FF/FR Speed: Sets forwarding/advancing

speed.

Slide Show Interval: Sets slide show interval time. Show Subtitle: Sets subtitle enabling preference.

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 22A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 22 19.08.2011 14:56:4219.08.2011 14:56:42

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

DivX® Registration Code: Some DivX® Video-OnDemand ﬁ les require registration code, this code can be used for this purpose.

Timeshift Recording

(PAUSE) button while watching a broadcast

Press • for switching to timeshifting mode.

In timeshifting mode, the programme is paused and • simultaneously recorded to the connected USB disk (*). Press paused programme from the stopped moment.

This playback is performed in x1 playback speed. • You will see the timeshift gap between the real and the timeshifted programme in the info bar.

/ (PREVIOUS/NEXT) buttons to move

Use • forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be quitted and you will switch back to watching normal broadcast.

Press •

(*) Continuous time shift recording’s duration depends on your connected USB disk’s ﬁ le size and deﬁ ned Max. Timeshift in the Recordings Conﬁ guration menu. See the section, “Recordings” for more information on setting Max. Timeshift.

Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting.

(PLAY) button again to watch the

(STOP) button to quit timeshifting mode.

Instant Recording

Press • event instantly while watching a programme. The following OSD appears on the screen:

(RECORD) button to start recording an

Record OSD will then be displayed for a short time • and the current event will be recorded.

You can press • control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.

Press (STOP) button to cancel instant recording. The following OSD will be displayed:

Select Yes by using “ ” or “ ” / OK buttons to cancel instant recording.

Note: Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

(RECORD) button on the remote

Watching Recorded Programmes

In the main menu, use “ ” or “ ” buttons to select Media Browser. Highlight Recordings Library item by using “ ” or “ ” button and press OK button to enter.

Recordings Library will then be displayed.

Select a recorded item from the list (if previously recorded) by using “ ” / “ ” button. Press OK button to view Play Options. Select an option by using “ ” / “ ” or OK buttons.

English - 23 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 23A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 23 19.08.2011 14:56:4319.08.2011 14:56:43

Available playback options:

Play from start: Plays the recording from the • beginning.

Resume: Recommences the recordings.• Play from offset: Speciﬁ es a playing point.•

Note: Viewing main menu and menu items will not be available during the playback.

Press to return to Recordings Library.

Slow Forward

If you press recorded programmes, slow forward feature will be available. You can use Pressing forwarding speed.

(STOP) button to stop a playback and return

(PAUSE) button while watching

button to slow forward.

button consecutively will change slow

Changing Image Size: Picture Formats

You can change the aspect ratio (image size) of • the TV for viewing the picture in different zoom modes.

Press • “SCREEN” button repeatedly to change the image size. Available zoom modes are listed

below.

Auto

When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source (if available).

The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device.

Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to ﬁ ll the wide TV screen.

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Note: You can shift to screen up or down by pressing “ ” / “ ” buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

14:9 Zoom

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

English - 24 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 24A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 24 19.08.2011 14:56:4419.08.2011 14:56:44

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to ﬁ ll the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Conﬁ guring Picture Settings

You can use different picture settings in detail.

Press “MENU” button and select the Picture icon by using “ Picture Settings menu.

Operating Picture Settings Menu Items

Press “• ” or “ ” button to highlight a menu item. Use “• Press • “MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set

the related mode option. Picture mode can be set to one of these options: Cinema,Game,Dynamic and Natural.

Contrast: Sets the lightness and darkness values of the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects displayed on the screen.

Colour: Sets the colour value, adjusting the colors. Colour Shift: Adjust the desired colour tone. Colour Temp: Sets the desired colour tone.

Setting Cool option gives white colours a slight blue stress.

For normal colours, select Normal option. Setting Warm option gives white colours a slight red

stress.

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

” or “ ” button. Press OK button to view

” or “ ” button to set an item.

English - 25 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 25A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 25 19.08.2011 14:56:4419.08.2011 14:56:44

Game Mode: When Game Mode is set to On, speciﬁ c game mode settings, which are optimized for better video quality, will be loaded.

Note: When Game Mode is on, some items in the Picture Settings menu will be unavailable to be set.

Picture Zoom:Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following: Press “

menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical

to settings deﬁ ned in TV picture menu under “Main Menu System”.

Sound,Settings and Source settings are identical to the settings explained in main menu system.

PC Position: Select this to display PC position menu items.

” or “ ” button to select Picture icon. Picture

Conﬁ guring Sound Settings

Sound settings can be conﬁ gured according to your personal preferences.

Press “MENU” button and select the ﬁ rst icon by using “ Sound Settings menu.

Operating Sound Settings Menu Items

Sound Settings Menu Items

Volume: Adjusts volume level. Equalizer: Press OK button to view equalizer sub-

menu.

” or “ ” button. Press OK button to view

Press “• ” or “ ” button to highlight a menu item. Use “•

” or “ ” button to set an item.

Press • “MENU” button to exit.

Autoposition: Automatically optimizes the display. Press OK to optimize.

H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.

V Position: This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

English - 26 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 26A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 26 19.08.2011 14:56:4519.08.2011 14:56:45

In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the “MENU” button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

AVL : Automatic Volume Limiting (AVL) function sets the

sound to obtain ﬁ xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.

Digital Out: Sets digital out audio type.

Conﬁ guring Your TV’s Settings

Detailed settings can be configured to suit your personal preferences.

Press “MENU” button and select Settings ikon by using “ Settings menu.

Operating Settings Menu Items

Settings Menu Items

Conditional Access: Controls conditional access

modules when available.

Language: Conﬁ gures language settings. Parental: Conﬁ gures parental settings. Timers: Sets timers for selected programmes. Date/Time: Sets date and time. Sources: Enables or disables selected source

options. Other Settings: Displays other setting options of

the TV set.

” or “ ” button. Press OK button to view

Press “• ” or “ ” button to highlight a menu item. Press • OK button to select an item. Press • “MENU” button to exit.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional • access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and • the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the • slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is • impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Common Interface module detected” message appears on the screen.

Refer to the module instruction manual for details • of the settings.

Viewing Conditional Access Menu (*)

(*) These menu settings may change depending on the service provider.

Press “MENU” button and select the icon by using

” or “ ” button. Press OK button to view Settings

“ menu. Use “ ” or “ ” button to highlight Conditional

Access and press OK to view menu items.

English - 27 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 27A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 27 19.08.2011 14:56:4519.08.2011 14:56:45

Conﬁ guring Language Preferences

You can operate the TV’s language settings using this menu.

Press “MENU” button and select the ﬁ fth icon by using “

” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Language and press OK to continue:

Use “ ” or “ ” button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio• : Sets the preferred audio language. Subtitle• : Sets the subtitle language. Selected

language will be seen in subtitles.

Teletext• : Sets teletext language. Guide• : Sets the preferred Guide language.

Current (*)

(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.

Audio: Changes the audio language for the current channel.

Subtitle• : Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

In the conﬁ guration menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen:

” or “ ” buttons to highlight the menu item

Use “ that will be adjusted and then press “ ” or “ ” button to set.

Notes:

System Language determines the on-screen menu • language.

Audio Language is used for selecting the soundtrack • of a channels.

Primary settings are the ﬁrst priority when multiple • choices are available on a broadcast. Secondary settings are the alternatives when the ﬁrst options are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press “MENU” button and select the icon by using “

” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Parental and press OK to continue:

To display parental lock menu options, PIN number should be entered. Factory default PIN number is

0000. After coding the correct PIN number, parental settings menu will be displayed:

English - 28 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 28A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 28 19.08.2011 14:56:4619.08.2011 14:56:46

Parental Settings Menu Operation

Select an item by using “• ” or “ ” button.

” or “ ” button to set an item.

Use “• Press• OK button to view more options.

Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.

Maturity Lock (optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock (optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby Off/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby Off/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Deﬁ nes a new PIN number. Use numeric buttons to enter a new pin number. You will need to code your new pin a second time for veriﬁ cation purposes.

IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Timers

To view Timers menu, press “MENU” button and select Channel List icon by using “ ” or “ ” button. Press OK button to view Channel List menu. Use “

” or “ ” button to highlight Timers and press OK

to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

Highlight Sleep Timer by using “•

” or “ ” button.

Use “•

” or “ ” button to set. The timer can be

programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

Press “ timer function buttons will be displayed on the screen.

” button to set timers on an event. Programme

Adding a Timer

Press • YELLOW button on the remote control to add a timer. The following menu appears on the screen:

Network Type: This feature is unavailable to be set. Timer Type: You can select timer type as Record

or Timer.

Channel: Changes channel by using “ Record Type: This item is unavailable to be set. Date: Enter a date using the numeric buttons. Start: Enter a starting time using the numeric

buttons. End: Enter an ending time using the numeric

buttons. Duration: Displays duration between the starting and

ending time. Repeat: Sets a timer to be repeated as Once, Daily or

Weekly. Use “

Change/Delete: Sets the change/delete permission. Playback: Sets the playback permission and parental

settings.

Press • GREEN button to save the timer. Press RED button to cancel.

” or “ ” buttons to select an option.

” or “ ”.

Editing a Timer

Select the timer you want to edit by pressing “• ” or “ ” button.

Press • GREEN button. Edit Timer menu screen will be displayed.

When ﬁ nished with editing, press • GREEN button to save. You can press “MENU” button to cancel.

Deleting a Timer

Select the timer you want to delete by pressing “• ” or “ ” button.

Press • RED button. Select • YES by using “

timer. Select NO to cancel.

” or “ ” buttons to delete the

English - 29 -

A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 29A01_MB60_[GB]_(01-TV)_1910UK_IDTV_TC_PVR_BRONZE17_24942LED_YPBPR_ROCKER_10073167_50190025.indd 29 19.08.2011 14:56:4719.08.2011 14:56:47

+ 118 hidden pages
