OPERATION MANUAL
ENGLISH
ENGLISH
Contents ................................................................ 1
Introduction ........................................................... 2
Dear SHARP customer ...................................... 2
Important Safety Precautions ............................. 2
Remote control unit ........................................... 3
TV (Front view) ................................................... 4
TV (Rear view) .................................................... 4
Preparation............................................................ 5
Supplied accessories ......................................... 5
Mount the TV stand ........................................... 5
Wall mounting .................................................... 5
Installation of batteries ....................................... 6
Using the remote control ................................... 6
Quick guide ........................................................... 7
Initial installation overview .................................. 7
Watching TV .......................................................... 9
Daily operation ................................................... 9
Turning on/off the power .............................. 9
Changing channels ...................................... 9
Selecting external video source .................... 9
Operation without a remote control .............. 9
EPG (Electronic Programme Guide) ................. 10
Teletext ............................................................ 11
Select a Teletext language .......................... 11

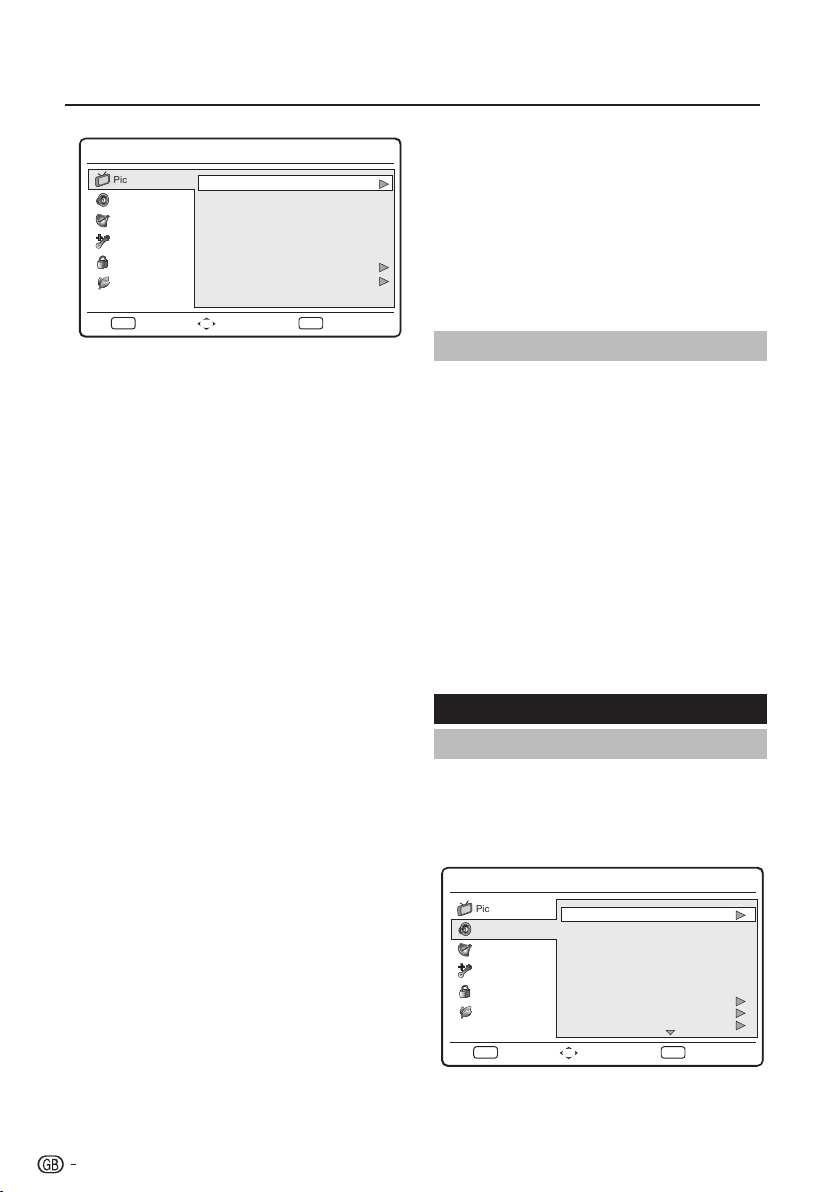

TV menu .............................................................. 11
Picture ............................................................. 11
Adjust picture settings ................................ 11
Use smart picture....................................... 12
Sound.............................................................. 12
Adjust sound settings ................................ 12
Use Sound Mode ....................................... 13
TV .................................................................... 13
Select a digital audio language ................... 13
Automatically install channels ..................... 13
Update Scan ........................................ 14
Single RF Scan .................................... 14
Analogue Manual Scan ........................ 14
Favourite Network Select ..................... 15
Channel Skip........................................ 15
Channel Sort ........................................ 15
Channel Edit ........................................ 16
Assign a channel decoder (For ATV) ..... 16
Analogue Ch Fine Tune ........................ 16
Clean Channel List ............................... 16
Features .......................................................... 17
Select menu language ............................... 17
4:3 Mode ................................................... 17
Change picture format ............................... 17
Time .......................................................... 17
Change the time zone .......................... 17
Set the clock ....................................... 18
Automatically switch the TV off (Off time)
......................................................... 18
Automatically switch the TV to standby
(Sleep timer) ...................................... 18
SCART ........................................................ 18
Use subtitles ................................................ 18
Set analogue subtitles ............................ 18
Select a subtitle language on digital TV
channels ............................................. 18
Select Hearing impaired subtitle ............. 19
Teletext language ......................................... 19
Common Interface ....................................... 19
HDMI overscan ............................................ 19
Manual OAD Download ................................ 19
Reset Default ............................................... 19
DivX® Setup ................................................ 19
DivX® Registration (VOD) ....................... 19
DivX® Deactivation (VOD) ...................... 20
SW Ver. ........................................................ 20
Parental ............................................................. 20
Access Parental menu ................................. 20
Lock one or more channels .......................... 20
Set the time interval lock .............................. 20
To set parental ratings .................................. 20
Lock one or more connected devices .......... 21
Set / Change password ............................... 21
Clear all parental settings ............................. 21
Eco .................................................................... 21
Connecting a USB device .................................... 22
USB function ..................................................... 22
Basic Operation ..................................... 22
View Photos ........................................... 22
Listen to Music ....................................... 23
Play Videos ............................................ 23
USB device compatibility ................................... 23
Connecting external devices ............................... 24
HDMI connection ............................................... 24
YPbPr (Component connection)......................... 24
SCART connection ............................................ 24
Speaker / Amplifier connection .......................... 25
Inserting the Smartcard into the CA module ....... 25
Checking CA module information ................. 25
Connecting a PC ............................................... 26
Digital connection ........................................ 26
Analogue connection ................................... 26
Supported display resolutions ...................... 26
Appendix ............................................................... 27
Troubleshooting ................................................. 27
Specification ...................................................... 28
Environmental specifications .............................. 30
Other information ............................................... 30
Trademarks ........................................................ 31
1
Introduction
2
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free
operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions
Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to •
clean the product. Do not use liquid cleaners or aerosol cleaners.
Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, •
laundry tub, swimming pool and in a wet basement.
Do not place vases or any other water-filled containers on this product. •
The water may spill onto the product causing fire or electric shock.
Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, •
resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow
the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, •
excessive force and uneven floor surface can cause the product to fall from the cart.
Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover •
or block these vents and openings since insufficient ventilation can cause overheating and/or
shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface,
since they can block ventilation openings. This product is not designed for built-in installation; do
not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is
provided or the manufacturer’s instructions are followed.
The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact •
applied. If the LCD panel is broken, be careful not to be injured by broken glass.
Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other •
heat-generating products (including amplifiers).
To prevent fire, never place any type of candle or naked flames on the top or near the TV set.•
To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.•
Do not display a still picture for a long time, as this could cause an afterimage to remain.•
There is power consumption always if main plug is connected.•
Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and •
other dangerous conditions. Request a qualified person to perform servicing.
For ventilation, leave at least 4” to 6” free all around the TV. Do not place the TV on a carpet.•
The equipment shall not be exposed to dripping or splashing.•
The equipment shall not be exposed to rain or moisture and objects filled with liquids, such as vases, shall be placed •
on the apparatus.
The appliance coupler is used as the disconnect device of this apparatus, the disconnect device shall remain readily •
operable.
The LCD panel is a very high technology product, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a
fixed point of blue, green or red.
This is within product specifications and does not constitute a fault.
Precautions when transporting the TV
When moving the TV, it should always be carried by two people, using both hands, be careful not to apply pressure to
the display.
Wall mounting
Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
WARNING
To prevent the spread of fire, keep candles or other open
flames away from this product at all times.
Introduction
3
Remote control unit
(POWER)
Press to turn the LCD TV on or
enter standby mode.
b (INPUT SOURCE)
Select an input source.
0-9 DIGIT BUTTONS
To select a TV channel directly.
EPG
Press this button to display
electronic programme guide when
watching digital channels.
PRE PR
To display the previous selected TV
channel.
DTV/ATV
Press this button to switch between
ATV and DTV channels.
PR LIST
Press to display a list of channels.
Then press Red button to select
the digital or analogue channel list.
(Only available when your input
source is TV).
ECO
Press this button to set the picture
with less brightness for saving
energy.
Ë
Display programme information, if
available.
” (+/-)
Press to adjust the volume.
Press to toggle audio on and off.
You can also press ” (+/-) to
restore the previous volume level.
∏ (Picture format)
Select picture format to
Normal / Zoom 1 / Zoom 2 / Wide.
P (</>)
Press to select the channel.
DUAL
Select
MONO / STEREO / DUAL
1 / DUAL 2
Audio language for DTV channel.
AUDIO (ADJ)
Press to set the LCD TV to a
predefined sound setting.
Personal / Music / Speech
for ATV channel. Select
Auto /
VIDEO (ADJ)
Press to set the LCD TV to a
predefined picture setting.
Personal / Standard / Vivid /
Movie / Eco
SLEEP
Press to turn the LCD TV off within
an amount of time. (10 ~ 120
minutes.)
<>≤≥
Press <>≤≥ to navigate and
confirm your selection.
OK
Press to activate a setting.
MENU
Press to activate the LCD TV OSD.
EXIT
Press to exit the LCD TV OSD or
return to the previous layer.
R/G/Y/B (COLOUR BUTTON)
Press buttons to select the pictures
with various colours of text. Different
channels display different functions.
TELETEXT
Press this button to activate Teletext.
Press again to activate Teletext with TV.
Press again to turn off Teletext.
SUBTITLE
For DTV, press this button to toggle
off / between available subtitle
languages.
For ATV, press this button to toggle
off / between available subtitle pages
in Teletext.
SIZE
Press this button to change the
font size: Full screen, Top half and
Bottom half.
SUBPAGE
To select the subpage when the
current page contains subpage(s).
INDEX
Press this button to return to page
100 or the index page; and then
press 0 to 9. The teletext page will
be numbered and added to the page
you select or the secondary item.
HOLD
Press this button to stop the
scrolling of pages.
The text decoder stops receiving
data.
REVEAL
Reveal hidden information such as
answers to a quiz.
FREEZE
Press to freeze a moving image on
the screen. (Only available when
your input source is TV).
Scart output signal will also be
frozen when you are watching digital
channels.
In USB mode:
(You need to programme the setting
with remote control to control
connected devices.)
K
Press to skip back to the previous
title or track.
H
Press to stop playback.
I / F
Press to start/pause playback.
Caution: Do not freeze the video
image for long periods of time. You
may damage the TV screen.
L
Press to skip forward to the next title
or track.
Introduction
(On) indicator
Remote control sensor
22”
19”
26”
POWER button
Volume buttons
MENU button
COMMON
INTERFACE
slot
Composite
(AV IN, AV/LR)
Earphone Output
AC IN
PC IN (VGA / AUDIO)
COMPONENT (VIDEO
and L/R AUDIO INPUT)
SCART (CVBS Tuner out)
AV VIDEO and L/R Audio Output
RS-232C
IOIOI
Tuner Input
SPDIF OUT
(Digital audio out)
Tuner Input
SCART 1 (CVBS Tuner out)
SCART 2 (CVBS Monitor out)
AV L/R Audio Output
PC IN (VGA / AUDIO)
COMPONENT (VIDEO and L/R AUDIO INPUT)
HDMI 1
HDMI 2
SPDIF OUT
(Digital audio out)
HDMI 1
P ( )
Programme (Channel)
buttons
Power conntector
USB
HDMI 2
COMMON
INTERFACE
slot
Composite
(AV IN, AV/LR)
Earphone Output
RS-232C
IOIOI
USB
HDMI 3
32”
37”
42”
INPUT SOURCE
button
4
TV (Front view)
TV (Rear view)
Preparation
Operation Manual
Quick Setup Guide
Operation Manual Quick Setup Guide
AC cord (x1)
Product shape varies
in some countries
Remote control (×1)
AAA battery (×2)
x 3
19”
22”
37”
42”
26”
32”
Stand unit and screws
x 4
3
19”
22”
26”
32”
37”
42”
W
H
5
Supplied accessories
Mount the TV stand
Put the TV face down on a safe surface that is 1.
covered by a soft and smooth cloth.
Adjust the TV stand to the bottom of the TV.2.
Fasten the screws by using a cross-head 3.
screwdriver (Not supplied).
NOTE
To detach the TV stand, perform the steps in reverse •
order.
Wall mounting
VESATV screen
size
( Inches)
compatible
wall bracket
(millimeters)
Screw type
(W x H)
19” 75 x 75 mm Metric 4 x 10 mm
22” 75 x 75 mm Metric 4 x 10 mm
26” 75 x 75 mm Metric 4 x 10 mm
32” 200 x 100 mm Metric 6 x 10 mm
37” 200 x 200 mm Metric 6 x 10 mm
42” 200 x 200 mm Metric 6 x 10 mm
NOTE
At the time of purchasing wall bracket, please check if •
there is enough space between the wall bracket and TV
terminals for the terminal connection.
Preparation
30º (5 m)
Horizontal & Vertical
0º
(7 m)
Remote control sensor
Menu
Select
Brightness
Contrast
Colour
Tint
Sharpness
Colour Temperature
Advanced Control
50
50
50
0
5
Cool
Sound
TV
Eco
ExitEXITEnterOK
StandardSmart Picture
Features
Parental
3
6
Installation of batteries
Insert two AAA batteries into Remote control. 1.
Make sure (k) and (l) are facing the proper
direction.
Replace the cover.2.
NOTE
If the remote control will not to be used for a long •
time, remove the batteries to avoid remote control
damage.
CAUTION
Improper use of batteries can result in chemical
leakage or explosion. Be sure to follow the instructions
below.
Do not mix batteries of different types. Different •
types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and •
new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as they have worn out. •
Chemicals that leak from batteries can cause a rash.
If you find any chemical leakage, wipe thoroughly
with a cloth.
The batteries supplied with this product may have a •
shorter life expectancy due to storage conditions.
If you will not be using the remote control unit for •
an extended period of time, remove the batteries
from it.
Using the remote control
Use the remote control unit by pointing it towards the
remote control sensor. Objects between the remote
control unit and sensor may prevent proper operation.
Display the Menu Screen
Press MENU and the menu screen displays.
Select an item by the remote control
Press 1. <>≥ to select the desired menu.
Press 2. ≤≥ to select / adjust the item to the
desired level. The setting on screen is applied
immediately.
Press 3. EXIT to return to the previous layer .
Note on disposing batteries:
The batteries provided contain no harmful materials
such as cadmium, lead or mercury.
Regulations concerning used batteries stipulate
that batteries may no longer be thrown out with the
household rubbish. Deposit any used batteries free of
charge into the designated collection containers set up
at commercial businesses.
Exit the Menu Screen
The operation will exit the menu screen if you press
EXIT before it is complete.
Quick guide
75Ω
Initial Setup
WELCOME!
Welcome to use the Wizard
for Initial Setup !!
Please press [OK] to start
the wizard.
Next
OK
Initial Setup
Language
Please select your language:
Deutsch
Français
Italiano
Español
Português
Nederlands
NextSelectBack
English
ExitEXIT
Initial Setup
Country
Please select your country:
NextSelectBack
Greece
Denmark
Spain
Finland
France
UK
Germany
ExitEXIT
7
Initial installation overview
Follow the below steps one by one when using the TV for the first time. Some steps may not be necessary
depending on your TV installation and connection.
1
Preparation
Connect antenna cable to the antenna terminal.
If necessary, insert CA module into the CI slot to
watch scrambled broadcasts.
Connect the AC cord to the TV.
AC cord (x1)
Product shape
varies in some
countries.
2
Power on and run the auto installation
Turn on the TV power with a.
Run the initial auto installation.
1. Language setting
2. Country setting
Quick guide
Initial Setup
Channel Scan
First, please connect
antenna.
NextSelectBack
Skip Scan
0 %
Scan
ExitEXIT
Start channel scan now?
If you skip this setup, the
channel scan could be
performed in Menu.
Initial Setup
Channel Scan
The channel scan may take
a while to complete.
10 %
CancelEXIT
Status: Scanning.
Analogue Channels: 0
Initial Setup
Channel Scan
The channel scan may take
a while to complete.
10 %
CancelEXIT
Status: Scanning.
Analogue Channels: 0
Digital Channels: 0
Initial Setup
Completed
Congratulations !!
Completed Initial setup
Please press [OK] to exit
the wizard.
Back
Exit
OK
Initial Setup
Mode select
Please select your mode
SHOP
NextSelectBack
HOME
ExitEXIT
Initial Setup
Scan Mode
Please select your scan
mode
Analogue and Digital
NextSelectBack
Analogue
ExitEXIT
Initial Setup
Scan Mode
Please select your scan
mode
Analogue and Digital
NextSelectBack
Analogue
ExitEXIT
Initial Setup
Tuner Mode
Please select your tuner
mode
Cable
NextSelectBack
Antenna
ExitEXIT
Initial Setup
Tuner Mode
Please select your tuner
mode
Cable
NextSelectBack
Antenna
ExitEXIT
Please configre the cable
info.
Initial Setup
Scan Mode
Frequency (KHz)
Modulation
Symbol Rate (Ksym/s)
Network ID
Full
64QAM
474000
ExitEXIT
Select
/
NextOK
6875
999
Back
MENU
8
3. Mode select (TV location setting)
When selecting HOME mode, go to step 4 to select
the scan mode.
When selecting SHOP mode, a window pops out to
ask your confirmation.
4. Scan Mode setting
When selecting Analogue, go to step 6 to start
channel scan.
When selecting Analogue and Digital, the Tuner
Mode screen will appear. Select the Tuner mode.
5. Tuner Mode setting
6. Start searching channels
When selecting Analogue and Digital, the following
screen will appear.
3
Watch TV
Congratulations! Now you can watch TV.
When selecting Antenna, go to step 6 to start
channel scan.
When selecting Cable, the Scan Mode configuration
screen will appear.
If necessary, adjust the antenna to attain
maximum signal reception.
Watching TV
INPUT SOURCE
YPbPr
AV
SCART
PC
HDMI 1
HDMI 2
USB
TV
19” / 22” / 26”
INPUT SOURCE
YPbPr
AV
SCART 1
PC
HDMI 1
SCART 2
HDMI 2
TV
HDMI 3
USB
32” / 37” / 42”
9
Daily operation
Turning on/off the power
Press on the TV.
Switch it off by pressing on the TV.
Changing channels
With P<>:
Standby mode
E
To standby mode
If the TV set is switched on, you can switch it to
standby by pressing B on the remote control.
E
Switching on from standby
From standby, press B on the remote control.
time, be sure to remove the AC cord from the power
outlet.
A small amount of electric power is still consumed even •
when B is turned off.
Selecting external video source
Once the connection is made, press b to display
the INPUT SOURCE screen, and then press <> to
switch over to the appropriate external source with OK.
Operation without a remote control
This function is useful when there is no remote control
within your reach.
Press 1. MENU briefly to display the direct control
screen.
Press 2. P <> instead of </> or i k/l
instead of ≤≥ to select the item.
Press 3. MENU to confirm the selection.
TV indicator status
B indicator
Off Power off
Off Standby
Blue Power on
NOTE
If you are not going to use this TV for a long period of •
Status
NOTE
The direct control menu screen will disappear if left •
unattended for several seconds.
Watching TV
Viewing date: Tue, 03 Jan
Television TV guide
Current time: Tue, 03 Jan 18:50:10
2 BBC TWO
3 AXN
6 BBC NEWS
4 HBO
5 MTV
7 Star Movies
8 BBC CHOICE
18:30 Ready Steady Cook
19:15 The Weakest Link
Filter: All types
Prev page Next page Filter
1 BBC ONE
18:30 ~ 19:15 Shows
Viewing date: Tue, 03 Jan
Television TV guide Filter
Current time: Tue, 03 Jan 18:50:10
Return
Type
Subtype
All types
All subtypes
10
EPG (Electronic Programme Guide)
EPG is an on-screen guide that displays scheduled
digital TV programmes. This guide is not available with
analogue channels. You can navigate, select and view
programmes.
There are two types of EPG, “Now and Next” and “7
or 8 day” EPG. “Now and Next” is always available
but the “7 or 8 day” EPG is only available in certain
countries.
With the EPG menu you can:
View a list of currently broadcast digital programmes.•
View upcoming programmes.•
Switch on EPG
NOTE
The first time you use EPG, you may be prompted •
to perform an update. If so, follow the on-screen
instructions.
Press 1. EPG on the remote control, the “Now
and Next” EPG will appear and the detailed
information about the current programme is
displayed.
Press 3. EPG or EXIT to exit .
Use the 2. colour buttons on the remote control
to activate available actions.
Prev page• (Red): List the previous day’s EPG.
Next page • (Green): List the next day’s EPG.
Detail• (Yellow): Displays the information of your
highlighted programme.
Filter• (Blue): Sets the type of the channel list.
Watching TV
11
Teletext
What is Teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your TV receives Teletext signals broadcast by a TV
network, and decodes them into graphical format for
viewing. News, weather and sports information, stock
exchange prices and programme previews are among
the many services available.
Turning on and off Teletext
Select a TV channel or external source 1.
providing a Teletext programme.
Press 2. TELETEXT to display Teletext.
Many stations use the TOP operating system, •
while some use FLOF (e.g. CNN). Your TV
supports both these systems. The pages are
divided into topic groups and topics. After
switching on the teletext, up to 1000 pages are
stored for fast access.
If you select a programme with no Teletext •
signal, “No Teletext ” displays.
The same message displays during other •
modes if no Teletext signal is available.
Press 3. TELETEXT again to activate Teletext
with TV.
NOTE
Teletext will not work if the selected signal type is RGB. •
Select a Teletext language
Press 1. MENU on the remote control and press
Features ≥ Teletext Language.
Press 2. OK or ≥ to enter Teletext Language
menu and press <> to select one of the
following.
Digital Teletext Lang.•
Decode Page Lang.•
Highlight your selection and press 3. ≤≥ to make
a selection.
Follow the on-screen instructions to exit.4.
Using the MHEG5 application (UK only)
Some services bring you programmes with the MHEG
(Multimedia and Hypermedia Expert Group) application
encoded, letting you experience DTV interactively.
When provided, the MHEG5 application will start when
you press the Red button.
Sample MHEG5 screen
Buttons for teletext operations
Buttons Description
P (rs)
Colour
(R /G/ Y/B)
0 - 9 Directly select any page from 100 to
SIZE Switch the Teletext image to Top,
INDEX Press this button to return to page
HOLD Stop updating Teletext page s
REVEAL Revea l or hide hidden information
SUBPAGE Selec t the subpage wh en the curren t
Increa se or decrea se the page
nu mbe r.
Selec t a group or block of pages
displayed in the coloured brackets at
the bottom of the screen by pressing
the corresponding Colour (R/G/Y/B)
on the rem ote control uni t.
899 by usi ng 0 - 9.
Bottom o r Full.
100 or index page.
automatically or release the hold
mode.
such as an answer to a quiz.
page contains subpage(s).
Press nu mber buttons on the remote
control to access the subpage
directly. (two digits)
TV menu
Adjust picture settings
Press 1. MENU on the remote control and select
Picture.
Menu
Equalizer 120Hz
Equalizer 500Hz
Equalizer 1.5KHz
Equalizer 5KHz
Equalizer 10KHz
Balance
Virtual Surround
3
3
2
4
5
Off
AVL
0
Off
Digital Audio Out PCM
Select
Sound
TV
Eco
ExitEXITEnterOK
Features
Parental
PersonalSound Mode
Menu
Select
Brightness
Contrast
Colour
Tint
Sharpness
Colour Temperature
Advanced Control
50
50
50
0
5
Cool
Sound
TV
Eco
ExitEXITEnterOK
StandardSmart Picture
Features
Parental
12
TV menu
Press 2. OK or ≥ to enter the list.
Press 3. o> to select one of the following
settings:
Brightness: • Changes the level of light in the
picture.
Contrast: • Changes the level of bright parts in
the picture keeping the dark parts unchanged.
Colour: • Changes the level of saturation.
Tint: • Changes the colours to reddish or bluish.
Sharpness: • Changes the level of sharpness of
fine details.
Colour temperature:• Sets the colour
temperature to Cool (bluer), Normal
(balanced), Warm (redder).
Advanced Control: • Press OK or ≥ to enter
and press <> to select one of the following
item:
Noise Reduction:* Filters and reduces the
noise in the picture. Selects the level to Low
/ Medium / High / Auto. Or select Off to
disable this function.
Flesh Tone: * Selects On to set the flesh
colour to be more natural.
Back Light: * Adjusts the background brighter
or darker. (Only if the DCR is off.)
DCR (Dynamic contrast ratio):* Enhances
the contrast in the picture as the image on
the screen changes. Press ≤≥ to switch
active control On or Off.
Advanced (Only for 32”/37”/42”):*
[Mode] — MJC (
mode selection. Set 100Hz to let TV display
on 100Hz frame rate. Set Film Mode to
decrease picture judder in film play.
100Hz: · “100 Hz” technology provides
superior solutions for digital display picture
quality removing motion blur.
NOTE
This effect is greater on fast moving images. −
100 Hz will have no effect in the following −
cases.
1)
The type of signal received is a PC signal.
2) An OSD is being displayed.
3) Teletext is activated.
If images appear blurred, set the − 100 Hz
to Off.
Motion Judder Compensation
Film mode: · Automatically detects a film-
based source (originally encoded at 24 or
25 frames per second, depending on the
vertical frequency), analyses it and then
recreates each still film frame for highdefinition picture quality.
[Effect] — MJC effect selection. Set the
effect from Low / Middle / High, or set to Off
to disable this function.
Press 4. ≤≥ to select / adjust the item to the
desired level.
Follow the on-screen instructions to exit.5.
Use smart picture
Apart from manually adjusting picture settings, you
can use Smart picture to set your TV to a predefined
picture setting.
Press 1. MENU on the remote control and select
Picture.
Press 2. OK or ≥ to enter Picture and select
Smart Picture.
Press 3. ≤≥ to select one of the following
settings:
Personal•
Standard•
Vivid•
Movie•
Eco•
Follow the on-screen instructions to exit.4.
Sound
Adjust sound settings
This section describes how to adjust sound settings.
Press 1. MENU on the remote control and select
Sound.
Press 2. OK or ≥ to enter the list.
)
TV menu
13
Press 3. <> to select one of the following
settings:
Equalizer 120Hz (Bass): • Adjusts the amount
of bass.
Equalizer 500Hz (Tenor): • Adjusts the amount
of tenor.
Equalizer 1.5KHz (Neutral): • Adjusts the
amount of neutral.
Equalizer 5KHz (Treble): • Adjusts the amount
of treble.
Equalizer 10KHz (Descant): • Adjusts the
amount of descant.
Balance: • Sets the balance of the left and right
speakers to best fit your listening position.
Virtual Surround: • Automatically switches the
TV to the best surround sound mode available
from a broadcast. Select On or Off.
Digital Audio Out:• Selects the type of digital
audio out to PCM / Off / Dolby Digital.
AVL (Auto volume leveling): • Reduces
sudden volume changes, for example, during
commercials or when switching from one
channel to another. Select On or Off.
Type: • (Only available for Digital channels.)
Selects the type of audio broadcast.
Normal: * Sets regular audio only.
Hard of Hearing: * Sets the mix of hearing
impaired audio with regular audio.
Audio Description: * Sets the mix of visually
impaired audio with regular audio.
Audio Description: • (Only appears when you
select MENU / EXIT > Sound > Type > Audio
Description): Adjusts the volume of visually
impaired audio.
Press 4. ≤≥ to select / adjust the item to the
desired level.
Follow the on-screen instructions to exit.5.
Use Sound Mode
Apart from manually adjusting sound settings, you
can use Sound Mode to set your TV to a predefined
sound setting.
Press 1. MENU on the remote control and select
Sound.
Press 2. OK or ≥ to enter Sound and select
Sound Mode.
Press 3. ≤≥ to select one of the following
settings:
Personal•
Music•
Speech•
Follow the on-screen instructions to exit.4.
TV
The first time you set up your TV, you are prompted to
select an appropriate menu language and to perform
automatic installation of TV and digital radio channels
(If available).
This chapter provides instructions on how to reinstall
channels as well as other useful channel installation
features.
NOTE
Re-installing channels modifies the channel list.•
Select a digital audio language
Press 1. MENU on the remote control and select
TV.
Press 2. OK or ≥ to enter TV menu.
Press 3. <> to select 1st Audio or 2nd Audio.
Highlight your selection and press 4. ≤≥ to select
an audio language.
Follow the on-screen instructions to exit.5.
NOTE
If your selected audio language is not broadcasted, the •
default audio language will be displayed.
Automatically install channels
This section describes how to search and store
channels automatically. Instructions are for both digital
and analogue channels.
Step 1: Select your Tuner Mode
Press1. MENU on your remote control and select
TV ≥ Tuner Mode.
Press 2. ≤≥ to select Antenna or Cable.
Follow the on-screen instructions to exit.3.
Step 2: Select your country
Select the country where you are located. The TV
installs and arranges channels according to your
country.
Press 1. MENU on the remote control and select
TV ≥ Country.
Press 2. ≤≥ to select your country.
Follow the on-screen instructions to exit.3.
TV menu
Menu
0 %
Scan single RF channel. (Digital Only)
RF Channel
Signal Strength
Signal Quality
21
0
Poor
Sound
TV
Eco
ExitEXITScanOK
Features
Parental
Menu
0 %
Scan single RF channel. (Digital Only)
Frequency (KHz)
Modulation
Symbol Rate (Ksym/s)
Signal Strength
474000
Auto
0
6875
Sound
TV
Eco
ExitEXITScanOK
Features
Parental
14
Step 3: Automatic channel scan
Your TV searches and stores all available digital and
analogue TV channels as well as all available digital
radio channels.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Select 2. Channel Scan and press OK or ≥
and select ATV only or ATV and DTV to start
channel installation. The installation may take a
few minutes.
When complete, follow the on-screen 3.
instructions to exit.
Update Scan E
Update Scan has similar function with Channel Scan.
The difference is you could update channel list without
erasing the original information.
NOTE
This function is for Antenna mode only.•
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Update Scan and press
OK or ≥ to start channel update.
When complete, follow the on-screen 3.
instructions to exit.
Single RF Scan E
If using digital broadcasts, you can check the quality
and signal strength of digital channels. This allows you
to reposition and test your antenna or satellite dish.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Single RF Scan and press
OK or ≥ to enter.
Antenna mode
Cable mode
<3. Antenna Mode>
Highlight the RF Channel box, and press ≤≥
to select a channel number you prefer to scan.
<Cable Mode>
Configure the Frequency, Modulation, and
Symbol Rate box to scan.
Press 4. OK to start scanning.
When the scan is completed, the result of 5.
signal strength and signal quality appear on the
screen.
Follow the on-screen instructions to exit.6.
NOTE
If the signal quality and strength is poor, reposition the •
antenna or satellite dish and retest.
If you have further problems with the reception of your •
digital broadcast, contact a specialised installer.
Analogue Manual Scan E
This section describes how to search and store
analogue TV channels manually.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
TV menu
Menu
Search for analogue channels
Start Frequency (MHz)
Scan Up
Scan Down
45.00
Sound
TV
Eco
BackEXIT
Features
Parental
15
Press 2. <> to select Analogue Manual Scan
and press OK or ≥ to enter.
In the 3. Start Frequency (MHz) box, enter the
frequency by using the digit buttons on the
remote control.
Press 4. <> to select Scan Up or Scan Down to
scan the next available analogue channel from
the frequency you have entered.
Press 5. OK or ≥ to start scanning.
When complete, follow the on-screen 6.
instructions to exit.
Favourite Network Select E
When watching the digital TV, select your favourite
network in order to allocate channels of your favourite
network on the top of channel list (PR LIST).
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Favorite Network Select
and press OK or ≥ to enter the network list.
Select your favourite network and press 3. OK.
Follow the on-screen instructions to exit.4.
NOTE
This menu is available only when 1) “Norway” is selected •
on country setting and 2) more than two networks are
found after automatic channel scan.
Channel Skip E
Channel skip allows you to skip one or more channels
when pressing P <> on the remote control to switch
between channels.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Channel Skip and press
OK or ≥ to enter the channel list.
Press 3. <> to select one or more channels you
preferred to skip.
Press 4. OK to mark or cancel.
Follow the on-screen instructions to exit.5.
NOTE:
To watch the skipped channels, enter the channel •
numbers by using the digit buttons on the remote
control or select from PR LIST.
Channel Sort E
Channel sort allows you to reorder the channels in the
PR LIST.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Channel Sort and press
OK or ≥ to enter the channel list.
Press 3. <> to select one channel and press OK
to mark.
Press 4. <> to select another channel and press
OK to mark. The two channels your marked are
exchanged.
Repeat step 3 to 4 to reorder more channels.5.
Follow the on-screen instructions to exit.6.
TV menu
ABC1 DEF2 GHI3
JKL4 MNO5 PQR6
STU7 VWX8
+-.0
YZ9
16
Channel Edit E
Channel edit allows you to change the channel number
or the channel name.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Channel Edit and press
OK or ≥ to enter the channel list.
Press 3. <> to select one channel you prefer to
edit.
Press 4. OK to enter.
Press 5. <> to highlight one of the following:
Channel Number:• Enter a new channel
number by using the digit buttons on the
remote control
Channel Name:• Press the digit buttons on
the remote control to rename the channel.
Please refer to the graphic below for available
characters. (Press each button repeatedly to
change between characters.)
0-9 digit buttons with available characters
Frequency:• Use digit buttons on the remote
control to enter the frequency. (Only for
analogue channels).
Colour System:• Press ≤≥ to select the colour
system. (Only for analogue channels)
Sound System: • Press ≤≥ to select the sound
system. (Only for analogue channels)
Follow the on-screen instructions to exit.6.
NOTE
The new channel number you have entered can not •
override the exist one.
Assign a channel decoder (For ATV) E
Decoders that decode channels can be connected
to SCART. You have to assign the TV channel as a
channel to be decoded. Before selecting channels,
make sure your TV is connected to SCART.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Decoder and press OK or
≥ to enter available analogue channel list.
Press 3. <> to select the channel to decode.
Press 4. OK to mark or cancel.
Follow the on-screen instructions to exit.5.
Analogue Ch Fine Tune E
You can manually fine tune analogue channels when
reception is poor.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block / Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Analogue Ch Fine Tune
and press OK or ≥ to enter the analogue
channel list.
Press 3. <> to select one channel and press OK
to enter.
Press 4. ≤≥ to adjust the frequency.
When complete, press 5. OK to set the frequency.
The fine tuned channel is stored under the
current channel number.
Follow the on-screen instructions to exit.6.
Clean Channel List E
Select to clean all the channels that stored in the
channel list.
Press 1. MENU on the remote control and select
TV ≥ Channels.
NOTE
You are prompted to enter current password to enter •
Channels if Channel Block /Parental Guidance /
Input Block in the Parental menu is not the default
setting.
Press 2. <> to select Clean Channel List and
press OK or ≥ to enter.
Select 3. OK and press OK on the remote control
to clean channel list.
TV menu
17
Features
Select menu language
Select the menu display language.
Press1. MENU on your remote control and select
Features ≥ Menu language.
Press 2. ≤≥ to select your language.
Follow the on-screen instructions to exit.3.
4:3 Mode
Select aspect ratio behavior for Auto mode. When 4:3
is selected, the picture size will follow WSS or Scart
Pin8 Spec. If 16:9 is selected, the picture format will
change to wide screen.
Press1. MENU on your remote control and select
Features ≥ 4:3 Mode.
Press 2. ≤≥ to select the mode your preferred.
Follow the on-screen instructions to exit.3.
Change picture format
Change the picture format to suit your content.
Press 1. ∏ repeatedly to select one of the
following picture formats. Alternatively, press
MENU and select Features > Picture Format.
Auto
The Automatic format for
DTV transports streams
with AFD information,
while for ATV and SCART
should be with WSS
information.
Normal (Not for HD)
Displays the
classic 4:3 format.
NOTE
Constant use of the • Normal picture format can cause
screen distortion.
Zoom 1 (Not for HD)
Scales the classic 4:3
format to 14:9.
Zoom 2 (Not for HD)
Scales the classic 4:3
format to 16:9.
Wide
Stretches the classic 4:3
format to 16:9.
NOTE
When source input is PC mode, only Full screen and 4:3 •
are available.
For 4:3 PC input signal, picture format 4:3 and Wide •
screen are available.
For other input signals, only Wide screen is available.•
Time
Set the current time and the sleep timer.
Change the time zone E
Press 1. MENU on your remote control and select
Features > Time.
Press 2. OK or ≥ to enter Time.
Select 3. Time zone and press ≤≥ to select your
time zone.
Follow the on-screen instructions to exit.4.
TV menu
Menu
Auto Synchronization
Date
Time
00: 00: 00
Timer
Off
Off
Off Time
16: 52: 38
2009/01/01
Select
Sound
TV
Eco
BackEXIT
Features
Parental
18
Set the clock E
Press 1. MENU on the remote control and select
Features ≥ Time.
Press 2. OK or ≥ to enter Time menu.
Press 3. <> to select Time and press OK or ≥
to enter.
Select 4. Auto Synchronization and press ≤≥ to
select:
On:• Sets the clock automatically the same with
the digital signal time. (Only if digital signal is
available).
Off:• Press <> to set your system Date or
Time manually by using the digit buttons on
your remote control.
When the clock setting is completed, follow the 5.
on-screen instructions to exit.
Automatically switch the TV off (Off time) E
Off time switches the TV to standby at a specified time.
NOTE
Before using off time function, you have to set the time •
on your TV correctly. (See page 17 “Set the clock”)
Press 1. MENU on the remote control and select
Features ≥ Time.
Press 2. OK or ≥ to enter Time menu.
Press 3. <> to select Time and press OK or ≥
to enter.
Press 4. > to select Timer and press ≤≥ to
select:
Off: • Disable Timer.
On:• Press > to highlight the Off Time box
and set and power off time by using the digit
buttons on your remote control.
Follow the on-screen instructions to exit.5.
Automatically switch the TV to standby E
(Sleep timer)
Sleep timer switches the TV to standby after a defined
period of time.
Press 1. MENU on the remote control and select
Features ≥ Time.
Press 2. OK or ≥ to enter Time.
Press 3. <> to select Sleep Timer.
Press 4. ≤≥ to select the period of time before
TV enters to standby.
Follow the on-screen instructions to exit.5.
NOTE
When you press any button on the remote control with •
less than three minutes left in the countdown, Sleep
timer will be automatically canceled.
SCART
You can set the specific type of signal going into
SCART terminal. Check the signal output type of the
DVD or other equipment connected to the SCART
teminal of the TV, referring to manufacturer’s instruction
of those devices. Select the correct input signal setting
for SCART.
NOTE
This option is available only when the input source is •
SCART.
Use subtitles
You can enable subtitles for each TV channel.
Subtitles are broadcasted via teletext or DVB-T digital
broadcasts. With digital broadcasts, you have the
additional option of selecting a preferred subtitle
language.
Set analogue subtitles E
Press 1. MENU on the remote control and select
Features > Subtitle.
Press 2. OK or ≥ to enter Subtitle.
Select 3. Analogue Subtitle.
Press 4. ≤≥ to select On to display subtitle
always or On During Mute to display subtitles
only when audio is muted. Select Off to close
subtitles.
Follow the on-screen instructions to exit.5.
Select a subtitle language on digital TV E
channels
When you select a subtitle language on a digital TV
channel as described below, the preferred subtitle
language set in the TV menu is temporarily overruled.
TV menu
19
Press 1. MENU on the remote control and select
Features > Subtitle.
Press 2. OK or ≥ to enter Subtitle.
Press 3. <> to select 1st Subtitle or 2nd
Subtitle.
Highlight your selection and press 4. ≤≥ to select
a subtitle language.
Follow the on-screen instructions to exit.5.
NOTE
If your selected subtitle language is not broadcast, the •
default language subtitle will be displayed.
If the • 1st Subtitle language you selected is not
available, the 2nd Subtitle language will be displayed.
Select Hearing impaired subtitle E
When watching channels with hearing impaired service,
you can enable the subtitle commentary for the hearing
handicapped. For digital channels only.
Press 1. MENU on the remote control and select
Features ≥ Subtitle.
Press 2. OK or ≥ to enter Subtitle.
Press 3. <> to select Subtitle Type.
Press 4. ≤≥ to select Hearing impaired as your
subtitle type.
Follow the on-screen instructions to exit.5.
Teletext language
You can select Teletext Language when the TV receives
Teletext signals broadcast by a TV network. (See page
11.)
Common Interface
This function enables you to watch encrypted services
(pay services). (See page 25.)
NOTE
This functions may not work depending upon the •
country broadcasting circumstances.
HDMI overscan
When you watch TV via HDMI input source, you could
use this function to enlarge the picture. It may have few
loss of video content.
Press 1. MENU on the remote control and select
Features > HDMI Scan info
Press 2. ≤≥ to select one of the following:
Select• Auto to scan the picture automatically.
Select • Underscan to disable.
Select • Overscan to activate.
Follow the on-screen instructions to exit.3.
Manual OAD Download
When you get the software updating news from the
retailer or internet, you can update the operation
software using the OAD (Over Air Download)
Download. The updated software data will be
transferred through the TV signal.
Press 1. MENU on the remote control and select
Features ≥ OAD ≥ Manual OAD Download.
Press 2. OK or ≥ to enter.
Follow the on-screen instructions to download 3.
the updated software.
NOTE
Please do not switch off the TV during the downloading •
process.
Reset Default
When you activate the Reset Default, the TV enters to
first time installation.
Press 1. MENU on the remote control and select
Features ≥ Reset Default.
Press 2. OK or ≥ to enter.
Select 3. OK and press OK on your remote
control to confirm.
Follow the on-screen instructions to reset your 4.
TV settings.
DivX® Setup
This is the function to confirm your registration code.
You need to register the code at www.divx.com.
DivX® Registration (VOD) E
You can find your registration code on this menu. You
need to register the TV at www.divx.com before playing
the DivX® content.
Press 1. MENU on the remote control and select
Features ≥ DivX® Registration.
Press 2. OK or ≥ to enter.
Follow the on-screen instructions to exit3. .
Menu
Password:
* * * *
Sound
TV
Eco
BackEXIT
Features
Parental
TV menu
20
DivX® Deactivation (VOD) E
You can find your deactivation code on this menu. You
need to deactivate the TV at www.divx.com to release
the registration.
Press 1. MENU on the remote control and select
Features ≥ DivX® Deactivation.
Press 2. OK or ≥ to enter.
Follow the on-screen instructions to exit.3.
SW Ver.
Display the Software version.
Press 1. MENU on the remote control and select
Features ≥ SW Ver.
Press 2. OK or ≥ to enter.
Press 3. <> to look for the software version
information.
Parental
Lock TV channels or connected devices with a
four digit code to prevent children from watching
unauthorized content.
Access Parental menu
Press 1. MENU on the remote control and select
Parental.
Press 2. OK or ≥ to highlight the password box.
Enter your password by using the 3. digit buttons
on the remote control. If your password is
correct, the Parental menu appears.
NOTE
You have to enter a 4-digit password every time to •
access Parental menu.
Enter “0000” as the default password.•
If you forget your password, enter “5351” to override •
any existing passwords.
Lock one or more channels
Lock TV channels to prevent children from watching
certain channels.
Enter your password to access the 1. Parental
menu.
Select 2. Channel Block and press OK or ≥ to
enter the channel list.
Press 3. <> to select one or more channels you
preferred to lock.
Press 4. OK to lock or unlock the channel you
selected.
Follow the on-screen instructions to exit.5.
NOTE
If you switch to the locked channel, you will be •
prompted to enter your password. (If your password is
correct, the locked channel will be unlocked before the
TV restarts from standby.)
If your country selection is • Italy (see page 7 “Step 2:
Country setting”), you will be prompted to enter your
password every time you access each blocked channel.
Set the time interval lock
Lock TV for the specific day and time to prevent
children from watching.
Press 1. MENU on the remote control and select
Parental.
Enter your password to access the 2. Parental
menu.
Select 3. Lock Type and press ≤≥ to select the
day.
Press 4. <> to set the Start Time and End Time.
Follow the on-screen instructions to exit.5.
To set parental ratings
Some digital broadcasters rate their programmes
according to age. You can set TV to display only
programmes with age ratings higher than your child’s.
Enter your password to access the 1. Parental
menu.
Press 2. <> to select Parental Guidance and
press OK or ≥ to enter.
Press 3. ≤≥ to set the age rating.
Follow the on-screen instructions to exit.4.
TV menu
21
Lock one or more connected devices
Disable the specific external input signals.
Enter your password to access the 1. Parental
menu.
Press 2. <> to select Input Block and press OK
or ≥ to enter the input source list
Press 3. <> to select one or more input source.
Press 4. OK to lock or unlock your selected input
source.
Follow the on-screen instructions to exit.5.
NOTE
If you switch to the locked input source, you will be •
prompted to enter your password. (If your password is
correct, the locked input source will be unlocked before
the TV restarts from standby.)
If your country selection is • Italy (see page 7 “Step 2:
Country setting”), you will be prompted to enter your
password every time you access each blocked input
source.
Set / Change password
Enter your password to access the 1. Parental
menu.
Press 2. <> to select Set Password and press
OK or ≥ to enter.
Enter your new password in the 3. New box by
using the digit buttons on the remote control.
Enter your new password again in the 4. Confirm
box.
When complete, the TV reruns to the 5. Parental
menu.
Repeat step 1 to 4 to change password.6.
Clear all parental settings
Reset all the settings in the Parental menu.
Enter your password to access the 1. Parental
menu.
Press 2. <> to select Clear All and press OK or
≥ to enter.
Select 3. OK and press OK on the remote control
to clear all parental settings.
NOTE
If parental settings are cleared, you do not have to enter •
password to access Channels in the TV menu.
Eco
This function enables you to automatically reduce the
backlight brightness in order to decrease the power
consumption and increase the backlight life span.
Press 1. MENU on the remote control and select
Eco and press OK or ≥ to enter.
Press 2. <> to select On or Off and press ≥ to
activate the selection.
Follow the on-screen instructions to exit.3.
Connecting a USB device
PhotoFile name 1 01/01
File name 1 File name 2 File name 3 File name 4 File name 5
Sort
Media Type
Thumbnail Size
Music
Video
PhotoFile name (1) SizeFile name 1 01/01
File name (6) File name (7) File name (8) File name (9)
File name (1) File name (2) File name (3) File name (4) File name (5)
22
USB function
This TV is equipped with a USB connector that enables
you to view photos, listen to music, and play videos
stored on a USB storage device.
NOTE
Depending on the USB device, the TV may not be able •
to recognise the contained data.
Use only alphanumeric characters for naming files.•
File names over 80 characters (may vary depending on •
character set) may not be displayed.
Do not disconnect a USB device or memory card from •
the TV while transferring files, using the slide show
function, when a screen is switching to another or before
you exit “USB” from the “SOURCE” menu.
Do not connect and disconnect a USB device from the •
TV repeatedly.
Basic Operation E
Turn on the TV.1.
Connect the USB storage device to the USB 2.
port on the side of your TV.
Press 3. b on the remote control and press <>
to select USB input source and press OK. The
USB thumbnail browser appears.
Press 4. MENU to display the sub-menu. Select
Media Type (Photo/Music/Video) of the file
you wish to play.
Your Media Type selection will be displayed
at the upper-right corner of the thumbnail
browser.
Press 5. <>≤≥ and OK to browse the files or
folders. Press EXIT to return to the previous
operation / folder.
NOTE
Sort:• enables you to sort out the files in the selected
Media Type category.
Thumbnail Size:• enables you to change the size of
thumbnails.
View Photos E
In the 1. Photo thumbnail browser, press <>≤≥
to select a photo or a photo album.
Press 2. OK to view a full screen image. The slide
show begins.
Use the buttons on the remote control and 3.
follow the on-screen instructions to view
photos.
Buttons for enlarged photo display operation
Buttons Descriptions
I/F
T
/
Play or pause the slide show.
Go to the previous/next photo in the
U
same directory.
MENU Open the Photo sub-menu.
Connecting a USB device
23
Buttons Descriptions
G button Select the slide show duration.
Y button Select the slide show transition effect.
EXIT Return to the previous operation.
Listen to Music E
In the 1. Music thumbnail browser, press <>≤≥
to select a music file or a music album.
Press 2. OK to play the MP3 file.
Use the buttons on the remote control and 3.
follow the on-screen instructions to play the
MP3 files.
Buttons for music mode
Buttons Descriptions
≥ (Cursor)
≤ (Cursor)
I/F
H
T
/
Fast forward the music.
Rewind the music.
Play or pause the music.
Stop the music.
U
Go to the previous/next music.
MENU Open the music sub-menu.
R button Repeat the music.
G button Play the music randomly.
Y button Audio Only.
B button Show information of the music file.
EXIT Return to the previous operation.
USB device compatibility
USB 2.0
device
File sy stem FAT / FAT32
Photo file
format
Music file
format
Video file
format
NOTE
It does not support “NTFS” and the maximum file size of •
a single file is 4GB.
Progressive format jpeg files are not supported.•
All files in USB devices with capacity may not be played •
properly.
Operation using USB hubs is not guaranteed.•
The external hard disc with capacity cannot be detected •
correctly.
Cables used to prolong the USB device must be •
certified as USB 2.0.
In USB devices, video files may not be played properly if •
speed is not enough.
USB Memory, USB card reader, HDD
(Mass Storage class)
JPEG (*.JPG), PNG
MPEG1 (*.MP3)
Bitrate: 32k, 64k, 96k, 128k, 196 k,
256k, 320kbps
Sampli ng frequency: 32k, 44.1k, 48kHz
MPEG1/2 (*.AVI, *.MPG, *.MPEG, *.TS)
MPEG4 (*.AVI, *.MP4, *.MOV, *.MKV )
H.264 (*.AVI, *.MP4, *.MOV, *.MKV, *.TS)
DivX (*.AVI)
XviD (*.AVI)
Play Videos E
In the 1. Video thumbnail browser, press <>≤≥
to select a video file.
Press 2. OK to play the video.
Use the buttons on the remote control and 3.
follow the on-screen instructions to play the
video.
Buttons for playing video mode
Buttons Descriptions
≥ (Cursor)
≤ (Cursor)
I/F
H
T
/
Fast forward the video.
Reverse the video.
Play or pause the video.
Stop the video.
U
Go to the previous/next video.
MENU Open the video sub-menu
EXIT Return to the previous operation.
Connecting external devices
HDMI
DVI
19”
22”
26”
32”
37”
42”
32”
37”
42”
19”
22”
26”
19”
22”
32”
37”
42”
26”
SCART
SCART 1
32”
37”
42”
19”
22”
26”
24
E
Before connecting ...
Be sure to turn off the TV and any devices before •
making any connections.
Firmly connect a cable to a terminal or terminals.•
Carefully read the operation manual of each external •
device for possible connection types. This also
helps you get the best possible audiovisual quality to
maximise the potential of the TV and the connected
device.
HDMI connection
Example of connectable devices
E DVD E Blu-ray player/recorder
The HDMI connections (High Definition Multimedia
Interface) permit digital video and audio transmission
via a connection cable from a player/recorder. The
digital picture and sound data are transmitted without
data compression and therefore lose none of their
quality. Analogue/digital conversion is no longer
necessary in the connected devices, which also would
result in quality losses.
HDMI cable
HDMI device
DVI-HDMI cable
Audio cable
YPbPr (Component connection)
Example of connectable devices
E VCR E DVD E Blue-ray player/recorder
You will enjoy accurate colour reproduction and high
quality images through the (YPbPr) when connecting a
DVD recorder or other recording equipment.
(YPbPr) Component
Connection
Audio cable
Component cable
SCART connection
DVI/HDMI conversion
Using an DVI/HDMI adapter cable, the digital video •
signals of a DVD can also be played via the compatible
HDMI connection. The sound must be fed in additionally.
Both HDMI and DVI use the same HDCP copy •
protection method.
Supported video signal:
576p, 480p, 1080i, 720p, 1080p
See page 26 for PC signal compatibility.
Example of connectable devices
E Decoder
E
When using the SCART 1
Full SCART, which transmits RGB, S-Video and CVBS
in, and CVBS tuner out.
Decoder
SCART cable
SCART 2
32”
37”
42”
SPDIF OUT
RL
AUDIO IN
19”
22”
26”
19”
22”
26”
32”
37”
42”
32”
37”
42”
Connecting external devices
25
Example of connectable devices
E VCR E DVD recorder
E
When using the SCART 2
Half SCART, which transmits S-Video or CVBS in, and
CVBS monitor out.
VCD / DVD
recorder
SCART cable
NOTE
In cases when the decoder needs to receive a signal •
from the TV, make sure to select the appropriate input
source.
Do not connect the decoder to the SCART 2.•
You cannot connect the VCR with Decoder using a fully •
wired SCART cable under the SCART 2 source.
Speaker / Amplifier connection
E
Connecting an amplifier with digital audio
input / analogue audio input
Audio cable
Digital audio in
(COAXIAL)
Digital audio cable
Speaker / Amplifier
connection
Inserting the Smartcard into the CA module
In order to receive coded digital stations, a conditional
access module (CA module) and a Smartcard must be
inserted in the CI (Common Interface) slot of the TV.
The CA Module and the Smartcard are not supplied
accessories. They are usually available from your
dealer.
Inserting the Smartcard into the CA Module
Carefully insert the CA module in the CI slot 1.
with the contact side forward.
The logo on the CA module must be facing 2.
outward from the rear of the TV.
NOTE
It takes about 30 seconds to certify the license key •
when you insert a Smartcard into the CI+ compatible
CA module for the first time. This process may fail when
there is no antenna input or you have never run “Auto
installation”.
The CI+ compatible CA module sometimes upgrades •
its firmware. You may not receive any TV images before
upgrading. You can only use the power button during
upgrading.
The CI+ compatible CA module does not allow you to •
output any copy protected programmes using monitor
out.
If the TV displays an update confirmation message •
for the Smartcard while receiving CI+ compatible
broadcasts, follow the screen prompts.
Make sure that the CA module is properly inserted.•
Checking CA module information
After inserting and activating the CA Module, make
sure the input source is TV.
Press 1. MENU on the remote control.
Go to 2. Features > Common Interface.
NOTE
This menu is only available for digital stations.•
The content of this menu depends on the provider of the •
CA module.
Module
General information on CA module displays.
Menu
Adjustment parameters of each Smartcard displays.
Enquiry
You can input numerical values such as passwords here.
Connecting external devices
HDMI
DVI
PC
HDMI
32”
37”
42”
19”
22”
26”
19”
22”
26”
32”
37”
42”
DVI-I
PC
HDMI
VGA
19”
22”
26”
32”
37”
42”
26
Connecting a PC
Digital connection
Analogue connection
HDMI cable
DVI-HDMI cable
Ø 3.5 mm stereo mini jack cable
Ø 3.5 mm stereo mini jack cable
Supported display resolutions
Computer formats (PC)
Resolution Refresh rate
640 x 480 60Hz
800 x 600 56Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1280 x 1024 60Hz (Only for 22”/32”/37”/42”)
1920 x 1080 60Hz (Only for 22”/32”/37”/42”)
Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50Hz, 60Hz
1080i 50Hz, 60Hz
1080p (HDMI, Component only)
50Hz, 60Hz, 24Hz
RGB cable
DVI-I / RGB
conversion cable
Ø 3.5 mm stereo mini jack cable
Appendix
27
Troubleshooting
Problem Possible Solution
No picture 1. Connect power cord correctly.
2. Turn on power.
3. Connect signal cable correctly.
Abnormal colours Connect signal cable correctly.
Twisted picture 1. Connect signal cable correctly.
Picture too dark Adjust brightness and contrast.
Audio only, no images 1. Please check if input signal is connected correctly.
Picture only, no audio 1. Connect signal cable correctly.
Cannot use remote control 1. Please change battery.
Cannot receive sufficient channels
through antenna
No colour Please adjust the colour setup.
Blinking picture accompanied by
ghost image
Broken lines or segments Adjust antenna.
Certain TV channels are blocked
(Hope to acquire some channels)
Overlapping images or ghost images Please use multi-directional outdoor antenna.
Cannot use a function If the item you choose turns gray, that item cannot be selected.
Cannot receive programmes Please use the Update Scan method to add the channels not included in
4. Press any button on the LCD TV.
2. Please use compatible signal.
2. TV-RF signal must not be lower than 50dB.
2. Adjust volume to proper level.
3. Connect audio signal cable correctly.
4. TV-RF signal must not be lower than 50dB.
2. Turn off power for 10 seconds; and then restart power.
Please use the Channel Scan function to increase the number of channels
not included in memory.
1. Check the connection of antenna/signal cable.
2. Check if channel is in play mode.
3. Press signal source and change input mode.
Keep the TV away from noise sources, such as automobiles, neon lights,
and hair dryers.
Please use the Update Scan method to add the channels not included in
memory.
(If your TV is subject to the influence of nearby mountains or buildings).
memory.
Appendix
28
Specification
Item
LCD screen size
Number of dots
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV-Standard
TV
Function
Audio amplifier
Speaker 30 (H) x 117 (W) x 23 (D) mm 30 (H) x 117 (W) x 23 (D) mm 38 (H) x 164 (W) x 23 (D) mm
Rear
Side
OSD language
Power Requirement AC 220–240 V, 50 Hz
Power Consumption
Weight
Operating temperature
Receiving
Channel
TV-Tuning System Auto Preset 1599 ch, Auto Label, Auto Sort
STEREO/BILINGUAL NICAM/A2
Antenna
RS-232C D-sub 9 pin male connector
SCART SCART (AV input, Y/C input, RGB input, TV output )
PC IN D-sub 15 pin (AV input), Ø 3.5mm jack (Audio input)
Component Y/Pb(Cb)/Pr(Cr), RCA pin (L/R)
SPDIF OUT Digital audio output
AV OUT RCA pin (AV output)
HDMI 1 Digital video and audio input
C. I. (Common Interface) EN50221, R206001, CI Plus specification
AV IN RCA pin (AV input)
USB Software update, multi-media play
Headphones Ø 3.5mm jack (Audio output)
HDMI 2 Digital video and audio input
Analogue CCIR (B/G, I, D/K, L/L’)
Digital DVB-T (2K/8K OFDM), DVB-C
VHF/UHF ATV : IRA-E69, DVB-T : E5-E69
CATV S-band, S1–S41ch
19o LCD COLOUR TV,
Model: LC-19LE320E
19o diagonal 22o diagonal 26o diagonal
3,147,264 dots
(1366 g 768 g 3 dots)
3W g 2 3W g 2 5W g 2
UHF/VHF 75 q
English, German, French, Italian, Dutch, Spanish, Greek, Portuguese, Swedish, Finnish,
Russian, Polish, Turkish, Hungarian, Czech, Slovak, Danish, Norwegian, Estonian, Latvian,
Lithuanian, Slovenian, Bulgarian, Croatian, Romanian, Serbian, Ukrainian, Gaelic, Belarussian.
20 W (Standby < 0.3W)
(Method IEC62087)
3.3 kg (Without stand),
3.7 kg (With stand)
0°C to k40°C
22o LCD COLOUR TV,
Model: LC-22LE320E
6,220,800 dots
(1920 g 1080 g 3 dots)
30W (Standby < 0.3W)
(Method IEC62087)
4.0 kg (Without stand),
4.5 kg (With stand)
26o LCD COLOUR TV,
Model: LC-26LE320E
3,147,264 dots
(1366 g 768 g 3 dots)
45 W (Standby < 0.3W)
(Method IEC62087)
5.7 kg (Without stand),
6.8 kg (With stand)
Appendix
29
Specification
Item
LCD screen size
Number of dots
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV-Standard
TV
Function
Audio amplifier
Speaker 30 (H) x 164 (W) x 32 (D) mm 30 (H) x 164 (W) x 32 (D) mm 30 (H) x 164 (W) x 32 (D) mm
Rear
Side
OSD language
Power Requirement AC 220–240V, 50 Hz
Power Consumption
Weight
Operating temperature
NOTE
Receiving
Channel
TV-Tuning System Auto Preset 1599 ch, Auto Label, Auto Sort
STEREO/BILINGUAL NICAM/A2
Antenna
SCART 1 SCART (AV input, Y/C input, RGB input, TV output )
SCART 2
PC IN D-sub 15 pin (AV input), Ø 3.5mm jack (Audio input)
Component Y/Pb(Cb)/Pr(Cr), RCA pin (L/R)
SPDIF OUT Digital audio output
AUDIO OUT RCA pin (L/R)
HDMI 1 Digital video and audio input
HDMI 2 Digital video and audio input
RS-232C D-sub 9 pin male connector
C. I. (Common Interface) EN50221, R206001, CI Plus specification
AV IN RCA pin (AV input)
USB Software update, multi-media play
Headphones Ø 3.5mm jack (Audio output)
HDMI 3 Digital video and audio input
As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes •
for product improvement without prior notice. The performance specification figures indicated are nominal values of
production units. There may be some deviations from these values in individual units.
Refer to the inside back cover for dimensional drawings.•
Audio cannot be output through the HDMI terminal.•
Analogue CCIR (B/G, I, D/K, L/L’)
Digital DVB-T (2K/8K OFDM), DVB-C
VHF/UHF ATV : IRA-E69, DVB-T : E5-E69
CATV S-band, S1–S41ch
32o LCD COLOUR TV,
Model: LC-32LE320E
32o diagonal 37o diagonal 42o diagonal
6,220,800 dots
(1920 g 1080 g 3 dots)
10W g 2 10W g 2 10W g 2
UHF/VHF 75 q
SCART (AV input, Y/C input, monitor output [analogue source - ATV, SCART 1, SIDE AV;
digital source - DTV] )
English, German, French, Italian, Dutch, Spanish, Greek, Portuguese, Swedish, Finnish,
Russian, Polish, Turkish, Hungarian, Czech, Slovak, Danish, Norwegian, Estonian,
Latvian, Lithuanian, Slovenian, Bulgarian, Croatian, Romanian, Serbian, Ukrainian, Gaelic,
Belarussian.
90 W (Standby < 0.3W)
(Method IEC62087)
8.8 kg (Without stand),
10.1 kg (With stand)
0°C to k40°C
37o LCD COLOUR TV,
Model: LC-37LE320E
6,220,800 dots
(1920 g 1080 g 3 dots)
W (Standby < 0.3W)
(Method IEC62087)
kg (Without stand),
kg (With stand)
42o LCD COLOUR TV,
Model: LC-42LE320E
6,220,800 dots
(1920 g 1080 g 3 dots)
W (Standby < 0.3W)
(Method IEC62087)
kg (Without stand),
kg (With stand)
Appendix
30
Environmental specifications
Item 19” 22” 26” 32” 37” 42”
*1 On-Mode (W) Standard 25W 42W
*2 Energy-Save-Mode (W)
*3 Standby-Mode (W) 0.3W 0.3W
*4 Off Mode (W) Power button 0.29W 0.29W
*5 Annual Energy
Consumption (kWh)
*6 Annual Energy
Consumption (kWh)
(Energy-Save-Mode)
*1 Measured according to IEC 62087 Ed. 2
*2 For further information about the Energy Save function, please see related pages in this operation manual
*3 Measured according to IEC 62301 Ed. 1
*4 Measured according to IEC 62301 Ed. 1
*5 Annual energy consumption is calculated on the basis of the On-Mode (Standard) power consumption, watching TV 4
hours a day, 365 days a year
*6 Annual energy consumption is calculated on the basis of the Energy-Save-Mode power consumption, watching TV 4
hours a day, 365 days a year.
NOTE
The power consumption of On-Mode varies depending on the images the TV displays.•
Eco ≥ On
Eco ≥ On
Other information
Cautions regarding use in high and low temperature environments
When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly •
delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near •
a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: + 5°C to • e35°C.
Devices connected to the protective earthing of the building installation through the MAINS connection or through
other devices with a connection to protective earthing and to a television distribution system using coaxial cable,
may in some circumstances create a fire hazard. Connection to a television distribution system therefore has to be
provided through a device providing electrical isolation within a certain frequency range (galvanic isolator, see EN
60728-11).
NOTE
For requirements in Norway and Sweden, the requirements for isolation are also relevant for devices that can be •
connected to television distribution systems.
19W 28W
36.5kWh 61.3kWh
27.7kWh 40.9kWh
Appendix
31
Information on the software license for this product
Software composition
The software included in this product is comprised of various software components whose individual copyrights
are held by SHARP or by third parties.
Software developed by SHARP and open source software
The copyrights for the software components and various relevant documents included with this product
that were developed or written by SHARP are owned by SHARP and are protected by the Copyright Act,
international treaties, and other relevant laws. This product also makes use of freely distributed software and
software components whose copyrights are held by third parties. These include software components covered
by a GNU General Public License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or
other license agreement.
Acknowledgements
The following open source software components are included in this product:
•linuxkernel•modutils•glibc•zlib•libpng
Trademarks
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of •
HDMI Licensing LLC.
The “HD TV” Logo is a trademark of DIGITALEUROPE.•
The “HD TV 1080p” Logo is a trademark of DIGITALEUROPE.•
The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB - project.•
Manufactured under license from Dolby Laboratories.•
Dolby and the double-D symbol are trademarks of Dolby Laboratories.•
DivX® is a registered trademark of DivX, Inc., and is used under license.•
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified •
device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files
into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX •
Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device
setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about
DivX VOD.
Attention: Your product is
marked with this symbol. It
means that used electrical
and electronic products
should not be mixed
with general household
waste. There is a separate
collection system for these
products.
A. Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this equipment, please do not use the ordinary
dust bin!
Used electrical and electronic equipment must be treated separately and in
accordance with legislation that requires proper treatment, recovery and recycling
of used electrical and electronic equipment.
Following the implementation by member states, private households within the
EU states may return their used electrical and electronic equipment to designated
collection facilities free of charge*. In some countries* your local retailer may also
take back your old product free of charge if you purchase a similar new one.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please
dispose of these separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes
the necessary treatment, recovery and recycling and thus prevent potential negative
effects on the environment and human health which could otherwise arise due to
inappropriate waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for
the correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of
charge to the dealer, even if you don’t purchase a new product. Further collection
facilities are listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the
product. You might be charged for the costs arising from take-back and recycling.
Small products (and small amounts) might be taken back by your local collection
facilities.
For Spain: Please contact the established collection system or your local authority
for take-back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask
for the correct method of disposal.
32
For EU: The crossed-out wheeled bin Implies that used batteries should not be put
to the general household waste ! There is a separate collection system for used
batteries, to allow proper treatment and recycling in accordance with legislation.
Please contact your local authority for details on the collection and recycling
schemes.
For Switzerland: The used battery is to be returned to the selling point.
For other non-EU countries: Please contact your local authority for correct method
of disposal of the used battery.
