SHARP LC-13SH4U, LC-15SH4U Service Manual

Download

Page 1

LC-13SH4U LC-15SH4U

SERVICE MANUAL

S35G1LC13SH4U

LCD COLOR TELEVISION

LC-13SH4U

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION.........................................................................................2

» SPECIFICATIONS ........................................................................................................................................5

» OPERA TION MANUAL .................................................................................................................................6

» DIMENSIONS ...............................................................................................................................................8

» REMOVING OF MAJOR P ARTS ........................................................................................................ ..........9

» ADJUSTING PROCEDURE OF EACH SECTION .....................................................................................13

» PUBLIC MODE SETTING PROCEDURE .................................................................................................. 24

» TROUBLE SHOOTING TABLE ..................................................................................................................32

» MAJOR IC INFORMATIONS ......................................................................................................................36

» BLOCK DIAGRAM......................................................................................................................................38

» OVERALL WIRING DIAGRAM ...................................................................................................................40

» DESCRIPTION OF SCHEMATIC DIAGRAM .............................................................................................44

» SCHEMATIC DIAGRAM .............................................................................................................................45

» PRINTED WIRING BOARD ASSEMBLIES................................................................................................65

» REPLACEMENT PARTS LIST....................................................................................................................78

» PACKING OF THE SET..............................................................................................................................91

LC-15SH4U

Page

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

Page 2

LC-13SH4U

LC-15SH4U

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE REPLACE ONL Y WITH SAME TYPE F6700 (1.6A, 250V), F6702

A V

(1.6A, 250V), AND F7701 (3.15A, 250V)FUSE.

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner .

• Plug the AC cord directly into a 120 volt AC outlet.

• Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 0.75V peak (this corresponds to 0.5 mA. peak AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

DVM

AC SCALE

1.5k ohm 10W

0.15 µF

TEST PROBE

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

23456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012

SAFETY NOTICE

Many electrical and mechanical parts in LCD television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams

For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

components having such features are identified by " å"

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

Replacement Parts Lists

and

Page 3

LC-13SH4U

LC-15SH4U

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

1. N'entreprendre aucune modification de tout circuit. C'est dangereux.

2. Débrancher le récepteur avant toute réparation.

PRECAUTION: POUR LA PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE PAR UN FUSIBLE DE

A V

MEME TYPE F6700 (1.6A, 250V), F6702 (1.6A, 250V), F7701 (3.15A, 250V).

VERIFICA TIONS CONTRE L'INCEN-DIE ET LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur, effectuer les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer que les fils ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme les boutons de commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux de résistance-capacité, les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la fuite de courant, de la facon suivante:

• Enficher le cordon d'alimentation directement dans une prise de 120V CA.

• A l'aide de deux fils à pinces, brancher une résistance de 1.5kΩ 10 watts en parallèle avec un condensateur de 0.15µF en série avec toutes les pièces métalliques exposées du coffret et une terre connue comme une

conduite électrique ou une prise de terre branchée à la terre.

• Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour mesurer la chute de tension en travers de la résistance.

• Toucher avec la sonde d'essai les pièces métalliques exposées qui présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson, etc.) et mesurer la chute de tension CA en-travers de la résistance. T outes les vérifications doivent être refaites après avoir inversé la fiche du cordon d'alimentation. (Si nécessaire, une prise d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.) Tous les courants mesurés ne doivent pas dépasser 0,5 mA. Dans le cas contraire, il y a une possibilité de choc électrique qui doit être supprimée avant de rendre le récepteur au client.

DVM

ECHELLE CA

1.5k ohm 10W

0.15 µF

SONDE D'ESSAI

AUX PIECES METALLIQUES EXPOSEES

BRANCHER A UNE TERRE CONNUE

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans les téléviseurs présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des pièces de remplacement étalonnées pour haute tension, puissance, etc. Les pièces de remplacement qui présentent ces caractéristiques sont identifiées dans ce manuel; les pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la liste des pièces de remplacement et les diagrammes schématiques. Pour assurer la protection, ces pièces doivent être identiques à celles utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas les mêmes caractéristiques que les pièces recommandées par l'usine, indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.

Page 4

LC-13SH4U LC-15SH4U

Precautions for using lead-free solder

1 Employing lead-free solder

"All PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder. Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks. As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition. Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required. If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder . Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code ZHNDAi123250E J φ0.3mm 250g(1roll) BL ZHNDAi126500E J φ0.6mm 500g(1roll) BK ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

Page 5

SPECIFICATIONS

LC-13SH4U LC-15SH4U

Items

LCD panel 13" Advanced Super View & BLACK TFT LCD 15" Advanced Super View & BLACK TFT LCD Number of dots 921,600 dots VGA Video color systems N358

TV Standard (CCIR) NTSC

TV function

Brightness 430 cd/m Viewing angles H: 170° V: 170° Audio amplifier 1.0 W 2 Speakers 137/64 411/32 in. (4

Terminals AUDIO OUT AUDIO-OUT

OSD language English/Spanish/French Power supply AC 120V, 60Hz Power consumption 43 W (0.8 W standby): AC 120V 50 W (0.8 W standby): AC 120V Weight (approx.) 9.0 lbs. (4.1 kg), w/o accessories 10.1 lbs. (4.6 kg), w/o accessories

ËAs a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improve-

ment without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

TV Tuning System PLL 181 ch. STEREO MTS+SAP CATV 125 ch.

INPUT1 COMPONENT-IN, AUDIO-IN INPUT2 VIDEO-IN, S-VIDEO-IN, AUDIO-IN

Antenna F-Type Headphone Mini-jack for stereo (ø3.5 mm)

Model

LC-13SH4U LC-15SH4U

××

11 cm), 2 pcs.

Page 6

LC-13SH4U

Part Names of Main Unit

The examples used throughout this manual are based on the LC-15SH4U model.

Controls

• INPUT, CH (

)/(

), VOL (–)/(+) and MENU on the main unit have the same functions as the same buttons on the remote control.

Fundamentally, this operation manual provides a description based on operation using the remote control.

Remote sensor

SLEEP TIMER indicator

The SLEEP TIMER indicator lights up red when the SLEEP TIMER

is set to "ON".

POWER indicator

The POWER indicator lights up green when the power is on, and

red when in the standby mode (the indicator will not light up when

the main power is off).

To change the vertical angle of the LCD TV

set, tilt the screen up to 2.5 degrees forwards

or 10 degrees backwards. Please adjust the

angle so that the LCD TV set can be

watched most comfortably.

Upper control panel

Speaker

Tilt the display by holding the upper

part while securely holding down the

stand with your other hand.

How to adjust the angle

Speaker

Listening with Headphones

NOTE

Headphones

POWER

INPUT

CH (Channel)

(

)/( )

VOL (Volume)

(–)/(+)

Terminals

AUDIO(R)

INPUT1

AUDIO(L)

S-VIDEO

VIDEO

AUDIO(R)

AUDIO(L)

AUDIO(R)

AUDIO OUT

INPUT2

Stand

Rear View

Round lock for Kensington

Security Standard slot*

ANT. (Antenna terminal)

Headphone jack

POWER INPUT

terminal

How to Fix the Cables

Pull the cables connected to each terminal. Insert the cables into the stand hole and fix the cables.

*Using the Kensington Lock

• This LCD TV set has a Kensington

Security Standard slot for use with

a Kensington MicroSaver Security

System. Refer to the information

that came with the system for

instructions on how to use it to

secure the LCD TV set.

Stand hole

the headphone jack

TV set.

VOL (+)/(–) on the remote

the supplied accessories.

unit speakers when a

into the headphone jack.

level. Hearing experts advise

volume levels.

• Headphones are not included in

• No sound is heard from the main

headphone mini-plug is connected

• Do not set the volume at a high

against extended listening at high

Plug the headphone mini-plug into

located on the side of the LCD

Adjust the sound volume using

control.

On-screen dispiay

VOLUME

NOTE

LC-15SH4U

OPERATION MANUAL

Page 7

LC-13SH4U

Part Names of Remote Control

POWER

Switches the Liquid Crystal

Television power on or standby.

PIC. FLIP

Sets the orientation of the

picture.

SLEEP

Sets the sleep timer.

ENTER

Executes a command.

MENU RETURN

Returns to the previous

screen.

MUTE

Mutes the sound.

AUDIO ONLY

Outputs audio without screen

image.

VOL (+)/(–)

Sets the volume.

AV MODE

Selects preferred AV MODE.

FLASHBACK

Returns to the previous

channel.

BACKLIGHT

Adjusts the brightness of the

screen.

Displays Closed Caption

subtitles.

CH (

)/(

)

Selects channel.

DISPLAY

Displays the receiving channel

and the current time for 10

seconds.

' /"/ \ /| (Cursor control)

Selects a desired item on the

screen.

Displays the menu screen.

Channel Select

Sets the channel.

INPUT(

)/(

)

Switches the input source

between INPUT1, INPUT2

and TV modes.

MTS

Selects audio settings.

Preparation

Installing Batteries in the Remote Control

Before using the LCD TV set for the first time, install the two "AA" size batteries (supplied) in the remote control. When the

batteries become depleted and the remote control fails to operate, replace the batteries with new "AA" size batteries.

Open the battery cover.

Insert two

"AA" size batteries.

Close the battery cover.

• Place batteries with their

terminals

corresponding

to the (+) and

(–)

indications in the battery

compartment.

Caution!

Precautions regarding batteries

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (–) indications.

• Different types of batteries have different characteristics. Do not mix batteries of different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old

batteries to leak chemicals.

• Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical

leakage is found, wipe it off with a cloth.

• The batteries supplied with the LCD TV set may have a shorter operating time due to storage conditions.

• If the remote control is not to be used for an extended period of time, remove the batteries from the remote control.

• Align the tab on the battery cover (

) and place

it while pressing the tab (

) to close it.

Using the Remote Control

Use the remote control by pointing it towards the remote sensor

window of the main unit. Objects between the remote control and

sensor window may prevent proper operation.

Cautions regarding use of the remote control

• Do not apply shock to the remote control. In addition, do not

expose the remote control to liquids, and do not place it in an area

with high humidity.

• Do not install or place the remote control under direct sunlight. The

heat may cause deformation of the unit.

• The remote control may not work properly if the remote sensor

window is under direct sunlight or strong lighting. In such a case,

change the angle of the lighting or main unit, or operate the remote

control closer to the remote sensor window.

• Detach the cover

while pressing the

(

) part.

SLEEP TIMER

indicator

Remote sensor

POWER indicator

LC-15SH4U

Page 8

LC-13SH4U LC-15SH4U

LC-13SH4U/LC-15SH4U

DIMENSIONS

Unit: inch (mm)

)

208.6

(

/ 8

)

107/

(

265) / 12

1717/

/8 (307.6

(

444.9) / 19

/32 (302.4

/16 (100

)

/32 (497.6

)

231.2

(

/ / 9

)

198.7

(

/ 7

(37.7)

/ 1

(36)

3 41/64 (92.1) / 3 45/64 (93.8

/64 (82.1) / 3 15/16 (83.8

) )

)

310.1

(

361.2

(

/ 12

)

/ 14

)

281.7

(

327.4

(

)

51.1

)

(

/ / 2

)

45.7

(

/ 1

/32 (191

)

) 100

60.7

(

Page 9

REMOVING OF MAJOR PARTS

1. Remove the stand cover fixing screws (1 pc.).

2. Remove the stand fixing screws (4 pcs.).

3. Remove the cabinet B fixing screws (12 pcs.).

4. Remove the cabinet B after opening from the direction of an arrow.

5. Detach the connector from each PWB.

LC-13SH4U LC-15SH4U

Cabinet A

Main PWB

Cabinet B

Stand

Stand cover

CN3

SC1002

SC1001

SC4201

SC2003

SC1201

P7301

CN2

SC1000

CN1

Operation PWB

P6700

P6701

SC2001

P3901

P3301

SC4001

R/C,LED PWB

SC3601

SC2002

P3902

P6702

P6703

Sub PWB

Page 10

LC-13SH4U LC-15SH4U

6. Remove the 2 lock screws from the main PWB and undo the hooks a. Detach the chassis frame, together with its terminals, from the main PWB.

7. Remove the 2 lock screws from the sub PWB and undo the hooks b, c and d. Detach the chassis frame together with its terminals, from the sub PWB.

8. Remove the 2 lock screws from the R/C, LED PWB and take out the R/C, LED PWB.

9. Remove the 2 lock screws from the operation panel (top cover), and detach the operation panel (top cover).

10. Remove the 3 lock screws from the operation PWB, and detach the operation PWB.

11. Remove the 3 lock screws each from the right and left speakers and take out both the speakers.

Main PWB

Chassis Frame

Only for LC-15SH4U Only for LC-15SH4U

Speaker (R)

R/C,LED PWB

Operation panel

(Top Cover)

Sub PWB

Operation

PWB

Speaker (L)

Only for LC-13SH4U Only for LC-13SH4U

Page 11

» Precautions in handling the LCD panels

1. Work in a clean room (with humidities below 50%).

2. Be sure to wear an anti-static armband.

3. Handle the panels on an electro-conductive mat.

4. Be careful not to fall, shake and shock the panels.

12. Remove the 4 lock screws from the LCD panel and detach the LCD panel.

13. Remove the diffusion sheets and diffusion plate.

14. Detach the lamp holders -R (top), -L (top) and -R (bottom), -L (bottom) from the lamp unit.

15. Detach the reflection sheet from the back shield.

Back shield (PSLDMA541WJFW:LC-15SH4U) (PSLDMA542WJFW:LC-13SH4U)

Lamp Holder -L (Bottom) (LHLDZA426WJKZ:LC-15SH4U) (LHLDZA435WJKZ:LC-13SH4U)

Lamp Holder -L (Top) (LHLDZA423WJKZ:LC-15SH4U) (LHLDZA434WJKZ:LC-13SH4U)

LC-13SH4U LC-15SH4U

LCD Panel Unit

Lamp Holder -R (Top) (LHLDZA424WJKZ:LC-15SH4U) (LHLDZA433WJKZ:LC-13SH4U)

Diffusion Plate (PCOVUA046WJZZ:LC-15SH4U) (PCOVUA047WJZZ:LC-13SH4U)

Diffusion Sheet, x2 (PSHEPA227WJZZ:LC-15SH4U) (PSHEPA230WJZZ:LC-13SH4U)

Reflection Sheet (PSHEPA228WJZZ:LC-15SH4U) (PSHEPA229WJZZ:LC-13SH4U)

Lamp Holder -R (Bottom) (LHLDZA425WJKZ:LC-15SH4U) (LHLDZA429WJKZ:LC-13SH4U)

Lamp Unit, x4 (KLMP-A047WJZZ:LC-15SH4U) (KLMP-A048WJZZ:LC-13SH4U)

Page 12

LC-13SH4U LC-15SH4U

» Precautions at the time of the side B(back) service of main and sub unit.

1. Remove the FFC for connection between Main unit (SC1001) and LCD panel (CN1), and connect the extended cable (QCNW-B784WJZZ) for service.

2. Remove the FFC for connection between Main unit (SC1000) and LCD panel (CN2), and connect the extended cable (QCNW-A556WJZZ) for service.

3. Remove the FFC for connection between Main unit (SC1002) and LCD panel (CN3), and connect the extended cable (QCNW-A555WJZZ) for service.

4. Remove only SC1201 side of the lead from between Main unit (SC1201) and Sub unit (P7301), and connect the extended cable (QCNW-C461WJQZ) for service.

5. Remove only SC2001 side of the lead from between Main unit (SC2001) and Sub unit (P3901), and connect the extended cable (QCNW-C461WJQZ) for service.

6. Remove only SC2002 side of the lead from between Main unit (SC2002) and Sub unit (P3902), and connect the extended cable (QCNW-D402WJQZ) for service.

7. Remove the FFC for connection between Main unit (SC2003) and Operation unit (SC4201), and connect the extended cable (QCNW-D444WJQZ) for service.

8. Remove the FFC for connection between Sub unit (SC3601) and R/C, LED unit (SC4001), and connect the extended cable (QCNW-D445WJQZ) for service.

9. Remove the PWB unit fixing screws (main unit: 2 pcs, sub unit: 2 pcs.)

Main PWB

Operation PWB

CN1

CN2

CN3

SC4201

SC1000

SC1002

SC1001

SC2003

SC1201

P7301

5 6

SC2001

P3901

SC3601

SC2002

P3902

Sub PWB

(Side B)

SC4001

R/C, LED PWB

Sub PWB

Step Part No. Description

1 QCNW-B784WJZZ Extension Cable 30-pin Main (SC1001)-LCD Panel (CN1) 2 QCNW-A556WJZZ Extension Cable 50-pin Main (SC1000)-LCD panel (CN2) 3 QCNW-A555WJZZ Extension Cable 20-pin Main (SC1002)-LCD panel (CN3) 4 QCNW-C461WJQZ Extension Cable 15-pin Main (SC1201)-Sub (P7301) 5 QCNW-C461WJQZ Extension Cable 15-pin Main (SC2001)-Sub (P3901) 6 QCNW-D402WJQZ Extension Cable 23-pin Main (SC2002)-Sub (P3902) 7 QCNW-D444WJQZ Extension Cable 5-pin Operation (SC4201)-Main (SC2003) 8 QCNW-D445WJQZ Extension Cable 8-pin R/C, LED (SC4001)-Sub (SC3601)

Main PWB

(Side B)

Page 13

ADJUSTING PROCEDURE OF EACH SECTION

The best adjustment is made before shipping. If any position deviation is found or after part replacement is performed, adjust as follows.

1. Preparations

(1) Plug the AC power cord directly into a wall outlet. [1] Adjustment procedure

1-1. Adjusting the checker

Turning on the power (initialization) → Making the model and size settings → Transferring the model-related data to the setting E2PROM (I2C)

1-2. Adjusting the finish process

Final assembling → Turning on the power → Calling the adjustment process mode (bus connector) → Adjusting the common bias, TAMP, and white balance (cut-off and gain) settings

[2] Calling the checker mode/adjustment process mode 2-1. Calling the checker mode * Keep KEY5 (pin (82) of microprocessor) at "L" and turn on the power.

KEY-4 KEY-5 Mode shift

H H Normal mode (Data is written and stored on EEP is brand-new.) L H Shift to adjustment mode HL LL

Activated with the checker-oriented master ROM values (EEP still brand-new even after the checker mode) The EEP gets initialized and the microprocessor's master values are written. (Process-adjusted settings not reprogrammed)

LC-13SH4U LC-15SH4U

2-1. Calling the adjustment process mode There are two ways to call this mode. * Turn on the power and press the "ADJUST PROCESS" key on the remote controller. * Keep KEY4 (pin (81) of microprocessor) at "L" and turn on the power. * For servicing: Hold down the INPUT key and VOL (–) key at once, and turn on the power switch.

("K" appears at the top left of the screen to indicate the inspection process mode.) → Press the CH (Ù) key and VOL (–) key at once. (The adjustment process mode screen shows up.) _ To quit, turn off the power. (Or turn off the power switch or turn off the remote controller.)

[3] Key operation in the adjustment process Basic operation Selecting the receiving channels *Using the CH (ù)/(Ù) keys, turn up and down an actual receiving channel.

Snap press: The channels are turned up and down one by one. Continuous press: The next receivable channel is searched.

*Various adjustments The items are adjusted one by one by selecting on the menu screen and using the cursor

key and VOL (+)/(–) keys. *With the CURSOR UP/DOWN keys, select an adjustment item. *Using the menu select key, the adjustment items are selected one after another.

When the bottom item on a page is already selected and the menu select key is pressed, the top item on the next

page is selected. *If any item on a page is selected and the preset key is pressed, the top item on the next page is selected.

Page 1 → Page 2 → Page 3 → Page 9 → Page 1 ... *If any item on a page is selected and the manual memory key is pressed, the top item on the same page is

selected. *Using the CURSOR LEFT/RIGHT keys and VOL (+)/(–) keys, turn up and down the setting of a selected item.

Hierarchical shift *When the ENTER key is pressed on any item other than I2C DATA on page 4, the setting page of the item shows

up. * To quit the setting page, press the front screen key.

Page 14

LC-13SH4U LC-15SH4U

[4] Initialization 4-1. Ground pins (81) and (82) of IC2001 (microprocessor) and turn on the power. 4-2. Make sure the screen size is set at "13" (LC-13SH4U), "15" (LC-15SH4U) inches. 4-3. Make sure the model number is A627A.

(Adjustment Process Menu Page 1)

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0 1 2 3 4 4 6

MOD E L 6A2

INCH S IZE

ERROR NO RESE T PUBL I C MODE

XT CONTROL

:13 (LC-13SH4U) :15 (LC-15SH4U)

[5] 5-1. Model-by-model sending data

Separately published.

OF OF

0 F FE

5-2. ROM collection

Separately published.

[6] Adjustment 6-1. Common bias adjustment

1) Feed a built-in signal.

2) Apply the specified instrument at the center of the screen.

3) Observe the instrument output on an oscilloscope.

4) Adjust the "COM BIAS" setting on Adjustment Process Page 2 so that the peak-to-peak of the wave be minimized.

6-2. T AMP adjustment

1) Receive the standard color bar signal.

2) See if the "Y" reading (maximum) on Adjustment Process Page 2 is within the range in the following table. If not, adjust the "NTSC T AMP" setting on the same page to have the "Y" reading (maximum) within this range.

Model LC-13SH4U LC-15SH4U

Setting (NTSC) 155~158 155~158

Reference (Adjustment Process Menu Page 2)

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 2

0 1 2 3 4 5 6

COM B I AS TAMP L

YDATA TAMP H NTSC TAMP

12510

51 51 21

5 8 8

Y Data

(White 75%)

Page 15

LC-13SH4U LC-15SH4U

6-3. White balance adjustment

1) Adjustment procedure Adjust the RGB CUTOFF2 setting for white 40% first and then the RGB-GAIN setting for white 80%.

(1) Adjusting the test signal

[Input signal] Feed the DVP built-in signal: White 80% (191 gradations) for the left of screen, and white 40%

(92 gradations) for the right. [Specification] RGB CUTOFF2 and RGB-GAIN settings on Adjustment Process Page 3. Adjustment spec. Inspection spec.

(LC-13SH4U) (LC-15SH4U)

White 80% x 0.277 0.283 0.004 0.01 Radius from the center

y 0.293 0.296 0.004 0.01 Radius from the center

White 40% x 0.263 0.266 0.002 0.01 Radius from the center

y 0.278 0.279 0.002 0.01 Radius from the center [Adjusting with the bus] Gain (RGB-GAIN): Cut-off (RGB CUTOFF2) (Reading with Minolta CA-210)

[7] Factory settings 7-1. Making factory settings

Use the adjustment remote controller for the factory settings.

1) Hold down the remote controller's FACTORY SETTING key.

2) Several seconds later, "SETTING COMPLETE" appears at the center of the screen. Now the settings are complete.

Fix the G setting at "0". Vary the R and B settings accordingly.

: Reduce the two strong colors Adjustment range: Down to -40

Adjustment range: ±40

SETTING COMPLETE

Page 16

LC-13SH4U LC-15SH4U

7-2. Description of Factory Settings.

Setting content/range Initial

MENU PICTURE AV MODE STANDARD/DYNAMIC/DYNAMIC(FIXED)/MOVIE/GAME DYNAMIC DYNAMIC DYNAMIC DYNAMIC

(Items other than MENU)

LAST CHANNEL LAST TV/INPUT FLASH BACK SKIP DATA_CATV ALL SKIP SKIP DATA_AIR ALL SKIP VOLUME 20 LINE OUT LEVEL(VAO) EDS CH (AUTO)

OPC ON/OFF OFF BACKLIGHT BRIGHT/NORMAL/DARK/VARIABLE VARIABLE

CONTRAST 0~60 30 45 60 25 30 BRIGHTNESS -30~+30 COLOR 0 +5 +10 0 0 TINT 00000 SHARPNESS 00000 ADVANCED COLOR TEMP. USER/HIGH/MIDDLE/LOW

RESET YES/NO NO

AUDIO TREBLE 0

BASS 0 BALANCE 0 RESET YES/NO NO

SETUP CH-SETTING EZ-SETUP YES/NO YES

MTS STEREO/SAP/MONO STEREO CLOCK SET AUTO/MANUAL AUTO

INPUT3 IN/OUT IN/OUT /OUT IN V-CHIP BLOCK SECRET No. 4 digits input Clear

CLOSED CAPTION OFF/CC1/CC2/T1/T2 OFF

COLOR SYSTEM 20 N358 N358 N358

LANGUAGE ENGLISH/ESPANOL/FRANCAIS ENGLISH

OPTION VIEW MODE 4:3/16:9/ZOOM/STRETCH 4:3

AUDIO ONLY ON/OFF OFF BLUE SCREEN ON/OFF OFF SLEEP TIMER OFF/30/60/90/120/150MIN OFF(Clear) WAKE UP TIMER TIMER ON/OFF OFF

NO SIGNAL OFF ENABLE/DISABLE NO OPERATION OFF ENABLE/DISABLE PICTURE FLIP NORMAL/MIRROR/ROTATE/UPSIDE DOWN NORMAL

ONEZ SETUP 2ch TV 2ch

RED 0 GREEN 0 BLUE 0 RESET YES/NO NO

LANGUAGE ENGLISH/ESPANOL/FRANCAIS ENGLISH CH SETTING ON/OFF ON AUTO CLOCK ON/OFF ON

AIR/CABLE AIR/CABLE AIR CH SEARCH CH MEMORY -

TIME DISPLAY ON/OFF ON

MPAA G (NONE)/BLOCK NONE

TV GUIDELINES TV-Y (NONE)/BLOCK NONE

CAN.ENGLISH RATINGS

CAN.FRENCH RATINGS

STATUS ON/OFF OFF

TIME 12:00AM~11:59PM CHANNEL CH1~125/COMPONENT1/COMPONENT2 or AV1/AV2 CH2 VOL. 0~60 20

START YES/NO YES

AUTO AUTO/[2]~[69] or [1]~[125] AUTO MANUAL DST ON/OFF OFF

PG (NONE)/BLOCK NONE PG-13 (NONE)/BLOCK NONE R (NONE)/BLOCK NONE NC-17 (NONE)/BLOCK NONE X (NONE)/BLOCK NONE

TV-Y7 (NONE)/BLOCK NONE TV-G (NONE)/BLOCK NONE TV-PG (NONE)/BLOCK NONE TV-14 (NONE)/BLOCK NONE TV-MA (NONE)/BLOCK NONE BLOCK CONTENT

C (NONE)/BLOCK NONE C8+ (NONE)/BLOCK NONE G (NONE)/BLOCK NONE PG (NONE)/BLOCK NONE 14+ (NONE)/BLOCK NONE 18+ (NONE)/BLOCK NONE G (NONE)/BLOCK NONE 8 ans+ (NONE)/BLOCK NONE 13 ans+ (NONE)/BLOCK NONE 16 ans+ (NONE)/BLOCK NONE 18 ans+ (NONE)/BLOCK NONE

TIME 12:00AM~11:59PM 12:00AM

D (BLANK)/BLOCK BLANK (UN BLOCK) L (BLANK)/BLOCK BLANK (UN BLOCK) S (BLANK)/BLOCK BLANK (UN BLOCK) V (BLANK)/BLOCK BLANK (UN BLOCK) FV (BLANK)/BLOCK BLANK (UN BLOCK)

1 (DARK) ~9 (NORMAL)~17 (BRIGHT) 17 17 17 7 9

-30~+30

-10~+10

-30~+30

-10~+10

-10(L)~+10(R)

N358/N443/PAL/PAL-M/PAL-N/SECAM/PAL60

(Only for N358/PAL-M/PAL-N in TV mode)

Value

(STANDARD) (DYNAMIC) (DYNAMIC(FIXED) (MOVIE) (GAME)

00000

MIDDLE

(TV) (AV1) (AV2)

12:00AM

DISABLE DISABLE

(AV1) (AV2) (COMPONENT1)

Page 17

LC-13SH4U LC-15SH4U

LIST OF THE ADJUSTMENT PROCESS MODE MENU

For calling the adjustment process mode and keying in this mode, refer back to "ADJUSTING PROCEDURE OF EACH SECTION".

ADJUSTMENT PROCESS 1st LEVEL ITEM DEFAULT TABLE

Page No. Item

BASIC SETTINGS

1 MODEL A627A A627A MODEL NUMBER SELECT NOT MODIFIABLE

INCH SIZE 13 15 SCREEN SIZE SELECT

ERROR NO RESET 0 0 PUBLIC MODE OFF OFF HOTEL MODE SETTING NOT USED V-CHIP 1 1 VCHIP LINE MUTE SETTING NOT USED EXT CONTROL OFF OFF BUS, UART OPEN NOT USED ROM AND GAIBU VERSION NUMBERS DISPLAYED AT THE BOTTOM.

VIDEO ADJUSTMENT

2 COM BIAS 120 120 COMMON BIAS ADJUSTMENT SEE THE ADJUSTMENT PROCEDURES.

TAMP L 155 155 YDATA — — TAMP H 158 158 NTSC TAMP 90 90 TAMP ADJUSTMENT SEE THE ADJUSTMENT PROCEDURES. PAL-M TAMP 96 96 TAMP ADJUSTMENT SEE THE ADJUSTMENT PROCEDURES. PAL-N TAMP 96 96 TAMP ADJUSTMENT SEE THE ADJUSTMENT PROCEDURES.

Initial Value

13inch 15inch (Do not change other items than designated.)

(20-INCH AND 13/15-INCH SETTING NOT SWITCHABLE IN CASE OF DIFFERENT SYSTEMS)

LAMP ERROR COUNT AND RESET

Y LOWER LIMIT SETTING AT TAMP ADJUSTMENT DATA READ VALUE AT TAMP ADJUSTMENT Y UPPER LIMIT SETTING AT TAMP ADJUSTMENT

Function

Response precautions on servicing

USED FOR ADJUSTMENT PROCESS INITIALIZATION, NOT MODIFIABLE FOR OTHER CASES. DATA REWRITE AND READJUSTMENT REQUIRED WHEN INITIALIZED. SEE THE LAMP ERROR DETECTION.

NOT USED SEE THE ADJUSTMENT PROCEDURES. NOT USED

BACKGROUND ADJUSTMENT

3 R CUTOFF2 0 0 RED CUT-OFF ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES.

G CUTOFF2 0 0 GREEN CUT-OFF ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES. B CUTOFF2 0 0 BLUE CUT-OFF ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES. R-GAIN 0 0 WHITE BALANCE ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES. G-GAIN 0 0 WHITE BALANCE ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES. B-GAIN 0 0 WHITE BALANCE ADJUSTMENT 2 SEE THE ADJUSTMENT PROCEDURES. RGB GAMMA 1.0 1.0 RGB γ COEFFICIENT SETTING NOT USED

TABLE OF VARIOUS SETTINGS

9I2C DATA 0 0

I2C DATA WAIT WAIT WRITE AND READ EXECUTED NOT USED SOUND — — DVP — — TUNER — — OTHERS — —

I2C BUS CONTROL IC DATA WRITE AND READ

SHIFT TO THE SOUND ADJUSTMENT PAGE SHIFT TO THE DVP ADJUSTMENT PAGE SHIFT TO THE TUNER ADJUSTMENT PAGE SHIFT TO THE OTHER ADJUSTMENT PAGE

NOT USED

USE ENTER KEY TO GO TO THE SOUND ADJUSTMENT PAGE. USE ENTER KEY TO GO TO THE TC ADJUSTMENT PAGE. USE ENTER KEY TO GO TO THE TUNER ADJUSTMENT PAGE. USE ENTER KEY TO GO TO THE OTHER ADJUSTMENT PAGE.

AUDIO ADJUSTMENT PROCESS SPECIFICATIONS

Page No. Item

AUDIO ADJUSTMENT

SOUND1 VOLUME 20 20 SOUND VOLUME NOT USED

MSP DATA 0 0 MSP DATA WAIT WAIT CARRIER MUTE ON ON IGR THR 12D 12D IGR THRESH LEVEL NOT USED

Initial Value

13inch 15inch (Do not change other items than designated.)

AUDIO IC MSP DATA WRITE AND READ WRITE AND READ EXECUTED AUDIO OUTPUT SETTING WITHOUT TV SYNC

Function

Response precautions on servicing

NOT USED NOT USED NOT USED

AUDIO ADJUSTMENT

SOUND2 PRESCALE SCART 27 27

PRESCALE FM/AM-M 31 31 PRE-SCALE SETTING (TV) NOT USED

PRE-SCALE SETTING (EXTERNAL INPUT)

NOT USED

Page 18

LC-13SH4U LC-15SH4U

Page No. Item

AUDIO ADJUSTMENT

SOUND3 BAND1 MIN TV -0400 -0400

OTHER

BAND1 CNT TV +0400 +0400

OTHER

BAND1 MAX TV +1200 +1200

OTHER

BAND2 MIN TV -0400 -0400

OTHER

BAND2 CNT TV -0100 -0100

OTHER

BAND2 MAX TV +0200 +0200

OTHER

BAND3 MIN TV -0250 -0250

OTHER

AUDIO ADJUSTMENT

SOUND4 BAND4 MIN TV +0150 +0150

OTHER

BAND4 CNT TV +0450 +0450

OTHER

BAND4 MAX TV +0750 +0750

OTHER

BAND5 MIN TV -0525 -0525

OTHER

BAND5 CNT TV +0275 +0275

OTHER

BAND5 MAX TV +1075 +1075

OTHER

Initial Value

13inch 15inch (Do not change other items than designated.)

-0400 -0400

+0400 +0400

+1200 +1200

-0400 -0400

-0100 -0100

+0200 +0200

-0250 -0250

+0150 +0150

+0450 +0450

+0750 +0750

-0525 -0525

+0275 +0275

+1075 +1075

Function

EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV) EQUALIZER SETTING (WITH TV INPUT) EQUALIZER SETTING (WITH OTHER INPUT THAN TV)

Response precautions on servicing

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

AUDIO ADJUSTMENT PROCESS SPECIFICATIONS

Page No. Item

VIDEO ADJUSTMENT

DVP1 DVP DATA 0000 F0 ------(----)

DVP TEST PATTERN 0 0 TEST PATTERN SELECT VCDOFFSET 15 15 VCDWINDOW 30 30

VIDEO ADJUSTMENT

DVP3 N358 TV CONTRAST 128 128 IMAGE SETTING (TV) NOT USED

N358 AV CONTRAST 128 128 N358 TV BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED N358 AV BRIGHT 128 128 N358 TV COLOR 40 40 COLOR DENSITY SETTING (TV) NOT USED N358 AV COLOR 40 40 N358 TV TINT 128 128 TINT SETTING (TV) NOT USED N358 AV TINT 128 128 N358 TV SHRAP V 100 100 N358 AV SHARP V 100 100 N358 TV SHRAP H1 150 150 N358 AV SHARP H1 150 150 N358 TV SHRAP H2 130 130 N358 AV SHARP H2 150 150

Initial Value

13inch 15inch (Do not change other items than designated.)

——

DVP-RELATED GENERAL-PURPOSE VARIABLE SETTINGS

VERTICAL COUNT-DOWN MINIMUM OSCILLATION CYCLE VERTICAL COUNT-DOWN SYNC RANGE

IMAGE SETTING (COMPOSITE, S VIDEO)

BRIGHTNESS SETTING (COMPOSITE, S VIDEO)

COLOR DENSITY SETTING (COMPOSITE, S VIDEO)

TINT SETTING (COMPOSITE, S VIDEO) V PICTURE QUALITY SETTING (TV) V PICTURE QUALITY SETTING (COMPOSITE, S VIDEO) H PICTURE QUALITY SETTING 1 (TV) H PICTURE QUALITY SETTING 1 (COMPOSITE, S VIDEO) H PICTURE QUALITY SETTING 2 (TV) H PICTURE QUALITY SETTING 2 (COMPOSITE, S VIDEO)

Function

NOT USED SEE THE ADJUSTMENT PROCESS MODE TEST PATTERNS. NOT USED NOT USED

NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

Response precautions on servicing

Page 19

LC-13SH4U LC-15SH4U

Page No. Item

VIDEO ADJUSTMENT

DVP4 N443 AV CONTRAST 128 128

N443 AV BRIGHT 128 128 N443 AV COLOR 37 37 N443 AV TINT 128 128 N443 AV SHARP V 100 100 N443 AV SHARP H1 150 150 N443 AV SHARP H2 150 150

VIDEO ADJUSTMENT

DVP5 PAL AV CONTRAST 128 128

PAL AV BRIGHT 128 128 PAL AV COLOR 37 37 PAL AV TINT 128 128 PAL AV SHARP V 100 100 PAL AV SHARP H1 150 150 PAL AV SHARP H2 150 150

VIDEO ADJUSTMENT

DVP6 SECAM AV CONTRAST 128 128

SECAM AV BRIGHT 128 128 SECAM AV COLOR 37 37 SECAM AV TINT 128 128 SECAM AV SHARP V 100 100 SECAM AV SHARP H1 150 150 SECAM AV SHARP H2 150 150

Initial Value

13inch 15inch (Do not change other items than designated.)

Function

IMAGE SETTING (COMPOSITE, S VIDEO) BRIGHTNESS SETTING (COMPOSITE, S VIDEO) COLOR DENSITY SETTING (COMPOSITE, S VIDEO) TINT SETTING (COMPOSITE, S VIDEO) V PICTURE QUALITY SETTING (COMPOSITE, S VIDEO) H PICTURE QUALITY SETTING 1 (COMPOSITE, S VIDEO) H PICTURE QUALITY SETTING 2 (COMPOSITE, S VIDEO)

Response precautions on servicing

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

VIDEO ADJUSTMENT

DVP7 PAL60 A V CONT 128 128

PAL60 AV BRIGHT 128 128 PAL60 AV COLOR 37 37 PAL60 AV TINT 128 128 PAL60 AV SHARP V 100 100 PAL60 AV SHARP H1 150 150 PAL60 AV SHARP H2 150 150

VIDEO ADJUSTMENT

DVP8 PAL-M TV CONTRAST 128 128 IMAGE SETTING (TV) NOT USED

PAL-M AV CONTRAST 128 128 PAL-M TV BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED PAL-M AV BRIGHT 128 128 PAL-M TV COLOR 37 37 COLOR DENSITY SETTING (TV) NOT USED PAL-M AV COLOR 37 37 PAL-M TV TINT 128 128 TINT SETTING (TV) NOT USED PAL-M AV TINT 128 128 PAL-M TV SHRAP V 100 100 PAL-M AV SHARP V 100 100 PAL-M TV SHRAP H1 150 150 PAL-M AV SHARP H1 150 150 PAL-M TV SHRAP H2 130 130 PAL-M AV SHARP H2 150 150

IMAGE SETTING (COMPOSITE, S VIDEO)

BRIGHTNESS SETTING (COMPOSITE, S VIDEO)

COLOR DENSITY SETTING (COMPOSITE, S VIDEO)

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

Page 20

LC-13SH4U LC-15SH4U

Page No. Item

VIDEO ADJUSTMENT

DVP9 PAL-N TV CONTRAST 128 128 IMAGE SETTING (TV) NOT USED

PAL-N AV CONTRAST 128 128 PAL-N TV BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED PAL-N AV BRIGHT 128 128 PAL-N TV COLOR 37 37 COLOR DENSITY SETTING (TV) NOT USED PAL-N AV COLOR 37 37 PAL-N TV TINT 128 128 TINT SETTING (TV) NOT USED PAL-N AV TINT 128 128 PAL-N TV SHARP V 100 100 PAL-N AV SHARP V 100 100 PAL-N TV SHARP H1 150 150 PAL-N AV SHARP H1 150 150 PAL-N TV SHARP H2 130 130 PAL-N AV SHARP H2 150 150

VIDEO ADJUSTMENT

DVP10 525I CONT 133 133 IMAGE SETTING (TV) NOT USED

525I BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED 525I COLOR 52 52 COLOR DENSITY SETTING (TV) NOT USED 525I TINT 128 128 TINT SETTING (TV) NOT USED 525I SHARP V 100 100 525I SHARP H1 150 150 525I SHARP H2 150 150 525P CONT 133 133 525P BRIGHT 128 128 525P COLOR 52 52 525P TINT 128 128 525P SHARP V 130 130 525P SHARP H1 120 120 525P SHARP H2 120 120

Initial Value

13inch 15inch (Do not change other items than designated.)

IMAGE SETTING (COMPOSITE, S VIDEO)

BRIGHTNESS SETTING (COMPOSITE, S VIDEO)

COLOR DENSITY SETTING (COMPOSITE, S VIDEO)

V PICTURE QUALITY SETTING (TV) H PICTURE QUALITY SETTING 1 (TV) H PICTURE QUALITY SETTING 2 (TV) IMAGE SETTING (COMPOSITE, S VIDEO) BRIGHTNESS SETTING (COMPOSITE, S VIDEO) COLOR DENSITY SETTING (COMPOSITE, S VIDEO) TINT SETTING (COMPOSITE, S VIDEO) V PICTURE QUALITY SETTING (TV) H PICTURE QUALITY SETTING 1 (TV) H PICTURE QUALITY SETTING 2 (TV)

Function

NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

Response precautions on servicing

VIDEO ADJUSTMENT

DVP11 625I CONT 133 133 IMAGE SETTING (TV) NOT USED

625I BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED 625I COLOR 52 52 COLOR DENSITY SETTING (TV) NOT USED 625I TINT 128 128 TINT SETTING (TV) NOT USED 625I SHARP V 100 100 625I SHARP H1 150 150 625I SHARP H2 150 150 625P CONT 133 133 625P BRIGHT 128 128 625P COLOR 52 52 625P TINT 128 128 625I SHARP V 130 130 625I SHARP H1 120 120 625I SHARP H2 120 120

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

Page 21

ADJUSTMENT PROCESS TUNER ITEM DEFAULT TABLE

Page No. Item

VIDEO ADJUSTMENT

DVP12 1125I CONT 133 133 IMAGE SETTING (TV) NOT USED

1125I BRIGHT 128 128 BRIGHTNESS SETTING (TV) NOT USED 1125ICOLOR 52 52 COLOR DENSITY SETTING (TV) NOT USED 1125I TINT 128 128 TINT SETTING (TV) NOT USED 1125I SHARP V 100 100 1125I SHARP H1 100 100 1125I SHARP H2 100 100 750P CONT 133 133 750P BRIGHT 128 128 750P COLOR 52 52 750P TINT 128 128 750P SHARP V 100 100 750P SHARP H1 100 100 750P SHARP H2 100 100

TUNER SETTINGS

TUNER1 AFT UP 1.80 1.80

AFT DOWN 1.20 1.20 LSYNC 150 150 HSYNC 162 162 AVSYNC 1 1 COMPSYNC 3 3 EDS TEST 10 10

Initial Value

13inch 15inch (Do not change other items than designated.)

AFT VOLTAGE REFERENCE LEVEL (ALL BANDS) AFT VOLTAGE REFERENCE LEVEL (ALL BANDS) SYNC JUDGMENT THRESHOLD (TV) SYNC JUDGMENT THRESHOLD (TV) SYNC JUDGMENT THRESHOLD (EXTERNAL INPUT) SYNC JUDGMENT THRESHOLD (COLOR DIFFERENCE INPUT) DURATION UNTIL JUDGMENT OF NO EDS TIME DATA (SECONDS)

Function

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED

LC-13SH4U LC-15SH4U

Response precautions on servicing

TUNER SETTINGS

TUNER2 AFT FARTIME 50 50

AFT NEARTIME 30 30 AFT NEARMTIME 10 10 AFT 1STEPTIME 10 10 AFT CSYNCTIME 50 50

OTHERS

OTHERS1 DAC DATA 00--- — —

L ERROR WAIT 15s 15s L ERROR H TIME 1.0s 1.0s LAMP ERROR DETECT TIME NOT USED TV AUTO GAIN OFF OFF UTO GAIN SETTING FOR TV NOT USED PWM FREQ 150 150 PWM DUTY 0 0 OPC THRESHOLD 24 24 INPUT LEVEL THRESHOLD FROM NOT USED

HOTEL POWERFIX OFF OFF COMP SYSTEM AUTO AUTO REMOCON CODE DISPLAYED AT THE BOTTOM

OTHERS2 3D Y/C 0 0 3D ON/OFF SETTING NOT USED

3DY/C DATA 0 0 3D YC DATA WRITE AND READ NOT USED 3DY/C DATA WAIT WAIT WRITE AND READ EXECUTED NOT USED KIL OFF OFF FORCED KILLER SETTING FOR NOT USED

CLOSED CAPTION 15 15

CHANNEL PRESET TIME ADJUSTMENT 1 CHANNEL PRESET TIME ADJUSTMENT 2 CHANNEL PRESET TIME ADJUSTMENT 3 CHANNEL PRESET TIME ADJUSTMENT 4 CHANNEL PRESET TIME ADJUSTMENT 5

DAC-RELATED GENERAL-PURPOSE VARIABLE SETTINGS LAMP ERROR DETECT WAIT TIME

DIMMER FREQUENCY SETTING (IN HZ) DIMMER DUTY SETTING

BRIGHTNESS SENSOR STOP MODE TO OPERATION MODE USED FOR FIXED HOTEL MODE POWER ON COMPONENT SIGNAL SELECT IN ADJUSTMENT PROCESS

SIGNAL WITHOUT COLOR BURST CLOSED CAPTION THRESH LEVEL

NOT USED NOT USED NOT USED NOT USED NOT USED

NOT USED

NOT USED NOT USED

NOT USED

Page 22

LC-13SH4U LC-15SH4U

EDS DATA SHOULD DISPLAYED AT THE BOTTOM

Adjustment process auto clock display

01234567891011121314151617181920212223242526272829303132333435363738 0OTH 1 2 3 4 5 6 7 8 9

RS 2 3D Y/ C 3DY/ C DATA 3DY/ C DATA KI L CL OSED CAPTI ON

Time of Day (Greenwich Mean Time)

0~23 0~59 1990+X 1~12 1~31 ~7 0~23 TIME MIN YEAR MONTH DAY WEEK TIME

10 00 00 00 00: 00. 0 00

1(=SUN)

Time of Day (Greenwich Mean Time)

Reset SEC

D bit

11 D 0 L 0 Z 0 D 0 12 0 0 0 0 13

* In the adjustment process, the local time can be freely obtained. Each time the local time is known, the colors of the following items change accordingly. (1) Time of Day (Greenwich Mean Time) (2) Local Time Zone & DST Use (3) Start code

L bit Z bit D bit

Local Time Zone & DST Use

Start code

Page 23

TEST PATTERN IN THE ADJUSTMENT PROCESS MODE

IC1201 (LCD controller) test pattern

1) Getting the test pattern displayed Call the adjustment process mode, select "DVP" on page 4, and press the ENTER button. Next select "DVP TEST PATTERN" in line 2 on page 1. (The "DVP TEST PATTERN" turns yellow.) Now use the cursor RIGHT/ LEFT keys to get the test pattern displayed. To quit the test pattern, enter "0" in the "DVP TEST PATTERN" setting. The test pattern is kept onscreen even by pressing the RETURN UP/DOWN buttons. The test pattern display is cancelled when the power is turned off, and the usual display appears instead when the power is turned on again.

2) Test pattern displayed The following test pattern appears onscreen.

» The DVP test pattern comes in 22 different types.

Black & white (Size:Minimum)

2 Black & white (Size:Small) 3

Black & white (Size:Medium)

4 Black & white (Size:Large) 5

Crosshatch (Spacing:Minimum)

LC-13SH4U LC-15SH4U

Crosshatch (Spacing:Small)7 Crosshatch (Spacing:Medium)8 Crosshatch (Spacing:Large)9 Color bar (Spacing:Minimum)

Color bar (Spacing:Medium)

Vertical lamp (Spacing:Medium)

Color bar (Spacing:Large)

Black-background pattern

13 Lamp (Spacing:Small) 14

18 White 100% 19

Lamp (Spacing:Medium)

White 50%

10 Color bar (Spacing:Small)

Vertical lamp (Spacing:Small)

20 Red-background pattern

21 Green-background pattern 22

Blue-background pattern

Page 24

LC-13SH4U LC-15SH4U

PUBLIC MODE SETTING PROCEDURE

1. How to start Public Mode

» There are the following two ways to get the public mode setup screen displayed.

1 1) Press the "INPUT" and "VOL (+)" keys on the set at once and turn on the power.

2) Get the password input screen displayed.

Procedure

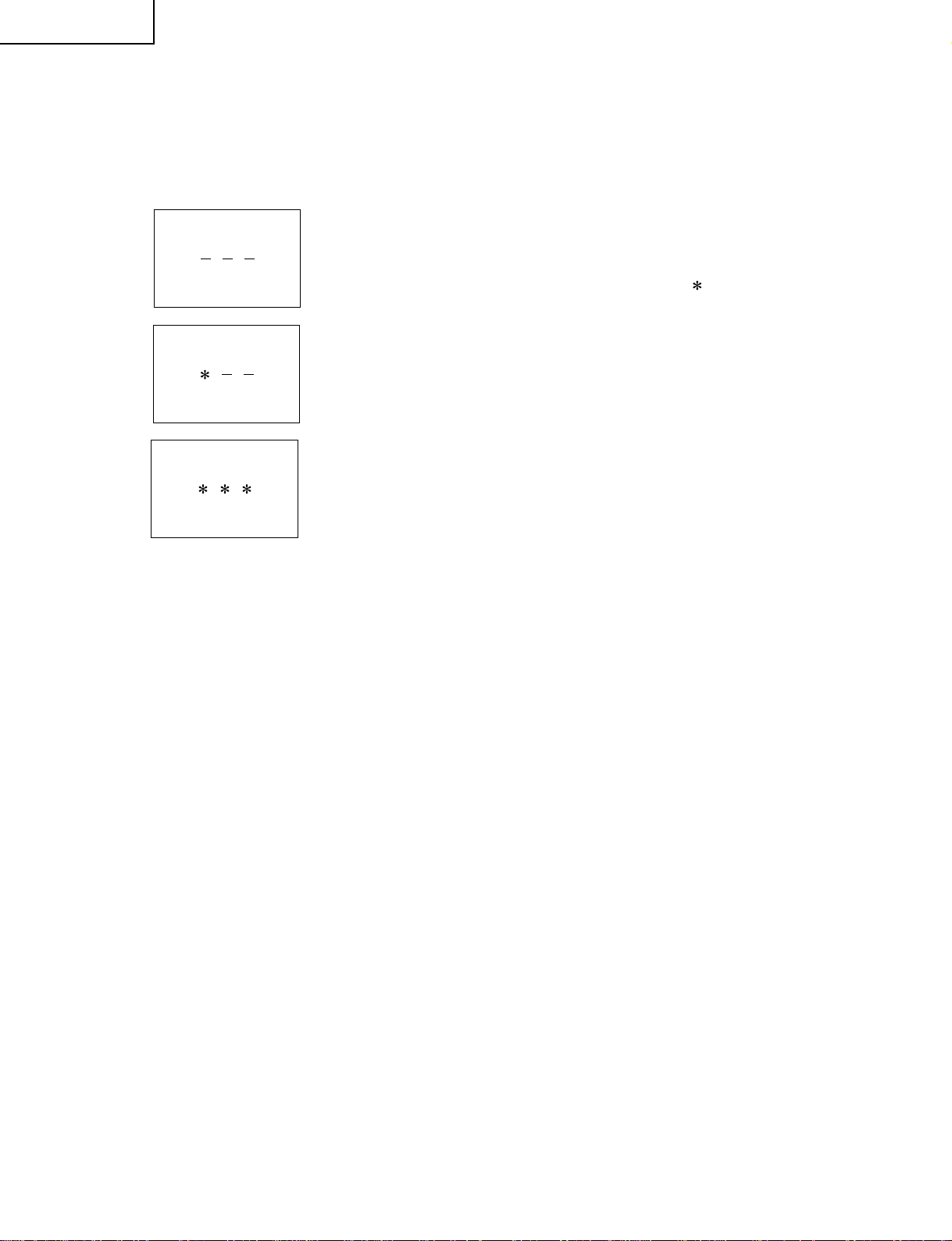

» The input starts with the leftmost digit. » Use the numeric keys [1] thru [9] and [10/0] keys on the remote con-

troller. The other keys are not acceptable.

» With a numeric-key input, "–" will change to " ". The input position

will move one digit to the right.

» With all the 3 digits entered, the password will be verified.

3) The 3-digit password is now verified. The password [0] [2] [7] provides for the public mode screen. (This screen comes on with whatever adjustment process settings.) With any other passwords, the screen changes to the normal mode.

2 In the adjustment process mode, turn on "PUBLIC MODE". Also press the "CH (ù)" and "VOL (+)" keys on

the set at once and turn on the power.

Page 25

LC-13SH4U LC-15SH4U

2. How to exit Public Mode

There are the following ways to quit the public mode setup screen. » Turn off "PUBLIC MODE" in the adjustment process mode. (✩) ← This way alone is not for quitting the setup

screen, but for quitting the mode itself.

» Turn off the power with the "POWER" key. (★) » Select "ENTER". (★) » Move the cursor to "RESET" and press the "FLASHBACK" key. (Back to the normal mode screen)(✩)

★ ... "PUBLIC MODE" stays on in the adjustment process mode. ✩ ... The settings will be back to the factory ones.

3. Public Mode Setting Values

» With the factory settings made, the public mode settings get initialized. (The adjustment process remains intact.)

4. Public Mode Menu

The guidance is not displayed onscreen. Setup procedure

» To move the cursor up and down, use the "cursor UP/DOWN" key (remote controller) and "CH (ù)/(Ù)" key

(remote controller and set).

» To change the settings, use the "cursor RIGHT/LEFT" key (remote controller) and "VOL (+)/(–)" key (remote

controller and set).

» To save new settings, keep the cursor at "Enter" and use the "cursor RIGHT/LEFT" key (remote controller) and

"VOL (+)/(–)" key (remote controller and set).

Public mode Power on fixed [Variable ] Maximum volume [ 60 ] Volume fixed [Variable ] Volume fixed level [ 20 ] RC button [Respond ] Panel button [Respond ] Menu button [Respond ] On screen display [Yes ] Input mode start [Normal ] Input mode fixed [Variable ] Sound only mode [No ] Reset Enter

Page 26

LC-13SH4U LC-15SH4U

5. On Setting Items

* "EZ-SETUP" discussed below indicates "EZ-SETUP after the first power-on". (1) POWER ON FIXED

Selection Default Explanation

Limit in Setting Exception Remarks

(2) MAXIMUM VOLUME

Selection Default Explanation Limit in Setting

Exception

Remarks

Selection between

"Variable" and "Fixed" (loop provided)

– (Variable) In

"Fixed" setting, the power-off by the power key of the unit is invalidated and the image is kept being

received. The power can be turned off by stopping the power supply from AC. Refer to the

"Power-On Fixed" sheet.

None

» Selection of "FIXED" depends on use of STB etc. » In "Variable" setting, the power operation is in wait for 1 sec. and then turned off when the main power

switch is off.

» Display ON/OFF in hotel menu is controlled by adjustment process "HOTEL POWERFIX".

Adjustment from 1 to 60 (no loop) 60 Sound volume can not be adjusted higher than the preset value.

» When the sound volume is set lower than 59, only figures are displayed and the sound volume bar is not

displayed.

» The maximum sound volume for ON-timer (Wake up timer) is limited also to the preset value. » In the item "VOLUME" of adjustment process, the sound volume can be set freely irrespective of this

setting.

» Setting is valid only for the speakers of the unit. (As for the headphone, the sound volume can be set up

to 60 irrespective of the limit.)

» In line output (sound volume variable), the sound volume can be adjusted from -60 to 0 irrespective of

pre-adjusted value.

» When the sound volume is set higher than the MAX setting by the adjusting process or headphone, the

sound volume control operation is prohibited for turn-up and the sound volume should be turned down to MAX in this state.

(3) VOLUME FIXED

Selection Default Explanation Limit in Setting

Exception

Remarks

Selection between Variable Sound volume is fixed and made invariable.

» The sound volume for the ON-timer (Wake up timer) is fixed also without display of menu. Besides, the

» The following keys become invalid:

» In the item "VOLUME" of adjustment process, the sound volume can be set freely irrespective of this » In "Variable" setting, the sound volume had been conventionally set at 1 but this operation has been

» The sound volume for the ON-time is not set at 1 either and the sound volume set value of the ON-timer

» Setting is valid only for the speakers of the unit. (As for the headphone, the sound volume can be set up

» In line output (sound volume variable), the sound volume can be adjusted from -60 to 0 irrespective of

» As for sound volume fixing and sound volume MAX level, the sound volume fixing has priority. » Once the sound volume has been changed by adjustment process or headphone, it should be set back to

"Variable" and "Fixed" (loop provided)

setting is made impossible. (Basically, the menu is not displayed.)

» Sound volume Up/Down (VOL +/-) [for both remote control and the unit] » Mute (MUTE)

setting.

abolished (and follows the last memory).

before executing the hotel mode is held.

to 60 irrespective of the limit.)

pre-adjusted value.

the sound volume preset by sound volume fixing level when the adjustment process ends or when the headphone is removed.

Page 27

(4) VOLUME FIXED LEVEL

Selection Default Explanation Limit in Setting Exception Remarks

Adjustment from 1 to 60 (no loop) 10 The sound volume to be fixed by None None Setting is valid only when This must be confirmed actually by changing also the sound volume in accordance with setting.

(5) R/C BUTTON

Selection Default Explanation Limit in Setting

Exception

Remarks

Selection between Respond Keys acceptable by remote control are limited or reception of keys can be prohibited. 1In

"limited" setting, only power ON/OFF, sound volume '", tuning '" and BACKLIGHT (brightness

sensor) are accepted.

2In

"No respond" setting, all the keys (including the power key) are not accepted.

» Adjustment process, factory setting, inspection process and hotel only keys are valid irrespective of set-

ting.

» All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting. » All the keys can be used also in the initial EZ-Setup after power-ON irrespective of setting.

LC-13SH4U LC-15SH4U

"Volume fixed" is determined.

"Volume fixed" is selected for "fixed".

"Respond", "Limited" and "No respond" (loop provide)

(6) PANEL BUTTON

Selection Default Explanation Limit in Setting Exception

Remarks

Selection between Respond All the operations by keys (except the power key) of the unit can be invalidated.

» Inspection mode and hotel menu mode can be started irrespective of setting. » All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting. » In U.S.A model, all the keys can be used also in the initial EZ-Setup after power-ON irrespective of

setting.

(7) MENU BUTTON

Selection Default Explanation

Limit in Setting

Exception

Remarks

Selection between Respond In unit are invalidated.

» ON-timer (Wakeup Timer) is turned OFF. » The following keys become invalid.

Wake-up timer and clock setting keys and all of the direct change keys to menu display

» Inspection mode and hotel menu mode can be started irrespective of setting. » All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting. » All the keys can be used also in the initial EZ-Setup after power-ON irrespective of setting.

"Respond" and "No respond" (loop provide)

"No respond" setting, the menu operation by the menu key of the remote control and the menu key of the

Page 28

LC-13SH4U LC-15SH4U

(8) ON SCREEN DISPLAY

Selection Default Explanation

Limit in Setting

Others

Exception

Remarks

Selection between "Yes" , "Limited" (loop provide) Yes The following OSD displays are made ineffective. Displays of menu group, channel call, sound volume bar and direct key call

» ON-timer (Wake-up timer) is cleared and set to "OFF". » Set time of the OFF-timer (SLEEP TIMER) is cleared. » Setting of the no-signal power-OFF (AUTO POWER OFF) is cleared to "OFF". » Setting of the no-operation power-OFF is cleared to "OFF". » Keys falling under any of the following items become invalid.

» Simple input switching is generated. Those which are restored soon after leaving as they are and may be

» Such a caution which is displayed independently is displayed as it is. » In "No" setting, the setting of "SOUND ONLY MODE" is changed to "OFF" and selecting operation is

» When CC has already been ON, CLOSED CAPTION is displayed.

1Appearance of screen changes and the sound changes. 2Personal functions which are hard to restore.

Ex.) Screen display, menu, OFF-timer, ON-timer, AV MODE, screen size switching, clock setting, treble emphasis, AUDIO ONLY, sound changeover, LANGUAGE, CLOSED CAPTION

requested for change by customer are not prohibited. Ex.) Brightness sensor (BACKLIGHT) and PIC. FLIP

Non-responding signal caution, V-Chip caution and power-ON fixing caution

made prohibited.

(9) INPUT MODE START

Selection Default Explanation

About options

Limit in Setting Exception Remarks

Selection between Normal In power-ON, the input source to be started or channel can be set. (In standard mode, the operation follows the last memory.)

» All the input sources in the model are made selectable. » When the input/output switchable input source is selected and the input source is set to output, the setting

of input/output switching is changed to input at the execution of hotel menu. In addition, the input/output switching by menu is prohibited.

» In TV mode, the display of all channels is stopped and it is treated as an input source. At this time, the

channel to be set follows the last memory and the content of the last memory is included in the notation by options. Ex.) TV (CH2), TV (CH4) etc.

» The order of appearance of options in the hotel menu should agree with the order of toggles by input

switching key.

» The display of channel setting menu and the channel setting operation are prohibited (except for MCL). » In the start by "ON-timer (Wake-up timer)", the channel set by ON-timer (Wake-up timer) has priority. » In setting at "Normal", the setting of "Input mode fixed" is changed to "Variable" and selection should be

prohibited.

"Normal" , "TV (CH~)" "COMPONENT" "AV1" and "AV2" (loop provide)

Page 29

(10) INPUT MODE FIXED

Selection Default Explanation

Limit in Setting

Exception Remarks

Selection between – (Variable) The input mode is fixed at the input source or the channel set at the sources and channels can be made non-selectable.

» With the execution of hotel mode, the input source is forced to change to that set by "Input mode start"

and the channel switching and input switching are prohibited thereafter.

» ON-timer's (Wake-up timer) channel items are not displayed or the operation is prohibited. (Basically, they

are not displayed.)

» The following keys are invalidated.

CH '", direct tuning button, FLASHBACK, input ~However, the keys (input switching and CH '" keys) of the unit for menu operation remain valid.

None

» In the following case, setting is cancelled and mode is changed to "Variable".

1When the setting of

(11) SOUND ONLY MODE

Selection Default Explanation Limit in Setting Exception Remarks

Selection between No It is possible to turn off the image and add the mode to enjoy sound only. Refer to the sound only mode sheet. None

» When the set value of "On screen display" is "Limited", setting is cancelled to be "NO".

LC-13SH4U LC-15SH4U

"Variable" and "Fixed" (loop provide)

"Input mode start" in 9 and other input

"Input mode start" is set to "Standard (Normal)"

"No" and "Yes" (loop provide)

Page 30

LC-13SH4U LC-15SH4U

Sound only mode function specifications

1 Behavior of the remote control BACKLIGHT button.

BACKLIGHT [BRIGHT]→BACKLIGHT [NORMAL]→ BACKLIGHT [DARK]→BACKLIGHT [AUTO]→BACKLIGHT [OFF]→BACKLIGHT [BRIGHT] (The "OFF" setting is added while the remote control BACKLIGHT button is effective. With "YES" selected in "SOUND ONLY MODE".)

2 When the "OFF" mode is selected, the screen becomes mute, the following message appears and the time is

counted down. (Sound only mode setup process) The time indication "IN 5 SEC" appearing in the message gets counted down. IN 5 SEC → IN 4 SEC → IN 3 SEC → IN 2 SEC → IN 1 SEC When the 5 seconds have passed, the backlight error detect function becomes off, the backlight turns off and the message disappears. (Sound only mode process)

BACKLIGHT [OFF] TURNS OFF IN 5 SECS

Screen mute

At a temporary reset, the count-down does not take place and the following message appears. (In this case too, the backlight error detect function becomes off, the backlight turns off and the message disappears in 5 seconds.)

Screen mute

BACKLIGHT

[OFF] PRESS

BACKLIGHT

TO CANCEL

3 The key functions in the sound only mode setup process and sound only mode process are referred to in

"Table of Key Allocation in Sound Only Mode" and "Table of Key Functions in Sound Only Mode"

4 To turn off the power with the power key , off-timer or no-signal power supply in the sound only mode, first end

the sound only mode, then call the BACKLIGHT mode, and finally turn off the power.

5 Let's suppose that the power is on and the BACKLIGHT mode is of f. In this case, call the BACKLIGHT mode

first and then get started.

6 If the BACKLIGHT mode is turned off with the sound mute, the sound only mode setup process (caution

displayed) goes on with no sound. Once the sound only mode is set up, the sound mute gets cleared (just when the backlight turns off). The sound volume level at this clearing will be the same as before the sound mute action.

7 To activate the V-CHIP block, make a temporary reset and keep on the caution display until the block is

unlocked. The screen background will be black, not blue.

8 The closed caption is ignored (including the temporary reset).

Page 31

Table of Key Allocation in Sound Only Mode (Unit keys/Remote control keys)

LC-13SH4U LC-15SH4U

Unit keys

Remote control

Key POWER INPUT MENU CH VOL POWER PIC.FLIP DISPLAY SLEEP MENU CURSOR ENTER BACKLIGHT MUTE MTS INPUT VOL AUDIO ONLY CH FLASHBACK CH1~10/0 CH100 CLOSED CAPTION AV MODE MENU RETURN

Released Temporary reset Released Temporary reset Temporary reset Released Released Temporary reset Temporary reset Released Released Released Special reset Temporary reset Temporary reset Temporary reset Temporary reset Released Temporary reset Temporary reset Temporary reset Temporary reset Temporary reset Released Released

Allocation

* When the VOLUME FIXED, INPUT MODE FIXED or other fixed status is set up, this status is given priority.

Table of Key Functions in Sound Only Mode

Key

Sound only mode setup process Sound only mode process Special reset key » Mute cleared. » Backlight on. BACKLIGHT » Message deleted. » Backlight error detect on.

» BACKLIGHT mode turned on. Sound only mode clear guide message

(Sound only mode ended) displayed.

Released key » Mute cleared. » Backlight on.

» Message deleted. » Backlight error detect on. » BACKLIGHT mode turned on. » Mute cleared

(Sound only mode ended)

Temporary reset key » BACKLIGHT mode temporarily turned on » BACKLIGHT mode temporarily turned on

(Externally OFF). (Externally OFF).

» Message deleted. » Backlight on. » Description of pressed key displayed for 3 » Backlight error detect on.

seconds.

» Sound only mode setup message displayed. seconds.

(Current BACKLIGHT mode status displayed)» Sound only mode setup message displayed.

Functions

(Current BACKLIGHT mode status displayed)

» BACKLIGHT mode turned on.

(Sound only mode ended)

» Description of pressed key displayed for 3

(Current BACKLIGHT mode status displayed)

Page 32

LC-13SH4U

Check the secondary

load of T7001.

Is the primary

oscillation wave of

T7001 as specified?

Are the secondary

outputs of T7001 +5V,

-12V, +35V and +9V?

Is the output voltage of

IC1203 as specified?

Check the load of IC701

thru IC703.

Is pin (10) of IC1203 at

"H"?

Check the load of IC1203

and its peripheral

circuits.

Check the connections

between pin (4) of

SC2003 and pin (2) of

SC4201.

Is there DC 12V input at

T7701 and pin (8) of

IC7301?

Check T7701, IC7701

and their peripheral

circuits.

Check T7701, IC7701

and their peripheral

circuits.

Is there DC 18V input at

F6701 thru F6704?

Check the primary side

of T7001, IC7301 and

its peripheral circuits.

Disconnect F6701 thru

F6704. Is the load short-

circuited?

Check the related

line, IC1004 and its

peripheral circuits.

Is pin (187) of IC1004

at "H" or pulse?

Check the inverter unit

and fluorescent lamp,

and replace as required.

Check the primary side

of T7001, Q3305 and

its peripheral circuits.

No video and audio output (no power) No fluorescent lamp light-up

No No

Are F6701 thru F6704 as

specified?

Replace F6701 thru

F6704.

Yes

Yes Yes

Check the microprocessor's adjustment process menu for wrong settings.

LC-15SH4U

TROUBLE SHOOTING TABLE

Page 33

TROUBLE SHOOTING TABLE (Continued)

No video output

No No No No

Are the input and

output of IC1004

as specified?

Check IC1004

and its peripheral

circuits.

Check the power

line.

Check the

related line.

Check the

related line.

Is the input at pin

(24) of S terminal

detector IC2003

as specified?

Are the inputs at pins (21),

(33) and (44) of IC1004 as

specified?

Check the D-Y, D-PB and

D-PR lines of SC2001.

Check IC1004

and its peripheral

circuits.

Is the input at pin

(24) of S terminal

detector IC2003

as specified?

Is the input at pin

(40) of IC1004 as

specified?

Are the voltages

at pins (6), (7)

and (9) of tuner

as specified?

No image at all

Check the microprocessor's adjustment process menu for wrong settings.

No TV output No Video 1 output No S Video output No Component output

Check the LCD

panel voltage

and waveform.

Yes

Check the

related line.

Yes

Check IC1004

and its peripheral

circuits.

Are the inputs at

pins (31) and

(42) of IC1004 as

specified?

Yes

Check the

related line.

Yes

Check the tuner

and its peripheral

circuits.

Is the output at

pin (19) of tuner

as specified?

Yes

Check the

related line.

LC-13SH4U LC-15SH4U

Page 34

LC-13SH4U

No audio output

No sound from right and left speakers

Is sound heard in any input mode (TV,

Video or Component)?

Is the voltage at pin (7) (power input

terminal) of IC3301 as specified

(about +12.5V)?

Is the voltage at pin (5) (standby

control terminal) of IC3301 as

specified (about +2V)?

Are there the specified control signal

inputs at the following pins of C1300?

Pin (2) of IC1300 SCL1

Pin (3) of IC1300 SDA1

Check the line from pins (29) and (30) of

IC2003 to pins (2) and (3) of IC1300.

Check X1300 and its peripheral circuits.

Check IC1300 and its peripheral circuits.

Are the oscillation waveforms at pins

(71) and (72) of IC1300 as specified?

Are there audio signal outputs from

pins (27)(Rch) and (28)(Lch) of

IC1300?

Check the lines from pins (27)(Rch)

and (28)(Lch) of IC1300 to pins

(4)(Rch) and (2)(Lch) of IC3301.

Check the following points.

+8V line: Check the line from IC1301 to pin

(39) of IC1300.

+5V line:

Check the line from pin (4) of SC1201

to the +5V input line of IC1300.

+3.3V line: Check the line from IC1203's

peripheral circuit to the +3.3V line

of IC1300.

Is the power voltage of each circuit as

follows?

Pin (39) of IC1300 About +8V

Pins (65) and (66) of IC1300

About +5V

Pins (11), (12) and (13) of IC1300

About

+3.3V

Check the line from power circuit to pin (7) of

IC3301.

No sound from monitor output

Check IC1300 and its peripheral

circuits.

Check the line from pin (58) of IC2003

to Q3901, Q3902 and Q3903.

Are there audio signal outputs from

pins (36)(Rch) and (37)(Lch) of

IC1300?

Is the collector signal of Q3901 at

"L"?

Check the lines from pins (36)(Rch)

and (37)(Lch) of IC1300 to pins

(2)(Rch) and (4)(Lch) of I3903.

Do the following.

1Go to "No sound from speakers".

2Reconnect the monitor output

properly.

3Clear the sound mute.

Check the following points.

1Is the sound heard from the

speakers?

2Is the monitor output properly

connected?

3Is the sound mute?

Check the line from pin (72) of IC2003 to pin

(5) of IC3301.

Check the following points.

1Is the monitor output set at "AUDIO

VARIABLE"?

2Is the volume control at minimum?

3Is the sound mute?

4Is the headphones disconnected?

Do the following.

1Set the monitor output at "AUDIO FIXED".

2Turn up the volume control.

3Clear the sound mute.

4Disconnect the headphones.

Check the following points.

1No TV sound: Check Q1300, Q1301,

TU3401 and their peripheral circuits.

2No Video 1 input sound: Check the line

from SC2002 to pins (56) and (57) of

IC1300.

3No Component input sound: Check the line

from SC2001 to pins (50) and (51) of

IC1300.

Yes

LC-15SH4U

TROUBLE SHOOTING TABLE (Continued)

Page 35

TROUBLE SHOOTING TABLE (Continued)

No color

No color on TV

Is the input at pin (31) of

IC1004 as specified?

Check the output of IC1004

and its peripheral circuits.

Is the input at pin (31) of

IC1004 as specified?

Check pin (15) of SC2002.

Are the inputs at pins (21)

and (33) of IC1004 as

specified?

Check the CB and CR lines

of SC2001 and their

peripheral circuits.

Check the microprocessor's adjustment process menu for wrong settings.

No color on Video No color on S Video No color on Component

LC-13SH4U LC-15SH4U

Page 36

LC-13SH4U LC-15SH4U

MAJOR IC INFORMATIONS

IC2003 (IXA627WJ)

• Description of Pins

Pin No. Pin Name I/O Pin Name Function

1 P96 O N.C 2 P95 O N.C 3 P94 O N.C 4 P93 O N.C 5 P92 O N.C 6 TB1in I CSYNC Composite sync signal 7 TB0in I IREM1 Remote control signal 8 BYTE I BYTE Connected to GND

9 CNVss I CNVss Connected to GND (connected to Vcc1 for CNVSS at flash write) 10 Xcin I Xcin 32-kHz quartz oscillator (for clock count) 11 Xout O Xout 32-kHz quartz oscillator (for clock count) 12 RESET I RESET Microprocessor reset at "L" 13 Xcout O Xcout System clock output 14 Vss I Vss GND 15 Xin I Xin System clock input 16 VccI I VccI VDD (+3.3V) 17 NMI I NMI (Connected to Vcc1 for NMI at flash write) 18 P84 O N.C 19 INT1 I PSWin Main power monitor 20 INT0 I VSYNC VSYNC signal input 21 P81 O N.C 22 P82 O AC_Ctrl AC adaptor power consumption control 23 P77 O DACICS Gradation control IC chip select 24 P76 I SSW Connected to S terminal at "L" 25 P75 O N.C 26 P74 O N.C 27 P73 I/O SDA2 Serial data line 2 for I2C bus 2 system 28 P72 I/O SCL2 Serial clock line 2 for I2C bus 2 system (EEPROM) 29 P71 I/O SCL1 Serial clock line 1 for I2C bus 2 system (others) 30 SDA1 I/O SCA1 Serial data line 1 for I2C bus 2 system 31 P67 O TxD (TxD at flash write) 32 P66 O RxD (RxD at flash write) 33 P65 O SCLK (Clock input at flash write) 34 P64 O BUSY (Busy output at flash write) 35 TxD0 O MPWEL Data signal input for DVP 4-line serial (MPWEL) 36 RxD0 O MPOE Data output signal for DVP 4-line serial (MPOE) 37 CLK0 O MPWEH Clock for DVP 4-line serial (MPWEH) 38 P60 O N.C 39 P57 O MAIN SW LED power control 40 P56 O N.C 41 P55 I POWin(EPM) DC/DC start detect (connected to Vss for EPM at flash write) 42 P54 I(O) L_ERR Fluorescent lamp error detect 43 P53 O S IN/OUT Audio input/output select 44 P52 O COMP AV selector switch 45 P51 O TIMER(RLED) On timer LED control (power RLED control) 46 P50 I MRDY(CE) I2C bus open connection detect (connected to Vcc2 for CE at flash write) 47 P47 O LEDPOW(GLED) Power GLED control 48 P46 O N.C 49 P45 O S_SEL AV selector switch 50 P44 O VSHOUT Panel gate driver voltage control

Page 37

Pin No. Pin Name I/O Pin Name Function

51 P43 O N.C 52 P42 O HPMUTE Headphones mute 53 P41 O SP MUTE1 Main speaker mute 54 P40 O N.C 55 P37 I HP DET Headphones detect 56 P36 O SSTBY Amplifier power control 57 P35 I VSH IN Panel gate driver voltage confirm 58 P34 O LMUTE Line out audio mute 59 P33 O V IN/OUT Video input/output select 60 P32 O SRESET Audio IC reset output 61 P31 O N.C 62 Xcc2 I Vcc2 Power input 63 P30 O TCON_OUT_OTL DVP control output control 64 Vss I Vss GND 65 P27 O V_SEL AV selector switch 66 P26 O TV_SEL AV selector switch 67 P25 O 68 P24 O MPCE DVP 4-line serial chip enable (MPCE)/DVP slave address select 69 P23 O OPCLED OPC LED light-up 70 P22 O INV_POW Separately-excited inverter power control 71 P21 O VGH Panel power control 72 P20 O POWout DC/DC control output 73 P17 I ADPPOW Adaptor ON/OFF input 74 P16 O DACOUTCON Gradation control IC output control 75 P15 O N.C 76 P14 O N.C 77 P13 O N.C 78 P12 O MP_DA Gradation control IC data output 79 P11 O MP_CLK Temperature sensor or gradation control IC clock output 80 P10 O DDC_RESET Video IC reset output (Renesas DVP, 3D YC) 81 P07 I KEY4 Key input 4 82 P06 I KEY5 Key input 5 83 P05 O N.C 84 P04 O N.C 85 P03 O MODEL Model ID port 86 P02 I SHORT_DET Over-current protection detect 87 P01 I INCH2 Screen size ID port 2 88 P00 I INCH1 Screen size ID port 1 89 AN7 I AFT AFT voltage input 90 P106 O N.C 91 AN5 I KEY1 Key input 1 92 AN4 I KEY2 Key input 2 93 P103 O N.C 94 AN2 I OPC_IN OPC sensor level input 95 96 AVss I AVss Connected to GND 97 P100 O N.C 98 VREF I VREF Connected to +3.3V 99 AVcc I AVcc Connected to +3.3V

100 P97 O N.C

BUS SELECT(I2C)

DVP I2C/4-line communication system select (H: I2C control, L: Serial control)

LC-13SH4U LC-15SH4U

Page 38

LC-13SH4U

LC-15SH4U

BLOCK DIAGRAM

SUB_PWB

AFT

S-SW

Component IN

SY-IN SC-IN

AUDIO-IN

VIDEO-IN

AUDIO-IN

Y-IN Pb-IN Pr-IN

U/V TUNER

V 3V IMZ1A 2 To MAIN MICON

VIDEO

S-IF

←

SIF AMP

I2C(3.3V)

SOUND_PROCESSOR

RH-IXB302WJN1Q

)

HP (Front Jack

3.5 (STEREO)

SP 2

1.0+1.0W

AUDIO_POWER_AMP LA4635A(ANALOG)

SLEEP (S_STBY)

SP_MUTE

AUDIO-OUT

DACA OUT DACM OUT

ANA_IN1

ANA_IN2

SC1_IN SC2_IN SC3 IN SC4 IN

18.432MHz

SCL/SDA

SC2_OUT

SC1_OUT

I2C(3.3V)

OUT

87109654321

Page 39

MAIN_PWB

CVBS-in

13pin

CVBS-in

40pin

Y-in

C-in

31pin

D-Y-in 40pin

Cb-in

DVP-ML

IXB150WJ

RCRSCA097WJZZ

AD/

IP/SCALER

D1~D4, OSD

54MHz

RED,GREEN,BLUE

CK,SP

T-CON

LC-13SH4U LC-15SH4U

LCD_Panel

LCD

PANEL

VGA

(50,20,30FFC)

POWER:VSH 3.3V

VLS 5.0V

VGH 23.0V

VGL -7.0 V

S DETECT

E2PROM

VHiBR24L64F-1Y

SHORT DETECT

VSYNC

CSYNC

KEY

SUB_PWB

Cr-in

21 pin

H OUT

MPWEH,MPWEL,MPOE,

MPCLK,MPDA,DAC1CS,OUTCOM

MICON

OPCKEY RC

V OUT

FOUR WIRE SYSTEM SERIAL(3.3V)

16MHz

RFiLZA003WJPZY

MPCE,TSTCLK

MPCLK,MPRDA,MPRCS

LERRER

RMC4001

R/C

18V

OFL

OFL1,OFL2

DC/AC

INVERTER

GRADATION SEQUENCE

LINE REVERSING

LAMP error

DET

BD8120FP

LAMP

1716 1918151413121110

Page 40

LC-13SH4U LC-15SH4U

OVERALL WIRING DIAGRAM (LC-13SH4U)

87109654321

Page 41

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 42

LC-13SH4U LC-15SH4U

OVERALL WIRING DIAGRAM (LC-15SH4U)

87109654321

Page 43

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 44

LC-13SH4U LC-15SH4U

DESCRIPTION OF SCHEMATIC DIAGRAM

VOL T AGE MEASUREMENT CONDITION:

1. The voltages at test points are measured on the stable supply voltage of AC 120V. Signals are fed by a color bar signal generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.

INDICA TION OF RESIST OR & CAPACITOR:

RESISTOR

1. The unit of resistance “Ω” is omitted. (K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted. (K= ± 10%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

CAPACITOR

1. All capacitors are µF, unless otherwise noted. (P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

SAFETY NOTES:

1.DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.

2.SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

AVIS DE SECURITE IMPORTANT:

LES PIECES MARQUEES “å” ( )SONT IMPORTANTES POUR MAINTENIR LA SECURITE DE L'APP AREIL. NE REMPLACER CES PIEDES QUE PAR DES PIECES DONT LE NUMERO EST SPECIFIE POUR MAINTENIR LA SECURITE ET PROTEGER LE BON FONCTIONNEMENT DE L'APPAREIL.

Page 45

SCHEMATIC DIAGRAM

OPERATION Unit

LC-13SH4U LC-15SH4U

654321

Page 46

LC-13SH4U LC-15SH4U

MAIN Unit-1/4 (LC-13SH4U)

87109654321

Page 47

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 48

LC-13SH4U LC-15SH4U

MAIN Unit-1/4 (LC-15SH4U)

87109654321

Page 49

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 50

LC-13SH4U LC-15SH4U

MAIN Unit-2/4

87109654321

Page 51

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 52

LC-13SH4U LC-15SH4U

MAIN Unit-3/4

87109654321

Page 53

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 54

LC-13SH4U LC-15SH4U

MAIN Unit-4/4

87109654321

Page 55

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 56

LC-13SH4U LC-15SH4U

SUB Unit-1/4

87109654321

Page 57

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 58

LC-13SH4U LC-15SH4U

SUB Unit-2/4

87109654321

Page 59

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 60

LC-13SH4U LC-15SH4U

SUB Unit-3/4

87109654321

Page 61

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 62

LC-13SH4U LC-15SH4U

SUB Unit-4/4

87109654321

Page 63

LC-13SH4U LC-15SH4U

1716 1918151413121110

Page 64

LC-13SH4U LC-15SH4U

R/C, LED Unit

654321

Page 65

PRINTED WIRING BOARD ASSEMBLIES

OPERATION Unit (Wiring Side)

LC-13SH4U LC-15SH4U

OPERATION Unit (Chip Parts Side)

R/C, LED Unit (Wiring Side)

654321

R/C, LED Unit (Chip Parts Side)

Page 66

LC-13SH4U

C1208

LC-15SH4U

SC1000

SC1002

C1009

L1000

163

162

IC1004

150

109

108

114

C1054

216

L1202

SC1001

C1090

C1015

P2001

X1000

R1046

R1048

R2054 R2053 R2056 R2052 R2051 R2050

R2049 D1201 Q1201

C1064

R2061

R2060

IC1201

R1215

R2045

R2062

R2059

C1204

R1202

Q1202

TU1300

C1341

LUG2001

C1339

SC2001

C1340

MAIN Unit (Side-A)

87109654321

Page 67

LC-13SH4U LC-15SH4U

IC1201

R2045

R2062

Q1202

R2059

C1208

D1204

R1226

FL2001

R1225

C2012

C2013

R2031

Q2002

L1203

D1205

Q1215

X2001

100

R2023

R2025

D1209

IC2001

IC1203

R2008

R2005 R2016

R2015

R2017

L1303

Q1216

L1201

C1218

R1253

C1203

C1230

R1245

IC1202

814

C1217

R2007

C1222

C1216

C2003

C1223

QPWBXD034WJN1

C1235

IC1204

C1221

D1208

SC2003

LUG2002

C1224

214

KD034WE

C1344

R1310

R1309

C1335

C1333

22 2

SC2002

C1334

C1326

C1308

C1322

C1301

124

X1300

1716 1918151413121110

Page 68

LC-13SH4U

FL2001

LC-15SH4U

L1000

C1009

C1054

SC1001

C1204

C1073

C1071 C1069 C1068

C1066

C1063

C1060 C1059

C1056

C1052

L1202

C1024

C1026

C1090

C1075

C1027

C1015

C1076

C1028

C1029

C1030

C1077

C1031

C1032

C1078

C1033

SC1000

C1034

C1035

C1079

C1036

C1037

C1080

IC1004

C1038

C1039

C1040

C1081

C1041

C1042

C1082

C1043

C1044

TL2056

C1045

TL2051

P2001

C1083

C1046

C1047

TL2054

C1049

TL2052TL2053

C1084

C1050

TL2055

C1074

C1072 C1070

C1067 C1065

C1062

C1058 C1057

C1055

C1053

R1051

C1061

R1049

X1000

R1046 R1048

R1050

C1064

R2054 R2053 R2056 R2052 R2051 R2050 R2049

D1201

Q1201

SC1002

R2060 R2061

R1215

R1202

IC1201

R2045

R1204

R1205

R2062

Q1203

Q1202

R2059

R2039

R2064

R1201

R2037

C1339

LUG2001

C1340C1341

SC2001

MAIN Unit (Chip Parts Side-A)

87109654321

Page 69

LC-13SH4U LC-15SH4U

IC1201

R2045

R1204

R1205

R2062

Q1203

Q1202

R2059

R2039

R2064

R1201

FL2001

R2037

IC2003

Q2002

D1204

C1208

R1226

C2013

R2032

R2031

C2012

R2029

R1225

D1205

X2001

R2025

Q1215

R2023

L1203

C2010 R2004 R2002

R2008

R2005 R2016

R2015 R2068

R2017

R1203 C1228 R1243

IC2001

R2007

D1209

R1238 R1244

IC1203

R1245

C1230

TL2043

C2003

C1225

C1203

R1246

D1211

Q1216

C1217

C1222

C1232

IC1202

C1238

R1253

C1223

L1201

R1249

C1221

C1216

IC1204

C1218

C1224

D1208

C1235

LUG2002

SC1201

SC2002

C1335

C1333

R1310 R1309

C1334

C1326

C1322

IC1300

C1308

C1301

1716 1918151413121110

Page 70

LC-13SH4U

LC-15SH4U

SC2003

R2011

C2006

R1230 Q1208

C1220

R2010

Q1210 R1233 R1237 Q1213

Q1206

C1236

R1208

C1201

D1202

R1250

C1237

R1232

R1235

Q1207

R1229

R1252

R1251

R1247

R1218

R1242

R1239

C1209

C1231

C1229

R1240

Q1211

Q1212

R1227

R1228

Q1204

R1221

C1227

C1219

D1206

R1234

Q1209

L1303

R1241

R2024

C2001

C1226

R2003

R2028

C2002

C2004

R2022

C2011

R2009

R2021

R2036

R2066

R2067

C2005

Q1205

C1234

R1219

C2016

R2042

IC2004

C2007 C2009 R2019 R2020

R1216

R2040

C1210

C1214 R1224

C1206 R1214

R1207

R2055

R2063

R2027

R2018

IC2005

C2014

R2033

Q2001

R2034

R2035

R1213

R1209 R1210

C2017

R2038

D1210

C1215

R1223

R2065

R2041

C1212

R2058

R2006

R2043

C1211

Q2003

R2048

R2057

R2046

R2044

C1213

R2047

D1203

C1205

C2015

R2026

R1316

C1344

R1325

D1300

D1301

D13

C1349

C1350

R1329

Q1305

C1348

R1331

R1327

R1323

C1304

R1303

X1300

C1303

R1306

Q1301

L1302

C1320

C1327

C1321

Q1300

R1308

C1330

C1329

L1301

R1300

R1302

C1302

C1305

C1300

C1331 C1328 C1332

R1301

L1300

C1315

C1316

C1314

C1317

R1307 C1310 C1309

C1307 C1312

FB1300

C1306

C1311

C1318

C1319

C1323

C1324

C1325

R2001

MAIN Unit (Side-B)

87109654321

Page 71

LC-13SH4U

R2065

LC-15SH4U

09 10

D1210

C1213

C1215

C1212

C1211

R2047

R2058

D1203

R1069

C1205

C1088

FB1007

R1062

R1070 R1055 R1054 R1053

R1057

R1085

R1063

R1058

C1086

R1059

C1085

R1064

C1010

IC1000

C1008

R1065

R1066

R1067

R1068

IC1001

R1061

C1023

R1011

R1060

R1008 R1028

FB1005

R1018 R1030

R1082

FB1006

C1051

R1044

R1021

Q1000

Q1002

R1040

R2006

R2041

R2043

Q2003

R2048

R2057

R2046

R2044

R1325

D1300

C2015

D1301

D1302

C1349

C1350

R2026

R2030

C1002 C1004

R1014

R1332 C1346

R1047

C1000

Q1303

R1334

Q1302

R1002

R2069

C1011

C1347

C1012

R1041

IC1301

R1042

C1014

IC1002

R1336

C1087

R1043

D1000

R2070

R1005

R1010

R1038

R1013

C1019

R1081

R1025

R1022

R1322

C1345

R1326

C1022

C1018

C1048

R1039

Q1001

R1335

R1313

C1016

C1017

FB1003

FB1004

R1318

R1321

R1319 R1312

R1314

R1315

R1080

C1021

C1025

L1001

IC1003

FB1000

C1013

R1320

R1317

R1311

R1083

R1072 R1073 R1074

R1206

Q1304

R1071

R1328

R1330

C1202

R1324

C1342

C1338

C1337

C1343

TU1300

C1336

1716 1918151413121110

Page 72

LC-13SH4U

TL2001

TL1076

LC-15SH4U

TL1068

TL1040

TL1070

TL1073

Q1207

D1202

R1252

R1251

R1236

R1231

Q1214

Q1211

R1228

R1218

R1247

R1248

C1219

D1206D1207

R1227

R1239

C1233

R1234

Q1209

C1209

C1231

R1242

C1227

R1222

C1229

Q1204

R1240

R1241

R1220 R1221

C1226

TL2050

C2004

C2002

TL2049

TL2045

TL2042

TL2039

R2009

C1234

TL2038

C2005

R2066 R2067

R1219

R2024

C2007 C2009 R2019 R2020

Q1205

C2001

R1216

R1207

IC2004

R2003

R2012

R2027

R2028

R2014

R2018

C1210

C1207

TL2047

R2033

C2018

C2011

R1217

R2034

R2022

C2014

R1213 R1209 R1210

R2013

R2035

C1214 R1224

C1206 R1214

IC2005

R2036

R1211

C2015

C2017

Q2001

R2021

R1212

R2026

R2038

R1223

C2016

R2071

C1215

TL2040

R2030

R2065

R2042

R2041

D1210

R2058

C1212

TL2041

R2040

Q2003

R2048

R2006

R2043

TL1067

R2047

R2063

R2044

TL1069

C1211

R2055

R2046

TL1044

C1213

TL1071

D1203

R2057

TL1074

C1205

TL2034

TL2033

TL2032

TL2031

R2011

TL2030

C2006

R2010

C1236

C1237

R1250

C1201

R1208

R1230

Q1208

C1220

R1229

Q1206

R1232

R1233 R1237

Q1213

R1235

Q1210

Q1212

TL1214

TL1213

TL1212

TL1210

TL1209

TL1207

TL1205

TL1201

TL1202

TL1211

TL1208

TL1206

TL1204

TL1203

TL2048

R1316

L1302

R1329

TL2022

TL2044

R2001

TL2021

C1348

R1331

TL2020

Q1305

TL2019

R1323

TL2018

R1327

TL2017

TL1302

TL2016

TL2015

TL2014

TL2012

TL2013

C1304

R1303

C1303

R1306

R1307 C1310 C1309 C1307 C1312

FB1300

C1306

L1300

C1313

C1311

Q1301

C1314 C1315

C1316C1317

C1320

R1305

R1304

C1318

C1321

C1319

Q1300

C1323

C1324

C1327

R1302

C1325

C1330 C1329

C1302

R1308

R1301

C1331 C1328 C1332

L1301

C1305

R1300

TL2037

C1300

TL2029

TL2028

TL2027

TL2026

TL2025

TL2024

TL2023

MAIN Unit (Chip Parts Side-B)

87109654321

Page 73

R2065

C1215

TL2040

R2030

R2042

R2041

D1210

R2058

C1212

TL2041

R2040

Q2003

R2048

R2006

R2043

TL1067

R2047

R2063

R2044

TL1068

TL1069

C1211

R2055

R2046

TL1040

TL1044

C1213

TL1070

TL1071

D1203

R2057

TL1073

TL1074

C1205

TL1076

TL1077

TL1079

TL1005

C1088

TL1066

FB1007

R1062

R1069 R1070

R1055 R1054 R1053

R1334

TL1043

TL1039

C1000

C1002 C1004

R1014

TL1004

C1087

R1326

TL1072

R1085

TL1075

R1057

R1047

R1043

R1005

R1010

R1013

Q1303

C1345

TL1078

C1086

R1059

D1000

R2070

R1335

TL1080

R2069

R1058

C1085

R1002

R1038

D1303

R1318

TL1002

C1011

IC1002

TL1007

R1063

C1347 R1322

R1321

TL1009

C1012

R1041

R1320

TL1010

TL1008

C1010

C1008

TL2046

C1014

R1064

R1017

R1012

R1045

R1042

TL1013

TL1011

R1003

R1022

R1020

R1035

C1019

TL1016

TL1014

R1026

R1034

C1022

R1025

Q1001

R1065

IC1000

R1001

R1039

TL1019

TL1017

R1024

R1033

C1018

TL1022

TL1020

R1066

R1009 C1001

R1007

C1007

R1015

R1032

C1017

R1027

R1031

C1016

R1081

TL1025

TL1023

R1067

R1023

R1019

TL1026

R1006 C1089 R1077R1078

R1004

C1006

C1048

TL1028

R1029

R1037

C1021

TL1031

TL1029

R1016

R1075

FB1003

FB1000

R1068

TL1003

IC1001

FB1004

C1005

R1076

TL1033

C1003

R1008

R1028

R1036

C1020

R1080

C1025

L1001

TL1036

TL1034

R1061

R1011

R1079

IC1003

TL1049

TL1047

R1060

C1013

R1056

R1083

TL1052

TL1050

R1084

R1087

TL1055

TL1053

C1023

R1086 R1052

R1088

TL1056

R1206

TL1012

FB1005

R1071

TL1060

R1072 R1073 R1074

TL1063

TL1015

C1202

TL1018

TL1001

FB1006

TL1021

C1051

TL1024

R1082

TL1000

TL1046

TL1027

Q1000

R1018

R1030

Q1002

R1044

TL1057 TL1058 TL1037 TL1061 TL1006 TL1042

TL1030

R1021

TL1045

TL1032

R1040

TL1035

TL1059

TL1041

TL1038

TL1062

TL1064 TL1065

TL1048

TL1051

LC-13SH4U LC-15SH4U

TL1054

TL2012

TL2001

D1300

TL2035

TL2002

D1301

D1302

R1325

TL2004

C1350

TL2003

R1332

C1346

C1349

TL2005

C1342

TL2036

R1314

TL2006

TL2007

IC1301

Q1302

R1315

TL2009

R1319 R1312

TL2008

R1336

C1338

TL2010

TL2011

R1313

C1337

C1343

R1311

C1336

TL1301

R1330

Q1304

R1317

R1328

R1324

TL1300

1716 1918151413121110

Page 74

LC-13SH4U LC-15SH4U

87109654321

Page 75

LC-13SH4U LC-15SH4U

SUB Unit (Wiring Side)

1716 1918151413121110

Page 76

LC-13SH4U LC-15SH4U

87109654321

Page 77

LC-13SH4U LC-15SH4U

SUB Unit (Chip Parts Side)

1716 1918151413121110

Page 78

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

P ARTS LIST

LISTE DES PIECES

P ARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual ; electrical components having such features are identified by å and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which does no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT P ARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PAR T NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order. For

location of SHARP Parts Distributor, Please call Toll-Free; 1-800-BE-SHARP

★ MARK: SP ARE PARTS-DELIVERY SECTION

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLYS

(NOT REPLACEMENT ITEM)

LC-13SH4U

DUNTKD034FMF1 – MAIN Unit — DUNTKD035WEF1 – SUB Unit — DUNTKD036WEF1 – OPERATION Unit — DUNTKD037WEF1 – R/C, LED Unit —

LC-15SH4U

DUNTKD034FMF2 – MAIN Unit — DUNTKD035WEF2 – SUB Unit — DUNTKD036WEF2 – OPERATION Unit — DUNTKD037WEF2 – R/C, LED Unit —

Les pi`eces de rechange qui pr élelesentent ces caract éleristiques sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep éler élee par la marque å et sont hachur élees dans les listes de pi`eces et dans les diagrammes sch élematiques. La substitution d'une pi`ece de rechange par une autre qui ne pr éLesente pas les m éoemes caract éLeristiques de s élecurit éle que la pi`ece recommand élee parl'usine et dans ce manuel de service, peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.

"COMMENT COMMANDER LES PIECES DE RECHANGE"

Pour que votre commande soit rapidement et correctement remplie, veuillez fournir les renseignements suivants.

1. NUMERO DU MODELE 2. NO. DE REF

3. NO. DE PIECE 4. DESCRIPTION

in CANADA: Contact SHARP Electronics of Canada Limited

★ MARQUE: SECTION LIVRAISON DES PIECES DERECHANGE

DUNTKD034FMF1 (LC-13SH4U) DUNTKD034FMF2 (LC-15SH4U)

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU1300 VTUVT2U5UF559 J Tuner BB

IC1003 VHiPQ018EH1-1Y J PQ018EH01ZPH AF IC1004 RH-iXB150WJZZQ J R8A66605A02FP BG IC1201 VHiBD8120FP-1Y J BD8120FP AX IC1203 RH-iXA828WJZZY J BD9300FV-FE2 AH IC1300 RH-iXB302WJN1Q J MSP3445G-QA-S1 AT IC1301 VHiNJM2147M-1Y J NJM2147M-TE1 AF IC2001 VHiPQ1L333M-1Y J PQ1L333M2SP AD IC2003 RH-iXA627WJZZQ J I.C. BB IC2004 VHiPST3229N1EY J PST3229 AD IC2005 VHiBR24L64F-1Y J BR24L64F-WE2 AK

CHANGE DES PIECES

Phone (416) 890-2100

MAIN Unit

TUNER

INTEGRATED CIRCUITS

LCD P ANEL

TRANSISTORS

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

RLCDTA023WJZZ J 13" LCD Panel Unit CQ

(LC-13SH4U)

RLCDTA024WJZZ J 15" LCD Panel Unit CT

(LC-15SH4U)

Q1000 VSFMMT718//-1Y J FMMT718 AE Q1002 VS2SC3928AR-1Y J 2SC3928AR AB Q1201 VSDTC144EE/-1Y J DTC144EE AA Q1202 VS2SA1037KQ-1Y J 2SA1037KQ AA Q1204 VS2SC5566++-1Y J 2SC5566 AD Q1205 VS2SA2013++-1Y J 2SA2013 AD Q1206 VSDTC144EE/-1Y J DTC144EE AA Q1207 VS2SA1037KQ-1Y J 2SA1037KQ AA Q1208 VSFMMT718//-1Y J FMMT718 AE Q1209 VSDTC144EE/-1Y J DTC144EE AA Q1211 VSDTC144EE/-1Y J DTC144EE AA Q1212 VS2SC3928AR-1Y J 2SC3928AR AB Q1213 VSDTC144EE/-1Y J DTC144EE AA Q1215 VSRSS040P03-1Y J RSS040P03 AE Q1216 VSUML2N++++-1Y J UML2N AC Q1300 VS2SC3928AR-1Y J 2SC3928AR AB Q1301 VS2SC3928AR-1Y J 2SC3928AR AB Q1302 VS2SC3928AR-1Y J 2SC3928AR AB Q1303 VS2SA1036K/-1Y J 2SA1036K AC Q1304 VSiMZ1A////-1Y J IMZ1A AC Q1305 VSiMZ1A////-1Y J IMZ1A AC Q2001 VSDTC144EE/-1Y J DTC144EE AA Q2002 VS2SA1037KQ-1Y J 2SA1037KQ AA Q2003 VSDTC144EE/-1Y J DTC144EE AA

Page 79

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD034FMF1 (LC-13SH4U) DUNTKD034FMF2 (LC-15SH4U)

MAIN Unit (Continued)

DIODES

D1000 VHDDAN222//-1Y J Diode AA D1201 VHDDAN222//-1Y J Diode AA D1202 VHDDAN202K/-1Y J Diode AB D1203 VHDDAN202K/-1Y J Diode AB D1204 VHDDAN202K/-1Y J Diode AB D1205 VHDRB521S30-1Y J Diode AC D1206 VHDHSU119//-1Y J Diode AB D1207 VHDHSU119//-1Y J Diode AB D1208 RH-EXA099WJZZY J Zener Diode, 24V AB D1209 VHDRB051L40-1Y J Diode AD D1210 VHDDAN202K/-1Y J Diode AB D1300 VHDDAN222//-1Y J Diode AA D1301 RH-EXA095WJZZY J Zener Diode, 16V AB D1302 RH-EXA095WJZZY J Zener Diode, 16V AB D1303 VHDDAN222//-1Y J Diode AA

P ACKAGED CIRCUITS

X1000 RCRSCA097WJZZY J Crystal AG X1300 RCRSB0250GEZZ J Crystal, 18.432MHz AG

FIL TER AND COILS

FL2001 RFiLZA003WJPZY J Filter, 16MHz AD L1001 VPCNN220J2R9NY J Peaking 22µH AB L1201 RCiLPA143WJZZY J Coil AD L1202 VP-1M470J5R4NY J Peaking 47µH AC L1203 RCiLPA154WJZZY J Coil AE L1300 VPCNN101J7R7NY J Peaking 100µH AB L1301 VPCNN220J2R9NY J Peaking 22µH AB L1302 VPCNN4R7J1R2NY J Peaking 4.7µH AB L1303 RCiLPA142WJZZ J Coil AD

CAPACITORS

C1009 VCAAPC0JJ476MY J 47 6.3V Electrolytic AE C1013 VCKYCY1AF105ZY J 1 10V Ceramic AC C1015 VCEASX0JN476MY J 47 6.3V Electrolytic AC C1016 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1017 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1018 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1019 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1020 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1021 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1022 VCKYCY1HB104KY J 0.1 50V Ceramic AA C1023 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1024 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1025 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1026 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1027 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1028 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1029 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1030 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1031 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1032 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1033 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1034 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1035 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1036 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1037 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1038 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1039 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1040 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1041 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1042 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1043 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1044 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1045 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1046 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1047 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1048 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1049 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1050 VCKYCZ1AB333KY J 0.033 10V Ceramic AB

C1051 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1052 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1053 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1054 VCEASY1CN477MY J 470 16V Electrolytic AD C1055 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1056 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1057 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1058 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1059 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1060 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1061 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C1062 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1063 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1064 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C1065 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1066 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1067 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1068 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1069 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1070 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1071 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1072 VCKYCZ1AB104KY J 0.1 10V Ceramic AB C1073 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1074 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1075 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1076 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1077 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1078 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1079 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1080 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1081 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1082 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1083 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1084 VCKYCZ1AB333KY J 0.033 10V Ceramic AB C1085 VCKYCY1HB103KY J 0.01 50V Ceramic AA C1086 VCKYCY1HB102KY J 1000p 50V Ceramic AA C1087 VCKYCY1HB103KY J 0.01 50V Ceramic AA C1088 VCKYCY1AB105KY J 1 10V Ceramic AB C1090 VCEASX0JN227MY J 220 6.3V Electrolytic AC C1201 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1202 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1203 VCEASX0JN227MY J 220 6.3V Electrolytic AC C1204 VCEASX1HN475MY J 4.7 50V Electrolytic AC C1205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1206 VCCCCY1HH181JY J 180p 50V Ceramic AA C1207 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1208 VCEASX1CN106MY J 10 16V Electrolytic AC C1209 VCKYTV1CF105ZY J 1 16V Ceramic AB C1210 VCKYTV1CF105ZY J 1 16V Ceramic AB C1211 RC-KZA041WJZZY J 10 10V Ceramic AC C1212 RC-KZA041WJZZY J 10 10V Ceramic AC C1213 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1214 VCCCCY1HH560JY J 56p 50V Ceramic AB C1215 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1216 RC-KZA041WJZZY J 10 10V Ceramic AC C1217 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1218 VCEASX1CN107MY J 100 16V Electrolytic AC C1220 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1221 VCEASX1HN225MY J 2.2 50V Electrolytic AB C1222 VCEASX1CN106MY J 10 16V Electrolytic AC C1223 VCEASX1HN225MY J 2.2 50V Electrolytic AB C1224 VCEASX1CN107MY J 100 16V Electrolytic AC C1225 VCKYTV1CF105ZY J 1 16V Ceramic AB C1226 VCKYTV1CF105ZY J 1 16V Ceramic AB C1227 VCKYCY1HB332KY J 3300p 50V Ceramic AA C1228 VCCCCY1HH101JY J 100p 50V Ceramic AA C1229 VCCCCY1HH330JY J 33p 50V Ceramic AA C1230 VCCCCY1HH181JY J 180p 50V Ceramic AA C1231 RC-KZA110WJZZY J 10 25V Ceramic AD C1232 RC-KZA113WJZZY J 4.7 16V Ceramic AB C1233 VCKYCY1HB102KY J 1000p 50V Ceramic AA C1234 RC-KZA041WJZZY J 10 10V Ceramic AC C1236 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1237 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1300 VCKYCY1HB102KY J 1000p 50V Ceramic AA

Page 80

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD034FMF1 (LC-13SH4U) DUNTKD034FMF2 (LC-15SH4U)

MAIN Unit (Continued)

C1301 VCEASX0JN107MY J 100 6.3V Electrolytic AC C1302 VCCCCY1HH330JY J 33p 50V Ceramic AA C1303 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C1304 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C1305 VCCCCY1HH330JY J 33p 50V Ceramic AA C1306 VCKYCY1AB105KY J 1 10V Ceramic AB C1307 VCCCCY1HH560JY J 56p 50V Ceramic AB C1308 VCEASX1CN106MY J 10 16V Electrolytic AC C1309 VCCCCY1HH560JY J 56p 50V Ceramic AB C1311 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1312 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1313 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1315 VCKYCY1AB105KY J 1 10V Ceramic AB C1316 VCKYCY1AB105KY J 1 10V Ceramic AB C1320 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1321 VCKYCY1AB105KY J 1 10V Ceramic AB C1322 VCEASX0JN107MY J 100 6.3V Electrolytic AC C1325 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1326 VCEASX1HN335MY J 3.3 50V Electrolytic AB C1327 VCKYCY1HB102KY J 1000p 50V Ceramic AA C1328 VCKYCY1EB223KY J 0.022 25V Ceramic AA C1329 VCKYCY1HB102KY J 1000p 50V Ceramic AA C1330 VCKYCY1HB102KY J 1000p 50V Ceramic AA C1331 VCKYCY1EB223KY J 0.022 25V Ceramic AA C1332 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1333 VCEASX1CN107MY J 100 16V Electrolytic AC C1334 VCEASX1CN106MY J 10 16V Electrolytic AC C1336 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1337 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1338 RC-KZA101WJZZY J 10 6.3V Ceramic AC C1339 VCEASX1CN107MY J 100 16V Electrolytic AC C1340 VCEASX1HN105MY J 1 50V Electrolytic AB C1341 VCAAPC0JJ226MY J 22 6.3V Electrolytic AE C1342 VCKYCY1HB103KY J 0.01 50V Ceramic AA C1343 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1344 RC-EZA560WJZZ J 3300 6.3V Electrolytic AE C1345 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1347 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1348 VCCCCY1HH561JY J 560p 50V Ceramic AB C1349 RC-KZ0071TAZZY J 2.2 6.3V Ceramic AD C1350 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2002 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2003 VCEASX0JN226MY J 22 6.3V Electrolytic AB C2004 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2005 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2007 VCKYCY1HB222KY J 2200p 50V Ceramic AA C2009 VCKYCY1HB222KY J 2200p 50V Ceramic AA C2010 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2011 VCKYTV1CF105ZY J 1 16V Ceramic AB C2014 RC-KZA101WJZZY J 10 6.3V Ceramic AC C2015 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2016 VCKYCY1HB222KY J 2200p 50V Ceramic AA C2017 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2018 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

RESISTORS

R1002 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R1012 VCCCCY1HH330JY J 33p 50V Ceramic AA R1015 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1017 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1018 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R1019 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1027 VCCCCY1HH330JY J 33p 50V Ceramic AA R1028 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1029 VCCCCY1HH330JY J 33p 50V Ceramic AA R1030 VRS-TV1JD102JY J 1k 1/10W Metal Oxide AA R1031 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1032 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1033 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1034 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1035 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

R1036 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1037 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1040 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R1042 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1043 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R1044 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1046 VRS-CJ1JF100JY J 10 1/16W Metal Oxide AA R1047 VRS-CH1JF103JY J 10k 1/16W Metal Oxide AA R1049 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R1050 VRS-CY1JF560JY J 56 1/16W Metal Oxide AA R1051 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1052 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R1053 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1054 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R1055 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R1056 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1057 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1058 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1059 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1060 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1061 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1062 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R1063 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1064 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1065 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1066 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1067 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1068 VRS-CH1JF470JY J 47 1/16W Metal Oxide AA R1069 VRS-CJ1JF270JY J 27 1/16W Metal Oxide AA R1070 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1071 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1072 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1073 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1074 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1075 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1076 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1080 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1081 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1082 VRS-TV1JD000JY J 0 1/10W Metal Oxide AA R1085 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1087 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1201 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1202 VRS-TX2HF102JY J 1k 1/2W Metal Oxide AB R1203 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R1204 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R1205 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1206 VRS-TW2HF472JY J 4.7k 1/2W Metal Oxide AA R1207 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1208 VRS-TV1JD000JY J 0 1/10W Metal Oxide AA R1209 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1212 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1213 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1214 VRS-CY1JF273JY J 27k 1/16W Metal Oxide AA R1215 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1216 VRS-TW2HF000JY J 0 1/2W Metal Oxide AA R1217 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R1218 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1219 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1220 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1221 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1222 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1223 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1224 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1225 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R1226 VRS-TW2HF330JY J 33 1/2W Metal Oxide AA R1227 VRS-TW2ED103JY J 10k 1/4W Metal Oxide AA R1228 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R1229 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA R1230 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1234 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1235 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1236 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1237 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1238 VRS-CY1JF104FY J 100k 1/16W Metal Oxide AA R1239 VRS-CY1JF104FY J 100k 1/16W Metal Oxide AA

Page 81

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD034FMF1 (LC-13SH4U) DUNTKD034FMF2 (LC-15SH4U)

MAIN Unit (Continued)

R1240 VRS-CY1JF273JY J 27k 1/16W Metal Oxide AA R1241 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R1242 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R1243 VRS-CY1JF203FY J 20k 1/16W Metal Oxide AA R1244 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1245 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R1246 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1247 VRS-CY1JF511JY J 510 1/16W Metal Oxide AA R1248 VRS-CY1JF511JY J 510 1/16W Metal Oxide AA R1250 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R1251 VRS-TV1JD000JY J 0 1/10W Metal Oxide AA R1252 VRS-TV1JD000JY J 0 1/10W Metal Oxide AA R1300 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1301 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R1302 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R1303 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R1304 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R1305 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R1306 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R1307 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1308 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1309 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1310 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1311 VRS-CJ1JF331JY J 330 1/16W Metal Oxide AA R1312 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1313 VRS-TQ2BD000JY J 0 1/8W Metal Oxide AA R1314 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1315 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R1317 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1318 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1319 VRS-CY1JF562FY J 5.6k 1/16W Metal Oxide AA R1320 VRS-CY1JF363FY J 36k 1/16W Metal Oxide AA R1321 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA R1322 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1323 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1324 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R1325 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1326 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1327 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R1328 VRS-CY1JF561FY J 560 1/16W Metal Oxide AA R1329 VRS-CY1JF561FY J 560 1/16W Metal Oxide AA R1330 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R1331 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1332 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1334 VRS-TV1JD102JY J 1k 1/10W Metal Oxide AA R1335 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1336 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2003 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2004 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2005 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2006 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2007 VRS-CJ1JF223JY J 22k 1/16W Metal Oxide AA R2008 VRS-CJ1JF102JY J 1k 1/16W Metal Oxide AA R2009 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2011 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R2012 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2013 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2015 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-15SH4U) R2017 VRS-CJ1JF223JY J 22k 1/16W Metal Oxide AA R2018 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2019 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2020 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-13SH4U) R2021 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R2022 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2023 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2025 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2026 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2027 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2028 VRS-CY1JF512JY J 5.1k 1/16W Metal Oxide AA

R2030 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2031 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2033 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA R2034 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2035 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2036 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2037 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2038 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2039 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2040 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2042 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2044 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2045 VRS-CJ1JF471JY J 470 1/16W Metal Oxide AA R2047 VRS-CJ1JF682JY J 6.8k 1/16W Metal Oxide AA R2048 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2049 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2052 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2054 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2055 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2056 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2057 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2058 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2059 VRS-CJ1JF153JY J 15k 1/16W Metal Oxide AA R2060 VRS-CH1JF680JY J 68 1/16W Metal Oxide AA R2061 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R2062 VRS-CJ1JF101JY J 100 1/16W Metal Oxide AA R2063 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R2065 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2066 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2067 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2068 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2071 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

FB1000 RBLN-0210TAZZY J Ferrite Bead AB FB1003 RBLN-0006TAZZY J Ferrite Bead AB FB1005 RBLN-0006TAZZY J Ferrite Bead AB FB1006 RBLN-0006TAZZY J Ferrite Bead AB FB1007 RBLN-0083GEZZY J Ferrite Bead AB FB1300 RBLN-0035TAZZY J Ferrite Bead AB P2001 QPLGNA144WJZZY J Plug, 20-pin AF SC1000 QSOCN0687FJZZY J Socket, 50-pin AF SC1001 QSOCN0684FJZZY J Socket, 30-pin AF SC1002 QSOCNA002WJPZYJ Socket, 20-pin AD SC1201 QCNCWA010WJZZYJ Connector, 15-pin AE SC2001 QCNCWA010WJZZYJ Connector, 15-pin AE SC2002 QCNCWA251WJZZYJ Connector, 23-pin AH SC2003 QSOCN0596REZZ J Socket, 5-pin AB LUG2001 LUG2002

QLUGHA006WJZZY J Lug AC QLUGHA006WJZZY J Lug AC

Page 82

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD035WEF1 (LC-13SH4U) DUNTKD035WEF2 (LC-15SH4U)

SUB Unit

INTEGRATED CIRCUITS

IC3301 VHiLA4635A+-1S J LA4635A AM IC7301 VHiBD9300F+-1Y J BD9300F-FE2 AG IC7701 VHiSTRW67652E J STR-W6765N AL

å IC7702 RH-FXA003WJZZ J PC123Y82 AD å IC7703 RH-FXA003WJZZ J PC123Y82 AD

IC7704 VHiSE012N//-1 J SE012N AH

TRANSISTORS

Q3301 VS2SC3928AR-1Y J 2SC3928AR AB Q3302 VSDTC314TK/-1Y J DTC314TK AC Q3303 VSDTC314TK/-1Y J DTC314TK AC Q3304 VSUMH2N++++-1Y J UMH2N AC Q3305 VS2SD2657++-1Y J 2SD2657 AB Q3306 VSDTC114EKA-1Y J DTC114EKA AB Q3601 VSKRC102S//-1Y J KRC102S AA Q3602 VSKRC102S//-1Y J KRC102S AA Q3901 VS2SA1530AR-1Y J 2SA1530AR AB Q3902 VSDTC314TK/-1Y J DTC314TK AC Q3903 VSDTC314TK/-1Y J DTC314TK AC Q6700 VS2SC5886A+-1Y J 2SC5886A AD Q6701 VS2SC5886A+-1Y J 2SC5886A AD Q6702 VS2SA1530AR-1Y J 2SA1530AR AB Q6706 VSUPA606T//-1Y J UPA606T AD Q6707 VS2SC5886A+-1Y J 2SC5886A AD Q6708 VS2SC5886A+-1Y J 2SC5886A AD Q6709 VS2SA1530AR-1Y J 2SA1530AR AB Q6713 VSUPA606T//-1Y J UPA606T AD Q7001 VSRSS070N05-1Y J RSS070N05 AF Q7301 VS2SB1695++-1Y J 2SB1695 AC Q7302 VS2SD2657++-1Y J 2SD2657 AC Q7303 VS2SA1530AR-1Y J 2SA1530AR AB Q7305 VSKRC104S//-1Y J KRC104S AA Q7306 VSKRC104S//-1Y J KRC104S AA Q7701 VS2SA1013//1E+ J 2SA1013 AD Q7751 VSKRC104S//-1Y J KRC104S AA

DIODES

D3301 VHD1PS184++-1Y J Diode AB D3302 RH-EX1253CEZZY J Zener Diode AB D3303 VHDBAS316//-1Y J Diode AB D3304 VHDBAS316//-1Y J Diode AB D3305 VHDBAS316//-1Y J Diode AB D3306 RH-EX0640GEZZY J Zener Diode, 12V AA D3307 RH-EX0640GEZZY J Zener Diode, 12V AA D3308 RH-EX0640GEZZY J Zener Diode, 12V AA D3309 RH-EX0640GEZZY J Zener Diode, 12V AA D3601 RH-EX1293CEZZY J Zener Diode, 24V AB D3602 RH-EX1293CEZZY J Zener Diode, 24V AB D3901 VHD1PS184++-1Y J Diode AB D3921 RH-EX1271CEZZY J Zener Diode AB D3922 RH-EX1271CEZZY J Zener Diode AB D3923 RH-EX1271CEZZY J Zener Diode AB D5000 RH-EX1271CEZZY J Zener Diode AB D5001 RH-EX1271CEZZY J Zener Diode AB D5002 RH-EX1271CEZZY J Zener Diode AB D6701 VHDBAS316//-1Y J Diode AB D6703 VHDBAS316//-1Y J Diode AB D6705 VHD1PS184++-1Y J Diode AB D6707 VHD1PS184++-1Y J Diode AB D6710 VHDMA157A//-1Y J Diode AC D6712 VHDMA157A//-1Y J Diode AC D6715 VHDMA157A//-1Y J Diode AC D6716 VHDMA157A//-1Y J Diode AC D7001 VHDLi116+++-1Y J Diode AC D7002 VHD1SS250//1EY J Diode AB D7003 VHDLi124+++-1Y J Diode AC D7004 VHDSF30SC6+-1 J Diode AH D7005 VHD1PS184++-1Y J Diode AB D7301 VHDBAS316//-1Y J Diode AB D7306 VHDBAS316//-1Y J Diode AB

D7307 VHDBAS316//-1Y J Diode AB

å D7701 RH-DX0476CEZZ J Diode AG

D7702 RH-DX0321CEZZY J Diode AC D7703 RH-DX0490CEZZY J Diode AC D7704 RH-DX0490CEZZY J Diode AC D7711 RH-DX0066GEZZY J Diode AC D7712 VHD1SS244//-1Y J Diode AB D7713 RH-EX0640GEZZY J Zener Diode, 12V AA D7714 VHD1SS244//-1Y J Diode AB D7715 RH-EX0618GEZZY J Zener Diode, 6.2V AB D7716 VHD1SS244//-1Y J Diode AB D7717 VHD1SS244//-1Y J Diode AB D7718 RH-EX0656GEZZY J Zener Diode AB D7732 VHDSF30SC6+-1 J Diode AH D7733 VHDSF30SC6+-1 J Diode AH TH7701 RH-HXA019WJZZ J Thermistor AE

å VA7701 RH-VXA022WJZZ J Varistor AD

COILS

L6700 RCiLPA371WJZZ J Coil AC L6702 RCiLPA371WJZZ J Coil AC L7001 RCiLPA476WJZZ+ J Coil AC L7002 RCiLPA356WJZZ+ J Coil AC L7003 RCiLPA356WJZZ+ J Coil AC L7004 RCiLPA476WJZZ+ J Coil AC

å L7703 RCiLFA167WJZZ J Coil AD å L7704 RCiLFA167WJZZ J Coil AD

L7732 RCiLP0184CEZZ+ J Coil AD

TRANSFORMER

å T6701 RTRNZA085WJZZ J Transformer AL å T6702 RTRNZA085WJZZ J Transformer AL å T6703 RTRNZA085WJZZ J Transformer AL å T6704 RTRNZA085WJZZ J Transformer AL å T7001 RTRNWA169WJZZ J Transformer AG å T7701 RTRNWA173WJZZ J Transformer AQ

CAPACITORS

C3301 VCESKA1HM225M+ J 2.2 50V Electrolytic AB C3302 VCESKA1HM225M+ J 2.2 50V Electrolytic AB C3303 VCKYCY1HB153KY J 0.015 50V Ceramic AA C3304 VCKYCY1HB153KY J 0.015 50V Ceramic AA C3306 VCESKA1HM105M+ J 1 50V Electrolytic AB C3307 VCESKA1HM105M+ J 1 50V Electrolytic AB C3308 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3309 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3310 VCESKA1CM107M+ J 100 16V Electrolytic AC C3312 VCESKA1CM106M+ J 10 16V Electrolytic AB C3313 VCKYTV1CB105KY J 1 16V Ceramic AC C3315 RC-EZA216WJZZ J 1000 16V Electrolytic AD C3316 RC-EZA216WJZZ J 1000 16V Electrolytic AD C3323 RC-KZA216WJZZY J 2.2 50V Ceramic AC C3324 VCKYCY1HF224ZY J 0.22 50V Ceramic AA C3325 RC-KZA041WJZZY J 10 10V Ceramic AC C3601 VCKYCY1HB332KY J 3300p 50V Ceramic AA C3602 VCKYCY1HB332KY J 3300p 50V Ceramic AA C3901 VCESKA0JM107M+ J 100 6.3V Electrolytic AB C3902 VCESKA1CM106M+ J 10 16V Electrolytic AB C3903 VCESKA1CM106M+ J 10 16V Electrolytic AB C3904 VCCCCY1HH101JY J 100p 50V Ceramic AA C3905 VCCCCY1HH101JY J 100p 50V Ceramic AA C3921 VCCCCY1HH101JY J 100p 50V Ceramic AA C3922 VCCCCY1HH101JY J 100p 50V Ceramic AA C3923 VCCCCY1HH101JY J 100p 50V Ceramic AA C3924 VCCCCY1HH101JY J 100p 50V Ceramic AA C3925 VCCCCY1HH101JY J 100p 50V Ceramic AA C3926 VCKYTV1CB105KY J 1 16V Ceramic AC C3927 VCKYTV1CB105KY J 1 16V Ceramic AC C5001 VCCCCY1HH101JY J 100p 50V Ceramic AA C5002 VCCCCY1HH101JY J 100p 50V Ceramic AA C6700 RC-FZA110WJZZ J 0.15 250V Film AC C6703 VCKYCY1EB104KY J 0.1 25V Ceramic AB C6704 RC-EZA482WJZZ J 1000 25V Electrolytic AD C6705 RC-FZA110WJZZ J 0.15 250V Film AC C6709 RC-EZA482WJZZ J 1000 25V Electrolytic AD

Page 83

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD035WEF1 (LC-13SH4U) DUNTKD035WEF2 (LC-15SH4U)

SUB Unit (Continued)

C6710 RC-KZ0072TAZZY J 1 25V Ceramic AC C6711 RC-KZ0072TAZZY J 1 25V Ceramic AC C6715 VCKYCY1EB104KY J 0.1 25V Ceramic AB C6716 RC-EZA482WJZZ J 1000 25V Electrolytic AD C6718 RC-EZA482WJZZ J 1000 25V Electrolytic AD C6719 VCKYCY1CB333KY J 0.033 16V Ceramic AA C6720 VCKYCY1CB333KY J 0.033 16V Ceramic AA C6722 RC-KZ0072TAZZY J 1 25V Ceramic AC C6723 RC-KZ0072TAZZY J 1 25V Ceramic AC C6725 VCKYCY1EB104KY J 0.1 25V Ceramic AB C6726 VCKYCY1EB104KY J 0.1 25V Ceramic AB C7001 RC-KZA124WJZZY J 0.022 50V Ceramic AD C7002 VCKYCY1HB562KY J 5600p 50V Ceramic AA C7003 RC-EZA464WJZZ+ J 1000 16V Electrolytic AD C7004 VCKYCY1HB562KY J 5600p 50V Ceramic AA C7005 VCCCCY1HH181JY J 180p 50V Ceramic AA C7006 VCESKA1HM476M+ J 47 50V Electrolytic AD C7007 VCKYCY1HF104ZY J 0.1 50V Ceramic AA C7008 VCESKA1CM337M+ J 330 16V Electrolytic AD C7009 VCKYTV1CF105ZY J 1 16V Ceramic AB C7010 RC-EZA450WJZZ+ J 10 150V Electrolytic AD C7011 VCKYTV1CF105ZY J 1 16V Ceramic AB C7012 VCESKA1CM337M+ J 330 16V Electrolytic AD C7013 VCKYTV1CF105ZY J 1 16V Ceramic AB C7014 VCESKA1CM107M+ J 100 16V Electrolytic AC C7301 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C7302 VCKYCY1EB334KY J 0.33 25V Ceramic AB C7303 VCKYCY1HB332KY J 3300p 50V Ceramic AA C7304 VCCCCY1HH330JY J 33p 50V Ceramic AA C7305 VCCCCY1HH330JY J 33p 50V Ceramic AA C7306 VCCCCY1HH471JY J 470p 50V Ceramic AA C7308 VCKYCY1HB103KY J 0.01 50V Ceramic AA C7309 VCKYCY1HB104KY J 0.1 50V Ceramic AA C7310 VCCCCY1HH102JY J 1000p 50V Ceramic AB

å C7701 RC-FZA022WJZZ J 0.22 275V Film AD å C7702 RC-FZA022WJZZ J 0.22 275V Film AD

C7703 RC-EZA735WJQZ J 150 400V Electrolytic AN C7704 RC-FZA180WJZZ J 0.1 580V Film AD

å C7707 RC-KZ0103GEZZ J 1000p 250V Ceramic AD å C7708 RC-KZ1028CEZZ J 1000p 250V Ceramic AC

C7711 RC-KZA271WJZZ J 470p 2kV Ceramic AC C7712 RC-KZA216WJZZY J 2.2 50V Ceramic AC C7713 VCKYP A1HB471K+ J 470p 50V Ceramic AA C7714 VCQYTA1HM104J+ J 0.1 50V Mylar AB C7715 VCEA4A2CN106M+ J 10 160V Electrolytic AC C7716 VCESKA1HM476M+ J 47 50V Electrolytic AD C7717 VCQYTA1HM332J+ J 3300p 50V Mylar AA

å C7718 RC-KZ0105GEZZ J 2200p 250V Ceramic AD

C7734 RC-EZA484WJZZ+ J 1500 25V Electrolytic AE C7735 RC-EZA468WJZZ+ J 2200 16V Electrolytic AE C7736 RC-EZA484WJZZ+ J 1500 25V Electrolytic AE C7737 RC-EZA162WJZZ+ J 1000 16V Electrolytic AD C7738 RC-EZA162WJZZ+ J 1000 16V Electrolytic AD C7739 RC-EZA476WJZZ+ J 330 25V Electrolytic AC C7751 VCQYTA1HM104J+ J 0.1 50V Mylar AB

RESISTORS

R3301 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3302 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3304 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R3305 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3306 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3307 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R3308 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R3309 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R3310 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3311 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R3312 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3313 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R3314 VRD-RA2EE331JY J 330 1/4W Carbon AA R3315 VRS-TW2ED331JY J 330 1/4W Metal Oxide AB

R3316 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3317 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3324 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3325 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3326 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3327 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3602 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3603 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3901 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3904 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3905 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R3906 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3907 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R3908 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3921 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3922 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3923 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3924 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3925 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3926 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3927 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3928 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3929 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3930 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R5001 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R5002 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R5003 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R5004 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R5005 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5006 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5007 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5008 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5009 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R5011 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5012 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R6700 VRD-RA2EE821JY J 820 1/4W Carbon AA R6701 VRS-TW2ED821JY J 820 1/4W Metal Oxide AB R6702 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6703 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6704 VRS-TW2ED331JY J 330 1/4W Metal Oxide AB R6708 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6709 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6710 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6711 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6712 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6713 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6714 VRS-TW2ED821JY J 820 1/4W Metal Oxide AB R6715 VRS-TW2ED821JY J 820 1/4W Metal Oxide AB R6716 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6717 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6722 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6723 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6724 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6725 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6726 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6727 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6728 VRS-TW2ED331JY J 330 1/4W Metal Oxide AB R6743 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R7001 VRS-VV3AB222J J 2.2k 1W Metal Oxide AA R7003 VRS-VV3AB222J J 2.2k 1W Metal Oxide AA R7004 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R7005 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA R7006 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R7007 VRS-TQ2BD683JY J 68k 1/8W Metal Oxide AA R7009 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R7010 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7301 VRS-CY1JF104DY J 100k 1/16W Metal Oxide AA R7302 VRS-CY1JF104DY J 100k 1/16W Metal Oxide AA R7303 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R7304 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R7305 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R7306 VRS-CY1JF333FY J 33k 1/16W Metal Oxide AA R7307 VRS-CY1JF104FY J 100k 1/16W Metal Oxide AA R7308 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7309 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

Page 84

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD035WEF1 (LC-13SH4U) DUNTKD035WEF2 (LC-15SH4U)

SUB Unit (Continued)

R7310 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R7311 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R7312 VRS-CY1JF511JY J 510 1/16W Metal Oxide AA R7313 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R7314 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R7315 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R7316 VRS-CY1JF182JY J 1.8k 1/16W Metal Oxide AA R7332 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R7704 RR-DZA033WJZZ J 180k 3W Special AD

R7705 RR-DZA033WJZZ J 180k 3W Special AD R7706 RR-DZA036WJZZ J 150k 2W Special AC R7711 VRN-VV3ABR68J J 0.68 1W Metal Film AA

R7712 VRN-VV3ABR68J J 0.68 1W Metal Film AA R7713 VRS-SV2HC101J J 100 1/2W Metal Oxide AA R7714 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7715 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7716 VRD-RM2HD220JY J 22 1/2W Carbon AA R7717 VRS-TQ2BD102JY J 1k 1/8W Metal Oxide AA R7718 VRS-TQ2BD562JY J 5.6k 1/8W Metal Oxide AA R7719 VRD-RM2HD220JY J 22 1/2W Carbon AA R7720 VRS-TQ2BD102JY J 1k 1/8W Metal Oxide AA

å R7724 RR-HZ0053CEZZY J 10M 1/2W

R7725 VRS-TQ2BD153JY J 15k 1/8W Metal Oxide AA R7732 VRD-RA2BE000JY J 0 1/8W Carbon AA R7752 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R7753 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R7754 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7755 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7757 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R7758 VRD-RA2BE000JY J 0 1/8W Carbon AA R7759 VRS-TW2HF102JY J 1k 1/2W Metal Oxide AA R7761 VRD-RA2BE2R7JY J 2.7 1/8W Carbon AA R7767 VRD-RA2EE153JY J 15k 1/4W Carbon AA R7773 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

å F6700 QFS-ZA003WJZZ J Fuse, 1.6A/250V AD å F6702 QFS-ZA003WJZZ J Fuse, 1.6A/250V AD å F7701 QFS-D0010CEZZ J Fuse, 3.15A/250V AE

FH7701 QFSHD1013CEZZ+ J Fuse Holder AC FH7702 QFSHD1014CEZZ+ J Fuse Holder AC FB7002 RBLN-0095CEZZY J Ferrite Bead AD FB7003 RBLN-0095CEZZY J Ferrite Bead AD FB7004 RBLN-0095CEZZY J Ferrite Bead AD FB7005 RBLN-0090GEZZY J Ferrite Bead AB FB7006 RBLN-0090GEZZY J Ferrite Bead AB FB7007 RBLN-0090GEZZY J Ferrite Bead AB FB7008 RBLN-0051TAZZY J Ferrite Bead AC FB7701 RBLN-0037CEZZY J Ferrite Bead AB FB7732 RBLN-0090GEZZY J Ferrite Bead AB

å CN7701QSOCAA010WJZZ J POWER INPUT Terminal AD

J3301 QJAKJ0101SEZZ J Headphone Jack AE J3901 QJAKGA080WJZZ J PR/PB/Y(INPUT1) Terminal AE J3902 QJAKFA039WJZZ J AUDIO(L/R)(INPUT1) AD

Terminal

J3903 QJAKFA039WJZZ J AUDIO(L/R)(AUDIO OUT) AD

Terminal J5000 QSOCDA035WJZZ J S-VIDEO(INPUT2) AD J5001 QJAKGA081WJZZ J AUDIO/VIDEO(INPUT2) AE

Terminal P3301 QPLGNA185WJZZ J Plug, 4-pin(TS) AB P3901 QCNCMA012WJZZ J Connector, 15-pin(MB) AD P3902 QCNCMA250WJZZ J Connector, 23-pin(MA) AE P6700 QPLGNA390WJZZ J Plug, 2-pin AC P6701 QPLGNA390WJZZ J Plug, 2-pin AC P6702 QPLGNA390WJZZ J Plug, 2-pin AC P6703 QPLGNA390WJZZ J Plug, 2-pin AC

Carbon Film Carbon Film Carbon Film

Coat-Insulated fixed anti-surge

P7301 QCNCMA012WJZZ J Connector, 15-pin AD SC3601 QSOCN0896REZZ J Socket, 8-pin AC HM6701 HM6702 HM6703 HM6704 HM6705 HM6706 HM6707 HM6708 HM6709 HM6710 HM6711 HM6712 HM6713 HM6714 HM6715 HM6716 HM7701 HM7702 HM7705 HM7706 HM7709 HM7710 HM7713 HM7714 HM7717 HM7718 HM7719 HM7720 HM7721 HM7722 HM7723 HM7724 HM7725 HM7726 HM7727 HM7728 HM7729 HM7730 HM7731 HM7732 HM7733 HM7734 HM7735 RD7701 RD7702

LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3001PEZZ J Screw AB LX-GZ3001PEZZ J Screw AB LX-GZ3001PEZZ J Screw AB LX-GZ3001PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB LX-GZ3002PEZZ J Screw AB PRDARA178WJFW J Heat Sink AM PRDARA185WJFW J Heat Sink AL QCNW-D459WJQZ J Connecting Cord AC QCNW-D513WJPZ J Connecting Cord AC QCNW-D692WJQZ J Connecting Cord AD XBPS730P10JS0 J Screw, x4 AA

Page 85

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKD036WEF1 (LC-13SH4U) DUNTKD036WEF2 (LC-15SH4U)

OPERATION Unit

D4201 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4202 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4203 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4204 RH-EX0610GEZZY J Zener Diode, 4.7V AA

R4201 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R4202 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4203 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R4204 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4205 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

S4201 QSW-P0614CEZZ J POWER AF SW4202 SW4203 SW4204 SW4205 SW4206 SW4207

QSW-K0003AJZZ+ J CH(Ù)AB QSW-K0003AJZZ+ J CH(ù)AB QSW-K0003AJZZ+ J INPUT AB QSW-K0003AJZZ+ J MENU AB QSW-K0003AJZZ+ J VOL(+) AB QSW-K0003AJZZ+ J VOL(–) AB

MISCELLANEOUS PARTS

SC4201 QSOCN0596REZZ J Socket, 5-pin AB

DIODES

RESISTORS

SWITCHES

DUNTKD037WEF1 (LC-13SH4U) DUNTKD037WEF2 (LC-15SH4U)

R/C, LED Unit

Q4001 VSKRC104S//-1Y J KRC104S AA Q4002 VSKRC104S//-1Y J KRC104S AA Q4003 VSKRC104S//-1Y J KRC104S AA Q4005 VSKRC104S//-1Y J KRC104S AA

D4001 RH-PXA014WJZZ+ J POWER Indicator AD D4002 RH-PXA014WJZZ+ J SLEEP TIMER Indicator AD D4004 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4005 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4006 RH-EX0610GEZZY J Zener Diode, 4.7V AA D4009 RH-EX0610GEZZY J Zener Diode, 4.7V AA

C4001 VCESKA1CM106M+ J 10 16V Electrolytic AB

R4001 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4002 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R4003 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4005 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R4006 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

SC4001 QSOCN0896REZZ J Socket, 8-pin AC RMC4001

RRMCUA034WJQZ J R/C Receiver AE LHLDZA555WJZZ J LED Holder AD

TRANSISTORS

DIODES

CAPACITOR

RESISTORS

MISCELLANEOUS PARTS

Page 86

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

CABINET AND MECHANICAL PARTS

LC-13SH4U

1 CCABAA850WJ01 J Cabinet A Ass’y AZ 1-1 1-2 HDECQA528WJSA J R/C, LED Cover AD 1-3 PSPAHA578WJZZ J Mask Spacer(L), x2 AC 1-4 PSPAHA579WJZZ J Mask Spacer(S), x2 AC 1-5 TLABZA459WJZZ J "EDTV" Label AB 1-6 TLABZA635WJZZ J "EnergyStar" Label AC

2 CCABBA538WJ01 J Cabinet B Ass’y AK 2-1 2-2 LANGFA085WJFW J Kensington Angle AC 2-3 LANGTA229WJFW J Reinforcement Angle AN 2-4 PZETKA129WJZZ J Insulating Spacer, x1 AP 2-5 XEBSN30P08000 J Screw, x1 AA

3 CDAi-A187WJ01 J Stand Ass’y BE 3-1 3-2 GLEGGA010WJZZ J Rubber Leg, x5 AC 3-3 MHNG-A125WJ01 J Stand Hinge AZ 3-4 XBPSN40P14JS0 J Screw, x3 AB

4 CCOVAB302WJ01 J Top Cover Ass’y AP 4-1 4-2 JBTN-A353WJSA J Operation Button AK 4-3 JBTN-A354WJSA J Power Button AF 4-4 MSPRCA014WJFW J Spring, for Power Button AB 4-5 XEBSN30P08000 J Screw, x2 AA

Not Available

– Cabinet A —

– Cabinet B —

– Stand Base —

– Top Cover —

5 5-1 RLCDTA023WJZZ J 13" LCD Panel Unit CQ 5-2 5-2-1 PSLDMA542WJFW J Back Shield AR 5-2-2 LHLDZA429WJKZ J Lamp Holder-R(Bottom) AF 5-2-3 LHLDZA435WJKZ J Lamp Holder-L(Bottom) AF 5-2-4 PMLT-A149WJZZ J Light Shielding Spacer, x2 AB 5-2-5 PSHEPA229WJZZ J Reflection Sheet AK 5-2-6 TCAUZA031WJZZ J Caution Label AB

å 5-3 KLMP-A048WJZZ J Lamp Unit, x4 AV

5-4 LHLDZA433WJKZ J Lamp Holder-R(Top) AH 5-5 LHLDZA434WJKZ J Lamp Holder-L(Top) AH 5-6 LX-BZA084WJF7 J Screw, x4 AA 5-7 PCOVUA047WJZZ J Diffusion Plate, x1 AT 5-8 PSHEPA230WJZZ J Diffusion Sheet, x2 AH

6 GCOVAA984WJKB J Bass-Conne Cover AE 7 GCOVAB254WJKA J Stand Cover AH

8 CCHSMA184WJ02 J Chassis Frame Ass’y AS 8-1 8-2 PSPAHA557WJ00 J Spacer, x1 AC 8-3 PSPAHA558WJ00 J Spacer, x1 AB

9 RCORFA028WJZZ J Ferrite Core AK 10 TLABMB426WJZZ J Model Label AC 11 12 QCNW-C182WJQZ J Connecting Cord AC 13 QCNW-D228WJQZ J Connecting Cord AD 14 QCNW-D229WJQZ J Connecting Cord AC 15 QCNW-D297WJQZ J Connecting Cord AK 16 QCNW-D362WJQZ J Connecting Cord AB 17 QCNW-D461WJQZ J Connecting Cord AE 18 VSP1104PB038A J Speaker, x2 AK 19 QEARPA125WJFW J Grounding Part AD 20 XEBSN40P10000 J Screw, x6 AB 21 XBBS940P10000 J Screw, x5 AB 22 XEBS930P14000 J Screw, x11 AA 23 XEBSN30P08000 J Screw, x7 AA 24 XHBS830P10000 J Screw, x1 AA 25 XHPS730P08WS0 J Screw, x4 AA 26 LHLDZA555WJZZ J LED Holder AD

Not Available Not Available

Not Available

– 13" LCD Panel Unit Ass’y — – Back Shield Ass’y —

– Chassis Frame —

– Serial No. Label —

Page 87

CABINET AND MECHANICAL PARTS (LC-13SH4U)

LC-13SH4U LC-15SH4U

4-1

4-2

1-4

1-3

1-6

1-5

1-3

1-1

4-5

Operation PWB

1-4

1-2

4-4

4-3

R/C, LED PWB

5-2-6

5-2-4

5-2-5

5-2-3

5-2-1

2-2

5-3

5-2-2

5-2

3-3

3-4

3-1

3-2

5-6

5-1

5-8

8-2

8-3

Sub PWB

8-1

5-8

5-5

5-7

2-5

Main PWB

5-4

2-1

2-3

2-4

654321

Page 88

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

CABINET AND MECHANICAL PARTS

LC-15SH4U

1 CCABAA849WJ01 J Cabinet A Ass’y AZ 1-1 1-2 HDECQA528WJSA J R/C, LED Cover AD 1-3 PSPAHA568WJ00 J Mask Spacer(L), x2 AC 1-4 PSPAHA569WJ00 J Mask Spacer(S), x2 AC 1-5 TLABZA459WJZZ J "EDTV" Label AB 1-6 TLABZA635WJZZ J "EnergyStar" Label AC

2 CCABBA537WJ01 J Cabinet B Ass’y BD 2-1 2-2 LANGFA085WJFW J Kensington Angle AC 2-3 LANGTA212WJFW J Reinforcement Angle AN 2-4 PZETKA127WJZZ J Insulating Spacer, x1 AL 2-5 XEBSN30P10000 J Screw, x1 AA

3 CDAi-A187WJ01 J Stand Ass’y BE 3-1 3-2 GLEGGA010WJZZ J Rubber Leg, x5 AC 3-3 MHNG-A125WJ01 J Stand Hinge AZ 3-4 XBPSN40P14JS0 J Screw, x3 AB

4 CCOVAB228WJ01 J Top Cover Ass’y AQ 4-1 4-2 JBTN-A353WJSA J Operation Button AK 4-3 JBTN-A354WJSA J Power Button AF 4-4 MSPRCA014WJFW J Spring, for Power Button AB 4-5 XEBSN30P08000 J Screw, x1 AA

5 5-1 RLCDTA024WJZZ J 15" LCD Panel Unit CT 5-2 5-2-1 PSLDMA541WJFW J Back Shield AS 5-2-2 LHLDZA425WJKZ J Lamp Holder-R(Bottom) AF 5-2-3 LHLDZA426WJKZ J Lamp Holder-L(Bottom) AF 5-2-4 PSHEPA228WJZZ J Reflection Sheet AL 5-2-5 TCAUZA031WJZZ J Caution Label AB

å 5-3 KLMP-A047WJZZ J Lamp Unit, x4 AV

5-4 LHLDZA423WJKZ J Lamp Holder-L(Top) AK 5-5 LHLDZA424WJKZ J Lamp Holder-R(Top) AH 5-6 LX-BZA084WJF7 J Screw, x4 AA 5-7 PCOVUA046WJZZ J Diffusion Plate AV 5-8 PSHEPA227WJZZ J Diffusion Sheet, x2 AK 5-9 PSPAKA045WJZZ J Insulating Spacer AB

Not Available

Not Available Not Available

– Cabinet A —

– Cabinet B —

– Stand Base —

– Top Cover —

– 15" LCD Panel Unit Ass’y — – Back Shield Ass’y —

24 XEBSN30P12000 J Screw, x7 AA 25 XHBS830P10000 J Screw, x1 AA 26 XHPS730P08WS0 J Screw, x4 AA 27 LHLDZA555WJZZ J LED Holder AD

6 GCOVAA984WJKB J Bass-Conne Cover AE 7 GCOVAB254WJKA J Stand Cover AH

8 CCHSMA184WJ01 J Chassis Frame Ass’y AT 8-1 8-2 PSPAHA552WJ00 J Spacer, x1 AD 8-3 PSPAHA553WJ00 J Spacer, x1 AC 8-4 PSPAHA554WJ00 J Spacer, x1 AB 8-5 PSPAHA556WJ00 J Spacer, x1 AB 8-6 PSPAHA557WJ00 J Spacer, x1 AC 8-7 PSPAHA558WJ00 J Spacer, x1 AB

9 RCORFA028WJZZ J Ferrite Core AK 10 TLABMB425WJZZ J Model Label AC 11 12 QCNW-B441WJQZ J Connecting Cord AC 13 QCNW-D228WJQZ J Connecting Cord AD 14 QCNW-D229WJQZ J Connecting Cord AC 15 QCNW-D298WJQZ J Connecting Cord AG 16 QCNW-D362WJQZ J Connecting Cord AB 17 QCNW-D519WJQZ J Connecting Cord AD 18 VSP1104PB038A J Speaker, x2 AK 19 QEARPA125WJFW J Grounding Part AD 20 XEBSN40P12000 J Screw, x6 AB 21 XBBS940P10000 J Screw, x1 AB 22 XBPSN40P14JS0 J Screw, x4 AB 23 XEBS930P14000 J Screw, x11 AA

Not Available

– Chassis Frame —

– Serial No. Label —

Page 89

CABINET AND MECHANICAL PARTS (LC-15SH4U)

LC-13SH4U LC-15SH4U

4-1

4-2

1-4

1-3

1-6

1-5

1-1

4-3

4-4

4-5

Operation PWB

1-4

1-2

5-4

R/C, LED PWB

5-2-5

5-2-4

5-2-3

5-2-1

5-3

5-2-2

5-5

2-2

5-3

5-2

5-3

3-3

3-4

3-1

3-2

5-6

Sub PWB

8-6

8-7

5-9

5-7

5-8

2-4

2-5

2-1

2-3

5-1

8-2

8-1

8-4

8-5

8-3

Main PWB

654321

Page 90

LC-13SH4U LC-15SH4U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

SUPPLIED ACCESORIES

å X1 QACCDA038WJPZ J AC Cord (LC-15SH4U) AL å X1 QACCDA041WJPZ J AC Cord (LC-13SH4U) AL

X2 RRMCGA367WJSA J Wireless Remote Control AV X3 TCADEA141WJZZ J Questionnaire Card AC X4 TiNS-B819WJN1 J Operation Manual (English) AD X5 TiNS-B820WJN1 J Operation Manual (French) AD X6 TiNS-B905WJN1 J X7 Not Available – "AA" size Battery, x2 —

Operation Manual (Spanish)

SERVICE JIGS

(USE FOR SERVICING)

QCNW-A555WJZZ J Extension Cable, 20-pin AU QCNW-A556WJZZ J Extension Cable, 50-pin AU QCNW-B784WJZZ J Extension Cable, 30-pin BA QCNW-C461WJQZ J Extension Cable, 15-pin, x2 CD

QCNW-D402WJQZ J Extension Cable, 23-pin CE QCNW-D444WJQZ J Extension Cable, 5-pin AQ QCNW-D445WJQZ J Extension Cable, 8-pin AQ JiGiNF-001 J Interface Jig CC

(SC1002-LCD)

(SC1000-LCD)

(SC1001-LCD)

(SC1201-P7301,

SC2001-P3901)

(SC2002-P3902)

(SC2003-SC4201)

(SC3601-SC4001)

P ACKING P ARTS

(NOT REPLACEMENT ITEM)

S1 SPAKCB850WJZZ – Packing Case (LC-15SH4U) — S1 SPAKCB851WJZZ – Packing Case (LC-13SH4U) — S2 SPAKPA230WJZZ – Wrapping Paper —

(LC-13SH4U)

S2 SPAKPA531WJZZ – Wrapping Paper —

(LC-15SH4U)

S3 SPAKXA728WJZZ – Buffer Material —

(LC-15SH4U)

S3 SPAKXA729WJZZ – Buffer Material —

(LC-13SH4U) S4 SSAKA0001SEZZ – Polyethylene Bag — S5 TLABKA025WJZZ – No. Label —

Supplied Accessories

Wireless remote control

X2 X1X7

"AA" size batteries (×2)

AC cord

LC-13SH4U

LC-15SH4U

Operation manual : X4, X5, X6

Page 91

P ACKING OF THE SET

X3, X4, X5, X6

LC-13SH4U LC-15SH4U

Page 92

LC-13SH4U LC-15SH4U

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

TQ1891-S

Apr. 2005 Printed in Japan

Design and Production Information Design : Japan Production : NSEC

MI. KG

SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Y aita, Tochigi 329-2193, Japan
