SHARP JE600D3LB44 Specification

JE600D3LB44

RECORDS OF REVISION

SPEC No. DATE

No. PAGE

LD-K24802

2012.08.06 - - - 1st ISSUE

2013.01.28 A 2 Symbol of input terminal is chenged 2nd ISSUE

REVISED

SUMMARY NOTE

8 Symbol of Backlight terminal is chenged
8 [Operation condition]commnent is changed

9 [Note3]commnent is changed
12 Item of LED driving for backlight is changed
12 [Note2]commnent is changed

SHARP Confidential

LD-K24802A-1

r

1. Application

This specification applies to the color 60.0” TFT-LCD module JE600D3LB44.

* These specifications are proprietary products of SHARP CORPORATION (“SHARP”) and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or
by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written
permission of SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
system design should be taken.

* Do not use the device for equipment that requires an extre me level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
the instructions and the precautions specified in these specification.

* Contact and consult with a SHARP sales representative for any questions about this device.

2. Overview

This module is a color active matrix LCD module incorporating amorphous silicon TFT (T
is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and back light system etc.
Graphics and texts can be displayed on a 1920×RGB×1080 dots panel with one billion colors by using LVDS (L

oltage Differential Signaling) to interface, +12V of DC supply voltages.

V

And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving)
technology for the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal
according to a pre-fixed process as an image signal of the present frame when a di fference is found between image
signal of the previous frame and that of the current frame after comparing them.

With this technology, image signals can be set so that liquid crystal response completes within one frame. As a
result, motion blur reduces and clearer display performance can be realized.

This LCD module also adopts 120Hz Frame Rate driving method.

With combination of these technologies, motion blur can be reduced and clearer display performance can be
realized.

hin Film Transistor). It

ow

3. Mechanical Specifications

Paramete

Display size
Active area 1329.12 (H) x 747.63 (V) mm
Pixel Format
Pixel pitch 0.69225 (H) x 0.69225 (V) mm

Pixel configuration R, G, B vertical stripe
Display mode Normally black
Unit Outline Dimensions (*1) 1360.1(W) x 781.6(H) x 21.4 (D) mm
Mass 17.1 kg

Surface treatment

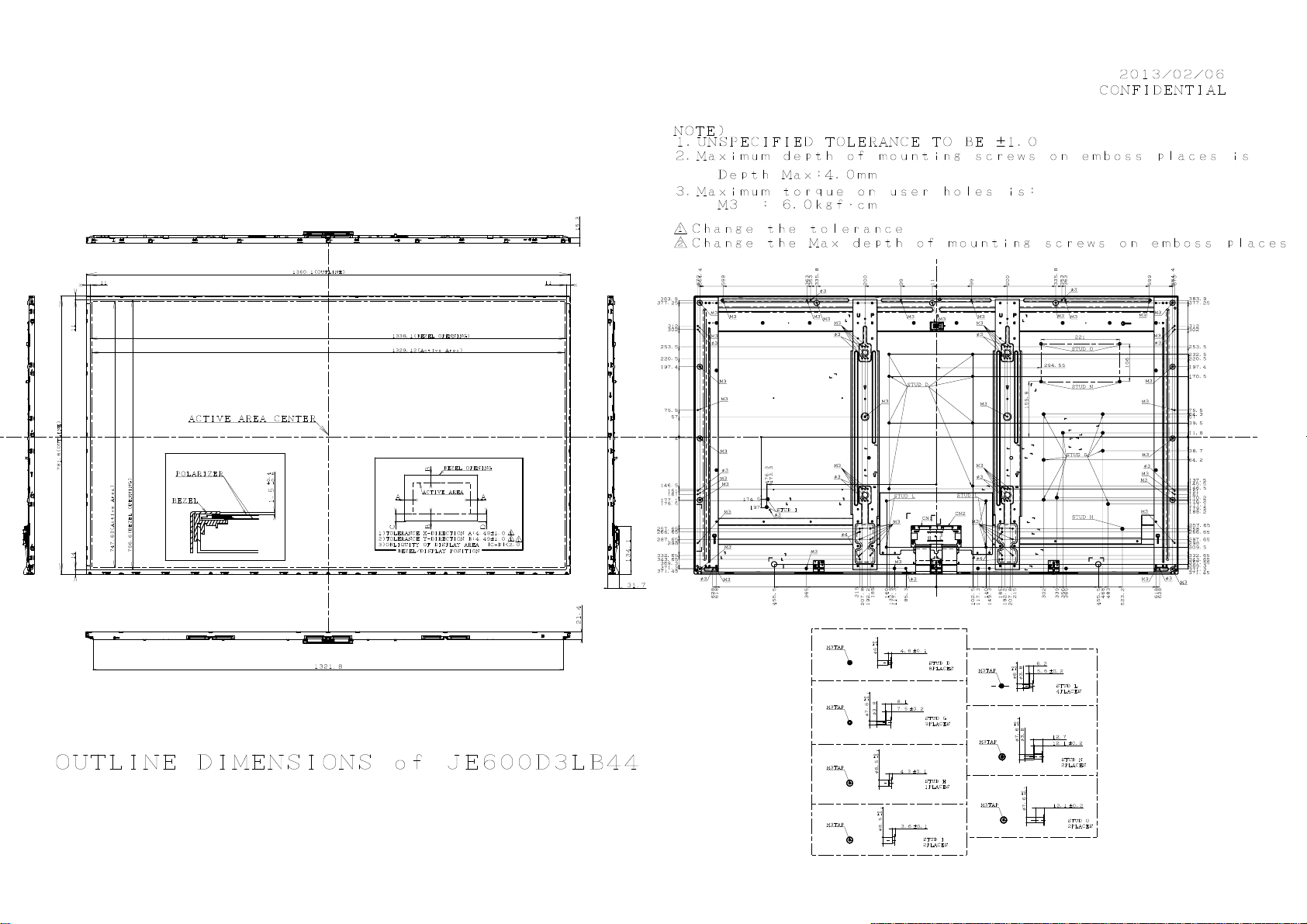

(*1) Outline dimensions are shown in Fig.1 (excluding protruding portion)

152.496 (Diagonal) cm

60.0 (Diagonal) inch

1920 (H) x 1080 (V)
(1pixel = R + G + B dot)

Low-Haze Anti glare
Hard coating: 2H and more

Specifications Unit

pixel

SHARP Confidential

LD-K24802A-2

4. Input Terminals

4.1. TFT panel driving

CN1 (Interface signals and +12V DC power supply)

Using connector : 91213-0510Y (ACES)

Mating connector : 91214-05130 (ACES), FI-RE51/FI-RE51CL (JAE)

Mating LVDS transmitter : THC63LVD1023 or equivalent device

Pin No. Symbol Function Remark

1
2
3
4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

GND
Reserved It is required to set non-connection(OPEN) [Note 1]
Reserved It is required to set non-connection(OPEN) [Note 1]
Reserved It is required to set non-connection(OPEN)
Reserved
Reserved It is required to set non-connection(OPEN)

SEL LVDS ▲A

Reserved
Reserved
Reserved

GND

AIN0- Aport (-)LVDS CH0 differential data input

AIN0+ Aport (+)LVDS CH0 differential data input

AIN1- Aport (-)LVDS CH1 differential data input

AIN1+ Aport (+)LVDS CH1 differential data input

AIN2- Aport (-)LVDS CH2 differential data input

AIN2+ Aport (+)LVDS CH2 differential data input

GND

ACK- Aport LVDS Clock signal(-)

ACK+ Aport LVDS Clock signal(+)

GND

AIN3- Aport (-)LVDS CH3 differential data input

AIN3+ Aport (+)LVDS CH3 differential data input

AIN4- Aport (-)LVDS CH4 differential data input

AIN4+ Aport (+)LVDS CH4 differential data input

GND

GND

BIN0- Bport (-)LVDS CH0 differential data input

BIN0+ Bport (+)LVDS CH0 differential data input

BIN1- Bport (-)LVDS CH1 differential data input

BIN1+ Bport (+)LVDS CH1 differential data input

BIN2- Bport (-)LVDS CH2 differential data input

BIN2+ Bport (+)LVDS CH2 differential data input

GND

BCK- Bport LVDS Clock signal(-)

BCK+ Bport LVDS Clock signal(+)

GND

BIN3- Bport (-)LVDS CH3 differential data input

BIN3+ Bport (+)LVDS CH3 differential data input

BIN4- Bport (-)LVDS CH4 differential data input

BIN4+ Bport (+)LVDS CH4 differential data input

GND

GND

GND

GND

GND

VCC +12V Power Supply

It is required to set non-connection(OPEN) [Note 2]

Select LVDS data order [Note 2] [Note 3]
It is required to set non-connection(OPEN)
It is required to set non-connection(OPEN)
It is required to set non-connection(OPEN)

SHARP Confidential

Pull up 3.3V
Pull up 3.3V

Pull down: (GND)

Pull down: (GND)

48
49
50
51

VCC +12V Power Supply

VCC +12V Power Supply

VCC +12V Power Supply

VCC +12V Power Supply

CN2 (Interface signals)

Using connector : 91213-0410Y (ACES)

Mating connector : 91214-04130 (ACES), FI-RE41HL/FI-RE41C (JAE)

Pin No. Symbol Function Remark

1
2
3
4
5
6 Reserved
7 Reserved
8 Reserved

9 GND
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

Reserved (VCC) (+12V Power Supply)
Reserved (VCC) (+12V Power Supply)
Reserved (VCC) (+12V Power Supply)

Reserved Non-Connection(OPEN)
Reserved Non-Connection(OPEN)

Non-Connection(OPEN)
Non-Connection(OPEN)
Non-Connection(OPEN)

CIN0- Cport (-)LVDS CH0 differential data input

CIN0+ Cport (+)LVDS CH0 differential data input

CIN1- Cport (-)LVDS CH1 differential data input

CIN1+ Cport (+)LVDS CH1 differential data input

CIN2- Cport (-)LVDS CH2 differential data input

CIN2+ Cport (+)LVDS CH2 differential data input

GND

CCK- Cport LVDS Clock signal(-)

CCK+ Cport LVDS Clock signal(+)

GND

CIN3- Cport (-)LVDS CH3 differential data input

CIN3+ Cport (+)LVDS CH3 differential data input

CIN4- Cport (-)LVDS CH4 differential data input

CIN4+ Cport (+)LVDS CH4 differential data input

GND
GND

DIN0- Dport (-)LVDS CH0 differential data input

DIN0+ Dport (+)LVDS CH0 differential data input

DIN1- Dport (-)LVDS CH1 differential data input

DIN1+ Dport (+)LVDS CH1 differential data input

DIN2- Dport (-)LVDS CH2 differential data input

DIN2+ Dport (+)LVDS CH2 differential data input

GND

DCK- Dport LVDS Clock signal(-)

DCK+ Dport LVDS Clock signal(+)

GND

DIN3- Dport (-)LVDS CH3 differential data input

DIN3+ Dport (+)LVDS CH3 differential data input

DIN4- Dport (-)LVDS CH4 differential data input

DIN4+ Dport (+)LVDS CH4 differential data input

GND
GND

[Note] GND of a liquid crystal panel drive part has connected with a module chassis.

LD-K24802A-3

SHARP Confidential

[Note 1] The equivalent circuit figure of the terminal

3.3V

1KΩ

Te rm in al

100Ω

[Note 2] The equivalent circuit figure of the terminal

Te rm in al

LD-K24802A-4

100Ω

[Note 3] LVDS Data order

SELLVDS

Data L(GND) or OPEN

[VESA]
TA0
TA1
TA2
TA3
TA4
TA5
TA6

TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3

R0(LSB)
R1
R2
R3
R4
R5
G0(LSB)
G1
G2
G3
G4
G5
B0(LSB)
B1
B2
B3
B4

B5
TC4 NA NA
TC5 NA NA
TC6 DE(*) DE(*)
TD0
TD1
TD2
TD3
TD4
TD5
TD6

TE0

R6

R7

G6

G7

B6

B7

N/A

R8

SHARP Confidential

10KΩ

H(3.3V)

[JEIDA]
R4
R5
R6
R7
R8
R9(MSB)
G4
G5
G6
G7
G8
G9(MSB)
B4
B5
B6
B7
B8
B9(MSB)

R2
R3
G2
G3
B2
B3
N/A
R0(LSB)

LD-K24802A-5

TE1
TE2
TE3
TE4
TE5
TE6

NA: Not Available
(*)Since the display position is prescribed by the rise of DE(Display Enable) signal, please do not fix DE
signal during operation at ”High”.

R9(MSB)
G8
G9(MSB)
B8
B9(MSB)
N/A

R1
G0(LSB)
G1
B0(LSB)
B1
N/A

SHARP Confidential

–

,

–

–

,

–

SELLVDS= Low (GND) or OPEN

ACK+,BCK+
CCK+,DCK+

ACK– ,BCK–
CCK– ,DCK–

AIN0+,BIN0+
CIN0+,DIN0+
AIN0

–,BIN0–

CIN0–,DIN0–

AIN1+,BIN1+
CIN1+,DIN1+
AIN1–,BIN1–
CIN1–,DIN1–

R1

AIN2+,BIN2+
CIN2+,DIN2+

–,BIN2–

AIN2
CIN2–,DIN2–

AIN3+,BIN3+
CIN3+,DIN3+
AIN3

–,BIN3–

CIN3–,DIN3–

AIN4+,BIN4+
CIN4+,DIN4+
AIN4–,BIN4–
CIN4

DIN4

SELLVDS= High (3.3V)

ACK+,BCK+
CCK+,DCK+

ACK– ,BCK–
CCK– ,DCK–

AIN0+,BIN0+
CIN0+,DIN0+
AIN0
CIN0–,DIN0–

AIN1+,BIN1+
CIN1+,DIN1+
AIN1–,BIN1–
CIN1–,DIN1–

AIN2+,BIN2+
CIN2+,DIN2+
AIN2–,BIN2–
CIN2–,DIN2–

AIN3+,BIN3+
CIN3+,DIN3+
AIN3–,BIN3–
CIN3–,DIN3–

AIN4+,BIN4+
CIN4+,DIN4+
AIN4
CIN4

–,BIN0–

–,BIN4–

DIN4

DE: Display Enable, NA: Not Available (Fixed Low)

LD-K24802A-6

1 cycle

G0 R5 R4 R3 R2 R1 R0 R0

B1 B0 G5 G4 G3 G2 G1 G1 G2 B1

DE

NA NA

B7 B6 G7 G6 R7 R6 R6 R7 NA NA

B9 B8 G9 G8 R9 R8 R8 R9 NA NA

B5 B4 B3 B2 B6 B3

G0

DE

1 cycle

G4 R9 R8 R7 R6 R5 R4 R4 R5 G4

B5 B4 G9 G8 G7 G6 G5 G5 G6 B5

DE

NA NA

B3 B2 G3 G2 R3 R2 R2 R3 NA NA

B1 B0 G1 G0 R1 R0 R0 R1 NA NA

B9 B8 B7 B6 B6 B7

DE

SHARP Confidential

4.2. Interface block diagram

INPUT SIGNALS

CIN0- CIN0+
CIN1- CIN1+
CIN2- CIN2+
CIN3- CIN3+
CIN4- CIN4+
CCK- CCK+
DIN0- DIN0+
DIN1- DIN1+
DIN2- DIN2+
DIN3- DIN3+
DIN4- DIN4+
DCK- DCK+

GATE DRIVER

CN2

2

CONTROL PWB

Control

Signals

SOURCE DRIVER

LCD PANEL

1920×3(RGB)×1080

LED PWB

CN101

CN1

Power Supply

Circuit

LED PWB

INPUT SIGNALS

SELLVDS
AIN0- AIN0+
AIN1- AIN1+
AIN2- AIN2+
AIN3- AIN3+
AIN4- AIN4+
ACK- ACK+
BIN0- BIN0+
BIN1- BIN1+
BIN2- BIN2+
BIN3- BIN3+
BIN4- BIN4+
BCK- BCK+

POWER SUPPLY
+12V DC

GATE DRIVER

Edge-lit Back Light

POWER SUPPLY

V

= 109.7V, I

LED

LD-K24802A-7

= 1040 mA （260mA x4ch）

LED

SHARP Confidential

LD-K24802A-8

4.3 Backlight driving

CN101 (DC power supply)

Using connector: A2010H00-15P-SHP (JWT)
Mating connector: A2010WR0-15P-SW-3.2-W1 (JWT) ▲A

Pin No. Symbol Function Remark

1 PIN_1 LED Anode terminal (LED-PWB2)
2 NC Non-connection
3 PIN_3 LED Cathode terminal (LED-PWB2)
4 NC Non-connection
5 PIN_5 LED Anode terminal (LED-PWB2)
6 NC Non-connection
7 PIN_7 LED Cathode terminal (LED-PWB2)
8 NC Non-connection
9 PIN_9 LED Anode terminal (LED-PWB1)

10 NC Non-connection
11 PIN_11 LED Cathode terminal (LED-PWB1)
12 NC Non-connection
13 PIN_13 LED Anode terminal (LED-PWB1)
14 NC Non-connection
15 PIN_15 LED Cathode terminal (LED-PWB1)

CN101 side cable lengths (from panel backplate opening to including connector head) L= 220±20 [mm](typ.)

* Layout of LED PWB

GATE DRIVER

1920×3(RGB)×1080

LED PWB1 LED PWB2

LCD PANEL

GATE DRIVER

SOURCE DRIVER

Front View

4.4 The back light system characteristics

The back light system is side-edge-lit type with LED.

The characteristics of the LED are shown in the following table. The value mentioned below is at the case of

one LED.

Item Symbol Min. Typ. Max. Unit Remarks

Life time TLED - 50,000. - Hour [Note]

[Note]

LED life time is defined as the time when brightness becomes 50% of the original value in the

continuous operation under the Ta = 25℃

[Operation condition] ▲A

ambient temperature Ta=25℃

= 0.520A (each LED PWB), using heat radiation system on the backside module

I

LED

*Under such a condition, please keep 85.0℃ or less the temperature of the terminal of LED.

SHARP Confidential

5. Absolute Maximum Ratings

Parameter Symbol Condition Ratings Unit Remark

Input voltage

(for Control PWB)

12V supply voltage

(for Control PWB)

VCC

Reverse voltage
for LED-PWB

Forward Current
for LED-PWB

V

I

V

LED

LED

LD-K24802A-9

I

Ta=25 C

Ta=25 C

-0.3 ~ 3.6 V [Note 1]

0 ~ + 14 V

@1040mA/

Ta=25 C

85 V

module

[Note 3]

Ta=25 C

680 mA [Note 3]

Storage temperature Tstg - -25 ~ +60

Operation temperature

(Ambient)

Topa - 0 ~ +50

[Note 1] SELLVDS
[Note 2] Humidity 95%RH Max.(Ta≦40C)

Maximum wet-bulb temperature at 39 C or less.(Ta>40C)

No condensation.

[Note 3] Pin1, 3, 5, 7, 9, 11, 13 and 15 in CN101.
▲A Forward Current: 340mA / string (1ch), Ts≦85 C

C

[Note 2]

C

SHARP Confidential

LD-K24802A-10

O

6. Electrical Characteristics

6.1. Control circuit driving Ta=25 C

Parameter Symbol Min. Typ. Max. Unit Remark

Supply voltage Vcc 11.4 12 12.6 V [Note 1]

+12V supply

voltage

Current dissipation Icc - 0.65 2.0 A [Note 2]

I

1 - 3.7 5.8 A t1=500us

Inrush current

RUSH

I

2 - 2.6 - A t1>5ms

RUSH

Permissible input ripple voltage VRP - - 100 mVP-P Vcc = +12.0V

Input Differential voltage |VID| 200 400 600 mV [Note 4]
Differential input
threshold voltage

Input Low voltage VIL 0 - 1.0 V

Input High voltage VIH 2.3 - 3.3 V

Input leak current (Low) IIL - - 40 µA

Input leak current (High) IIH - - 400 µA

Terminal resistor RT - 100 -

High VTH 100 - 300 mV

V

Low VTL -300 - -100 mV



CM = +1.2V

[Note 6]

[Note 3]

I = 0V

V

[Note 3]

I = 3.3V

V

[Note 3]

Differential

input

[Note]VCM: Common mode voltage of LVDS driver.

[Note 1]

Input voltage sequences Dip conditions for supply voltage

50us ≦ t1 < 20ms a) V2 ≦ Vcc < V1

20ms < t2 < 5s td < 10ms

20ms < t3 < 5s b) Vcc < V2

0 < t4 < 1s This case is based on input voltage sequence.
t5 > 500ms

t6 > 0

t7 > 1s

0.9VCC

0.1Vcc

Vcc

t1

Data 1

Data2

Back light:VON

t2

t3

ON

t5

FF

t6

t4

t3

0.9Vcc

0.1Vcc

OFF

t7

0.1Vcc

Vcc

V1

V2

td

V1:10.8V
V2:9.1V

※ Data1: ACK, AIN0, AIN1, AIN2, AIN3, AIN4,BCK, BIN0, BIN1, BIN2, BIN3, BIN4

voltage pursues the sequence mentioned above

*V

CM

※ Data2: SELLVDS

[Note]About the relation between data input and back light lighting, please base on the above-mentioned input

sequence. When back light is switched on before panel operation or after a panel operation stop, it may not display

normally. But this phenomenon is not based on change of an incoming signal, and does not give damage to a liquid

crystal display.

SHARP Confidential

LD-K24802A-11

[Note 2] Typical current situation: 1024 gray-bar patterns. (Vcc = +12.0V)

The explanation of RGB gray scale is seen in section 8.

RGB
GS0

RGB
GS1

RGB
GS2

....

RGB

GS1022

RGB

GS1023

Vcc＝+12.0V

CK＝74.25MHz

Th＝7.41μs

[Note 3] SELLVDS
[Note 4] ACK, AIN0, AIN1, AIN2, AIN3, AIN4, BCK, BIN0, BIN1, BIN2, BIN3, BIN4

*CK-,*IN-

*CK+,*IN+

GND

|VID|

VTH

VTL

VCM

[Note 5] Vcc12V inrush current waveform (Ref. t1=500us)

SHARP Confidential

6.2. LED driving for back light ▲A

Parameter Symbol Min. Typ. Max. Unit Remark

LED Current

(for modul)

LED Current

(For LED-Channel)

LED - - 1040 mA 260mA x 4ch [Note 1]

I

I

- - 260 mA [Note 1]

LED_ch

LED 102.4 109.7 116.9 V

V

LED Voltage

VLED1 93.3 - 123.1 V

LED Voltage

Between LED-Channel

⊿V

F

- - 7 V @260mA/ch [Note2]

LD-K24802A-12

1040mA(260mA x 4ch)

Ta=2 5°[Note2]

1040mA(260mA x 4ch)

Topa =0～50°[Note3]

PWM dimming frequency f

95 - 240 Hz

PWM

PWM dimming on duty PWM duty 10 - 100 %

[Note1] PIN1, PIN3,PIN5,PIN7 (CN101)
▲A LED current (I

) is the value of module.

LED

*Recommended system requirements: LED board is driven with constant current circuit.

In case LED board is driven with constant voltage circuit, please pay attention to the variation of

input current between LED strings since it may cause a unevenness of brightness on display.

[Note2] Ta = 25C,

I

LED_ch

=260mA(Fixed current value), Measurement after 100ms has passed since power

supply was turned on.
*The products are sensitive to the static electricity and care shall be fully taken when handling the

products. Particularly in case that an over-voltage which exceeds the Absolute Maximum Rating of the

products shall be applied, the overflowed energy may cause damages to, or possibly result in destruction

of the products. Please take absolutely secured countermeasures against static electricity and surge when

handling the products.

[Note3] Operation condition Topa= 0 ~ 50C, I

=260mA(Fixed current value).

LED_ch

In case protection function is implemented in power supply circuit for LED, please set up threshold

voltage out of this voltage span.

1/ f

PWM

On time

V

LED

Fig.1 LED Backlight PWM

SHARP Confidential

7 Timing characteristics of input signals

7-1 Timing characteristics

Timing diagrams of input signal are shown in Fig.2.

Parameter Symbol Min. Typ. Max. Unit Remark

LD-K24802A-13

Clock Frequency 1/Tc 55

Horizontal period TH

Data enable

signal

Horizontal period

(High)

Vertical period TV

Vertical period

(High)

THd

TVd 1080 1080 1080 line

[Note]-When vertical period is very long, flicker and etc. may occur.

-Please turn off the module after it shows the black screen.

-Please make sure that length of vertical period should become of an integral multiple of horizontal

length of period. Otherwise, the screen may not display properly.

-As for your final setting of driving timing, we will conduct operation check test at our side, please

inform your final setting.

TH

DE

Aport DATA

1

5

(R,G,B)

Bport DATA

2

2

6

(R,G,B)

Cport DATA

3

7 1919 1919

(R,G,B)

Dport DATA

4

8 1920 1920

(R,G,B)

Tc

DE

TV

Fig.2 Timing characteristics of input signals

74.25

515

6.94

480

1120

73.052

THd

1 2 1080

550

7.41

480

1125

120

1917 1917

1918 1918

1079

TVd

80

825

11.1

480

1400

120.64

MHz

Clock

µs

Clock

Line

Hz

SHARP Confidential

7-2 Input data signal and display position on the screen

R1 G1 B1 R2 G2 B2

(１､１) (１,２)

R1 G1 B1 R2 G2 B2

(１､３) (１,４)

LD-K24802A-14

１・１ １・２ １・３

２・１ ２・２

３・１

1080･1

１・４

R G B

Display position of Dat (V,H)

1･1920

1080･1920

7-3. LVDS signal characteristics

CLK-

Vdiff = 0V Vdiff = 0V

CLK+

RINx-

t

CLK

RINx+

tpd0

tpd1

tpd2

tpd3

tpd4

tpd5

tpd6

Condition: Spread spectrum setting should be set within following range.
Deviations of ±3.0% center spread, and

20～80KHz triangular modulation

Data
position

The item Symbol min. typ. max. unit

Delay time, CLK rising edge to
serial bit position 0
Delay time, CLK rising edge to
serial bit position 1

Delay time, CLK rising edge to
serial bit position 2

Delay time, CLK rising edge to
serial bit position 3
Delay time, CLK rising edge to
serial bit position 4

Delay time, CLK rising edge to
serial bit position 5

Delay time, CLK rising edge to
serial bit position 6

tpd0

tpd1

tpd2

tpd3

tpd4

tpd5

tpd6

-0.35 0 0.35

1*t

2* t

3* t

4* t

5* t

6* t

CLK

CLK

CLK

CLK

CLK

CLK

/7-0.35 1* t

/7-0.35 2* t

/7-0.35 3* t

/7-0.35 4* t

/7-0.35 5* t

7-0.35 6* t

/7 1* t

CLK

/7 2* t

CLK

/7 3* t

CLK

/7 4* t

CLK

/7 5* t

CLK

/7 6* t

CLK

CLK

CLK

CLK

CLK

CLK

CLK

/7+0.35

/7+0.35

/7+0.35

/7+0.35

/7+0.35

/7+0.35

SHARP Confidential

ns

LD-K24802A-15

8 Input Signal, Basic Display Colors and Gray Scale of Each Color

Colors &

Gray

scale

Black – 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue – 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Green – 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Cyan – 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Red – 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Basic Color

Magenta – 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Yellow – 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

White – 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Gray

R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9

Scale

 GS1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker GS2 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0





Brighter GS1021 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0









Gray Scale of Red

 GS1022 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Data signal









Red GS1023 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

 GS1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker GS2 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0





Brighter GS1021 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Gray Scale of Green

 GS1022 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Green GS1023 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

















 GS1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

Darker GS2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0





Brighter GS1021 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1

Gray Scale of Blue

 GS1022 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1

Blue GS1023 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

















0: Low level voltage, 1: High level voltage.

Each basic color can be displayed in 1024 gray scales from 10 bits data signals. According to the combination of

total 30 bits data signals, one billion-color display can be achieved on the screen.

SHARP Confidential

9 Optical characteristics

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Viewing angle

Horizontal

range

Vertical







21
22

11

12

LD-K24802A-16

Ta=2 5C, Vcc=12.0V, current =1040mA frame rate:120Hz (typ.value)

CR≧10

70 88 - Deg.

70 88 -

Deg.

[Note1,4]

Contrast ratio CRn

Response time

White

Red

Chromaticity

Green

Blue



DRV

x 0.252 0.282 0.312 ­y 0.258 0.288 0.318 ­x 0.615 0.645 0.675 ­y 0.318 0.348 0.378 ­x 0.287 0.317 0.347 -



=0 deg.

y 0.581 0.611 0.641 ­x 0.119 0.149 0.179 ­y 0.037 0.067 0.097 -

3375 4500 - [Note2,4]

4 8 ms [Note3,4,5]

Luminance White YL 280 350 - cd/m2

Luminance

uniformity

White

w

1.33 [Note 6]

Measurement condition

*The measurement shall be executed 60 minutes after lighting at rating.

[Note]The optical characteristics are measured using the following equipment.

Detector（EZ-CONTRAST/ Photodiode）

400mm

Detector（SR-3）

Field=1

Middle of the screen (＝0)

Middle of the screen (＝0)

TFT-LCD Module

TFT-LCD Module

Fig.4-1 Measurement of viewing angle range and

Response time.

Viewing angle range: EZ-CONTRAST

Response time: Photodiode

Fig.4-2 Measurement of Contrast, Luminance,

Chromaticity.

I

LED

[Note4]

=0.26A

SHARP Confidential

LD-K24802A-17

[Note 1]Definitions of viewing angle range :

Normal line



11



21



12



22

6 o’clock direction

[Note 2]Definition of contrast ratio :

The contrast ratio is defined as the following.

Luminance (brightness) with all pixels white

Contrast Ratio

＝

Luminance (brightness) with all pixels black

[Note 3]Definition of response time

The response time (T

)) is defined as the following figure and shall be measured by switching the input

DRV

signal for “any level of gray (0%, 25%, 50%, 75% and 100%)” and “any level of gray (0%, 25%, 50%, 75%

and 100%)”.

0%

0%

25％

50％

75％

100%

td: 25%-0％

td: 50%-0％ td: 50%-25％

td: 75%-0％ td: 75%-25％ td: 75%-50％

td: 100%-0％

25％ 50％ 75％

tr:0%-25

td:

100%-25

％

％

tr:0%-50% tr:0%-75% tr:0%-100%

tr: 25%-50％ tr25%-75％ tr: 25%-100％

td:

100%-50％

tr: 50%-75

td:100%-75

％ tr: 50%-100％

％

100%

tr: 75%-100

t*:x-y...response time from level of gray(x) to level of gray(y)

= (t*:x-y)/20



DRV

any level of gray

(bright)

100%

90%

any level of gray

(dark)

any level of gray

(bright)

Photodetector

10%

Output

0%

td:* tr:*

time

[Note 4]This shall be measured at center of the screen.

[Note 5] This value is valid when O/S driving is used at typical input time value.

％

SHARP Confidential

LD-K24802A-18

[Note 6]Definition of white uniformity ;

White uniformity is defined as the following with five measurements. (AE)

Maximum luminance of five points (brightness)

Ｗ＝



Minimum luminance of five points (brightness)

480

960 1440

A

C

B

pixel

D

E

10 Handling Precautions of the module

a) Be sure to turn off the power supply when inserting or disconnecting the cable.
b) Be sure to design the cabinet so that the module can be installed without any extra stress such as warp or

twist.

c) Since the front polarizer is easily damaged, pay attention not to scratch it.
d) Since long contact with water may cause discoloration or spots, wipe off water drop immediately.
e) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
f) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface. Handle with

care.

g) Since CMOS LSI is used in this module, take care of static electricity and take the human earth into

consideration when handling.

h) The module has some printed circuit boards (PCBs) on the back side, take care to keep them form any

stress or pressure when handling or installing the module; otherwise some of electronic parts on the PCBs

may be damaged.

i) Observe all other precautionary requirements in handling components.
j) When some pressure is added onto the module from rear side constantly, it causes display non-uniformity

issue, functional defect, etc. So, please avoid such design.

k) When giving a touch to the panel at power on supply, it may cause some kinds of degradation. In that case,

once turn off the power supply, and turn on after several seconds again, and that is disappear.

l) When handling LCD modules and assembling them into cabinets, please be noted that long-term storage in

the environment of oxidization or deoxidization gas and the use of such materials as reagent, solvent,
adhesive, resin, etc. which generate these gasses, may cause corrosion and discoloration of the LCD

modules.

m) This LCD module is designed to prevent dust from entering into it. However, there would be a possibility to

have a bad effect on display performance in case of having dust inside of LCD module. Therefore,

please ensure to design your TV set to keep dust away around LCD module.

270

540

810
pixel

SHARP Confidential

11 Packing form

a) Piling number of cartons : 2 Maximum
b) Packing quantity in one carton : 12 pcs
c) Carton size : 1545 (W) x 1110 (D) x 1035 (H)
d) Total mass of one carton filled with full modules : 285 kg

12 Reliability test item

No

.
1
2

3

4
5

6

7

[Result evaluation criteria]

Under the display quality test condition with normal operation state, there shall be no change, which may

affect practical display function.

High temperature storage test

Low temperature storage test

High temperature and high humidity

High temperature operation test
Low temperature operation test

Test item Condition

Ta=6 0C 240h
Ta=- 25C 240h
Ta=4 0C ; 95%RH 240h

operation test

Vibration test

(non-operation)

ESD

(No condensation)
Ta=5 0C 240h
Ta=0 C 240h
Frequency: 10~57Hz/Vibration width (one side): 0.075mm

: 58~500Hz/Acceleration: 9.8 m/s²
Sweep time: 11 minutes
Test period: 3 hours (1h for each direction of X, Y, Z)
* At the following conditions, it is a thing without incorrect
operation and destruction.
(1)Non-operation: Contact electric discharge 10kV

Non-contact electric discharge 20kV

(2)Operation Contact electric discharge 8kV

Non-contact electric discharge 15kV

Conditions: 150pF, 330ohm

LD-K24802A-19

SHARP Confidential

LD-K24802A-20

（

）

（Ｑ）

13 Others

The label that displays SHARP, product model (JE600D3LB44), a product number is stuck on the back of the

module.

【JE600D3LB44】

2) Packing Label
[JE600D3LB44]

3) Adjusting volume has been set optimally before shipment, so do not change any adjusted value.

If adjusted value is changed, the specification may not be satisfied.

4) Disassembling the module can cause permanent damage and should be strictly avoided.

5) Please be careful since image retention may occur when a fixed pattern is displayed for a long time.

6) The chemical compound, which causes the destruction of ozone layer, is not being used.

7) When any question or issue occurs, it shall be solved by mutual discussion.

8) This module is corresponded to RoHS.

Two dimension barcode

A production year(the last figures of the Christian Era)

MODEL：

Bar code

ＬｏｔＮＯ．

Bar code

Ｑｕａｎｔｉｔｙ：

Bar code

CUSTMER MODEL

Bar code

JE600D3LB44

24 Ｘ ***** K

A production month (1-9, X,Y, Z)

４Ｓ

JE600D3LB44K (①)

（１Ｔ）２０１２. ＊.＊＊ (②)

(TBD)

XXXXXXXXXXXX (④)

ｐｃｓ (③)

Product Factory

Model No.

Barcode (Serial number)

Lot No.

How to express Lot No.

○

○ ○ ○ ○ ○ ○ ○

Serial No.

① Management No
② Lot No. (Date)
③ Quantity
④ User code

Suffix code

SHARP Confidential

LD-K24802A-21

14 Carton storage condition

Temperature 0C to 40C

Humidity 95%RH or less
Reference condition : 20C to 35C, 85%RH or less (summer)

: 5C to 15C, 85%RH or less (winter)

the total storage time (40C,95%RH) : 240H or less

Sunlight Be sure to shelter a product from the direct sunlight.

Atmosphere Harmful gas, such as acid and alkali which bites electronic components and/or

wires must not be detected.

Notes Be sure to put cartons on palette or base, don’t put it on floor, and store them with

removing from wall

Please take care of ventilation in storehouse and around cartons, and control

changing temperature is within limits of natural environment

Storage life 1 year

SHARP Confidential

LD-K24802A-22

LD-K24802A-23
