UX-2200CMU/CMC
FO-2150CMU/CMC
[1] Engine Specifications
1. Mechanism
Resolution : 600 dpi x 600 dpi addressability
Print Speed : 3 PPM draft text with black cartridge
Print Swath : 8 inches
Duty Cycle : Up to 500 pages per month maximum, 170 pages per month average
Dimensions (approximate) : 350mm x 125mm x 60mm
Weight (approximate) : 1.2 pounds
Acoustics : 45 dBA in letter quality mode (using Lexmark paper feed and covers which is not
included)
2. Electrical
No electrical hardware included with the type B engine except for the carrier drive stepping motor and the Sensor
FPC assembly whitch includes a photo interrupter for sensing home position, the carrier cables and the printhead
cable.
3. Print Cartridges (Print Cartridges are supply items and sold separately)
Black Print Cartridge : 56 Nozzles
Pigment based(water proof)
High yield cartridge Up to 1000 pages at 5% coverage
Color Print Cartridge : 48 Nozzles(16 Nozzles each of cyan, magenta and yellow)
Fade resistant ink
300 pages average at 15% coverage of 3 colors (5% coverage of each color)
[2] Abbreviations
EOF End-of Form
ESD Electrostatic Discharge
FRU Field Replaceable Unit
HVPS High Voltage Power Supply
LVPS Low Voltage Power Supply
NVRAM Nonvolatile Random Access Memory
OEM Original Equipment Manufacturer
POST Power-On Self Test
V ac Volts alternating current
V dc Volts direct current
ZIF Zero Insertion Force
[3] Diagnostic Information
Start
Power-OnSelf Test (POST) Sequence
When you turn the printer on it performs a POST . Turn the machine on and check for a correct POST operation by
observing the following:
1. The carrier moves.
2. The paper feed gears turn.
3. After 30 seconds the carrier moves over the maintenance
station and caps the printhead.
4. All motors stop.
– 1 –
UX-2200CMU/CMC
FO-2150CMU/CMC
[4] Circuit description
1. General description
The compact design of printer PWB is obtained by using 8 bit microprocessor(CPU) and ASIC in the printer control
section.
2. Electrical System
The PWB provides mechanical control for Ink Jet Printer.

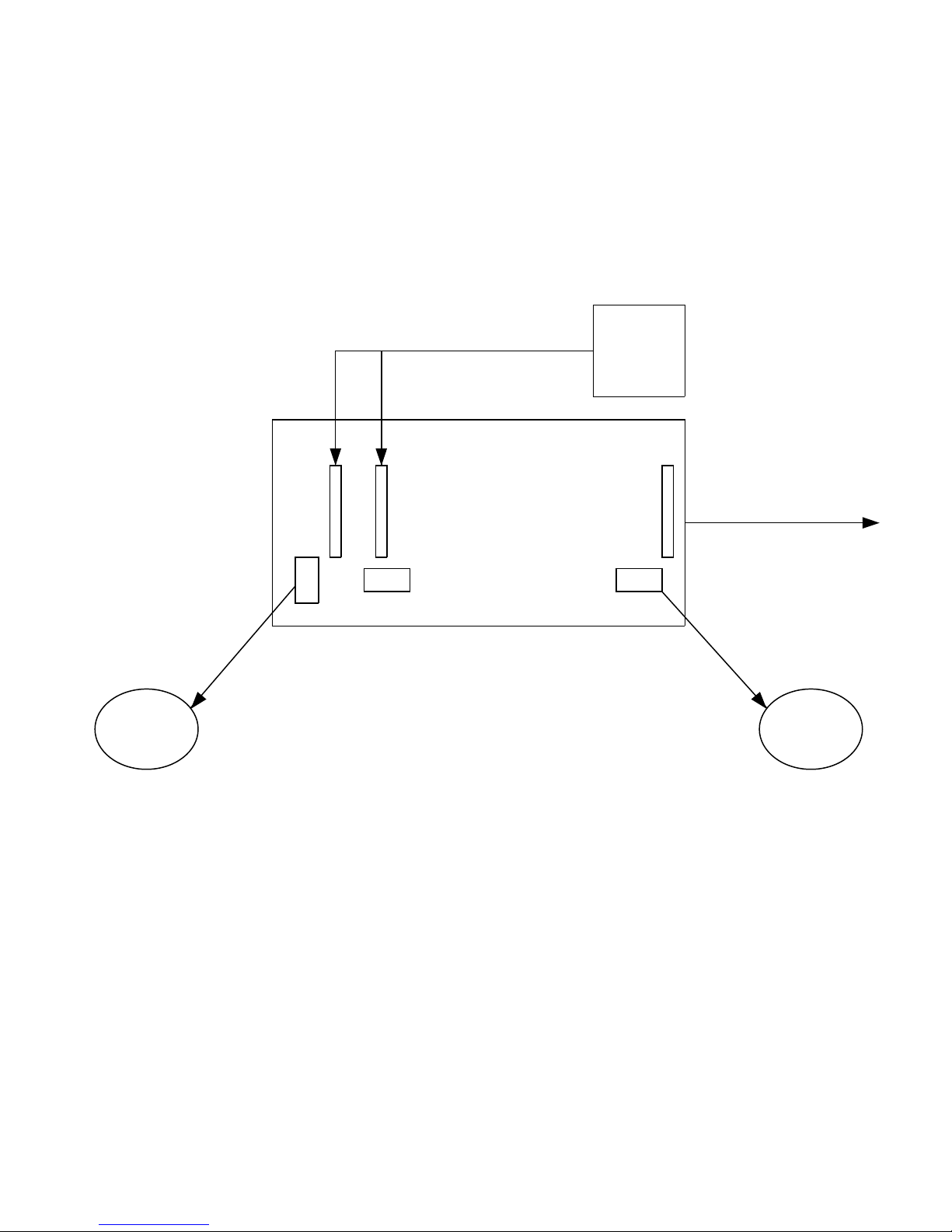

Figure 1 shows the interconnection of PWB and other electrical component in the print mechanism.
Ink Cartridge
CN2
CN4CN3
PC1
CN1
CNPRT
Host Interface
Paper Feed MotorCartridge Carrier Motor
Figure 1
– 2 –
UX-2200CMU/CMC
FO-2150CMU/CMC
3. Electricai Overview
The information in this section appears in a sequence relative to the system diagram in the following figure.
SRAM
8bit
MPU
TO FAX PWB
Host Interface
Driver
ASIC
Sensor
•Home Position
•Paper-IN
Driver
Driver
Figure 2 System of printer Block diagram
Head
Carriage Motor
Feed Motor
4. Power Supply Connector
The mechanism requires two voltages (+5V and +24V).
These two voltages supplied from CNPRT connector.
5. Host interface connector
Connector CNPRT on the printer PWB provides 28 lines from the host unit, for control of various operating options
available to the host.
The two primary functions of the host interface are:
Printing data for the Ink Jet Printer.
Error status to the host.
6. ASIC, RAM, and CPU
The Application Specific Integrated Circuit(ASIC) combines several blocks of circuitry into one chip.
Descriptions of circuitry within the ASIC appear later in the section.
A microprocessor bus, which extends inside the ASIC, carries data among the CPU(include internal ROM), RAM, and
ASIC circuitry.
The ROM (inside CPU) is a 8K Byte chip that contains the software code (firmware) for the Ink Jet Printer.
The RAM is a 32 K Byte chip that stores print data and other variable information.
– 3 –
UX-2200CMU/CMC
FO-2150CMU/CMC
7. Driver IC
The paper motor and carriage motor require current that cannot be driven directly from ASIC chip.
Motor driver IC provide the additional current and voltage capability.
The driver IC (IC1 and IC2) located near the respective motor connector on the printer PWB also connect back to the
ASIC.
Two additional drivers IC drive 56 nozzles on the cartridge.
These driver ICs , located between the two flex-circuit connector (CN3 and CN4) on the printer PWB , also connected
back to the ASIC.
The out-of-paper sensor do not require drivers, and connect directly to the ASIC.
The Host interface also connects directory to the ASIC.
8. Paper Motor
The ASIC controls the paper motor, which is a stepper motor that connects via a 5 pin connector to CN1 on the printer
PWB.
The stepper motor is a 4-coil motor, which must be stepped in proper sequence, requiring four signal lines to initiate
each line.
This is an open-loop system that does not provide feedback to the logic circuit on printer PWB.
The Paper motor drives the recording paper movement.
The planetary gear is changed over according to the rotation direction of this motor.
Accordingly,hand paper feed or automatic paper feed is selected.
(1) Paper feed(paper feed from tray)
The planetary gear turns counterclockwise and is connected to the PU gear,so that paper is fed automatically.
HAND FEED PAPER
AUTOMATIC
FEED PAPER
The automatic paper feed or
hand paper feed is selected by
changing the rotation direction of
motor as a result of changing-over
of this planetary gear.
MOTOR GEAR
PU GEAR
PRINTER FEED GEAR
– 4 –
UX-2200CMU/CMC
FO-2150CMU/CMC
(2) Print transfer
The planetary gear turns clockwise and is disconnected from the PU gear,so that the paper is not fed automati
cally. In case of hand paper feed the paper is fed directly to the transfer roller.
HAND FEED PAPER
PLANET GEAR
MOTOR GEAR
AUTOMATIC
FEED PAPER
PU GEAR
When the mechanism stops,
the automatic paper feed
is not performed
9. Carriage Motor
PRINTER FEED GEAR
The ASIC controls the carriage motor, which is a stepping motor that connects
via a 4-pin connector to CN2 on the printer PWB.
10. INK Cartridge Carriage
The carriage connects via a flex circuit that plugs into the 32 pin connectors, CN3 and CN4 on the printer PWB.
The ink cartridge contacts connect to the carriage contacts.
The ASIC controls the carriage , and ink cartridge.
11. Paper IN Sensor
The Peper-IN-Sensor exists on printer PWB.
This sensor is an optical sensor.If the optical route is interrupted,Collector PIN(pin-C)of this sensor indicates HiLevel(5V).If the optical route is opend,pin-C indicates Low-Level(0V).
This sensor provides information of front and end edge location of recording paper and information of paper jam.
The change between Hi and Low of this sensor(PC1 pin-C)is used as follows.
1. In the case of manual paper feeds
When the recording paper is inserted from By-pass route,the front edge of this recording paper pushes the lever,and
this sensor indicates L.
Paper feed action is happened by this change and recording paper is fed in constant length.
As paper feeds out of paper path,the lever returns,this sensor indicates H and provides information of end edge of
the recording paper.
2. In the case of auto paper feeds
When printing action happens and there is no recording paper at By-pass route and there are some recording
papers at auto paper providing unit,the feed motor is driven and the recording paper is fed from auto paper providing unit.
At this time,the change from H to L of this sensor provides the front edge of the recording paper.And this sensor
provides information of paper jam ,when this sensor DOES NOT change from H to L after some time.
As paper feeds out of paper path,the lever returns,this sensor indicates H from L and provides the infomation of end
edge of the recording paper.
– 5 –
12. Home Position Sensor
LEFT
UX-2200CMU/CMC
FO-2150CMU/CMC
RIGHT
B
C
A
CARRIAGE HOLDER
The home position of carriage is detected as a result of change of output of photointurrupter A which is caused due to
shutting-off of optical path of photointerrupter A by the slit B .
While the photointerrupter is shut off by the slit B, the output (pin 1 of CN3) of photointerrupter gets H level (+5V). If it
is not shut off, the output gets L level (0V).
In the home position the output is L. In case of L direction movement the output is H during passing through the slit,
and after passing the output gets again L level.
The operation logic is as follows.
Insignificant movement in L direction
(1) If in this case the output is L:
It is judged that the carriage exists in the L direction as compared to the slit B . The carriage is moved in the R direction, so that the output changes from L to H (during passing through the slit B ). Further the carriage is moved in the R
direction. The position where H changes to L again is regarded as a home position.
(2) If in this case the output is H:
It is judged that the carriage exists near the home position, the carriage is moved in the R direction. The position
where the output is changed from H to L is regarded as a home position.
Operation in case of malfunction of photointerrupter A .
Case 1: When the output of photointerrupter remains H.
As is evident from the operation logic, the H output does not continue for a long time in case of normal operation.
Hence, this state is judged to be abnormal. The carriage stops soon after it moves insignificantly.
Case 2: When the output of photointerrupter remains L.
The carriage is going to move according to the operation logic. Since the output remains L even when the sensor
passes through the slit B , the home position cannot be found, and the carriage moves continuously in the R direction.
Finally, it contacts the frame C , emitting an abnormal sound. The abnormal state is detected, and the motor stops.
– 6 –
UX-2200CMU/CMC
FO-2150CMU/CMC
[5] Overall Trouble Shooting Of Printer PWB
• BOTH CARRIAGE MOTOR AND FEED MOTOR
ARE NG.
FUSE “F100” AND “F101
OK
+24V AT Q1-C (Figure 1)
OK
OPEN
NG
REPLACE F100 AND F101
+24V AT Q1-E (Figure 1)
OK
+5V AT Q101-B (Figure 2)
OK
0V AT Q101-C (Figure 2)
OK
CHECK RESISTANCE
BETWEEN +24V AND GND.
NG
SHORT OR NOT
REPLACE PRINTER PWB
CHECK IC5 AND IC8 AND
NG
R145,R144
REPLACE PRINTER PWB
REPLACE Q101 (Figure 2)
NG
CHECK +24V PATTERN
NO
SHORT
REPLACE IC5 OR IC8
NG
OK
CHECK IC5 AND IC8
OK
REPLACE PRINTER PWB
NG
REPLACE Q1 (Figure 1)
REPLACE IC5 OR IC8
Q1
FRONT
VIEW
B C E
Figure 1 Figure 2
Q101
C
FRONT
VIEW
BE
– 7 –
• FEED MOTOR IS NG (CARRIAGE MOTOR IS
GOOD)
UX-2200CMU/CMC
FO-2150CMU/CMC
FUSE “F101”
OK
CHECK WAVEFORMS IC2 ( 2,4,6,8 pin) (Figure 4)
OK
CHECK WAVEFORMS IC2 ( 3,5,7,9 pin) (Figure 3)
OK
REPLACE PRINTER PWB
+40~50V
INCLUDE OVERSHOOT
+24V
GND
Figure 3
OPEN
NG
NG
Check the laser diode driver.
REPLACE F101
CHECK IC5
OK
REPLACE PRINTER PWB
CHECK IC2
OK
REPLACE PRINTER PWB
IC2-2,4,6,8PIN
1.5V
GND
Figure 4
NG
NG
REPLACE IC5
REPLACE IC2
• CARRIAGE MOTOR IS NG (FEED MOTOR IS OK).
IS THE FLEXIBLE CABLES INSERTED CORRECTLY?
OK
FUSE “F100”
OK
CHECK WAVEFORMS IC1 ( 18,20,21,22,23,25 pin) (Figure 6)
OK
CHECK WAVEFORMS IC1 ( 6-9 pin) (Figure 5)
OK
REPLACE PRINTER PWB
NG
OPEN
NG
NG
PLS INSERT THE CABLES
Check the laser diode driver.
CORRECTLY.
REPLACE F100
CHECK IC5
OK
REPLACE PRINTER PWB
CHECK IC1
OK
REPLACE PRINTER PWB
NG
NG
REPLACE IC5
REPLACE IC1
+24V
GND
Figure 5
+5V
GND
Figure 6
– 8 –
UX-2200CMU/CMC
FO-2150CMU/CMC
• MISSING NOZZLES (RESULT OF CHECK PATTERN
OR CLEAN NOZZLES
CLEAN NOZZLES
NG
REPLACE ANOTHER CARTRIDGE
NG
MISSING MANY NOZZLES
YES
CHECK THE SOLDER
IC4, IC6 COMMON pin
IC 5 82-89 pin
IC4 1,4,40,41,43,44 pin
IC6 1,4,40,41,43,44 pin
OK
CHECK +24V AT R1,R2,R6, AND R7
OK
CHECK +5V AT IC4 AND IC6
OK
NO
NG
NG
NG
CHECK IC AND CONNECTOR BY
REFERING TO THE TABLE 1&2
CORRECT SOLDER
CHECK RESISTANCE BETWEEN
+24V AND GND. SHORT OR NOT
SHORT
REPLACE PRINTER PWB
CHECK +5V PATTERN
NO
CHECK +24 PATTERN
REPLACE IC4 OR IC6
– 9 –
[6]How to Decide the Number of the Wrong Nozzle
A
B
Nozzle 1 Nozzle 56
FUNC + 6 + + “CLEAN NOZZLES”
UX-2200CMU/CMC
FO-2150CMU/CMC
Horizontal lines on A and B correspond to nozzle #1,#2
If there are missing horizontal lines, you can decide the number of wrong nozzle from pattern A or B .
Note) Don’t use the check pattern to decide the number of wrong nozzle.
....
#56 from left side to right side.
– 10 –
UX-2200CMU/CMC
FO-2150CMU/CMC
TABLE 1.
Nozzle#
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
TABLE 2.
(Nozzle# IC-PIN CONNECTOR-PIN)
IC
PIN
CN
PIN
1
6
39
3
2
4
39
4
3
6
35
3
4
4
35
4
5
6
31
3
6
4
31
4
7
6
25
3
8
4
25
4
9
6
36
3
4
36
4
6
32
3
4
32
4
6
26
3
4
26
4
6
37
3
4
37
4
6
33
3
4
33
4
6
27
3
4
27
4
6
38
3
4
38
4
6
34
3
4
34
4
6
30
3
4
30
4
6
24
3
4
24
4
28
10
27
11
26
12
25
13
24
14
23
15
22
30
16
21
17
20
31
18
19
19
18
32
Nozzle#
9
7
6
5
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
IC
PIN
CN
PIN
6
10
3
20
4
10
4
17
6
14
3
21
4
14
4
16
6
22
3
30
4
22
4
7
6
9
3
22
4
9
4
15
6
13
3
23
4
13
4
14
6
21
3
29
4
21
4
8
6
8
3
24
4
8
4
13
6
12
3
25
4
12
4
12
6
20
3
28
4
20
4
9
6
6
3
26
4
6
4
11
6
11
3
27
4
11
4
10
6
15
3
31
4
15
4
6
6
23
3
32
4
23
4
5
6
7
4
1
4
7
4
4
1,3,5,7,9,11,13,15,
17,19,21,23,25,27
2,4,6,8,10,12,14,16,
18,20,22,24,26,28
29,31,33,35,37,39,41,
43,45,47,49,51,53,55
30,32,34,36,38,40,42,
44,46,48,50,52,54,56
Nozzle#
(Nozzle Common CN)
PIN
CN
PIN
3
1
29
4
2
4
3
4
4
8
2
3
– 11 –
[7] Waveforms
FEED MOTOR WAVEFORMS WHEN FEEDING PAPER
Stopped
CH1=50V
DC P:10
T:1.92ms
CN1-2
G
CN1-3
T
CH2=50V
DC P:10
1/ T:520.8Hz
CH3=50V
DC P:10
CH4=50V
DC P:10
2ms / d
UX-2200CMU/CMC
FO-2150CMU/CMC
1
CN1-4
CN1-5
G
G
G
2
3
4
G : 0V
Figure 1
– 12 –
UX-2200CMU/CMC
FO-2150CMU/CMC
CARRIAGE MOTOR WAVEFORMS
CN2-1
CN2-2
CN2-3
CN2-4
Stopped
CH1=20V
DC P:10
T:19.2¨s
T
CH2=20V
DC P:10
1/ T:52.08kHz
CH3=20V
DC P:10
CH4=20V
DC P:10
20s / d
1
2
3
4
CN2-1
CN2-2
CN2-3
When the cartridge holder is at the position of replacing cartridge.
Figure 2
Stopped
CH1=20V
DC P:10
T:960¨s
T
CH2=20V
DC P:10
1/ T:1.042kHz
CH3=20V
DC P:10
CH4=20V
DC P:10
1ms / d
1
2
3
CN2-4
Measured for printing check pattern
4
Figure 3
– 13 –
CARRIAGE MOTOR WAVEFORMS MEASURED FOR CHECKING OUT OF INK
UX-2200CMU/CMC
FO-2150CMU/CMC
CN2-1
CN2-2
CN2-3
CN2-4
Stopped
CH1=20V
DC P:10
T:1.92¨ms
T
CH2=20V
DC P:10
1/ T:520.8Hz
CH3=20V
DC P:10
CH4=20V
DC P:10
2ms / d
1
2
3
4
CN2-1
CN2-2
CN2-3
CN2-4
Stopped
CH1=20V
DC P:10
T:480¨s
T
CH2=20V
DC P:10
1/ T:2.083kHz
Figure 4
CH3=20V
DC P:10
CH4=20V
DC P:10
500s / d
1
2
3
4
Figure 5
– 14 –
UX-2200CMU/CMC
FO-2150CMU/CMC
[8] Service Checks
1. Carrier Transport Service Check
FRU
System Board
1
Carrier Transport
2
Motor
Carrier Guide Rod
3
Action
Check the motor for binds,or loose motor pulley.
Turn the printer off and disconnect CN2 from the system board.Check
for motor pins shorted to the motor housing.If you find a pin shorted to
the housing,replace the motor. If the failure remains,replace the system
board.
A noisy or chattering motor or a motor that fails to turn can be caused
by:
• An open or short in the motor.
• An open or short in the motor driver on the system board.
• A bind in the carrier transport mechanism.
With the carrier transport motor cable disconnected from the system
board,check for zero to ten (0-10)ohms between the following pins on
the motor:
CN2-1 and CN2-2
CN2-3 and CN2-4
If the readings are incorrect,replace the motor.
Clean the carrier rod.
Note:Lubricate the carrier guide rod and the carrier rod bearing surface
with grease.
Carrier Transport Belt
4
Idler Pulley Parts
Carrier Frame
Home Position Sensor
5
Maintenance Station
6
Check for worn,loose or broken parts. Check for obstructions blocking
carrier movement.
Carrier to carrier frame engagement should be lubricated with grease.
Be sure the carrier returns to the home position after turning the printer
on. If the carrier moves half way,or if there is an abnormal sound,turn
the printer off and disconnect CN3 from the system board. Turn the
printer on and check for 5V dc between CN3-4 and CN3-2 on the
system board. If the voltage is present,replace the home position
sensor. If the voltage is not present,replace the system board.
A problem with the maintenance station can cause carrier movement
problems at the right margin. Go to the ‘Maintenance Station Service
Check’ on page 3.
– 15 –
2. Envelope Feed Service Check
UX-2200CMU/CMC
FO-2150CMU/CMC
FRU
Envelope Guide
1
3. Maintenance Station Service Check
The maintenance station has two functions:
Cleans the printhead nozzles during the print operation.
•
Seals the printhead when it is not being used to prevent the nozzles from drying.
•
FRU
Maintenance Station
1
Assembly
Action
Be sure the envelope guide has been turned to the envelope load
position.
Be sure the envelope guide is against the envelopes.
Perform the ‘Paper Feed Service Check’on page 4.
Action
As the carrier moves to the right over the maintenance station,a slot on
the bottom of the carrier engages a tab on the sled of the maintenance
station causing the cap to rise and seal the printhead. Carrier movement to the left uncaps the printhead. The wiper cleans the printhead
nozzles as the carrier leaves the maintenance station. The wiper
cleans the printhead only when the carrier is moving to the left. There
should be no wiping action of the printhead nozzles when the carrier is
moving to the right. After the cleaning operation is complete,a tab on
the maintenance station engages a tab on the carrier,causing the wiper
to lower.
Check the maintenance station for worn or broken parts.
Wiper
2
Cap
3
A worn wiper causes degraded print quality just after a maintenance
cleaning. Check for a loose or worn wiper.
A worn cap causes the printhead nozzles to dry and clog. Check for a
loose or worn cap.
– 16 –
UX-2200CMU/CMC
FO-2150CMU/CMC
4. Paper Feed Service Check
If your machine does not have paper jam problems, continue with the service check. If your machine does have a
paper jam problem,examine it for the following before you begin the service check:
Check the entire paper path for obstructions.
•
Be sure there is not too much paper in the sheet feeder.
•
Be sure the correct type of paper is being used.
•
Check for static in the paper.
•
FRU
System Board
1
Paper Feed Motor
2
Action
Turn the printer on and verify the paper feed motor activates. Be sure
the end-of-form sensor lever is in the down position. Turn the printer off
and disconnect CN1 from the system board. Check for motor pins
shorted to the motor housing. If you find a shorted pin,replace the
paper feed motor. If you still have a failure after replacing the paper
feed motor,replace the system board.
A noisy or chattering motor or a motor that fails to turn,can be caused
by an open or short in the motor,an open or short in the motor driver on
the system board,or a bind in the paper feed mechanism. With the
paper feed motor cable CN1 disconnected from the system board,
check for 140 ohms(±7%)between the follwing pins on the motor
: Pin 1 to Pin 2,Pin 1 to Pin 4
280 ohms(±7%)between pins 2 and 4. If the readings are
incorrect,replace the paper feed motor and drive train assembly.
Although the paper feeds in a forward direction only,the paper feed
motor turns in two directions.
If the paper feed motor turns in one direction only,replace the system
board.
Binds in the paper feed motor or gear train can cause intermittent false
paper jam errors. Remove the paper feed motor and check the shaft
for bins.
Also check for loose or worn motor gear.
Drive Train Assembly
3
Auto Sheet Feeder
4
Mid-Frame Asm
5
Access Cover Asm
End-of-Forms Flag
6
and Spring
End-of-Forms Sensor
7
Check for binds in the gear train and paper feed machanism by removing the paper feed motor and rotating the large gear by hand . If you
notice a bind,replace the drive train assembly. Check the feed clutch
gear on the left side of the auto sheet feeder. Turn the clutch gear and
check that it rotates freely in one direction and locks when turned in the
opposite direction.
Check the pick rollers for wear.
Check the following for wear:
• Exit roller
• Star rollers
Check for binds or damage. If binds are found,replace the end-of-forms
flag.
Check the sensor for birt. Be sure the sensor lever is in the down
position. If the failure remains,replace the system board.
– 17 –
5. Paper Path Service Check
Examine the machine for the following before you being this service check:
Check the entire paper path for obstructions
•
Be sure the correct type of paper is being used.
•
Be sure the printer is installed on a flat surface.
•
UX-2200CMU/CMC
FO-2150CMU/CMC
FRU
Large and Small Feed
1
Rollers
Small Feed Roller
2
Springs
Auto Sheet Feeder
3
Mid-Frame Asm
4
Access Cover Asm
End-of-Forms Flag
5
6. Power Service Check
FRU
Power Supply
1
Action
Check for wear and binds.
Check for damage.
Check the pick rollers for wear.
Check the following for wear:
• Exit roller
• Star rollers
Check for binds or damage.
Action
Disconnect N1 from the system board and check the following voltages
on the power supply cable:
• CNPRT-22 to Gnd =+5V dc
• CNPRT-26 to Gnd =+24V dc
If you do not have correct voltage,replace the power supply.
Be sure to unplug the machine before you reconnect the power supply
to the system board.
Printhead Cable
2
Carrier Home Sensor
Parallel Cable
System Board
3
Turn off the printer.Disconnect one of the printhead cables and turn on
the printer. Look for a symptom change. Check the failing part for
shorts and replace as necessary.
Repeat this procedure for the carrier home sensor and parallel cable.
If the symptom has not changed,replace the system board.
– 18 –
UX-2200CMU/CMC
FO-2150CMU/CMC
[9] IC Signal Name
IC 8 : VHiTMP87PH47U (TMP87C807U)
1. Pin Assignment (Top View)
P14(PPG)
P13(DVO)
P12(INT2/TC1)
P11(INT1)
P10(INT0)
P51
P50
P67
P66
P65
P64
2. Block Diagram
Power
Supply
VDD
VSS
P15(TC2)
P16
(INT5/STOP)P20
P17
(XTIN)P21
(XTOUT)P22
VDD
(HSO)P77
(HSCK)P76
(SO)P75
(SI)P74
ALU
3332313029282726252423
34
35
36
37
38
39
40
41
42
43
44
123456789
P07
P06
P05
(SCK)P73
(INT4)P71
(INT3/TC3)P70
(PDO/PWM)P72
P S W Stack Pointer
Flags
RBS
P04
P03
10
P02
11
P01
22
21
20
19
18
17
16
15
14
13
12
P63
P62
P61
P60
N.C.
VSS
XOUT
XIN
RESET
TEST
P00
Data Memory
(RAM)
Program Counter
Reset I/O
Test pin
Resonator
Connecting
pins
RESET
TEST
XIN
XOUT
High
frequency
Low
frequency
P22
to
P20
System Controller
Stand by Controller
Timming Generator
Generator
Clock
Register Banks
Program Memory
Interrupt Controller
Time Base
Timer
Watchdog
Timer
P67
to
P60
P07
to
P00
I/O PortsI/O Ports Output Ports
16bit
Timer/Counters
TC7 TC2
P17
to
P10
8bit
Timer/Counters
TC3 TC5
P77
to
P70
Serial
Interfaces
SIO HSO
(RAM)
Register
Decoder
P5P7P9P0P6P2
P51
to
P50
– 19 –
3. Pin Function
PIN Name Input/Output Function
P07 to P00 I/O
P17,P16 I/O
P15(TC2) I/O(Input)
P14(PPG) I/O(Output)
P13(OVO)
P12(INT2/TC1) I/O(Input)
P11(INT1)
P10(INT0)
P22(XTOUT) I/O(Output)
P21(XTIN) I/O(Input)
P20(INT5/STOP)
P51,P50 Output
P67 to P60 I/O(Output)
Two 8-bit programmable input/output ports
(tri-state).
Each bit of these ports can be individually
configured as an input or an output under
software control.
During reset,all bits are configured as inputs.
When used as a divider output or a PPG
output, the latch must be set to “1”.
3-bit input/output port with latch.
When used as an input port,the latch must
be set to “1”.
2-bit output port with latch.
8-bit programmable input/output port (tri-
state). Each bit of the port can be individually configured as an input or an output under software control.
UX-2200CMU/CMC
FO-2150CMU/CMC
Timer/Counter 2 input
Programmsble pulse generator output
Divider output
External interrupt input 2 or Timer/Counter 1 input
External interrupt input 1
External interrupt input 0
Resonator connecting pins(32.8kHz). For inputting
external clock,XTIN is used and XTOUT is opeded.
External interrupt input 5 or STOP mode retease signal input
P77(HSO) I/O(Output)
P76(HSCK)
P75(SO)
P74(SI)
P73(SCK) I/O(I/O)
P72(PWM/PDO) I/O(Output)
P71(INT4) I/O(Input)
P70(INT3/TC3)
XIN/XOUT Input,Output
RESET I/O
TEST Input
VDD,VSS Power Supply
N.C.
8-bit programmable input/output port (tristate).
HSO serial data output
HSO serial clock output
SIO serial data output
SIO serial data input
When used as an input port, a SIO input/
output on external interrupt input or a
PWM/PDO output, the latch must be set
to “1”.
SIO serial clock input/output
8-bit PWM output or 8-bit programmable divider output
External interrupt input 4
External interrupt input 3 or Timer/Counter 3 input
Resonator connecting pins for high-frequency clock.
For inputting external clock. XIN is used and XOUT is opend.
Reset signal input or watchdog timer output/address-trap-reset output/system-
clock-reset output.
Test pin for out-going test. Be tied to low.
+5V,0V(GND)
Be tied to low.
– 20 –
UX-2200CMU/CMC
FO-2150CMU/CMC
IC 4 , 6 : VHil6451///-1 (L6451)
1. Pin Connection (Top View)
OUT 26
OUT 25
OUT 24
OUT 23
OUT 22
OUT 21
OUT 20
OUT 19
OUT 18
GND
N.C.
2. Block Diagram (case of 4 bit)
10
11
12
13
14
15
16
17
OUT 27
CHIP ENABLE
COM 2
GND
LOGIC SUPPLY
6
5
4
3
7
8
9
2
PLCC44
18
192021222324252627
N.C.
N.C.
OUT 17
OUT 16
OUT 15
IN B
IN D
IN C
GND
1
4443424140
OUT 14
OUT 13
OUT 12
OUT 11
IN A
COM 1
28
CLAMP
OUT 10
39
38
37
36
35
34
33
32
31
30
29
OUT 0
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
OUT 8
OUT 9
GND
COM1
INA
INB
INC
IND
CHIP ENABLE
COM2
DECODER
3 OR 4 BIT
BLOCK
OUTPUT 1
BLOCK
OUTPUT 2
OUT0-13
CLAMP
OUT27-14
CLAMP
– 21 –
UX-2200CMU/CMC
FO-2150CMU/CMC
3. Description
The L6451 is realized in Multipower BCD T echnology which combines isolated DMOS power transistors with CMOS
and Bipolar circuits on the same IC. By using mixed technology it has been possible to optimize the logic circuitry
and the power stage to achieve the best possible performances.
Intended to be used in ink jet Printer Applications as 4 to 28 (2x14) lines selectable decoder/driver ,the L6451 device
driver has the advantages of low power CMOS input and logic, with 28 high current and high voltage DMOS outputs
capable of sustaining a maximum of 40V.
On system power up the output drivers are locked out using the chip enable function : two enable inputs are
available for the different driver banks.
An internal power-on system is implemented in order to avoid wrong output commutation during the supply voltage
transients.
Using a mask option during manufacturing allows a different decoding.
Control of the energy delivered to the print head is made by means of a special circuitry.
All driver outputs are capable of withstanding a contact discharge of ±8kV with the IC biased.
4. Absolute Maximum Ratings
Symbol Parameter Value Unit
VOUT Output voltage 40 V
VCLAMP Output Clamping Voltage 40 V
IOUT Output Continuous Current 0.8 A
IPEAK Output Peak Current (with duty cycle = 10% TON = 4µs) 2 A
TJ Junction Temperature 150 °C
VDD Logic Supply Voltage 7 V
VIN Input Voltage Range
-0.3V to Vs +0.3
TAMB Operating Temperature Range 0 to 70 °C
TSTG Storage Temperature Range -55 to 150 °C
V
5. Pin Functions
Name Function
VDD 5V Logic Supply.
GND Logic and Power Ground.
OUT0 to OUT27 DMOS Output.
CLAMP This pin has to be connected to the power supply voltage of the head resistors.
Each of the output DMOS have their drain connected with the anode of a protection
diode, all the cathodes of the protection diodes are connected to the clamp pin. In order
to have the device supplied, the CLAMP pin needs to be connected to the power.
INA, INB, INC, IND
Decoder inputs.
COM1, COM2 A low logic input on these pins enables the outputs selected by the decoder inputs.
CHIP ENABLE A logic high enable the chip.
– 22 –
UX-2200CMU/CMC
FO-2150CMU/CMC
[10] Exploded View
8 Printer unit
903
9
27
28
8
7
901
11
B3
B12
12
36
B12
34
6
59
B12
35
57
a
50
W2
51
49
W2
41
42
47
46
W1
58
38
B12
52
B12
43
52
38
43
38
22
39
44
5
31
13
2
56
INK SENSOR
PWB
54
45
B1
30
3
56
55
29
B14
40
48
a
B12
23
B5
45
53
902
901
11
14
15
16
36
17
B4
4
1
19
20
21
24
32
901
904
37
B10
18
26
10
25
905
Note : Since the parts circled by dots can not be supplied, change it as a unit
– 23 –
[11] Replacement Parts List
NO.
PARTS CODE
PRICE
[8] Printer unit
1 N C Frame chassis
2 N C Carrier cover(K)
3 N C Main shaft
4 N C Main shaft holder
5 N C Belt tension spring
6 N C Idler pulley holder
7 N C Carrier latch
8 N C Carrier latch SP
9 N C FFC plate
10 N C Main spring B
11 N C Timing belt
12 N C Idler pulley
13 N C Contct pad
14 N C Ink felt
15 N C Wiper lever
16 N C Wiper
17 N C Wiper holder
18 N C Main spring A
19 N C Cap
20 N C Cap holder
21 N C Casp spring
22 N D Guide seal
23 N D Barcode label
24 N C Capslider
25 N C Maintenance lever
26 N C Maintenance base
27 N C Printer head cable
28 N C Main shaft stoper
29 N B Photo interrupter
30 N C Deflector A
31 N C Ink carrier
32 N B Steping CR motor
34 RMOTZ2137AXZZ AZ N B Paper feed motor
35 LBRC-2006AXZZ AK N C Motor braket
36 LBSHP2095AXZZ AD N C Bearing
37 LFRM-2192AXZZ AL N C Base frame
38 LHLDZ2168AXZZ AS N C Pinch roller holder
39 LHLDZ2169AXZZ AD N C Sensor lever holder
40 MLEVP2273AXZZ AH N C P-in sensor lever
41 MLEVP2274AXZZ AD N C Planet lever
42 MSPRC2735XHZZ AC C Planet gear spring
43 MSPRC3008AXZZ AC N C Feed spring
44 MSPRD2975AXZZ AC N C Lever spring
45 NBLTK2056AXZZ AF N C Feed belt
46 NGERH2278XHZZ AC C Planet gear
47 NGERH2279XHZZ AC C Idler gear A
48 NGERH2396AXZZ AD N C PRT feed gear
49 NGERH2398AXZZ AD N C Secondry gear A
50 NGERH2399AXZZ AD N C Secondry gear B
51 NGERH2400AXZZ AD N C Secondry gear C
52 NROLP2382AXZZ AC N C Pinch roller
53 NROLR2380AXZZ AX N C PRT feed roller
54 NROLR2381AXZZ AH N C Exit roller
55 PCOVP2118AXZZ AE N C Sensor cover
56 PGUMM2152AXZZ AD N C Exit rubber
57 QCNW-4807AXZZ AE N C Ground cable
58 PSLDM2045AXZZ AF C Print shield plate
59 QCNW-4778AXZZ AZ N C Printer cable
(Unit)
901 0MIMMM7E24MM0 BK N E Carrier stepping motor with pulley ass’y
902 0MIOPM300356/ AY N C Carrier shaft
903 0MIOPSA00195/ BS N E Carrier asm, key “K” ass’y
904 0MIOPM100090/ AY N E Frame chasis ass’y
905 0MIOPSA00100/ AV N E Maintenance group ass’y
RANK
NEW
MARK
PART
RANK
DESCRIPTION
UX-2200CMU/CMC
FO-2150CMU/CMC
– 24 –
UX-2200CMU/CMC
FO-2150CMU/CMC
COPYRIGHT © 1998 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in U.S.A.
A9808-2261SS•IS•M
Loading...
