Sharp CD-MPX870, CD-MPX870W Owner Manual

MINI COMPONENT SYSTEM
SISTEMA MINI

MODEL
MODELO

CD-MPX870
CD-MPX870W

OPERATION MANUAL
MANUAL DE MANEJO

CD-MPX870 Mini Component System consisting of CD-MPX870 (main
unit) and CP-MPX870 (speaker system).
CD-MPX870W Mini Component System consisting of CD-MPX870W
(main unit) and CP-MPX870 (speaker system).
Sistema mini CD-MPX870 que consta de CD-MPX870 (aparato
principal) y CP-MPX870 (sistema de altavoces).
Sistema mini CD-MPX870W que consta de CD-MPX870W (aparato
principal) y CP-MPX870 (sistema de altavoces).

The illustrations printed in this operation manual are for the model
CD-MPX870.
Las ilustraciones impresas en este manual de funcionamiento son para
el modelo CD-MPX870.

ENGLISH

ESPAÑOL

Please refer to pages E-1 to E-42.
Consulte las páginas S-1 a S-42.

CD-MPX870

y

CD-MPX870W

ENGLISH

Special notes

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVIC­ING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols:

Important Instruction

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

Caution - use of controls or adjustments or performance
of procedures other than those specified herein may re­sult in hazardous radiation exposure.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s en­closure that may be of sufficient magnitude
to constitute a risk of electric shock to per­sons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main­tenance (servicing) instructions in the lit­erature accompanying the appliance.

ENGLISH

NOTE

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in­terference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra­dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter­mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

WARNING

FCC Regulations state that any unauthorized changes or modifications
to this equipment not expressly approved by the manufacturer could void
the user's authorit

NOTE

Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.

NOTE

Supply of this product does not convey a license nor imply any right
to distribute content created with this product in revenue-generating
broadcast systems (terrestrial, satellite, cable and/or other distribu­tion channels), revenue-generating streaming applications (via Inter­net, intranets and/or other networks), other revenue-generating
content distribution systems (pay-audio or audio-on-demand appli­cations and the like) or on revenue-generating physical media (com­pact discs, digital versatile discs, semiconductor chips, hard drives,
memory cards and the like). An independent license for such use is
required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.

to operate this equipment.

.

E-1

Special notes (CD-MPX870W only)

WARNINGS



When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.



This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the jack before any service oper­ation and when not in use for a long period.



To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases,
shall be placed on the apparatus.

Note for users in Australia:

Copyright may exist in material you wish to record. Copying or broad­casting such material without permission of the relevant licensees or
owners of the copyright is prohibited by law. SHARP is not in a posi­tion to authorize the copying or broadcasting of copyright materials
and nothing in this OPERATION MANUAL should be implied as giv­ing that authority.

For other countries:

Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.

CAUTION



This product is classified as a CLASS 1 LASER product.



Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation ex­posure.

As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servic­ing to qualified personnel only.

Laser Diode Properties
Material: GaAIAs
Wavelength: 795 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.

WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT
GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER
DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.

ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE.
NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES
INSTRUMENTS OPTIQUES.

CD-MPX870

CD-MPX870W

ENGLISH

Important Instruction

E-2

CD-MPX870

CD-MPX870W

ENGLISH

Introduction

Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It
will guide you in operating your SHARP product.

Accesories

Please confirm that the following accessories are included.

Remote control 1 AM loop antenna 1

Note:

General Information

Only the above accessories are included.

FM antenna 1

Contents

Page



General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8



Preparation for Use

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 12

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13



Basic Operation

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the clock (Remote control only) . . . . . . . . . . . . . . . . . . 15



CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . 16 - 19

Advanced CD or MP3/WMA disc playback . . . . . . . . . . . 20 - 22

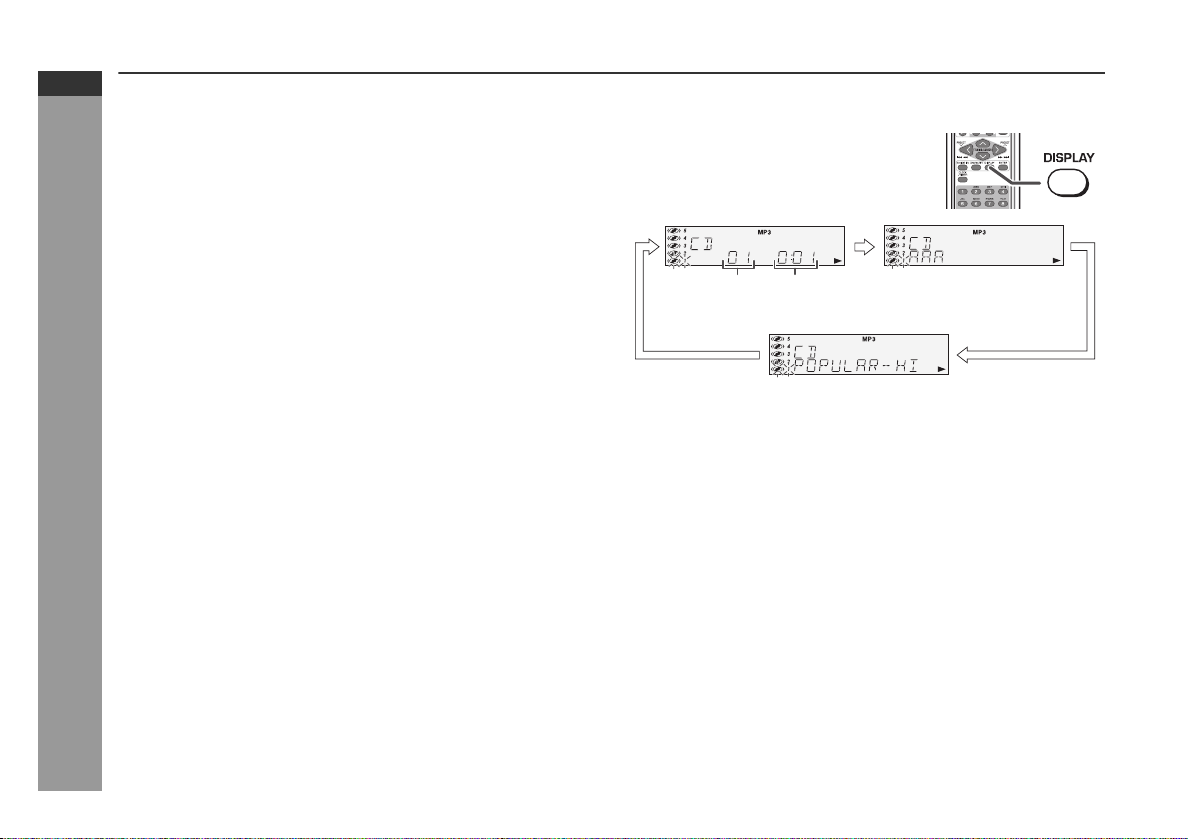

MP3/WMA navigation (only for MP3/WMA files) . . . . . . . 23 - 26



Radio

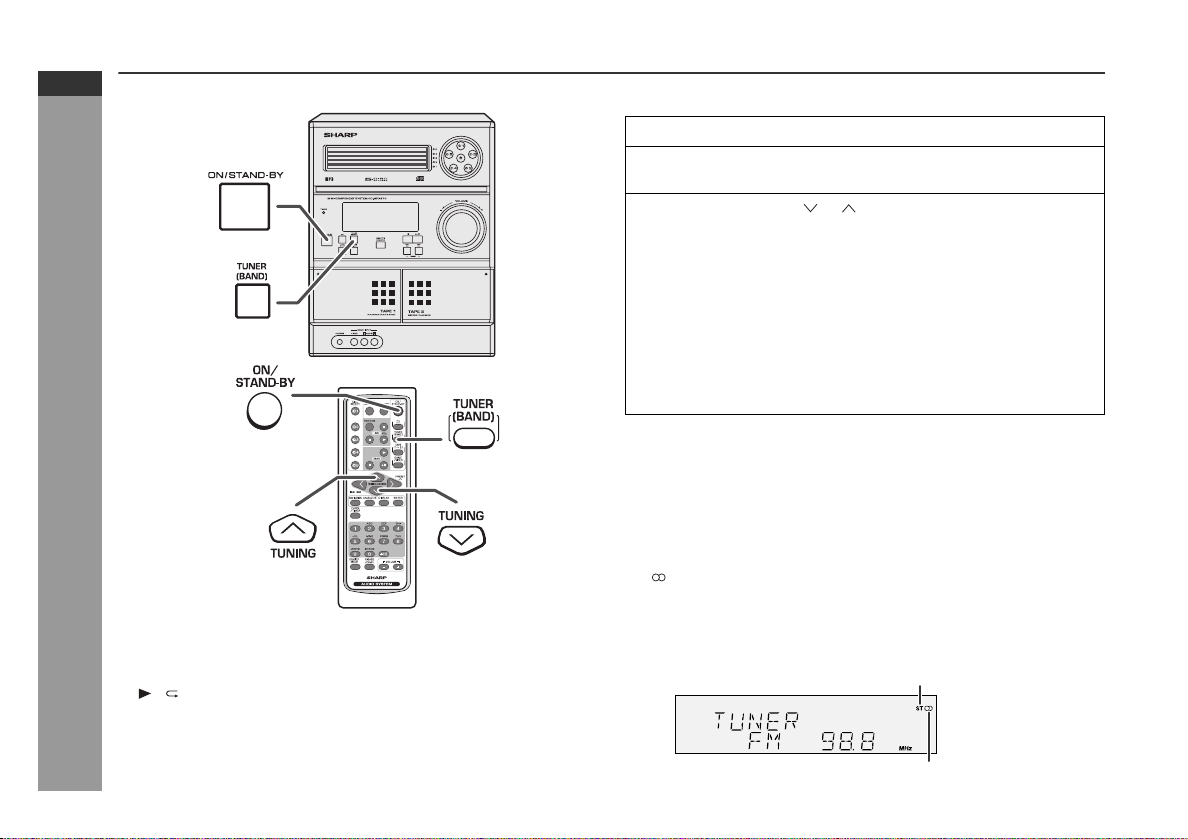

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 - 28



Tape Playback

Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . 29 - 30



Tape Recording

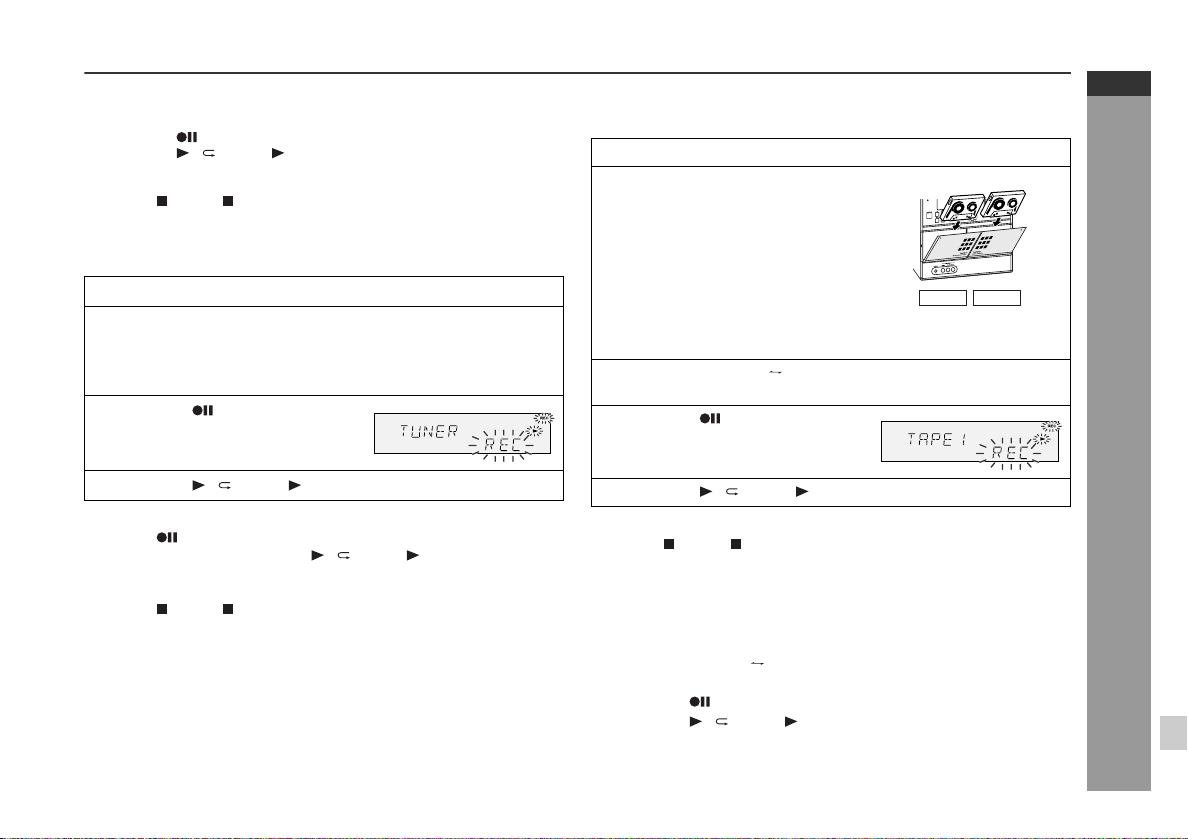

Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . 30 - 32



Advanced Features

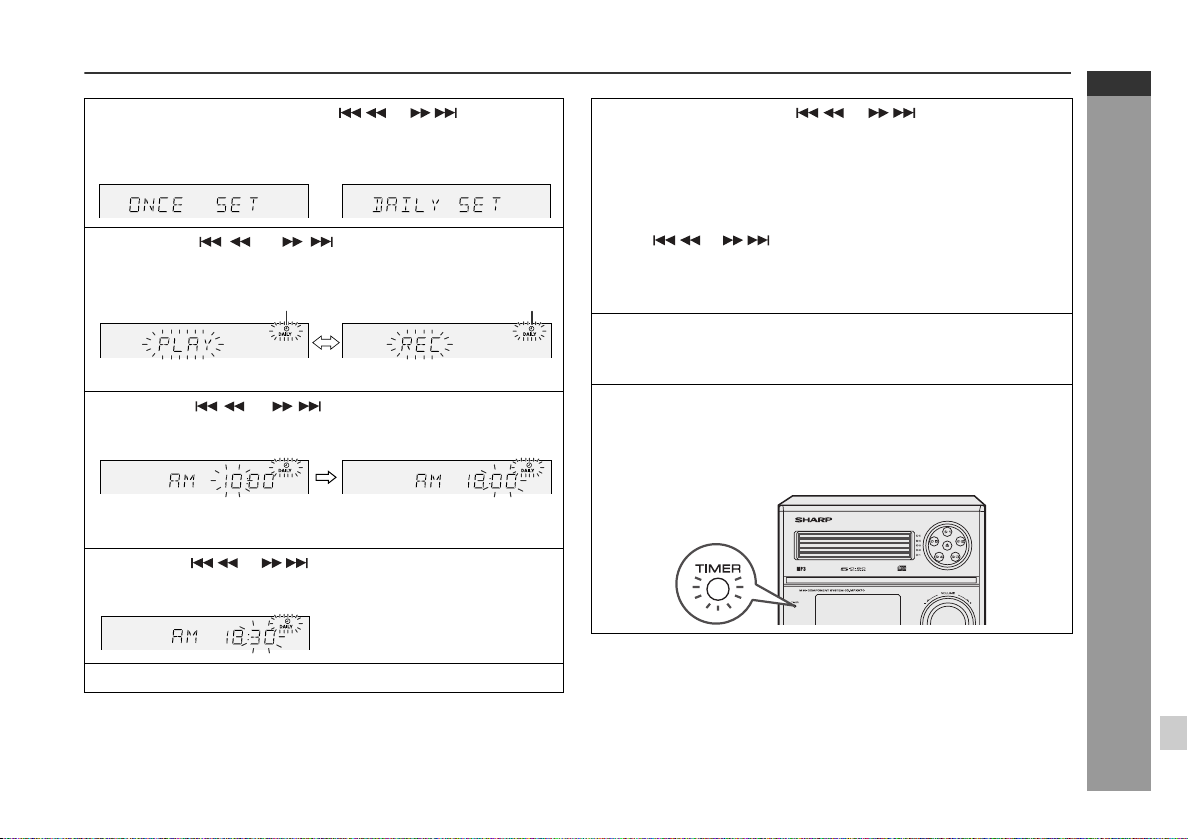

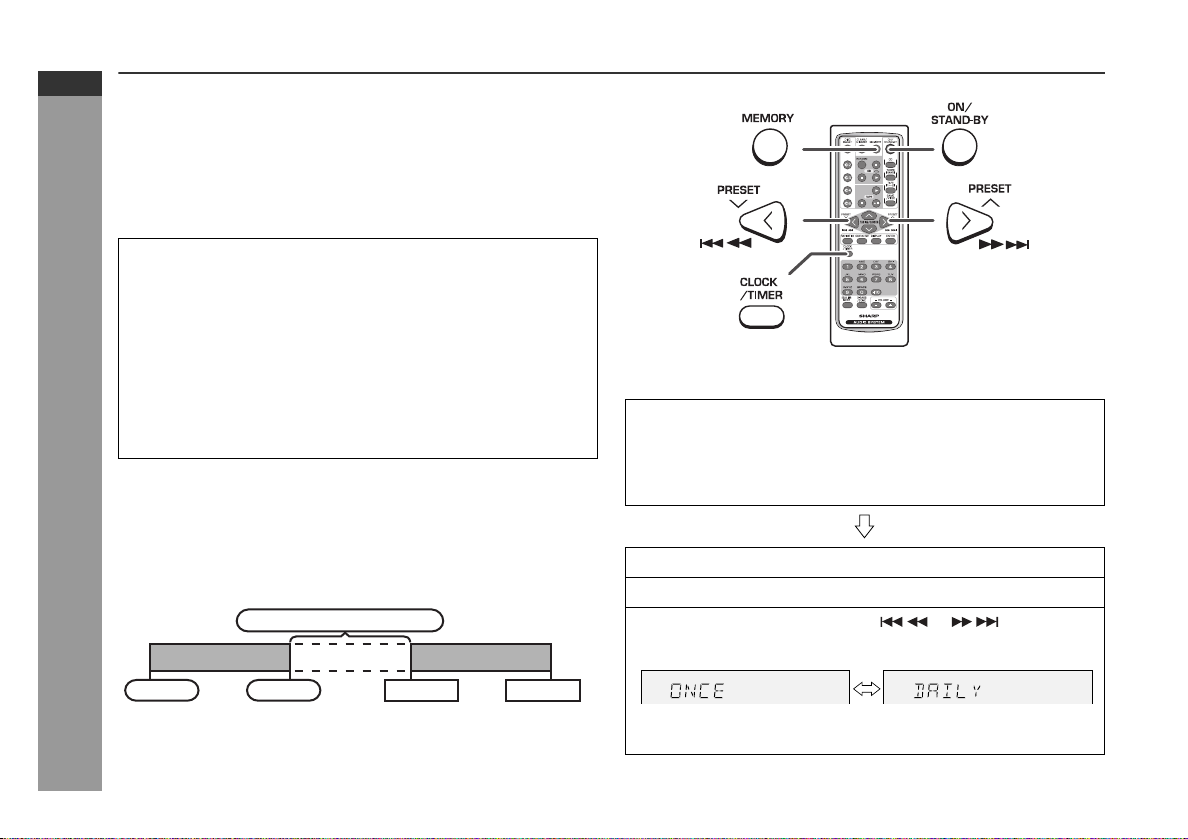

Timer and sleep operation (Remote Control only). . . . . . 33 - 36

Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 - 38

E-3



References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 - 40

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 - 42

CONSUMER LIMITED WARRANTY (for users in Australia only)

Precautions



General



Please ensure that the equipment is positioned in a well ventilated
area and ensure that there is at least 4" (10 cm) of free space
along the sides, top and back of the equipment.

4" (10 cm)



Use the unit on a firm, level surface free from
vibration.



Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical equip­ment (home computers, facsimiles, etc.)
which generate electrical noise.



Do not place anything on top of the unit.



Do not expose the unit to moisture, to temperatures higher than
140˚F (60˚C) or to extremely low temperatures.



If your system does not work properly, disconnect the AC power
cord from the AC outlet. Plug the AC power cord back in, and then
turn on your system.



In case of an electrical storm, unplug the
unit for safety.

4" (10 cm)

Table

4" (10 cm)

4" (10 cm)



Hold the AC power plug by the head when
removing it from the AC outlet, as pulling
the cord can damage internal wires.



The AC power plug is used as disconnect
device and shall always remain readily
operable.



Do not remove the outer cover, as this
may result in electric shock. Refer
internal service to your local SHARP
service facility.

UT
INP
AC



The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.



No naked flame sources, such as lighted candles, should be
placed on the apparatus.



Attention should be drawn to the environmental aspects of battery
disposal.



This unit should only be used within the range of 41

F - 95˚F

˚

(5˚C - 35˚C).

Warning:

The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible for
any damage resulting from use of this unit with a voltage other than
that which is specified.



Volume control

The sound level at a given volume setting depends on speaker effi­ciency, location, and various other factors. It is advisable to avoid ex­posure to high volume levels, which occurs while turning the unit on
with the volume control setting up high, or while continually listening
at high volumes.

CD-MPX870

CD-MPX870W

ENGLISH

General Information

E-4

CD-MPX870

CD-MPX870W

ENGLISH

Controls and indicators

General Information



Front panel

1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7. Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8. Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 29

9. Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

10. Game/Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

11. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 17

12. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 17

13. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

14. CD or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . 18, 30

15. CD Play or Repeat, Tape Play Button . . . . . . . . . . . 17, 21, 29

16. CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up, Time Up Button . . . . . . . . 15, 18, 28, 30, 33

17. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button . . . 15, 18, 28, 30, 33

18. Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 29

19. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Reference page

E-5

12 3 45 6789

16 17

18

19

11
2

3

111213

10

CD-MPX870

CD-MPX870W



Display

1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2. MP3/WMA Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 23

3. MP3/WMA Title Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8. Timer Recording Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 34

14

15

4

9. Tape 2 Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

10. MP3/WMA Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 24

11. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

12. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 27

13. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 27

14. Tape Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

15. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 28

16. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

17. Disc Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 21

18. Disc Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

19. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17



Front Speaker

1. Tweeter

2. Super Tweeter

3. Woofer

4. Bass Reflex Duct

5. Speaker Wire

6. Speaker Light-Up Wire

Reference page

ENGLISH

General Information

56

E-6

CD-MPX870

CD-MPX870W

ENGLISH

Controls and indicators (continued)

1

2

General Information

1

2

6



Rear panel

1. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2. AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3
4

5

3. FM 75 Ohms Antenna Jack . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. AM Antenna Ground Terminal . . . . . . . . . . . . . . . . . . . . . . 10

5. AM Loop Antenna Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Speaker Light-up Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Video out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8. Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Reference page

7

8



Rear panel (CD-MPX870W only)

1. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4
5

6
7

8

9

2. AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3. AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4. FM 75 Ohms Antenna Jack . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. AM Antenna Ground Terminal . . . . . . . . . . . . . . . . . . . . . . 10

6. AM Loop Antenna Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Speaker Light-up Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8. Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. Video out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

10. Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Reference page

E-7

10

3



1

13

7

14

8

15

9

2

10

16

11

22

17

18
19
20
21

23

3

24

4

25

26 27 28 29

5
6

12

Remote control

Reference page

1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 13

2. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 17

3. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 33

4. Character Input/Disc Direct Search Buttons . . . . . . . . 20, 25

5. Equalizer Mode Select Button . . . . . . . . . . . . . . . . . . . . . . 14

6. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

8. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

9. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

10. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

11. Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 14

13. Disc Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . 14, 22

14. Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

15. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

16. Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

17. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 22, 28, 33

18. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

19. Disc Play or Repeat Button . . . . . . . . . . . . . . . . . . . . . . 17, 21

20. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

21. Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . 31

22. Tuning Up, Cursor Up Button . . . . . . . . . . . . . . . . . . . . 23, 27

23. Disc Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up, Time Up, Cursor Right Button . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 18, 28, 30, 33

24. Disc Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down, Time Down, Cursor Left Button . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 18, 28, 30, 33

25. Tuning Down, Cursor Down Button . . . . . . . . . . . . . . . 23, 27

26. MP3/WMA Navigation Mode Select Button . . . . . . . . . . . . 23

27. Character Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

28. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 19

29. Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

CD-MPX870

CD-MPX870W

ENGLISH

General Information

E-8

CD-MPX870

CD-MPX870W

ENGLISH

System connections

Make sure to unplug the AC power cord before any connections.

Antenna connection (see page 10)

FM antenna

AM loop antenna

Preparation for Use

Speaker light-up wire Speaker light-up wire

Speaker connection
(see page 10)

E-9

Right speaker

Left speaker

AC power connection (see page 11)

k



Antenna connection

Supplied FM antenna:

Connect the FM antenna wire to the
FM 75 OHMS jack and position the FM
antenna wire in the direction where the

FM

antenna

strongest signal can be received.

Supplied AM loop antenna:

Connect the AM loop antenna to the
AM and GND terminals. Position the
AM loop antenna for optimum
reception. Place the AM loop antenna

a shelf, etc., or attach it to a stand

on
or a wall with screws (not supplied).

FM

75 OHMS

Note:

Placing the antenna on the unit or near the AC power cord may
cause noise pickup. Place the antenna away from the unit for better
reception.

Installing the AM loop antenna:

< Assembling > < Attaching to the wall >

Wall Screws (not supplied)



Speaker connection

Connect the black wire to the FRONT SPEAKERS minus (-) terminal,
and the red wire to the FRONT SPEAKERS plus (+) terminal.

ANTENNA

GND

AM loop

antenna

AM

Red
Blac



Speaker Light-Up connection

Connect the speaker light-up wires to the SPEAKERS LIGHT-UP
jacks for speaker illumination. To turn off the speaker light-up fea­ture, press the CLEAR/DIMMER button on the remote control for 2
seconds or more.

RIGHT SPEAKER

LEFT

LIGHT-UP

SPEAKERS

RIGHT

LEFT SPEAKER

Note:

Placing the right speaker light-up wire to the RIGHT jack and the left
speaker light-up wire to the LEFT jack.

Caution:

 Use speakers with an impedance of 6 ohms

or more, as lower impedance speakers can
damage the unit.

 Do not mistake the right and the left

channels. The right speaker is the one on the
right side when you face the unit.

 Do not let the bare speaker wires touch

each other.

Incorrect

 Do not stand or sit on the speakers. You may

be injured.

 Do not allow any objects to fall into or to be

placed in the bass reflex duct.

CD-MPX870

CD-MPX870W

ENGLISH

Preparation for Use

E-10

CD-MPX870

CD-MPX870W

ENGLISH

System connections (continued)

 AC power connection

After checking all the connections have been made correctly, plug
the AC power cord of this unit into the AC outlet. If you plug in the unit
first, the unit will enter the demonstration mode.

(CD-MPX870 only)

CD-MPX870W (users in Australia only)

Notes:

 The unit will start the tape initialization when plugged into the AC

outlet. During this process, initializing sound will be heard and the
unit cannot be turned on. Wait until the process is finished.

Preparation for Use

 Unplug the AC power cord from the AC outlet if the unit will not be

in use for a prolonged period of time.

Cooling fan:

The main unit is built with a cooling fan at the rear of the unit for
improved cooling. Please do not cover the opening of the fan with
any obstacles, as this will block proper ventilation.

AC outlet
(AC 120 V, 60 Hz)

AC outlet
(AC 230 - 240V, 50 Hz)

Main Unit (CD-MPX870W only)
 Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear pan­el before plugging the unit into the AC outlet. If necessary, adjust the
selector to correspond to the AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate volt­age number appears in the window (110 V, 127 V, 220V or 230 V­240 V AC).

AC Plug Adaptor

In areas (or countries) where the AC outlet as shown in illustration 2
is used, connect the unit using the AC plug adaptor supplied with the
unit, as illustrated. The AC plug adaptor is not included in areas
where the AC outlet and AC power plug can be directly connected
(see illustration 1).

E-11

 Setting the FM/AM span selector

(CD-MPX870W only)

The International Telecommunication Union (ITU) has established
that member countries should maintain either a 100 kHz or a 50 kHz
interval between broadcasting frequencies of FM stations and 10
kHz or 9 kHz for AM station. The illustration shows the 50/9 kHz
zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear
panel) to the interval (span) of your area.

To change the tuning zone:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.

 For 50 kHz FM interval (9 kHz in AM) → 50/9
 For 100 kHz FM interval (10 kHz in AM) → 100/10

3 While pressing down the button and the button, press the

TUNER (BAND) button until "CLEAR ALL" appears.

Caution:

This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD program.

 Demonstration mode

The first time the unit is plugged in, the
unit will enter the demonstration mode.
You will see words scroll and the front
speaker will light up in flashing mode.

To cancel the demonstration mode:

When the unit is in the power
stand-by mode (demonstration
mode), press the X-BASS/DEMO
button. The demonstration mode
will be canceled and the display will
disappear.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS /
DEMO button again.

Note:

When the power is on, the X-BASS/DEMO button can be used to se­lect the extra bass mode.

 Outdoor FM antenna

Use an outdoor FM antenna if you require better reception. Consult
your dealer.

ANTENNA

FM

GND

AM

75 OHMS

75 ohms
coaxial cable

Note:

When an outdoor FM antenna is used, disconnect the supplied FM
antenna wire.

Outdoor
FM antenna

CD-MPX870

CD-MPX870W

ENGLISH

Preparation for Use

E-12

CD-MPX870

CD-MPX870W

ENGLISH

Remote control

 Battery installation

Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.

1 Open the battery cover.
2 Insert the batteries according to the direction indicated in

the battery compartment.

When inserting or removing the batteries, push them toward the

battery terminals.

3 Close the battery cover.

Precautions for battery use:

Preparation for Use

 Replace all old batteries with new ones at the same time.
 Do not mix old and new batteries.
 Remove the batteries if the unit will not be used for long periods

of time. This will prevent potential damage due to battery leakage.

Caution:

 Do not use rechargeable batteries (nickel-cadmium battery, etc.).
 Installing the batteries incorrectly may cause the unit to malfunc-

tion.

Battery removal:

Open the battery cover and pull up the battery to take out.

Notes concerning use:

 Replace the batteries if the operating distance is reduced or if the

operation becomes erratic.

 Periodically clean the transmitter on the remote control and the

sensor on the unit with a soft cloth.

 Exposing the sensor on the unit to strong light may interfere with

operation. Change the lighting or the direction of the unit.

 Keep the remote control away from moisture, heat, shock, and vi-

brations.

 Test of the remote control

Check the remote control after checking all the connections (see
pages 9 - 12).
Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you
can enjoy music.

Remote sensor

8" - 20"

(0.2 m - 6 m)

E-13

General control

30 MAXIMUM0

.....

 To turn the power on

Press the ON/STAND-BY button to turn the power on.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.



Illumination light control

When the power is turned on, light illuminates around the display.
To turn on/off the light, hold down the CLEAR/DIMMER button on
the remote control for 2 seconds or more.



Speaker light up control

The speaker will light up according to the level of the music source
played back. To turn on/off the light, hold down the CLEAR/DIMMER
button on the remote control for 2 seconds or more.



Volume auto fade-in

If you turn off and on the main unit with the volume set to 27 or
higher, the volume starts at 16 and fades in to the last set level.



Volume control

Main unit operation:

When the VOLUME control is turned
clockwise, the volume will increase.
When it is turned counterclockwise, the
volume will decrease.

Remote control operation:

Press the VOLUME (+ or -) button to in­crease or decrease the volume.



Bass Control (X-BASS)

When the X-BASS/DEMO button is
pressed, the unit will enter the extra bass
mode. To cancel this mode, press the X­BASS/DEMO button again.



Equalizer

When the power is first turned on, the unit will enter FLAT mode.
When the EQUALIZER MODE button is pressed, the current mode
setting will be displayed. To change to a different mode, press the
EQUALIZER MODE button repeatedly until the desired sound mode
appears.

In CD/TUNER/TAPE mode In GAME/VIDEO mode

No equalization.

FLAT

ROCK

CLASSIC

POPS

VOCALS

JAZZ

No equalization.

For rock music.

For classical music.

For pop music.

Vocals are enhanced.

For jazz.

FLAT

ROCK

CLASSIC

ACTION

SPORTS

RACING

For rock music.

For classical music.

For action games.

For sports games.

For car racing games.

CD-MPX870

CD-MPX870W

ENGLISH

Basic Operation

E-14

CD-MPX870

CD-MPX870W

ENGLISH

Setting the clock (Remote control only)

In this example, the clock is set for the 12-hour (AM 12:00) display.

Press the ON/STAND-BY button to turn the power on.

1
2

Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to se-

3

lect "CLOCK", and press the MEMORY button.

Basic Operation

Press the or button to select 12-hour or 24-

4

hour display and then press the MEMORY button.

"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00" The 24-hour display will appear.
(0:00 - 23:59)

E-15

5

Press the or button to adjust the hour and
then press the MEMORY button.

Press the or button once to advance the time by
1 hour. Hold it down to advance continuously.

Press the or button to adjust the minutes and

6

then press the MEMORY button.

Press the or button once to advance the time by
1 minute. Hold it down to change the time in 5-minute intervals.

To confirm the time display:

[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.

[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to display the
time.
The time display will appear for about 10 seconds.

Note:

The "CLOCK" will appear or time will flash to confirm the time dis­play when the AC power supply is restored after a power failure or
unplugging the unit. If incorrect, readjust the clock as follows.

To readjust the clock:

Perform "Setting the clock" from step 1. If the "CLOCK" does not
appear in step 3, step 4 (for selecting the 12-hour or 24-hour dis­play) will be skipped.

To change the 12-hour or 24-hour display:

1 Clear all the programmed contents. [Refer to "Clearing all the

memory (reset)" on page 40 for details.]

2 Perform "Setting the clock" from step 1.

Listening to a CD or MP3/WMA disc

This system can play back a standard CD, CD-R/RW in the CD format
and CD-R/RW with MP3 or WMA files, but cannot record on them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the device that was used for recording.

MP3:
MP3 is a form of compression. It is an acronym which stands
for MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant
compression from the original audio source with very little loss
in sound quality.



This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.



During VBR file playback, time counter in the display may differ
from its actual playback time.

WMA:
WMA files are Advanced System Format files that include audio
files which are compressed with Windows Media Audio codec.
WMA is developed by Microsoft as an audio format file for Win­dows Media Player.



"MP3" or "WMA" indicator will light up after the unit reads infor­mation on an MP3 or WMA disc.

Auto power on function:

When you press any of the following buttons, the unit turns on.







Auto power off function:

In the stop mode of CD, MP3 or WMA operation, the main unit enters
the stand-by mode after 15 minutes of inactivity.

CD-MPX870

CD-MPX870W

ENGLISH

CD button (main unit and remote control): The unit turns on and
the "CD" function is activated.
CD / button on the remote control: The unit turns on and CD
playback starts (regardless of the last function).

/ button on the main unit: The unit turns on and playback of

the last function starts (CD,TAPE,TUNER,GAME/VIDEO).

CD or MP3/WMA disc Playback

E-16

CD-MPX870

CD-MPX870W

ENGLISH

Listening to a CD or MP3/WMA disc (continued)

1

Press the ON/STAND-BY button to turn the power on.
Press the CD button.

2
3

Press the 1 button and within 5 seconds, press the

button to open the disc tray 1.

4

Place the disc on the disc tray 1, label side up.

Be sure to place 3" (8 cm) disc in the middle of the disc trays.

5

Press

[CD]

5" (12 cm) 3" (8 cm)

//// button to close the disc tray 1.

[MP3/WMA]

MP3 indicator

WMA indicator

CD or MP3/WMA disc Playback

E-17

Total number of
tracks on the disc



Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20
to 90 seconds).

You can place discs on the trays 2 - 5 by following steps

6

3 - 5.

7

Press the / button to start playback.

Total playing
time of the disc

Total number
of folders

Disc play indicator

Total number
of files



Playback will begin from track 1 on disc 1. After that disc finishes
playing, the next disc will automatically play.



After the last track on the fifth disc is played, the unit will stop au­tomatically.



When there is no disc in one of the disc trays (1 - 5), the empty
tray will be skipped to the next tray with a disc.



Various disc functions

Function Main unit Remote

Play

control

CD-MPX870

CD-MPX870W

ENGLISH

Operation

Press in the stop
mode.

To exchange other discs while playing a disc:

Press one of the 1 - 5 buttons for the stopped disc and within 5
seconds, press the button and exchange discs.

To remove the discs:

In the stop mode, press the 1 - 5 buttons and within 5 seconds,
press the button.

Caution:



Do not place two discs in a same tray.



Do not play discs of special shapes (heart, octagon, etc.) as it
may cause malfunctions.



Do not push the disc tray while it is moving.



If the power fails while the tray is open, wait until the power is re­stored.



If the disc tray is stopped with force, "ER-CD20" will appear on the
display for 3 seconds and the unit will not function. If this occurs,
press the ON/STAND-BY button to enter the power stand-by
mode and then turn the power on again.



If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.



If a disc is damaged, dirty, or loaded upside down, the disc will
skip or not play.

Stop

Pause

Track up/
Track down

Fast for­ward/Fast
reverse

Press in the playback
mode.

Press in the playback
mode. Press the /
button to resume play­back from the paused
point.

Press in the playback
or stop mode.

If you press the button
in the stop mode,
press the / button
to start the desired
track.

Press and hold down
in the playback mode.

Release the button to
resume playback.

CD or MP3/WMA disc Playback

E-18

CD-MPX870

CD-MPX870W

ENGLISH

Listening to a CD or MP3/WMA disc (continued)

Notes for CD:



Track up/track down is possible only within individual discs.



Fast forward/fast reverse is possible only within individual discs.



When the end of the last track is reached during fast forward,
"END" will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.

Notes for MP3/WMA discs:



Track up/track down is possible only within individual discs.



The sound is heard during fast forward/fast reverse with a CD, but
not with an MP3/WMA disc. For fast forward or fast reverse of an
MP3/WMA disc, refer to playback time on the display.



Fast forward/fast reverse is possible only within individual tracks.



When the end of the track is reached during fast forward, the next
track will be played. Playback of the track will begin when its be­ginning is reached during fast reverse.

CD or MP3/WMA disc Playback



To change the display (MP3/WMA discs only)

While a disc is playing, press the DISPLAY
button.

Each time the button is pressed, the display
will change as follows.

Track number

Elapsed
playback time

File name

Folder name

E-19

Advanced CD or MP3/WMA disc playback



To specify a disc to play

You can play a disc by specifying the disc number.

1

Press one of the 1 - 5 buttons to select the desired disc.

Selected disc number

2

Within 5 seconds, press the



Playback will begin from track 1 on the chosen disc.



After the last track on the last disc is played, the unit stops auto­matically.

Note:

If a disc tray with no disc is selected, playback will not start and the
disc indicator will disappear.

To stop playback:

Press the (CD ) button.

/

button on the main unit.



Direct track search

By using the direct search buttons, the desired tracks on the current
disc can be played.

Use the direct search buttons on
the remote control to select the de­sired track while playing the se­lected disc.



The direct search buttons allow you to select up to number 9.



When selecting number 10 or higher, use the "+10" button.

A. For example, to choose 13

1 Press the "+10" button once.
2 Press the "3" button.

B. For example, to choose 30

1 Press the "+10" button three times.
2 Press the "0" button.

If the direct search buttons are pressed while the disc is stopped,
press the / button to start the desired track on the current disc.

Notes:



A track number higher than the number of tracks on the disc can­not be selected.



During random play, direct search is not possible.

CD-MPX870

CD-MPX870W

ENGLISH

Selected track number

CD or MP3/WMA disc Playback

E-20

CD-MPX870

CD-MPX870W

ENGLISH

Advanced CD or MP3/WMA disc playback (continued)

 Repeat play

Repeat play can play all 5 discs, all tracks on a chosen disc, or a pro­grammed sequence continuously.

To repeat one disc:

Press the / button twice.

To repeat all tracks on up to 5 discs:

Press the / button three times.

To repeat desired tracks:

Perform steps 1 - 6 in "Programmed play" section on page 22 and
then press the / button twice.

To cancel repeat play:

Press the / button again.
" " will disappear.

CD or MP3/WMA disc Playback

 Random play

The tracks on the disc(s) can be played in random order automatically.

To random play all tracks on up to 5 discs:

Press the RANDOM button on the remote control.

To cancel random play:

Press the / button.
"R" will disappear.

Notes:

 If you press the button during random play, you can move to

the next track by the random operation. On the other hand, the
button does not allow you to move to the previous track. The be­ginning of the track being played will be located.

 In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

Caution:

After performing repeat or random play, be sure to press the (CD

) button. Otherwise, the disc(s) will play continuously.

E-21

 Programmed play

You can choose up to 32 selections for playback in the order you like.

1 While in the stop mode, press the

MEMORY button to enter the pro­gramming save mode.

2 Press one of the 1 - 5 buttons

to select the desired disc.

Selected disc number

3 Press the direct search buttons

on the remote control to select
the desired track.

Selected track number

You can also select a track by pressing the or button.

4 Press the MEMORY button to

save the track number.

5 Repeat steps 2 - 4 for other tracks. Up to 32 tracks can be

programmed.

If you make a mistake, the programmed tracks can be cleared
by pressing the CLEAR/DIMMER button.

6 Press the (CD ) button.

The total number in memory will ap­pear.

7 Press the / button to start playback.

To clear the programmed selections:

Press the CLEAR/DIMMER button on the re­mote control while the "MEMORY" indicator
is flashing.

Each time the button is pressed, one track will
be cleared, beginning with the last track pro­grammed.

To cancel the programmed play mode:

While in the stop mode and the "MEMORY" indicator is lit, press the
CLEAR/DIMMER button on the remote control. The "MEMORY" in­dicator will disappear and all the programmed contents will be
cleared.

Adding tracks to the program:

If a program has been previously stored, the "MEMORY" indicator
will be displayed. Then follow steps 1 - 6 to add tracks. The new
tracks will be stored after the last track of the original program.

To check which tracks are programmed:

While the unit is stopped in the programmed play mode, press the

or button.

Notes:

 When a disc with programmed tracks is ejected, the program is

automatically canceled.

 Even if you press the ON/STAND-BY button to enter the stand-by

mode or change the function from CD to another, the programmed
selections will not be cleared.

 During the program operation, random play is not possible.

CD-MPX870

CD-MPX870W

ENGLISH

CD or MP3/WMA disc Playback

E-22

CD-MPX870

CD-MPX870W

ENGLISH

MP3/WMA navigation (only for MP3/WMA files)

MP3/WMA navigation:

You can search and play files by folder or title. For example, when
you assign three titles to a file, enter genre (such as jazz) as title 1,
album name as title 2, and music title as title 3 to search the file by
any title.
 You can search and play files by folder or title 1/2/3 within one

MP3/WMA disc (see page 24).

 By entering a name, you can search files by folder or title 1/2/3

within one MP3/WMA disc (see page 25).

 Folders or titles can be programmed within one MP3/WMA disc

(see page 26).

When you enter file names on your PC, connect words with hyphens.
This product recognizes the first word as title 1, second one as title
2, and third one as title 3. Up to three words can be recognized.

Example:

Folder

AAA

(POPULAR-HITS 1-A MUSIC.mp3)
(POPULAR-HITS 2-B MUSIC.mp3)

BBB

(JAZZ-HITS 1-A MUSIC.mp3)

CD or MP3/WMA disc Playback

CCC

(JAZZ-HITS 2-B MUSIC.mp3)

(ROCK-HITS 1-A MUSIC.mp3)
(ROCK-HITS 2-B MUSIC.mp3)
(ROCK-HITS 3-C MUSIC.mp3)
(ROCK-HITS 4-D MUSIC.mp3)

(File name)

Title 1 Title 2 Title 3

Folder Title 1

Title 2 Title 3

Notes:

 MP3 files must have the extension ".mp3".
 WMA files must have the extension ".wma".
 Up to 100 folders or 300 files can be read on the unit. If either limit

is exceeded, no more folders/files are displayed.

 This unit recognizes and displays up to 48 characters for folder

names, and up to 32 characters for title 1/2/3.

 All file/folder names appear in uppercase.

E-23

 File search (by folder or title 1/2/3)

You can search and play files by folder or title 1/2/3 within one MP3/
WMA disc.

1 Press one of the 1 - 5 buttons to select a disc tray

containing an MP3/WMA disc.

2 Press the / button, and the unit starts to read the MP3

disc.

3 Press the CD button to stop playback.

"NAVI READ" appears and the display shows the total number
of folders and files on the selected disc.

MP3 indicator
WMA indicator

CD-MPX870

CD-MPX870W

ENGLISH

7 Use the or cursor button to scroll and select a folder

(or title), and then press the ENTER button.

Folder name

If you press the / button instead of the ENTER button, all
files in the selected folder (or title) are played.

8 Use the or cursor button to scroll and select a file.

File name

Total number
of folders

Total number
of files

4 Press the NAVIGATION button.
5 Press the , , or cursor but-

ton on the remote control to select
"FOL", "T-1", "T-2" or "T-3". To
search files by folder name, select
"FOL" (will flash).

The following steps describe file search by folder:

Folder Title 1

Title 2 Title 3

6 Press the ENTER button.

The total number of folders (or titles) appears for 2 seconds,
and names of the first 2 folders (or titles) are displayed.

Folder name

The NAVIGATION button allows you to go one step back.


 Press the DISPLAY button to

check the number of files.

9 Press the / button to start playback.

The unit plays from the selected file to the last file in the select­ed folder (or title), and the previous display returns.

MP3

File search by title 1/2/3:

 In step 5, select "T-1", "T-2" or "T-3" and follow the same steps as

file search by folder.

 The unit searches all files on the disc, regardless of the folder.

To stop playback:

Press the CD button.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.

Notes:

 In the MP3/WMA navigation mode, direct play and direct search

functions are disabled.

 If a folder, title or file name does not appear, or appears incorrect-

ly, remove and reinsert the disc and try again.

 If you press the RANDOM button in the stop mode, the MP3/WMA

navigation mode will be canceled.

CD or MP3/WMA disc Playback

E-24

CD-MPX870

CD-MPX870W

ENGLISH

MP3/WMA navigation (only for MP3/WMA files) (continued)

 Character search (for folder or title 1/2/3)

By entering a name, you can search files by folder or title 1/2/3 within
one MP3/WMA disc.

1

Perform steps 1 - 3 in "File search (by folder or title 1/2/3)"
on page 24.

2

Press the NAVIGATION button.

3

Press the , , or cursor
button on the remote control to

select "FOL", "T-1", "T-2" or "T-3".
To search files by folder name,
select "FOL" (will flash).

Press the CHARACTER button for 2 seconds.

4

The display will be ready for editing characters.
1st row: String table
2nd row: Input editor (8 digits)

5

Press the or cursor button to select the desired
alphabet.

Press the or button to go to the next page of character
display.

6

Press the CHARACTER button and the active character will
be entered in the 2nd row of the display.

CD or MP3/WMA disc Playback

To delete an entered character, move the cursor to the charac­ter with the or button and press the CLEAR/DIMMER but­ton on the remote control.

Repeat steps 5 and 6 to enter characters.

7

In the folder (or title) name search, you do not have to enter the
full name. The unit searches for names beginning with the en-

E-25

tered characters.

Folder Title 1

Title 2 Title 3

When finished, press the ENTER button. The unit

8

searches for the same name within folders (or titles).

If the search word is not in the folder (or title) name, "NOT
FOUND" appears and the menu returns.

9

Use the or cursor button to scroll and select a folder
(or title).

Press the / button to start playback.

10

All files in the selected folder (or title) are played, and the pre­vious display returns.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.

Notes:



The unit searches regardless of the case, and names found will
appear in uppercase.



Some symbols do not appear properly.

Character entry with direct buttons:

The direct buttons on the remote
control can also be used for charac­ter entry.

In step 5 on the left, use buttons 0 ­9 to enter alphabets.

Alphabet types change as you
press a button.

For example, press "2" four times to enter "C".

2 A B C

Characters:

1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO

: indicates a space.

7 PQRS

8 TUV

9 WXYZ

0



Programmed play (for folder, title 1/2/3)

Folders or titles can be programmed within one MP3/WMA disc.
Folder, title 1, title 2 and title 3 cannot be programmed together si­multaneously.

1

Perform steps 1 - 3 in "File search (by folder or title 1/2/3)"
on page 24.

2

Press the NAVIGATION button.

3

Press the , , or cursor button on the remote control
to select "FOL", "T-1", "T-2" or "T-3" and then press the

ENTER button.

The total number of folders (or titles) appears for 2 seconds,
and names of the first 2 folders (or titles) are displayed.

4

Press the or cursor button to select the desired folder
(or title) and then press the MEMORY button.

The folder (or title) is memorized with all the files.

Repeat step 4 for other folders (or titles).

5

Up to 10 folders (or 10 titles) can be programmed.

Press the / button to start playback.

6

Programmed play will always start from the smallest folder (or
title) number.

To stop playback:

Press the CD button.



The programmed contents are not cleared.

To check, add or delete programmed contents:

In the stop mode, select a folder (or title) with the or cursor but­ton. If the folder (or title) is programmed, "MEMORY" flashes.

Flashes if the folder (or title)
is programmed



When you press the MEMORY button with "MEMORY" flashing,
the folder (or title) is removed from the program.



If you press the MEMORY button with "MEMORY" off, the folder
(or title) is added to the program.



To clear all programs, press the CLEAR/DIMMER button in the
stop mode.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.



The programmed contents are cleared.

Notes:



The programmed contents are cleared when you eject a disc,
play another disc, switch the function, or enter the stand-by mode
with the ON/STAND-BY button.



If you press the RANDOM button in the stop mode, the MP3/
WMA navigation mode will be canceled.

If tracks are programmed using track numbers (see
"Programmed play" on page 22):

In the MP3/WMA navigation mode, only program by folder (or title)
name are played. When you exit the mode, the program by folder (or
title) name are cleared.
When you exit the MP3/WMA navigation mode, program by track
number are canceled.
(Program by track number are cleared when you remove the disc.)

CD-MPX870

CD-MPX870W

ENGLISH

CD or MP3/WMA disc Playback

E-26

CD-MPX870

CD-MPX870W

ENGLISH

Radio

E-27

Listening to the radio

Auto power on function:

When you press any of the following buttons, the unit turns on.



TUNER (BAND) button (main unit and remote control): The unit
turns on and the "TUNER" function is activated.



/ button on the main unit: The unit turns on and playback of

the last function starts (CD, TAPE, TUNER, GAME/VIDEO).

Note for users in Australia:

This product can receive FM stereo/FM monaural and AM monaural
broadcasts. AM stereo broadcasts will not be played in stereo.



Tuning

1

Press the ON/STAND-BY button to turn the power on.

2

Press the TUNER (BAND) button repeatedly to select the
desired frequency band (FM or AM).

3

Press the TUNING ( or ) button to tune in to the desired
station.

Manual tuning:

Press the TUNING (X
to tune in to the desired station.

Auto tuning:

When the TUNING (X

0.5 seconds, scanning will start automatically and the tuner will
stop at the first receivable broadcast station.

Notes:



When radio interference occurs, auto scan tuning may stop auto­matically at that point.



Auto scan tuning will skip weak signal stations.



To stop the auto tuning, press the TUNING (X

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the "ST" indicator.



" " will appear when an FM broadcast is in stereo.



If the FM reception is weak, press the TUNER (BAND) button to
extinguish the "ST" indicator. The reception changes to monaural,
and the sound becomes clearer.

or W

) button as many times as required

or W

) button is pressed for more than

or W

FM stereo mode indicator

FM stereo receiving indicator

) button again.



Memorizing a station

You can store 40 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)

1

Perform steps 1 - 3 in "Tuning" on page 27.

2

Press the MEMORY button to enter the preset tuning sav­ing mode.

3

Within 30 seconds, press the PRESET ( or ) button to
select the preset channel number.

Store the stations in memory, in order, starting with preset
channel 1.

4

Within 30 seconds, press the MEMORY button to store that
station in memory.

If the "MEMORY" and preset number indicators disappear
before the station is memorized, repeat the operation from step

2.

Repeat steps 1 - 4 to set other stations, or to change a pre-

5

set station.

When a new station is stored in memory, the station previously
memorized for that preset channel number will be erased.

Note:

The backup function protects the memorized stations for a few hours
should there be a power failure or the AC power cord become discon­nected.



To recall a memorized station

Press the PRESET ( or ) button for less than 0.5 seconds to se­lect the desired station.



To scan the preset stations

The stations saved in memory can be scanned automatically. (Pre­set memory scan)

1 Press the PRESET ( or ) button for more than 0.5 seconds.

The preset number will flash and the programmed stations will be
tuned in sequentially, for 5 seconds each.

2 Press the PRESET ( or ) button again when the desired sta-

tion is located.



To erase entire preset memory

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 While pressing down the button and the button, press

the TUNER (BAND) button until "TUNER CL" appears.

CD-MPX870

CD-MPX870W

ENGLISH

Radio

E-28

CD-MPX870

CD-MPX870W

ENGLISH

Listening to a cassette tape (TAPE 1 or TAPE 2)

Before playback:



For playback, use normal or low-noise tapes for
the best sound. (Metal or CrO tapes are not rec­ommended.)



Do not use C-120 tapes or poor-quality tapes, as
they may cause malfunctions.



Before loading a tape into the cassette compartment,
tighten the slack with a pen or a pencil.

Tape Playback

E-29



Tape playback

1

Press the ON/STAND-BY button to turn the power on.
Open the cassette com-

2

partment by pushing the
area marked " ".

Load a cassette into the

3

TAPE 1 compartment or
TAPE 2 compartment with
the side to be played fac­ing toward you.

Press the TAPE (1 2) button to select the cassette you

4

want to listen to.

5

Press the / (TAPE ) to
start playback.

Tape play indicator

Auto power on function:

When you press any of the following buttons, the unit turns on.



TAPE (1
on and the "TAPE" function is activated.



TAPE button (remote control): The unit turns on and the "TAPE"
function is activated.



/ button (main unit): The unit turns on and playback of the last

function starts (CD,TAPE,TUNER,GAME/VIDEO).

Auto power off function:

In the stop mode of tape operation, the main unit enters the stand-by
mode after 15 minutes of inactivity.

2) button (main unit and remote control): The unit turns



Various tape functions

Function Main unit Remote

Playback

Stop

Fast
forward/
Rewind

(TAPE 2
only)

Caution:



To remove the cassette, press the (TAPE ) button, and then
open the compartment.



Before changing from one tape operation to another, press the
(TAPE ) button.



If a power failure occurs during tape operation, the tape head will
remain engaged with the tape and the cassette door will not open.
In this case, wait until the power is restored.

control

Operation

Press in the stop
mode.

Press in the playback,
fast forward or rewind
mode.

Press in the playback
or stop mode.

Recording on a cassette tape

Before recording:

 When recording important selections, make a preliminary test to

ensure that the desired material is properly recorded.

 SHARP is not liable for damage or loss of your recording arising

from malfunction of this unit.

 The volume and sound controls can be adjusted with no effect

on the recorded signal (Variable Sound Monitor).

 For recording, use only normal tapes. Do not use metal or

CrO tapes.

Erase-prevention tab of cassette tapes:

 When recording on a cassette tape, make sure that the erase-

prevention tabs are not removed. Cassettes have removable
tabs that prevent accidental recording or erasing.

 To protect the recorded sound, remove the tab after recording.

Cover the tab hole with adhesive tape to record on the tape with­out the tab.

Side A

Tab for side B

Tab for side A

CD-MPX870

CD-MPX870W

ENGLISH

Tape Recording

E-30

CD-MPX870

CD-MPX870W

ENGLISH

Recording on a cassette tape (continued)

Tape Recording

 Recording from a CD or MP3/WMA disc

1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Load a cassette into the TAPE 2 cassette compartment

with the side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be
performed.

4 Press the button.

Recording will be paused.

5 Press one of the 1 - 5 buttons to select the desired disc.
6 Within 5 seconds, press the / button to start recording.

 Recording is started from the selected disc. When the play-

back of the last track is finished or the end of the tape is
reached, the disc and the cassette will stop automatically.

 Playback of the disc will start approximately 7 seconds after

the tape starts.

To stop recording:

Press the (TAPE ) button.
The disc and tape will stop.

E-31

To perform programmed recording:

1 Program discs and tracks (see page 22).
2 Press the button.
3 Press the / (TAPE ) button to start recording.

To stop recording:

Press the (TAPE ) button.
The disc and tape will stop.

 Recording from the radio

1 Tune in to the desired station (see page 27).
2 Load a cassette into the TAPE 2 cassette compartment

with the side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be
performed.

3 Press the button.

Recording will be paused.

CD-MPX870

CD-MPX870W

ENGLISH

 Dubbing from tape to tape

You can record from TAPE 1 to TAPE 2.

1 Press the ON/STAND-BY button to turn the power on.
2 Load a prerecorded cassette

into the TAPE 1 cassette com­partment. Insert a blank tape
into the TAPE 2 cassette com­partment.

TAPE 1 TAPE 2

It is recommended that the recording tape is the same length as
the master tape.

3 Press the TAPE (1 2) button until "TAPE 1" appears on

the display.

4 Press the button.

Recording will be paused.

4 Press the / (TAPE ) button to start recording.

To interrupt recording:

Press the button.
To resume recording, press the / (TAPE ) button.

To stop recording:

Press the (TAPE ) button.

Note:

If you hear a whistling noise while recording an AM station, move the
AM loop antenna.

5 Press the / (TAPE ) button to start dubbing.

To stop dubbing:

Press the (TAPE ) button.
TAPE 1 and TAPE 2 will stop simultaneously.

 Erasing recorded tapes

1 Load the tape to be erased into the TAPE 2 cassette compart-

ment with the side to be erased facing toward you.

2 Press the TAPE (1 2) button until "TAPE 2" appears on the dis-

play.

3 Press the button.
4 Press the / (TAPE ) button to start erasing.

Note:

Make sure that the TAPE 1 is not in use.

Tape Recording

E-32

CD-MPX870

CD-MPX870W

ENGLISH

Timer and sleep operation (Remote control only)

Timer playback:

The unit turns on and plays the desired source (CD, tuner, tape) at a
preset time.

Timer recording:

The unit turns on and starts recording from the tuner at the preset
time.

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.

Once timer:

For example, if you are away but want to record a program on a ra­dio station.

Daily timer:

For example, set the timer as a wake-up call every morning.

Using the once timer and daily timer in combination:

For example, use the once timer to record a radio program, and use
the daily timer to wake up.

Advanced Features

1 Set the daily timer (pages 33 - 35).
2 Set the once timer (pages 33 - 35).

Daily timer

Start

Note:

When set times for the daily timer and once timer overlap, the once
timer takes priority. Allow an interval of at least 1 minute between op­erations.

E-33

Once timer play or once timer recording works for
one time only at a preset time.

Daily timer play or daily timer recording works at
the same preset time every day.

1 minute or more

Once timer

Stop Start Stop



Timer playback or timer recording

Before setting timer:

1 Check that the clock is set to the correct time (refer to page 15).

If it is not set, you cannot use the timer function.

2 For timer playback: Load a cassette or discs to be played.

For timer recording: Load a cassette for recording in the cas-

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK/TIMER button.

3

Within 10 seconds, press the or button to se­lect "ONCE" or "DAILY", and press the MEMORY button.

Set the clock to the correct time if "ONCE" or "DAILY" does not
appear.

sette compartment.

Continued to the next page

4

Within 10 seconds, press the or button to se­lect "ONCE SET" or "DAILY SET", and press the MEMORY

button.

Press the or button to select "PLAY" or

5

"REC", and press the MEMORY button.

White Red

The illustrations show the daily timer setting.

Press the or button to adjust the hour and

6

then press the MEMORY button.

The illustrations show the timer playback setting in the daily tim­er mode.

7

Press the or button to adjust the minutes and
then press the MEMORY button.

9

Switch input with the or button, and then
press the MEMORY button.

To select the timer playback source: CD, TUNER, TAPE 1 or
TAPE 2.

To select the timer recording source: TUNER.



When you select the tuner, select a station by pressing the

or button, and then press the MEMORY but-

ton.



If a station has not been programmed, "NO PRESET" will
be displayed and timer setting will be canceled.

10

Adjust the volume using the VOLUME control, and then
press the MEMORY button.

Do not turn the volume up too high.

11

Press the ON/STAND-BY button to enter the power stand­ by mode.

The "TIMER" indicator lights up and the unit is ready for timer
playback or timer recording.

CD-MPX870

CD-MPX870W

ENGLISH

Advanced Features

Set the time to finish as in steps 6 and 7 above.

8

Continued to the next page

E-34

CD-MPX870

CD-MPX870W

ENGLISH

Timer and sleep operation (Remote control only) (continued)

12

When the preset time is reached, playback or recording
will start.

The volume will increase gradually until it reaches the preset
volume.

13

When the timer end time is reached, the system will enter
the power stand-by mode automatically.

Once timer:

The timer will be canceled.

Daily timer:

The timer will operate at the same time every day. It will con­tinue until the daily timer setting is canceled. Cancel the daily
timer when it is not in use.

Note:

When performing timer playback or recording using another unit con­nected to the GAME INPUT jacks, select "GAME" in step 9.

This unit will turn on or enter the power stand-by mode automatically,
however, the connected unit will not turn on or off.

Advanced Features

Checking the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE CALL" or "DAILY CALL", and press the MEMORY button.
The unit returns to the timer stand-by mode after displaying the

settings in order.

Canceling the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE OFF" or "DAILY OFF", and press the MEMORY button.
Timer will be canceled (the setting will not be canceled).

Reusing the memorized timer setting:

The timer setting will be memorized once it is entered. To reuse the
same setting, perform the following operations.

1 Turn the power on and press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE ON" or "DAILY ON", and press the MEMORY button.

4 Press the ON/STAND-BY button to enter the power stand-by

mode.

E-35



Sleep operation

The radio, CD, MP3/WMA disc and cassette tape can all be turned
off automatically.

1

Play back the desired sound source.
Press the CLOCK/TIMER button.

2
3

Within 10 seconds, press the

or button to select
"SLEEP", and press the MEMO­RY button.

4

Press the or button to select the time.
(Maximum: 3 hours - Minimum: 1 minute)



3 hours - 5 minutes 5-minute intervals



5 minutes - 1 minute 1-minute intervals

5

Press the MEMORY button.

"SLEEP" will appear.

The unit will enter the power stand-by mode automatically

6

after the preset time has elapsed.

The volume will be turned down 1 minute before the sleep op­eration finishes.

To confirm the remaining sleep time:

1 While "SLEEP" is indicated, press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select

"SLEEP X : XX".
"X : XX" is remaining sleep time.



The remaining sleep time is displayed for about 10 seconds.



You can change the remaining sleep time while it is displayed by
pressing the MEMORY button.

To cancel the sleep operation:

Press the ON/STAND-BY button while "SLEEP" is indicated.
To cancel the sleep operation without setting the unit to the stand-by
mode, proceed as follows.

1 While "SLEEP" is indicated, press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select

"SLEEP OFF", and press the MEMORY button.



To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up
to CD in the next morning.

Sleep and timer recording:

For example, you can fall asleep listening to the CD and record radio
programs while sleeping.

1 Set the sleep time (see left, steps 1 - 5).
2 While the sleep timer is set, set the timer playback or recording

(steps 2 - 10, pages 33 - 34).

Timer playback or

Sleep timer setting

1 minute - 3 hours Desired time

Sleep operation will
automatically stop.

Caution:

When using the cassette deck, be sure the tape length is long
enough to perform both functions. If you want to sleep and wake up
listening to a tape, and the length of the tape is shorter than the sleep
timer setting, timer playback or recording will not be possible.

recording setting

End time

Timer playback or recording
start time

CD-MPX870

CD-MPX870W

ENGLISH

Advanced Features

E-36

CD-MPX870

CD-MPX870W

ENGLISH

Enhancing your system

The connection cord is not included. Purchase a commercially avail­able cord as shown below.

GAME or VCR, DVD, etc.

To the line output jacks

White

Red

Advanced Features

To video
input jack

Video cable
(not supplied)

TV

Yellow

Yellow

Video cable
(not supplied)

RCA cord
(not supplied)

AC INPUT

White

RedYellow

Yellow



Listening to playback sounds of Game, VCR,
DVD, etc.

1

Connect a video game system, VCR, DVD, etc. to the front
GAME INPUT (VIDEO, AUDIO L and R) jacks.

2

Connect a TV to the rear VIDEO OUT jacks.

Switch the TV input to auxiliary.

3

Press the ON/STAND-BY button to turn the power on.

4

Press the GAME/VIDEO button.

Play the connected equipment.

5

You can enjoy sounds from the supplied speakers and images
on the TV.

Note:

To prevent noise interference, place the unit away from the television.

Auto power on function:

When you press any of the following buttons, the unit turns on.



GAME/VIDEO button (main unit and remote control): The unit
turns on and the "GAME" function is activated.



/ button on the main unit: The unit turns on and playback of

the last function starts (CD,TAPE,TUNER,GAME/VIDEO).



To record on a tape from game, VCR, etc.

Insert a cassette in the TAPE 2 cassette compartment.

1
2

Press the GAME/VIDEO button.

Press the button.

3
4

Press the / (TAPE ) button.

Start the game system, VCR, etc.

5

E-37



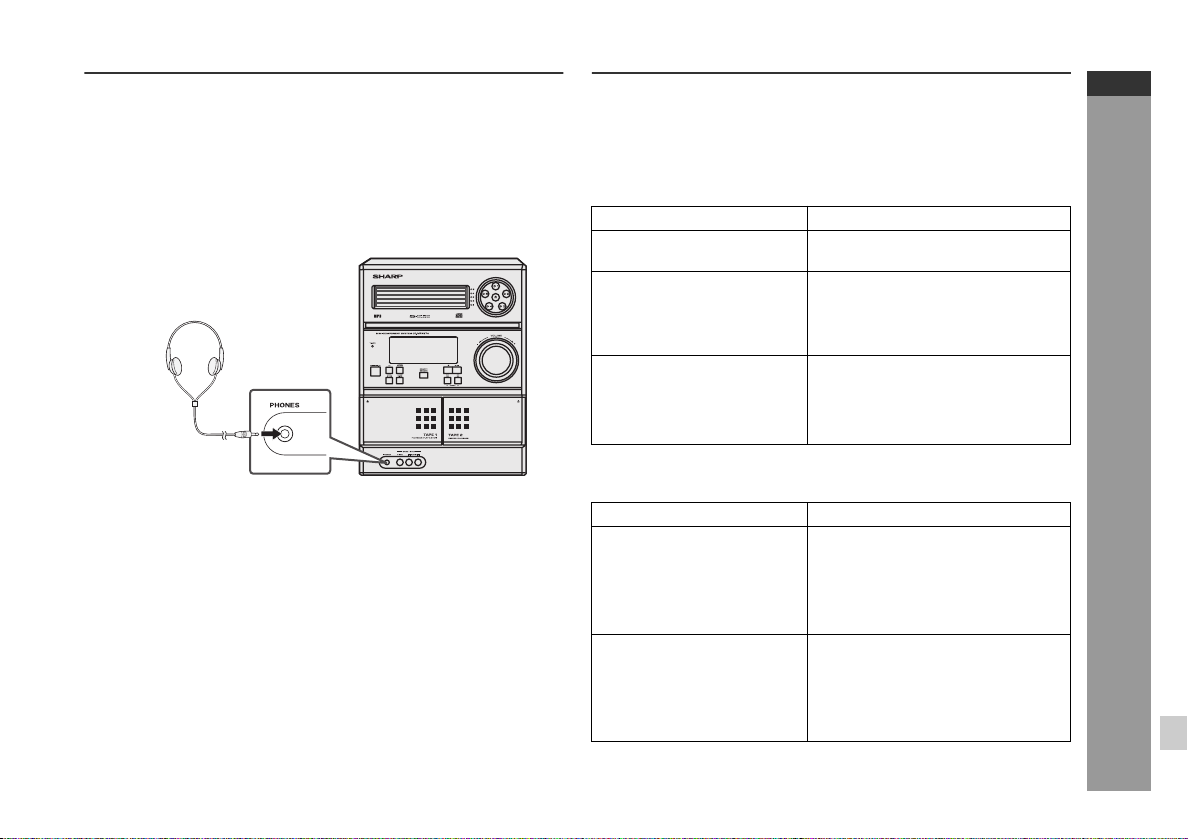

Headphones



Before plugging in or unplugging the headphones, reduce the vol­ume.



Be sure your headphones have a 1/8" (3.5 mm) diameter plug and
impedance between 16 and 50 ohms. The recommended imped­ance is 32 ohms.



Plugging in the headphones disconnects the speakers automati­cally. Adjust the volume using the VOLUME control.

Troubleshooting chart

Many potential problems can be resolved by the owner without call­ing a service technician.
If something is wrong with this product, check the following before
calling your authorized SHARP dealer or service center.



General

Symptom Possible cause



The clock is not set to the
correct time.



When a button is pressed,
the unit does not respond.



No sound is heard.



CD player

Symptom Possible cause



Playback does not start.



Playback stops in the mid­dle or is not performed
properly.



Playback sounds are
skipped, or stopped in the
middle of a track.



Did a power failure occur? Reset
the clock. (Refer to page 15.)



Set the unit to the power stand­by mode and then turn it back on.



If the unit still malfunctions, reset
it. (Refer to page 40.)



Is the volume level set to "0"?



Are the headphones connected?



Are the speaker wires discon­nected?



Is the disc loaded upside down?



Does the disc satisfy the stan­dards?



Is the disc distorted or
scratched?



Is the unit located near excessive
vibrations?



Is the disc very dirty?



Has condensation formed inside
the unit?

CD-MPX870

CD-MPX870W

ENGLISH

References

E-38

CD-MPX870

CD-MPX870W

ENGLISH

References

Troubleshooting chart (continued)



Cassette deck

Symptom Possible cause

 Cannot record.  Is the erase-prevention tab re-

 Cannot record tracks with

proper sound quality.

 Cannot erase completely.
 Sound skipping.
 Cannot hear treble.
 Sound fluctuation.

 Cannot remove the tape.  If a power failure occurs during

 Remote control

Symptom Possible cause

 The remote control does

not operate.

moved?

 Is it a normal tape? (You cannot

record on a metal or CrO tape.)

 Is there any slack?
 Is the tape stretched?
 Are the capstans, pinch rollers,

or heads dirty?

playback, the heads remain en­gaged with the tape. Do not open
the compartment with great
force.

 Is the AC power cord of the unit

plugged in?

 Is the battery polarity correct?
 Are the batteries dead?
 Is the distance or angle incor-

rect?

 Does the remote control sensor

receive strong light?

 Tuner

Symptom Possible cause

 The radio makes unusual

noises continuously.

 Is the unit placed near the TV or

computer?

 Is the FM antenna or AM loop an-

tenna placed properly? Move the
antenna away from the AC power
cord if it's located nearby.

 Condensation

Sudden temperature changes, storage or operation in an extremely
humid environment may cause condensation inside the cabinet (CD
pickup, tape heads, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on with no disc (or cassette) in the unit until normal
playback is possible (about 1 hour). Wipe off any condensation on
the transmitter with a soft cloth before operating the unit.

E-39

 If trouble occurs

When this product is subjected to strong external interference (me­chanical shock, excessive static electricity, abnormal supply voltage
due to lightning, etc.) or if it is operated incorrectly, it may malfunc­tion.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and

plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by
resetting it.

 Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 While pressing down the button and the button, press the

TUNER (BAND) button until "CLEAR ALL" appears.

Caution:

This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD program.

 Before transporting the unit

Remove all CDs from the unit. Make sure there is no CD in the disc
tray. Then, set the unit to the power stand-by mode. Carrying the unit
with discs left inside can damage the unit.

 Care of compact discs

Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collec­tion and player.
 Do not write on either side of the disc, particularly the non-label

side from which signals are read. Do not mark this surface.

 Keep your discs away from direct sunlight, heat, and excessive

moisture.

 Always hold the CDs by the edges. Fingerprints, dirt, or water on

the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the center, along the radius.

NO YES

Correct

CD-MPX870

CD-MPX870W

ENGLISH

References

E-40

CD-MPX870

CD-MPX870W

ENGLISH

References

E-41

Maintenance

 Cleaning the tape-handling parts

 Dirty heads, capstans or pinch rollers can cause poor sound and

tape jams. Clean these parts with a cotton swab moistened with

commercial head/pinch roller cleaner or isopropyl alcohol.

 When cleaning the heads, pinch rollers, etc., unplug the unit which

contains high voltages.

B

C

TAPE 1

TAPE 2

Playback head Erase head

Capstans Recording/Playback head
Pinch rollers

 After long use, the deck's heads and capstans may become mag-

netized, causing poor sound. Demagnetize these parts once ev-

ery 30 hours of playing/recording time by using a commercial tape

head demagnetizer. Read the demagnetizer's instructions care-

fully before use.

 Cleaning the CD pickup lens

In order to ensure proper operation of the CD player, preventative
maintenance (cleaning of the laser pickup lens) should be performed
periodically. Lens cleaners are commercially available. Contact your
local CD software dealer for options.

 Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap so­lution, then with a dry cloth.

Caution:

 Do not use chemicals for cleaning (gasoline, paint thinner, etc.). It

may damage the cabinet finish.

 Do not apply oil to the inside of the unit. It may cause malfunc-

tions.

A

C

B

E

D

Specifications

As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product im­provement without prior notice. The performance specification fig­ures indicated are nominal values of production units. There may be
some deviations from these values in individual units.

 General

Power source
CD-MPX870 AC 120 V, 60 Hz
CD-MPX870W AC 110/127/220/230-240 V, 50/60Hz
Power consumption
CD-MPX870 135 W
CD-MPX870W 120 W
Dimensions Width: 10 - 1/4" (260 mm)

Height: 13" (330 mm)
Depth: 12 - 7/8" (323 mm)

Weight
CD-MPX870 17.09 lbs. (7.75 kg)
CD-MPX870W 18.74 lbs. (8.5 kg)

 Amplifier

Output power MPO: 600 W (300 W + 300 W) (10% T.H.D.)

RMS: 300 W (150 W + 150 W) (10% T.H.D.)
RMS: 240 W (120 W + 120 W) (0.9% T.H.D.)

Output terminals Speakers: 6 ohms

Headphones: 16 - 50 ohms
(recommended: 32 ohms)

Video output: 1Vp-p

Input terminals Game/ Auxiliary (audio signal):

500 mV/ 47 k ohms
Game/Video: 1Vp-p

 CD player

Type 5-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser

D/A converter 1-bit D/A converter
Frequency

response
Dynamic range 90 dB (1 kHz)

 Tuner

Frequency range
CD-MPX870 FM: 87.5 - 108.0 MHz

CD-MPX870W FM: 88.0 - 108.0 MHz

 Cassette deck

Frequency
response

Signal/noise ratio 55 dB (TAPE 1, playback)

Wow and flutter 0.3 % (WRMS)

pickup

20 - 20,000 Hz

AM: 530 - 1,720 kHz

AM: 531 - 1602 kHz

50 - 14,000 Hz (normal tape)

50 dB (TAPE 2, recording/playback)

 Front Speaker

Type 3-way type speaker system

Super tweeter
2" (5 cm) tweeter
6 - 5/16" (16 cm) woofer

Maximum input
power

Rated input power 150 W
Impedance 6 ohms
Dimensions Width: 7 - 7/8" (200 mm)

Weight 7.3 lbs. (3.3 kg) /each

300 W

Height: 13" (330 mm)
Depth: 9 - 1/8" (231 mm)

CD-MPX870

CD-MPX870W

ENGLISH

References

E-42

(for users in Australia only)
(Sólo para usuarios en Australia)

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP CUSTOMER CARE

1300 135 022

(LOCAL CALL COST APPLY WITHIN AUSTRALIA)

SHARP CORPORATION OF AUSTRALIA PTY LTD

FOR LOCATION ENQUIRIES WITHIN

NEW ZEALAND

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.nz

CONTACT YOUR SELLING DEALER/RETAILER

OR CALL

SHARP CUSTOMER SERVICES

TELEPHONE: [phone]

FACSIMILE: 09 573 0113

SHARP CORPORATION OF NEW ZEALAND LIMITED

(for users in Australia only)
(Sólo para usuarios en Australia)

This Sharp product is warranted against faults in materials and manufacture for a period of twelve(12) months from the
date of original purchase.

If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre.
These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not

attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused
by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin
infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and

remedies under any relevant legislation in the country of sale.

DO NOT RETURN THIS DOCUMENT TO SHARP

For your reference, please enter the particulars of your purchase below and retain,
with your purchase documentation.

Model No.
Serial No.

IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand

WARRANTY

Consumer Electronic Products

Congratulations on Your Purchase!

IMPORTANT

Date of Purchase
Retailer

SHARP CORPORATION OF

NEW ZEALAND LIMITED

59 Hugo Johnston Drive

ive

SHARP CORPORATION OF

AUSTRALIA PTY. LIMITED

ABN 40 003 039 405

1 Huntingwood Dr

Huntingwood NSW 2148

Penrose, Auckland

SPform014 (JUNE 2004)

ON

HARP CORPORATI

Printed in Malaysia
Impreso en Malaysia
TINSZA205AWZZ
06F R AS 1
