Sharp CDBK-3200-V Service manual

CD-BK3200V

SERVICE MANUAL

No. S9155CDK3200V

VIDEO CD MINI SYSTEM

MODEL CD-BK3200V

CD-BK3200V Video CD Mini System consisting of
CD-BK3200V (main unit) and CP-BK3200 (speaker system).

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

NTSC/PAL

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

VOLTAGE SELECTION..................................................................................................................................................... 2

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 3

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 6

DISASSEMBLY.................................................................................................................................................................. 9

REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 12

ADJUSTMENT ................................................................................................................................................................. 13

CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING PROCEDURE................................... 16

BLOCK DIAGRAM ........................................................................................................................................................... 25

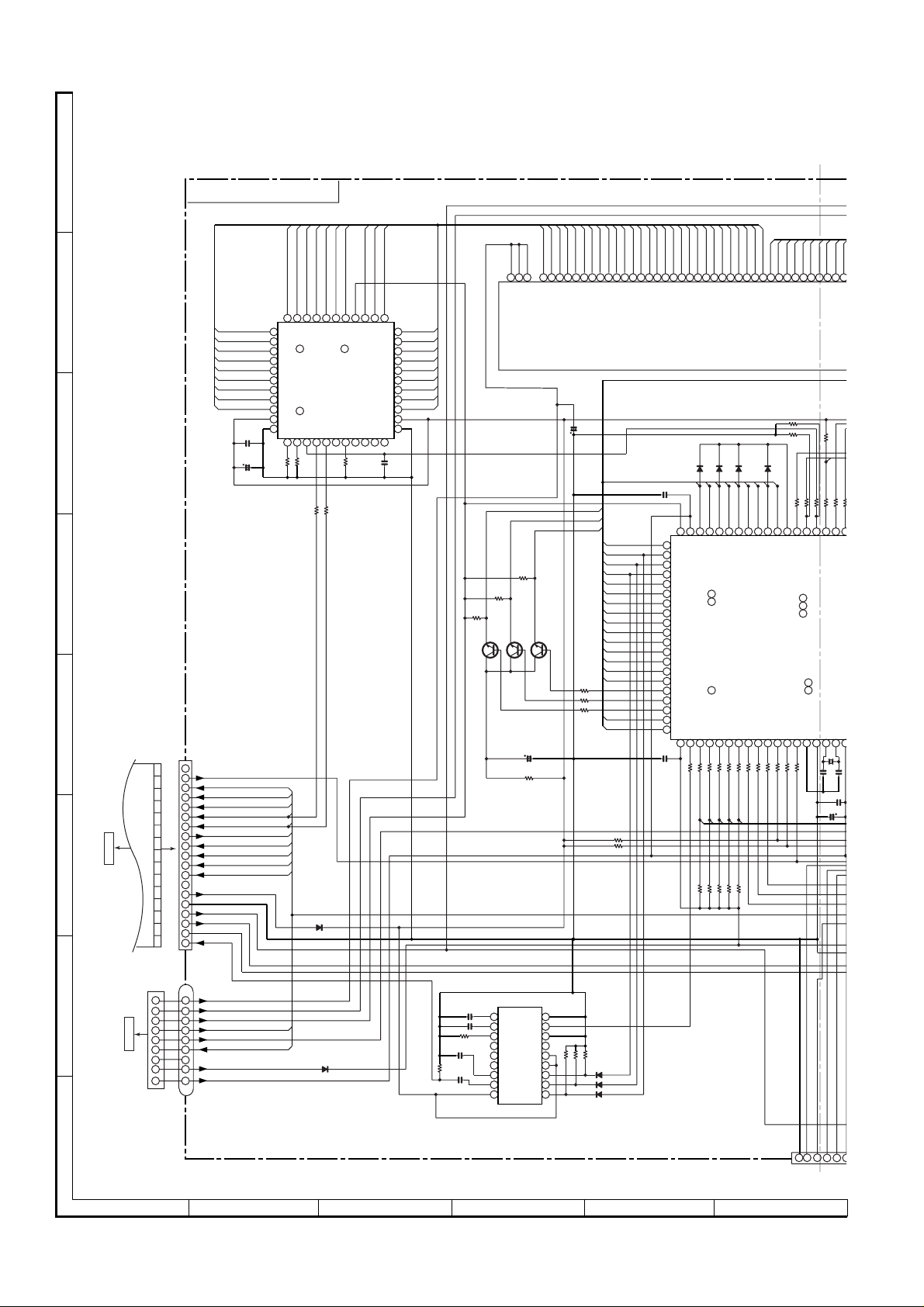

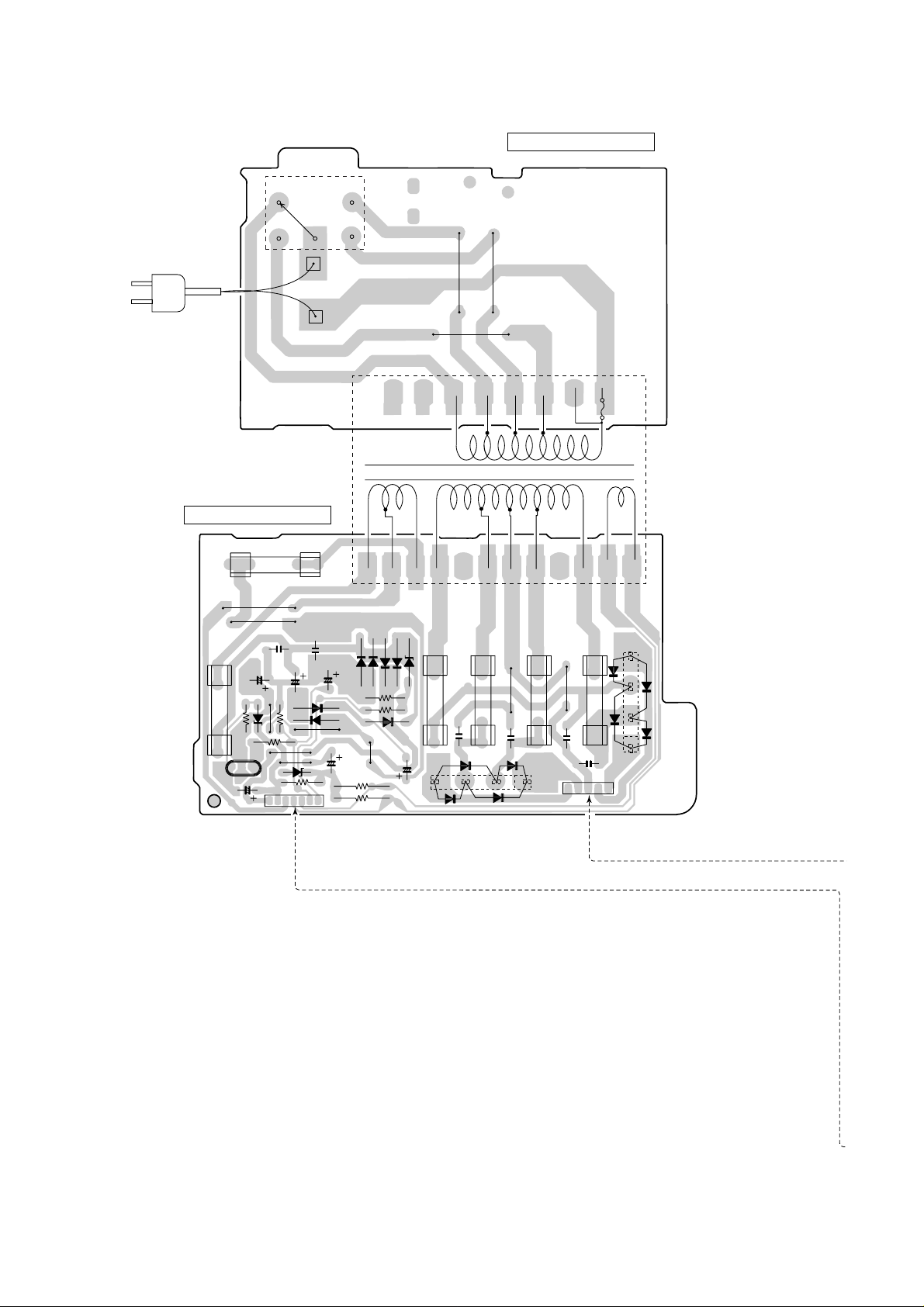

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 28

VOLTAGE ........................................................................................................................................................................ 50

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 51

TYPES OF TRANSISTOR AND LED............................................................................................................................... 51

WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 52

TROUBLESHOOTING..................................................................................................................................................... 53

FUNCTION TABLE OF IC................................................................................................................................................ 57

FL DISPLAY..................................................................................................................................................................... 68

REPLACEMENT PARTS LIST/EXPLODED VIEW

SHARP CORPORATION

– 1 –

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

CD-BK3200V

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.

1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE

PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.

2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY

PRESET BEFORE SHIPMENT.

DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous

.

Laser Output: max. 0.6 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ
IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA
TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ
IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE INN I
STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V-240 V AC).

– 2 –

QACCA0003AW00

CD-BK3200V

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

QACCJ0007AW00

QACCB0011AW00

QACCE0008AW00

CD-BK3200V

General

Power source
Power consumption
Dimensions

Weight

Amplifier

Output power

Output terminals

Input terminals

QPLGA0003AWZZ

QPLGA0004AWZZ

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

SPECIFICATIONS

Tuner

AC 110/127/220/230 - 240 V, 50/60 Hz
175 W
Width: 260 mm (10-1/4")

Height: 338 mm (13-5/16")
Depth: 375 mm (14-13/16")

9.1 kg (20.1 lbs.)

MPO: 334 W (167 W + 167 W) (10 % T.H.D.)
Main speaker (woofer and tweeter): 134 W (67 W + 67 W)
Subwoofer: 200 W (100 W + 100 W)
RMS: 200 W (100 W + 100 W) (10 % T.H.D.)
Main speaker (woofer and tweeter): 80 W (40 W + 40 W)
Subwoofer: 120 W (60 W + 60 W)
RMS: 184 W (92 W + 92 W) (0.9 % T.H.D.)
Main speaker (woofer and tweeter): 74 W (37 W + 37 W)
Subwoofer: 110 W (55 W + 55 W)
Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Video out: 1 Vp-p (75 ohms)
Video/Auxiliary (audio signal): 500 mV/47 kohms
Microphone: 1 mV/600 ohms

Frequency range

Cassette deck

Frequency response
Signal/noise ratio

Wow and flutter

CP-BK3200

Type

Maximum input power
(Total)

Rated input power
(Total)

Impedance
Dimensions

Weight

FM: 88 - 108 MHz
AM: 531 - 1,602 kHz

50 - 14,000 Hz (Normal tape)
55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

0.3 % (WRMS)

3-way type speaker system
5 cm (2") Tweeter
13 cm (5-1/4") Woofer
13 cm (5-1/4") Subwoofer
200 W

100 W

6 ohms
Width: 280 mm (11")

Height: 330 mm (13")
Depth: 272 mm (10-11/16")

4.8 kg (10.6 lbs.)/each

Video CD

Video output format

CD player

Type
Signal readout
D/A converter
Frequency response
Dynamic range

PAL/NTSC

6-disc multi-play compact disc player
Non-contact, 3-beam semiconductor laser pickup
1-bit D/A converter
20- 20,000 Hz
90 dB (1 kHz)

Specifications for this model are subject to change without
prior notice.

– 3 –

CD-BK3200V

CD-BK3200V

Front panel

NAMES OF PARTS

1. Disc Trays

2. Timer Set Indicator

3. Disc Direct Play Buttons

4. Disc Eject Buttons

5. Memory/Set Button

6. Equalizer Mode Select Button

7. Volume Control

8. Extra Bass/Demo Mode Button

9. Tape 2 Record Pause Button

10. Tape 2 Cassette Compartment

11. Tape 1 Cassette Compartment

12. Video CD Skip or Previous, CD/MP3 Disc Track Down or Fast
Reverse, Tape 2 Fast Wind, Tuner Preset Down Button

13. Video CD Skip or Next, CD/MP3 Disc Track Up or Fast Forward,
Tape 2 Fast Wind, Tuner Preset Up Button

14. Karaoke Mode Button

15. Video CD/CD/MP3 Disc Button

16. Video CD Playback Control Button

17. Video CD On Screen Display On/Off Button

18. Video CD Digest/Time Search Button

19. Tuner (Band) Button

20. Tape 2 Reverse Play Button (with Indicator)

21. Tape (1 2) Button

22. Video/Auxiliary Button

23. On/Stand-by Button

24. Dimmer Button

25. Headphone Socket

26. Video CD Stop or Return,
CD/MP3 Disc/Tape Stop Button (with Indicator)

27. Video CD Play or Repeat or Select or Resume,
CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button (with Indicator)

28. Tape 2 Reverse Mode Select Button

29. Microphone Level Control

30. Microphone Socket

31. Clock Button

32. Timer/Sleep Button

33. Tuning and Time Down Button

34. Tuning and Time Up Button

1
2

3

23
24

25

12

13 14 151617 1819 20 21

4

5
6
7
8
9

10
11

22

26
27

28

3433323129 30

Display

1. Disc Music Schedule Indicators

2. Disc Indicators

3. FM Stereo Mode Indicator

4. FM Stereo Receiving Indicator

5. Memory Indicator

6. Disc Random Play Indicator

7. Tape 2 Record Indicator

8. Extra Bass Indicator

9. Timer Recording Indicator

10. Timer Play Indicator

11. Sleep Indicator

12. Spectrum Analyser/Volume Level Indicator

13. Disc Play Indicator

14. Disc Pause Indicator

15. Tape Reverse Mode Indicator

16. Tape 2 Reverse Play Indicator

17. Tape 1 Play or Tape 2 Forward Play Indicator

18. Disc Repeat Play Indicator

19. Karaoke Mode Indicator

20. MP3 Disc Indicator

5
6
7

– 4 –

1

13 1415

181716

19
20

432

8
9

10
11

12

CD-BK3200V

CD-BK3200V

Rear panel

1.Transport screw

2. FM 75 Ohms Aerial Terminal

3. FM Aerial Earth Terminal

4. AM Loop Aerial Socket

5. Span Selector Switch

6. Video/Auxiliary (Audio Signal) Input Sockets

7. Video Output Socket

8. Speaker Terminals

9. AC Power Lead

10. AC Voltage Selector

Transport screw

This product has a transport screw.
Be sure to drive it when transpoting the unit.
Before tuning the power on, be sure to remove the transport screw
on the back of the unit using a flat-blade screwdriver a coin.

Remotte control

1. Remote Control Transmitter

2. Disc Direct Play Buttons

3. Echo Level Up and Down Buttons

4. Karaoke Mode Button

5. Video CD Auto/On Button

6. Video CD Playback Control Auto/Off Button

7. Video CD On Screen Display On/Off Button

8. Disc Clear Button

9. Video CD Digest/Time Search Button

10. Video CD Skip or Previous,

CD/MP3 Disc Track Down or Fast Reverse,

Tape 2 Fast Wind, Tuner Preset Down Button

11. Video CD Bookmark Button

12. Tape 2 Reverse Play Button

13. PAL/NTSC Select Button

14. Video CD/CD/MP3 Disc Button

15. Tape (1

16. On/Stand-by Button

17. MP3 Disc Display Button

18. Disc Direct Search Buttons

19. Disc Random Button

20. Disc Memory Button

21. Video CD Skip or Next, CD/MP3 Disc Track Up or Fast Forward,

Tape 2 Fast Wind, Tuner Preset Up Button

22. Disc Pause Button

23. Video CD Play or Repeat or Select or Resume,

CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button

24. Video CD Stop or Return, CD/MP3 Disc/Tape Stop Button

25. Extra Bass Button

26. Equalizer Mode Select Button

27. Volume Up and Down Buttons

28. Tape 2 Record Pause Button

29. Tuner (Band) Button

30. Video/Auxiliary Button

2) Button

10

10
11
12
13
14
15

1
2

3
4
5
6
7

8

9

1
2

16
17

3
4

18

5
6

19

7

20

8
9

21
22

23
24

25
26

27
28

29
30

Buttons with" " mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.

– 5 –

CD-BK3200V

CP-BK3200

1.Subwoofer

2.Bass Reflex Duct

3.Tweeter

4.Woofer

5.Speaker Wire for SUBWOOFER Terminals

6.Speaker Wire for MAIN Terminal

3

1
2

4

5
6

OPERATION MANUAL

System Connections

Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plug­ging the unit into a wall socket. If necessary, adjust the selector to correspond to the
AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage num­ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

Connecting the AC power lead

After making all connections, plug the unit. If you plug the unit first,
the unit will enter the demonstration mode.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a pro­longed period of time.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used, connect
the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug
adaptor is not included in areas where the wall socket and AC power plug can be
directly connected (see illustration ).

1

2

Setting the FM/AM span selector

The International Telecommunication Union (ITU) has established that member coun­tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre­quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows
the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the
interval (span) of your area.

To change the tuning zone:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.

For 50 kHz FM interval (9 kHz in AM) 50/9
For 100 kHz FM interval (10 kHz in AM) 100/10

3 Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button,

press the ON/STAND-BY button until "CLEAR AL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.

– 6 –

Setting the Clock

In this example, the clock is set for the 24-hour (0:00) display.

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK button and within 5 seconds, press the MEMO­RY/SET button.

3

Press the TUNING/TIME ( or ) button to select 24-hour or 12­hour display and then press the MEMORY/SET button.

CD-BK3200V

4

Press the TUNING/TIME ( or ) button to adjust the hour and then
press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

5

Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".
The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.
The time display will appear for about 5 seconds.

"0:00" The 24-hour display will appear.

"AM 12:00" The 12-hour display will appear.

"AM 0:00" The 12-hour display will appear.

Note that this can only be set when the unit is first installed or it has been reset.

(0:00 - 23:59)

(AM 12:00 - PM 11:59)

(AM 0:00 - PM 11:59)

Remote Control

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.

Remote sensor

0.2 m - 6 m
(8" - 20')

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning. If the time display is flashing, step 3
(for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents.
2 Perform "Setting the Clock" from the beginning.

– 7 –

CD-BK3200V

Troubleshooting Chart

Many potential problems can be resolved by the owner without calling a service tech­nician.
If something is wrong with this product, check the following before calling your autho­rised SHARP dealer or service centre.

General

The clock is not on time. Did a power failure occur? Reset the

When a button is pressed, the unit
does not respond.

No sound is heard. Is the volume level set to "0"?

Symptom Possible cause

clock.
Set this unit to the power stand-by mode

and then turn it back on.
If the unit still malfunctions, reset it.

Are the headphones connected?
Are the speaker wires disconnected?
Is the karaoke mode set to "L-CH", "R-CH"

or "V-CANCEL"?

Video CD

The picture is not displayed during
playback.

The picture quality is poor, or it is
distorted.

Symptom Possible cause

Is the TV unplugged?
Is the unit connected improperly?
Is the input selector on the TV set to other

than "VCR"?
Is the unit being played without selecting

video CD?
Is the disc very dirty?

CD player

Playback does not start. Is the disc loaded upside down?
Playback stops in the middle or is

not performed properly.
Playback sounds are skipped, or

stopped in the middle of a track.

Symptom Possible cause

Does the disc satisfy the standards?
Is the disc distorted or scratched?
Is the unit located near excessive vibra-

tions?
Is the disc very dirty?
Has condensation formed inside the unit?

Tuner

Radio makes unusual noise con­secutively.

Symptom Possible cause

Is the unit placed near the TV or comput­er?

Is the FM aerial or AM loop aerial placed
properly? Move the AC power lead away
from the aerial if located near.

Cassette deck

Cannot record. Is the erase-prevention tab removed?
Cannot record tracks with proper

sound quality.
Cannot erase completely.
Sound skipping. Is there any slack?

Cannot hear treble. Are the capstans, pinch rollers, or heads
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during playback,

Symptom Possible cause

Is it a normal tape? (You cannot record on
a metal or CrO tape.)

Is the tape stretched?

dirty?

the heads remain engaged with the tape.
Do not open the compartment forcibly.
Wait until electricity resumes.

Karaoke

The vocal part of a multiplexed
disc is not heard.

Symptom Possible cause

Is the karaoke mode set to "L-CH", "R-CH"
or "V-CANCEL"?

Remote control

The remote control does not oper­ate.

Symptom Possible cause

Is the AC power lead of the unit plugged
in?

Is the battery polarity respected?
Are the batteries dead?
Is the distance or angle incorrect?
Does the remote control sensor receive

stronglight?

Troubleshooting Chart

If trouble occurs

When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,

and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button,

press the ON/STAND-BY button until "CLEAR AL" appears.

ions.

Caution:

This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.

Before transporting the unit

On the back of this unit is equipped with a transport screw in order to prevent damage
during transportation.

1 Press the ON/STAND-BY button to turn the

power on.

2 Remove all discs from the unit, close the

disc tray.

"NO DISC" is displayed.

3 Press the ON/STAND-BY button to enter the

stand-by mode.

"GOOD-BYE" is displayed.

4 When "GOOD-BYE" disappears, unplug the

AC power lead from the wall socket.

5 Insert the transport screw into the back of

the unit and tighten it with a flat-blade screw­driver or a coin.

– 8 –

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

CD-BK3200V

(B1) x 1
ø3 x 12mm

(A1) x 1
ø3 x 10mm

Side Panel
(Right)

(B1) x 2
ø3 x 12mm

(A1) x 2
ø3 x 16mm

CD-BK3200V

Top Cabinet

(B2) x 2

(A1) x 2
ø3 x 16mm

(B1) x 1
ø3 x 12mm

CD-BK3200V

STEP

REMOVAL

1 Top Cabinet 1. Screw ..................... (A1) x5 9-1

2 Side Panel 1. Screw ....................(B1) x10 9-1

(Left/Right) 2. Hook....................... (B2) x2

3 Rear Panel with 1. Screw ..................... (C1) x2 9-2

Fan Motor 2. Screw ..................... (C2) x9

3. Screw ..................... (C3) x2

4. Socket .................... (C4) x1

4 CD Changer Unit 1. Socket.................... (D1) x4 9-2

2. Hook....................... (D2) x2

5 Main PWB 1. Screw ..................... (E1) x1 9-2

2. Socket .................... (E2) x3 9-3

3. Flat Cable .............. (E3) x1

6 Power Amp. PWB 1. Screw ..................... (F1) x6 10-1

2. Socket .................... (F2) x4

3. Flat Wire................. (F3) x1 10-1

4. PWB Holder ........... (F4) x2

7 Front Panel 1. Screw ..................... (G1) x2 10-1

2. Hook....................... (G2) x2

8 Eject Switch PWB 1. Screw ..................... (H1) x2 10-2

2. Socket .................... (H2) x1

9 Play Switch PWB 1. Screw ..................... (J1) x2 10-2

10 Display PWB 1. Knob....................... (K1) x1 10-2

2. Screw ..................... (K2) x9

3. Flat Cable .............. (K3) x1

4. Hook....................... (K4) x1

11 MIC PWB 1. Screw ..................... (L1) x1 10-2

2. Tip .......................... (L2) x1

12

Headphones PWB

1. Screw ..................... (M1) x1 10-2

2. PWB Washer ......... (M2) x1

13 Tape Mechanism 1. Open the cassette holder. 10-2

2. Screw ..................... (N1) x6

PROCEDURE

FIGURE

9-3,10-1

(B1) x 4
ø3 x 10mm

(D1) x 2

(C1) x 2
ø3 x 10mm

(C4) x 1

Power Amp.
PWB

Video
CD PWB

Rear
Panel

Rear
Panel

(D2) x 1

Pull

(C2) x 9
ø3 x 10mm

(E2) x 1

Figure 9-1

Main PWB

Figure 9-2

CD Changer Unit

Lug Wire

(C3) x 2
ø3 x 10mm

Side Panel
(Left)

(B1) x 2
ø3 x 12mm

(D1) x 1

(D2) x 1

Video
CD PWB

(D1) x 1

(E1) x 1
ø3 x 10mm

Video
CD PWB

– 9 –

(E3) x 1

Power B
PWB

(F2) x 1

Tape
Mechanism

(E2) x 1

(F2) x 1

Power A PWB

Figure 9-3

Main PWB

Main PWB

Power Amp.
PWB

(E2) x 1

(E2) x 1

Mic
PWB

CD-BK3200V

(P2) x 4

ø3 x 10mm

(P1) x 4

ø3 x 14mm

(P4) x 1

(P3) x 1

(P3) x 1

(P4) x 1

(P3) x 2

Video CD

PWB

(Q1) x 4

ø2.6 x 10mm

CD Changer

Mechanism

Unit

CD Changer

Bracket

CD Mechanism

(G2) x 1

Pull

Push

(F2) x 1

(F2)x1

(F1) x 1

ø3 x 10mm

(F4) x 1

Push

(F1) x 2

ø3 x 8mm

(F1) x 2

ø3 x 10mm

(G1) x 2

ø3 x 8mm

(F1) x 1

ø3 x 10mm

Figure 10-1

Headphones

PWB

(F4) x 1

Push

(G2) x 1
Pull

Power Amp.
PWB

(F3) x 1

Front Panel

Push

CD-BK3200V (CD CHANGER MECHANISM UNIT)

STEP REMOVAL

1 Top Cabinet 1. Screw ................. (A1) x5 9-1

2 Side Panel 1. Screw ................(B1) x10 9-1

(Left/Right) 2. Hook .................. (B2) x2

3 Rear Panel with 1. Screw ................. (C1) x2 9-2

Fan Motor 2. Screw ................. (C2) x9

4 CD Changer Unit 1. Socket ................ (D1) x4 9-2

5 Video CD PWB 1. Screw ................. (P1) x4 10-3

(Note) 2. Screw ................. (P2) x4

6 CD Mechanism 1. Screw ................. (Q1) x4 10-3

PROCEDURE

3. Screw ................. (C3) x2

4. Socket ................ (C4) x1

2. Hook ................... (D2) x2

3. Socket ................ (P3) x4

4. Flat Wire............. (P4) x2

FIGURE

Note:

After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

(N1) x 6
ø3 x 10mm

Mic

PWB

(L1) x 1
ø3 x 10mm

Eject Switch
PWB

(H1) x 2
ø3 x 10mm

(K2) x 9
ø3 x 10mm

(L2) x 1

(M1) x 1
ø3 x 10mm

(M2) x 1

(K3) x 1

Headphones
PWB

Figure 10-2

(K1) x 1

(K4) x 1

Display PWB

(H2) x 1

(J1) x 2
ø3 x 10mm

Play Switch
PWB

Open

Cassette
Holder

Tape
Mechanism

Lug Wire

Figure 10-3

– 10 –

CP-BK3200

STEP

REMOVAL PROCEDURE

1 Side Panel/ 1. Screw ..................... (A1) x4 11-1

Front Panel 2. Hook....................... (A2) x3

3. Net.......................... (A3) x1

4. Catching Holder ..... (A4) x4

5. Screw ..................... (A5) x4

2 Subwoofer 1. Screw ..................... (B1) x4 11-2

3 Woofer 1. Screw ..................... (C1) x4 11-2

4 Tweeter 1. Screw ..................... (D1) x2 11-2

CD-BK3200V

FIGURE

(A1) x 4

ø4 x 20mm

(A4) x 2

(A5) x 2

ø4 x 20mm

Side Panel

(A2) x 3

Figure 11-1

(C1) x 4

ø4 x 16mm

(A3) x 1

(A4) x 2

(A5) x 2

ø4 x 20mm

Fromt Panel

(D1) x 2

ø3 x 10mm

(B1) x 4

ø4 x 16mm

Woofer

Tweeter

Subwoofer

Figure 11-2

– 11 –

CD-BK3200V

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 4 and 7, 13 of the disassembly method to
remove the tape mechanism. (See page 9.)

How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-1)

1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.

How to remove the playback head (TAPE 1)
(See Fig. 12-2)

1. When you remove the screws (B1) x 2 pcs., the playback
head.

How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-3)

1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring
mounting position.

Erase Head

(A1) x 2
Ø2 x 6mm

Figure 12-1

TAPE 2

TAPE 1

Clutch Ass'y

Record/Playback
Head

Clutch Ass'y

Playback
Head

How to remove the belt (TAPE 2) (See Fig. 12-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 12-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 12-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Tape
Motor

Clutch Ass'y

TAPE 2

(B1) x 1
Ø2 x 9mm

Pinch Roller
(C1) x 1

FF/REW
Belt
(D2) x 1

(B1) x 1
Ø2 x 5mm

Figure 12-2

Pull

Figure 12-3

FF/REW
Roller

<B>

Tape
Motor

Pull

Pinch
Roller
Pawl

<A>

TAPE 2
Main Belt
(D1) x 1

Tape
Motor

TAPE 1
Main Belt
(E1) x 1

(F1) x 2

Ø2.6 x 5mm

– 12 –

Flywheel
Ass'y

Main Belt
(D1) x 1

Main Belt
(E1) x 1

Figure 12-4Figure 12-5

Flywheel
Ass'y

TAPE 1
FF/REW

Belt
(E2) x 1

FF/REW
Roller

CD-BK3200V

CD MECHANISM SECTION

Perform steps 1 to 6 of the disassembly method to remove the
CD mechanism. (See page 10.)

How to Remove the pickup (See Fig. 13-1)

1. Remove the screws (A1)x 2 pcs., to remove shaft (A2)x 1
pc.

2. Remove stop washer (A3)x 1 pc., to remove gear (A4)x 1 pc.

3. Remove the pickup.

Note:

After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

CD CHANGER MECHANISM SECTION

Perform steps 1 to 4 of the disassembly method to remove the
CD changer mechanism. (See page 10.)

How to Remove the tray motor/main cam motor
(See Fig. 13-2)

1. Remove the screws (B1)x 4 pcs., to remove the CD Servo
PWB.

2. Remove the (1) front top plate, (2) changer box, left/right
and (3) disc trays 1~6. After that, disassemble as shown in
the figure.

3. Remove the screws (B2)x 4 pcs.

4. Remove the tray motor and main cam motor.

Note:

The parts of (1), (2) and (3) correspond to the drawing Nos.
117, 102, 103 and 108 to 113 of the CD change mechanism
disassembly drawing.
Remove the screws of 117, 102 and 103, and the parts of (1),
(2) and (3) will be ready for removal and the screws of the tray
motor and main cam motor will be visible.

CD
Mechanism

(2)Changer Box,
Right

(1)Front Top Plate

(2)Changer Box,
Left

(3)Disc Tray,1~6

(B2) x 4

ø2.6 x 4mm

Stop Washer

(A1) x 1

(A3) x 1

ø2.6 x 6mm

Pickup

Figure 13-1

CD Changer Mechanism

Main Cam Motor

Tray Motor

Figure 13-2

Video
CD PWB

(A1) x 1
ø2.6 x 6mm

Gear
(A4) x 1

Shaft
(A2) x 1

(B1) x 4

ø3 x 10mm

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Tape 2

• Tape Speed

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker
speed Resistor in Terminal

Adjusting

Point

motor. (Load

Specified

Value

TAPE MECHANISM

Tape
Motor

Variable Resistor in motor

Figure 13-3

– 13 –

Instrument

Connection

resistance:
6 ohms)

CD-BK3200V

TUNER SECTION

fL: Low-range frequency
fH: High-range frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

Test Stage

AM IF 450 kHz 1,602 kHz T351 *1
AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301

Frequency Frequency

Display

FM BAND
COVERAGE fL

Setting/

Adjusting

Parts

SO302

FM ANTENNA

TERMINAL

Instrument

Connection

IC301

T302

FM IF

FM RF

T301

T351

CNP301

AM LOOP

ANTENNA

L312

• FM RF

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Test Stage

Frequency Frequency

Display

FM Band — 88.00 MHz T301(fL): *1
Coverage

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Setting/

Adjusting

Point

1.3 V ± 50 mV

Instrument

Connection

*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal

MAIN PWB

T303

AM
TRACKING fL

AM BAND
COVERAGE fL

R316

TP301

T306

AM IF

Figure 14-1 ADJUSTMENT POINTS

CD SECTION

• Adjustment

Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is
compensated inside the IC.)

* Focus offset adjustment
* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.14-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will
be 0 dB.)

* Focus gain adjustment
* Tracking gain adjustment

TP302

R357

CD ERROR CODE DESCRIPTION

Error State Code

ER-CD00 Pickup mechanism error
ER-CD01 Pu-in SW detection NG

ER-CD10 Changer error
ER-CD11 Initial error

ER-CD20 Tray error

[Pickup Mechanism Error]

[CD Changer Mechanism Error]

T

Stopped

CH1=500mV

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

=Record Length=

Main : 100K
Zoom : 2k

DC 10:1

T

FDO

1

TE

3

EFBL

2

Smoothing : ON CH1 : 0.000V
BW : FULL

CH2 : 0.000V
CH3 : 0.00V
CH4 : 0.00V

Figure 14-2

1999/04/05 20:26:47

500ms/div

(500ms/div)

NORM:20kS/s

=Trigger==Filter= =Offset=
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH2
v/DIV
200mV

– 14 –

TEST MODE

During POWER OFF mode, push below each 2 keys and [POWER] key. Then go to each Test Mode.

KEY TEST MODE CONTENTS
[CD] [X-BASS] + [POWER] TEST 1 CD Test mode
[TAPE] [X-BASS] + [POWER] TEST 2 Tape test mode
[TUNER] [X-BASS] + [POWER] TEST 3 Tuner preset memory clear
[VIDEO/AUX] [X-BASS] + [POWER] TEST 4 Tuner preset for production
[MEMORY/SET] [X-BASS] + [POWER] TEST 5 All clear (reset)
[EQUALIZER] [X-BASS] + [POWER] TEST 6 Audio test
[ ] [DIMMER] + [POWER] TEST 7 Key and display test
[TUN UP] [DIMMER] + [POWER] TEST 8 RDS Test1
[TUN DOWN] [DIMMER] + [POWER] TEST 9 RDS Test2
[ ] [CD] + [POWER] TEST 10 CD Changer test
[ ] [CD] + [POWER] TEST 11 Production initialize for changer
[EQUALIZER] [TUN UP] + [POWER] TEST 12 Graphic equalizer test

CD TEST MODE

· Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST: CD operation test

CD-BK3200V

Enter test 1 mode key.

C D T E S T

OPEN/CLOSE operation is using manual.

>>, << >> buttons make pick's slide possible.

<<

<<PLAY>> key input.

Do TOC IL. Do normal play.
When these following key is input into PLAY key,
track number can be appoint directly.

<< 1>> key: Track 1
<< 2>> key: Track 3
<< 3>> key: Track 7
<<

4>> key: Track 11
<< 5>> key: Track 13
<< 6>> key: Track 15

<<MEMORY>> key input
a) Display "FOF_XXXX"
b) Display "TOF_XXXX"
c) Display "TBA_XXXX"
d) Display "TGA_XXXX"
e) Display "FGA_XXXX"
f) Display "RFL_XXXX"

<<MEMORY>> key input.

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that specific point.

<<MEMORY>> key input.

Tracking ON play from that specific point.

<<MEMORY>> key input.

<<STOP>> key input.

STOP

Display each step for 2 sec. XX: HEX VALUE
a) "FOF_XXXX" Focus off set
b) "TOF_XXXX" Tracking off set
c) "TBA_XXXX" Tracking balance
d) "TGA_XXXX" Tracking gain
e) "FGA_XXXX" Focus gain
f ) "RFL_XXXX" RF level shift

VOL –– Last memory
BAL –– CENTER
P.GEQ –– FLAT
X-BASS –– OFF

To cancel : Power OFF

– 15 –

a) Display "FOF_XXXX"
b) Display "TOF_XXXX"
c) Display "TBA_XXXX"
d) Display "TGA_XXXX"
e) Display "FGA_XXXX"
f) Display "RFL_XXXX"

Display every auto setting result for every 2 sec.

<<STOP>> key input.

Sliding the PICKUP with

>>, << >> button

<<
must only be in STOP mode.

STOP

CD-BK3200V

CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING
PROCEDURE

Work Content

1. Motor assembly (x 2) mounting (screw x 4) 01/29 Fig.17

2. MT idle gear mounting (screw x 1) 25 Fig.17

3. MT system gear assembly 23/24/26/27 Fig.17

4. STB/tray drive system gear and others assembling/ 37/38/45/46 (53)/47/48 Fig.17
mounting (screw x 3)

5. Tray big gear assembly 31 Fig.17 Gear positioning

6. T.M SW PWB mounting (screw x 3) Fig.18

7. STB holder assembling 03 Fig.17

8. STB drive gear L/R assembly mounting (screw x 2) 11 (10)/12 (10) Fig.17

9. Tray joint gear R/tray drive gear R assembling 34/36 Fig.18 Gear positioning

10. Tray gear A/B assembling 32/33 Fig.18 Gear positioning

11. Lift gear B/C assembling 43/44 Fig.19 Gear positioning

12. MT idler gear F assembling, mode big gear 28/42 Fig.19
mounting (screw x 1)

13. Change box R mounting (screw x 4) 04 Fig.19

14. Lift gear A assembling 42 Fig.19 Gear positioning

15. Change box L assembly mounting (screw x 4) 02/30/35 Fig.20

16. Lift cam assembling (shaft inserting) 44 Fig.20 Gear positioning

17. STB holder height adjusting Fig.21 Check/adjustment

18. Top plate F/disc OB LEV. Mounting (screw x 6) 80 Fig.21

19. Trays 1 - 6 assembling 91/92/93/94/95/96 Fig.22

20. Top plate R mounting (screw x 6) ––

Applied Part No.

Assembly Fig. No.

Remarks

CD CHANGER MECHANISM PARTS LIST

No.

01 (101) MAIN BASE
02 (102) CHANGE BOX L
03 (147) STB HOLDER
04 (103) CHANGE BOX R

10 (119) STB DRIVE GEAR A
11 (120) STB DRIVE GEAR L
12 (122) STB DRIVE GEAR R
20 (149) STABILIZER FH

23 (141) MT IDLER GEAR A
24 (138) MT IDLER GEAR B
25 (137) MT IDLER GEAR C
26 (140) MT IDLER GEAR D
27 (139) MT IDLER GEAR E
28 (131) MT IDLER GEAR F
29 (MOB1,2) MOTOR GEAR
30 (143) TRAY DRIVE GEAR F
31 (134) TRAY BIG GEAR
32 (135) TRAY GEAR A
33 (136) TRAY GEAR B
34 (124) TRAY DRIVE GEAR R
35 (144) TRAY JOINT GEAR F
36 (125) TRAY JOINT GEAR R
37 (142) TRAY GEAR C
38 (130) TRAY IDLER GEAR

Part Name

No.

40 (115) LIFT CAM
41 (126) MODE BIG GEAR
42 (127) LIFT GEAR A
43 (128) LIFT GEAR B
44 (129) LIFT GEAR C
45 (132) STB GEAR A
46 (104) STB GEAR B
47 (133-1) STB GEAR C
48 (133-3) STB GEAR D

50 (145) LIFT LEVER
51 (106) TRAY LOCK LEVER
52 (118) DISC OB LEVER
53 (105) STB GEAR ANG.

80 (117) TOP PLATE F
81 (114) TOP PLATE R

91 (108) TRAY 1
92 (109) TRAY 2
93 (110) TRAY 3
94 (111) TRAY 4
95 (112) TRAY 5
96 (113) TRAY 6

The number of ( ) is the number of the parts guide.

Part Name

– 16 –

CD-BK3200V

STB DRIVE GEAR R

(ASSY)

10

STB DRIVE GEAR A

STB GEAR ANG.

STB GEAR B
STB GEAR C

STB DRIVE GEAR A

53

46

47

12

10

45

STB GEAR A

48
STB GEAR D

26

27

03
STB HOLDER

29

23

25

24

23

01
MAIN BASE

29

Mark position

11

STB DRIVE GEAR L

(ASSY)

37
TRAY GEAR C

38
TRAY IDLER GEAR

After assembling TRAY BIG GEAR, turn it in the arrow direction.

31
TRAY BIG GEAR

TRAY BIG GEAR ASSEMBLING POSITION

11(/12) (10)
STB DRIVE GEAR L(/R)
(ASS'Y)

L

47

STB GEAR C

STB GEAR B

53

STB GEAR ANG.

46

STB GEAR A

TRAY IDLER GEAR

45

38

37
TRAY GEAR C

31

TRAY BIG GEAR

Figure 17

– 17 –

CD-BK3200V

45

46

47

10

11

< Importance >

Direct the recess part
(trapezoidal side) of the axis
35 in this direction.

Scale: 2 magnifications

*2

29

26

23

25

27

37

38

34
TRAY DRIVE GEAR R

36
TRAY JOINT GEAR R

TRAY BIG GEAR SET POSITION

24

23

31
M T SW PWB

Scale: 2 magnifications

29

Mark position

* This position becomes the
reference (stock) position
of the tray.

32
TRAY GEAR A

These holes must align.

33
TRAY
GEAR B

< Importance >

It must not rotate in contact
with the peripheral (hatched)
part of 31.

32

*1

*1: To position the axis part of 36, engage it with 38.
*2: When it is aligned as described in *1, the hatched part
(low gear-height part of gear) will be positioned in this position.
Note: After positioning the tray big gear in the set position, engage these gears.

LL

34
TRAY DRIVE GEAR R

36
TRAY JOINT GEAR R

TRAY GEAR B

33

32
TRAY GEAR A

These holes must align.

After assembling 32,

33

assemble 33.

Figure 18

– 18 –

CD-BK3200V

Mark position
(Assemble the mode big gear in this position.)

MT IDLER GEAR F

28

LIFT GEAR A

46

10

11

42

45

47

Scale: 2 magnifications

36

>ABS<

C1

37

38

34

MODE BIG GEAR

41

MODE BIG GEAR
LIFT GEAR A/B/C
ASSEMBLING POSITION

43

LIFT GEAR B

04
CHANGE BOX R

Note:

To assemble the mode
big gear, incline it,
bring it into contact with
the circumference and
put the center hole into
position since the
hatched part of the main
base is overlapped with
the circumference.

32

33

44
LIFT GEAR C

< Importance >

Direct the short tooth
toward the center.

Scale: 2 magnifications

(A)

GAP (0.3-1.5 mm)

(C)

L

(B)

MODE BIG GEAR

< Importance >

<Assembling method of lift gear>
After setting up the mode big gear in the
shown position, engage it with the STB gear A
(gear on the lower side) at the position (A),
and assemble them, turning it in the arrow direction
into the position (B). (The short tooth directs toward the
center of the mode big gear.)
Check the gap (C) after assembly.
If no gap is found, repeat the above procedure.

42
LIFT GEAR A

LIFT GEAR B

41

43

44
LIFT GEAR C

Figure 19

– 19 –

CD-BK3200V

28

LIFT GEAR A

46

10

11

47

TRAY JOINT GEAR F
(CHANGE BOX L ASS'Y) ASSEMBLING POSITION
LIFT CAM

Assembling procedure

1. Turn the mode big gear approx. 37 degrees in the arrow direction.

2. Assemble the change box L ass'y.
Note: At this time, the tray joint gear F must be located in the position shown in figure.
Moreover, the gear must be engaged securely.

3. After assembly, return the mode big gear to the initial position.

4. Assemble the lift cam.
Note: At this time, the lift cam (No.40) must be located in the position shown in figure 20.

42

45

41

43

37°

44

40
LIFT
CAM

Scale: 2 magnifications

40
LIFT CAM

Mark position

32
33

30
TRAY DRIVE GEAR F

02
CHANGE BOX L

< Importance >

Direct the recess part
(trapezoidal side) of the
axis 35 in this direction.

35
TRAY JOINT GEAR F

*2

30
TRAY DRIVE GEAR F

35
TRAY JOINT GEAR F

*1: To position the axis part
of 35, engage it with 33.
*2: When it is aligned as
described in *1, the hatched part
(low gear-height part of gear)
will be positioned as shown.

Since this gear engagement is not
visually checked, verify that it does
not float when the gear box L is installed.

*1

Scale: 2 magnifications

L

< Importance >

During assembly, make the
O part visible in this direction.

Note: Among 4 ribs on the
circumference, one rib alone
is provided with O.

30
TRAY DRIVE GEAR F

35
TRAY JOINT GEAR F

Figure 20

– 20 –

CD-BK3200V

80
TOP PLATE F

42

41

11

46

10

LIFT GEAR A

45

47

STB HOLDER HEIGHT ADJUSTING METHOD

Adjusting procedure

1. Turn the mode big gear approx. 37 degrees in the arrow direction.

2. Viewing from the front side of the mechanism, verify that the guide ribs
(CHANGE BOX L/R and STB HOLDER)of tray are as tall as each other.

3. If they are not, bend the lever for adjustment. (Refer to the details.)
Note: Also apply the same adjustment on the R side.

43

37°

44

Mark position

32

33

30

35

40

When low
(Broaden the gap.)

Bend this portion to adjust the STB HOLDER

Adjustment procedure

1. Rotate the MODE BIG GEAR by 37° in the arrowed direction.

2. Check that the guide ribs (CHANGE BOX L/R and STB HOLDER) on the arrowed
TRAY are at the same height when looked from the front.

3. If they are not, bend the OS LEVER to adjust them. (Refer to the detail drawing.)
Note: Adjust the R portion in the same procedure.

02(102) CHANGE BOX L RIB

03(147) STB HOLDER RIB

03(147) STB HOLDER RIB

When high

(Narrow the gap.)

(121)
OS LEVER

Figure 21

– 21 –

04(103) CHANGE BOX R RIB

CD-BK3200V

Mark position
Be sure to assemble the tray into this position.

91~96
TRAY1~TRAY6

45

42

41

43

44

LIFT GEAR A

46

10

47

11

Tray installing method: (After adjusting the height of the STB holder)

1. Turn the mode big gear to the mark position to lower the STB holder to
the bottom area.

2. From the front side, install the tray. (Securely insert it to the lock position.)

L

40

Insert it along the guide of
the change box.

32

33

30

35

40

TRAY No.1~6

Rear surface: Stamped.
Note: During insertion,
Do not accidentally rearrange
tray numbers.

Rear
side

TRAY 6

TRAY 5

TRAY 4

TRAY 3

TRAY 2

TRAY 1

30

35

Figure 22

Measure to be taken when a disc cannot be removed due to a mechanism trouble

First, remove the mechanism unit section from the set, and check for the state of the disc.
(Remove the top plate R if necessary.)
<State of the disc>
(1) When the disc is in the normal PLAY (chucking) position → Try to eject the disc by turning the mode big gear/tray big gear

manually.
* At this time, be sure to adjust the tray's position (height).

(2) When the disc is in the normal STOCK position → Try to eject the disc by turning the tray big gear manually.

* At this time, be sure to adjust the tray's position (height).

(3) When the disc is not in the normal position → The tray or disc is not in the normal position.

(The tray or disc may catch somewhere.)

↓

Remove the TOP PLATE F/DISC OB lever.
Unlock the tray lock lever and pull out the tray which is not caught.

Move the caught tray or disc and remove the disc.
In case of (1) and (2), the mechanism is normal (defective circuit parts, etc.). However, it may stop somewhere.
This is the reason why you should try to turn the tray big gear first.
In case of (3), either of the big gears does not turn.

– 22 –

CD-BK3200V

90

80

70

60

50

40

30

20

10

360

350

340

330

320

310

300

290

280

270

260

250

240

230

220

210

200

190

180

170

160

150

140

130

120

110

100

103.4

167.1

240.8

283.4

347.1

60.8

-1
123 +180

+0
33

MG

R

BL

CY

G

YE

Vector scope waveform of color bar signal

VIDEO CD SECTION

TEST DISC Model No.TVD-581A (NTSC/PAL)

• Checking of video output signal
Checking of color bar

Disc Adjusting Point

Track 2 Video output terminal

UNIT

Video Output Terminal

Video Input Terminal

TV

Figure 23-1 CHECKING OF VIDEO OUTPUT SIGNAL

(59.94 Hz)

IH

Instrument

Connection

Chroma Peak Level

105 ± 15 IRE

Checking of vector scope waveform

Disc Checking Setting

Set the phase of color

Track 2 VIDEO OUT burst signal (B) to

180° -360° line.

Checking

Item

Phase check

±10°

( Check that the setting is within the illustrated range.)

140 IRE

40 IRE

(1 V)

(0.286 V)

40 IRE

Color Burst

100 IRE

(0.714 V)

-40

Gray

100 100

75

33.5

20

-20

Yellow

Gray

Figure 23-2

Cyan

Yellow

TV monitor

Figure 23-3

88.5
75

70

5

0

-13.5

-25 -25

Magenta

Cyan

Green

Magenta

Green

Color bar signal
waveform

41.5

Red

Blue

Red

Horizontal
sync signal

Blue

– 23 –

Gray

Yellow

TV monitor

Figure 23-4

Cyan

Magenta

Figure 23-5

Red

Green

Blue

CD-BK3200V

Checking the black-and-white level

Disc Checking Setting

Track 3 VIDEO OUT 150 line.

Checking

Item

Output level
±10 IRE

IRE

100

80

60

40

20

-20

-40

NTSC

Waveform on 140 LINE

Figure 24-1

0%

12.5%

(This burst level
is 40 IRE)

100%

TV monitor

Figure 24-2

140 IRE

– 24 –

PICKUP UNIT

FOCUS COIL

TRACKING COIL

MOB1

TRAY

MOB2

MOTOR

M

M

4

3

2

4

3

2

D

C

MOTOR

MAIN CAM

1
1

CNP4

40
35
21
39

36
34

ICM1

31
26

22

+3.3V

A

B

1

20

2
5

6

DRAM

10

1625635T

16
19

IC1

LA7235M

SERVO AMP.

+5V

9

1

FIN1

2

FIN2

3

TIN1

4

TIN2

PD

7

LDD

8

Q3

28

FO+

4

FO–

5

TR+

6

TR–

7

SL–

15

SL+

16

SP+

26

SP–

27

8

LASER

DRIVER

40

24

14

21

HFL

IC1

RFEV

+5V

18

CAM.M–

CAM.M+

IC3

CAM.M–

CAM.M+

TRAY. M–
TRAY. M+

1

31
51
81

13

28

4

12

+3.3V

302311

CONSTANT
VOLTAGE

Q4

+5V

73

5

18
36

TE

TE-

FE

FE-

17
18
19

20
21
22

+3.3V

44
49
50

7

14
15
16

3

19

TM–

22

23

TM+

TO

1

FD

2

SLDO

17

SPDO

25
41
42
38

C

39
37
36

35

29

95 94 93 87 82

ARFS

ARCLK

AJN

ICM2

FOCUS/TRACKING

D

SPIN/SLED DRIVER

LROMCEt

ES3880F

VIDEO CD

DECODER

XL2

16.934MHz

XIN

XOUT

VDD
VVDD

ADAVDD
VDD
LVDD
RVDD
XVDD

HFL
RFEV
FE
TE

SPDO

SLDO

FDO

TDO

IC3

M63001FP

79
68
66

LSC1t

65
64

LOEt

62
55

100

8050474544434132 30

DSC_C

72717069 68 6766655251

DEF

RES

WRQ

INT DODICLCE

LCHO

LVSS

IC2

LC78636E

SERVO SIGNAL

CONT5

CONT4

333226252423

RVSS

RCHO

CONTROL

CONT3

CONT6

CONT2

75

5

AOL+

8

AOR+

4

3 2 1

1
2

12
13

15

22

CE_
OE_

24

53
46

47

41
31

30
40

E

6

7

AOL–

AOR–

BA4558F

F

OPE AMP.

32
30

25
23

ICM4

EEPROM

IX0408AW

21
17

Q10
Q9

IC6

CNP8

CNP3

B
A

CD-BK3200V

CNP7

WRG

1

DRF

2

CE

3

DO

4

DI

5

CLK

6

CD RES

7

CAMA_A_B

8

CAMA_C_D

9

CAMA_E_B_A

10

CAMA_B_T_A

11

CAMA_B_C

12

R-CH

1

A_GND

2

L-CH

3

CD-GND

4

+B6 5V

5

+B4 10V

6

1

1

1

2

2

2
3
4
5
6

3

3

4

4

5

5

6

6

CNP10

1
2

VGND

VDAC

TO DISPLAY

TO MAIN

NSW1

PICKUP

IN

NM2

M

SLED

M

NM3

SPINDLE

TO MAIN

SECTION

SECTION

SECTION

63
72
75

CNP1

77
91

ES3889F

100

5

COMPANION

16
32
53
59
60

Figure 25 BLOCK DIAGRAM (1/3)

ICM3

VCD

ARFS

AJN

90

23

312625

ARCLK

NO.

79787366

3733

– 25 –

ODD

NO.

ODD

NO.

EVEN

89 8680

6

1

AOL+

AOL–
AOR–
AOR+

64625756 514341

VDAC

99
93

95
81

8

48
47
46
45
98

92

CNP5

E
F

CAMA_B_C

4123
4123
4123

SWB102

SWB103

ISC DETECT 3

DISC DETECT 2

CAMA_B_T_A

8765
8765

8

TRAY 2

SWB110

CAM SWITCH

SWB101

DISC DETECT 1

CAMA_E_B_A

CAMA_C_D

4321
4321

765

TRAY 1

SWB108

SWB109

4321

MODE 4

MODE 5

SWB107

SWB106

CAMA_A_B

MODE 2

MODE 3

SWB104

SWB105

CNP6

MODE 1

TRAY SWITCH

CD-BK3200V

VEE

7

3

S

7
A

2

2

FM

ANTENNA

VRK1

MIC

VOLUME

VIDEO CD

JK1
MIC

FROM

SECTION

CNP10

AM LOOP

ANTENNA

FM ANTENNA

M65856SP

MIC IN

9

12
13

+B4

JK671

VIDEO OUT

FROM CD SECTION
CNP8

L-CH
R-CH

L-CH
R-CH

TAPE 2

REC/P.B.

HEAD

ERASE

HEAD

SO302

TERMINAL

121

2

ICK1

MIC AMP.

LATCH

CLK

DATA
LOUT
ROUT

L IN
R IN

VCC

QK1

TAPE 1

P.B. HEAD

REC

P.B.

AC BIAS

40
41

42
36
35
31
32

23

BF301
B.P.F

Q103~
Q106

IC301

TA7358AP

FM FRONT END

L312

FM RF

AM TRACKING

T303

T306

+B4

8

5
6

2
3

CNS601

L

7
1

R

KIA4558P

OPE AMP.

1
2
3

SWITCHING

POP REDUCE

SWITCHING
Q107
Q108

Q128
L104

BIAS
OSC

AN7345K

PLAYBACK AND RECORD

/PLAYBACK AMP.

L(T1)

1

24

R(T1)

L(T2)

2

23

R(T2)

L NF

3

R NF

22

T1/T2

6

L REC

REC

9

16

R REC

REF

14

NOR/

12

HIGH

15

SWITCHING

Q109

SWITCHING

FM

OSC

OSC
BUFF

AM BAND
COVERAGE

ICK2

IC101

P.B

Q111

6
9

84315 7

T301

FM
OSC

Q302

+B

FM

CONSTANT

VOLTAGE

13

4

21

5

20

H/N

7

18

8

17

10

T1/T2

19

SWITCHING

Q110

Q124

SWITCHING

FM IF

T302

IC303

LA1832S

FM IF DET./

FM MPX./

AM IF

VT

20

IC302

LC72131

PLL(TUNER)

+B4

Q360

+B4

LPB
R

REC

L
R

L NF
R NF

ALC

Q126
BIAS

FM IF

CF303

X352

4.5 MHz

1

OSC

FM

VIDEO/AUX IN

L

R

1

AM MIX

AM OSC IN

22 111615

7

JK601

2

TAPE

TUNER

+B4

T351

AM IF

AM RF IN

CD

450 kHz

CF352

4

AM IF

FM/AM

1821 121623 7

STEREO

CE

34 6

FM/AM

MO/ST

910 21

L

9

16

R
L

10
15

R
L

11

AUDIO PROCESSOR

14

R

L

12
13

R

81817

7

L

R

CF351

+B4

98517

FM

GND

DET

FM+B

OUT

MPXIN

CLK

DO

DI

+B4

5

17

23

IC601

LC75341

3

Q121
Q122

MUTING

X351
456 kHz

MO/ST

VCO

+B4

CLK

13

L

R

FM/AM

DI

CE

14
15

1
2

2 4
21

R

4

91314

L

IC703

5 BAND

BA3835F

+B6

~

22

~

D16

14

FL DI

13

VDD

+B6

Q603
Q604

SYSTEM

MUTE

REC/PLAY

10
11
12

17

PASS FILTER

83 8

IX0413

84

2923

DRI

9

3

IC

STB

IC

Figure 26 BLOCK DIAGRAM (2/3)

– 26 –

CD-BK3200V

~~

2923

3331

VEE

IC702

D16315GB

FL DISPLAY

DD

DRIVER

STB

CLK

987

–20dB ATT

C/PLAY

83 82

IC701

IX0413AW(2/2)

84 2

VDD

DIN

30

T1/T2

BIAS

132

~~~~~~

10

79865

24

FL DISPLAY

34

FL701

656361535243423325

JOG701
JOG

VOLUME

+B4

LED714~

LED718
LED725

~

10

15

4

DI

CLK

+B5

79

P_IN

34

~

27

42
43

+B6

Q701
Q702
Q703

81

~

95
96

~

98
99
100

+B5

MOTOR

+B3

DRIVER

Q704

Q705
Q706

SOLENOID

DRIVER

R

1

15

L

IC901

STK40270N

POWER AMP.

1

R
L

VF1

–VF

VF2

15

+B3

+B4

+Vcc

8

M12 V

A+10 V

–Vcc

9

REGULATOR

13

–B1

+B1

VOLTAGE

Q850

Q851

67 65

80

VLOAD

AVDD

~~~

SW701-SW724
SW727-SW738

STK40270N

POWER AMP.

–Vcc

+Vcc

9

8

R-OUT

6

10

L-OUT

VOLTAGE

REGULATOR

66 64 63 62 60 58

DRF

JOG 1

JOG 0

MIC SW

FL LATCH

KARAOKE LATCH

IC701

IX0413AW

SYSTEM

MICROCOMPUTER

(1/2)

X1

T2 RUN

T1 RUN

KEY0-KEY2

16 17 20 21

11 12

810731

KEY

XL701

4.194304 MHz

TO TAPE

MECHANISM ASS'Y

IC902

13

+B2

D802

R-OUT

6

L-OUT

10

–B2

D803

D804~D807

Q801

Q905
Q906
Q907
Q908

Q901
Q902
Q903
Q904

–20dB ATT

X2

VDD1

+B5

Q909

F802

T5A L 250V

F800

T4A L 250V

F801

T4A L 250V

F803

T5A L 250V

F804

T2A L 250V

F805

T2A L 250V

56 53 52 51

LCK 0

SPRLY

REMOCON

25

RY901

SP RELAY

ON-OFF

T_BIAS

RESOUT

26 1318

Q990

Q991

RY902

T_T1/T2

RESET

VDDO

CLK

SP DET

TUN_SM/

39

~

37

REC/PLAY

78

~

70
43
42
41
31

DO

30

DI

29
28

CE_O

SPAN

RX701

REMOTE

1

SENSOR

FAN MOTOR

DRIVER

+B5

2

Q910

+B3

ASS'Y

TO TAPE

MECHANISM

+B5

3

+B6

M

M901

FAN MOTOR

MAIN
SUBWOOFER

JK670

HEADPHONES

T801

MAIN POWER

TRANSFORMER

230-240 V

220 V
127 V
110 V

M

+B6

RESET

+B5

Q707

SW601

SPAN

SELECTOR

TO CD

SECTION

M902

FAN MOTOR

SO901

SPEAKER

TERMINAL

SELECTOR

2183 569

LED709
LED710
LED711

SW801

VOLTAGE

K801

K802

T.F.

IC705

BU2092F

INPUT/OUTPUT

+B4

50/60 Hz

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

EXPANDER

+5 V

+B6

+B5

UNSW 5 V

Q852

VOLTAGE

REGULATOR

Figure 27 BLOCK DIAGRAM (3/3)

– 27 –

CD-BK3200V

D

A

F

J

E

C

1
8

1

C

0

0

L
R
C

PICKUP UNIT

VIDEO CD PWB-C (1/2)

A

R50

C55 0.01

C19

0.022

47

FIN1

FIN2

TIN1

TIN2

REF1
VREF

LDD

GND

LDON

AGON

EFBL

TEST0

TES1

C50

100/10

LA9235M

SERVO AMP.

1

REF

2

REF

3

REF

4

REF

5

REF

6

7

APC

8
9

10

ODRV

11

AGCON

12
13
14
15

TDO
FDO

C46

0.022

R48

6.8K

C49

100/10

+B

REF

LPF

REF

FO+
FO–

TR+
TR–

GND

SL–

SL+
SLDO
VCC1

STANDBY

Vref

MUTE

IC1

TO
FD
FO

REF

10
11
12
13
14
15
16
17
18
19
20
21

ODRV

PH/BH

REF
REF

1
2
3
4
5
6
7
8
9

REF

AGCON

PH

DH

REF

LPF
REF

LPF
REF

30

ODRV

RFSW

29

28

REF

27
26
25
24
23
22
21

20
19
18
17
16

–

–

+

+

–

+

–

+

IC3

M63001FP

–

–

+

+

+

–

VCC

R42
56K

RF–

RF

PH
BH

RFEV
FE–
FE
TE–
TE
HFL

TEST

C11

47/6.3

C12 0.022

R5

R7

39K

6.8K

R6

27K

TP1

C13

0.01
C14 0.33

R3 47K

R4

10K

4

TP4

+

–

–
–

–

+

+

–

+

–

–

5

C18

6P

(CH)

C20 0.1

C17

0.0047

13

R37

1.5K

LD_M+/CAM M+

42

+

LD_M–/CAM M–

41

VCC4

+

40

LOADING M+/CAM M+

39

LOADING M–/CAM M–

38

TRAY M+

37

TRAY M–

36

C47 100/10

35
34
33
32
31
30
29

VCC3

28

SP–

27

SP+

26

SPO SPDO

–

25

VCC2(SPN)

+

24

TM+

23

+

TM–

22

R79 1.5M

C24 2.2/50

C25

0.022

R10
27K

R8

330

C42
68P

(CH)

C82

0.022
(H,E)

GND

SE

8

C23

R12

0.047

680

R
6

C21

0.1

C22

100P

(CH)

R15

10K

+B

+B

C28

47/10

470/16

0.047

C90

C91

R11
12K

R80

1M

C26

0.047

TP2

TP3

EFBL

C27

PH(R

2

R44

R

1.2

AD

0.

A

1K

TDO

0.

S

P
B

FDO

CNS1A

7
6
5
4
3
2

1

1
2
3
4
5
6
7
8

1
2
3
4

7
6
5
4
3
2

1

11

1
2
3
4
5
6
7
8

1
2
3
4

CNP1

CNP2

CNP4

R51 68K
R52 56K
R53 56K
R54 68K

TR–
TR+
FO+
FO–
GND
PD
VR
LD

R56

1000/6.3

C53

C51

0.001

47/6.3

Q3

KTA1504 GR

LASER

DRIVER

C52

0.01

PAL/NTSC

56K

R47

100/10

C88

3

+B

TIN1
FIN1
FIN2
TIN2

56K

R55

C54

47/10

C6

C8

0.1

C7

0.022

R25
10K

CNS1B

Vcc

7

Vref

B

7

6

6

E

5

5

A

4

4

B

3

3

F

2

2

C

1

1

C

D

TO MPEG

SECTION

P31 12-C

CNS2B

E

TR+
FO+

FO–
TR–

ACTUATOR

TR–
TR+

FO+
FO–
GND

PD
VR
LD

F

MOB1

MAIN CAM

MOTOR

MOB2

TRAY

MOTOR

CNS2A

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

–
+

M

–
+

M

CD MOTOR

PWB-G

NM1

G

SPINDLE

MOTOR

NM2

SLED

MOTOR

NSW1

PICKUP IN

+

M

–
+

M

–

CNP3A

6
5
4
3
2
1

CNS3B

6
5
4
3
2
1

CNS3A

6
5
4
3
2
1

SP+

6

SP–

5

SL+

4

SL–

3

PUIN

2

GND(D)

1

CNP3

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

1

23456

Figure 28 SCHEMATIC DIAGRAM (1/12)

– 28 –

CD-BK3200V

IC2

LC78636E

SERVO SIGNAL

CONTROL

8

10

90

0/16

91

.047

R12
680

R11
12K

R80

1M

C26

0.047

TP2
TP3

R13
680

C81

0.022
VVDD

R14

1.2K
SLCIST

SLCO

EFMIN

JITTC

C27 0.1

PH(RFENV)

VREF

ADAVDD

C29

0.022

ADAVSS

PHREF
BHREF

2

R44

EFBL

1K

FDO

TDO

7

PD01

1

PD02

2

VVSS

3

PCKIST

4
5

FR

6

HFL

7
8
9

CONTROL

10

JITTV

11
12

BH

13
14

FE

15

TE

16
17
18

19

20
21

TBLO

22

TDO

23

FDO

24

SPDO

1

R38

270

R35

1K

6

FOCUS/TRACKING/
SPIN/SLED DRIVER

C71 100P(CH)

C72 0.01

3

C73

100P

R67
1K

CONT6

VSS

V/P

SERVO

PROCESSEROR

GENERAL

CONT4

CONT3

CONT2

CONT1

R40 1.2K

R45 1.2K

R98 1.2K

(CH)

C75
C76
C77
C78

C80 0.1

DEF

VDD5V

IC2

LC78636E

ERROR

CORRECT

CONT5

C2F

PCK

VDD

9

R99 1.2K

+B

100P(CH)

WRQ

RES

INTERPOLATION

MUTE

AUDIO

OUT

FSX

C30

0.022

DOUT

C31 100/10

R94 10K

+B

EFMO

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

GENERAL

FSEQ

DEFECT

PLL

VCEC

SLICE
LEVEL

JITER

DEFECT

CONTROL

SW

+
–

S/H

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

SPDO

SLDO

R39
470

A/D

D/A

SLDO

FRAME SYNC

DEFECT,PROTECT

EFM DECODE

CLV

CONTROL

SW

AUTO

ADJUST

LASER

FG(D_Vref)

R150A 1K

IC3

M63001FP

GND(D)

+B

C75~C78

DI

DO

COMMAND

INTERFACE

SUBCODE

DECODE

CRC

OUT

SERIAL

AUDIO IN

EXTERNAL

ATTENUATION

DEEMPHASIS

FILTER

DIGITAL

1BIT

DAC

EFLG

TEST

CAMA_A_B

CAMA_C_D

CAMA_E_B_A

CAMA_B_T_A

TRAY_B_C

CE

CL

CLOCK

GENERATOR

LPF

EMPH

TP5

R138A 8.2K

R71 1K
R72 1K
R73 1K

R75 100
R76 1K
R77 1K
R78 1K

SBCK

64

PW

63

SBSY

62

SFSY

61

16M

60

DATA

59

DATACK

58

LRSY

57

ASDFIN

56

ASDACK

55

ASLRCK

54

XVSS

53

R20 220

52

XOUT

XL2

16.934MHz

XIN

51

XVDD

50

RVDD

49

RCHO

48

RVSS

47

LVSS

46

LCHO

45

LVDD

44

MUTER

43

MUTEL

42
41

L61

0.82µH

ZD61

Z02W3.9Z

R130A 15K

R131A 8.2K

R132A 8.2K

R133A 15K

R134A 8.2K

R135A 15K

R136A

8.2K

R137A 15K

R139A 15K

DRF
RES
WRQ

DO
DI
CL
CE

C44

0.022

C45

100/10

12

R118A

2.2K

22K

R114A

1.5K

R116A

Q4
KTC3203 Y

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

KRC107 S

10

8P(CH)

10P(CH)

C34 0.022

R117A

CE1
1/50

R113A

2.2K

C83

0.047

R151A

3.3

Q11

Q12

Q13

Q14

Q15

Q16

Q17

Q18

Q19

Q20

C85

C86

C84

0.047
330

330

R112A

2

2

2

2

2

2

2

+B

+B

11

Q10

Q9

R58

C64

1

KTC3875 GR

KTC3875 GR

68

47/6.3

R140A

1K

3

1

R141A

3

1

R142A

3

1

R143A

3

1

R144A

3

1

R145A

3

1

R146A

3

1

R147A

3

1

R148A

3

1

R149A

3

DATAD

C87

R97

3.9K

BLCK
LRCK

1000/6.3

+5V

RES

CNP8

D-GND

CNP7

1
2

3

4

R-CH

1

AGND

2

L-CH

3

DGND

4

+5V

5

A10V

6

5

R-CH
A-GND

6
7

L-CH

8

A10V

9

1

WRQ

2

DRF

3

CE

4

DO

5

DI

6

CL

7

RES

8

CAMA_A_B

9

CAMA_C_D

10

CAMA_E-B_A

11

CAMB_B-T_A
TRAY_B_C

12

10

TO MP3

SECTION

P30 1-E

TO MPEG

SECTION

P30 1-E

P30 1-E

TO MPEG SECTION

FROM

MAIN PWB

P32 1-A

CNS601

TO MP3
SECTION
P31 12-B

FROM

DISPLAY PWB

P35 12-D

CNS704

TRAY SWICTH

CNP6

M_5V

CAMA_A

CAMA_B

1K

CAMA_C

1K

CAMA_D

1K

CAMA_E

1K

1K

CAMB_A

CAMB_B

1K

CNP5

M_5V

TRAY_A

1K

TRAY_B

1K

TRAY_C

1K

FW2

1

2

3

4

5

6

7

8

FW3

1

2

3

4

1

8

1

4

PWB-E

SWB104
MODE 1

SWB105
MODE 2

SWB106
MODE 3

SWB107
MODE 4

SWB108
MODE 5

SWB109
TRAY 1

SWB110
TRAY 2

SWB101
DISC DETECT 1

SWB102
DISC DETECT 2

SWB103
DISC DETECT 3

CAM SWICTH

PWB-F

• The numbers 1 to 13 are waveform numbers shown in page 52.

7

8 9 10 11 12

Figure 29 SCHEMATIC DIAGRAM (2/12)

– 29 –

CD-BK3200V

B

M

.

VIDEO CD PWB-C (2/2)

A

VIDEO OUT SIGNAL

+B+B

QM2

KTC3203 Y

QM4

KTA1271 Y

QM3

KRC104 S

2

RM36

RM34

330

+B

10K

+B

RM35

100

3

ZD1

CM36

100/10

4.3A

1

CM37

CM38

10/16

0.1

CM39

0.1

+

B

C

D

E

4

P29 11-B

10

TO CD SERVO

1
3
2
9

RES
DATAD
LRCK
BLCK
D-GND

+5V
ACLK
AUDO
AUBCK
AULRCK

+B

RM42 33
RM43 33
RM44 33

AJN
ARCLK
ARFS

CM33

0.022

CM35

0.022

RM41

8.2K

LA9

LA13

LA14

LA17

LA8

LA10

LA11

A8

A9

A17

A14

A13

A11

PJM

VCC

A12

A15

A16

VPP

123456789

LA16

LA15

LA12

LA2

LA3

MA6

LA2

MA7

LA1

LA1

MA8

LA7

LA0

LA0

LCS0#

LCS1#

ICM2

ES3880F

DBUS2

DBUS1

DBUS0

+B

CM34

LA12
LA13
LA14
LA15
LA16
LA17

10/16

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

LA8

LA9

LA10

LA11

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

LA9

GND

LA11

LA10

LA13

81

LA14

82

LA15
LA16
LA17
ACLK
AOUT/SEL_PLL0
ATCLK
ATFG/SEL_PLL1
DOE#
AJN
ARCLK
ARFS

99

TDMCLK

100

TDMDR
TDMFS

DWE#

RAS#

MA0

VCC3

123456789

LA3

LA4

LA5

LA6

LA7

LA8

LA7

LA6

LA5

LA4

VCC
LA12

VIDEO CD DECODER

CAS#
GND

MA5

MA4

MA3

MA2

MA1

10 11 12 13 14 15 16 19

ICM4

IX0408AW

EEPROM

LA6

LA5

LA4

LD7

LOE#

LWR#

LROMCE#

DBUS5

DBUS4

DBUS3

1817

A10

OE_

10 11 12 16151413

LA3

LA2

LD6

LD7

LD6

DBUS7

DBUS6

20 23 26 27

21 22 24 25 28 29 30

LD6

LD7

2021222332 31 30 29 28 27 26 25 24

D7D6D5D4D3

CE_

LD0

LA1

LA0

LD5

LD4

LD3

LD5

LD4

DBUS9

DBUS8

LD5

LD1

LD2

LD3

LD2

50
49

29

RFSET#

30

GND

DBUS11

DBUS10

LD4

D2D1D0A0A1A2A3A4A5A6A7

LD2

LD1

LD1

GND
AUX4

DBUS12

LD3

171819

GND

LD0

LD0

DBUS13

AUX7

AUX5

PCLA2X

CPUCLK

HSYNC
VSYNC

DBUS15

DBUS14

AUX6

AUX3
AUX2
AUX1
AUX0
PCLA

YUV7
YUV6
YUV5
YUV4
YUV3
YUV2
YUV1
YUV0

VCC3

+B

VCC3

CM27
10/16

RM30 33
RM31 33

RM32 10

RM33 33

C

0

CM26

0.022

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

CM28

0.022

DA4

DA3

DA1

DA2

DA5

RM45

4.7K

DA0

F

CM40

0.01

CM31 0.022

G

RM47

1K

CM32 100/10

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

1

23456

Figure 30 SCHEMATIC DIAGRAM (3/12)

DBUS1

DBUS4

DBUS2

DBUS0

DA8

DA6

DA7

DBUS3

CM30

0.1

DBUS3

DBUS2

DBUS1

DBUS0

1

23456789

D3D2D1

D0

D15

DBUS15

DBUS14

D14

DBUS13

D13

D12

DBUS12

VCC

VSS

VCC

VSS

40 39 38 37 36 35 34 33 32 31 30

– 30 –

DBUS5

DBUS8

DBUS6

DBUS7

DBUS6

DBUS7

DBUS5

DBUS4

10 11 12 13 14 15 16 20191817

D7D6D5

D4

ICM1

1625635T

DRAM

D11

D10D9D8

DBUS8

DBUS9

DBUS11

DBUS10

DBUS9

DBUS10

29 28 27 26 25 24 23 22 21

DBUS15

DA1

DA0

A0

WE_

RAS_

CAS2_

OE_

CAS_A8A7A6A5A4VSS VCC

DA6

DA8

DA7

DBUS14

DBUS13

DBUS12

DBUS11

DA5

DA2

DA3

DA4

A3A2A1

CM29

0.022

CD-BK3200V

IC6

BA4558F

OPE AMP.

CM50

33P

RM77

4.7K

RM54
100K

RM11

CM47

0.1

150

CM45
100/10

RM55

8.2K

RM50

4.7K

RM78

7
6
5

10

RM10

CM8

RM82

0.1

220

–
+

8

CM48

10K

10K

RM83

RM63

22K

CM46

RM62

33P

10K

+B

+B

+B

+B

LM3

3.3µH

CM14

0.1

CM13

0.001

CM12

27P

27P

CM11

RM14

100K

XL1

27MHz

RM51

10K

CM41
10/16

CM5 100/10

RM81

1K

RM52
10K

CM42
10/16

RM9

150

RM12

150

CM9

0.1

RM53
100K

RM4 33
RM2 33
RM3 33
RM1 33
RM5 33
RM6 33
RM7 33
RM8 33

RM13

150

–

+

4

100/10

1
2
3

RM61

RM60

RM56

CM2

10/16

RM84
10K

10K

10K

100K

CM43
10/16

RM69

6.8K

33P

22K

CM51

RM64

CM49

33P

RM59
10K

RM58 10K

RM57 100K

CM44
10/16

QM1

2SC3265 Y

RM70

220

RM71

3.3K

CM6

0.1

CM52
10/16

RM65 1K
RM66 1K

CM53
10/16

RM68
100K

RM67

100K

+B +B

CM1

RM76

1000/6.3

56

RM72

RM73

220

220

2.2K

RM75

CM54
22P

CM55
22P

L-CH

AGND

R-CH
A10V

RM74
220

MPEG POWER
DSA_STB
DSA_DATA
DSA_ACK
HSS_DO
HSS_DI

HSS_STB
HSS_ACK

PAL/NTSC

CM7
100/16

CNP10

7
6
5
8

CNP9
8
7
6
5
4
3
2
1

11

2

VDAC

1

VGND

P29 11-C

TO CD SECTION

FROM

DISPLAY PWB

P35 12-B

CNS705

TO

P28 2-E

CD SECTION

FROM

MAIN PWB

P33 12-H

CNS602

CM16

0.1

CM15

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

22P

PCK

LD7

PCK2

81
82

HSYNC#

LD6

83

DSC_D6

84

VSYNC#

LD5

85

DSC_D5

86

YUV7
YUV6

87
88

YUV5
YUV4

89

VDD

90
91

GND
YUV3

92

LD4

DSC_D4

93
94

YUV2

LD3

95

DSC_D3

96

YUV1

LD2

97

DSC_D2

98

YUV0

LD1

99

DSC_D1
GND

100

GND

123456789

CM17

+B

0.1

VDD

GND

81

VCC

RM23

4.7K

XIN

GND

DSC_D7

AUX00

DSC_C

VDD

DSC_D0

LD0

AUX03

AUX04

ES3889F

DCLK/EXT-CLK

AUX02

0.1

CM18

RM21

22K

AUX05

ICM3

RST#

AUX06

MUTE

AUX07

CE2

10/16

DM1

1SS133

VDD

PLLCAP

VCC

0.1

CM19

VDAC

MCLK

1817

GND

XOUT

VCD COMPANION

DSC_5

AUX01

10 11 12 13 14 15 16 19

YDAC

VVDD

VVDD

CDAC

VGND

VGND

TWS/SPLLOUT

AUX08

VGND

50

MIC2

RSTOUT#

RWS/SPLL1

TSCK

TSO

AUX09

20 23 26 27

21 22 24 25 28 29 30

ARFS

33

RM38

RSET

VGND

COMP

RSCK_SER_IN

RSD/SPLL0

GND

GND

RM16

4.7K

VCM

VREF

MIC1
AOL+

AOL–
AOR–
AOR+
AVDD

VREFP

VREFM

AGND
AUX15
AUX14
AUX13

AUX12
AUX11
AUX10

VCC

GND

NC

AGND

NC

50
49
48
47
46
45

CM25

44

0.1

43
42
41
40
39
38
37
36
35
34
33
32
31

CM22

10P

RM27

0.1

CM20

4.7K

CM23

0.1

AJN

CM24
47/10

RM49

4.7K

CM21

100/10

ARCLK

+B

RM15

+B

4.7

ACLK

AULRCK

AUDO

AUBCK

7

8 9 10 11 12

Figure 31 SCHEMATIC DIAGRAM (4/12)

– 31 –

CD-BK3200V

2

3

6

K

0

7
2

0

47/25

7

A

B

C

D

E

F

G

PLAYBACK

ERASE

HEAD

R-CH

L-CH

TAPE 2

RECORD/

PLAYBACK

HEAD

TO

VIDEO

CD PWB

P29 11-B
CNP8

CNP906

FROM

AMP. PWB

P36 1-E

R-CH

L-CH

TAPE 1

HEAD

1
2
3

4
5
6

CNS601

1
2
3
4
5
6

CHASSIS

MECHA
BASE

1
2
3

4
5
6

CNS102

MAIN PWB-A (1/2)

BI601

R-CH

1

A_GND

2

L-CH

3

M_GND

4
5
6

1
2
3
4
5
6
7
8
9

LUG901

1

1

2

2

3

3

1
2
3
4
5
6
7

BI102

L-CH
A_GND
R-CH
GND(FAN MOT)

GND

+B(+18V)

CNP806

T1_R

A_GND
T1_L

CNP101

M_GND
ERASE

T2_R2
A_GND
T2_R1
T2_L1
T2_L2

+5.6V(M)
+10V(A)

+5.6V

M_+12V

9V

+B

+B

+B

R609

330

R610 330

+B

+B
+B

GND

M_GND

+B

C102
560P

C101
560P

IC601

LC75341

AUDIO PROCESSOR

R607

10K

C613

2.2/50
R613
680

Q603

R611
100K

KTC3199 GR

R615

2.2K

R612
100K

+B(18V)

C861

9V

+B

C850

4700/16

C858

C106
180P

C105
180P

VOLTAGE

REGULATOR

2200/35

+B

C855

0.047
(ML)

(ML)

0.047

2SC1845 F

Q604

R618

3.9K

R617

3.9K

+B

KIA7810 AP

DS1SS133

2SC1845 F

0V

0V

0V

0V

0V

0V

Q103

KTC3199 GR

R614
680

+B

R856
560

Q851

2

DS1N404S

Q852

KIA7805 AP

1

D801

Q104

R104

2.2K

0.7V

R106

3.3K

0.7V

Q106

2SC1845 F

Q105

2SC1845 F

0.7V

R105

3.3K

0.7V

R103

2.2K

R616

2.2K

C617
22/50

REGULATOR

Q850

KTC2026 Y

DZ801

DZ2.4BSB

+B

31

D802A

3

2

Q103~Q108

SWITCHING

R619

22K

VOLTAGE

+B

C860

0V

R107 47K

R605

3.9K
C611

0.0027

C851

C857

47/25

47/25

R854

R102

1K

R101

1K

47K

R108

0V

0V

0V

R110 4.7K

Q108

Q107

4.7K

R109

0V

0V

+B

C604

0.022

0.1(ML)

(ML)

C621
10/50

R852

22K

22/50

M_GND

22K

R853

10K

Q109

KTA1266 GR

C108 560P

KTC3199 GR

KTC3199 GR

560P

C107

1

100/16

2
3
4

C609

5

0.1(ML)
6

C619

1/50

7
8

C623

1/50

9

C625

1/50

10
11
12

C629

1/50

M_+12V

+B

A_+5.6V

0.047(ML)

A_+10V
R114

10K

R115

4.7K

8.6V

R112 15K

C116

47/25

R118

1K

R

R170

1K

C112
330P

24 23 22 21 20

L

R169

1K
C111
330P

R117

1K

C115
47/25

R119

56

R111

15K

C607

C627

1/50

C852

+B

R113
10K

9.3V

9.3V

C606

IC601

DI
CE

VSS
LOUT

+

–

LBASS
LTRE

LIN
LSEL0
L4
L3

L2
L1

L

Q109~Q111
SWITCHING

2

0V

Q110

0V

KRC104 M

1

0V

2

R120

56

C118

0.033

R122

100K

R174

1K
C114
330P

1K

R172

–

+ +

Hich=T1

+

–

R171

1K

C113

330P

R173

R123

1K

R121
100K

C117

0.033

–

+

+

–

CCB

INTERFACE

+

–

+

–

+

–

+

–

AUX

DECK

TUNER

CD

+B

3.4V

3

1

3.4V

3

Q111

KRC104 M

R132

33K

C120

R126

560P

5.6K

C122
47/25
R124

2.7K

112K

4 1 2 3 5 6 8 9

2.7K
R125

5.6K

C121

C119

47/25

560P

33K

R131

CLK

VDD

VREF

ROUT

+

–

RBASS

RTRE

RIN

RSEL0

R155 150

C153 100/16

R134 68K

C124

0.0022
R138

6.8K

19

IC101

C128

C127

0.022

C123 0.0022

R4
R3
R2
R1

R136 3.9K

3.3/50

R137

R135 3.9K

24
23
22
21
20
19
18
17
16
15
14
13

0V

0V

18 17 16

Hich=CHROME

7

6.8K
C131

+B

C608

0.1(ML)
C610

0.1(ML)
C620

1/50

C624

1/50

C628

1/50

C630

1/50

+B

R156
220K

0.7V

Q122

KTC3199 GR

R140 1.5K

C132 270P

C134
22/50

C133
22/50

270P

R139 1.5K

C135 0.022

C602
22/50

C626

1/50

R154

10K

R142

C136

–

+

–

R141

C614

2.2/5

0.002

R

C140

100

0.022

56K
56K 112K

100

C139

R641
R64

R64

R60

3.9

C62
10/5

0.0033

0.0033

C6

C
4

C142

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

1

23456

Figure 32 SCHEMATIC DIAGRAM (5/12)

– 32 –

CD-BK3200V

C

C

C

R140

1

5K

R139

1

5K

FM SIGNAL

R641 1K

R643 1K

R642 1K

B

C602

22/50

C614

08

2.2/50

(ML)

C610
.1(ML)

620

0.0027(ML)

1/50

C622
10/50

C624

1/50

C626

1/50

628

1/50

630

1/50

R

0

R606

3.9K

C612

R608

10K

KOK OUT(R)

KOK IN(R)

R624

6.8K

R626

15K

–20dBATT

R623 6.8K

R625 15K

+B

R637 180K

R638

+B

+B

180K

KOK OUT(L)

KOK IN(L)

+B

+B

+B

+B

+B
+B

PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO IN SIGNAL

MIC SIGNAL

VIDEO OUT SIGNAL

R633

33K

C631

R631

390P

6.8K
C632

R632

390P

6.8K

R634

33K

D602

DS1SS133

D601

DS1SS133

CHASSIS

C634

0.001

TUN_R

GND A

TUN_L

DO

CE

CLK

GND

A_+10V

DI

SPAN

SW601

JK601

VIDEO

/AUX

IN
L-CH
VIDEO IN
R-CH

SW601

SPAN

SELECTOR

10 kHz/100 kHz

9 kHz/50 kHz

1
2
3
4

5

6
7

8

TO TUNER SECTION

9

P38 1-G

R156
220K

R154

10K

0.7V

Q122

KTC3199 GR

.

C140

100

0.0033

R142

C136

0.022

C134
22/50

17 16 15 14 13

–

+

56K

=CHROME

56K

+

–

8 9

C133

22/50

100

R141

.

C139

0.0033

C135 0.022

R153

10K

C142

47/25

10 11

C141
47/25

R145

10K

KTC3199 GR

Q121,Q122

MUTING

R146 10K

C145 22/50

Nor/CrO2

ALC

ALC

REC_R

0.7V

Q121

Vcc

RIPPLE

GND

12

0V

C146 220/10

REC_L

220K

R157

R158

220

+B

11.7V

Q124

0V

2SA1015 GR

11.6V

R160

82(1/2W)

47K

R167

22K

R166

C150

0.0082

C154

0.047(ML)

+B

11.6V

KRC104 M

0V

(PP)

C151

0.039(ML)

47K

R162

SWITCHING

4.7K

R164

0V

Q126

0V

0V

0V

BIAS

BIAS OSC

Q128

KTC3203 Y

4.7

R168

L104

330µH

+B

IC101

AN7345K

+B

PLAYBACK AMP.

PLAYBACK AND RECORD/

C155

22/50

C156
47/25

C157

1/50

+B

+B

C152

47/25

FFC702

M_+12V

M_GND

AIN

2

14

3

1 19

A_+10V

D_GND

5

+B

2

2

CNP10

BIK1

1

BI602

1

CNS602
TO VIDEO CD

P31 12-C

1

2

3
4
5
6

7
8
9

10

VIDEO OUT

PWB

1
2
3
4
5
6
7
8
9

10

CNSK1

JK671

CNPK1

FROM

MIC PWB

P39 12-C

KOK OUT(L)

KOK IN(L)
A_GND

+B

C654 100P

+B

DI

CLK

KOK_LATCH

MIC IN

+5V

6

–20dB ATT

S_MUTE

8

7

T_BIAS

T-T1 T2

9

10

CNP702

REC/PLAY

11

DISPLAY PWB

DO

12

13

TO

P34 1-F

CE

TUN_SM/SPAN

19

18

1714 15 16

CNP602

A_+10V
KOK OUT(R)
KOK IN(R)

DI
CLK

KOK LATCH
MIC IN

7

8 9 10 11 12

Figure 33 SCHEMATIC DIAGRAM (6/12)

– 33 –

CD-BK3200V

4

3

8

JOG 0

S

D

VDD1

6

M

A

DISPLAY PWB-B1

P29

P30

P31

P32

+B

P41

P40

P39

P38

P37

P36

P35

P34

P33

P32

P31

P30

P29

P28

P27

P26

P25

P24

P23

P22

G16

G15

G14

G13

G12

G11

G10

P23

P24

P25

P26

P27

P28

G9

P1P2P3P4P5P6P7P8P9

P10

65 64 63 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 2

B

P33
P34
P35
P36
P37
P38
P39
P40
P41

C

23 24 25 26 27 28 29 30 31 32 33

22
21

BS8

20

BS7

19

BS6
BS5

18

BS4

17

BS3

16

BS2

15
14

BS1

+B

VDD

13
12

C701

0.022

11

R701

47K

C702

47/25

BS10

BS11

BS12

BS13

BS14

BS15

22

FL DISPLAY

12

KEY1

KEY2

10

R702

RS702

1K

BS16

34

BS9

IC702

D16315GB

DRIVER

VSS VSS

STB

CLK

DIN

DOUT

OSC

987654321

RS701

1K

R703

47K

BS20

82K

P22

34

VEE

BS19

BS18

VDD

G16

35

BG8

G15

36

BG7

G14

37

BG6

G13

38

BG5

G12

39

BG4

G11

40

BG3

G10

41

BG2

G9

42

BG1

43
44

C727

0.0015

BS17

+B

D

E

FFC702

CNP602

P33 10-H

TO MAIN PWB

F

CNS905

G

P36 1-F

CNP905

TO POWER PWB

CNP702

19

19

SPN/TUN_SM

18
17
16
15
14
13
12
11
10

9
8
7

+5V

6

D_GND

5

A_+10V

4

M_+12V

3

M_GND

2

AIN

1

1

MICIN

KLATCH

CEO

CLK

DI

DO

REC/PLAY

T_T1/T2

T_BIAS

–20DBATT

+B

+B

D716

DS1SS133

+B

+B

+B +B

BI701

+VF2

9

9
8
7
6
5
4
3

2
1

VF1

8

–VF

7
6
5
4
3

UN_SW 5V

2

BACK_UP

1

P_IN

SP_DET

SPRLY

+B

+B

D717

DS 1SS133

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

+B

+B

C708 0.1

C709

R712

C710

R706
100K

C707

0.1

R711
100K

0.1

47K

0.1

R704
100K

R705
100K

Q703

Q702

Q701

KTC3199 GR

KTC3199 GR

C705 47/25

R707 33

GND

BIASC

AOUT

VREFC
RREF

TEST

DIFOUT

SEL

C

CIN

B

AIN

A

VCC

IC703

BA3835F

FILTER

18
17
16
15
14
13
12
11
10

1
2
3
4
5
6
7
8
9

5 BAND PASS

C703
47/50

+B

KTC3199 GR

R708

1K

R709 1K
R710 1K

+B

R713
10K

R714

G6
G5
G4

R716 10K
R717 10K

R715

10K

D711

DS1SS133

10K

DS1SS133

D713

DS1SS133

P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
G1
G2
G3

G7
G8

D712

FL DISPLAY

+B+B

D701

D703

C704

0.022

DS1SS133

P8

P9

80 79 78 77 76 75 7 4737271706968676665646

81

VDD2

FIP20

FIP21

VLOAD

FIP17

/SPEANA SEL B

FIP16

/SPEANA SEL C
FIP15
FIP14

81
82

FIP13
FIP12
FIP11
FIP10
FIP9
FIP8
FIP7
FIP6
FIP5

100

FIP4
FIP3
FIP2
FIP1

ANI2

ANI1

SPEANA

A OUT

AVDD

213456789

R718 1K

R719 1K

R720 1K

ANI1

ANI2

R761 10K

R762 10K

C706

0.022

82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

D708

D705

DS1SS133

DS1SS133

P4

P6

P7

P5

FIP22

FIP23

FIP24

FIP25

FIP19

FIP18/SPEANA SEL A

SYSTEM MICROCO

FIP0

KEY0

ANI5

ANI4

ANI3

R724 1K

R725 1K

R723 1K

R722 1K

R721 1K

ANI3

ANI4

ANI5

R766 10K

R792 10K

R798 10K

+B

FL701

R745

10K

R776

10K

DS1SS133

P1P2P3

R775 1K

FIP26

FIP27

FIP28

DIST IN

IC701

IX0413AW

T2RUN

T1RUN

KEY2

KEY1

10 11 12 13 14 15

R726 1K

R728 1K

R729 1K

R727 1K

220/10

+B

MICIN

KLATCH

R772 1K

R773 1K

R774 1K

MIC SW

FL LATCH

MPEG_POW

KARAOKE LATCH

DSA_STB

50
49

DSA_DATA

48

AC3_SCK/D

TIMER LE

32

DO

31

AVSS

TUN_SM/SPN

16 17 1

C711 18P

C713

0.022

C714

SO

RES

VPPSID-GND

10K

R777

R770 100

R771 100

JOG 1

X2X1VSS1

XL701

15P

C712

VDD

54321

1

23456

Figure 34 SCHEMATIC DIAGRAM (7/12)

– 34 –

P5

KLATCH

R774

1K

P6P7P8P9P10

P11

P12

P13

29 28 27 26 25 24 23 22 21 20

6

10K

R777

MICIN

R771 100

R736 1K

R770 100

R772 1K

R773 1K

67 66 65 64 61 60 59 58 57 56 55 54 53 52 5163 62

JOG 1

JOG 0

SMUTE

MIC SW

FL LATCH

TIMER LED
DO

16 17 18 19 20 21 22 23 24 25 26 27 28 29 3014 15

C711 18P

C713

0.022

VDD1

X2X1VSS1

XL701

15P

C712

4.194304 MHz

DRF/DVD BUS 5

REMOCON

IC(VPP)

R730 1K

KARAOKE LATCH

DSA_STB

0
9

DSA_DATA

8

AC3_SCK/DSA_ACK

701

413AW

ROCOMPUTER

32
31

AVSS

714

20/10

P14

P15

P16

P17

P18

P19

P20

P21G1G2G3G4G5G6G7G8

19 18 17 16 15 14 13 12 11 10

SPRLY

–20DBATT

1K

R767

LCK 1

–20dBATT

AC3_SO/RDS READY/ESS_DO

AC3_SI/RDS RDCL/ESS_DI

AC3_SS_/RDS RDDA/ESS_STB

AC3_RST/RDS RST/ESS_ACK

CD DI/DVD BUS 1/SI

CD DO/DVD BUS 0/SO

R733 1K

R731 1K

R732 100

P25

P26

T_BIAS

R765 1K

47K

R760

R763 1K

CE_2

CE_1

LCK 0

SPRLY

T_BIAS

AC RLY

H ONLY

RESOUT

PLAY SW B
PLAY SW A

T_MOTOR

T_SOL_B
T_SOL_A

SP DET

CE_0

P_IN

WRQ/DVD BUS 4

CD CE/DVD BUS 3

CD CLK/DVD BUS 2/SCK

R769 1K

R737 1K

R738 1K

R735 1K

R734 1K

P27

P67

P66

98765 321

RS703 10K

T_T1/T2

REC/PLAY

1K

R758

R759 1K

50
49

T_T1/T2

48

REC/PLAY

R754 1K

47

R753 1K

46

R752 1K

45

R751 1K

44

R750 1K

43

RESET

42

VDD0

41

VSS0

40

R748 1K

FPB

39

R747 1K

FPA

38

R746 1K

37
36

R799 2.2K

35

R744 2.2K

34

R743 2.2K

33

R742 1.8K

32

R741 1K

31

DI

CLK

R740

1K

R739 1K

D714

DS1SS133

CD-BK3200V

CASSETTE

SOLENOID

F. PLAY

SOLENOID

TAPE

MOTOR

+

M

-

+B

PLAY

PH

10

10

9
8
7
6
5
4
3
2
1

1

FFC701

TAPE MECHANISM PWB-H

C726

47/50

C716

0.001

R793

10K

R794

PIN8

PIN7
PIN6
PIN5
PIN4
PIN3
PIN2
PIN1

R749

10K

C728

470P

RS725

68K

1K

C715

0.022

LED701

4204SRT1

R797

10K

R795

10K

+B

C717

0.001

JOG701

JOG

VOLUME

+B

1

RS710

RS709

RS706

1.5K

1.5K

1.5K

2
3
4
5
6
7
8
9

BU2092F

R789 10K

STOP

LED711

4204UYT1

PLAY

LED710

4204UYT1

+B

LED709

4204UYT1

INPUT/OUTPUT EXPANDER

VSS

VDD
DATA
CLOCK
LCK0

Q10
Q0
Q1

Q2
Q3
Q4

IC705

R790 10K

R791 10K

R786

10K

R787
10K

R788

10K

C721

0.022

OE
Q11

Q9
Q8
Q7
Q6

Q5

18
17
16
15
14
13
12
11
10

+B

+B

RS724 560
RS717 560
RS716 560
RS715 560
RS714 560
RS713 560

+B

+B

+B

DISC6
DISC5
DISC4
DISC3
DISC2
DISC1

Q704
KTA1273 Y

MOTOR DRIVER

Q705
KTA1273 Y

SOLENOID DRIVER

Q706
KTA1273 Y

SOLENOID DRIVER

P65

P47

PIN8
PIN7
PIN6
PIN5
PIN4
PIN3
PIN2
PIN1

ANI5
ANI4

ANI3
ANI2
ANI1

BI705

CNS705

MPEG_POWER

8

8

DSA_STB

7

7

DSA_DATA

6

6

DSA_ACK

5

5

4

ESS_DO

4

ESS_DI

3

3

2

ESS_STB

2

1

ESS_ACK

1

12

12

TRAY SW_B/TRAY SW_C
CAM_B SW_B/TRAY SW_A

11

11

CAM_A SW_E/CAM_B SW_A

10

10

CAM_A SW_C/CAM_A SW_D

9

9

CAM_A SW_A/CAM_A SW_B

8

8

P47
P27
P26
P25
P67
P65
P66

BI704

1

7
6
5

2

7
6
5
4334

2

1

CNS704

RESOUT
CD CLK
CD DI

CD DO
CD CE

DRF
WRQ

CNP9

P31 12-B

TO VIDEO CD PWB

CNP7

TO

VIDEO CD PWB

P29 11-D

FFC701

1

PLAY_SW_B

2

GND

3

T2RUN

4

T_MOTOR
SOL_B

5

SOL_A

6

FPA

7

T1RUN

8
9

FPB

10

CNP701

1

10

SO

RES

VPPSIVDD

SCK

765432

CNP703

7

KEY1

KEY0

R779 10K
R780 10K
R781 10K

KEY2

RD25

680

SW727

FAST

REWIND

SW714

DIMMER

RD01

680

SW701

ON/

STAND-BY

RD13

680

KARAOKE

DI

CLKDOCEO

RD26

820

SW728

FAST

FORWARD

RD14

820

SW715

CD

RD02

820

SW702

SW738

X-BASS/

DEMO

SW722
DISC 2

EJECT

SLR325MC

RD21

10K

RX701
REMOTE
SENSOR

R785

100

123

C725

47/25

C724

0.022

RD22

RD11

15K

SW707
DISC 2

PLAY

SW724
DISC 4

EJECT

RD07

3.9K

SW708
DISC 3

PLAY

33K

RD08

5.6K

SW712
DISC 5

EJECT

SW709
DISC 4

PLAY

SW723
DISC 3

EJECT

SW706
DISC 1

PLAY

RD06

2.7K

PLAY SWITCH PWB-B3

RD12

100K

RD09

10K

SW713
DISC 6

EJECT

SW710
DISC 5

PLAY

RD10

15K

SP_DET

SW729

REVERES

SW716

SW703

P.B.C.

RD27

1K

PLAY

TAPE

RD03

1K

RD15

1K

R782 10K

RD28

SW730

STOP

SW717
TUNER
(BAND)

SW704

O.S.D.

1.5K

+B

RD04

1.5K

RD16

1.5K

D715

DS1SS133

SW731

REVERSE

MODE

SW718
VIDEO/

SW705

DIGEST

RD29

2.2K

AUX

RD17

2.2K

RD05

2.2K

RD30

2.7K

SW732

PLAY

SW719

MEMORY

SET

RD18

2.7K

+B

RD31

3.9K

SW733

CLOCK

RD19

3.9K

SW720

EQUALIZER

DISC6
DISC5
DISC4
DISC3
DISC2
DISC1

+10V

GND
KEY0

BI703A

R783

47K

C723

0.022

RD32

5.6K

SW734
TIMER/

SLEEP

BI702

212

CNS702

1
2
3
4
5
6
7
8
9

Q707

KRC102 M

RESET

2

1

RD33

10K

SW735

TUNING

UP
CNP704

BI703B

3

D718

DS1SS133

RD34

15K

SW736

TUNING

DOWN

11
2

1
2
3
4
5
6
7
8
9

C722

3.3/50

R784
100K

RD35

33K

SW737

REC

PAUSE

RD20

5.6K

SW721
DISC 1

EJECT

LED725 SLR325MC
LED718
LED717
LED716
LED715
LED714

+B

LED714~LED718

8 9 10 11 12

Figure 35 SCHEMATIC DIAGRAM (8/12)

– 35 –

SW711
DISC 6

PLAY

EJECT
SWITCH
PWB-B2

CD-BK3200V

1

8
0

R
1

A

Front_R

Ch1

3

1

2

C906

0.0015
C910

R918

15P

1K

R904

56K

B

R906
560

C908
10/50

R908

5 4

R902

22K

C903

100/50

1K

C

R956

18K

R957

18K

C954

0.082
(ML)

D

Q990

CNP906

L-CH

1

A_GND

FROM

MAIN PWB

P32 1-B

E

CNS806

2

R-CH

3

GND

4

+5.6V

5

M_12V

6

+B(+9V)

7

GND

8

+B(+18V)

9

KRC107 M

+B

+B

+B

+B

STK40270N

POWER AMP.

Ch1

Out

6

R994

0.22

C990

0.22/50

(2W)

R912

0.1(1W)

R914

1K

C912

0.022

R916

6.8K
KTC3199 GR

C958

0.22/50

C959

0.22/50

R971

C955

68K

0.082
(ML)

R998

27K

R997
27K

2

1

C825

3.3/50

IC901

+Vcc

7

R996

0.22

(2W)

C901
10/50

R901

100

(1/4)

Fusible

D902

Q902

R970

68K

C961

0.1(ML)

R972

68K

R973

68K

2 3 3

Q991
KRA107 M

1

R828
100

+B +B

C902
10/50

DS1SS133

R OUT

0.1(ML)

L OUT

–Vcc

9 8

R995

C960

0.015(ML)

0.015(ML)

Ch2

Out

11

10

0.22(2W)

100/50

100(1/4)Fusible

R911

0.1(1W)
C905

0.022

R915

6.8K

C942

C941

R806
10K

R993

0.22

(2W)
C904

Front_L

R910

DS1SS133

R913
1K

R974

68K

R975

68K

D901

Ch2

Q901

KTC3199 GR

C907

0.0015

R903
56K

R907 560

C911
10/50

D903

15141312

R909

1K

DS1SS133

C909
15P

R917
1K

Q904

Q903

KTC3199 GR

KTC3199 GR

C944

0.001

C943

0.001

C914

R920

56K

47/50

R919

+
–

Ch1

2

1

3

C926

0.0015

C928

R976

15P

1K

R928

R932

56K

R921
56K

C917

0.1

(ML)

C919

0.1

(ML)

56K

R923

4.7

C916

(ML)

R922

4.7

L

0.1

C918
(ML)

R

0.1

R930
820

C930
1/50

1K

Ch 1

6

4

5

R926

22K

C991

C922

100/50

R934

0.1(1W)
C924

0.022

R936

10K

Out

0.22/50

Q906

KTC3199 GR

2200/63

R924

100
(1/4)

Fusible

R938
1K

R819

22K

C814

8 7

+Vcc

10/50

C920

D905

R805

22K

C813

2200/63

C921
10/50

DS1SS133

Out

Ch 2

–Vcc

1110

9

C923

100/50

R933

0.1(1W)

C925

0.022
R935

10K

F

FROM

DISPLAY PWB

P34 1-G

CNS905

CNP905

1
2
3
4
5
6
7
8
9

+5V(BACK_UP)
+5V(UN_SW)

SP RLY
P_IN
SP DET

–VF
VF1
VF2

D819

DS1SS133

+B

+B

R809

2.2K

R808

150

D820

DS1SS133

+B

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

1

23456

Figure 36 SCHEMATIC DIAGRAM (9/12)

+B

– 36 –

+B(+18V)

+B

+B

P_IN(SYS REST)

GND

+B(+9V)

VF1
VF2
–VF

BI901

1
2
3
4
5
6
7

POWER A PWB-D2

+B(+18V)

1

1

GND

2

2

+B(+9V)

3

3

VF1

4

4

VF2

5

5

–VF

6

6

P_IN(SYS REST)

7

7

CNS901

CNP901

R829

+B

+B

R803

12K

47

R830

47

R804

47K

C812

100/35

C811
47/50

ZD802

DZ6.2BSA

C810

47/50

R802

10

Q801

KTA1274 Y

ZD801

DZ30BSC

R801

2.2K

C809
220/50

DS1N4

D81

CD-BK3200V

47/50

DS1SS133

2

FM SIGNAL

R945

270(1/2W)

270(1/2W)

RY901

Q909

KTC3199 GR

SP RELAY
ON–OFF

R980

10K

R944

R946

(1/2W)

D907

270

DS1SS133

R948

2.2K

R947

270

(1/2W)

R949

2.2K

RY902

R927

56K
C931
1/50

D906

151413

C929

15P

R931

1K

Q907

KTC3199 GR

IC902
STK40270N
POWER AMP.

C927

0.0015

R977
1K

Q908

KTC3199 GR

R940

56K

R939

56K
R941

56K

C932

47/50

C939

0.1(ML)
C935

0.1(ML)

R943

4.7

C940

0.1(ML)
C936

0.1(ML)

R942

4.7

R979

1K

+
–

Out

Ch 2

–Vcc

1110

9

C923

100/50

R933

0

C921

0.1(1W)

0

10/50

C925

0.022
R935

Ch2

12

820

R929

R925

100

(1/4)

Fusible

DS1SS133

D904

DS1SS133

R937
1K

10K

Q905

KTC3199 GR

POWER AMP PWB-D1

R955

4.7(1/2W)

D909

DS1SS133

R952

15K

2.2K

R950

2.2K

R951

C938
10/50

L903

L905

L904

L902

R953
68K

R954

CNP907

CNP904

1K

Q910

KTC3203 Y

2

2

1

1

CNS904

2 12

1

DRIVER

FAN MOTOR

FW901

+

SP_L-CH (HI)
SP_L-CH_GND (HI)

–
+

SP_L-CH (LOW)
SP_L-CH_GND (LOW)

–

SP_R-CH (LOW)

+

SP_R-CH_GND (LOW)

–
+

SP_R-CH (HI)
SP_R-CH_GND (HI)

–

SO901
SPEAKER
TERMINAL

FAN MOTOR

+

M

–

M901

FAN MOTOR

+

M

–

HEADPHONES

PWB-B4

1

L

2
3
4

R

5

JK670

HEADPHONES

M902

CNS907

805
2K

813
0/63

DZ30BSC

R801

2.2K

Q801
A1274 Y

+B

ZD801

C809
220/50

D818

DS1N404S

R967
22K

C801

2200/50

DS1N404S

R826
220K

+B
R827

C807

100/50

D809

R966
22K

C802

2200/50

47K

BI902

ZD806

DZ11BSB

D804

DS1N404S

D805

DS1N404S

C808

100/50

1
2
3
4
5

CNS902

1
2
3
4
5

DS1NS404S

D808

DS1N404S

1
2
3
4
5

CNP902

D807
DS1N404S

D806

D802

TS6B04GM

D803

TS6B04GM

C805

0.047(ML)
C806

0.047(ML)

F800

T4A L 250V

C833

0.047(ML)
C832

F801

0.047(ML)

T4A L 250V

SW801
VOLTAGE

F802

T5A L 250V

C804

0.047(ML)
C803

0.047(ML)

+B

F803

T5A L 250V

F804

T2A L 250V

F805

T2A L 250V

T.F.

T801

POWER

TRANSFORMER

SELECTOR

230-240 V

220 V
127 V
110 V

POWER B

K801

AC POWER
SUPPLY CORD

K802

AC 110/127/220/
230-240 V,50/60 Hz

PWB-D3

7

8 9 10 11 12

Figure 37 SCHEMATIC DIAGRAM (10/12)

– 37 –

CD-BK3200V

MAIN PWB-A (2/2)

A

B

C

FM SIGNAL
AM SIGNAL

CHASSIS

GND

R327

33

Q302
KTC3194 Y
OSC BUFF

C318
100P

C315

0.0047

C317

0.001

C314

0.0047

C316

0.022

R322

R316

4.7K

AM LOOP

CNP301

C303

10P(CH)

1
2
3
4
5
6

7
8
9

IC301

ANTENNA

1

BF301
B.P.F.

2
3

TA7358AP

FM FRONT END

AM BAND

COVERAGE fL

C334

22P(CH)

R323

68K

R336 10K

D302
DS1SS133

C335

KDV147B

T306

560P

VD301

CHASSIS

GND

D301
DS1SS133

AM OSC.

AM ANT.

C332

C338

0.001

0.022

C330

C323

0.022

15P

C331

T303

AM TRACKING fL

0.047

SO302

FM ANTENNA

TERMINAL

D305 DS1SS133

C308

4.7P(UJ)

R311
100K

22

R314

VD302

R313

SKDV147B

33K

47K

C312

T302

2

0.022

FM IF

CF303

1

3

R325

680

L312

C310 15P(CH)

T301

FM OSC.

C313

22P(CH)

FM RF

C309

0.001

C320

0.001

VD303

SVC211C

R309

10K

C311

18P

C324

C305

4.7P
(CH)

3.9P(UJ)

C304

0.01

C306

0.022

C307
10/50

2
2

R302

1
1

10

D

E

F

G

+B

+B

A_10 V

9

A_GND

2

TUN_R

1

TUN_L

3

P33 12-C

DI

6

TO MAIN SECTION

CE

5

DO

4

CLK

7

D_GND

8

+B

C384

0.001

IC302

LC72131

PLL(TUNER)

R386

22K

C388

0.001

+B

R375

+B

+B

470

R374 1K

R373 1K

R372 1K

R378 1K

TP301

C381

C382

12P(CH)

15P(CH)

X352

4.5 MHz

X IN

22

1

X OUT

VSS

21

2

AOUT

20

CE

3

DI

4

IC302

CL

5

AIN

19

DO

PD

18

6

VDD

FM/AM

17

7

FM IN

16

IF

8

CONT

AM IN

15

C391

47/25

R395

47K

R359

SD

IF IN

1.8K

CONSTANT

VOLTAGE

R385

5.6K

C385

14

0.01

13
12

5.6K

R383

9

FM/AM

MO/ST

10

ST IND

11

R376

1K

R360

4.7K

R384

5.6K

+B

R379

2.2K

C393

1/50

C386

330P

R380

1.5K

Q360

+B

+B

R382

150

R381

10K

C380
10/50

L351

100µH

R377

47K

KTA1266 GR

R391

270

C397

0.022

C394
47/25

C392

0.001

C387

0.022

R387

5.6K

R392 270

C395 0.022

C396

100/10

R393

1K

C399

0.022

C398

100/10

R388

3.9K

L352

100µH

ZD351

DZ5.1BSB

C351 0.022
C352 10/50

C350 0.022

T351

AM IF

1

2

3

CF352

C353 0.022

C354 0.022

CF351

R353

270

C356

0.001

C357

C370

1/50

R355

3.3K

2.2/50

C355

22P

FM IF DET./FM MPX./AM IF

R352

1K

FM IF IN

1

AM MIX OUT

2

3

REG

AM IF IN

4

GND

5
6

SD

STEREO

7

FM DET

8

VCC

9

IF OUT

10

PHASE

11

1/50

C358

PHASE

12

(FM/AM)

IC303

LA1832S

R351 5.6K

AM OSC OUT

AM OSC IN

AM LOW CUT

FM/AM OUT

IC303

MPX VCO

R-CH OUT

L-CH OUT

FM AFC

AM RF IN

MPX IN

MO/ST

VSM

24

23
22

21

C364 2.2/50

20
19
18

C367
1/50

456 kHz

17

16

15
14

13

C363 0.022

C365 0.022

C366 0.001

R350

X351

C368

1/50

C369

27P(UJ)

C372

1/50

R358

3.9K

C362 3.3/50

C361 0.022

2.7K

R356

1K

C374 0.015

C373

0.015

C371

1/50

C342

0.022

R365

10K

TP302

R357
470K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 51.

1

23456

Figure 38 SCHEMATIC DIAGRAM (11/12)

– 38 –

MIC PWB-J

DK1

DS1SS133

PINK1

DK2

DS1SS133

GND

CHASSIS

JK1
MIC

CK41

100/16

CK1 0.01
RK4 10K

RK7

1K

RK8 5.6K

RK3
56K

VRK1

20K(B)

MIC

VOLUME

RK2 56K

CK7 0.47/50

CK8 4.7/50

CK9 2.2/50
CK10 0.1
CK11 0.1

CK13

0.0047

CK14 0.001

CK15 0.068

CK16 0.22

CK17

220/10

CK12

2.2/50

CD-BK3200V

MIC SIGNAL

10K

RK48

ZDK1

MTZJ5.6B

CK53
47/25

RK13

1.2K

RK45

CK51

1/50

CK52

1/50
RK44

6.8K

6.8K

CK48 220P

RK46

18K

CK50
100P

CK49
100P

RK43

18K

CK47

220P

IC903

KIA4558P

OPE AMP.

CK44
47/25

8

RK14

100

RK15

100

ICK2

KIA4558P

4

CK46

2.2/50

1

CK45

2.2/50

7

+B

CNPK1
KOK OUT(L)
KOK IN(L)
A_GND
A_+10V

KOK OUT(R)
KOK IN(R)

DI
CLK
KOK LATCH
MIC IN

1
2
3
4
5
6
7

CNSK1

8

TO

MAIN PWB

9

P33 12-E

10

RK41 10K

RK42 10K

RK38

100

CK72

100/16

RK37

RK39

1k

390

RK36

390

RK40

1k

2

3

5

6

RK47

RK49

10K

CK43
47/25

8.2K

RK50

QK1

KTC3203 Y

RK12

10K

100

ICK1

M65856SP

RK1
10K

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

20
21

MIC AMP.

MICSW
MCLKCONT
VACL
MIC1 IN

ALC1
MIC1NF IN
MIC1 OUT
MIC1VOL IN
MIC2 IN
ALC2
MIC2NF IN
MIC2 OUT
MIC2VOL IN
MICOUT
LPF1 IN1
LPF2 IN2
LPF1 OUT

AD INTOUT
AD INTIN
ADCONT
REF

SOURCEOUT

KEYCONIN

DAINTOUT

DATA

CLOCK

LATCH

VCF IL

L OUT

R OUT

VOL IN

LPF2OUT

LPF2IN2
LPF2IN1

DAINTIN
DACONT

VCC
GND

PS2
PS1

R IN
L IN

42
41

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22

RK11 1K

RK10 1K

RK9 1K

CK31 0.15
CK29 2.2/50
CK30 2.2/50

CK26 2.2/50
CK25 2.2/50
CK24 2.2/50

CK23 0.001

CK22 0.0047

CK21 0.068

CK20 0.22

CK18

100/16

CK35 47P
CK34 47P

CK33 47P

CK19

0.022

+B

+B

CK42

0.022

JK1
MIC

VRK1

MIC VOLUME

Figure 39 SCHEMATIC DIAGRAM (12/12)

MIC PWB-J

CK18

CK13

CK19

22

CK12

CK17

CK16

CK15

RK8

20

21

DK2

DK1

CK22

CK23

CK24

CK25

CK21

CK20

25 30 35 40

ICK1

CK51

CK46

15

CK14

RK7

CK10

CK11

CK53

CK50

RK45

CK48

RK46

CK9

CK8

4
3
2
1

RK50

10

CK45

CK52

5
6
7

ICK2

8

CK7

RK44

RK48

5

CK26

RK1

CK47

RK43

CK49

RK47

CK72

42

1

RK49

CK29

RK4

RK14

RK15

E C B

RK38

CK44

RK40

QK1

RK12
RK13

ZDK1

RK37

CK30

RK3
RK2

CK41

CK1

RK36

CK42

RK42

RK9

RK10
RK11

RK39

CK43

RK41

CK35
CK34
CK33

CK31

10

9
8
7
6
5
4
3
2
1

PINK1

CNPK1

CNSK1

FROM

MAIN PWB

P41 8-A

7

8 9 10 11 12

Figure 39 WIRING SIDE OF P.W.BOARD (1/11)

– 39 –

CD-BK3200V

N

A

B

C

D

E

F

G

H

SO302

FM

ANTENNA

TERMINAL

FM

75 OHMS

GND

AM LOOP
ANTENNA

SW601

SPAN

SELECTOR

100 kHz/10 kHz

50 kHz/9 kHz

JK601

VIDEO/AUX

IN

VIDEO OUT

R-CH

L-CH

JK671

VIDEO CD PWB

P47 10-A

CNS601

WH

C388

C374

R608

R612

TO

R610

R609

R619

C617

123456789

CNP906

TO POWER AMP. PWB

P45 12-D

C654

C

CNP8

123456

R376

C395

R392

1011

C399

R616

R611

1
2
3
4
5
6
7
8
9

10
11
12

C627

R391

CF351

R353

12

13141516171819202122

TP302

R615

R613

R605

C607

RDWHBLWHBL

R395

C356

R355

C357

C355

X351

R356

C368

Q604

B C E
B C E

R607

C611

C609

C623

C619

R637

C396

L352

ZD351

C370

C358

C371

C373

C372

R614

Q603

C613

C621

C625

MAIN PWB-A

R372

L351

C318

R375

T301

Q302

CF303

R309

1 2 3

C608

C626

C324

R311
R365

C342

C614

C387

C385

VD303

R378

R387

1011

C386

1213141516171819202122

R377

R393

R382

3
2
1

CF352

C352

C313

C350
R352

123456789

R351

2324

R358

C367

C361

C363

C364

R642

C610

C612

C630

R359

R360

R384

R386

B

Q360

C
E

R383

T351

C351

C353

IC303

C369

R350

C365

R641

R643

C602

C606

24
23
22

C604

21
20
19
18
17
16
15
14
13

R388

C391

R385

C398

C354

C366

R357

IC601

R638

R373

C382

C381

C397

R322

R314

C315

C314

C317

P47 11-A

R381

C320

R625

R302
C310

L312

C308

R323

X352

R374

123456789

IC302

R379

C392

TP301

C380
R380

C393

R325

B C E
R327

C311

C312

T302

C309

VD302

D305

R316

C316

C362

TP301

C334

R336

T306

C335

C332

R618

R617

R606

C620

C622

C624

C629

C628

R313

C384

C301

C394

C307

C306

1
2

CNP301

2 1

D301
D302

C634

R634
R632
C632

R631
R633
C631

BI602

BF301

T303

C323

D603
D604

1
2

IC301

C304

C331

C338

R601

WH

2

CNP10

9
8
7
6
5
4

C305

3
2
1

C303

2

1

3

C330

VD301

D601
D602

R624
R623

C637

R626

BK

CNS602

1

TO VIDEO CD PWB

1

23456

Figure 40 WIRING SIDE OF P.W.BOARD (2/11)

– 40 –

CD-BK3200V

0

C654

10

BIK1

GY
WH
GY
WH

GY
WH
GY
WH
GY
RD

1

CNSK1

1

1234 56 89107

RD

GYWHGYWHGYWHGY

CNP602

18
16
14
12
10

BI601

RDWHBLWHBL

TO MIC PWB

P39 12-G

CNPK1

C155

C157

19
17

C156
15
13
11

9

8

7

6

5

4

3

2

1

6

WH

R126
C124
R134

WH

R142

R132

R156

GY

C152
R166

C154

R106

R104

Q104

R103

Q103

R105

Q105

R111

R124
C120

C118

R140

R136

E C B

Q122

Q128

B C E

B C E

R122

C136

R167

Q106

B C E

B C E

B C E

R174

C122

R160

R168

C150

C116

R172

C112

C132

C134

R138

C142

R146

1

Q109

B C E

C106

R118

R120
R170

R154

TO DISPLAY PWB

P43 11-C

CNP702

R113

R114

L104

C151

BI102

1
2

R112

3
4
5

Q108

6
7

C105

C108

Q107

R119

R102

24
23
22

C114

21
20
19
18
17
16
15
14
13

C140

C146

R145

C145

Q121

R153

Q110
3 2 1

3 2 1

C153

R108

E C B

E C B

C107

R117

1
2

R171

3

C113

4
5

C121

6
7

C127

8

IC101

C128

9

10
11
12

C133

C139

E
C
B

C131

C141

Q111

C101

R107

C102

C115

R169

R135

R157

Q126

1 2 3

R109

R110

R158

FC702

19

R137

R115

R155

3
2
1

R101
C111

R173

C123

R164

R162

E
C
B

CNP101

R121
C119

R123

R125
R131
R139
R141

R127

Q124

C117

C135

BI102

1

BK
WH

PK
BK
WH
YL
BL

7

P49 10-E

FROM

TAPE 1

PLAYBACK HEAD

CNS102

BK

1

WH

2

PK

3

WH

4

YL

5

BL

6

P49 11-E

TO

TAPE 2

RECORD/PLAYBACK

ERASE HEAD

Q852

1 2 3

D801

D802A

10

9

23456789

CNP906

POWER AMP. PWB

P45 12-D

CNP806

7

C858

C860

R854

C861

8 9 10 11 12

Q851

1 2 3

C857

R853

C855

C850

Q850

B C E

C852

C851

DZ801

R856
R852

COLOR TABLE

BROWN

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

Figure 41 WIRING SIDE OF P.W.BOARD (3/11)

– 41 –

CD-BK3200V

M

3

Y

X

3

A

SW713

DISC6

EJECT

EJECT SWITCH

PWB-B2

RD12

DISPLAY PWB-B1

SW712

B

C

D

E

F

G

DISC5

EJECT

RD11

SW724

DISC4

EJECT

RD22RD21

SW723

DISC3

EJECT

2
1

CNP704

SW722

DISC2

EJECT

RD20

SW721

DISC1

EJECT

CNP905

TO POWER AMP.

PWB

P45 8-H

TO VIDEO CD

P47 8-G

CNP9

PWB

2

CNS702

CNS905

CNS705

P47 10-G

CNP7

TO VIDEO CD

PWB

112

BI702

RD

1

BL

2

WH

3

BL

4

WH

5

BL

6

WH

7

BL

8

WH

9

1
2
3
4
5
6
7
8

GY
WH
GY
WH
GY
WH
GY
RD

1

8

RD

1

9

CNS704

WH

EQUALIZER

RD19

BI701

R712

BI705

12
11
10

9
8
7
6
5
4
3
2
1

SW720

BL

WH

BL

WH

BL

WH

BL

WH

BL

WH

BL
RD

18

C710

Q701

R707

D712

15

1

C707

R704

R705

R706

ECB

ECB

Q702

C705

IC703

5

C708

X-BASS/DEMO

12

1

D713

C714

R711

SW738

R784

D711

9

C709

C725

10

D705

3
2
1

7
6
5

4
3
2
1

C723

RD35

Q703

BCE

R708

R710

C724

RX701

CNP703

C722

D718

Q707

123

R783

R715
R713

R714

D715

D714

D703

C726

R718

R785

RD18

R716
R790

R717

D717

JOG701

R791

13579

2468

1

R709

R792

R761
R766
R762

R798

R733

R731
R732
R734

R735

R769

R793

CNP701

123 56789

D701

R779

R726

R725

R727

R728

R730

B
C

R795

R786

E

C717

R794

SW737

REC PAUSE

R780

R737

R781

R782

R729

C716

10

10
FFC701

101112 131415 16 171819202122 23242526 27 28293031

FL701

80

90

95

5

C713

R740

R746

R749
SW719

MEMORY/

SET

R739

R743

RD17

Q705

E
C
B

10

81

85

IC701

15

R750
R741

R789

R787

75

20

R747

70

253135

30

65

40

R748

LED710

60

55

45

C715

R742

SW718

VIDEO/AU

SW7

SW735

TUNING/TI

UP

C706

R719

R720
R721
R722

C712

XL701

R738

R788

Q704

R799

R723
R724

B
C
E

RD34

100

C711

Q706

R744

1

R751

PLA

51
50

R752

P49 8-A

TO TAPE MECHANISM PWB

H

1

23456

Figure 42 WIRING SIDE OF P.W.BOARD (4/11)

– 42 –

R751

3031 32333435363738394041424344 4546 4748 49 50 51525354555657 58596061 636465

51
50

R752

718

/AUX

W732

PLAY

735
G/TIME
P

C704

R753

R745

R773

R763

R754

R774

R775

R770

R760

R759

R758

SW716

TAPE

RD16

LED711

SW730

STOP

MODE

SW731

REVERSE

RD33

SW736

TUNING/TIME

DOWN

R771

R736

R776

RS725

RD29

R772

R767
R765

RD30

33

34

RS703

LED709

RD28

23

30

35

IC702

C701

R777

SW705

SW729

REVERS

PLAY

RD27

25

20

40

1

44

R703

C727

R797

DIGEST

SW717
TUNER
(BAND)

RD32

22

5

RD26

15

10

SW734

TIMER/

SLEEP

12

11

D708

SW704

RD25

D716

R701
R702

O.S.D

SW728

RS702

RD02

RD04

RD03

RD15

FAST

FORWARD

RD31

SW703

P.B.C

SW715

RD14

CD

RS701

SW702

KARAOKE

RD13

SW727

FAST

REWIND

SW733
CLOCK

C703

LED701

C702

RD01
RD05

RS710

CNP702

RS709

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

18

C721

1

RS706

1

BI703A

9

RS717

RS724

15

5

IC705

RS715

RS716

10

1

19

RS714

RS713

9

SW714

DIMMER

TO MAIN PWB

FFC702

C728

SW701

P41 10-A

CNP602

ON/

STAND-BY

CD-BK3200V

LED725

PLAY

DISC6

SW711

RD10

PLAY

DISC3

SW708

RD08

RD07

1

9

SW707

DISC2

PLAY

RD06

BI703B

RD
GY

WH

GY

WH

GY

WH

GY

WH

PLAY SWITCH

PWB-B3

COLOR TABLE

BR

BROWN

RD(R)

WH(W)

OR

YL

GR

BL
VL

GY

BK
PK

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

RD09

SW706

DISC1

PLAY

LED718

SW710

DISC5

PLAY

LED717

SW709

DISC4

PLAY

LED716

LED715

LED714

7

8 9 10 11 12

Figure 43 WIRING SIDE OF P.W.BOARD (5/11)

– 43 –

CD-BK3200V

POWER B PWB-D3

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

POWER A PWB-D2

230-240 V

110 V

K801

BR

BL

F805

T2A L 250V

K802

220 V

127 V

SW801

VOLTAGE

SELECTOR

230-240 V

220 V

127 V

110 V

T.F.

T801

POWER

TRANSFORMER

F804

T2A L 250V

Q801

BCE

C810

C809

ZD801

R801

C805

R802

ZD802

CNP901

12345

C807

R804

C806

R803

67

C811

D809
D818

C812

R827
R826

D808

D807

R829
R830

D806

D805

D804

ZD806

F802

C808

T5A L 250V

C833

F800

T4A L 250V

C832

F801

T4A L 250V

D802

F803

T5A L 250V

C804

C803

CNP902

12345

D803

Figure 44 WIRING SIDE OF P.W.BOARD (6/11)

– 44 –

CNS902

5
4
3
2
1

BK
GY
BK
GY

RD

R980

D907

C

BE

Q909

Q907

R979

5

1

D820

BI901

RY902

RY901

BI902

B
EB

C830

R808

D819

R-CH

(HI)

L902

R922

R923

C813

C814

C801

C802

Q908

R941

C

E

C

D906

R939

D904

R809

987654321

17

R945
R943
R942

C939

D905

C924

C925

R951

R936

E
C
B

R935

R-CH

(LOW)

C917

R948

R949

C936

R966

R940
R938

B
C
E

Q905

SO901

SPEAKER

TERMINAL

(LOW)

L904

R950

C916

C918

C919

R805

R819

R947

C940

C935

R967

C932

Q906

R937

CNP905

L-CH

R912

R911

R946

R921

R944

R908

R994

R993

R920

R995

R913

R914

R934

R933

L-CH

R996

R916

R932

R931

(HI)

R901

R915

R924

R925

POWER AMP. PWB-D1

E
C
B

E
C
B

R927

L903

C990

C907

R903

Q901

IC902

R977

C927

R929

LG901

C958

C903

C902

C904

C909

R909

C926

R976

C922

C991

C921

C923

C929

R970

C901

D901
D902

C920

12

CNP907

R955

C960

R906

R907
R917

R928

C911

D903

C914

R910

R926

C906

R902

R919

L905

C910
R904
R918

IC901

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

C905

C912

1

2

3

4

5

6

7

8

9

10
11
12
13
14
15

CNP904

Q902

C938

C908

Q991

321

Q990

321

BCE
ECB

C930
R972

C942

C944

C931

FW901

5

1
2

C825

1

C928

R930

R974
R975

R973
C941
C943

Q910
BCE

R971

R806

Q904
Q903

C955

C959

R828

1

R954

R957

R953

R956

R998

R997

D909

R952

C954

C961

1
2
3
4
5
6
7
8
9

CNP906

BR

2

RD

1

CNS904

BK

2

BL

1

CNS907

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL
VL
GY

WH(W)

BK

P41 7-H

CNP806

TO MAIN PWB

PK

HEADPHONES

PWB-B4

HEADPHONES

CD-BK3200V

M901

FAN MOTOR

M902

FAN MOTOR

BROWN

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

JK670

WT601

12345

7

CNS901

WHGYWHGYWH

GY

1234567

FROM DISPLAY

P42 1-F

PWB

CNS905

RD

8 9 10 11 12

Figure 45 WIRING SIDE OF P.W.BOARD (7/11)

– 45 –

CD-BK3200V

A

VIDEO CD PWB-C (TOP VIEW)

1

6

2

13

5

7

R39

CE1

C11

R38

40

35

30
25

R14

R44

C12

24

CM32

C51

L61

R35

25

40

41

15

16

30

35

45

IC1

20 25 30

C14

R4

R3

C42

C19

C26
C27

20

15

IC2

50

C34

C47

C7

C13

R15

C85

10

510

C86

22

35

42

C8

R6
R7

R10

R20

C20

1

C28

C21

5

60

C80

R51

R54

R42

80

75
70

25
30

40

R52
R55

R56
R53

R5

1

64

C18

R79
C23
R12
R13

65

20
15
10

IC3

5

C29

C45

C50

21

C6

4

8

C24

3

12

11
10

9

C64

C49

R48

C46

1

CM38

CM36

IC6

CM51

50

81
RM31

40

RM38

R134A

R135A

CM48

58

CM44

CM24

45

40

55

60
65

ICM3

70

75

85

RM32
RM33

31

35

25

20

ICM2

5

95

100

RM42

RM44

R132A

R133A

R130A

C72

95

90

CM28

RM43

R131A

RM47

35

CM27

30

15

10

1
CM33

RM41

R72
C77

25

15
10

5

R77

C76

CM45

CM21

31

100

R76

C75

R75

R97

30

20

1

C78

R78

C54

RM23

R37

R40
R45

R98

C31

ICM1

1
5

10

15

20 21

C71

C73
R73

R71

CM2

CM52

B

CM53

RM59

14

CM34

Q17

CM43

CM14

CM13

LM3

CM26

51

70

80

CM16

RM64

RM12

RM14

50

R139A

CM41

CM6 RM9

RM11

55
60
65

75

81

CM35

R138A

R137A

CM42

51

RM10

RM13

CM12
80

RM30

CM15

45

85 90

R136A

CM7

C

CM5

D

R141A

R140A

R143A

E

R142A

R145A

R144A

F

Q12

Q11

Q14

Q13

Q16

Q15

R146A

Q18
Q19
Q20

G

H

• The numbers 1 to 13 are waveform numbers shown in page 52.

1

23456

Figure 46 WIRING SIDE OF P.W.BOARD (8/11)

– 46 –

: Through-hole where the top and bottom patterns are connected.

VIDEO CD PWB-C (BOTTOM VIEW)

FROME

PICKUP UNIT

P48 2-D

CNS1A

FROME

PICKUP UNIT

P48 2-D

CNS2A

FROME

PICKUP UNIT

P48 2-C

CNS3A

R58

CNP3

CNP1

CNP2

1
2
3
4
5
6

CM37

R50

7
6
5
4
3
2
1

8
7
6
5
4
3
2
1

ZD61

FW3

1 2 3 4

R147A

C52

R151A

QM2

RM82

CAM SWITCH

CNP5

R149A

R148A

C88

C44

R94

E C B

RM36

B C E

B C E

RM35

FROM

PWB

P48 1-D

C22

R11

R67

Q4

C91

RM34

QM3

QM4

ZD1

CM39

RM4

RM84

8 7 6 5 4 3 2 1

RM83

R80

C90

RM2

C17

R8

RM3

Q3

C81

RM1

C25

RM5

R47

C53

XL2

RM6

RM7

R99

RM8

CNP9

R25

Q10

R150A

FROM

MAIN PWB

P40 5-A

R117A

C84

R113A

C82

R118A

C55

C30

CM30

CM40

21

30

31

32

CNS601

CNP8

6 5 4 3 2 1

Q9

R114A
R116A

C87

RM21

CE2

CM31

CM29

43

2829

CNP7

CM50

RM74

R112A

C83

65

RM60

CM20

RM49
CM22

CM18

CM54

RM15

CM17

DM1

87

RM58

RM27

RM16

CM19

9

RM67

RM61

CM49

CM23

CM25

ICM4

2526

27

1 2 3 4 5 6 7 8 9

RM63

RM52

CM9

121110

21222324

RM50

RM65

RM56

CM8

CM11

RM45

13

20

19

10 11 12

CM47

RM54

1514

18

RM53

RM51

RM62

RM55

CM46

16

17

FROM

MAIN PWB

P40 3-H

CNS602

CNP10

2 1

RM57

RM70

RM66

CM55

RM68

XL1

RM78

QM1

CD-BK3200V

RM73

RM71

RM75

RM72

RM69

CM1

RM77

CNP6

CNP4

1
2
3
4

1
2
3
4
5
6
7
8

RM76

FW2

FROM TRAY

SWITCH PWB

P48 1-G

CNS4

FROME

MOB1/MOB2

P48 2-A

CNS705

FROME

DISPLAY PWB

P42 1-F

7

8 9 10 11 12

CNS704

FROME

DISPLAY PWB

P42 2-D

Figure 47 WIRING SIDE OF P.W.BOARD (9/11)

– 47 –

CD-BK3200V

A

B

C

D

TO

VIDEO CD PWB

P47 8-B

CNP5

TO

VIDEO CD PWB

P47 12-F

CNP4

TO

VIDEO CD PWB

P47 7-E

CNP3

TO

VIDEO CD PWB

P47 7-C

CNP2

TO

VIDEO CD PWB

P47 7-C

CNP1

CNS3A

1
2
3
4
5
6

CNS2A

1
2
3
4
5
6
7
8

CNS1A

1
2
3
4
5
6
7

CNS4

4
3
2
1

BL
GY
GY
GY
GY
GY

RD
GY
GY
GY
GY
GY
GY
GY

RD
WH
WH
WH
WH
WH
WH

YL
OR
RD
BR

CNS3B

1
2
3
4
5
6

CNS2B

1
2
3
4
5
6
7
8

CNS1B

1
2
3
4
5
6
7

MOB2

TRAY MOTOR

MOB1

MAIN CAM MOTOR

NM2

SLED MOTOR

+

1
2
3
4
5
6

CNP3A

NSW1

PICKUP IN

NM1

SPINDLE

MOTOR

CD MOTOR PWB-G

PICKUP UNIT

+

1

4

FW3

E

SWB103

4

DETECT3

SWB102

DISC

DETECT2

SWB101

1

DISC

DETECT1

DISC

7 6 5 4 3 2 1

8 7 6 5 4 3 2 1

CAM SWITCH PWB-F

F

FW2

TO

VIDEO CD PWB

P47 12-C

G

CNP6

8

8

1

1

SWB110
TRAY2

SWB105

MODE2

SWB109
TRAY1

SWB107

MODE4

H

1

TRAY SWITCH

SWB108

SWB104

PWB-E

MODE1

SWB106

MODE3

23456

MODE5

Figure 48 WIRING SIDE OF P.W.BOARD (10/11)

– 48 –

TAPE MECHANISM
ASSEMBLY

P42 4-G

TO DISPLAY PWB

CNP701

CD-BK3200V

SW

SW

SOLENOID

FFC701

PH

COLOR TABLE

BR

BROWN

RD(R)

OR

ORANGE

YL

YELLOW

GR

GREEN

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W)

BK
PK

WHITE

BLACK

RED

PINK

1

345679

1

2

10

10

8

SW

2

1

+

-

TAPE 1

PLAYBACK HEAD

WH

PK

BK

GR

WH

BK

PK

23

1

TAPE MECHANISM PWB-H

SOLENOID

TAPE

MOTOR

RECORD/PLAYBACK/ERASE HEAD

TAPE 2

654321

SW

CNS102

CNP101

P41 11-C

TO MAIN PWB

7

8 9 10 11 12

P41 12-C

TO MAIN PWB

Figure 49 WIRING SIDE OF P.W.BOARD (11/11)

– 49 –

CD-BK3200V

ICM2

VOLTAGE

3.3 V

2.5 V

3.2 V

1.7 V

1.6 V

1.6 V

1.6 V

1.5 V

1.5 V

1.5 V

1.6 V

1.4 V

0.9 V

0.8 V

0.9 V

0.7 V

0.4 V

0.6 V

0.3 V

0.6 V

0.4 V

0.3 V

0.7 V

0.6 V

0.4 V

0.4 V

0.4 V

0.7 V

4.5 V

0.2 V

3.3 V

1.6 V

1.6 V

0.6 V

0.6 V

2.0 V

1.8 V

1.9 V

1.1 V

4.3 V

4.3 V

0.7 V

1.8 V

2.1 V

5.0 V

5.0 V

0.2 V

5.0 V

4.8 V
0 V

IC3

VOLTAGE

1.7 V

1.7 V

71.88 V

2.1 V

2.1 V

2.1 V

2.1 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V

2.1 V

2.1 V

1.7 V
5 V

3.4 V

1.7 V
0 V
0 V

4.8 V

4.8 V

1.7 V

2.1 V

2.1 V

4.8 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V

4.1 V
0 V

2.1 V

2.1 V

4.8 V

0.2 V

0.2 V

Q3

VOLTAGE

3.6 V

1.5 V

3.0 V

Q4

VOLTAGE

3.6 V

5.0 V

4.0 V

VOLTAGE

2.7 V

5.3 V

3.0 V

PIN
NO.

100

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

VOLTAGE

PIN
NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

PIN

NO

E

C

B

PIN

NO

E
C

B

PIN

NO

E
C

B

3.3 V

4.8 V

3.3 V

3.3 V

1.2 V

1.2 V

1.6 V
0 V

1.3 V

1.5 V

1.5 V

1.1 V

3.3 V

0.2 V

0.2 V

3.3 V

3.3 V

2.1 V

1.5 V

1.7 V

2.8 V

1.7 V

1.7 V

1.7 V

1.7 V

1.9 V

1.7 V

1.5 V

1.6 V
0 V

4.4 V

1.1 V

2.8 V

2.9 V

0.8 V

2.6 V

2.9 V

2.3 V

0.1 V

1.6 V

1.7 V

0.2 V
0 V
0 V

4.3 V

1.8 V

1.0 V

1.8 V

2.8 V

0.2 V

ICM1

VOLTAGE

4.4 V

0.4 V

0.3 V

1.2 V

0.9 V

4.3 V

0.8 V

1.3 V

0.3 V

1.7 V
0 V
0 V

3.2 V

2.8 V
0 V

1.7 V

1.7 V

1.6 V

1.6 V

4.4 V
0 V
0 V

1.4 V

1.3 V

1.5 V

1.6 V

0.2 V

2.8 V

2.9 V
0 V

0.6 V

0.5 V

0.7 V

0.7 V
0 V

0.6 V

0.6 V

0.5 V

0.6 V
0 V

QM2
VOLTAGE

QM3
VOLTAGE

QM4
VOLTAGE

PIN
NO.

PIN
NO.

PIN
NO

PIN
NO

PIN
NO

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

E
C
B

E
C
B

QM1

E
C
B

3.7 V

5.0 V

4.0 V

0 V

0.8 V

4.5 V

5.4 V

5.0 V

4.5 V

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

41
42
43
44
45
46
47
48
49
50

1
2
3
4
5
6
7
8
9

PIN
NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

VOLTAGE

0 V
0 V
0 V
0 V

4.3 V

3.2 V

3.3 V

1.2 V
0 V

3.3 V

4.3 V

2.2 V

4.7 V
0 V

4.3 V

4.3 V

2.3 V

3.4 V

1.7 V
0 V

0.1 V

1.6 V

4.3 V

4.3 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V

4.3 V
0 V

3.3 V

3.6 V

3.5 V

1.9 V
0 V
0 V
0 V
0 V

2.2 V
0 V

4.2 V

2.2 V

2.2 V

2.2 V
0 V
0 V

2.2 V

VOLTAGE

0.1 V
0 V
0 V

1.2 V

3.4 V

2.7 V
0 V
0 V

1.7 V
0 V

1.8 V
0 V
0 V

1.6 V

1.8 V

1.8 V

1.8 V

3.4 V
0 V

1.7 V

1.74 V

1.6 V

1.8 V

1.8 V

1.8 V

1.5 V
0 V
0 V
0 V

0.1 V

0.1 V
0 V

3.4 V

1.8 V

3.4 V

3.4 V

3.4 V

1.8 V

0.9 V
0 V

ICM3

PIN
NO

10
11
12
13
14
15

PIN
NO.

100

IC2

1
2
3
4
5
6
7
8
9

VOLTAGE

0 V

51

1.3 V

52

4.2 V

53

1.3 V

54

1.2 V

55

0 V

56

0 V

57

0 V

58
59

4.2 V

4.2 V

60

0 V

61

0 V

62

0 V

63

0.8 V

64

1.9 V

65

4.3 V

66

0 V

67

0 V

68

0.1 V

69

0 V

70

2.1 V

71

0 V

72

4.3 V

73

2.1 V

74

0 V

75

0 V

76

0 V

77

4.3 V

78

1.7 V

79

1.7 V

80

1.2 V

81

3.9 V

82

1.5 V

83

4.2 V

84

1.5 V

85

1.1 V

86

1.1 V

87

1.7 V

88

2.1 V

89

4.3 V

90

0.2 V

91

1.2 V

92

1.3 V

93

0.6 V

94

1.3 V

95

1.7 V

96

0.8 V

97

0.7 V

98

0 V

99

0 V

PIN
NO.

41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

IC901

VOLTAGE

0 V
0 V
0 V

36.8 V
–35.5 V
0 V
0 V

37.6 V
–37.7 V
0 V
0 V
–37.1 V
0 V
0 V
0 V

VOLTAGE

2.4 V
0 V
0 V

3.5 V

1.7 V
0 V
0 V

1.7 V

3.4 V

3.4 V

1.7 V

1.7 V
0 V

0.6 V

0.6 V

0.7 V

1.8 V

1.8 V

1.1 V

1.8 V

1.0 V

0.1 V
0 V
0 V
0 V

4.6 V
0 V

4.7 V

4.6 V

4.3 V

4.7 V
0 V

4.8 V
0 V

4.8 V
0 V

3.4 V
0 V

0.7 V

1.8 V

NO.

PIN

PIN
NO.

PIN

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

NO

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

25
26
27
28
29
30
31
32

VOLTAGE

VOLTAGE

4.8 V
0 V

4.9 V

4.9 V

4.9 V

4.9 V

4.9 V

4.9 V

4.9 V

4.9 V
0 V

4.9 V

0.5 V
0 V
0 V

2.4 V

2.9 V

4.8 V
0 V

5.4 V

0.7 V
0 V

4.8 V
0 V

0.7 V

5.4 V

2.3 V
0 V

3.4 V

3.0 V

5.0 V

4.4 V

12.3 V

12.3 V

12.3 V
0 V

4.9 V
0 V

4.9 V
0 V

4.9 V

4.9 V

4.9 V
0 V

0.6 V
0 V

0.6 V
0 V
0 V
0 V

IC301

VOLTAGE

0.8 V

1.5 V

3.6 V

1.5 V
0 V

3.6 V

2.8 V

3.5 V

3.6 V

ICM4
VOLTAGE

4.4 V

2.6 V

0.9 V

1.0 V

1.7 V

1.7 V

1.7 V

1.7 V

1.7 V

1.7 V

1.6 V

1.6 V

1.2 V

1.2 V

1.6 V
0 V

1.3 V

1.4 V

1.4 V

1.5 V

1.2 V

0.2 V

1.5 V

0.1 V

1.6 V

1.7 V

1.9 V

2.3 V

0.9 V

3.2 V

0.11 V

4.4 V

IC701

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

25
26
27
28
29
30

1
2
3
4
5
6
7
8
9

PIN
NO

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

PIN
NO

1
2
3

PIN

NO

1
2
3

IC1

VOLTAGE

1.7 V

1.7 V

1.7 V

1.7 V

1.7 V

1.7 V
0 V

2.8 V
0 V
0 V
0 V

3.4 V

1.4 V

1.7 V

1.7 V
0 V
0 V

1.7 V

1.7 V

1.7 V

1.7 V

1.7 V
0 V

1.1 V
0 V
0 V

0.5 V

1.7 V

1.7 V
0 V

VOLTAGE

4.6 V

4.3 V
0 V
0 V
0 V

4.3 V

4.8 V
0 V
0 V

4.3 V

4.3 V
0 V
0 V

4.9 V
0 V

2.5 V
0 V

4.8 V

4.8 V
–15.7 V
–16.0 V
–20.2 V
–16.4 V
–16.1 V
–16.4 V
–16.3 V
–21.3 V
–21.0 V

4.8 V
–28.4 V
–21.8 V
–20.6 V
–15.6 V
–20.5 V
–23.1 V
–22.6 V
–22.9 V
–22.8 V
–18.8 V
–23.4 V
–23.5 V
–14.4 V
–19.9 V
–19.6 V
–20.7 V
–18.9 V
–18.9 V
–19.0 V
–21.2 V
–20.8 V

Q850

VOLTAGE

12.2 V

21.0V

12.9 V

Q851

VOLTAGE

21.0 V
0 V

10.0 V

PIN

NO

10
11
12
13
14
15
16
17
18
19
20
21
22

1
2
3
4
5
6
7
8
9

PIN
NO

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17

18
19
20
21
22

PIN
NO

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17

PIN
NO

1

2

3

4

5

6

7

8

PIN
NO

1

2

3

IC302
VOLTAGE

2.4 V
0 V
0 V
0 V

2.9 V

4.8 V

0.1 V

4.2 V

3.3 V
0 V

5.1 V

2.2 V
5 V
0 V
0 V

2.3 V
5 V

0.6 V

0.8 V
2 V
0 V

2.5 V

VOLTAGE

0 V
0 V
0 V
0 V

1.9 V
0 V

3.0 V

3.5 V

2.5 V
0 V

0 V
0 V

4.9 V
–27.9V
–14.9V
–24.6 V
–24.6 V
–26.9 V
–14.9 V
–18.1 V
–18.1 V
–18.2 V

IC703

VOLTAGE

2.5 V

1.5 V

2.5 V
N.C.
N.C.
N.C.

2.5 V

2.5 V

4.9 V

0.4 V

0.9 V

0.4 V

4.9 V
N.C.
N.C.
0 V
0 V
0 V

IC903

VOLTAGE
0 V

0 V
0 V
–13.0 V

13.2 V
0 V
0 V
0 V

Q852

VOLTAGE

10 V

0.7 V

5.6 V

IC702

PIN

PIN

PIN

NO
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

NO

10
11
12
13
14
15
16
17
1818

NO

10
11
12
13
14
15

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

VOLTAGE

–27.9 V
–14.9 V
–14.9 V
–27.9 V
–24.6 V
–27.9 V
–11.8 V
–28.4 V
–28.1 V
–28.1 V
–28.1 V
–28.1 V
–25.4 V
–25.4 V
–25.4 V
–25.4 V
–25.4 V
–25.4 V
–25.4 V
–25.4 V

4.9 V
0 V

IC705

VOLTAGE
9 V

9 V

3.5 V

3.5 V
9 V

0.5 V

0.5 V
1 V
5 V
0 V
9 V
4 V
4 V
9 V
4 V

2.5 V
9 V
9 V

IC902

VOLTAGE
0 V

0 V
0 V

31.1 V
–29.7 V
0 V
0 V

32.1 V
–32.3 V
0 V
0 V
–31.2 V
0 V
0 V
0 V

PIN
NO

PIN
NO

PIN

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

NO

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

IC101

VOLTAGE
0 V

0 V

0.5 V

1.9 V
0 V
0 V
0 V

0.6 V

3.3 V

3.3 V
0 V

0 V

6.7 V

4.0 V
0 V

3.3 V

0.6 V
0 V

0 V
0 V

1.9 V

0.5 V
0 V

0 V

IC303

VOLTAGE

2.1 V

4.5 V

2.1 V

2.1 V
0 V

4.6 V

4.6 V

2.4 V

4.5 V

3.9 V

3.3 V

3.3 V

3.5 V

1.2 V

1.2 V

2.0 V

2.7 V

2.1 V
0 V

0.3 V

2.6 V

2.6 V

4.5 V

3.0 V

IC601

VOLTAGE

3.0 V
0 V
0 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
10 V

3.4 V

– 50 –

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

REF. NO DESCRIPTION POSITION

NSW1 PICKUP IN ON—OFF
SW601 SPAN SELECTOR 9/50 Hz—

10/100 Hz
SW701 ON/STAND-BY ON—OFF
SW702 KARAOKE ON—OFF
SW703 P.B.C. ON—OFF
SW704 O.S.D. ON—OFF
SW705 DIGEST ON—OFF
SW706 DISC 1 PLAY ON—OFF
SW707 DISC 2 PLAY ON—OFF
SW708 DISC 3 PLAY ON—OFF
SW709 DISC 4 PLAY ON—OFF
SW710 DISC 5 PLAY ON—OFF
SW711 DISC 6 PLAY ON—OFF
SW712 DISC 5 EJECT ON—OFF
SW713 DISC 6 EJECT ON—OFF
SW714 DIMMER ON—OFF
SW715 CD ON—OFF
SW716 TAPE ON—OFF
SW717 TUNER(BAND) ON—OFF
SW718 VIDEO/AUX ON—OFF
SW719 MEMORY/SET ON—OFF
SW720 EQUALIZER ON—OFF
SW721 DISC 1 EJECT ON—OFF
SW722 DISC 2 EJECT ON—OFF

CD-BK3200V

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

indicates AM
indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

DESCRIPTION

SW723 DISC 3 EJECT ON—OFF
SW724 DISC 4 EJECT ON—OFF
SW727 FAST REWIND ON—OFF
SW728 FAST FORWARD ON—OFF
SW729 REVERES PLAY ON—OFF
SW730 STOP ON—OFF
SW731 REVERSE MODE ON—OFF
SW732 PLAY ON—OFF
SW733 CLOCK ON—OFF
SW734 TIMER/SLEEP ON—OFF
SW735 TUNING/TIME UP ON—OFF
SW736 TUNING/TIME DOWN ON—OFF
SW737 REC/PAUSE ON—OFF
SW738 X-BASS/DEMO ON—OFF
SW801 VOLTAGE SELECTOR 230-240 V
SWB101 DISC DETECT 1 ON—OFF
SWB102 DISC DETECT 2 ON—OFF
SWB103 DISC DETECT 3 ON—OFF
SWB104 MODE 1 ON—OFF
SWB105 MODE 2 ON—OFF
SWB106 MODE 3 ON—OFF
SWB107 MODE 4 ON—OFF
SWB108 MODE 5 ON—OFF
SWB109 TRAY 1 ON—OFF
SWB110 TRAY 2 ON—OFF

POSITIONREF. NO

FRONT

VIEW

E C B
(S) (G) (D)
(1) (2) (3)

2SA1015 GR
2SC1845 F
KTA1266 GR
KTA1273 Y
KTA1274 Y
KTC3199 GR
KTC3194 Y

KTC3203 Y
KRA107 M
KRC102 M
KRC104 M
KRC104 S
KRC107 M
KRC107 S

TYPES OF TRANSISTOR AND LED

3

FRONT

VIEW

BCE

KTA1046 Y
KTC2026

– 51 –

TOP
VIEW

2

1

KTA1504 GR
KTC3265 Y
KTC3875 GR

FRONT
VIEW

4204SRT121
4204UYT121
SLR325MC

CD-BK3200V

5

4

3

1

1

2

1

3

4

IC2 24

IC2 23

IC2 24

IC2 72

IC1 18 ,
IC2 16

IC1 27

IC1 18 ,
IC2 16

IC2 72

IC2 24

Stopped

CH1=500 mV

DC 10:1

T

FDO

1

TDO

3

Smoothing : ON CH1 : 0.000 V
BW : FULL

1

T

2

3

Smoothing : ON CH1 : 0.000 V
BW : FULL

2

T
1

Smoothing : ON CH1 : 0.0 V
BW : FULL

T

2

CH2 : 0.0 V
CH3 : 0.000 V
CH4 : 0.00 V

Stopped

CH1=500 mV

CH2=10 V

DC 10:1

DC 10:1

FDO

DRF

TE

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2 : 0.0 V
CH3 : 0.00 V
CH4 : 0.00 V

Stopped

CH1=10 V

DC 10:1

TE

DRF

=Filter= =Offset=

CH2 : 0.00 V
CH3 : 0.00 V
CH4 : 0.00 V

Stopped

CH1=200 mV

DC 10:1

FDO

T

CH2=1 V

DC 10:1

T

CH2=500 mV

DC 10:1

CH3=500 mV

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 K

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 K

=Record Length=

Main : 100 K
Zoom : 2 K

WAVEFORMS OF CD CIRCUITWAVEFORMS OF CD CIRCUIT

500 ms/div

(500 ms/div)

NORM:20 kS/s

IC2 1

7

IC2 2

8

IC2 24

10

11

12

1

9

1

4

13

IC2 37

IC2 57

IC2 58

IC2 59

IC2 24

IC1 18 ,
IC2 16

IC1 13 ,
IC2 22

Smoothing : ON CH1 : 0.000 V
BW : FULL

T

1

Smoothing : ON CH1 : 0.00 V
BW : FULL

Smoothing : ON CH1 : 0.00 V
BW : FULL

T

Smoothing : ON CH1 : 0.000 V
BW : FULL

CH1
v/DIV
500 mV

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs

500 ms/div

(500 m s/div)

NORM:20 kS/s

CH2
Position

0.20 div

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Trigger=

Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs

1999/04/07 09:51:15

500 ms/div

(500 ms/div)

NORM:20 kS/s

Stopped

CH1=500 mV

DC 10:1

PDO1

3

4

PDO2

T

FDO

1

CH2 : 0.0 V
CH3 : 0.00 V
CH4 : 0.00 V

T

Stopped

CH1=2 V

DC 10:1

DOUT

=Filter= =Offset=

CH2 : 0.00 V
CH3 : 0.00 V
CH4 : 0.00 V

T

Stopped

CH1=2 V

DC 10:1

1

LRSY

2

DATACK

T

3

DATA

T

Stopped

CH1=500 mV

DC 10:1

FDO

1

TE

3

EFBL

2

CH2 : 0.000 V
CH3 : 0.00 V
CH4 : 0.00 V

CH2=2 V

DC 10:1

CH2 : 0.00 V
CH3 : 0.00 V
CH4 : 0.00 V

CH2=200 mV

DC 10:1

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 K

=Record Length=

Main : 1 K
Zoom : 100

CH3=2 V

DC 10:1

=Record Length=

Main : 5 K
Zoom : 100

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 k

1999/04/05 17:33:17

CH4=1 V

500 ms/div

(500 ms/div)

DC 10:1

NORM:20 kS/s

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs

1999/04/07 09:25:28

500 ns/div

(500 ns/div)

NORM:200 MS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs

1999/04/05 20:50:17

(5 µs/div)

NORM:100 kS/s

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH3
Delay : 0.0 ns
Hold off : 0.2 µs

1999/04/05 20:26:47

500 ms/div

(500ms/div)

NORM:20 kS/s

=Trigger==Filter= =Offset=

Mode : SINGLE
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs

5 µs/div

CH1
v/DIV
500 mV

CH3
v/DIV
2 V

CH2
v/DIV
200 mV

SPDO

IC2 25

6

1

=Filter= =Offset=
Smoothing : ON CH1 : 0.000 V
BW : FULL

CH2 : 0.000 V
CH3 : 0.00 V
CH4 : 0.00 V

=Record Length=

Main : 100 K
Zoom : 2 K

=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs

– 52 –

CD-BK3200V

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to turn, press the stop button.

1.

2.

3.

The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rinse with clean water and seek medical
advice.
The CD cleaner disc must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.

TROUBLESHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so
as not to damage it. Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a
cleaning disc designed for CD optical pickup lenses.

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC2 (LC78645NE), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal
(pin 71 on IC2).
(2) Does the pickup move to the PICKUP-IN Switch (NSW1) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-H F system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others

– 53 –

CD-BK3200V

(1) Focus-HF system check.

Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.

Press the Disc 1~6 Eject switch (SW712, SW713,
SW721~SW724) without inserting a disc, and try starting the
playback operation.

1. Does the pickup move to the PICKUP-IN Switch (NSW1)
position ?

Yes

No

Stopped

CH1=500 mV

DC 10:1

T

FDO

1

TDO

3

Smoothing : ON CH1 : 0.000 V
BW : FULL

Sled motor (NM2).

CH2 : 0.0 V
CH3 : 0.000 V
CH4 : 0.00 V

Figure 54-1

CH3=500 mV

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 K

500 ms/div

(500 ms/div)

NORM: 20 kS/s

CH1
v/DIV
500 mV

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs

2. Does the focus (lens) move up and down ?
(Waveform drawing Figure 54-1.)

Yes

3. Is the laser lit ?
Yes

4. Is the turntable rotating ?

When a disc is loaded, start playback operation.

1. Is focus servo activated ?

(Waveform drawing Figure

Yes

No

2. Does DRF change from "L" to "H" ?
Yes

3. Is the HF waveform normal ?

(Waveform drawing Figure 54-3.)

Stopped

1

CH1=500 mV

DC 10:1

FDO

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

54

-2.)

Is the disc rotating ?

500 ms/div

(500 ms/div)

NORM: 20 kS/s

No

No

No

No

No

Check the focus peripheral circuit.

Check the laser diode driver Q1 peripheral circuit.

Spindle motor (NM1).

Pins 1~8 on IC1
Check the laser diode driver Q1 peripheral circuit.

No

Check the spin system.

If the disc is spinning and a HF waveform is generated,
DRF will go H.

If the level is not normal.

T

DRF

2

TE

3

-3 div -1 div 0 div +1 div +3 div

Smoothing : ON CH1 : 0.000 V
BW : FULL

CH Position To

CH2 : 0.0 V
CH3 : 0.00 V
CH4 : 0.00 V

=Record Length=

Main : 100 K
Zoom : 2 K

Figure 54-2

CH2
Position

0.20 div

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs

– 54 –

Figure 54-3

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

(2) Tracking system check.

Check the TE waveform at pin 15 on IC1.

CD-BK3200V

If the waveform shown in Figure 55-1 appears and soon after
NO DISC appears ?

No

"Initialization" is possible, but play is not possible ?

No

"Initialization" is not possible.

Yes

Yes

The tracking servo is not activated.
Check the peripheral circuits at pins 14, 15 and 20 on IC1, and
CNS1A/B.

A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 20 on IC1.

Data cannot be read. Check the VCO-PLL system.

Stopped

CH1=10 V

DC 10:1

TE

2

DRF

T
1

=Filter= =Offset=
Smoothing : ON CH1 : 0.0 V
BW : FULL

T

CH2=1 V

DC 10:1

CH2 : 0.00 V
CH3 : 0.00 V
CH4 : 0.00 V

=Record Length=

Main : 100 K
Zoom : 2 K

100 ms/div

(100 ms/div)

NORM: 100 kS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs

Figure 55-1

(3) Spin system check.

Press the Disc 1~6 switch without inserting a disc, and then
try starting the play operation.

1. The turntable rotates a little ?
(Waveform drawing Figure 55-2.)

No

2. The turntable doesn't rotate.

Yes

The spin driver circuit is OK.

Check around pin 22 on IC1, pins 26 and 27 on IC2, and CNS3A/B.

T

CH2=500 mV

DC 10:1

1999/04/07 09:51:15

500 ms/div

(500 ms/div)

NORM: 20 kS/s

T

2

1

Stopped

CH1=200 mV

FDO

SPDO

DC 10:1

– 55 –

Smoothing : ON CH1 : 0.000 V
BW : FULL

CH2 : 0.000 V
CH3 : 0.00 V
CH4 : 0.00 V

Figure 55-2

=Record Length=

Main : 100 K
Zoom : 2 K

=Trigger==Filter= =Offset=
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs

CD-BK3200V

(4) PLL system check.

When a disc is loaded, start play operation.

The HF waveform is normal, but the TOC data cannot be
read.

Check the PDO waveform (Figure 56-1).

Check around pins 73~78 on IC1.

(5) Others.

The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound
has dropouts.

Is pin 35 (C2F) on IC2 "L" ?

Yes

No

Stopped

CH1=500 mV

DC 10:1

PDO1

3

4

PDO2

T

FDO

1

Smoothing : ON CH1 : 0.000 V
BW : FULL

CH2 : 0.0 V
CH3 : 0.00 V
CH4 : 0.00 V

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K
Zoom : 2 K

1999/04/05 17:33:17

CH4=1 V

500 ms/div

(500 ms/div)

DC 10:1

NORM: 20 kS/s

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs

CH1
v/DIV
500 mV

Figure 56-1

There are too many error flags on a damaged disc which
makes error correction impossible.

1. When playing at normal speed
Check the peripheral circuit at pin 39 (DOUT) on IC1 and
the waveform (Figure 56-2).

If OK, Check the unit.

Check again using a known good disc.

Stopped

T

1

Smoothing : ON CH1 : 0.00 V
BW : FULL

T

CH1=2 V

DC 10:1

DOUT

=Filter= =Offset=

CH2 : 0.00 V
CH3 : 0.00 V
CH4 : 0.00 V

=Record Length=

Main : 1 K
Zoom : 100

Figure 56-2

1999/04/07 09:25:28

500 ns/div

(500 ns/div)

NORM: 200 MS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs

– 56 –

FUNCTION T ABLE OF IC

IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)

CD-BK3200V

1 30FIN1 VCC

REF

2

FIN2

REF

3TIN3

REF

4

TIN4

REF

5REF1

REF

6VREF

TES1

7LDS
8LDD

9VEE
10LDOF
11ODRV
12AGON
13EFBL
14TES0
15

APC

ODRV
AGCON

LPF

LA9235M

REF
REF

ODRV

REF

AGCON

PH

BH

PH/BH

REF

LPF

REF

LPF

REF
REF

REF

ODRV

REF

REF

29

RFSW

28 RF-

27

RF
26 N/C
25 PH
24 BH
23 N/C

22 RFEV

21 FE­20 FE

19 TE­18 TE
17 HFL

16

TEST

IC2 VHiLC78636E-1: Servo/Signal Control (LC78636E)

EFMO

DEFECT

FSEQ

V/P

CONT7

CONT6

VSS

VDD

DRF

807978777675747372717069686766

PD01

1

PD02

2

VVSS

VVDD

FR

HFL

SLCO

EFMIN

JITTV

JITTC

BH

FE
TE

VREF

TBLO

TDO
FDO

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

25

26

LC78636E

27FG28

29

313233

PCKIST

SLCIST

PH(RFENV)

ADAVDD

ADAVSS

PHREF
BHREF

RES

WRQ

INTDODICLCE

34

35

36

65

SBCK

64

PW

63

SBSY

62

SFSY

61

16M

60

DATA

59

DATACK

58

LRSY

57

ASDFIN

56

ASDACK

55

ASLRCK

54

XVSS

53

XOUT

52

XIN

51

XVDD

50

RVDD

49

RCHO

48

RVSS

47

LVSS

46

LCHO

45

LVDD

44

MUTER

43

MUTEL

42

EMPH

41

37

38

39

40

SLDO

SPDO

LASER

CONT130CONT2

Figure 57-1

– 57 –

CONT3

CONT4

PCK

CONT5

C2F

VDD

FSX

DOUT

TEST

EFLG

CD-BK3200V

IC3 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)

Pin No.

1 IN2- CH2 inverted input.
2 IN1A- CH1 inverted input.
3* IN1B- CH1 output offset control.
4 OUT1- CH1 inverted output.
5 OUT1+ CH1 non-inverted output.
6 OUT2- CH2 inverted output.
7 OUT2+ CH2 non-inverted output.
8-14 GND GND
15 OUT3+ CH3 non-inverted output.
16 OUT3- CH3 inverted output.
17 IN3- CH3 inverted input.
18 VCC1 Power supply 1 (CH1, CH2, CH3)
19 STANDBY STANDBY signal input.
20 VRFE CH1-CH4 Reference voltage input.
21 MUTE Mute signal input (CH6).
22 IN5- CH5 inverted input.
23 IN5+ CH5 non-inverted input.
24 VCC2 Power supply 2 (CH4).
25 IN4- CH4 inverted input.
26 OUT4- CH4 inverted output.
27 OUT4+ CH4 non-inverted output.
28 VCC3 Power supply 3 (CH5).
29-35 GND GND
36* OUT5+ CH5 non-inverted output.
37* OUT5- CH5 inverted output.
38 OUT6+ CH6 non-inverted output.
39 OUT6- CH6 inverted output.
40 VCC4 Power supply 4 (CH6).
41 IN6- CH6 inverted input.
42 IN6+ CH6 non-inverted input.

Terminal

Name

Function

IN2–
IN1A–
IN1B–

OUT1–
OUT1+
OUT2–
OUT2+

GND

OUT3+
OUT3–

IN3–

VCC1

STANDBY

VTEF

MUTE

1
2
3

4
5

6
7

10
11
12
13

14
15
16
17
18
19
20
21

Figure 58 BLOCK DIAGRAM OF IC

IN6+

42
41

IN6–
VCC4

40

OUT6–

39

OUT6+

38

OUT5–

37
36

OUT5+

8
9

M63001FP

35
34
33
32
31
30
29

28
27
26
25
24
23
22

GND

VCC3
OUT4+
OUT4–
IN4–
VCC2
IN5+
IN5–

In this unit, the terminal with asterisk mark (*) is (open) terminal
which is not connected to the outside.

ICM4 RH-iX0408AW00: EEPROM (IX0408AW)

Port NamePin No.

1 VPP PROGRAM POWER SUPPLY.
2,3 A16,15 ADDRESS INPUTS.
4 A12 ADDRESS INPUTS.
5-12 A7-0 ADDRESS INPUTS.
13-15 I/O0-2 DATA INPULS/OUTPUTS.
16 GND GROUND.
17-21 I/O3-7 DATA INPULS/OUTPUTS.
22 CE CHIP ENABLE.
23 A10 ADDRESS INPUTS.
24 OE OUTPUT ENABLE.
25 A11 ADDRESS INPUTS.
26,27 A9,8 ADDRESS INPUTS.
28,29 A13,14 ADDRESS INPUTS.
30 A17 ADDRESS INPUTS.
31 PGM PROGRAM STROBE.
32 VCC POWER SUPPLY.

Function

– 58 –

ICM2 VHiES3880F/-1: Video CD Decoder (ES3880F)

CD-BK3200V

Port Name Terminal NamePin No. Input/Output

1 VDD VDD Input VOLTAGE SUPPLY FOR 3.3 V.
2 RAS# RAS# Output DRAM ROM ADDRESS STROBE.
3 DWE# DWE# Output DRAM WRITE ENABLE.
4-12 MA0-8 MA0-8 Output DRAM MULTIPLEXED ROW AND COLUMN ADDRESS BUS.
13-28 DBUS0-15 DBUS0-15 Input/Output DRAM DATA BUS.
29 RESET# RESET# Input SYSTEM RESET.
30 GND GND — GROUND.
31 VDD VDD Input VOLTAGE SUPPLY FOR 3.3 V.
32-39 YUV0-8 YUV0-8 Output TRANSFER LUMINANCE AND CHROMINANCE PIXEL.
40 VSYNC VSYNC Input/Output VERTICAL SYNC FOR SCREEN VIDEO INTERFACE.
41 HSYNC HSYNC Input/Output HORIZONTAL SYNC FOR SCREEN VIDEO INTERFACE.
42* CPUCLK N.C. Input RISC AND SYSTEM CLOCK INPUT.
43 PCLA2X PCLA2X Input/Output PIXEL CLOCK.
44 PCLA PCLA Input/Output PIXEL CLOCK GUALIFIER.
45 AUX0 DSA ACK Input/Output DSA ACKNOWLEDGE.
46 AUX1 DSA DATA Input/Output DSA DATA.
47 AUX2 HSS_STB Input/Output HSS STROBE.
48 AUX3 DSA STB Input/Output DSA STROBE.
49 AUX4 HSS_DI Input/Output HSS DATA INPUT.
50 GND GND — GROUND.
51 VDD VDD Input VOLTAGE SUPPLY FOR 3.3 V.
52 AUX6 HSS_ACK Input/Output HSS ACKNOWLEDGE.
53 AUX5 DSC_S Input/Output DSC_S
54 AUX7 HSS_DO Input/Output HSS DATA OUTPUT.
55-62 LD0-7 LD0-7 Input/Output RISC INTERFACE DATA BUS.
63* LWR# N.C. Output RISC INTERFACE WRITE ENABLE.
64 LOE# LOE# Output RISC INTERFACE OUTPUT ENABLE.
65 LROMCE# LROMCE# Output RISC INTERFACE CHIP SELECT.
66 LCSI# LCSI# Output RISC INTERFACE CHIP SELECT.
67* LCSO# N.C. Output RISC INTERFACE CHIP SELECT.
68-79 LA0-11 LA0-11 Output RISC INTERFACE ADDRESS BUS.
80 GND GND — GROUND.
81 VCC VCC Input DIGITAL SUPPLY VOLTAGE FOR 5 V.
82-87 LA12-17 LA12-17 Output RISC INTERFACE ADDRESS BUS.
88 ACLK 16 MHz Input 16 MHz.
89
90 ATCLK AUBCK Output AUDIO BIT CLOCK.
91
92 DOE# DOE# Output DAM OUTPUT ENABLE.
93 AJN AJN Input AUDIO I/F SERIAL DATA INPUT.
94 ARCLK ARCLK Input AUDIO RECEIVE BIT CLOCK.
95 ARFS ARFS Input AUDIO I/F RECEIVE FRAME SYNC.
96 TDMCLK BCLK Input BIT CLOCK.
97 TDMDR DATAD Input TDM INTERFACE SERIAL DATA RECEIVE.
98 TDMFS LRCK Input TDM INTERFACL FRAME SYNC.
99 CAS# CAS# Output DRAM COLUMN ADDRESS STROBE BANK 0.
100 GND GND — GROUND.

AOUT/SEL_PLL0

ATFG/SEL_PLL1

AUDO Output AUDIO OUT CLOCK.

AULRCK Output AUDIO LR CLOCK.

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 59 –

CD-BK3200V

ICM3 VHiES3889F/-1: VCD Companion (ES3889F) (1/2)

Port Name Terminal NamePin No. Input/Output

1 GND GND — GROUND.
2*-4* N.C. N.C. — NOT USED.
5 VDD VDD Input VOLTAGE SUPPLY 5 V.
6 DSC_C DSC_C Input CLOCK FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
7* AUX00 N.C. — NOT USED.
8 DSC_DO LDO Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
9* AUX01 N.C. — NOT USED.
10 DSC_S DSC_S Input STROBE FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
11 AUX02 AUX02 Output JOINT TO MUTE.
12*
13 RESET# RESET# Input VIDEO RESET.
14* AUX07 MIC SW Input MIC SWITCH.
15 MUTE MUTE Output AUDIO MUTE
16 VDD VDD Input VOLTAGE SUPPLY 5 V.
17 MCLK MCLK Input AUDIO MASTER CLOCK. (11.28 MHz)
18* AUX08 XIN Input/Output TO CD DSP OSC IN.
19
20* AUX09 N.C. — NOT USED.
21 TSD TSD Input TRANSMIT AUDIO DATA INPUT.
22 TBCK TBCK Input TRANSMIT AUDIO BIT CLOCK.
23
24 RST_OUT RST_OUT Output RESET OUTPUT.
25 GND GND — GROUND.
26 VDD GND — GROUND.
27*,28* N.C. N.C. — NOT USED.
29* N.C. N.C. Input NOT USED.
30* N.C. N.C. — NOT USED.
31 GND GND — GROUND.
32 VDD VDD Input VOLTAGE SUPPLY 5 V.
33
34*-36* AUX10-12 N.C. — NOT USED.
37
38 AUX13 PGM Output JOINT TO EPROM.
39*,40* AUX14.15 N.C. — NOT USED.
41 AGND AGND — AUDIO ANALOG GROUND.
42 VREFM VREFM Input DAC AND ADC MINIMUM REFERENCE.
43 VREFP VREFP Input DAC AND ADC MAXIMUM REFERENCE.
44 AVDD AVDD Input ANALOG VDD 5 V.
45 AOR+ AOR+ Output RIGHT CHANNEL OUTPUT.
46 AOR- AOR- Output RIGHT CHANNEL OUTPUT.
47 AOL- AOL- Output LEFT CHANNEL OUTPUT.
48 AOL+ AOL+ Output LEFT CHANNEL OUTPUT.
49* MIC1 N.C. — OPEN
50* MIC2 MIC2 Input MIC INPUT 2.
51 AGND AGND — AUDIO ANALOG GROUND.
52 VREF VREF Input VOLTAGE REFERENCE.
53 VCM VCM Input ADC COMMON MODE REFERENCE BUFFER OUTPUT.
54 RSET RSET Input FULL SCALE DAC CURRENT ADJUSTMENT.
55 COMP COMP Input COMPENSATION PIN.
56,57 VGND VGND — VIDEO ANALOG GROUND.
58 CDAC CDAC Output MODULATED CHROMINANCE OUTPUT.

DCLK/EXTCLK

TWS/SPLL OUT

RWS/SEL_PLL1

RSD/SEL_PLL0

RSCK/SER_IN

N.C. — NOT USED.

TWS Input TRANSMIT AUDIO FRAME SYNC.

RWS Output RECEIVE AUDIO FRAME SYNC.

RSD Output RECEIVE AUDIO DATA INPUT.

RSCK Output RECEIVE AUDIO BIT CLOCK.

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 60 –

ICM3 VHiES3889F/-1: VCD Companion (ES3889F) (2/2)

CD-BK3200V

Port Name Terminal NamePin No. Input/Output

59,60 VVDD VVDD Input VIDEO VDD 5 V.
61 YDAC YDAC Output Y LUMINANCE DATA BUS FOR SCREEN VIDEO OUTPUT.
62,63 VGND VGND — VIDEO ANALOG GROUND.
64 VDAC VDAC Output COMPOSITE VIDEO OUTPUT.
65 PLLCAP PLLCAP Input AUDIO CAP.
66 VDD VDD Input VOLTAGE SUPPLY 5 V.
67* AUX06 N.C. Input NOT USED.
68* AUX05 N.C. Output NOT USED.
69 AUX04 PAL/NTSC Input PAL/NTSC
70* AUX03 N.C. Output NOT USED.
71 XOUT XOUT Output CRYSTAL OUTPUT.
72 GND GND — GROUND.
73 VDD VDD Input VOLTAGE SUPPLY 5 V.
74 XIN XIN Input 27 MHz CRYSTAL INPUT.
75 GND GND — GROUND.
76* N.C. N.C. — NOT USED.
77 GND GND — GROUND.
78 VDD VDD Input VOLTAGE SUPPLY 5 V.
79 PCK PCK Input/Output 13.5 MHz PIXEL CLOCK.
80 PCK2 PCK2 Input/Output 27 MHz PIXEL CLOCK.
81 DSC_D7 LD7 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
82 HSYNC HSYNC Output HORIZONTAL SYNC.
83 DSC_D6 LD6 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
84 VSYNC VSYNC Output VERTICAL SYNC.
85 DSC_D5 LD5 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
86-89 YUV7 YUV7 Input YUV DATA BUS FOR SCREEN VIDEO PORT.
90 VDD VDD Input VOLTAGE SUPPLY 5 V.
91 GND GND — GROUND
92 YUV3 YUV3 Input YUV DATA BUS FOR SCREEN VIDEO PORT.
93 DSC_D4 LD4 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
94 YUV2 YUV2 Input YUV DATA BUS FOR SCREEN VIDEO PORT.
95 DSC_D3 LD3 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
96 YUV1 YUV1 Input YUV DATA BUS FOR SCREEN VIDEO PORT.
97 DSC_D2 LD2 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
98 YUV0 YUV0 Input YUV DATA BUS FOR SCREEN VIDEO PORT.
99 DSC_D1 LD1 Input/Output DATA FOR PROGRAMMING TO ACCESS INTERNAL REGISTER.
100 GND GND — GROUND.

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 61 –

CD-BK3200V

ICM1 VHi1625635T-1: DRAM (1625635T)

Port NamePin No.

1 VCC POWER SUPPLY.
2-10 I/O0-I/O7 DATA INPUT/OUTPUT.
11*,12* N.C. NOT USED.
13 WE READ/WRITE ENABLE.
14 RAS ROW ADDRESS STROBE.
15* N.C. NOT USED.
16-19 A0-A3 ADDRESS INPUT. (ROW/REFRESH: A0 TO A3) (COLUMN: A0 TO A3)
20 VCC POWER SUPPLY.
21 VSS GROUND.
22-26 A4-A8 ADDRESS INPUT. (ROW/REFRESH: A4 TO A8) (COLUMN: A4 TO A8)
27 OE OUTPUT ENABLE.
28,29 UCAS,LCAS COLUMN ADDROSS STROBE.
30* N.C. NOT USED.
31-34 I/O8-11 DATA INPUT/OUTPUT.
35 VSS GROUND.
36-39 I/O12-15 DATA INPUT/OUTPUT.
40 VSS GROUND.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

RAS

LCAS

14
29

Clock generating

Function

circuit

UCAS

28

Lower data

Lowar

Input buffer

Upper

13

WE

1

20
40

35
21

2
3

VCC

VSS

I/O0

I/O1

A0
A1

A2

A3
A4

A5
A6

A7
A8

16
17
18
19

22
23

24
25
26

A0-A8

Coidmn decoder

I/O control circuit

Memory cell array

A0-A8

Roe decoder

Row and column address buffer

Figure 62 BLOCK DIAGRAM OF IC

Lower data

Output buffer

Upper data
Input buffer

Upper data

Output buffer

10

31
32

39

27

I/O7

I/O8
I/O9

I/O15

OE

– 62 –

IC701 RH-iX0413AWZZ: System Microcomputer (IX0413AW) (1/2)

CD-BK3200V

Pin No.

1 AVDD AVDD Input ANALOG VDD.
2 ANI0 SPEANA AOUT Input SPEANA INPUT.
3 ANI1 CAM A SW A Input CD CAM A SW A CONTROL.

4 ANI2 CAM A SW C Input CD CAM A SW C CONTROL.

5 ANI3 CAM A SW E Input CD CAM A SW E CONTROL.

6 ANI4 CAM B SW B Input CD CAM B SW B CONTROL.

7 ANI5 TRAY SW B Input CD TRAY SW B.

8 ANI6 KEY 0 Input KEY INPUT.
9 ANI7 KEY 1 Input KEY INPUT.
10 ANI8 KEY 2 Input KEY INPUT.
11 ANI9 T1RUN Input TAPE 1 RUN PULSE INPUT.
12 ANI10 T2RUN Input TAPE 2 RUN PULSE INPUT.
13 ANI11 TUN_SM Input TUNER SIGNAL METER.

14 AVSS AVSS — ANALOG GND.
15 VSS1 VSS1 — GND
16 X1 X1 Input MAIN CLOCK.
17 X2 X2 Output MAIN CLOCK.
18 VDD1 VDD1 Input (+) POWER SUPPLY.
19 IC(VPP) IC(VPP) — OPEN.
20 T100 REMOCON Input REMOTE CONTROL INPUT.
21 P25 CD DO/DVD BUS0/SO Input CD DSP CODE O OUT.
22 P26 CD DI/DVD BUS1/SI Output CD DSP COMMAND.
23 P27 CD CLK/DVD BUS2/SCK Output CD DSP CLOCK.
24 P67 CD CE/DVD BUS3 Output CD DSP CE.
25 P66 WRQ/DVD BUS4 Input CD DSP WRITE REQUEST.
26 INTP1 SP DET Input CD RF LEVEL DETECTION.
27 INTP0 P_IN Input SYSTEM STOP INPUT.
28 P63 CE_O Output CE OUTPUT.
29 P62 CLK Output CLOCK OUTPUT.
30 P61 DI Output DATA OUTPUT.
31 P60 DO Input DATA INPUT.
32 P57 TIMER LED Output TIMER LED CONTROL.
33 P56 T_SOL_A Output TAPE 1 SOLENOID CONTROL.
34 P55 T_SOL_B Output TAPE 2 SOLENOID CONTROL.
35 P54 T_MOTOR Output TAPE MOTOR CONTROL.
36 P53 PLAY SW A Input MICROCOMPUTER RESET.
37 P52 PLAY SW B Input PLAY SWITCH FOR TAPE 2.
38 P51 FPA Input TAPE 2 A-SIDE FULL PROOF.
39 P50 FPB Input TAPE 2 B-SIDE FULL PROOF.
40 VSS0 VSS0 — GND
41 VDD0 VDD0 Input (+) POWER SUPPLY.
42 RESET RESET Input RESET.
43 P47 RESOUT Output CD DSP RESET.
44 P46 AC3_RST/RDS RST/ESS_ACK Output RAM RESET/ESS SYS ACKNOL.
45 P45 AC3_SS_/RDS RDDA/ESS_STB Input RANSMIT DATA INPUT/ESS STB.
46 P44 AC3_SI/RDS RDCL/ESS_DI Output RDS CLOCK/ESS DATA OUTPUT.

Port Name

Terminal Name

CAM A SW B Input CD CAM A SW B CONTROL.

CAM A SW D Input CD CAM A SW D CONTROL.

CAM B SW A Input CD CAM B SW A CONTROL.

TRAY SW A Input CD TRAY SW A.

TRAY SW C Input CD TRAY SW C.

SPN Input TUNER SPAN SELECT.

Input/Output

Function

– 63 –

CD-BK3200V

IC701 RH-iX0413AWZZ: System Microcomputer (IX0413AW) (2/2)

Pin No.

47 P43 AC3_SO/RDS READY/ESS DO Input READY/ESS DATA INPUT.
48 P42 AC3_SCK/DSA ACK Output DSA ACKNOWLEDGE.
49 P41 DSA_DATA Input DSA DATA INPUT.
50 P40 DSA_STB Input/Output DSA STROBE.
51 P107 REC/PLAY Output TAPE REC/PLAY CHANGE.
52 P106 T_T1/T2 Output TAPE T1/T2 CHANGE.
53 P105 T_BIAS Output TAPE RECORD BIAS.
54* P104 CE_1 Output CE OUTPUT AUDIO PRO 1.
55* P103 CE_2 Output CE OUTPUT AUDIO PRO 2.
56 P102 SPRLY Output SPEAKER RELAY.
57* P101 AC RLY Output AC RELAY CONTROL.
58 P100 LCK 0 Output LED DRIVER CLOCK 0. (BU209)
59* P97 LCK 1 Output LED DRIVER CLOCK 1. (BU209)
60 P96 -20dB ATT Output VOL -20dB ATTENUATOR.
61* P95 SMUTE Output SYSTEM MUTE.
62 P94 DRF/DVD BUS 5 Input CD DRF LEVEL DETECTION.
63 P93 JOG 0 Input KEY JOG INPUT 0.
64 P92 JOG 1 Input KEY JOG INPUT 1.
65 P91 MIC SW Input MIC SWITCH.
66 P90 FL LATCH Output FL DRIVER CONTROL.
67 P87 KARAOKE LATCH Output KARAOKE LATCH.
68 P86 MPEG_POW Output MPEG POW CONTROL.
69 P85 DIST IN Input DESTINATION INPUT.
70 FIP28 P1 Output FL DISPLAY SEGMENT DRIVER.

71 FIP27 P2 Output FL DISPLAY SEGMENT DRIVER.

72 FIP26 P3 Output FL DISPLAY SEGMENT DRIVER.

73 FIP25 P4 Output FL DISPLAY SEGMENT DRIVER.

74 FIP24 P5 Output FL DISPLAY SEGMENT DRIVER.

75 FIP23 P6 Output FL DISPLAY SEGMENT DRIVER.

76 FIP22 P7 Output FL DISPLAY SEGMENT DRIVER.

77 FIP21 P8 Output FL DISPLAY SEGMENT DRIVER.

78 FIP20 P9 Output FL DISPLAY SEGMENT DRIVER.

79 VDD2 VDD2 Input VDD
80 VLOAD VLOAD Input FL DRIVER (–) POWER SUPPLY.
81 FIP19 P10 Output FL DISPLAY SEGMENT DRIVER.

82-84 FIP18-16 P11-P13 Output FL DISPLAY SEGMENT DRIVER.

85-92 FIP15-FIP8 P14-P21 Output FL DISPLAY SEGMENT DRIVER.
93-100 FIP7-FIP0 G1-G8 Output FL DISPLAY GRID.

Port Name

Terminal Name

DIST 9 Output VCD LOGO

DIST 8 Output VCD LOGO

DIST 7 Output PAL/NTSC

DIST 6 Output VIDEO 2 AND AC3 READY.

DIST 5 Output KEY CONTROL MODE.

DIST 4 Output KARAOKE MODE.

DIST 3 Output TAPE REVERSE.

DIST 2 Output ECO MODE.

DIST 1 Output CLOCK DESTINATION.

DIST 0 Output TUNER DESTINATION.

SPEANA SEL A-C Output SPEANA SELECT A-C.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 64 –

IC601 VHiLC75341/-1: Audio Processor (LC75341)

CD-BK3200V

LOUT

LBASS

LIN

VSS

CE

CLK

VDD

DI

123

4

LVref

CCB

RVref

5

INTERFACE

6

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CONTROL

CIRCUIT

7

VREF

222324

21

20

19

18

ROUT

RBASS

RTRELTRE

RIN

LSEL0

8

CD

9

L4

CLK

24 23 22 21 20 19 18 17 16 15 14 13

Tape

Tuner

Video

10 11 12 13 14 15 16

RTRE

RIN

R1 R2

RSEL0R4R3

R3 R4

R2

L3

VDD

L2 L1

VREF

ROUT

RBASS

R1

17

RSEL0

LC75341

123456789101112

DI

CE

VSS

LOUT

LBASS

Figure 65 BLOCK DIAGRAM OF IC

LIN

LTRE

– 65 –

L4

LSEL0

L3

L2

L1

CD-BK3200V

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (1/2)

Port NamePin No.

1 MICSW Input Microphone SW L: MIC OFF, H: MIC ON
2 MCLKCONT — Clock Control.

3 VALC — ALC operating voltage setting terminal.

4 MIC1 IN Input Microphone 1 input.

5* ALC1 — ALC1 control.

6* MIC1NF IN Input Microphone 1 negative feedback input.

7* MIC1 OUT Output Microphone 1 output.
8 MIC1VOL IN Input Microphone 1 volume input.

9 MIC2 IN Input Microphone 2 input.

10 ALC2 — ALC2 control.

11 MIC2NF IN Input Microphone 2 negative feedback input.

12 MIC2 OUT Output Microphone 2 output.
13 MIC2VOL IN Input Microphone 2 volume input.

14 MICOUT Output Microphone output.

15 LPF1 IN1 Input Low pass filter 1 input 1.

16 LPF1 IN2 Input Low pass filter 1 input 2.

17 LPF1 OUT Output Low pass filter 1 output.

18 AD INTOUT Output A/D integrator output.

19 AD INTIN Input A/D integrator input.

20 ADCONT — A/D control.

21 REF — Reference power output.

22 GND — Ground.
23 VCC Input Power supply.
24 DACONT — D/A control.

25 DAINTIN Input D/A Integrator input.

26 DAINTOUT Output D/A Integrator output.

27 LPF2IN1 Input Low pass filter 2 input 1.

28 LPF2IN2 Input Low pass filter 2 input 2.

29 LPF2OUT Output Low pass filter 2 output.

30 VOL IN Input Echo effect/Echo feed back volume input.

31 L IN Input Lch line input.
32 R IN Input Rch line input.

Input/Output

Function

Controls built-in clock generation circuit with external R.

To set ALC operating voltage according to applied voltage.

To connect MIC 1.

To connect ALC1 attack/recovery time setting capacitor.

To connect low cut-off frequency of MIC 1 amplifier setting capacitor.

To connect capacitor to reduce noise generated at time of volume change.

To connect MIC 2.

To connect ALC2 attack/recovery time setting capacitor.

To connect low cut-off frequency of MIC 2 amplifier setting capacitor.

To connect capacitor to reduce noise generated at time of volume change.

Mixing output of MIC 1 and MIC 2.

Pre-filter before A/D convertor for digital delay.

Pre-filter before A/D convertor for digital delay.

Pre-filter before A/D convertor for digital delay.

Composes D/A conversion integrator with external capacitor.

Composes D/A conversion integrator with external capacitor.

To determine adaptive time constant of A/D convertor with ADM system.

To connect 1/2 Vcc output and filter capacitor.

To determine adaptive time constant of D/A convertor with ADM system .

Composes D/A conversion integrator with external capacitor.

Composes D/A conversion integrator with external capacitor.

Post-filter after D/A convertor for digital delay.

Post-filter after D/A convertor for digital delay.

Post-filter after D/A convertor for digital delay.

To connect capacitor to reduce noise generated at time of volume change.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 66 –

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (2/2)

CD-BK3200V

Port NamePin No.

33* KEYCONIN Input Monaural input for external KEY CONTROL IC.

34* SOURCEOUT Output Monaural input for external KEY CONTROL IC.

35 R OUT Output Rch mixing output.
36 L OUT Output Lch mixing output.
37 VCF IL — Vocal cut filter.

38* PS1 Input Phase shift input 1.

39* PS2 Input Phase shift input 2.

40 LATCH Input Latch input via serial bus.
41 CLOCK Input Clock input via serial bus.
42 DATA Input Data input via serial bus.

Input/Output

Function

Input/Output interface terminal for external KEY CONTROL IC.

Input/Output interface terminal for external KEY CONTROL IC.

Processes frequencies lower then the vocal band.

Determines a constant at time of phase shift.

Determines a constant at time of phase shift.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

DATA41CLOCK40LATCH39PS238PS137VCF IL36L OUT35R OUT34SOURCEOUT

42

µ-COM I/F

PHASE
SHIFTER
SURROUND

KEYCONIN

33

(L,R)/2

R IN31L IN30VOL IN29LPF2OUT

32

L R STEREO

LPF2IN227LPF2IN126DAINTOUT

28

LPF D/A

25

DAINTIN24DACONT23VCC

GND

22

VCC GND

MIC SW

ECHO
VOL

ECHO
F.BVOL

16kbit
SRAM

MAIN LOGIC

ND

AD INTIN

1/ZVcc

ADCONT

MIC

MCLK

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

MICSW

VALC

ALC

ALC1

MIC1 IN

MCLKCONT

VOL

MIC1 OUT

MIC1NF IN

ALC

ALC2

MIC2 IN

MIC1VOL IN

MIC
VOL

MIC2 OUT

MIC2NF IN

MICOUT

LPF1 IN1

MIC2VOL IN

LPF

LPF1 IN2

LPF1 OUT

AD INTOUT

Figure 67 BLOCK DIAGRAM OF IC

REF

– 67 –

CD-BK3200V

FL701 VVKNA16LM17-1: FL Display

1G

2G 16G

FL DISPLAY

15G 14G 13G 12G 9G BG

11G 10G

col

B10

3G

7G

4G 5G 6G

( BG )

B1
B2

B3

B4

B5

B6

B7

32

F1 F11F1

26 25P924

S3

S4

S7

B8

B9
B10

S5

S6

B11

B12

B13

B14

B15

B16
B17
B18
B19
B20

( 6G )

P10P8P5P4P3P2P19G

S5

S1

S2

S3

S6

S7

S11

S8

S4

S9

S12

S10

( 3G )

S5

S1

S2

S3

S6

S7

S11

S8

S4

S9

S12

S10

( 7G )

B21 B21

B1

B2

B3

B4

B5

B6
B7
B8
B9

( 4G )

PIN CONNECTION

PIN NO.

CONNECTION

PIN NO.

CONNECTION

PIN NO.

CONNECTION

ANODE CONNECTION

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B10

212019181716151413121110987654

23 22

46 45

44

43 42 41 40 39 38 37

P24P25P26 P23 P22 16G 15G 14G 13G 12G

65 64 63 62 61 60 59 58
F2 F2 F2

11G-16G 10G 9G 8G 7G

P1
P2
P3
P4
P5
P6
P7
P8

P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22

S1
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
P36
P37
P38
P39
P40
P41

S1

S2

S2

S3

S3

S4

S4

a

a

h

h

j

j

k

k

b

b

f

f

col

m

m

g

g

c

c

e

e

r

r

p

p

n

n

d

d

Dp

Dp

S17

S13

S14

S13

S14

S15

S18

S15

S18

S16

S17

S16

S3

f

h
g

r

e

( 9G-16G )

B21

B1

B2

B3

B4

B5

B6

B7

B8

B9

( 5G )

P16P15P14P13P12P11 P17 P18 P19 P20 P21 1G 2G 3G

36 35 34 33 32 31 30 29 28 27

10G

11G

57 56 55 54 53 52 51 50 49

P36P37P38P39P40P41 P35 P34 P33 P32 P31 P30 P29

6G-4G

S1
S2
S3
S4
S5
S6
S7
S8

S9
S10
S11
S12
S13
S14
S15
S16
S17
S18

PLAY

SLEEP

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21

B1
B2
B3
B4
B5
B6
B7
B8
B9

S1
S2
S3
S4
S5
S6
S7
S8

kHz
MHz
PTYI
EON
RDS

PTY

TI
TP
TA
RT

S T

X-BASS

S1
S2
S3
S4

a
h

j
k
b

f

m

g
c
e

r
p

n
d

Dp

S2

S1

S4

a

j

b

k

m

n

c

p

d

Dp

4G

5G 6GNP7G 8G NP

3G 2G 1G

S1
S2
S3
S4
S5
S6
S7
S8

S9
S10
S11
S12
S13
S14
S15
S16
S17
S18

MEMORY

RANDOM

REC

B11

B12

P28 P27

( )

PBC

VCD ON

ENGLISH

MP3

S1

S2

B13

B14

B15

B16

48 47

S8

B17

B18

B19

B20

P7P6

Note

1) Fn: Filament pin

2) nG: Grid pin

3) Pn: Anede pin

4) NP: No pin

– 68 –

PARTS GUIDE

VIDEO CD MINI SYSTEM

MODEL CD-BK3200V

CD-BK3200V Video CD Mini System consisting of
CD-BK3200V (main unit) and CP-BK3200 (speaker system).

CD-BK3200V

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

– 69 –

CD-BK3200V

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3200V

INTEGRATED CIRCUITS

IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78636E-1 J AX Servo/Signal Control,LC78636E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled

IC6 VHIBA4558F/-1 J AD Ope Amp.,BA4558F
IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0413AWZZ J AZ System Microcomputer,

IC702 VHID16315GB-1 J AM FL Display Driver,D16315GB
IC703 VHIBA3835F/-1 J AS 5 Band Pass Filter,BA3835F
IC705 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F
IC901,902 VHISTK40270N1 J AY Power Amp.,STK40270N
ICK1 VHIM65856SP-1 J AX Mic Amp.,M65856SP
ICK2 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
ICM1 VHI1625635T-1 J AZ DRAM,1625635T
ICM2 VHIES3880F/-1 J BB Video CD Decoder,ES3880F
ICM3 VHIES3889F/-1 J BC VCD Companion,ES3889F
ICM4 RH-IX0408AW00 J AW EEPROM,IX0408AW

Driver,M63001FP

Amp.,AN7345K

LA1832S

IX0413AW

TRANSISTORS

Q3 VSKTA1504GR-1 J AB Silicon,PNP,KTA1504 GR
Q4 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q9,10 VSKTC3875GR-1 J AB Silicon,NPN,KTC3875 GR
Q11~20 VSKRC107S//-1 J AB Digital,NPN,KRC107 S
Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR
Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q603,604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q704~706 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q850 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q851 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
Q852 VHIKIA7805AP1 J AF Constant Voltage Regulator,

Q901~909 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q910 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q990 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q991 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
QK1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QM1 VSKTC3265Y/-1 J AC Silicon,NPN,KTC3265 Y
QM2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QM3 VSKRC104S//-1 J AC Digital,NPN,KRC104 S
QM4 VSKTA1046Y+-1 J AF Sillicon,PNP,KTA1046 Y

KIA7805AP

DIODES

D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D601~604 VHDDS1SS133-1 J AB Silicon,DS1SS133
D701 VHDDS1SS133-1 J AB Silicon,DS1SS133
D703 VHDDS1SS133-1 J AB Silicon,DS1SS133
D705 VHDDS1SS133-1 J AB Silicon,DS1SS133
D708 VHDDS1SS133-1 J AB Silicon,DS1SS133
D711~718 VHDDS1SS133-1 J AB Silicon,DS1SS133
D801 VHDDS1SS133-1 J AB Silicon,DS1SS133
D802,803 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D802A VHDDS1N404S-1 J AB Silicon,DS1N404S
D804~809 VHDDS1N404S-1 J AB Silicon,DS1N404S
D818 VHDDS1N404S-1 J AB Silicon,DS1N404S

NO. PARTS CODE

D819,820 VHDDS1SS133-1 J AB Silicon,DS1SS133
D901~907 VHDDS1SS133-1 J AB Silicon,DS1SS133
D909 VHDDS1SS133-1 J AB Silicon,DS1SS133
DK1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133
DM1 VHDKDS193//-1 J AC Silicon,KDS193
DZ801 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB
LED701 VHP4204SRT121 J AD LED,Red,4204SRT121
LED709~711 VHP4204UYT121 J AD LED,Yellow,4204UYT121
LED714~718 VHPSLR325MC-1 J AD LED,Green,SLR325MC
LED725 VHPSLR325MC-1 J AD LED,Green,SLR325MC
ZD1 VHEZ02W4R3Z-1 J AD Zener,4.3V,Z02W4.3Z
ZD61 VHEZ02W3R9Z-1 J AC Zener,3.9V,Z02W3.9Z
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD801 VHEDZ300BSC-1 J AB Zener,30V,DZ30BSC
ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD806 VHEDZ110BSB-1 J AB Zener,11V,DZ11BSB
ZDK1 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

PRICE
RANK

DESCRIPTION

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T301 RCILB0065AWZZ J AC FM OSC.
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Tracking
T306 RCILB0067AWZZ J AD AM OSC.
T351 RCILI0019AWZZ J AD AM IF

1 T801 RTRNP0359AWZZ J BK Power

COILS

L61 RCILC0011AWZZ J AD 0.82 µH
L104 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L902~905 RCILZ0137AFZZ J AA 0.29 µH
LM3 RCILC0013AWZZ J AE 3.3 µH

VARIABLE RESISTOR

VRK1 92LVRR1674A J AF 20 kohms (B) [Mic Volume]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz
XL1 RCRSP0013AWZZ J AG Crystal,27 MHz
XL2 RCRSP0016AWZZ J AF Crystal,16.934 MHz
XL701 RCRSP0026AWZZ J AG Crystal,4.194304 MHz

CAPACITORS

C6 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
C7 VCKYCY1EF223Z J AB 0.022 µF,25V
C8 VCKYCY1CB104K J AB 0.1 µF,16V
C11 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic
C12 VCKYCY1EF223Z J AB 0.022 µF,25V
C13 VCKYCY1CB103K J AA 0.01 µF,16V
C14 VCKYCY1CF334Z J AA 0.33 µF,16V
C17 VCKYCY1HB472K J AA 0.0047 µF,50V
C18 VCCCCY1HH8R0D J AA 8 pF (CH),50V
C19 VCKYCY1EF223Z J AB 0.022 µF,25V
C20,21 VCKYCY1CB104K J AB 0.1 µF,16V
C22 VCCCCY1HH101J J AA 100 pF (CH),50V
C23 VCKYCY1CB473K J AA 0.047 µF,16V
C24 VCEAPS225AF1H J AB 2.2 µF,50V,Electrolytic
C25 VCKYCY1EF223Z J AB 0.022 µF,25V
C26 VCKYCY1CB473K J AA 0.047 µF,16V
C27 VCKYCY1CB104K J AB 0.1 µF,16V

– 1 –

CD-BK3200V

NO. PARTS CODE

C28 VCEAPS476AF1A J AD 47 µF,10V,Electrolytic
C29 VCKYCY1EF223Z J AB 0.022 µF,25V
C30 VCKYCY1EF223Z J AB 0.022 µF,25V
C31 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
C34 VCKYCY1EF223Z J AB 0.022 µF,25V
C42 VCCCCY1HH680J J AA 68 pF (CH),50V
C44 VCKYCY1EF223Z J AB 0.022 µF,25V
C45 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
C46 VCKYCY1EF223Z J AB 0.022 µF,25V
C47 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
C49,50 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
C51 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic
C52 VCKYCY1CB103K J AA 0.01 µF,16V
C53 VCKYCY1HB102K J AA 0.001 µF,50V
C54 VCEAPS476AF1A J AD 47 µF,10V,Electrolytic
C55 VCKYCY1CB103K J AA 0.01 µF,16V
C64 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic
C71 VCCCCY1HH101J J AA 100 pF (CH),50V
C72 VCKYCY1CB103K J AA 0.01 µF,16V
C73 VCCCCY1HH101J J AA 100 pF (CH),50V
C75~78 VCCCCY1HH101J J AA 100 pF (CH),50V
C80 VCKYCY1CB104K J AB 0.1 µF,16V
C81,82 VCKYCY1EF223Z J AB 0.022 µF,25V
C83,84 VCKYCY1HB473K J AB 0.047 µF,50V
C85 VCCCCY1HH8R0D J AA 8 pF (CH),50V
C86 VCCCCY1HH100D J AA 10 pF (CH),50V
C87,88 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C90 VCEAZA1CW477M J AC 470 µF,16V,Electrolytic
C91 VCKYCY1HB473K J AB 0.047 µF,50V
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C105 VCKYBT1HB181K J AA 180 pF,50V
C106 VCKYMN1HB181K J AA 180 pF,50V
C107,108 VCKYMN1HB561K J AA 560 pF,50V
C111~114 VCKYMN1HB331K J AA 330 pF,50V
C115,116 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C117,118 VCTYPA1EX333K J AA 0.033 µF,25V
C119,120 VCKYMN1HB561K J AA 560 pF,50V
C121,122 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C123,124 VCTYMN1CX222K J AA 0.0022 µF,16V
C127 VCTYMN1EF223Z J AA 0.022 µF,25V
C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C131,132 VCKYMN1HB271K J AA 270 pF,50V
C133,134 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C135,136 VCTYPA1CX223K J AA 0.022 µF,16V
C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V
C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C145 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C155 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C156 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C157 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C301 VCKYMN1HB102K J AA 0.001 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C308 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCSMN1HL180J J AA 18 pF,50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C320 VCKYBT1HB102K J AA 0.001 µF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V
C330 VCCSMN1HL150J J AA 15 pF,50V
C331 VCKYPA1HF473Z J AB 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCCMN1HH220J J AA 22 pF (CH),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V

PRICE
RANK

DESCRIPTION

NO.

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C365 VCTYPA1CX223K J AA 0.022 µF,16V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C602 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C604 VCTYMN1EF223Z J AA 0.022 µF,25V
C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C607~610 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C611,612 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar
C613,614 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C617 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C619,620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C621,622 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C631,632 VCKYMN1HB391K J AA 390 pF,50V
C634 VCKYMN1HB102K J AA 0.001 µF,50V
C637 VCKYMN1HB102K J AA 0.001 µF,50V
C654 VCKYBT1HB101K J AA 100 pF,50V
C701 VCTYMN1EF223Z J AA 0.022 µF,25V
C702 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C703 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C704 VCTYMN1EF223Z J AA 0.022 µF,25V
C705 RC-EZD476AF1E J AC 47 µF,25V,Electrolytic
C706 VCTYMN1EF223Z J AA 0.022 µF,25V
C707~710 VCKYBT1HF104Z J AC 0.1 µF,50V
C711 VCCSMN1HL180J J AA 18 pF,50V
C712 VCCSMN1HL150J J AA 15 pF,50V
C713 VCTYMN1EF223Z J AA 0.022 µF,25V
C714 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C715 VCTYMN1EF223Z J AA 0.022 µF,25V
C716,717 VCKYMN1HB102K J AA 0.001 µF,50V
C721 VCTYMN1EF223Z J AA 0.022 µF,25V
C722 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C723,724 VCTYMN1EF223Z J AA 0.022 µF,25V
C725 RC-EZD476AF1E J AC 47 µF,25V,Electrolytic
C726 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C727 VCTYMN1CX152K J AA 0.0015 µF,16V
C728 VCKYBT1HB471K J AA 470 pF,50V
C801,802 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic
C803~806 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C807,808 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C809 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic
C810,811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C812 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C813,814 RC-EZ0064AWZZ J AM 2200 µF,56V,Electrolytic
C825 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C830 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C832,833 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C850 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic
C851 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C852 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C855 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

PRICE
RANK

DESCRIPTIONPARTS CODE

– 2 –

CD-BK3200V

NO.

C857 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C858 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C860 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C861 VCEAZW1CW478M J AG 4700 µF,16V,Electrolytic
C901,902 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C903,904 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C905 VCKZPA1HF223Z J AA 0.022 µF,50V
C906,907 VCTYPA1EX152K J AA 0.0015 µF,25V
C908 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C909,910 VCCSPA1HL150J J AA 15 pF,50V
C911 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C912 VCKZPA1HF223Z J AA 0.022 µF,50V
C914 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C916~919 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C920,921 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C922,923 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C924,925 VCKZPA1HF223Z J AA 0.022 µF,50V
C926,927 VCTYPA1EX152K J AA 0.0015 µF,25V
C928,929 VCCSPA1HL150J J AA 15 pF,50V
C930,931 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C932 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C935,936 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C938 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C939,940 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C941,942 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar
C943,944 VCKYPA1HB102K J AA 0.001 µF,50V
C954,955 VCQYKA1HM823K J AC 0.082 µF,50V,Mylar
C958,959 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C960,961 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C990,991 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CE1 VCEAPS105AF1H J AB 1 µF,50V,Electrolytic
CE2 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CK1 VCTYPA1CX103K J AA 0.01 µF,16V
CK7 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CK8 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
CK9 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK10,11 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film
CK12 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK13 VCTYPA1CX472K J AA 0.0047 µF,16V
CK14 VCKYBT1HB102K J AA 0.001 µF,50V
CK15 VCFYDA1HA683J J AB 0.068 µF,50V,Thin Film
CK16 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film
CK17 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
CK18 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK19 VCKZPA1HF223Z J AA 0.022 µF,50V
CK20 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film
CK21 VCFYDA1HA683J J AB 0.068 µF,50V,Thin Film
CK22 VCTYPA1CX472K J AA 0.0047 µF,16V
CK23 VCKYPA1HB102K J AA 0.001 µF,50V
CK24~26 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK29,30 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK31 VCFYDA1HA154J J AB 0.15 µF,50V,Thin Film
CK33~35 VCCSPA1HL470J J AA 47 pF,50V
CK41 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK42 VCKZPA1HF223Z J AA 0.022 µF,50V
CK43,44 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK45,46 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK47,48 VCCSPA1HL221J J AA 220 pF,50V
CK49,50 VCCSPA1HL101J J AA 100 pF,50V
CK51,52 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CK53 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK72 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CM1 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
CM2 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM5 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM6 VCKYCY1CB104K J AB 0.1 µF,16V
CM7 VCEAPS107AF1C J AC 100 µF,10V,Electrolytic
CM8,9 VCKYCY1CB104K J AB 0.1 µF,16V
CM11,12 VCCCCY1HH270J J AA 27 pF (CH),50V
CM13 VCKYCY1HB102K J AA 0.001 µF,50V
CM14 VCKYCY1CB104K J AB 0.1 µF,16V
CM15 VCCCCY1HH220J J AA 22 pF (CH),50V
CM16 VCKYCY1CB104K J AB 0.1 µF,16V
CM17~20 VCKYCY1CB104K J AB 0.1 µF,16V
CM21 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM22 VCCCCY1HH100D J AA 10 pF (CH),50V
CM23 VCKYCY1CB104K J AB 0.1 µF,16V
CM24 VCEAPS476AF1A J AD 47 µF,10V,Electrolytic
CM25 VCKYCY1CB104K J AB 0.1 µF,16V
CM26 VCKYCY1EF223Z J AB 0.022 µF,25V
CM27 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM28 VCKYCY1EF223Z J AB 0.022 µF,25V

PARTS CODE

PRICE

RANK

DESCRIPTION

NO. PARTS CODE

CM29 VCKYCY1EF223Z J AB 0.022 µF,25V
CM30 VCKYCY1CB104K J AB 0.1 µF,16V
CM31 VCKYCY1EF223Z J AB 0.022 µF,25V
CM32 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM33 VCKYCY1EF223Z J AB 0.022 µF,25V
CM34 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM35 VCKYCY1EF223Z J AB 0.022 µF,25V
CM36 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM37 VCKYCY1CB104K J AB 0.1 µF,16V
CM38 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM39 VCKYCY1CB104K J AB 0.1 µF,16V
CM40 VCKYCY1CB103K J AA 0.01 µF,16V
CM41~44 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM45 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM46 VCCCCY1HH330J J AA 33 pF (CH),50V
CM47 VCKYCY1CB104K J AB 0.1 µF,16V
CM48 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic
CM49,50 VCCCCY1HH330J J AA 33 pF (CH),50V
CM51 VCCCCY1HH330J J AA 33 pF (CH),50V
CM52,53 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic
CM54,55 VCCCCY1HH220J J AA 22 pF (CH),50V

PRICE
RANK

DESCRIPTION

RESISTORS

R3 VRS-CY1JB473J J AA 47 kohms,1/16W
R4 VRS-CY1JB103J J AA 10 kohm,1/16W
R5 VRS-CY1JB393J J AA 39 kohms,1/16W
R6 VRS-CY1JB273J J AA 27 kohms,1/16W
R7 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R8 VRS-CY1JB331J J AA 330 ohms,1/16W
R10 VRS-CY1JB273J J AA 27 kohms,1/16W
R11 VRS-CY1JB123J J AA 12 kohms,1/16W
R12,13 VRS-CY1JB681J J AA 680 ohms,1/16W
R14 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R15 VRS-CY1JB103J J AA 10 kohm,1/16W
R20 VRS-CY1JB221J J AA 220 ohms,1/16W
R25 VRS-CY1JB103J J AA 10 kohm,1/16W
R35 VRS-CY1JB102J J AA 1 kohm,1/16W
R37 VRS-CY1JB152J J AA 1.5 kohms,1/16W
R38 VRS-CY1JB271J J AA 270 ohms,1/16W
R39 VRS-CY1JB471J J AA 470 ohms,1/16W
R40 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R42 VRS-CY1JB563J J AA 56 kohms,1/16W
R44 VRS-CY1JB102J J AA 1 kohm,1/16W
R45 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R47 VRS-CY1JB3R0J J AA 3 ohms,1/16W
R48 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R50 VRS-CY1JB470J J AA 47 ohms,1/16W
R51 VRS-CY1JB683J J AA 68 kohms,1/16W
R52,53 VRS-CY1JB563J J AA 56 kohms,1/16W
R54 VRS-CY1JB683J J AA 68 kohms,1/16W
R55,56 VRS-CY1JB563J J AA 56 kohms,1/16W
R58 VRS-CY1JB680J J AA 68 ohms,1/16W
R67 VRS-CY1JB102J J AA 1 kohm,1/16W
R71~73 VRS-CY1JB102J J AA 1 kohm,1/16W
R75 VRS-CY1JB101J J AA 100 ohm,1/16W
R76~78 VRS-CY1JB102J J AA 1 kohm,1/16W
R79 VRS-CY1JB155J J AA 1.5 Mohms,1/16W
R80 VRS-CY1JB105J J AA 1 Mohm,1/16W
R94 VRS-CY1JB103J J AA 10 kohm,1/16W
R97 VRS-CY1JB392J J AA 3.9 kohms,1/16W
R98 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R99 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R101 VRD-MN2BD102J J AA 1 kohm,1/8W
R102 VRD-ST2CD102J J AA 1 kohm,1/6W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111,112 VRD-MN2BD153J J AA 15 kohms,1/8W
R112A VRS-CY1JB331J J AA 330 ohms,1/16W
R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W
R113A VRS-CY1JB222J J AA 2.2 kohms,1/16W
R114A VRS-CY1JB223J J AA 22 kohms,1/16W
R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R116A VRS-CY1JB152J J AA 1.5 kohms,1/16W
R117,118 VRD-MN2BD102J J AA 1 kohm,1/8W
R117A VRS-CY1JB331J J AA 330 ohms,1/16W
R118A VRS-CY1JB222J J AA 2.2 kohms,1/16W
R119 VRD-ST2CD560J J AA 56 ohms,1/6W
R120 VRD-MN2BD560J J AA 56 ohms,1/8W

– 3 –

CD-BK3200V

NO. PARTS CODE

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W
R123,124 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R130A VRS-CY1JB153J J AA 15 kohms,1/16W
R131,132 VRD-MN2BD333J J AA 33 kohms,1/8W
R131A VRS-CY1JB822J J AA 8.2 kohms,1/16W
R132A VRS-CY1JB822J J AA 8.2 kohms,1/16W
R133A VRS-CY1JB153J J AA 15 kohms,1/16W
R134 VRD-MN2BD683J J AA 68 kohms,1/8W
R134A VRS-CY1JB822J J AA 8.2 kohms,1/16W
R135,136 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R135A VRS-CY1JB153J J AA 15 kohms,1/16W
R136A VRS-CY1JB822J J AA 8.2 kohms,1/16W
R137 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R137A VRS-CY1JB153J J AA 15 kohms,1/16W
R138 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R138A VRS-CY1JB822J J AA 8.2 kohms,1/16W
R139,140 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R139A VRS-CY1JB153J J AA 15 kohms,1/16W
R140A~146A VRS-CY1JB102J J AA 1 kohm,1/16W
R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W
R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W
R147A~150A VRS-CY1JB102J J AA 1 kohm,1/16W

1 R151A VRG-ST2EG3R3J J AB 3.3 ohms,1/4W,Fusible

R152A VRS-CY1JB472J J AA 4.7 kohms,1/16W
R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W
R155 VRD-ST2EE151J J AA 150 ohms,1/4W
R156 VRD-ST2CD224J J AA 220 kohms,1/6W
R157 VRD-MN2BD224J J AA 220 kohms,1/8W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R160 VRD-RT2HD820J J AA 82 ohms,1/2W
R162 VRD-MN2BD473J J AA 47 kohms,1/8W
R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R166 VRD-MN2BD223J J AA 22 kohms,1/8W
R167 VRD-MN2BD473J J AA 47 kohms,1/8W
R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R169~174 VRD-MN2BD102J J AA 1 kohm,1/8W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R601 VRD-ST2CD100J J AA 10 ohm,1/6W
R605,606 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R607 VRD-MN2BD103J J AA 10 kohm,1/8W
R608 VRD-ST2CD103J J AA 10 kohm,1/6W
R609,610 VRD-ST2CD331J J AA 330 ohms,1/6W

PRICE
RANK

DESCRIPTION

NO.

R611 VRD-MN2BD104J J AA 100 kohm,1/8W
R612 VRD-ST2CD104J J AA 100 kohm,1/6W
R613,614 VRD-MN2BD681J J AA 680 ohms,1/8W
R615,616 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R617,618 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R619 VRD-MN2BD223J J AA 22 kohms,1/8W
R623,624 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R625,626 VRD-MN2BD153J J AA 15 kohms,1/8W
R631,632 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R633,634 VRD-MN2BD333J J AA 33 kohms,1/8W
R637,638 VRD-MN2BD184J J AA 180 kohms,1/8W
R641~643 VRD-ST2CD102J J AA 1 kohm,1/6W
R701,702 VRD-ST2CD473J J AA 47 kohms,1/6W
R703 VRD-MN2BD823J J AA 82 kohms,1/8W
R704~706 VRD-MN2BD104J J AA 100 kohm,1/8W
R707 VRD-MN2BD330J J AA 33 ohms,1/8W
R708~710 VRD-MN2BD102J J AA 1 kohm,1/8W
R711 VRD-MN2BD104J J AA 100 kohm,1/8W
R712 VRD-MN2BD473J J AA 47 kohms,1/8W
R713~717 VRD-MN2BD103J J AA 10 kohm,1/8W
R718~730 VRD-MN2BD102J J AA 1 kohm,1/8W
R731 VRD-ST2CD102J J AA 1 kohm,1/6W
R732 VRD-ST2CD101J J AA 100 ohm,1/6W
R733~736 VRD-ST2CD102J J AA 1 kohm,1/6W
R737,738 VRD-MN2BD102J J AA 1 kohm,1/8W
R739 VRD-ST2CD102J J AA 1 kohm,1/6W
R740 VRD-MN2BD102J J AA 1 kohm,1/8W
R741 VRD-ST2CD102J J AA 1 kohm,1/6W
R742 VRD-ST2CD182J J AA 1.8 kohms,1/6W
R743 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R744 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R745 VRD-ST2CD103J J AA 10 kohm,1/6W
R746~748 VRD-MN2BD102J J AA 1 kohm,1/8W
R749,750 VRD-ST2CD102J J AA 1 kohm,1/6W
R751~754 VRD-ST2CD102J J AA 1 kohm,1/6W
R758,759 VRD-MN2BD102J J AA 1 kohm,1/8W
R760 VRD-MN2BD473J J AA 47 kohms,1/8W
R761,762 VRD-MN2BD103J J AA 10 kohm,1/8W
R763 VRD-MN2BD102J J AA 1 kohm,1/8W
R765 VRD-MN2BD102J J AA 1 kohm,1/8W
R766 VRD-MN2BD103J J AA 10 kohm,1/8W
R767 VRD-MN2BD102J J AA 1 kohm,1/8W
R769 VRD-ST2CD102J J AA 1 kohm,1/6W
R770,771 VRD-MN2BD101J J AA 100 ohm,1/8W
R772~775 VRD-MN2BD102J J AA 1 kohm,1/8W
R776 VRD-MN2BD103J J AA 10 kohm,1/8W
R777 VRD-ST2CD103J J AA 10 kohm,1/6W
R779~782 VRD-MN2BD103J J AA 10 kohm,1/8W
R783 VRD-MN2BD473J J AA 47 kohms,1/8W
R784 VRD-MN2BD104J J AA 100 kohm,1/8W
R785 VRD-ST2CD101J J AA 100 ohm,1/6W
R786~795 VRD-MN2BD103J J AA 10 kohm,1/8W
R797 VRD-MN2BD103J J AA 10 kohm,1/8W
R798 VRD-ST2CD103J J AA 10 kohm,1/6W
R799 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R801 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R802 VRD-ST2EE100J J AA 10 ohm,1/4W
R803 VRD-ST2CD123J J AA 12 kohms,1/6W
R804 VRD-ST2CD473J J AA 47 kohms,1/6W
R805 VRD-ST2EE223J J AA 22 kohms,1/4W
R806 VRD-ST2CD103J J AA 10 kohm,1/6W
R808 VRD-ST2CD151J J AA 150 ohms,1/6W
R809 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R819 VRD-ST2EE223J J AA 22 kohms,1/4W
R826 VRD-ST2CD224J J AA 220 kohms,1/6W
R827 VRD-ST2CD473J J AA 47 kohms,1/6W
R828 VRD-ST2CD101J J AA 100 ohm,1/6W
R829,830 VRD-ST2EE470J J AA 47 ohms,1/4W
R852 VRD-ST2EE223J J AA 22 kohms,1/4W
R853 VRD-ST2CD223J J AA 22 kohms,1/6W
R854 VRD-ST2CD103J J AA 10 kohm,1/6W
R856 VRD-ST2EE561J J AA 560 ohms,1/4W

1 R901 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R902 VRD-ST2CD223J J AA 22 kohms,1/6W
R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W
R906,907 VRD-ST2CD561J J AA 560 ohms,1/6W
R908,909 VRD-ST2CD102J J AA 1 kohm,1/6W

1 R910 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R911,912 VRN-VV3AAR10J J AB 0.1 ohm,1W
R913,914 VRD-ST2CD102J J AA 1 kohm,1/6W
R915,916 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R917,918 VRD-ST2CD102J J AA 1 kohm,1/6W

PRICE
RANK

DESCRIPTIONPARTS CODE

– 4 –

CD-BK3200V

NO.

R919~921 VRD-ST2CD563J J AA 56 kohms,1/6W
R922,923 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

1 R924,925 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R926 VRD-ST2CD223J J AA 22 kohms,1/6W
R927,928 VRD-ST2CD563J J AA 56 kohms,1/6W
R929,930 VRD-ST2CD821J J AA 820 ohms,1/6W
R931,932 VRD-ST2CD102J J AA 1 kohm,1/6W
R933,934 VRN-VV3AAR10J J AB 0.1 ohm,1W
R935,936 VRD-ST2CD103J J AA 10 kohm,1/6W
R937,938 VRD-ST2CD102J J AA 1 kohm,1/6W
R939~941 VRD-ST2CD563J J AA 56 kohms,1/6W
R942,943 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R944~947 VRD-RT2HD271J J AA 270 ohms,1/2W
R948~951 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R952 VRD-ST2CD153J J AA 15 kohms,1/6W
R953 VRD-ST2CD683J J AA 68 kohms,1/6W
R954 VRD-ST2CD102J J AA 1 kohm,1/6W
R955 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
R956,957 VRD-ST2CD183J J AA 18 kohms,1/6W
R966,967 VRD-ST2EE223J J AA 22 kohms,1/4W
R970~975 VRD-ST2CD683J J AA 68 kohms,1/6W
R976,977 VRD-ST2CD102J J AA 1 kohm,1/6W
R979 VRD-ST2CD102J J AA 1 kohm,1/6W
R980 VRD-ST2CD103J J AA 10 kohm,1/6W
R993~996 VRN-VV3DAR22J J AC 0.22 ohms,2W
R997,998 VRD-ST2CD273J J AA 27 kohms,1/6W
RD01 VRD-ST2CD681J J AA 680 ohms,1/6W
RD02 VRD-ST2CD821J J AA 820 ohms,1/6W
RD03 VRD-MN2BD102J J AA 1 kohm,1/8W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD09 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD153J J AA 15 kohms,1/8W
RD11 VRD-MN2BD333J J AA 33 kohms,1/8W
RD12 VRD-MN2BD104J J AA 100 kohm,1/8W
RD13 VRD-ST2CD681J J AA 680 ohms,1/6W
RD14 VRD-MN2BD821J J AA 820 ohms,1/8W
RD15 VRD-MN2BD102J J AA 1 kohm,1/8W
RD16 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD17 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD18 VRD-ST2CD272J J AA 2.7 kohms,1/6W
RD19 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD20 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD21 VRD-MN2BD103J J AA 10 kohm,1/8W
RD22 VRD-MN2BD153J J AA 15 kohms,1/8W
RD25 VRD-MN2BD681J J AA 680 ohms,1/8W
RD26 VRD-MN2BD821J J AA 820 ohms,1/8W
RD27 VRD-MN2BD102J J AA 1 kohm,1/8W
RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD33 VRD-MN2BD103J J AA 10 kohm,1/8W
RD34 VRD-MN2BD153J J AA 15 kohms,1/8W
RD35 VRD-MN2BD333J J AA 33 kohms,1/8W
RK1 VRD-ST2CD103J J AA 10 kohm,1/6W
RK2,3 VRD-ST2CD563J J AA 56 kohms,1/6W
RK4 VRD-ST2CD103J J AA 10 kohm,1/6W
RK7 VRD-ST2CD102J J AA 1 kohm,1/6W
RK8 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RK9~11 VRD-ST2CD102J J AA 1 kohm,1/6W
RK12 VRD-ST2CD101J J AA 100 ohm,1/6W
RK13 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RK14,15 VRD-RT2HD101J J AA 100 ohm,1/2W
RK36,37 VRD-ST2CD391J J AA 390 ohms,1/6W
RK38 VRD-ST2CD101J J AA 100 ohm,1/6W
RK39,40 VRD-ST2CD102J J AA 1 kohm,1/6W
RK41,42 VRD-ST2CD103J J AA 10 kohm,1/6W
RK43 VRD-ST2CD183J J AA 18 kohms,1/6W
RK44,45 VRD-ST2CD682J J AA 6.8 kohms,1/6W
RK46 VRD-ST2CD183J J AA 18 kohms,1/6W
RK47 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RK48~50 VRD-ST2CD103J J AA 10 kohm,1/6W
RM1~8 VRS-CY1JB330J J AA 33 ohms,1/16W
RM9 VRS-CY1JB151J J AA 150 ohms,1/16W
RM10 VRS-CY1JB221J J AA 220 ohms,1/16W
RM11~13 VRS-CY1JB151J J AA 150 ohms,1/16W
RM14 VRS-CY1JB104J J AA 100 kohm,1/16W

PARTS CODE

PRICE

RANK

DESCRIPTION

NO. PARTS CODE

RM15,16 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM21 VRS-CY1JB223J J AA 22 kohms,1/16W
RM23 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM27 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM30,31 VRS-CY1JB330J J AA 33 ohms,1/16W
RM32 VRS-CY1JB100J J AA 10 ohm,1/16W
RM33 VRS-CY1JB330J J AA 33 ohms,1/16W
RM34 VRS-CY1JB103J J AA 10 kohm,1/16W
RM35 VRS-CY1JB101J J AA 100 ohm,1/16W
RM36 VRS-CY1JB331J J AA 330 ohm,1/16W
RM38 VRS-CY1JB330J J AA 33 ohms,1/16W
RM41 VRS-CY1JB822J J AA 8.2 kohms,1/16W
RM42~44 VRS-CY1JB330J J AA 33 ohms,1/16W
RM45 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM47 VRS-CY1JB102J J AA 1 kohm,1/16W
RM49 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM50 VRS-CY1JB100J J AA 10 ohm,1/16W
RM51,52 VRS-CY1JB103J J AA 10 kohm,1/16W
RM53,54 VRS-CY1JB104J J AA 100 kohm,1/16W
RM55 VRS-CY1JB822J J AA 8.2 kohms,1/16W
RM56,57 VRS-CY1JB104J J AA 100 kohm,1/16W
RM58 VRS-CY1JB103J J AA 10 kohm,1/16W
RM59 VRS-CY1JB103J J AA 10 kohm,1/16W
RM60~62 VRS-CY1JB103J J AA 10 kohm,1/16W
RM63,64 VRS-CY1JB223J J AA 22 kohms,1/16W
RM65,66 VRS-CY1JB102J J AA 1 kohm,1/16W
RM67,68 VRS-CY1JB104J J AA 100 kohm,1/16W
RM69 VRS-CY1JB682J J AA 6.8 kohms,1/16W
RM70 VRS-CY1JB221J J AA 220 ohms,1/16W
RM71 VRS-CY1JB123J J AA 12 kohms,1/16W
RM72 VRS-CY1JB221J J AA 220 ohms,1/16W
RM73 VRS-CY1JB222J J AA 2.2 kohms,1/16W
RM74,75 VRS-CY1JB221J J AA 220 ohms,1/16W
RM76 VRS-CY1JB560J J AA 56 ohms,1/16W
RM77,78 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM82~84 VRS-CY1JB103J J AA 10 kohm,1/16W
RS701,702 VRD-ST2CD102J J AA 1 kohm,1/6W
RS703 VRD-MN2BD103J J AA 10 kohm,1/8W
RS706 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RS709,710 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RS713~717 VRD-MN2BD561J J AA 560 ohms,1/8W
RS724 VRD-MN2BD561J J AA 560 ohms,1/8W
RS725 VRD-MN2BD683J J AA 68 kohms,1/8W

PRICE
RANK

DESCRIPTION

OTHER CIRCUITRY PARTS

BI102/CNS102 QCNWN1974AWZZ J AM Connector Ass’y,7/6Pin
BI601/CNS601 QCNWN1850AWZZ J AF Connector Ass’y,6/6Pin
BI602/CNS602 QCNWN2037AWZZ J AF Connector Ass’y,2/2Pin
BI701/CNS905 QCNWN1846AWZZ J AH Connector Ass’y,9/9Pin
BI702/CNS702 QCNWN1847AWZZ J AD Connector Ass’y,2/2Pin
BI703A/BI703B QCNWN1855AWZZ J AG Connector Ass’y,9/9Pin
BI704/CNS704 QCNWN1849AWZZ J AK Connector Ass’y,12/12Pin
BI705/CNS705 QCNWN1856AWZZ J AG Connector Ass’y,8/8Pin
BI901/CNS901 QCNWN1851AWZZ J AG Connector Ass’y,7/7Pin
BI902/CNS902 QCNWN1852AWZZ J AF Connector Ass’y,5/5Pin
BIK1/CNSK1 QCNWN1876AWZZ J AH Connector Ass’y,10/10Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 92LCONE4P53254 J AC Plug,4Pin
CNP5 QCNCW026DAWZZ J AC Socket,4Pin
CNP6 QCNCW026HAWZZ J AC Socket,8Pin
CNP7 QCNCM932MAFZZ J AE Plug,12Pin
CNP8 92LCONE6P53254 J AC Plug,6Pin
CNP9 92LCONE8P53254 J AC Plug,8Pin
CNP10 92LCONE2P53254 J AB Plug,2Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP301 92LCONE2P5268 J AB Plug,2Pin
CNP602 QCNCWZG19AWZZJ Socket,19Pin
CNP701 QCNCWZY10AWZZ J AC Socket,10Pin
CNP702 QCNCWZF19AWZZ J Socket,19Pin
CNP703 92LCONE7P53253 J AC Plug,7Pin
CNP704 92LCONE2P53254 J AB Plug,2Pin
CNP806 QCNCW010JAWZZ J AC Plug,9Pin
CNP901 92LCONE7P53253 J AC Plug,7Pin
CNP902 92LCONE5P5267X J AB Plug,5Pin
CNP904 92LCONE2P53253 J AB Plug,2Pin
CNP905 92LCONE9P53253 J AC Plug,9Pin
CNP906 QCNCM010JAWZZ J AC Socket,9Pin

– 5 –

CD-BK3200V

NO. PARTS CODE

CNP907 92LCONE2P53253 J AB Plug,2Pin
CNPK1 QCNCM705KAWZZ J AC Plug,10Pin
CNS1A/B QCNWN1981AWZZ J AF Connector Ass’y,7/7Pin
CNS2A/B QCNWN1982AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1980AWZZ J AF Connector Ass’y,6/6Pin
CNS4 QCNWN1983AWZZ J AD Connector Ass’y,4Pin
CNS904 QCNWN1841AWZZ J AD Connector Ass’y,2Pin
CNS907 QCNWN1955AWZZ J AD Connector Ass’y,2Pin

1 F800,801 QFS-D402CAWNI J AC Fuse,T4A L 250V
1 F802,803 QFS-D502CAWNI J AC Fuse,T5A L 250V
1 F804,805 QFS-D202CAWNI J AC Fuse,T2A L 250V

FFC701 QCNWN1845AWZZ J AE Flat Cable,10Pin
FFC702 QCNWN1858AWZZ J Flat Cable,19Pin
FL701 VVKNA16LM17-1 J BC FL Display
FW2 QCNWN1691AWZZ J AD Flat Wire,8Pin
FW3 QCNWN1693AWZZ J AC Flat Wire,4Pin
FW901 QCNWN1853AWZZ J AD Flat Wire,5Pin
JK1 QJAKJ0007AWZZ J AF Jack,Mic
JK601 QSOCJ0219AWZZ J AD Jack,Video/AUX In
JK670 QJAKM0004AWZZ J AK Jack,Headphones
JK671 QSOCJ0110AWZZ J AE Jack,Video Out
JOG701 QSW-Z0014AWZZ J AF Switch,Push Type [Jog Volume]

1 K801,802 92LLUG1746A J AA Lug,Terminal

LG901 QLUGP0001AWZZ J AC Lug
M901/902 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y
MOB2 92LMTR3435DASY J AM Tray Motor Ass’y
NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]
NM2 92LMTR1854BASY J AP Motor with Gear [Sled]
NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]
PINK1 QLUGP0002AWZZ J AB Lug
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
RY901,902 RRLYD0016AWZZ J AH Relay
SO302 QTANC0206AWZZ J AD Terminal,FM Antenna
SO901 QTANA0810AWZZ J AF Terminal,Speaker
SW601 QSW-S0024AWZZ J AE Switch,Slide Type

SW701 92LSWICH1401AT J AC Switch,Key Type [On/Stand-by]
SW702 92LSWICH1401AT J AC Switch,Key Type [Karaoke]
SW703 92LSWICH1401AT J AC Switch,Key Type [P.B.C.]
SW704 92LSWICH1401AT J AC Switch,Key Type [O.S.D.]
SW705 92LSWICH1401AT J AC Switch,Key Type [Digest]
SW706 92LSWICH1401AT J AC Switch,Key Type [Disc 1 Play]
SW707 92LSWICH1401AT J AC Switch,Key Type [Disc 2 Play]
SW708 92LSWICH1401AT J AC Switch,Key Type [Disc 3 Play]
SW709 92LSWICH1401AT J AC Switch,Key Type [Disc 4 Play]
SW710 92LSWICH1401AT J AC Switch,Key Type [Disc 5 Play]
SW711 92LSWICH1401AT J AC Switch,Key Type [Disc 6 Play]
SW712 92LSWICH1401AT J AC Switch,Key Type [Disc 5 Eject]
SW713 92LSWICH1401AT J AC Switch,Key Type [Disc 6 Eject]
SW714 92LSWICH1401AT J AC Switch,Key Type [Dimmer]
SW715 92LSWICH1401AT J AC Switch,Key Type [CD]
SW716 92LSWICH1401AT J AC Switch,Key Type [Tape]
SW717 92LSWICH1401AT J AC Switch,Key Type [Tuner (Band)]
SW718 92LSWICH1401AT J AC Switch,Key Type [Video/Aux]
SW719 92LSWICH1401AT J AC Switch,Key Type [Memory/Set]
SW720 92LSWICH1401AT J AC Switch,Key Type [Equalizer]
SW721 92LSWICH1401AT J AC Switch,Key Type [Disc 1 Eject]
SW722 92LSWICH1401AT J AC Switch,Key Type [Disc 2 Eject]
SW723 92LSWICH1401AT J AC Switch,Key Type [Disc 3 Eject]
SW724 92LSWICH1401AT J AC Switch,Key Type [Disc 4 Eject]
SW727 92LSWICH1401AT J AC Switch,Key Type [Fast Rewind]
SW728 92LSWICH1401AT J AC Switch,Key Type [Fast Forward]
SW729 92LSWICH1401AT J AC Switch,Key Type [Reveres Play]
SW730 92LSWICH1401AT J AC Switch,Key Type [Stop]
SW731 92LSWICH1401AT J AC Switch,Key Type

SW732 92LSWICH1401AT J AC Switch,Key Type [Play]
SW733 92LSWICH1401AT J AC Switch,Key Type [Clock]
SW734 92LSWICH1401AT J AC Switch,Key Type [Timer/Sleep]
SW735 92LSWICH1401AT J AC Switch,Key Type

SW736 92LSWICH1401AT J AC Switch,Key Type
SW737 92LSWICH1401AT J AC Switch,Key Type [REC Pause]

SW738 92LSWICH1401AT J AC Switch,Key Type [X-Bass/Demo]

1 SW801 QSOCE0009AWZZ J AH Switch,Slide Type

SWB101 QSW-P9005AWZZ J AD Switch,Push Type
SWB102 QSW-P9005AWZZ J AD Switch,Push Type

PRICE
RANK

DESCRIPTION

[Span Selector]

[Reverse Mode]

[Tuning/Time Up]
[Tuning/Time Down]

[Voltage Selector]
[Disc Detect 1]
[Disc Detect 2]

NO.

SWB103 QSW-P9005AWZZ J AD Switch,Push Type
SWB104 QSW-P9003AWZZ J AD Switch,Push Type [Mode 1]

SWB105 QSW-P9003AWZZ J AD Switch,Push Type [Mode 2]
SWB106 QSW-P9003AWZZ J AD Switch,Push Type [Mode 3]
SWB107 QSW-P9003AWZZ J AD Switch,Push Type [Mode 4]
SWB108 QSW-P9003AWZZ J AD Switch,Push Type [Mode 5]
SWB109 QSW-P9004AWZZ J AE Switch,Push Type [Tray 1]
SWB110 QSW-P9004AWZZ J AE Switch,Push Type [Tray 2]
WT601 QCNCW012EAWZZ J AC Socket,5Pin

PRICE
RANK

DESCRIPTIONPARTS CODE

[Disc Detect 3]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LMCUSN1524A J AD Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— –– Pickup Unit
306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack
307 PCUSG0001AWSA J AD Cushion
308 PCUSG0004AWSA J AD Cushion
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]
NM2 92LMTR1854BASY J AP Motor with Gear [Sled]
NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

(Not Replacement Item)

CHANGER MECHANISM PARTS

101 LCHSM0106AWZZ J AQ Main Base
102 PGIDM0033AWZZ J AH Change Box,L
103 PGIDM0034AWZZ J AG Change Box,R
104 NGERH0121AWZZ J AC Gear,STB B
105 PGIDM0035AWZZ J AH Bracket,STB Gear
106 MLEVP0098AWZZ J AB Lever,Tray Lock
107 MSPRP0040AWFW J AD Spring,Tray Lock Lever
108 GCOVA1354AWZZ J AF Tray 1
109 GCOVA1355AWZZ J AF Tray 2
110 GCOVA1356AWZZ J AF Tray 3
111 GCOVA1357AWZZ J AF Tray 4
112 GCOVA1358AWZZ J AF Tray 5
113 GCOVA1359AWZZ J AF Tray 6
114 LPLTP0010AWZZ J AG Top Plate,R
115 MCAMP0009AWZZ J AE Cam,Lift
116 NSFTT0057AWFD J AE Shaft,Lift Cam
117 LPLTP0009AWZZ J AH Top Plate,F
118 MLEVP0099AWZZ J AB Lever,Disc OB
119 NGERH0098AWZZ J AC Gear,STB Drive,A
120 NGERH0099AWZZ J AC Gear,STB Drive,L
121 MLEVF0055AWFW J AC Lever,OS,L/R
122 NGERH0100AWZZ J AC Gear,STB Drive,R
123 MSPRT0040AWFJ J AB Spring,OS Lever
124 NGERH0111AWZZ J AC Gear,Tray Drive,R
125 NGERH0113AWZZ J AF Gear,Tray Joint,B
126 NGERH0116AWZZ J AH Gear,Mode Big
127 NGERH0117AWZZ J AC Gear,Lift A
128 NGERH0118AWZZ J AB Gear,Lift B
129 NGERH0119AWZZ J AF Gear,Lift C
130 NGERH0115AWZZ J AC Gear,Tray Idler
131 NGERH0106AWZZ J AC Gear,MT Idler,F
132 NGERH0120AWZZ J AB Gear,STB A
133 NSFTT0055AWM1 J AH STB Gear Ass’y
133- 1 NGERH0122AWZZ J AC Gear,STB C
133- 2 NSFTT0055AWFD J AG Shaft,STB Gear
133- 3 NGERH0123AWZZ J AC Gear,STB D
134 NGERH0108AWZZ J AK Gear,Tray Big
135 NGERH0109AWZZ J AB Gear,Tray A
136 NGERH0110AWZZ J AC Gear,Tray B
137 NGERH0103AWZZ J AB Gear,MT Idler,C
138 NGERH0102AWZZ J AC Gear,MT Idler,B
139 NGERH0105AWZZ J AB Gear,MT Idler,E
140 NGERH0104AWZZ J AB Gear,MT Idler,D
141 NGERH0101AWZZ J AD Gear,MT Idler,A
142 NGERH0114AWZZ J AB Gear,Tray C
143 NGERH0107AWZZ J AC Gear,Tray Drive,F

– 6 –

CD-BK3200V

NO.

144 NGERH0112AWZZ J AF Gear,Tray Joint,F
145 MLEVP0097AWZZ J AB Lever,Lift
146 NSFTT0056AWFD J AC Shaft,Lift Lever
147 LHLDZ1270AWZZ J AH Holder,STB
148 PMAGF0001AWZZ J AF Magnet
149 LHLDM1011AWZZ J AD STB FH
150 92LNBAND1318A J AA Nylon Band,80mm
151 QCNCW025DAWZZ J AB Holder,Flat Wire,4Pin
152 QCNCW025HAWZZ J AC Holder,Flat Wire,8Pin
801 XBPSD26P04000 J AA Screw,ø2.6×4mm
802 XEBSD20P07000 J AB Screw,ø2×7mm
803 XEBSD20P10000 J AA Screw,ø2×10mm
804 XHBSD20P05000 J AA Screw,ø2×5mm
805 LX-EZ0005AWFD J AA Screw,ø2.6×10mm
806 LX-EZ0026AWFD J AB Screw,ø2×9mm
807 LX-JZ0105AFFN J AA Screw,ø1.7×5mm
808 XEBSD30P10000 J AA Screw,ø3×10mm
MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y
MOB2 92LMTR3435DASY J AM Tray Motor Ass’y

PARTS CODE

PRICE

RANK

DESCRIPTION

CABINET PARTS

201 92LCAB3633AASY J Front Panel Ass’y
201- 1 ———— –– Front Panel

201- 2 GDORF0101AWSA J AF Holder,Cassette [Tape 1]
201- 3 GDORF0102AWSA J AF Holder,Cassette [Tape 2]
201- 4 HDECQ0692AWSB J AE Panel,Cassette [Tape 1]
201- 5 HDECQ0781AWSA J AE Panel,Cassette [Tape 2]
201- 6 GCOVA1360AWSA J AH Cover,Cassette [Tape 1]
201- 7 GCOVA1361AWSA J AH Cover,Cassette [Tape 2]
201- 8 GDORF0103AWSA J AE Door,Changer
201- 9 HDECQ0754AWSA J AH Panel,Amp.
201-10 JKNBZ0785AWSA J AE Button,Power/Dimmer
201-11 JKNBZ0833AWSA J AD Button,Disc Number
201-12 JKNBZ0787AWSA J AD Button,Function
201-13 JKNBZ0819AWSA J AF Button,Play/Stop
201-14 JKNBZ0789AWSA J AF Button,Tuning
201-15 JKNBZ0790AWSA J AE Button,CD Eject
201-16 JKNBZ0791AWSA J AE Button,X-Bass
201-17 HDECQ0695AWSA J AG Panel,Top
201-18 GCOVA1395AWSA J AC Cover,Play/Stop
201-19 HDECQ0698AWSA J AE Panel,Changer Door
201-20 LHLDZ1335AWSA J AC Holder,Changer Door
201-21 MSPRD0160AWFJ J AB Spring,Changer Door
201-22 HDECQ0699AWSA J AG Panel,Main Control
201-23 GCOVA1287AWSA J AG Cover,Remote Sensor
201-24 GCOVA1364AWSA J AB Cover,Timer
201-25 HDECQ0708AWSA J AD Decoration Plate,Function,Left
201-26 MLIFP0010AWZZ J AD Damper
201-27 HBDGB1001AWSA J AD Badge,SHARP
201-28 MSPRD0165AWFJ J AB Spring,Cassette,Tape 1
201-29 MSPRD0166AWFJ J AB Spring,Cassette,Tape 2
202 92LCAB3629BASY J AN Side Panel Ass’y,Left
202- 1 ———— –– Side Panel,Left

202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3629CASY J AN Side Panel Ass’y,Right
203- 1 ———— –– Side Panel,Right

203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 GCAB-1193AWSA J AN Cabinet,Top
205 LCHSM0124AWFW J AQ Main Chassis
206 LHLDZ1334AWZZ J AE Holder,FL Display
207 GITAR0768AWSA J AQ Rear Panel

207 GITAR0807AWSA J AQ Rear Panel [For Philippines]
208 LANGK0188AWFW J AF Bracket,Fan Support
209 LANGK0236AWFW J AE Bracket,Heat Sink Left
210 LANGK0237AWFW J AE Bracket,Heat Sink Right
211 92LCSPR1431C J AA Spring,Ring
212 NFANP0001AWZZ J AD Rotary Fan
213 LANGK0256AWFW J AC Bracket,Cassette Lock [Tape 1]
214 LANGK0257AWFW J AC Bracket,Cassette Lock [Tape 2]
215 MLOKC0010AWZZ J AC Lever,Cassette Lock [Tape 1]
216 MLOKC0011AWZZ J AC Lever,Cassette Lock [Tape 2]
217 MSPRD0109AWFJ J AB Spring,Cassette Lock [Tape 1]
218 MSPRD0110AWFJ J AB Spring,Cassette Lock [Tape 2]
219 JKNBK0012AWSG J AK Knob,Karaoke
220 PRDAR0158AWFW J AK Heat Sink,Sub
221 PRDAR0192AWFW J AV Heat Sink,Main

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

[Except for Philippines]

NO. PARTS CODE

1 222 QACCA0003AW00 J AL AC Power Supply Cord
1 222 QACCB0011AW00 J AS AC Power Supply Cord
1 222 QACCE0008AW00 J AG AC Power Supply Cord
1 222 QACCJ0007AW00 J AK AC Power Supply Cord

223 QCNWN1860AWZZ J AC Lug Wire
224 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

1 225 QFSHD0001AWZZ J AB Holder,Fuse

226 92LNBAND1318A J AA Nylon Band,80mm
227 LCHSZ0021AWZZ J AL Chassis,Changer
228 KMECB0022AWZZ J BH Tape Mechanism Ass’y
228- 1 92PF513-860 J BB Head Plate Block [Tape 2]
228- 2 92PF525-338 J BE Motor with Pulley [Tape]
228- 3 92PF567-649 J BA Tape Mechanism PWB Ass’y
228- 4 92PFF19U-12 J AL Belt,Main [Tape 2]
228- 5 92PF514-135 J AL Pinch Roller
228- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]
228- 7 92PFF19N-11 J AL Belt,Main [Tape 1]
228- 8 92PF522-061 J AZ Clutch Ass’y Block [Tape 1]
228- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 2]
228-10 92PF513-861 J AG Head Plate Block [Tape 1]
228-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]
229 PCUSG0022AWZZ J AB Cushion,Leg
230 JKNBZ0784AWSA J AF Knob,Volume
231 LANGK0272AWFW J AF Bracket,Fan Motor Support
232 PSHEZ0126AWZZ J AC PC Sheet
233 LHLDZ1356AWZZ J AD Holder,LED
234 92LCAUT1706A1 J AC Label,Class 3A
235 92LCAUT1706B J AA Label,Laser
236 LHLDK9001AW00 J AB Holder,CD Digital Output
237 TSPC-0955AWZZ J Label,Specifications [For Taiwan]
237 TSPC-0956AWZZ J Label,Specifications

238 PCUSG0096AWZZ J AC Cushion,Mic PWB
239 QCNWN2030AW00 J Lug Wire
601 LX-BZ2222AXZZ J AB Screw,Special
602 XEBSD30P08000 J AA Screw,ø3×8mm
603 XEBSD30P06000 J AA Screw,ø3×6mm
604 XEBSD30P14000 J AA Screw,ø3×14mm
605 LX-HZ0009AWFD J AC Screw,Special
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 LX-LZ0006AWZZ J AC Holder,PWB
608 XESSD30P10000 J AA Screw,ø3×10mm
609 LX-HZ0082AFZZ J AA Screw,ø4×8mm
610 LX-JZ0010AFFD J AA Screw,ø3×10mm
611 XJBSD30P10000 J AA Screw,ø3×10mm
612 XJSSD30P10000 J AA Screw,ø3×10mm
613 XJBSD30P12000 J AA Screw,ø3×12mm
614 XBBSD20P04000 J AA Screw,ø2×4mm
616 XJBSF30P08000 J AA Screw,ø3×8mm
617 XJBSD30P16000 J AA Screw,ø3×16mm
619 XJBSD30P08000 J AA Screw,ø3×8mm
620 LX-BZ0880AFZZ J AC Screw,ø2×4mm
621 XEBSD30P12000 J AA Screw,ø3×12mm
622 LX-BZ0062AWF2 J AD Screw,Transport

PRICE
RANK

DESCRIPTION

[For Thailand]

ACCESSORIES/PACKING PARTS

QANTL0008AWZZ J AH AM Loop Antenna

1 QPLGA0003AWZZ J AF AC Plug Adaptor
1 QPLGA0004AWZZ J AF AC Plug Adaptor

QCNWG0005AWZZ J AL Video Cable

SPAKA0297AWZZ J AM Packing Add.
SPAKC1136AWZZ J AX Packing Case
SPAKP0032AWZZ J AF Polyethylene Bag,Unit
SSAKA0007AWZZ J AB Polyethylene Bag,Accessories
TCAUA0025AWZZ J AB Label,Caution [For Taiwan]
TCAUS0019AWZZ J AD Label,Warning

[For Thailand Only]
TCAUZ0035AWZZ J AB Sheet,Caution
TCAUZ0102AWZZ J AC Caution,Transport Screw
TGANE0011AW79 J AD Warranty Card [For Philippines]
TGANZ0028AW85 J Warranty Card [For Taiwan]
TINST0102AWZZ J Operation Manual [For Thailand]
TINSZ0720AWZZ J AQ Operation Manual

[Except for Thailand]
TLABB0001AWZZ J AB Label,Japan [For Set]
TLABE0482AWZZ J Label,Bar Code
TLABE0565AWZZ J Label,Bar Code
TLABG0002AWZZ J AB Label,Hong Kong
TLABJ0003AWZZ J AB Label,Japan [For Packing Case]
TLABS0324AWZZ J AB Label,Hong Kong

– 7 –

CD-BK3200V

NO. PARTS CODE

TLABS0336AWZZ J AB Label,CPA
TLABZ0967AWZZ J AC Label,Carton [For Taiwan]
TLABZ0952AWZZ J AC Label,Feature [Tape1]
TLABZ0968AWZZ J AC Label,Feature
92LBAG1770A J AB Polyethylene Bag,AC Power

92LBAG760C J AA Polyethylene Bag,AC Plug
92LFANT1746A J AD FM Antenna

RRMCG0272AWSA J Remote Control
GFTAB1022AWSB J Battery Lid,Remote Control

PRICE
RANK

DESCRIPTION

Supply Cord
Adaptor

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB3633MANS J –– Main
PWB-B1~4 92LPWB3633DPLS J –– Display/Eject Switch/Play Switch/

PWB-C 92LPWB3633CDUS J –– Video CD

1 PWB-D1~3 92LPWB3633PWRS J –- Power Amp./Power A/Power B

PWB-E QPWBF0644AWZZ J AD Tray Switch (PWB Only)
PWB-F QPWBF0645AWZZ J AC Cam Switch (PWB Only)
PWB-G QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-H 92PF567-649 J –– Tape Mechanism
PWB-J 92LPWB3632MICS J –– Mic

Headphones (Combined Ass'y)

(Combined Ass’y)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

NO.

PRICE
RANK

DESCRIPTIONPARTS CODE

CP-BK3200

SPEAKER BOX PARTS

901 HPNLS1021AWSA J AY Front Panel,Left
901 HPNLS1022AWSA J AY Front Panel,Right
902 CWAKP1046AWSC J AS Net Frame Ass’y
903 GBOXS2005AWSB J BB Speaker Box Ass’y,Right
903 GBOXS4005AWSB J BB Speaker Box Ass’y,Left
904 CPNLS1026AWSA J AX Sub Woofer Panel Ass’y,Left
904 CPNLS1028AWSA J AX Sub Woofer Panel Ass’y,Right
905 PCUSS0049AWZZ J AD Port Cushion
906 PCUSG0022AWZZ J AB Foot Cushion
907 LHLDZ8001AWSA J AD Catching Holder
908 QCNWN1834AWZZ J AK Tweeter Cord

909 XJBSD40P20000 J AA Screw,ø4×20mm
910 XJBSD40P16000 J AB Screw,ø4×16mm
911 XJBSD30P10000 J AA Screw,ø3×10mm
912 XMBSD40P16000 J AC Screw,ø4×16mm
913 XMBSF40P20000 J AC Screw,ø4×20mm
914 PFLT-0046AWZZ J AC Felt
915 TSPC-0881AWZZ J Label,Specifications
916 QCNWN1912AWZZ J Sub Woofer Cord
917 QCNWN1835AWZZ J Woofer Cord
SP1,2 RSPA00030AW6T J Tweeter
SP3,4 RSPA10030AW6S J Woofer
SP5,6 RSPA10031AW6W J Sub Woofer

(With Capacitor C1,2)

PACKING PARTS

SPAKA0299AWZZ J AM Packing Add.
SPAKZ0696AWZZ J AE Layer Pad
SSAKH0053AWZZ J AC Polyethylene Bag,Speaker

– 8 –

CD-BK3200V

CD-BK3200V

A

306

306-1

306-2

306-3

701

704

B

701

C

304

302

301

702

D

303

703x2

E

NM1

F

307

NM2

G

305x2

308

NSW1

H

PWB-G

1

23456

Figure 9 CD MECHANISM EXPLODED VIEW

– 9 –

CD-BK3200V

CD-BK3200V

202-1

202

PWB-A

A

CD CHANGER
MECHANISM

604x4

201-21
x6

201-11

616x2

610

201

223

603

201-24
201-10

613

613x2

B

202-2

608x2

PWB-B3

206

FL701

C

PWB
Washer

602

PWB-B4

602x4

201-8x6

233

608x9

PWB-B1

201-20

D

201-19

201-27

201-17

201-1

E

601

PWB-B2

201-23

610x2

608x2

201-25x4

201-13

235

201-18x3

201-15

219

238

227

201-12

PWB-J

239

220

617x2

Grease

605

234

228-1~
228-11

601

Silicon

606x2

217

223

PWB-H

Q850

204

215

608x6

613x2

228

610x2

617x2

610

209

Q851

212
214

617x2

611x3

Q852

611

232

236

213

211

606x2

216

IC902

619

609x4

FF/REW

ROLLER

FLYWHEEL

ASS'Y

TAPE2

218

605

Silicon

Grease

ASS'Y

M901

614x2

BELT CONNECTION

FF/REW

ROLLER

Tape
Motor

FLYWHEEL

MAIN BELT

237

208

617x2

221

622

207

IC901

610

T801

PWB-D3

ASS'Y

ASS'Y

TAPE1
611x12

621x2

619

210

224

611x2

613x2

222

201-26

201-3

201-14
201-16

601

201-29

610x2

607

607

619x2

226

M902

PWB-D1

620x2

211

231

205

201-22

230

F

G

201-6

201-4

201-26

201-9

612x2

229x2

201-28

201-2

201-7

201-5

H

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

1

23456

Figure 10 CABINET EXPLODED VIEW

– 10 –

212

203-1

225x12

PWB-D2

613

613x2

203-2

203

CD-BK3200V

803x2

803x3

803x2

803x3

148

149

147

806

806

802x2

126

118x2

106x6

146

116

802x3

107

115

145

144

143

803

803

803x2

102

152

134

124

125

PWB-E

140

141

138

139

131

807

137

805

141

142

127

130

132

805

120

121

119

804

133-1

133-2

129

128

135

136

803x2

804

119

121

122

805

133-3

113

112

111

110

109

108

104

105

803x2

805x4

801x4

808x4

MOB1

MOB2

803x3

802x2

151

803

103

PWB-F

PWB-C

CD
MECHANISM

133

150

123

123

114

117

101

CD-BK3200V

A

B

C

D

E

F

G

H

1

23456

Figure 11 CD CHANGER MECHANISM EXPLODED VIEW

– 11 –

CD-BK3200V

CP-BK3200

903

915

A

SP1,2

B

914x4

C

911x2

910x4

SP3,4

905x2

906x4

912x4

SP5,6

908

(with Capacitor C1,2)

901

916

917

D

909x4

907x4

913x4

E

F

G

H

902

C1,2

Capacitor (N.P.)

3.3µF,100V

RD

RD

BK

SP1,2

TWEETER

SP3,4

WOOFER

BK

BL

SP5,6

SUBWOOFER

BK

RD

SP1,2

TWEETER

SP3,4

WOOFER

SP5,6

SUBWOOFER

904

C1,2
Capacitor (N.P.)

3.3µF,100V
Electrolytic

1

23456

Figure 12 SPEAKER EXPLODED VIEW

– 12 –

CD-BK3200V

–– MEMO ––

– 13 –

–– MEMO ––

CD-BK3200V

– 14 –

CD-BK3200V

COPYRIGHT 2001 BY SHARP CORPORATION

©

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

SHARP CORPORATION
AV Systems Group
Audio Systems Division
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0109-1013DS•HA•M

EX
