Sharp AR-PB8 User Manual

AR-PB8

CODE: 00ZARPB8//A1E

DIGITAL COPIER
OPTION PRINTER
EXPANSION KIT

MODEL AR-PB8

CONTENTS

[ 1 ] SYSTEM CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[ 2 ] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[ 3 ] SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

[ 4 ] SETTING AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

[ 5 ] SIMULATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

[ 6 ] CONFIGURATION REPORT AND TEST PAGE . . . . . . . . . . . . . 6-1

[ 7 ] FIRMWARE VERSION UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

[ 8 ] TROUBLE CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

[ 9 ] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with specified ones
for maintaining the safety and performance of the set.

This document has been published to be used

SHARP CORPORATION

for after sales service only.
The contents are subject to change without notice.

AR-PB8

CONTENTS

[ 1 ] SYSTEM CONFIGURATION . . . . . . . . . . . . . . . 1-1

[ 2 ] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1. Basic specifications . . . . . . . . . . . . . . . . . . . . . . 1-1

2. Printer driver specifications . . . . . . . . . . . . . . . . 1-2

A. System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

B. Kinds of printer drivers . . . . . . . . . . . . . . . . . 1-2

C. Set content . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

D. Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

(1) LCD kit . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

a. LCD message . . . . . . . . . . . . . . . . . . . 1-3

b. LED display . . . . . . . . . . . . . . . . . . . . 1-3

c. Operation keys . . . . . . . . . . . . . . . . . . 1-3

(2) Network board . . . . . . . . . . . . . . . . . . . . 1-4

(3) PS kit . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

E. Expansion memory . . . . . . . . . . . . . . . . . . . . 1-4

F. PC environment . . . . . . . . . . . . . . . . . . . . . . 1-4

G. Paper handling specifications . . . . . . . . . . . 1-4

(1) Paper feed direction . . . . . . . . . . . . . . . . 1-4

a. Paper size and image transport

direction . . . . . . . . . . . . . . . . . . . . . . . 1-4

(2) Paper feed port . . . . . . . . . . . . . . . . . . . . 1-5

(3) Tray selection . . . . . . . . . . . . . . . . . . . . . 1-5

(4) Duplex print operation . . . . . . . . . . . . . . 1-5

a. Tablet operation . . . . . . . . . . . . . . . . . 1-5

b. Booklet operation . . . . . . . . . . . . . . . . 1-5

H. Print Area . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

I. Print reference . . . . . . . . . . . . . . . . . . . . . . . 1-7

J. Font . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

(1) For PCL . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

(2) For PS2 . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

[ 3 ] SET UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

1. Procedures on the co pi er (operation pane l) . . . 3-1

A. Copier operation panel disassembly . . . . . . 3-1

B. Cover disassembly . . . . . . . . . . . . . . . . . . . . 3-1

C. Printer operation panel installation . . . . . . . . 3-1

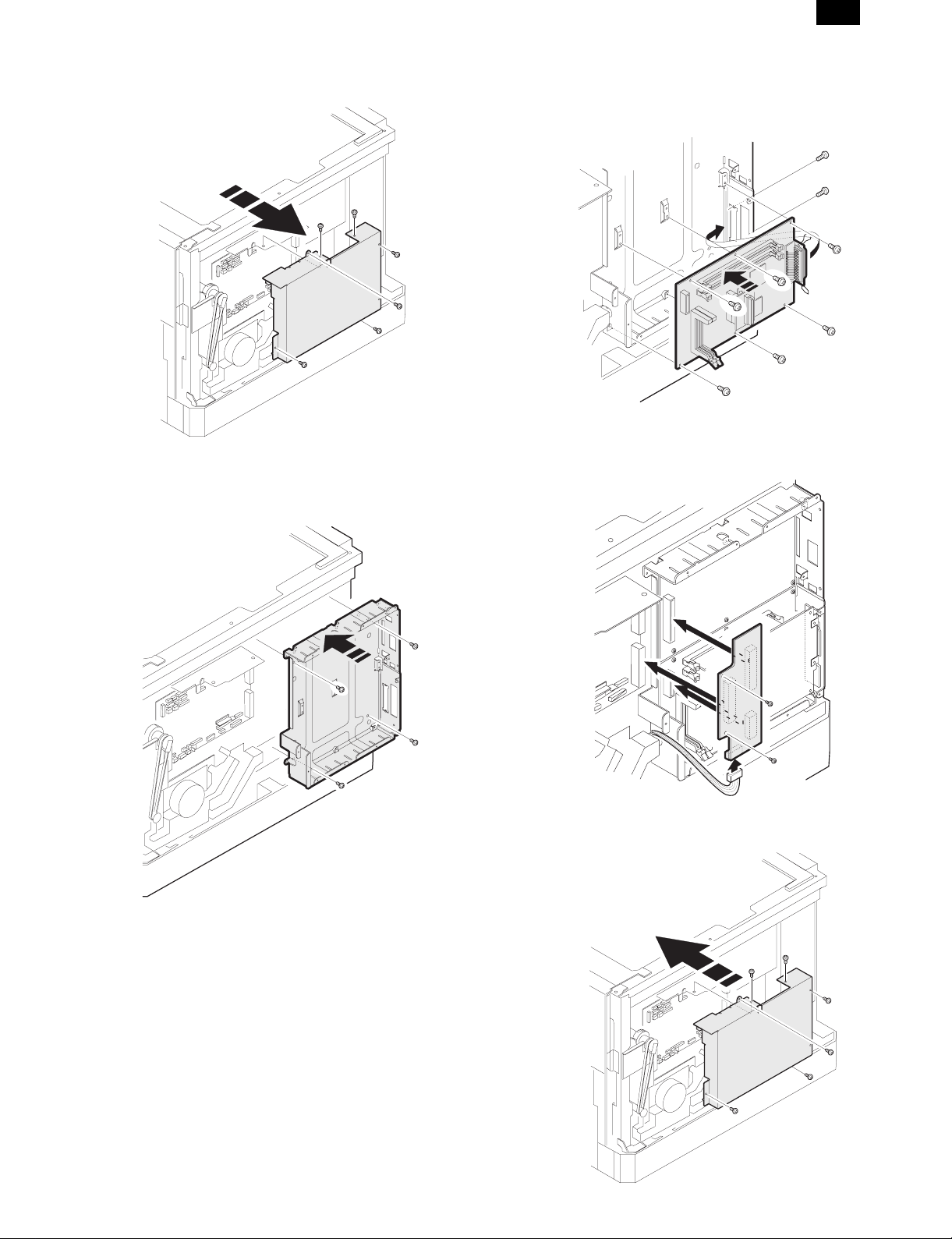

2. Procedures on the copi er (rear side) . . . . . . . . 3-1

A. Copier rear cabinet disassembly . . . . . . . . . 3-1

B. Copier shield plate disassembly . . . . . . . . . . 3-2

C. PWB fixing plate installation . . . . . . . . . . . . . 3-2

D. Printer PWB installation . . . . . . . . . . . . . . . . 3-2

E. Mother board installation

(Packed together with the LCD kit.) . . . . . . . 3-2

F. Shield plate installation . . . . . . . . . . . . . . . . . 3-2

G. PWB cover installation . . . . . . . . . . . . . . . . . 3-3

3. Expansion memory installation . . . . . . . . . . . . . 3-3

4. PS kit (AR-PS1) installation . . . . . . . . . . . . . . . 3-3

5. Network Interface Cont rol PWB installation . . . 3-3

6. INSTALLING THE PRINTER DRIVER . . . . . . . 3-4

A. Installing onto Windows 95 . . . . . . . . . . . . . 3-4

B. Installing onto Windows 98 . . . . . . . . . . . . . 3-5

C. Installing onto Windows 95/98

without Using the Plug & Play Function . . . . 3-6

D. Installing onto Windows NT 4.0 . . . . . . . . . . 3-7

E. Changing Printer Configuration Settings . . . 3-7

[ 4 ] SETTING AND ADJUSTMENTS . . . . . . . . . . . . 4-1

1. Configuration setting . . . . . . . . . . . . . . . . . . . . . 4-1

A. Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

B. Network Menu . . . . . . . . . . . . . . . . . . . . . . . 4-2

C. Interface Menu . . . . . . . . . . . . . . . . . . . . . . . 4-2

D. Test Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

E. PS2 Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

[ 5 ] SIMULATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

1. Entering the simulation mode . . . . . . . . . . . . . . 5-1

2. Cancelling the simulation mode . . . . . . . . . . . . 5-1

3. Contents of simulations . . . . . . . . . . . . . . . . . . 5-1

[ 6 ] CONFIGURATION REPORT AND

TEST PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

1. Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

2. Items and contents . . . . . . . . . . . . . . . . . . . . . . 6-2

A. Hardware status . . . . . . . . . . . . . . . . . . . . . . 6-2

[ 7 ] FIRMWARE VERSION UP . . . . . . . . . . . . . . . . . 7-1

1. Cases where flash memory rewriting is r equi red 7-1

2. Necessary tools . . . . . . . . . . . . . . . . . . . . . . . . 7-1

3. Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

[ 8 ] TROUBLE CODE LIST . . . . . . . . . . . . . . . . . . . . 8-1

[ 9 ] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . 9-1

1. BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . 9-1

2. CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . 9-2

Note for descriptions
The marks of ∗A and ∗B used in this Service Manual

indiciate that the marked functions are not supported as of
February 1999.

[1] SYSTEM CONFIGURATION

AR-PB8

LCD panel kit

(AR-PA1)

AR-160/200 Series

PS2 expansion kit

(AR-PS1)

Printer expansion kit

(AR-PB8)

Print server card

Expansion memory

(Commercially available 168 pin EDO DIMM: 16MB/32MB/64MB)

[2] SPECIFICATIONS

1. Basic specifications

Item Contents
Print speed
First print 7.2 sec
Resolution
Toner save Available
Duplex print

Paper feed tray

Paper size

∗ The number of trays supported depends on each model.

16 PPM (16cpm machine)
20 PPM (20cpm machine)

600 dpi, 300 dpi (1,200 dpi equivalent by
smoothing)

Available (Only in the model with duplex
function)

Multi bypass tray
Tray 1, Tray 2, Tray 3, Tray 4 (Depends on
the machine and the option installation.)

A3, B4, A4R, B5R,
A5R, 11" × 17", 8.5"
× 14", 8.5" × 11"R,

Multi bypass tray

Tray 1 ∼ 4∗ AB series

8.5" × 5.5"R, 8.5" ×
13", 8.3" × 13",

7.25" × 10.5"R, DL,
C5, COM10

A3, B4, A4, A4R,
B5, B5R, A5

Item Contents

11" × 17", 8.5" ×

Paper size Tray 1 ∼ 4∗ Inch series

Paper exit Face down system
Shifter Available (only in the model with the shifter)
Page description

language (standard)
Dot emulation None
Page protection

function

Interface

Interface cable

PCL6 emulation
PCL5e emulation

Available

IEEE1284 port

Expansion slot
Use IEEE1284 conforming parallel cable.

(shielded and grounded)
Max. length Within 3.0 m

14", 8.5" × 11", 8.5"
× 11"R, 8.5" × 5.5",

8.5" × 13"

Compatibility mode
Nibble mode
Expansion slot for

Print Se rv er Card × 1

1 – 1

AR-PB8

Item Contents
Interface select Auto
Emulation select Auto
Plug and play Conforming (only with Windows 95/98)

Microsoft Windows 3.1 ∗A
Microsoft Windows 95
Microsoft Windows 98

Printer driver

Network control
software

Built-in fonts

Screen font

Memory

Conforming PC

Microsoft Windows
NT4.0

Macintosh OS (System

7.5 or later)
Sharp Admin Software
Outline Western language 31 fonts (PCL6

compatible)
Outline European language 45 fonts (PCL6

compatible) for Windows
Outline European language 35 fonts (PS2
compatible) for Windows∗A

Standard 8MB
Max. 136MB
Expansion slot DIMM slot × 2

Expansion memory
(For details, refer to the
descriptions below.)

IBM PC-AT compatible
Apple Macintosh and compatible (AR-PS1
required)∗A

— ∗A

64MB, 32MB, 16MB
(Commercialiy
available 168 pin
EDO DIMM used)

2. Printer driver specifications

A. System

OS

Microsoft Windows 3.1 ∗A ∗A

IBM PC/AT

Macintosh

: Option

Microsoft Windows 95 ∗A
Microsoft Windows 98 ∗A
Microsoft Windows NT4.0 ∗A
Macintosh OS (System

7.5 or later)

B. Kinds of printer drivers

Printer driver name Name on PC screen
PCL5e for Windows 3.1∗A/95/98
PCL5e for Windows NT4.0
PCL6 for Windows 3.1∗A/95/98
PCL6 (PCL XL) or SPDL2 for Windows

NT4.0
PostScript Level2 for Windows

3.1/95/98∗A
PostScript Level2 for Windows NT4.0∗A
PostScript Level2 for Macintosh OS∗A

PCL

<AR-PB8>

SHARP AR-160/200
Series PCL5e

SHARP AR-160/200
Series PCL6

SHARP AR-160/200
Series PS2
(AR-PS1)

<AR-PS1>

PS2

∗A

C. Set content

Item PCL6 PCL5e
Copies 1 to 999
Orientation Portrait, Landscape

Document Style

Paper Source

Paper Size

N-Up Printing 1-Up, 2-Up, 4-Up
Border On, Off
Fit to Page On, Off
Page Protection On, Off
Toner Save Mode On, Off
Smoothing On, Off
Resolution Settings 600 dpi, 300 dpi
Graphics Mode HP-GL/2 (Vector), Raster

Half Tone
Font Source Resident Fonts, Download Fonts

True Type Mode

Duplex Capability Yes, No
Input Tray

Installed RAM

Unit 0.01", 0.1 mm

Set
content of
custom
paper

Set
content of
water
mark

Width

Length

Position

Size 6 ∼ 900
Angle ±90˚

Text

Edit Fonts Refer to the following Font List.
Edit Density 0 ∼ 255
Transparent Text Yes, No
On First Page Only Yes, No

As Outline Only

1-Sided, 2-Sided(Book),
2-Sided(Tablet)∗B

Auto, Tray 1, Tray 2, Tray 3, Tray
4, Bypass Tray

A3 (297 × 420 mm), B4 (257 × 364
mm), A4 (210 × 297 mm), A5 (148
× 210 mm), B5 (182 × 257 mm),
Ledger (11" × 17"), Letter (8.5" ×
11"), Legal (8.5" × 14"), Executive
(7.25" × 10.5"), Folio (8.3" × 13"),
Invoice (5.5" × 8.5"), Foolscap
(8.5" × 13"), DL, C5, COM10,
Custom Paper

Photo Images, Line Art, Scanned
Images

Download as True Type,
Download as bitmap font, Print as
graphics

One Tray, Two Trays, Three
Trays, Four Trays

8MB, 24MB, 40MB, 56MB, 72MB,
88MB, 104MB, 136MB

1000 to 2969
(In the case of 0.1 mm)
394 to 1169 (In the case of 0.01")

1480 to 4318
(In the case of 0.1 mm)
583 to 1700 (In the case of 0.01")

Depends on the paper size.
MAX Short –5.84" ∼ 5.84"
Long –8.5" ∼ 8.5"

TOP SECRET
CONFIDENTIAL
DRAFT
ORIGINAL
COPY

Yes, No (Only when Transparent
Text is OFF.)

1 – 2

AR-PB8

D. Option

(1) LCD kit

Key

AR-PA1

∗ When installing the AR-PB8 to a model which is not equipped with

the LCD panel, the LCD kit (AR-PA1) must be installed to.

a. LCD message

Online Online

Error

User
setting

Lamp 2 (DATA, ONLINE)
Display 20 digits × 2 lines

Status LCD display Content

Data Loss
Error

Memory Full Press ENTER

Paper Out

Check Panel

Clear Paper
Path

Main Menu

Network
Menu ∗1

6 pcs.
(LINE, MENU, ITEM, ←, →, ENTER)

AUTO
PCL PCL

PS2∗A PS2∗A
HEX HEX

Press ENTER

Tray 1 <Paper Size>
Tray 2 <Paper Size>
Tray 3 <Paper Size>
Tray 4 <Paper Size>
Bypass <Paper

Size>

Tray <Paper Size>

Copies

Resolution

Smoothing

Toner Save

Page Protection

2-Sided Printing∗B

Paper Source Tray select
Paper Size Paper size select

Orientation
Emulation Emulation setting
Set IP Address

Set Subnet Mask
Set Default

Gateway

Auto select to
emulation

When the paper
feed tray is
selected to other
than AUTO.

When the paper
feed tray is
selected to AUTO.

Toner empty
Drum replacement
Cover open
Service call error

Paper jam
Paper exit tray full

Printing of the set
quantity is made.

Printing at the set
resolution is made.

Smoothing function
setting.

Toner save mode
setting

Setting of page
protection function

Setting of duplex
function and
binding direction

Setting of print
direction

IP address setting
is made.

Subnet Mask
setting is made.

Default Gateway
setting is made.

1 – 3

Status LCD display Content

Enable TCP/IP

Network
Menu ∗1

PS2 Menu
∗2, ∗A

User
setting

Interface
Menu

Test Printing
Menu

∗1 When installing the network Interface card.
∗2 When installing the AR-PS1.

b. LED display

ON LINE light

DATA light

c. Operation keys

LINE key

MENU key

ITEM key
Left arrow key

Right arrow key
ENTER key Used to enter a new value.

∗ Invalid when the printer is on-line.

Enable Netware

Enable EtherTalk

Reset to Defaults

Print PS2 Error

I/O Time Out

Configuration Page

PCL6 Font Page

PS2 Font Page

Indicates that the printer is
off-line and data cannot be
transferred or printed. Make

Extinguished

Lit

Extinguished

Lit

Blinking

Changes between the on-line and off-line
modes.
When the printer is on-line, it can receive data
from the computer with which it is connected.
When the printer is off-line, you can use
operation panel keys to make print settings.
Note, however, that you cannot make settings
if the "Data Remaining" message is displayed.

Used to show setting menus on the display in
sequence.∗

Used to show the setting items of the selected
menu in sequence.∗

Used to change the value of any item.∗

settings from the operation
panel in this mode. Note,
however, that you cannot make
settings if the “Data Remaining”
message is displayed.

Indicates that the printer is
on-line and data can be
transferred and printed.

Indicates that there is no data
being received or processed.

Indicates that the printer is
receiving or processing print
data.

Indicates that there is print data
remaining in memory that has
not yet been printed.

Enable/Disable
TCP/IP

Enable/Disable
Netware

Enable/Disable
EtherTalk

Reset Print Server
Card to default

Setting of printing in
case of PS Error

If data reception is
not completed
within the set time,
it is judged as a
time out error.

Configuration page
is printed.

PCL6 Font page is
printed.

PS2 Font page is
printed∗A.

AR-PB8

(2) Network board

10/100 Base TX TCP/IP, IPX/SPX, Ether Talk, Jet Admin∗A
10 Base 2/T TCP/IP, IPX/SPX, Ether Talk, Jet Admin∗A

(3) PS kit∗A

Model name AR-PS1
Page description

language
Built-in fonts Outline European 35 fonts (PS2 compatible)

Screen fonts

Printer driver

PostScript level 2 emulation

Outline European 35 fonts (PS2 compatible) for
Windows

Microsoft Windows 3.1
Microsoft Windows 95
Microsoft Windows 98
Microsoft Windows NT4.0
Macintosh OS (System 7.5 or later)

E. Expansion memory

Type
Capacity 64MB, 32MB, 16MB

Recommendable
product

DIMM (60ns/EDO/168pin) (Use commercially
available one.)

Vendor Capacity Model name

Viking

Components

Kingston

Simple

Technology

Transcend

16MB
32MB
64MB

16MB
32MB
64MB

16MB
64MB

16MB
32MB
32MB
64MB

VE2641U2EN3-60
VE4641U4EN3-60
VE8641U4EN3-60

KTA4400/16
KTM4X64VN42-60EG
KTM8X64VN84-60EG

STI642004UD1-60VG
STI648104UD1-60VG

TS2MLE64V6PN
TS4MLE64V6TN
TS4MLE64V6UN
TS8MLE64V6VN

G. Paper handling specifications

(1) Paper feed direction

a. Paper size and image transport direction

Paper Size Side set to the paper feed port

A3 Short side
B4 Short side
A4 Long side

A4R Short side

B5 Long side

B5R Short side

A5 Long side

A5R Short side

Ledger Short side

Legal Short side

Letter Long side
LetterR Short side
Invoice Long side

InvoiceR Short side

Foolscap Short side

Folio Short side

Executive Short side

COM-10 Short side

C5 Short side
DL Short side

Side set to the
paper feed port

Transport direction

ABC...

= Long side

Side set to the
paper feed port

= Short side

Transport direction

F. PC environment

Computer
Type

Operating
System

CPU

RAM

IBM PC/AT or compatible computer equipped with a
bi-directional parallel interface and CD-ROM drive

Windows 95, Windows 98, Windows NT4.0
Windows 95 : 486SX or better

Windows 98 : 486DX/66MHz or better (Pentium or
better is recommended.)
Windows NT4.0 : 486/25MHz or better

Windows 95 : 8MB or more (12MB or more is
recommended.)
Windows 98 : 16MB or more (32MB or more is
recommended.)
Windows NT4.0 : 16MB or more

ABC...

For paper feed of the multi bypass tray, the short side must be set
to the paper fed port regardless of paper size for making print
data.

1 – 4

AR-PB8

(2) Paper feed port

Tray kind

Capacity

A3
B4
A4

A4R

B5

B5R

A5

A5R

Ledger

Legal

Letter
LetterR
Invoice

InvoiceR

Foolscap

Folio

Executive

COM-10

C5
DL

Custom

∗ The number of trays supported depends on each model.
∗ When printing with the multi bypass tray, the printer board cannot

recognize the set paper direction, and therefore it regards that the
short side of paper would be set (vertical transport direction) to
make data.

Bypass

Tray

100

sheets

Tray 1 Tray 2 Tray 3 Tray 4

250

sheets

250

sheets

250

sheets

250

sheets

(3) Tray selection

Paper handling is controlled on the copier side. The printer board
sends the Video I/F command to the digital copier according to the
computer direction of the tray.

(4) Duplex print operation∗B

The basic operation of duplex is described below.
Paper exit is made in face down. After printing an even number page,

the former odd number page is printed.

HOST Printer(Tablet)

PAGE
1

PAGE
2

PAGE
3

PAGE
4

Page2

Page1

Page4

Page3

HOST Printer(Booklet)

PAGE
1

PAGE
2

PAGE
3

PAGE
4

Page2

Page1

Page4

Page3

a. Tablet operation
Tablet means printing so that each page is aligned to be read

properly when binding the short edge of paper. Therefore, the
front page (odd number page) and the back page (even number
page) are in upside down each other. This reversion is mechani­cally made, and the printer software needs no additional process.

b. Booklet operation
Booklet means printing so that each page is aligned to be read

properly when binding the long edge of paper. Therefore, the front
page (odd number page) and the back page (even number page)
are in the same direction. This paper is reversed mechanically,
and the printer software needs to rotate the paper 180 degrees.

Duplex transport availability by paper size

Paper size Duplex

A3
B4

A4R

B5

B5R

A5

A5R

Ledger

Legal

Letter
LetterR
Invoice

InvoiceR

Foolscap

Folio

Executive

COM-10

C5
DL

Custom

Note: 1. Since duplex printing cannot be made for the special paper

(Custom) and Invoice, the computer’s direction of Custom
or Duplex printing is ignored and simplex printing is made.

2. Since duplex printing cannot be made in the case of paper
feed from the multi bypass tray, the computer’s direction to
the multi bypass tray to make duplex printing is ignored
and simplex printing is made.

3. Since printing order differs in simplex printing and duplex
printing, the insert surface differs in simplex and duplex in
the case where there is a difference between the front and
the back, for example, the letter head.

1 – 5

AR-PB8

H. Print Area

H

Physical
Page

EE

D

F

E

Paper

size

ABCDEFGH

F

C
G

A

E

D

B

H

Printable
Area

Logical
Page

HP/GL
Frame

A3 7014 9920 6730 142 100 300 6814 0
B4 6070 8597 5786 142 100 300 5870 0
A4 4960 7014 4676 142 100 300 4760 0
B5 4298 6070 5770 142 100 300 4098 0
A5 3508 4960 3224 142 100 300 3308 0

Ledger 6600 10200 6300 150 100 300 6400 0

Legal 5100 8400 4800 150 100 300 4900 0

Letter 5100 6600 4800 150 100 300 4900 0

Invoice 3300 5100 3000 150 100 300 3100 0

Foolscap 5100 7800 4800 150 100 300 4900 0

Folio 4980 7800 4680 150 100 300 4780 0

Executive 4350 6300 4050 150 100 300 4150 0

COM-10 2474 5700 2174 150 100 300 2274 0

C5 3826 5408 3542 142 100 300 3626 0
DL 2598 5196 2314 142 100 300 2398 0

(Unit: Dots/600DPI)

H

EE

D

PAPER

SIZE

F

F

E

Physical
Page

Printable
Area

ABCDEFGH

C
G
A

Logical
Page

HP/GL
Frame

E

D

H

A3 9920 7014 9684 118 100 300 9720 0
B4 8597 6070 8361 118 100 300 8397 0
A4 7014 4960 6778 118 100 300 6814 0
B5 6070 4298 5830 118 100 300 5870 0
A5 4960 3508 4720 118 100 300 4760 0

Ledger 8400 5100 8160 120 100 300 8200 0

Legal 8400 5100 8160 120 100 300 8200 0
Letter 6600 5100 6360 120 100 300 6400 0

Invoice 5100 3300 2860 120 100 300 4900 0

Foolscap 7800 5100 7560 120 100 300 7600 0

Folio 7800 4980 7560 120 100 300 7600 0

Executive 6300 4350 6060 120 100 300 6100 0

COM-10 5700 2474 3460 120 100 300 5500 0

C5 5408 3826 5172 118 100 300 5208 0
DL 5196 2598 4960 118 100 300 4996 0

(Unit: Dots/600DPI)
∗ Top Margin
The set value is received from the digital copier and data are made

according to the set value.
∗ Left margin
Since the paper size sensor is not set, the digital copier does not

know the size and direction of paper inserted. Therefore, the left
margin is set according to the paper size indicated by the print data
sent from the computer, and printing is made. If the computer does
not specify the paper size or in the case of custom size, the left
margin is set according to the default paper size.

B

1 – 6

AR-PB8

I. Print reference

This machine employs the center reference system.
Since the digital copier is not equipped with the paper size detection,

format is made not by the actual paper size but by the paper size
specified by the computer, and center distribution is made.

Origin

ABCDEFGHIJKLMN
12345

Paper feed direction

abc

Actual paper size

Size specified by the host computer

Center reference line

J. Font

(1) For PCL

TrueDoc Format 45 fonts
1 bitmap font

Font No. Font Name

0 Fixed Pitch 810 Courier Roman SWC
1 DutchTM 801 SWC
2 Dutch 801 Bold SWC
3 Dutch 801 Italic SWC
4 Dutch 801 Bold Italic SWC
5 Zapf Humanist 601 SWC
6 Zapf Humanist 601 Bold SWC
7 Zapf Humanist 601 Italic SWC
8 Zapf Humanist 601 Bold Italic SWC

9 Ribbon 131 SWC
10 Clarendon 701 Clarendon Condensed SWC
11 SwissTM 742 SWC
12 Swiss 742 Bold SWC
13 Swiss 742 Italic SWC
14 Swiss 742 Bold Italic SWC
15 Swiss 742 Condensed SWC
16 Swiss 742 Condensed Bold SWC
17 Swiss 742 Condensed Italic SWC
18 Swiss 742 Condensed Bold Italic SWC
19 Incised 901 SWC
20 Incised 901 Bold SWC
21 Incised 901 Italic SWC
22 Aldine 430 Original Garamond SWC
23 Aldine 430 Original Garamond Bold SWC
24 Aldine 430 Original Garamond Italic SWC
25 Aldine 430 Original Garamond Bold Italic SWC
26 Audrey Two SWC
27 Flareserif 821 SWC
28 Flareserif 821 Extra Bold SWC
29 Swiss 721 SWM
30 Swiss 721 Bold SWM
31 Swiss 721 Oblique SWM
32 Swiss 721 Bold Oblique SWM

Font No. Font Name

33 Dutch 801 SWM
34 Dutch 801 Bold SWM
35 Dutch 801 Italic SWM
36 Dutch 801 Bold Italic SWM
37 Symbol SWA
38 Wingbats SWM
39 Fixed Pitch 810 Courier Bold SWC
40 Fixed Pitch 810 Courier Italic SWC
41 Fixed Pitch 810 Courier Bold Italic SWC
42 Fixed Pitch 850 Letter Gothic 12 pitch/text SWC
43 Fixed Pitch 850 Letter Gothic Bold 12 pitch/text SWC
44 Fixed Pitch 850 Letter Gothic Italic 12 pitch/text SWC
45 Line Printer

(2) For PS2∗A

Font Name
Dutch 801 SWA
DutchTM 801 Bold SWA
Dutch 801 Italic SWA
Dutch 801 Bold Italic SWA
SwissTM 721 SWA
Swiss 721 Bold SWA
Swiss 721 Oblique SWA
Swiss 721 Bold Oblique SWA
Fixed Pitch 810 Courier® SWA
Fixed Pitch 810 Courier Bold SWA
Fixed Pitch 810 Courier Italic SWA
Fixed Pitch 810 Courier Bold Italic SWA
Symbol SWA
Century 702 Century Schoolbook SWA
Century 702 Century Schoolbook Italic SWA
Century 702 Century Schoolbook Bold SWA
Century 702 Century Schoolbook Bold Italic SWA
Revival 711 ITC Bookman SWA
Revival 711 ITC Bookman Italic SWA
Revival 711 ITC Bookman® Demi SWA
Revival 711 ITC Bookman Demi Italic SWA
Swiss 721 Narrow Bold SWA
Swiss 721 Narrow Bold Oblique SWA
Swiss 721 Narrow SWA
Swiss 721 Narrow Oblique SWA
Geometric 711 ITC Avant Garde Gothic® Book SWA
Geometric 711 ITC Avant Garde Gothic Book Oblique SWA
Geometric 711 ITC Avant Garde Gothic Demi SWA
Geometric 711 ITC Avant Garde Gothic Demi Oblique SWA
Chancery 801 ITC Zapf Chancery® Medium Italic SWA
ITC Zapf Dingbats® SWA
Zapf Calligraphic 801 SWA
Zapf Calligraphic 801 Bold SWA
Zapf Calligraphic 801 Italic SWA
Zapf Calligraphic 801 Bold Italic SWA

1 – 7

AR-PB8

[3] SET UP

1. Procedures on the copier (operation panel)

∗ When installing the LCD panel kit simultaneonsly.

A. Copier operation panel disassembly

• Remove screws and connector, and remove the operation

panel.

B. Cover disassembly

• Remove screw and disengage pawls, and remove the cover.

C. Printer operation panel installation

• Engage pawls and fix the printer operation panel with screw.

Then connect the flat cable to the connector.

2. Procedures on the copier (rear side)

A. Copier rear cabinet disassembly

• Remove screws and remove the rear cabinet.

3 – 1

AR-PB8

B. Copier shield plate disassembly

• Remove screws, and remove the shield plate.

C. PWB fixing plate installation

• Fix the plate with screws.

D. Printer PWB installation

• Fix the printer PWB with screws.

• Before introduction of the Expansion memory, the PS PWB, or

the network PWB, this procedure must be performed.

E. Mother board installation (Packed together with

the LCD kit.)

• Insert the connectors and fix them, then connect the connec-

tors of the copier to them.

F. Shield plate installation

• Fix the shield plate with screws.

3 – 2

AR-PB8

G. PWB cover installation

• Install the PWB cover with screws.

4. PS kit (AR-PS1) installation

• Fix the PS PWB with pawl.

∗Note: The DIMM connector and the PS-PWB are provided with

the reverse insertion protection key(notch). A strong push,
however, allows reverse insertion. Use great care of the
inserting direction.

3. Expansion memory installation

• Fix the memory PWB with pawls.

5. Network Interface Control PWB
installation

• Insert the network PWB into the printer PWB connector and fix

it with screws.

3 – 3

AR-PB8

6. INSTALLING THE PRINTER DRIVER

To use this printer with your computer, you must install the printer
driver.

Install the printer driver using the supplied SHARP Software CD­ROM. This kit is supplied with the following printer drivers:

• PCL6 for Windows 95/98

• PCL6 for Windows NT 4.0

• PCL5e for Windows 95/98

• PCL5e for Windows NT 4.0

Note: • It is recommended that you install the PCL6 printer

driver. If you have a problem printing from older
software using the PCL6 driver, remove it and install the
PCL5e driver.

• The printer driver data in the CD-ROM can be copied to

floppy disks.

1. Double-click “My Computer”, “Ar160_200” and
“Makedisk”.

2. Double-click “Makedisk.exe”.

3. Follow the on-screen instructions.

Before installation, make sure that:

• You read the README.TXT file which is contained on the

SHARP Software CD-ROM. This file contains the information
and restrictions for using the printer.

• The printer is connected properly with the computer or network.

• The printer is loaded with paper.

• The printer is turned on and on-line (the ON LINE light is lit).

• You quit all application software that is running on your com-

puter.

• Your computer meets the following hardware and software re-

quirements:

Computer Type IBM PC/AT or compatible computer

equipped with a bi-directional parallel

interface and CD-ROM drive
Operating System Windows 95, Windows 98, Windows NT 4.0
CPU Windows 95: 486SX or better

Windows 98: 486DX/66MHz or better

(Pentium or better is
recommended.)

Windows NT 4.0: 486/25MHz or better
RAM Windows 95: 8MB or more (12MB or

more is recommended.)

Windows 98: 16MB or more (32MB or

more is recommended.)

Windows NT 4.0: 16MB or more

This procedure uses the following drive name in examples:

Drive R: CD-ROM drive (holds the CD-ROM containing the

printer drivers)

Change the drive name as required according to your environment.

A. Installing onto Windows 95

This printer is compatible with plug & play. If your computer is incom­patible with plug & play or if you want to use this printer as a network
printer, refer to “Installing onto Windows 95/98 without Using the Plug
& Play Function”.

1) Turn the computer on and start Windows 95.
Note: Depending on which version of Windows you are using,

the display examples in this step may differ from those on
your system.

• Either the “Update Device Driver Wizard” window or the “New

Hardware Found” window may appear automatically.

Note: If neither the “Update Device Driver Wizard” window nor

the “New Hardware Found” window appear, refer to “In­stalling Windows 95/98 without Using the Plug & Play
Function”.

• If the “Update Device Driver Wizard” window appears, click the

[Next] button and proceed to step 2).

• If the “New Hardware Found” window appears, perform the

following steps:

<1> Choose “Driver from disk provided by hardware manufac-

turer” and click the [OK] button.

<2> When the “Install From Disk” window appears, insert the

SHARP Software CD-ROM into the CD-ROM drive, type
R:\English\WinXX and click the [OK] button.

<3> Choose the appropriate printer driver from those listed below

and click the [OK] button.

• PCL6 Printer Driver: SHARP AR-160/200 Series PCL6

• PCL5e Printer Driver: SHARP AR-160/200 Series PCL5e

Note: It is recommended that you install the PCL6 printer driver.

If you have a problem printing from older software using
the PCL6 driver,remove it and install the PCL5e driver.

<4> Proceed to step 5).

2) Search for the printer driver by clicking [Other Locations...] button.

3) Insert the SHARP Software CD-ROM into the CD-ROM drive, type
R:\English\WinXX and click the [OK] button.

4) After Windows finds the printer driver, click the [Finish] button to
continue the installation.

Note: In this step the PCL6 printer driver is installed automat-

ically. If you want to install the PCL5e printer driver, refer to
“Installing onto Windows 95/98 without Using the Plug &
Play Function”.

5) Set the printer name.
<1> If you want to change the printer name, enter a new name in

the space provided.

<2> If the program displays, “Do you want your Windows-based

programs to use this printer as the default printer?”, check
“Yes”.

<3> Click the [Next] button.

3 – 4

AR-PB8

6) Print a test page by clicking the [Finish] button.
Note: If you check “No” and click the [Finish] button, the printer

does not print a test page after the installation.

• The printer driver installation begins.

• If the “Insert Disk” window appears, perform the following

steps:
<1> Click the [OK] button.
<2> When the “Copying Files” window appears, type

R:\English\WinXX and click the [OK] button.

7) When the test page is printed properly, click the [Yes] button.

• The printer is ready for printing.

B. Installing onto Windows 98

This printer is compatible with plug & play. If your computer is incom­patible with plug & play or if you want to use this printer as a network
printer, refer to “Installing onto Windows 95/98 without Using the Plug
& Play Function”.

1) Turn the computer on and start Windows 98.

• The “Add New Hardware Wizard” window appears automat-

ically, click the [Next] button.
Note: If the “Add New Hardware Wizard” window does not ap-

pear in this step, refer to “Installing onto Windows 95/98
without Using the Plug& Play Function”.

3) Click the [Have Disk...] button.

4) Insert the SHARP Software CD-ROM into the CD-ROM drive, type
R:\English\WinXX, and click the [OK] button.

5) Choose the appropriate printer driver from those listed below and
click the [Next] button.

• PCL6 Printer Driver: SHARP AR-160/200 Series PCL6

• PCL5e Printer Driver: SHARP AR-160/200 Series PCL5e

Note: It is recommended that you install the PCL6 printer driver.

If you have a problem printing from older software using
the PCL6 driver,remove it and install the PCL5e driver.

2) Display a list of all the printer drivers by checking “Display a list of
all the drivers in a specific location, ...” and clicking the [Next]
button.

6) After Windows finds the printer driver, click the [Next] button to
continue the installation.

7) Print a test page by clicking the [Finish] button.
Note: If you check “No” and click the [Finish] button, the printer

does not print a test page after the installation.

• The printer driver installation begins.

8) When the test page is printed properly, click the [Yes] button.

• The printer is ready for printing.

3 – 5

C. Installing onto Windows 95/98 without Using

the Plug & Play Function

Computers using Windows 95 or Windows 98 that are compatible
with plug & play can install the printer driver automatically. However,
if your computer is incompatible with plug & play, or if you want to use
this printer as a network printer, follow the procedure in this section.

The following steps use Windows 98 in display examples.

1) Turn the computer on and start Windows 95/98.

2) Click the Start menu, point to “Settings”, and choose “Printers”.

3) When the “Printers” window appears, double-click the “Add
Printer” icon.

4) Click the [Next] button.

5) If the screen for choosing the connection method appears, choose
the connection method and click the [Next] button.

Note: This screen appears only when the computer is connected

to a network.

• When the printer is directly connected to the computer, choose

“Local printer”.
Otherwise, choose “Network printer”.
If you choose “Network printer” you must specify a network
path or queue name.
Contact your network administrator for details.
The following steps use the example of a local printer.

AR-PB8

9) Choose the port and click the [Next] button.
Note: This screen appears only if you selected “Network printer”

in step 5).

6) Click the [Have Disk...] button.

7) Insert the SHARP Software CD-ROM into the CD-ROM drive, type
R:\English\WinXX, and click the [OK] button.

10)Set the printer name.
<1> If you want to change the printer name, enter a new name in

the space provided.

<2> If the program displays, “Do you want your Windows-based

programs to use this printer as the default printer?”, check
“Yes”.

<3> Click the [Next] button.

11)Print a test page by clicking the [Finish] button.
Note: If you check “No” and click the [Finish] button, the printer

does not print a test page after the installation.

• The printer driver installation begins.

8) Choose the appropriate printer driver from those listed below and
click the [Next] button.

• PCL6 Printer Driver: SHARP AR-160/200 Series PCL6

• PCL5e Printer Driver: SHARP AR-160/200 Series PCL5e

Note: It is recommended that you install the PCL6 printer driver.

If you have a problem printing from older software using
the PCL6 driver,remove it and install the PCL5e driver.

12)When the test page is printed properly, click the [Yes] button.

• The printer is ready for printing.

3 – 6

AR-PB8

D. Installing onto Windows NT 4.0

1) Turn the computer on and start Windows NT.

2) Click the Start menu, point to “Settings”, and choose “Printers”.

3) When the “Printers” window appears, double-click the “Add
Printer” icon.

4) Choose “My Computer” or “Network printer server” and click the
[Next] button.

• The following steps use “My Computer” as an example.

For more information about using this printer as a network
printer, refer to the Windows NT 4.0 networking documentation.

5) Check the checkbox for the port you are using and click the [Next]
button.

9) Set the printer name.
<1> If you want to change the printer name, enter a new name in

the space provided.

<2> If the program displays, “Do you want your Windows-based

programs to use this printer as the default printer?”, check
“Yes”.

<3> Click the [Next] button.

6) Click the [Have Disk...] button.

7) Insert the SHARP Software CD-ROM into the CD-ROM drive, type
R:\English\WinNT and click the [OK] button.

10)Make the appropriate settings for your environment.

• When using print sharing, choose “Shared” and enter a share

name. If necessary for your environment, select Windows 95
from the list of operating systems.

• If you are not using shared printing, choose “Not shared”.

After making the settings on this screen, click the [Next] button.

11)Print a test page by clicking the [Finish] button.
Note: If you check “No” and click the [Finish] button, the printer

does not print a test page after the installation.

• The printer driver installation begins.

8) Choose the appropriate printer driver from those listed below and
click the [Next] button.

• PCL6 Printer Driver:SHARP AR-160/200 Series PCL6

• PCL5e Printer Driver:SHARP AR-160/200 Series PCL5e

Note: It is recommended that you install the PCL6 printer driver.

If you have a problem printing from older software using
the PCL6 driver,remove it and install the PCL5e driver.

12)When the test page is printed properly, click the [Yes] button.

• The printer is ready for printing.

E. Changing Printer Configuration Settings

After installing the printer driver use the procedure in this section to
change the printer configuration settings. Also refer to the print driver
help for more information.

1. Click the Start menu, point to “Settings”, and choose “Printers”.

2. Right-click the appropriate printer and choose “Properties”
fromthe menu.

3. Click the Configuration tab and change the printer settings.

3 – 7

[4] SETTING AND ADJUSTMENTS

DATA

ON LINE MENU ITEM

ENTER

DATA

ON LINE MENU ITEM

ENT

DATA

ON LINE MENU ITEM

ENT

1. Configuration setting

AR-PB8

MENU

ONLINE

MENU

Test Printing Menu

Configuration Page

PCL6 Font List

PS2 Font List

Interface Menu

I/O Time Out

60 second *

ITEM

Main Menu

Copies

1*

Resolution

600 *

Smoothing

On *

Toner Save

Off *

Page Protection

Off *

2-Sided Printing

Off *

Paper Source

Auto *

Paper Size

A4

*

Orientation

Portrait *

Emulation

Auto *

MENU

ITEM

Network Menu

Set IP Address

No *

Set Subnet Mask

No *

Set Default Gateway

No *

Enable TCP/IP

No *

Enable Netware

No *

Enable EtherTalk

No *

Reset to Default

No *

MENU

PS2 Menu

Print PS2 Error

Off *

MENU

(Basic Menu Setting Procedure)

Note: The menus and items displayed may be different depending

on the optional functions installed.

1) When the printer is not in use, press the ON LINE key to put the
printer off-line.

2) Press the MENU key repeatedly until the required menu appears.

3) Press the ITEM key repeatedly until the required item appears.

4 – 1

DATA

ENTER

DATA

NE MENU ITEM

ENTER

AR-PB8

4) Press the Left or Right arrow key to change the setting.

• The current value is marked with an asterisk (∗).

5) After choosing the required value, press the ENTER key.

• The new value is registered.

A. Main Menu

Item
Copies 1 ∼ 999 Sets how many copies to print.
Resolution

Smoothing

Toner Save

Page
Protection

2-Sided
Printing ∗B

Paper
Source

Possible
Settings

600dpi
300dpi

On
Off

On
Off

On
Off

On
Off

Auto

Tray 1
Tray 2∗
Tray 3∗
Tray 4∗

Bypass Tray

Description

Sets the printing resolution.
Sets whether smoothing is done or not.

This function improves the appearance
of printed documents by smoothing the
angles and curves of images. This
allows printing at a higher apparent
resolution. For example, if the printer is
set to 600dpi, resolution equivalent to
1200dpi can be achieved.
When printing image data, you may
need to select "Off" to achieve best
results.

Sets whether toner save mode is in
effect or not. This function prints slightly
fainter to save toner. This item is
different from the copier “toner save
mode”.

Sets page protection. Page protection is
a function designed to prevent data loss
errors when complex data is printed.
This menu item is displayed only if the
installed printer memory is 24MB or
more.

Setting of duplex function and binding
direction.

Sets the tray used for paper feeding.
Setting to “Auto” automatically selects
the paper tray loaded with the paper of
the size specified in the “Paper Size”
item.
∗ The available settings reflect the
installed trays.

Item

Possible

Settings

Description

A3
B4

A4∗

Paper Size

B5
A5

Ledger

Legal

Letter∗

Executive

Folio

Invoice

Foolscap

Sets the size of the paper where data
will be printed. If this size is different
from the paper size present in the tray,
the size set on the operation panel takes
precedence.
∗ Depending on where the printer was
purchased, the default value is either A4
or Letter.

COM-10

DL
C5

Sets the page orientation for printing.
Specify “Portrait” to print the paper with

Orientation

Portrait

Landscape

its long side (longer edge) vertical.
Specify “Landscape” to print the paper
with its long side (longer edge)
horizontal.

Auto

Emulation

PCL

Specifies the printer language used.

HEX

B. Network Menu

Item Setting Choice Description

Set IP Address

Set Subnet Mask

Set Default Gateway

Enable TCP/IP

Enable Netware

Enable EtherTalk

Reset to Defaults

Yes

No

Yes

No

Yes

No

YES

NO

YES

NO

YES

NO

YES

NO

Sets the IP address.
Sets the subnet

mask.
Sets the default

gateway.
Enable/Disable

TCP/IP
Enable/Disable

Netware
Enable/Disable

EtherTalk
Reset Print Server

Card to default.

∗ Displayed only if the optional Network Interface Control card is

installed.

C. Interface Menu

Item Setting Choice Description

I/O Time Out

1 second

:

60 second

:

999 second

Sets I/O time-out. If
no data is received
within the preset
time, print
processing is ended.

D. Test Menu

Item Description
Configuration Page Prints the configuration page.
PCL6 Font List Prints the PCL6 font list.
PS2 Font List∗1, ∗A Prints the PS2 font list.

∗ 1 Displayed only when the PS Kit (AR-PS1) is installed.

E. PS2 Menu ∗A

Item Description

Print PS2 Error When set to “On”, PS error print is made.

∗ Displayed only when the PS Kit (AR-PS1) is installed.

4 – 2

[5] SIMULATION

1. Entering the simulation mode

Perform the following procedure to enter the simulation mode.
Clear key → Interruption key → “0” key → Interruption key → Main

code → Start key → Sub code → Start key

2. Cancelling the simulation mode

When the all clear key is pressed, the simulation mode is cancelled.
When the interruption key is pressed, the process is interrupted and

the screen returns to the sub code entering display.

3. Contens of Simulations

AR-PB8

Main
code

22 18 Printer counter display Used to display the current printer counter value. ∗1
24 9 Printer counter clear Used to clear the printer counter. ∗2
67 14 Printer Flash ROM The machine enters the version up mode of the printer PWB flash ROM.

∗1: Each counter display method

∗2: Display after clearing each counter

Sub

code

Data Download For details, refer to the printer PWB flash ROM version up procedure

To display 123456: 123 (0.75 sec) → Blank (0.35sec) → 456 (0.75 sec) → Blank (1.0 sec) → repetition

000 (0.75 sec) → Blank (0.35sec) → 000 (0.75 sec) → Blank (1.0 sec) → Repetition

Contents Details of operation

described later.

Initial
value

Set range

5 – 1

DATA

ON LINE MENU ITEM

ENTER

DATA

ON LINE MENU ITEM

ENT

DATA

ON LINE MENU ITEM

ENT

DATA

NE MENU ITEM

ENTER

AR-PB8

[6] CONFIGURATION REPORT AND TEST PAGE

To test print the configuration page and font list, use the following procedure:

1) Press the ON LINE key to switch the printer to the offline mode.

3) Press the ITEM key to display the required item.

2) Press the MENU key to display the Test Menu.

1. Samples

Printer Configuration Page

Machine Information

Language:

Hardware Specs

Base Memory:
Total Memory:
Network Board:

Version Information

PCL6:

Input Paper Trays

Bypass Tray:
Tray 1:
Tray 2:
Tray 3:
Tray 4:

4) Press the ENTER key.

HARDWARE STATUS

The test page prints.

English

8MB
8MB
Not Installed

1.00

-Size­Paper Inserted
Letter (8.5x11)
Letter (8.5x11R)
Legal (8.5x14)
Ledger (11x17)

KEY MENU STATUS

Main Menu

Copies:
Resolution:
Smoothing:
Toner Save:
Paper Source:
Paper Size:
Orientation:
Emulation:

PCL is a registered trademark of Hewlett-Packard Cmpany. All other trademarks and copyrights are the property of their respective owners.

1
600dpi
On
Off
Auto
Letter (8.5x11)
Portrait
PCL

Interface Menu

I/O Time Out 60 sec.

6 – 1

AR-PB8

2. Items and contents

A. Hardware status

(Machine information)

a. Language
Value: (English/French/German/Italian/Dutch/Spanish/Swedish)
Example: English
Default: Depends on the Destination setting
Description:Depends on the LCD display, the configuration page, and

the font list language.

(Hardware specifications)

a. Base memory
Value: 8MB
Example: 8MB
Default: 8MB
Description:Indicates the printer PWB base memory capacity.

b. Total memory
Value: (8, 24, 40, 56, 72, 88, 104, 136MB)
Example: 8MB
Default: 8MB
Description:Indicates the printer PWB total memory capacity, which is

the total of the base memory and the option memory.

c. Network board
Value:
Example: Not Installed.
Default: Not Installed.
Description:Ubducates the network board installation status.

(Firmware version)

a. PCL6
Value: #.##
Example: 1.00
Default: Depends on the printer firmware version.

Available Paper Size

Appearance on Configuration Page Description

Letter (8 1/2 × 11) Letter/Long Edge Feed

Letter (8 1/2 × 11R) Letter/Short Edge Feed

Legal (8 1/2 × 14) Legal/Short Edge Feed

Ledger (11 × 17) Ledger/Short Edge Feed

Executive (7 1/4 × 10 1/2) Executive/Short Edge Feed

Invoice (5 1/2 × 8 1/2) Invoice/Long Edge Feed

Foolscap (8 1/2 × 13) Foolscap/Short Edge Feed

A4 A4/Long Edge Feed

A4R A4/Short Edge Feed

B5 B5/Long Edge Feed

B5R B5/Short Edge Feed

B4 B4/Short Edge Feed
A3 A3/Short Edge Feed
A5 A5/Long Edge Feed
A6 A6/Short Edge Feed

(Unknown) Other size (EXTRA)
(No Paper)

(No Tray)

(Tray Open)

a. Manual paper feed tray
Value: (Suitable paper size)
Example: Letter (8 1/2 × 11")
Default: Depends on the size of paper set on the manual paper

feed tray.

Description:Indicates the size of paper set on the manual paper feed

tray. Depends on the paper size detected on the manual
paper feed tray. “Unclear” means that the paper size is
not detected. If there is no paper, no print is made here.

No paper availadle on this
tray.

There is a problem with this
tray.

This tray is opened (except
Bypass-Tray) or Tray is lifting
up.

b. Tray1, tray 2, tray 3, tray 4
Value: (Suitable paper size)
Example: Letter (8 1/2 × 11")
Default: Depends on the paper tray configuration.
Description: Indicates the paper size configuration of tray 1, tray 2,

tray 3, tray 4.

6 – 2

AR-PB8

[7] FIRMWARE VERSION UP

1. Cases where flash memory rewriting is
required

In the following cases, the program in the printer control PWB flash
memory must be rewritten.

1) When a bug or other error is found

2) Data stored in the flash memory is destroyed or deleted.

3) When the flash memory is replaced.

2. Necessary tools

1) Computer (PC) <Operates on MS-DOS.>

2) Parallel cable

3) Program data file (xxx.BIN)

3. Procedure

1) Print the configuration list to check the firmware version.

Use the operation panel of the copier to perform the following
procedure.
ONLINE <off line> → MENU <Test Printing Menu> → ITEM <Con­figuration Page> → ENTER <The test page prints>

2) Connect the PC and the copier with the parallel cable.

3) Turn on the power

4) Execute SIM 67-14.

“Erase Flash Data?” is displayed on the LCD.

5) Press the ENTER key on the copier’s operation panel.

“Now Erasing” is displayed on the LCD.

6) After deletion of data, “Please Send Data” is displayed on the LCD

and the machine enters the ready state for data input.

7) Download the program file.

(Note) Never turn off the power during download.

Set the PC to DOS mode → Check that the display shows
READY. → Then type COPY /B xxx.BIN LPT1:
and press the enter key.
( : space)

8) The machine enters the data reception mode.

While “Writing” is displayed on the LCD, data are written into the
flash ROM.

9) When data reception and data writing into the flash ROM are

completed, the SUM check is automatically performed.

(Note) In case of an error, “Sum check Error” is displayed.

Turn off the power once, and repeat the procedures from 3).

10)If there is no problem on the result of the SUM check, “Complete”

is displayed on the LCD.

11)Turn off/on the power to print the configuration page with the

above procedures, and check the firmware version.

12)Perform printing on the PC side and check that printing is per-

formed normally.

7 – 1

[8] TROUBLE CODE LIST

Main

Sub

code

code

F9 00 Content F9-∗∗∗ Communication trouble

between MCU and PRT.

Detail Communication setup error, framing,

Cause Printer PWB connector disconnection

Check and
remedy

10 Content Printer PWB trouble

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

80 Content Printer PWB communication trouble

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

81 Content Printer PWB communication trouble

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

parity, protocol error

Printer unit PWB MCU PWB harness
failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the printer PWB.

and PRT

Printer unit PWB MCU PWB harness
failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the printer PWB.

(protocol)

and printer PWB (Protocol error)

Printer PWB MCU PWB harness failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the printer PWB.

(Parity)

and printer PWB (Parity error)

Printer PWB MCU PWB harness failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the printer PWB.

Detail of trouble

AR-PB8

Main

Sub

code

code

F9 82 Content Printer PWB communication trouble

(Overrun)

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

84 Content Printer PWB communication trouble

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

88 Content Printer PWB communication trouble

Detail Communication trouble between MCU

Cause Printer PWB connector disconnection

Check and
remedy

and printer PWB (Overrun error)

Printer PWB MCU PWB harness failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the Printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the Printer PWB.

(Framing)

and printer PWB (Framing error)

Printer PWB MCU PWB harness failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the Printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the Printer PWB.

(Time-out)

and printer PWB (Time-out error)

Printer PWB MCU PWB harness failure
Printer PWB mother board connector
pin breakage.
Printer PWB ROM defect, data failure

Check the connectors and harness of
the Printer PWB and the MCU PWB.
Check grounding of the machine.
Check the ROM of the Printer PWB.

Detail of trouble

8 – 1

AR-PB8

[9] CIRCUIT DIAGRAM

1. BLOCK DIAGRAM

PDATA[7:0]

PARACONN

EEPROM

MODECLK

G/A (2)

SCLK

MODEIN

SYSAD[15:0]

RAD[5:2]

MODEIN

(Internal 133MHz)

CPU

NR4650

MASTERCLK

22.22MHz

44.44MHz

14.318MHz

14.318MHz

CY2292

Boot ROM

2MB

Code ROM 0

2MB

Code ROM 1

DIMM72

Optional

(AR-PS1)

NETWORKCONN

81.2376MHz

SYSAD[31:0]
RAD[21:0]
RCS0_

SYSAD[31:0]
RAD[21:0]
RCS1_

SYSAD[31:0]
RAD[21:0]
RCS2_

LDT[15:0] SYSAD[15:0]

RAD2

LDT[7:0]

D9001MFH

VFCLK

RAD[21:1]

SYSAD[31:0]

RCS_[3:0]

PIACS0_
PIACS1_
PIACS2_

SYSAD[31:0]

SYSAD[53:33]

VFCLK

SYSAD[63:0]

G/A (1)

SYSCMD[8:0]

MASTERCLK

SCLK

MD[63:0]

MA[11:0]

RAS0 CAS[7:0]
MBRAS1 MBRAS2

MD[63:0]

MBA[11:0]

RAS0

CAS[7:0]

MBRAS1

CAS[7:0]

MBRAS2

CAS[7:0]

Digital copier I/F

RAM
8MB

RAM

DIMM168 64MB Max

RAM

DIMM168 64MB Max

9 – 1

2. CIRCUIT DIAGRAM

AR-PB8AR-PB8

A

B

C D

E

CPU

3.3V

182

102
119
113

185

122
171

145
150

114

181

193
125
172

192
126
173

46
94
99

89
84
81

78
75
70

45

137
140

188
161

109
117
123
127
129
135
141
147
153
163
169
174
186
189
195
201

10
16
22
30
36
42
50
60
66
74
80
86
92

98

IC1

34

SYSADC0
SYSADC1
SYSADC2
SYSADC3

33

SYSADC4
SYSADC5
SYSADC6
SYSADC7

63

SYSCMD0

58

SYSCMD1

55

SYSCMD2

40

SYSCMD3

37

SYSCMD4

32

SYSCMD5

25

SYSCMD6

20

SYSCMD7

17

SYSCMD8

12

SYSCMDP
EXTRQST_

RELEASE_
RDRDY_
WRRDY_
V
V

MASTERCLK

INT0_
INT1_
INT2_
INT3_
INT4_
INT5_

NMI_
VCCOK

COLDRES_
RESET_
MODECLK
MODEIN

IOOUT
IOIN

SYNCIN
SYNCOUT

VCCP

VSSP

4

VCC
VCC

VCC
VCC
VCC
VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

NR4650

ALIDIN_
ALIDOUT_

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7

SYSAD8
SYSAD9

SYSAD10
SYSAD11

SYSAD12
SYSAD13
SYSAD14
SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20

SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25

SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30

SYSAD31
SYSAD32
SYSAD33
SYSAD34

SYSAD35
SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40

SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45

SYSAD46
SYSAD47
SYSAD48
SYSAD49
SYSAD50
SYSAD51
SYSAD52
SYSAD53
SYSAD54
SYSAD55
SYSAD56
SYSAD57
SYSAD58

SYSAD59
SYSAD60
SYSAD61
SYSAD62
SYSAD63

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

77
72
69
62
57

48
44
39

31
24
19
14
11
6
203
198
82
87
90
95
100
111
115
120
128
133

138
143
146
151
162
167
76
71
64
61
56
47
43
38

26
23
18
13
8
5
200
197
83
88
93
96
101
112

116
121
131
134
139
144
149
152

165
168

3
9

15
21
29
35
41
49
59
65
73
79
85
91
97
110
118
124
130
136
142
148
154
164
170
175
187
190
196
202

R145
R146
R147
R148 10
R149 10
R150
R151
R152
R153
R154
R155
R156
R157
R158
R159
R160
R236
R237
R238
R239
R240
R241
R242
R243
R244
R245
R246
R247
R248
R249
R250
R251
R182
R183
R184
R181
R187
R188
R189
R190
R191
R192
R193
R194
R195
R196
R197
R198
R254
R308
R255
R309
R256
R310
R311
R312
R313
R314
R315
R316 10
R317 10
R318 10
R319 10
R320

10
10
10

10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10

10
10
10
10
10
10
10
10
10
10
10
10

10
10
10
10
10

10
10
10

10
10
10
10
10

10

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12

SYSAD13
SYSAD14
SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26

SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31
SYSAD32
SYSAD33
SYSAD34

SYSAD35
SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40
SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45
SYSAD46
SYSAD47
SYSAD48
SYSAD49
SYSAD50
SYSAD51
SYSAD52
SYSAD53
SYSAD54
SYSAD55
SYSAD56
SYSAD57
SYSAD58

SYSAD59
SYSAD60
SYSAD61
SYSAD62
SYSAD63

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14

SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23

SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28

SYSAD29
SYSAD30
SYSAD31
SYSAD32
SYSAD33
SYSAD34
SYSAD35

SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40
SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45
SYSAD46
SYSAD47
SYSAD48
SYSAD49
SYSAD50
SYSAD51
SYSAD52
SYSAD53
SYSAD54
SYSAD55
SYSAD56
SYSAD57
SYSAD58
SYSAD59
SYSAD60
SYSAD61
SYSAD62
SYSAD63

R85
R84
R83
R82
R81
R80
R79
R78
R124
R123
R122
R121
R131
R132
R133
R130
R143
R144
R212
R177
R178
R172
R180
R179
R214
R213
R211
R207
R206
R209
R208
R210
R111
R217
R216
R215
R221
R220
R219
R218
R272
R273
R274
R275
R276
R277
R278
R279
R303
R283
R282
R281
R280
R287
R257
R258
R259
R260
R261
R262
R263
R264
R265
R266

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

3.3V

R114

R113

R112

R115

R116

R117

R118

R119

R304

4.7K

R102

R222

4.7K

4.7K

R120

4.7K

4.7K

3.3V
R69

R67

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

SYSCMD0
SYSCMD1
SYSCMD2
SYSCMD3
SYSCMD4
SYSCMD5
SYSCMD6
SYSCMD7
SYSCMD8

EXREQ_
RLS_
READY_

ALIN_

V

ALOUT_

V

MASTERCLK

3.3V

4

3

2

1

SYSCMD[8:0]

INTR0_
INTR1_
INTR2_

P

ARINTR_

NMI_

VCCOK

COLDRES_

CPURES_

MODECLK

MODEIN

3.3V

3.3V

3.3V

R173
R199
R305
R252
R174
R200
R306
R253

R135 10
R161 10
R134 10
R162 10
R136 10
R163
R137
R164 10
R165

R175 4.7K

R185 4.7K
R186 4.7K

3.3V

C16

22u

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

10
10

10

R307 4.7K

C19

C85

0.1u

22u

3.3V

C18

22u

C81

0.1u

SYSADC0
SYSADC1
SYSADC2
SYSADC3
SYSADC4
SYSADC5
SYSADC6
SYSADC7

C87

0.1u

C95

0.1u

C88

0.1u

C96

0.1u

SYSAD[63:0]

4

3

2

1

A

B

C

D

E

9 – 2 9 – 3

AR-PB8 AR-PB8

4

3

2

1

ASIC 1

SYSCMD[8:0]

VALOUT_
VALIN_
READY_
EXREQ_
RLS_

INTR0_
INTR1_
INTR2_
NMI_

VCCOK

COLDRES_

CPURES_

RESET_

MPARREQ_

PARACK_

SYNCEN_

VFCLK

HSYNC_

PAGE_

VDIN_

X2

12

14.318MHz

STS
CMD

15
16
12
13

4

5

A

R95
R96

IC18

SP_
SHUTDN_
S0
S1

XTALIN

XTALOUT

CY2292

CPUCLK

CLKA
CLKB
CLKC
CLKD

XBUF

VCC
VCC

GND

GND

3.3V

3.3V

10
10

8
10
9
1
7
6

14
2

3
11

SYSCMD0
SYSCMD1
SYSCMD2
SYSCMD3
SYSCMD4
SYSCMD5
SYSCMD6
SYSCMD7
SYSCMD8

R73
R72

R71

R70
R68
R103
R101

R100
R99
R98

R77
R76
R75

R97 10

R93 10
R94 4.7K

10

R125

R169
R138

R166
R168

R167

C13

10uC910u

B

IC17-1

91

SYSCMD0

88

SYSCMD1

87

SYSCMD2

86

SYSCMD3

85

SYSCMD4

84

SYSCMD5

83

SYSCMD6

82

SYSCMD7

81

SYSCMD8

120

VALOUT_

10

107

VALIN_

10

106

READY_

10

105

EXREQ_

119

RLS_

104

10

INTR0_

10

103

INTR1_

10

102

INTR2_

10

101

NMI_

98

10

VCCOK

97

10

CRST_

10

96

CPURST_

118

POR_

117

DREQ0_

116

4.7K

DREQ1_

115

4.7K

DREQ2_

114

4.7K

DREQ3_

95

DACK0_

94

DACK1_

93

DACK2_

92

DACK3_

266

TC_

263

RXD1

255

TXD1

264

RXD2

256

TXD2

257

SYNCEN_

262

VFCLK

265

HSYNC_

267

PAGE_

268

VDATA _

66

113

MASTERCLK
SCLK

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31
SYSAD32
SYSAD33
SYSAD34
SYSAD35
SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40
SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45
SYSAD46
SYSAD47
SYSAD48
SYSAD49
SYSAD50
SYSAD51
SYSAD52
SYSAD53
SYSAD54
SYSAD55
SYSAD56
SYSAD57
SYSAD58
SYSAD59
SYSAD60
SYSAD61
SYSAD62
SYSAD63

PIACS0_
PIACS1_

PIACS2_
PIACS3_
PIACS4_
PIACS5_

PIAWE_
PIARD_

WAIT

GA1

10

4.7K

4.7K

4.7K

4.7K

C70

C76

0.1u

0.1u

274
275
276
277
278
279
280
283
284
285
286
287
288
289
292
293
2
3
4
5
6
7
8
11
12
13
14
15
16
17
20
21
22
23
24
25
26
29
30
31
32
33
34
35
40
41
42
43
44
45
46
47
50
51
52
53
54
55
56
57
60
61
62
63

130
129
126
125
124
123

122
108
121

12

L2

C45

0.1u

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31
SYSAD32
SYSAD33
SYSAD34
SYSAD35
SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40
SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45
SYSAD46
SYSAD47
SYSAD48
SYSAD49
SYSAD50
SYSAD51
SYSAD52
SYSAD53
SYSAD54
SYSAD55
SYSAD56
SYSAD57
SYSAD58
SYSAD59
SYSAD60
SYSAD61
SYSAD62
SYSAD63

R38
R65

R66

R39

R74

GA2CLK
MASTERCLK

3.3V

PARREQ_

SYNCEN_

10

PIACS0_

10

10

10

PIAWE_

10

PIARD_
WAIT

12
13

IC24D

9

74LVC04

IC26D

74LVC08

8

MASTERCLK

RESET_

RESET_

C D

SYSAD[63:0]

11

IC27B

4
5

6

1
2

74LVC32

IC27A

3

MA[11:0]

MPARREQ_

74LVC32

9

10

IC26C

RESET_

8

74LVC08

3.3V

4

IC28A

74LVC74

PR

2

D

3

CLK

CL

5

Q

6

Q

1

3.3V
C99

0.1u

R105

C60

0.01u

3.3V
C100

0.1u

IC25A

4

2
3

3.3V

12

3.3V

74LVC74

PR

5

Q

D

CLK

CL

6

Q

1

10

IC25B
74LVC74

PR

CL

9

Q

8

Q

D

11

CLK

13

3.3V
C102

9

10

IC27C

74LVC32

R322
10

IC26B

4
5

74LVC08

3.3V

IC24C

5

8

74LVC04

6

RAS0_
RAS1_
RAS2_

CAS0_
CAS1_
CAS2_
CAS3_
CAS4_
CAS5_
CAS6_
CAS7_

MOE_
MWE_

RCS0_
RCS1_

RCS2_
RCS3_

RESET_

75

C101

0.1u

3.3V

3.3V

NICCS_

R323
10

R104

6

MA0
MA1

MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11

C69

0.1u

EETCS_

LDTOE_

R25

R26
R27
R23
R24
R28
R29
R11 10
R12

R60
R61
R62
R63 10
R64

20K

C12
10u

IC17-2

254

MA0

253

MA1

252

MA2

249

MA3

248

MA4

247

MA5

246

MA6

245

MA7

244

MA8

243

MA9

240

MA10

239

153
152
151
150

146
145
144
143
142
141
140
139

136
135

134
133
132
131

269
270

271

72
71
79

76
70

69
68
67

100
110
111
112
128
138
147
159
168
177
184
185
186
196
205
214
224
233
242
251
258
259
260
273
282
291

294
295

78

77

10
19

28
36
37
38
49
59
65
73
80
90

MA11
RAS0_

RAS1_
RAS2_
RAS3_

CAS0_
CAS1_
CAS2_
CAS3_
CAS4_
CAS5_
CAS6_
CAS7_

MOE_
MWE_

ROMCS0_
ROMCS1_
ROMCS2_
ROMCS3_

ROMWE_ROMWE_
BUFOE_

BUFDIRBUFDIR
PLL_TEST

PLL_EN
VCOIN

CPOUT
SCAN_EN

SCAN_TEST
DC2_TEST

TESTMODE
PLLVDD

PLLGND

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

GND

10

10
10
10
10
10
10

10

10
10
10

10

MD0
MD1

MD2
MD3

MD4
MD5

MD6
MD7
MD8

MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31

MD32
MD33
MD34
MD35
MD36
MD37

MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47

MD48
MD49

MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58

MD59
MD60
MD61
MD62
MD63

VCC
VCC
VCC
VCC
VCC

VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC

238
236
234
230
228
226
221
219
217
215

211
209

207
203
201
199
197
193
191
189
183
181
179

175
173
171
169
165
163
161
157

155
237

235
231
229

227
225

220
218
216
212
210

208
206
202
200
198
194
192
190

188
182

180
178
174
172
170
166
164
162
160
156
154

1
9
18
27
39
48
58
64
74
75
89
99
109
127
137
148
149
158
167
176
187
195
204
213
222
223
232
241
250
261
272
281
290
296

GA1

E

MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31

MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47

MD48
MD49

MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58

MD59
MD60
MD61
MD62
MD63

C59

0.1u

MD0
MD1

MD2
MD3

MD4
MD5

MD6
MD7
MD8
MD9

C44

0.1u

C7

10u

MD[63:0]

4

3

2

3.3V

C8

10u

1

0.1u

A

B

C

D

E

9 – 4 9 – 5

AR-PB8AR-PB8

4

3

2

1

ASIC 2

A

B

C D

E

SV

R129

R128

R127

R126

4

1.2K

1.2K

1.2K

IC19

56

PARACK_
PARREQ_

PARINTR_

RAD[21:1]

SYSAD[15:0]

PIACS0_
PIAWE_
PIARD_

RESET_
MODECLK
VCCOK

MODEIN

3.3V

EREADY_
CRDY_

IC23

1

A0

2

A1

3

A2

4

GND

24C16

C97 0.1u

VCC
TEST
SCK
SDA

8
7
6
5

NETON_

SRDY_
PREADY_
DUMMY

GA2CLK

3.3V

5V

3.3V

3.3V

3.3V

R205
R204

R203
R202 10K
R201

R231
R232
R233
R234

R235

R228

R227 10K

R229 10K

R230 10K

R176

R223

R224 10

10K
10K
10K

10K
10K

10K
10K
10K
10K

10K

10

10

RAD2
RAD3
RAD4
RAD5

SYSAD0
SYSAD1

SYSAD2
SYSAD3

SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9

SYSAD10
SYSAD11
SYSAD12

SYSAD13
SYSAD14
SYSAD15

R226 22
R225 22
R7 22

PDACK_

57

PDREQ_

7

CPUINTR_

13

ADR2

14

ADR3

15

ADR4

16

ADR5

64

CPUD0

65

CPUD1

66

CPUD2

67

CPUD3

68

CPUD4

70

CPUD5

71

CPUD6

73

CPUD7

74

CPUD8

75

CPUD9

77

CPUD10

78

CPUD11

79

CPUD12

2

CPUD13

3

CPUD14

4

CPUD15

59

DEVCS_

60

DEVWR_

61

DEVRD_

62

RES_

5

MODECLKMODECLK

63

VCCOK

6

MODEIN

29

BSEL0

28

BSEL1

27

BSEL2

26

BSEL3

25

BSEL4

17

READY_

18

CRDY_

19

PSON_

20

NETON_

21

EX

ON_

22

S

CK

23

SDAOUT

24

SDAIN

10

SRDY_

9

EREADY_

8

DUMMY

58

CLK

S

GA2

INIT_

SLCTIN_

AUTOFD_

STB_

ACK_
BUSY

FAULT_

SLCT

PARAD0
PARAD1
PARAD2
PARAD3
PARAD4
PARAD5
PARAD6
PARAD7

REV_

SCANEN

SCANTEST

VDD
VDD

VDD
VDD
VDD
VDD

GND
GND
GND
GND
GND
GND
GND

38
37
36
35

34
33
32

PE

31
30

50
49
47

46
45
43
42
39

53

54
55

1
40

41
48
72

80

C17

22u

11
12
44
51

52
69
76

IC20

18

1Y1

16

1Y2

14

1Y3

12

1Y4

9

2Y1

7

2Y2

5

2Y3

3

2Y4

1

1G

19

2G

74LS244

C71

IC21

2

1A1

4

1A2

6

1A3

8

1A4

11

2A1

13

2A2

15

2A3

17

2A4

1

1G

19

2G

74LS244

C61 0.1u

IC22

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

B8

1

G

19

DIR

74LS245

C39 0.1u

C89

C86

0.1u

0.1u

2

1A1

4

1A2

6

1A3

8

1A4

11

2A1

13

2A2

15

2A3

17

2A4

20
10

0.1u

18

1Y1

16

1Y2

14

1Y3

12

1Y4

9

2Y1

7

2Y2

5

2Y3

3

2Y4

20
10

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

20
10

3.3V

C80

C79

C78

C77

100p

100p

100p

100p

5V

C66

C65

C64

C63

C62

100p

100p

100p

100p

100p

5V

5V

C53

C52

C51

C50

C49

C48

C47

100p

100p

100p

100p

100p

100p

100p

R139 22
R140 22
R141 22
R142 22

R106 22
R107 22
R108 22

R109 22
R110 22

R41 22
R42 22
R43 22

R44 22
R45 22
R46 22
R47 22
R48 22

C46

100p

1.2K

INIT_
SLCTIN_
AUTOFD_
STB_

ACK_
BUSY
PE
FAULT_
SLCT

5V

R37

1.2K

R36

R35

R34

R33

R32

R31

R30

1.2K

1.2K

1.2K

1.2K

1.2K

1.2K

1.2K

PDA TA0
PDA TA1

PDA TA2
PDA TA3
PDA TA4
PDA TA5
PDA TA6
PDA TA7

PDATA[7:0]

3

2

1

A

B

C

D

E

9 – 6 9 – 7

MEMORY BUFFER

AR-PB8 AR-PB8

EDCBA

SYSAD[63:0]

4

SYSAD33
SYSAD34
SYSAD35
SYSAD36
SYSAD37
SYSAD38
SYSAD39
SYSAD40
SYSAD41
SYSAD42
SYSAD43
SYSAD44
SYSAD45
SYSAD46
SYSAD47
SYSAD48

3.3V

3

SYSAD49
SYSAD50
SYSAD51
SYSAD52

ROMWE_
BUFDIR ROE_

SYSAD53

47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26

1
48
25
24

7
18
31
42

2
4
6

8
11
13
15
17

1
19

IC10

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

1OE_
2OE_
3OE_
4OE_

VCC
VCC
VCC
VCC

74LVC16244

IC12

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4

1G
2G

74LVC244

2

1Y1

3

1Y2

5

1Y3

6

1Y4

8

2Y1

9

2Y2

11

2Y3

12

2Y4

13

3Y1

14

3Y2

16

3Y3

17

3Y4

19

4Y1

20

4Y2

22

4Y3

23

4Y4

4

GND

10

GND

15

GND

21

GND

28

GND

34

GND

39

GND

45

GND

0.1uC94

18

1Y1

16

1Y2

14

1Y3

12

1Y4

9

2Y1

7

2Y2

5

2Y3

3

2Y4

20

VCC

10

GND

0.1uC93

3.3V

RAD1

10R271

RAD2

10R302

RAD3

10R301

RAD4

10R300

RAD5

10R299

RAD6

10R298

RAD7

10R297

RAD8

10R296

RAD9

10R295

RAD10

10R294

RAD11

10R293

RAD12

10R292

RAD13

10R291

RAD14

10R290

RAD15

10R289

RAD16

10R288

RAD17

10R267

RAD18

10R268

RAD19

10R269

RAD20

10R270

RAD21

10R286
10R285
10R284

FWE_

RAD[21:1]

2

1

MBA[11:0]

MA[11:0]

RAS1_
RAS2_
MWE_
MOE_

PIARD_

LDTOE_

MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15

3.3V

3.3V

CPWBX0034QS51

47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26

1
48
25
24

7
18
31
42

47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26

1
24
48
25

7
18
31
42

IC11

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

1OE_
2OE_
3OE_
4OE_

VCC
VCC
VCC
VCC

74LVC16244

0.1uC55

IC13

1A1
1A2
1A3
1A4
1A5
1A6
1A7
1A8
2A1
2A2
2A3
2A4
2A5
2A6
2A7
2A8

1DIR
2DIR
1OE_
2OE_

VCC
VCC
VCC
VCC

74LVC16245

1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

GND
GND
GND
GND
GND
GND
GND
GND

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

4
10
15
21
28
34
39
45

MBA0

10R86

MBA1

10R87

MBA2

10R88

MBA3

10R89

MBA4

10R90

MBA5

10R91

MBA6

10R92

MBA7

10R49

MBA8

10R50

MBA9

10R51

MBA10

10R52

MBA11

10R53
10R54
10R55
10R56
10R57

MBRAS1_
MBRAS2_
MBWE_
MBOE_

4

3

LDT[15:0]SYSAD[15:0]

2

1B1

3

1B2

5

1B3

6

1B4

8

1B5

9

1B6

11

1B7

12

1B8

13

2B1

14

2B2

16

2B3

17

2B4

19

2B5

20

2B6

22

2B7

23

2B8

4

GND

10

GND

15

GND

21

GND

28

GND

34

GND

39

GND

45

GND

0.1uC75

LDT0
LDT1
LDT2
LDT3
LDT4
LDT5
LDT6
LDT7
LDT8
LDT9
LDT10
LDT11
LDT12
LDT13
LDT14
LDT15

2

1

DCBA

9 – 8 9 – 9

E

SYSAD[63:0]

4

3

2

ROM

RAD[21:1]

RCS3_
RCS0_
RCS1_
RCS2_

FWE_

ROE_

AR-PB8AR-PB8

A B C D E

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

3.3V

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

3.3V

IC2

32

A0

28

A1

27

A2

26

A3

25

A4

24

A5

23

A6

22

A7

20

A8

19

A9

18

A10

17

A11

13

A12

12

A13

11

A14

10

A15

8

A16

7

A17

6

A18

5

A19

4

A20

14

CE0_

2

CE1_

55

WE_

54

OE_

16

RP_

31

BYTE_

56

WP_

53

RY/BY_

1

3/5_

LH28F800SUT

IC4

32

A0

28

A1

27

A2

26

A3

25

A4

24

A5

23

A6

22

A7

20

A8

19

A9

18

A10

17

A11

13

A12

12

A13

11

A14

10

A15

8

A16

7

A17

6

A18

5

A19

4

A20

14

CE0_

2

CE1_

55

WE_

54

OE_

16

RP_

31

BYTE_

56

WP_

53

RY/BY_

1

3/5_

LH28F800SUT

D10
D11
D12
D13
D14
D15

Vpp

Vcc
Vcc
Vcc

GND
GND
GND

D10
D11
D12
D13
D14
D15

Vpp

Vcc
Vcc
Vcc

GND
GND
GND

IC3

32

A0

28

A1

27

A2

26

A3

25

A4

24

A5

23

A6

22

A7

20

A8

19

A9

18

A10

17

A11

13

A12

12

A13

11

A14

10

A15

8

A16

7

A17

6

A18

5

A19

4

A20

14

CE0_

2

CE1_

55

WE_

54

OE_

16

RP_

31

BYTE_

56

WP_

53

RY/BY_

1

3/5_

LH28F800SUT

IC5

32

A0

28

A1

27

A2

26

A3

25

A4

24

A5

23

A6

22

A7

20

A8

19

A9

18

A10

17

A11

13

A12

12

A13

11

A14

10

A15

8

A16

7

A17

6

A18

5

A19

4

A20

14

CE0_

2

CE1_

55

WE_

54

OE_

16

RP_

31

BYTE_

56

WP_

53

RY/BY_

1

3/5_

LH28F800SUT

D10
D11
D12
D13
D14
D15

Vpp
Vcc
Vcc
Vcc

GND
GND
GND

D10
D11
D12
D13
D14
D15

Vpp
Vcc
Vcc
Vcc

GND
GND
GND

33

D0

35

D1

38

D2

40

D3

44

D4

46

D5

49

D6

51

D7

34

D8

36

D9

39
41
45
47
50
52

15
9
37
43

3

NC

29

NC

30

NC

21
42
48

33

D0

35

D1

38

D2

40

D3

44

D4

46

D5

49

D6

51

D7

34

D8

36

D9

39
41
45
47
50
52

15
9
37
43

3

NC

29

NC

30

NC

21
42
48

C72

0.1u

C90

0.1u

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15

C73

0.1u

SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31

C91

0.1u

5V

3.3V

5V

3.3V

3.3V

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

C74

0.1u

C92

0.1u

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15

3.3V

SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31

3.3V

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

3.3V

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

3.3V

33

D0

35

D1

38

D2

40

D3

44

D4

46

D5

49

D6

51

D7

34

D8

36

D9

39
41
45
47
50
52

15

9
37
43

3

NC

29

NC

30

NC

21
42
48

33

D0

35

D1

38

D2

40

D3

44

D4

46

D5

49

D6

51

D7

34

D8

36

D9

39
41
45
47
50
52

15
9
37
43

3

NC

29

NC

30

NC

21
42
48

12
13
14
15
16
17
18
28
31
32
29
33
34
36
65
66
67
68
69
70
71

40
41
42
43

44
47

19
48
46
45
11

CN1

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20

1CE0_
1CE1_
2CE0_
2CE1_

OE_
WE_

RP
BYTE_
WP
RY/BY_
3/5_

DIMM72

D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31

VPP
VCC1
VCC1
VCC2

VSS1
VSS1
VSS1
VSS2

C67

0.1u

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14
SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31

C14

22u

RAD1
RAD2
RAD3
RAD4
RAD5
RAD6
RAD7
RAD8
RAD9
RAD10
RAD11
RAD12
RAD13
RAD14
RAD15
RAD16
RAD17
RAD18
RAD19
RAD20
RAD21

3.3V

5V

3.3V

C82

+

0.1u

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

21

D8

22

D9

23
24
25
26
27
35
37
38
49
50
51
52
53
54
56
57
58
60
59
62
63
64

55
10
30
61

1
20
39
72

12
13
14
15
16
17
18
28
31
32
29
33
34
36
65
66
67
68
69
70
71

40
41
42
43

44
47

19
48
46
45
11

CN2

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20

1CE0_
1CE1_
2CE0_
2CE1_

OE_
WE_

RP
BYTE_
WP
RY/BY_
3/5_

DIMM72

D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31

VPP
VCC1
VCC1
VCC2

VSS1
VSS1
VSS1
VSS2

C68

0.1u

SYSAD0
SYSAD1
SYSAD2
SYSAD3
SYSAD4
SYSAD5
SYSAD6
SYSAD7
SYSAD8
SYSAD9
SYSAD10
SYSAD11
SYSAD12
SYSAD13
SYSAD14

SYSAD15
SYSAD16
SYSAD17
SYSAD18
SYSAD19
SYSAD20
SYSAD21
SYSAD22
SYSAD23
SYSAD24
SYSAD25
SYSAD26
SYSAD27
SYSAD28
SYSAD29
SYSAD30
SYSAD31

C14

22u

4

3

5V

3.3V

C83

+

0.1u

2

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

21

D8

22

D9

23
24
25
26
27
35
37
38
49
50
51
52
53
54
56
57
58
60
59
62
63
64

55
10
30
61

1
20
39
72

1

A B C D E

1

9 – 10 9 – 11

4

3

2

1

DRAM

MBA[11:0]

RAS0_
CAS0_
CAS1_
MBWE_
MBOE_

CAS2_
CAS3_

TITLE

CAS4_
CAS5_

CAS6_
CAS7_

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

3.3V

3.3V

3.3V

3.3V

AR-PB8 AR-PB8

EDCBA

IC6

17

A0

18

A1

19

A2

20

A3

23

A4

24

A5

25

A6

26

A7

27

A8

28

A9

16

A10

15

A11

14

RAS_

31

LCAS_

30

UCAS_

13

WE_

29

OE_

32

NC

1

Vcc

6

Vcc

21

Vcc

16M16

IC7

17

A0

18

A1

19

A2

20

A3

23

A4

24

A5

25

A6

26

A7

27

A8

28

A9

16

A10

15

A11

14

RAS_

31

LCAS_

30

UCAS_

13

WE_

29

OE_

32

NC

1

Vcc

6

Vcc

21

Vcc

16M16

IC8

17

A0

18

A1

19

A2

20

A3

23

A4

24

A5

25

A6

26

A7

27

A8

28

A9

16

A10

15

A11

14

RAS_

31

LCAS_

30

UCAS_

13

WE_

29

OE_

32

NC

1

Vcc

6

Vcc

21

Vcc

16M16

IC9

17

A0

18

A1

19

A2

20

A3

23

A4

24

A5

25

A6

26

A7

27

A8

28

A9

16

A10

15

A11

14

RAS_

31

LCAS_

30

UCAS_

13

WE_

29

OE_

32

NC

1

Vcc

6

Vcc

21

Vcc

16M16

C54

0.1u

0.1uC33

0.1uC38

0.1uC21

I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
I/O8

I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
I/O16

I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
I/O8
I/O9

I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
I/O16

I/O1

I/O2

I/O3

I/O4

I/O5

I/O6

I/O7

I/O8

I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
I/O16

GND
GND
GND

I/O1

I/O2

I/O3

I/O4

I/O5

I/O6

I/O7

I/O8

I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
I/O16

GND
GND
GND

GND
GND
GND

GND
GND
GND

NC
NC

NC
NC

NC
NC

NC
NC

MD0

2
3

MD1

4

MD2

5

MD3

7

MD4

8

MD5

9

MD6

10

MD7

33

MD8

34

MD9

35

MD10

36

MD11

38

MD12
39
40

MD14
41

MD15
12
11
37
22
42

2

MD16
3

MD17
4

MD18
5

MD19
7

MD20
8

MD21
9

MD22
10

MD23
33

MD24
34

MD25
35

MD26
36

MD27
38

MD28
39

MD29
40

MD30
41

MD31
12
11
37
22
42

2

MD32
3

MD33
4

MD34
5

MD35
7

MD36
8

MD37
9

MD38
10

MD39
33

MD40
34

MD41
35

MD42
36

MD43
38

MD44
39

MD45
40

MD46
41

MD47
12
11
37
22
42

2

MD48
3

MD49
4

MD50
5

MD51
7

MD52
8

MD53
9

MD54
10

MD55
33

MD56
34

MD57
35

MD58
36

MD59
38

MD60
39

MD61
40

MD62
41

MD63
12
11
37
22
42

3.3V

MBRAS1_

CAS0_
CAS1_
CAS2_
CAS3_
CAS4_
CAS5_
CAS6_
CAS7_

MBWE_

MBOE_

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

10KR8
10KR6
10KR10
10KR9
10KR7

CN3

33

A0

117

A1

34

A2

118

A3

35

A4

119

A5

36

A6

120

A7

37

A8

121

A9

38

A10

122

A11

39

A12

30

RAS0_

45

RAS2_

28

CAS0_

29

CAS1_

46

CAS2_

47

CAS3_

112

CAS4_

113

CAS5_

130

CAS6_

131

CAS7_

27

WE0_

48

WE2_

31

OE0_

44

OE2_

82

SDA

83

SCL

165

SA0

166

SA1

167

SA2

21

NC

22

NC

24

NC

25

NC

42

NC

50

NC

51

NC

52

NC

53

NC

61

NC

62

NC

63

NC

79

NC

80

NC

81

NC

105

NC

106

NC

108

NC

109

NC

111

NC

114

NC

115

NC

125

NC

126

NC

128

NC

129

NC

132

NC

134

NC

135

NC

136

NC

137

NC

145

NC

146

NC

147

NC

163

NC

164

NC

1

VSS

12

VSS

23

VSS

32

VSS

43

VSS

54

VSS

64

VSS

78

VSS

85

VSS

96

VSS

107

VSS

116

VSS

127

VSS

138

VSS

148

VSS

162

VSS

DIMM168

2

DQ0

3

DQ1

4

DQ2

5

DQ3

7

DQ4

8

DQ5

9

DQ6

10

DQ7

11

DQ8

13

DQ9

14

DQ10

15

DQ11

16

DQ12

17

DQ13

19

DQ14

20

DQ15

55

DQ16

56

DQ17

57

DQ18

58

DQ19

60

DQ20

65

DQ21

66

DQ22

67

DQ23

69

DQ24

70

DQ25

71

DQ26

72

DQ27

74

DQ28

75

DQ29

76

DQ30

77

DQ31

86

DQ32

87

DQ33

88

DQ34

89

DQ35

91

DQ36

92

DQ37

93

DQ38

94

DQ39

95

DQ40

97

DQ41

98

DQ42

99

DQ43

100

DQ44

101

DQ45

103

DQ46

104

DQ47

139

DQ48

140

DQ49

141

DQ50

142

DQ51

144

DQ52

149

DQ53

150

DQ54

151

DQ55

153

DQ56

154

DQ57

155

DQ58

156

DQ59

158

DQ60

159

DQ61

160

DQ62

161

DQ63

6

VCC

18

VCC

26

VCC

40

VCC

41

VCC

49

VCC

59

VCC

73

VCC

84

VCC

90

VCC

102

VCC

110

VCC

124

VCC

133

VCC

143

VCC

157

VCC

168

VCC

0.1uC34

22uC3

MD0

MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22 MD22
MD23
MD24
MD25
MD26
MD27
MD28 MD28
MD29
MD30
MD31
MD32 MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40 MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

3.3V

3.3V

MBRAS2_

CAS0_
CAS1_
CAS2_
CAS3_
CAS4_
CAS5_
CAS6_
CAS7_

MBWE_

MBOE_

MBA0
MBA1
MBA2
MBA3
MBA4
MBA5
MBA6
MBA7
MBA8
MBA9
MBA10
MBA11

10KR22
10KR20
10KR19
10KR21
10KR18

CN4

33

A0

117

A1

34

A2

118

A3

35

A4

119

A5

36

A6

120

A7

37

A8

121

A9

38

A10

122

A11

39

A12

30

RAS0_

45

RAS2_

28

CAS0_

29

CAS1_

46

CAS2_

47

CAS3_

112

CAS4_

113

CAS5_

130

CAS6_

131

CAS7_

27

A

WE0_

48

P

WE2_

P

31

D

OE0_

44

OE2_

82

SDA

83

SCL

165

SA0

166

SA1

167

SA2

21

NC

22

NC

24

NC

25

NC

42

NC

50

NC

51

NC

52

NC

53

NC

61

NC

62

NC

63

NC

79

NC

80

NC

81

NC

105

NC

106

NC

108

NC

109

NC

111

NC

114

NC

115

NC

125

NC

126

NC

128

NC

129

NC

132

NC

134

NC

135

NC

136

NC

137

NC

145

NC

146

NC

147

NC

163

NC

164

NC

1

VSS

12

VSS

23

VSS

32

VSS

43

VSS

54

VSS

64

VSS

78

VSS

85

VSS

96

VSS

107

VSS

116

VSS

127

VSS

138

VSS

148

VSS

162

VSS

DIMM168

2

DQ0

3

DQ1

4

DQ2

5

DQ3

7

DQ4

8

DQ5

9

DQ6

10

DQ7

11

DQ8

13

DQ9

14

DQ10

15

DQ11

16

DQ12

17

DQ13

19

DQ14

20

DQ15

55

DQ16

56

DQ17

57

DQ18

58

DQ19

60

DQ20

65

DQ21

66

DQ22

67

DQ23

69

DQ24

70

DQ25

71

DQ26

72

DQ27

74

DQ28

75

DQ29

76

DQ30

77

DQ31

86

DQ32

87

DQ33

88

DQ34

89

DQ35

91

DQ36

92

DQ37

93

DQ38

94

DQ39

95

DQ40

97

DQ41

98

DQ42

99

DQ43

100

DQ44

101

DQ45

103

DQ46

104

DQ47

139

DQ48

140

DQ49

141

DQ50

142

DQ51

144

DQ52

149

DQ53

150

DQ54

151

DQ55

153

DQ56

154

DQ57

155

DQ58

156

DQ59

158

DQ60

159

DQ61

160

DQ62

161

DQ63

6

VCC

18

VCC

26

VCC

40

VCC

41

VCC

49

VCC

59

VCC

73

VCC

84

VCC

90

VCC

102

VCC

110

VCC

124

VCC

133

VCC

143

VCC

157

VCC

168

VCC

0.1uC35

22uC4

MD0
MD1MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21

MD23
MD24
MD25
MD26
MD27

MD29
MD30
MD31

MD33
MD34
MD35
MD36
MD37
MD38
MD39

MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

3.3V

MD[63:0]

4

3

2

1

DCBA

9 – 12 9 – 13

E

CONNECTOR & EET

4

PREADY_
PAGE_
SRDY_
CMD
VDATA_

3

RAD[21:1]

LDT[15:0]

5V

2

1

2
4
6

8
11
13
15
17

1

19

IC14

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4

1G
2G

74LVC244

C11

100u

AR-PB8AR-PB8

EDCBA

R13

R17

R16

R15

R14

2.2K

2.2K

2.2K

2.2K

2.2K

IC26A

1

2

IC15
2
4
6
8

11
13
15
17

19

74LS244

STB_

PDATA[7:0]

ACK_
BUSY
PE
SLCT

AUTOFD_

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4

1G
2G

X1

4

2

CN5

C22

100p

C2

100u

A9
A4
A8

A7

A6

A5

NC

NC
NC

NC
NC
NC

25

PCLREADY_

10

PCLPAGE_

27

PCLSRDY_

11

PCLCMD

14

PCLPRD_

5

3.3V

6

3.3V

20

3.3V

21

3.3V

3

5V

4

5V

18

5V

19

5V

1

LGND

2

LGND

9

LGND

13

LGND

15

LGND

16

LGND

17

LGND

22

LGND

24

LGND

28

LGND

29

LGND

30

LGND

VIDEO CN

31

LDT2

32

33

LDT1

34

35

LDT0

36
37
38

39

40

41

42

43

44

45

46
47
48

49
50
51
52

+

53
54
55
56
57

58
59
60

C15

100u

PCLCRDY_

C84

18

1Y1

16

1Y2

14

1Y3

12

1Y4

9

2Y1

7

2Y2

5

2Y3

3

2Y4

20

VCC

10

GND

0.1uC20

5V

C56

LDT15

0.1u
LDT14

LDT13

LDT12
LDT11
LDT10

LDT9
LDT8

LDT7
LDT6

LDT5

LDT4

LDT3

C40

0.1u

3.3V

RAD4
RAD3
RAD2

RAD1

RAD16

RAD15

RAD14

RAD13

C41

0.1u

10R1
10R2
10R3
10R4
10R5

C26

C25

C24

C23

100p

100p

100p

100p

3.3V

C5

100u

C6

100u

1
2
3
4

5
6
7

8

9
10
11

12

13
14
15
16

17
18
19
20
21

22
23

24

25

26

27

28

29

30

C37

0.1u

CN6

Vcc
Vcc
Vcc
NC

ID15
ID14
ID13

GND

ID12
ID11
ID10

GND

ID9
ID8
NETINT1_
GND

A3
A2
A1
NC
A0

ID7
ID6

A15

ID5

A14

ID4

A13

ID3

A12

NETWORKCONN

C36

0.1u

C1

100u

RESET_

NETRDY_

NETCS_

NETOE_

NETON

ID2

A11

ID1

A10

ID0

R/W_

GND

A16

GND

GND

Vcc
Vcc
Vcc

RESET_
HSYNC_
READY_

PCLSTS

RAD12

RAD11

RAD10
RAD5
RAD9

RAD8

RAD7

RAD6

RAD17

0.1u

7
8
23
12
26

C30

C31

C32

100p

100p

100p

RESET_

DUMMY

5V

RESET_

NICCS_

IC24B

4 3

74LVC04

NETON_

5V

R321
10K

IC24E

74LVC04

IC24A

74LVC04

C29

100p

3.3V

0.1u

C98

21

1

C28

100p

1011

5V

74LVC08

WAIT

PIARD_

1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4

VCC
GND

0.1uC27

LDT0
LDT1
LDT2
LDT3
LDT4
LDT5
LDT6
LDT7

EETCS_

PIAWE_

VDIN_

3

VCC

GND

81.2376MHz

CPWBX0034QS51

18
16
14
12
9
7
5
3

20
10

RAD2

3

OUT

1

VCC

0.1uC57

0.1uC58

5V

5V

PDATA0
PDATA1
PDATA2
PDATA3
PDATA4
PDATA5
PDATA6
PDATA7

R170

100(1/2W)

2

1
28
27
26
25
24
23

17

4
16
15
11
10

3

9

L1

CN7

1
2
3
4
5
6
7
8
9

10
11
12
13
14

15
16
17
18

PARACONN

IC16

D0
D1
D2
D3
D4
D5
D6
D7

A0

CS_
R/W_
IOWR_
BD_
VDOIN_

RESET_

VDOCLK

D9001MFH

21

DSTB_
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
DATA8

ACK
BUSY
PE
SLCT
AUTOLF_

NC
SG
FG
Vcc

5V

RESET_

EREADY_
CRDY_
STS

HSYNC_

VDOOUT_

DOTCLK

OPT_IN

INPRIM_

FAULT_

SLCTIN_

TEST_

VCC
VCC

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

SG
NC

Vcc

CK0
CK1

GND
GND
GND

4

IC24F

10R59

5
13
6

74LVC04

1213

VDATA_

10R58

HSYNC_

VFCLK

3

19
18

20
12

8
22

7
14
21

C42

0.1u

5V

C43

0.1u

2

19
20
21
22
23
24
25
26
27
28
29
30

31
32
33
34

35
36

3.3KR171

INIT_
FAULT_

1

5V

SLCTIN_

DCBA

9 – 14 9 – 15

E

AR-PB8

COPYRIGHT © 1999 BY SHARP CORPORATION

All rights reserved.

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted,

in any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission of the publisher.

SHARP CORPORATION
Printing & Reprographic Systems Group
Quality & Reliability Control Center
Yamatokoriyama, Nara 639-1186, Japan

1999 February Printed in Japan N
