Sharp 32C540 User Manual

Download

COLOR TELEVISION

MODEL

32C540

H OPERATION MANU AL H

Products that have earned the ENERGY STARb are designed to protect the environment through superior energy efficiency.

CONTENTS

• IMPORTANT INFORMATION/IMPORTANT

SAFEGUARDS .................................................... 2–4

• Supplied Accessories ............................................... 5

• Before Operating Your Television.............................. 5

• Antenna Connections ........................................... 5, 6

• Quick Reference Control Operation ..................... 7, 8

• EZ SETUP during First Use ..................................... 9

• Demo Mode .............................................................10

• Accessing the MAIN MENU screen without

Remote Control ...................................................... 10

• Language ............................................................... 11

• Sleep Timer ............................................................ 11

• Video Adjust ........................................................... 12

• Audio Select ..................................................... 13, 14

MTS (Multichannel TV Sound)............................ 13

SPEAKER (Internal Speaker Switch) ................. 13

FAO (Fixed Audio Output)................................... 13

AUDIO ADJUST ................................................. 14

This operation manual includes basic operating

instructions in Spanish and French.

SPANISH is on page 48–53.

FRENCH is on page 54–59.

PAG E

• Closed Caption ....................................................... 15

• Parent Control .................................................. 16–26

V-CHIP Operation ......................................... 16–23

VIEW TIMER ................................................ 24–26

• Energy Save ........................................................... 27

• Set Up .............................................................. 28–34

EZ Setup ............................................................. 28

Channel Setting ............................................ 29–31

Blue Screen .................................................. 31, 32

Personal Preference ........................................... 33

Universal Plus Function ...................................... 34

• Auto Input ............................................................... 35

• CH/Input ID....................................................... 36, 37

• Screen Format........................................................ 38

• Using the Video and Audio InputTerminals ......39, 40

• Using the Audio Output Terminals .......................... 41

• Operation of Universal Remote Control ........... 42–45

• Before Calling for Service ....................................... 46

• Calling for Service .................................................. 46

• Specifications ......................................................... 47

• Limited Warranty .................................................... 60

PAG E

B180 WJ

Welcome to the SHARP Family. W e are pleased that you are now the owner of a SHARP Color Television – built for outstanding quality, reliability and performance. Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed through the most stringent quality control tests at the factory . We hav e prepared this OPERA TION MANU AL so that you may adjust the picture and color to your personal viewing preference. We sincerely hope that you receive the g reatest satisfaction and enjo yment from your ne w SHARP Color Television set for years to come. Please read these instructions carefully, and keep them handy for your future reference.

IMPORTANT

T o aid reporting in case of loss or theft, please record the TV’ s model and serial numbers in the space provided. The numbers are located at the rear of the TV.

Model No.:

Serial No.:

IMPORTANT INFORMATION

There are two important reasons for prompt warranty registration of your new SHARP tele vision set. Use the REGISTRATION CARD packed in with the set.

FIRST – WARRANTY

This is to assure that you will immediately receive the full consumer benefit of the parts, service and labor warranty applicable to your purchase.

SECOND – CONSUMER PRODUCT SAFETY ACT

To assure that you will promptly receive any safety notification on inspection, modification or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act. PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE ON THE LAST PAGE.

WARNING:

CAUTION: TO REDUCE THE RISK OF

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not

PRODUCT DISPOSAL

This product utilizes a Cathode Ray Tube (CRT) containing lead and tin-lead solder. Disposal of these materials may be regulated due to environment considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO WET LOCATIONS.

The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

ELECTRIC SHOCK,

PERSONNEL.

expressly approved by the manufacturer could void the user’s authority to operate this equipment.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

IMPORTANT INFORMATION (Continued)

CAUTION:

• Do not place the AC power cord under the TV set or other heavy items.

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not expose this products to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product.

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate your television and save

these instructions for later use.

Electrical energy can perform many useful functions. This unit has been engineered and manuf actured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this equipment, obser ve the following basic rules for its installation, use and servicing.

1. Unplug this television equipment from the wall outlet before cleaning.

2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3. Do not use attachments not recommended by the television equipment manufacturer as they may cause hazards.

4. Do not use this television equipment near water — for example, near a bath tub, washbowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool, etc.

5. Do not place this equipment on an unstable cart, stand, or table. The television equipment may fall, causing serious injury to a child or an adult, and serious damage to the equipment. Use only with a cart or stand recommended by the manufacturer or sold with the television equipment.

6. Television equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

7. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer.

8. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To insure reliable operation of the television equipment and to protect it from ov erheating, these openings must not be blocked or cov ered. This television equipment should not be placed in a built-in insulation such as a bookcase unless proper ventilation is provided.

9. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the television equipment on a bed, sofa, rug, or other similar surface. This television equipment should never be placed near or over a radiator or heat register.

10. This television equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your television dealer or local power company.

For television equipment designed to operate from battery power, refer to the operating instructions.

11. As a safety feature, television equipment is equipped with a 2-wire polarized plug (one plug blade bigger than the other). The 2-wire polarized plug will fit only one way into the power outlet.

If the plug does not fit, ask your electrician to replace your obsolete outlet. Do not modify the plug and defeat this safety feature.

12. Do not allow anything to rest on the power cord. Do not locate this television equipment where the cord will be abused by persons walking on it.

IMPORTANT SAFEGUARDS (Continued)

13. Follow all warnings and instructions marked on the television equipment.

14. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NEC—NATIONAL ELECTRICAL CODE

15. For added protection for this tele vision equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such po wer lines or circuits as contact with them might be fatal.

17. Do not overload wall outlets and e xtension cords as this can result in fire or electric shock.

18. Never push objects of any kind into this television equipment through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television equipment.

19. Do not attempt to service this television equipment yourself as opening or removing cov ers may e xpose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Unplug this television equipment from the wall outlet and refer ser vicing to qualified service personnel under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the television equipment. C. If the television equipment has been exposed to rain or water. D. If the television equipment does not operate nor mally by following the operating instructions. Adjust

only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to

restore the television equipment to normal operation. E. If the television equipment has been dropped or the cabinet has been damaged. F. When the television equipment exhibits a distinct change in perfor mance — this indicates a need for

service.

21. Upon completion of any service or repairs to this television equipment, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.

22. When replacement parts are required, be sure the service technician has used replacement par ts specified by the manufacturer that have the same characteristics as the original par t. Unauthor ized substitutions may result in fire, electric shock, or other hazards.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

GROUND

ELECTRIC SERVICE EQUIPMENT

CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

Supplied Accessories

INPUT

DISPLAY

DVD

VCR

1 2 3

POWER

VOL

100

ENTER

4 5 6

7 8 9

PERSONAL PREFERENCE

FLASHBACK

A B C D

CH/SKIP

DVD VCR

CATV TV

STOP REC

—

VOL

REW PLAY FF

MENU MUTE

PAUSE

Infrared Remote Control

TV • CATV • VCR • DVD

Size AA

Dry Batteries

Before Operating Your Television

Location

• For normal operation, your TV should be located in an area of the room where cool adequate ventilation is provided. Do not place the back of the tele vision set in a place where free airflo w will be restricted.

• Any magnetic force may disturb the color picture. Make sure that magnets , electric clocks, to ys using magnets or any other magnetic substance, such as iron are kept well away from the TV set.

Power

Your TV operates on 120 V olts, 60 Hz (normal household current) and has a polarized plug. If you are unable to insert the plug fully into the outlet, try reversing the plug. Should it fail to fit, contact an electrician. Do not defeat the safety feature of the polarized plug.

Note:

• If the set is not going to be used for a long period, such as during a vacation, unplug the set from the wall outlet to economize power. (If the TV set is plugged in, a slight current still flows,even with the POWER BUTTON in the OFF position.)

• Lines and other noise may appear in TV broadcast images when an FM tuner or radio is located near the TV and both radio and TV broadcasts are being received. Should such noise appear , turn off the radio.

• If you are listening to an AM broadcast, turn the TV off. AM broadcast signals may not be received due to interference from the TV.

Before using the television, prepare the Remote Control

•

To use the remote control, insert batteries first.

Inserting the batteries

Pull up

Battery Cover

• With your thumbnail, pull up the slit as indicated by the arrow to remove the battery cover . Insert two batteries (size “AA”). Be sure to match the batter y m/, ter minals with the m/, marks inside the compartment.

Antenna Connections

Antennas

• The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended.

The following is a brief explanation of the type of connections that are provided with the various antenna systems:

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (not supplied).

2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm ADAPT OR (not supplied).

75-ohm coaxial cable (round)

300-ohm twin-lead cable (flat)

F-type connector

Antenna Connections (Continued)

OUTDOOR ANTENNA CONNECTION

• Refer to one of the following two diagrams when connecting to an outdoor antenna. A: Using a VHF/UHF combination outdoor antenna. B: Using separate VHF and/or UHF outdoor antenna.

• Connect an outdoor antenna cable lead-in to the ANT/CABLE terminal on the rear of the TV set.

A. Combination VHF/UHF Antennas B. Separate VHF/UHF Antenna

VHF/UHF ANTENNA

300-ohm twin-lead

REAR OF TV

VHF ANTENNA

UHF ANTENNA

300-ohm twin-lead

75-ohm coaxial

cable

COMBINER

(not supplied)

IN OUT

VHF/UHF ANTENNA

75-ohm

coaxial cable

300/75-ohm ADAPTOR (Not supplied)

REAR PANEL

F-type connector should be finger-tightened only.NOTICE

F-type connector

75-ohm coaxial cable

When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.)

CABLE TV (CATV) CONNECTION

• A 75 ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75 ohm coaxial cable to the set, screw the 75 ohm cable to the COAXIAL CABLE CONNECTOR.

• Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay channels are scrambled, a cable TV conv erter/descrambler is generally provided to the subscriber by the cable TV compan y. This conv erter/descrambler is necessary for normal viewing of the scrambled channels. (Set y our TV on channel 3 or 4. Typically one of these channels is used. If this is unknown, consult your cable TV company.) For more specific instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is explained below. Please note: RF switch equipped with position A/B (not provided) is required.

“A” position on the RF switch (not supplied) : You can view all unscrambled channels using the TV’s “B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/

RF switch (not supplied)

OUTAIN

OUT

channel keys. descrambler using the converter’s channel keys.

Two-set

signal splitter (not supplied)

Cable TV Line

Cable TV converter/

descrambler

(not supplied)

Note:

• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that might be required.

Quick Reference Control OperationQuick Reference Control Operation

Part Names

•

Front Panel

POWER

Press → On. Press again → Off.

REMOTE CONTROL SENSOR

Press → Accesses MAIN MENU. Press again → Exits MAIN MENU.

VOLUME UP/DOWN

(k) Increases sound. (l) Decreases sound.

CHANNEL UP/DOWN

(a) Selects next higher channel. (s) Selects next lower channel.

To open the door

Using the projection located under the "PULL-OPEN" indication, pull and lift the door open.

To close the door

Using the projection, lower the door until closed.

Caution:

• When opening or closing the door, do not insert your fingers into the gap between the door and front panel. This may result in an injury.

Rear Panel

INSIDE DOOR

VIDEO/AUDIO TERMINALS

IN 2

COMPONENT (VIDEO) TERMINALS

ANTENNA/CABLE INPUT TERMINAL

Note:

• The TV set and remote control illustrations and the on-screen displays in this manual may differ from their actual appearance.

IN 3 (VIDEO/AUDIO) TERMINALS

IN 1 (VIDEO/AUDIO) TERMINALS

LINE OUT (AUDIO) TERMINALS

IN 1 S-VIDEO TERMINAL

Quick Reference Control Operation

Quick Reference Control Operation (Continued)

Part Names

•

Basic Remote Control Functions

POWER

Press → On. Press again → Off.

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Preference buttons, you can program your favorite programs by using the 4 categories A, B, C and D. The channels can be accessed quickly by using these buttons. (See page 33.)

VOLUME UP/DOWN

(k) Increases sound. (l) Decreases sound.

• Changes or selects the TV adjustments on On-Screen Display.

Press → Accesses MAIN MENU. Press again → Exits MAIN MENU.

CATV/DVD-TV/VCR MODE SELECT SWITCH

In TV/VCR position, signals sent will be for TV and VCR control. In CATV/DVD position, signals sent will be for cable TV converter and DVD control.

DVD/VCR CONTROL

See page 42.

Note:

POWER

DVD

DISPLAY

VCR

FLASHBACK

PERSONAL PREFERENCE

VOL

—

REW

PLAY

PAUSE

STOP

TV • CATV • VCR • DVD

ENTER

100

CATV TV

DVD VCR

CH/SKIP

REC

INPUT

VOL

MUTE

Infrared Transmitter Window

DISPLAY

Press → Displays receiving channel for 4 seconds. Press again → Removes display.

• Temporarily displays receiving channel when in Closed Caption mode.

INPUT

Press → Switches to external video INPUT 1 mode. Press twice → Switches to external video INPUT 2 mode. Press 3 times → Switches to external video INPUT 3 mode or COMPONENT mode. Press 4 times → Switches back to the original TV mode. See page 40.

ENTER

Used in some instances where a Cable Converter Box requires an “enter” command after selecting channels, when using the REMOTE KEYPAD button. See page 42.

CHANNEL UP/DOWN

(a) Selects next higher channel. (s) Selects next lower channel.

• See pages 29–31 for Channel

Setting.

• Moves the “ E ” mark on the MENU

screens.

MUTE

Press → Mutes sound. Press again → Restores sound.

• When sound is muted, CLOSED

CAPTION appears if available.

• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the remote control, place it under a fluorescent light or other lighting.

• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.

• The degree of illumination will vary depending on the strength of lighting used.

• The degree of illumination will decrease with time and depending on the temperature.

• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.

• Sunlight and fluorescent lighting are the most effective when charging the display.

• The TV set and remote control illustrations and the on-screen displays in this manual may differ from their actual appearance.

EZ SETUP during First Use

When you turn on the TV for the first time, it will automatically

•

memorize the broadcasting channels. Please perform the following instructions before pressing the

POWER button. (1) Insert the batteries into the remote control. (See page 5) (2) Connect the antenna cable to the TV set. (See pages 5, 6) (3) Plug in the AC POWER cord to the wall outlet.

POWER

DVD VCR

DISPLAY

INPUT

ENTER

100

PERSONAL PREFERENCE

—

VOL

MUTE

FLASHBACK

ABCD

VOL

POWER

VOLUME

)/(l)

(

CHANNEL UP (a)/ DOWN (s)

1 Press the POWER button on the TV set or on the Remote Control

to turn on the TV. The SELECT LANGUAGE screen will be displayed.

(On the Set)

(On the Remote Control)

POWER

2 Press CH a/s to select “ENGLISH”, “ESPAÑOL (SPANISH)” or

“FRANCAIS (FRENCH)”.

3 Press VOL k/l to access the EZ SETUP screen.

VOL—VOL

(STOP)

VOL

—

(START)

VOL

4 Press VOL k.

The tuner will automatically search for the broadcasting and cable TV channels . (The CH No. will automatically increase when it appears.)

If you want to stop the EZ SETUP process once it has started, press VOL l and it will be canceled.

If you want to SET UP again, please refer to page 27 on SET UP.

To cancel EZ SETUP

Press VOL l.

SEL ECT

LANGUAGE

ENGL I SH ESPAÑ OL FRANCAI S

SEL ECT :CH SET :VOL

(SELECT LANGUAGE screen)

SEL ECT

LANGUAGE

ENGL I SH ESPAÑ OL FRANCAI S

SEL ECT :CH SET :VOL

OR CABL E.CONNECT ANTENNA

START

SETUP?EZ

STOP START

(EZ SETUP screen)

PL E ASE WAI T

AUTO PROGRAMM I NG

125 STOP START

+–

/ /

5 Once EZ SETUP is complete, the lowest channel number

memorized will be displayed.

Note:

• If EZ SETUP does not memor ize all the channels in your region, please refer to pages 29–31 for more information on manually memorizing the channels using CHANNEL SETTING.

• It may be difficult to PRESET when the broadcast signals are weak, the channel cycle frequency is incorrect or frequency jamming is occurring around the area. Please refer to pages 29–31for more information on manually memorizing the channels using CHANNEL SETTING.

Demo Mode

• To learn more about the TV set, you can enter DEMO mode. Simply press and hold MENU on the TV set for more than 3 seconds.

• To cancel DEMO mode, again press MENU on the TV set for more than 3 seconds.

Example:

DEMO mode display

(On the Set)

button

Accessing the MAIN MENU screen without Remote Control

• If you misplaced your Remote Control you can still access most settings via the MAIN MENU screen by pressing MENU on the TV set.

• Some features of your TV set are not accessible without the Remote Control. If you lost your Remote Control, contact a Shar p Service Center for a replacement.

(On the Set)

button

Language

ENGL I SH FRANCA I S

ESPA

ÑOL

LANGUAGE

The language for the ON SCREEN DISPLAY can be set to ENGLISH, SPANISH or FRENCH.

•

1 Press MENU to access the MAIN MENU screen.

2 Press CH a/s to move the “E” mark to “SET UP”.

SLEEP T I MER V I DEO ADJ UST AUDI O SE L ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SLEEP T I MER V I DEO ADJ UST AUDI O SE L ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

3 Press VOL k/l to access the SET UP screen, then press CH a/s

to move the “E” mark to “LANGUAGE”.

VOL—VOL

→

SET UP

BLUE SCREEN PERSONAL PREF.

PLUS

UNI VERSAL LANGUAGE CH SET T I NG AUTO I NPUT CH/ INPUT I D SCREE N FORMAT

(SET UP screen)

4 Press VOL k/l to access the LANGUAGE select screen.

VOL—VOL

(LANGUAGE select screen)

5 Press CH a/s to select “ENGLISH”, “ESPAÑOL (SPANISH)” or

“FRANCAIS (FRENCH)”.

IDIOMA ENGL I SH

ESPA

ÑOL

FRANCA I S

6 Press MENU to exit.

Sleep Timer

You can preset your television to turn off automatically in increments of 30, 60, 90 or 120 minutes.

•

1 Press MENU to access the MAIN MENU screen. 2 Press VOL k/l to access the SLEEP TIMER screen.

→

VOL—VOL

SLEEP T I MER V I DEO ADJ UST AUDI O SE L ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

3 Press VOL k/l to set a sleep time of 30, 60, 90 or 120 minutes. 4 Press MENU to exit.

VOL—VOL

Note:

→

SLEEP T IMER

120M REMAIN

(SLEEP TIMER screen)

• To turn off the SLEEP TIMER, repeat the above SLEEP TIMER steps and select “– – – M REMAIN” during step 3.

• While SLEEP TIMER is active, the time remaining will be briefly displayed on-screen at regular intervals or when the Remote’s DISPLAY key is pressed twice. 5 minutes before the SLEEP TIMER turns off the TV, the screen prompts the time remaining for 4 seconds. The SLEEP TIMER shows a similar display for each remaining minute and a 10-second display right before shutting off the TV.

• If you turn the POWER OFF, the SLEEP TIMER will automatically reset.

Video Adjust

PICTURE 50

Description of Adjustment Items

•

Selected item VOL k button VOL l button

PICTURE To increase contrast To decrease contrast TINT To make skin tones greenish To make skin tones purplish COLOR To increase color intensity To decrease color intensity BRIGHT To increase brightness To decrease brightness

SHARP To increase sharpness To decrease sharpness COLOR TEMP. To choose a LOW, ML, MH or HIGH color tone. RESET To return all adjustments to factory preset levels.

POWER

DVD VCR

FLASHBACK

PERSONAL PREFERENCE

VOL

—

DISPLAY

INPUT

ENTER

100

VOL

MUTE

CATV TV

DVD VCR

VOLUME

)/(l)

( CHANNEL

UP (

DOWN (s) MENU

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “VIDEO ADJUST”.

→

3 Press VOL k/l to access the PICTURE adjust screen.

VOL—VOL

4 Press CH a/s to select the desired adjustment item. (Refer to the

diagram below.)


RESET

: CH a

TINT

COLOR TEMP.

: CH s

COLOR

BRIGHT

SHARP

5 Press VOL k/l to adjust the setting.

VOL—VOL

6 Repeat steps 4 to 5 to adjust other settings.

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

PICTURE 50

(PICTURE adjust screen)

VOL k increases contrast

VOL l decreases contrast

7 Press MENU to exit.

Note:

• VIDEO ADJUST setting, once set, is shared among AIR/CABLE, INPUT 1, INPUT 2, and INPUT 3 modes.

• VIDEO ADJUST setting for INPUT 3 when used as COMPONENT can be set independently.

Audio Select

H MTS (Multichannel TV Sound)

This function allows reception of stereo or bilingual TV sound. You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

•

Stereo broadcasts Live television broadcasts of sports, shows, concerts, etc. can be receiv ed in dynamic stereo sound. SAP broadcasts Television broadcast can be received with either MAIN or SAP sound. MAIN sound: The normal program soundtrack. (Monaural or stereo where available.) SAP sound: Second language, supplementary commentaries, etc. (SAP sound is monaural.)

If stereo sound is difficult to hear;

•

You can obtain clearer sound by manually switching to fixed monaural mode.

H SPEAKER (Internal Speaker Switch)

This function turns the TV’s internal speakers “ON” or “OFF” when listening to sound from external speakers by using the AUDIO OUTPUT Terminals. (See page 41).

H FAO (Fixed Audio Output)

This function turns the TV’s internal speakers “OFF” and allows fixed audio output from the AUDIO OUTPUTTerminals. (See page 41). With FAO, the TV’s volume control is disabled.

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “AUDIO SELECT”.

→

3 Press VOL k/l to access the AUDIO SELECT screen. 4 Press CH a/s to move the “E” mark to “MTS”, “SPEAKER”, “F AO”

or “AUDIO ADJUST”.

VOL—VOL

→

5 Press VOL k/l to select “STEREO”, “SAP” or “MONO” when the

“E” mark is at “MTS” position.

MTS

STEREO

SAP

MONO

SPEAKER

OFF

FAO

OFF

VOL—VOL

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

AU I ODSEECTL

MTS

SPEAKER FAO AUD I DJ US TOA

:STEREO :ON :OFF

(AUDIO SELECT screen)

AU I ODSEECTL

MTS SPEAKER FAO AUD I DJ US TOA

(AUDIO SELECT

:STEREO :ON :OFF

screen

)

Audio Select (Continued)

H AUDIO ADJUST

When the “E” mark is at “AUDIO ADJUST”, press VOL k/l to access the AUDIO ADJUST screen. To access the desired item, press CH a/s. To adjust the audio setting, press VOL k/l.

TREBLE

Selected item VOL k button VOL l button

BASS

BALANCE

RESET

TREBLE To increase treble response. To decrease treble response. BASS To increase bass response. To decrease bass response.

BALANCE To emphasize the right To emphasize the left

speaker’s volume. speaker’s volume.

TREBLE 0

RESET To return all adjustments to factory preset levels.

6 Press MENU to exit.

An example screen displaying ON AIR when receiving stereo broadcasts Current channel number

“← ON AIR” will appear next to STEREO or SAP when receiving STEREO or SAP broadcasts.

Note:

• Once MONO mode is selected, the TV sound remains monaural even if the TV set receiv es a stereo

broadcast. You must switch the mode back to STEREO if you want to hear stereo sound again.

• Selecting MTS while receiving video signals from INPUT ter minals does not change the type of

sound; in this case, sound is determined by the video source.

• If “FAO” mode is on, “SPEAKER” mode will automatically turn off. Changing “SPEAKER” setting will

not affect “FAO” mode.

STEREO

AIR

SAPONON

AIR

MONO

(CHANNEL call on screen)

Closed Caption

How to set CLOSED CAPTION

•

• Your TV is equipped with an internal Closed Caption decoder. “Closed

Caption” is a system which allows conv ersations, narration, and sound effects in TV programs and home videos to appear as captions on the TV screen (see the illustration).

• Not all the programs and videos will offer closed captioning. Please

look for the “

• Closed Caption broadcast can be viewed in two modes: CAPTION

and TEXT. F or each mode, two channels are av ailable, CH1 and CH2. The CAPTION mode shows subscripts of dialogs and commentaries

of TV dramas and news programs while allowing clear view of the picture. The TEXT mode displays over the picture other various information (such as TV program schedule, weather forecast, etc.) that is independent of the TV programs.

” symbol to ensure that captions will be shown.

PERSONAL PREFERENCE

ABCD

VOL

MUTE

CATV TV

DVD VCR

—

VOLUME

)/(l)

(

CHANNEL

UP (

DOWN (

)

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “CLOSED CAPTION”.

→

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

CLOSED

3 Press VOL k/l to access the CLOSED CAPTION setting screen.

VOL—VOL

MODE DATA

CAPT I ON

: CAPT ION : CH 1

(CLOSED CAPTION setting screen)

4 Press CH a/s to mo ve the “E” mark to either “MODE” or “D ATA”.

5 Press VOL k/l to change the CLOSED CAPTION setting.

MODE :

CAPTION

TEXT

OFF

DATA :

CH 1

CH 2

VOL—VOL

CLOSED CAPT ION

:CAPT IONMODE

DATA :CH 1

CLOSED

CAPT I ON

MODE

: CAPT ION

DATA

: CH 1

6 Press MENU to exit.

Note:

• If a broadcast contains CLOSED CAPTION and the MUTE button is pressed, the set enters CAPTION

mode automatically. Pressing MUTE again will return the set to its previous condition.

• Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor

or if there are problems at the broadcast source. This does not necessarily indicate a problem with your TV .

• If any button is pressed to call up the ON SCREEN DISPLAY while viewing a CLOSED CAPTION

broadcast, the closed captions will disappear momentarily.

• If no TEXT broadcast is being received while viewing in the TEXT mode, the screen may become

dark and blank for some programs. Should this occur, switch the Closed Caption mode to “OFF”.

Parent Control (V-CHIP Operation)

H V-CHIP

• This function allows you to restrict TV programs and also allows you to control TV usage based on FCC data. This function is to prevent your children from watching violence or sexual scenes that may be harmful.

• Restriction of TV prog rams includes two characters that contain information about the program’ s MPAA rating and the TV P arental Guidelines. MPAA is restricted by age. TV P arental Guidelines are restricted by age and contents.

• Since a TV program may use either the MPAA rating or the TV Guidelines you should adjust both for complete control.

[1] MPAA RATING

RATING

G GENERAL AUDIENCES. All ages admitted. PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for

age

PG-13 P ARENTS STRONGLY CAUTIONED. Some material ma y be inappropriate f or

based

R RESTRICTED. Under 17 requires accompanying parent or adult guardian. NC-17 NO ONE 17 AND UNDER ADMITTED. X X Rating is an older rating that is unified with NC-17 but may be encoded on

• MPAA RATING

Example 1:

“PG-13” in the age-based rating is blocked, this will automatically block the higher ratings “R”, “NC-17”, “X” also.

1. User setting 2. Block table

–––––

BLOCK

PG-13

BLOCK

NC-17

BLOCK

Note:

• MPAA RATING is only age-based.

[2] TV PARENTAL GUIDELINES

TV-Y (All children) TV-Y7 (Direct to Older Children) TV-G (General Audience)

age

TV-PG (Parental Guidance

based

Suggested) TV-14 (Parents Strongly

Cautioned) TV-MA (Mature Audience Only)

: Content Rating can be set.

l : Content Rating cannot be set (not normally broadcast by TV station).

children.

children under 13.

older movie’s data.Note:

not to

block not to

block Select

PG-13

age

based

NC-17

block auto-

block

RATING

Example 2:

“R” in the age-based rating is blocked, this will automatically block the higher rating “NC-17”, “X” also.

1. User setting 2. Block table

–––––

PG-13

NC-17

–––––

BLOCK

age

based

PG-13

NC-17

not to block

Select block

autoblock

content based

AGE D L S V FV

(Sexually (Adult (Sexual (Violence) (Fantasy

Suggestive Language) Situation) Violence)

Dialog)

V V

V V V V V

––––– –––– –––––

–

V V V

–

– –

Parent Control (V-CHIP Operation) (Continued)

• TV PARENTAL GUIDELINES (Example) Example 1.1 : Age Based setting

ClearVs (block) from each "AGE" box for all ratings. This will automatically unblock everything.

Example 1.2 : Age Based setting

For “TV-G” put a V in the "AGE" box. This will automatically block the higher age ratings “TV-PG”, “TV-14” and “TV-MA” as well as “TV-G”. Please note the content ratings “D”, “L”, “S”, “V” are automatically block ed as well.

Example 2.1 : Content Based setting

If you choose to unblock ever y content-based items (“D”, “L”, “S”, “V”), clear the V (block) from each “AGE” box of “TV-PG”, “TV-14” and “TVMA”.

Example 2.2 : Content Based setting

Put a V in the box corresponding to “TV-PG” (row) and “V (Violence)” (column). This will automatically block the “V” boxes for “TV-14” and “TV-MA”. Setting only “TV-PG-V”, “TV-14-V” or “TV-MA-V” will not block all programs rated “TV-PG”, “TV-14” or “TV-MA”.

TV–Y TV–Y7 TV–G TV–PG TV–1 4 TV–MA

GAE

–

MENU :RET URN

GAE

–

V V

–

MENU :RET URN

GAE

–

MENU :RET URN

GAE

–

MENU :RET URN

–

VIEW

–

BLOCK

–

– – – –

–

VIEW

–

::BLOCK

–

– –

VVVV

–

VVVV

–

VVVVV

–

VIEW

–

::BLOCK

–

– – – –

–

VIEW

–

::BLOCK

–

– –

–

Example 3 : Resetting an Age Based setting

For “TV-14”, put a V (block) in the “AGE” box. This will again automatically block the content ratings “D”, “L”, “S”, “V” for “TV-MA” as well as “TV-14” (“D” is not available for “TV-MA”). Please note that the lower age rating “TV-PG” does not change from its previous settings after this.

TV–Y TV–Y7 TV–G TV–PG TV–1 4 TV–MA

GAE

–

V MENU :RET URN

–

VIEW

–

::BLOCK

–

– – –

VVVVV

–

Note:

• Content ratings can be modified b ut only in the combinations indicated by V in the table on page 15.

• Changing a lower age r ating’s content setting to “BLOCK” automatically changes the same higher age rating’s content setting to “BLOCK” regardless of their previous settings.

• Changing a lower rating’ s “A GE” setting to “BLOCK” automatically changes all higher ratings to “BLOCK” regardless of their previous settings.

• For “TV-Y7”, “TV-PG”, “TV-14” and “TV-MA”, if you clear the V in the “AGE” box (unblock) you can still change settings based on content.

• Clearing a higher rating’ s age or content setting will not clear lower settings. Make sure that all undesired boxes are blocked.

[3] ADDITIONAL MODE

Besides “MPAA RATINGS” and “TV PARENTAL GUIDELINES”, new ratings system’s data can be downloaded when they become available. (See page 19.)

G PG PG– 1 3 R NC– 1 7 X

B: LOCK

–: ––––

MENU :RET URN

Parent Control (V-CHIP Operation) (Continued)

How to set V-CHIP

•

[1] MPAA RATING

FLASHBACK

PERSONAL PREFERENCE

VOL

—

VOLUME

ENTER

100

(k)/(l)

CHANNEL

VOL

UP (a)/ DOWN (b)

MUTE

1 Press MENU to access the MAIN MENU screen.

2 Press CH a/s to move the “E” mark to “PARENT CONTROL”.

3 Press VOL k/l to access the PARENT CONTROL screen.

VOL—VOL

4 Press VOL k/l to access the V-CHIP select screen.

Note:

• If SECRET No. is already set, enter the SECRET No. (See

To change the V-CHIP BLOCK after

•

registering a secret No. on page 22.).

VOL—VOL

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

PARENT CONTROL

V–CHI P BLOCK V I EW T I MER

(PARENT CONTROL screen)

MP AA TV GUI DEL I NES

AD : OFFDOWNLO

STATUS : OFF

(V-CHIP select screen)

5 Press VOL k/l to select “MPAA”. Press CH a/s to move the

“E” mark to “PG”, then press VOL k/l to select BLOCK. If you set “PG” to BLOCK, “PG-13”, “R”, “NC-17” and “X” are automatically blocked.

VOL—VOL

→

VOL—VOL

6 Press MENU to return to the V-CHIP select screen.

Parent Control (V-CHIP Operation) (Continued)

7 Press MENU, then “INPUT SECRET No.” will be displayed.

Note:

• If SECRET No. is already set, skip to step 9.

8 Enter a 4-digit SECRET No. using the REMOTE KEYPAD.

321 654 987

ENTER

100

When done, press MENU to exit.

Note:

• If you set “G” to BLOCK , all ratings are automatically blocked.

• If you set “X” to BLOCK, “G”, “PG”, “PG-13”, “R” and “NC-17” are not blocked.

I NPUT

––––

I NPUT

1234

SECRET No .

[2] TV GUIDELINES

1 Repeat steps 1 to 4 of [1] MPAA RATING. 2 Press CH a/s to move the “E” mark to “TV GUIDELINES”.

3 Press VOL k/l to access the TV GUIDELINES screen.

VOL—VOL

4 To change A GE and CONTENT SETTING, press CH a/s to move

the “E” mark to the desired rating and then press VOL k/l to select.

→

VOL—VOL

5 Press CH a/s to move the “E” mark to the desired content item

and then press VOL k/l to select either “BLOCK” or “– ––––” (unblock).

→

VOL—VOL

6 Press MENU to return to the TV GUIDELINES screen. 7 Repeat steps 4 to 6 until all ratings and their contents are set. 8

When done, press MENU to return to V-CHIP select screen.

9 Press MENU to exit.

MP AA

TV GUI DEL I NES

AD : OFFDOWNLO

STATUS : OFF

(V-CHIP select screen)

GAE

–

–::

TV–Y TV–Y7 TV–G TV–PG TV–1 4 TV–MA

–

MENU :RET URN

VIEW

–

BLOCK

–

– – – –

(TV GUIDELINES screen)

TV–Y7

BLOCK

–––––

BLOCK

MENU :RET URN

(CONTENT RATING screen)

GAE

–

TV–Y

–

TV–Y7 TV–G TV–PG TV–1 4 TV–MA

–

V V

MENU :RET URN

VIEW

–

::BLOCK

–

– –

VVVV

–

VVV

––

VVVVV

Note:

• If SECRET No. is not set, enter a SECRET No. as show in steps 7 and 8 of [1] MPAA RATING.

Parent Control (V-CHIP Operation Continued)Parent Control (V-CHIP Operation) (Continued)

[3] Downloading additional rating mode

There will be an additional new rating system. In that case, please set up as follows. Subsequently the new rating system will set up automatically.

1 Repeat steps 1 to 4 of [1] MPAA RATING. 2 Press CH a/s to move the “E” mark to “DOWNLOAD”.

3 Press VOL k/l to select “DOWNLOAD : ON”.

VOL—VOL

4 Press MENU, then “INPUT SECRET No.” will be displayed.

Note:

•

If SECRET No. is already set, skip to step 6.

REMOTE

ENTER

100

KEYPAD

VOLUME (k)/(l)

CHANNEL

VOL

UP (

DOWN (

)

MUTE

FLASHBACK

PERSONAL PREFERENCE

VOL

—

MP AA TV GUI DEL I NES

AD : OFFDOWNLO

STATUS : OFF

MP AA

TV GUI DEL I NES

AD : ONDOWNLO

STATUS : OFF

I NPUT

SECRET No .

––––

5 Enter a 4-digit secret No. using the REMOTE KEYPAD.

I NPUT

321 654 987

ENTER

100

SECRET No .

1234

6 Press MENU to exit.

Downloading V-CHIP data

•

1 If you watch a program containing “new rating system data”, the

DOWNLOAD screen will be displayed.

PL AESE AWTI

NOW DOWNLO ADI

V–CH I P DATA

(DOWNLOAD screen)

2 The DOWNLOAD screen will disappear, once downloading is finished.

Note:

•

DOWNLOAD will not start, if you are not watching a program containing “new rating system data”.

Parent Control (V-CHIP Operation) (Continued)

How to set additional rating mode (Example)

•

Once downloading is complete, you can set the blocking pattern as follows.

1 Repeat steps 1 to 4 of [1] MPAA RATING. 2 Press CH a/s to move the “E” mar k to “Cdn. English Ratings”,

then press VOL k/l.

→

VOL—VOL

3 You can select “BLOCK” or “– – – – –” (unblock) for each rating

item by pressing CH a/s and VOL k/l.

→

VOL—VOL

4 You can select “BLOCK” or “– – – – –” (unblock) for each rating

item by pressing CH a/s and VOL k/l if you select “Cdn. F rench Ratings” in step 2.

Note:

• You are able to download up to 4 different rating systems.

→

VOL—VOL

MPAA

EDLINES

TV GU I Cdn .

nEglis Rhatinsg

Cdn .

rFenchRatinsg

OAD : ON

DOWNL

S:ON

STATU

(After downloading the rating data)

–: –––– B: LOCK

C8+ G

–: ––––

B: LOCK

14+

–: –––– B: LOCK

18+

IDUAL BL

INDIV

OCK

MENU :RET URN

(ENGLISH INDIVIDUAL BLOCK screen)

–: –––– B: LOCK

8+ 13+

–: –––– B: LOCK

16+ 18+

–: ––––

IDUAL BL

INDIV

OCK

MENU :RET URN

(FRENCH INDIVIDUAL BLOCK screen)

I NPUT

––––

SECRET No .

I NPUT

1234

SECRET No .

Parent Control (V-CHIP Operation) (Continued)

I NPUT

––––

SECRET No .

I NPUT SECRET No .

Activating the V-CHIP BLOCK

•

1 Repeat steps 1 to 4 of [1] MPAA RATING.

MPAA

EDLINES

2 Press CH a/s to mov e the “E” mark to “STATUS”. Press VOL k/

TV GU I

l to activate the V-CHIP BLOCK. (If STATUS is OFF, V-CHIP BLOCK will not operate.)

OAD : OF F

→

VOL—VOL

DOWNL

S:ON

STATU

(V-CHIP select screen)

3 Press MENU, then “INPUT SECRET No.” will be displayed.

Note:

•

If SECRET No. is already set, skip to step 5.

4 Enter a 4-digit secret No. using the REMOTE KEYPAD.

321 654 987

ENTER

100

5 Press MENU and the secret No. will be registered.

To temporarily cancel the V-CHIP BLOCK

•

1 “V-CHIP HAS BEEN ACTIVA TED” appears if you view a program

with the same program rating data you configured.

V–CH I P

HAS BEEN ACT IVATED

TV–Y7 FV

Note:

• “V-CHIP HAS BEEN ACTIVATED” will not be displayed if STATUS is not configured to “ON”.

2 Press MENU, then “INPUT SECRET No.” will be displayed.

3 Enter the 4-digit secret No. using the REMOTE KEYPAD, then V-

CHIP BLOCK will be canceled temporarily . If the wrong secret No. is chosen, “SECRET No. IS INCORRECT” will be displa yed. Input the secret No. again in this case.

Note:

• If you turn the power ON from OFF, the V-CHIP BLOCK will be activated again.

321 654 987

ENTER

100

Parent Control (V-CHIP Operation) (Continued)

To change the V-CHIP BLOCK after registering a secret No.

•

1 Repeat steps 1 to 4 of [1] MPAA RATING, then “INPUT SECRET

No.” will be displayed.

2 Enter the 4-digit secret No. using the REMOTE KEYPAD and

the V -CHIP select screen will be displa yed. Set V-CHIP BLOCK again.

321 654 987

ENTER

100

If you forget or need to change your secret No., clear the original secret No. and set

•

up a new one.

1 Repeat steps 1 to 4 of [1] MPAA RATING, or 1 to 2 of To

temporarily cancel the V-CHIP BLOCK, then “INPUT SECRET

No.” will be displayed.

I NPUT

SECRET No .

––––

I NPUT SECRET No .

2 Press and hold both VOL k and CH a on the TV set

simultaneously until the message “INPUT SECRET No.” disappears.

3 Press the MENU button twice to exit.

(On the Set)

VOL k and CH a

buttons

Parent Control (VIEW TIMER)

H VIEW TIMER

This function allows you to restrict TV viewing time and also allows you to control TV usage. This function is to prevent your children from watching too much TV.

VIEWING TIME (an accumulative timer: counts only the time duration while the TV power is on.)

• VIEWING TIME can be set from 30M (30 minutes) to 10H00M (10 hours) in 30 minutes intervals.

OFF TIME (Restricts TV viewing after the VIEWING TIME reaches zero.)

• OFF TIME can be set from 30M (30 minutes) to 10H00M (10 hours) in 30 minutes intervals.

STATUS (Select ON to activate VIEW TIMER)

How to set VIEW TIMER

•

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “PARENT CONTROL”.

→

V I EW T IMER VIEWING

TIME

––H

––M

OFF

TIME

––H

––M

STATUS : OFF

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

3 Press VOL k/l to access the PARENT CONTROL screen. 4 Press CH a/s to move the “E” mark to “VIEW TIMER”.

VOL—VOL

→

5 Press VOL k/l to access “VIEW TIMER”.

VOL—VOL

6 Press CH a/s to select “VIEWING TIME” and “OFF TIME”. For

each selection, press the VOL k/l to set the time duration.

→

VOL—VOL

7 Press CH a/s to select “STATUS”. Press the VOL k/l to turn

ON the “VIEW TIMER”. (If STATUS is OFF, VIEW TIMER will not operate.)

→

VOL—VOL

8 Press MENU. “INPUT SECRET No.” will be displayed.

Note:

•

If SECRET No. is already set, skip to step 10.

PARENT CONTROL

V–CH I P BLOCK VIEW TIMER

(PARENT CONTROL screen)

V I EW T IMER VIEWING

TIME

––H

––M

OFF

TIME

––H

––M

STATUS : OFF

V I EW T IMER VIEWING2HTIME

00M

OFF

TIME

––H

––M

STATUS : OFF

V I EW T IMER VIEWING2HTIME

00M

OFF

TIME

5H 00M

STATUS : ON

I NPUT

SECRET No .

––––

Parent Control (VIEW TIMER) (Continued)

9 Enter a 4-digit SECRET No. using the REMOTE KEYPAD. 10

Press MENU to exit.

321 654 987

ENTER

100

→

I NPUT

1234

SECRET No .

Example:

• To restrict anybody from watching TV for more than 5 hours , after watching the TV for 2 hours, your settings would look like the one on the right.

• You can choose to w atch the 2 hours of TV as you wish. For example, you could watch 1 hour of TV, turn the TV off f or 30 min utes , then turn the TV on and watch the remaining 1 hour of the VIEWING TIME.

To change the VIEW TIMER setting after registering a secret No.

•

1 Repeat steps 1 to 4 of How to set VIEW TIMER. Press

VOL k/l, and “INPUT SECRET No.” will be

displayed.

VOL—VOL

2 Enter the 4-digit SECRET No. using the REMOTE

KEYPAD, and the VIEW TIMER access screen will be displayed. Repeat steps 5, 6.

ENTER

100

Note:

• When you choose the correct secret No., the VIEW TIMER access screen is displayed. If the wrong secret No. is chosen, “SECRET No. IS INCORRECT” is displayed. Input the secret No. again in this case.

To cancel the VIEW TIMER (While the TV set is OFF but the VIEW

•

TIMER is set.)

1 Turn on the TV; a blue screen message “TIME OVER” will appear. If

you do nothing, the TV will turn off in approximately 30 seconds.

V I EW T IME R VIEWING2HTIME

00M

OFF

TIME

5H 0 0M

STATUS :ON

I NPUT

SECRET No .

––––

321 654 987

I NPUT SECRET No .

SECRET I S I NCORRECTNo .

I NPUT

T I ME OVER

SECRET No .

––––

2 Enter the 4-digit secret No. using the REMOTE

KEYPAD. When you choose the correct secret No.,

the VIEW TIMER is canceled. If the wrong secret No. is chosen, “SECRET No. IS INCORRECT” is displayed. Input the secret No. again in this case.

321 654 987

ENTER

100

T I ME OVER

I NPUT SECRET No .

Parent Control (VIEW TIMER) (Continued)

To cancel the VIEW TIMER setting or change the secret No. (If

•

you forget the SECRET No.)

1 Repeat steps 1 to 4 of How to set VIEW TIMER. Press VOL k/l,

and “INPUT SECRET No.” will be displayed.

VOL—VOL

I NPUT

SECRET No .

––––

2 Press and hold both VOL k and CH a on the TV set

simultaneously until the VIEW TIMER access screen is displa yed. Now you can cancel the VIEW TIMER settings or change the SECRET No. while “INPUT SECRET No.” is displayed.

Notice of Remaining VIEWING TIME

•

• For every 30 minute interval, the remaining time will be displayed for

4 seconds. F or the last 5 minutes, the remaining time will be displa yed every minute.

• “0 REMAIN” will be displayed for 10 seconds just bef ore the VIEWING TIME expires.

(On the Set)

VOL k and CH a

buttons

VIEWING TIME

30M

REMAIN

VIEWING TIME

05M

REMAIN

VIEWING TIME

REMAIN

Energy Save

This feature lets you lower the power consumption of your TV

•

set which in turn saves you money and minimizes the impact on the environment. When this feature is turned on, it reduces the brightness of the TV to a level that consumes approximately 20 percent less energy than when the feature is turned off. The reduction in brightness will be less noticeable under low room lighting conditions.

PERSONAL PREFERENCE

ABCD

VOL

—

VOL

MUTE

CATV TV

DVD VCR

VOLUME (k)/(l)

CHANNEL

UP ( DOWN (s)

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “ENERGY SAVE”.

→

3 Press VOL k/l to access the ENERGY SAVE select screen.

VOL—VOL

4 Press VOL k/l to select “ON”.

VOL—VOL

5 Press MENU to exit.

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

ENERG Y SAVE: OFF

(ENERGY SAVE select screen)

ENERG Y SAVE: ON

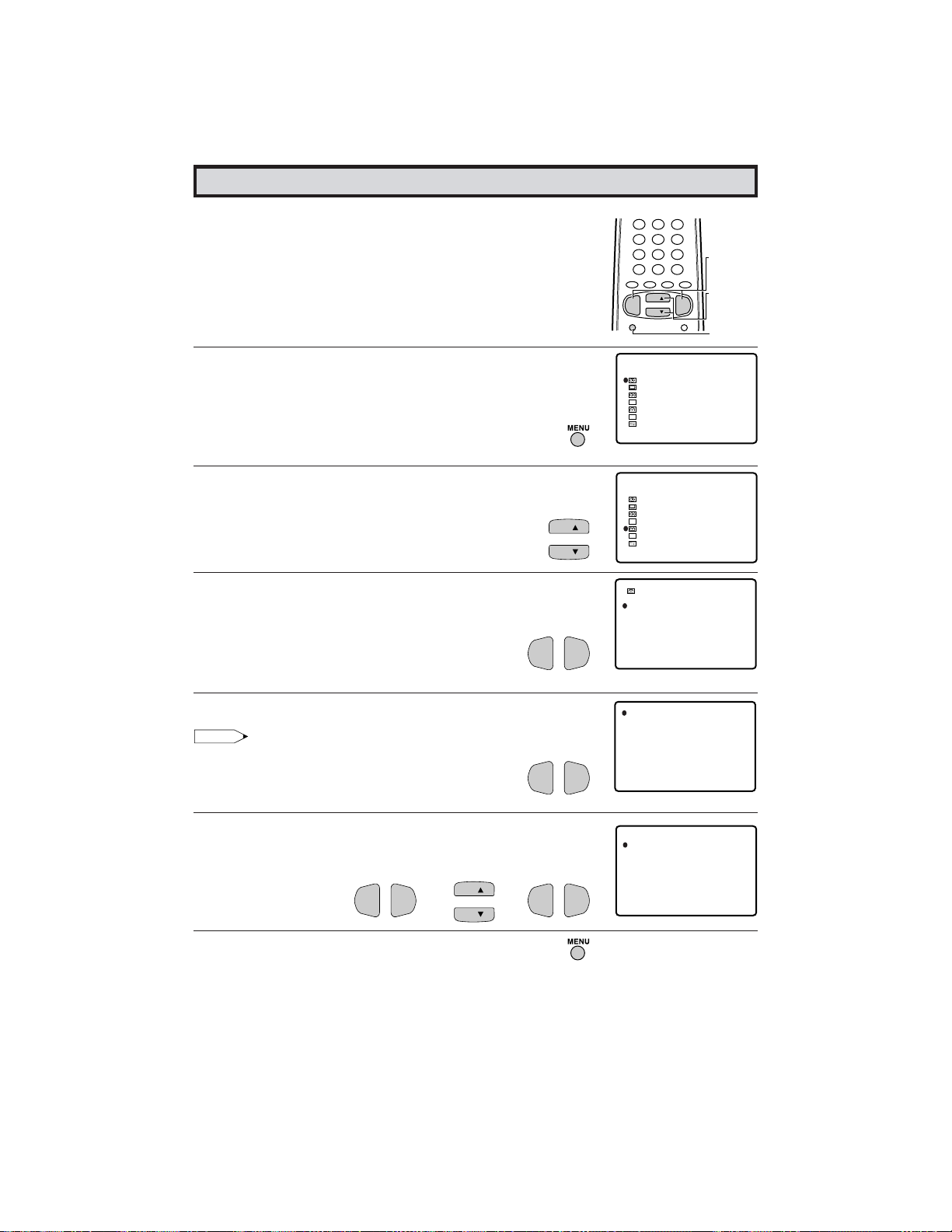

Set Up

H EZ Setup

By operating the channel preset functions, you can preset your TV to the desired channels for viewing.

1 2 3

4 5 6

7 8 9

FLASHBACK

ENTER

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

VOLUME

100

)/(l)

( CHANNEL

VOL

UP (

)

DOWN ( MENU

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen, then press

CH a/s to move the “E” mark to “CH SETTING”.

VOL—VOL

→

4 Press VOL k/l to access the CH SETTING screen.

VOL—VOL

5 Press VOL k/l to access the EZ SETUP screen.

VOL—VOL

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON

PARENT CONTROL

ENERGY SET UP

SAVE

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS

LANGUAGE

CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SET UP screen)

CH SETT I NG EZ SETUP

A I R / CABLE CH SEARCH CH MEMORY

(CH SETTING screen)

OR CABL E.CONNECT ANTENNA

START

SETUP?EZ

STOP START

6 Press VOL k.

The tuner will automatically search for the broadcasting and cable TV channels . (The CH No .

(START)

VOL

will automatically increase when it appears.) If you want to stop the EZ SETUP process once it

has started, press VOL l. Search will be canceled.

To cancel EZ SETUP

(STOP)

VOL

—

Press VOL l.

7 Once EZ SETUP is complete, the lowest channel number

memorized will be displayed.

(EZ SETUP screen)

PL E ASE WAI T AUTO PROGRAMM I NG

125 STOP START

Set Up (Continued)

H Channel Setting

If EZ SETUP does not memorize all the channels in your region, follow the instructions below to manually memorize the channel.

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

3 Press VOL k/l to access the SET UP screen. 4 Press CH a/s to move the “E” mark to “CH SETTING”.

VOL—VOL

→

5 Press VOL k/l to access the CH SETTING screen.

VOL—VOL

6 Press CH a/s to mov e the “E” mark to “AIR/CABLE”, then press

VOL k/l to access the AIR/CABLE screen.

→

VOL—VOL

7 Press CH a/s to move the “E” mark to the desired mode.

AIR

CABLE STD

CABLE HRC

CABLE IRC

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SET UP screen)

CH SETT I NG EZ SETUP

A I R / CABLE CH SEARCH CH MEMORY

(CH SETTING screen)

CH SETT I NG EZ SETUP

A I R / CABLE CH SEARCH CH MEMORY

A I R / CABLE AIR

CABL E

STD CABL E HRC CABL E IRC

(AIR/CABLE screen)

8 Press MENU to exit.

Note:

• Receivable channels of your TV set are: AIR channels: CABLE channels:

VHF: 2 through 13. 1 (HRC and IRC mode only) UHF: 14 through 69. 2 through 125 (STD, HRC and IRC)

Set Up (Continued)

321 654 987

100

ENTER

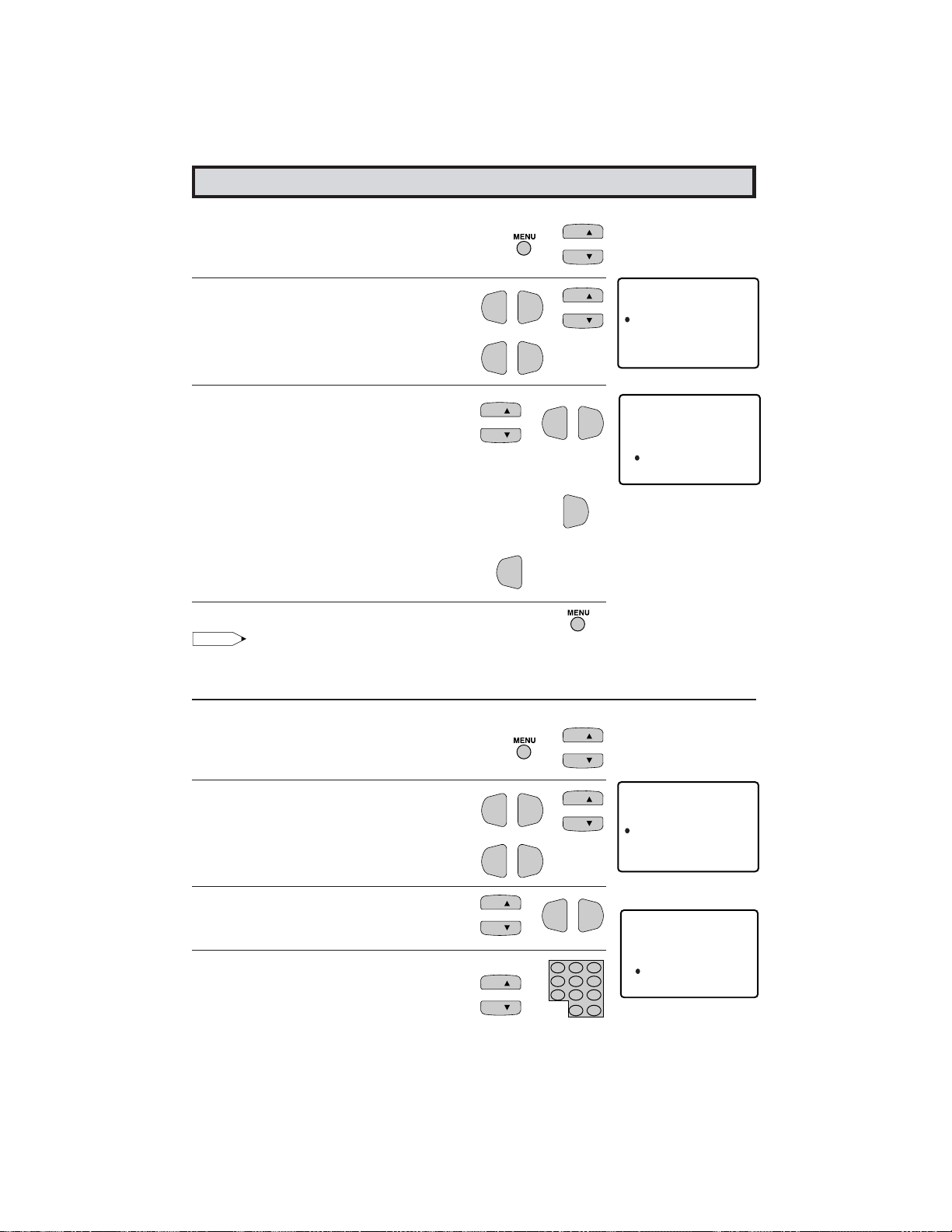

Saving broadcast TV channels into memory

•

1 Press MENU to access the MAIN MENU

screen, then press CH a/s to move the “E” mark to “SET UP”.

→

2 Press VOL k/l to access the SET UP

screen, then press CH a/s to move the “E” mark to “CH SETTING”.

3 Press VOL k/l to access the CH SETTING

screen.

4 Press CH a/s to move the “E” mark to “CH

SEARCH”, then press VOL k/l to access the CH SEARCH screen.

VOL—VOL

→

VOL—VOL

CH SETT I NG EZ SETUP

A I R / CABLE CH SEARCH CH MEMORY

(CH SETTING screen)

CH SEA RCH

AIR 1 0

STOP START

To start:

VOL

(START)

VOL

—

(CH SEARCH screen)

Press VOL k. The tuner will search through all available channels in your area and add them into the TV memory.

To stop:

Press VOL l. CH SEARCH will stop at the current channel and will not add any higher channels.

(STOP)

5 Press MENU to exit.

Note:

• If you press VOL k again while in the CH SEARCH mode, autoprogram will start again, and the previously memorized channels will be lost.

Adding weak or additional channels or erasing unwanted channels from TV memory

•

1 Press MENU to access the MAIN MENU

screen, then press CH a/s to move the “E” mark to “SET UP”.

→

2 Press VOL k/l to access the SET UP

screen, then press CH a/s to move the “E” mark to “CH SETTING”.

3 Press VOL k/l to access the CH SETTING

screen.

VOL—VOL

→

CH SETT I NG EZ SETUP

A I R / CABLE CH SEARCH CH MEMORY

(CH SETTING screen)

4 Press CH a/s to move the “E” mark to “CH

MEMORY”, then press VOL k/l to access the CH MEMORY screen.

5 Use CH a/s or REMOTE KEYPAD to select

each desired channel to add or erase.

→

VOL—VOL

MEMORY

AIR

ERASE ADD

(CH MEMORY screen)

Set Up (Continued)

6 Press VOL k to add a channel to the TV

memory or press VOL l to erase a channel

VOL—VOL

from the TV memory.

VOL k

MEMORY

AIR

ERASE ADD

To add channel 10 to

the TV memory

VOL l

MEMORYCH

AIR

ERASE ADD

To erase channel 10 from

(CH MEMORY

unmemorized channel)

the TV memory

(CH MEMORY

memorized channel)

7 Press MENU to exit.

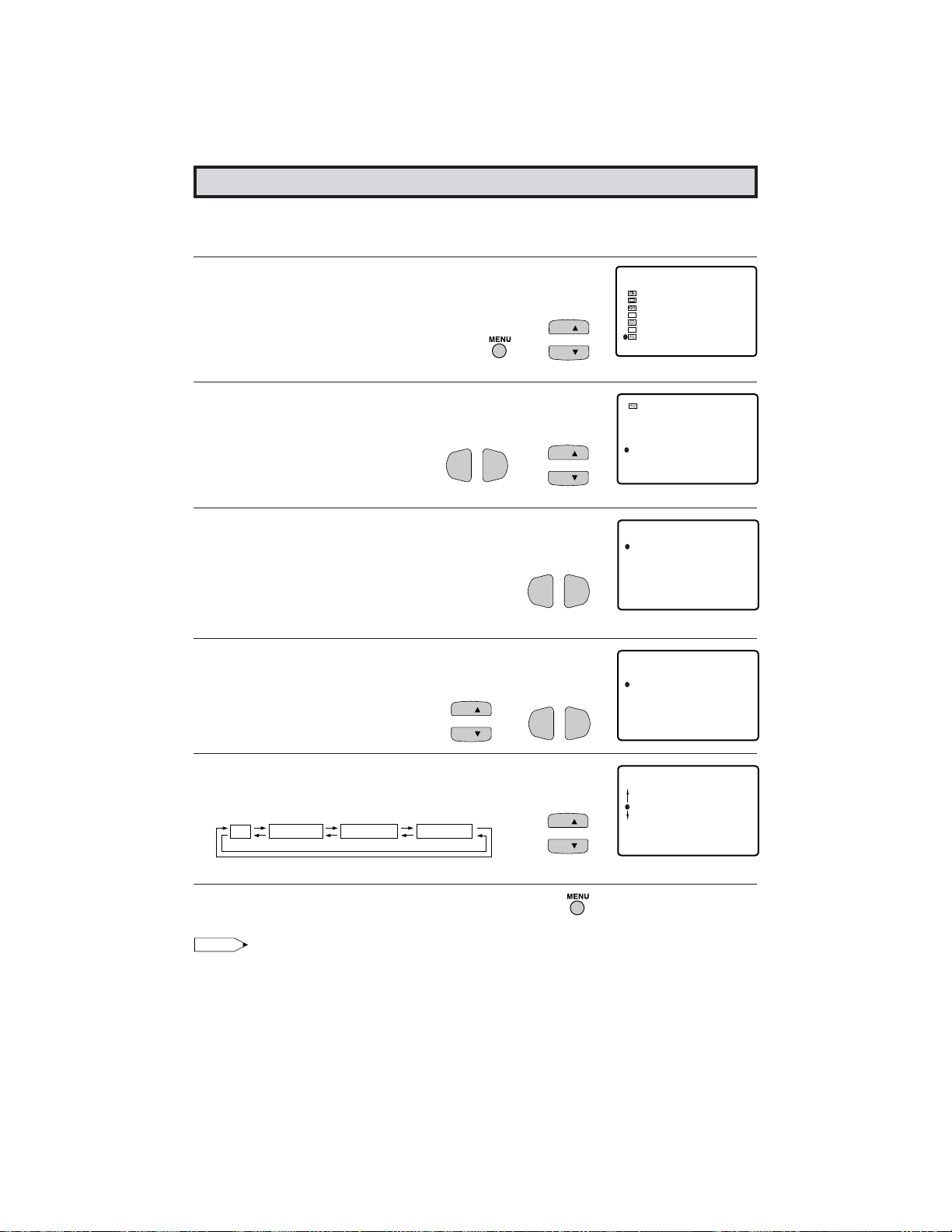

H BLUE SCREEN

Automatically turns the screen blue if a broadcast signal is not received. After 15 minutes of non-reception, the TV will turn off automatically.

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen.

VOL—VOL

4 Press VOL k/l to access the BLUE SCREEN select screen.

POWER

DVD VCR

DISPLAY

1 2 3

4 5 6

7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

CATV TV

DVD VCR

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

ENTER

100

INPUT

VOL

VOLUME (

)/(l)

CHANNEL

UP ( DOWN (s)

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT

CH / INPUT I D SCREEN FORMAT

(SET UP screen)

BLUE SCREEN : OFF

5 Press VOL k/l to select “ON”.

VOL—VOL

(BLUE SCREEN select screen)

BLUE SCREEN : ON

Set Up (Continued)

6 Press MENU to exit.

When the BLUE SCREEN is set to “ON”

No signal

Note:

• Poor reception due to weak signals, or too much noise might activate the BLUE SCREEN function despite the presence of a broadcast signal. To contin ue w atching TV under these conditions, switch the BLUE SCREEN “OFF”.

• While INPUT 1, 2, or 3 (COMPONENT) is selected, the BLUE SCREEN will not be shown even if BLUE SCREEN is turned on.

Blue screen

after 15 minutes

Power turns off

automatically

Standby mode

Set Up (Continued)

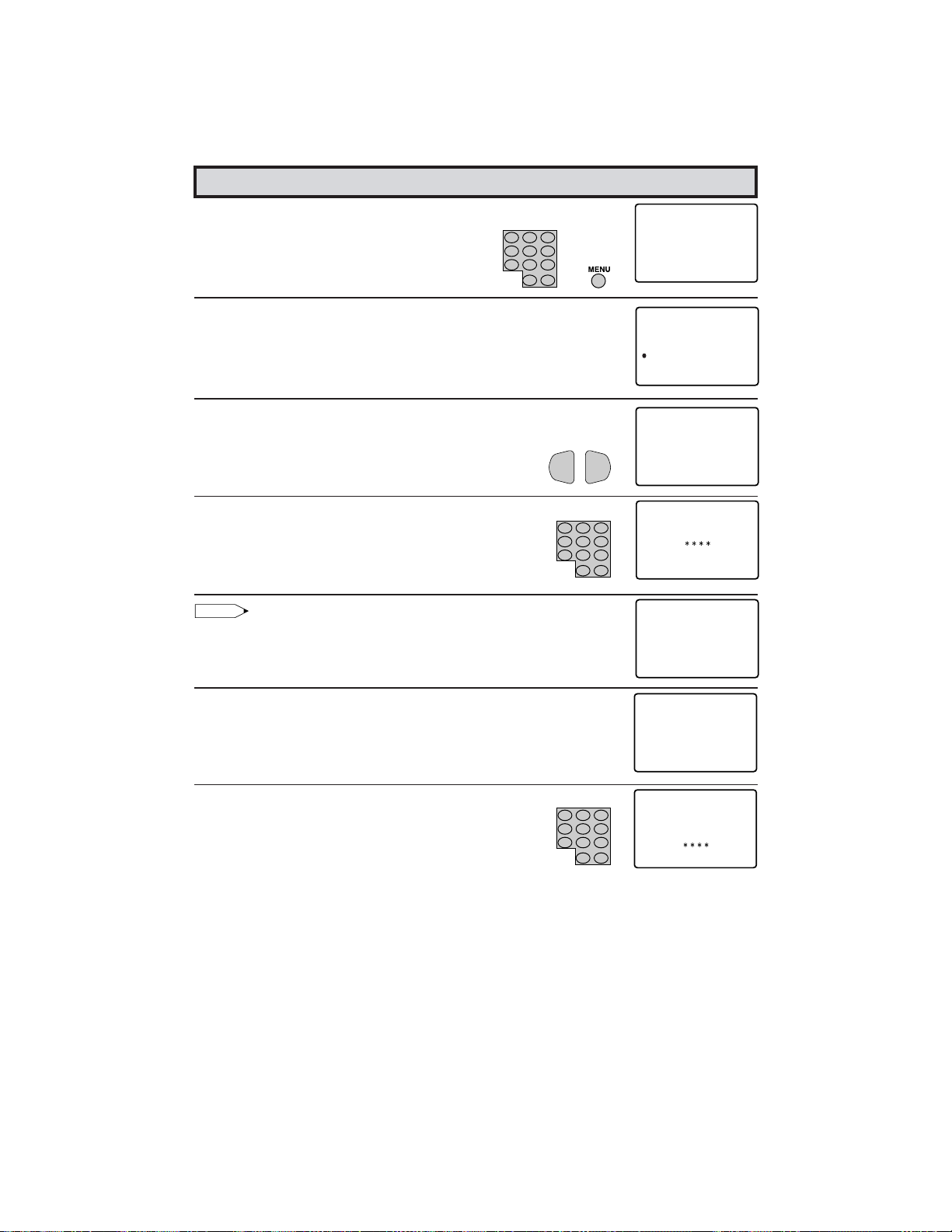

H Personal Preference

By setting PERSONAL PREFERENCE channels in advance, you can select your favorite channels easily.

PERSONAL PREFERENCE

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen, then press

CH a/s to move the “E” mark to “PERSONAL PREF.”.

VOL—VOL

→

4 Press VOL k/l to select the PERSONAL PREFERENCE select

screen in which you can program 4 f avorite channels, in 4 diff erent categories. (total of 16 channels)

VOL—VOL

5 Press VOL k/l and CH a/s to move the “E” mark to the desired

position.

VOL—VOL

and

ENTER

100

VOL

REMOTE KEYPAD

VOLUME

)/(l)

( CHANNEL

UP (

DOWN (

)

1 2 3

4 5 6

7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SETUP screen)

PERSONAL PREF. <A>

––– ––– ––– –––

–––

––– ––– ––– –––

(PERSONAL PREFERENCE select screen)

PERSONAL PREF.

<A>

––– ––– ––– –––

6 Press REMOTE KEYPAD on the Remote to input the CHANNEL

Number into memory. Press INPUT on the Remote to register the INPUT mode into memory.

Example: 125 — Press “100” followed by “2” and then “5”.

25 — Press “2” and then “5”. 4 — Press “0” and then “4”.

ENTER

100

321 654 987

PERSONAL PREF.

<A>

125

–––

To reset a registered CHANNEL Number, input “0” twice.

7 Repeat steps 5 and 6 to register the next CHANNEL Number or INPUT mode. 8 Press MENU to exit.

To select the PERSONAL PREFERENCE channel.

If the channels are memorized as shown on the right, press the Remote’s “A” button to select the channels below.

125 25

40 4

PERSONAL PREF.

<A>

125

123

–––

––– ––– ––– –––

––– –––

––– ––– ––– –––

–––

––– ––– –––

Set Up (Continued)

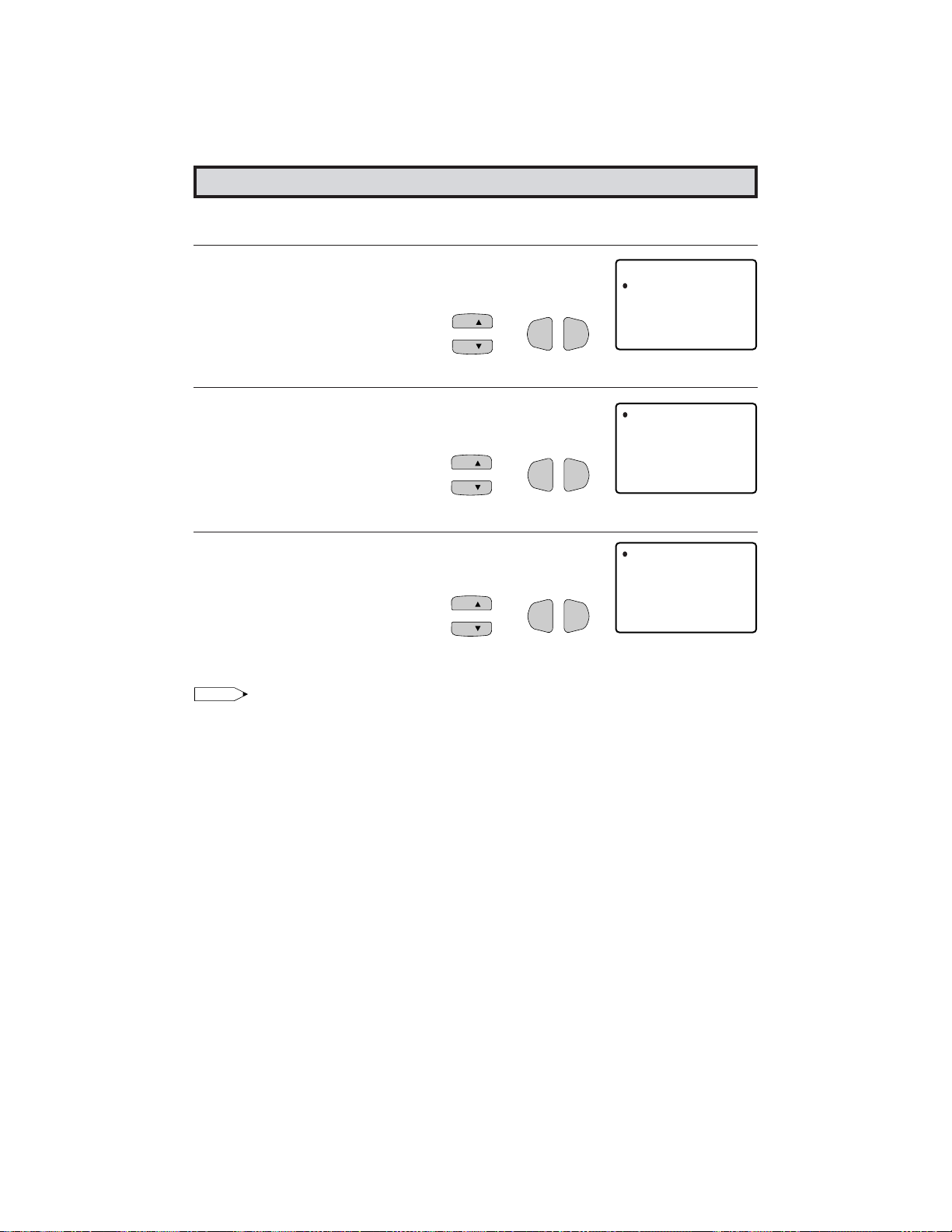

H Universal Plus Function

VCR or DVD input mode will be selected automatically by pressing the VCR/DVD PLAY button on the Remote Control.

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen.

VOL—VOL

4 Press CH a/s to move the “E” mark to “UNIVERSAL PLUS”.

VOLUME (k)/(l)

VOL

DVD VCR

CHANNEL

UP ( DOWN (s)

MENU DVD/VCR

PLAY

VOL

—

MENU MUTE

CATV TV

REW PLAY FF

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT

CH / INPUT I D SCREEN FORMAT

(SET UP screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

5 Press VOL k/l to access the UNIVERSAL PLUS select screen

to select VCR or DVD mode.

VOL—VOL

6 Press CH a/s to select the VCR or DVD, and press VOL k/l to

select “CH3”, “CH4”, “INPUT 1”, “INPUT 2”, “INPUT 3 (COMPONENT)” or “OFF”.

CH3 CH4 INPUT 1

OFF

INPUT 3 (COMPONENT )

INPUT 2

Switch to the input mode your VCR or DVD is connected to. If connected through RF (antenna terminal), select either CH3 or CH4 to match the setting

→

VOL—VOL

of the VCR or DVD.

7 Press MENU to exit.

UN I VERSAL PLUS

:OFFVCR

DVD :OFF

(UNIVERSAL PLUS select screen)

UNI VERSAL PLUS

:CH3VCR

DVD :OFF

Auto Input

PERSONAL PREFERENCE

MUTE

CATV TV

VOL

—

VOL

ABCD

The unit is preset to switch to the INPUT 2 screen automatically

•

when VIDEO equipment is connected to the INPUT 2 terminal. Do the following to switch this feature off:

VOLUME (k)/(l)

CHANNEL

UP ( DOWN (

)

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen, then press

CH a/s to move the “E” mark to “AUTO INPUT”.

VOL—VOL

→

4 Press VOL k/l to access the AUTO INPUT select screen.

Press VOL k/l to select “AUTO”.

VOL—VOL

5 You may turn off “AUTO INPUT” when it is not in use.

Press VOL k/l to select “OFF”.

VOL—VOL

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SET UP screen)

AUTO I NPUT

: AUTO

(INPUT2)

(AUTO INPUT select screen)

AUTO I NPUT

: OFF

(INPUT2)

6 Press MENU to exit.

CH/Input ID

You can assign an ID label to each channel or input mode. These

•

ID labels can be 4 characters long maximum and will be displayed along with the channel number/input mode when the labeled channel is selected. (Example: labeling air channel 10 “TV12”.)

1 Press MENU to access the MAIN MENU screen.

2 Press CH a/s to move the “E” mark to “SET UP”.

3 Press VOL k/l to access the SET UP screen then press

CH a/s to move the “E” mark to “CH/INPUT ID” .

VOL—VOL

→

REMOTE

ENTER

100

KEYPAD

VOLUME (

CHANNEL

VOL

UP (

DOWN (

MUTE

FLASHBACK

PERSONAL PREFERENCE

VOL

—

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SET UP screen)

)/(l)

)

4 Press VOL k/l to access the CH/INPUT ID screen.

VOL—VOL

CH I NPUT I D/

AIR 10

:____

(CH/INPUT ID screen)

CH/Input ID (Continued)

5 Use CH a/s or REMOTE KEYPAD to select each desired channel

to label. Press INPUT on the Remote to label the INPUT mode.

321

→

654 987

ENTER

100

ID: Labeling the channel name

Press VOL k/l to select “ID” then press VOL k to select the first character. Press CH a/s to enter a desired letter. Press VOL k/l to enter the next desired letter. Press MENU to return to the CH/INPUT ID screen.

VOL—VOL

→

VOL

→

Selectable characters:

Space: _ Alphabets: A-Z Numbers: 0-9 Symbols: — . & ( ) / +

VOL—VOL

RESET: Resetting the ID to “_ _ _ _” Press CH a/s to move the “E” mark to “RESET”, then press

VOL k/l. The previously set ID will return to “_ _ _ _”.

: ____

ID RESET

MEN U: RETURN

(ID Input screen)

: TV 1 2

RESET

MEN U: RETURN

Example TV 12

: TV 1 2

RESET

MEN U: RETURN

: ____

ID RESET

VOL—VOL

MEN U: RETURN

6 Press MENU to exit.

Note:

• The maximum number of ID labels available to register channel names is 20 for AIR channels and 40 for CABLE channels.

• If you wish to register a new ID when all the available ID labels are assigned, delete a registered ID to make room.

Screen Format

The format of the picture can be adjusted to either of the two

•

screen formats. (This function allows you to view 16:9 pictures recorded on DVD

or by camcorders that are once saved using the 4:3 aspect ratio to be played back in the original high-density 16:9 format.)

PERSONAL PREFERENCE

ABCD

VOL

MENU MUTE

VOL

—

CATV TV

DVD VCR

VOLUME

)/(l)

(

CHANNEL

UP ( DOWN (s)

1 Press MENU to access the MAIN MENU screen. 2 Press CH a/s to move the “E” mark to “SET UP”.

→

3 Press VOL k/l to access the SET UP screen, then press

CH a/s to move the “E” mark to “SCREEN FORMAT”.

VOL—VOL

→

4 Press VOL k/l to access the SCREEN FORMAT select screen.

VOL—VOL

5 Press CH a/s to select “4:3” or “16:9”.

SLEEP T IMER V I DEO ADJ UST AUDI O SEL ECT

CLOSED CAPT I ON PARENT CONTROL

ENERGY

SAVE

SET UP

(MAIN MENU screen)

SET UP

BLUE SCREEN PERSONAL PREF. UNI VERSAL

PLUS LANGUAGE CH SETT ING AUTO I NPUT CH / INPUT I D SCREEN FORMAT

(SET UP screen)

SCREEN FORMAT 4 : 3

1 6 : 9

(SCREEN FORMAT select screen)

SCREEN FORMAT 4 : 3

1 6 : 9

6 Press MENU to exit.

Note:

The 16:9 screen format will be cancelled when the power is turned off.

Example:

While in 4:3 mode, if the picture appears stretched vertically as in screen A below, switch to 16:9 mode. The picture will return to normal as shown in screen B.

Screen A (4:3) Screen B (16:9)

Using the Video and Audio Input Terminals

Connecting video equipment for playback of video material.

•

• To view video material from e xternal video equipment, make sure to connect the equipment properly to the input terminals on the TV set.

Connecting video device equipped with video output terminals

CONNECTIONS

VIDEO EQUIPMENT

CAMCORDER

TV GAME

(Front connection

To VIDEO OUTPUT

To AUDIO OUTPUT (L)

To AUDIO OUTPUT (R)

(Rear connection

terminals of TV)

To VIDEO OUTPUT To AUDIO OUTPUT (L)

To AUDIO OUTPUT (R)

terminals of TV)

Inside the front door

VCR

DVD

Yellow : To video input terminal White : To audio input (L) terminal Red : To audio input (R) terminal

To AUDIO OUTPUT (R) To AUDIO OUTPUT (L) To VIDEO OUTPUT

Using the Video and Audio Input Terminals (Continued)

Notes:

• COMPONENT terminals are DVD compatible, allows you to enjoy the highest quality playback image than the image from IN 1 S-VIDEO terminal.

• The IN 1 S-VIDEO terminal is used to obtain a higher quality image by importing image signals.

• The S-VIDEO terminal is for the video image only. To receive an audio signal, connect the audio cable to the IN 1 AUDIO terminals (left and right).

(Rear connection terminals of TV)

TO S-VIDEO OUTPUT (When your video equipment has an

VCR

S-VIDEO output terminal).

To VIDEO OUTPUT To AUDIO OUTPUT (L)

To AUDIO OUTPUT (R)

To AUDIO OUTPUT (L/R)

Video Equipment with Component video (Component Color) Output Terminals (Y, P

To COMPONENT VIDEO OUTPUT Terminals

and PR)

To watch video material playback

•

• Press the Remote’s INPUT button to select the VIDEO INPUT mode for the video equipment you wish to play.

• The external VIDEO INPUT mode will change as follows each time the INPUT button is pressed.

AIR

CABLE

INPUT 1

(IN 1)

Rear

INPUT 2

(IN 2) Front

INPUT 3 (COMPONENT)

(IN 3)

Rear

• When the AV cables are connected to the VIDEO INPUT 3 and COMPONENT Y , PB and PR terminals simultaneously, the COMPONENT terminal has priority over the VIDEO terminal.

• INPUT mode can be selected by pressing either the CH a on the TV remote control when the TV is set to the highest channel stored in memory, or by pressing the CH s when it is set to the lowest channel.

Note:

• When connecting video or audio equipment to the television, be sure that the power is turned off in order to prevent damage to either the television or the equipment being connected.

• The S-Video terminal has priority over the VIDEO terminal (IN 1). When y ou wish to use video equipment connected to the VIDEO terminal (IN 1), unplug equipment connected to the S-VIDEO terminal.

• For detailed information on the connection and use of auxiliary equipment, refer to the instruction manuals of the equipment being used.

• The connection cables/cords can be obtained from your local video store.

Using the Audio Output Terminals

These terminals are used for connecting an external audio amplifier. The STEREO/MONO/

•

SAP, VOLUME, MUTE and FAO functions can all be controlled via the television’s remote control or directly on the TV itself. These terminals relay the audio signal of all programs being displayed on the TV screen.

(AUDIO OUTPUT terminals are located on the rear of the cabinet.)

CONNECTIONS

(Rear connection terminals of TV)

To the audio input terminals

(1) Before connecting the cables, turn on the TV and adjust the TV v olume for a moder ate listening lev el. (2) Turn off the TV and connect the audio cables to the AUDIO LINE OUTPUT terminals on the TV. (3) Turn the TV set and stereo amplifier on. (4) If you desire, you can turn off the sound of the TV’s internal speakers by accessing the TV’s AUDIO

SELECT screen. See page 13. (5) Adjust the volume control on the stereo amplifier to a moderate listening level. (6) Control of the audio can be adjusted using the audio controls (STEREO/MONO/SAP, VOLUME,

MUTE and FAO), from either the remote control, or directly from the TV set.

Note:

• For detailed information on the connection and use of auxiliary equipment, refer to the operation manuals of the equipment being used.

• When connecting monaural equipment to the AUDIO INPUT or OUTPUT of this set, use an audio connection cord and plug adaptor as shown below.

• When FAO is set to “OFF”, we recommend you to keep the TV’s audio output level high for optimal sound quality. (see page 13.)

To the TV

Pin plug x 2 Pin Plug

Stereo Amplifier

Plug adapter

Pin jack/Mini plug

Speaker System

To the equipment being connected

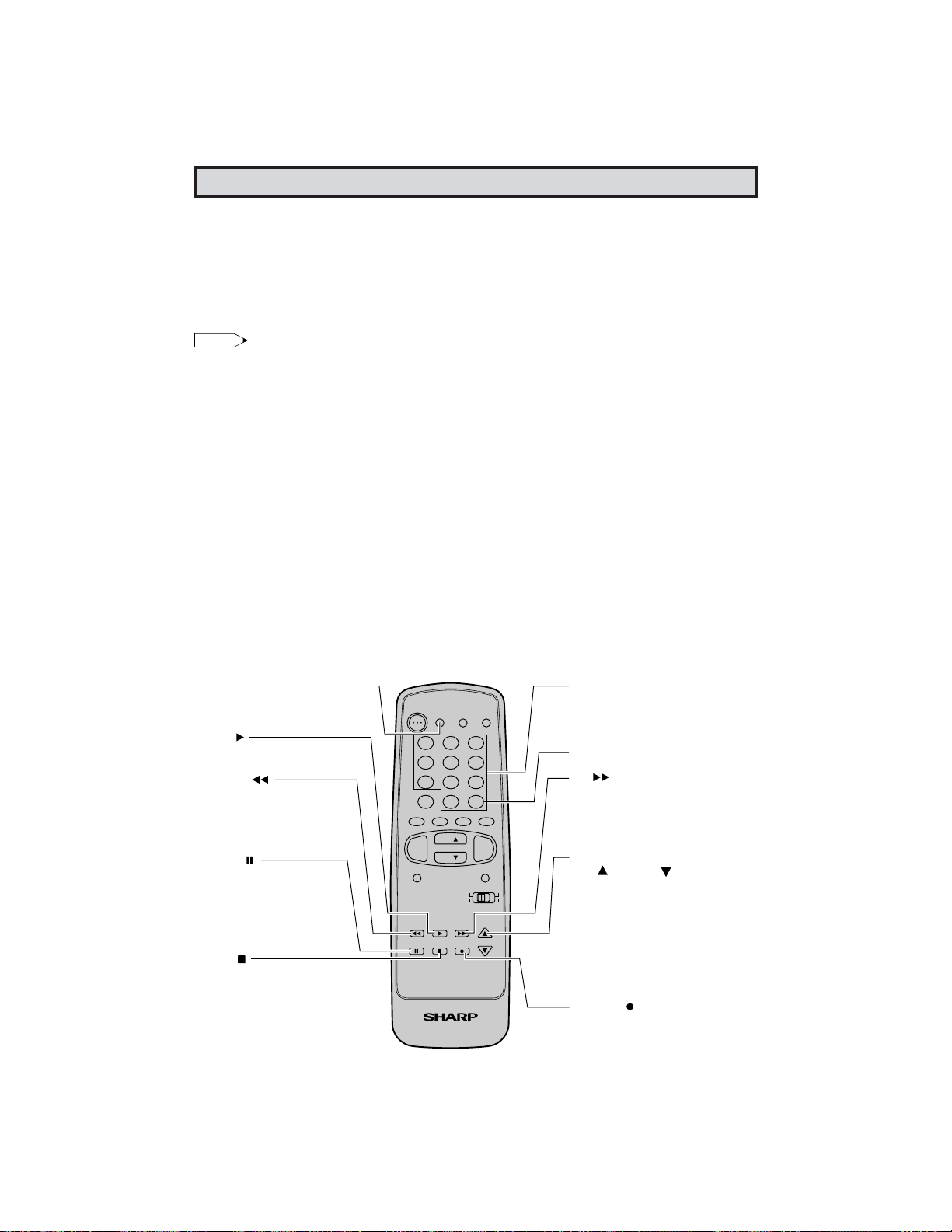

DVD/VCR POWER

Press to turn the VCR or DVD on and off.

PLAY

Press to playback a tape or disc.

REWIND

Press to rewind a tape or reverse a disc. For some VCRs or DVDs you may need to press STOP first, then REWIND.

PAUSE

Press to temporarily stop the tape or disc during playback or recording (VCR only). Press again to release PAUSE.

STOP

Press to stop the tape or disc.

REMOTE KEYPAD

Use to enter two-digit code numbers when identifying your VCR, DVD and CATV converter.

ENTER

Press to rapidly advance the tape or disc. For some VCRs or DVDs, you may need to press STOP first, then FF.

VCR CHANNEL UP ( )/ DOWN ( )

Press to scan up or down through channels on the VCR.

RECORD

Press to begin recording. (VCR only)

DVD SKIP

Press to jump forward to the beginning of the next chapter/track, or backward to the beginning of the current chapter/track, and automatically start to play that chapter/track.

Operation of Universal Remote Control

Universal Remote Control

•

With the purchase of your television set you also have received the latest innovation in remote control technology . With its easy-to-use push button keyboard, your Remote can control your television set and most infrared remote controlled VCRs, cab le TV con v erters and DVDs as well.

Note:

• Depending on the model year produced, brand and type of VCR, cable TV conv erter and DVD , some models may not be compatible with the remote control.

• Some brands may not enable channel selection until the ENTER is pressed. In such case, try the following.

Example:

When you select channel 24, (1) Press REMOTE KEYPAD “2”. (2) Press REMOTE KEYPAD “4”. (3) Press ENTER. For detailed information on the use of the Cable TV con verter Box refer to their operating manuals.

Using your Remote with your TV

•

After installing the batteries, set the CATV/ DVD-TV/VCR on the Remote to the TV

position. (If y ou can change the channel of the TV by pressing CH a/s on the Remote Control, it is in the TV position.)

“Identifying” VCRs, cable TV converters

•

and DVDs

Your Remote Control has been set at the factory to operate your TV and many remote controlled VCRs, cable TV converters and DVDs. However, in some cases an easy onetime set-up step may be necessary before the Remote will operate accessory VCRs, cable TV converters and DVDs.

• In this set-up step, the Remote locates and memorizes the remote control transmitter code for the VCR, cable TV converters and DVDs.

• Once “identified”, the Remote sends proper signals to operate your accessory.

• This identifying step will not have to be repeated until power to the Remote is interrupted due to a battery failure.

Using your remote control with a VCR

•

Once you make certain the Remote Control has “identified” y our remote controlled VCR or DVD , the Remote is ready to operate y our unit. The various VCR or DVD function buttons on the Remote will not operate your VCR or DVD if those features are not already found on your unit.

• All VCR buttons will operate whether the Remote is in TV or VCR modes.

• For detailed information on the use of the VCR or DVD, refer to the operation manual of the VCR or DVD.

POWER

DVD

DISPLAY

INPUT

VCR

1 2 3

4 5 6

7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

REW PLAY FF

PAUSE

ENTER

100

CATV TV

DVD VCR

STOP REC

TV • CATV • VCR • DVD

VOL

CH/SKIP

Operation of Universal Remote Control (Continued)

POWER

TV POWER

REMOTE KEYPAD

How to identify a VCR

•

FLASHBACK

VOL

DVD VCR

INPUT

DISPLAY

ENTER

100

PERSONAL PREFERENCE

—

VOL

MUTE

CATV TV

DVD VCR

DVD/VCR POWER

DISPLAY

CHANNEL UP (a)/ DOWN (s)

CATV/DVDTV/VCR

The remote control may already be set to operate your VCR. Try this initial check before

going on to the following “identifying” section. (1) Slide CATV/DVD-TV/VCR switch to VCR. (2) Point the Remote towards VCR and press

POWER (DVD/VCR). (3) Does the Remote turn the VCR ON and OFF?

• If yes, the Remote is ready to operate the VCR and no further steps are needed.

• If no, continue to the “identifying” section.

Setting Method

Refer to the following steps and list to quickly find the remote control code for your accessory VCR.

• First look up your VCR’s remote control code number before going through the Setting Method.

(1) Slide CATV/DVD-TV/VCR switch to VCR. (2) Press and hold down DISPLAY and CH s on

your remote control. Then release both buttons.

(3) Within 10 seconds after releasing DISPLAY

and CH s , enter y our VCR’s two-digit remote control code number using the REMOTE KEYPAD (refer to the list ).

• The remote control is now ready to send commands to your VCR.

Some brands have more than one remote code listed, due to changes in the remote codes from early to later model years, or due to format differences (VHS/BETA). In such cases, you may have to try more than one code to find the code your VCR accepts.

Note:

Depending on the model, year produced, brand, and type of VCR, some models may not be compatible with the remote control.

VCR BRAND

Akai Audio Dynamics Broksonic Canon Capehart Craig Curtis Mathis Daewoo DBX Dynatech Emerson Fisher Funai GE Goldstar Hitachi Instant Replay JC Penney JVC Kenwood Lloyds Magnavox Magnin Marantz Memorex Minolta Mitsubishi Montgomery Ward Multitech NEC Panasonic Pentax Philco Philips Quasar RCA Realistic Samsung Sanyo Scott Sears Sharp Shintom Sony Sound Design Sylvania Symphonic Tatung Teac Teknika Thomas TMK Toshiba Video Concepts Yamaha Zenith

REMOTE CONTROL

CODE NUMBER

25, 26, 37 15, 22, 30 32 04 34 10, 31 04 34 15, 22, 30 29 21, 32, 35 09, 10, 11 28, 29 04 24 06 04 04, 06, 24, 30 15, 41, 42 14, 15 29 04, 05, 08 31 30 04, 10, 24, 29 06 17, 18, 39, 40 02, 43 29 15, 22, 30 04, 44, 45 05, 06 04, 05 04, 05, 08 04 06, 07, 33 01, 02, 10, 24 23, 31 14, 10 20 06, 11, 24 01, 02, 03 36 12, 13, 38 29 04, 05, 08 29 15 15, 29 27, 29 29 21 19, 20 30 15, 29, 30 16

Operation of Universal Remote Control (Continued)

POWER

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

REW PLAY FF

PAUSE

How to identify a DVD

•

TV POWER

REMOTE KEYPAD

The remote control may already be set to operate your D VD. Try this initial check before going on to the following “identifying” section.

(1) Slide CATV/DVD-TV/VCR switch to DVD. (2) Point Remote towards DVD and press DVD/

VCR POWER.

(3) Does the Remote turn the DVD ON and OFF?

• If yes, the Remote is ready to operate the DVD and no further steps are needed.

• If no, continue to the “identifying” section.

Setting Method.

Refer to the following steps and list to quickly find the remote control code for your accessory DVD.

• First look up your DVD’s remote control code number before going through the Setting Method.

(1) Slide CATV/DVD-TV/VCR switch to DVD. (2) Press and hold down INPUT and CH s on

your remote control. Then release both buttons.

(3) Within 10 seconds after releasing INPUT and

CH s, enter your DVDs two-digit remote control code number using REMOTE KEYPAD (refer to the list).

• The remote control is now ready to send commands to your DVD.

DVD

DISPLAY

VCR

1 2 3

4 5 6

7 8 9

CATV TV

DVD VCR

STOP REC

Note:

INPUT

DVD/VCR POWER

INPUT

ENTER

100

VOL

CHANNEL UP (a)/ DOWN (s)

CATV/DVDTV/VCR

CH/SKIP

DVD BRAND

Denon JVC Magnavox Marantz Mitsubishi Panasonic Philips Pioneer Proscan RCA Samsung Sharp Sony Toshiba Yamaha Zenith

REMOTE CONTROL

CODE NUMBER

02 09 04 04 06 02 04 08 03 03 07 01, 10 05 04 02 04

Depending on the model, year produced, brand, and type of DVD, some models may not be compatible with the remote control.

Operation of Universal Remote Control (Continued)

POWER

DVD

DISPLAY

TV POWER

1 2 3

4 5 6

7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

REW PLAY FF

PAUSE

How to identify a cable converter

•

Setting Method.

Refer to the following steps and list to quickly find the remote control code for your cable TV converter.

• First look up your converter’s remote code number before going through the Setting Method below.

(1) Slide CATV /DVD-TV/VCR switch to CATV. (2) Press and hold down DISPLAY andCH s on

your remote control. Then release both buttons.

(3) Within 10 seconds after releasing DISPLAY

and CH s, enter your converter’s two-digit code number using REMOTE KEYPAD (refer to the list).

• The remote control is now ready to send commands to your converter.

• Some brands have more than one remote code listed due to changes in the remote codes from early to later model years. In such cases, you may have to try more than one code to find the code your converter accepts.

Note:

Depending on the model, year produced, brand, and type of CATV converter, some models may not be compatible with the remote control.

VCR

STOP REC

INPUT

ENTER

100

VOL

CATV TV

DVD VCR

CH/SKIP

CATV CONVERTER

Anvision Cable Star Eagle General Instrument

Jerrold Magnavox Oak Sigma

Panasonic Philips

Pioneer Randtek RCA Scientific Atlanta Sony Viewstar

Zenith

DISPLAY

REMOTE KEYPAD

CHANNEL UP (a)/ DOWN (s)

CATV/DVDTV/VCR

BRAND

REMOTE CONTROL

CODE NUMBER

07, 08 07, 08 08 04, 05, 15, 23, 24, 25, 30, 36 04, 05, 15, 23, 24, 25 30, 36 07, 08, 19, 25, 28, 29, 32, 33, 40, 41 18 27, 39 07, 08, 19, 26, 28, 29, 32, 33, 40, 41 18, 20 07, 08 27, 43 03, 22, 42 44 07, 08, 19, 26, 28, 29 32, 33, 40, 41 14

Before Calling for Service

Check these items and see if you can correct the trouble with a slight adjustment of the controls.

QUICK SERVICE

CHECK LIST

PROBLEM

No Playback of VCR and Disc

Player

No Picture or Sound from

External Video/Audio Products

Remote Control Doesn’t Work

Bars on Screen

Picture Distorted

Picture Rolls Vertically

No Color

Poor Reception on Some

Channels

Weak Picture

Lines or Streaks in Picture

Ghosts in Picture

Picture Blurred

Sound OK, Picture Poor

Picture OK, Sound Poor

No Picture or Sound

POSSIBLE REMEDY

Try a new channel, if OK, then there is a possible station trouble.

Is TV plugged in? Power at outlet? Is TV’s POWER button on? Is antenna connected to terminal on

the back of the set? If outside antenna is being used,

check for broken wire. Check for local interference or

external electrical noise. Turn off the POWER and then turn it

on after about a minute. Adjust COLOR control. Adjust PICTURE control. Check external Video/Audio products:

look for loose/broken connection leads. (Refer to pages 39-41)

Check batteries of Remote Control. Slide CATV/DVD-TV/VCR Select

Switch to TV position. Are audio cables connected firmly?

Check the volume level. Is SPEAKER ON? See pages 13, 14. Change Closed Caption mode to

“OFF”/Energy Save mode to “OFF”. Unplug the TV and plug it in again

after 2 minutes or longer.

XXXXXXX X XXXXXXXXX X

X XXXXXX X XXXXXXX XX X X X XXXXX X XXXXXXX XX X

XXXXXXXXXX X X X X X XX X

XXXXXXX X XXXXXX X XX X

XXXX X X X X X XXX XXXX X X

X X XXXXX X XXXXXXX XX X

XXXXXXX X XXXXXXXX X X XXXXXXXXX XXXX XXX X X

XXXXXXX X XXXXXXXXX X

XXX XXXX X XXXXXXXX X X

X X XXXXX X XXXXXXX XX

X X XXXXX X XXXXXXX XX X

X X XXXXX X XXXXXXXX XX

XXX XXXX X X XXXXXXX X X

Dark and Blank Picture

External Electrical Noise

Interfering with TV’s Operation

Color on Part of the Screen

Appears Distorted

Note:

• If no TEXT broadcast is being received while viewing in the TEXT mode, the screen may become dark and blank for some programs. Should this occur, switch the Closed Caption mode to “OFF”.

(Dark and Blank Picture)

Calling for Service

For location of the nearest Sharp Authorized Servicer, or to obtain product literature accessories, supplies, or customer assistance, please call 1-800-BE-SHARP.

Specifications

MODEL 32C540 Receiving System NTSC Stereo Broadcast MTS/SAP Reception Channels

AIR VHF 2-13 ch

UHF 14-69 ch

CATV 1-125 ch Channel Tuning 181-channel Reception PLL tuning system Antenna Input Impedance VHF/UHF 75 ohm Unbalanced Screen Size 32˝ Diagonally Measured Terminals Audio/Video input x 3 (Front x 1, Rear x 2)

S-Video input x 1 (Rear) COMPONENT x 1 (Rear) Audio output x 1 (Rear)

Antenna x 1 (Rear) Sound Output 3 W (RMS) x 2 Power Source AC 120 V, 60 Hz Power Consumption 140 W Dimensions 3355/64˝ (W) x2637/64˝ (H) x213/8˝ (D)

[(W) x (H) x (D)] mm [860 mm (W) x 675 mm (H) x 543 mm (D)] Weight (approx.) 110.7 lbs. (50.2 kg)

• Design and specifications are subject to change without notice.

Sharp 32C540 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
