Sharp 29fl90 Service Manual

Download

Page 1

29FL90

SERVICE MANUAL

S92P229FL90//

COLOR TELEVISION

Chassis No. MS-B

MODEL

In the interests of user-safety (Required by saf ety regulations in some countries ) the set should be restored to its original condition and only parts identical to those specified should be used.

29FL90

CONTENTS

Page

» ELECTRICAL SPECIFICATIONS .........................................................................................................1

» IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2

» LOCATION OF USER'S CONTROL .....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................5

» SERVICE ADJUSTMENT .....................................................................................................................9

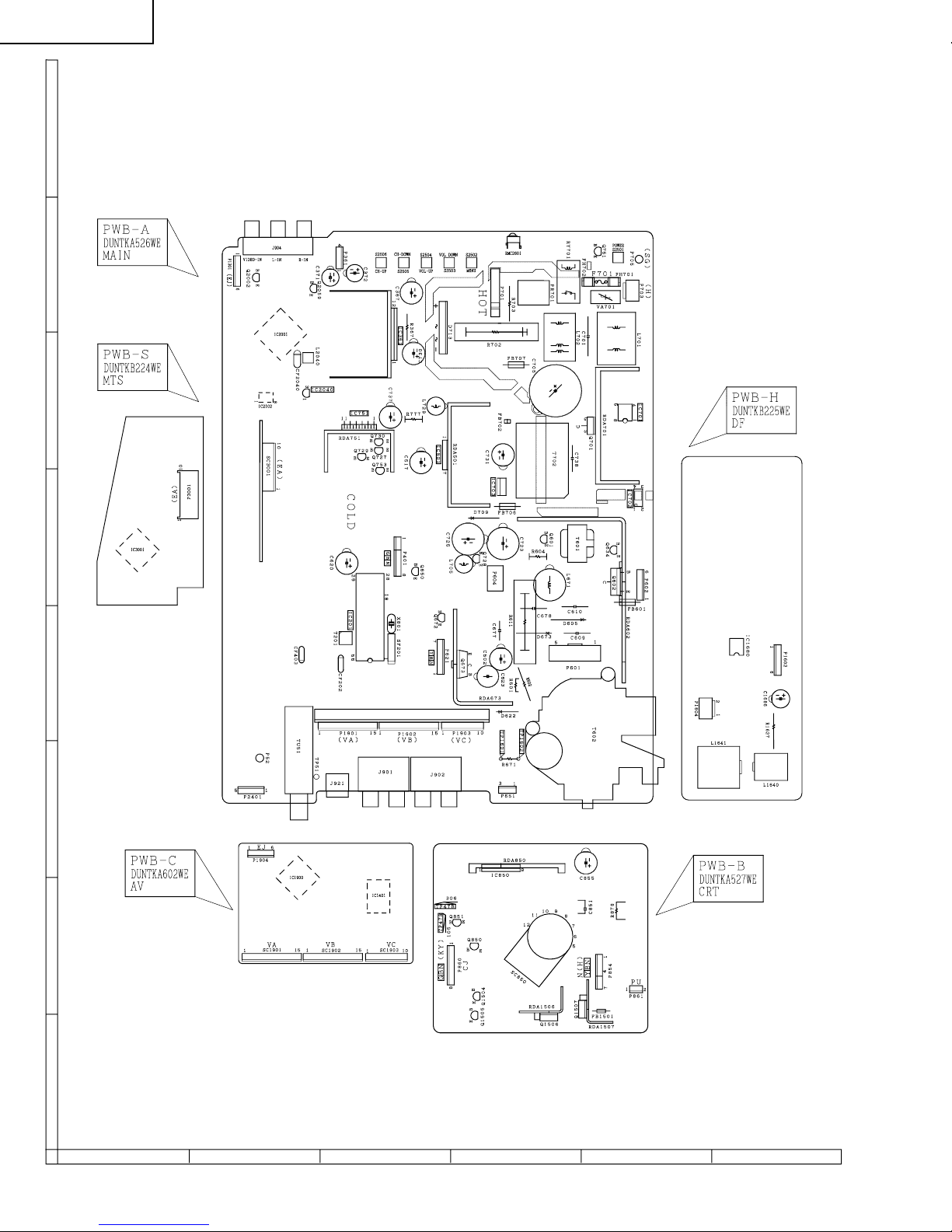

» CHASSIS LAYOUT .............................................................................................................................12

» BLOCK DIAGRAM ..............................................................................................................................13

» SCHEMATIC DIAGRAMS ...................................................................................................................14

» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................25

» REPLACEMENT PARTS LIST ............................................................................................................30

» PACKING OF THE SET ......................................................................................................................41

ELECTRICAL SPECIFICATIONS

POWER INPUT..................................................... 120V AC, 60 Hz

POWER RATING .................................................................. 152W

PICTURE SIZE ....................................... 2,193.5 cm2 (339sq inch)

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

(Nominal)

AUDIO POWER

OUTPUT RATING ..............5.0W + 5.0W (at 10% distortion and

Dual CH Operate)

SPEAKER

SIZE ........................................................ 12 x 6 cm oval (2 pcs.)

VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF.....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels...............................................................2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels...........................................................1 thru 125

Specifications are subject to change without prior notice.

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

Page 2

29FL90

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage regulator circuit. The isolated ground system is for the low B+ DC voltages and the secondary circuit of the high voltage transformer. To prevent electrical shock use an isolation transformer between the line cord and power receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A125V FUSE.

SERVICING OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove the static charge by connecting a 10k ohm resistor in series with an insulated wire (such as a test probe) between the picture tube ground and the anode lead. (AC line cord should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with tube of the same type number for continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage anode completely.

X-RADIATION AND HIGH VOLTA GE LIMITS

1. Be sure all service personnel are aware of the procedures and instructions covering X-radiation. The only potential source of X-ray in current solid state TV receivers is the picture tube. However , the picture tube does not emit measurable X-Ray radiation, if the high voltage is as specified in the "High Voltage Check" instructions. It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the picture tube including the lead in the glass material. The important precaution is to keep the high voltage below the maximum level specified.

2. It is essential that ser vicemen have available at all times an accurate high voltage meter. The calibration of this meter should be checked periodically.

3. High voltage should always be k ept at the rated v alue

−no higher. Operation at higher voltages may cause a failure of the picture tube or high voltage circuitry and;also, under certain conditions, may produce radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly there is no possibility of an X-radiation problem. Every time a color chassis is serviced, the brightness should be tested while monitoring the high voltage with a meter to be certain that the high voltage does not exceed the specified value and that it is regulating correctly.

5. Do not use a picture tube other than that specified or make unrecommended circuit modifications to the high voltage circuitry.

6. When trouble shooting and taking test measurements on a receiver with excessiv e high voltage, a void being unnecessarily close to the receiver. Do not operate the receiver longer than is necessary to locate the cause of excessive voltage.

Page 3

IMPORTANT SERVICE SAFETY PRECAUTION

1.5k ohm 10W

0.15 F

TEST PROBE

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

(Continued)

29FL90

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacity networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 120 volt AC outlet, (Do not use an isolation transformer for this test).

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity to measure the A C voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. AII checks must be repeated with the AC line cord plug connection reversed. (If necessar y, a nonpolarized adapter plug must be used only for the purpose of completing these check.) Any current measured must not exceed 0.5 milliamp . Any measurements not within the limits outlined above indicate of a potential shock hazard and corrective action must be taken before returning the instrument to the customer.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features are identified by "å" and shaded areas in the Replacement Parts Lists and Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be identical to those used in the original circuit. The use of substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire, X-radiation or other hazards.

Page 4

29FL90

LOCATION OF USER'S CONTROL

Front Panel

POWER

Press Press again

On.

Off.

SENSOR AREA FOR REMOTE CONTROL

Press Press again

Accesses MAIN MENU.

Exits MAIN MENU.

Basic Remote Control Functions

POWER

Press Press again

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Pref erence buttons, you can program your favorite programs by using the 4 categories A, B, C and D. The channels can be accessed quickly by using these buttons.

VOLUME UP/DOWN

( ) Increases sound. ( ) Decreases sound.

Press Press again

CATV/DVD-TV/VCR MODE SELECT SWITCH

In TV/VCR position, sends power and channel select commands (Channel up/down and Random Access buttons) to the TV and VCR control. In CATV/DVD position, sends power and channel select commands to a cable TV con verter and DVD control.

DVD/VCR CONTROL

On.

Off.

In menu mode, changes or selects

the TV adjustments.

Accesses MAIN MENU.

Exits MAIN MENU.

POWER MENU – VOL + CH

PULL-OPEN

VOLUME UP/DOWN

( ) Increases sound. ( ) Decreases sound.

POWER

DVD VCR

DISPLAY

INPUT

1 2 3 4 5 6 7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

REW PLAY FF

PAUSE

TV • CATV • VCR • DVD

STOP REC

ENTER

100

VOL

CATV TV

DVD VCR

CH/SKIP

TERMINALS

IN 2VIDEO/AUDIO (INSIDE DOOR)

CHANNEL UP/DOWN

) Selects next higher

(

channel.

(

) Selects next lower

channel. Press both at the same time to access the MAIN MENU screen.

Infrared Transmitter Window

DISPLAY

Press

Displays receiving channel for four seconds. Press again

Removes display.

Temporarily displays receiving

channel when in Closed Caption mode.

INPUT

Press

Switch to external video INPUT 1 mode. Press 2 times

Switch to external video INPUT 2 mode. Press 3 times

Switch to external video INPUT 3 mode or COMPONENT mode. Press 4 times

Switch back to the

original TV mode.

ENTER

Used in some instances where a Cable Converter Box requires an enter command after selecting channels, when using the REMOTE KEYPAD button.

CHANNEL UP/DOWN

( ) Selects next higher channel. ( ) Selects next lower channel.

Moves the

mark of the MENU

screens.

MUTE

Press Press again

Mutes sound.

Restores sound. CLOSED CAPTION appears when sound is muted.

Note:

The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the remote control, place it under a fluorescent light or other lighting. The phosphorescent material contains no radioactive or toxic material, so it is safe to use. The degree of illumination will vary depending on the strength of lighting used. The degree of illumination will decrease with time and depending on the temperature. The time needed to charge the phosphorescent display will vary depending on the surrounding lighting. Sunlight and fluorescent lighting are the most effective when charging the display.

Page 5

29FL90

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

CIRCUIT PROTECTION

The receiver is protected by a 4.0A fuse (F701), mounted on PWB-A, wired into one side of the AC line input.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal deflection system, high voltage system, B+ system, test the X-Radiation protection circuit to ascertain proper operation as follows:

1. Apply 120V AC using a variac transformer for accur ate input voltage.

2. Allow for warm up and adjust all customer controls for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP651 and make sure that the voltmeter reads 13.0 ±0.7V.

5. Apply external 16.1V DC at TP651 by using an external DC supply, TV must be shut off.

6. To reset the protector, unplug the AC cord and plug the AC cord power on. Now make sure that normal picture appears on the screen.

7. If the operation of the horizontal oscillator does not stop in step 5, the circuit must be repaired before the set is returned to the customer.

HIGH VOLT A GE CHECK

High voltage is not adjustable but must be checked to verify that the receiver is operating within safe and efficient design limitations as specified checks should be as follows:

1. Connect an accurate high voltage meter between ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC line voltage, with a strong air signal or a properly tuned in test signal.

3. Enter the service mode and select the service adjustment "V18" and Bus data "01" (Y-mute on, CRT Cut Off).

4. The voltage should be below 33.0kV (at zero beam). If a correct reading cannot be obtained, check circuitry for malfunctioning components. After the v oltage test, make Y-mute off to the normal mode.

Page 6

29FL90

For adjustments of this model, the bus data is conver ted to various analog signals by the D/A converter circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if service adjustments are required.

1. Service mode

Before putting unit into the service mode, check that customer adjustments are in the normal mode. Use the reset function in the video adjustment menu to ensure customer controls are in their proper (reset) position.

2. Service number selection

Once in the service mode, press the Ch-up or Chdown button on the remote controller or at the set. The service adjustment number will vary in increments of one, from "V01" to "P08". Select the item you wish to adjust.

3. Data number selection

Press the Vol-up or V ol-down b utton to adjust the data number.

DATA NUMBER

SERVICE ADJUSTMENT NUMBER

To enter the service mode and exit service mode.

To enter the service mode manually just press and hold the Vol-down and Ch-up buttons at the same time, plug the AC cord into a wall socket. Now the TV set is switched on and enters the service mode. To exit the service mode, turn the television off by pressing the power button.

CHANNEL

V01

Figure A.

55(085)

Page 7

29FL90

SERVICE

NUMBER

V01 PICTURE 3(03h) 0-15(00h-0Fh) V02 TINT 62(3Eh) 0-127(00h-7Fh) V03 COLOR 45(2Dh) 0-127(00h-7Fh) V04 SCREEN 16(10h) 0-31(00h-1Fh) Must be set to “10” V05 BRIGHT 77(4Dh) 0-127(00h-7Fh) V06 R CUT-OFF 64(40h) 64-255(40h-FFh) V07 G CUT- OFF 64(40h) 64-255(40h-FFh) V08 B CUT-OFF 64(40h) 64-255(40h-FFh) V09 G DRIVE 64(40h) 0-127(00h-7Fh) V10 B DRIVE 64(40h) 0-127(00h-7Fh) V11 SHARP 20(14h) 0-63(00h-3Fh) Must be set to “1E” V12 N PHASE 1(01h) 0-3 (00h-03h) Must be set to “01” V13 DC RESTORATION 0(00h) 0-3 (00h-03h) Must be set to “03” V14 BLACK STRETCH 3(03h) 0-3 (00h-03h) Must be set to “03” V15 ABL START POINT 3(03h) 0-3 (00h-03h) Must be set to “03” V16 ABL GAIN 2(02h) 0-3 (00h-03h) Must be set to “02” V17 γ POINT 0(00h) 0-3 (00h-03h) Must be set to “02” V18 Y-MUTE/V-STOP 0(00h) 0-2 “00”=Nomal,“01”=No-Y,“02”=No-Y&No-Vertical V19 ENERGY SAVE 40(28h) 0-63(00h-3Fh) Must be set to “28” V20 RTONE-G – – V21 RTONE-B – – V22 RTONE-G – – V23 RTONE-B – – V24 LOW-G 247(F7h) 0-255(00h-FFh) Must be set to “F7” V25 LOW-B 232(E8h) 0-255(00h-FFh) Must be set to “E8” V26 ML-G 0(00h) 0-255(00h-FFh) Must be set to “00” V27 ML-B 249(F9h) 0-255(00h-FFh) Must be set to “F9” V28 HIGH-G 3(03h) 0-255(00h-FFh) Must be set to “03” V29 HIGH-B 6(06h) 0-255(00h-FFh) Must be set to “06” V30 WPS 1(01h) 0-1 Must be set to “01” V31 RGB CONTRAST 31(20h) 0-63(00h-3Fh) Must be set to “31” V32 Y-DL 2(02h) 0-7(00h-07h) Must be set to “02” V33 Y-DL-INPUT 1(01h) 0-7(00h-07h) Must be set to “01” V34 VSM GAIN 7(07h) 0-7(00h-07h) Must be set to “07” V35 N COMB 1(01h) 0-1 Must be set to “01” V36 BPF/TOF-INPUT 0(00h) 0-1 Must be set to “01” V37 CORING 0(00h) 0-1 Must be set to “00” V38 VSM PHASE 0(00h) 0-1 Must be set to “00” V39 COLOR γ 0(00h) 0-1 Must be set to “01” V40 SHARP-INPUT 20(14h) 0-63(00h-3Fh) Must be set to “1E” V41 TINT-INPUT 62(3Eh) 0-127(00h-7Fh) V42 PICTURE-COMPONENT 3(03h) 0-15(00h-0Fh) V43 TINT-COMPONENT 16(10h) 0-31(00h-1Fh) Must be set to “10” V44 COLOR-COMPONENT 48(30h) 0-127(00h-7Fh) Must be set to “44” V45 BRIGHT-COMPONENT 74(4Ah) 0-127(00h-7Fh) V46 R CUT OFF-COMPONENT 64(40h) 64-255(00h-FFh) V47 G CUT OFF-COMPONENT 64(40h) 64-255(00h-FFh) V48 B CUT OFF-COMPONENT 64(40h) 64-255(00h-FFh) V49 G DRIVE-COMPONENT 64(40h) 0-127(00h-7Fh) V50 B DRIVE-COMPONENT 64(40h) 0-127(00h-7Fh) V51 SHARP-COMPONENT 20(14h) 0-63(00h-3Fh) Must be set to “1E” V52 N PHASE-COMPONENT 01(01h) 0-3 (00h-03h) Must be set to “01” V53 C-TRAP 0(00h) 0-1 Must be set to “00” V54 ANT-B PICTURE 3(03h) 0-15(00h-0Fh) V55 ANT-B TINT 62(3Eh) 0-127(00h-7Fh) V56 ANT-B COLOR 45(2Dh) 0-127(00h-7Fh) V57 ANT-B SHARP 20(14h) 0-63(00h-3Fh) Must be set to “1E” V58 ANT-B BRI GHT 77(4Dh) 0-127(00h-7Fh)

ADJUSTMENT ITEM

INITIAL V ALUE

DA T A

ADJUSTMENT CONTENTS

RANGE

R01 RF-AGC 36(24h) 0-63(00h-3Fh) R02 PIF VCO coil – – R03 RF-AGC REF 5C(5Ch) 0-255(00h-FFh) Must be set to “5C”

D01 V POSITION 0(00h) 0-7 (00h-07h) D02 H POSITION 16(10h) 0-31(00h-1Fh) D03 V SIZE 18(12h) 0-63(00h-3Fh) D04 H SIZE 31(1Fh) 0-63(00h-3Fh) Must be set to “38” D05 V-LINEARITY 7(07h) 0-15(00h-0Fh)

Table - A

Page 8

29FL90

SERVICE

NUMBER

D06 V-S CORRECTION 8(08h) 0-15(00h-0Fh) Must be set to “08” D07 EW PARABOLA 33(21h) 0-63(00h-3Fh) Must be set to “04” D08 EW TRAPEZIUM 14(0Eh) 0-31(00h-1Fh) Must be set to “0E” D09 EW CORNER 12(0Ch) 0-15(00h-0Fh) Must be set to “04” D10 AFC GAIN 2(02h) 0-3 (00h-03h) Must be set to “02” D11 V EHT 7(07h) 0-7 (00h-07h) Must be set to “04” D12 H EHT 3(03h) 0-7 (00h-07h) Must be set to “04”

EX1 FAO VOLUME 36(24h) 0-50(00h-32h) Must be set to “24” EX2 CC-POSITION 33(21h) 0-127(00h-7Fh) EX3 INT 122(7Ah) 0-255(00h-FFh) Must be set to “7A” EX4 A-ATT 90(5Ah) 0-127 EX5 TUNER data 0(00h) 0-3(00h-03h) Must be set to “00” EX6 Think chip-Slice LEVEL 54(36h) 0-255(00h-FFh) Must be set to “36”

OP1 OPTION1 BA 0-255(00h-FFh) Must be set to “C5” OP2 OPTION2 01 0-7 Must be set to “1A” OP3 OPTION3 15(0Fh) 0-255(00h-FFh) Must be set to “0F”

M01 INPUT LEVEL 9(09h) 0-15(00h-0Fh) Must be set to “09” M02 MTS VCO 36(24h) 0-63(00h-3Fh) M03 FILTER 31(1Fh) 0-63(00h-3Fh) M04 WIDEBAND 24(18h) 0-63(00h-3Fh) M05 SPECTRAL 16(10h) 0-63(00h-3Fh)

ADJUSTMENT ITEM

INITIAL V ALUE

DA T A

RANGE

Table - A

ADJUSTMENT CONTENTS

Holding down both the VOL-up and CH-up buttons on the TV set at service mode for more than 2 seconds will automatically write the above initial values into IC2102(or IC2101).

PART REPLACED

IC2001 IC201

IC2102

(or IC2101) CRT

IC3001

Note: IC2101 when using VHIM24C16B/-1 IC2102 when using VHIBR2416E2-1

NECESSARY UNNECESSARY

ADJUSTMENT

X X

NOTES

Data is stored in IC2102(or IC2101). The adjustment is needed to compensate for characteristics of parts

including IC201 and MTS level (M01). Holding down both the VOL-up and CH-up buttons on the TV set in the

service mode for more than 2 seconds will automatically write the above initial values into IC2102(or IC2101) Then perf orm a complete adjustment.

Adjust items related to picture tube only. Adjust items related to MTS only (M01~M05).

Table - B

Page 9

SERVICE ADJUSTMENT

LEVEL

29FL90

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "R01".

3. Set the data value to point where no noise or beat appears.

4. Select another channel to confir m that no noise or beat appears. Note 1 : You will have to come out of the service

mode to select another channel.

Note 2 : Setting the data to "00" will produce a black

raster.

Screen Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "V03" and set the data value to "00" to set the color level to minimum. (Record original data code under adjustment "V03" before changing) You may skip this step, if you selected a B/W picture or monoscope pattern.

3. Select the service adjustment "V18" and adjust the data value to "01", this turn off the luminance signal (Y-mute).

4. Adjust the master screen control until the raster darkens to the point where raster is barely seen.

5. Adjust the service adjustments "V06" red, "V07" green and "V08" blue to obtain a good grey scale with normal whites at low brightness level.

6. Select the service adjustment "V18" and reset data to "00". Select the service adjustment "V03" and reset data to obtain normal color level.

7. For component input, the data value of "V46" red, "V47" green and "V48" blue is adjusted to follow the data value of "V06", "V07" and "V08" respectively.

8. Reset the master screen control to obtain nor mal brightness range.

White Balance Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "V03" and set to "00" (minimum color)(Record original data code under adjustment "V03" before changing). "V03" does not have to be adjusted, if you selected a B/W picture or monoscope pattern.

3. Alternately adjust the ser vice adjustment data of "V09" and "V10" until a good grey scale with normal whites is obtained. (RF Input)

4. For component input, the data value of "V49" and "V50" is adjusted to follow the data value of "V09" and "V10" respectively.

5. Select the service adjustment "V03" and reset data to obtain normal color level.

Sub-picture and Sub-Bright Adjustments

1. Receive the window pattern signal.

• RF INPUT

2. Get into service adjustment data "V01" and "V05" and set the luminance as shown in figure "A" and "B" as below respectively.

• COMPONENT INPUT

4. Get in service adjustment data "V42" and "V45" and set the luminance as shown in figure "A" and "B" as below respectively.

VOLTAGE CONFIRMATION

A: 120±10cd/m B:1.5±0.5cd/m

Sub-Tint Adjustment

1. Receive the half color bar signal.

• RF INPUT (TU51)

2. Get into Y-Mute by R/C, or by setting the "V18" bus data to "01".

3. V ary the "V02" bus data until the wa v ef orm becomes as stated below.

B-AMP Base waveform in step (TP47B)

• AV INPUT

5. Input data of "V41" to minus 5 step from "V02" data.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center position .

• RF INPUT (TU51)

3. Enter the service mode and select service adjustment "V03".

4. Adjust "V03" data value to obtain a normal color level.

Page 10

29FL90

Focus Adjustment

1. Receive a good local channel.

2. Adjust the VR-1 (upper knob) of the flyback transformer to make the image as fine as possible.

C. C Display Position Adjustment

1. Receive the lion head pattern signal.

2. Select "EX2" to display the text box.

3. Adjust the "EX2" bus data to let the text box displayed in the center.

DISPLAY OF TEXT BOX

TEXT BOX

| A-B | / 2

SPEC INSPECTION:| A-B | / 2

5mm

Vertical-Size and Linearity Adjustments

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D03" for V-size.

3. Adjust the "D03" bus data to get the proper V-size.

4. For V-linearity adjustment, select data bus "D05" and adjust to get the proper vertical linearity. Note: Aging for 10 min before adjustment. After the

adjustment of V-center and V-size, readjustment for this V-line.

Vertical Phase Adjustment

1. Enter the service mode and select the service adjustment "D01".

2. Adjust "D01" data value so that picture is centered.

Horizontal-Size Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D04" for H-size.

3. Adjust the "D04" bus data to get the proper H-size.

EW-Parabola

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D07" for EW parabola.

3. Adjust the "D07" bus data to get the proper vertical straight line for both left and right side.

EW-Trapezium

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D08" for EW-Trapezium.

3. Adjust the "D08" bus data to get the best position display.

EW-Corner

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D09" for EW-Corner.

3. Adjust the "D09" bus data to get the best linearity for 4 corner points.

Other Adjustments

1. Enter the service mode.

2. Adjust the following data values as listed below.

SERVICE ADJUST DATA(Hex)

POSITION ITEM 29FL90

OP1 OPTION1 C5 OP2 OPTION2 1A OP3 OPTION3 0F

Horizontal Position Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D02".

3. Adjust "D02" data value so that picture is centered.

Caption Position Adjustment (Horizontal)

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "EX2".

3. A black text box appears on the screen. (see

below)

4. Adjust "EX2" data value so that text bo x is positioned in the center of the screen.

Figure

Figure B.

Page 11

MTS ADJUSTMENT

MTS Level Adjustment

1. Set the sound volume above 1. Monoral signal: 400Hz, 100% modulation

2. Confirm "M01" data is "09h".

3. Vary the "EX4" bus data until the voltage to pin (39) of IC3001.

4. Become the value as stated below. SETTING VOLT A GE

ADJ spec : 490±10mVrms CHK spec: 490±20mVrms

MTS VCO Adjustment

1. Keep the unit in no-signal state.

2. Connect the frequency counter to pin (39) of IC3001.

3. Connect a capacitor (100µF, 50V) in between positive(+) side of C3005 and ground.

4. Enter the service mode and select the service adjustment "M02"

5. Adjust the data so that the frequency counter reads

62.94 ±0.75kHz.

29FL90

Filter Adjustment

1. Feed the following stereo pilot signal to pin (14) of IC3001 . Stereo pilot signal: 9.4kHz, 600mVrms.

2. Enter the service mode and select the service adjustment "M03".

3. Adjust the data until "OK" appears in position on the screen. Make sure the "OK" is displayed almost at the center of the data range.

Separation Adjustment

1. Input "SIGNAL 1" and vary the "M04" bus data to get the minimun AC voltage to pin (39) of IC3001.

2. Input "SIGNAL 2" and vary the "M05" bus data to get the minimun AC voltage to pin (39) of IC3001. SIGNAL 1: SIGNAL 2: 3kHz, 30% modulation, Lch only, NR-ON

Note: SIGNAL 1 Adj. for wideband

SIGNAL 2 Adj. for spectral Check the output of the speaker at the maximum volume as stated below. Confirmation spec:

ADJ spec: above 25 dB

CHK spec: above 20 dB

300Hz, 30% modulation, Lch only, NR-ON

Page 12

29FL90

CHASSIS LAYOUT

654321

Page 13

BLOCK DIAGRAM

29FL90

654321

Page 14

29FL90

DESCRIPTION OF SCHEMATIC DIAGRAM

NOTES:

1. The unit of resistance "ohm" is omitted. (K=kΩ=1000Ω, M=MΩ)

2. All resistors are 1/16 watt, unless otherwise noted.

3. All capacitors are µF, unless otherwise noted. (P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected between points indicated and chassis ground, line voltage set at 120V AC and all controls set f or normal picture unless otherwise indicated.

2. All voltages measured with 1000µV B & W or Color signal.

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar signal, the tint setting adjusted for proper color. The wave shapes at the red, g reen and b lue cathodes of the picture tube depend on the tint, color level and picture control.

2. indicates waveform check points (See chart, wavefor ms are measured from point indicated to

chassis ground.)

AND SHADED ( ) COMPONENTS = SAFETY RELATED PARTS.

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits may be subject to change for product improvement without prior notice.

WAVEFORMS

1 1.2 Vp-p 2 2.3 Vp-p 3 1.0 Vp-p 4 0.5 Vp-p 5 5 Vp-p 6 5 Vp-p

7 1.1 Vp-p 8 1.5 Vp-p 9 30 Vp-p 0 53 Vp-p q 5.4 Vp-p w 0.8 Vp-p

e 190 Vp-p r 15 Vp-p t 1050 Vp-p y 900 Vp-p u 220 Vp-p i 27 Vp-p

o 3.0 Vp-p p 3.0 Vp-p a 3.0 Vp-p s 140 Vp-p d 130 Vp-p f 130 Vp-p

Page 15

SCHEMATIC DIAGRAM: CRT Unit

29FL90

654321

Page 16

16~17

1234567891011 12 13 14 15 16 17 18 19 20

SCHEMATIC DIAGRAM: MAIN-1 Unit

Page 17

1234567891011 12 13 14 15 16 17 18 19 20

SCHEMATIC DIAGRAM: MAIN-2 Unit

18~19

Page 18

1234567891011 12 13 14 15 16 17 18 19 20

SCHEMATIC DIAGRAM: AV Unit

20~21

Page 19

1234567891011 12 13 14 15 16 17 18 19 20

SCHEMATIC DIAGRAM: MTS MODULE Unit

22~23

Page 20

29FL90

SCHEMATIC DIAGRAM: DF MODULE Unit

654321

Page 21

PRINTED WIRING BOARD ASSEMBLIES

29FL90

PWB-B: CRT Unit (Wiring Side)

PWB-S: MTS MODULE Unit (Wiring Side)

R3010

C3035

R3012

C3036

R3011

RJ8

R3534

R3533

R3501

R3503

R3502

IC3501

R2532

RJ9

C3515

RJ1

R2531

RJ6

RJ10

IC3001

FDC2

C3302

IC3301

RJ7

R3301

C3008

C3002

R3003

R3005

R3004

R3008

C3013 R3007

FDC1

PWB-S: MTS MODULE Unit (Chip Parts Side)

654321

Page 22

29FL90

PWB-A: MAIN Unit (Wiring Side)

654321

Page 23

29FL90

R56

R2401

R2404

R57

101

C56

R58

C57

R992

RJ15

RJ16

RJ88

RJ39

R201

R96

C945

R940

R961

R962

Q908

RJ24

C962

C409

RJ26

IC401

R415

RJ97

RJ25

R440

C408

Q459

R432

R459

RJ23

R461

Q402

R462

C462

R460

RJ56

R431

R465

Q460

D460

R447

R446

C424

C419

R443

R449

R448

C426

R463

R450

R445

R464

Q406

RJ62

RJ70

RJ71

RJ36

RJ75

C433

RJ74

RJ73

RJ68

R408

R401

R409

R405

R441

R413Q407

Q401

R404

R416

Q403

R407

RJ44

C401

R412

R406

R414

R402R403

C471

R473

Q474

R471

R472

Q471

RJ41

C476

R476

R483

R474

RJ46

R904

R909

Q901

RJ33

R906

RJ40R905R907

R912

R914

R915

Q903

R913R911

R902

Q902

R901

RJ60

RJ64

R903

R918

R917

R916

RJ98

R2085

C2040

IC2102

R2101

R2102

R2204

R2044

R2048

C2203

R2060

R2042

R2045R2203

R2047

R2051

R2202

C2201

R2061

RJ87

RJ29

C2064C2043

C2047

C2060

C2063

R2063

R2064

R2039

C2045

C2061

R2050

R2015

R2053

Q2060

R2049

R2084R2040

R2055

R2003C2042

R2054

IC2001

R2043

R2006

Q2003

R2001

R2028

C2025

C2024

C2023

R2026

R2008

R2025

C2021

C2022

R2024

R2023

R2081

R2027

R2012

R2014

C2002

R2022

R2002

R2010

R2020

R2501

R2502

C2001

R2016

R2009

R2029

R2007

FDC3

R2503

C937

R2504

R989

R370

R366

R371

C373

Q361

R372

Q2211

RJ78

R2212

R2213

C2202

R364

R2211

R361

R365

Q2201

R2201

RJ66

R2041

R775

R774

R779

R747

R746

R772

R769

R745

R744

R752

R766

R767

D752

Q752

R768

RJ80

RJ86

RJ99

C475

R478

C473

R481

R479

Q473

C484

Q472

R669

R475

R477

R480

RJ31

C601

R693

R602

R612

RJ35

R419

R819

RJ34

Q603

R820

R418

RJ93

Q410

R821C553

C618

R699

R417

R551

C619

R655

R818

R816

R812

R817

R808

C814

C808

R698

R807

R434RJ14

C807

C811

C812

C806

C815

C817

C801

R806

R805

Q404

RJ81

R613

R229

R453

C802

R801

C423

R444

R442

C225

RJ11

C220

RJ13

C622

Q206

RJ91

R235

R614

R236

R656

C615

RJ94

R425

C233

Q405

C223

R307

RJ95

R228

R233

C228

R213C307

RJ28

R234

R212C231

R424

R21

C206RJ20

R211

RJ47

R216

Q205

R214

R21

7R215

R423

R227

RJ32

R991

R928

RJ17

R951

R950R970RJ55

FDC4

RJ92C959

R924

R925

R927

RJ96

R617

Q616

R618

R926

R931

R929

RJ52

R204

C204

RJ100

C201

R207

RJ42

Q201

R20

R220

R206

R205C202

RJ18

C203

C205

R210R208

R209

Q203

R809

R803

RJ53

Q801

R804

R802

C804

RJ54

C820

R676

C674

C675

R690

R687

R663

R688

R685

R662

C552

R689

C683R686

RJ77

R666R667

R664

RJ89

R659

RJ79

C626

RJ85

R514

R513

R519RJ90

R520

R2507

R2508

R2506

R2505

RJ84

R2602

R2603

C2602

R2605R2604

RJ19

RJ21

C712

C605

FDC1

RJ12

RJ65

R638

C787

C784

R789

C782

R751

FDC2

R2066

PWB-A: MAIN Unit (Chip Parts Side)

654321

Page 24

29FL90

PWB-C: AV Unit (Wiring Side)

R1428

R1430

R1422

Q1404

R1407

C1424

R1437

C1423

C1422

C1454

R1466

R1475

R1471

R1462

R1473

C1449R1474

C1452

C1453

R1405

R1467

C1456

C1455

Q1408

Q1407

R1432

R1431

R1429

R1433

R1434

RJ12

IC1401

C1443

C1441

Q1401

C1414

R1436

C1420

R1435

C1421

RJ20

C1448

R1459

C1446

C1445C1474

R1457

C1444

R1456

R1402C1447

C1435

C1436

R1959

R1424

Q1405

C1429

R1426

R1425

R1423

R1406

R1427

Q1406

C1428

R1401

C1470

C1473

R1420

R1403

C1460

Q1409

C1950

R1404

RJ21

C1415

RJ15

Q1909

C1922

R1956R1965

RJ10

R1966

RJ19

RJ14

IC1900

C1927

FDC2

C1929

R1958

RJ17

Q1907

RJ22

FDC1

C1900

C1901

C1916

C1914R1900

C1908

RJ23

C1906

R1938

C1903

R1937

R1936

R1935

RJ13C1951

R1948

R1932

R1930

R1946

R1944

C1921

R1942

R1943

R1945

R1941

C1915

PWB-C: AV Unit (Chip Parts Side)

RJ18

RJ16

654321

Page 25

29FL90

PWB-H: DF MODULE Unit (Wiring Side)

654321

Page 26

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual ; electrical components having such features are identified by å and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which does no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

★ MARK: SPARE PARTS-DELIVERY SECTION

' MARK: X-RAY RELATED PARTS

Ref. No. Part No. ★ Description Code

PICTURE TUBE

'åV101 VB68QCP899X6E X Picture Tube(With D.Y) CH

å L703 RCiLG0056PEZZ R Degaussing Coil AS

or RCiLGA023WJZZ LHLDW0102GJKZ X Holder AC

å QEARCA010WJZZ X Grounding Strap AH

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

PWB-A DUNTKA526WEG5 – MAIN Unit — PWB-B DUNTKA527WEC3 – CRT Unit — PWB-CDUNTKA602WEA1 – AV Unit — PWB-HDUNTKB225WEA4 – DF MODULE Unit — PWB-S DUNTKB224WEA2 – MTS MODULE Unit —

PWB-A: DUNTKA526WEG5

MAIN UNIT

TUNER

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

å TU51 VTUVTST5UF740 X Tuner AX

VTUENV56DAiG3

INTEGRATED CIRCUITS

å IC201 RH-iX3395CEN2 J TB1252CN AY å IC361 VHiAN5277//-1 J AN5277 AN å IC501 VHiTA8427K/-1 J TA8427K AL å IC701 VHiTEA1507/-1 J TEA1507P/N1 AL å IC702 RH-FX0008GEZZ J PC123FY8 AE å IC703 VHiSE120N//-1 J SE120N AG

IC751 VHiSTV8164+-1 J I.C. AL IC2001 RH-iXA192WJZZQ X TMPA8700CSF AV IC2040 VHiKiA7045A-1+ J KiA7045AP AD

VHiKiA7045P-1

IC2102 VHiBR2416E2-1* J BR24C16F AK

VHiCAT24W16-2

TRANSISTORS

Q201 VS2SC2735//1E* J 2SC2735 AC Q205 VS2SD601AR/-1* X 2SD601AR AC Q206 VS2SD601AR/-1* X 2SD601AR AC Q361 VS2SB709AR/-1* X 2SB709AR AC Q402 VS2SB709AR/-1* X 2SB709AR AC Q405 VS2SD601AR/-1* X 2SD601AR AC Q459 VS2SB709AR/-1* X 2SB709AR AC Q460 VS2SB709AR/-1* X 2SB709AR AC Q471 VS2SD601AR/-1* X 2SD601AR AC Q472 VS2SD601AR/-1* X 2SD601AR AC Q473 VS2SD601AR/-1* X 2SD601AR AC Q474 VS2SD601AR/-1* X 2SD601AR AC Q601 VS2SC2482//-1+ J 2SC2482 AD

å Q602 VS2SD2581++2E J 2SD2581++ AM

Q616 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E Q634 VS2SC3198-G-1+ J 2SC3198-G AA Q650 VS2SA1266-Y-1+ J 2SA1266-Y AA Q672 VS2SA1266-Y-1+ J 2SA1266-Y AA Q673 VS2SD2045//-1 J 2SD2045 AL

å Q701 VSST6NC60FP1E X ST6NC60FP AN

VSST6NK60FP1E Q727 VS2SC3333//-1+ J 2SC3333 AD Q728 VS2SA1091-O1A+ X 2SA1091 AA Q729 VS2SA1266-Y-1+ J 2SA1266-Y AA Q730 VS2SC3198-G-1+ J 2SC3198-G AA Q751 VS2SC3198-G-1+ J 2SC3198-G AA Q752 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E Q753 VS2SC3198-G-1+ J 2SC3198-G AA Q801 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E Q901 VSiMX1C/C//-1* X IMX1C/C AB Q902 VSiMX1C/C//-1* X IMX1C/C AB Q903 VSiMX1C/C//-1* X IMX1C/C AB Q908 VS2SD601AR/-1* X 2SD601AR AC

Page 27

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEG5

MAIN UNIT (Continued)

VS2SC1623L61E Q2002 VS2SA1266-Y-1+ J 2SA1266-Y AA Q2059 VS2SC3198-G-1+ J 2SC3198-G AA Q2060 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E Q2201 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E Q2211 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

DIODES

D52 RH-EX0676GEZZ* J Zener Diode, 32V AA D53 RH-EX0619GEZZ* J Zener Diode, 6.2V AA D361 VHD1SS119//-1* J Diode AA D362 VHD1SS119//-1* J Diode AA

å D501 RH-DX0131CEZZ* J Diode AC

D510 RH-DX0441CEZZ* J Diode AC D511 RH-EX0654CEZZ* J Zener Diode, 75V AD D603 RH-EX0631GEZZ* J Zener Diode, 9.1V AA

å D605 RH-DX0255CEZZ J Diode AC

D615 RH-EX0665GEZZ* J Zener Diode, 25V AA D621 RH-EX0631GEZZ* J Zener Diode, 9.1V AA

å D622 RH-DX0131CEZZ* J Diode AC

D650 RH-EX0628GEZZ* J Zener Diode, 8.2V AC

'åD651 VHD1SS244//-1* J Diode AB

VHD1SS82///1A

'åD652 RH-EX0641GEZZ* J Zener Diode,12V AA 'åD653 VHD1SS119//-1* J Diode AA

D655 VHD1SS119//-1* J Diode AA D657 VHD1SS119//-1* J Diode AA D673 RH-DXA006WJZZ X Diode AB

RH-DX0229CEZZ D707 VHD1SS119//-1* J Diode AA

VHD1SS244//-1 D708 VHD1SS119//-1* J Diode AA

VHD1SS244//-1

å D709 RH-DXA006WJZZ X Diode AB

RH-DX0229CEZZ

å D712 RH-DX0468CEZZ J Diode AE å D713 RH-DX0477CEZZ J Diode AF

D716 VHD1SS119//-1* J Diode AA D717 RH-EX0650GEZZ* J Zener Diode, 16V AB D721 VHD1SS119//-1* J Diode AA

VHD1SS244//-1

å D725 RH-DX0407CEN1 X Diode AB

RH-DX0473CEN1 D755 VHD1SS119//-1* J Diode AA D801 RH-EX0631GEZZ* J Zener Diode, 9.1V AA D802 RH-EX0631GEZZ* J Zener Diode, 9.1V AA D2402 RH-EX0619GEZZ* J Zener Diode, 6.2V AA D2403 RH-EX0619GEZZ* J Zener Diode, 6.2V AA VA701 RH-VX0019CEZZ J Varistor AC

RH-VX0035CEZZ

RH-VX0048CEZZ

PACKAGED CIRCUITS

å PR701 RMPTP0072CEZZ J Packaged Circuit AH

X801 RCRSAA011WJZZ X Crystal AG

RCRSB0278CEZZ

FILTERS AND COILS

CF202 RFiLC0447CEZZ J Ceramic Filter AD CF403 RFiLC0446CEZZ J Ceramic Filter AD CF2040

RFiLA0099CEZZ+ X Ceramic Filter AB L51 VP-CF270K0000* J Peaking 27µHAB L201 VP-XF1R2K0000* J Peaking 1.2µHAB L203 VP-DF100K0000* J Peaking 10µHAB L401 VP-XF100K0000* X Peaking 10µHAB L671 RCiLZ1005CEZZ J Coil AH

å L701 RCiLF0313CEZZ J Coil AH

RCiLF0273CEZZ

RCiLF0345CEZZ

å L702 RCiLF0313CEZZ J Coil AH

RCiLF0273PEZZ L705 RCiLP0179CEZZ+ J Coil AD L729 RCiLP0179CEZZ+ J Coil AD L801 VP-DF100K0000* J Peaking 10µHAB L802 VP-DF6R8K0000* X Peaking 6.8µHAB L2040 RCiLB0159CEZZ J Oscillation Coil AE SF201 RFiLC0405CEZZ J SAW Filter AH

TRANSFORMERS

T201 RCiLi0636CEZZ X If Coil AC

å T601 RTRNZ0057PEZZ R Transformer AK

'åT602 RTRNFA030WJZZ X H-Volt Transformer A V

å T702 RTRNWA045WJZZ X Transformer AH

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C53 VCEA0A1HW105M+ J 1 50V EL. AB C54 VCEA0A1HW475M+ J 4.7 50V EL. AB C55 VCEA0A0JW338M+ J 3300 6.3V EL. AD C201 VCKYCY1HB102K* J 1000p 50V Ceramic AA C202 VCKYCY1HB103K* J 0.01 50V Ceramic AA C203 VCKYCY1HB102K* J 1000p 50V Ceramic AA C204 VCKYCY1HB103K* J 0.01 50V Ceramic AA C223 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C224 VCEA0A1HW475M+ J 4.7 50V EL. AB C225 VCKYCY1HB102K* J 1000p 50V Ceramic AA C226 VCEA0A1HW224M+ J 0.22 50V EL. AB C227 VCEA0A1CW226M+ J 22 16V EL. AB C228 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C229 VCEA0A1AW228M+ J 2200 10V EL. AD C230 VCEA0A1HW225M+ J 2.2 50V EL. AB C231 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C232 VCEA0A1HW474M+ J 0.47 50V EL. AB C233 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C361 VCEAKA1HW105M+ X 1 50V EL. AB C362 VCQYTA1HM123J+ J 0.012 50V Mylar AA C363 VCQYTA1HM123J+ J 0.012 50V Mylar AA C364 VCEA0A1HW227M+ X 220 50V EL. AB C365 VCEA0A1HW105M+ J 1 50V EL. AB C366 VCEA0A1CW106M+ J 10 16V EL. AB C367 VCEA0A1VW108M+ X 1000 35V EL. AB C368 VCKYPA1HF103Z+ J 0.01 50V Ceramic AA C369 VCEA0A1CW227M+ J 220 16V EL. AC C370 VCEA0A1CW227M+ J 220 16V EL. AC C371 VCEA0A1EW108M+ J 1000 25V EL. AD C372 VCEA0A1EW108M+ J 1000 25V EL. AD C373 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C374 VCEA0A1HW225M+ J 2.2 50V EL. AB C375 VCEA0A1HW225M+ J 2.2 50V EL. AB C419 VCKYCY1CF224Z* J 0.22 16V Ceramic AB C420 VCEA0A1CW476M+ J 47 16V EL. AB C425 VCEA0A1HW105M+ J 1 50V EL. AB C426 VCKYCY1HB682K* J 6800p 50V Ceramic AA C429 VCQYTA1HM103J+ J 0.01 50V Mylar AB C433 VCKYCY1HB103K* J 0.01 50V Ceramic AA C434 VCEA0A1HW105M+ J 1 50V EL. AB

Page 28

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEG5

MAIN UNIT (Continued)

C435 VCQYTA1HM104J+ J 0.1 50V Mylar AB C462 VCKYCY1CB473K* J 0.047 16V Ceramic AA C471 VCKYCY1HB822K* J 8200p 50V Ceramic AB C473 VCKYCY1HB561K* J 560p 50V Ceramic AA C475 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C476 VCKYCY1HB103K* J 0.01 50V Ceramic AA C484 VCKYCY1HB103K* J 0.01 50V Ceramic AA C501 VCKYPA2HB102K+ J 1000p 500V Ceramic AA C502 VCEA0A1VW108M+ X 1000 35V EL. AB C510 VCFYSA1JB564J+ X 0.56 63V Mylar AB C511 VCKYPA2HB391K+ J 390p 500V Ceramic AA C512 VCQYTA1HM683J+ J 0.068 50V Mylar AB C513 VCQYTA1HM103J+ J 0.01 50V Mylar AB C514 VCEA0A1VW107M+ J 100 35V EL. AC C515 VCEACA1HC225J+ X 2.2 50V EL. AB C516 VCEA0A1HW335M+ J 3.3 50V EL. AB C517 VCEA0A1VW108M+ X 1000 35V EL. AB C518 VCQYTA1HM273J+ X 0.027 50V Mylar AA C519 VCFYSA1JB473J+ J 0.047 63V Mylar AC C551 VCEACA1HC474M+ X 0.47 50V EL. AB C552 VCKYCY1HB392K* J 3900p 50V Ceramic AA C553 VCKYCY1HB392K* J 3900p 50V Ceramic AA C605 VCKYCY1HB102K* J 1000p 50V Ceramic AA C606 VCKYPA2HB561K+ J 560p 500V Ceramic AA C607 VCKYPA1HB472K+ X 4700p 50V Ceramic AB C608 RC-KZ0033CEZZ J 150p 2kV Ceramic AB

'åC609 VCFPFD3ZA912H J 9100p 1.8kV M-Poly. AD 'åC610 VCFPFD3ZA912H J 9100p 1.8kV M-Poly. AD

C611 VCQPPC2JB223J J 0.022 630V M-Poly. AC C613 VCFPVC2DB474J J 0.47 200V M-Poly. AE C614 VCKYPA2HB272K+ X 2700p 500V Ceramic AB C615 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C616 VCEA9M1HW224M+ X 0.22 50V EL. AB C617 VCEA0A1HW104M+ J 0.1 50V EL. AB C618 VCKYCY1HB822K* J 8200p 50V Ceramic AB C619 VCKYCY1HB103K* J 0.01 50V Ceramic AA C620 VCEA0A1CW477M+ J 470 16V EL. AC C623 VCEA4A2EN106M+ X 10 250V EL. AB C624 VCKYPA2HB102K+ J 1000p 500V Ceramic AA C627 VCEA0A1HW106M+ J 10 50V EL. AB C631 VCKYPA1HB331K+ J 330p 50V Ceramic AA C632 VCEA0A1VW107M+ J 100 35V EL. AC C633 VCKYPA1HB102K+ J 1000p 50V Ceramic AA C650 VCEA0A1HW105M+ J 1 50V EL. AB C651 VCQYTA2AA104K+ J 0.1 100V Mylar AB C652 VCEA0A1VW476M+ X 47 35V EL. AB C653 VCEA0A1VW226M+ X 22 35V EL. AA C654 VCFYFA1HA334J+ J 0.33 50V Mylar AB C674 VCKYCY1CB104K* J 0.1 16V Ceramic AB C677 RC-FZ0377CEZZ J 4.7 50V Plastic AF C678 VCQPPC2JB223J J 0.022 630V M-Poly. AC C684 VCEA0A1VW106M+ J 10 35V EL. AB C685 VCQYTA1HM333J+ X 0.033 50V Mylar AB

å C701 RC-FZ036SCEZZ J 0.1

RC-FZ028SCEZZ

RC-FZ020SCEZZ C702 RC-KZ0029CEZZ+ J 0.01 500V Ceramic AC C703 RC-KZ0029CEZZ+ J 0.01 500V Ceramic AC C704 VCFYSB2EB224K J 0.22 250V Mylar AD

å C705 RC-EZ0719CEZZ X 560 200V EL. AF

C706 RC-KZ021SCEZZ J 3300p 2kV Ceramic AE C710 RC-KZ0040CEZZ J 820p 2kV Ceramic AD C711 RC-KZ021SCEZZ J 3300p 2kV Ceramic AE C712 VCKYCY1HB103K* J 0.01 50V Ceramic AA C717 VCKYPA2HB472K+ J 4700p 500V Ceramic AB C722 VCQYTA1HM104J+ J 0.1 50V Mylar AB

å C723 RC-EZ0724CEZZ J 330 160V EL. AG

RC-EZ1171CEZZ

AC250V

Plastic AC

å C725 RC-EZ0810CEZZ J 330 160V EL. AH

C726 VCKYPH3DB561K J 560p 2kV Ceramic AC C727 VCKYPH3DB561K J 560p 2kV Ceramic AC C730 VCEA4A1VN108M+ X 1000 35V EL. AC C731 RC-EZ0385CEZZ+ X 3300 16V EL. AB

RC-EZ1226CEZZ C732 VCKYPA2HB102K+ J 1000p 500V Ceramic AA C735 VCEA0A1CW106M+ J 10 16V EL. AB C736 VCEA0A1CW106M+ J 10 16V EL. AB C737 VCEA0A1CW107M+ J 100 16V EL. AC C738 VCFPVC3CA452H X 4500p 1.6kV M-Poly. AB C740 VCEA0A1EW476M+ J 47 25V EL. AB C741 VCKYPA2HB102K+ J 1000p 500V Ceramic AA C742 VCKYPA2HB102K+ J 1000p 500V Ceramic AA C756 VCEA0A1CW476M+ J 47 16V EL. AB C757 VCEA0A1CW476M+ J 47 16V EL. AB C780 VCEA9M1EW226M+ X 22 25V EL. AB C781 VCFYFA1HA334J+ J 0.33 50V Mylar AB C784 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C787 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C801 VCCCCY1HH110J* X 11p 50V Ceramic AB C802 VCKYCY1HB222K* J 2200p 50V Ceramic AA C803 VCEA0A1HW224M+ J 0.22 50V EL. AB C804 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C805 VCEA0A1CW337M+ J 330 16V EL. AC C806 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C807 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C808 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C809 VCEA0A1CW106M+ J 10 16V EL. AB C810 VCEA0A1CW106M+ J 10 16V EL. AB C811 VCKYCY1HB103K* J 0.01 50V Ceramic AA C812 VCKYCY1HB103K* J 0.01 50V Ceramic AA C813 VCEA0A1CW107M+ J 100 16V EL. AC C814 VCKYCY1HB103K* J 0.01 50V Ceramic AA C815 VCKYCY1HB103K* J 0.01 50V Ceramic AA C816 VCEA0A1CW107M+ J 100 16V EL. AC C817 VCKYCY1HB103K* J 0.01 50V Ceramic AA C930 VCEA0A1HW335M+ J 3.3 50V EL. AB C931 VCQYTA1HM183J+ X 0.018 50V Mylar AB C932 VCQYTA1HM183J+ X 0.018 50V Mylar AB C933 VCEA0A1HW335M+ J 3.3 50V EL. AB C934 VCEA0A1CW476M+ J 47 16V EL. AB C935 VCEA0A1HW335M+ J 3.3 50V EL. AB C936 VCEA0A1HW335M+ J 3.3 50V EL. AB C945 VCKYCY1HB102K* J 1000p 50V Ceramic AA C946 VCEA0A1HW225M+ J 2.2 50V EL. AB C948 VCEA0A1HW225M+ J 2.2 50V EL. AB C956 VCEA0A1CW337M+ J 330 16V EL. AC C960 VCE9GA1HW475M+ J 4.7 50V EL._(N.P) AB C961 VCE9GA1HW475M+ J 4.7 50V EL._(N.P) AB C962 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C2001 VCCCCY1HH331J* J 330p 50V Ceramic AA C2003 VCEA0A1HW106M+ J 10 50V EL. AB C2004 VCEA0A1CW476M+ J 47 16V EL. AB C2005 VCEA0A1CW106M+ J 10 16V EL. AB C2006 VCEA0A1CW476M+ J 47 16V EL. AB C2040 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C2041 VCEA0A1HW105M+ J 1 50V EL. AB C2044 VCQYTA1HM104J+ J 0.1 50V Mylar AB C2060 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C2061 VCCCCY1HH101J* J 100p 50V Ceramic AA C2062 VCEA0A1AW107M+ J 100 10V EL. AB C2063 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C2064 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C2202 VCCCCY1HH390J* J 39p 50V Ceramic AA C2601 VCEA0A1HW476M+ J 47 50V EL. AB C2602 VCCCCY1HH101J* J 100p 50V Ceramic AA

RESISTORS

[M-Ox.··· Metal Oxide, M-Film··· Metal Film]

RJ13 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ14 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ15 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ16 VRS-CY1JF000J* J 0 1/16W M-Ox. AA

Page 29

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEG5

MAIN UNIT (Continued)

RJ17 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ20 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ25 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ27 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ28 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ31 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ32 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ33 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ34 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ35 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ39 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ40 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ41 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ46 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ47 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ52 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ53 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ54 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ55 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ56 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ60 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ65 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ66 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ68 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ73 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ74 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ78 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ79 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ80 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ81 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ84 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ85 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ86 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ87 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ88 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ90 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ94 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ95 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ97 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ98 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ101 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R57 VRS-CY1JF392J* J 3.9k 1/16W M-Ox. AA R201 VRS-CY1JF151J* J 150 1/16W M-Ox. AA R202 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R203 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R204 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R211 VRS-CY1JF331J* J 330 1/16W M-Ox. AA R212 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R215 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R217 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R219 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R220 VRS-CY1JF392J* J 3.9k 1/16W M-Ox. AA R225 VRD-RA2BE680J* J 68 1/8W Carbon AA R226 VRD-RA2BE101J* X 100 1/8W Carbon AE R227 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R228 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R229 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R233 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R234 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R235 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R236 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R307 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R361 VRS-CY1JF224J* J 220k 1/16W M-Ox. AD R362 VRD-RA2BE222J* J 2.2k 1/8W Carbon AA R363 VRD-RA2BE222J* J 2.2k 1/8W Carbon AA R364 VRS-CY1JF821J* J 820 1/16W M-Ox. AA R365 VRS-CY1JF821J* J 820 1/16W M-Ox. AA R367 VRN-RL3DBR56J+ X 0.56 2W M-Film AE R368 VRD-RA2BE222J* J 2.2k 1/8W Carbon AA R369 VRD-RA2BE822J* X 8.2k 1/8W Carbon AA R371 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA

R372 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R415 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R430 VRD-RA2BE331J* X 330 1/8W Carbon AA R431 VRS-CY1JF331J* J 330 1/16W M-Ox. AA R432 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R440 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R453 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R454 VRD-RA2BE101J* X 100 1/8W Carbon AE R459 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R460 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R461 VRS-CY1JF151J* J 150 1/16W M-Ox. AA R462 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R463 VRS-CY1JF474J* J 470k 1/16W M-Ox. AA R464 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R465 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R471 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R472 VRS-CY1JF821J* J 820 1/16W M-Ox. AA R473 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R474 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R475 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R476 VRS-CY1JF393J* J 39k 1/16W M-Ox. AA R477 VRS-CY1JF182J* J 1.8k 1/16W M-Ox. AA R478 VRS-CY1JF151J* J 150 1/16W M-Ox. AA R479 VRS-CY1JF393J* J 39k 1/16W M-Ox. AA R480 VRS-CY1JF273J* J 27k 1/16W M-Ox. AA R481 VRS-CY1JF152J* J 1.5k 1/16W M-Ox. AA R482 VRD-RA2BE101J* X 100 1/8W Carbon AE R483 VRS-CY1JF471J* J 470 1/16W M-Ox. AA

å R502 VRN-VV3DB2R2J J 2.2 2W M-Film AB

R510 VRD-RA2BE471J* X 470 1/8W Carbon AE R511 VRD-RA2BE393J* J 39k 1/8W Carbon AA R512 VRD-RA2BE563J* J 56k 1/8W Carbon AA R513 VRS-CY1JF273J* J 27k 1/16W M-Ox. AA R514 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R520 VRS-CY1JF184J* J 180k 1/16W M-Ox. AA R523 VRN-RL3DB1R0J+ X 1 2W M-Film AB R524 VRS-RG3AB391J+ X 390 1W M-Ox. AE R532 VRD-RA2EE473J* J 47k 1/4W Carbon AA R534 VRD-RA2BE181J* J 180 1/8W Carbon AA R551 VRS-CY1JF562F* J 5.6k 1/16W M-Ox. AA R578 VRD-RA2BE562J* X 5.6k 1/8W Carbon AE R601 VRD-RM2HD220J* J 22 1/2W Carbon AA

å R604 VRS-KA3NG122J J 1.2k 7W M-Ox. AD

R605 VRD-RM2HD331J* J 330 1/2W Carbon AA R606 VRD-RM2HD271J* J 270 1/2W Carbon AA R609 VRS-RG3AB562J+ X 5.6k 1W M-Ox. AE

å R611 VRW-KQ41C3R3K J 3.3 15W Cement AG

R612 VRS-CY1JF123J* J 12k 1/16W M-Ox. AA R613 VRS-CY1JF224J* J 220k 1/16W M-Ox. AD R614 VRS-CY1JF125J* X 1.2M 1/16W M-Ox. AA

'åR616 VRD-RA2BE103J* X 10k 1/8W Carbon AE 'åR617 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA 'åR618 VRS-CY1JF473J* J 47k 1/16W M-Ox. AA

å R621 VRN-RL3DB1R5J+ X 1.5 2W M-Film AE å R622 VRN-RL2HCR56J+ X 0.56 1/2W M-Film AB

VRN-SV2HCR56J

å R623 VRN-RL3AB1R0J+ X 1 1W M-Film AB å R624 VRS-RG3DB332J+ X 3.3k 2W M-Ox. AB

R631 VRS-RG3AB103J+ X 10k 1W M-Ox. AB R633 VRD-RA2EE563J* X 56k 1/4W Carbon AA R634 VRD-RM2HD124J* J 120k 1/2W Carbon AA R635 VRD-RA2EE104J* J 100k 1/4W Carbon AA R638 VRS-CY1JF822J* J 8.2k 1/16W M-Ox. AA R639 VRD-RA2BE561J* X 560 1/8W Carbon AA R640 VRD-RA2BE473J* X 47k 1/8W Carbon AE R641 VRD-RA2BE151J* J 150 1/8W Carbon AA R647 VRS-SV2HC220J J 22 1/2W M-Ox. AA

'åR651 VRN-RL2HC1R0J+ X 1 1/2W M-Film AB 'åR652 VRD-RA2EE103G* X 10k 1/4W Carbon AA 'åR653 VRD-RA2EE562G* X 5.6k 1/4W Carbon AA 'åR654 VRD-RA2EE393G* X 39k 1/4W Carbon AA

R655 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA R656 VRS-CY1JF224J* J 220k 1/16W M-Ox. AD

å R658 VRS-RG3DB123J+ X 12k 2W M-Ox. AB

Page 30

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEG5

MAIN UNIT (Continued)

R659 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R663 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R664 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R666 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R667 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA R668 VRD-RA2BE680J* J 68 1/8W Carbon AA R669 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R670 VRD-RM2HD563J* X 56k 1/2W Carbon AA

å R671 VRS-RG2HC102J+ X 1k 1/2W M-Ox. AE

R672 VRD-RM2HD393J* J 39k 1/2W Carbon AA R674 VRD-RA2BE103J* X 10k 1/8W Carbon AE

å R675 VRN-RL3LB3R3J+ X 3.3 3W M-Film AF

R677 VRD-RA2EE103J* X 10k 1/4W Carbon AA R678 VRD-RA2BE472J* X 4.7k 1/8W Carbon AA R679 VRD-RM2HD103J* J 10k 1/2W Carbon AA R689 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R690 VRS-CY1JF683J* J 68k 1/16W M-Ox. AA R698 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R699 VRS-CY1JF822J* J 8.2k 1/16W M-Ox. AA

å R702 VRW-KQ4AC1R2K J 1.2 10W Cement AE

R703 VRD-RM2HD391J* J 390 1/2W Carbon AA R705 VRN-RL3DBR18J+ X 0.18 2W M-Film AB R706 VRN-RL3DBR18J+ X 0.18 2W M-Film AB R707 VRD-RM2HD270J* J 27 1/2W Carbon AA R709 VRD-RA2BE223J* X 22k 1/8W Carbon AE R710 VRS-RG2HC103J+ X 10k 1/2W M-Ox. AE R712 VRD-RA2BE100J* J 10 1/8W Carbon AA R713 VRS-RG2HC122J+ X 1.2k 1/2W M-Ox. AB R714 VRD-RM2HD100J* X 10 1/2W Carbon AE R715 VRD-RA2BE470J* J 47 1/8W Carbon AA R718 VRD-RA2BE102J* X 1k 1/8W Carbon AE R723 VRN-RL3DBR22J+ J 0.22 2W M-Film AA

å R725 VRD-RM2HD821J* X 820 1/2W Carbon AA å R737 VRN-RL3DBR22J+ J 0.22 2W M-Film AA

R744 VRS-CY1JF272J* J 2.7k 1/16W M-Ox. AA R745 VRS-CY1JF472J* J 4.7k 1/16W M-Ox. AA R746 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R747 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA

å R750 RR-DZ0049CEZZ* J 3.9M 1/2W Solid AB

RR-HZ0048CEZZ R751 VRS-CY1JF473J* J 47k 1/16W M-Ox. AA R766 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R767 VRS-CY1JF273J* J 27k 1/16W M-Ox. AA R768 VRS-CY1JF332J* X 3.3k 1/16W M-Ox. AE R769 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R770 VRD-RM2HD823J* X 82k 1/2W Carbon AE R771 VRD-RA2BE272J* J 2.7k 1/8W Carbon AA R772 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R774 VRS-CY1JF393J* J 39k 1/16W M-Ox. AA R775 VRS-CY1JF563J* J 56k 1/16W M-Ox. AA R776 VRN-VV3DB1R0J J 1 2W M-Film AB R777 VRS-KA3HG8R2K J 8.2 5W M-Ox. AD R778 VRS-RG3AB101J+ X 100 1W M-Ox. AB R779 VRS-CY1JF273J* J 27k 1/16W M-Ox. AA R789 VRS-CY1JF394J* J 390k 1/16W M-Ox. AA R801 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R802 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R804 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R805 VRS-CY1JF272J* J 2.7k 1/16W M-Ox. AA R806 VRS-CY1JF681J* J 680 1/16W M-Ox. AA R807 VRS-CY1JF681J* J 680 1/16W M-Ox. AA R808 VRS-CY1JF681J* J 680 1/16W M-Ox. AA R809 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R810 VRD-RA2BE101J* X 100 1/8W Carbon AE R811 VRD-RA2BE101J* X 100 1/8W Carbon AE R812 VRS-CY1JF224J* J 220k 1/16W M-Ox. AD R813 VRD-RM2HD271J* J 270 1/2W Carbon AA R814 VRD-RA2BE101J* X 100 1/8W Carbon AE R815 VRD-RA2BE101J* X 100 1/8W Carbon AE R816 VRS-CY1JF272J* J 2.7k 1/16W M-Ox. AA

R817 VRS-CY1JF272J* J 2.7k 1/16W M-Ox. AA R818 VRS-CY1JF272J* J 2.7k 1/16W M-Ox. AA R819 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R820 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R821 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R822 VRD-RA2BE101J* X 100 1/8W Carbon AE R830 VRD-RA2BE102J* X 1k 1/8W Carbon AE R901 VRS-CY1JF104J* J 100k 1/16W M-Ox. AA R902 VRS-CY1JF104J* J 100k 1/16W M-Ox. AA R903 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R904 VRS-CY1JF683J* J 68k 1/16W M-Ox. AA R905 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R906 VRS-CY1JF392J* J 3.9k 1/16W M-Ox. AA R907 VRS-CY1JF182J* J 1.8k 1/16W M-Ox. AA R909 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R910 VRD-RA2BE102J* X 1k 1/8W Carbon AE R911 VRS-CY1JF683J* J 68k 1/16W M-Ox. AA R912 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R913 VRS-CY1JF392J* J 3.9k 1/16W M-Ox. AA R914 VRS-CY1JF182J* J 1.8k 1/16W M-Ox. AA R915 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R916 VRS-CY1JF683J* J 68k 1/16W M-Ox. AA R917 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R918 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R922 VRD-RA2BE102J* X 1k 1/8W Carbon AE R923 VRD-RA2BE102J* X 1k 1/8W Carbon AE R924 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R925 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R926 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R927 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R928 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R940 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R950 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R951 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R952 VRD-RA2BE333J* X 33k 1/8W Carbon AE R961 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R962 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R963 VRD-RA2BE331J* X 330 1/8W Carbon AA R969 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R989 VRS-CY1JF750J* J 75 1/16W M-Ox. AA R991 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R992 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R2001 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA

'åR2002 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA

R2004 VRD-RA2BE101J* X 100 1/8W Carbon AE

'åR2007 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA

R2008 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA

'åR2009 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA

R2010 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2011 VRD-RA2BE561J* X 560 1/8W Carbon AA R2013 VRD-RA2BE822J* X 8.2k 1/8W Carbon AA

'åR2016 VRS-CY1JF104J* J 100k 1/16W M-Ox. AA

R2022 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2024 VRS-CY1JF472J* J 4.7k 1/16W M-Ox. AA R2025 VRS-CY1JF472J* J 4.7k 1/16W M-Ox. AA R2026 VRS-CY1JF472J* J 4.7k 1/16W M-Ox. AA R2027 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2028 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2029 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2040 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2041 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R2042 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2043 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R2044 VRS-CY1JF153J* J 15k 1/16W M-Ox. AA R2045 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2047 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R2048 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA R2051 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2052 VRD-RA2BE101J* X 100 1/8W Carbon AE R2054 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R2055 VRS-CY1JF682J* J 6.8k 1/16W M-Ox. AA R2060 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R2061 VRS-CY1JF562J* J 5.6k 1/16W M-Ox. AA R2063 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R2064 VRS-CY1JF332J* X 3.3k 1/16W M-Ox. AE

Page 31

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEG5

MAIN UNIT (Continued)

R2066 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2067 VRD-RA2BE222J* J 2.2k 1/8W Carbon AA R2081 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2084 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2101 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2102 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2201 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R2202 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2203 VRS-CY1JF184J* J 180k 1/16W M-Ox. AA R2211 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R2212 VRS-CY1JF682J* J 6.8k 1/16W M-Ox. AA R2213 VRS-CY1JF333J* J 33k 1/16W M-Ox. AA R2401 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2402 VRD-RA2BE101J* X 100 1/8W Carbon AE R2403 VRD-RA2BE101J* X 100 1/8W Carbon AE R2404 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R2501 VRS-CY1JF183J* J 18k 1/16W M-Ox. AA R2502 VRS-CY1JF183J* J 18k 1/16W M-Ox. AA R2503 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2504 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R2505 VRS-CY1JF822J* J 8.2k 1/16W M-Ox. AA R2506 VRS-CY1JF822J* J 8.2k 1/16W M-Ox. AA R2507 VRS-CY1JF183J* J 18k 1/16W M-Ox. AA R2508 VRS-CY1JF183J* J 18k 1/16W M-Ox. AA R2601 VRD-RA2BE470J* J 47 1/8W Carbon AA R2603 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R2605 VRS-CY1JF000J* J 0 1/16W M-Ox. AA

SWITCHES

S2501 QSW-K0003AJZZ+ J Power AB

QSW-K0079GEZZ

QSW-K0202PEZZ

S2502 QSW-K0003AJZZ+ J Menu AB

QSW-K0079GEZZ

QSW-K0202PEZZ

S2503 QSW-K0003AJZZ+ J VOL-Down AB

QSW-K0079GEZZ

QSW-K0202PEZZ

S2504 QSW-K0003AJZZ+ J VOL-Up AB

QSW-K0079GEZZ

QSW-K0202PEZZ

S2505 QSW-K0003AJZZ+ J CH-Down AB

QSW-K0079GEZZ

QSW-K0202PEZZ

S2506 QSW-K0003AJZZ+ J CH-Up AB

QSW-K0079GEZZ

QSW-K0202PEZZ

FH702 QFSHD1014CEZZ+ J Fuse Holder AC J901 QTANJ0540CEZZ X Terminal, Input-1 AH J902 QTANJ0655CEZZ J Terminal, AK

J904 QJAKG0091CEZZ X Jack, Input-2 AH J921 QSOCD0430CEZZ J Socket, S-Video AE P52 QPLGN0160CEZZ J Plug, 1-pin(SG) AB P361 QPLGN0461CEZZA X Plug, 4-pin(S) AB P401 QPLGN0861CEZZA X Plug, 8-pin(GBN) AB P601 QPLGN0160FJZZ J Plug, 5-pin(K) AD P602 QPLGN0661CEZZA X Plug, 6-pin(XA) AB P604 QPLGN0157FJZZ J Plug, 2-pin(XC) AC P621 QPLGN0761CEZZA X Plug, 7-pin(YBN) AB P651 QPLGN0361CEZZA X Plug, 3-pin(TP651-3) AB P701 QPLGN0260CEZZ J Plug, 2-pin(M) AC P703 QPLGN0269GEZZ J Plug, 2-pin(P) AB P705 QPLGN0160CEZZ J Plug, 1-pin(SG) AB P1301 QPLGN0661CEZZA X Plug, 6-pin(EJ) AB P1901 QPLGN1559REZZ J Plug, 15-pin(VA) AC P1902 QPLGN1559REZZ J Plug, 15-pin(VB) AC P1903 QPLGN1059REZZ J Plug, 10-pin(VC) AC P2401 QPLGN0561CEZZA X Plug, 5-pin AB SC3001

QSOCN0259FJ00 J Soc ket, 10-pin(EA) AE

RMC2601

RRMCU0222CEZZ J R/C Receiver AL

RRMCU0235CEZZ

RDA361

PRDAR0001WJFW X Heat Sink, for IC361 AE

RDA501

PRDARA006WJFW X Heat Sink, for IC501 AE

RDA602

PRDAR0114GJFW J Heat Sink, for Q602 AH

RDA673

PRDAR1007MEFW J Heat Sink, for Q673 AH

RDA701

PRDAR0117GJFW J Heat Sink, for Q701 AL

RDA751

PRDAR0111GJFW J Heat Sink, for IC751 AF MSPRK0034BMFW J Spring AC LHLDW1002PEZZ R Holder AB LHLDW1047PEZZ R Holder AB LX-BZ3049GEFD J Screw AA LX-BZ3100CEFD J Screw AA LX-HZ3007MEFD X Screw AB

Input-3/Component

å RY701 RRLYJ0081CEZZ J Relay AL

MISCELLANEOUS PARTS

RRLYJ0094CEZZ

å F701 QFS-B4023CEZZ J Fuse, 4A/AC125V AC

FB601 RBLN-0037CEZZ* J Ferrite Bead AB FB671 RBLN-0037CEZZ* J Ferrite Bead AB FB702 RBLN-0020CEZZ+ J Ferrite Bead AB FB706 RBLN-0037CEZZ* J Ferrite Bead AB FB707 RBLN-0037CEZZ* J Ferrite Bead AB FH701 QFSHD1013CEZZ+ J Fuse Holder AC

Page 32

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-B: DUNTKA527WEC3

CRT UNIT

å IC850 VHiTDA6103Q-1 J TDA6103Q/N3 AL

Q850 VS2SA1266-Y-1+ J 2SA1266-Y AA Q851 VS2SC3198-G-1+ J 2SC3198-G AA Q1504 VS2SC3198-G-1+ J 2SC3198-G AA Q1505 VS2SA1266-Y-1+ J 2SA1266-Y AA Q1506 VS2SA1964E/-1 J 2SA1964E AF Q1507 VS2SC5248E/-1 J 2SC5248E AE

D853 RH-EX0647GEZZ* J Zener Diode, 15V AA

D854 VHD1SS119//-1* J Diode AA D855 VHD1SS119//-1* J Diode AA D860 VHD1SS119//-1* J Diode AA D865 RH-EX0633GEZZ* X Zener Diode, 10V AE D866 RH-EX0633GEZZ* X Zener Diode, 10V AE D867 RH-EX0633GEZZ* X Zener Diode, 10V AE D1502 VHD1SS119//-1* J Diode AA D1503 VHD1SS119//-1* J Diode AA D1506 RH-DX0487CEZZ* J Diode AC D1507 RH-DX0487CEZZ* J Diode AC D1510 VHD1SS119//-1* J Diode AA

C850 VCFYSB2EB823J J 0.082 250V Mylar AD C851 RC-KZ018JCEZZ J 0.01

C852 VCEA0A1CW107M+ J 100 16V EL. AC C853 VCFYFA1HA224J+ J 0.22 50V Mylar AB C854 VCEA0A1CW227M+ J 220 16V EL. AC C855 VCEA0A2EW106M+ X 10 250V EL. AD C856 VCEA0A1CW226M+ J 22 16V EL. AB C1501 VCEA0A1EW476M+ J 47 25V EL. AB C1506 VCKYPA1HF103Z+ J 0.01 50V Ceramic AA C1508 VCKYPA2HB472K+ J 4700p 500V Ceramic AB C1509 VCKYPA1HB472K+ X 4700p 50V Ceramic AB C1510 VCKYPA1HF103Z+ J 0.01 50V Ceramic AA C1511 VCKYPA1HF103Z+ J 0.01 50V Ceramic AA C1515 VCEA0A1EW476M+ J 47 25V EL. AB C1516 VCEA0A1EW476M+ J 47 25V EL. AB C1517 VCEA0A2AW106M+ J 10 100V EL. AC C1518 VCCSPA2HL560K+ J 56p 500V Ceramic AA C1519 VCEA0A2CW106M+ X 10 160V EL. AB

INTEGRATED CIRCUIT

TRANSISTORS

DIODES

RH-EX0417GEZZ

CAPACITORS

[EL.··· Electrolytic]

RC-KZ015JCEZZ

AC250V

Ceramic AC

R874 VRD-RM2HD154J* X 150k 1/2W Carbon AA R875 VRD-RM2HD154J* X 150k 1/2W Carbon AA R876 VRD-RM2HD154J* X 150k 1/2W Carbon AA R877 VRD-RA2BE103J* X 10k 1/8W Carbon AE

å R878 VRS-SV2HC120J J 12 1/2W M-Ox. AA

R1511 VRD-RA2BE101J* X 100 1/8W Carbon AE

å R1513 VRS-VV3DB561J J 560 2W M-Ox. AA

R1514 VRD-RA2BE100J* J 10 1/8W Carbon AA R1515 VRD-RA2BE820J* J 82 1/8W Carbon AA R1516 VRD-RA2BE820J* J 82 1/8W Carbon AA R1517 VRD-RA2BE122J* J 1.2k 1/8W Carbon AA R1518 VRD-RA2BE683J* X 68k 1/8W Carbon AA R1519 VRD-RA2BE123J* X 12k 1/8W Carbon AE R1520 VRD-RA2BE683J* X 68k 1/8W Carbon AA R1521 VRD-RA2BE122J* J 1.2k 1/8W Carbon AA R1525 VRD-RA2EE560J* J 56 1/4W Carbon AA R1526 VRD-RA2EE560J* J 56 1/4W Carbon AA R1527 VRD-RM2HD1R5J* J 1.5 1/2W Carbon AA R1528 VRD-RM2HD1R5J* J 1.5 1/2W Carbon AA R1529 VRS-VV3DB221J J 220 2W M-Ox. AA R1530 VRD-RA2BE122J* J 1.2k 1/8W Carbon AA

MISCELLANEOUS PARTS

FB1501

RBLN-0020CEZZ+ J Ferrite Bead AB P854 QPLGN0741CEZZ J Plug, 7-pin(YBN) AC P860 QPLGN0841CEZZ J Plug, 8-pin(GBN) AB P861 QPLGN0241CEZZ J Plug, 2-pin(PU) AA SC850 QSOCV0937CEZZ J CRT Socket AL RDA850

PRDAR0248PEFW R Heat Sink, for IC850 AF RDA1506

PRDAR5072CEFW J Heat Sink, for Q1506 AC RDA1507

PRDAR5072CEFW J Heat Sink, for Q1507 AC

LX-BZ3100CEFD J Screw AA

RESISTORS

[M-Ox.··· Metal Oxide]

R850 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA R851 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA R852 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA

å R853 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA å R854 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA å R855 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA

R856 VRD-RM2HD224J* J 220k 1/2W Carbon AA R857 VRD-RM2HD224J* J 220k 1/2W Carbon AA R858 VRD-RM2HD224J* J 220k 1/2W Carbon AA R862 VRC-MA2HG152K* J 1.5k 1/2W Solid AA R863 VRC-MA2HG152K* J 1.5k 1/2W Solid AA R864 VRC-MA2HG152K* J 1.5k 1/2W Solid AA R867 VRS-SV2HC392J J 3.9k 1/2W M-Ox. AA R868 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA R869 VRD-RA2BE153J* J 15k 1/8W Carbon AA R870 VRD-RA2BE223J* X 22k 1/8W Carbon AE R871 VRD-RA2BE223J* X 22k 1/8W Carbon AE R872 VRD-RA2EE680J* J 68 1/4W Carbon AA R873 VRD-RM2HD224J* J 220k 1/2W Carbon AA

Page 33

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-C: DUNTKA602WEA1

AV UNIT

INTEGRATED CIRCUITS

IC1401 VHiTC90A53F-1* X I.C. AV IC1900 VHiCXA2089Q-1S J CXA2089Q AN

TRANSISTORS

Q1401 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1404 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1405 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1406 VS2SB709AR/-1* X 2SB709AR AC

VS2SA812-M51E

Q1407 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1408 VS2SB709AR/-1* X 2SB709AR AC

VS2SA812-M51E

Q1409 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1907 VS2SD601AR/-1* X 2SD601AR AC

VS2SC1623L61E

Q1909 VS2SB709AR/-1* X 2SB709AR AC

VS2SA812-M51E

C1454 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1455 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1456 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1457 VCEA0A1CW106M+ J 10 16V EL. AB C1458 VCEA0A1CW106M+ J 10 16V EL. AB C1460 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1470 VCCCCY1HH100D* J 10p 50V Ceramic AA C1473 VCCCCY1HH100D* J 10p 50V Ceramic AA C1474 VCCCCY1HH150J* X 15p 50V Ceramic AA C1900 VCKYCY1HB681K* X 680p 50V Ceramic AB C1901 VCKYCY1HB681K* X 680p 50V Ceramic AB C1903 VCKYCY1HB681K* X 680p 50V Ceramic AB C1904 VCEA0A1HW105M+ J 1 50V EL. AB C1905 VCEA0A1HW105M+ J 1 50V EL. AB C1906 VCKYCY1HB681K* X 680p 50V Ceramic AB C1907 VCEA0A1HW105M+ J 1 50V EL. AB C1908 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1909 VCEA0A1HW105M+ J 1 50V EL. AB C1910 VCEA0A1HW105M+ J 1 50V EL. AB C1911 VCEA0A1HW105M+ J 1 50V EL. AB C1912 VCEA0A1HW105M+ J 1 50V EL. AB C1913 VCEA0A1HW105M+ J 1 50V EL. AB C1914 VCKYCY1HB681K* X 680p 50V Ceramic AB C1915 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1916 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1919 VCEA0A1HW105M+ J 1 50V EL. AB C1921 VCKYCY1HB681K* X 680p 50V Ceramic AB C1922 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1923 VCEA0A1CW477M+ J 470 16V EL. AC C1926 VCEA0A1CW226M+ J 22 16V EL. AB C1927 VCKYCY1HB681K* X 680p 50V Ceramic AB C1928 VCEA0A1HW105M+ J 1 50V EL. AB C1929 VCKYCY1HB681K* X 680p 50V Ceramic AB C1937 VCEA0A1HW105M+ J 1 50V EL. AB C1938 VCEA0A1HW105M+ J 1 50V EL. AB C1939 VCEA0A1HW105M+ J 1 50V EL. AB C1951 VCKYCY1HB681K* X 680p 50V Ceramic AB

COILS

L1401 VP-XF100K0000* X Peaking 10µHAB L1402 VP-XF100K0000* X Peaking 10µHAB L1406 VP-XF330K0000* X Peaking 33µHAB L1407 VP-XF220K0000* J Peaking 22µHAB L1408 VP-XF100K0000* X Peaking 10µHAB L1410 VP-XF100K0000* X Peaking 10µHAB L1411 VP-XF100K0000* X Peaking 10µHAB L1413 VP-XF330K0000* X Peaking 33µHAB L1414 VP-XF330K0000* X Peaking 33µHAB

CAPACITORS

[EL.··· Electrolytic]

C1412 VCEA0A1CW106M+ J 10 16V EL. AB C1415 VCCCCY1HH220J* J 22p 50V Ceramic AA C1416 VCEA0A1CW477M+ J 470 16V EL. AC C1420 VCCCCY1HH120J* J 12p 50V Ceramic AA C1421 VCCCCY1HH120J* J 12p 50V Ceramic AA C1424 VCCCCY1HH270J* X 27p 50V Ceramic AA C1428 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1429 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1430 VCE9GA1CW106M+ X 10 16V EL._ (N.P) AB C1435 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1436 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1439 VCE9GA1CW106M+ X 10 16V EL._ (N.P) AB C1440 VCEA0A1CW106M+ J 10 16V EL. AB C1441 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1442 VCFYFA1HA474J+ X 0.47 50V Mylar AB C1443 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1444 VCKYCY1HB472K* J 4700p 50V Ceramic AA C1445 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1446 VCCCCY1HH181J* J 180p 50V Ceramic AA C1447 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C1448 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1449 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1451 VCEA0A1CW107M+ J 100 16V EL. AC C1452 VCKYCY1CF104Z* J 0.1 16V Ceramic AA C1453 VCKYCY1HF103Z* J 0.01 50V Ceramic AA

RJ12 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ13 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ14 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ15 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ16 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ18 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ19 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ20 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ21 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ22 VRS-CY1JF000J* J 0 1/16W M-Ox. AA RJ23 VRS-CY1JF000J* J 0 1/16W M-Ox. AA R1401 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1402 VRS-CY1JF681J* J 680 1/16W M-Ox. AA R1403 VRS-CY1JF332J* X 3.3k 1/16W M-Ox. AE R1404 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1405 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R1406 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1407 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1420 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R1422 VRS-CY1JF473J* J 47k 1/16W M-Ox. AA R1423 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1424 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1425 VRS-CY1JF221J* J 220 1/16W M-Ox. AA R1426 VRS-CY1JF391J* J 390 1/16W M-Ox. AA R1427 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1428 VRS-CY1JF473J* J 47k 1/16W M-Ox. AA R1429 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1430 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1431 VRS-CY1JF122J* X 1.2k 1/16W M-Ox. AB R1432 VRS-CY1JF331J* J 330 1/16W M-Ox. AA R1433 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1434 VRS-CY1JF471J* J 470 1/16W M-Ox. AA R1435 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1456 VRS-CY1JF564J* J 560k 1/16W M-Ox. AA R1457 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA

RESISTORS

[M-Ox.··· Metal Oxide]

Page 34

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-C: DUNTKA602WEA1

AV UNIT(Continued)

R1458 VRD-RA2BE103J* X 10k 1/8W Carbon AE R1459 VRS-CY1JF821J* J 820 1/16W M-Ox. AA R1466 VRS-CY1JF123J* J 12k 1/16W M-Ox. AA R1467 VRS-CY1JF822J* J 8.2k 1/16W M-Ox. AA R1900 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1930 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1932 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1935 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1936 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1937 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1938 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1941 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1942 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1943 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1944 VRS-CY1JF223J* J 22k 1/16W M-Ox. AA R1945 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1946 VRS-CY1JF103J* J 10k 1/16W M-Ox. AA R1948 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1954 VRD-RA2BE221J* J 220 1/8W Carbon AA R1955 VRD-RA2BE221J* J 220 1/8W Carbon AA R1956 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R1957 VRD-RA2BE101J* X 100 1/8W Carbon AE R1958 VRS-CY1JF101J* J 100 1/16W M-Ox. AA R1959 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1960 VRD-RA2BE101J* X 100 1/8W Carbon AE R1962 VRD-RA2BE101J* X 100 1/8W Carbon AE R1964 VRD-RA2BE101J* X 100 1/8W Carbon AE R1965 VRS-CY1JF222J* J 2.2k 1/16W M-Ox. AA R1966 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R1971 VRD-RA2BE101J* X 100 1/8W Carbon AE R1972 VRD-RA2BE101J* X 100 1/8W Carbon AE

P1904 QPLGN0641CEZZ J Plug, 6-pin(EJ) AB SC1901 SC1902 SC1903 JC202 VP-DF151K0000* X Peaking 150µHAB SLD1901

MISCELLANEOUS PARTS

QSOCN1598REZZ J Socket, 15-pin(VA) AD QSOCN1598REZZ J Socket, 15-pin(VB) AD QSOCN1098REZZ J Socket, 10-pin(VC) AC

PSLDM0102GJFW J Shield AD

PWB-H: DUNTKB225WEA4

DF MODULE UNIT

INTEGRATED CIRCUITS

IC1680 VHiKiA358P+-1 R KiA358P AD

VHiUPC358C/-1

VHiiR9358//-1

DIODES

D1610 RH-DX0202CEZZ* J Diode AD D1680 RH-EX0666GEZZ* X Zener Diode, 26V AB

COILS

L1640 RCiLZ0982CEZZ J Coil AK L1641 RCiLZ1022CEZZ J Coil AK

RCiLZ1034CEZZ L1681 VP-DF8R2K0000* X Peaking 8.2µHAB

CAPACITORS

[EL.··· Electrolytic]

C1610 VCFYSB2EB224K J 0.22 250V Mylar AD C1644 RC-FZ0364CEZZ J 0.62 200V Plastic AF C1677 VCKYPA1HB391K+ J 390p 50V Ceramic AA C1678 VCKYPA1HB391K+ J 390p 50V Ceramic AA C1684 VCFYFA1HA474J+ X 0.47 50V Mylar AB C1685 VCEA0A1VW477M+ J 470 35V EL. AB C1686 VCEA0A1VW108M+ X 1000 35V EL. AB C1696 VCQYTA1HM103J+ J 0.01 50V Mylar AB

RESISTORS

[M-Ox.··· Metal Oxide]

R1610 VRS-VV3DB103J J 10k 2W M-Ox. AA R1627 VRS-KT3LB122J J 1.2k 3W M-Ox. AC R1656 VRD-RA2BE394J* J 390k 1/8W Carbon AA R1657 VRD-RA2BE273J* X 27k 1/8W Carbon AE R1658 VRD-RA2BE333J* X 33k 1/8W Carbon AE R1659 VRD-RA2BE102J* X 1k 1/8W Carbon AE R1696 VRD-RA2BE394J* J 390k 1/8W Carbon AA

MISCELLANEOUS PARTS

P1602 QPLGN0661CEZZ J Plug, 6-pin(XA) AD P1604 QPLGN0157FJZZ J Plug, 2-pin AC

LHLDW1002PEZZ R Holder AB

Page 35

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-S: DUNTKB224WEA2

MTS MODULE UNIT

IC3001 VHiCXA2074Q-1* X CXA2074Q AU

CAPACITORS

INTEGRATED CIRCUITS

C3001 VCE9GA1HW475M+ J 4.7 50V EL._ (N.P) AB C3002 VCKYCY1HB562K* J 5600p 50V Ceramic AA C3003 VCQYTA1HM123J+ J 0.012 50V Mylar AA C3004 VCEA0A1HW105M+ J 1 50V EL. AB C3005 VCE9GA1HW475M+ J 4.7 50V EL._ (N.P) AB C3006 VCEA0A1HW106M+ J 10 50V EL. AB C3007 VCEA0A1HW475M+ J 4.7 50V EL. AB C3008 VCKYCY1HF103Z* J 0.01 50V Ceramic AA C3009 VCEA0A1CW227M+ J 220 16V EL. AC C3010 VCE9GA1HW475M+ J 4.7 50V EL._ (N.P) AB C3011 VCEA0A1HW475M+ J 4.7 50V EL. AB C3012 VCE9GA1HW475M+ J 4.7 50V EL._ (N.P) AB C3013 VCKYCY1HB272K* J 2700p 50V Ceramic AA C3014 VCQYTA1HM473J+ J 0.047 50V Mylar AB C3015 VCEACA1HC335K+ X 3.3 50V EL. AF C3016 VCE9GA1HW475M+ J 4.7 50V EL._ (N.P) AB C3017 VCEACA1CC106K+ X 10 16V EL. AF C3018 VCEA0A1HW105M+ J 1 50V EL. AB C3029 VCQYTA1HM682J+ J 6800p 50V Mylar AB C3030 VCQYTA1HM682J+ J 6800p 50V Mylar AB C3031 VCQYTA1HM473J+ J 0.047 50V Mylar AB C3032 VCQYTA1HM473J+ J 0.047 50V Mylar AB

[EL.··· Electrolytic]

RESISTORS

R3001 VRD-RA2BE221J* J 220 1/8W Carbon AA R3002 VRD-RA2BE221J* J 220 1/8W Carbon AA R3003 VRS-CY1JF105J* J 1M 1/16W M-Ox. AA R3004 VRS-CY1JF104J* J 100k 1/16W M-Ox. AA R3005 VRS-CY1JF623J* J 62k 1/16W M-Ox. AA R3007 VRS-CY1JF332J* X 3.3k 1/16W M-Ox. AE R3008 VRS-CY1JF302J* J 3k 1/16W M-Ox. AA R3010 VRS-CY1JF392J* J 3.9k 1/16W M-Ox. AA R3011 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA R3012 VRS-CY1JF102J* J 1k 1/16W M-Ox. AA

[M-Ox.··· Metal Oxide]

P3001 QPLGN0242FJ00 J Plug, 10-pin(EA) AE

MISCELLANEOUS PARTS

Page 36

29FL90

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

MISCELLANEOUS PARTS

ACC701

QACCD3065CESA J AC Cord(AC120V, 60Hz) AN

QACCDA001WJSA

SP1 VSP1206PB598A X Speaker(L), 8ohm AH

VSP1206PB648A

SP2 VSP1206PB598A X Speaker(R), 8ohm AH

or VSP1206PB648A LHLDK0014PEZZ R AC Cord Holder AD LHLDW1002PEZZ R Holder AB LHLDW1009PEZZ R Holder AA LHLDW1037PEZZ R Wire Holder AB LHLDW1060CEZZ J Holder AB LHLDZ1037MEZZ X Anode Clamp Holder AE LX-TZ0104GJFD X CRT Screw, x4 AF LX-WZ0112GJFD X CRT W asher , x8 AA QCNW-0165GJZZ X Connecting Cord(EJ) AD QCNW-A378WJZZ X Connecting Cord AB QCNW-A380WJZZ X Connecting Cord AC QCNW-A382WJZZ X Connecting Cord AC QCNW-A475WJZZ X Connecting Cord(SP) AC TCAUH3048GJZZ X Caution Card AB TLABM0003GJZZ X Model Label AB XTASD30P12000 J Screw, x4 AA XTASD40P12000 J Screw, x8 AA XTASD40P20000 J Screw, x6 AA

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKCA233WJZZ – Packing Case — SPAKP0109GJZZ – Wrapping Paper — SPAKX0132GJZZ – Buffer Material — SSAKA0101GJZZ – Polyethylene Bag — TLABZA145WJZZ – Carton Label —

CABINET PARTS

1 CCABA0178WEH4 X Front Cabinet Ass'y BE 1-1

Not Available

1-2 HBDGB3141CESA J "SHARP" Badge AG 1-3 HDECQ0105GJSA X RC/LED Cover AF 1-4 JBTN-0128GJKA X Button, Menu, AG

1-5 JBTN-0129GJKA X Button, Power AG 1-6 HDECQ0104GJKA X Decoration Plate 1-7 HiNDP0107GJSA X Indication Plate AB 1-8 GDORF0105GJKA X AV Terminal Door 2 GCABB0155GJKA X Rear Cabinet AY

– Front Cabinet —

CH-Up/Down, VOL-Up/Down

SUPPLIED ACCESSORIES

TiNS-A309WJZZ X Operation Manual AH RRMCGA035WJSC X Infrared R/C Unit AR

CABINET PARTS LOCATION

1-1

1-2

1-5

1-6

1-3

1-4

1-8

1-7

Page 37

★ Polyethylene Sheet

PACKING OF THE SET

★ Polyethylene Bag

Operation Manual Infrared R/C Unit Batteries

★

29FL90

FRONT

★Buffer Material

★ Packing Case

Use tape to fix the top side of packing case.

★ MARK : Not replacement items.

REAR

Use 12 staples to fix the bottom side of packing case.

Page 38

29FL90

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

D SEM P SEMEX TQ1382-S

Sep. 2002 Printed in Japan

MI. KD

SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Yaita, Tochigi 329-2193, Japan
