SHARP 27KX2000 Service Manual

27K-X2000

SERVICE MANUAL

S68S727K-X200

COLOR TELEVISION

Chassis No.SN-84

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.

27K-X2000

CONTENTS

Page

» ELECTRICAL SPECIFICATIONS......................................................................................................... 1

» IMPORTANT SERVICE SAFETY PRECAUTION ................................................................................2

» LOCATION OF USER'S CONTROL.....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS ............................................................................... 5

» CHASSIS LAYOUT ............................................................................................................................ 13

» BLOCK DIAGRAM ............................................................................................................................. 15

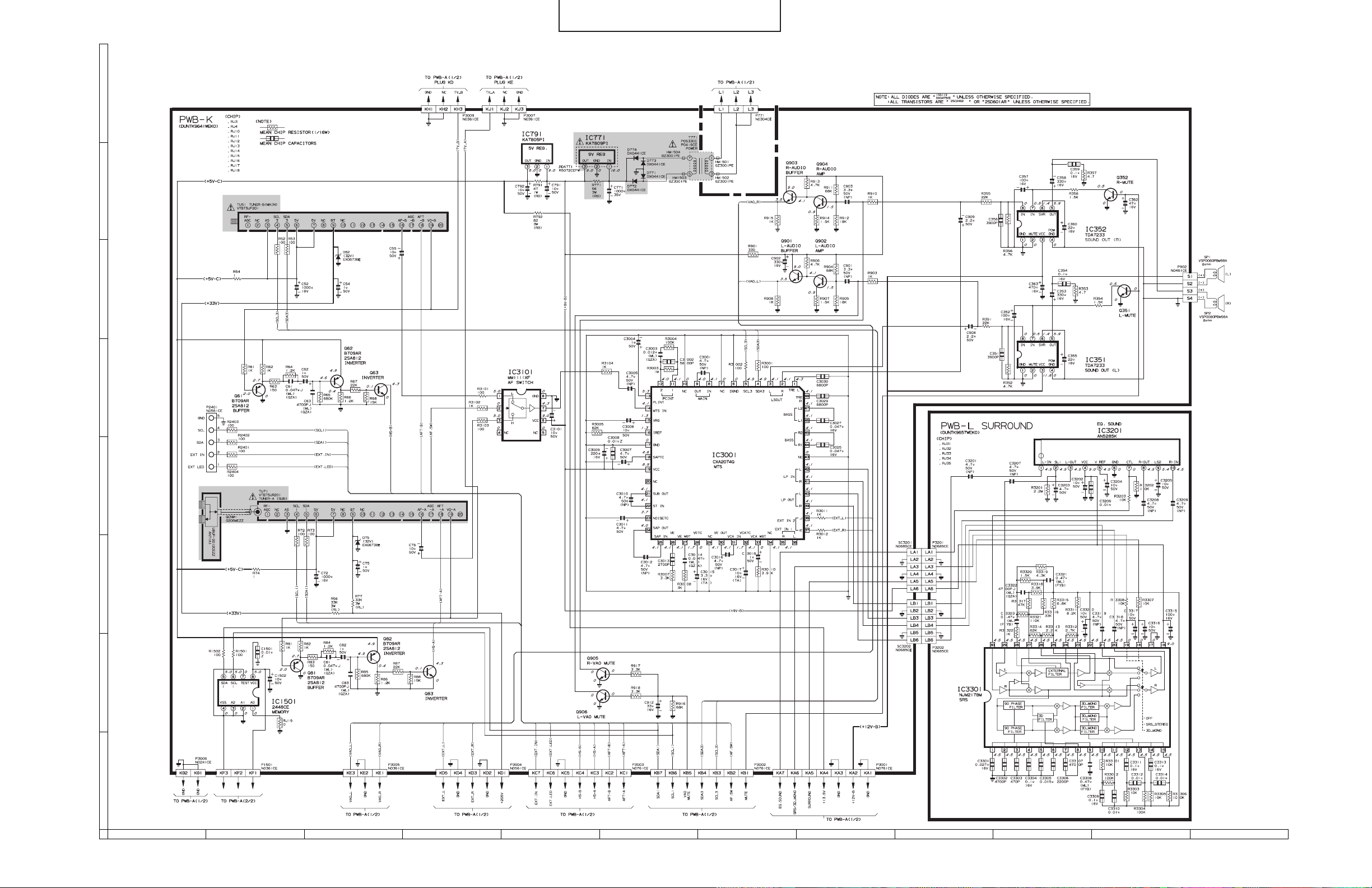

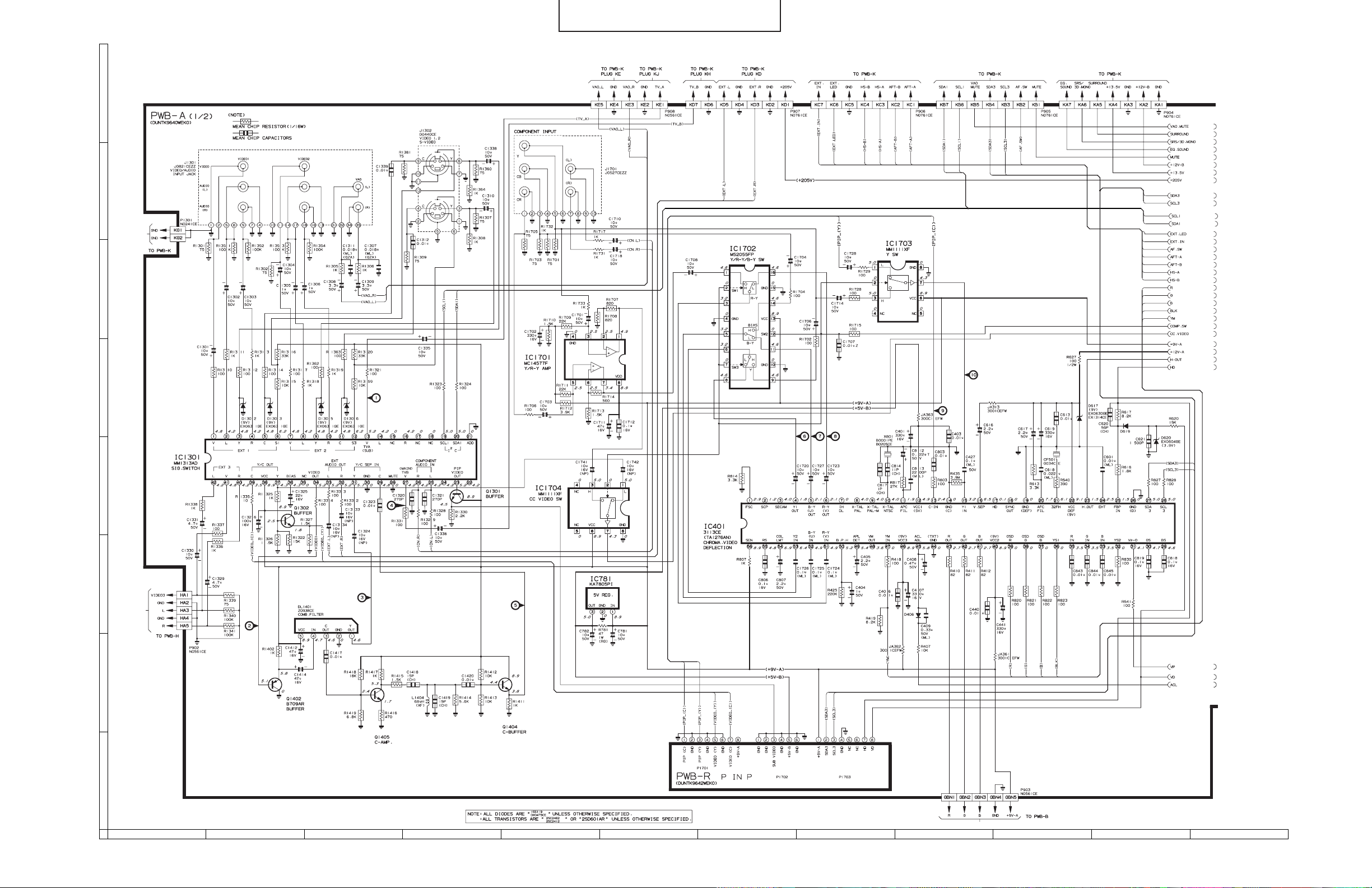

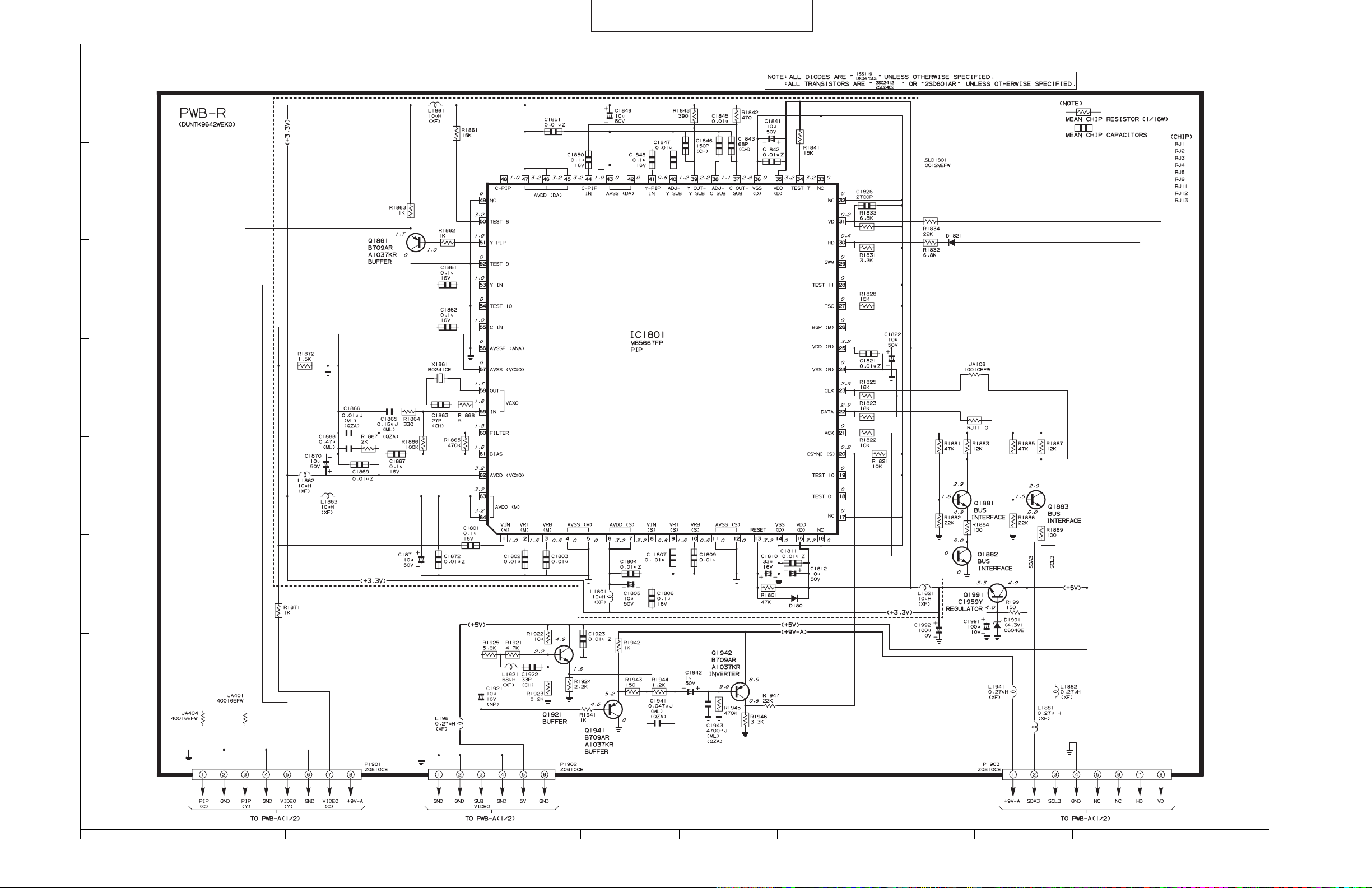

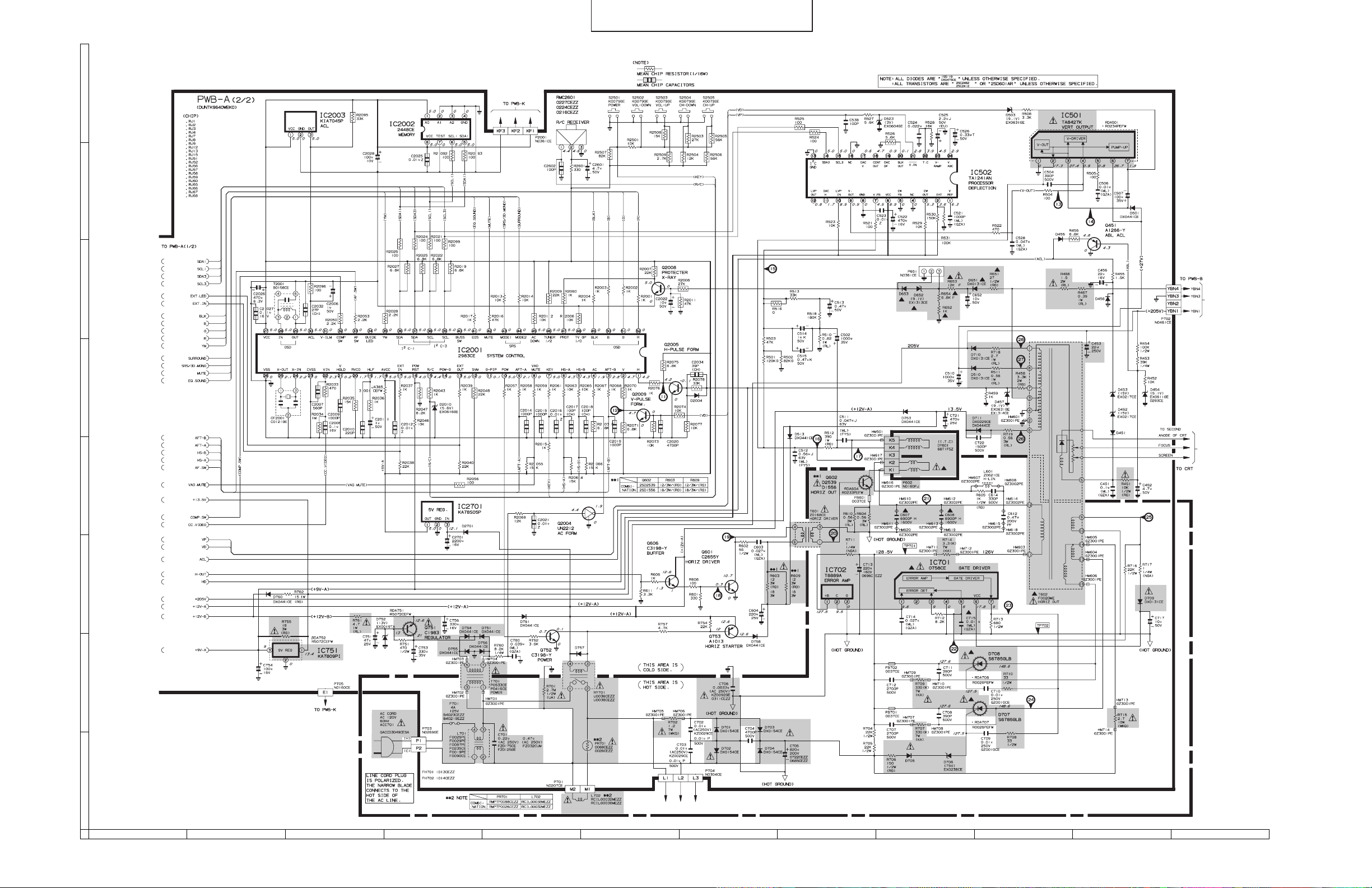

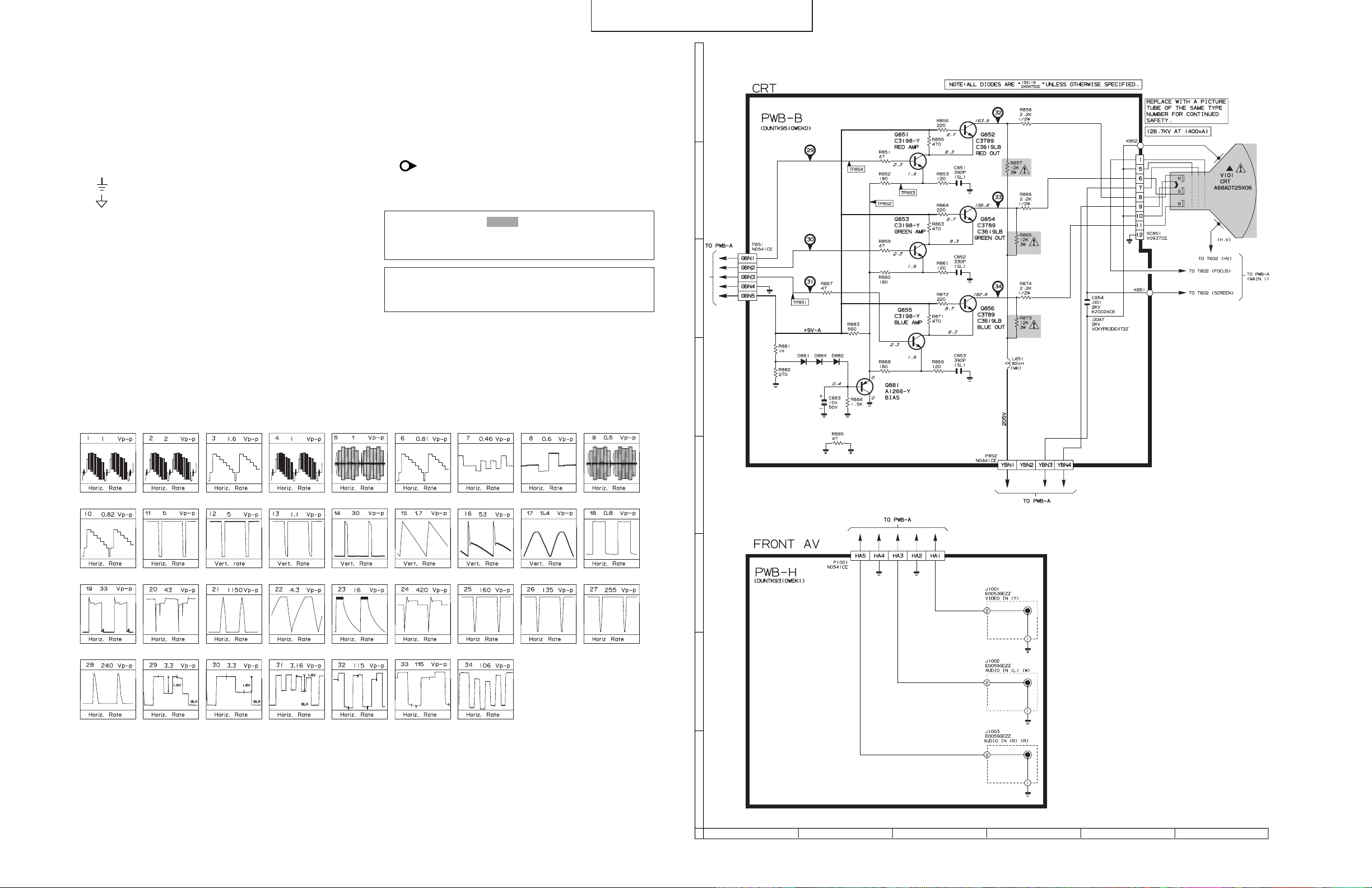

» SCHEMATIC DIAGRAMS .................................................................................................................. 17

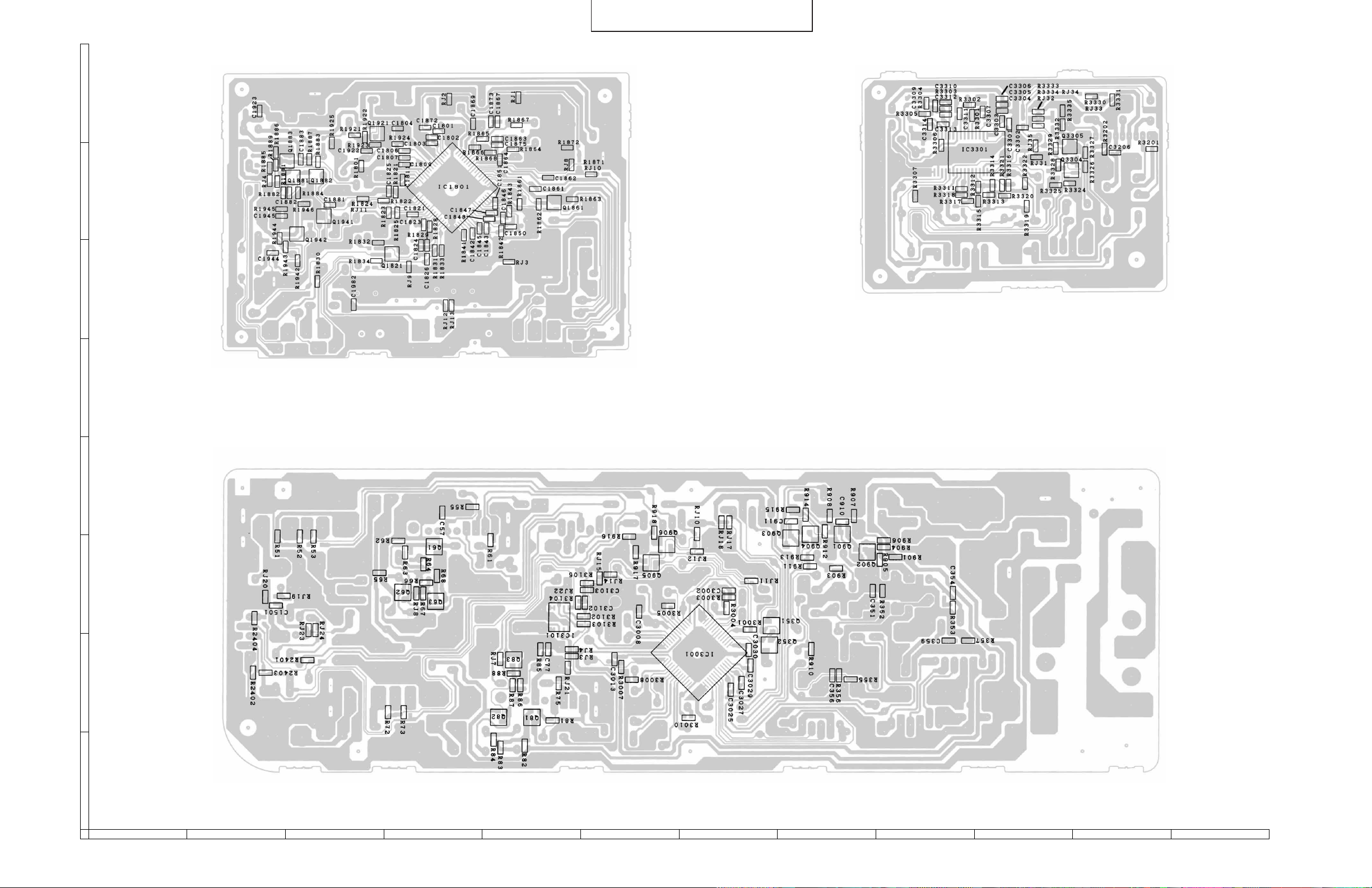

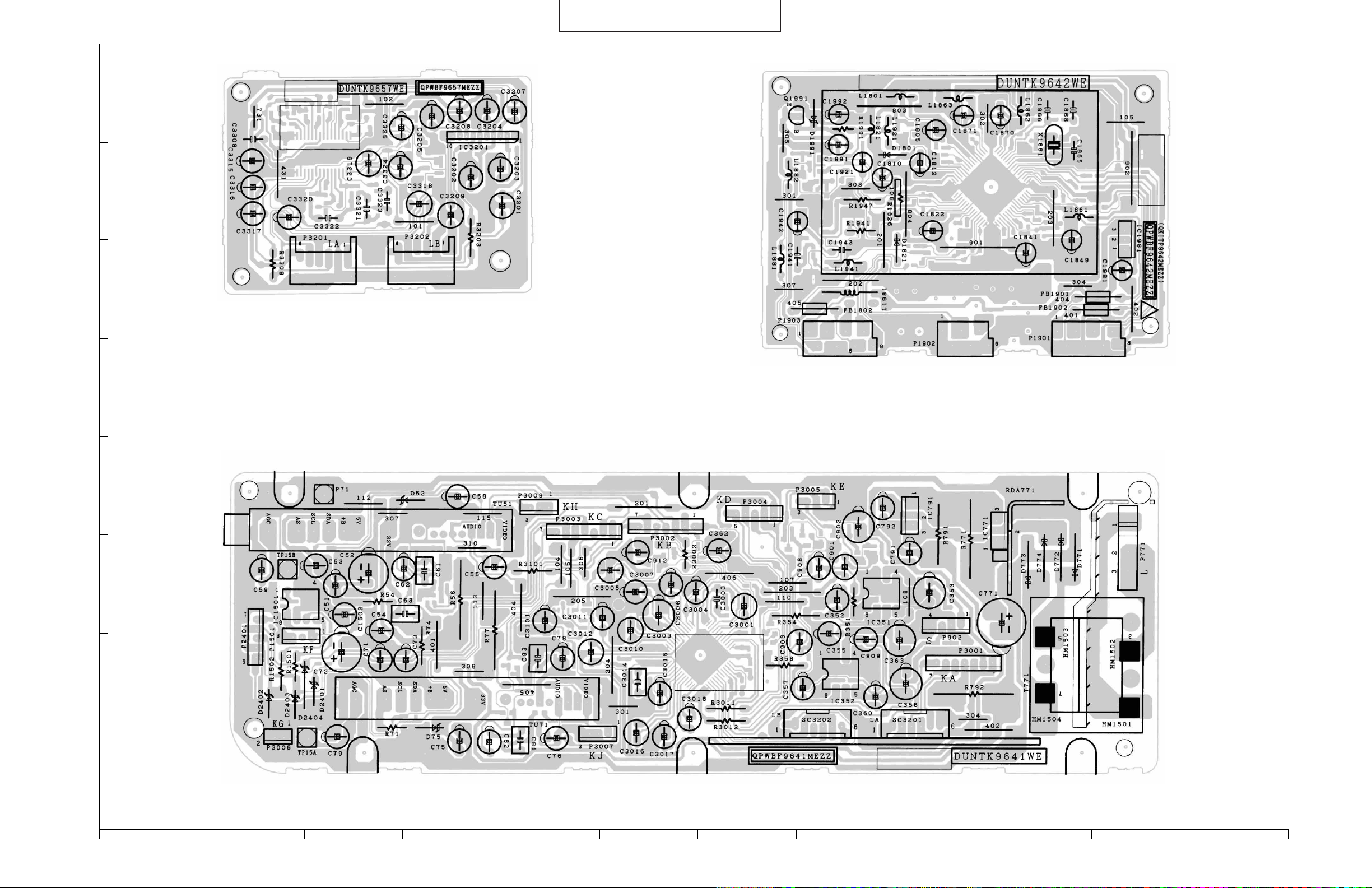

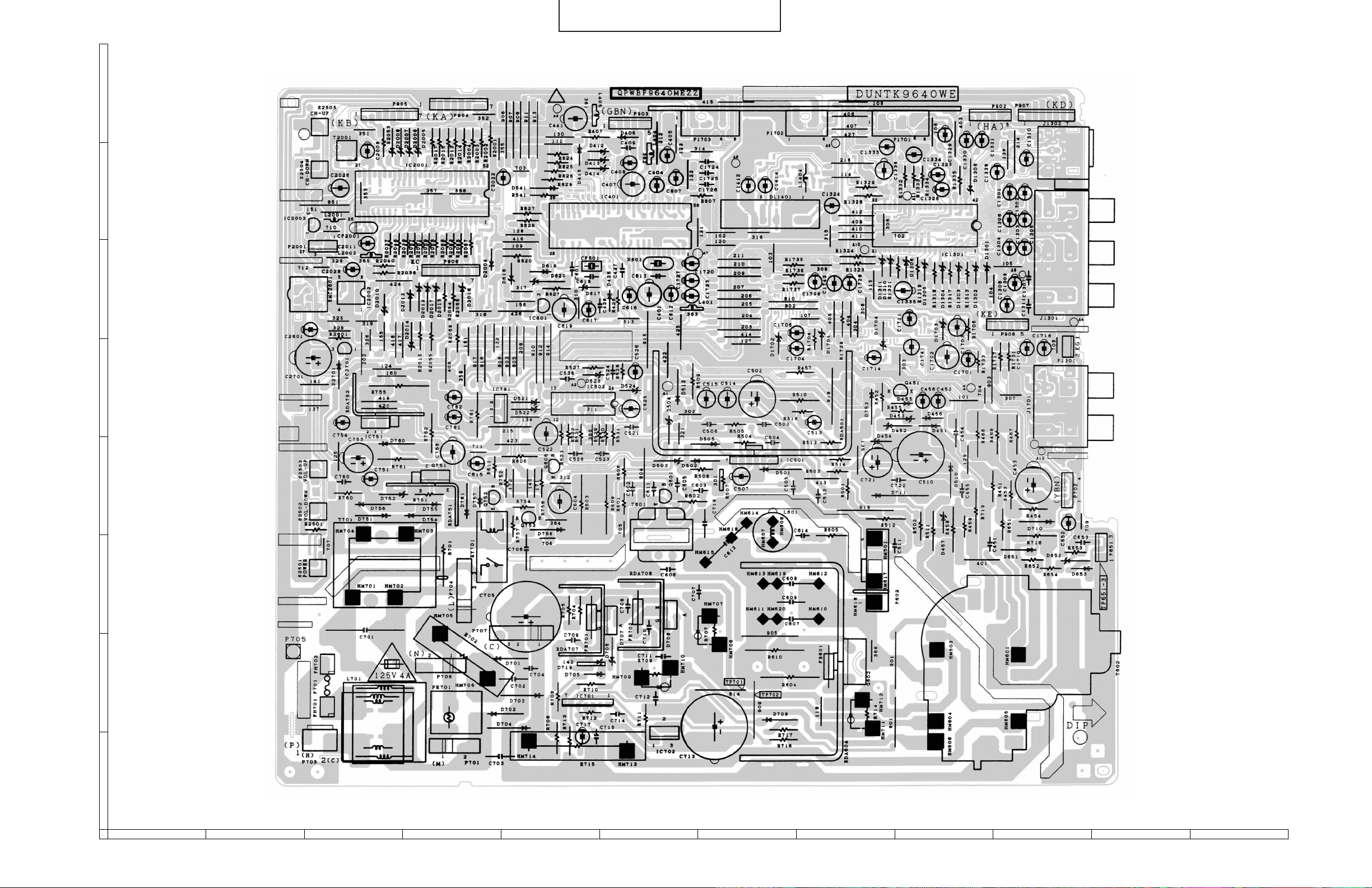

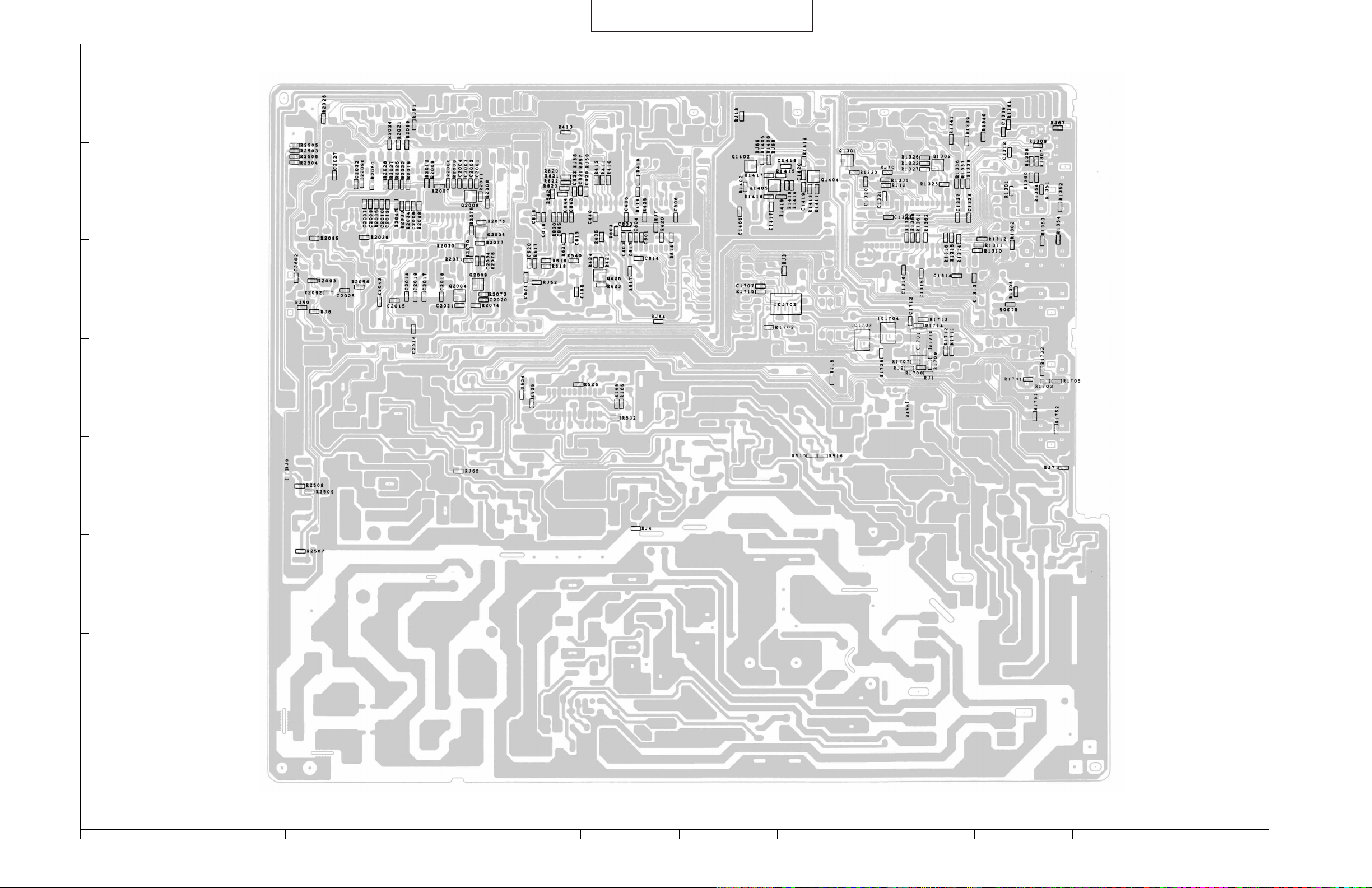

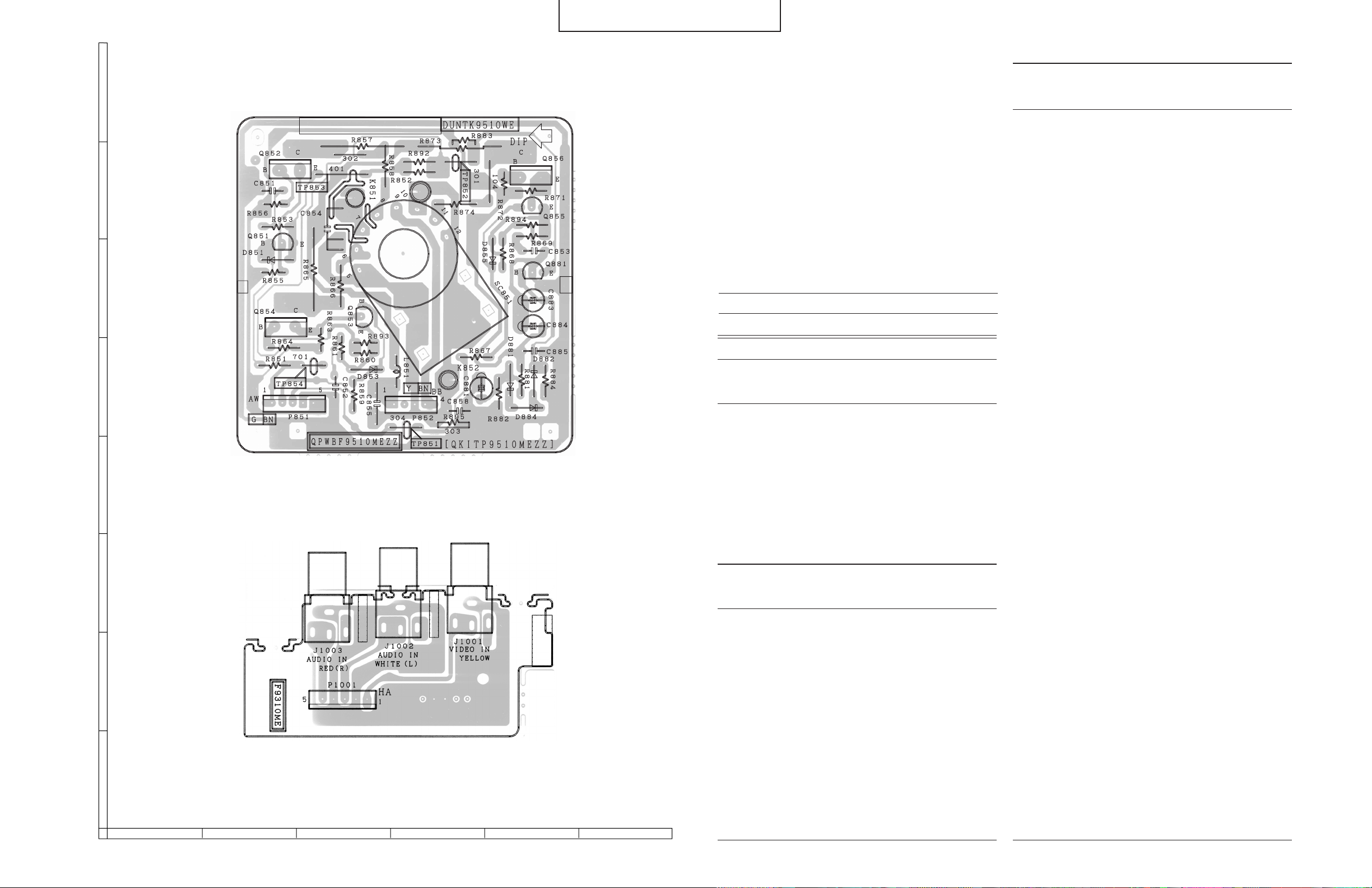

» PRINTED WIRING BOARD ASSEMBLIES........................................................................................27

» REPLACEMENT PARTS LIST ........................................................................................................... 36

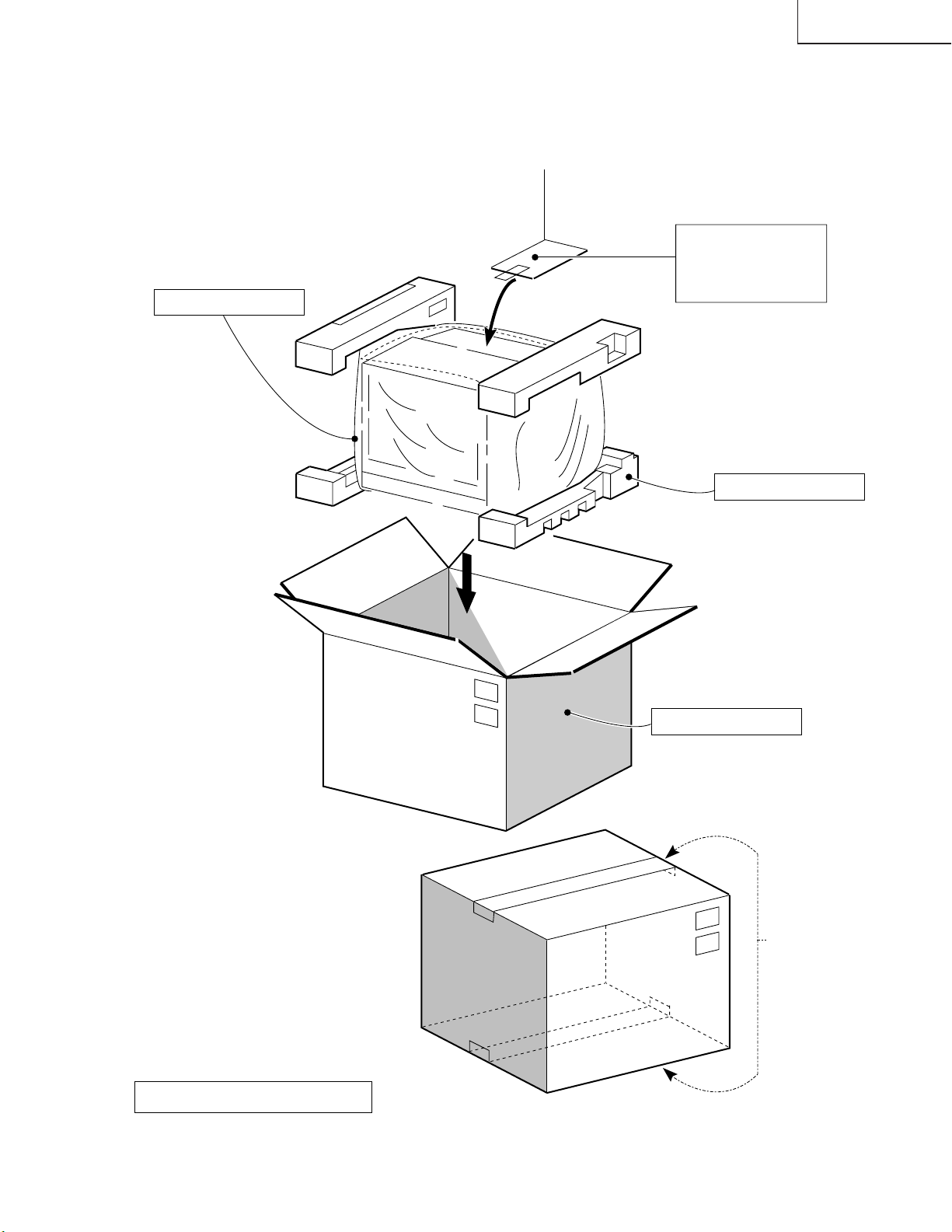

» PACKING OF THE SET ..................................................................................................................... 49

ELECTRICAL SPECIFICATIONS

POWER INPUT ................................................... 120 V AC 60 Hz

POWER RATING..................................................................135 W

PICTURE SIZE ........................................... 2,187cm2 (339sq inch)

CONVERGENCE............................................................. Magnetic

SWEEP DEFLECTION .....................................................Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency ...................................... 41.25 MHz

Color Sub-Carrier Frequency..................................... 42.17 MHz

(Nominal)

AUDIO POWER

OUTPUT RATING.............. 1.3W + 1.3W (at 10% distortion and

Dual CH Operate)

SPEAKER

SIZE ...................................................................... 8 cm (Round)

VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF .................................................... 75 ohm Unbalanced

TUNING RANGES

VHF-Channels .............................................................. 2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels ..........................................................1 thru 125

(EIA, Channel Plan U.S.A.)

Specifications are subject to change without
prior notice.

SHARP CORPORATION

This document has been published to be used for after
sales service only.
The contents are subject to change without notice.

1

27K-X2000

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems
which are separated by insulating material. The non­isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A­125V FUSE.

SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE

When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic­ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)

1. Picture tube in this receiver employs integral
implosion protection.

2. Replace with tube of the same type number for
continued safety .

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.

X-RADIATION AND HIGH VOLTAGE LIMITS

1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. However, the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that X­radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.

2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.

3. High voltage should always be kept at the rated value

−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a colour chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
not exceed the specified value and that it is regulating
correctly .

5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.

6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.

2

2
2

IMPORTANT SERVICE SAFETY PRECAUTION

(Continued)

27K-X2000

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks.

1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

» Plug the AC cord directly into a 120 volt AC outlet,

(Do not use an isolation transformer for this test).

» Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.

» Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity to measure the AC voltage drop
across the resistor.

» Connect the resistor connection to all exposed metal

parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC ine cord
plug connection reversed. (If necessary, a non­polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.

1.5k ohm
10W

0.15µF

TEST PROBE

TO EXPOSED

METAL PARTS

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

CONNECT TO
KNOWN EARTH
GROUND

SAFETY NOTICE

Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.

3

27K-X2000

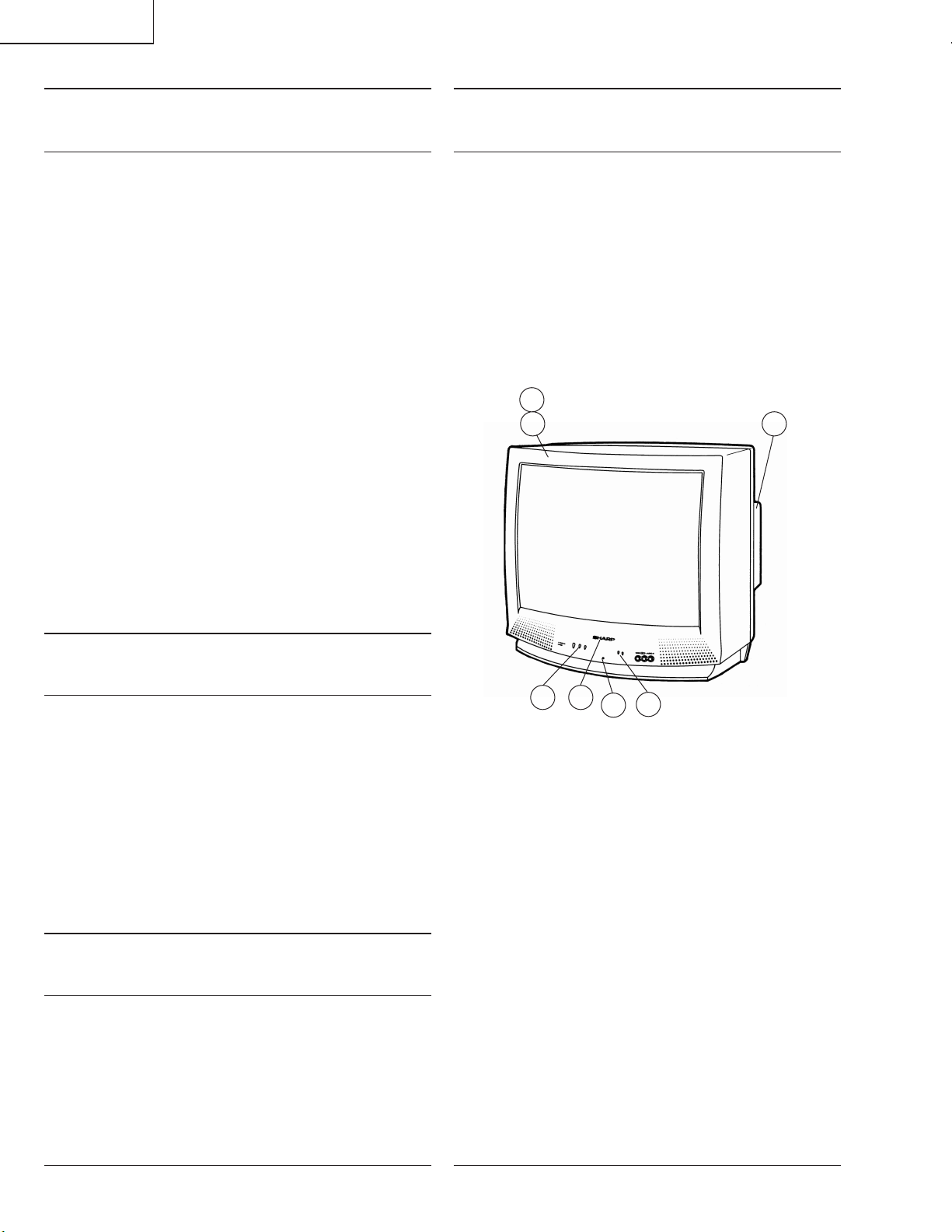

LOCATION OF USER'S CONTROL

4

27K-X2000

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse

(F701), mounted on PWB-A, wired into one
side of the AC line input.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:

1) Apply 120V AC using a variac transformer for
accurate input voltage.

2) Allow for warm up and adjust all customer controls
for normal picture and sound.

3) Receive a good local channel.

4) Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 8.9V ±0.5V.

5) Apply external 10.9V DC at TP653 by using an
external DC supply, TV must be shut off.

6) T o reset the protector , unplug the AC cord. Now make
sure that normal picture appears on the screen.

7) If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.

HIGH VOLTAGE CHECK

High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:

1. Connect an accurate high voltage meter between
ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.

3. Enter the service mode and select the service
adjustment "S21" and Bus data "01" (Y-mute on).

4. The voltage should be approximately, 28.1kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.

5

27K-X2000

For adjustments of this model, the bus data is converted to various analog signals by the D/A converter
circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv­ice adjustments are required.

1. Service mode

Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.

2. Service number selection

Once in the service mode, press the Ch-up or Ch­down button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "S01" to "A05". Select the
item you wish to adjust.

3. Data number selection

Press the Vol-up or down button to adjust the data
number.

SERVICE ADJUSTMENT NUMBER

To enter the service mode and exit serv­ice mode.

While pressing the Vol-up and Ch-up buttons at the
sametime, plug the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.

DATA NUMBER

CHANNEL

(INPUT)

S01 081

2

ANT-B

S01 D:00

Figure A.

6

27K-X2000

» To call up the service mode, hold down the CH UP and VOL UP keys of the unit at once and plug the AC power

cord into a wall outlet. The unit switches on and comes in the service mode.

» Now hold down both the CH UP and CH DOWN keys of the unit for 2 seconds or longer. The above default values

are written in the EEPROM.

SERVICE

No.

S01 PICTURE HEIGHT 0 ~ 127 71 RF signal input (TUNER-B) Deflection processor IC (IC502) adjusted

S02 V-LINEARITY 0 ~ 31 27 ” ”
S03 V-∫CORRECTION 0 ~ 63 40 40 ” ”
S04 PICTURE WIDTH 0 ~ 63 50 45 ” ”
S05 E-W PARABOLA 0 ~ 63 15 32 ” ”
S06 E-W CORNER 0 ~ 31 13 16 ” ”
S07 TRAPEZIUM 0 ~ 127 65 64 ” ”
S08 AGC SW 0 ~ 1 1 1 ” ”
S09
S10 TINT 0 ~ 63 20 ” ”
S11 COLOR(SUB COLOR) 0 ~ 31 13 ” ”
S12 BRIGHT
S13 SHARP(SHARPNESS) 0 ~ 27 5 0 ” ”
S14 V-POSITION 0 ~ 7 0 0 ” ”
S15 H-POSITION 0 ~ 31 17 ” ”
S16 R CUT-OFF 0 ~ 255 64 ” ”
S17 G CUT-OFF 0 ~ 255 64 ” ”
S18 B CUT-OFF 0 ~ 255 64 ” ”
S19 G(R) DRIVE 0 ~ 127 64 ” ”
S20 B DRIVE 0 ~ 127 64 ” ”
S21 Y-MUTE/V-OFF 0 ~ 2 0 ”
S22 Y-γ CURVE 0 ~ 3 0 3 ” VCJ IC (IC401) adjusted
S23 VSM PHASE 0 ~ 3 1 3 ” ”
S24 APACON PEAK f0 0 ~ 7 1 1 ” ”
S25 DC RESTORATION 0 ~ 63 21 21 ” ”
S26
S27
S28 APL VS BPS 0 ~ 3 1 1 ” ”
S29 B.L.C. 0 ~ 1 1 1 ” ”
S30 DYNAMIC ABL POINT 0 ~ 7 4 0 ” ”
S31 DYNAMIC ABL GAIN 0 ~ 7 4 7 ” ”
S32 ABL POINT 0 ~ 7 3 3 ” ”
S33 ABL GAIN 0 ~ 7 3 2 ” ”
S34 Y-DL 0 ~ 1 1 0 ” ”
S35 TOF-f0 0 ~ 7 4 7 ” ”
S36 TOF-Q 0 ~ 7 4 4 ” ”
S37 VSM GAIN 0 ~ 3 1 3 ” ”
S38 OSD SL 0 ~ 1 0 1 ” ”

ADJUSTMENT ITEM

PICTURE(SUB CONTRAST)

(BRIGHTNESS)

DC RESTORATION LIMIT
BLACK STRETCH POINT

VARIABLE

DATA RANG

0 ~ 31 28 ” VCJ IC (IC401) adjusted

0 ~ 101 58 ” ”

0 ~ 3 0 3 ” ”
0 ~ 7 3 3 ” ”

INITIAL

VALUE

FIXED

VALUE

INPUT CONDITIONS

(or EXT. Video input)

CONTROL DESTINATION

00: Normal, 01: Y-mute, 03: Horizontal Y-mute

7

27K-X2000

SERVICE

No.
S39 C-DECODE 0 ~ 255 105 161 ” ”
S40 OSD POSITION 0 ~ 15 11 ” C.C. display positioning
M01 INPUT LEVEL (ATT) 0 ~ 15 7 ” MTS IC (IC3001) adjusted
M02 MTS VCO 0 ~ 63 37 ” ”
M03 FILTER 0 ~ 63 30 ” ”
M04 WIDE BAND 0 ~ 63 17 ” ”
M05 SPECTRAL 0 ~ 63 22 ” ”
M06 MTS DATA READ 0 ~ 1 0 Note 1 ” Factory-adjusted only
P01
P02 PIP TINT (TINT) 0 ~ 63 41 37 ” ”
P03
P04 Y-OFFSET(Y_OFFSET) 0 ~ 31 9 09 ” ”
P05 PIP H-POSI(HXA) 0 ~ 255 9 10 ” ”
P06 BGP(HADJ) 0 ~ 15 0 00 ” ”
P07
C01
C02 TINT-C 0 ~ 63 20 14 ” ”
C03
C04
C05
C06 V-POSITION-C 0 ~ 7 0 0 ” ”
C07 H-POSITION-C 0 ~ 31 19 ” ”
C08 R CUT-OFF-C 0 ~ 255 64 ” ”
C09 G CUT-OFF-C 0 ~ 255 64 ” ”
C10 B CUT-OFF-C 0 ~ 255 64 ” ”
C11 G(R) DRIVE-C 0 ~ 127 64 ” ”
C12 B DRIVE-C 0 ~ 127 64 ” ”
C13 VSM GAIN-C 0 ~ 3 2 3 ” ”
A01 PICTURE-2 0 ~ 31 28 RF signal input (TUNER-A) ”
A02 TINT-2 0 ~ 63 20 ” ”
A03 INPUT LEVEL-2 0 ~ 15 7 ” MTS IC (IC3001) adjusted
A04 WIDE BAND-2 0 ~ 63 17 ” ”
A05 SPECTRAL-2 0 ~ 63 22 ” ”

ADJUSTMENT ITEM

PIP Y-LEVEL(CONTRAST)

PIP COLOR(COLOR_SAT)

FREE RUN(FREE_RUN_ADJ)

PICTURE-C(SUB CONTRAST)

COLOR-C(SUB COLOR)
BRIGHT-C(BRIGHTNESS)
SHARP-C(SHARPNESS)

VARIABLE

DATA RANG

0 ~ 127 43 ” P-IN-P adjusted

0 ~ 127 55 RF signal input (TUNER-B) P-IN-P adjusted

0 ~ 15 11 11 ” ”
0 ~ 31 28 14 Component signal input VCJ IC (IC401) adjusted

0 ~ 63 13 3 ” ”
0 ~ 101 58 ” ”
0 ~ 27 5 0 ” ”

INITIAL

VALUE

FIXED

VALUE

INPUT CONDITIONS

CONTROL DESTINATION

Note 1 : This item is used only at the manufacturing factory.

Do not change the data. (If this setting is changed to "1", the adjustment data may get wrong.)

Table - A

8

27K-X2000

Holding down both the CH-up/down buttons on the TV set at service mode for more than 2 seconds will automatically
write the above initial values into IC2002.

PART REPLACED

IC2001

IC401

IC2002

CRT

IC3001

IC1801

ADJUSTMENT

NECESSARY

X

X

X

X

X

UNNECESSARY

X

Table - B

NOTES

Data is stored in IC2002.

The adjustment is needed to compensate for characteristics
of parts including IC401.

Holding down both the CH-up/down bottons on the TV set in
the service mode for more than 2 seconds will automatically
write the above initial values into IC2002. Then perform a
complete adjustment.

Adjust items related to picture tube only.

Adjust items related to MTS only (M01~M05).

Adjust items related to P-IN-P only (P01~P07).

9

27K-X2000

SERVICE ADJUSTMENT

Entering The Fixed Values

1. Before starting all the adjustments, enter the fixed
values listed in Table - A.

Screen Adjustment

1. Feed the B/W pattern signal from the signal generator.

2. Connect the oscilloscope probe between TP854 and
GND.

3. Set the S21 bus data to "01" to get the Y signal mute.

4. Adjust the S16(R), S17(G) and S18(B) settings to
Step "64".

5. Adjust the S12 (SUB-BRIGHT) setting to fix the
voltage between TP854 and GND at 2.15V.

6. Adjust the SCREEN control until the raster becomes
as dim as possible and just visible.

7. Select a luminance-short gun, and adjust the bus data
of S16(R), S17(G) or S18(B) to have the luminance
at the white level.

8. Adjust the SCREEN control again to cut off the CRT.

9. Set the S21 bus data to "00" to deactivate the Y signal
mute.

Sub-Picture Adjustment

1. Receive a good local channel signal through the
antenna B.

2. Make sure the customer picture control is set to
maximum.

3. Enter the service mode and select the service
adjustment "S09".

4. Adjust the data value to achieve normal contrast
range.

5. Receive the same local channel through the antenna
A.

6. Adjust the "A01" setting to achieve the same contrast
as that with the antenna B.

Sub-Tint Adjustment

1. Receive a good local channel through the antenna
B.

2. Set customer tint control to center of it's range.

3. Enter the service mode and select the service
adjustment "S10".

4. Adjust "S10" data value to obtain normal flesh tones.

5. Receive the same local channel through the antenna
A.

6. Adjust the "A02" setting to achieve the same tint as
that with the antenna B.

2.15 ± 0.15 V

DC

GND

White Balance Adjustment

White balance adjustment of composite signal input

1. Feed the B/W pattern signal via the video input
terminal from the signal generator.

2. Adjust the "S19" and "S20" settings to obtain the
specified white level.

White balance adjustment of component signal input

1. Feed the B/W pattern signal via the component signal
input Y terminal from the signal generator.

2. Set the S21 bus data to "01" to get the Y signal mute.

3. Adjust the C08(R), C09(G) and C10(B) settings to
step "64".

4. Select a luminance-short gun, and adjust the bus data
of C08(R), C09(G) or C10(B) to have the luminance
at the white level.

5. Adjust the "C11" and "12" settings to obtain the
specified white level.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center
position .

3. Enter the service mode and select service adjustment
"S1 1".

4. Adjust "S11" data value to obtain normal color level.

10

27K-X2000

Sub-Brightness Adjustment

1. Have unit receive a good local channel.

2. Make sure the customer brightness control is set to
center position.

3. Enter the service mode and select the service
adjustment "S12".

4. Adjust "S12" data value to obtain normal brightness
level.

5. Enter the same data value as the "S12" setting to
"C04".

Vertical Linearity Adjustment

1. Feed the circular or crosshatch pattern signal.

2. Enter the service mode and select the service
adjustment "S02".

3. While observing the top and bottom of the screen,
adjust "S02" data value to proper vertical linearity.

Vertical Size Adjustment

1. Feed the circular or crosshatch pattern signal.

2. Enter the service mode and select the service
adjustment "S01".

3. While observing the top and bottom of the screen,
adjust "S01" data value to proper vertical size.

Horizontal Position Adjustment

1. Have unit receive a good local channel.

2. Enter the service mode and select the service
adjustment "S15".

3. Adjust "S15" data value so that picture is centered.

4. Enter the "S15" setting plus 2 steps to "C07".

Caption Position Adjustment (Horizontal)

1. Have unit receive a good local channel.

2. Enter the service mode and select the service
adjustment "S40".

3. A black text box appears on the screen. (see Figure
B below)

4. Adjust "S40" data value so that text box is positioned
in the center of the screen.

Vertical Phase Adjustment

1. Enter the service mode and select the service
adjustment "S14".

2. Adjust data value to "00".

Note: This must be set "00" when changed data retrace

line will appear.

Figure B.

11

27K-X2000

P-IN-P ADJUSTMENTMTS ADJUSTMENT

MTS Level Adjustment

1. Feed the following monaural signal to pin (14) of
IC3001.

Monaural signal : 300Hz, 245mVrms

2. Connect the rms voltmeter to pin (39) of IC3001.

3. Enter the service mode and select the service
adjustment "M01".

4. Adjust the data so that the rms voltmeter reads.

Spec.: 490 ±10mVrms.

MTS VCO Adjustment

1. Keep the unit in no-signal state.

2. Connect the frequency counter to pin (39) of IC3001.

3. Connect a capacitor (100µF, 50V) in between
positive(+) side of C3005 and ground.

4. Enter the service mode and select the service
adjustment "M02"

5. Adjust the data so that the frequency counter reads.

Spec.: 62.94 ±0.75kHz.

Filter Adjustment

1. Feed the following stereo pilot signal to pin (14) of
IC3001 .
Stereo pilot signal: 9.4kHz, 600mVrms.

2. Enter the service mode and select the service
adjustment "M03".

3. Adjust the data at the point where "OK" appears on
the screen. The "OK" represents the approximate
center of the adjustable range of the data.

Separation Adjustment

1. Connect the rms voltmeter to pin (39) of IC3001.

2. Receive the following composite stereo signal 1.
Composite stereo signal: 30% modulation, left
channel only, noise reduction on, 300Hz

3. Enter the service mode and select the service
adjustment "M04".

4. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.

5. Receive the following composite stereo signal 2.
Stereo signal: 30% modulation, left channel only,
noise reduction on, 3kHz

6. Enter the service mode and select the service
adjustment "M05".

7. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.

8. Take the above steps 1 thru 8 again for fine
adjustment.

P-IN-P Y LEVEL Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service
adjustment "P01".

3. Adjust "P01" data value to obtain normal contrast
level.

P-IN-P TINT Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service
adjustment "P02".

3. Adjust data value to "37".

P-IN-P COLOR Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center
position.

3. Enter the service mode and select service adjustment
"P03".

4. Adjust "P03" data value to obtain normal color level.

P-IN-P Y -OFF SET Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service
adjustment "P04".

3. Adjust data value to "09".

P-IN-P H-POSITION Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service
adjustment "P05".

3. Adjust data value to "10".

P-IN-P BURST GATE PULSE (for MAIN)

1. Receive a good local channel.

2. Enter the service mode and select the service
adjustment "P06".

3. Adjust data value to "00".

P-IN-P FREE RUN

1. Recieve a good local channel.

2. Enter the service mode and select service adjustment
"P07".

3. Adjust data value to "11".

12

27K-X2000 27K-X2000

CHASSIS LAYOUT

H

G

F

PWB-B

PWB-A

PWB-H

PWB-K

E

D

PWB-L

PWB-R

C

B

A

121110987654321

13 14

BLOCK DIAGRAM

H

G

F

27K-X2000 27K-X2000

E

D

C

B

A

121110987654321

15 16

27K-X2000 27K-X2000

DESCRIPTION OF SCHEMATIC DIAGRAM

NOTES:

H

1. The unit of resistance "ohm" is omitted.
(K=kΩ=1000Ω, M=MΩ)

2. All resistors are 1/8 watt, unless otherwise noted.

3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

G

6. indicates hot ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.

F

2. All voltages measured with 1000µ V B & W or Color
signal.

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.

2.

indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)

å

AND SHADED ( ) COMPONENTS

= SAFETY RELATED PARTS.

'

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.

SCHEMATIC DIAGRAM: CRT, FRONT AV Unit

H

G

F

E

E

WAVE FORMS

D

C

B

D

C

B

A

A

654321

121110987654321

17 18

SCHEMATIC DIAGRAM: MAIN-1 Unit

H

G

F

27K-X2000 27K-X2000

E

D

C

B

A

121110987654321

19 20

SCHEMATIC DIAGRAM: MAIN-2 Unit

H

G

F

27K-X2000 27K-X2000

E

D

C

B

A

121110987654321

21 22

SCHEMATIC DIAGRAM: SUB and SURROUND Unit

H

G

F

27K-X2000 27K-X2000

E

D

C

B

A

121110987654321

23 24

27K-X2000 27K-X2000

SCHEMATIC DIAGRAM: P-IN-P Unit

H

G

F

E

D

C

B

A

121110987654321

25 26

PRINTED WIRING BOARD ASSEMBLIES

H

G

F

27K-X2000 27K-X2000

E

D

C

B

A

PWB-A : MAIN Unit (Wiring Side)

121110987654321

27 28

27K-X2000 27K-X2000

H

G

F

E

D

C

B

A

PWB-A : MAIN Unit (Chip Parts Side)

121110987654321

3029

27K-X2000 27K-X2000

H

G

F

PWB-L : SURROUND Unit (Wiring Side)

E

D

C

B

PWB-R : P-IN-P Unit (Wiring Side)

A

PWB-K : SUB Unit (Wiring Side)

121110987654321

31 32

27K-X2000 27K-X2000

H

G

F

PWB-L : SURROUND Unit (Chip Parts Side)

E

D

C

B

PWB-R : P-IN-P Unit (Chip Parts Side)

A

PWB-K : SURROUND Unit (Chip Parts Side)

121110987654321

33 34

27K-X2000 27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

REPLACEMENT

PWB-A: DUNTK9640WEK0

H

H

PARTS LIST

MAIN UNIT

SAFETY NOTE : Components marked with a ( å ) have special

characteristics important to safety. Before replaccing any of these
components, read carefully the SAFETY NOTICE on page 3 of the
Service Manual. Components marked with an ( ç ) are related to X­Ray Protection circuit.

G

G

F

F

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call T oll-Free; 1-800­BE-SHARP

★ MARK: SPARE PARTS-DELIVERY SECTION

▲ MARK : X- RAY RELATED PARTS

Ref. No. Part No. ★ Description Code

IC401 RH-iX3113CEZZ J TA1276AN AZ

å IC501 VHiTA8427K/-1 J TA8427K AL

IC502 VHiTA1241AN-1 J TA1241AN AM

çå IC701 RH-iX0758CEZZ J T8150 AF

å IC702 VHiT8889A//-1 J T8889A AL
å IC751 VHiKA7809Pi-1 J KIA7809PI AE

IC781 VHiKA7805Pi-1 J KIA7805PI AE
IC1301 VHiMM1313AD-1 J MM1313AD AP
IC1701 VHiMC14577F-1 J MC14577BF AG
IC1702 VHiM52055FP-1 J M52055FP AH
IC1703 VHiMM1111XF1E J MM1111XFBE AE
IC1704 VHiMM1111XF1E J MM1111XFBE AE
IC2001 RH-iX2983CEZZ M I.C. AY
IC2002 RH-iX2448CEN1 J ST24C02B6 AN
IC2003 VHiKiA7045P-1 J KIA7045P AD
IC2701 VHiKA78S05P-1 J KIA78S05P AD

INTEGRATED CIRCUITS

TRANSISTORS

E

E

çå V101 VB68ADT2506*S M Picture Tube (I.T.C.) CP

å L702 RCiLG0038MEZZ M Degaussing Coil AQ

D

D

C

C

PWB-B : CRT Unit (Wiring Side)

PRINTED WIRING BOARD ASSEMBLIES

PICTURE TUBE

(PR701 : P0088CE)
or
RCiLG0032MEZZ M Degaussing Coil AS

(PR701 : P0026CE)
MSPRT0002MEZZ M Spring for CRT AA
QEARC2702MEZZ M Ground-Part AH

(NOT REPLACEMENT ITEM)

PWB-A DUNTK9640WEK0 – MAIN Unit —
PWB-B DUNTK9510WEK0 – CRT Unit —
PWB-H DUNTK9310WEK1 – FRONT AV Unit —
PWB-K DUNTK9641WEK0 – SUB Unit —
PWB-L DUNTK9657WEK0 – SURROUND Unit —

B

B

PWB-R DUNTK9642WEK0 – P-IN-P Unit —

You can substitute "VS2SC2462-C-1" or "VS2SC2412-C-1" for
"VS2SD601AR/-1".

Q451 VS2SA1266-Y-1 J 2SA1266 AA
Q601 VS2SC2655Y/-1 J 2SC2655 AE

å Q602 VS2SD2539//1E M 2SD2539 AL

or
VS2SD1556//1E J 2SD1556 AP

Q602 R603 R609
COMBI- 2SD2539 12/(3W) 12/(3W)
NATION 2SD1556 18/(3W) 18/(3W)

Q606 VS2SC3198-Y-1 J 2SC3198 AA

å Q751 VS2SC1983//-2 J 2SC1983 AF

Q752 VS2SC3198-Y-1 J 2SC3198 AA
Q753 VS2SA1013//1E J 2SA1013 AD
Q1301 VS2SD601AR/-1 J 2SD601 AC
Q1302 VS2SD601AR/-1 J 2SD601 AC
Q1402 VS2SB709AR/-1 J 2SB709 AC
Q1404 VS2SD601AR/-1 J 2SD601 AC
Q1405 VS2SD601AR/-1 J 2SD601 AC
Q2004 VSUN2212///-1 J UN2212 AA
Q2005 VS2SD601AR/-1 J 2SD601 AC
Q2008 VS2SD601AR/-1 J 2SD601 AC
Q2009 VS2SD601AR/-1 J 2SD601 AC

DIODES

You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1"
D406 VHD1SS119//-1 J 1SS119 AB
D451 VHD1SS119//-1 J 1SS119 AB

PWB-H : FRONT AV Unit (Wiring Side)

A

A

654321

D452 RH-EX0217CEZZ J Zener Diode, 15V AB
D453 RH-EX0217CEZZ J Zener Diode, 15V AB
D454 RH-EX0611GEZZ J Zener Diode, 5.1V AA

or

RH-EX0293CEZZ AA
D455 VHD1SS119//-1 J Diode AB
D456 VHD1SS119//-1 J Diode AB

121110987654321

35 36

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

D457 RH-EX0631GEZZ J Zener Diode, 9.1V AA

or

RH-EX1314CEZZ
D501 RH-DX0441CEZZ J Diode AC
D503 RH-EX0631GEZZ J Zener Diode, 9.1V AA

å D510 RH-DX0131CEZZ J Diode AC

D513 RH-DX0441CEZZ J Diode AC
D523 RH-EX0604GEZZ J Zener Diode, 3V AB
D617 RH-EX0630GEZZ J Zener Diode, 9V AA

or

RH-EX1314CEZZ
D619 VHD1SS119//-1 J Diode AB
D620 RH-EX0604GEZZ J Zener Diode, 3.9V AB

çå D651 RH-DX0131CEZZ J Diode AC
çå D652 RH-EX1313CEZZ J Zener Diode, 9.1V AB
çå D653 VHD1SS119//-1 J Diode AB

å D701 RH-DX0154CEZZ J Diode AC
å D702 RH-DX0154CEZZ J Diode AC
å D703 RH-DX0154CEZZ J Diode AC
å D704 RH-DX0154CEZZ J Diode AC
å D705 VHD1SS119//-1 J Diode AB

å D706 RH-EX0238CEZZ J Zener Diode, 75V AC
çå D707 VHSS6785GLB2E J Si. Control Rectifier AL
çå D708 VHSS6785GLB2E J Si. Control Rectifier AL

å D709 RH-DX0131CEZZ J Diode AC

å D710 RH-DX0131CEZZ J Diode AC

å D711 RH-DX0229CEZZ J Diode AF

or
RH-DX0444CEZZ AH

å D751 RH-DX0441CEZZ J Diode AC

D752 RH-EX0019TAZZ J Zener Diode, 13V AB
D753 RH-DX0441CEZZ J Diode AC

å D754 RH-DX0441CEZZ J Diode AC

å D755 RH-DX0441CEZZ J Diode AC

å D756 RH-DX0441CEZZ J Diode AC

D757 VHD1SS119//-1 J Diode AB
D758 RH-DX0441CEZZ J Diode AC
D760 RH-DX0441CEZZ J Diode AC
D761 RH-DX0441CEZZ J Diode AC
D1302 RH-EX0631GEZZ J Zener Diode, 9V AA
D1303 RH-EX0631GEZZ J Zener Diode, 9V AA
D1305 RH-EX0631GEZZ J Zener Diode, 9V AA
D1306 RH-EX0631GEZZ J Zener Diode, 9V AA
D2004 VHD1SS119//-1 J Diode AB
D2010 RH-EX0616GEZZ J Zener Diode, 5.6V AA
D2701 VHD1SS119//-1 J Diode AB

PACKAGED CIRCUITS

å PR701 RMPTP0088CEZZ J Packaged Circuit AM

or (L702: G0038ME)
RMPTP0026CEZZ (L702: G0032ME) AF

X801 RCRSB0001PEZZ J Crystal AL

or
RCRSB0205CEZZ

FILTERS

CF501 RFiLA0034CEZZ J Filter AD
CF2001

RFiLC0121GEZZ J Filter AD

COILS

DL1401RCiLZ0938CEZZ J Coil AW
L601 RCiLZ0621CEZZ J Coil AH

å L701 RCiLF0025PEZZ J Coil AE

or
RCiLF0029PEZZ AH
or
RCiLF0087PEZZ
or
RCiLF0235CEZZ AK
or
RCiLF0019PEZZ AN
or

RCiLF0090CEZZ AL
L1404 VP-XF680K0000 J Peaking 68µH AB
T2001 RCiLB0158CEZZ M Oscillation Coil

TRANSFORMERS

å T601 RTRNZ0168CEZZ J H-Driver AH

çå T602 RTRNF0020MEZZ M H-Out BC

å T701 RTRNP0533CEZZ M Power AK

or

RTRNP0416CEZZ AV

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C401 VCEA0A1CW337M J 330 16V EL. AC
C403 VCKYCY1HB103K J 0.01 50V Ceramic AA
C404 VCEA0A1HW105M J 1 50V EL. AB
C405 VCEA0A1HW225M J 2.2 50V EL. AB
C406 VCKYCY1HB103K J 0.01 50V Ceramic AA
C407 VCEA0A1CW337M J 330 16V EL. AC
C408 VCEA0A1HW474M J 0.47 50V EL. AB
C409 VCFYSA1HB334J J 0.33 50V Mylar AB
C427 VCFYSA1HB104J J 0.1 50V Mylar AB
C440 VCKYCY1HB103K J 0.01 50V Ceramic AA
C441 VCEA0A1CW337M J 330 16V EL. AC
C451 RC-QZA104TAYK J 0.1 50V Mylar AB
C452 VCEA0A1HW475M J 4.7 50V EL. AB

å C453 VCEA0A2EW226M M 22 250V EL. AD

C456 VCEA0A1CW226M J 22 16V EL. AB
C502 VCEA0A1VW108M J 1000 5V EL. AD
C504 VCKYPA2HB391K J 390p 500V Ceramic AA
C506 RC-QZA103TAYK J 0.01 50V Mylar AA
C507 VCEA0A1VW107M J 100 35V EL. AC
C510 VCEA0A1VW108M J 1000 35V EL. AD
C511 VCFYSA1JA473J J 0.047 63V Mylar AC
C512 VCFYSA1JA564J J 0.56 63V Mylar AE
C513 VCEA0A1HW474M J 0.47 50V EL. AB
C514 VCEACA1HC105K J 1 50V EL. AC
C515 VCEACA1HC474K J 0.47 50V EL. AB
C521 RC-QZA102TAYK J 1000p 50V Mylar AA
C522 VCEA0A1CW477M J 470 16V EL. AC

37

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

C523 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C524 VCFYSA1HB223J J 0.022 50V Mylar AA
C525 VCEACA1HC225J J 2.2 50V EL. AC
C526 VCEAGA1HW334T J 0.33 50V EL. AC
C528 RC-QZA473TA YK J 0.047 50V Mylar AB
C538 VCCSPA1HL101J J 100p 50V Ceramic AA
C601 VCFYSA1HB103J J 0.01 50V Mylar AA
C603 RC-QZA273TA YK J 0.027 50V Mylar AB
C604 VCEA0A1EW227M M 220 25V EL. AB

çå C607 VCFPPD3CA692H M 6900p 1600V M-Poly. AC
çå C608 VCFPPD3CA692H M 6900p 1600V M-Poly. AC

C612 VCFPPD2DB474J J 0.47 200V M-Poly. AE
C613 VCKYCY1HB103K J 0.01 50V Ceramic AA
C614 VCKYPA2HB331K J 330p 500V Ceramic AA
C616 VCEA0A1HW225M J 2.2 50V EL. AB
C617 VCEA0A1HW225M J 2.2 50V EL. AB
C618 VCFYSA1HB223J J 0.022 50V Mylar AA
C619 VCEA0A1CW337M J 330 16V EL. AC
C620 VCCCCY1HH560J J 56p 50V Ceramic AA
C621 VCKYCY1HB152K J 1500p 50V Ceramic AA
C652 VCEA0A1HW106M J 10 50V EL. AB

å C701 RC-FZ017SCEZZ J 0.22 AC250VPlastic AD

or
RC-FZ012SGEZZ 0.22 AC250VPlastic AE
or
RC-FZ032CUMZZ 0.47 AC250VPlastic

C702 RC-KZ0029CEZZ J 0.01 AC250V Ceramic AC

or
VCKYPB2HE103P J 0.01 500V Ceramic AB

C703 RC-KZ0029CEZZ J 0.01 AC250V Ceramic AC

or
VCKYPB2HE103P J 0.01 500V Ceramic AB

C704 VCKYPA2HB472K J 4700p 500V Ceramic AB

å C705 RC-EZ0722CEZZ J 820 200V EL. AL

or
RC-EZ0685CEZZ J

å C706 RC-KZ0092GEZZ J 0.0033AC250VCearmic AC

or

RC-KZ0311CEZZ J
C707 VCKYPA2HB272K J 2700p 500V Ceramic AA
C708 VCKYPA2HB391K J 390p 500V Ceramic AA
C709 RC-QZ0010CEZZ J 0.01 250V Ceramic AC
C710 RC-QZ0010CEZZ J 0.01 250V Ceramic AC
C711 VCKYPA2HB391K J 390p 500V Ceramic AA
C712 VCKYPA2HB272K J 2700p 500V Ceramic AA

å C713 RC-EZ0696CEZZ M 220 160V EL. AG

C714 RC-QZA273TAYK J 0.027 50V Mylar AB

çå C715 RC-QZA103TAYK J 0.01 50V Mylar AA

C717 VCEA0A1HW106M J 10 50V EL. AB
C721 VCEA0A1EW477M J 470 25V EL. AD
C722 VCKYPA2HB152K J 1500p 500V Ceramic AA
C751 VCEA0A1EW476M J 47 25V EL. AB
C753 VCEA0A1VW337M J 330 385V EL. AD
C754 VCEA0A1CW107M J 100 16V EL. AC

C756 VCEA0A1CW337M J 330 16V EL. AC
C760 RC-QZA393TAYK J 0.039 50V Mylar AB
C781 VCEA0A1HW106M J 10 50V EL. AB
C782 VCEA0A1HW106M J 10 50V EL. AB
C803 VCKYCY1HB103K J 0.01 50V Ceramic AA
C806 VCKYCY1CB104K J 0.1 16V Ceramic AB
C807 VCEA0A1HW225M J 2.2 50V EL. AB
C812 VCEAGA1HW224T J 0.22 50V EL. AB
C813 VCQYTA1HM222J J 2200p 50V Mylar AA
C814 VCCCCY1HH110J J 11p 50V Ceramic AA
C817 VCCCCY1HH1R0C J 1p 50V Ceramic AA
C818 VCKYCY1CB104K J 0.1 16V Ceramic AB
C819 VCKYCY1CB104K J 0.1 16V Ceramic AB
C843 VCKYCY1HB103K J 0.01 50V Ceramic AA
C844 VCKYCY1HB103K J 0.01 50V Ceramic AA
C845 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1301 VCEA0A1HW106M J 10 50V EL. AB
C1302 VCEA0A1HW106M J 10 50V EL. AB
C1303 VCEA0A1HW106M J 10 50V EL. AB
C1304 VCEA0A1HW106M J 10 50V EL. AB
C1305 VCEA0A1HW105M J 1 50V EL. AB
C1306 VCEA0A1HW105M J 1 50V EL. AB
C1307 RC-QZA183TAYK J 0.018 50V Mylar AB
C1308 VCEA0A1HW335M J 3.3 50V EL. AB
C1309 VCEA0A1HW335M J 3.3 50V EL. AB
C1310 VCEA0A1HW106M J 10 50V EL. AB
C1311 RC-QZA183TAYK J 0.018 50V Mylar AB
C1312 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1320 VCKYCY1HB271K J 270p 50V Ceramic AA
C1321 VCKYCY1HB271K J 270p 50V Ceramic AA
C1323 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1324 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C1325 VCEA0A1CW226M J 22 16V EL. AB
C1326 VCEA0A1CW107M J 100 16V EL. AC
C1329 VCEA0A1HW475M J 4.7 50V EL. AB
C1330 VCEA0A1HW106M J 10 50V EL. AB
C1331 VCEA0A1HW475M J 4.7 50V EL. AB
C1333 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C1334 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C1335 VCEA0A1HW106M J 10 50V EL. AB
C1336 VCEA0A1HW106M J 10 50V EL. AB
C1338 VCEA0A1HW106M J 10 50V EL. AB
C1339 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1412 VCEA0A1CW476M J 47 16V EL. AB
C1414 VCEA0A1CW476M J 47 16V EL. AB
C1417 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1418 VCCCCY1HH150J J 15p 50V Ceramic AA
C1419 VCCCCY1HH150J J 15p 50V Ceramic AA
C1420 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1701 VCEA0A1HW106M J 10 50V EL. AB
C1702 VCEA0A1CW337M J 330 16V EL. AC
C1703 VCEA0A1HW106M J 10 50V EL. AB
C1704 VCEA0A1HW106M J 10 50V EL. AB
C1706 VCEA0A1HW106M J 10 50V EL. AB
C1707 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1708 VCEA0A1HW106M J 10 50V EL. AB
C1710 VCEA0A1HW106M J 10 50V EL. AB

38

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

C1711 VCEA0A1CW476M J 47 16V EL. AB
C1712 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1714 VCEA0A1HW106M J 10 50V EL. AB
C1718 VCEA0A1HW106M J 10 50V EL. AB
C1720 VCEA0A1HW106M J 10 50V EL. AB
C1723 VCEA0A1HW106M J 10 50V EL. AB
C1724 VCFYSA1HB104J J 0.1 50V Mylar AB
C1725 VCFYSA1HB104J J 0.1 50V Mylar AB
C1726 VCFYSA1HB104J J 0.1 50V Mylar AB
C1727 VCEA0A1HW106M J 10 50V EL. AB
C1728 VCEA0A1HW106M J 10 50V EL. AB
C1741 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C1742 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C2006 VCEA0A1HW105M J 1 50V EL. AB
C2007 VCKYCY1HB561K J 560p 50V Ceramic AA
C2008 VCKYCY1CB104K J 0.1 16V Ceramic AB
C2009 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2010 VCKYCY1HB221K J 220p 50V Ceramic AA
C2011 VCEA0A1HW105M J 1 50V EL. AB
C2012 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2014 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2015 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2016 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2017 VCCCCY1HH101J J 100p 50V Ceramic AA
C2018 VCCCCY1HH101J J 100p 50V Ceramic AA
C2019 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2020 VCKYCY1HB472K J 4700p 50V Ceramic AA
C2021 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2022 VCEA0A1HW106M J 10 50V EL. AB
C2025 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2026 VCEA0A0JW477M J 470 6.3V EL. AC
C2027 VCKYCY1CB104K J 0.1 16V Ceramic AB
C2028 VCEA0A1AW107M J 100 10V EL. AB
C2032 VCCCCY1HH270J J 27p 50V Ceramic AA
C2034 VCCCCY1HH390J J 39p 50V Ceramic AA
C2601 VCEA0A1HW475M J 4.7 50V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA
C2701 VCEA0A1CW228M M 2200 16V EL.

RESISTORS

[M-Ox.··· Metal Oxide, M-Film··· Metal Film]

RJ1 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ2 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ3 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ4 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ7 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ8 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ9 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ12 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ13 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ51 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ52 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ56 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ57 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ58 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ59 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ60 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ65 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ66 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ67 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ68 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ70 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R407 VRD-RA2BE103J J 10k 1/8W Carbon AA
R410 VRS-CY1JF820J J 82 1/16W M-Ox. AA
R411 VRS-CY1JF820J J 82 1/16W M-Ox. AA
R412 VRS-CY1JF820J J 82 1/16W M-Ox. AA
R418 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R419 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R425 VRS-CY1JF224J J 220k 1/16W M-Ox. AA
R435 VRS-CY1JF395J J 3.9M1/16W M-Ox. AA

å R451 VRS-RG2HC103J J 10k 1/2W M-Ox. AA

R452 VRD-RA2BE103J J 10k 1/8W Carbon AA
R453 VRD-RA2EE393J J 39k 1/4W Carbon AA
R454 VRD-RM2HD104J J 100k 1/2W Carbon AA
R455 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R456 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA

å R458 VRS-RG3DB332J M 3.3k 2W M-Ox. AA

R459 VRD-RA2BE102J J 1k 1/8W Carbon AA

å R466 VRN-RL3DB1R5J M 1.5 2W M-Film AB
å R467 VRN-RL3ABR39J M 0.39 1W M-Film AA

R501 VRD-RA2BE124G J 120k 1/8W Carbon AA
R502 VRD-RA2BE823G J 82k 1/8W Carbon AB
R503 VRD-RA2BE473J J 47k 1/8W Carbon AA
R504 VRD-RA2BE101J J 100 1/8W Carbon AB
R505 VRD-RA2BE101J J 100 1/8W Carbon AB
R508 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R510 VRN-RL3ABR82J M 0.82 1W M-Film

å R511 VRN-RL3ABR56J J 0.56 1W M-Film AA

R512 VRS-RG3AB391J M 390 1W M-Ox.
R513 VRD-RA2BE333J J 33k 1/8W Carbon AA
R516 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R518 VRD-RA2BE184J J 180k 1/8W Carbon AA
R521 VRD-RA2BE101J J 100 1/8W Carbon AB
R522 VRD-RA2BE471J J 470 1/8W Carbon AA
R523 VRD-RA2BE103J J 10k 1/8W Carbon AA
R524 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R525 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R526 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R527 VRD-RA2BE562J J 5.6k 1/8W Carbon AA
R528 VRD-RA2BE183J J 18k 1/8W Carbon AA
R529 VRD-RA2BE103J J 10k 1/8W Carbon AA
R530 VRD-RA2BE154J J 150k 1/8W Carbon AA
R531 VRD-RA2BE104J J 100k 1/8W Carbon AA
R540 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R541 VRD-RA2BE101J J 100 1/8W Carbon AB
R601 VRD-RA2BE331J J 330 1/8W Carbon AA
R602 VRD-RM2HD560J J 56 1/2W Carbon AA

39

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

å R603 VRS-RG3LB120J M 12 3W M-Ox. AB

or (Q602: 2SD2539)

VRS-RG3LB180J J 18 3W M-Ox. AD

(Q602: 2SD1556)

å R604 VRN-RL3LBR56J M 0.56 3W M-Film AB

R605 VRS-RG2HC102J J 1k 1/2W M-Ox. AA
R606 VRD-RA2BE102J J 1k 1/8W Carbon AA
R608 VRD-RA2BE101J J 100 1/8W Carbon AB

å R609 VRS-RG3LB120J M 12 3W M-Ox. AB

or (Q602: 2SD2539)

VRS-RG3LB180J J 18 3W M-Ox. AD

(Q602: 2SD1556)

å R610 VRN-RL3LBR56J M 0.56 3W M-Film AB

R611 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R613 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R616 VRS-CY1JF182J J 1.8k 1/16W M-Ox. AA
R617 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R620 VRD-RA2BE153J J 15k 1/8W Carbon AA
R627 VRD-RM2HD101J J 100 1/2W Carbon AA

çå R651 VRS-RG2HC270J M 27 1/2W M-Ox. AA
çå R652 VRD-RA2BE102J J 1k 1/8W Carbon AA
çå R653 VRN-RA2BK123F J 12k 1/8W M-Film AA
çå R654 VRN-RA2BK682F J 6.8k 1/8W M-Film AA

å R701 VRC-UA2HG275K J 2.7M1/2W Solid AA
å R702 VRW-KQ3NC1R2K J 1.2 7W Cement AE

R704 VRD-RM2HD223J J 22k 1/2W Carbon AA
R705 VRD-RM2HD223J J 22k 1/2W Carbon AA

å R706 VRS-RG2HC151J J 150 1/2W M-Ox. AA
å R707 VRS-KA3NG331K M 330 7W M-Ox. AB
å R708 VRD-RM2HD330J J 33 1/2W Carbon AA
å R709 VRS-KA3NG331K M 330 7W M-Ox. AB
å R710 VRD-RM2HD330J J 33 1/2W Carbon AA
å R711 VRN-GA2EB1R0J J 1 1/4W M-Film AA

R712 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
R713 VRD-RM2HD681J J 680 1/2W Carbon AA

å R714 VRS-KA3NG3R3K J 3.3 7W M-Ox. AD
å R715 VRW-KQ4AC2R7K J 2.7 10W Cement AE

R716 VRD-RM2HD223J J 22k 1/2W Carbon AA
R717 VRN-GA2EB1R0J J 1 1/4W M-Film AA

å R718 VRN-RL3AB2R7J M 2.7 1W M-Film AA
å R719 VRN-RL3LBR56J M 0.56 3W M-Film AB

R751 VRD-RM2HD471J J 470 1/2W Carbon AA
R752 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R754 VRD-RA2BE223J J 22k 1/8W Carbon AA

å R755 VRS-RG3LB180J J 18 3W M-Ox. AD

R757 VRD-RA2BE472J J 4.7k 1/8W Carbon AA
R760 VRD-RA2EE822J J 8.2k 1/4W Carbon AA

å R761 VRN-RL3AB4R7J J 4.7 1W M-Film AB

R762 VRS-RG3AB150J M 15 1W M-Ox. AA
R781 VRS-RG3AB470J J 47 1W M-Ox. AA
R803 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R807 VRD-RA2BE102J J 1k 1/8W Carbon AA
R814 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R817 VRS-CY1JF273J J 27k 1/16W M-Ox. AA

R820 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R821 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R822 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R823 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R827 VRD-RA2BE101J J 100 1/8W Carbon AB
R828 VRD-RA2BE101J J 100 1/8W Carbon AB
R830 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1301 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1302 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1305 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1306 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1307 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1308 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1309 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1310 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1311 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1312 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1313 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1314 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1315 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1316 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R1317 VRD-RA2BE101J J 100 1/8W Carbon AB
R1318 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1319 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1320 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R1321 VRD-RA2BE101J J 100 1/8W Carbon AB
R1322 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R1323 VRD-RA2BE101J J 100 1/8W Carbon AB
R1324 VRD-RA2BE101J J 100 1/8W Carbon AB
R1325 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1326 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1327 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1328 VRD-RA2BE101J J 100 1/8W Carbon AB
R1329 VRD-RA2BE101J J 100 1/8W Carbon AB
R1330 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R1331 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1332 VRD-RA2BE101J J 100 1/8W Carbon AB
R1333 VRD-RA2BE101J J 100 1/8W Carbon AB
R1334 VRD-RA2BE101J J 100 1/8W Carbon AB
R1335 VRD-RA2BE100J J 10 1/8W Carbon AA
R1336 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1337 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1338 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1339 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1340 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1341 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1351 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1352 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1353 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1354 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1359 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1360 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1361 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1362 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1363 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1364 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1402 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

40

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

R1411 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1412 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1413 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1414 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R1415 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1416 VRS-CY1JF471J J 470 1/16W M-Ox. AA
R1417 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1418 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R1419 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R1701 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1702 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1703 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1704 VRD-RA2BE101J J 100 1/8W Carbon AB
R1705 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1706 VRD-RA2BE101J J 100 1/8W Carbon AB
R1707 VRS-CY1JF821J J 820 1/16W M-Ox. AA
R1708 VRS-CY1JF821J J 820 1/16W M-Ox. AA
R1709 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R1710 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1711 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R1712 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R1713 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1714 VRS-CY1JF561J J 560 1/16W M-Ox. AA
R1715 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1717 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1728 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1729 VRD-RA2BE101J J 100 1/8W Carbon AB
R1731 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1732 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1733 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2001 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2002 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2003 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2004 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2006 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2007 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2008 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R2009 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2011 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R2012 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2013 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2014 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2015 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2016 VRD-RA2BE473J J 47k 1/8W Carbon AA
R2017 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2019 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2021 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2022 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2024 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2025 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2026 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2027 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2028 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R2030 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA

R2033 VRS-CY1JF471J J 470 1/16W M-Ox. AA
R2034 VRS-CY1JF105J J 1M 1/16W M-Ox. AA
R2035 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R2036 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2037 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2038 VRD-RA2BE223J J 22k 1/8W Carbon AA
R2039 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2040 VRD-RA2BE223J J 22k 1/8W Carbon AA
R2043 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2046 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2047 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R2048 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2050 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R2053 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R2055 VRD-RA2BE153J J 15k 1/8W Carbon AA
R2056 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2057 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2058 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2059 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2060 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2061 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2063 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2064 VRD-RA2BE153J J 15k 1/8W Carbon AA
R2065 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2066 VRD-RA2BE153J J 15k 1/8W Carbon AA
R2067 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2068 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2069 VRD-RA2BE123J J 12k 1/8W Carbon AA
R2070 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2071 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2073 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2074 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2075 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2076 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2077 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2078 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R2092 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2093 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2095 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R2096 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2099 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2501 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2503 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R2504 VRS-CY1JF123J J 12k 1/16W M-Ox. AA
R2505 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R2506 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R2507 VRS-CY1JF823J J 82k 1/16W M-Ox. AA
R2508 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R2509 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R2601 VRD-RA2BE331J J 330 1/8W Carbon AA

SWITCHES

S2501 QSW-K0079GEZZ J Power AB
S2502 QSW-K0079GEZZ J VOL-down AB
S2503 QSW-K0079GEZZ J VOL-up AB
S2504 QSW-K0079GEZZ J CH-down AB
S2505 QSW-K0079GEZZ J CH-up AB

41

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTK9640WEK0

MAIN UNIT (Continued)

MISCELLANEOUS PARTS

å RY701 RRLYU0036CEZZ J Relay AM

or

RRLYU0038CEZZ J AM

å F701 QFS-B4023CEZZ J Fuse 4A (125V) AC

or

QFS-B4021GEZZ J AE
FB601 RBLN-0037CEZZ J Ferrite Bead AB
FB701 RBLN-0037CEZZ J Ferrite Bead AB
FB702 RBLN-0037CEZZ J Ferrite Bead AB
FH701 QFSHD1013CEZZ J Fuse Holder AC
FH702 QFSHD1014CEZZ J Fuse Holder AC
J1301 QTANJ0821CEZZ M Terminal AL
J1302 QSOCD0440CEZZ J Socket AH
J1701 QTANJ0527CEZZ M Terminal AH

å P602 QPLGN0160FJZZ J Plug, 5-pin (K) AD

P651 QPLGN0361CEZZ J Plug, 3-pin AB
P701 QPLGN0207CEZZ J Plug, 2-pin (M) AA
P702 QPLGN0461CEZZ J Plug, 4-pin (YBN) AB
P703 QPLGN0269GEZZ J Plug, 2-pin (P) AB
P704 QPLGN0304CEZZ J Plug, 3-pin (L) AB
P705 QPLGN0160CEZZ J Plug, 1-pin (E) AB
P902 QPLGN0561CEZZ J Plug, 5-pin (HA) AB
P903 QPLGN0561CEZZ J Plug, 5-pin (GBN) AB
P904 QPLGN0761CEZZ J Plug, 7-pin (KA) AD
P905 QPLGN0761CEZZ J Plug, 7-pin (KB) AD
P906 QPLGN0761CEZZ J Plug, 8-pin (KC) AD
P907 QPLGN0761CEZZ J Plug, 7-pin (KD) AD
P908 QPLGN0561CEZZ J Plug, 5-pin (KE) AB
P1301 QPLGN0241CEZZ J Plug, 2-pin (KG) AA
P2001 QPLGN0361CEZZ J Plug, 3-pin (KF) AB

RMC2601

RRMCU0227CEZZ J Remote Receiver AK

or

RRMCU0224CEZZ J AM

or

RRMCU0216CEZZ J AK
RDA501

PRDAR0234PEFW J Heat Sink, for IC501 AH
RDA604

PRDAR0233PEFW J Heat Sink, for Q602
RDA707

PRDAR0026PEFW J Heat Sink, for D707 AD
RDA708

PRDAR0026PEFW J Heat Sink, for D708 AD
RDA751

PRDAR5072CEFW J Heat Sink, for Q751 AC
RDA752

PRDAR5072CEFW J Heat Sink, for IC751 AC

PWB-B: DUNTK9510WEK0

CRT UNIT

TRANSISTORS

Q851 VS2SC3198-Y -1 J 2SC3198 AA
Q852 VS2SC3789//2E M 2SC3789

or

VS2SC3619LB1E 2SC3619 AD
Q853 VS2SC3198-Y-1 J 2SC3789 AA
Q854 VS2SC3789//2E M 2SC3789

or

VS2SC3619LB1E 2SC3619 AD
Q855 VS2SC3198-Y-1 J 2SC3198 AA
Q856 VS2SC3789//2E M 2SC3789

or

VS2SC3619LB1E 2SC3619 AD
Q881 VS2SA1266-Y-1 J 2SA1266 AA

DIODES

You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1"
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D884 VHD1SS119//-1 J Diode AB

COIL

L851 VP-MK820K0000 J Peaking 82µH AB

CAPACITORS

[EL.··· Electrolytic]

C851 VCCSPA1HL391J J 390p 50V Ceramic AA
C852 VCCSPA1HL331J J 330p 50V Ceramic AA
C853 VCCSPA1HL391J J 390p 50V Ceramic AA
C854 RC-KZ0024CEZZ J 0.001 2kV Ceramic AC

or
VCKYPB3DE472Z J 0.00472kV Ceramic AC

C883 VCEA0A1HW106M J 10 50V EL. AB

RESISTORS

[M-Ox.··· Metal Oxide]

R851 VRD-RA2BE470J J 47 1/8W Carbon AA
R852 VRD-RA2BE181J J 180 1/8W Carbon AA
R853 VRD-RA2BE121J J 120 1/8W Carbon AA
R855 VRD-RA2BE471J J 470 1/8W Carbon AA
R856 VRD-RA2BE221J J 220 1/8W Carbon AA

å R857 VRS-VV3LB123J J 12k 3W M-Ox. AB

R858 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R859 VRD-RA2BE470J J 47 1/8W Carbon AA
R860 VRD-RA2BE181J J 180 1/8W Carbon AA
R861 VRD-RA2BE121J J 120 1/8W Carbon AA
R863 VRD-RA2BE471J J 470 1/8W Carbon AA
R864 VRD-RA2BE221J J 220 1/8W Carbon AA

å R865 VRS-VV3LB123J J 12k 3W M-Ox. AB

R866 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R868 VRD-RA2BE181J J 180 1/8W Carbon AA
R869 VRD-RA2BE121J J 120 1/8W Carbon AA
R871 VRD-RA2BE471J J 470 1/8W Carbon AA

42

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-B: DUNTK9510WEK0

CRT UNIT (Continued)

R872 VRD-RA2BE221J J 220 1/8W Carbon AA

å R873 VRS-VV3LB123J J 12k 3W M-Ox. AB

R874 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R881 VRD-RA2BE102J J 1k 1/8W Carbon AA
R882 VRD-RA2BE271J J 270 1/8W Carbon AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R895 VRD-RA2BE470J J 47 1/8W Carbon AA

MISCELLANEOUS PARTS

P851 QPLGN0541CEZZ J Plug, 5-pin(GBN) AB
P852 QPLGN0441CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0937CEZZ M CRT Socket AE

PWB-H: DUNTK9310WEK1

FRONT A V UNIT

MISCELLANEOUS PARTS

J1001 QJAKE0053GEZZ J Jack, Video in AD
J1002 QJAKE0055GEZZ J Jack, Audio in (L) AD
J1003 QJAKE0059GEZZ J Jack, Audio in (R) AC
P1001 QPLGN0541CEZZ J Plug, 5-pin (HA) AB

PWB-K: DUNTK9641WEK0

SUB UNIT

TUNER

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED

AS AN ASSEMBLY NOT INDEPENDENTLY.

å TU51 VTUVTBT5UF201 M Tuner BB
å TU71 VTUVTBT5UR201 M Tuner BB

INTEGRATED CIRCUITS

IC351 VHiTDA7233/-1 J TDA7233 AF
IC352 VHiTDA7233/-1 J TDA7233 AF

å IC771 VHiKA7809Pi-1 J KiA7809PI AE

IC791 VHiKA7805Pi-1 J KiA7805PI AE
IC1501 RH-iX2448CEN1 J ST24C02B6 AN
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
IC3101 VHiMM1111XF1E J MM1111XFBE AE

TRANSISTORS

You can substitute "VS2SC2462-C-1" for "VS2SD601AR/-1"

Q61 VS2SB709AR/-1 J 2SB709 AC

or
VS2SA812-M51E

Q62 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA812-M51E
Q63 VS2SD601AR/-1 J 2SD601 AC
Q81 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA812-M51E
Q82 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA812-M51E
Q83 VS2SD601AR/-1 J 2SD601 AC
Q351 VS2SD601AR/-1 J 2SD601 AC
Q352 VS2SD601AR/-1 J 2SD601 AC
Q901 VS2SD601AR/-1 J SSD601 AC
Q902 VS2SD601AR/-1 J 2SD601 AC
Q903 VS2SD601AR/-1 J 2SD601 AC
Q904 VS2SD601AR/-1 J 2SD601 AC
Q905 VS2SD601AR/-1 J 2SD601 AC
Q906 VS2SD601AR/-1 J 2SD601 AC

DIODES

D52 RH-EX0673GEZZ J Zener Diode, 32V AB
D75 RH-EX0673GEZZ J Zener Diode, 32V AB

å D771 RH-DX0441CEZZ J Diode AC
å D772 RH-DX0441CEZZ J Diode AC
å D773 RH-DX0441CEZZ J Diode AC
å D774 RH-DX0441CEZZ J Diode AC

TRANSFORMER

å T771 RTRNP0533CEZZ M Power AK

or

RTRNP0416CEZZ AV

43

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-K: DUNTK9641WEK0

SUB UNIT (Continued)

CAPACITORS

[EL.··· Electrolytic]

C52 VCEA0A1CW108M J 1000 16V EL. AD
C54 VCEA0A1HW105M J 1 50V EL. AB
C55 VCEA0A1HW106M J 10 50V EL. AB
C61 RC-QZA473TA YJ J 0.047 50V Mylar AB
C62 VCEA0A1HW105M J 1 50V EL. AB
C63 RC-QZA472TA YJ J 4700p 50V Mylar AB
C72 VCEA0A1CW108M J 1000 16V EL. AD
C75 VCEA0A1HW105M J 1 50V EL. AB
C76 VCEA0A1HW106M J 10 50V EL. AB
C81 RC-QZA473TA YJ J 0.047 50V Mylar AB
C82 VCEA0A1HW105M J 1 50V EL. AB
C83 RC-QZA472TA YJ J 4700p 50V Mylar AB
C351 VCKYCY1HB392K J 3900p 50V Ceramic AA
C352 VCEA0A1CW107M J 100 16V EL. AC
C353 VCEA0A1CW337M J 330 16V EL. AC
C354 VCKYCY1CB104K J 0.1 16V Ceramic AB
C355 VCEA0A1CW226M J 22 16V EL. AB
C356 VCKYCY1HB392K J 3900p 50V Ceramic AA
C357 VCEA0A1CW107M J 100 16V EL. AC
C358 VCEA0A1CW337M J 330 16V EL. AC
C359 VCKYCY1CB104K J 0.1 16V Ceramic AB
C360 VCEA0A1CW226M J 22 16V EL. AB
C362 VCEA0A1CW476M J 47 16V EL. AB
C363 VCEA0A1CW477M J 470 16V EL. AC
C771 VCEA0A1VW108M J 1000 35V EL. AD
C791 VCEA0A1HW106M J 10 50V EL. AB
C792 VCEA0A1HW106M J 10 50V EL. AB
C901 VCE9GA1HW335M J 3.3 50V EL. (N.P) AB
C902 VCEA0A1CW337M J 330 16V EL. AC
C903 VCE9GA1HW335M J 3.3 50V EL. (N.P) AB
C908 VCEA0A1HW225M J 2.2 50V EL. AB
C909 VCEA0A1HW225M J 2.2 50V EL. AB
C912 VCEA0A1CW336M J 33 16V EL. AB
C1501 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1502 VCEA0A1HW106M J 10 50V EL. AB
C3001 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3002 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3003 RC-QZA123TAYK J 0.012 50V Mylar AB
C3004 VCEA0A1HW105M J 1 50V EL. AB
C3005 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3006 VCEA0A1HW106M J 10 50V EL. AB
C3007 VCEA0A1HW475M J 4.7 50V EL. AB
C3008 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3009 VCEA0A1CW227M J 220 16V EL. AC
C3010 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3011 VCEA0A1HW475M J 4.7 50V EL. AB
C3012 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3013 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3014 RC-QZA473TAYK J 0.047 50V Mylar AB
C3015 VCSATA1CE335K J 3.3 16V Tantalum AC
C3016 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3017 VCSATA1CE106K J 10 16V Tantalum AD

C3018 VCEA0A1HW105M J 1 50V EL. AB
C3025 VCKYCY1CB473K J 0.047 16V Ceramic AA
C3027 VCKYCY1CB473K J 0.047 16V Ceramic AA
C3029 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3030 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3101 VCEA0A1HW106M J 10 50V EL. AB

RESISTORS

[M-Ox.··· Metal Oxide]

RJ3 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ4 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ10 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ11 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ12 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ14 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ17 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ18 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ19 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ23 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ24 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R51 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R52 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R53 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R54 VRD-RA2BE1R0J J 1 1/8W Carbon AA
R56 VRS-RG3LB333J J 33k 3W M-Ox. AC
R61 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R62 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R63 VRS-CY1JF151J J 150 1/16W M-Ox. AA
R64 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R65 VRS-CY1JF684J J 680k 1/16W M-Ox. AA
R66 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R67 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R68 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R72 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R73 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R74 VRD-RA2BE1R0J J 1 1/8W Carbon AA
R77 VRS-RG3LB333J J 33k 3W M-Ox. AC
R81 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R82 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R83 VRS-CY1JF151J J 150 1/16W M-Ox. AA
R84 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R85 VRS-CY1JF684J J 680k 1/16W M-Ox. AA
R86 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R87 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R88 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R351 VRD-RA2BE223J J 22k 1/8W Carbon AA
R352 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R353 VRS-CY1JF4R7J J 4.7 1/16W M-Ox. AA
R354 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R355 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R356 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R357 VRS-CY1JF4R7J J 4.7 1/16W M-Ox. AA
R358 VRD-RA2BE152J J 1.5k 1/8W Carbon AA

å R771 VRS-RG3LB560J M 56 3W M-Ox. AB

R791 VRS-RG3AB470J J 47 1W M-Ox. AA
R792 VRS-RG3LB820J J 82 3W M-Ox. AA

44

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-K: DUNTK9641WEK0

SUB UNIT (Continued)

R901 VRS-CY1JF331J J 330 1/16W M-Ox. AA
R903 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R904 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R905 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R906 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R907 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R908 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R910 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R911 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R912 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R913 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R914 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R915 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R916 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R917 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R918 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R1501 VRD-RA2BE101J J 100 1/8W Carbon AB
R1502 VRD-RA2BE101J J 100 1/8W Carbon AB
R2401 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2402 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2403 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2404 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3001 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3002 VRD-RA2BE101J J 100 1/8W Carbon AB
R3003 VRS-CY1JF105J J 1M 1/16W M-Ox. AA
R3004 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3005 VRS-CY1JF623J J 62k 1/16W M-Ox. AA
R3007 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R3008 VRS-CY1JF302J J 3k 1/16W M-Ox. AA
R3010 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R3011 VRD-RA2BE102J J 1k 1/8W Carbon AA
R3012 VRD-RA2BE102J J 1k 1/8W Carbon AA
R3101 VRD-RA2BE101J J 100 1/8W Carbon AB
R3102 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R3103 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3104 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

MISCELLANEOUS PARTS

P771 QPLGN0304CEZZ J Plug, 3-pin (L) AB
P902 QPLGN0461CEZZ J Plug, 4-pin (S) AB
P1501 QPLGN0361CEZZ J Plug, 3-pin (KF) AB
P2401 QPLGN0561CEZZ J Plug, 5-pin AB
P3001 QPLGN0761CEZZ J Plug, 7-pin (KA) AD
P3002 QPLGN0761CEZZ J Plug, 7-pin (KB) AD
P3003 QPLGN0761CEZZ J Plug, 7-pin (KC) AD
P3004 QPLGN0561CEZZ J Plug, 5-pin (KD) AB
P3005 QPLGN0361CEZZ J Plug, 3-pin (KE) AB
P3006 QPLGN0241CEZZ J Plug, 2-pin (KG) AA
P3007 QPLGN0361CEZZ J Plug, 3-pin (KJ) AB
P3009 QPLGN0361CEZZ J Plug, 3-pin (KH) AB
SC3201

QSOCN0685CEZZ J Socket, 6-pin (LA) AC

SC3202

QSOCN0685CEZZ J Socket, 6-pin (LB) AC

RDA771

PRDAR5072CEFW J Heat Sink, for IC771 AC

PWB-L: DUNTK9657WEK0

SURROUND UNIT

INTEGRATED CIRCUITS

IC3201 VHiAN5285K/-1 J AN5285K AP
IC3301 VHiNJM2178M-1 J NJM2178M AR

CAPACITORS

[EL.··· Electrolytic]

C3201 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3202 VCEA0A1HW106M J 10 50V EL. AB
C3203 VCEA0A1HW475M J 4.7 50V EL. AB
C3204 VCEA0A1HW106M J 10 50V EL. AB
C3205 VCEA0A1HW106M J 10 50V EL. AB
C3206 VCKYCY1HB103K J 0.01 50V Ceramic AA
C3207 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3208 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3209 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3301 VCKYCY1CB273K J 0.027 16V Ceramic AA
C3302 VCKYCY1HB472K J 4700p 50V Ceramic AA
C3303 VCKYCY1HB471K J 470p 50V Ceramic AA
C3304 VCKYCY1CB104K J 0.1 16V Ceramic AB
C3305 VCKYCY1HB153K J 0.015 50V Ceramic AA
C3306 VCKYCY1HB222K J 2200p 50V Ceramic AA
C3307 VCKYCY1HB472K J 4700p 50V Ceramic AA
C3308 VCFYSA1HB474J J 0.47 50V Mylar AC
C3309 VCKYCY1CB104K J 0.1 16V Ceramic AB
C3310 VCKYCY1HB103K J 0.01 50V Ceramic AA
C3311 VCKYCY1CB104K J 0.1 16V Ceramic AB
C3312 VCKYCY1HB103K J 0.01 50V Ceramic AA
C3313 VCKYCY1CB104K J 0.1 16V Ceramic AB
C3314 VCKYCY1HB103K J 0.01 50V Ceramic AA
C3315 VCEA0A1CW107M J 100 16V EL. AC
C3316 VCEA0A1HW106M J 10 50V EL. AB
C3317 VCEA0A1HW106M J 10 50V EL. AB
C3318 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3319 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3320 VCEA0A1HW106M J 10 50V EL. AB
C3321 VCFYSA1HB474J J 0.47 50V Mylar AC
C3322 RC-QZA472TAYJ J 4700p 50V Mylar AB
C3323 VCFYSA1HB474J J 0.47 50V Mylar AC

RESISTORS

[M-Ox.··· Metal Oxide]

RJ31 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ32 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ33 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ34 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ35 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3201 VRS-CY1JF225J J 2.2M 1/16W M-Ox. AA
R3202 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R3203 VRD-RA2BE103J J 10k 1/8W Carbon AA
R3301 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R3302 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3303 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R3304 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3305 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

45

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-L: DUNTK9657WEK0

SURROUND UNIT (Continued)

R3306 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3307 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R3308 VRD-RA2BE103J J 10k 1/8W Carbon AA
R3311 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R3312 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R3313 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R3314 VRS-CY1JF623J J 62k 1/16W M-Ox. AA
R3315 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R3316 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R3317 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R3318 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R3319 VRS-CY1JF432J J 4.3k 1/16W M-Ox. AA
R3320 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R3321 VRS-CY1JF114J J 110k 1/16W M-Ox. AA
R3322 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

MISCELLANEOUS PARTS

P3201 QPLGN0685CEZZ J Plug, 6-pin (LA) AA
P3202 QPLGN0685CEZZ J Plug, 6-pin (LB) AA

PWB-R: DUNTK9642WEK0

P-IN-P UNIT

INTEGRATED CIRCUIT

IC1801 VHiM65667FP-1 M M65667FP BB

TRANSISTORS

You can substitute "VS2SC2462-C-1" or "VS2SC2412-C-1" for
"VS2SD601AR/-1".

Q1861 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA1037KR-1 2SA1037 AA
Q1881 VS2SD601AR/-1 J 2SD601 AC
Q1882 VS2SD601AR/-1 J 2SD601 AC
Q1883 VS2SD601AR/-1 J 2SD601 AC
Q1921 VS2SD601AR/-1 J 2SD601 AC
Q1941 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA1037KR-1 2SA1037 AA
Q1942 VS2SB709AR/-1 J 2SB709 AC

or

VS2SA1037KR-1 2SA1037 AA
Q1991 VS2SC1959Y/1E J 2SC1959 AC

DIODES

You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1"
D1801 VHD1SS119//-1 J Diode AB
D1821 VHD1SS119//-1 J Diode AB
D1991 RH-EX0604GEZZ J Zener Diode, 4.3V AB

CRYSTAL

X1861 RCRSB0241CEZZ M Crystal AE

COILS

L1801 VP-XF100K0000 J Peaking 10µH AB
L1821 VP-XF100K0000 J Peaking 10µH AB
L1861 VP-XF100K0000 J Peaking 10µH AB
L1862 VP-XF100K0000 J Peaking 10µH AB
L1863 VP-XF100K0000 J Peaking 10µH AB
L1881 VP-XFR27K0000 J Peaking 0.27µH AB
L1882 VP-XFR27K0000 J Peaking 0.27µH AB
L1921 VP-XF680K0000 J Peaking 68µH AB
L1941 VP-XFR27K0000 J Peaking 0.27µH AB
L1981 VP-XFR27K0000 J Peaking 0.27µH AB

CAPACITORS

[EL.··· Electrolytic]

C1801 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1802 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1803 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1804 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1805 VCEA0A1HW106M J 10 50V EL. AB
C1806 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1807 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1809 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1810 VCEA0A1CW336M J 33 16V EL. AB
C1811 VCKYCY1HF103Z J 0.01 50V Ceramic AA

46

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-R: DUNTK9642WEK0

P-IN-P UNIT (Continued)

C1812 VCEA0A1HW106M J 10 50V EL. AB
C1821 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1822 VCEA0A1HW106M J 10 50V EL. AB
C1826 VCKYCY1HB272K J 2700p 50V Ceramic AA
C1841 VCEA0A1HW106M J 10 50V EL. AB
C1842 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1843 VCCCCY1HH680J J 68p 50V Ceramic AA
C1845 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1846 VCCCCY1HH151J J 150p 50V Ceramic AA
C1847 VCKYCY1HB103K J 0.01 50V Ceramic AA
C1848 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1849 VCEA0A1HW106M J 10 50V EL. AB
C1850 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1851 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1861 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1862 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1863 VCCCCY1HH270J J 27p 50V Ceramic AA
C1865 RC-QZA154TAYJ J 0.15 50V Mylar AC
C1866 RC-QZA103TAYJ J 0.01 50V Mylar AB
C1867 VCKYCY1CB104K J 0.1 16V Ceramic AB
C1868 VCFYSA1HB474J J 0.47 50V Mylar AC
C1869 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1870 VCEA0A1HW106M J 10 50V EL. AB
C1871 VCEA0A1HW106M J 10 50V EL. AB
C1872 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1921 VCE9GA1CW106M J 10 16V EL. (N.P) AB
C1922 VCCCCY1HH330J J 33p 50V Ceramic AA
C1923 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1941 RC-QZA473TAYJ J 0.047 50V Mylar AB
C1942 VCEA0A1HW105M J 1 50V EL. AB
C1943 RC-QZA472TAYJ J 4700p 50V Mylar AB
C1991 VCEA0A1AW107M J 100 10V EL. AB
C1992 VCEA0A1AW107M J 100 10V EL. AB

RESISTORS

[M-Ox.··· Metal Oxide]

RJ1 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ2 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ3 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ4 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ8 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ9 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ11 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ12 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ13 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R1801 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R1821 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1822 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1823 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R1825 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R1828 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R1831 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R1832 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R1833 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA

R1834 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R1841 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R1842 VRS-CY1JF471J J 470 1/16W M-Ox. AA
R1843 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R1861 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R1862 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1863 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1864 VRS-CY1JF331J J 330 1/16W M-Ox. AA
R1865 VRS-CY1JF474J J 470k 1/16W M-Ox. AA
R1866 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1867 VRS-CY1JF202J J 2k 1/16W M-Ox. AA
R1868 VRS-CY1JF510J M 51 1/16W M-Ox. AA
R1871 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1872 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R1881 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R1882 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R1883 VRS-CY1JF123J J 12k 1/16W M-Ox. AA
R1884 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1885 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R1886 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R1887 VRS-CY1JF123J J 12k 1/16W M-Ox. AA
R1889 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1921 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R1922 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1923 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R1924 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R1925 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R1941 VRD-RA2BE102J J 1k 1/8W Carbon AA
R1942 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1943 VRS-CY1JF151J J 150 1/16W M-Ox. AA
R1944 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R1945 VRS-CY1JF474J J 470k 1/16W M-Ox. AA
R1946 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R1947 VRD-RA2BE223J J 22k 1/8W Carbon AA
R1991 VRD-RA2BE151J J 150 1/8W Carbon AA

MISCELLANEOUS PARTS

P1901 QPLGZ0810CEZZ J Plug, 8-pin AD
P1902 QPLGZ0610CEZZ J Plug, 6-pin AB
P1903 QPLGZ0810CEZZ J Plug, 8-pin AD

SLD1801

PSLDM0012MEFW M Shield AB

47

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

MISCELLANEOUS PARTS

å

ACC701

QACCD3049CESA M AC Cord AF
QCNW-0089MEZZ M Connecting Cord AH
QCNW-0137MEZZ M Connecting Cord AH
QCNW-0196MEZZ M Connecting Cord AC
QCNW-0197MEZZ M Connecting Cord AC
QCNW-0198MEZZ M Connecting Cord AF
QCNW-0199MEZZ M Connecting Cord AE
QCNW-0200MEZZ M Connecting Cord AD
QCNW-0201MEZZ M Connecting Cord AD
QCNW-0202MEZZ M Connecting Cord AD
QCNW-0203MEZZ M Connecting Cord AD
QCNW-0204MEZZ M Connecting Cord AD
QCNW-0205MEZZ M Connecting Cord AD
QCNW-0206MEZZ M Connecting Cord AF
QCNW-0209MEZZ M Connecting Cord AE
QCNW-0210MEZZ M Connecting Cord AB

QCNW-0211MEZZ M Connecting Cord AB
SP1 VSP0080PBM98A M Speaker (L) AN
SP2 VSP0080PBM98A M Speaker (R) AN

å UBUP-0012CEZZ M ANT AS

CABINET PARTS

1 CCABA1307MES0 M Cabinet Ass'y, Front BF
1-1

Not Available

1-2 HBDGB1009MESA M Badge, "SHARP" AD
1-3 JBTN-1101MEKA M Button, Power, Vol-up/down
1-4 JBTN-1102MEKA M Button, CH-up/down
1-5 GCOVA1033MEKA M Cover for R/C
2 GCABB1142MEKA M Rear Cabinet AZ

1

1-1

– Front Cabinet —

2

SUPPLIED ACCESSORIES

TGAN-1006MEZZ M Guarantee Card AA

TiNS-6414MEZZ M Operation Manual AE

RRMCG1419CESA M Infrared R/C Unit AW

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKC0602MEZZ – Packing Case —

SPAKX0165MEZZ – Buffer Material —

SSAKA0004MEZZ – Polyethylene Sack —

1-3

1-2

1-5

1-4

48

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

★ Polyethylene Sack

PACKING OF THE SET

★ Polystyrene Bag

Operation Manual
Guarantee Card
Infrared R/C Unit
Batteries

★ Buffer Material

MARK ★ : Not replacement items.

FRONT

★ Packing Case

Use 2 tapes
fix the packing case.

REAR

49

27K-X2000

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

COPYRIGHT © 1998 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

TQ0482-S

Jun. 1998 Printed in Japan

YO. KG

SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Yaita, Tochigi 329-2193, Japan

50
