25MR15J
SERVICE MANUAL
S21Q225MR15J/
COLOR TELEVISION
Chassis No. SN-70A
MODEL
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.
25MR15J
CONTENTS
Page
» ELECTRICAL SPECIFICATIONS.........................................................................................................1
» IMPORTANT SERVICE SAFETY PRECAUTION.................................................................................2
» SERVICE INSTRUCTIONS..................................................................................................................4
» CHASSIS LAYOUT .............................................................................................................................10
» BLOCK DIAGRAM..............................................................................................................................11
» SCHEMATIC DIAGRAMS...................................................................................................................12

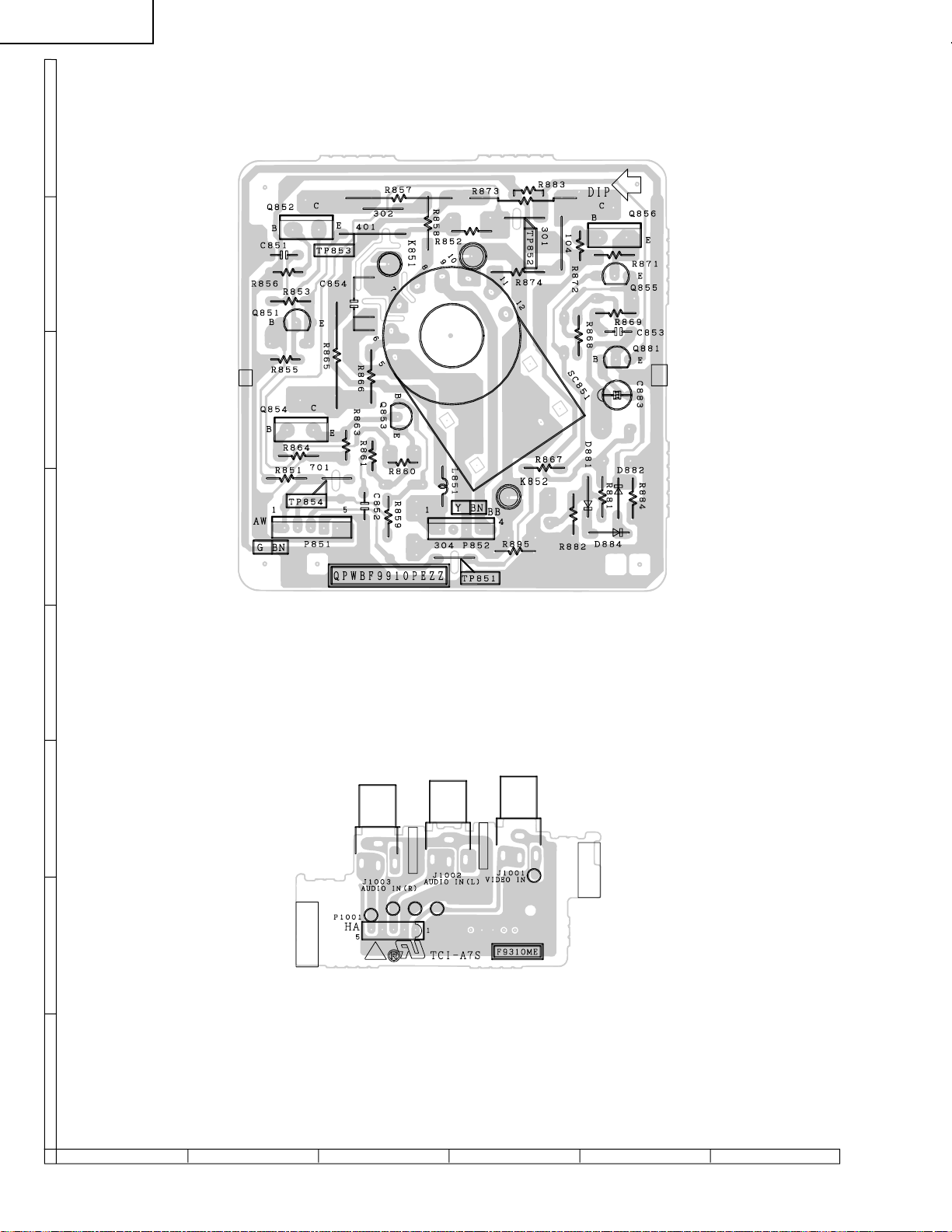

» PRINTED WIRING BOARD ASSEMBLIES........................................................................................18
» REPLACEMENT PARTS LIST............................................................................................................21
» PACKING OF THE SET......................................................................................................................27
ELECTRICAL SPECIFICATIONS
POWER INPUT ....................................................120 V AC 60 Hz
POWER RATING ................................................................... 92 W
PICTURE SIZE ................................................. Approx. 267 sq. in.
CONVERGENCE............................................................. Magnetic
SWEEP DEFLECTION.................................................... Magnetic
FOCUS ....................................................................Hi-Bi-potential
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency .................................... 45.75 MHz
Sound IF Carrier Frequency..................................... 41.25 MHz
Color Sub-Carrier Frequency ................................... 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING................................................ 1.5 W + 1.5 W
(at 10% Distortion and Dual CH Operate)
SPEAKER
SIZE ......................................................................8 cm (Round)
VOICE COIL IMPEDANCE............................32 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF ................................................... 75 ohm Unbalanced
TUNING RANGES
All 12 television channels ............................ 54 MHz to 88 MHz
174 MHz to 214 MHz
Any of 56 UHF channels.......................... 470 MHz to 806 MHz
CATV Channels (1.14 thru 125) ........ 72. 120 MHz to 804 MHz
Specifications are subject to change without
prior notice.
SHARP CORPORATION
1
25MR15J
IMPORTANT SERVICE SAFETY PRECAUTION
Ë
Service work should be performed only b y qualified service technicians who are throughly
familiar with all safety checks and the servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC v oltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system, remove the static charge by connecting a 10k
ohm resistor in series with an insulated wire
(such as a test probe) between the picture
tube ground and the anode lead. (AC line cord
should be disconnected from A C outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. Howe ver , the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that ser vicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
-no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
not exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified
or make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test measurements
on a receiver with excessiv e high voltage, av oid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
2
2
2
IMPORTANT SERVICE SAFETY PRECAUTION
1.5k ohm
10W
0.15µF
TEST PROBE
CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS
AC
VOLTMETER
(Continued)
25MR15J
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators and etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
» Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
» Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15mF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
» Use an AC voltmeter ha ving with 5000 ohm per volt,
or higher, sensitivity to measure the A C voltage drop
across the resistor.
» Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage
drop across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a nonpolarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp .
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken bef ore returning the
instrument to the customer.
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement
components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "S"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the
same safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
3
25MR15J
SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
4A 125V
ONLY WITH SAME TYPE 4A125V FUSE.
HIGH VOLT A GE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.
3. Enter the service mode and select the service
adjustment "S19" and Bus data "01" (Y-mute on).
4. The voltage should be approximately, 27.1kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.
X-RADIATION PROTECT OR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high volta ge system, +B system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120V AC using a variac transformer for accur ate
input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 11.2 ± 0.7V.
5. Apply external 14.4V DC at TP653 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and make
a short circuit between TP651 and TP652. No w make
sure that normal picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
4
25MR15J
SERVICE INSTRUCTIONS
For adjustments of this model, the bus data is conver ted to various analog signals by the D/A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if service adjustments are required.
1. SERVICE MODE
Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.
2. SERVICE NUMBER SELECTION
Once in the service mode, press the Ch-up or Chdown button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "S01" to "M05". Select the item
you wish to adjust.
3. DATA NUMBER SELECTION
Press the Vol-up or down button to adjust the data
number.
DATA NUMBER
SERVICE ADJUSTMENT NUMBER
TO ENTER THE SERVICE MODE AND
EXIT SERVICE MODE
While pressing the Vol-up and Ch-up buttons at the
sametime, plug the AC cord into a wall socket. Now the
TV set is switched on and enters the service mode.
To exit the service mode, turn the television off by
pressing the power button.
CHANNEL
S01
Figure 1.
55(085)
02
S01 D:00
5
25MR15J
SERVICE INSTRUCTIONS
SERVICE
NUMBER
S01 PICTURE 55 00-7F
S02 TINT 46 00-7F
S03 COLOR 32 00-7F
S04 BRIGHTNESS 40 00-7F
S05 SHARPNESS 28 00-3F Must be set to "28"
S06 VERTICAL PHASE 00 00-07 Must be set to "00"
S07 HORIZONTAL PHASE 12 00-1F
S08 RF-AGC 23 00-3F
S09 VERTICAL AMP 20 00-3F
S10 PIF VCO 2C 00-7F
S11 R CUT-OFF 00 00-FF
S12 G CUT -OFF 00 00-FF
S13 B CUT-OFF 00 00-FF
S14 G GAIN 7F 00-FF
S15 B GAIN 7F 00-FF
S16 TRAP 00 00 or 01 Must be set to "00"
S17 BALANCE 20 00-3F Must be set to "20"
S18 C.C.POSITION 17 00-7F
S19 MUTE 00 00,01,03 "00"=Normal, "01"=No Y, "03"=No Vertical
S20 ENERGY SAVE OFFSET 20 00-3F Must be set to "23"
S21 TIMER 7A 00-1F Must be set to "7A"
S22 OSD SETUP 00 00-03
S23 TUNER SETUP 00 00, 01 Must be set to "00"
OP1
OP2
M01 INPUT LEVEL 0A 00-0F
M02 ST VCO 20 00-3F
M03 FILTER 1C 00-3F
M04 WIDE BAND 20 00-3F
M05 SPECTRAL 1B 00-3F
ADJUSTMENT ITEM
INITIAL V ALUE
OPTION 1 (Set to each model)
OPTION 2 (Set to each model)
DA T A
RANGE
00 00-FF
00 00-FF
ADJUSTMENT CONTENTS
Must be set to "13"
Must be set to "17"
Table - A
Holding down both the Ch-up/down buttons on the TV set at service mode for more than 2 seconds will automatically
write the above initial values into IC2101.
PART REPLACED
NECESSARY
IC2001
IC201
IC2101
CRT X
IC3001
ADJUSTMENT
X
X
X
UNNECESSARY
X
Data is stored in IC2101.
The adjustment is needed to compensate for characteristics
of parts including IC201 and MTS level (M01).
Holding down both the Ch-up/down buttons on the TV set in
the service mode for more than 2 seconds will automatically
write the above initial values into IC2101. Then perform a
complete adjustment.
Adjust items related to picture tube only.
Adjust items related to MTS only (M01~M05).
NOTES
Table - B
6
Ë
SERVICE ADJUSTMENT
25MR15J
SERVICE INSTRUCTIONS
Note: Before making the service adjustment, make he
bus data settings.
+B ADJUSTMENT
1. Receive a good local channel.
2. Select VIDEO ADJUSTMENT RESET on the menu
to get the video reset.
3. Connect a DC voltmeter vetween the +B line (at SW
transformer) of R61 and the ground terminal.
4. Adjust R738 so that the voltmeter should read 130 ±
0.5V.
VCO ADJUSTMENT
1. Connect a digital voltmeter between pin (44) of IC201
and GND.
2. Receive a good local channel.
3. Enter the service mode and select the service
adjustment "S10".
4. Adjust the data so that digital voltmeter reads 2.2V.
5. Adjustment is completed, remove the voltmeter , return
to the "normal" mode.
RF AGC ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S08".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confir m that no noise or
beat appears.
Note 1: You will have to come out of the service
mode to select another channel.
Note 2: Setting the data to "00" will produce a black
raster.
SCREEN ADJUSTMENT
1. Connect a oscilloscope between TP854 and GND on
the CRT Unit.
2. Receive a good local channel.
3. Enter the service mode and select the service
adjustment "S03" and set the data value to "00" to
set the color level to minimum. (Record original data
code under adjustment "S03" before changing) You
may skip this step, if you selected a B/W picture or
monoscope pattern.
4. Select the ser vice adjustment "S19" and adjust the
data value to "01", this turn off the luminance signal
(Y-mute).
5. Select the service adjustment "S04" and adjust data
value to obtain 2.35V on the oscilloscope screen
(Refer to Figure 2.).
6. Adjust the master screen control until the raster
darkens to the point where raster is barely seen.
7. Adjust the service adjustments "S11" red, "S12" green
and "S13" blue to obtain a good grey scale with normal
whites at low brightness level.
8. Select the ser vice adjustment "S19" and reset data
to "00". Select the service adjustment "S03" and reset
data to obtain normal color level.
9. Remove a oscilloscope, and reset the master screen
control to obtain normal brightness range.
WHITE BALANCE ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S03" and set to "00" (minimum
color)(Record original data code under adjustment
"S03" before changing). "S03" does not have to be
adjusted, if you selected a B/W picture or monoscope
pattern.
3. Alternately adjust the ser vice adjustment data of
"S14" and "S15" until a good grey scale with normal
whites is obtained.
4. Select the service adjustment "S03" and adjust data
to obtain normal color level.
SUB-PICTURE ADJUSTMENT
1. Receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Enter the service mode and select the service
adjustment "S01".
4. Adjust the data value to achieve normal contrast
range.
SUB-TINT ADJUSTMENT
1. Receive a good local channel.
2. Set customer tint control to center of it's range.
3. Enter the service mode and select the service
adjustment "S02".
4. Adjust "S02" data value to obtain normal flesh tones.
2.35V
Figure 2.
SUB-COLOR ADJUSTMENT
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position .
3. Enter the service mode and select the service
adjustment "S03".
4. Adjust "S03" data value to obtain normal color level.
7
25MR15J
SERVICE INSTRUCTIONS
SUB-BRIGHTNESS ADJUSTMENT
1. Receive a good local channel.
2. Make sure the customer brightness control is set to
center position.
3. Enter the service mode and select the service
adjustment "S04".
4. Adjust "S04" data value to obtain normal brightness
level.
VERTICAL-SIZE ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S09".
3. While obser ving the top and bottom of the screen,
adjust "S09" data value to proper vertical size.
VERTICAL PHASE ADJUSTMENT
1. Enter the service mode and select the service
adjustment "S06".
2. Adjust data value to "00".
Note: This must be set "00" when changed data
retrace line will appear.
HORIZONTAL POSITION ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S07".
3. Adjust "S07" data value so that picture is centered.
CAPTION POSITION ADJUSTMENT
(Horizontal)
3.58MHz TRAP ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S16".
3. This is a two position adjustment, "00" is ON, "01" is
OFF.
4. Adjust data value to "00" for normal viewing.
SHARPNESS AND AUDIO BALANCE
ADJUSTMENT
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustments "S05" for sharpness and "S17" for audio
balance.
» Sharpness adjustment
3. Adjust data value to "28" (center of data range) for
sharpness adjustment.
» Audio balance adjustment
4. Adjust data value to "20" (center of data range) for
audio balance adjustment.
OTHER ADJUSTMENT
1. Enter the service mode.
2. Adjust the following data values as listed below.
S16 "00" TRAP
S20 "23" ENERGY SAVE OFFSET
S21 "7A" TIMER
S23 "00" TUNER SETUP
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S18".
3. A black text box appears on the screen. (Refer to
Figure 3.)
4. Adjust "S18" data value so that text box is positioned
in the center of the screen.
Figure 3.
8
Ë
MTS ADJUSTMENT
25MR15J
SERVICE INSTRUCTIONS
MTS LEVEL ADJUSTMENT
1. Feed the following monaural signal to pin (14) of
IC3001.
Monaural signal: 400Hz, 245mVrms
2. Connect the rms voltmeter to pin (39) of IC3001.
3. Enter the service mode and select the service
adjustment "M01".
4. Adjust the data so that the rms voltmeter reads
490 ± 10mVrms.
MTS VCO ADJUSTMENT
1. Keep the unit in no-signal state.
2. Connect the frequency counter to pin (39) of IC3001.
3. Connect a capacitor (100µF, 16V) in between
positive(+) side of C3005 and ground.
4. Enter the service mode and select the service
adjustment "M02"
5. Adjust the data so that the frequency counter reads
62.94 ± 0.75kHz.
FILTER ADJUSTMENT
1. Feed the following stereo pilot signal to pin (14) of
IC3001 .
Stereo pilot signal: 9.4kHz, 600mVrms.
2. Enter the service mode and select the service
adjustment "M03".
3. Adjust the data at the point where "OK" appears on
the screen. The "OK" represents the approximate
center of the adjustable range of the data.
SEPARATION ADJUSTMENT
1. Connect the rms voltmeter to pin (39) of IC3001.
2. Receive the following composite stereo signal 1.
Composite stereo signal: 30% modulation, left
channel only, noise reduction on, 300Hz
3. Enter the service mode and select the service
adjustment "M04".
4. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.
5. Receive the following composite stereo signal 2.
Stereo signal: 30% modulation, left channel only,
noise reduction on, 3kHz
6. Enter the service mode and select the service
adjustment "M05".
7. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.
8. Take the above steps 1 thru 7 again for fine
adjustment.
9
25MR15J
CHASSIS LAYOUT
H
G
F
E
D
C
B
A
654321
10
BLOCK DIAGRAM
H
G
F
25MR15J
E
D
C
B
A
654321
11
25MR15J
DESCRIPTION OF SCHEMATIC DIAGRAM
SAFETY NOTES:
1. DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.
2. SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED
AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS
IS OPERATING.
3. THE CHASSIS IN THIS RECEIVER IS HOT .(CONNECTED
TO ONE SIDE OF THE AC LINE) USE AN ISOLATION
TRANSFORMER BETWEEN THE LINE CORD AND POWER
RECEPTACLE, WHEN SERVICING THIS CHASSIS.
CIRCUIT PROTECTION
The entire receiver is protected by a 4.0A (F701) fuse,
mounted on PWB-A, that is wired into one side of the
AC line input.

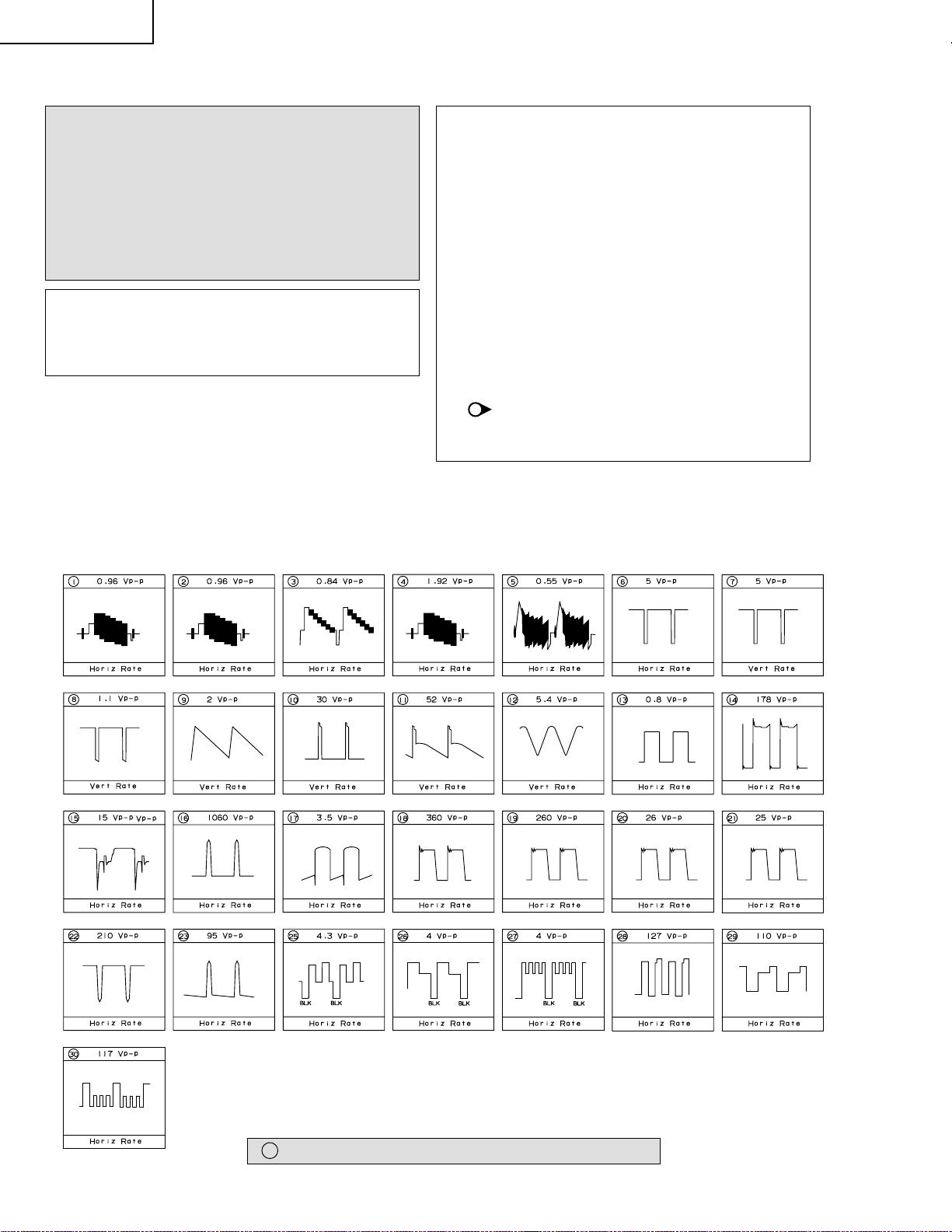

WAVEFORMS FOR POINTS INDICATED
WAVEFORMS TAKEN WITH KEYED RAINBOW GENERATOR INPUT
NOTES:
1. The unit of resistance "ohm" is omitted.
2. All resistors are 1/10 watt, unless otherwise noted.
3. All capacitors
4. (G) indicates ±2% tolerance may be used.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with VTVM placed between
2. All voltages measured with 1000µV input, B & W or Color signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar signal, the
2.
Ω
= 1000Ω, M = MΩ)
(K = k
µ
F, unless otherwise noted. (p = pF =
points indicated and chassis ground, line voltage set at 120V
AC and all controls set for normal picture unless otherwise
indicated.
tint setting adjusted for proper color. The wave shapes at the
red, green and blue cathodes of the picture tube depend on
the tint, color level and picture control.
indicates wave form check points (See chart, waveform
measured from point indicated to chassis ground.)
µµ
F)
Chassis Waveforms
S AND SHADED COMPONENT: PRODUCT SAFETY
12
SCHEMATIC DIAGRAM: CRT and FRONT AV Unit
H
G
F
25MR15J
E
D
C
B
A
654321
13
SCHEMATIC DIAGRAM: MAIN-1 Unit
J
I
H
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
14~15
SCHEMATIC DIAGRAM: MAIN-2 Unit
J
I
H
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
16~17
25MR15J
PRINTED WIRING BO ARD ASSEMBLIES
H
G
F
E
D
C
B
A

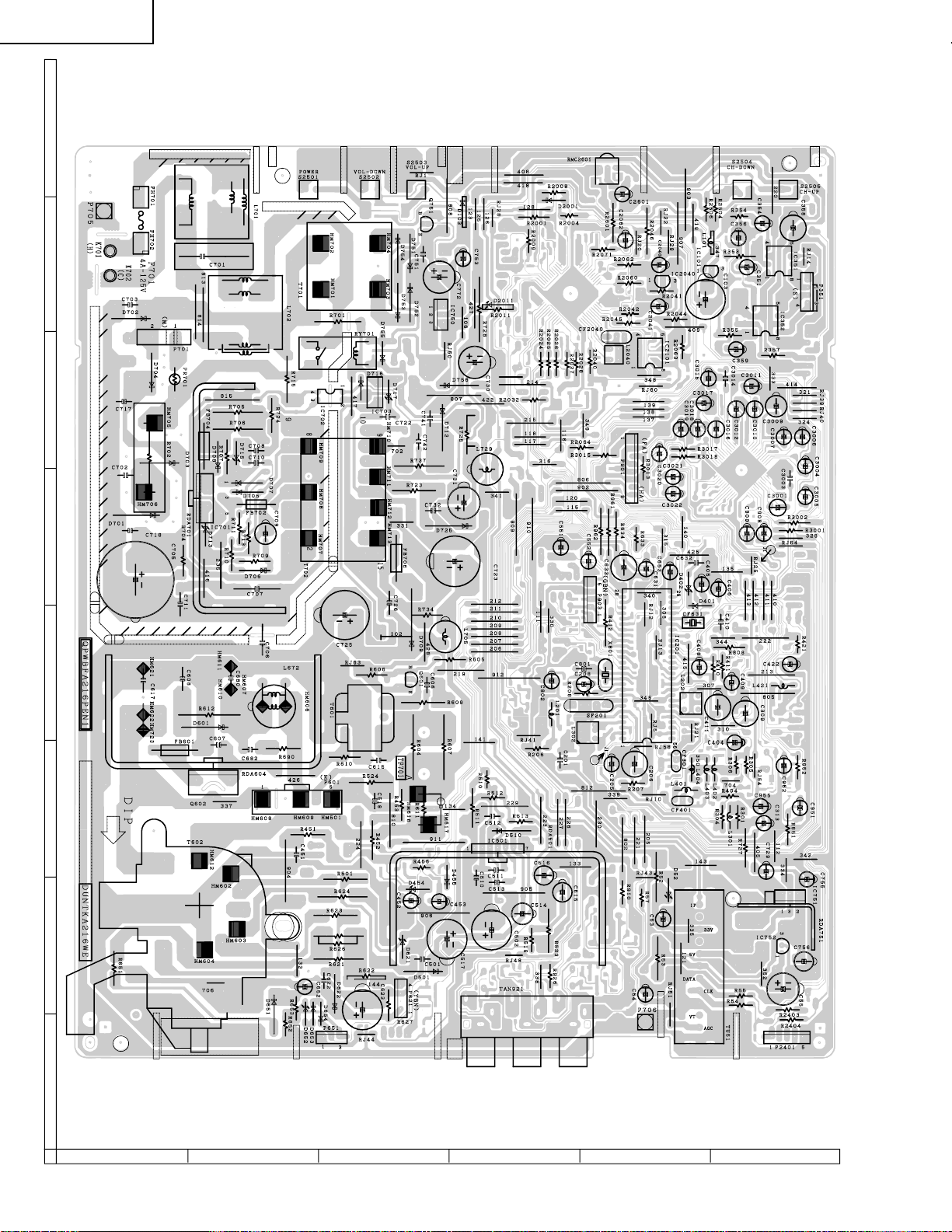

PWB-A: MAIN Unit (Wiring Side)
654321
18
25MR15J
H
G
F
E
D
C
B
A
PWB-A: MAIN Unit (Chip Parts Side)
654321
19
25MR15J
H
G
F
E
PWB-B: CRT Unit (Wiring Side)
D
C
B
PWB-H: FRONT AV Unit (Wiring Side)
A
654321
20
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by S and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
NOTE : THE PARTS HERE SHOWN ARE SUPPLIED AS AN
PWB-A: DUNTKA216WEV3
MAIN UNIT
TUNER
ASSEMBLY BUT NOT INDEPENDENTLY.
S
TU51 VTUENV56D82-1 J VHF T uner AZ
1. MODEL NUMBER 2. REF . NO.
3. PART NO. 4. DESCRIPTION
★MARK : SPARE PARTS-DELIVERY SECTION
'MARK : X- RAY RELATED PARTS
Ref. No. Part No. ★ Description Code
PICTURE TUBE
S
V101 VB59LGV21X/~S R Picture T ube CG
S
L703 RCiLG0103PEZZ R Degaussing Coil AQ
S
D Y601 RCiLH0213PEZZ R Deflection Y oke BC
PMAGF3046CEZZ J Magnet AF
QEARC2302PEZZ R Ground-Part AG
IC101 VHiKA78S05P-1 J KIA78S05P AD
S
IC201 RH-iX3253CEZZ J TA1268AN AV
IC351 VHiAN7511//-1 J AN7511 AK
IC352 VHiAN7511//-1 J AN7511 AK
S
IC501 VHiTA8403K/-1 J TA8403K AL
S
IC701 VHiSTRF66241E J I.C. AR
S
IC702 RH-FX0034CEZZ J PC817 AE
S
IC703 VHiSE120N//-1 J SE120N AG
S
IC750 VHiKA7809AP-1 J KIA7809API AE
S
IC751 VHiKA7809AP-1 J KIA7809API AE
IC752 VHiKA78S05P-1 J KIA78S05P AD
IC951 VHiMM1111XF1E J MM1111XFBE AE
IC2001 RH-iX3366CEN2 J I.C. AU
IC2040 VHiKiA7045A-1 J KIA7045AP AE
IC2101 VHiM24C16B/-1 J M24C16-BN6 AG
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
TRANSISTORS
You can substitute "VS2SC2412-C-1" for "VS2PD601AR/-1".
Q201 VS2SC2735//1E J 2SC2735 AC
Q301 VS2SD601AR/-1 J 2SD601AR AC
Q401 VS2SD601AR/-1 J 2SD601AR AC
Q402 VS2SB709AR/-1 J 2SB709AR AC
Q403 VS2SD601AR/-1 J 2SD601AR AC
Q421 VS2SB709AR/-1 J 2SB709AR AC
Q451 VS2SB709AR/-1 J 2SB709AR AC
Q601 VS2SC2482//-1 J 2SC2482 AD
S
Q602 VS2SD2539//1E J 2SD2539 AP
Q751 VS2SC3198-Y-1 J 2SC3198(Y) AA
Q2060 VS2SD601AR/-1 J 2SD601AR AC
Q2201 VS2SD601AR/-1 J 2SD601AR AC
Q2211 VS2SD601AR/-1 J 2SD601AR AC
INTEGRATED CIRCUITS
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
DUNTKA216WEV3 — Main Unit —
DUNTK9310WEV1 — Front AV Unit —
DUNTK9910WEV1 — CRT Unit —
You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1".
D52 RH-EX0673GEZZ J Zener Diode, 32V AB
D103 VHD1SS119//-1 J Diode AB
D401 VHD1SS119//-1 J Diode AB
D402 RH-EX0604GEZZ J Zener Diode, 3.9V AB
D454 RH-EX0611GEZZ J Zener Diode, 5.1V AA
D455 VHD1SS119//-1 J Diode AB
D456 VHD1SS119//-1 J Diode AB
D457 RH-EX0217CEZZ J Zener Diode, 15V AB
D458 RH-EX0217CEZZ J Zener Diode, 15V AB
D459 VHD1SS119//-1 J Diode AB
S
D501 RH-DX0131CEZZ J Diode AC
S
D510 RH-DX0441CEZZ J Diode AC
D601 RH-DX0131CEZZ J Diode AC
D621 RH-EX0631GEZZ J Zener Diode, 9.1V AA
S
D622 RH-DX0131CEZZ J Diode AC
S
D651 VHD1SS244//-1 J Diode AB
S
D652 RH-EX0632GEZZ J Zener Diode, 10V AA
S
D653 VHD1SS119//-1 J Diode AB
S
D654 VHD1SS119//-1 J Diode AB
S
D701 RH-DX0490CEZZ J Diode AC
S
D702 RH-DX0490CEZZ J Diode AC
S
D703 RH-DX0490CEZZ J Diode AC
S
D704 RH-DX0490CEZZ J Diode AC
21
DIODES
25MR15J

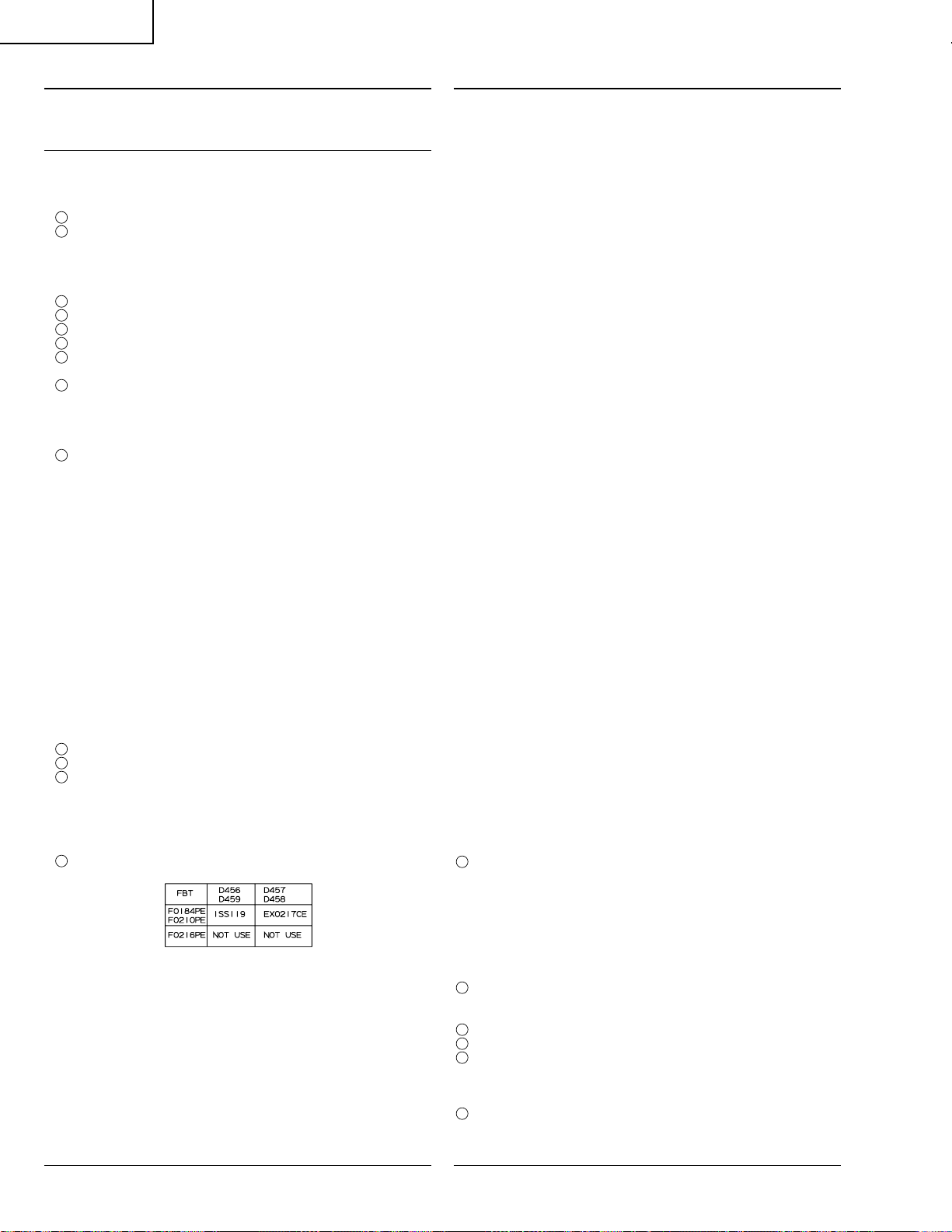

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA216WEV3
MAIN UNIT (Continued)
D705 VHD1SS244//-1 J Diode AB
D706 RH-DX0066GEZZ J Diode AB
D707 VHD1SS244//-1 J Diode AB
D708 RH-DX0066GEZZ J Diode AB
S
D709 RH-DX0229CEZZ J Diode AF
S
D712 RH-DX0406CEZZ J Diode AD
D713 RH-EX0673GEZZ J Zener Diode, 32V AB
D715 RH-EX0610GEZZ J Zener Diode, 4.7V AA
D716 VHD1SS119//-1 J Diode AB
D717 RH-EX0650GEZZ J Zener Diode, 16V AB
S
D725 RH-DX0406CEZZ J Diode AD
S
D751 RH-DX0441CEZZ J Diode AC
S
D752 RH-DX0441CEZZ J Diode AC
S
D753 RH-DX0441CEZZ J Diode AC
S
D754 RH-DX0441CEZZ J Diode AC
D755 VHD1SS119//-1 J Diode AB
S
D756 RH-DX0441CEZZ J Diode AC
D2001 VHD1SS119//-1 J Diode AB
D2011 RH-EX0611GEZZ J Zener Diode, 5.1V AA
S
PR701 RMPTP0092CEZZ J Packaged Circuit AH
X801 RCRSB0001PEZZ R Crystal AL
CF301 RFiLC0029TAZZ J Ceramic Filter AD
CF401 RFiLC0013CEZZ J Ceramic Filter AE
CF631 RFiLA0034CEZZ J Ceramic Filter AD
CF2040
SF201 RFiLC0405CEZZ J Saw Filter AH
L201 VP-XF1R2K0000 J Peaking 1.2µHAB
L202 RCiLi0588CEZZ J If Coil AF
L301 VP-XF8R2K0000 J Peaking 8.2µHAB
L302 RCiLi0613CEZZ J If Coil AE
L401 VP-XF6R8K0000 J Peaking 6.8µHAB
L402 VP-XF3R3K0000 J Peaking 3.3µHAB
L403 VP-XF8R2K0000 J Peaking 8.2µHAB
L404 VP-XF8R2K0000 J Peaking 8.2µHAB
L421 VP-XF680K0000 J Peaking 68µHAB
L672 RCiLZ0102MEZZ J Coil AH
S
L701 RCiLF0078PEZZ R Coil AF
S
L702 RCiLF0078PEZZ R Coil AF
S
L705 RCiLP0179CEZZ J Coil AD
L729 RCiLP0179CEZZ J Coil AD
L2040 RCiLB0131CEZZ J Oscillation Coil AE
T601 RTRNZ0057PEZZ R H-Drive AK
S
T602 RTRNF0210PEZZ R H-Out BB
T701 RTRNP0551CEZZ J Power AK
T702 RTRNZ0022MEZZ J Transformer AP
[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]
C53 VCEA0A1HW105M J 1.0 50V EL. AB
C54 VCEA0A1HW475M J 4.7 50V EL. AB
C55 VCEA0A1CW337M J 330 16V EL. AC
C103 VCEA0A1AW228M J 2200 10V EL. AD
C201 VCKYPA1HB102K J 1000p 50V Ceramic AA
C202 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C203 VCKYCY1HB102K J 1000p 50V Ceramic AA
C204 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C205 VCEA0A1HW474M J 0.47 50V EL. AB
PACKAGED CIRCUITS
FILTERS
RFiLA0099CEZZ J Ceramic Filter AE
COILS
TRANSFORMERS
S
S
CAPACITORS
S
S
S
S
C206 VCEA0A1CW337M J 330 16V EL. AC
C207 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C208 VCEA0A1HW474M J 0.47 50V EL. AB
C209 VCKYCY1HB222K J 2200p 50V Ceramic AA
C210 VCKYCY1HB102K J 1000p 50V Ceramic AA
C301 VCCCCY1HH330J J 33p 50V Ceramic AA
C302 VCCCCY1HH151J J 150p 50V Ceramic AA
C303 VCCCCY1HH390J J 39p 50V Ceramic AA
C307 VCCCCY1HH1R5C J 1.5p 50V Ceramic AD
C308 VCKYCY1HB102K J 1000p 50V Ceramic AA
C309 VCEA0A1CW337M J 330 16V EL. AC
C313 VCEA0A1CW476M J 47 16V EL. AB
C351 VCEA0A1HW106M J 10 50V EL. AB
C352 VCKYCY1HB332K J 3300p 50V Ceramic AA
C354 VCEA0A1HW106M J 10 50V EL. AB
C355 VCKYCY1HB332K J 3300p 50V Ceramic AA
C356 VCEA0A1HW106M J 10 50V EL. AB
C358 VCEA0A1CW477M J 470 16V EL. AC
C359 VCEA0A1HW106M J 10 50V EL. AB
C401 VCKYCY1HB331K J 330p 50V Ceramic AA
C402 VCCCCY1HH101J J 100p 50V Ceramic AA
C403 VCKYCY1CB104K J 0.1 16V Ceramic AB
C404 VCEA0A1HW106M J 10 50V EL. AB
C405 VCEA0A1HW335M J 3.3 50V EL. AB
C406 VCEA0A1HW225M J 2.2 50V EL. AB
C408 VCEA0A1HW106M J 10 50V EL. AB
C409 VCEA0A1HW105M J 1.0 50V EL. AB
C410 VCQYTA1HM104K J 0.1 50V Mylar AC
C411 VCEA0A1CW337M J 330 16V EL. AC
C412 VCKYCY1HB103K J 0.01 50V Ceramic AA
C413 VCKYCY1HB103K J 0.01 50V Ceramic AA
C414 VCKYCY1CB104K J 0.1 16V Ceramic AB
C421 VCCCCY1HH330J J 33p 50V Ceramic AA
C422 VCEA0A1CW476M J 47 16V EL. AB
C451 VCQYTA1HM104K J 0.1 50V Mylar AC
C452 VCEA0A1HW475M J 4.7 50V EL. AB
C453 VCEA0A1CW226M J 22 16V EL. AB
C501 VCKYPA2HB102K J 1000p 500V Ceramic AA
C502 VCEA0A1VW477M J 470 35V EL. AB
C510 VCFYSA1JB564J J 0.56 63V Mylar AE
C511 VCKYPA2HB391K J 390p 500V Ceramic AA
C512 VCQYTA1HM473K J 0.047 50V Mylar AB
C513 VCQYTA1HM103K J 0.01 50V Mylar AB
C514 VCEA0A1VW107M J 100 35V EL. AC
C515 VCEA0A1HW105M J 1.0 50V EL. AB
C516 VCEACA1HC105K J 1.0 50V EL. AC
C517 VCEA0A1VW108M J 1000 35V EL. AD
C518 VCFYSA1JB473J J 0.047 63V Mylar AC
C551 VCSATA1CE225K J 2.2 16V Tantalum(N.P)AB
C552 VCEA0A1HW225M J 2.2 50V EL. AB
C606 VCKYPA2HB561K J 560p 500V Ceramic AA
C607 VCKYPA1HB472K J 4700p 50V Ceramic AA
C608 VCFPVC2DB104J J 0.1 200V M-Poly. AD
C615 VCKYPA2HB102K J 1000p 500V Ceramic AA
C617 RC-FZ1017CEZZ J 12000p 1.6V Ceramic AE
C623 VCEA4A2EN106M J 10 250V EL. AD
C631 VCEA0A1HW335M J 3.3 50V EL. AB
C632 VCQYTA1HM103K J 0.01 50V Mylar AB
C633 VCEA0A1CW477M J 470 16V EL. AC
C652 VCEA0A1HW106M J 10 50V EL. AB
C653 VCEA0A1HW106M J 10 50V EL. AB
C680 VCFPVC2DB474J J 0.47 200V M-Poly. AE
C682 VCKYPA2HB331K J 330p 500V Ceramic AA
C701 RC-FZ038SCEZZ J 0.47
C702 RC-KZ0029CEZZ J 0.01
C703 RC-KZ0029CEZZ J 0.01
AC250V
Ceramic AE
AC250V
Ceramic AC
AC250V
Ceramic AC
C705 RC-EZ1022CEZZ J 470 200V EL. AK
C706 RC-KZ0092GEZZ J 3300p
C707 VCFPVC3CA222H J 2200p
AC250V
Ceramic AC
1600V
M-Poly. AE
C708 VCCSPA1HL471J J 470p 50V Ceramic AA
C709 VCEA0A1VW107M J 100 35V EL. AC
C710 VCQYTA1HM102J J 1000p 50V Mylar AA
C711 RC-KZ0331CEZZ J 150p 2kV Ceramic AE
C717 VCKYPA2HB472K J 4700p 500V Ceramic AB
C718 VCKYPA2HB472K J 4700p 500V Ceramic AB
C722 VCQYTA1HM104K J 0.1 50V Mylar AC
22
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA216WEV3
MAIN UNIT (Continued)
S
C723 RC-EZ0724CEZZ J 100 160V EL. AG
S
C725 RC-EZ0724CEZZ J 100 160V EL. AG
C726 RC-KZ0338CEZZ J 560p 2kV Ceramic AD
C729 VCEA0A1CW106M J 10 16V EL. AB
S
C730 RC-EZ0385CEZZ J 1000 160V EL. AE
S
C731 RC-EZ0385CEZZ J 1000 160V EL. AE
C732 VCKYPA2HB102K J 1000p 500V Ceramic AA
C741 VCKYPA2HB102K J 1000p 500V Ceramic AA
C742 VCKYPA2HB102K J 1000p 500V Ceramic AA
C753 VCEA0A1CW476M J 47 16V EL. AB
C755 VCEA0A1CW476M J 47 16V EL. AB
C756 VCEA0A1CW476M J 47 16V EL. AB
C772 VCEA0A1VW107M J 100 35V EL. AC
C801 VCQYTA1HM223K J 0.022 50V Mylar AB
C802 VCEA0A1HW474M J 0.47 50V EL. AB
C803 VCCCCY1HH110J J 11p 50V Ceramic AA
C804 VCKYCY1CB104K J 0.1 16V Ceramic AB
C805 VCKYCY1CB104K J 0.1 16V Ceramic AB
C806 VCKYCY1CB104K J 0.1 16V Ceramic AB
C807 VCCCCY1HH221J J 220p 50V Ceramic AA
C808 VCKYCY1HB102K J 1000p 50V Ceramic AA
C908 VCEA0A1HW225M J 2.2 50V EL. AB
C909 VCEA0A1HW225M J 2.2 50V EL. AB
C951 VCEA0A1HW106M J 10 50V EL. AB
C952 VCEA0A1HW106M J 10 50V EL. AB
C954 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C955 VCEA0A1CW106M J 10 16V EL. AB
C2001 VCCCCY1HH101J J 100p 50V Ceramic AA
C2002 VCCCCY1HH101J J 100p 50V Ceramic AA
C2040 VCEA0A1AW107M J 100 10V EL. AB
C2041 VCEA0A1HW105M J 1.0 50V EL. AB
C2060 VCKYCY1CB104K J 0.1 16V Ceramic AB
C2061 VCCCCY1HH101J J 100p 50V Ceramic AA
C2062 VCEA0A1AW107M J 100 10V EL. AB
C2201 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2202 VCCCCY1HH390J J 39p 50V Ceramic AA
C2601 VCEA0A1HW475M J 4.7 50V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA
C3001 VCE9GA1HW475M J 4.7 50V EL.(N.P) AB
C3002 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3003 VCQYTA1HM123K J 0.012 50V Mylar AA
C3004 VCEA0A1HW105M J 1.0 50V EL. AB
C3005 VCEA0A1HW475M J 4.7 50V EL. AB
C3006 VCEA0A1HW106M J 10 50V EL. AB
C3007 VCEA0A1HW475M J 4.7 50V EL. AB
C3008 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3009 VCEA0A1CW227M J 220 16V EL. AC
C3010 VCE9GA1HW475M J 4.7 50V EL.(N.P) AB
C3011 VCEA0A1HW475M J 4.7 50V EL. AB
C3012 VCE9GA1HW475M J 4.7 50V EL.(N.P) AB
C3013 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3014 VCQYTA1HM473K J 0.047 50V Mylar AB
C3015 VCSATA1CE335K J 3.3 16V Tantalum(N.P)AC
C3016 VCE9GA1HW475M J 4.7 50V EL.(N.P) AB
C3017 VCSATA1CE106K J 10 16V Tantalum(N.P)AD
C3018 VCEA0A1HW105M J 1.0 50V EL. AB
C3019 VCEA0A1HW475M J 4.7 50V EL. AB
C3020 VCEA0A1HW475M J 4.7 50V EL. AB
C3021 VCEA0A1HW475M J 4.7 50V EL. AB
C3022 VCEA0A1HW475M J 4.7 50V EL. AB
RJ9 VRN-MD2AL000J J 0 1/10W M-Film. AA
[M-Ox.··· Metal Oxide, M-Film··· Metal Film]
RJ11 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ15 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ17 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ19 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ26 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ30 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ31 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ32 VRN-MD2AL000J J 0 1/10W M-Film. AA
RESISTORS
RJ35 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ36 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ37 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ38 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ42 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ46 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ49 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ52 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ55 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ57 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ61 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ67 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ71 VRN-MD2AL000J J 0 1/10W M-Film. AA
RJ74 VRN-MD2AL000J J 0 1/10W M-Film. AA
S
R52 VRS-VU3DE123J J 12k 2W M-Ox. AB
S
R53 VRS-VU3AE101J J 100 1W M-Ox. AB
R54 VRD-RA2BE101J J 100 1/8W Carbon AB
R55 VRD-RA2BE101J J 100 1/8W Carbon AB
R56 VRN-MD2AL823J J 82k 1/10W M-Film. AA
R57 VRD-RA2BE563J J 56k 1/8W Carbon AA
R201 VRN-MD2AL151J J 150 1/10W M-Film. AA
R202 VRN-MD2AL122J J 1.2k 1/10W M-Film. AA
R203 VRN-MD2AL682J J 6.8k 1/10W M-Film. AA
R204 VRN-MD2AL270J J 27 1/10W M-Film. AA
R205 VRN-MD2AL331J J 330 1/10W M-Film. AA
R206 VRD-RA2BE121J J 120 1/8W Carbon AA
R207 VRD-RA2BE4R7J J 4.7 1/8W Carbon AA
R208 VRD-RA2BE331J J 330 1/8W Carbon AA
R301 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R302 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R303 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R304 VRD-RA2BE333J J 33k 1/8W Carbon AA
R305 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R306 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R351 VRN-MD2AL683J J 68k 1/10W M-Film. AA
R352 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R353 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
R354 VRD-RA2BE223J J 22k 1/8W Carbon AA
R355 VRD-RA2BE683J J 68k 1/8W Carbon AA
R356 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R357 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
R358 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R401 VRN-MD2AL682J J 6.8k 1/10W M-Film. AA
R402 VRN-MD2AL331J J 330 1/10W M-Film. AA
R403 VRN-MD2AL391J J 390 1/10W M-Film. AA
R404 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R405 VRN-MD2AL470J J 47 1/10W M-Film. AA
R406 VRN-MD2AL680J J 68 1/10W M-Film. AA
R407 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R408 VRN-MD2AL471J J 470 1/10W M-Film. AA
R409 VRN-MD2AL562J J 5.6k 1/10W M-Film. AA
R410 VRD-RA2BE124J J 120k 1/8W Carbon AA
R411 VRD-RA2BE153J J 15k 1/8W Carbon AA
R412 VRD-RA2BE561J J 560 1/8W Carbon AA
R413 VRN-MD2AL101J J 100 1/10W M-Film. AA
R414 VRN-MD2AL101J J 100 1/10W M-Film. AA
R415 VRN-MD2AL101J J 100 1/10W M-Film. AA
R421 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R422 VRN-MD2AL472J J 4.7k 1/10W M-Film. AA
R423 VRN-MD2AL152J J 1.5k 1/10W M-Film. AA
R424 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
S
R451 VRS-SV2HC103J J 10k 1/2W M-Ox. AA
R452 VRD-RA2EE223J J 22k 1/4W Carbon AA
R453 VRD-RM2HD683J J 68k 1/2W Carbon AA
R454 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R456 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R458 VRN-MD2AL152J J 1.5k 1/10W M-Film. AA
S
R501 VRN-VV3AB3R9J J 3.9 1W M-Film. AA
R510 VRD-RA2BE471J J 470 1/8W Carbon AA
R511 VRD-RA2BE104G J 100k 1/8W Carbon AA
R512 VRD-RA2BE124G J 120k 1/8W Carbon AA
R513 VRD-RA2BE473J J 47k 1/8W Carbon AA
R514 VRN-MD2AL101J J 100 1/10W M-Film. AA
R519 VRD-RA2BE153G J 15k 1/8W Carbon AA
R520 VRN-MD2AL184J J 180k 1/10W M-Film. AA
R523 VRN-VV3AB1R2J J 1.2 1W M-Film. AA
23
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA216WEV3
MAIN UNIT (Continued)
S
R524 VRS-VU3AE391J J 390 1W M-Ox. AB
R526 VRN-MD2AL122J J 1.2k 1/10W M-Film. AA
R551 VRN-MD2AL472J J 4.7k 1/10W M-Film. AA
R552 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R553 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R554 VRN-MD2AL184J J 180k 1/10W M-Film. AA
S
R604 VRS-VU3LE392J J 3.9k 3.0W M-Ox. AB
R605 VRD-RA2BE331J J 330 1/8W Carbon AA
R606 VRD-RA2BE331J J 330 1/8W Carbon AA
S
R607 VRS-VU3LE392J J 3.9k 3.0W M-Ox. AB
S
R609 VRS-VU3AE562J J 5.6k 1W M-Ox. AB
R610 VRD-RM2HD220J J 22 1/2W Carbon AA
S
R611 VRS-KA3NG3R3K J 3.3 7.0W M-Ox. AD
R612 VRS-VU3DE103J J 10k 2W M-Ox. AB
S
R623 VRN-VV3AB3R3J J 3.3 1W M-Film. AA
S
R624 VRS-VU3DE332J J 3.3k 2W M-Ox. AB
R625 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
S
R626 VRN-VV3AB1R5J J 1.5 1W M-Film. AA
R627 VRD-RM2HD224J J 220k 1/2W Carbon AA
R631 VRN-MD2AL391J J 390 1/10W M-Film. AA
R632 VRN-MD2AL152J J 1.5k 1/10W M-Film. AA
R633 VRD-RA2BE472J J 4.7k 1/8W Carbon AA
R634 VRD-RA2BE4R7J J 4.7 1/8W Carbon AA
S
R651 VRS-SV2HC270J J 27 1/2W M-Ox. AA
S
R652 VRD-RA2BE123J J 12k 1/8W Carbon AA
S
R653 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
S
R654 VRN-MD2AL104J J 100k 1/10W M-Film. AA
S
R655 VRN-MD2AL104J J 100k 1/10W M-Film. AA
R690 VRS-SV2HC102J J 1.0k 1/2W M-Ox. AA
S
R701 RR-HZ0048CEZZ J Resistor AB
S
R702 VRW-KQ3NC1R2K J 1.2 7.0W Cement AE
R704 VRD-RM2HD154J J 150k 1/2W Carbon AA
S
R705 VRN-VV3DBR27J J 0.27 2W M-Film. AB
S
R706 VRN-VV3DBR27J J 0.27 2W M-Film. AB
R707 VRS-SV2HC681J J 680 1/2W M-Ox. AA
S
R709 VRN-GA2EB1R0J J 1.0 1/4W M-Film. AA
R710 VRD-RM2HD330J J 33 1/2W Carbon AA
R711 VRD-RA2BE242J J 2.4k 1/8W Carbon AA
S
R715 VRS-VU3DE153J J 15k 2W M-Ox. AB
S
R723 VRN-VV3DBR39J J 0.39 2W M-Film. AA
R724 VRS-SV2HC332J J 3.3k 1/2W M-Ox. AA
R725 VRS-SV2HC821J J 820 1/2W M-Ox. AA
R727 VRD-RA2BE271J J 270 1/8W Carbon AA
S
R728 VRN-VV3LB4R7J J 4.7 3.0W M-Film. AC
R734 VRD-RM2HD124J J 120k 1/2W Carbon AA
S
R737 VRN-VV3DBR56J J 0.56 2W M-Film. AA
R751 VRN-MD2AL473J J 47k 1/10W M-Film. AA
R801 VRN-MD2AL332J J 3.3k 1/10W M-Film. AA
R802 VRN-MD2AL332J J 3.3k 1/10W M-Film. AA
R803 VRN-MD2AL222J J 2.2k 1/10W M-Film. AA
R804 VRN-MD2AL222J J 2.2k 1/10W M-Film. AA
R805 VRN-MD2AL222J J 2.2k 1/10W M-Film. AA
R806 VRN-MD2AL333J J 33k 1/10W M-Film. AA
R807 VRN-MD2AL152J J 1.5k 1/10W M-Film. AA
R808 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R924 VRN-MD2AL750J J 75 1/10W M-Film. AA
R925 VRN-MD2AL104J J 100k 1/10W M-Film. AA
R926 VRD-RA2BE104J J 100k 1/8W Carbon AA
R951 VRD-RA2BE101J J 100 1/8W Carbon AB
R952 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R961 VRD-RA2BE101J J 100 1/8W Carbon AB
R962 VRD-RA2BE101J J 100 1/8W Carbon AB
R2001 VRD-RA2BE562J J 5.6k 1/8W Carbon AA
R2002 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2004 VRD-RA2BE101J J 100 1/8W Carbon AB
R2006 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2008 VRD-RA2BE333J J 33k 1/8W Carbon AA
R2009 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2010 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R2012 VRN-MD2AL471J J 470 1/10W M-Film. AA
R2016 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R2020 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R2023 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R2024 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2025 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2026 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2027 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2028 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2029 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2032 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2035 VRN-MD2AL223J J 22k 1/10W M-Film. AA
R2040 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2041 VRD-RA2BE333J J 33k 1/8W Carbon AA
R2042 VRD-RA2BE101J J 100 1/8W Carbon AB
R2043 VRN-MD2AL333J J 33k 1/10W M-Film. AA
R2044 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2045 VRD-RA2BE101J J 100 1/8W Carbon AB
R2046 VRD-RA2BE101J J 100 1/8W Carbon AB
R2047 VRN-MD2AL221J J 220 1/10W M-Film. AA
R2048 VRN-MD2AL562J J 5.6k 1/10W M-Film. AA
R2060 VRD-RA2BE221J J 220 1/8W Carbon AA
R2061 VRN-MD2AL562J J 5.6k 1/10W M-Film. AA
R2062 VRD-RA2BE183J J 18k 1/8W Carbon AA
R2063 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R2064 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R2067 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2068 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2070 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2071 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2101 VRN-MD2AL101J J 100 1/10W M-Film. AA
R2102 VRN-MD2AL101J J 100 1/10W M-Film. AA
R2201 VRN-MD2AL222J J 2.2k 1/10W M-Film. AA
R2202 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2203 VRN-MD2AL184J J 180k 1/10W M-Film. AA
R2211 VRN-MD2AL222J J 2.2k 1/10W M-Film. AA
R2212 VRN-MD2AL682J J 6.8k 1/10W M-Film. AA
R2213 VRN-MD2AL333J J 33k 1/10W M-Film. AA
R2401 VRN-MD2AL101J J 100 1/10W M-Film. AA
R2402 VRN-MD2AL101J J 100 1/10W M-Film. AA
R2403 VRD-RA2BE101J J 100 1/8W Carbon AB
R2404 VRD-RA2BE101J J 100 1/8W Carbon AB
R2501 VRN-MD2AL103J J 10k 1/10W M-Film. AA
R2503 VRN-MD2AL273J J 27k 1/10W M-Film. AA
R2504 VRD-RA2BE123J J 12k 1/8W Carbon AA
R2505 VRN-MD2AL563J J 56k 1/10W M-Film. AA
R2506 VRD-RA2BE563J J 56k 1/8W Carbon AA
R2507 VRN-MD2AL823J J 82k 1/10W M-Film. AA
R2508 VRN-MD2AL153J J 15k 1/10W M-Film. AA
R2509 VRN-MD2AL272J J 2.7k 1/10W M-Film. AA
R2601 VRD-RA2BE331J J 330 1/8W Carbon AA
R3001 VRD-RA2BE101J J 100 1/8W Carbon AB
R3002 VRD-RA2BE101J J 100 1/8W Carbon AB
R3003 VRN-MD2AL105J J 1.0M 1/10W M-Film. AA
R3004 VRN-MD2AL104J J 100k 1/10W M-Film. AA
R3005 VRN-MD2AL623J J 62k 1/10W M-Film. AA
R3007 VRN-MD2AL332J J 3.3k 1/10W M-Film. AA
R3008 VRN-MD2AL302J J 3.0k 1/10W M-Film. AA
R3010 VRN-MD2AL392J J 3.9k 1/10W M-Film. AA
R3011 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R3012 VRN-MD2AL102J J 1.0k 1/10W M-Film. AA
R3013 VRD-RA2BE104J J 100k 1/8W Carbon AA
R3014 VRN-MD2AL104J J 100k 1/10W M-Film. AA
R3015 VRD-RA2BE101J J 100 1/8W Carbon AB
R3016 VRN-MD2AL750J J 75 1/10W M-Film. AA
R3017 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R3018 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
SWITCHES
S2501 QSW-K0202PEZZ R Power AC
S2502 QSW-K0202PEZZ R Vol-Down AC
S2503 QSW-K0202PEZZ R Vol-Up AC
S2504 QSW-K0202PEZZ R CH-Down AC
S2505 QSW-K0202PEZZ R CH-Up AC
MISCELLANEOUS PARTS
RY701 RRLYJ0081CEZZ J Relay AL
F701 QFS-B4023CEZZ J Fuse 4A (125V) AC
FB601 RBLN-0047CEZZ J Ferrite Bead AB
24
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA216WEV3
MAIN UNIT (Continued)
FB702 RBLN-0036CEZZ J Ferrite Bead AB
FB704 RBLN-0037CEZZ J Ferrite Bead AB
FB706 RBLN-0037CEZZ J Ferrite Bead AB
FH701 QFSHD1013CEZZ J Fuse Holder AC
FH702 QFSHD1014CEZZ J Fuse Holder AC
P351 QPLGN0461CEZZ J Plug, 4-Pin (S) AB
P601 QPLGN0160FJZZ J Plug, 5-Pin (K) AD
P621 QPLGN0461CEZZ J Plug, 4-Pin (YBN) AB
P651 QPLGN0361CEZZ J Plug, 3-Pin AB
P701 QPLGN0207CEZZ J Plug, 2-Pin (M) AA
P901 QPLGN0561CEZZ J Plug, 5-Pin (HA) AB
P903 QPLGN0561CEZZ J Plug, 5-Pin (GBN) AB
P2401 QPLGN0561CEZZ J Plug, 5-Pin AB
RMC2601
RRMCU0222CEZZ J R/C Receiver AL
RDA501
PRDAR0234PEFW R Heat Sink, for IC501 AH
RDA604
PRDAR0233PEFW R Heat Sink, for Q602 AK
RDA701
PRDAR1008MEFW J Heat Sink, for IC701 AH
RDA751
PRDAR5072CEFW J Heat Sink, for IC751 AC
TAN921
QTANJ0323CEZZ J Terminal AL
LX-BZ3049GEFD J Screw AA
LX-TZ3004CEFD J Screw AA
PWB-B: DUNTK9910WEV1
CRT UNIT
Q851 VS2SC3198-Y-1 J 2SC3198 (Y) AA
Q852 VS2SC3789//2E J 2SC3789 AF
Q853 VS2SC3198-Y-1 J 2SC3198 (Y) AA
Q854 VS2SC3789//2E J 2SC3789 AF
Q855 VS2SC3198-Y-1 J 2SC3198 (Y) AA
Q856 VS2SC3789//2E J 2SC3789 AF
Q881 VS2SA1266-Y-1 J 2SA1266 (Y) AA
You can substitute "RH-DX0045CEZZ" for "VHD1SS119//-1".
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D884 VHD1SS119//-1 J Diode AB
L851 VP-MK820K0000 J Peaking 82µHAB
C851 VCCSPA1HL391J J 390p 50V Ceramic AA
C852 VCCSPA1HL331J J 330p 50V Ceramic AA
C853 VCCSPA1HL391J J 390p 50V Ceramic AA
C854 RC-KZ0024CEZZ J 0.001 2kV Ceramic AC
C883 VCEA0A1HW106M J 10 50V EL. AB
R851 VRD-RA2BE470J J 47 1/8W Carbon AA
R852 VRD-RA2BE181J J 180 1/8W Carbon AA
R853 VRD-RA2BE121J J 120 1/8W Carbon AA
R855 VRD-RA2BE471J J 470 1/8W Carbon AA
R856 VRD-RA2BE221J J 220 1/8W Carbon AA
S
R857 VRS-VU3LE123J J 12k 3.0W M-Ox. AB
R858 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R859 VRD-RA2BE470J J 47 1/8W Carbon AA
R860 VRD-RA2BE181J J 180 1/8W Carbon AA
R861 VRD-RA2BE121J J 120 1/8W Carbon AA
R863 VRD-RA2BE471J J 470 1/8W Carbon AA
R864 VRD-RA2BE221J J 220 1/8W Carbon AA
S
R865 VRS-VU3LE123J J 12k 3.0W M-Ox. AB
R866 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R868 VRD-RA2BE181J J 180 1/8W Carbon AA
R869 VRD-RA2BE121J J 120 1/8W Carbon AA
R871 VRD-RA2BE471J J 470 1/8W Carbon AA
R872 VRD-RA2BE221J J 220 1/8W Carbon AA
S
R873 VRS-VU3LE123J J 12k 3.0W M-Ox. AB
R874 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R881 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R882 VRD-RA2BE331J J 330 1/8W Carbon AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R895 VRD-RA2BE470J J 47 1/8W Carbon AA
TRANSISTORS
DIODES
COIL
CAPACITORS
[EL.··· Electrolytic]
RESISTORS
[M-Ox.··· Metal Oxide]
25
P851 QPLGN0561CEZZ J Plug, 5Pin (GBN) AB
MISCELLANEOUS PARTS
P852 QPLGN0461CEZZ J Plug, 4-Pin (YBN) AB
SC851 QSOCV0937CEZZ J Socket AL
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-H: DUNTK9310WEV1
FRONT AV UNIT
J1001 QJAKE0053GEZZ J Jack, Video IN AD
J1002 QJAKE0055GEZZ J Jack, Audio IN (L) AD
J1003 QJAKE0059GEZZ J Jack, Audio IN (R) AC
P1001 QPLGN0561CEZZ J Plug, 5-Pin (HA) AB
MISCELLANEOUS PARTS
MISCELLANEOUS PARTS
S
ACC701
QACCD3090CESA J AC Cord, 120V/60Hz AK
QCNW-2338PEZZ R Connecting Cord AF
QCNW-2339PEZZ R Connecting Cord AF
QCNW-2343PEZZ R Connecting Cord AH
QCNW-2565PEZZ R Connecting Cord AD
VSP0080PBP8YA R Speaker AK
CABINET PARTS
1 CCABA2666WEV0 R Cabinet BH
1-1
Not Available
1-2 GCOVA0104PEKA R Cover AC
1-3 JBTN-0309PEKA R Button, Power, Vol-up/down AE
1-4 JBTN-0310PEKA R Button, CH-up/down AE
2 GCABB2384PEKA R Rear Cabinet BD
– Front Cabinet —
SUPPLIED ACCESSORIES
RRMCG1395CESA M Infrared R-C AW
TiNS-7425PEZZ R Instruction Book AK
PACKING PARTS
SPAKC6746PEZZ R Packing Case BB
SPAKP0097PEZZ R Wrapping Paper AK
SPAKX2710PEZZ R Packing Add. AZ
SSAKA0005PEZZ R Polyethylene Bag AA
1-11
2
1-3
1-2
1-4
26
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
★ Polyethylene Sheet
PACKING OF THE SET
★ Polyethylene Bag
Operation Manual
★ Batteries
Infrared R/C unit
★ Buffer Material
★ MARK : Not Replacement Items.
FRONT
★ Packing Case
Use 22 staples to
fix the bottom side
of packing case.
REAR
27
25MR15J
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
COPYRIGHT © 2000 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
D SEM P SREC TQ1105-S
Mar. 2001 Printed in Japan
MI. KD
SHARP CORPORATION
A V Systems Group
Quality & Reliability Control Center
Yaita, Tochigi 329-2193, Japan
28
Loading...
