sharp 20PL84 Service Manual

20PL84

SERVICE MANUAL

COLOR TELEVISION

Chassis No. GA-1

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.

20PL84

CONTENTS

Page

» ELECTRICAL SPECIFICATIONS .........................................................................................................1

» IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2

» LOCATION OF USER'S CONTROL .....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................5

» CHASSIS LAYOUT .............................................................................................................................13

» BLOCK DIAGRAM ..............................................................................................................................14

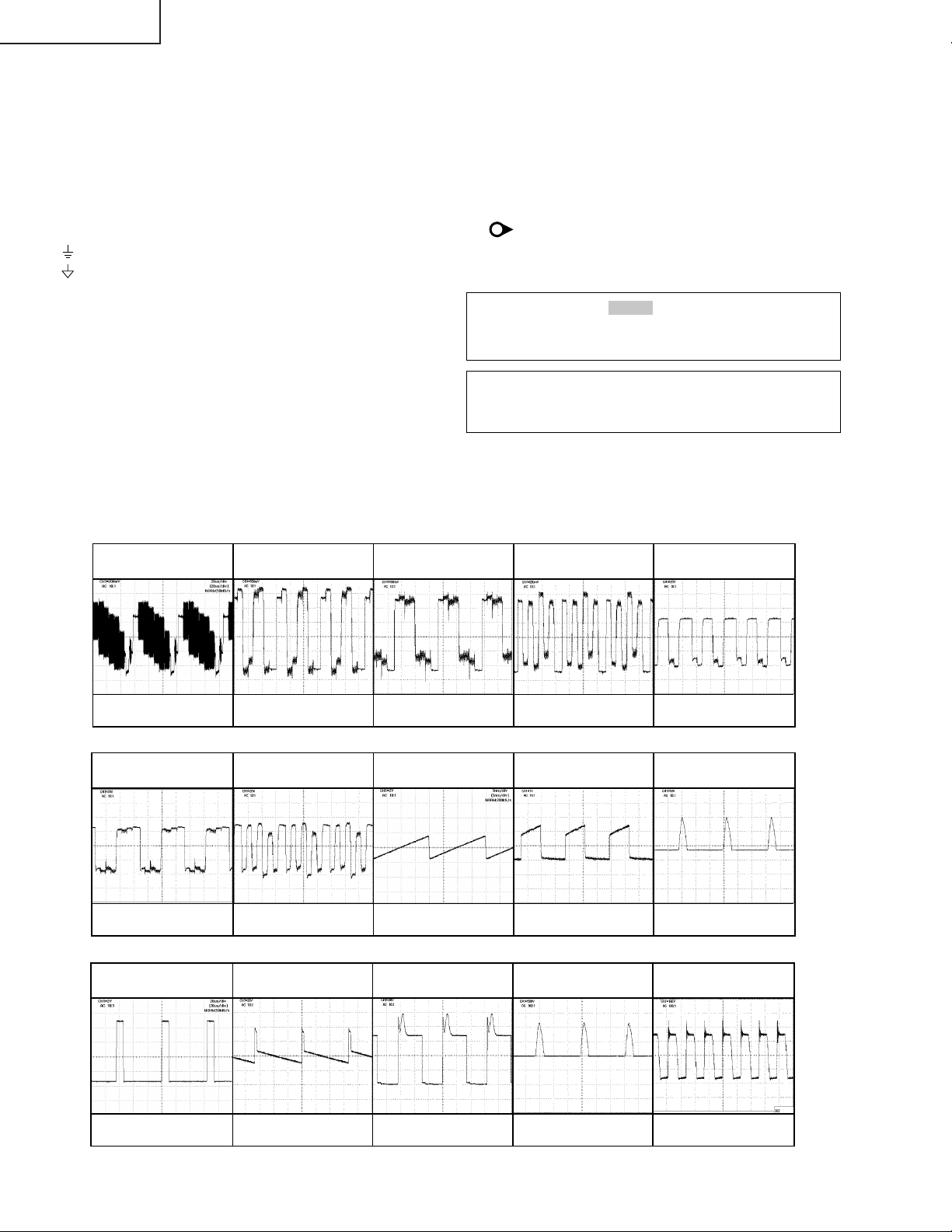

» DESCRIPTION OF SCHEMATIC DIAGRAMS & WAVEFORMS........................................................16

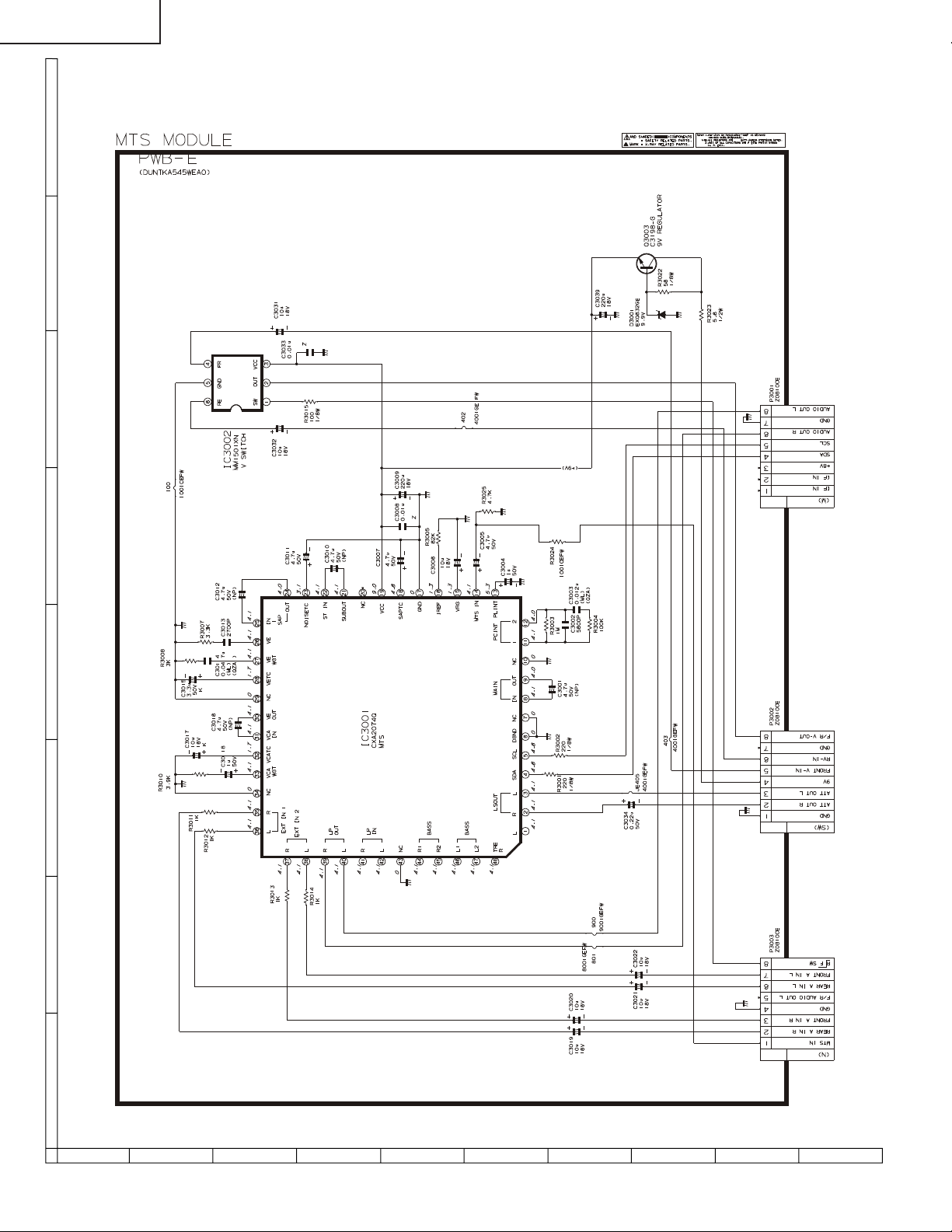

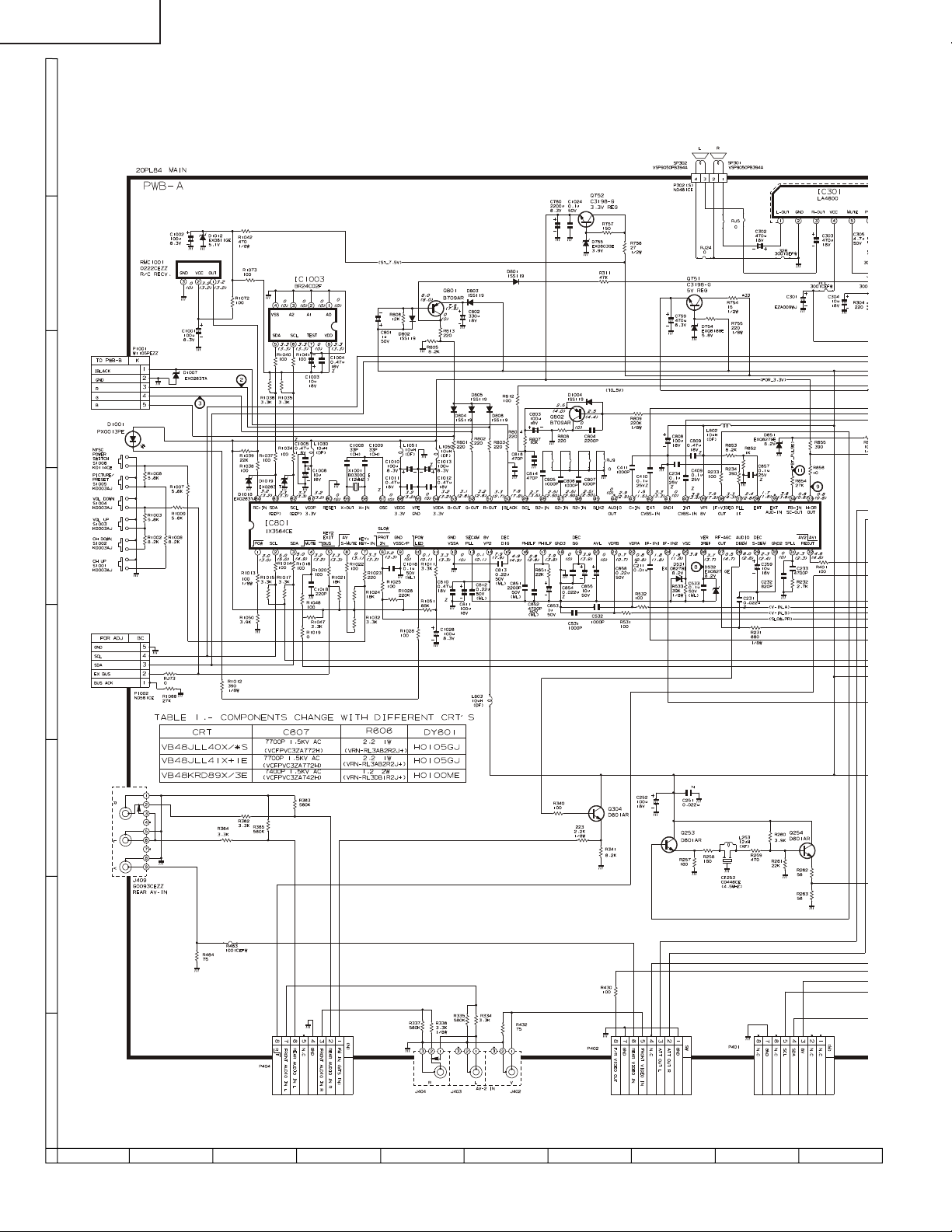

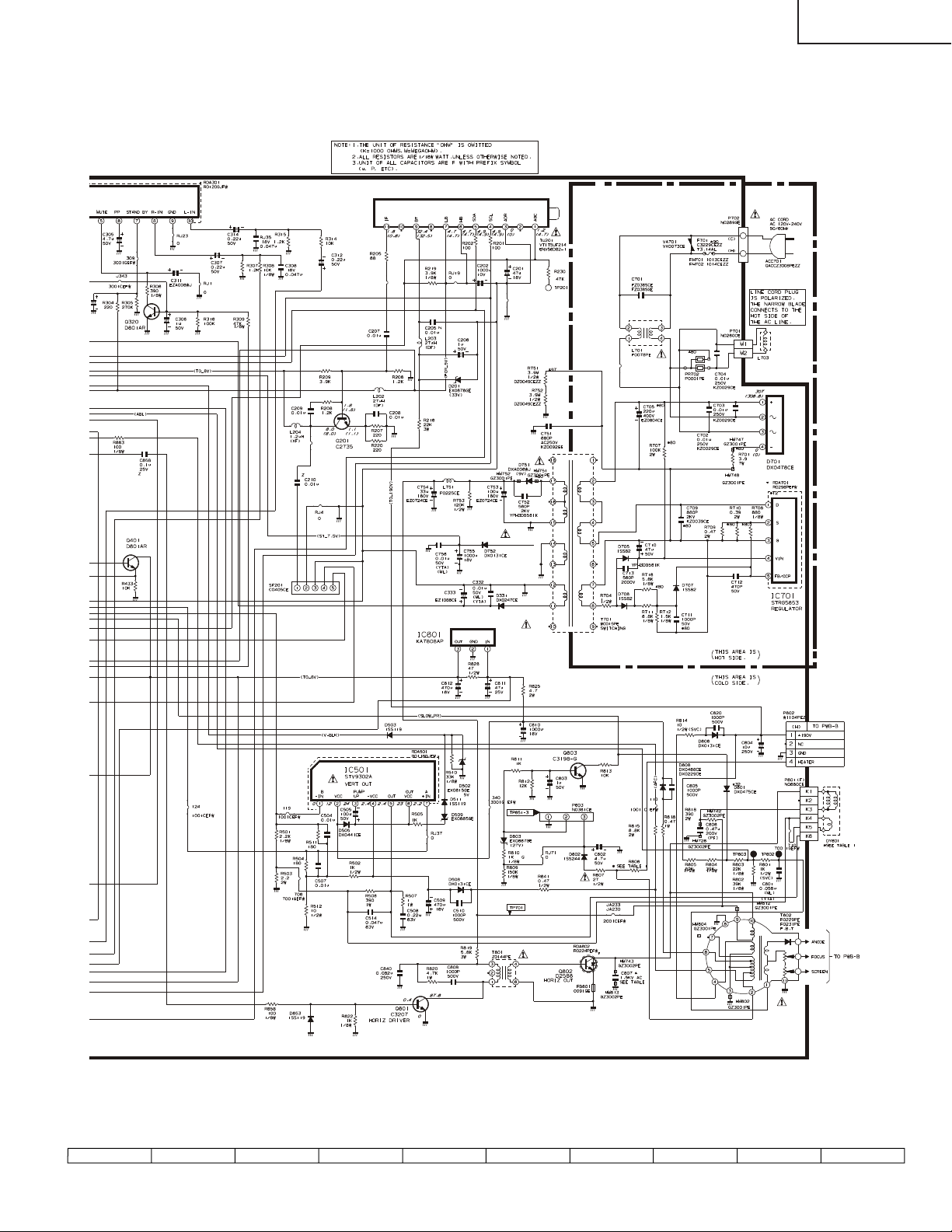

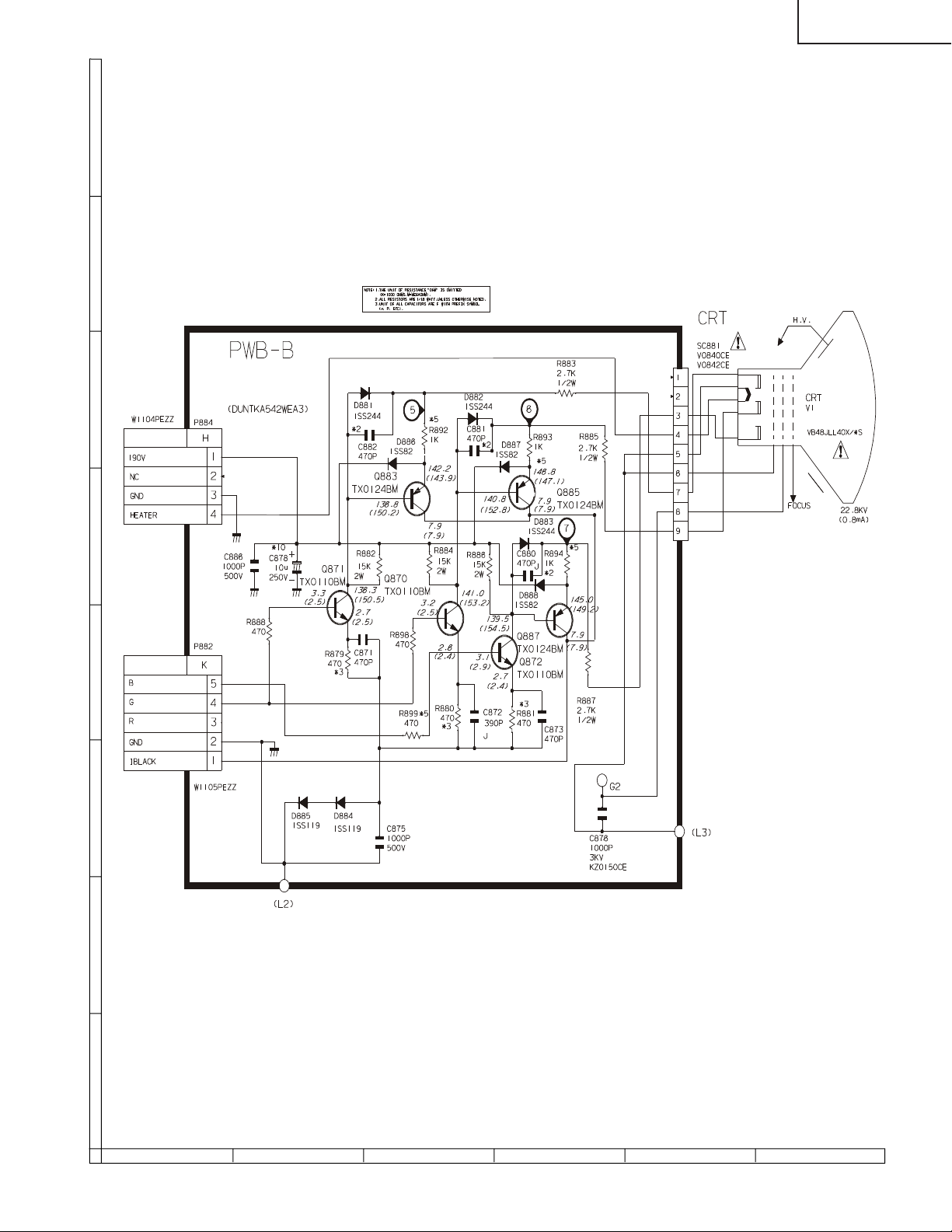

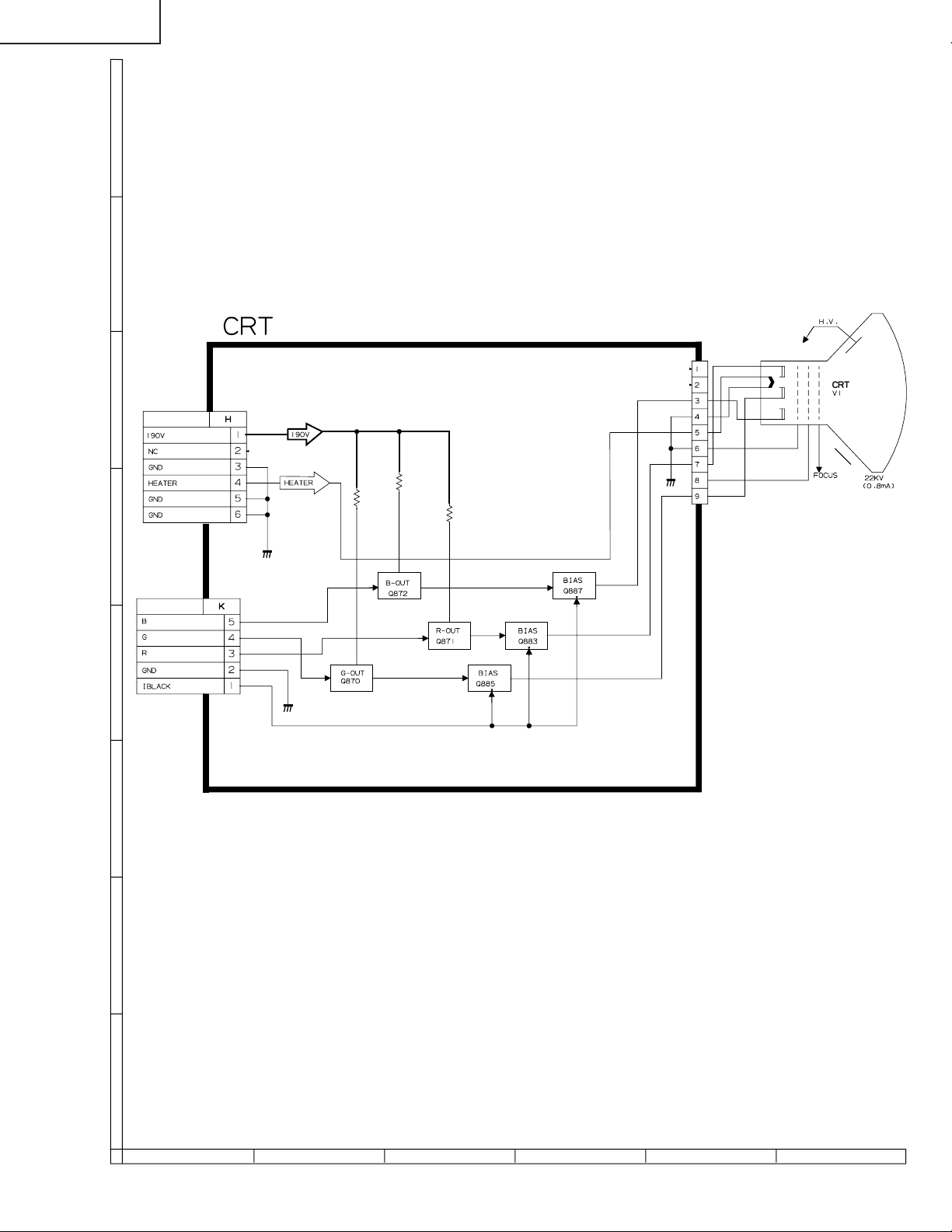

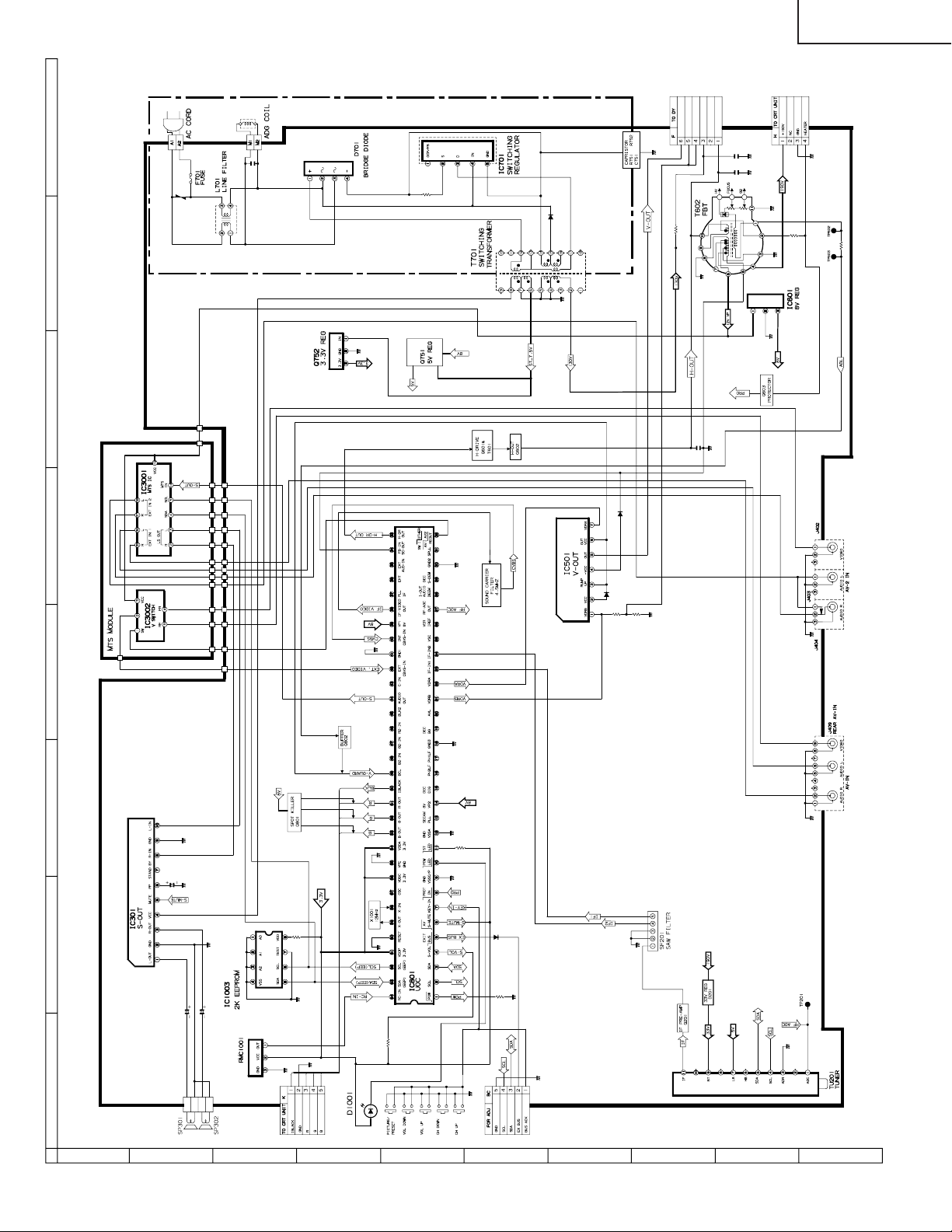

» SCHEMATIC DIAGRAMS ...................................................................................................................17

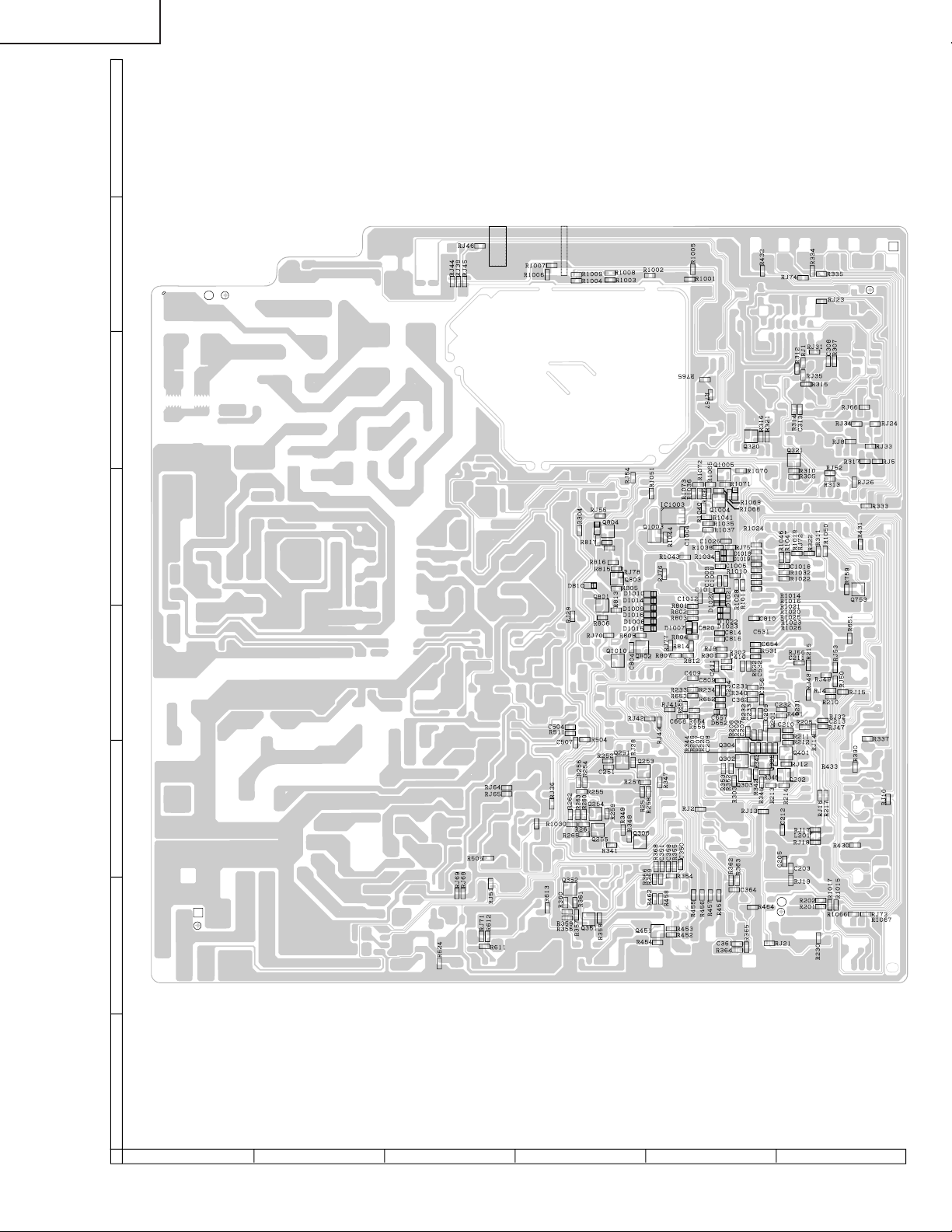

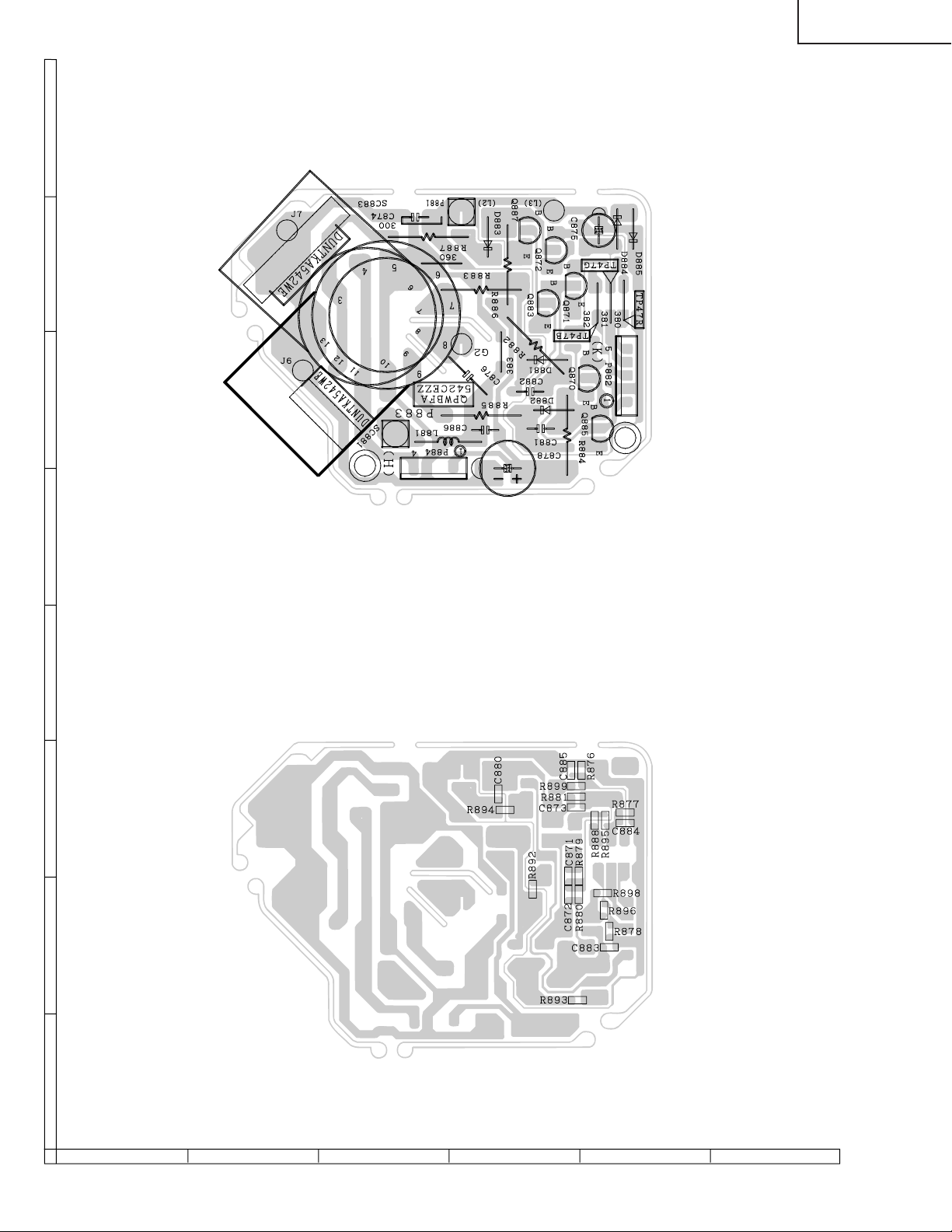

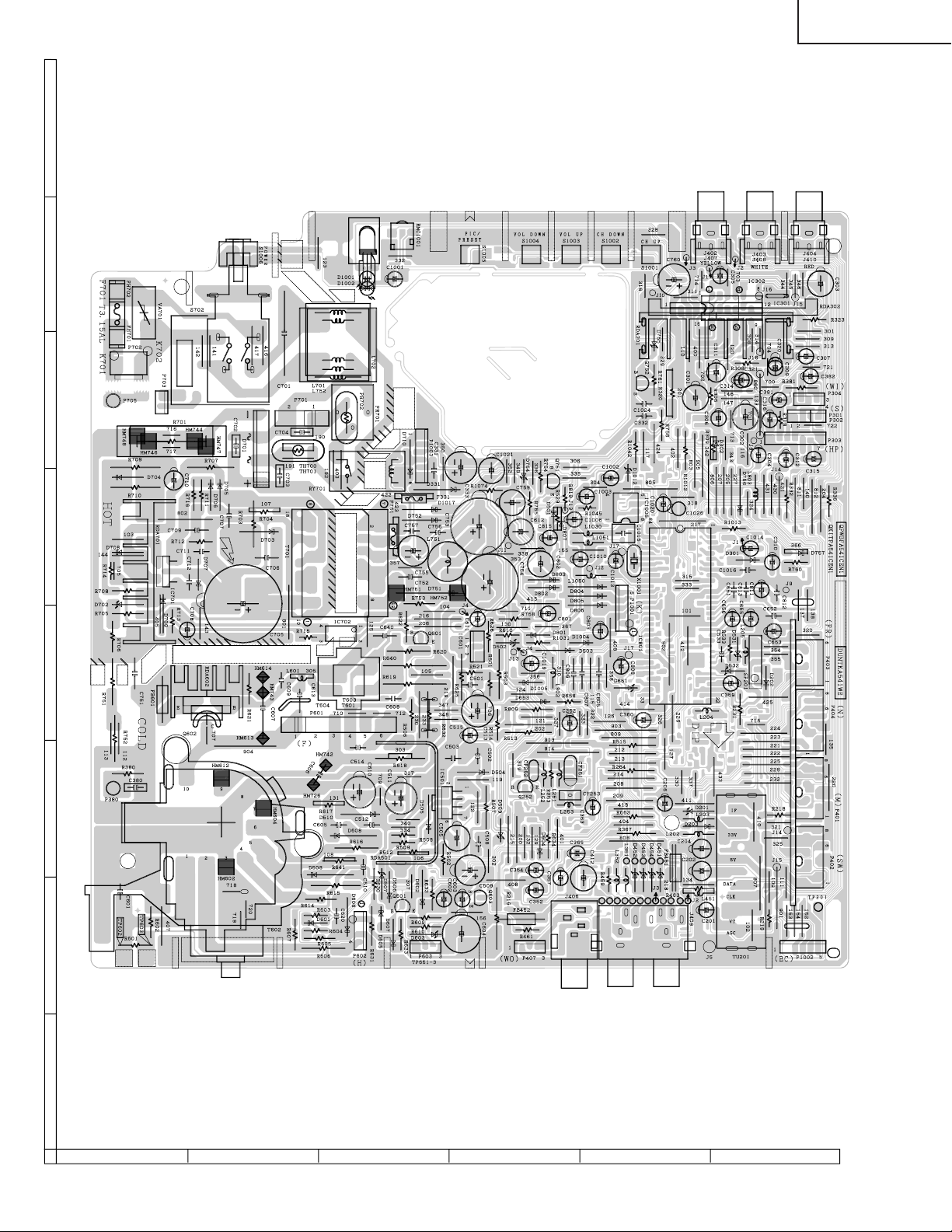

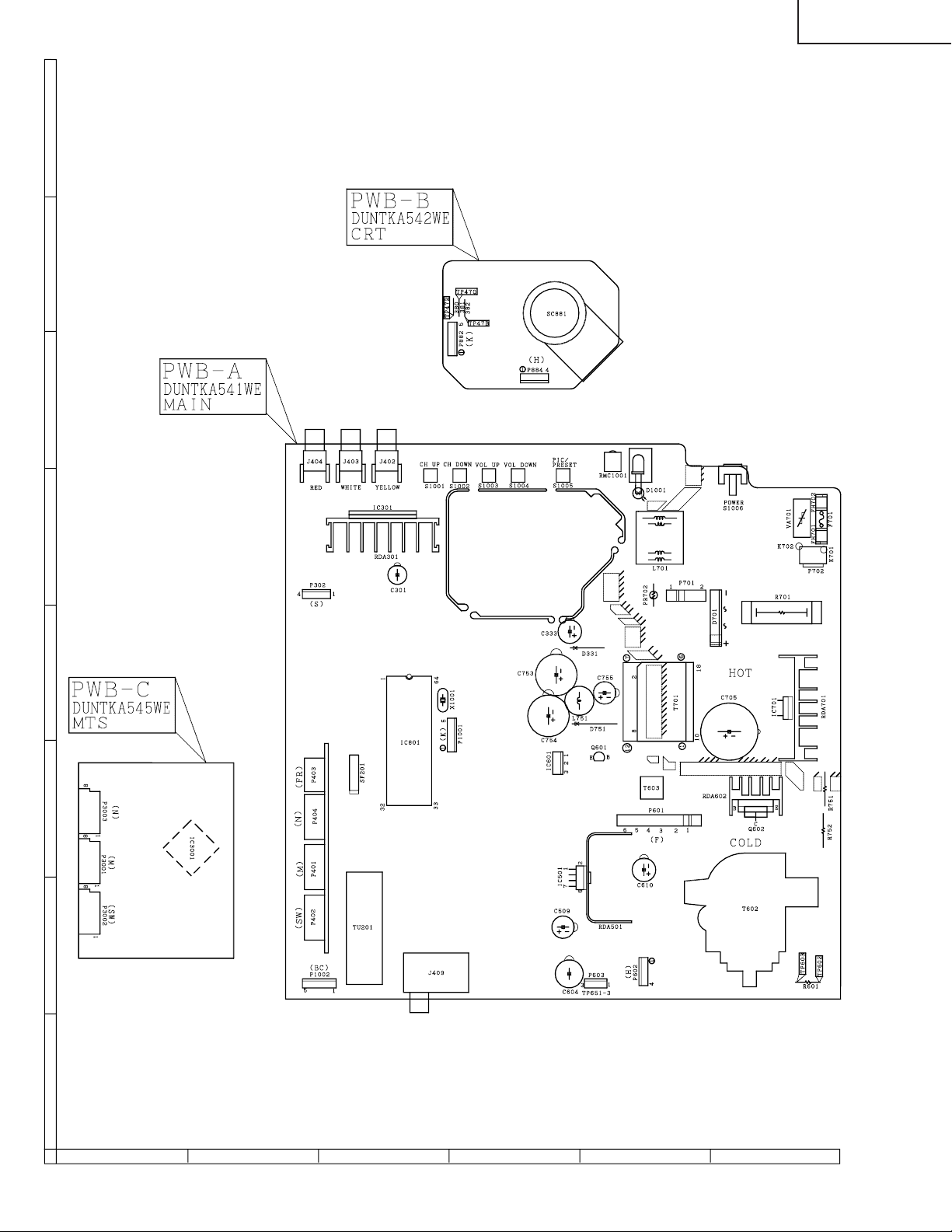

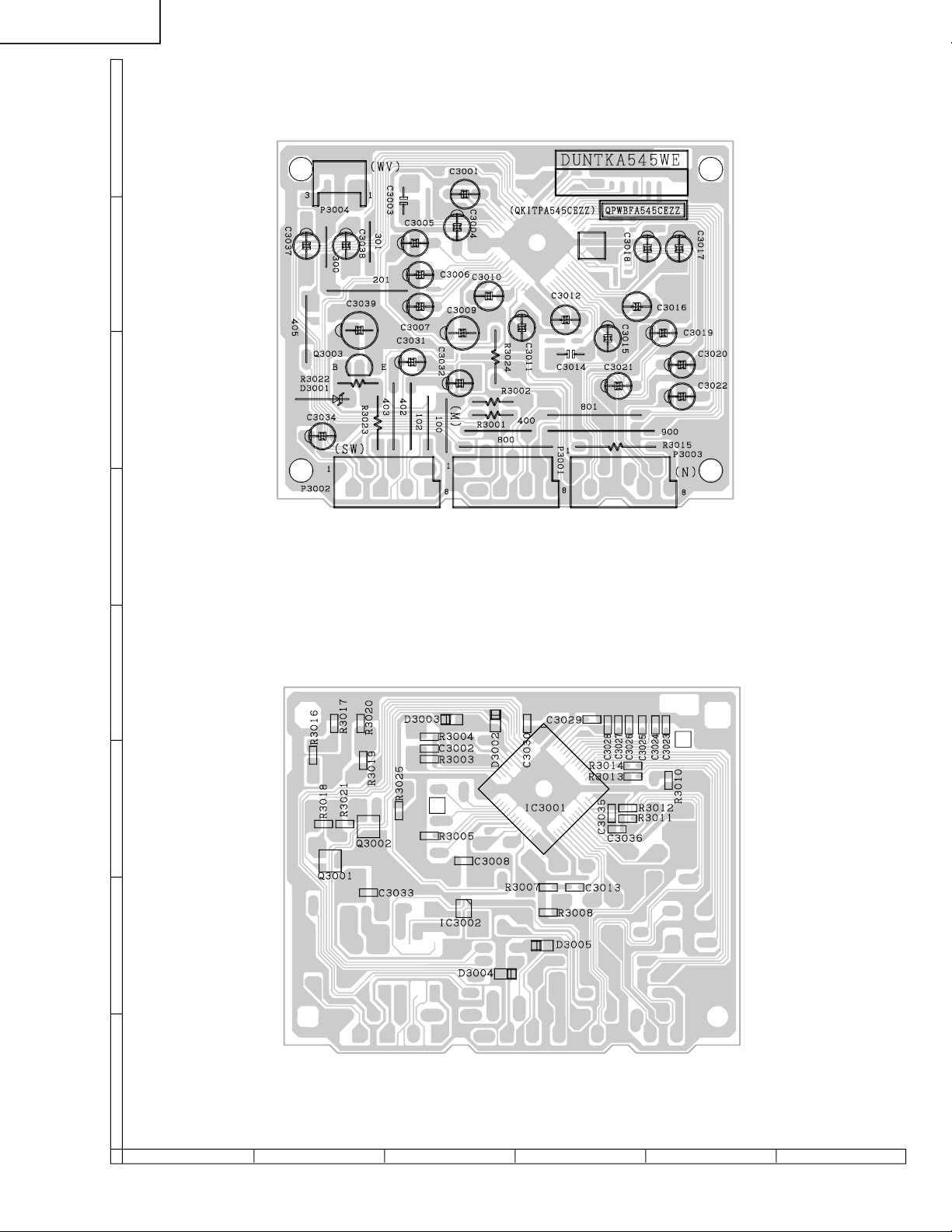

» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................21

» REPLACEMENT PARTS LIST ............................................................................................................25

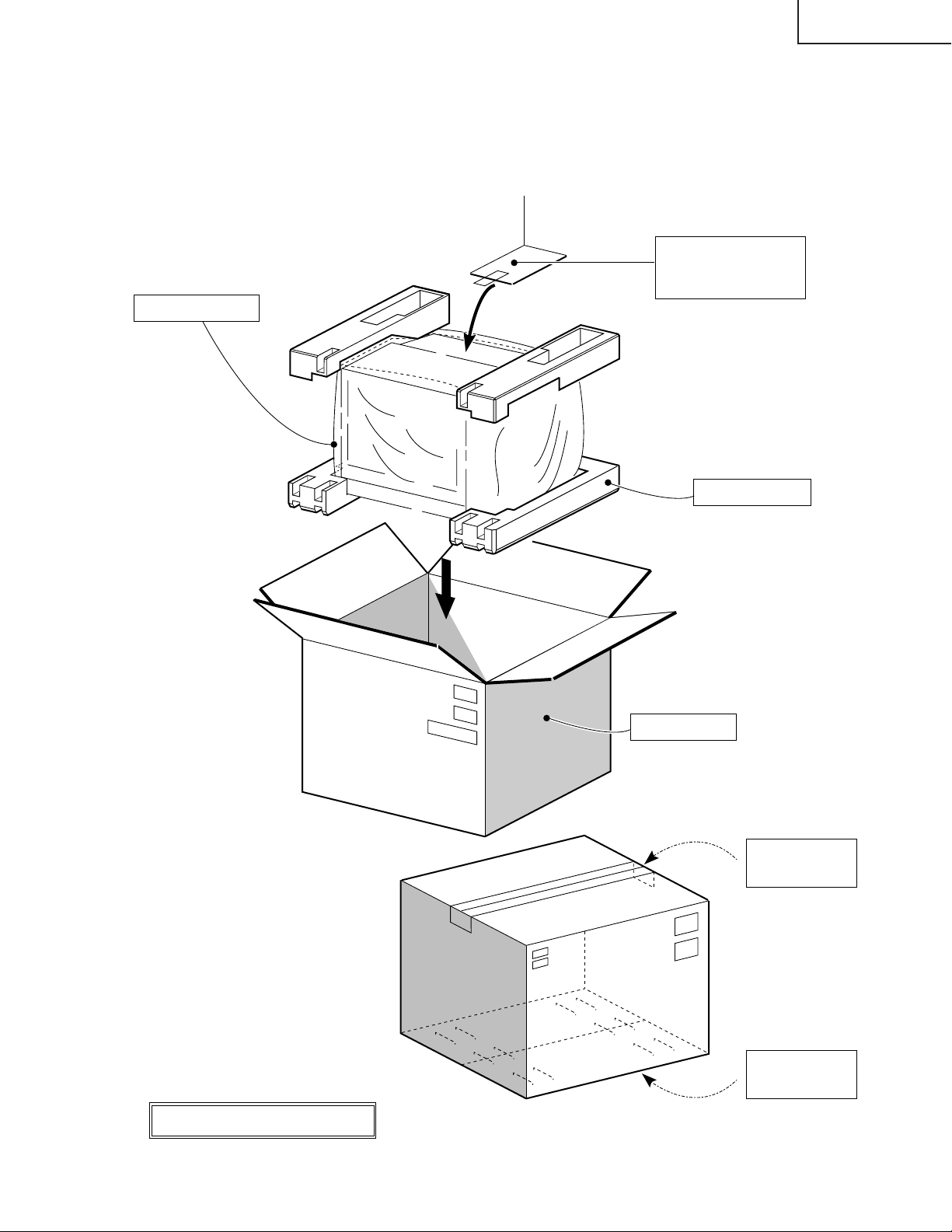

» PACKING OF THE SET ......................................................................................................................31

ELECTRICAL SPECIFICATIONS

POWER INPUT........................................ 110-220 V AC 50/60 Hz

POWER RATING

....................................................................72 W

PICTURE SIZE .......................................... 1,194 cm

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................................... QPF Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency ...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

AUDIO POWER

OUTPUT RATING

....................... 3.0 + 3.0 W (at 10% distortion)

2 (185sq inch)

(Nominal)

SPEAKER

SIZE ................................................................ 9 × 5 cm (Round)

VOICE COIL IMPEDANCE

........................... 32 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF .....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels...............................................................2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels ...........................................................1 thru 125

Specifications are subject to change without
prior notice.

SHARP CORPORATION

1

20PL84

IMPORTANT SERVICE SAFETY PRECAUTION

Ë

Service work should be performed only b y qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems
which are separated by insulating material. The non­isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC v oltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.

SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE

When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic­ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)

1. Picture tube in this receiver employs integr al implosion
protection.

2. Replace with tube of the same type number for
continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.

X-RADIATION AND HIGH VOLTA GE LIMITS

1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. Howe ver , the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that X­radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.

2. It is essential that ser vicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.

3. High voltage should always be kept at the rated v alue

−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a color chassis is serviced, the brightness should
be tested while monitoring the high voltage with a
meter to be certain that the high voltage does not
exceed the specified value and that it is regulating
correctly.

5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.

6. When trouble shooting and taking test measurements
on a receiver with excessiv e high voltage, av oid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.

2

2
2

IMPORTANT SERVICE SAFETY PRECAUTION

(Continued)

20PL84

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks.

1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators and etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

• Plug the AC cord directly into a 110~220 volt AC
outlet, (Do not use an isolation transformer for this
test).

• Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.

• Use an AC voltmeter ha ving with 5000 ohm per v olt,
or higher, sensitivity to measure the A C voltage drop
across the resistor.

• Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage
drop across the resistor.
AII checks must be repeated with the AC ine cord
plug connection reversed. (If necessary, a non­polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp .
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.

1.5k ohm
10W

0.15µF

TEST PROBE

TO EXPOSED
METAL PARTS

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

CONNECT TO
KNOWN EARTH
GROUND

SAFETY NOTICE

Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by " å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.

3

20PL84

LOCATION OF USER'S CONTROL

Front Panel

POWER

Press → On.
Press again → Off.

ON TIMER indicator.
SENSOR AREA FOR

REMOTE CONTROL

VOLUME UP/DOWN

(+) Increases sound.
(–) Decreases sound.

VIDEO/AUDIO IN TERMINALS

(VIDEO/A
provided on the rear

UDIO terminals are also

.)

CHANNEL UP/DOWN

(') Selects next higher channel.
(") Selects next lower channel.

Basic Remote Control Functions

Basic Remote Control Functions

POWER

Press → On.
Press again → Off.

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons.

VOLUME UP/DOWN

(+) Increases sound.
(–) Decreases sound.

• In menu mode, changes or selects
the TV adjustments.

MENU

Press → Accesses MAIN MENU.
Press again → Exits MAIN MENU.

CATV/DVD-TV/VCR MODE SELECT
SWITCH

In TV/VCR position, sends power and
channel select commands (Channel
up/down and Random Access buttons)
to the TV and VCR control.
In CATV/DVD position, sends power
and channel select commands to a
cable TV converter and DVD control.

DVD/VCR CONTROL

MENU

Press;Accesses MAIN MENU.
Press again ;Exits MAIN MENU.

POWER

TV

DVD

DISPLAY

VCR

INPUT

1 2 3
4 5 6
7 8 9

FLASHBACK

PERSONAL PREFERENCE

A B C D

VOL

—

MENU MUTE

REW PLAY FF

PA USE

TV • CATV • VCR • D VD

0

CH

CH

STOP REC

ENTER

100

VOL

+

CATV TV

DVD VCR

CH/SKIP

Infrared Transmitter Window

DISPLAY

Press → Displa ys receiving channel for
four seconds.
Press again → Removes display.

• Temporarily displays receiving
channel when in Closed Caption
mode.

INPUT

Press → Switch to external video
INPUT 1 mode.
Press 2 times → Switch to external video
INPUT 2 mode.
Press 3 times → Switch to external
COMPONENT mode.
Press 4 times → Switch back to the
original TV mode.

ENTER

Used in some instances where a Cable
Converter Box requires an “enter”
command after selecting channels,
when using the REMOTE KEYPAD
button.

CHANNEL UP/DOWN

(

') Selects next higher channel.

(

) Selects next lower channel.

"

•

Moves the “ » ” mark of the MENU
screens.

MUTE

Press → Mutes sound.
Press again → Restores sound.

• CLOSED CAPTION appears when
sound is muted.

4

20PL84

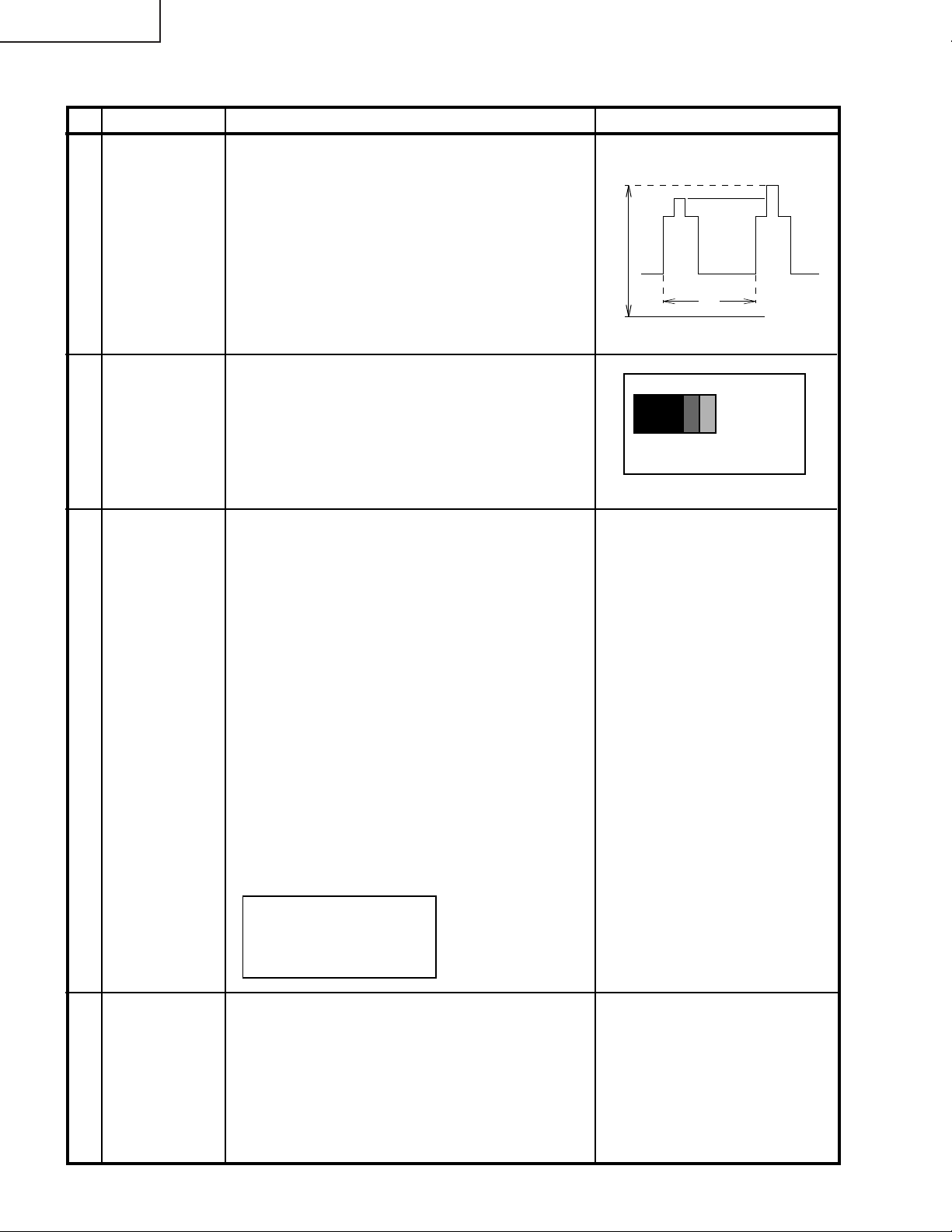

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

CIRCUIT PROTECTION

The receiver is protected by a 3.15A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.

+B DC REGULATOR CONFIRMATION

The + B DC output voltage adjustment is not included
in this circuit.However, should confirmation be
reguired proceed as follows.

1. Actuate receiver with 220V AC input voltage.

2. Receive a local channel.

3. Connect positive lead of digital voltmeter to C754
positive side on PWB-A ; negative lead to chassis
ground.

4. Confirm this voltage reading is as below.

CAUTION: The reading should be within +130.0 ± 2.0V

DC to ensure normal function and circuitry
reliability.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal
deflection system, high v oltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:

HIGH VOLT A GE CHECK

High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:

1. Connect an accurate high voltage meter between
ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 110~220V
AC line voltage, with a strong air signal or a properly
tuned in test signal.

3. Receve a good local channel.

4. The voltage should be approximately, 25.5kV (at
pictuer MAX Bright center condition).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components.

1. Apply 220V AC using a variac transf ormer for accurate
input voltage.

2. Allow for warm up and adjust all customer controls
for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 21.4 ± 1.5 V.

5. Apply external 27.9V DC at TP653 by using an
external DC supply, TV must be shut off.

6. To reset the protector, unplug the AC cord and make
a short circuit between TP651 and TP652. No w make
sure that normal picture appears on the screen.

7. If the operation of the hor izontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.

5

20PL84

For adjustments of this model, the bus data is conver ted to various analog signals by the D/A converter
circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv­ice adjustments are required.

1. Service mode

Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.

2. Service item selection

Once in the service mode, press the Ch-up or Ch­down button on the remote controller or at the set.
The service adjustment item will vary in increments
of one. Select the item you wish to adjust.

3. Data number selection

Press the Vol-up or down button to adjust the data
number.

To enter the ser vice mode and exit serv­ice mode.

Short JA137&JA138 for 1 Second and release to switch
to the service mode position, and the microprocessor is
in input mode.(Adjustment through the I2C bus control.)
To exit the service mode, turn the television off by
pressing the power button.

SERVICE ADJUSTMENT ITEM

Figure A.

DATA NUMBER

25AGC:

6

SERVICE MODE

(1) In the Service Mode, Key is used to select the mode in the following oreder.

AGC & WHITE POINT SUB

GEOMETRIC ADJ. ADJ.

MODE MODE MODE

FEATURE IC MTS

OPTION OPTION ADJ.

MODE MODE MODE

20PL84

OFFSET

ADJ.

MODE

AGC &

GEOMETRIC

MODE

AGC TAKE OVER POINT (AGC)

VERTICAL SLOPE (V-LIN)

VERTICAL AMP (V-AMP)

VERTICAL SHIFT (V-CENT)

VERTICAL ZOOM (V-ZOOM)

HORIZONTAL SHIFT (H-CENT)

EAST-WEST WIDTH (H-SIZE)

HORIZONTAL PARALLELOGRAM (EW//)

EAST-WEST PARABOLA / WIDTH (PARA)

EAST-WEST UPPER CORNER

PARABOLA (COR(U))

EAST-WEST LOWER CORNER

PARABOLA (COR(L))

EAST-WEST TRAPEZIUM (TRAPE)

HORIZONTAL BOW (HB)

S-CORRECTION (S-COR)

↓
↓
↓
↓
↓
↓
↓
↓
↓
↓

↓

↓
↓
↓

WHITE POINT

ADJ.

MODE

W.P. RED OFFSET HIGH /

OFFSET BLUE TONE (DRI-R-HI)

W.P. GREEN OFFSET HIGH /

OFFSET BLUE TONE (DRI-G-HI)

W.P.BLUE OFFSET HIGH /

OFFSET BLUE TONE (DRI-B-HI)

W.P. RED MH / STD (DRI-R-MH)

W.P. GREEN MH / STD (DRI-G-MH)

W.P. BLUE MH / STD (DRI-B-MH)

W.P. RED OFFSET ML /

OFFSET RED TONE (DRI-R-ML)

W.P. GREEN OFFSET ML /

OFFSET RED TONE (DRI-G-ML)

W.P. BLUE OFFSET ML /

OFFSET RED TONE (DRI-B-ML)

W.P. RED OFFSET LOW (DRI-R-LO)

W.P. GREEN OFFSET LOW (DRI-G-LO)

W.P. BLUE OFFSET LOW (DRI-B-LO)

↓

↓

↓

↓
↓
↓
↓

↓

↓

↓
↓
↓

SUB

ADJ.

MODE

MAX VOLUME (SUB-VOL)

SUB CONTRAST (SUB-CON)

SUB TINT (SUB-TINT)

SUB COLOUR (SUB-COL)
SUB BRIGHTNESS (SUB-BRI)
SUB SHARPNESS (SUB-SHP)

MAX HOTEL VOLUME (HTL-VOL)

HOTEL PROGRAM NO(HTL-PRG)

BLUE BACK CONTRAST (BB-CON)

OSD GRB REFERENCE (RGB)
BLACK LEVEL OFFSET R(CUT-R)
BLACK LEVEL OFFSET G(CUT-G)

CATHODE DRIVE LEVEL(CDL)

↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓

7

20PL84

OFFSET

ADJ.

MODE

Y-D TIME (TV) [ YD ] (DL-TV)

Y-D TIME (AV) [ YD ] (DL-AV)

INITIAL/DEFAULT LANGUAGE (INIT)

FA O-MAX V OLUME (FA O-V OL)

ENERGY SAVE OFFSET (ESV_OFFS)

CLOSE CAPTION POSITION (CCPOS)

↓
↓
↓
↓
↓
↓

IC

OPTION

MODE

VERTICAL SCAN DISABLE (VSD)

BLACK STRETCH (BKS)

AUTOMATIC VOLUME LEVELLING (AVL)

FAST FILTER IF-PLL ( FFI )

ENABLE VERTICAL GUARD ( EVG )

EHT TRACKING MODE ( EHT )

OVERSCAN SWITCH OFF (OSO)

AUTO COLOUR LIMIT (ACL)

FORCED COLOUR-ON (FCO)

VIDEO MUTE AT IDENT LOSS (VMI)

VIDEO MUTE AT PROGRAM/SOURCE CHANGE (VMC)

HOTEL MODE (HTL)

GAIN FM DEMODULATOR (BTSC)

CHARGE PUMP (CP)

FM WINDOW SELECTION (FMWS)

SOUND MUTE BIT 0 (SM0)

SOUND MUTE BIT 1 (SM1)
IF AGC SPEED BIT 0 (AGC0)
IF AGC SPEED BIT 1 (AGC1)

PHI 1 TIME CONSTANT FOR FE (FOA-FE)
PHI 1 TIME CONSTANT FOR FE (FOB-FE)
PHI 1 TIME CONSTANT FOR AV (FOA-AV)
PHI 1 TIME CONSTANT FOR AV (FOB-AV)

FORCED SLICING LEVEL FOR VERTICAL SYNC.(FSL)

SYNCHRONISATION OF OSD/TEXT DISPLAY (HP2)

RGB BLANK (RGBL)

↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓

MTS

ADJ.

MODE

ATTENUATE INPUT SIGNAL LEVEL (ATT)

VCO FREE RUNNING FREQUENCY ADJ. (VCO)

STEREO, SAP, DBX FILTER ADJ. (FILTER)

STEREO SEPARATION ADJUSTMENT (300HZ) (WIDEBAND)

STEREO SEPARATION ADJUSTMENT (3kHZ) (SPECTRAL)

BASS LEVEL (BASS)

TREBLE LEVEL (TREBLE)

↓
↓
↓
↓
↓
↓
↓

FEATURE

OPTION

MODE

↓

V-CHIP (V-CHIP)

MTS DECODING ENABLED (MTS)

DEMO MODE (DEMO)

REAL TIME CLOCK / ON TIMER (CLOCK)

ENERGY SAVE (E-SAVE)

PERSONAL PREFERENCE PROGRAM (P_PREF)

UNIVERSAL PLUS (UNIV+)

SPEAKER ON/OFF (SPEAKER)

FIXED AUDIO OUT (FAO)

VIEW TIMER (VIEW-TM)

FRENCH LANGUAGE (FRENCH)

EZ SETUP / AUTOPRESET (EZ-SETUP)

WHITE TEMP OR FAVORITE COLOR (W-TEMP)

AV ENABLED OR DISABLED (AV)

AV2 ENABLED OR DISABLED (AV2)

DYNAMIC SKIN CONTROL (DSK)
RATIO PRE- AND OVERSHOOT BIT 0 (RPO0)
RATIO PRE- AND OVERSHOOT BIT 1 (RPO1)

GAIN FM DEMODULATOR (AGN)

AUTO SWITCH OFF ENABLED (AUTO-OFF)

↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓

FORWARD : CH DOWN KEY

REVERSE : CH UP KEY

( ) means OSD display.

Figure B: ADJUSTMENT CATEGORIES

1Press the CH DOWN/UP key on the remote controller to get ready to select the mode one by one.
2Press the CH DOWN/UP key on the remote controller to select the modes reversibly one by one.
3Using the VOLUME UP/DOWN key on the remote controller, the data can be modified.

(OSD disturbance can be erased by R/C display key)

8

SER VICE MODE

20PL84

SERVICE

POSITION

AGC AGC TAKE OVER POINT 0~63 14 ADJ
V-LIN VERTICAL SLOPE 0~63 32 ADJ
V-AMP VERTICAL AMP 0~63 32 ADJ
V-CENT VERTICAL SHIFT 0~63 32 ADJ
V-ZOOM VERTICAL ZOOM 0~63 32 FIX
H-CENT HORIZONTAL SHIFT 0~63 32 ADJ
H-SIZE EAST-WEST WIDTH 0~63 32 FIX
EW// HORIZONTAL PARALLELOGRAM 0~63 32 FIX
PARA EAST-WEST PARABOLA / WIDTH 0~63 32 FIX
COR(U) EAST-WEST UPPER CORNER PARABOLA 0~63 32 FIX
COR(L) EAST-WEST LOWER CORNER PARABOLA 0~63 32 FIX
TRAPE EAST-WEST TRAPEZIUM 0~63 32 FIX
HB HORIZONTAL BOW 0~63 32 FIX
S-COR S-CORRECTION 0~63 0 FIX must be "17"
DRI-R-HI “W,P RED OFFSET HIGH / OFFSET BLUE TONE” 0~63 32 FIX must be "32"
DRI-G-HI W.P. GREEN OFFSET HIGH / OFFSET BLUE TONE 0~63 32 FIX must be "33"
DRI-B-HI W.P.BLUE OFFSET HIGH / OFFSET BLUE TONE 0~63 32 FIX must be "37"
DRI-R-MH W.P. RED MH / STD 0~63 25 FIX must be "32"
DRI-G-MH W.P. GREEN MH / STD 0~63 32 ADJ
DRI-B-MH W.P. BLUE MH / STD 0~63 32 ADJ
DRI-R-ML W.P. RED OFFSET ML / OFFSET RED TONE 0~63 32 FIX must be "32"
DRI-G-ML W.P. GREEN OFFSET ML / OFFSET RED TONE 0~63 32 FIX must be "32"
DRI-B-ML W.P. BLUE OFFSET ML / OFFSET RED TONE 0~63 32 FIX must be "25"
DRI-R-LO W.P. RED OFFSET LOW 0~63 32 FIX must be "32"
DRI-G-LO W.P. GREEN OFFSET LOW 0~63 32 FIX must be "22"
DRI-B-LO W.P. BLUE OFFSET LOW 0~63 32 FIX must be "19"
SUB-VOL MAX VOLUME 0~63 63 FIX must be "63"
SUB-CON SUB CONTRAST 0~63 63 FIX must be "54"
SUB-COL SUB COLOUR 0~63 32 ADJ
SUB-BRI SUB BRIGHTNESS 0~63 32 ADJ
SUB-TINT SUB TINT 0~63 32 ADJ
SUB-SHP SUB SHARPNESS 0~63 32 FIX must be "27"
HTL-VOL MAX HOTEL VOLUME 0~63 32 FIX
HTL-PRG HOTEL PROGRAM NO 0~125 or >125 for none 255 FIX
BB-CON BLUE BACK CONTRAST 0~15 10 FIX must be "5"
RGB OSD GRB REFERENCE 0~15 15 FIX must be "5"
CUT-R BLACK LEVEL OFFSET R 0~63 32 ADJ
CUT-G BLACK LEVEL OFFSET G 0~63 32 ADJ
CDL CATHODE DRIVE LEVEL 0~15 0 FIX must be "6"
DL-TV Y-D TIME (TV) [ YD ] 0~15 12 FIX must be "2"
DL-AV Y-D TIME (AV) [ YD ] 0~15 12 FIX must be "8"
INIT INITIAL/DEFAULT LANGUAGE 0(English), 1(Spanish), 0 FIX must be "1"

FAO-VOL FAO-MAX VOLUME 0~63 63 FIX must be "63"
ESV_OFFS ENERGY SAVE OFFSET 0~63 10 FIX must be "20"
CCPOS CLOSE CAPTION POSITION 0~255 32 ADJ
ATT ATTENUATE INPUT SIGNAL LEVEL 0~15 10 FIX*
VCO VCO FREE RUNNING FREQUENCY ADJ. 0~63 32 FIX*
FILTER “STEREO, SAP, DBX FILTER ADJ. “ 0~63 28 FIX*
WIDEBAND STEREO SEPARATION ADJUSTMENT (300HZ) 0~63 32 FIX*
SPECTRAL STEREO SEPARATION ADJUSTMENT (3kHZ) 0~63 27 FIX*
BASS BASS LEVEL 0Å‘15 8 FIX
TREBLE TREBLE LEVEL 0Å‘15 8 FIX
VSD VERTICAL SCAN DISABLE 0 or 1 when item selected 0 FIX
BKS BLACK STRETCH 0(disable) or1(enable) 1 FIX
AVL AUT OMATIC VOLUME LEVELLING 0(disable) or1(enable) 1 FIX
FFI FAST FILTER IF-PLL 0(disable) or1(enable) 0 FIX
EVG ENABLE VERTICAL GUARD 0(disable) or1(enable) 1 FIX
EHT EHT TRACKING MODE 0(disable) or1(enable) 1 FIX
OSO OVERSCAN SWITCH OFF 0(disable) or1(enable) 0 FIX
ACL AUTO COLOUR LIMIT 0(disable) or1(enable) 0 FIX
FCO FORCED COLOUR-ON 0(disable) or1(enable) 0 FIX
VMI VIDEO MUTE AT IDENT LOSS 0(disable) or1(enable) 1 FIX
VMC VIDEO MUTE AT PROGRAM/SOURCE CHANGE 0(disable) or1(enable) 1 FIX
HTL HOTEL MODE 0(disable) or1(enable) 0 FIX
BTSC GAIN FM DEMODULATOR 0(disable) or1(enable) 0 FIX
CP CHARGE PUMP 0(fast tuning) or 1 0 FIX

ADJUST ITEM

RANGE

2(French)

(moderate speed tuning)

DATA

INITIAL VALUE

FIX/ADJ

REMARK







Table - A

9

20PL84

SERVICE

POSITION

FMWS FM WINDOW SELECTION 0(disable) or1(enable) 0 FIX
SM0 SOUND MUTE BIT 0 (SM0) 0(disable) or1(enable) 1 FIX
SM1 SOUND MUTE BIT 1 0(disable) or1(enable) 0 FIX
AGC0 IF AGC SPEED BIT 0 0(disable) or1(enable) 1 FIX
AGC1 IF AGC SPEED BIT 1 0(disable) or1(enable) 0 FIX
FOA-FE PHI 1 TIME CONSTANT FOR FE 0(disable) or1(enable) 0 FIX
FOB-FE PHI 1 TIME CONSTANT FOR FE 0(disable) or1(enable) 0 FIX
FOA-AV PHI 1 TIME CONSTANT FOR AV 0(disable) or1(enable) 1 FIX
FOB-AV PHI 1 TIME CONSTANT FOR AV 0(disable) or1(enable) 1 FIX
FSL FORCED SLICING LEVEL FOR VERTICAL SYNC. 0(disable) or1(enable) 0 FIX
HP2 SYNCHRONISATION OF OSD/TEXT DISPLAY 0(disable) or1(enable) 0 FIX
RGBL RGB BLANK 0(disable) or1(enable) 0 FIX
V-CHIP V-CHIP 0(disable) or1(enable) 0 FIX
MTS MTS DECODING ENABLED 0(disable) or1(enable) 0 FIX*
DEMO DEMO MODE 0(disable) or1(enable) 1 FIX
CLOCK REAL TIME CLOCK / ON TIMER 0(disable) or1(enable) 1 FIX must be "1"
E-SAVE ENERGY SAVE 0(disable) or1(enable) 1 FIX
P_PREF PERSONAL PREFERENCE PROGRAM 0(disable) or1(enable) 0 FIX
UNIV+ UNIVERSAL PLUS 0(disable) or1(enable) 0 FIX
SPEAKER SPEAKER ON/OFF 0(disable) or1(enable) 0 FIX
FAO FIXED AUDIO OUT 0(disable) or1(enable) 0 FIX
VIEW-TM VIEW TIMER 0(disable) or1(enable) 1 FIX must be "1"
FRENCH FRENCH LANGUAGE 0(disable) or1(enable) 0 FIX
EZ-SETUP EZ SETUP / AUTOPRESET 0(AUTOPRESET) or 1 FIX

W-TEMP WHITE TEMP OR FAVORITE COLOR 0(FC) or 1(WT) 0 FIX
AV AV ENABLED OR DISABLED 0(without ext. source) or 0 FIX

AV2 AV2 ENABLED OR DISABLED 0(1 input) or 1(2 input) 0 FIX*
DSK DYNAMIC SKIN CONTROL 0(disable) or1(enable) 0 FIX
RPO0 RATIO PRE- AND OVERSHOOT BIT 0 0(disable) or1(enable) 0 FIX
RPO1 RATIO PRE- AND OVERSHOOT BIT 1 0(disable) or1(enable) 0 FIX
AGN GAIN FM DEMODULATOR 0(normal) or1(+6dB) 0 FIX
AUTO-OFF AUTO SWITCH OFF ENABLED 0(disable) or1(enable) 1 FIX
PON-CH 0(disable) or1(enable) 0 FIX

ADJUST ITEM

RANGE

1(EZ SETUP)

1(with external source)

DATA

INITIAL VALUE

FIX/ADJ

REMARK

Table - A

Holding down to short JA137 & JA138 and turn on the main power SW will automatically write the initial values into
IC1003.
This is only can done when a new EEPROM is used. (Judge with the first 4 bytes.)

PART REPLACED

IC801

IC1003

CRT

NECESSARY

ADJUSTMENT

X

X

UNNECESSARY

X

NOTES

Data is stored in IC1003.
Holding down to short JA137 & JA138 and turn on the main

power SW will automatically write the initial values into IC1003.
This is only can done when a new EEPROM is used. (Judge
with the first 4 bytes.)

Adjust items related to picture tube only.

Table - B

10

Ë

WA VEFORM 1

YCYGMGR BW

SAME LEVEL

SERVICE ADJUSTMENT

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the ser vice mode signal category and select
the service adjustment "AGC".

3. Set the data value to point where no noise or beat
appears.

4. Select another channel to confir m that no noise or
beat appears.

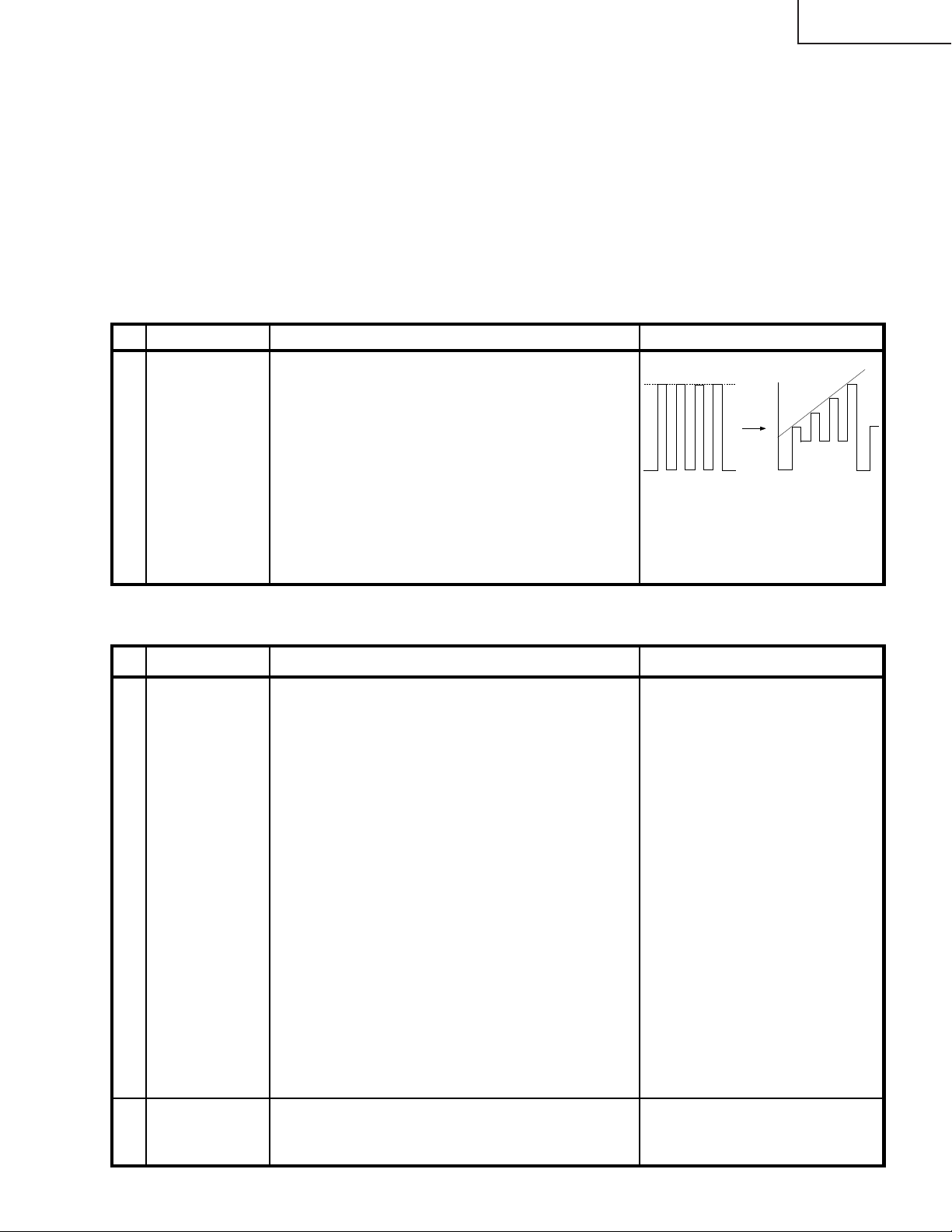

CHROMA ADJUSTMENT

No. Adjusting point Adjusting procedure/conditions Waveform and others

1

SUB-TINT (I
BUS CON­TROL)

2

C

1. Receive the "Colour Bar" signal through AV in.

2. Connect the oscilloscope to TP853 (Pin (5) of
P882) BLUE-OUT.

» Range : 100mV/div . (AC)(Use Probe 10:1)
» Sweep time : 10 µsec/div.

3. Call the "SUB-TINT" mode in ser vice mode. Ad­just the "SUB-TINT" bus data to obtain the wav e­form shown as Fig 1.

4. "SUB-TINT" bus data decrease 4 steps to get fi­nal waveform. (Fig 2.)

5. Clear the SERVICE mode.

Fig 1

FINAL WA VEFORM

Fig 2

20PL84

HORIZONTAL AND VERTICAL DEFLECTION LOOP ADJUSTMENT

No. Adjusting point Adjusting procedure/conditions Waveform and others

V-SLOPE(I2C

1

BUS CON­TROL)

V-CENTER (I2C

2

BUS CON­TROL)

3

V - AMP (I2C
BUS CON­TROL)

4

S-CORREC­TION (I2C BUS
CONTROL)
H - CENTER

5

Focus

6

adjustment

1. Receive Monoscope Pattern Signal.

2. Call the "V-LIN" mode.

3. Increase or decrease "V-LIN" by Volume key till
the horizontal line in the center of monoscope is
just at the position where the blanking starts.

1. Call the "V-CENT" mode.

2. Increase or decrease "V-CENT" by Volume key till
the picture is centered.

1. Call the "V-AMP" mode.

2. Increase or decrease "V - AMP" by V olume ke y to
set overscan of 10.0% typical.
Adjustment Spec 10.0% range ±1%.

FIXED DATA, NO NEED TO ADJUST.

1. Call the "H-CENT" mode.

2. Increase or decrease "H-CENT" by Volume key
to center the picture horizontal.

1. Receive the "Monoscope Pattern" signal.

2. Press R/C to set Picture NORMAL condition.

3. Adjust the focus control to get the best focus.

11

1 2 3 4 5

20PL84

CRT CUT-OFF, BACKGROUND AND SUB-CONTRAST ADJUSTMENT

No. Adjusting point Adjusting procedure/conditions Waveform and others

CRT CUTOFF

1

ADJUSTMENT
(I2C BUS
CONTROL)

SUB-BRIGHT-

2

NESS
ADJUSMENT
(I2C BUS
CONTROL)

WHITE BAL-

3 # 11,600° K X : 0.273

ANCE SERV­ICE MODE
ADJ. (I2C BUS
CONTROL)

1. Switch TV to VIDEO mode,BLUE BA CK OFF, with
NO VIDEO signal.

2. Press R/C to set Picture Normal condition.

3. Connect the oscilloscope to Red OUT from
IC801.(TP47R)

Range : 1 V/Div (DC)
Sweep : 5 msec/Div

4. Adjust SCREEN VR ,so that the tip of signal reach

3.5 Vdc + 0.1 Vdc.

1. Call " SUB-BRI" in service mode. (Receive Cross­hatch pattern with 5 black level windows)

2. Adjust the " SUB BRIGHT " bus data in order that
the line 1, 2 and 3 have the same darkness
wherelse line 4 is slightly brighter than line 1, 2
and 3 and finally line 5 will be the brighter than
line 4.

1. Receive the "Monoscope Pattern" signal.

2. Press R/C to set Picture NORMAL condition.

3. Connect the DC miliammeter betw een the TP 602
( - ) TP 603 ( + ).

4. Check Beam current should be around (990µA)

5. Set it to service mode and adjust the DRI-G-MH,
& DRI-B-MH data to have a colour temperature
of 11,600°K ( white ).

6. Receive "WHITE" pattern, WITH BURST signal,
and set BRIGHTNESS Y by generator, to ** 10
cd/m2 (MINOL T A CA-100) b y reducing LUMINA TE
Y signal.

7. Adjust "CUT-R" & "CUT-G" to get 11,600°K. Then
go back NORMAL mode (HIGH BRIGHT**) to
check colour temperature. If out of range, back
to (1).

3.5Vdc

1 V

0

1, 2, 3 are in same black level.

Y : 0.280

( MINOLT A COLOUR ANALYZER
CA-100)
*NOTE: Above DATA can be UP/
DOWN by volume key.

LOW HIGH

20" 1.8cd/m2115cd/m
* 11,600° K

DRI-GW="DRI-GS"DATA-5
DRI-BW="DRI-BS" DATA-5

2

Maximum

4

beam check

Note: This adjustment must be done after

warming up the unit for 30 minutes or
longer with a beam current over 500µA.

DRI-R-MH=32 (FIXED)
DRI-G-MH=33 (FIXED)
DRI-B-MH=37 (FIXED)
DRI-R-MH=32 (FIXED)

1. Receive the "Monoscope Pattern" signal.

2. Press R/C to set Picture NORMAL condition.

3. Connect the DC miliammeter between TP603 (+)
and TP602 (–).
(Full Scale: 3 mA Range)

4. Beam current must be within 990 ± 50 µA.

12

CHASSIS LAYOUT

H

G

F

20PL84

E

D

C

B

A

654321

13

20PL84

BLOCK DIAGRAM-1

H

G

F

E

D

C

B

A

654321

14

20PL84

MODEL 20PL84 BLOCK DIAGRAM

H

G

F

E

D

C

B

A

1

2

3

4

5

6

7

98

10

15

20PL84

DESCRIPTION OF SCHEMATIC DIAGRAM

NOTES:

1. The unit of resistance "ohm" is omitted.
(K=kΩ=1000Ω, M=MΩ)

2. All resistors are 1/16 watt, unless otherwise noted.

3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

6. indicates hot ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set f or normal
picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color
signal.

WAVEFORMS

1 1.0 Vp-p

2 2.8 Vp-p

3 2.6 Vp-p

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, g reen and blue cathodes of
the picture tube depend on the tint, color level and
picture control.

2.

indicates waveform check points (See chart,
wavefor ms are measured from point indicated to
chassis ground.)

å

AND SHADED ( ) COMPONENTS

= SAFETY RELATED PARTS.

'

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.

4 2.7 Vp-p

5 65.0 Vp-p

Horiz. Rate Horiz. Rate Horiz. Rate Horiz. Rate Horiz. Rate

6 67.0 Vp-p

Horiz. Rate Horiz. Rate Vert. Rate Horiz. Rate Horiz. Rate

q 8.4 Vp-p

Horiz. Rate Vert. Rate Horiz. Rate Horiz. Rate Power Supply Rate

7 80.0 Vp-p

w 40.8 Vp-p

8 3.0 Vp-p 9 2.3 Vp-p

e 98.0 Vp-p

r 1,160 Vp-p

0 116.0 Vp-p

t 415.0 Vp-p

16

SCHEMATIC DIAGRAM: CRT Unit

H

G

F

20PL84

E

D

C

B

A

654321

17

20PL84

H

G

F

SCHEMATIC DIAGRAM: MAIN-1 Unit

E

D

C

B

A

1

2

3

4

5

6

7

98

10

18

20PL84

19

1716 1918151413121110

20PL84

H

G

F

SCHEMATIC DIAGRAM: MAIN-1 Unit

E

D

C

B

A

1

2

3

4

5

6

7

98

10

20

PRINTED WIRING BO ARD ASSEMBLIES

H

G

20PL84

E

D

C

B

PWB-A: MAIN Unit (Wiring Side)

A

654321

21

20PL84

H

G

F

E

D

C

B

PWB-A: MAIN Unit (Chip Parts Side)

A

654321

22

20PL84

H

G

F

E

D

C

B

PWB-B: CRT Unit (Wiring Side)

A

PWB-B: CRT Unit (Chip Parts Side)

654321

23

20PL84

H

G

F

E

D

C

B

PWB-E: MTS MODULE Unit (Wiring Side)

A

PWB-E: MTS MODULE Unit (Chip Parts Side)

654321

24

20PL84

Ref. No. Part No. « Description Code

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBE

3. PART NO.4. DESCRIPTION

in USA:Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor, Please call Toll­Free; 1-800-BE-SHARP

« MARK: SPARE PARTS-DELIVERY SECTION

p

Ref. No. Part No. « Description Code

U V1 VB48JLL40X/*S X CRT 19V (ORION) BU
U DY601 RCILH0105GJZZ X DY (20V) AT
U L703 RCILG0074PEZZ X Degaussing Coil AL

PMAGF3045CEZZ X Purity magnet AD
PSPAG0012MEZZ X Wedge AB
QEARC2016PEZZ X Earth parts AE
LHLDW0102GJKZ X Wire tie (20.32 CM) AA

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

PWB-A DUNTKA541WEL6 — MAIN Unit —
PWB-B DUNTKA542WEA3 — CRT Unit —
PWB-C DUNTKA545WEA0 — MTS Unit —

R2. REF. NO.

MARK: X-RAY RELATED PARTS

PICTURE TUBE

PWB-A: DUNTKA541WEL6

MAIN UNIT

NOTE:THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDETLY

U TU201 VTUVT1T5UF214 X TUNER AS

IC301 VHILA4600++-1 X LA4600++ AH

U IC501 VHISTV9302A-1 X STV9302A AF

IC601 VHIKA7808AP-1 X KIA7808API AD
IC701 VHISTRG5653-1 X STRG5653 AL
IC801 RH-IX3564CEN4 X IX3564CE AW
IC1003 VHIBR24C02F1EY X BR24C02F-WE2 AE

Q201 VS2SC2735//1EY X 2SC2735 AB
Q253 VS2SD601AR/-1Y X 2SD601AR AA
Q254 VS2SD601AR/-1Y X 2SD601AR AA
Q304 VS2SD601AR/-1Y X 2SD601AR AA
Q320 VS2SD601AR/-1Y X 2SD601AR AA
Q401 VS2SD601AR/-1Y X 2SD601AR AA
Q601 VS2SC3207//-1+ X 2SC3207-AT AC
Q602 VS2SD2586//1E X 2SD2586 AG
Q603 VS2SC3198-G-1+ X 2SC3198-G AB
Q751 VS2SC3198-G-1+ X 2SC3198-G AB
Q752 VS2SC3198-G-1+ X 2SC3198-G AB
Q801 VS2SB709AR/-1Y X 2SB709AR AA
Q802 VS2SB709AR/-1Y X 2SB709AR AA

D201 RH-EX0676GEZZY X Zener Diode 32V AB

U D331 RH-DX0247CEZZ X Diode AC

D502 RH-EX0615GEZZY X Zener Diode, 5.6V AB
D503 VHD1SS119//-1Y X Diode AA
D505 RH-DX0441CEZZY X Diode AA
D508 RH-DX0131CEZZY X Diode AB
D509 RH-EX0665GEZZY X Zener Diode, 5V AB
D511 VHD1SS119//-1Y X Diode AA
D531 RH-EX0627GEZZY X Zener Diode, 8.2V AB
D532 RH-EX0627GEZZY X Zener Diode, 8.2V AB
D601 RH-DX0475CEZZY X Diode AA

U D602 VHD1SS244//-1Y X Diode AA
U D603 RH-EX0667GEZZY X Zener Diode 27V AB
U D606 RH-DX0131CEZZY X Diode AB
U D608 RH-DX0468CEZZ X Diode AD

D651 RH-EX0627GEZZY X Zener Diode, 8.2V AB
D653 VHD1SS119//-1Y X Diode AA
D701 RH-DX0476CEZZ X Diode AE
D705 VHD1SS82///1AY X Diode AB
D706 VHD1SS82///1AY X Diode AB
D707 VHD1SS82///1AY X Diode AB

U D751 RH-DXA006WJZZ X Diode AC
U D752 RH-DX0131CEZZY X Diode AB

D754 RH-EX0616GEZZY X Zener Diode 5.6V AB
D755 RH-EX0603GEZZY X Zener Diode, 3.9V AB
D801 VHD1SS119//-1Y X Diode AA
D802 VHD1SS119//-1Y X Diode AA
D803 VHD1SS119//-1Y X Diode AA
D804 VHD1SS119//-1Y X Diode AA
D805 VHD1SS119//-1Y X Diode AA
D806 VHD1SS119//-1Y X Diode AA
D1001 RH-PX0013PEZZ X LED, ON TIMER AB
D1004 VHD1SS119//-1Y X Diode AA
D1007 RH-EX0263TAZZY X EX0263TA AB
D1012 RH-EX0611GEZZY X Zener Diode 5.1V AB
D1018 RH-EX0263TAZZY X EX0263TA AB
D1019 RH-EX0263TAZZY X EX0263TA AB

U VA701 RH-VX0073CEZZ X Varistor AC

TUNER

INTEGRATED

TRANSISTOR

DIODES

CIRCUITS

25

20PL84

Ref. No. Part No. « Description Code

PWB-A: DUNTKA541WEL6

MAIN UNIT

PACKAGED CIRCUITS

PR702 RMPTP0001PEZZ X Packaged Circuit AG
X1001 RCRSB0300CEZZ X Crystal AD

FILTERS AND COILS

CF253 RFILC0446CEZZ X Filter, AC
L202 VP-DF270K0000Y X Peaking, 27mH AA
L203 VP-DF270K0000Y X Peaking, 27mH AA
L204 VP-XF1R2K0000Y X Peaking 1.2mH AA
L253 VP-XF120K0000Y X Peaking 12µH AA

U L701 RCILF0078PEZZ X Coil Line Filter AE
U L751 RCILP0225CEZZ X Coil, AD

L802 VP-DF100K0000Y X Peaking, 10mH AA
L803 VP-DF100K0000Y X Peaking, 10mH AA
L1030 VP-DF100K0000Y X Peaking, 10mH AA
L1050 VP-DF100K0000Y X Peaking, 10mH AA
L1051 VP-DF100K0000Y X Peaking, 10mH AA
SF201 RFILC0405CEZZ X Filter,(4.5MHZ) AF

TRANSFORMERS

U T601 RTRNZ0144PEZZ X Transformer AD
U T602 RTRNF0229PEZZ X H-Volt Transformer AS
U T701 RTRNW0015PEZZ X Transformer AG

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C201 VCEA0A1CW476M+ X 47 16V EL. AA
C202 VCEA0A1AW108M+ X 1000 10V EL. AB
C205 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C206 VCEA0A1HW105M+ X 1 50V EL. AA
C207 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C208 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C209 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C210 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C211 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C231 VCKYCY1HF223ZY X 0.022 50V Ceramic AA
C232 VCKYCY1HB821KY X 820p 50V Ceramic AA
C233 VCKYCY1HB472KY X 100 35V EL. AA
C234 VCKYCY1EF104ZY X 0.1 25V Ceramic AA
C251 VCKYCY1HF223ZY X 0.022 50V Ceramic AA
C252 VCEA0A1CW107M+ X 100 16V EL. AA
C301 RC-EZA009WJZZ+ X 220 16V EL. AB
C302 VCEA0A1CW477M+ X 470 16V EL. AB
C303 VCEA0A1CW477M+ X 470 16V EL. AB
C304 VCEA0A1CW106M+ X 10 16V EL. AA
C305 VCEA0A1HW475M+ X 4.7 50V EL. AA
C306 VCEA0A1HW105M+ X 1 50V EL. AA
C307 VCEA0A1HW224M+ X 0.22 50V EL. AA
C308 VCKYCY1CB473KY X 0.047 16V Ceramic AA
C311 RC-EZA008WJZZ+ X 100 16V EL. AB
C312 VCEA0A1HW224M+ X 0.22 50V EL. AA
C314 VCEAKA1HW224M+ X 0.22 50V EL. AB

U C332 VCQYTA1HM103J+ X 0.01 50V Mylar AA
U C333 RC-EZ1086CEZZ X 1000 16V EL. AC

C359 VCEA0A1CW106M+ X 10 16V EL. AA
C409 VCKYCY1EF104ZY X 0.1 25V Ceramic AA
C410 VCKYCY1EF104ZY X 0.1 25V Ceramic AA
C411 VCKYCY1HB102KY X 1000p 50V Ceramic AA
C504 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C505 VCEA0A1HW107M+ X 100 50V EL. AB
C507 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C508 VCFYSA1JB224J+ X 0.22 63V Mylar AC
C509 VCEA0A1CW477M+ X 470 16V EL. AB
C510 VCKYPA2HB102K+ X 1000p 500V Ceramic AA
C514 VCFYSA1JB473J+ X 0.047 63V Mylar AB
C531 VCKYCY1HB102KY X 1000p 50V Ceramic AA
C532 VCKYCY1HB102KY X 1000p 50V Ceramic AA

Ref. No. Part No. « Description Code

C533 VCQYTA1HM104J+ X 0.1 50V Mylar AB
C601 VCQYTA1HM563J+ X 0.056 50V Mylar AA
C602 VCEA0A1HW475M+ X 4.7 50V EL. AA
C603 VCEA0A1HW105M+ X 1 50V EL. AA
C604 VCEA0A2EW106M+ X 10 250V EL. AC
C605 VCKYPA2HB102K+ X 1000p 500V Ceramic AA
C606 VCFPVC2DB474J X 0.47 200V M-Poly. AC
C607 VCFPVC3ZA772H X 7700p 1.5kV M-Poly. AC
C608 VCKYPA2HB102K+ X 1000p 500V Ceramic AA
C610 VCEA0A1CW108M+ X 1000 16V EL. AC
C611 VCEA0A1EW476M+ X 47 25V EL. AA
C612 VCEA0A1CW477M+ X 470 16V EL. AB
C620 VCKYPA2HB102K+ X 1000p 500V Ceramic AA
C640 VCFYSB2EB823J X 0.082 250V M.Poly.. AB
C651 VCQYTA1HM222J+ X 2200p 50V Mylar AA
C652 VCQYTA1HM472J+ X 4700p 50V Mylar AA
C653 VCEA0A1HW105M+ X 1 50V EL. AA
C654 VCKYCY1HF223ZY X 0.022 50V Ceramic AA
C655 VCEA0A1HW106M+ X 10 50V EL. AA
C656 VCEA0A1HW224M+ X 0.22 50V EL. AA
C657 VCKYCY1EF104ZY X 0.1 25V Ceramic AA
C658 VCKYCY1EF104ZY X 0.1 25V Ceramic AA

U C701 RC-FZ036SCEZZ X 0.1mF AC125V Plastic AC

C702 RC-KZ0029CEZZ+ X 0.01 AC250V Ceramic AB
C703 RC-KZ0029CEZZ+ X 0.01 AC250V Ceramic AB
C704 RC-KZ0029CEZZ+ X 0.01 AC250V Ceramic AB
C705 RC-EZ0804CEZZ X 220 400V EL. AL
C709 RC-KZ0039CEZZ X 680 2kV Ceramic AC
C710 VCEA0A1HW476M+ X 47 50V EL. AB
C711 VCKYPA1HB102K+ X 1000p 50V Ceramic AA
C712 VCKYPA1HB471K+ X 470p 50V Ceramic AA
C713 VCKYPH3DB561K X 560p 2kV Ceramic AB

U C751 RC-KZ0092GEZZA X 3300p AC250V Ceramic AC
U C752 VCKYPH3DB561K X 560p 2kV Ceramic AB
U C753 RC-EZ0724CEZZ X 100 160V EL. AD
U C754 RC-EZ0724CEZZ X 100 160V EL. AD
U C755 VCEA0A1CW108M+ X 1000 16V EL. AC
U C756 VCQYTA1HM103J+ X 0.01 50V Mylar AA

C759 VCEA0A0JW477M+ X 470 6.3V EL. AB
C760 VCEA0A0JW228M+ X 2200 6.3V EL. AC
C801 VCEA0A1HW105M+ X 1 50V EL. AA
C802 VCEA0A1CW337M+ X 330 16V EL. AB
C803 VCEA0A1CW107M+ X 100 16V EL. AA
C804 VCKYCY1HB222KY X 2200p 50V Ceramic AA
C805 VCKYD41HB102KY X 1000p 50V Ceramic AA
C806 VCKYD41HB102KY X 1000p 50V Ceramic AA
C807 VCKYD41HB102KY X 1000p 50V Ceramic AA
C808 VCEA0A1CW107M+ X 100 16V EL. AA
C809 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C810 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C811 VCEA0A1CW107M+ X 100 16V EL. AA
C812 VCFYFA1HA224J+ X 0.22 50V Mylar AB
C813 VCFYFA1HA224J+ X 0.22 50V Mylar AB
C814 VCKYCY1HB471KY X 470p 50V Ceramic AA
C816 VCKYCY1HB471KY X 470p 50V Ceramic AA
C1001 VCEA0A0JW107M+ X 100 6.3V EL. AA
C1002 VCEA0A0JW107M+ X 100 6.3V EL. AA
C1003 VCEA0A1CW106M+ X 10 16V EL. AA
C1004 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C1005 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C1006 VCEA0A1CW106M+ X 10 16V EL. AA
C1008 VCCCCY1HH330JY X 33p 50V Ceramic AA
C1009 VCCCCY1HH330JY X 33p 50V Ceramic AA
C1010 VCEA0A0JW107M+ X 100 6.3V EL. AA
C1011 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C1012 VCKYCY1CF474ZY X 0.47 16V Ceramic AA
C1013 VCEA0A0JW107M+ X 100 6.3V EL. AA
C1016 VCQYTA1HM104J+ X 0.1 50V Mylar AB
C1018 VCKYCY1HB221KY X 220p 50V Ceramic AA

26

20PL84

Ref. No. Part No. « Description Code

PWB-A: DUNTKC290WEA4

MAIN UNIT

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C1024 VCQYTA1HM104J+ X 0.1 50V Mylar AB
C1026 VCEA0A0JW107M+ X 100 6.3V EL. AA

RESISTORS

[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]

RJ1 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ2 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ4 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ5 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ8 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ9 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ10 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ13 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ14 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ15 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ16 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ17 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ19 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ21 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ23 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ24 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ26 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ28 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ32 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ34 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ35 VCKYCY1CB473KY X 0.047 16V Ceramic AA
RJ37 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ38 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ41 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ42 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ43 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ46 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ49 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ50 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ51 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ52 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ53 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ55 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ70 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ71 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ73 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ75 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ76 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ77 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R201 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R202 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R205 VRS-CY1JF680JY X 68 1/16W M-Ox. AA
R206 VRS-CY1JF122JY X 1.2k 1/16W M-Ox. AA
R207 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R208 VRS-CY1JF122JY X 1.2k 1/16W M-Ox. AA
R209 VRS-CY1JF392JY X 3.9k 1/16W M-Ox. AA
R216 VRS-RG3LB223J+ X 22k 3W M-Ox. AB
R219 VRD-RA2BE392JY X 3.9k 1/8W Carbon AA
R220 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R230 VRS-CY1JF473JY X 47k 1/16W M-Ox. AA
R231 VRD-RA2BE681JY X 1.5k 1/8W Carbon AA
R232 VRS-CY1JF272JY X 2.7k 1/16W M-Ox. AA
R233 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R234 VRS-CY1JF391JY X 390 1/16W M-Ox. AA
R257 VRS-CY1JF181JY X 180 1/16W M-Ox. AA
R258 VRS-CY1JF181JY X 180 1/16W M-Ox. AA
R259 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R260 VRS-CY1JF392JY X 3.9k 1/16W M-Ox. AA

Ref. No. Part No. « Description Code

R261 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R262 VRS-CY1JF560JY X 56 1/16W M-Ox. AA
R263 VRS-CY1JF560JY X 56 1/16W M-Ox. AA
R304 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R305 VRS-CY1JF274JY X 270k 1/16W M-Ox. AA
R306 VRD-RA2BE391JY X 390 1/8W Carbon AA

p U R307 VRS-CY1JF122JY X 1.2k 1/16W M-Ox. AA

R308 VRD-RA2BE103JY X 10k 1/8W Carbon AA
R309 VRD-RA2BE473JY X 47k 1/8W Carbon AA
R311 VRS-CY1JF473JY X 47k 1/16W M-Ox. AA
R314 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R315 VRS-CY1JF122JY X 1.2k 1/16W M-Ox. AA
R316 VRS-CY1JF104JY X 100k 1/16W M-Ox. AA
R334 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R335 VRS-CY1JF564JY X 560k 1/16W M-Ox. AA
R336 VRD-RA2BE332JY X 3.3k 1/8W Carbon AA
R337 VRS-CY1JF564JY X 560k 1/16W M-Ox. AA
R340 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R341 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R362 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R363 VRS-CY1JF564JY X 560k 1/16W M-Ox. AA
R364 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R365 VRS-CY1JF564JY X 560k 1/16W M-Ox. AA
R401 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R430 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R432 VRS-CY1JF750JY X 75 1/16W M-Ox. AA
R433 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R464 VRS-CY1JF750JY X 75 1/16W M-Ox. AA
R501 VRD-RA2BE222JY X 2.2k 1/8W Carbon AA
R502 VRD-RM2HD102JY X 1.0k 1/2W Carbon AA
R503 VRN-RL3DB2R2J+ X 2.2 2W M-Film AB
R504 VRS-CY1JF181JY X 180 1/16W M-Ox. AA
R505 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R506 VRS-RG3AB391J+ X 390 1W M-Ox. AB
R507 VRN-RL3AB1R0J+ X 1.0 1W M-Film AB
R510 VRD-RA2BE333JY X 33k 1/8W Carbon AA
R511 VRS-CY1JF181JY X 180 1/16W M-Ox. AA
R512 VRD-RM2HD100JY X 10 1/2W Carbon AA
R531 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R532 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R533 VRD-RA2BE393JY X 39k 1/8W Carbon AA
R601 VRS-RG2HC102J+ X 1k 1/2W M-Ox. AB
R602 VRD-RA2BE393JY X 39k 1/8W Carbon AA
R603 VRD-RA2BE223JY X 22k 1/8W Carbon AA
R604 VRD-RA2BE393JY X 39k 1/8W Carbon AA
R605 VRD-RM2HD823JY X 82k 1/2W Carbon AA
R606 VRN-RL3AB2R2J+ X 2.2 1W M-Film AB
R607 VRD-RM2HD270JY X 27 1/2W Carbon AA
R609 VRD-RA2BE154JY X 150k 1/8W Carbon AA
R610 VRD-RA2BE102GY X 1.0k 1/8W Carbon AA
R611 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R612 VRS-CY1JF123JY X 12k 1/16W M-Ox. AA
R613 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R614 VRS-RG2HC100J+ X 10 1/2W M-Ox. AB
R615 VRS-RG3DB682J+ X 6.8k 2W M-Ox. AB
R616 VRN-RL3ABR47J+ X 0.47 1W M-Film AB
R618 VRS-RG3DB391J+ X 390 2W M-Ox. AB
R619 VRS-RG3LB562J+ X 5.6k 3W M-Ox. AB
R620 VRS-RG3AB472J+ X 4.7k 1W M-Ox. AB
R622 VRD-RA2BE102JY X 1k 1/8W Carbon AA
R625 VRN-VV3DB4R7J X 4.7 2W M-Film AB
R626 VRD-RM2HD470JY X 47 1/2W Carbon AA
R641 VRN-RL2HCR47J+ X 0.47 1/2W M-Film AB
R651 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R652 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R653 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R654 VRS-CY1JF273JY X 27k 1/16W M-Ox. AA
R655 VRS-CY1JF391JY X 390 1/16W M-Ox. AA
R656 VRS-CY1JF100JY X 10 1/16W M-Ox. AA

27

20PL84

Ref. No. Part No. « Description Code

PWB-A: DUNTKA541WEL6

MAIN UNIT

RESISTORS

[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]

R658 VRD-RA2BE101JY X 100 1/8W Carbon AA
R663 VRD-RA2BE101JY X 100 1/8W Carbon AA
R701 VRW-KQ3NC3R9K X 3.9 7W Cement AC
R704 VRN-SV2HC1R0J X 1.0 1/2W M-Film AA
R707 VRS-VV3DB104J X 100k 2W M-Ox. AA
R708 VRD-RA2BE681JY X 1.5k 1/8W Carbon AA
R709 VRN-RL3DBR47J+ X 0.47 2W M-Film AB
R710 VRN-RL3DBR39J+ X 0.39 2W M-Film AB
R711 VRD-RA2BE682JY X 6.8k 1/8W Carbon AA
R712 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA
R716 VRD-RA2BE562JY X 5.6k 1/8W Carbon AA
R751 RR-DZ0049CEZZY X 3.9M 1/2W Solid AB
R752 RR-DZ0049CEZZY X 3.9M 1/2W Solid AB
R753 VRD-RM2HD124JY X 120k 1/2W Carbon AA
R754 VRD-RM2HD150JY X 15 1/2W Carbon AA
R755 VRD-RA2BE221JY X 220 1/8W Carbon AA
R756 VRD-RM2HD270JY X 27 1/2W Carbon AA
R757 VRS-CY1JF151JY X 150 1/16W M-Ox. AA
R801 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R802 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R803 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R804 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R805 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R806 VRS-CY1JF123JY X 12k 1/16W M-Ox. AA
R807 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R808 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R809 VRD-RA2BE224JY X 220k 1/8W M-Ox. AA
R812 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R813 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R1002 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R1003 VRS-CY1JF562JY X 5.6k 1/16W M-Ox. AA
R1006 VRS-CY1JF562JY X 5.6k 1/16W M-Ox. AA
R1007 VRS-CY1JF562JY X 5.6k 1/16W M-Ox. AA
R1008 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R1009 VRS-CY1JF562JY X 5.6k 1/16W M-Ox. AA
R1011 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1012 VRD-RA2BE391JY X 390 1/8W Carbon AA
R1013 VRD-RA2BE101JY X 100 1/8W Carbon AA
R1014 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1015 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1016 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1017 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1019 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R1020 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1021 VRS-CY1JF183JY X 18k 1/16W M-Ox. AA
R1022 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1023 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R1024 VRS-CY1JF183JY X 18k 1/16W M-Ox. AA
R1025 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1026 VRS-CY1JF224JY X 220k 1/16W M-Ox. AA
R1028 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1032 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1034 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1035 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1036 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1037 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1038 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1039 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R1040 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1041 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1042 VRD-RA2BE471JY X 470 1/8W Carbon AA
R1046 VRS-CY1JF101JY X 100 1/16W M-Ox. AA

Ref. No. Part No. « Description Code

R1047 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R1050 VRS-CY1JF392JY X 3.9k 1/16W M-Ox. AA
R1051 VRS-CY1JF683JY X 68k 1/16W M-Ox. AA
R1066 VRS-CY1JF273JY X 27k 1/16W M-Ox. AA
R1072 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R1073 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
JA223 VRD-RA2BE222JY X 2.2k 1/8W Carbon AA

SWITCHES

S1001 QSW-KA003WJZZ+ X Switch, AB
S1002 QSW-KA003WJZZ+ X Switch, AB
S1003 QSW-KA003WJZZ+ X Switch, AB
S1004 QSW-KA003WJZZ+ X Switch, AB
S1005 QSW-KA003WJZZ+ X Switch, AB
S1006 QSW-K0114CEZZ X Switch, AE

MISCELLANEOUS PARTS

F701 QFS-C3229CEZZ X Fuse,T3.14AL AC
FB601 RBLN-0091GEZZY X Ferrite Bead AA
FH701 QFSHD1013CEZZ+ X FUSE CLIP AB
FH702 QFSHD1014CEZZ+ X FUSE CLIP AB
J402 QJAKE0211CE04 X RCA JACK YELLOW AB
J403 QJAKE0211CE09 X RCA JACK WHITE AB
J404 QJAKE0210CE02 X RCA Jack red AB
J409 QJAKG0093CEZZ X Rear A/V Terminal Jack AF
P302 QPLGN0461CEZZ X plug (4 PINS) AA
P601 QPLGN0660CEZZ X plug (6 pins) AC
P602 LHLDW1104PEZZ X Holder AA
P603 QPLGN0361CEZZA X plug 3pin (TP651-3) AB
P701 QPLGN0260CEZZ X plug 2pin(M1-2) AB
P702 QPLGN0269GEZZ X plug 2pin(P1-2) AB
P1001 LHLDW1105PEZZ X Holder AA
P1002 QPLGN0561CEZZ X plug (5 pins) AB
RMC100 RRMCU0222CEZZ X R/C Receiver AF

PRDAR0118GJFW X Heat Sink AD
PRDAR0120GJFW X Heat Sink AD
PRDAR0224PEFW X Heat Sink AC
PRDAR0298PEFW X Heat Sink AD
LHLDP1066PE00 X Holder AB
LHLDW1104PEZZ X Holder AA
LHLDW1105PEZZ X Holder AA

TP201 QLUGP0102PEZZ X Test point AA

PWB-B: DUNTKA542WEA3

CRT UNIT

TRANSISTOR

Q870 RH-TX0110BMZZ+ X TX0110BM AB
Q871 RH-TX0110BMZZ+ X TX0110BM AB
Q872 RH-TX0110BMZZ+ X TX0110BM AB
Q883 RH-TX0124BMZZ+ X TX0124BM AB
Q885 RH-TX0124BMZZ+ X TX0124BM AB
Q887 RH-TX0124BMZZ+ X TX0124BM AB

DIODES

D881 VHD1SS244//-1Y X Diode AA
D882 VHD1SS244//-1Y X Diode AA
D883 VHD1SS244//-1Y X Diode AA
D884 VHD1SS119//-1Y X Diode AA
D885 VHD1SS119//-1Y X Diode AA
D886 VHD1SS82///1AY X Diode AB
D887 VHD1SS82///1AY X Diode AB
D888 VHD1SS82///1AY X Diode AB

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C871 VCCSCY1HL471JY X 470p 50V Ceramic AB
C872 VCCSCY1HL391JY X 390p 50V Ceramic AB
C873 VCCSCY1HL471JY X 470p 50V Ceramic AB
C875 VCKYPA2HB102K+ X 1000p 500V Ceramic AA

28

20PL84

Ref. No. Part No. « Description Code

PWB-B: DUNTKA542WEA3

CRT UNIT

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C876 RC-KZ0150CEZZ X 1000p 3kV Ceramic AB
C878 VCEA0A2EW106M+ X 10 250V EL. AC
C880 VCCSCY1HL471JY X 470p 50V Ceramic AB
C881 VCKYPA1HB471K+ X 470p 50V Ceramic AA
C882 VCKYPA1HB471K+ X 470p 50V Ceramic AA
C886 VCKYPA2HB102K+ X 1000p 500V Ceramic AA

RESISTORS

[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]

R879 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R880 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R881 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R882 VRS-VV3DB153J X 15k 2W M-Ox. AA
R883 VRD-RM2HD272JY X 2.7k 1/2W Carbon AA
R884 VRS-VV3DB153J X 15k 2W M-Ox. AA
R885 VRD-RM2HD272JY X 2.7k 1/2W Carbon AA
R886 VRS-VV3DB153J X 15k 2W M-Ox. AA
R887 VRD-RM2HD272JY X 2.7k 1/2W Carbon AA
R888 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R892 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R893 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R894 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R898 VRS-CY1JF471JY X 470 1/16W M-Ox. AA
R899 VRS-CY1JF471JY X 470 1/16W M-Ox. AA

MISCELLANEOUS PARTS

SC881 QSOCV0840CEZZ X SOCKET (CRT) AD

Ref. No. Part No. « Description Code

C3032 VCEA0A1CW106M+ X 10 16V EL. AA
C3033 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C3034 VCEA0A1HW224M+ X 0.22 50V EL. AA
C3039 VCEA0A1CW227M+ X 220 16V EL. AB

RESISTORS

[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]

R3001 VRD-RA2BE221JY X 220 1/8W Carbon AA
R3002 VRD-RA2BE221JY X 220 1/8W Carbon AA
R3003 VRS-CY1JF105JY X 1M 1/16W M-Ox. AA
R3004 VRS-CY1JF104JY X 100k 1/16W M-Ox. AA
R3005 VRS-CY1JF623JY X 62k 1/16W M-Ox. AA
R3007 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R3008 VRS-CY1JF302JY X 3k 1/16W M-Ox. AA
R3010 VRS-CY1JF392JY X 3.9k 1/16W M-Ox. AA
R3011 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R3012 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R3013 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R3014 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R3015 VRD-RA2BE101JY X 100 1/8W Carbon AA
R3022 VRD-RA2BE560JY X 56 1/8W Carbon AA
R3023 VRD-RM2HD5R6JY X 5.6 1/2W Carbon AA
R3025 VRS-CY1JF333JY X 33k 1/16W M-Ox. AA

PLUG'S

P3001 QPLGZ0810CEZZ X plug 32" AD
P3002 QPLGZ0810CEZZ X plug 32" AD
P3003 QPLGZ0810CEZZ X plug 32" AD

PWB-C: DUNTKA545WEA0

MTS UNIT

IC3001 VHICXA2074Q-1Y X CXA2074Q AR
IC3002 VHIMM1501XN-1Y X MM1501XN AD

Q3003 VS2SC3198-G-1+ X 2SC3198-G AB

D3001 RH-EX0632GEZZY X Zener Diode 9.59 V AB

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C3001 VCE9GA1HW475M+ X 4.7 50V EL. AB
C3002 VCKYCY1HB562KY X 5600p 50V Ceramic AA
C3003 VCQYTA1HM123J+ X 0.012 50V Mylar AA
C3004 VCEA0A1HW105M+ X 1 50V EL. AA
C3005 VCEA9A1HW475M+ X 4.7 50 V EL. AB
C3006 VCEA0A1CW106M+ X 10 16V EL. AA
C3007 VCEA0A1HW475M+ X 4.7 50V EL. AA
C3008 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C3009 VCEA0A1CW227M+ X 220 16V EL. AB
C3010 VCE9GA1HW475M+ X 4.7 50V EL. AB
C3011 VCEA0A1HW475M+ X 4.7 50V EL. AA
C3012 VCE9GA1HW475M+ X 4.7 50V EL. AB
C3013 VCKYCY1HB272KY X 2700p 50V Ceramic AA
C3014 VCQYTA1HM473J+ X 0.047 50V Mylar AA
C3015 VCEACA1HC335K+ X 3.3 50V EL. AC
C3016 VCE9GA1HW475M+ X 4.7 50V EL. AB
C3017 VCEACA1CC106K+ X 10 16V EL. AC
C3018 VCEA0A1HW105M+ X 1 50V EL. AA
C3019 VCEA0A1CW106M+ X 10 16V EL. AA
C3020 VCEA0A1CW106M+ X 10 16V EL. AA
C3021 VCEA0A1CW106M+ X 10 16V EL. AA
C3022 VCEA0A1CW106M+ X 10 16V EL. AA
C3031 VCEA0A1CW106M+ X 10 16V EL. AA

INTEGRATED CIRCUITS

TRANSISTOR

DIODE

CAPACITORS

29

20PL84

Ref. No. Part No. « Description Code

MISCELLANEOUS PARTS

ACC701 QACCZA020WJPZ X AC Cord AG
SP301 VSP9050PB394A X speaker AG
SP302 VSP9050PB394A X speaker AG

LHLDK0012PEZZ X AC Cord holder AB
LHLDW1009PEZZ X Purse lock AA
LHLDW1033PEZZ X Wire tie (10.4 CM) AA
LHLDW1060CEZZ X Purse lock AB
LHLDZ0063PEZZ X Insulator ring AB
LX-TZ0104GJFD X Screw (CRT) AC
LX-WZ0102GJFD X TV washer (1.01) AB
LHLDW1070PEKZ X holder clamp u AB
QCNW-2562PEZZ X Wire (speaker) AE
QCNW-2619PEZZ X Connecting Cord AC
QCNW-2620PEZZ X Connecting Cord AC

SUPPLIED ACCESORRIES

RRMCG1639CESA X Infrared R-C Unit AT
TINS-B218WJZZ X operation manual AG
RUNTK0690CEZZ X ANTENNA ADAPTOR AK
TLABM0005GJZZ X Model Label AC
TLABN0101GJZZ X Remark label AA
TCAUS3000GJZZ X Caution label AA

Ref. No. Part No. « Description Code

PACKING PARTS

(NOT REPLACEMANT ITEM)

SPAKCB305WJZZ X Packing case AT
SPAKP0102GJZZ X Lamifoam AE
SPAKX0124GJZZ X Packing Foam AM
SSAKA0101GJZZ X Plastic bag AB

CABINET PARTS

1 CCABAA010WEH4 X Front Cabinet Ass’y BE
1-1 Not Available — Front Cabinet —
1-2 HBDGB1001GJSB X Badge AD
1-3 GCOVA0110GJSA X Cover AM
1-4 JBTN-0113GJSD X Button (power) AK
1-5 MSPRC0005PEFW X spring AA
1-6 JBTN-0114GJSD X Button (control) AK

2 GCABB0129GJKA X Rear Cabinet AY

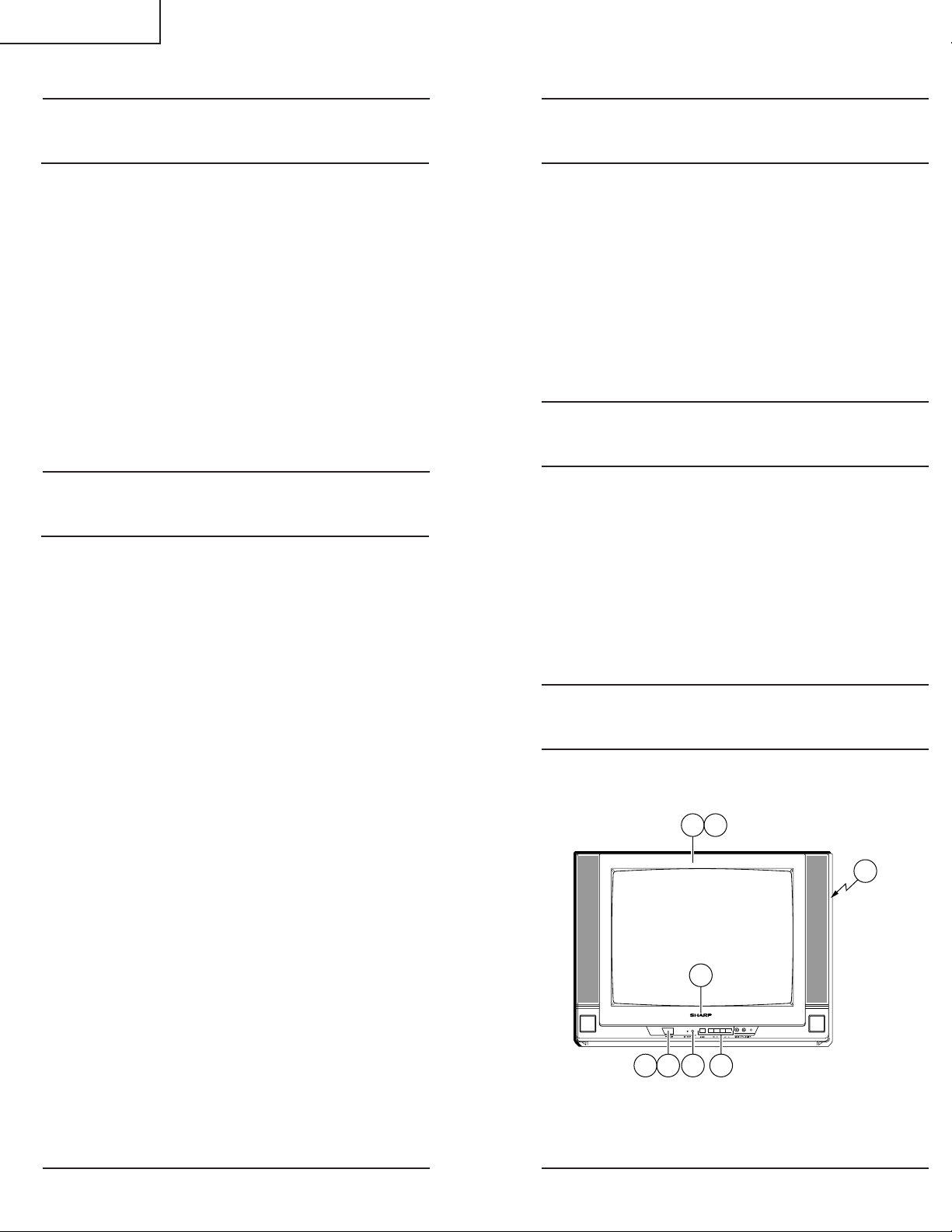

CABINET PARTS LOCATION

1 1-1

2

1-2

1-51-4 1-3 1-6

30

★ Wrapping Paper

20PL84

PACKING OF THE SET

★ Polyethylene Bag

Operation Manual
Infrared R/C Unit
★ Batteries

FRONT

★ Buffer Material

★ Packing Case

Use tape to fix
top side of pack
case.

★ MARK : Not Replacement Items.

REAR

Use 12 staples fix
the packing case.

31

20PL84

COPYRIGHT © 2004 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

QRC0009-L
August. 2004

Modify : SEMEX

Design and Production Information

Design : SEM
Production : SEMEX

J B

SHARP ELECTRONICA MEXICO S. A. DE C. V.
Quality & Reliability Control Center
Blvd. SHARP No. 3510 Parque Industrial Rosarito
Playas de Rosarito, México B. C. 22710
