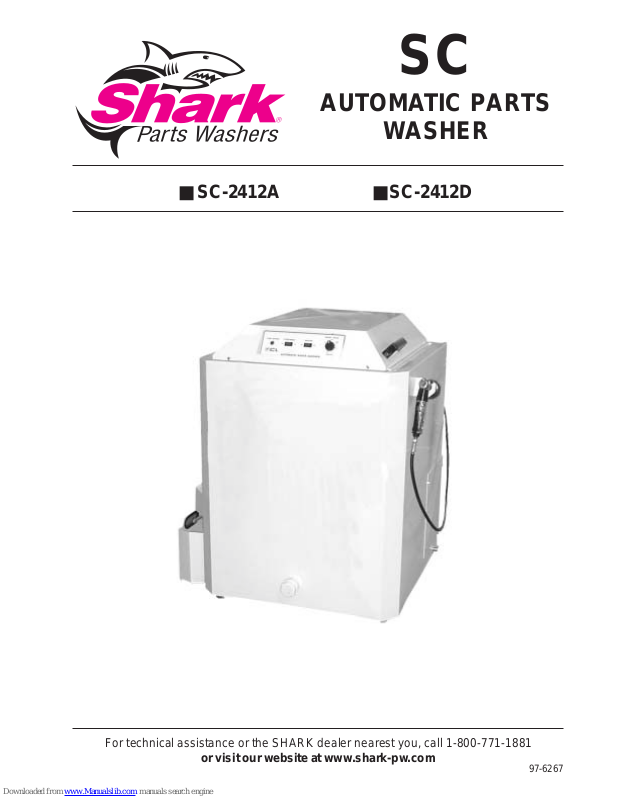

Shark SC-2412A, SC-2412D Operator's Manual
SC
AUTOMATIC PARTS
WASHER
■ SC-2412A ■ SC-2412D
For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881
or visit our website at www.shark-pw .com
97-6267
SECTION 1
Introduction and Safety
Using This Manual 5
General Safety Inf ormation 5
Component Identification 6-7
SECTION 2
Installation
Before you Begin 8
Step 1: Mak e Electrical Connections 8
Step 2: Connect a Compressed-Air Line and Accessories 8
Step 3: Connect a Water Line 8
Step 4: Fill the Machine with Water and Add Detergent 9
SECTION 3
Operation
CONTENTS
Main Operating Components 10
Control Panel 10
Thermostat 11
24-hour, 7-da y Heater Timer 11
Lid Safety Switch 11
Turntable Assembly 11
Debris Screen 12
Air Flow Valv e (Delux e Edition only) 12
Po wer Brush (Delux e Edition only) 12
Detail Brush and Flow Regulator (Deluxe Edition only) 12
Dual Oil Separator (DOS) System 13
Low W ater Shut-off System 13
Automatic W ater Fill 13
Detergents and Additives 14
Detergent 15
Rust Inhibitor Additive 16
Preparing the Machine for Use 17
3
SHARK SC-2412 • 97-6267 • REV. 3/04
CONTENTS
Washing P arts 19
Shutting Down the Machine 19
SECTION 4
Troubleshooting
Overview 20
Troubleshooting the Electrical System 20
T esting Individual Components 20
SECTION 5
Maintenance and Repair
Maintaining the Machine 21
Daily Maintenance 21
Weekly Maintenance 21
Monthly Maintenance 21
Using the DOS System 21
Cleaning and Aligning the Spray Nozzles 22
Cleaning out the Sump 22
Repairing the Machine 23
Heating Element 23
Thermostat 23
Timers and Switches on the Control Panel 23
T orque Limiter 23
T urntable Motor 24
WARRANTY
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ____________________________
The model and serial numbers will be found on a decal attached to
the parts washer. You should record both serial number and date of
purchase and keep in a safe place f or future ref erence .
4
SHARK SC-2412 • 97-6267 • REV. 3/04
WARNING
WARNING
WARNING
Section 1: Introduction
AUTOMATIC PARTS WASHER
This manual is intended as a guide for saf ely installing,
operating and maintaining your Automatic P arts Washer .
We reserve the right to make changes at any time without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must hav e an understanding of
the manufacturer’ s operating instructions and warnings
before using this machine. Warning information should
be emphasized and understood. If the operator is not
fluent in English, the manufacturer’s instr uctions and
warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number .
GENERAL SAFETY
INFORMATION
WARNING
READ OPERATOR’S
MANUAL
THOROUGHLY
PRIOR TO USE.
2. Improper installation could cause serious injury to
the machine. All installations must comply with local codes. Contact your electrician, plumber, utility
company or the selling distributor for specific details.
3. The machine can only operate on the type of electrical power indicated on the electrical specifications
tag. Oper ating the machine on any other power supply will permanently damage the motors.
CAUTION: To reduce the risk of
injury, read operating instructions carefully before using.
1. Read the owner's manual thoroughly. Failure to follow instructions could cause a malfunction of the evaporator and
result in death, serious bodily
injury and/or property damage.
WARNING: Electrical shock
could cause serious injury or
death.
4. Install the machine in compliance with the National Electric
Code, connect it to a properly
KEEP WA TER SPRAY
AWAY FROM
ELECTRICAL WIRING.
sized lockable disconnect and
ground the machine using the
grounding stud inside the main
electrical panel.
5. While operating the machine, keep all electrical panels in place and securely fastened at all times.
6. Disconnect the machine completely from the outside power source before servicing.
WARNING: Hot, high pressure
cleaning solution could cause
serious injury .
7. Do not operate the machine
with the lid or door open and
do not override the safety
HIGH PRESSURE
SPRAY CAN PIERCE
SKIN AND TISSUES.
switch.
8. After the machine stops, wait
10 seconds before opening the
lid or door.
WARNING: Always wear approved eye protection and protective clothing while operating
machine.
9. Always wear rubber gloves
PROTECTIVE
EYEWEAR AND
CLOTHING MUST
BE WORN.
when loading and unloading
the machine or servicing components in the processing
chambers or sumps.
WARNING: Slips and falls could cause serious injury.
10. Maintain an unobstructed work area around the machine and keep the floor free of water , oil, grease or
other foreign substances.
This Automatic Parts Washer is designed to operate
safely and efficiently with a minimum of required maintenance. Before you begin to install and use the machine, please familiarize yourself with the major components.
OPERATOR’S MANUAL
5
SHARK SC-2412 • 97-6267 • REV. 3/04
AUTOMATIC PARTS WASHER
COMPONENT IDENTIFICATION
FRONT
Lid Handle
Control Panel
Optional Power
Brush
OPERATOR’S MANUAL
Sump Drain
Optional Air Flow
Valve w/Flow
Regulator
Optional Detail
Brush Pump
Power Cord
REAR
Lid Handle
Lid Support Strut
Low Water Shut-Off
System
Optional Automatic
Water Fill Assembly
6
DOS System™ w/
Optional Oil
Collection Container
SHARK SC-2412 • 97-6267 • REV. 3/04
COMPONENT IDENTIFICATION
AUTOMATIC PARTS WASHER
Spray Pipes
and Nozzles
Turntable Drive Arm
OPERATOR’S MANUAL
Turntable Assembly w/
Optional Removable
Containment Ring
Optional Detail
Brush
7
SHARK SC-2412 • 97-6267 • REV. 3/04
Section 2: Installation
BEFORE YOU BEGIN
To prepare to install the machine, choose an unobstructed, level site that allows convenient access for
operators and maintenance personnel. Sources for
water and electrical power should be located near the
installation site. If your machine is equipped with the
optional power brush and hand detail brush you must
also run a compressed air line to the installation site.
If you have any questions regarding the installation,
please contact your distributor or call a customer service representative. When contacting customer service
please refer to the machine identification tag inside the
AUTOMATIC PARTS WASHER
front cover of this manual for detailed machine specifications.
STEP 1: MAKE ELECTRICAL
CONNECTIONS
These machines are shipped with a factory-installed
power cord. To connect the machine to a power supply ,
plug the cord into a grounded outlet on a single-outlet
circuit. It is important that you connect the machine to
OPERATOR’S MANUAL
a single-outlet circuit to avoid possib le damage resulting from inadequate supply amperage.
STEP 2: CONNECT A
COMPRESSED-AIR LINE AND
ACCESSORIES
This step is required for machines equipped with the
optional power brush and hand detail brush.
If your machine does not have these options, skip the
following procedure.
Note: To ensure proper operation and to minimize the
possibility of premature component failure, make sure
the compressed air is supplied at 75 to 90 psi. W e also
recommend an in-line moisture trap and an in-line lubricator on the main air supply line. Refer to the documentation provided with the power brush for more information.
Step 1:
Remove the pow er brush from the bo x, install the wire
brush in the chuck, and connect the air hose.
Step 2:
Familiarize yourself with the three-way air flow valve
(See Figure Below), then install a fitting (if necessary)
to accommodate a connection to your compressed-air
supply.
Line to Detail
Brush Pump
Power Brush
Connection
Step 3:
Connect the shop compressed-air line to the machine.
Step 4:
Connect the hose from the power brush to the air flow
valve.
Step 5:
Hang the power brush on the bracket mounted along
the right side of the machine.
Compressed Air
Connection
STEP 3: CONNECT A WATER
LINE
This step is required for machines equipped with the
optional automatic water fill feature. If your machine does
not have this option, skip this step .
The optional automatic water fill feature automatically
maintains the correct water lev el in the sump. The f eature requires that you connect the machine to a dedicated water supply line.
T o connect the machine to a w ater supply line, attach a
suitable burst-proof hose to the hose connection on the
rear of the machine (See Figure Below), then connect
the hose to a nearby water spigot.
Hose Connection
8
SHARK SC-2412 • 97-6267 • REV. 3/04
