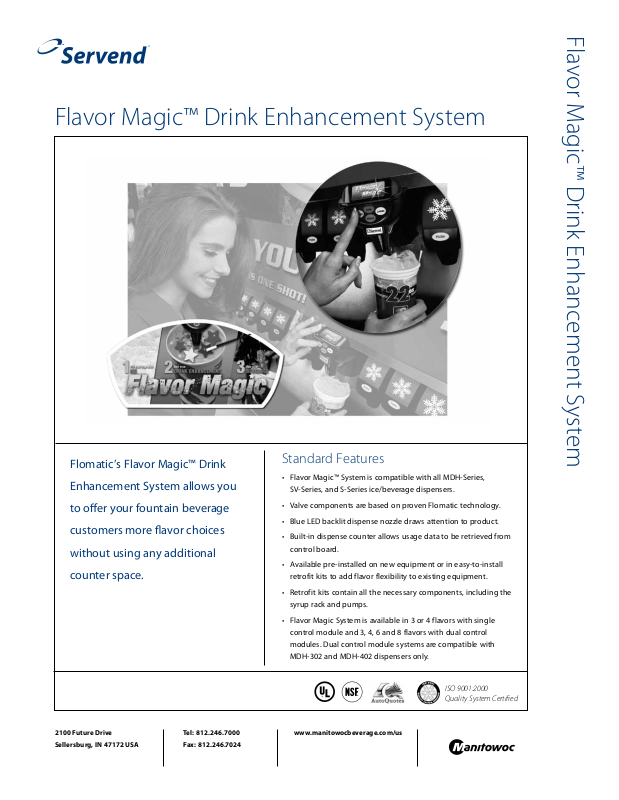

Flavor Magic™ Drink Enhancement System
Flavor Magic™ Drink Enhancement System
Flomatic’s Flavor Magic™ Drink
Enhancement System allows you
to offer your fountain beverage
customers more flavor choices
without using any additional
counter space.
2100 Future Drive
Sellersburg, IN 47172 USA
Tel: 812.246.7000
Fax: 812.246.7024
Standard Features
• Flavor Magic™ System is compatible with all MDH-Series,
SV-Series, and S-Series ice/beverage dispensers.
• Valve components are based on proven Flomatic technology.
• Blue LED backlit dispense nozzle draws attention to product.
• Built-in dispense counter allows usage data to be retrieved from
control board.
• Available pre-installed on new equipment or in easy-to-install
retrofit kits to add flavor flexibility to existing equipment.
• Retrofit kits contain all the necessary components, including the
syrup rack and pumps.
• Flavor Magic System is available in 3 or 4 flavors with single
control module and 3, 4, 6 and 8 flavors with dual control
modules. Dual control module systems are compatible with
MDH-302 and MDH-402 dispensers only.
®
www.manitowocbeverage.com/us
ISO 9001:2000
Quality System Certified
Flavor Magic™ Drink Enhancement System
Specifications
Standard Features
Flavor Magic Module
Back Room Kit Contents
BIB Rack Dimensions
Flavors Dispensed 3 or 4 per module
Inlet Pressure Range 10 - 40 PSI
Portion control through adjustable dispense time, backlit dispense nozzle
with field-selectable flash sequence, built-in dispense counter to track
individual flavor sales, POP static cling instruction sheet,
easy-to-install pre-assembled valve/control board module.
Switch cover with nozzle, ice chute bracket, cover mounting
Kit Contents
W x H x D
Electrical 24VAC, 0.5 AMP, powered by existing valve transformer on dispenser
Flow Rate Variable, 0.5 oz/sec nominal
Dispense Time 0.2 - 10 seconds, adjustable in 0.2 second increments
bracket, internal nozzle tubing mount, control board and
valve solenoid assembly, nozzle LED
BIB rack, BIB syrup pumps (1 for each flavor), low pressure CO2
regulator (0-100 PSI), 50 feet of bundled tubing (1 tube for each flavor)
1 X 3 rack: 20" x 36" x 19"; 1 X 4 rack: 20" x 48" x 19";
2 X 3 rack: 32" x 36" x 19"; 2 X 4 rack: 32" x 48" x 19"
2100 Future Drive
Sellersburg, IN 47172 USA
3306D ©2010 Ser vend 3/1 0 Continu ing produ ct impro vement ma y necess itate cha nge of specifi cations w ithout n otice.
