CEV
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
CEV_2.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
# PART # DESCRIPTION QTY Note
1 Rear Decal
1a 5012613 Rear Decal - CEV-30 - Quench
1b 5013366 Rear Decal - CEV-40 - Quench
1c 5012525 Rear Decal - CEV-30 - Pepsi
1d 5013368 Rear Decal - CEV-40 - Pepsi
1e 5013785 Rear Decal - CEV-30 - 7UP
1f 5013786 Rear Decal - CEV-40 - 7UP
1g 5013574 Rear Decal - CEV-30 - Dr Pepper
1h 5013748 Rear Decal - CEV-40 - Dr Pepper
2 Bonnet Rear Panel
2a 5012077 Bonnet Panel - Rear - CEV-30
2b 5012896 Bonnet Panel - Rear - CEV-40
3 Bonnet Top Wrap
3a 5012078 Bonnet Wrap - Top - CEV-30
3b 5012897 Bonnet Wrap - Top - CEV-40
4 Bonnet Right Side
4a 5012539 Bonnet Wrap - Right Side
4b 5029461 Bonnet Kit - Right Side
5 Bonnet Left Side
5a 020000090 Bonnet Wrap - Left Side
5b 5029460 Bonnet Kit - Left Side
6 Bonnet Wrap Kit
6a 5029462 Bonnet Wrap - CEV-30
6b 5029463 Bonnet Wrap - CEV-40
6c 5031537 Bonnet - Marine
6d 5013389 Bonnet Injection Molded
7 Side Bonnet Decal
7a 5012614 Bonnet Side Decal - Quench
7b 5012524 Bonnet Side Decal - Pepsi
7c 5013784 Bonnet Side Decal - 7UP
7d 5013573 Bonnet Side Decal - Dr Pepper
7e 5027577 Bonnet Side Decal - Juice
8 Drain Pan Grid
8a 5012512 Drain Pan Grid - CEV-30
8b 5013360 Drain Pan Grid - CEV-40
9 Drain Pan with Fitting
9a 5012931 Drain Pan w/Fitting - CEV-30
9b 5013352 Drain Pan w/Fitting - CEV-40
10 Panel Wrap with Gasket
10a 020003646 Panel Wrap w/Gaskets - CEV-30
10b 5013355 Panel Wrap w/Gaskets - CEV-40
11 5009191 Condenser Filter - 115V
12 5012100 Filter Panel
13 Merchandiser Bonnet
13a 5012929 Merchandiser Bonnet - Quench - CEV-30
13b 5013370 Merchandiser Bonnet - Quench - CEV-40
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
CEV_2.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
# PART # DESCRIPTION QTY Note
13c 5012520 Merchandiser Bonnet - Pepsi - CEV-30
13d 5013371 Merchandiser Bonnet - Pepsi - CEV-40
13e 5013800 Merchandiser Bonnet - 7UP - CEV-30
13f 5013799 Merchandiser Bonnet - 7UP - CEV-40
13g 5013581 Merchandiser Bonnet - Dr Pepper - CEV-30
13h 5027477 Merchandiser Bonnet - Dr Pepper - CEV-40
13i 020003643 Merchandiser Bonnet - Juice - CEV-30
14 020003009 Merchandiser Washer
15 Merchandiser Top
15a 5012521 Merchandiser Top - CEV-30
15b 5012899 Merchandiser Top - CEV-40
16 Medallion
16a 5013701 Medallion Quench - CEV-30
16b 5013704 Medallion Quench - CEV-40
16c 020003645 Medallion Pepsi - CEV-30
16d 5013703 Medallion Pepsi - CEV-40
16e 5013792 Medallion 7UP - CEV-30
16f 5013791 Medallion 7UP - CEV-40
16g 5013702 Medallion Dr Pepper - CEV-30
16h 5027476 Medallion Dr Pepper - CEV-40
16i 5013746 Medallion Juice - CEV-30
17 Merchandiser Bottom with Lens
17a 5012928 Merchandiser Bottom - CEV-30
17b 5012930 Merchandiser Bottom - CEV-40
18 5011935 Screw - #6-32 x 0.375" SS
19 5013485 Screw - #8 x 0.75" SS
20 0900504 Screw - #8-32 x 0.5"
CEVi, CEVe, & CEVj 30/40 Panels & Exterior
CEV_2.pdf
CEV
CEVi, CEVe, & CEVj Metal Bonnet
CEVi, CEVe, & CEVj Metal Bonnet
CEV_3.pdf
CEV
CEVi, CEVe, & CEVj Metal Bonnet
# PART # DESCRIPTION QTY Note
1 5031050 CEV with Metal Bonnet
2 5031055 Splash Panel
3 Bonnet Welded
3a 5031537 Bonnet - Marine [1]
3b 020002778 Bonnet - SS [2]
4 5031539 Bracket Condenser Top And Rear
5 0900504 Screw - #8-32 x 0.5"
6 0901005 Screw - #8-32 x 0.5" SS
7 5013485 Screw - #8 x 0.75" SS
PART NOTES:
[1] - CEV30
[2] - CEV40
CEVi, CEVe, & CEVj Metal Bonnet
CEV_3.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Decks
CEVi, CEVe, & CEVj 30/40 Refrigeration Decks
CEV_4.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Decks
# PART # DESCRIPTION QTY Note
1 Refrigeration Deck - Internal Carbonated [1]
1a 5027859 Refrigeration Deck - 115V/60 Hz with Light Kit [2]
1b 020001575 Refrigeration Deck - 115V/60 Hz with Light Kit [3]
1c 5012491 Refrigeration Deck - 115V/60 Hz no Light Kit [2]
1d 020001576 Refrigeration Deck - 115V/60 Hz no Light Kit [3]
1e 5027860 Refrigeration Deck - 208-230V/60 Hz with Light Kit [2]
1f 020001581 Refrigeration Deck - 208-230V/60 Hz with Light Kit [3]
1g 5012702 Refrigeration Deck - 208-230V/60 Hz no Light Kit [2]
1h 020001584 Refrigeration Deck - 208-230V/60 Hz no Light Kit [3]
1i 5027861 Refrigeration Deck - 208-230V/50 Hz with Light Kit [2]
1j 020001587 Refrigeration Deck - 208-230V/50 Hz with Light Kit [3]
1k 5012802 Refrigeration Deck - 208-230V/50 Hz no Light Kit [2]
1l 020001590 Refrigeration Deck - 208-230V/50 Hz no Light Kit [3]
2 Refrigeration Deck - External Carbonated [4]
2a 5027865 Refrigeration Deck - 115V/60 Hz with Light Kit [2]
2b 020001578 Refrigeration Deck - 115V/60 Hz with Light Kit [3]
2c 5014023 Refrigeration Deck - 115V/60 Hz no Light Kit [2]
2d 020001579 Refrigeration Deck - 115V/60 Hz no Light Kit [3]
2e 5027866 Refrigeration Deck - 208-230V/60 Hz with Light Kit [2]
2f 020001583 Refrigeration Deck - 208-230V/60 Hz with Light Kit [3]
2g 5014024 Refrigeration Deck - 208-230V/60 Hz no Light Kit [2]
2h 020001586 Refrigeration Deck - 208-230V/60 Hz no Light Kit [3]
2i 5027867 Refrigeration Deck - 208-230V/50 Hz with Light Kit [2]
2j 020001589 Refrigeration Deck - 208-230V/50 Hz with Light Kit [3]
2k 5014025 Refrigeration Deck - 208-230V/50 Hz no Light Kit [2]
2l 020001592 Refrigeration Deck - 208-230V/50 Hz no Light Kit [3]
3 Refrigeration Deck - Juice [5]
3a 5027862 Refrigeration Deck - 115V/60 Hz with Light Kit
3b 5013731 Refrigeration Deck - 115V/60 Hz no Light Kit
3c 5027864 Refrigeration Deck - 208-230V/60 Hz with Light Kit
3d 5013861 Refrigeration Deck - 208-230V/60 Hz no Light Kit
3e 5027863 Refrigeration Deck - 208-230V/50 Hz with Light Kit
3f 5013860 Refrigeration Deck - 208-230V/50 Hz no Light Kit
PART NOTES:
[1] - Internal Carbonated
[2] - Built Prior to January 2007
[3] - Built January 2007 to Present
[4] - External Carbonated
[5] - Juice
CEVi, CEVe, & CEVj 30/40 Refrigeration Decks
CEV_4.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Tub, Legs, & Splash Panel
CEVi, CEVe, & CEVj 30/40 Tub, Legs, & Splash Panel
CEV_5.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Tub, Legs, & Splash Panel
# PART # DESCRIPTION QTY Note
1 Ice Bank Tub with Fittings
1a 020001884 Ice Bank Tub w/Fittings - CEV-30
1b 020001885 Ice Bank Tub w/Fittings - CEV-40
2 5000220 Key Switch
3 Splash Panel
3a 5011790 Splash Panel - CEV-30
3b 5012910 Splash Panel - CEV-40
4 Valve Mount Cap
4a 5027585 Valve Mount Cap - 5 Valve
4b 5011906 Valve Mount Cap - 6 Valve
4c 5012904 Valve Mount Cap - 8 Valve
5 5013286 Overflow Tube
6 Legs
6a 020000701 Legs - 2" OD x 4-6" in Tall SS
6b 5000684 Leg 4" Plastic
7 5013287 Tub Drain Tube
8 5012475 Plastic Plug Cap
9 Access Cover
9a 5013111 Cover - CEV-30
9b 5013110 Cover - CEV-40
10 5013841 Syrup Valve Tube - CEV-30
11 5013485 Screw - #8 x 0.75" SS
12 Key Switch Bracket
12a 5031050 CEV with Metal Bonnet
13 5011940 Screw - #8-32 x 0.5"
14 5011935 Screw - #6-32 x 0.375" SS
15 0901005 Screw - #8-32 x 0.5" SS
16 19-0979 Double Check Valve 0.375" x 0.375" [1]
PART NOTES:
[1] - not shown
CEVi, CEVe, & CEVj 30/40 Tub, Legs, & Splash Panel
CEV_5.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
CEV_6.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
# PART # DESCRIPTION QTY Note
1 5011921 Tube - Carbonator Tank to Post Chill [1]
2 5011920 Tube - Water Coil to Carbonator Tank [1]
3 5012753 Carbonator Tank Gasket [1]
4 Carbonator Tank [2]
4a 43-1600-10 Carb Tank - 115V
4b 43-1602 Carb Tank - 220V
5 5009983 Elbow Fitting - 0.375" x 0.375" [1]
6 5008805 Hole Plug - 1.5"
7 5009036 CLAMP PUMP CARB [1]
8 5009613 Carb Pump Head - 5 GPH [1]
9 Carbonator Pump Motor [1]
9a 5028931 Carb Pump Motor - 115V
9b 5009598 Carb Pump Motor - 220V
10 5013727 Carbonator Tank Area Cover [3]
11 Carbonator Pump Deck
11a 5011795 Carbonator Pump Deck - CEV-30
11b 5012907 Carbonator Pump Deck - CEV-40
12 5028833 Carbonator Tank Restraint Bracket
13 Power Cord
13a 5029495 Power Cord - 115V/60 Hz
13b 5029494 Power Cord - 220V/50-60 Hz
14 5007756 Foam Gasket - 0.25" x 0.75"
15 Light Cover Panel
15a 5013365 Light Panel Cover - CEV-30
15b 5013609 Light Panel Cover - CEV-40
16 Light Panel Front Bracket
16a 020001008 Light Panel Front Bracket - CEV-30 60Hz
16b 020001010 Light Panel Front Bracket - CEV-40 60Hz
16c 020001039 Light Panel Front Bracket - CEV-30 50Hz
16d 020001038 Light Panel Front Bracket - CEV-40 50Hz
17 Light Panel Right Side Bracket
17a 020001007 Light Panel Right Bracket - CEV-40 50Hz
17b 020001050 Light Panel Right Bracket - CEV-30 50Hz
17c 020001007 Light Panel Right Bracket - CEV-40 50Hz
18 1000309 Fluorescent Tube
19 Light End Socket Kit
19a 1001001 Fluorescent Tube Socket
19b 5013617 SOCKET END LIGHT
20 Ballast
20a 5008644 Ballast
20b 5000349 220 Volts 60 Hz
20c 5013434 BALLAST 18W 230/50
21 Light Panel Left Side Bracket
21a 020001009 Light Panel Left Bracket - CEV-40 50Hz
21b 020001049 Light Panel Left Bracket - CEV-30 50Hz
22 Starter Base
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
CEV_6.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
# PART # DESCRIPTION QTY Note
22a 020002168 Starter Base
22b 5013279 BASE STARTER CE
23 Starter
23a 1001005 Fluorescent Starter
23b 5013278 STARTER SIO 220-240V CE
24 5009970 Valve Leads
25 5011940 Screw - #8-32 x 0.5"
26 5010842 Screw - #10-32 x 0.625" SL HX Stainless Steel
27 0901904 Lockwasher - 0.25"
28 0901905 Flat Washer - 0.25" SS
29 5013485 Screw - #8 x 0.75" SS
30 5000974 SCREW 8-32 X 1 1/4" PH PS
PART NOTES:
[1] - Internal Carb Units
[2] - Internal Carb UnitsSee Also Page 12
[3] - External Carb & Juice Units
CEVi, CEVe, & CEVj 30/40 Carb Pump Deck & Electrical
CEV_6.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_8.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
# PART # DESCRIPTION QTY Note
1 5011670 Air Condenser
2 5011766 Fan Shroud
3 M2416293 Fan Blade
4 Fan Motor - See Note for Serial Break
4a 000001354 Fan Motor - 115V/60 Hz [1]
4b M2413203 Fan Motor - 115V/60 Hz [2]
4c 000001355 Fan Motor 208-230V/50-60 Hz
5 M6036851 Fan Motor Mount
6 M4007393 Accumulator Insulation Boot
7 M8900153 Accumulator
8 M8930293 Service Replacement Drier
9 5028297 Heat Exchanger with Cap Tube
10 5202103 Screw - #10-24 x 0.375" Slot Hex [3]
11 M5475073 Speed Nut 0.25"-20
12 M5025593 Screw #8-32 x 0.4375" Hex
PART NOTES:
[1] - Serial # 610014164 and Up
[2] - Before Serial # 610014164
[3] - MII Part #
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_8.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_9.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
# PART # DESCRIPTION QTY Note
1 Transformer
1a 5008229 Transformer w/Breaker - 115V
1b 5007111 Transformer w/Breaker - 230V
1c 5012758 Transformer - 240V/50 Hz with Breaker
2 5012517 Refrigeration Deck Handle
3 Control Box
3a 020002280 Control Box Only
3b 020002157 Control Box with 115V Harness
3c 020002158 Control Box with 220V Harness
4 5012372 Back Probe Bracket
5 5011720 Evaporator Coil Tube
6 5012373 Front Probe Bracket
7 020000573 Ice Control Harness
8 4005213 Injection Molded Evaporator Coil Spacer
9 5011940 Screw - #8-32 x 0.5"
10 5004043 Screw - #10-32 x 0.75" [1]
11 0901005 Screw - #8-32 x 0.5" SS
PART NOTES:
[1] - MII Part #
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_9.pdf
CEV

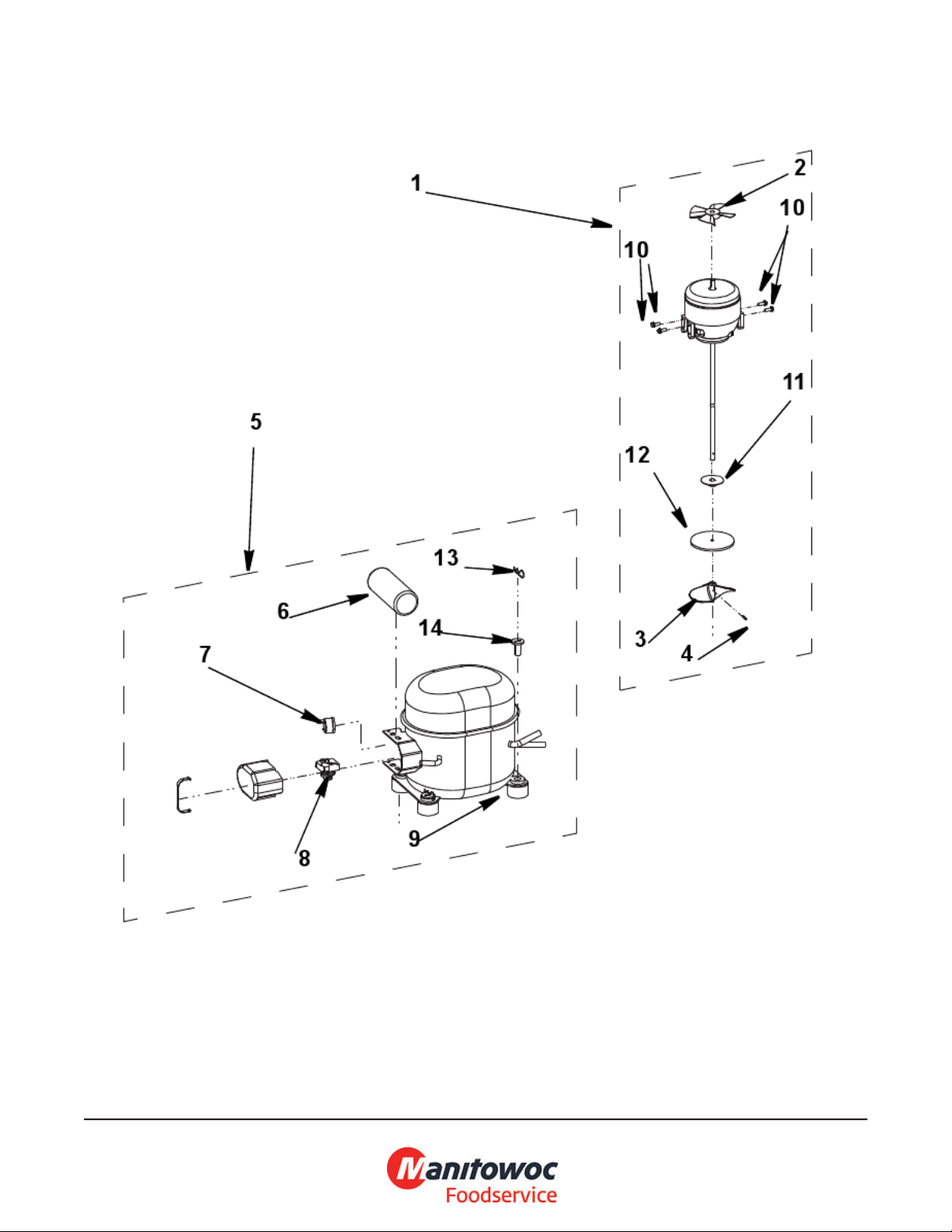

CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_10.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
# PART # DESCRIPTION QTY Note
1 Agitation Motor
1a 020001063 Agitator Motor - 115V/60 Hz
1b 020001064 Agitator Motor - 208-230V/60 Hz
1c 020001065 Agitator Motor - 220-240V/50 Hz
2 M2416323 Fan Blade
3 00751210 Propeller - 3.1" [1]
4 5010761 Pin - 0.09" x 0.56"
5 Compressor Kit
5a 5028436 Compressor - 115V/60 Hz
5b 5028434 Compressor - 208-230V/60 Hz
5c 5028435 Compressor - 220-240V/50 Hz
6 Compressor Start Capacitor
6a Start Capacitor - 115V/60 Hz [2]
6b 5011389 Start Capacitor - 208-230V/60 Hz
6c 5028448 Start Capacitor - 220-240V/50 Hz
7 Compressor Overload
7a 5025372 Compressor Overload - 115V/60 Hz
7b 5011386 Compressor Overload - 208-230V/60 Hz
7c 5028447 Compressor Overload - 220-240V/50 Hz
8 Compressor Start Relay
8a 5009197 Start Relay - 115V/60 Hz
8b 5011385 Start Relay - 208-230V/60 Hz
8c 5028446 Start Relay - 220-240V/50 Hz
9 M8503063 Rubber Grommet
10 M5025593 Screw #8-32 x 0.4375" Hex
11 5002463 Water Pan Assembly
12 5002453 Water Slinger Washer [3]
13 5012374 Compressor Pin
14 5012021 Injection Molded Grommet Sleeve
PART NOTES:
[1] - 3.1" Diameter
[2] - N/A
[3] - No Longer Available
CEVi, CEVe, & CEVj 30/40 Refrigeration Deck
CEV_10.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Manifolds & Lines
CEVi, CEVe, & CEVj 30/40 Manifolds & Lines
CEV_7.pdf
CEV
CEVi, CEVe, & CEVj 30/40 Manifolds & Lines
# PART # DESCRIPTION QTY Note
1 5010332 Manifold Gasket
2 5012053 Manifold Retaining Plate
3 5011928 Water Tube - Valve 6 & 8 #5
4 Water Tube
4a 5011929 Water Tube - Valve 6 & 8 #4
4b 5027723 Water Tube - Valve 5 #4
5 Water Tube
5a 5011931 Water Tube - Valve 5, 6 & 8 #2
5b 5027722 Water Tube - Valve 5 #3
6 Flex Manifold
6a 020000986 Manifold Assembly - 4 Port - Raised
6b 020000987 Flex Manifold - Raised - 5 Port
7 5011931 Water Tube - Valve 5, 6 & 8 #2
8 Water Tube
8a 5011927 Water Tube - Valve 6 & 8 #1
8b 5027721 Water Tube - Valve 5 #1
9 Tube Restraint Bracket
9a 020001880 Tube Restraint Bracket - CEV-30
9b 020001881 Tube Restraint Bracket - CEV-40
10 5011857 Non-Carbonated Water Coil
11 5030426 Coil to Tank U-bend
12 Post Chill Coil
12a 020002717 Post Chill Coil - CEV-30
12b 020002719 Post Chill Coil - CEV-40
13 5028862 Carbonated Water Coil with Barbs
14 5028885 16" Coil & Tank Tube
15 5011756 Syrup Coil
16 5029418 Jumper Tube [1]
17 5013741 Non-Carbonated Manifold [1]
18 5029417 Water Inlet Line [1]
19 4340019 Drain Tube Spacer [1]
20 5029419 Splicer Tube [1]
21 020000992 Screw - #8-32 x 0.5" SS
22 0901005 Screw - #8-32 x 0.5" SS
PART NOTES:
[1] - CEVj-30
CEVi, CEVe, & CEVj 30/40 Manifolds & Lines
CEV_7.pdf
CEV
CEVi, CEVe, & CEVj Universal Refrigeration Control
CEVi, CEVe, & CEVj Universal Refrigeration Control
CEV_11.pdf
CEV
CEVi, CEVe, & CEVj Universal Refrigeration Control
# PART # DESCRIPTION QTY Note
1 Universal Refrigeration Control
1a 020002280 Control Box Only
1b 020002157 Control Box with 115V Harness
1c 020002158 Control Box with 220V Harness
2 Power In Harness
2a 5029495 Power Cord - 115V/60 Hz
2b 5029494 Power Cord - 220V/50-60 Hz
3 5012537 Carbonator Lead
CEVi, CEVe, & CEVj Universal Refrigeration Control
CEV_11.pdf
CEV
McCann’s Vertical Carb Tank
McCann’s Vertical Carb Tank
CEV_12.pdf
CEV
McCann’s Vertical Carb Tank
# PART # DESCRIPTION QTY Note
1 Complete 10" Tank Assembly
1a 43-1600-10 Carb Tank - 115V
1b 43-1602 Carb Tank - 220V
2 Probe Assembly
2a 16-1404 Probe Spare Parts Kit - 115V
2b 16-1406 Probe Spare Parts Kit - 220V
2c 16-2115 Electrical Probe - 115V
2d 16-2220 Electrical Probe - 220V
3 09-1877 Probe Stud
4 15-1951 Probe Assembly - 115V/220V
5 030000182 Pressure Relief Valve w/Barb - 180 psi
6 19-0934 Fitting - 0.125" NPT SS
7 030000525 Carbonator Check Valve - Barb
8 10-2005 Insulated Domed Carb
9 10-1877 Plug - VC-375-8 - Black
10 10-1897 Cap - VC-250-8
11 030000482 Carbonator Tank
12 1701110-ORA Nut - 0.375" x 0.5625" Swivel Fitting
13 5009025 Swivel Fitting - 0.375" Barb
14 1701115 Washer - 0.375” Black Nylon
15 18-1345 Label - Small Carbonator
16 18-1368 Label - Test
17 18-1075 Label - Inspection
McCann’s Vertical Carb Tank
CEV_12.pdf
Loading...
