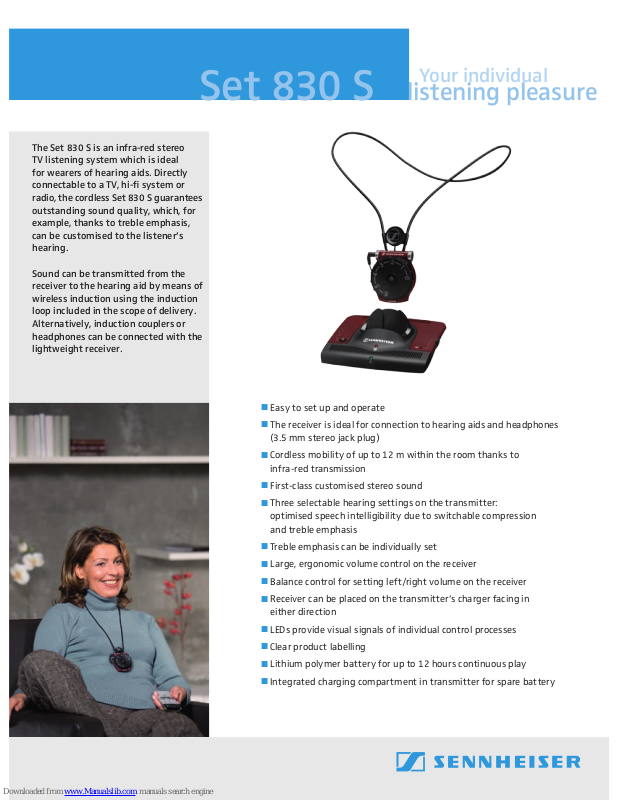

Set 830 S



Easy to set up and operate



The receiver is ideal for connection to hearing aids and headphones

(3.5 mm stereo jack plug)



Cordless mobility of up to 12 m within the room thanks to

infra-red transmission



First-class customised stereo sound



Three selectable hearing settings on the transmitter:

optimised speech intelligibility due to switchable compression
and treble emphasis



Treble emphasis can be individually set



Large, ergonomic volume control on the receiver



Balance control for setting left/right volume on the receiver



Receiver can be placed on the transmitter’s charger facing in

either direction



LEDs provide visual signals of individual control processes



Clear product labelling



Lithium polymer battery for up to 12 hours continuous play



Integrated charging compartment in transmitter for spare battery

The Set 830 S is an infra-red stereo
TV listening system which is ideal
for wearers of hearing aids. Directly
connectable to a TV, hi-fi system or
radio, the cordless Set 830 S guarantees
outstanding sound quality, which, for
example, thanks to treble emphasis,
can be customised to the listener’s
hearing.

Sound can be transmitted from the
receiver to the hearing aid by means of
wireless induction using the induction
loop included in the scope of delivery.
Alternatively, induction couplers or
headphones can be connected with the
lightweight receiver.

Your individual

listening pleasure

532523 03/09 Printe d in Germa ny Sennheiser is a tradem ark of Sennheis er electronic GmbH & Co.KG. ww w.sennh eiser.com

Model Set 830 S

Receiver RI 830 S

EAN 4044156017303 4044156017471

UPC 615104127579 615104127753

Article no. 502003 502021

Reception frequencies 2.3 MHz / 2.8 MHz

Frequency response 50 Hz – 16,000 Hz

Max. SPL (at 1kHz) 125 dB

THD (at 1kHz) < 1 %

Operating time up to 12 h

Charging time 3 h

Weight approx. 50 g (incl. battery)

Dimensions 70 x 60 x 26 mm

Power supply rechargeable lithium polymer battery BA 300 (3.7 V, 150 mAh)

Transmitter

Modulation FM, stereo

Transmission frequencies 2.3 MHz / 2.8 MHz

Range up to 12 m

Signal-to-noise ratio typ. 75 dB(A)

Weight approx. 260 g

Dimensions 112 x 146 x 58 mm

Audio input 3.5 mm stereo jack plug

Power supply 13.5 V DC/500 mA with NT 13

Packaging

Design recloseable cardboard box with hanging eyelet

Dimensions of single package (W x H x D) 168 x 278 x 110 mm

Dimensions of multipack (W x H x D) 361 x 318 x 355 mm

Number in multipack 6

Languages German, English, French, Spanish, Italian, Dutch

Scope of delivery receiver with detachable clip, transmitter/charging station, induction loop EZT 3011,
lanyard, batter y BA 300, power supply with national adapters for EU, UK and US, TV RCA
adapter, TV SCART adapter, TV connection cable (3.5/6.3 mm)

Technical Data
