Instruction manual
EAR SET 1
EAR SET 4
Contents
Safety instructions................................................................................ 2
Delivery includes ................................................................................... 3
Ear Set 1................................................................................................ 3
Ear Set 4................................................................................................ 3
Ear Set 1 / Ear Set 4.............................................................................. 4
Features of the Ear Set 1 / Ear Set 4............................................... 4
Putting into operation ......................................................................... 5
Wearing the ear-worn microphones ............................................... 5
Adjusting the earband to the shape of your ear .......................... 6
Positioning the microphone boom towards the corner
of the mouth ........................................................................................ 7
Attaching the sound inlet basket (Ear Set 4 only)....................... 8
Treble boost using the MZC 1-1 and
MZC 1-2 frequency response caps (Ear Set 1 only)...................... 9
Attaching the connection cable to clothing................................... 9
Variants ................................................................................................. 11
Ear Set 1.............................................................................................. 11
Ear Set 4.............................................................................................. 11
Care and maintenance ....................................................................... 12
Cleaning the sound inlet basket..................................................... 12
Cleaning the contacts of the connection cable............................ 13
Accessories............................................................................................ 15
Ear Set 1.............................................................................................. 15
Ear Set 4.............................................................................................. 16
Specifications ....................................................................................... 17
Specifications Ear Set 1.................................................................... 17
Specifications Ear Set 4.................................................................... 19
Manufacturer Declarations ............................................................... 21
1
Safety instructions
• Read this instruction manual.
• Keep this instruction manual. Always include this instruction
manual when passing the product on to third parties.
• Heed all warnings and follow all instructions in this instruction
manual.
• Use only a cloth for cleaning the product.
• Do not place the product near any heat sources such as radiators, stoves, or other devices (including amplifiers) that
produce heat.
• Never open the device. If devices are opened by customers in
breach of this instruction, the warranty becomes null and void.
• Only use attachments/accessories specified by Sennheiser.
Intended use of the device
Intended use includes:
• having read this instruction manual, especially the chapter
“Safety instructions”,
• using the product within the operating conditions and limitations described in this instruction manual.
“Improper use” means using the product other than as described
in this instruction manual, or under operating conditions which
differ from those described herein.
2
Delivery includes
Ear Set 1
1 Ear Set 1 ear-worn microphone
1 MZQ 02 cable clip
1 connection cable with silicone tube
1 MZC 1-1 frequency response cap, small
1 MZC 1-2 frequency response cap, large
1 adhesive tape
1 plastic transport case
1 instruction manual
Ear Set 4
1 Ear Set 4 ear-worn microphone
1 MZQ 02 cable clip
1 connection cable with silicone tube
1 MZW 4 windshield
1 adhesive tape
1 plastic transport case
1 instruction manual
3
Ear Set 1 / Ear Set 4
The Ear Set 1 and Ear Set 4 are high-quality pre-polarized
condenser ear-worn microphones designed for professional appli
cations. They differ from each other in their pick-up patterns (
the polar diagrams in the chapter “Specifications”).
• Ear Set 1: omni-directional
• Ear Set 4: cardioid
Features of the Ear Set 1 / Ear Set 4
• Compatible with all Sennheiser wireless microphone systems
• Individually adjustable to the ear due to flexible earband
• Cable is insensitive to structure-borne noise
• Modular design, i.e. all system components are easily interchangeable
• Very small dimensions
• Very insensitive to the penetration of sweat and moisture
• High maximum sound pressure level and excellent speech
intelligibility
• Based on the proven acoustics of the MKE 1 sub-miniature clipon microphone (Ear Set 1) or the HSP 4 headmic (Ear Set 4)
• Transparent and skin-friendly hypoallergenic adhesive tape
ensures a perfect fit of the microphone boom even during
strong movements and provides strain relief for the cable
• Made in Germany
-
see
4
Putting into operation
Ear Set 1
Wearing the ear-worn microphones
Your ear-worn microphone comes
with a preinstalled connection cable
and is ready for operation on
delivery.
The Ear Set 1 with its omni-directional pick-up pattern can be worn
on the left or right ear.
Due to the directivity of its cardioid
pick-up pattern, the Ear Set 4 can
only be worn on the right ear.
Ear Set 4
5
Adjusting the earband to the shape of your ear
B
>2 cм
CAUTION! Damage to the earband
The earband can break or be impaired in its function
when the bend diameter is too small (< 2 cm) or
when you bend it close to the connector. Also avoid
frequent alternate bendings. If the earband breaks,
you can be injured.
왘 Adjust the earband to the shape of your ear as
described below.
왘 Put on the ear-worn micro-
phone. The earband has to
closely follow the shape of your
ear. To improve the wearing
comfort, make sure that the
end of the connector is placed
in front (A) or behind (B) the
microphone boom.
왘 Adjust the pre-bent earband to
the individual shape of your
ear. To do so, carefully bend the
earband over your index finger.
A
6
Positioning the microphone boom towards the corner of the mouth
For best possible fit and comfort and optimum transmission
quality, the microphone boom has to be adjusted to the shape of
your face.
CAUTION! Damage to the microphone boom
The microphone boom can break or be impaired in
its function when the bend diameter is too small
2 cm) or when you bend it close to the micro-
(<
phone. Also avoid frequent alternate bendings. If
the microphone boom breaks, you can be injured.
왘 Adjust the microphone boom to the shape of
your face as described below.
왘 If necessary, bend the earband again in order to adjust the
angle of the microphone boom.
왘 Adjust the microphone boom:
You can change the length of
the microphone boom by
bending it. Due to the omnidirectional pick-up pattern of
the Ear
distance between microphone
and mouth has to be main
tained.
With the Ear Set 4, maintain a
distance of 2 to 3 cm between
microphone and mouth.
왘 Adjust the microphone boom
to the shape of your face.
Set 1, no particular
-
7
The supplied hypoallergenic adhe-
2 cm
sive tape allows you to additionally fix the microphone boom to
the cheek.
왘 Remove the white protective
foil (A).
왘 Stick the adhesive tape (B)
over the microphone boom.
왘 Remove the thin protective foil
(C) from the upper side of the
adhesive tape.
왘 If necessary, apply make-up to
the adhesive tape.
Attaching the sound inlet basket (Ear Set 4 only)
Notes
왘 Do not position the microphone directly in front of your mouth
as it will pick up your breathing and plosive noises from your
mouth. In addition, moisture can adversely affect the sound
and performance of your microphone.
왘 When attaching the sound inlet
basket, make sure that it locks
into place with an audible click.
왘 Make sure you do not cover the
sound inlet.
8
Treble boost using the MZC 1-1 and MZC 1-2 frequency response caps (Ear Set 1 only)
The Ear Set 1 is supplied with two
different frequency response caps.
These caps allow you to adjust the
treble response of the microphone
(see the frequency response curve
in the chapter “Specifications”).
addition, the large MZC 1-2
In
frequency response cap attenuates
wind noise by approx. 15 dB and
provides an extended protection
against the ingress of moisture.
왘 Slip the cap of your choice onto the microphone head until it
locks into place.
MZC 1-1
MZC 1-2
Attaching the connection cable to clothing
왘 Press the tube of the connec-
tion cable into the cable grip of
the MZQ 02 cable clip.
왘 Attach the cable clip to the rear
of your collar (see diagram on
the next page).
왘 Run the connection cable under
your clothing.
9
The supplied hypoallergenic adhesive tape allows you to additionally fix the connection cable to the neck.
왘 Remove the white protective foil (A).
왘 Stick the adhesive tape (B) over the connection cable.
왘 Remove the thin protective foil (C) from the upper side of the
adhesive tape.
10
Variants
Ear Set 1
Variants Cable and connector type Cat. No.
Ear Set 1-4 Black cable with special connector 504230
Ear Set 1-4-3 Beige cable with special connector 504231
Ear Set 1-ew Black cable with 3.5 mm jack plug,
lockable
Ear Set 1-ew-3 Beige cable with 3.5 mm jack plug,
lockable
Ear Set 4
Variants Cable and connector type Cat. No.
Ear Set 4-4 Black cable with special connector 504234
Ear Set 4-4-3 Beige cable with special connector 504235
Ear Set 4-ew Black cable with 3.5 mm jack plug,
lockable
Ear Set 4-ew-3 Beige cable with 3.5 mm jack plug,
lockable
504232
504233
504236
504237
11
Care and maintenance
Cleaning the sound inlet basket
왘 To clean or replace the sound inlet basket, carefully pull it from
the capsule.
왘 Moisten a small brush (bristle brush or toothbrush) with
isopropyl alcohol.
왘 Carefully brush off the sound
inlet basket.
왘 Allow the sound inlet basket to
air dry for approx. 1 hour so
that the remaining isopropyl
alcohol can evaporate.
왘 Reattach the sound inlet basket
to the capsule so that it locks
into place with an audible click.
When attaching the sound inlet
basket, make sure not to cover
the sound inlet.
12

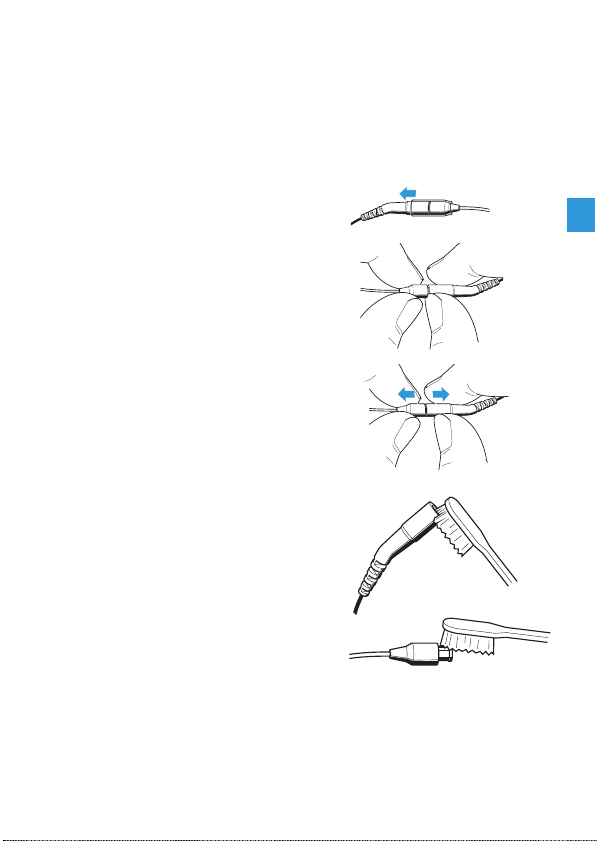

Cleaning the contacts of the connection cable
Over time, salt deposits from sweat can build up on the connector
and the socket. Clean the connector and the socket using standard
isopropyl alcohol.
To loosen the connection:
왘 Slide the silicone tube aside.
왘 Insert your fingernail into the
join.
왘 Pull the connector and the
socket apart as shown.
왘 Moisten a small brush (bristle
brush or toothbrush) with
isopropyl alcohol.
왘 Carefully brush off the
connector and the socket and
remove the salt deposits.
13
왘 Rinse the connector and the socket with isopropyl alcohol to
remove the remaining salt deposits.
왘 Dry the connector and the socket using a soft cloth or a small
piece of cotton wool and carefully tap them off.
왘 Allow the connector and the socket to air dry for approx. 1 hour
so that the remaining isopropyl alcohol can evaporate.
왘 Slide the silicone tube onto the connector.
왘 Connect the connector to the socket.
14
Accessories
Ear Set 1
Item Cat. No.
MZC 1-1 frequency response cap, small, black 513179
MZC 1-2 frequency response cap, large, black 521701
MZC 1-1 frequency response cap, small, beige 513198
MZC 1-2 frequency response cap, large, beige 513197
MZW 01 windshield, black 521724
MZW 01 windshield, beige 521726
MZW 02 foam windshield, black 536809
MZW 02 foam windshield, beige 514524
Cable with special connector, black 530990
Cable with special connector, beige 530992
Cable with 3.5 mm jack plug, black 530994
Cable with 3.5 mm jack plug, beige 530996
Plastic transport case 535377
MZA 900 P phantom power adapter, 3.5 mm socket 500226
MZA 900 P-4 phantom power adapter, special socket 500872
MZC 1-3 make-up protector 521746
MZQ 02 cable clip, black 076659
MZQ 02 cable clip, beige 076680
Hypoallergenic adhesive tape, 10 m, transparent,
can be covered with make-up 502756
15
Ear Set 4
Item Cat. No.
MZW 4 foam windshield, black 510862
MZW 4 foam windshield, beige 510863
Cable with special connector, black 530990
Cable with special connector, beige 530992
Cable with 3.5 mm jack plug, black 530994
Cable with 3.5 mm jack plug, beige 530996
Plastic transport case 535377
MZA 900 P phantom power adapter, 3.5 mm socket 500226
MZA 900 P-4 phantom power adapter, special socket 500872
MZQ 02 cable clip, black 076659
MZQ 02 cable clip, beige 076680
Hypoallergenic adhesive tape, 10 m, transparent,
can be covered with make-up 502756
Windshield cap, black 511715
Windshield cap, beige 511716
16
Specifications
Specifications Ear Set 1
Frequency response 20 to 20,000 Hz ± 3 dB
Pick-up pattern omni-directional
Nominal impedance (at 1 kHz) 1 kΩ
Min. terminating impedance 4.7 kΩ
Sensitivity (at 1 kHz) 5 mV/Pa ± 2.5 dB
Diameter of mic capsule 3.3 mm
Max. sound pressure level 143 dB
Equivalent noise level 27 dB (A)
Supply current appprox. 240 μA
Power supply 4.5 to 15 V
Operating temperature –10°C to +50°C
Cable length 1.6 m
Diameter of boom arm 1.1 mm
Weight (without cable) 2.3 g
Connector see “Variants” on page 11
17
Polar diagram Ear Set 1
30°
60°
90°
0°
0
5
10
15
20
25
dB
30°
60°
90°
120°
125 Hz
250 Hz
150°
180°
500 Hz
1000 Hz
Frequency response curve Ear Set 1
dBv
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
50
20
100
200
500
1000
0°; 1 m
90°; 1 m
18
150°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
2000
120°
5000
10000
20000
Hz
Specifications Ear Set 4
Frequency response 40
Pick-up pattern cardioid
Nominal impedance (at 1 kHz) 1 kΩ
Min. terminating impedance 4.7 kΩ
Sensitivity (at 1 kHz) 4 mV/Pa ± 2.5 dB
Diameter of mic capsule 8.4 mm
Max. sound pressure level 150 dB
Equivalent noise level 37 dB (A)
Supply current approx. 240 μA
Power supply 4.5 to 15 V
Operating temperature –10°C to +50°C
Cable length 1.6 m
Diameter of boom arm 1.1 mm
Weight (without cable) 4.6 g
Connector see “Variants” on page 11
to
20,000 Hz ± 3 dB
19
Polar diagram Ear Set 4
30°
60°
90°
0°
0
5
10
15
20
25
dB
30°
60°
90°
120°
125 Hz
250 Hz
150°
180°
500 Hz
1000 Hz
Frequency response curve Ear Set 4
dBv
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
50
20
100
200
500
1000 2000
0°, 1 m 90°, 1 m
20
150°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
120°
5000
0°, 1 cm
10000
20000
Hz
Manufacturer Declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of
24 months on this product.
For the current warranty conditions, please visit our website at
www.sennheiser.com or contact your Sennheiser partner.
Declaration of Conformity
This equipment is in compliance with the essential requirements
and other relevant provisions of Directive 2004/108/EC. The
declaration is available on the Internet at www.sennheiser.com.
In compliance with the following requirements
• RoHS Directive (2002/95/EC)
• WEEE Directive (2002/96/EC)
Please dispose of this product at the end of its operational
lifetime by taking it to your local collection point or recycling center for such equipment.
21
Publ. 12/09
A01
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Instrucciones de uso
EAR SET 1
EAR SET 4
Loading...
