Sennheiser ADN-W CASE BASE, ADN-W CASE UNITS-US Datasheet
PRODUCT SPECIFICATION
ADN
ADN-W CASE
FEATURES
• Transport and charging case with stackable modules
for ADN-W system components
• Integrated charging compartments for 10 wireless
conference units
• Modular case concept for maximum flexibility and
user-friendliness
• Heavy-duty case, suitable for daily rental use
1/5
The ADN-W CASE transport and charging case contains three dedicated, stackable modules. The BASE module consists
of a case bottom with wheels and a case lid, the UNITS module allows to charge and transport 10 complete wireless conference units and the CENTRAL module has padded compartments to accommodate all other system components and
accessories.
Due to its modular design, the ADN-W CASE transport and charging case can be easily adapted to the size of the conference system.
ARCHITECT‘S SPECIFICATION
The modular transport and charging case shall be capable of storing and charging the basic components of an ADN-W
wireless conference system. Three stackable modules shall be available: one module consisting of a case bottom with
wheels and a case lid, one module containing a charging case for charging and storing 10 wireless conference units with
their battery packs and one module with padded compartments for accommodating all other system components and
accessories.
The charging case module shall feature a status display with 10 LEDs (one assigned to each charging compartment) for
monitoring the overall charging process and a test button for checking the charge status of an individual conference unit.
The charging case module shall operate on 100 to 240 V~ at 50 to 60 Hz. Power consumption shall be maximum 250 W.
Charging voltage shall be 12 V⎓, charging current shall be 1.6 A per charging compartment. The charging time for full
charge shall be approximately 4 hours.
Operating temperature shall range from +5 °C to +45 °C (+41 °F to +113 °F), operating relative humidity shall be from 20 to
95 percent.
Dimensions of the modules shall be as follows:
case bottom with wheels: 931 x 203 x 617 mm (36.65" x 7.99" x 24.29"); case lid: 931 x 60 x 617 mm (36.65" x 2.36" x
24.29");
charging case: 931 x 283 x 617 mm (36.65" x 11.14" x 24.29"); transport case: 931 x 283 x 617 mm (36.65" x 11.14" x 24.29").
Approximate weights of the unequipped modules shall be as follows: case bottom with wheels and case lid: 17 kg
(37.48 lbs); charging case: 21 kg (46.3 lbs); transport case: 13.6 kg (29.98 lbs).
The modular transport and charging case shall be the Sennheiser ADN-W CASE.
The modules shall be as follows: the case bottom with wheels and case lid shall be the Sennheiser ADN-W CASE BASE;
the charging case shall be the Sennheiser ADN-W CASE UNITS; the transport case shall be the Sennheiser ADN-W CASE
CENTRAL.
DELIVERY INCLUDES
PRODUCT SPECIFICATION
ADN
ADN-W CASE
2/5
ADN-W CASE BASE
• ADN-W CASE BASE case with wheels and case lid
ADN-W CASE UNITS
• ADN-W CASE UNITS charging case
• Mains cable
• Safetyguide
• Quickguide
SPECIFICATIONS
Nominal input voltage 100 to 240 V~
Mains frequency 50 to 60 Hz
Power consumption max. 250 W
Charging voltage 12 V⎓
Charging current 10 x 1.6 A
Charging time approx. 4 h
ADN-W CASE CENTRAL
• ADN-W CASE CENTRAL transport case
• Foam inlay

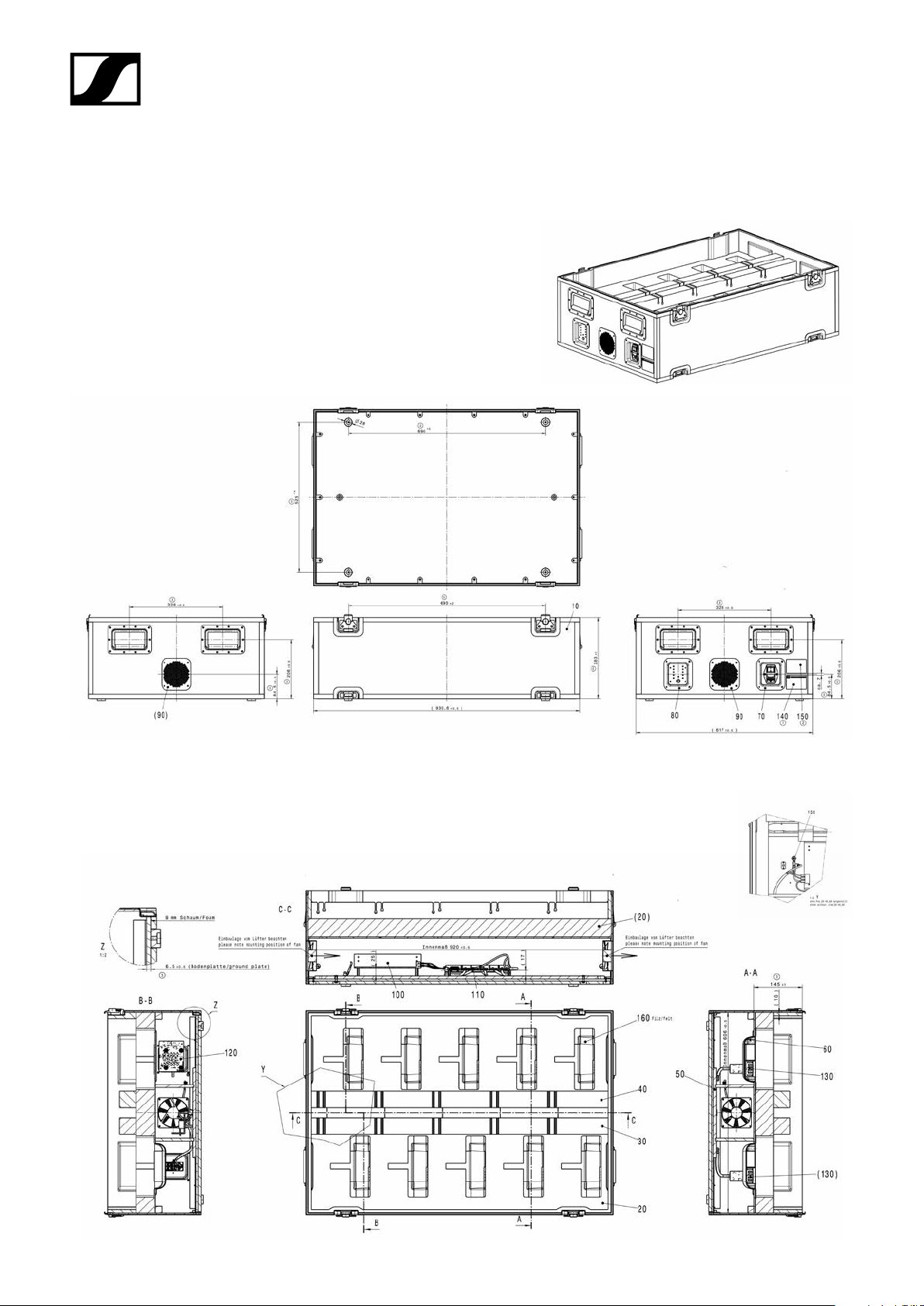

ADN-W CASE UNITS:
Dimensions (W x H x D) 931 x 283 x 617 mm
(36.65" x 11.14" x 24.29")
Weight (unequipped) approx. 21 kg (46,3 lbs)
Operating temperature
range
Operating relative hu-
midity
+5 °C to +45 °C
(+41 °F to +113 °F)
20 to 95 %

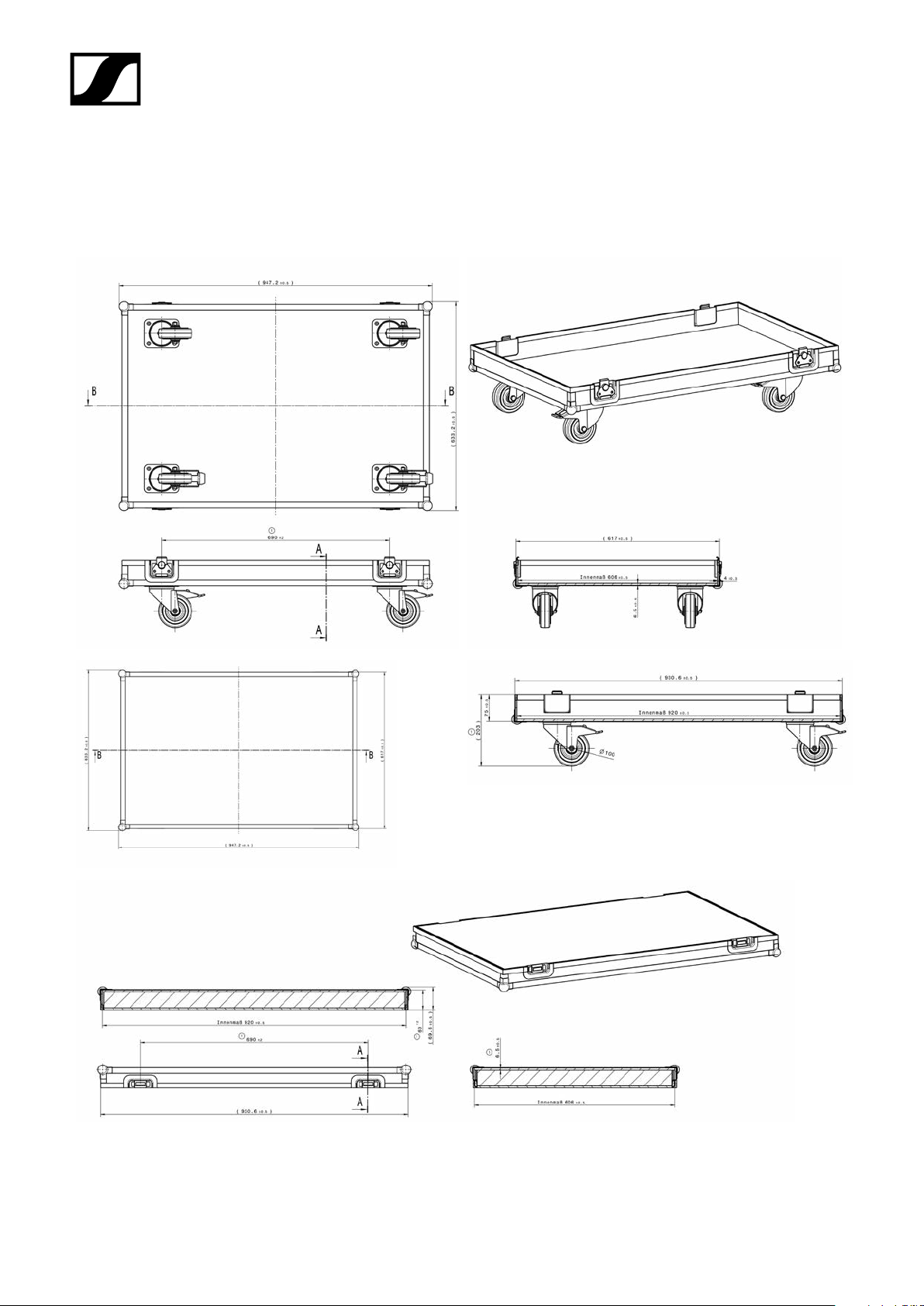

ADN-W CASE BASE:
Dimensions (W x H x D)
case bottom:
cast lid:
Weight (unequipped) approx. 17 kg (37.48 lbs)
Operating temperature
range
Operating relative hu-
midity
931 x 203 x 617 mm
(36.65" x 7.99" x 24.29")
931 x 60 x 617 mm
(36.65” x 2.36” x 24.29”)
+5 °C to +45 °C
(+41 °F to +113 °F)
20 to 95 %
PRODUCT VARIANTS
ADN-W CASE BASE Art. no. 504959
ADN-W CASE CENTRAL Art. no. 504957
ADN-W CASE UNITS EU Art. no. 505758
ADN-W CASE UNITS UK Art. no. 505759
ADN-W CASE UNITS US Art. no. 505757
ADN-W CASE CENTRAL:
Dimensions (W x H x D) 931 x 283 x 617 mm
(36.65" x 11.14" x 24.29")
Weight (unequipped) approx. 13.6 kg (29.98 lbs)
Operating temperature
range
Operating relative hu-
midity
+5 °C to +45 °C
(+41 °F to +113 °F)
20 to 95 %
