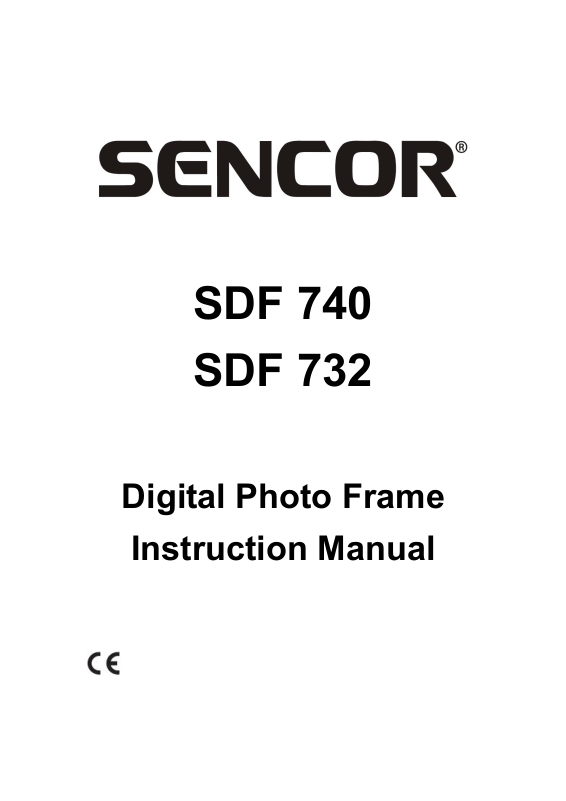

Sencor SDF 740 BK User Manual [ru]

SDF 740

SDF 732

Digital Photo Frame

Instruction Manual

Thank you for purchasing this Digital Photo Frame.

1. Safety

1.1 Intended use

1.2 General safety instruction

2. Preparation for use

2.1 Unpacking

Before using the unit, please read this manual thoroughly, and retain it for
future reference. This manual will help you use many of the useful features that
will make using your Digital Photo Frame viewing more enjoyable.

The digital photo album display photos.

Due to the great variety of products with external memory connection
(USB,SD/MMC,etc.) and their sometimes quite manufacturer-specific
functions we can neither guarantee that all devices will be recognized, nor that
all operating options that are possible in theory will actually work.

WARNING

Do not force on the appliance. It will damage the appliance.

CAUTION

Do not spill any liquid on the appliance.

Unpack the appliance carefully.

Check the package contents as described below. If any item is missing
Please contact your reseller.

Remove the label from the front panel carefully if present.

2.2 Package contents

The following items are including in the received package:

2.3 Connecting to the mains

3. Functions Description

4. Operation

4.1 Photo

1) When the digital photo frame is powered on a slideshow of the pictures on

2) If no memory card is inserted, the screen will show the Calendar mode.

1 Digital photo frame

1 AC/DC adaptor+cable

1 Instruction manual

Connect the adaptor plug on the adaptor cable to the DC connection.

Connect the mains plug to a wall socket.

the inserted memory card or USB (if available) will start automatically. (The
screen will show initial screen, then go to calendar first and after 1-2
seconds going to slideshow the picture）

3) DPF will start the picture slideshow when the USB flash with pictures is

inserted (same as SD card) and if the SD card or USB flash is insereted

4.2 Calendar

4.3 Set up setting

later , then also automatically start the presentation switching from the
calendar mode.

Select the calendar in the main menu.

Press the PLAY button (5) to enter the calendar of “Monthly Calendar”. ( if not
press play button, 15seconds after will going to slideshow picture)

Left screen display the calendar& date and right screen show the photos and
times.(please insert the card or USB device first and ensure have picture
inside it) Or press PLAY button to “Digital clock” left screen display clock &
date time and right screen show the photos too and press PLAY button again
to “Analog Clock” will just display analogy clock& time.

To enter the setting menu, press the PLAY button

To select a menu item, press the UP button or the DOWN button

To adjust a setting, press the LEFT and RIGHT button

To exit to the menu, press the Menu button.

4.3.1 Photo setup

Display Mode: Slideshow, Thumbnail, Browse mode

Slideshow mode

Select the Slideshow in the display mode.

Exit and return to main menu and press the PLAY button (5) to enter to the
PHOTO and then going to Slideshow picture. (after 15seconds will going to
automatically slideshow picture if not press PLAY button) (Effective with
inserted Card or USB).

In slideshow model it displays picture automatically and also can press left or
right button to see the previous or next picture.

Thumbnail mode

Select the Thumbnail in the menu.

To exit the menu, return to main menu and press the PLAY button (5) to enter
the PHOTO and going to display the Thumbnail photos. (Effective with inserted
Card or USB)

15 pieces of thumbnail photos can be display in one page and will show the
picture information at bottom line.

Browse mode

Select the Browse mode in the menu.

Exit and return to main menu and press the PLAY Button (5) to enter to the
PHOTO (Effective with inserted Card or USB)

Just show the current picture if not press left & right button.

Display Ratio: Full Screen, Fit to Screen, Crop to Fill

Slide show time: 5Sec. 15Sec. 30.Sec. 60Sec. 5Min.15Min.

Slideshow Repeat: Repeat, Once,

Slideshow effect: Offers you following Options for the Transition between two

Photos: Random, Snake, Partition, Erase, Blinds, Random lines, Grid, Cross,
Rect, Spiral, Close

4.3.2 Calendar Setup

Display Mode: Monthly Calendar, Digital clock, Analog Clock

Set Date: press the Left or Right button to change the date and year and press

the button of up and down to previous or next setup.

Clock Mode: 24hr, 12hr

Set time: press the Left or Right button to change the time and press the

button of up and down to previous or next setup.

4.3.3 System Setup

5. Technical Data

Language: EN/CZ/SL/HU/PL

Backlight: Settings from 1-5

Brightness: Settings from 0-5

Contrast: Settings from 0-5

Saturation: Settings from 0-5

Power on: setting automatically turn on: ON/OFF

Auto boot time: setting auto turn on time

Power off: setting automatically turn off: ON/OFF

Auto Shut Time: setting auto turn off time

Auto-Power Frequency: Setting from Mon to Fri. Weekend, Once, Everyday

Default: Back to Factory settings

Version: Software version

System upgrade: Software update

Parameter Value

DPF voltage 5V-1A

Power voltage 100-240V/50-60Hz

USB connection USB 2.0 compatible

Flash memory connection SD/MMC/MS

Supported media formats JPEG

Screen size 7” (17,8 cm)

Aspect ratio 16 : 9

Resolution 800*480 pixels

Brightness 250 Cd/m2

Contrast 600 : 1

EN Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or

packaging indicates that this product shall not be treated as

household waste. Please, dispose of this equipment at your

applicable collection point for the recycling of electrical & electronic
equipments waste. In the European Union and Other European countries
which there are separate collection systems for used electrical and electronic
product. By ensuring the correct disposal of this product, you will help
prevent potentially hazardous to the environment and to human health, which
could otherwise be caused by unsuitable waste handling of this product.
The recycling of materials will help conserve natural resources. Please do
not therefore dispose of your old electrical and electronic equipment with
your household waste. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

This Product complies with basic relevant requirements of the EU Regulations.

Changes in design, technical specification are reserved and can be done
without notice.

Manufacturer : Fast CR, a.s., Černokostelecká 1621, CZ-251 01 Říčany
