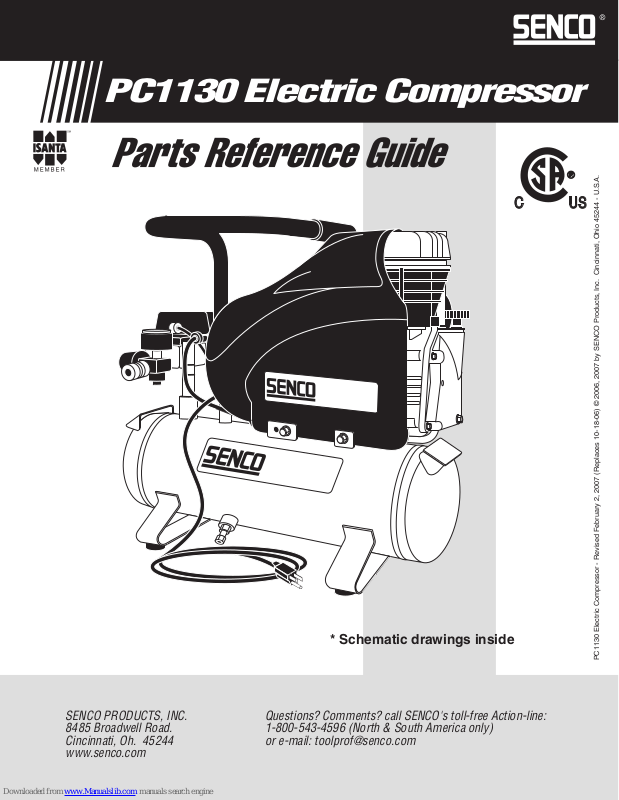

Senco Electric Compressor PC1130 Parts Reference Manual

PC1130 Electric Compressor

C

US

SENCO PRODUCTS, INC.
8485 Broadwell Road.
Cincinnati, Oh. 45244
www.senco.com

* Schematic drawings inside

PC1130 Electric Compressor - Revised February 2, 2007 (Replaces 10-18-06) © 2006, 2007 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

Questions? Comments? call SENCO's toll-free Action-line:
1-800-543-4596 (North & South America only)
or e-mail: [e-mail]

PC1130 Electric Compressor PC1130 Electric Compressor

CW4241

CW4032

CW4037

CW4104

CW4304

CW7010

CW4112

CW8022

CW4207

CW8025

CW6102

CW0042

CW4212

CW4203

CW0030

CW2212

CW4204

CW0012

CW4131

CW4121

CW2012

CW4118

CW4041

CW0039

CW6104

CW0044

CW2302

CW8012

CW0035

CW2103

CW4106

CW0040

CW4030

CW8011

CW4111

CW4124

CW4123

CW7011

(10 ft - lbs)

(80 in - lbs)

PC1130 Electric Compressor - Revised February 2, 2007 (Replaces 10-18-06) © 2006, 2007 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

L
E

F

O

O

P

R
E
S
S
UR

E

C
O
N

T
R
O

L

R

CW2310

CW2320

CW4023

CW4077

CW4091

CW4078

CW4050

CW4076

CW4080

CW4081

CW4062

PC0051

PC0057

CW9100

CW4139

CW4081

CW6112

CW6100

CW4066

CW8026

CW1130

CW4085

CW4070

CW4055

CW4090

PC0901

PC0479

PC1130 Electric Compressor

REPLACEMENT PARTSLIST • LISTA DE PARTES DE REPUESTO • ERSATSTEILE-LISTE • LISTE DE PIÈCES DE RECHANGE

PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION

CW0012 .................. VALVE PLATE ..................................... ...................................................................... ......................................................................

CW00 30 ................. COMPLETE PISTON .......................... ...................................................................... ......................................................................

CW0035 .................. CRANKSHAFT .................................... ...................................................................... ......................................................................

CW0039 .................. ROTOR ............................................... ...................................................................... ......................................................................

CW0040 .................. CONNECTING ROD............................. ...................................................................... ......................................................................

CW0042 .................. BEARING ............................................ ...................................................................... ......................................................................

CW0044 .................. BEARING ............................................ ...................................................................... ......................................................................

CW1130 .................. PUMP SF2500 120V/60Hz ................. ...................................................................... ......................................................................

CW2012 .................. HEAD.................................................. ...................................................................... ......................................................................

CW2103 .................. CRANKCASE ...................................... ...................................................................... ......................................................................

CW2212 .................. CYLINDER .......................................... ...................................................................... ......................................................................

CW2302 .................. REAR COVER ..................................... ...................................................................... ......................................................................

CW2310 .................. TANK .................................................. ...................................................................... ......................................................................

CW2320 .................. ISOLATOR .......................................... ...................................................................... ......................................................................

CW4023 .................. DRAIN VALVE .................................... ...................................................................... ......................................................................

CW4030 .................. DIPSTICK ASSY ................................. ...................................................................... ......................................................................

CW4032 .................. O-RING .............................................. ...................................................................... ......................................................................

CW4037 .................. SCREW .............................................. ...................................................................... ......................................................................

CW4041 .................. SEAL RING ......................................... ...................................................................... ......................................................................

CW4050 .................. DISCHARGE TUBE ............................. ...................................................................... ......................................................................

CW4055 .................. SEAL .................................................. ...................................................................... ......................................................................

CW4062 .................. NIPPLE ............................................... ...................................................................... ......................................................................

CW4066 .................. RELIEF VALVE .................................... ...................................................................... ......................................................................

CW4070 .................. CHECK VALVE .................................... ...................................................................... ......................................................................

CW4076 .................. LOCKNUT ........................................... ...................................................................... ......................................................................

CW4077 .................. LOCKNUT ........................................... ...................................................................... ......................................................................

CW4078 .................. COMPRESSION FITTING .................... ...................................................................... ......................................................................

CW4080 .................. COMPRESSION FITTING .................... ...................................................................... ......................................................................

CW4081 .................. RILSAN TUBE..................................... ...................................................................... ......................................................................

CW4085 .................. TAPPING SCREW ............................... ...................................................................... ......................................................................

CW4090 .................. COLD START VALVE ........................... ...................................................................... ......................................................................

CW4091 .................. T-FITTING ........................................... ...................................................................... ......................................................................

CW4104 .................. SCREW .............................................. ...................................................................... ......................................................................

CW4106 .................. NUT .................................................... ...................................................................... ......................................................................

CW4111 .................. LOCKWASHER ................................... ...................................................................... ......................................................................

CW4112 .................. SCREW .............................................. ...................................................................... ......................................................................

CW4118 .................. SCREW .............................................. ...................................................................... ......................................................................

CW4121 .................. SCREW .............................................. ...................................................................... ......................................................................

CW4123 .................. LOCKWASHER ................................... ...................................................................... ......................................................................

CW4124 .................. TAPPING SCREW ............................... ...................................................................... ......................................................................

CW4131 .................. HEAD GASKET ................................... ...................................................................... ......................................................................

CW4139 .................. NIPPLE ............................................... ...................................................................... ......................................................................

CW4204 .................. CYLINDER GASKET ............................ ...................................................................... ......................................................................

CW4203 .................. PISTON RING KIT .............................. ...................................................................... ......................................................................

CW4207 .................. CIRCLIP ............................................. ...................................................................... ......................................................................

CW4212 .................. COVER GASKET ................................. ...................................................................... ......................................................................

CW4241 .................. O-RING .............................................. ...................................................................... ......................................................................

CW4304 .................. NUT .................................................... ...................................................................... ......................................................................

CW6100 .................. PRESSURE SWITCH .......................... ...................................................................... ......................................................................

CW6102 .................. OVERLOAD CUT-OUT ......................... ...................................................................... ......................................................................

CW6104 .................. WOUND STATOR ................................ ...................................................................... ......................................................................

CW6112 .................. POWER CABLE................................... ...................................................................... ......................................................................

CW7010 .................. CAPACITOR ........................................ ...................................................................... ......................................................................

CW7011 .................. CAPACITOR COVER ........................... ...................................................................... ......................................................................

CW8011 .................. FRONT COVER ................................... ...................................................................... ......................................................................

CW8012 .................. FILTER ELEMENT ............................... ...................................................................... ......................................................................

CW8022 .................. FAN .................................................... ...................................................................... ......................................................................

CW8025 .................. SHROUD ............................................ ...................................................................... ......................................................................

CW8026 .................. GRIP .................................................. ...................................................................... ......................................................................

CW9100 .................. REGULATOR ...................................... ...................................................................... ......................................................................

PC0051 ................... TANK GAUGE ..................................... ...................................................................... ......................................................................

PC0057 ................... REGULATOR GAUGE .......................... ...................................................................... ......................................................................

PC0479 ................... PLUG.................................................. ...................................................................... ......................................................................

PC0901 ................... QUICK COUPLER ............................... ...................................................................... ......................................................................
