Senco 751E-XP, 701E-XP User Manual

Download

FramePro 701E-XP/ 751E-XP

Senco Products, Inc.

8485 Broadwell Road

Cincinnati, Ohio 45244

Visit our Website www.senco.com

Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 or e-mail: toolprof@senco.com

Parts Kits

YK0246

YK0305 / 701E-XP

YK0306 / 751E-XP

Air Leak (Top) Tool does nothing Sluggish

Escape de Air (Arriba) Herramienta no mueve Operación Floja

* Schematic Drawings inside

Covered by U.S. Patent Nos. 4,679,719 & 5,732,870

Symptome Symptom

Undichtigkeit oben am Gerät Gerät reagiert nicht

B A

YK0244 YK0288

SymptômeSíntoma

Fuite à l’échappement Ne fonctionne plus Appareil lent

Air Leak (Bottom) Poor Return

Weak Drive Broken Driver

Poor Feed Tool Jamming

Escape de Air (Abajo) Retorno Flojo

Penetrado Flojo Lanzeta Quebrada

Alimentador podre Entrancado de la Herramienta

Undichtighkeit unten am Gerät keine oder nur unzureichende Rückführung

Gerät treibt nicht ein Gebrochener Treiber

Befestiger werden nicht nachgeschoben Gerät ist verklemmt

Fuite à la base du moteur Remontée du conteau lente

Peu de puissance Mauvaise percussion

Enraiements Mauvaise avance des projectiles

GC0704

GA0385

GC0636

GC0782

KB3425

KB3426

701E-XP 751E-XP

AB0131

KB3367

GF0025

* Does Not Include O-rings * No incluye sellos de gomas * Joints exclus

LB0042

GA0405

HB0270

HB0269

KB9752

GC0685

GC0592

GC0563

GA0371

KC0062

KB9776

KB9777

HB0271

KC0027

HC0274

HB0275

KB4273

KB4267

HC0141

KB4272

HC0265

HC0144

KB9798

FC0408

HA0101

KB3368

HC0247

KB9773

HF0046

HC0253

HA0080

Tool # Model

2L0005N 701E-XP (US) 2L1005N 701E-XP (JP) 2L2005N 701E-XP (EU) 2M0005N 751E-XP (US) 2M1005N 751E-XP (JP) 2M2005N 751E-XP (EU)

GB0514 EB0278 BC0340 AB0098 HG0063 GB0517 EB0278 BC0340 AB0098 HGOO18 GB0515 EB0278 BC0340 AB0098 HG0068 GB0522 EB0280 BC0341 AB0100 HG0063 GB0525 EB0280 BC0341 AB0100 HG0018 GB0523 EB0280 BC0341 AB0100 HG0068

KB9773

BC0358 AF0044

KB3255

KB9752

KB4265 LB0018

LB0057

CF0003 CC0192 LB0844

LB0847

LB0885

CB0033

LB0057

BF0212

BC0309

KB9773

LB0850

LB0086

VA0007

AC0141

KB4268

LB0768

LB0038

LB3505 BB0186*

BF0203 CF0015

BF0204

Available Plugs

(Not Included with Tool)

HA0123

KB1555

HF0058

HF0062

KC0062

HA0108

KB4130

BC0342

KC0027

BB0148

PC0480

1⁄4"

Body

Ind. Interchange 3⁄8" MPT

PC0485

3⁄8"

Body

Ind. Interchange 3⁄8" MPT

✔

PC0469

1⁄4" Body

Tru-Flate 3⁄8" MPT

✔

3⁄8"

Body

PC0475

Tru-Flate 3⁄8" MPT

✔ Recommended Plugs

Plugs shown smaller than actual size

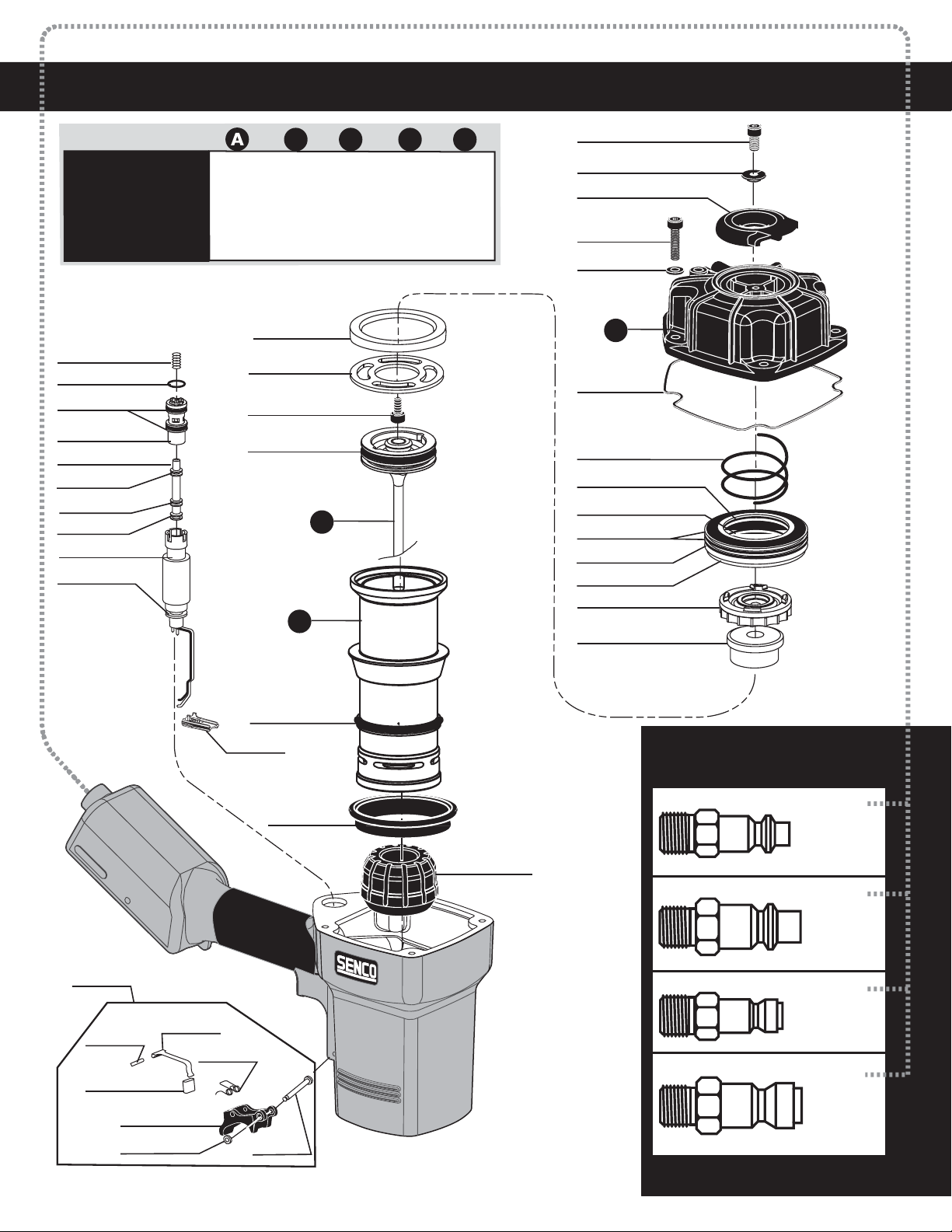

FramePro 701E-XP / 751E-XP Framing Nailers

REPLACEMENT PARTS LIST•LISTA DE PARTES DE REPUESTO•ERSATSTEILE-LISTE•LISTE DE PIÈCES DE RECHANGE

PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION

AB0098 .............. CAP (701E-XP) ........................ TAPA ....................................... KAPPE ................................................. BOUCHON

AB0100 .............. CAP (751E-XP) ........................ TAPA ....................................... KAPPE ................................................. BOUCHON

AB0131 .............. MAIN BODY ............................ CARCASA ................................... GEHÄUSE .............................................. CORPS

AC0141 .............. SEAL ................................... SELLO .......................................DICHTUNG ............................................. JOINT

AF0044 .............. DEFLECTOR ........................... DESVIADOR ................................. ABWEISER ............................................. DÉFLECTEUR

BB0148 .............. STOP .................................. TOPE ....................................... PUFFER ................................................ ARRÊT

BB0186 .............. VALVE ................................. VÁLVULA ................................... VENTIL ................................................. VALVE

BC0309 .............. RETAINER ............................. RETÉN .......................................SICHERUNGSRING ..................................... RETENUE

BC0340 .............. CYLINDER (701E-XP) ................. CILINDRO .................................. ZYLINDER .............................................. CYLINDRE

BC0341 .............. CYLINDER (751E-XP) ................. CILINDRO .................................. ZYLINDER .............................................. CYLINDRE

BC0342 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

BC0358 .............. WASHER ............................... ARANDELA .................................. SCHEIBE ............................................... RONDELLE

BF0203 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

BF0204 .............. RETAINER ............................. RETÉN ....................................... SICHERUNGSRING ..................................... RETENUE

BF0212 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

CB0033 .............. VALVE ................................. VÁLVULA ................................... VENTIL ................................................. VALVE

CC0192 .............. CORE .................................. VÁSTAGO .................................. VENTILSTIFT .......................................... NOYAU

CF0003 .............. CAGE .................................. CAJA ....................................... KÄFIG .................................................. CAGE

CF0015 .............. VALVE ................................. VÁLVULA ................................... VENTIL................................................. VALVE

EB0278 .............. PISTON ASSEMBLY(701E-XP) ......... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ............................. ENSEMBLE PISTON–COUTEAU

EB0280 .............. PISTON ASSEMBLY(751E-XP) ......... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ............................. ENSEMBLE PISTON–COUTEAU

FC0408 .............. GUIDE BODY .......................... PLACA DE NARIZ ............................ NAGELFÜHRUNG ...................................... FRONT

GA0371 ............. FEEDER SHOE ......................... ALIMENTADOR ............................. NAGELSCHIEBER ...................................... POUSSOIR

GA0385 ............. END CAP .............................. TAPA TERMINAL ............................ ABSCHLUßKAPPE ...................................... BOUCHON D’EXTRÉMITE DE RAIL

GA0405 ............. BELT HOOK ............................ GANCHO DE CINTÚRON ....................... GURTHAKEN ................................... CROCHET DE CEINTURE

GB0514 ............. MAGAZINE 701E-XP(US) .............. CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GB0515 ............. MAGAZINE 701E-XP(EURO) .......... CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GB0517 ............. MAGAZINE 701E-XP(JAPAN) ......... CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GB0522 ............. MAGAZINE 751E-XP(US) .............. CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GB0523 ............. MAGAZINE 751E-XP(EURO) .......... CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GB0525 ............. MAGAZINE 751E-XP(JAPAN) ......... CARGADOR ..................................MAGAZIN .............................................. MAGASIN

GC0563 ............. ROLLER ................................ RODILLO ................................... ROLLE ................................................. GALET

GC0592 ............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

GC0636 ............. RAIL ................................... CARRIL ...................................... SCHIENE ............................................... RAIL

GC0685 ............. INSERT ................................ ACOPLAMIENTO ............................ EINSATZ ............................................... INSERT

GC0704 ............. KNOB .................................. MANIVELA .................................. KNOPF ................................................. MOLETTE DE VERROUILLAGE

GC0782 ............. BRACKET .............................. SOPORTE ................................... HALTERUNG ........................................... CAVALIER

GF0025 .............. BUMPER ............................... AMORTIGUADOR ............................PUFFER ................................................ AMORTISSEUR

HA0080 ............. NO-MAR PAD .......................... AMORTIGUADOR ............................SCHUTZ ................................................ COUSSIN

HA0101 ............. WASHER ............................... ARANDELA .................................. SCHEIBE ............................................... RONDELLE

HA0108 ............. TRIGGER .............................. GATILLO ................................... AUSLÖSER ............................................. GÂCHETTE

HA0123 ............. TRIGGER ASSEMBLY .................. ASAMBLE DE GATILLO ...................... AUSLÖSER-ZUSAMMENBAU ........................... ENSEMBLE GÂCHETTE

HB0269 ............. COVER ................................. CUBIERTA .................................. ABDECKUNG ........................................... COUVERCLE

HB0270 ............. HOUSING .............................. ALOJAMIENTO ............................. GEHÄUSE .............................................. CORPS

HB0271 ............. SAFETY ELEMENT ..................... ASAMBLE DE SEGURO ...................... SICHERHEITSVORRICHTUNG ......................... PALPEUR DE SÉCURITÉ

HB0275 ............. INSERT ................................ ACOPLAMIENTO ............................ EINSATZ ............................................... INSERT

HC0141 ............. STOP .................................. TOPE ....................................... PUFFER ................................................ ARRÊT

HC0144 ............. INSERT ................................ ACOPLAMIENTO ............................ EINSATZ ............................................... INSERT

HC0247 ............. SAFETY ELEMENT ..................... ASAMBLE DE SEGURO ...................... SICHERHEITSVORRICHTUNG ......................... PALPEUR DE SÉCURITÉ

HC0253 ............. RETAINER ............................. RETÉN ....................................... SICHERUNGSRING ..................................... RETENUE

HC0265 ............. SAFETY ELEMENT ..................... ASAMBLE DE SEGURO ...................... SICHERHEITSVORRICHTUNG ......................... PALPEUR DE SÉCURITÉ

HC0274 ............. COVER ................................. CUBIERTA .................................. ABDECKUNG ........................................... COUVERCLE

HF0046 .............. NO-MAR PAD .......................... AMORTIGUADOR ............................SCHUTZ ................................................ COUSSIN

HF0058 .............. BUMPER ............................... AMORTIGUADOR ............................PUFFER ................................................ AMORTISSEUR

HF0062 .............. TRIGGER .............................. GATILLO ................................... AUSLÖSER ............................................. GÂCHETTE

HG0018 ............. LABEL (JAPAN) ....................... ETIQUETA .................................. AUFKLEBER ............................................ ÉTIQUETTE

HG0063 ............. LABEL (US) ............................ ETIQUETA .................................. AUFKLEBER ............................................ ÉTIQUETTE

HG0068 ............. LABEL (EURO) ........................ ETIQUETA .................................. AUFKLEBER ............................................ ÉTIQUETTE

KB1555 .............. PIN .................................... PASADOR ................................... STIFT .................................................. GOUPILLE

KB3255 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KB3367 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KB3368 .............. NUT ................................... TUERCA .....................................MUTTER ............................................... ÉCROU

KB3425 .............. NUT ................................... TUERCA .....................................MUTTER ............................................... ÉCROU

KB3426 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KB4130 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB4265 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB4267 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB4268 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB4272 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB4273 .............. SPRING ................................ RESORTE ................................... FEDER ................................................. RESSORT

KB9752 .............. WASHER ............................... ARANDELA ..................................SCHEIBE ............................................... RONDELLE

KB9773 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KB9776 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KB9777 .............. WASHER ............................... ARANDELA ..................................SCHEIBE ............................................... RONDELLE

KB9798 .............. SCREW ................................ TORNILLO .................................. SCHRAUBE ............................................. VIS

KC0027 .............. PIN .................................... PASADOR ................................... STIFT .................................................. GOUPILLE

KC0062 .............. RETAINER ............................. RETÉN ....................................... SICHERUNGSRING ..................................... RETENUE

LB0018 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0038 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0042 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0057 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0086 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0768 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0844 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0847 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0850 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB0885 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

LB3505 .............. SEAL ................................... SELLO ....................................... DICHTUNG ............................................. JOINT

VA0007 .............. RETAINER ............................. RETÉN ....................................... SICHERUNGSRING ..................................... RETENUE
