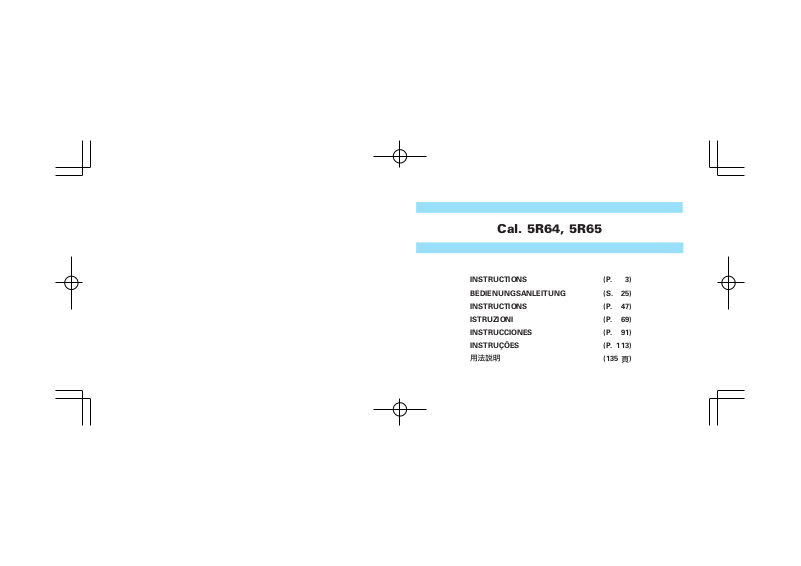

Page 1
Cal. 5R64, 5R65
INSTRUCTIONS (P. 3)
BEDIENUNGSANLEITUNG (S. 25)
INSTRUCTIONS (P. 47)
ISTRUZIONI (P. 69)
INSTRUCCIONES (P. 91)
INSTRUÇÕES (P. 113)
(135 )
Page 2
You are now the proud owner of a Spring Drive Watch Cal. 5R64, 5R65. For the best results, please
read the instructions in this booklet carefully before using your Spring Drive Watch. Please keep
this manual handy for ready reference.
Sie sind jetzt stolzer Besitzer einer „Spring Drive“-Uhr Kal. 5R64 oder 5R65. Lesen Sie diese
English
Bedienungsanleitung vor der Verwendung Ihrer „Spring Drive“-Uhr aufmerksam durch, um ihre
optimale Nutzung zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf, um jederzeit
wieder nachlesen zu können.
Vous êtes maintenant l’heureux propriétaire d’une Montre Spring Drive, Cal. 5R64, 5R65. Pour en
obtenir les meilleurs résultats, veuillez lire attentivement les instructions de cette brochure avant
d’utiliser votre Montre Spring Drive. Veuillez conserver ce manuel à portée de la main pour pouvoir
vous y référer facilement.
Congratulazioni per l’acquisto di questo nuovo orologio con trascinamento a molla (“Spring
Drive”), Cal. 5R64 o 5R65. Per ottenere i massimi risultati dall’orologio leggere attentamente questo
manuale di istruzioni prima di passare all’uso dell’orologio stesso, e conservarlo poi per qualsiasi
eventuale futura consultazione.
Usted es ahora un orgulloso propietario de un Reloj Spring Drive Cal. 5R64,5R65. Para los mejores
resultados, por favor, lea cuidadosamente las instrucciones de este panfleto antes de utilizar este
Reloj Spring Drive. Le rogamos guardar este manual a mano para futura referencia.
Você pode agora sentir-se orgulhoso de possuir um Relógio Spring Drive Cal. 5R64, 5R65. Para
obter os melhores resultados, leia atentamente as instruções contidas neste opúsculo antes de usar
o relógio. Conserve este manual para consultas futuras.
ENGLISH
CONTENTS
Page
FEATURES .................................................................................................................. 4
NAMES OF THE PARTS ............................................................................................. 5
HOW TO USE ............................................................................................................. 7
HOW TO READ THE POWER RESERVE INDICATOR ................................................ 14
TO PRESERVE THE QUALITY OF YOUR WATCH ...................................................... 16
PLACES TO KEEP YOUR WATCH .............................................................................. 20
PERIODIC CHECKS .................................................................................................... 21
TROUBLESHOOTING. ................................................................................................ 22
SPECIFICATIONS ........................................................................................................ 24
2
3
Page 3
Spring Drive, the unique mechanism made available only by SEIKO technology,
ensures high accuracy while using the mainspring as its sole power source.
English
The watch will work continuously for approximately 72 hours (three days) when the
mainspring is fully wound. The watch features a power reserve indicator to show the
winding state of the mainspring. Glide-motion second hand works in a perfectly
smooth movement.
This is an automatic watch equipped with a manual winding mechanism. When first
using the watch, manual winding is convenient.
The caliber 5R65 has a second hand in the center of the dial. The caliber 5R64 has a small
second hand at the 9 o’clock position on the dial.
NAMES OF THE PARTSFEATURES
Hour hand
Second hand
Power reserve indicator
6
English
Minute hand
Date
CROWN
a b c
CAUTION
This watch is powered by the mainspring. To ensure constant operation of
•
the watch, be sure to wind up the mainspring sufficiently before the power
reserve indicator points to “0.”
• The watch may stop if the power reserve indicator is showing less than
4
one-sixth, especially if it is left at a temperature below 0ºC.
CROWN
a)
Normal position : winding up the mainspring (manual operation)
First click position : date setting
b)
c) Second click position : time setting
[Caliber 5R65]
5
Page 4
English
Small second hand
Power reserve indicator
CROWN
a)
b)
c) Second click position : time settings
6
Hour hand
Minute hand
Date
6
a b c
Normal position : winding up the mainspring (manual operation)
First click position : date setting
CROWN
[Caliber 5R64]
HOW TO USE
This watch is an automatic watch equipped with a manual winding mechanism.
• When the watch is worn on the wrist, the motion of the wearer's arm winds the
mainspring of the watch.
• If your watch is completely stopped,
the mainspring by turning the crown.
The caliber 5R64 and 5R65 have the same usage. The following section of this
manual will provide explanation by using the caliber 5R65 as an example.
it is recommended that you manually wind
● How to manually wind the mainspring by turning the crown
1.
Slowly turn the crown clockwise (the 12
o’clock direction) to wind the mainspring.
* With manual winding, if you give the crown
five full rotations, it provides the power to
run the watch for approximately ten hours.
* Turning the crown counterclockwise (the 6
o’clock direction) does not wind the
mainspring.
English
7
Page 5
English
2. Wind the mainspring until the power reserve
indicator shows
hand will start moving.
* To check the winding state of the mainspring,
refer to "HOW TO READ THE POWER RESERVE
INDICATOR " on page 14.
* There is no need to turn the crown further when
the mainspring is fully wound. But the crown
can be turned without damaging the watch
mechanism.
a full-wound state. The second
● HOW TO SET THE TIME AND DATE
When setting the date and time, ensure that the watch is working: the main
spring is sufficiently wound.
1. Pull out the crown to the first click. (The second
hand continues moving.)
1
First click position
Normal position
5
Example:
When you wish to set the date to the sixth,
set to the fifth at this point.
2. Turn the crown counterclockwise (the
six o’clock direction) to set the date to
the previous date.
* Do not change the date while the watch
hands show any time between 9:00 PM
and 1:00 AM. Date setting during this
time period may prevent the date from
changing correctly on the following day.
To avoid this, pull out the crown to the
second click, and turn it counterclockwise (the six o’clock direction)
temporarily advance the hands to show
any time after 1:00 AM. Then push the
crown back to the first click to set the
date.
to
English
8
9
Page 6
English
10
3. At the time when the second hand points to 12
o'clock (zero seconds), pull out the crown to the
second click to stop the second hand. Turn the
6
crown counterclockwise (the six o’clock
direction)
to advance the time until the watch
shows the correct date.
Tips for more accurate time setting
• Take notice of the following points in order to set the time more accurately.
1. Before setting the time, wind the mainspring until the power reserve indicator
shows a full-wound state.
2. When using a watch after it has stopped,
the second hand starts moving, and then pull the crown out to the second
wait approximately 30 seconds after
English
click.
4. While keeping the crown at the second click
position, slowly turn it counterclockwise (the
six o’clock direction)
6
hour hand to the correct time taking AM and PM
into consideration.
* The date changes once every 24 hours. When
setting the time, make sure that AM/PM is
properly set.
5. Push the crown back in to the normal position in
accordance with a time signal. Immediately, the
to advance the minute and
3. Do not stop the second hand with the crown being at the second click position
for thirty minutes or longer. If the time the crown has been at the second click
position and the second hand has been stopped exceeds 30 minutes, push
the crown back in to its original position, and
30 seconds or longer, then restart the time setting.
let the second hand move for
second hand will start moving.
11
Page 7
<Date setting>
The watch displays the date from the 1st to 31st every month so that manual date
adjustment is only required on the first day after a month that has less than 31 days.
English
Example: To set the date on the morning of the 1st day of a month that
follows a non-31day month.
1. The date displayed will be “31” instead of “1.”
Pull out the crown to the first click.
31
First click position
Normal position
2. Turn the crown counterclockwise (the six
English
o’clock direction) to set the date to “1.”
1
* Do not change the date while the watch
hands show any time between 9:00 PM
and 1:00 AM. Date setting during this
time period may prevent the date from
changing correctly on the following
day. To avoid this, pull out the crown to
the second click, and turn it counterclockwise (the six o’clock direction) to
temporarily set the hands to show
time out of this time period. Then push
the crown back to the first click to set
the date.
3. After completing the date setting, push the
crown back in to the normal position.
any
12
13
Page 8
HOW TO READ THE POWER RESERVE INDICATOR
• The power reserve indicator lets you know the winding state of the mainspring.
• Before removing the watch from your wrist, observe the power reserve indicator
English
to check if the watch has enough power stored to keep running until the next time
you wear it. If necessary, wind the mainspring. (To prevent the watch from
stopping, wind the mainspring to store the excess power that will allow the watch
to run for extra time.)
Power
Reserve
Indicator
* When the mainspring is fully wound, the crown can be turned further, or the
mainspring may wind without damaging the mainspring itself. The mainspring of
the watch employs a slipping mechanism, an automatic watch specific mechanism,
to prevent the mainspring from over-winding.
* The orientation of “the power reserve indicator” may slightly vary depending on
the model.
● Remarks on the automatic mechanism of the mainspring
The correlation between the number of hours the watch is worn and the winding state
of the mainspring is provided below for your reference. However, the winding state
of the mainspring may vary depending on actual use conditions, such as the number
of hours you wear the watch or the extent of your movement while wearing it. It is
recommended that you observe the power reserve indicator to check the level of
remaining power of your watch.
English
14
The winding
state of the
mainspring
The number
of hours the
watch can run
Fully wound
Approximately
72 hours (3 days)
Half wound Unwound
Approximately
36 hours (1 day and a half)
The watch either stops
or is running down.
The mainspring of the watch becomes fully wound when it is worn for twelve hours
for three to five consecutive days.
* In a case where you wear the watch for a short period of time each day,
the power reserve indicator to check the level of the remaining power. If necessary,
manually wind the mainspring.
observe
15
Page 9
TO PRESERVE THE QUALITY OF YOUR WATCH
English
● CARE OF YOUR WATCH
16
CAUTION
• The case and band touch the skin directly. Keep the case and band clean
at all times. Use of an unclean watch will not only soil the sleeve edge of
clothing but may also cause skin irritations.
• When you take the watch off, wipe off moisture, sweat or soil with a soft
dry cloth as soon as possible. This will help to extend the life of the case,
band and gasket.
<Leather strap>
• Gently blot up the moisture using a soft dry cloth. Do not rub the leather,
as this will cause abrasions or discoloration.
<Metal bracelet>
• Clean the metal bracelet with a soft toothbrush dipped in clean or soapy
water. Be careful not to get water on the case.
CAUTION
● RASH AND ALLERGIC REACTION
Adjust the band to allow a little clearance with your wrist to ensure proper
•
airflow.
• Prolonged and/or repeated contact with the band may cause skin irritation
or dermatitis for those susceptible.
• Possible causes of dermatitis
• Allergic reaction to metals or leathers
• Rust, contamination or perspiration accumulated on the watch case or
band.
• If you should develop any allergic symptoms or skin irritation, immediately stop wearing the watch and seek medical attention.
● WATER RESISTANCE
● Non-water resistance
If “WATER RESISTANT” is not inscribed on the case back,
your watch is not water resistant, and care should be taken
not to get it wet as water may damage the movement. If the
watch becomes wet, we suggest that you have it checked by
the retailer from whom the watch was purchased or SERVICE
CENTER.
English
17
Page 10
● Water resistance (3 bar)
If “WATER RESISTANT” is inscribed on the case back, your
English
5
bar WR
10/15/20
bar WR
* Before using a water resistant 5, 10, 15 or 20 bar watch in water, make sure
the crown is pushed in completely.
Do not operate the crown when the watch is wet or in water. If used in sea
water, rinse the watch in fresh water and dry it completely.
18
watch is designed and manufactured to withstand up to 3 bar,
such as accidental contact with splashes of water or rain, but it
is not designed for wearing while swimming or diving.
● Water resistance (5 bar)*
If “WATER RESISTANT 5 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to 5
bar and is suitable for wearing while swimming, yachting and
taking a shower.
● Water resistance (10 bar/15 bar/20 bar)*
If “WATER RESISTANT 10 BAR”, “WATER RESISTANT 15 BAR”
or “WATER RESISTANT 20 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to 10
bar/15 bar/20 bar, respectively, and is suitable for wearing while
taking a bath or shallow diving, but not for scuba diving. We
recommend that you wear a SEIKO Diver’s watch while scuba
diving.
* When taking a shower while wearing a water resistant 5 bar watch, or
taking a bath while wearing a water resistant 10, 15 or 20 bar watch, make
sure to observe the following:
• Do not operate the crown when the watch is wet with soapy water or
shampoo.
• If the watch is left in warm water, a slight time loss or gain may be caused.
This condition, however, will be corrected when the watch returns to
normal temperature.
NOTE:
Pressure in bar is a test pressure and should not be considered as corresponding
to an actual diving depth since swimming movements tend to increase the
pressure at a given depth. Care should also be taken when wearing and diving
into water.
PRECAUTIONS ON WEARING YOUR WATCH
• There is a possibility of injury caused by wearing the watch on your wrist
especially if you fall down or bump into other people or objects.
• Exercise care when you hold an infant or small child while wearing the
watch on your wrist, as the infant or child may be injured or develop an
allergic reaction caused by direct contact with the watch.
• Avoid undue shocks such as dropping or scratching against hard surfaces
or playing active sports, which may cause temporary malfunctions.
English
19
Page 11
PLACES TO KEEP YOUR WATCH
● Avoid storing the watch in temperatures outside the normal range (below –10 C
or above +60 C), as the electronic components may cease to function normally or
the watch may stop.
English
● Do not leave the watch in a place where it will be subjected to strong magnetism
(for example, near television sets, loudspeakers or magnetic necklaces).
● Do not leave the watch where there is strong vibration.
● Do not leave the watch in dusty places.
● Do not expose the watch to chemical substances or gases.
(Ex.: Organic solvents such as benzine and thinner, gasoline, nail polish, cosmetic
sprays, detergents, adhesives, mercury, and iodine antiseptic solution.)
● Do not leave the watch in close contact with hot spring water.
o
o
PERIODIC CHECKS
● Inspection and overhaul of the watch will be performed by SEIKO. When you take
your watch to the retailer from whom the watch was purchased, make sure that
the watch will be serviced by SEIKO.
● We suggest that you have your watch checked once every three or four years to
inspect whether the watch needs lubrication, or if there are any oil contaminated
parts that need to be replaced to prevent malfunction. If the gasket is worn out,
perspiration or water may penetrate the case, which damages the water resistant
quality.
English
● Specify use of SEIKO genuine parts if parts replacement is required.
● Make sure to have the gasket and pushpin replaced when the watch is checked.
20
21
Page 12
TROUBLESHOOTING
Trouble
English
The watch stops operating.
Even though you wear the watch every day,
the power reserve indicator does not move up.
The watch temporarily gains or loses
time
The inner surface of the glass is clouded.
The watch stops even though the power
reserve indicator is not showing “0”.
Right after starting the watch, it seems that the
second hand moves quicker than usual when
setting the time.
22
Possible causes
The power supplied by the mainspring has been
consumed.
The watch is worn on your wrist only for a short period
of time, or the amount of arm movement is small.
The watch has been left or worn in extremely high or
low temperatures.
The watch has been left close to an object with a strong
magnetic field.
You drop the watch, hit it against a hard surface, or wear
it while playing active sports. The watch is exposed to
strong vibrations.
Moisture has entered the watch because the gasket has
deteriorated.
The watch has been left under a temperature below 0ºC.
When starting the watch, it takes a little time before the
adjustment function starts working (this is not a
malfunction).
Solutions
Refer to “HOW TO USE” to wind the mainspring and reset the time. While you are wearing
the watch or when you take it off, check the remaining power shown by the power reserve
indicator and wind the mainspring if necessary.
Wear the watch for an extended period of time, or when taking off the watch, turn the crown to
wind the mainspring if the remaining power shown by the power reserve indicator is not
sufficient for the next use.
Return the watch to a normal temperature so that it works accurately as usual, and then reset
the time. The watch has been adjusted so that it works accurately when it is worn on your
wrist under a normal temperature range between 5 and 35 .
Correct this condition by moving and keeping the watch away from the magnetic source. If this
action does not correct the condition, contact the retailer from whom the watch was
purchased.
Reset the time. If the watch does not work accurately as usual after resetting the time, contact
the retailer from whom the watch was purchased.
Contact the retailer from whom the watch was purchased.
If the watch is left under a temperature below 0 , it may stop if the power reserve indicator is
showing less than one-sixth. In such a case, turn the crown to wind the mainspring.
It takes several seconds before the adjustment function starts working. Set the time after the
second hand moves for approximately 30 seconds to set the time correctly.
* Contact the retailer from whom the watch was purchased for any other troubles.
English
23
Page 13
SPECIFICATIONS
1 Features ............................................................ 3 hands (Hour and Minute hands, Second hand or
English
2 Frequency of crystal oscillator .......................... 32,768 Hz (Hz = Hertz … Cycles per second)
3 Loss/gain ........................................................... Within 15 seconds per month (equivalento to 1
4 Operational temperature range ......................... –10 C ~ +60 C
5 Driving system .................................................. Spring Drive (Automatic type with manual winding
6 Hand movement ............................................... Glide-motion second hand
7 Continuous operating time ................................ Approx. 72 hours (Approx. 3 days) *If the power
8 IC (Integrated Circuit) ........................................ Oscillator, frequency divider, and spring drive control
9 Jewels ............................................................... 5R64: 32 jewels, 5R65: 30 jewels
* The specifications are subject to change without prior notice for product improvements.
24
Small second hand), Date display, Power Reserve
Indicator
second per day) (If the watch is worn on your wrist
within normal temperature range between 5 C and
o
35
C.)
o
o
Under a low-temperature condition (below 0 C),
always keep at least one-sixth of the watch power
shown by the power reserve indicator.
function)
reserve indicator shows the power supplied by the
mainspring is full before starting the watch.
circuit ( C-MOS-IC: 1 piece)
o
o
Loading...
