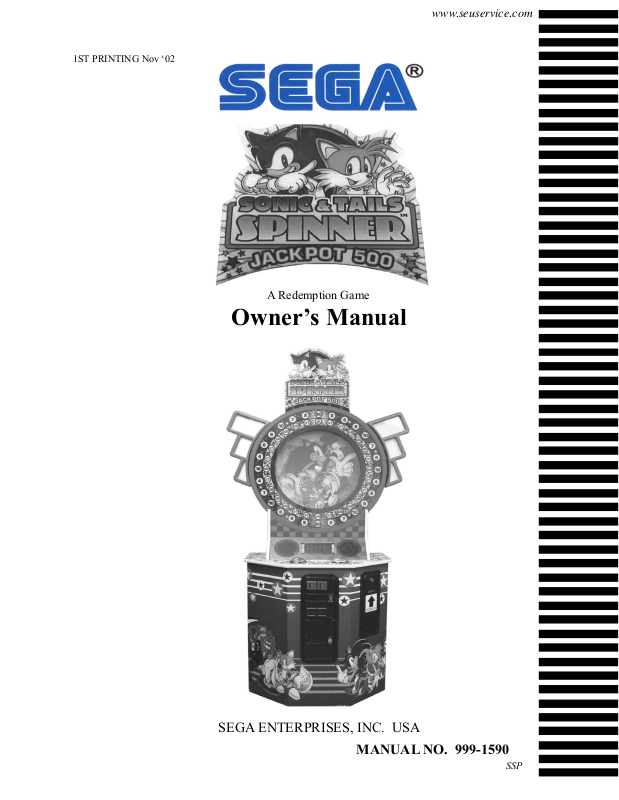

1ST PRINTING Nov ‘02
www.seuservice.com
A Redemption Game
Owner’s Manual
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-1590
SSP
VISIT OUR WEBSITE!
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain the safety:
To ensure the safe usage of the product, be sure to read the following before using the product. The
following instructions are intended for the users, operators and the personnel in charge of the operation of the product. After carefully reading and sufciently understanding the warning displays and
cautions, handle the product appropriately. Be sure to keep this manual nearby the product or elsewhere convenient for referring to it when necessary.
Herein, explanations which require special attention are enclosed with dual lines. Depending on the
potentially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to understand the contents of the displays before reading the text.
Indicates that mishandling the product by disregarding this warning
will cause a potentially hazardous
WARNING!
situation which can result in death
or serious injury.
CAUTION!
Indicates that mishandling the product
by disregarding this caution will cause
a slight hazardous situation which can
result in personal injury and or material
damage.
For the safe usage of the product, the following pictographs are used:
Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment,
this display is attached to places where the Owner’s Manual and or Service Manual should
be referred to.
Perform work in accordance with the instructions herein stated.
Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to
perform work as per the instructions can cause accidents. In the case where only those who have technical expertise should perform the work to avoid hazardous situation, the instructions herein state that the
serviceman should perform such work.
Be sure to turn off power before working on the machine.
To prevent electric shock, be sure to turn off power before starting the work in which the worker touches
the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual
herein always states to that effect.
Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord
with earth is used).
This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Terminal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the
Control equipment, ensure that the Earth Wire is rmly connected to the Control equipment.
Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.
This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not
equipped with the Earth Leakage Breaker can cause a re when earth leakage occurs.
Be sure to use fuses which meet the specied rating. (only for the machines which use fuses).
Using fuses exceeding the specied rating can cause a re and electric shock.
Specication changes (removal of equipment, conversion and addition) not designated by SEGA
are not allowed.
The parts of the product include warning labels for safety, covers for personal protection, etc. It is
very hazardous to operate the product by removing parts and or modifying the circuits. Should doors,
lids and protective parts be damaged or lost, refrain from operating the product, and contact where the
product was purchased from or the ofce herein stated. SEGA shall not be held responsible for any
accidents, compensation for damage to a third party, resulting from the specications not designated by
SEGA.
Ensure that the product meets the requirements of appropriate Electrical Specications.
Before installing the product, check for Electrical Specications. SEGA products have a nameplate
on which Electrical Specications are described. Ensure that the product is compatible with the power
supply voltage and frequency requirements of the location. Using any Electrical Specications different
from the designated Specications can cause a re and electric shock.
Install and operate the product in places where appropriate lighting is available, allowing warning
labels to be clearly read.
To ensure safety for the customers, labels and printed instructions describing potentially hazardous situation are applied to places where accidents can be caused. Ensure that where the product is operated
has sufcient lighting allowing the warnings to be read. If any label is peeled off, apply it again immediately. Please place an order with where the product was purchased from or the ofce herein stated.
When handling the Monitor, be very careful. (Applies only to the product w/monitor.)
Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some
portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be
performed only be those technical personnel who have knowledge of electricity and technical expertise.
Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)
Do not operate the product leaving on-screen ickering or blurring as it is. Using the product with the
monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the customers.
When transporting or reselling this product, be sure to attach this manual to the product.
In the case where commercially available monitors and printers are used in this product, only the contents relating to this product are explained herein. Some commercially available equipment has functions and reactions not stated in this manual. Read this manual together with the specic Instruction
Manual of such equipment.
•
Descriptions herein contained may be subject to improvement changes without notice.
•
The contents described herein are fully prepared with due care. However, should any question arise or
errors be found, please contact SEGA.
INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before
turning on power, check the following points to ensure that the product has been transported in a satisfactory status.
Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
Are Casters and Adjusters, damaged?
Do the power supply voltage and frequency requirements meet with those of the location?
Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,
connector connections can not be made accurately. Do not insert connectors forcibly.
Do power cords have cuts and dents?
Do the fuses used meet specied rating? Is the Circuit Protector in an energized status?
Are all accessories available?
Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be rmly closed?
TABLE OF CONTENTS
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS
INTRODUCTION OF THE OWNER’S MANUAL
1. HANDLING PRECAUTIONS ..........................................................................................
2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ...................................
3. OPERATION .....................................................................................................................
4. ASSEMBLING AND INSTALLATION ............................................................................
5. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE ........................
6. NAME OF PARTS.............................................................................................................
7. GAME DESCRIPTION......................................................................................................
8. HOW TO PLAY...................................................................................................................
9. PRIZE DISC EXPLAINED..................................................................................................
10. GAMEBOARD CONFIG SETTINGS................................................................................
11. GAME ERROR CODES....................................................................................................
12. COIN SELECTOR.............................................................................................................
COIN DOOR..............................................................................................................
13. TICKET DOOR.................................................................................................................
TICKET DISPENSOR...............................................................................................
14. DESIGN RELATED PARTS.............................................................................................
15. PARTS................................................................................................................................
MECHANISM ASSY SSP (999-1589)......................................................................
TOP ASSY. & CONTROL PANEL SSP.....................................................................
HEAD AND ELECTRONICS SSP............................................................................
1
2 - 3
5 - 6
7 - 9
10
11
12
13
14
15
16 - 17
18 - 19
19
20 - 24
21 - 24
25
26 - 36
26 - 29
30 - 33
34 - 36
SPECIFICATIONS
Installation Space : 47 inches width X 52 inches
Height : 90 inches
Width : 43 inches
Length : 24 inches
Weight : 280 lbs
Power, maximum current : 300W 2.5A (AC 120V 60 Hz AREA)
MONITOR : NO MONITOR USED FOR THIS GAME
INTRODUCTION OF THE OWNERS MANUAL
This Owner's Manual is intended to provide detailed descriptions together with all the
necessary information covering the general operation of electronic assemblies, electromechanicals, servicing control, spare parts, etc. as regards the product,
SONIC SPINNER REDEPTION GAME.
This manual is intended for the owners, personnel and managers in charge of operation
of the product. Operate the product after carefully reading and sufciently understanding the instructions. If the product fails to function satisfactorily, non-technical personnel
should under no circumstances touch the internal system. Please contact where the product was purchased from.
Use of this product is unlikely to cause physical injuries or damages to property. However,
where special attention is required this is indicated by a thick line, the word "IMPORTANT"
and its sign in this manual.
Indicates that mishandling the product by disregarding this display can cause the
STOP
product's intrinsic performance not to be obtained, resulting in malfunctioning.
IMPORTANT!
SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE
45133 Industrial Drive, Fremont, California 94538, U.S.A.
Phone : (415) 701-6580
Fax : (415) 701-6594
DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN
LISTED
U
L
®
5K92
AMUSEMENT MACHINE
Non-technical personnel who do not have technical knowledge and expertise should
refrain from performing such work that this manual requires the location's main-
WARNING!
Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the
location's maintenance man or the serviceman. It is instructed herein that particularly hazardous work
should be performed by the serviceman who has technical expertise and knowledge.
The location's maintenance man and serviceman are herein dened as follows:
"Location's Maintenance Man" :
Those who have experience in the maintenance of amusement equipment and vending machines, etc.,
and also participate in the servicing and control of the equipment through such routine work as equipment assembly and installation, servicing and inspections, replacement of units and consumables, etc.
within the Amusement Facilities and or locations under the management of the Owner and Owner's
Operators of the product.
tenance man or a serviceman to carry out, or work which is not explained in this
manual. Failing to comply with this instruction can cause a severe accident such
as electric shock.
Activities of Location's Maintenance Man :
Assembly & installation, servicing & inspections, and replacement of units & consumables as regards
amusement equipment, vending machines, etc.
Serviceman :
Those who participate in the designing, manufacturing, inspections and maintenance service of the
equipment at an amusement equipment manufacturer.
Those who have technical expertise equivalent to that of technical high school graduates as regards
electricity, electronics and or mechanical engineering, and daily take part in the servicing & control
and repair of amusement equipment.
Serviceman's Activities :
Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of
amusement equipment and vending machines.
NOTES:
1. HANDLING PRECAUTIONS
When installing or inspecting the machine, be very careful of the following points and pay attention
to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the cautionary matters herein stated can cause personal injury or damage to the machine.
Before performing work, be sure to turn power off. Performing the work without
turning power off can cause an electric shock or short circuit. In the case work
WARNING!
should be performed in the status of power on, this manual always states to that
effect.
To avoid electric shock or short circuit, do not plug in or unplug quickly.
To avoid electric shock, do not plug in or unplug with a wet hand.
Do not expose Power Cords and Earth Wires on the surface, (oor, passage, etc.).
If exposed, the Power Cords and Earth Wires are susceptible to damage. Damaged cords and wires can cause electric shock or short circuit.
To avoid causing a re or electric shock, do not put things on or damage Power
Cords.
When or after installing the product, do not unnecessarily pull the power cord. If
damaged, the power cord can cause a re or electric shock.
In case the power cord is damaged, ask for replacement through where the prod-
uct was purchased from or the ofce herein stated. Using the cord as is damaged
can cause re, electric shock or leakage.
Be sure to perform grounding appropriately. Inappropriate grounding can cause
an electric shock.
Be sure to use fuses meeting specied rating. Using fuses exceeding the specied
rating can cause a re or electric shock.
Completely make connector connections for IC BD and others. Insufcient inser-
tion can cause an electric shock.
Specication changes, removal of equipment, conversion and/or addition, not
designated by SEGA are not permitted.
• Failure to observe this may cause a re or an electric shock. Non-compliance
with this instruction can have a bad inuence upon physical conditions of the
players or the lookers-on, or result in injury during play.
• SEGA shall not be held responsible for damage, compensation for damage to a
third party, caused by specication changes not designated by SEGA.
Be sure to perform periodic maintenance inspections herein stated.
1
www.seuservice.com
3
www.seuservice.com
STOP
IMPORTANT!
For the IC board circuit inspections, only the logic tester is allowed. The use of a
multiple-purpose tester is not permitted, so be careful in this regard.
Static electricity from your body may damage some electronics devices on the IC
board. Before handling the IC board, touch a grounded metallic surface so that
the static electricity can be discharged.
Some parts are the ones designed and manufactured not specically for this
game machine. The manufacturers may discontinue, or change the specications
of, such general-purpose parts. If this is the case, Sega cannot repair or replace a
failed game machine whether or not a warranty period has expired.
PRODUCTION DATE
This SEGA product was produced in the year of:
2002
This signies that this work was disclosed in 2002.
www.seuservice.com
2
2.
PRECAUTIONS CONCERNING INSTALLATION LOCATION
This product is an indoor game machine. Do not install it outside. Even indoors,
avoid installing in places mentioned below so as not to cause a re, electric shock,
WARNING!
injury and or malfunctioning.
Places subject to rain or water leakage, or places subject to high humidity in the
proximity of an indoor swimming pool and or shower, etc.
Places subject to direct sunlight, or places subject to high temperatures in the
proximity of heating units, etc.
Places lled with inammable gas or vicinity of highly inammable/volatile
chemicals or hazardous matter.
Dusty places.
Sloped surfaces.
Places subject to any type of violent impact.
Vicinity of anti-disaster facilities such as re exits and re extinguishers.
The operating (ambient) temperature range is from 5ºC to 30ºC.
LIMITATIONS OF USAGE REQUIREMENTS
Be sure to check the Electrical Specications.
Ensure that this product is compatible with the location's power supply, voltage
WARNING!
and frequency requirements.
A plate describing Electrical Specications is attached to the product.
Non-compliance with the Electrical Specications can cause a re and electric
shock.
This product requires the Breaker and Earth Mechanisms as part of the location
facilities. Using them in a manner not independent can cause a re and electric
shock.
Ensure that the indoor wiring for the power supply is rated at 2.5 A or higher (AC
single phase 100 ~ 120 V area). Non-compliance with the Electrical Specica-
tions can cause a re and electric shock.
Be sure to independently use the power supply equipped with the Earth Leakage
Breaker. Using a power supply without the Earth Leakage Breaker can cause an
outbreak of re when earth leakage occurs.
Putting many loads on one electrical outlet can cause generation of heat and a
re resulting from overload.
When using an extension cord, ensure that the cord is rated at 2.5 A or higher
(AC 100 ~ 120 V area). Using a cord rated lower than the specied rating can
cause a re and electric shock.
3
www.seuservice.com
5
www.seuservice.com
Operation Area
2 in.
52 in.
2 in. over
Vent approx. 10 in.
47 in.
For the operation of this machine, secure a minimum area of 47 in. (W) × 52
WARNING!
Be sure to provide sufcient space so as to allow this product's ventilation fan
SEGA shall not be held responsible for damage, compensation for damage to a
in. (D). In order to prevent injury resulting from the falling down accident
during game play, be sure to secure the minimum area for operation.
to function efciently. To avoid machine malfunctioning and a re, do not
place any obstacles near the ventilation opening.
third party, resulting from the failure to observe this instruction.
STOP
For transporting the machine into the location's building, the minimum necessary
dimensions of the opening (of doors, etc.) are 43 in. (W) and 76 in. (H).
IMPORTANT!
Electric current consumption
MAX. 2.5 A (AC 120 V 60 Hz)
www.seuservice.com
4
3. OPERATION
PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner
of the visitors and players.
In order to avoid accidents, check the following before starting the operation:
To ensure maximum safety for the players and the customers, ensure that where
WARNING!
the product is operated has sufcient lighting to allow any warnings to be read.
Operation under insufcient lighting can cause bodily contact with each other,
hitting accident, and or trouble between customers.
It is suggested to ensure a space allowing the players who feel sick while play-
ing the game to take a rest.
Check if all of the adjusters are in contact with the surface. If they are not, the
Cabinet may move and cause an accident.
Ensure that all of the Adjusters are in contact
with the oor.
5
www.seuservice.com
7
www.seuservice.com
Immediately stop such violent acts as hitting and kicking the product. Such
violent acts can cause parts damage or falling down, resulting in injury due to
fragments and falling down.
CAUTION!
Do not put any heavy item on this product. Placing any heavy item on the prod-
uct can cause a falling down accident or parts damage.
WARNING!
PRECAUTIONS TO BE HEEDED DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)
WARNING!
Do not climb on the product. Climbing on the product can cause falling down
accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are damaged or omit-
ted.
To avoid electric shock, short circuit and or parts damage, do not put the follow-
ing items on or in the periphery of the product.
Flower vases, owerpots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players.
To avoid injury and accidents, those who fall under the following categories are
not allowed to play the game.
• Those who have experienced muscle convulsion or loss of consciousness when playing video game, etc.
• Intoxicated persons.
• Persons whose act runs counter to the product's warning displays.
To avoid injury resulting from falling down and electric shock due to spilled
drinks, instruct the player not to place heavy items or drinks on the product.
To avoid electric shock and short circuit, do not allow customers to put hands
and ngers or extraneous matter in the openings of the product or small openings in or around the doors.
To avoid falling down and injury resulting from falling down, immediately stop
the customer's leaning against or climbing on the product, etc.
WARNING: HAZARD TO EPILEPTICS.
A very small portion of the population has a condition which may cause them to ex-
WARNING!
If you or anyone in your family has experienced symptoms linked to an epileptic
We recommend that parents observe their children while they play video games. If
www.seuservice.com
perience epileptic seizures or have momentary loss of consciousness when viewing
certain kinds of ashing lights or patterns that are present in our daily environment.
These persons may experience seizures while watching some kinds of television
pictures or playing certain video games. People who have not had any previous
seizures may nonetheless have an undetected epileptic condition.
condition (e.g., seizures or loss of awareness), immediately consult your physician
before using any video games.
you or your child experience the following symptoms: dizziness, altered vision, eye
or muscle twitching, involuntary movements, loss of awareness, disorientation, or
convulsions, DISCONTINUE USE IMMEDIATELY and consult your physician.
6
4. ASSEMBLING AND INSTALLATION
Perform assembly work by following the procedure herein stated. Failing to
comply with the instructions can cause electric shock hazard.
WARNING!
Perform assembling as per this manual. Since this is a complex machine,
erroneous assembling can cause an electric shock, machine damage and or not
functioning as per specied performance.
When assembling, be sure to use more then one person. Depending on the
assembly work, there are some cases in which working by one person alone can
cause personal injury or parts damage.
Ensure that connectors are accurately connected. Incomplete connections can
cause electric shock hazard.
Be careful not to damage the wires. Damaged wires may cause electric shock or
short circuit or present a re risk.
This work should be performed by the Location's Maintenance Man or
Serviceman. Performing work by non-technical personnel can cause a severe
accident such as electric shock. Failing to comply with this instruction can cause
a severe accident such as electric shock to the player during operation.
Provide sufcient space so that assembling can be performed. Performing work
in places with narrow space or low ceiling may cause an accident and assembly
work to be difcult.
To perform work safely and avoid serious accident such as the cabinet's falling
down, do not perform work in places where step-like grade differences, a ditch,
or slope exist.
CAUTION!
Handle molded parts with care. Undue weight or pressure may cause them to
break and the broken pieces may cause injury.
To perform work safely and securely, be sure to prepare a step which is in a
secure and stable condition. Performing work without using the step can cause
violent falling down accidents.
Tools such as a Phillips type screwdriver, wrench, socket wrench and Ratchet Handle are
required for the assembly work.
Phillips type screwdriver
7
www.seuservice.com
9
www.seuservice.com
Installing the Marquee
2 in.
52 in.
2 in. over
Vent approx. 10 in.
47 in.
Be sure to secure all ve screws on the
marquee holder to the marquee. A stool
or ladder is needed for this operation to
be performed safely.
FIG. 6. 2 e
Provide ventilation space for the ventilation
opening.
Allow more than 28 in. of space for customer
trafc.
www.seuservice.com
8
POWER SUPPLY, AND EARTH CONNECTION
Be sure to independently use the power supply socket outlet equipped with
WARNING!
Ensure that the "accurately grounded indoor earth terminal" and the earth wire
Ensure that the power cord and earth wire are not exposed on the surface
After wiring power cord on the oor, be sure to protect the power cord. Exposed
an Earth Leakage Breaker. Using a power supply without an Earth Leakage
Breaker can cause a re when electric leakage occurs.
cable are available (except in the case where a power cord plug with earth is
used). This product is equipped with the earth terminal. Connect the earth
terminal and the indoor earth terminal with the prepared cable. If the grounding
work is not performed appropriately, customers can be subjected to an electric
shock, and the product's functioning may not be stable.
(passage, etc.). If exposed, they can be caught and are susceptible to damage. If
damaged, the cord and wire can cause electric shock and short circuit accidents.
Ensure that the wiring position is not in the customer's passage way or the wiring
has protective covering.
power cord is susceptible to damage and causes an electric shock accident.
The AC Unit is located inside on one side of Cabinet. The AC Unit has Main SW, Earth Terminal
and the Inlet which connects the Power Cord.
Ensure that the Main SW is OFF.
Power is off when the
Back-Bottom Right of Cabinet
MAIN SWitch is in the
down position. To supply
power to the unit, ip the
MAIN SWitch upwards.
* Note: Actual Power Supply connection
may vary from photo
MAIN SW
INLET
AC Cable (Power Cord)
9
www.seuservice.com
11
www.seuservice.com
5. PRECAUTIONS WHEN MOVING THE MACHINE
When moving the machine, be sure to unplug the power plug. Moving the
machine with the plug as is inserted can damage the power cord and cause re
WARNING!
and electric shock hazards.
When moving the machine on the oor, pay careful attention so that adjusters
do not tread power cords and earth wires. Damaging the power cords can cause
electric shock and short circuit hazards.
Do not push the cabinet from the left/right when attempting to move the unit.
Pushing from the sides may cause the unit to tip and result in injury and damage
to parts.
Do not push on any parts made of glass (e.g. Main Plex) or plastic, as these parts
may break and result in bodily injury.
CAUTION!
Do not push the
cabinet from the
left/right direction.
www.seuservice.com
10
In locations with low ceilings,
remove the Marquee before
moving the machine.
6. NAME OF PARTS
Marquee Display
Game Ears
Play Wheel
Play Disc
Control and Display Panel
Coin and Cashbox Door
TABLE 4 Dimensions and Weights
Width x Length x Height Weight
CABINET 43 in x 24 in x 76 in 279 LBS
Ticket Dispenser
Main Base
ASSY POP 15.5 in x .25 in x 15 in 1 LB
When assembled 43 in x 24 in x 90 in 280 LBS
11
www.seuservice.com
13
www.seuservice.com
7. GAME DESCRIPTION
The following explanations apply to the case the product is functioning satisfactorily. Should
there be any moves different from the following contents, some sort of faults may have occurred.
Immediately look into the cause of the fault and eliminate the cause thereof to ensure satisfactory
operation.
When the power is connected, the uorescent lamps behind the wheels and the ears are always on.
When in an advertising state, the lights in the prize disk light and spin in clockwise and counterclockwise directions. Sounds are heard from the speakers on the right and left of the credit/ticket
display.
The Sonic Play button and the Tails Play button on the control panel are integrated with a lamp. The
Sonic Play button (lamp) ashes and the Sonic and Tails disc’s spin pointing to the illumentated
lamps when the enough coins are inserted (depending of Cong Switches SW1 and SW2) to play the
game.
Flourescent Lamps are lit
Coin Entry
Bulbs light in a
spinning fashion.
Sound is emitted.
Buttons Blink at
appropriate times.
Tickets are dispenced.
Game Overview
This game is a redemption game. Meaning that you input coins/tokens and after play it despenses
tickets to be redeemed for prizes. The game has two spinning discs which rotate in opposite
directions pointing at a lighted number. By Pressing the buttons (sonic rst then tails) you can stop
the discs rotation and depending on which numbers are lit at stop time they are multiplied together
for ticket amount won.
www.seuservice.com
12
8. HOW TO PLAY
After enough coins/tokens are inserted
through the coin/credit slot, the games
starts to run. The Sonic/Tails wheels start
turning with the numbered lights in the
outside rings in opposite Directions. At
the same time, the Sonic Button Starts to
Flash.
At this time the Player would hit the Sonic
Button with the goal of Stoping the Sonic
Wheel (nger points to outside ring) at a certain number. When the button is hit the Disc
will slow and stop and the Lit number that it
stops at is the First Multiplyer.
Starts Spinning
Starts Swirling
Starts Blinking
Press to stop Sonic Disc
Then, the player would do the same thing
with the Tails Button(nger points to the
inside ring), pressing it to stop the Tails disc.
This will stop tails from spinning and this
nger stopping on a lighted number. This x
number will be the Second Multiplier.
The product of the First Multiplier times the
Second Multiplier is the resulting amount of
tickets that are dispenced which is also displayed on the 3 digit counter. Depending on
which Prize Disc in installed on this game the
results will vary.
For Example: If the Heart Prize Disc is
inserted and the player stops Sonic on
the 50 outside ring and stops Tails on the
x10 inside ring, the amount of tickets
dispenced would be 500 tickets.
Press to stop Tails Disc
Tickets Dispenced
13
www.seuservice.com
15
www.seuservice.com
9. Prize Disc Explained
Your Sonic and Tails Spinner Game is shipped with 3 different Prize Dials. They are: Hearts, Clubs,
and Diamonds. You can tell which dial you have installed by looking at the bottom of the dial for the
corresponding symbol. (See Photo)
Hearts Prize Wheel
(Comes Default on Game)
Each Prize Dial is associated with a different Payout percentage. This percentage allows you to maximze your earnings by tailoring the game to your location.
The Average Payout per Prize Wheel are as follows:
Hearts 17.5 Tickets per play (With game set to normal difculty)
Clubs 8.75 Tickets per play (With game set to normal difculty)
Diamonds 35 Tickets per play (With game set to normal difculty)
Note: These are average tickets awarded with the machine set to Normal Difculty. The Skill of the
players at your location can greatly effect these averages.
In addition to the Prize Dials, there are Four Difcultry Settings. They are:
Easy
Clubs Prize Wheel
Diamonds Prize Wheel
Normal
Hard
Super Hard
The Difculty Setting will effect the average tickets awarded per game. The higher the difculty, the
harder it will be to hit the large payout numbers. When you adjust the game difculty, it makes the
game harder or easier by increasing or decreasing the “Virtual Speed” of the Prize Wheel. This will
give the player more or less time to actually stop the wheel on each prize.
www.seuservice.com
14
10. Gameboard Cong Settings
Sonic & Tails Spinner
Cong Switch Settings for Production Models
software version: 052
Conig (DIP) Switch Location
Cong Switch Settings: ✺and bold denote default settings
• SW1 & SW2 -- Coins/Game
✺ OFF - OFF = 1 Coin Game (Default Setting)
• OFF - ON = 2 Coin Game
• ON - OFF = 3 Coin Game
• ON - ON = 4 Coin Game
• SW3 & SW4 -- Skill Level
✺ OFF - OFF = Normal (Default Setting)
• OFF - ON = Hard
• ON - OFF = Easy
• ON - ON = Super Hard
• SW5 & SW6 -- Card Selection
✺ OFF - OFF = Hearts (Default Setting)
• OFF - ON = Clubs
• ON - OFF = Spades (not available)
• ON - ON = Diamonds
• SW7 - Continuous Play
✺ OFF – normal operation, tokens required for play (Default setting)
• ON – 1 to 4 tokens are required to start (depending on SW1 &SW2 setting).
The game will then start and play continuously until power is turned OFF.
No further coins/tokens are required. if the stopbuttons are not pressed
during the course of a game, the game will timeout (wheels will stop as if
SONIC/TAILS buttons pressed), pay tickets, and automatically start again.
• SW8 – Use ticket dispenser
✺ OFF = Yes, dispense tickets (Default Setting)
• ON = Demo Mode – don’t dispense tickets. during payout, display will
rapidly count-down tickets on the 3-digit display without dispensing tickets.
15
www.seuservice.com
17
www.seuservice.com
11. Game Error Codes
Error # Problem Area Problem Detail Possible Cause Action to Reset Error Code
E01 --- --- --- ---
During Game Play, Coin-IN
E02 Coin-IN Switch
E03 --- --- --- ---
E04 Ticket Notch
E05 Ticket Notch
E06 --- --- --- ---
E07 Ticket Notch
E08 --- --- --- ---
switch was found to be con-
tinuously in ON position
During Ticket Dispensing,
Ticket Notch Continuously
Found
During Ticket dispensing,
Can’t nd Next Ticket notch
During CAL & if Tickets
are being used (CONFIG
SW 8 - OFF), unsuccessful
attempt was made to nd
the Ticket Notch
Coin Stuck or foreign mate-
rial in Coin Mech
Out of Tickets
OR
Ticket motor not turning on
OR
Ticket Mech Bad/Jammed
OR
Bad Ticket Disp cable
Out of Tickets
OR
Ticket Motor not turning on
OR
Ticket Mech BAD/Jammed
OR
Bad Ticket Disp cable
Ticket Motor not turning on
OR
Ticket Mech Bad/Jammed
OR
Bad Ticket Disp cable
Turn game OFF, Clear Obstruction.
Turn game ON
Load More Tickets and Hit Flashing
Sonic Stop Button to Continue Dispensing tickets where game left off.
OR Turn game OFF, Check Ticket
Mechanism, Cable, Power Supply.
Turn game ON
Load More Tickets and Hit Flashing
Sonic Stop Button to Continue Dispensing tickets where game left off.
OR Turn game OFF, Check Ticket
Mechanism, Cable, Power Supply.
Turn game ON
Turn game OFF, Check Ticket
mechanism, Cable, Power Supply.
Turn game ON
E09 Points Layout
E10 Tails Index
E11 Sonic Index
E12
Sonic & Tails
Indicies
During the Inital Congura-
tion Display, the CONFIG
Switches 5&6 were Set to
a Points Layout that is not
supported by the installed
software version
During CAL, Tails Index
Pulses were not found
During CAL, Sonic Index
Pulses were not found
During CAL both Sonic
AND Tails Index Pulses
were not found
Improper setting of CON-
FIG Switches 5&6
Tails Motor not spinning
OR
Tails Opto not working
OR
Bad cabling
Sonic Motor not spinning
OR
Sonic Opto not working
OR
Bad cabling
Both Sonic & Tails Motor
not spinning
OR
Both Sonic & Tails Opto not
working
OR
Common Power Supply
problem
Game will continuously display error and cannot be reset without turning the game OFF. Turn game OFF,
properly set CONFIG, turn game
ON, and make sure Inital Congu-
ration Display shows a points layout
consistant witht he points card that
is installed
Game will continuously display error and cannot be reset without turn-
ing game OFF. Turn game OFF,
check Tails Motor & Opto cabling
& Power Supply. Turn Game ON.
Game will continuously display error and cannot be reset without turn-
ing game OFF. Turn game OFF,
check Tails Motor & Opto cabling
& Power Supply. Turn Game ON.
Game will continuously display
error and cannot be reset without
turning game OFF. Turn game
OFF, check Sonic & Tails Motor
& Opto cabling & Power Supply.
Turn Game ON.
www.seuservice.com
16
Error # Problem Area Problem Detail Possible Cause Action to Reset Error Code
E13 --- --- --- ---
E14 --- --- --- ---
During game play, Sonic
E15 Sonic Sectors
E16 Tails Sectors
E17
E18 --- --- --- ---
E19 --- --- --- ---
E20 Sonic Stop Switch
E21 Tails Stop Switch
E22 Coin-In Switch
Sonic & Tails
Sectors
Sector Pulses not being
detected
During game play, Tails Sector Pulses not being detected
During game play, both
Sonic AND Tails sector
pulses not being detected
During CAL, the Sonic Stop
Switch was detected as ON
During CAL, the Tails Stop
Switch was detected as ON
During CAL, the Coin-In
Swtich was detected as Stuck
ON
Sonic Motor not spinning
OR
Sonic Opto not working
Tails Motor not spinning
OR
Tails Opto not working
OR
Bad cables/connectors
Both Sonic & Tails Motor
not spinning
OR
Both Sonic & Tails Opto
not working
OR
Common Power Supply/
Cabling Problem
1) Defective Switch
2) Foreign Material blocking switch button
1) Defective Switch
2) Foreign Material blocking switch button
1) Defective Switch
2) Foreign Material
blocking switch button
Game will continuously display
error and cannot be reset. Turn
game OFF, check Sonic Motor &
Opto cabling. Turn Game ON.
Game will continuously display
error and cannot be reset. Turn
game OFF, check Tails Motor &
Opto cabling. Turn Game ON.
Game will continuously display
error and cannot be reset. Turn
game OFF, check Sonic & Tails
Motor & Opto cabling. Turn
Game ON.
Game will continuously display
error and cannot be reset without
turning game OFF. Turn game
OFF, service Sonic Stop Switch,
Turn game ON.
Game will continuously display
error and cannot be reset without
turning game OFF.. Turn game
OFF, service Tails Stop Switch,
Turn game ON.
Game will continuously display
error and cannot be reset without
turning game OFF.. Turn game
OFF, service Coin-IN Switch,
Turn game ON.
E23 Select Switch
E24 Step Switch
During CAL, the Select
Switch was detected as Stuck
ON
During CAL, the Step
Switch was detected as ON
17
1) Defective Switch
2) Foreign Material
blocking switch button
1) Defective Switch
2) Foreign Material
blocking switch button
Game will continuously display
error and cannot be reset without
turning game OFF. Turn game
OFF, service Select Switch, Turn
game ON.
Game will continuously display
error and cannot be reset. Turn
game OFF, service Step Switch,
Turn game ON.
www.seuservice.com
19
www.seuservice.com
12. COIN SELECTOR
HANDLING THE COIN JAM
If the coin is not rejected when the REJECT button is pressed, open the coin chute door and
open the selector gate. After removing the jammed coin, put a normal coin in and check to see
that the selector correctly functions.
CLEANING THE COIN SELECTOR
STOP
IMPORTANT!
Remove and clean smears by using a
soft cloth dipped in water or diluted
chemical detergent and then squeezed
dry.
Never apply machine oil, etc. to the
Coin Selector.
After cleaning the Coin Selector, insert
a regular coin in the normal working
status and ensure that the Selector correctly functions.
The coin selector should be cleaned once every 3 months.
When cleaning, follow the procedure below:
GATE
FIG. 11 a
(1) Turn the power for the machine OFF. Open the
coin chute door.
(2) Remove the coin selector from the coin chute door.
(3) Open the gate and dust off by using a soft brush
(made of wool, etc.).
(4) Remove and clean smears by using a soft cloth
dipped in water or diluted chemical detergent and
then squeezed dry.
(5) Remove the CRADLE.
When removing the retaining ring
(E ring), be very careful so as not to bend the
rotary shaft.
(6) Remove stain from the rotary shaft and shaft
receiving portions by wiping off with a soft cloth,
etc.
(7) After wiping off as per (6) above, further apply
a dry cloth, etc. to cause the coin selector to dry
completely.
COIN INSERTION TEST
Once every month, when performing
the Coin SW Test, simultaneously
check the following:
CRADLE
FIG. 11 b
Insert a coin while keeping
the Reject Button pressed
down and check if it is
rejected.
COIN METER
Does the Coin Meter count satisfactorily?
Does the coin drop into the Cashbox correctly?
Is the coin rejected when inserted while keeping the
Reject Button pressed down?
www.seuservice.com
18
FIG. 11 c
COIN DOOR
19
www.seuservice.com
21
www.seuservice.com

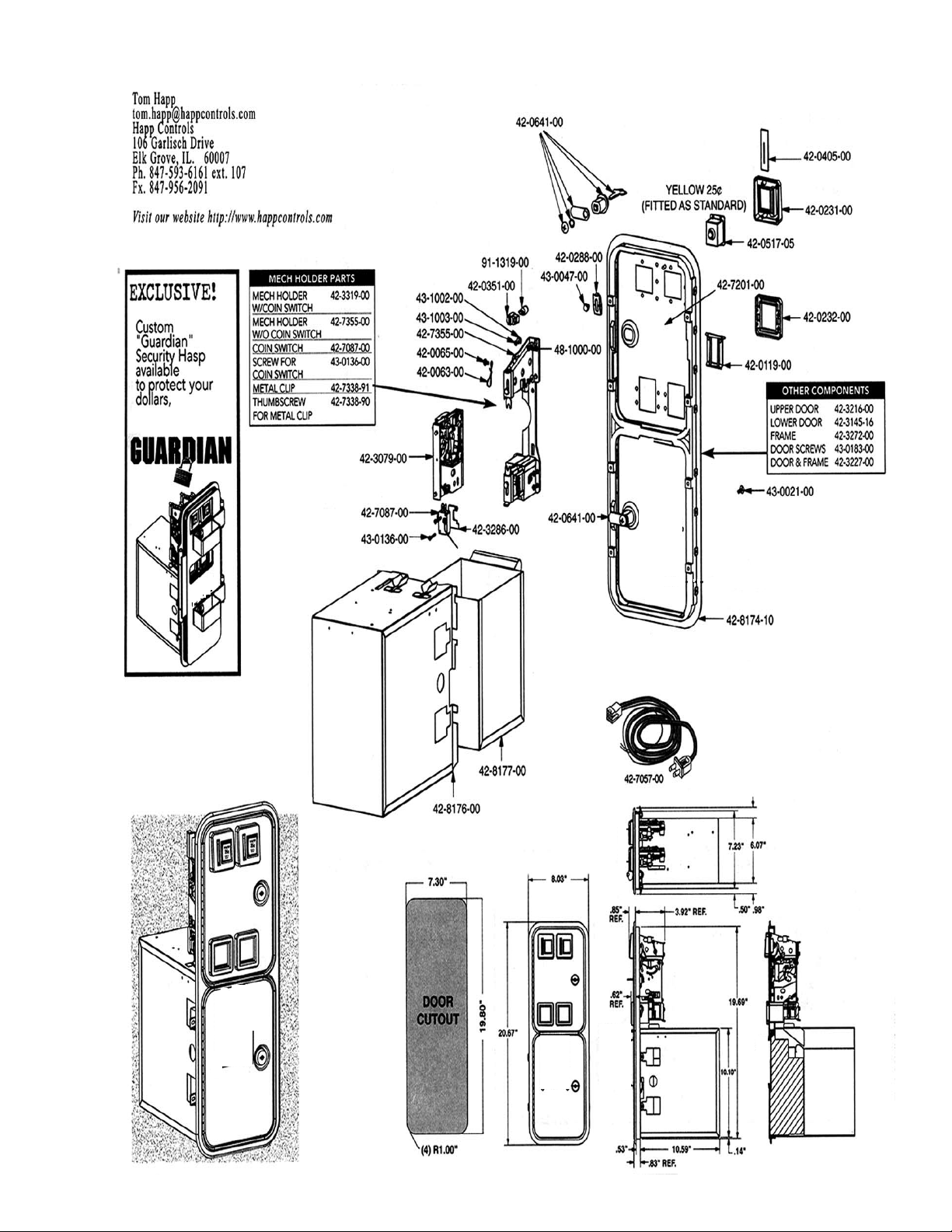

13. TICKET DOOR
Ticket Door is a Happ Controls Part #40-0549-00 and comes with the Ticket Stickers Happ
Controls Part#42-1378-00
There is a ticket Meter in this game for an ongoing ticket count.
www.seuservice.com
20

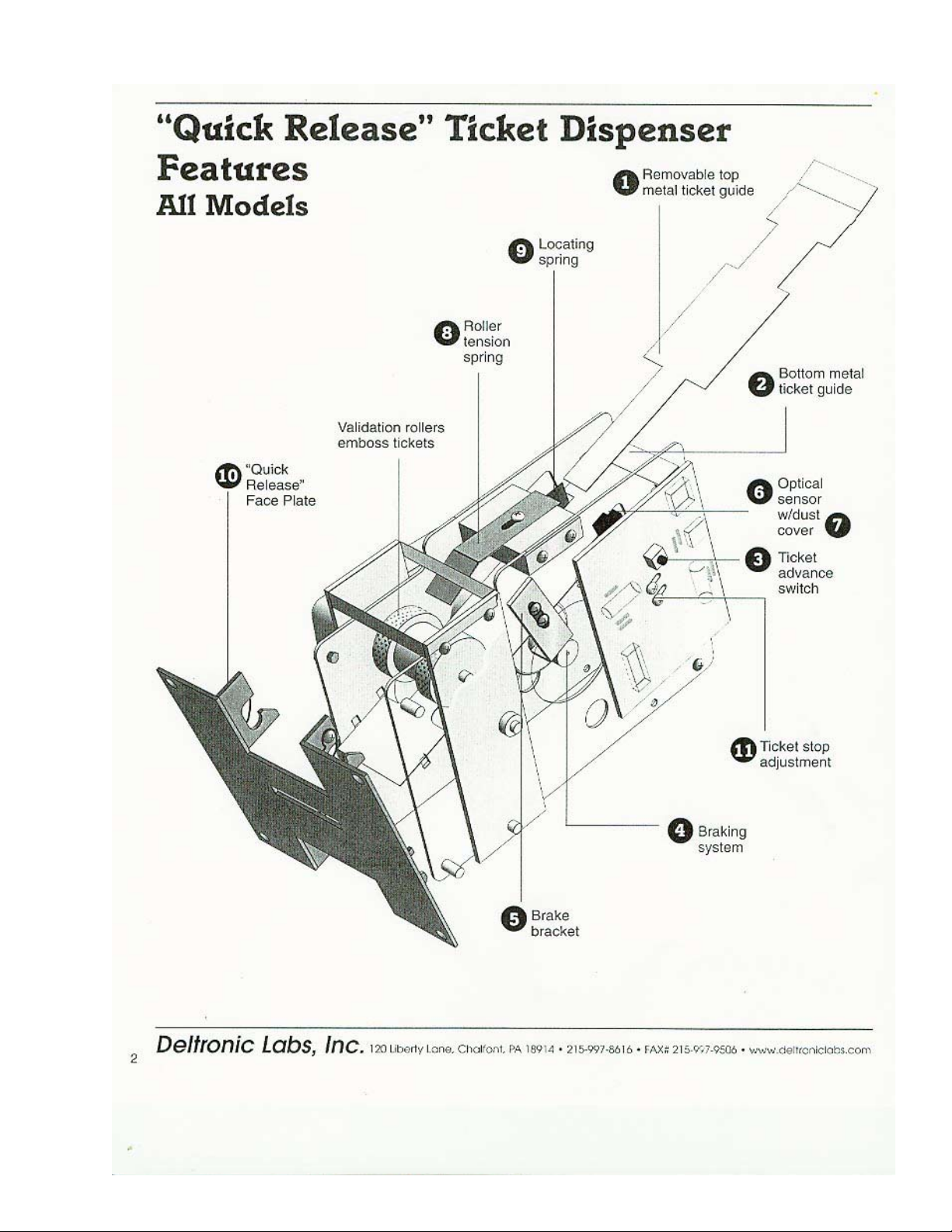

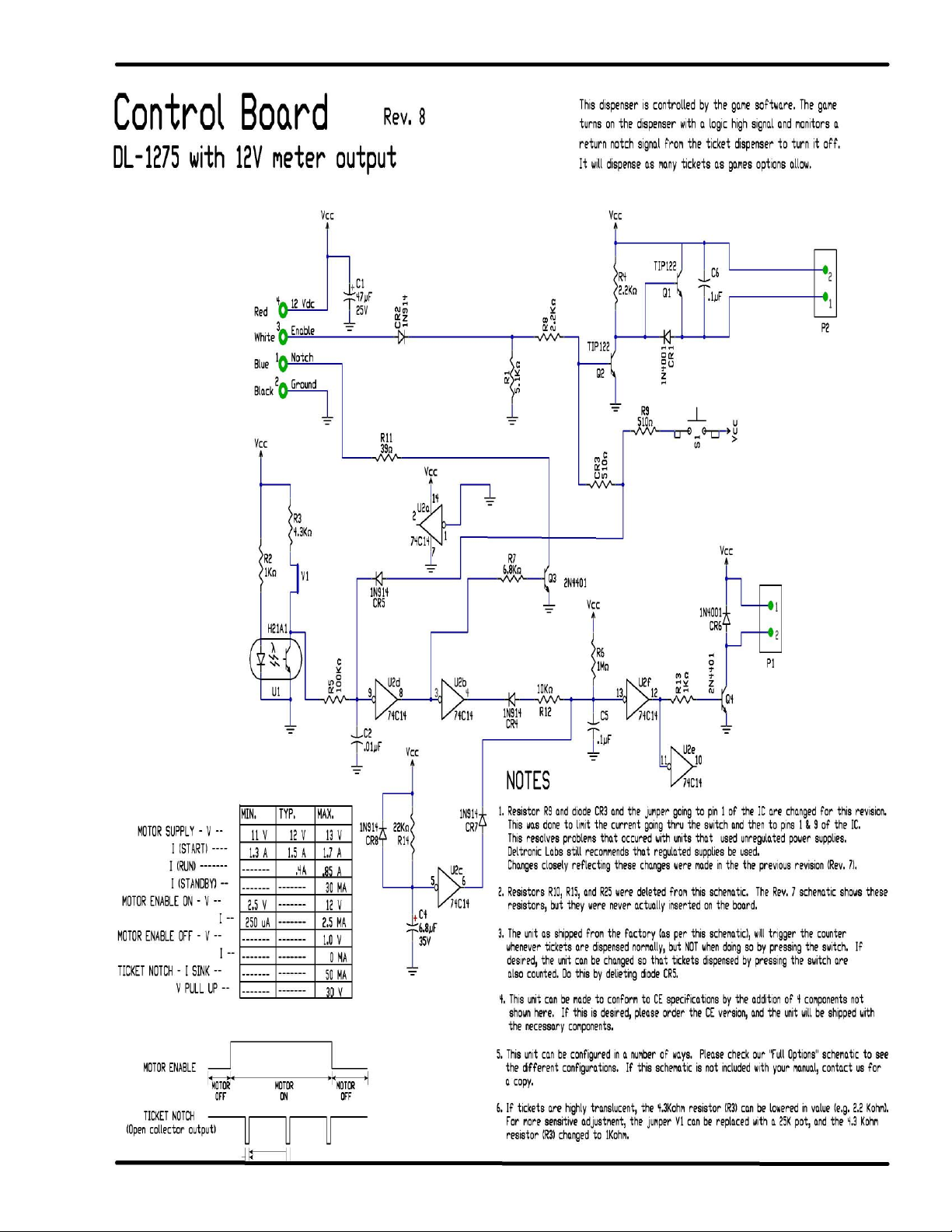

TICKET DISPENSER
21
www.seuservice.com
www.seuservice.com
23
www.seuservice.com
22
23
www.seuservice.com
25
www.seuservice.com
P/N QTY DELTRONIC LABS P/N NAME
11 1 SHFT-IDLRLR/TD IDL. ROLLER SHAFT
12 1 RM-SFTMTR/TD MOTOR PIVOT SHAFT
13 1 SPAC PIVBLK/TD/4HOL PIVOT BRACKET SPAC
14 1 RM-SPCPB/TD SPACER BLOCK
15 2 RM-RLRIDL/TD/VALD IDLER ROLLER
16 1 RM-RLRDRV/TD/VALD DRIVER ROLLER
17 2 SPRG-TENSN/TD TENSION SPRING
18 2 RM-BKTPVT/TD BRAKE WHEEL
19 1 RM-PANLFT/TD/NOPM FRONT PANEL
20 1 RM-WHLBRK/TD BRAKE WHEEL
21 1 SPR-LOCA/TD LOCATING SPRING
22 1 RM-BRKTBRK/TD BRAKE BRACKET
23 1 RM-BKTTUB/TD/3/8 URETHANE BRAKE
24 1 PCBD-12275/TD PC BOARD
25 1 RM-MOTOR/TD MOTOR
26 2 RM-PLATFR/TD FRAME PLATE
27 1 RM-CONN2P/TE/20G 2-PIN FEMALE CONN.
28 4 BRNG-F312/TT/BRASS BUSHING
29 1 SPAC-PCBD/TD P.C. BOARD SPACER
30 1 SPAC/HEX/TD/1-1/4 HEX SPACER 1-1/4”
31 1 RM.1M/TT/50V .IMFD 50V
32 1 SPAC-HEX/TD/1/4” STAND OFF
33 1 GUID-BOTTOM/TD/MET LOWER GUIDE MET.
34 4 RING-E25RT/TT RETAINING RING
35 1 GUID-TOP/TD/MET GUIDE TOP METAL
36 2 PULY-SP212/TE/NYLN SPACER WASHER
37 2 SPRG-FRONTTP/TD SPRING FRONT-PLATE
38 4 RM-PEMNUT/TD/FRPL PEMNUT FRAME
39 2 RM-PEMNUT/TD/FRPN PEMNUT FRONT
40 1 COVR-H21A/TD/OPTO DUST COVER
41 1 CONN MOLEX/TD/4PM 4 WIRE MOLEX MA.
42 1 RM-LABEL/TD/ALUM LABEL ALUMINUM
43 WIRE-REDBLK/TD/MOTOR
44 2 SPAC-PIVBRK/TD/HEX SPACER 1/4” HEX
DETAILS OF PARTS
www.seuservice.com
24
Material List for Screws
P/N QTY PART # DESCRIPTION
1 11 EM-#4-40S/TD-1/4 4-40X1/4”SCREW
2 3 RM-#4-40R/TS-1/4 4-40X1/4”WASHER HEAD
3 2 RM-#4-40R/TD-1/2 4-40X1/2”WASHER HEAD
4 1 RM-#8SCRW/TD 8-33X1-1/4”
5 1 RM-#4FLTW/TT #4 FLAT WASHER
6 5 RM-#4SPSW/TT #4 SPLIT LOC. WASHER
7 2 RM-#4-40T/TD/1/8 PHILLIPS TRUSSHEAD
8 1 RM-#8STAR/TD #8 INT STAR WASHER
9 1 SCRW-SET/TT 8-32X3/16” SET SCREW
10 1 SCRW-SET/TD/BKWH 8-32 X 1/8 SET SCREW
14. DESIGN RELATED PARTS
999-1532 Marquee
999-1555 Front Plex Clear SSP
999-1523 Decal Base Left
999-1534
Design Plate Credit/Ticket
999-1533 Ctrl Pnl Overlay
See (A) Below
999-1530 Spinning Sonic Disc
999-1531 Spinning Tails Disc
999-1527 Prize Dial Heart
999-1528 Prize Dial Club
999-1529 Prize Dial Diamond
999-1524 Decal Base Right
999-1525 Decal Base Spkr
Pnl Upper
999-1526 Decal Base Spkr
Pnl Lower
999-1538
Decal Sonic Button Insert
999-1522 Decal Front Panel
999-1539 Decal Tails
Button Insert
“Tickets” Decal
Happ controls Part # 42-1378-00
(A) 999-1535 Jackpot Insert Heart
999-1536 Jackpot Insert Club
999-1537 Jackpot Insert Diamond
25
www.seuservice.com
27
www.seuservice.com
Encoder Wheel ( 2x)
Motor Base (2X)
Motor (2X)
1/4" Drive Pulley (2X)
Front Flange
Flanged Idler Pulley
Belt Tension Bracket (2X)
3/8" Drive Pulley
Axle
Encoder Board (2X)
PCB Bracket (2X)
Mechanism Shelf
Belt (2X)
1/4-20x11/2 Hex Head Bold (2X)
15. PARTS
Mechanism Assy SSP (999-1589) (P 1/4)
9
3
8
1/4 in. deec-
2
7
DO NOT OVERTIGHTEN BELT
TENSION. Only tighten nger
tight to allow at least
tion.
6
1
4
2
101
5
15
13
WARNING!
1
101
www.seuservice.com
26
10
101
14
2
12
11
Mechanism Assy SSP (999-1589) (P 2/4)
Item Number Part Number Description Picture
1 999-1578 Encoder Wheel SSP
2 999-1581 Axle SSP
3 998-0172 Encoder Board SSP
4 999-1576
5 999-1577
Hub Spinner Assy
(Front Flange) SSP
Flanged Idler Pully
SSP
6 999-1572 1/4 in. Drive Pully SSP
27
www.seuservice.com
29
www.seuservice.com
Mechanism Assy SSP (999-1589) (P 3/4)
Item Number Part Number Description Picture
7 999-1573 Belt (350 5M 09) SSP
8 999-1575
Encoder PCB Bracket
SSP
9 999-1582 Mechanism Shelf SSP
10 999-1580
11 999-1574
Motor Base
Bracket SSP
Belt Tensioner Bracket
SSP
No Photo At Print Time
12 999-1583
Globe Motor (24v DC)
SSP
13 999-1571 3/8 in. Drive Pully SSP
www.seuservice.com
28
Mechanism Assy SSP (999-1589) (P 4/4)
Item Number Part Number Description Picture
14 999-1579
15 999-1588
999-1530
Pillow Block W/ Bear-
ings SSP
Tension Bolt (For
Mech Assy) SSP
Spinning Sonic Disc
SSP
999-1531
Spinning Tails Disc
SSP
101 999-1570 3/8 in. E-Ring SSP
29
www.seuservice.com
31
www.seuservice.com
Top Assy. & Control Panel SSP (P 1/4)
999-1530 Spinning Sonic Disc
4
3 2 1
999-1525 Decal Base Spkr Pnl Upper
1615
17
18
6
999-1526 Decal Base Spkr Pnl Lower
5
11
6
7
8
6
9
10
14
13
12
www.seuservice.com
999-1533 Control Panel Overlay
30
Top Assy & Control Panel (P 2/4)

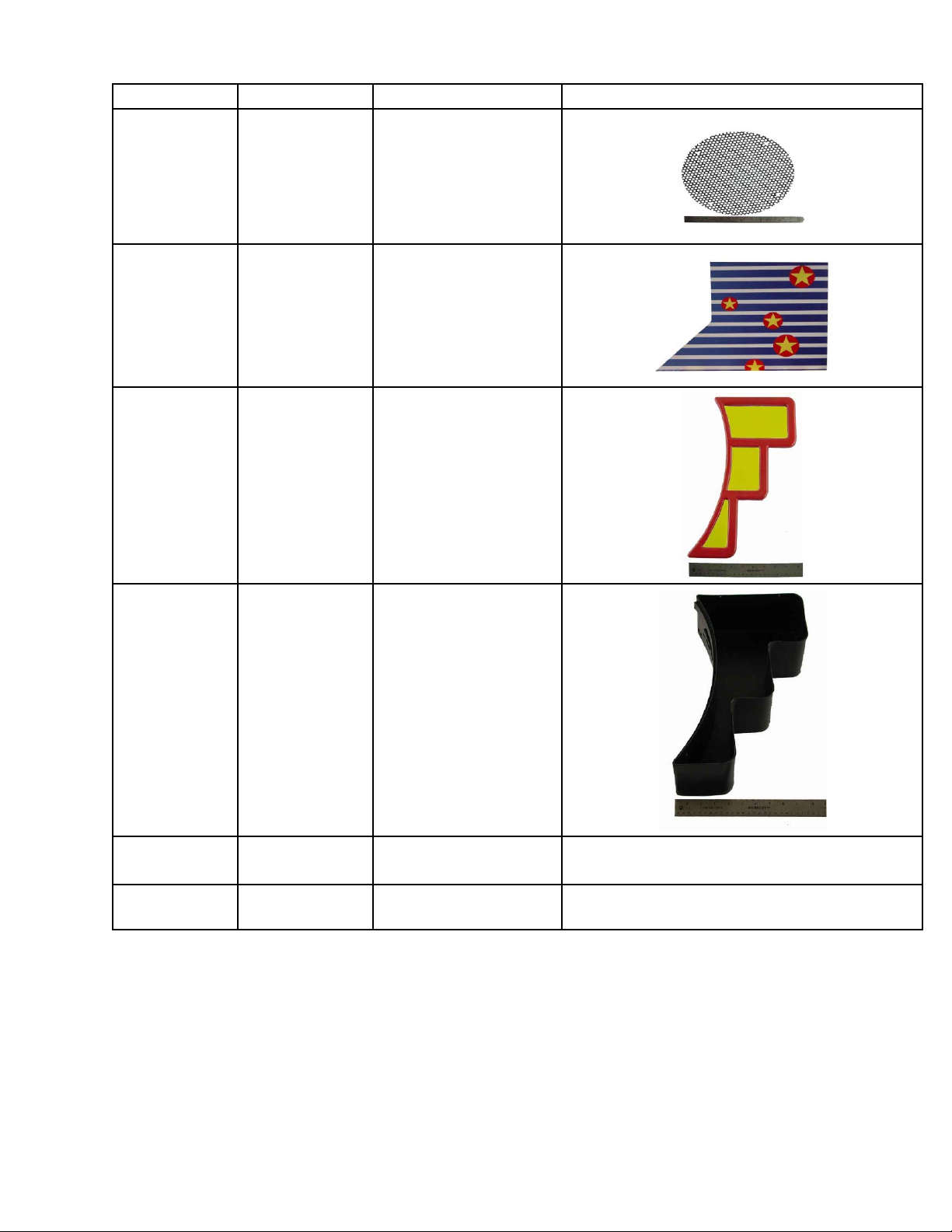

Item Number Part Number Description Picture
1 999-1567 Ear Front Left SSP
2 999-1566
3 999-1560
4 999-1587
5 999-1523
Ear Base Left SSP
(without light xture)
Fixture for Ear Left
(18” Cool White Local
Purchase) SSP
Left Ear Assy SSP
(includes light xture)
Decal Base Assy. Left
SSP
No Photo at time of Print
No Photo at time of Print
6 999-1568
7 999-1562
1250X-2 12v 5w
Xenon Bulb SSP
Blue Button SSP
(without sonic insert)
31
www.seuservice.com
33
www.seuservice.com
Top Assy & Control Panel SSP (P 3/4)
Item Number Part Number Description Picture
8 999-1538
9 999-1563
10 999-1539
Decal Sonic Button
Insert SSP
Button Yellow SSF
(without Tails insert)
Decal Tails Button
Insert SSP
11 998-0173
12 999-1534
3 Digit Numeric Dis-
play SSP
Design Plate Credit/
Ticket SSP
www.seuservice.com
32
Top Assy & Control Panel SSP (P 4/4)
Item Number Part Number Description Picture
13 999-1556 Speaker Grill SSP
14 999-1524 Decal Base Right SSP
15 999-1565 Ear Front Right SSP
Ear Back Right
16 999-1564
(without Light Fixture)
SSP
17 999-1560
Fixture for Ear Right
SSP
18 999-1586 Ear Assy Right SSP
No Photo at time of print
No Photo at time of print
33
www.seuservice.com
37
www.seuservice.com
Header and Electronics SSP (P 1/3)
1
2
11
10
9
8
3
4
67
5
www.seuservice.com
36
Header and Electronics SSP (P 2/3)
Item Number Part Number Description Picture
1 999-1532 Marquee SSP
2 999-1559
999-1527
3
999-1528
999-1529
Purchase from
4
Happ Part #
42-1378-00
R14 03604 Mini Flood
SSP
Prize Dial Heart SSP
Prize Dial Club SSP
Prize Dial Diamond SSP
Ticket graphic SSP
5 999-1585 Leg Leveler SSP
6 998-0176
7 998-0177
Astec 24v2a/12v1a
Power Supply SSP
Autec 12v3a/5v3a
Power Supply SSP
8 998-0167 Game Board SSP
37
No Photo at time of print
No Photo at time of print
www.seuservice.com
Header and Electronics SSP (P 3/3)
Item Number Part Number Description Picture
9 998-0175
998-0168
10
998-0169
998-0170
998-0171
11 999-1558
998-0174 Wire Harness SSP
999-1569
999-1561
999-1584
999-1557
Ribbon Cable
Interconnect SSP
Lamp Board (A) SSP
Lamp Board (B) SSP
Lamp Board (C) SSP
Lamp Board (D) SSP
MiniFlood Lamp Socket
For Marquee
Wedge Base Sockets
SEP
Internal Light Fixture
SSP
(18in Cool White Local
Purchase)
Wood Marquee Bracket
SSP
8ohm 4” Speaker 20
watt SSP
No Photo at time of print
No Photo at time of print
No Photo at time of print
No Photo at time of print
No Photo at time of print
No Photo at time of print
No Photo at time of print
No Photo at time of print
www.seuservice.com
38
Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workmanship or materials under normal operating conditions. This also certies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating conditions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to replace or repair the defective part during the warranty period. For Warranty claims, contact your Sega
Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Neglect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of prots, loss of use, or other damages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.
Loading...
