Sega 999-0886 User Manual

2ND PRINTING DEC 99
STD VERSION
OWNER’S MANUALOWNER’S MANUAL
OWNER’S MANUAL
OWNER’S MANUALOWNER’S MANUAL
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-0886
Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman­ship or materials under normal operating conditions. This also certifies that all Interactive Control Assemblies are to be free from defects in workmanship and materials under normal operating condi­tions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to replace or repair the defective part during the warranty period. For Warranty claims, contact your Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne­glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam­ages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other warranties expressed or implied. Under no circumstance shall it extend beyond the period of time listed above.
TABLE OF CONTENTS
INTRODUCTION OF THE OWNERS MANUAL GENERAL PRECAUTIONS
1. PRECAUTIONS TO BE HEEDED FOR OPERATION
2. NAME OF PARTS
3. ACCESSORIES
4. ASSEMBLY AND INSTALLATION
5. PRECAUTIONS TO BE HEEDED WHEN MOVING MACHINE
6. CONTENTS OF GAME

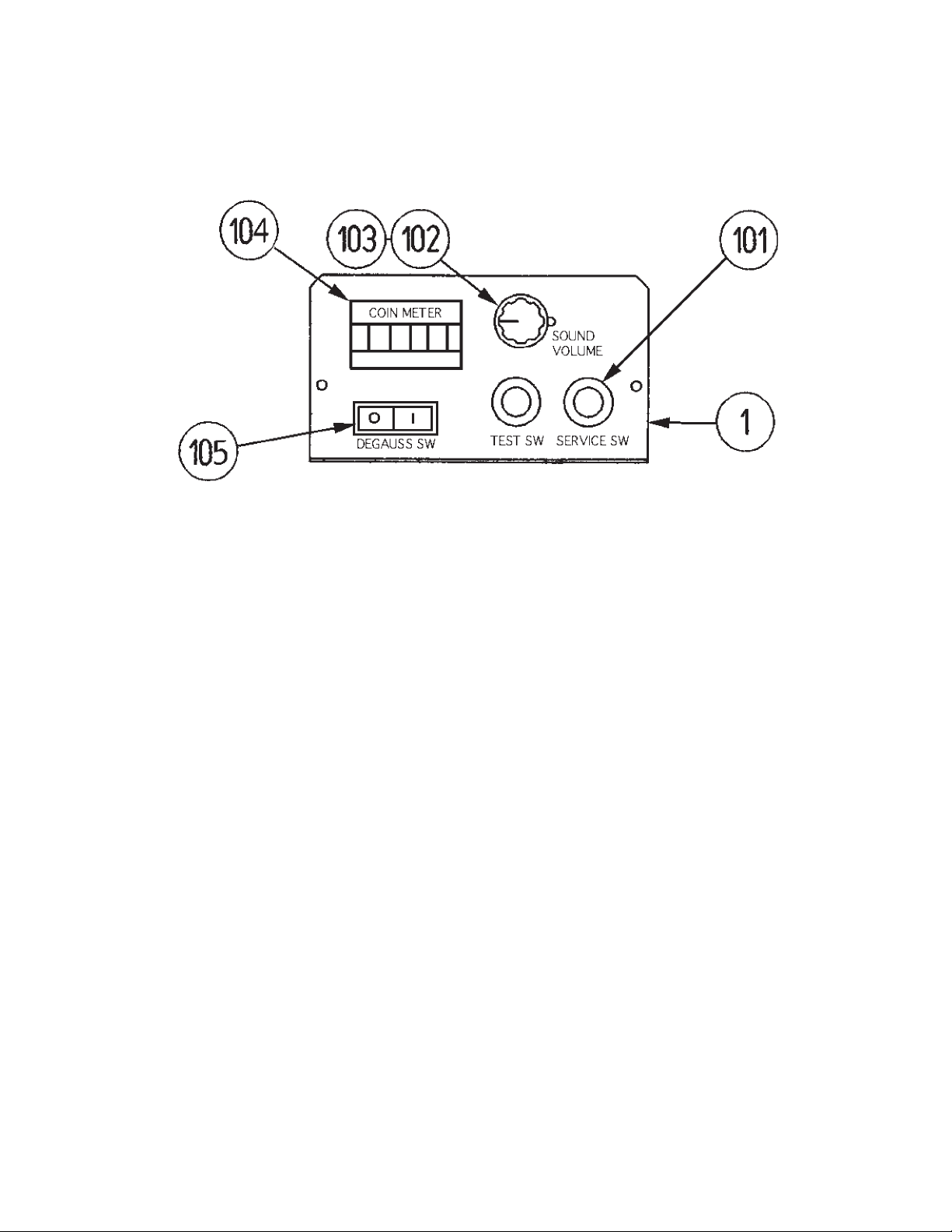

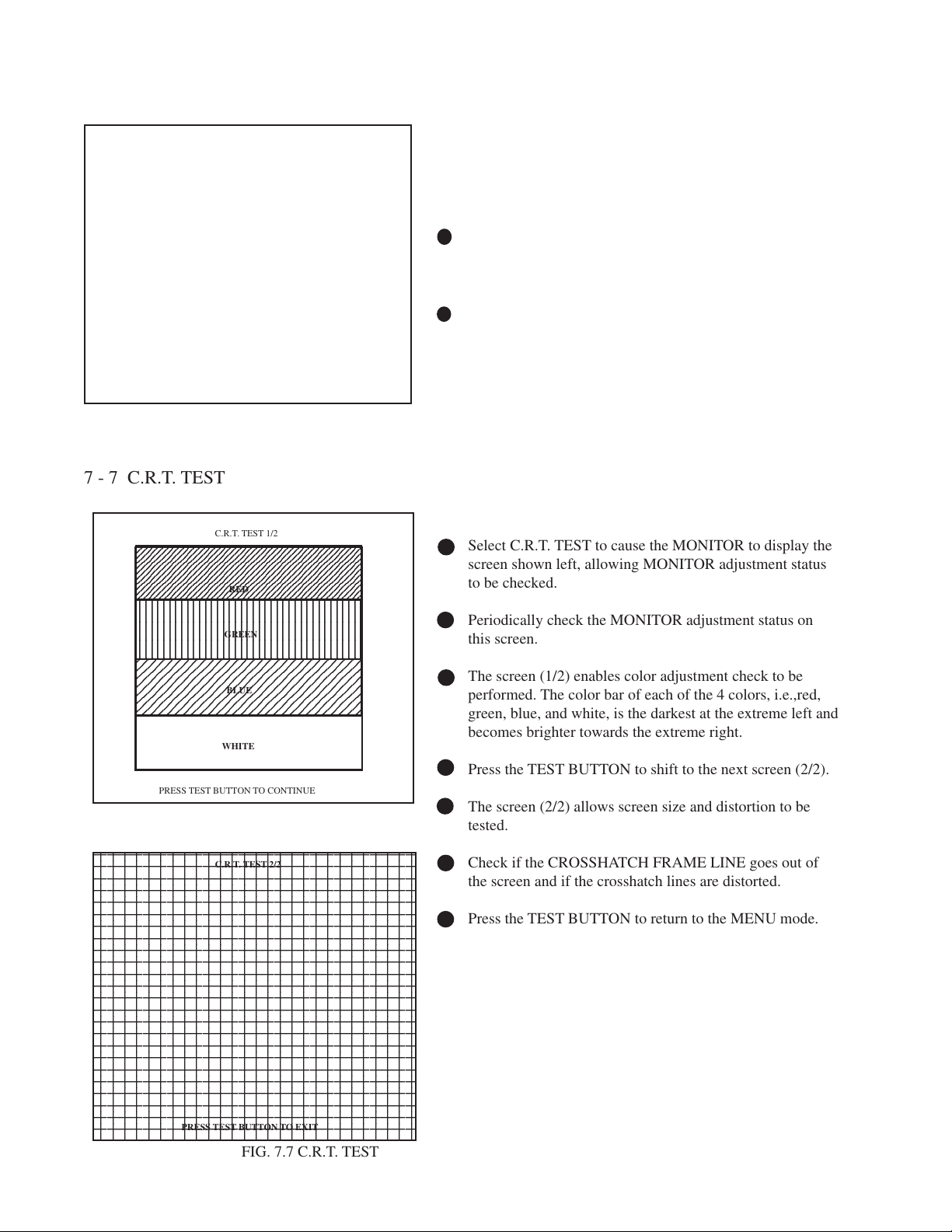

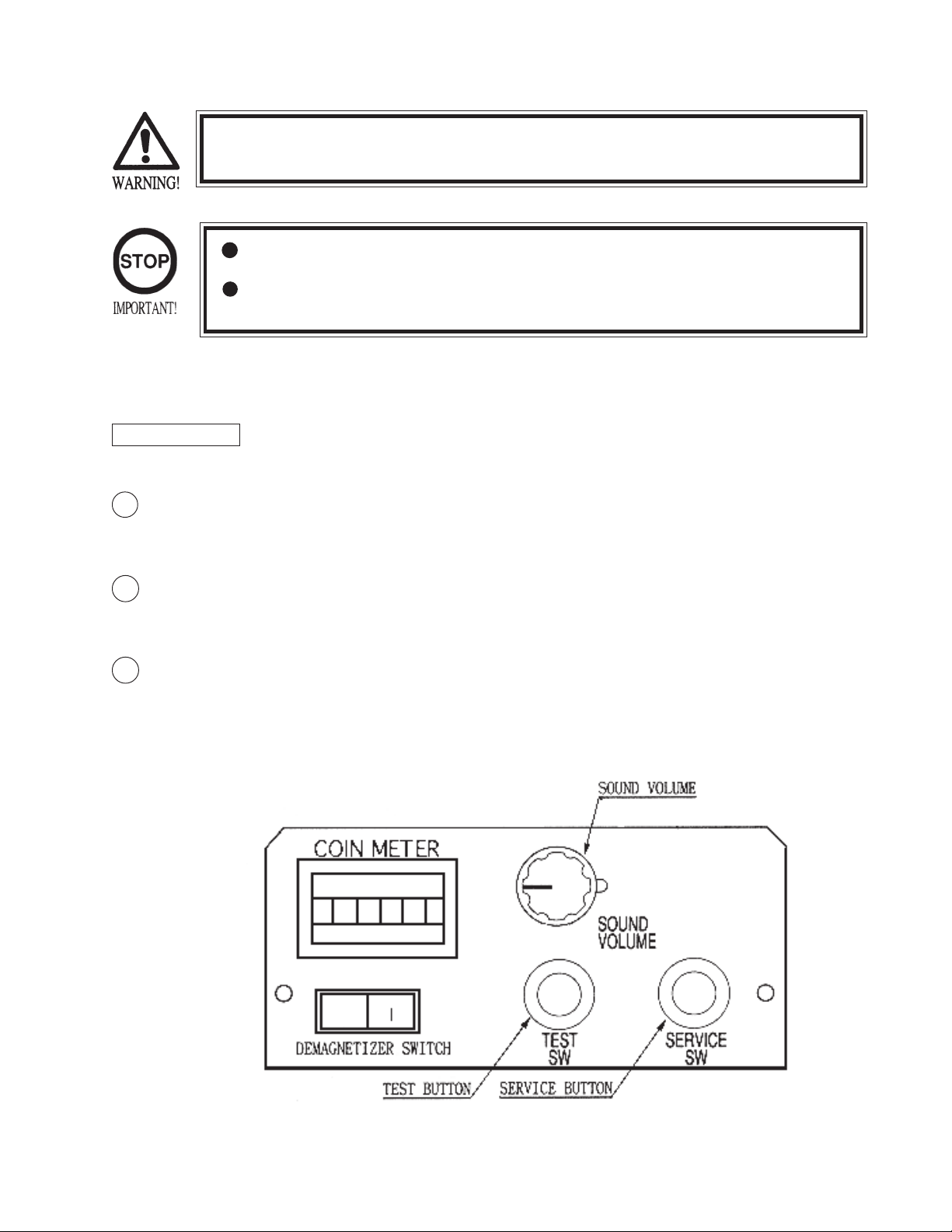

7. EXPLANATION OF TEST AND DATA DISPLAY 7-1 SWITCH UNIT AND COIN METER 7-2 SYSTEM TEST MODE 7-3 GAME TEST MODE 7-4 INPUT TEST 7-5 OUTPUT TEST 7-6 SOUND TEST 7-7 C.R.T. TEST 7-8 VOLUME SETTING 7-9 GAME ASSIGNMENTS 7-10 COIN ASSIGNMENTS 7-11 BOOKKEEPING 7-12 BACKUP DATA CLEAR

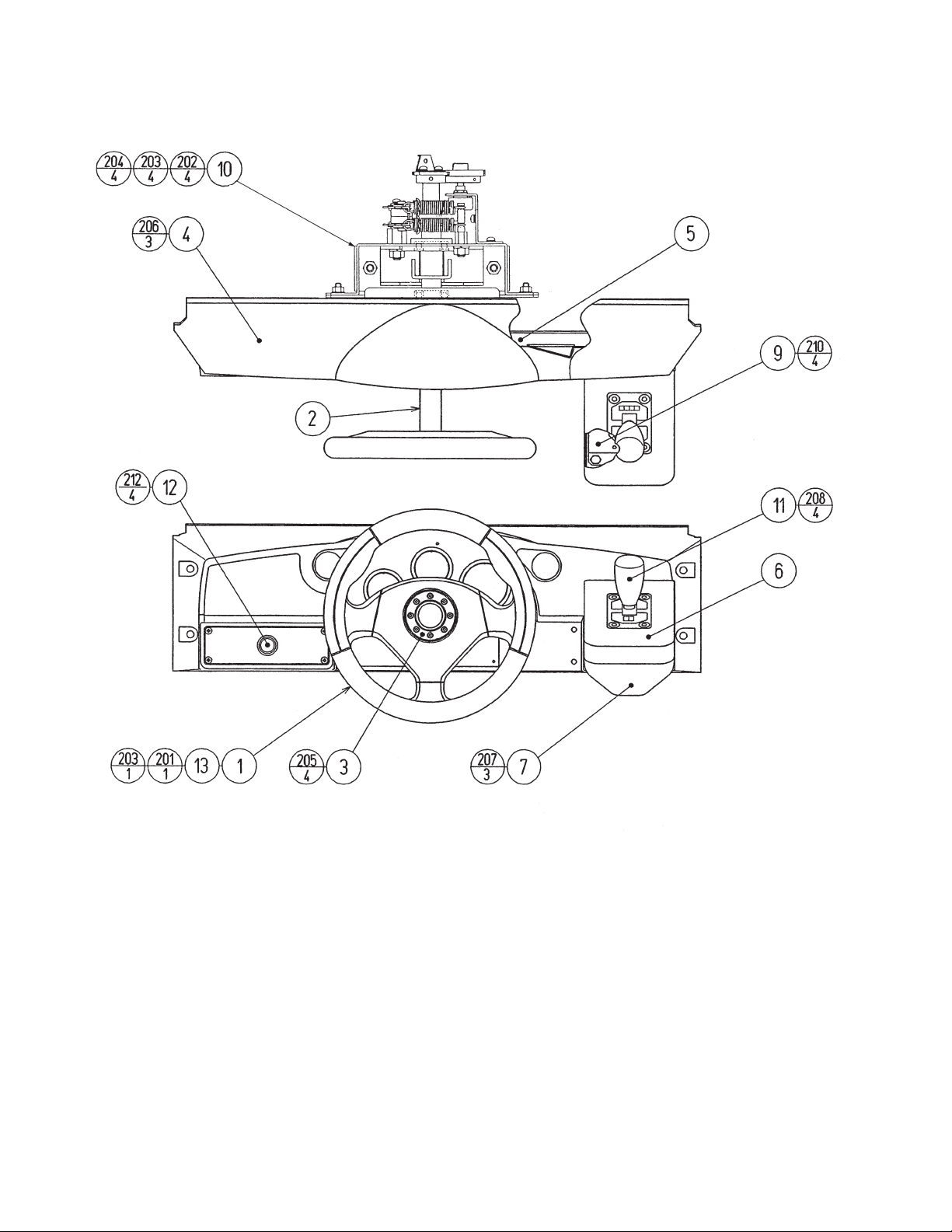

8. HANDLE MECHA 8-1 REMOVING THE CONTROL PANEL 8-2 REPLACING AND ADJUSTING THE HANDLE’S VR 8-3 GREASING
9. SHIFT LEVER 9-1 REMOVING THE SHIFT LEVER 9-2 SWITCH REPLACEMENT

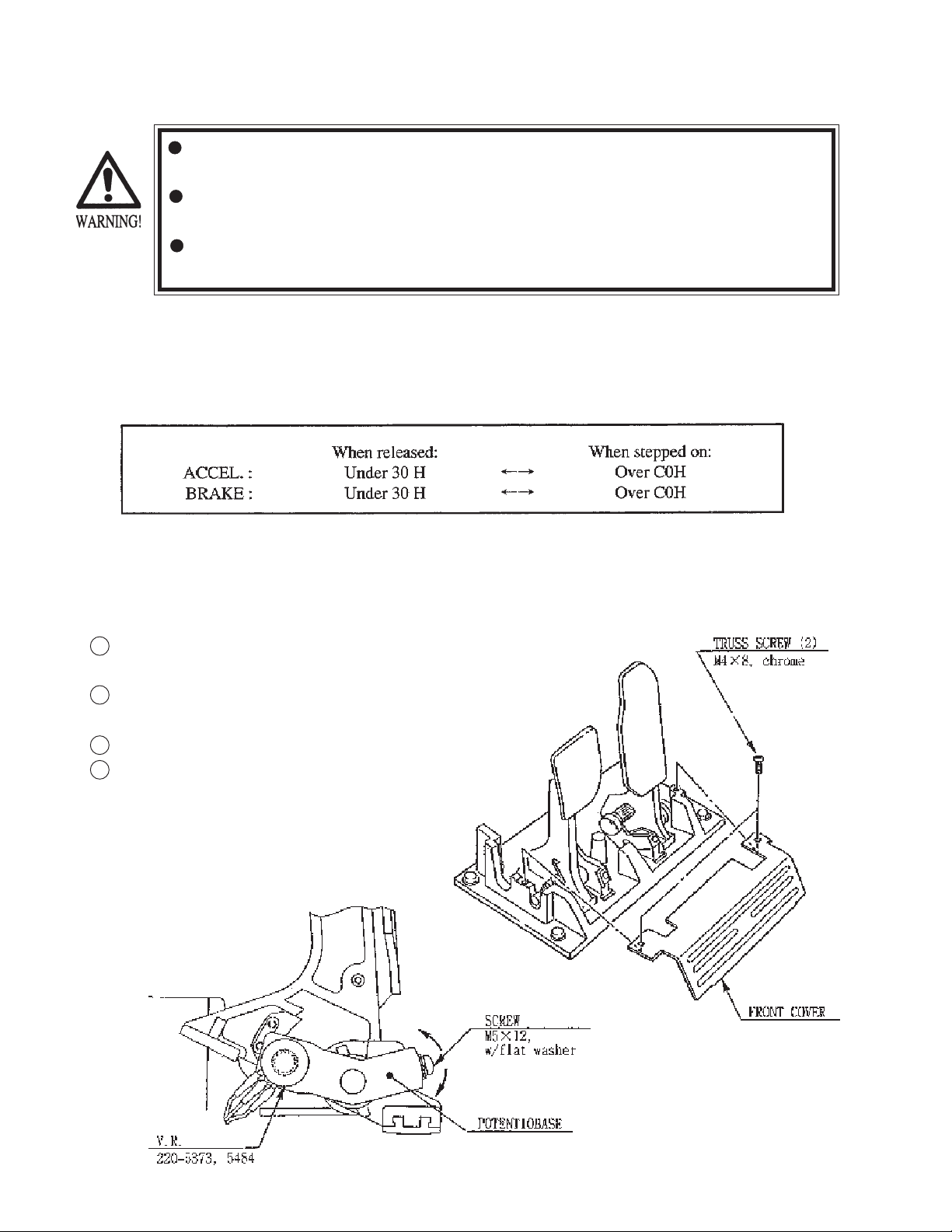

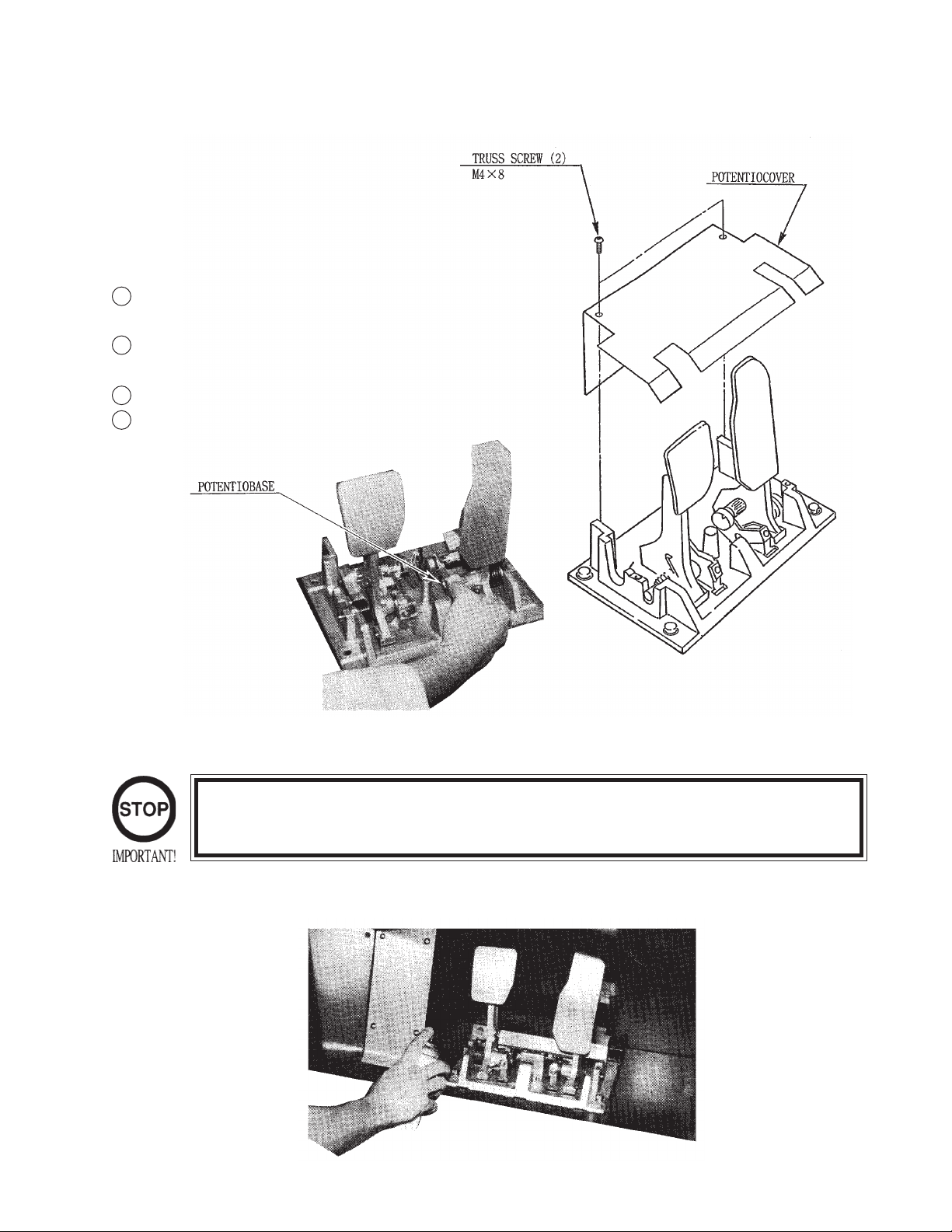

10. ACCEL & BRAKE 10-1 ADJUSTING AND REPLACING THE VR 10-2 GREASING TO FOOT BRAKE AND ACCEL
11. COIN SELECTOR

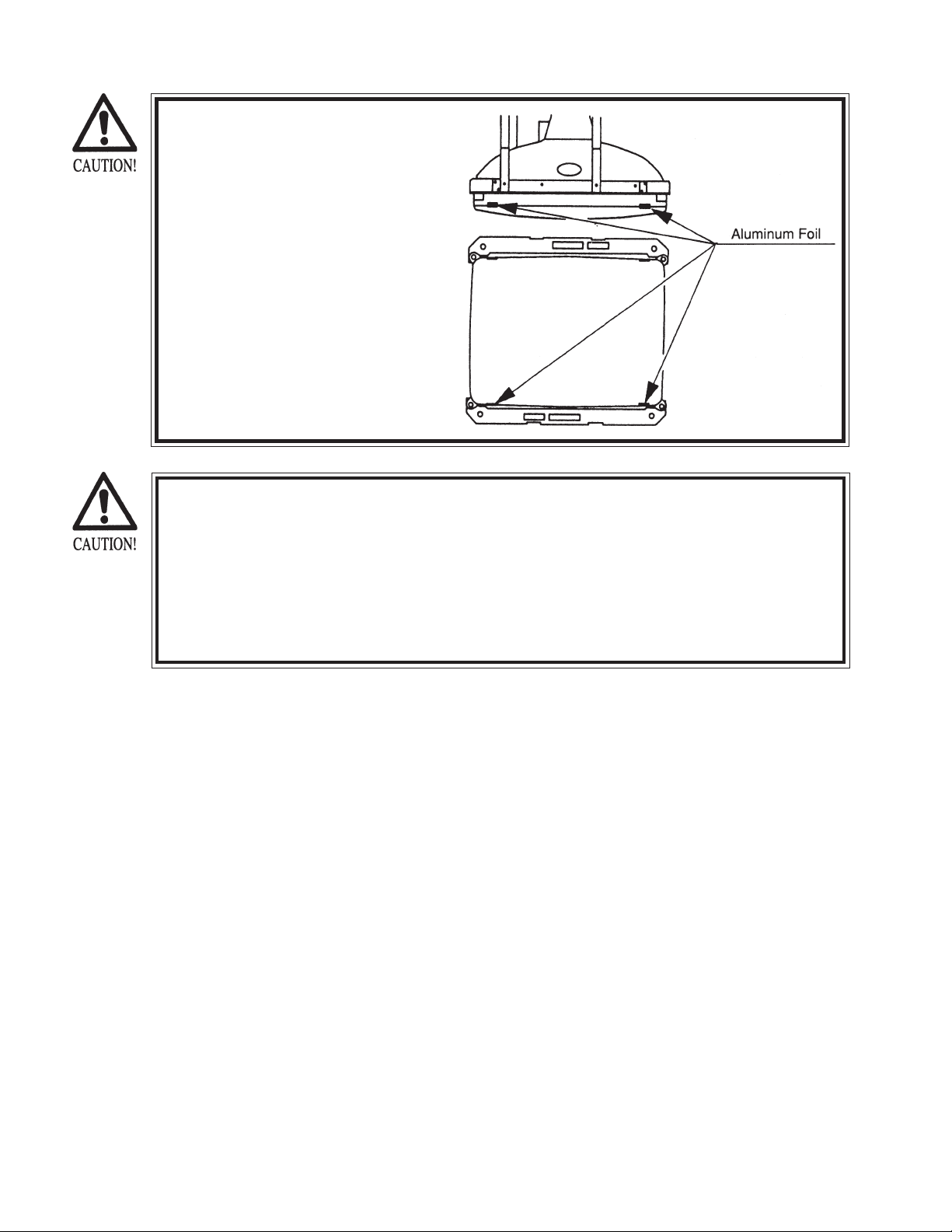

12. MONITOR
13. REPLACEMENT OF FLUORESCENT LAMP 13-1 REPLACEMENT OF FLUORESCENT LAMP
14. PERIODIC INSPECTION TABLE
15. TROUBLESHOOTING
16. GAME BOARD 16-1 REMOVING THE GAME BOARD 16-2 REPLACMENT OF FUSE 16-3 COMPOSITION OF THE GAME BOARD
18. DESIGN RELATED PARTS

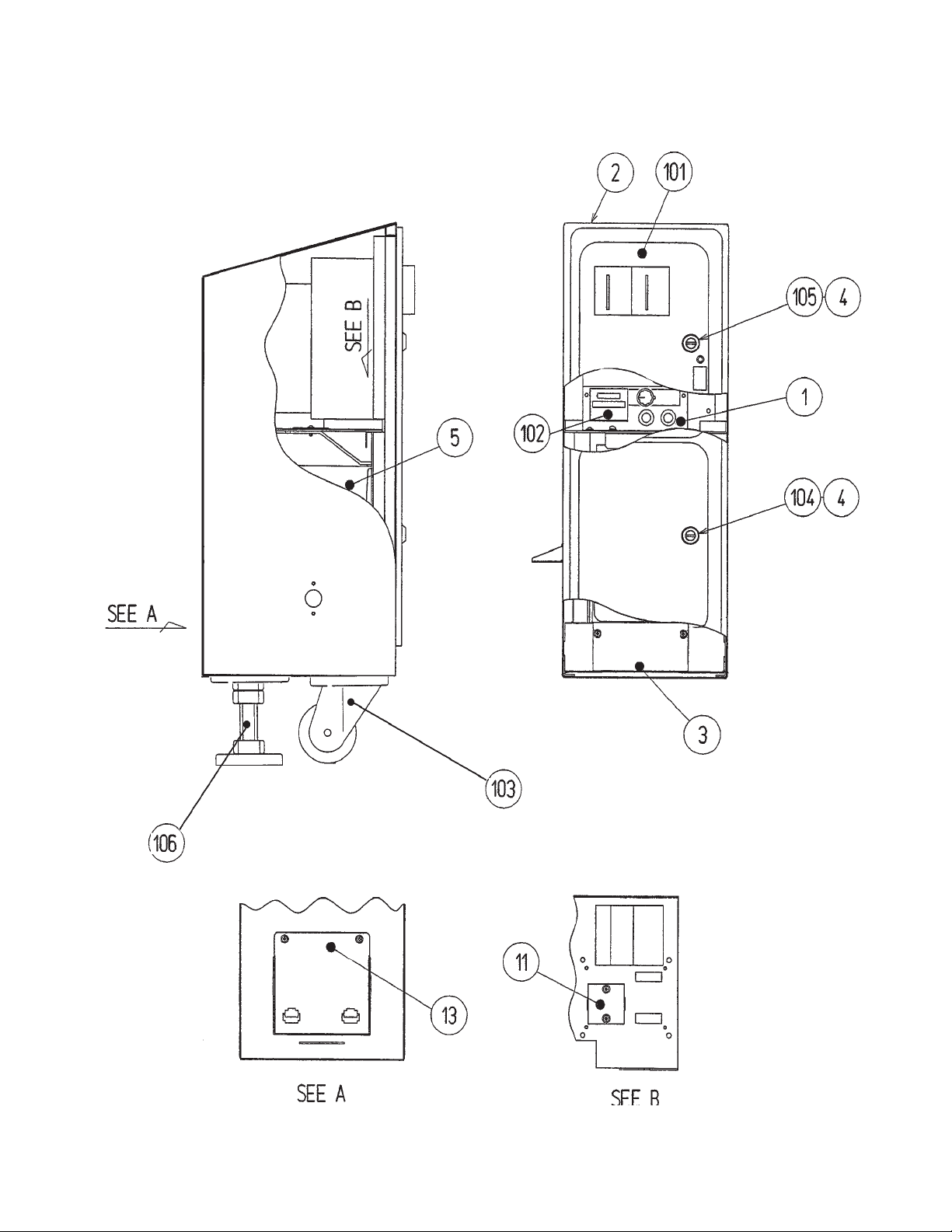

19. PARTS LIST
20. WIRING DIAGRAMS
1 2~3 4~5 6 7~8 9~15 16 17~21 22~32 23 24 24 25 25 26 26 27 28 29~31 32 32 33~35 33 34 35 36~37 36 37 38~39 38~39 39 40~42 43~45 46 46 47 47 49~51 49 50 51 52 53~77 XXX
SPECIFICATIONS
Installation space: 68 in.(L) x 41 in.(W)
Height: 84 in.
Weight: Approx. 550 lbs.
Power maximum current: 3.5 Amp AC 120V 60 Hz
MONITOR: 29” NANAO MONITOR
INTRODUCTION OF THE OWNERS MANUAL
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative and popular amusement products to the world market. This Owners Manual is intended to provide detailed descriptions together with all the necessary installation, game settings and parts ordering information related to JAMBO SAFARI STD, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise, espe­cially in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to acquire sufficient knowledge before working on the machine. Should there be a malfunction, non-technical personnel should under no circumstances touch the interior system. Should the need arise, contact our main office, or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA) Customer Service
45133 Industrial Drive Fremont, CA 94538 Phone 415.701.6580 Fax 415.701.6594 7:30 am - 4:00 pm, Pacific Standard Time Monday thru Friday
1
General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use only mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product
and to protect it from overheating; these openings must not be blocked or covered. The openings should never be blocked
by placing the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your location, consult your local power company. For products intended
to operate from battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in
a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the
product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service person-
nel under the following conditions:
a) If the power cord or plug is damaged; b) If liquid has been spilled, or objects have fallen into the product; c) If the product has been exposed to rain or water; d) If the product does not operate normally when following the operating instructions. Adjust only those controls that
are explained in the operating instructions. An improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation; e) If the product has been dropped or damaged in any way; f) When the product exhibits a distinct change in performance; this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure the service technician has used replacements parts
specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
2
Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other prod-
ucts (including amplifiers) that produce heat.
Lithium BatteryLithium Battery
Lithium Battery- Dispose of batteries only in accordance with the battery manufacturer’s recommendations.
Lithium BatteryLithium Battery
Do not dispose in an open flame condition, since the battery may explode.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not apply chemicals such
as benzine, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside. To ensure proper usage, avoid installing indoors
in the places mentioned below:
• Places subject to rain/water leakage, or condensation due to humidity;
• In close proximity to a potential wet area;
• Locations receiving direct sunlight;
• Places close to heating units or hot air;
•In the vicinity of highly inflammable/volatile chemicals or hazardous matter;
• On sloped surfaces;
• In the vicinity of emergency response facilities such as fire exits and fire extinguishers;
• Places subject to any type of violent impact;
• Dusty places.
I
NSTALLATION PRECAUTIONS
• Verify the amperage of the branch circuit outlet before plugging in the power plug. Do not over-
load the circuit.
• Avoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3 AWG
rated min. 120 VAC, 7A.
• Moving this unit requires a minimum clearance (of doors, etc.) of 32” (W) by 77” (H).
• For the operation of this machine, secure a minimum area of 32” (W) by 42”(D).
REGULATORY APPROVALS
This game has been tested and found to comply with the Federal Communications Commission Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.
3
1 . PRECAUTIONS TO BE HEEDED FOR OPERATION
In order to prevent accidents, be sure to comply with the following points before and during operation.
PRECAUTIONS TO BE HEEDED FOR OPERATION BEFORE STARTING THE OPERATION
In order to avoid accidents, check the following before starting the operation:
Check if all of the adjusters are in contact with the surface. If they are not, the cabinet can move and cause an accident.
Do not climb on the product. Climbing on the product can cause falling down accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are closed.
To avoid electric shock, short circuit and or parts damage, do not put the following items on or in the periphery of the product:
Flower vases, flower pots, cups, water tanks, cosmetics, and receptacles/ containers/vessels containing chemicals and water.
To avoid injury, be sure to provide sufficient space by considering the potentially crowded situation at the installation location. Insufficient instal­lation space can cause the player to come into contact with or hit others and result in injury or trouble.
4
PRECAUTIONS TO BE HEEDED DURING OPERATION
To avoid injury and accidents, those who fall under the following catagories are not allowed to play the game:
* Intoxicated persons * Those who have high blood pressure or heart problems. * Those who have experienced muscle convulsion or loss of consciousness when playing
video games, etc. * Persons susceptible to motion sickness. * Persons whose acts runs counter to the products warning displays. * Instruct those who wear high-heeled shoes to refrain from
playing the game by explaining that playing the game with high­heeled shoes is very dangerous and likely to cause a potentially hazardous situation.
To avoid electric shock and short circuit, do not allow customers to put hands and fingers
or extraneous matter in openings of the product or small openings in or around doors.
To avoid electric shock and short circuit, do not allow the customers to unplug the power
plug without a justifiable reason.
Although this product has the accident preventive covering attached to potentially hazard-
ous places where hand and fingers could be caught, small children are unable to perceive
hazards. Use care so that small children do not come close to the product when in play.
Immediately stop such violent acts as hitting and kicking the product. Such violent acts can
cause parts damage and/or falling down, resulting in injury due to fragments and falling
down.
5
2 . NAME OF PARTS
JAMBO SAFARI STD
GAME SPECIFICATIONS
DURING SHIPPING
WHEN ASSEMBLED
WIDTH in. LENGTH in.
All measurements are and rounded UP
45” X 70” X 84”
39” X 65” X 80”
6
HEIGHT in.
WEIGHT lbs.
~ 600 LBS.
550 LBS.
3 . ACCESSORIES
7
THE SHIPMENT METHOD DESCRIBED BELOW ONLY APPLIES TO ‘MODEL 3’ BOARDS CONTAINED IN THE
FOLLOWING GAMES:
LOST WORLD, VIRTUA FIGHTER 3, SUPER GT, SEGA BASS FISHING, STRIKER 2
HARLEY DAVIDSON, RALLY 2, DAYTONA 2, DIRT DEVILS, HOUSE OF THE DEAD 2, OCEAN HUNTER,
STAR WARS TRILOGY, ZOMBIE REVENGE, CRAZY TAXI, MAJOR LEAGUE BASEBALL, VIRTUA
TENNIS, JAMBO SAFARI
!!NEVER SHIP MODEL 3 / NAOMI GAME
!!NEVER SHIP MODEL 3 / NAOMI GAME
BOARDS OUTSIDE OF CAGE!!
BOARDS OUTSIDE OF CAGE!!
CARTON BOX 601-8928 (1) Used for transporting the GAME BOARD. {SUPPLIED WITH YOUR GAME}
DO NOT SHIP GAME BOARD WITHOUT
THIS BOX AS IT MAY DAMAGE THE GAME
BOARD AND VOID YOUR WARRANTY.
“CHECK SIDE” Display
FILTER BOARD
NO OTHER GAMES BOARDS ARE TO BE SHIPPED IN THE CAGE AS
THEY MAY BE DAMAGED BEYOND REPAIR. PLEASE SHIP THEM
WITHOUT CAGE PROPERLY PROTECTED DURING SHIPPING.
8
4 . ASSEMBLING AND INSTALLATION
Assembling should be performed as per this manual. Since this is a complex machine, erroneous assembling may cause damage to the machine, or malfunctioning to occur. When assembling, be sure to perform work by plural persons. Depending on the assembly work, there are some cases in which performing the work by a single person can cause personal injury or parts damage.
When carrying out the assembly work, follow the procedure in the following 5-item sequence:
1
ASSY OF THE REAR CABI (COCKPIT)
2
ASSY OF BILLBOARD
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
3
POWER SUPPLY
4
ASSEMBLING CHECK
5
Note that the tools such as a phillips screwdriver and wrench for M16 hexagon bolt w/24 mm width across flats are required for the assembly work.
ASSY OF REAR CABI (COCKPIT)
1
Permanantly tightening the hex bolts should not be completed until the leg levelers are adjusted properly.
9
Install the coin chute tower on the Right-hand side of cabinet. Open the coin chute door and the cashbox door to
1
secure with the 4 hexagon bolts from inside the doors. Please note that the Coin Chute tower is NOT mounted on the Left-hand side as shown above.
NOTE: ON SEGA’s CRAZY TAXI GAME THERE IS NOT TWO COCKPITS SIDE BY SIDE AS PICTURED ABOVE.
THE GAME HAS ONLY ONE COCKPIT AND THE COIN TOWER WILL MOUNT ON THE RIGHT SIDE AS YOU
FACE THE CABINET..
10
ASSY OF THE BILLBOARD
2
Due to its large size, it is very difficult for one person alone to install the billboard, Make sure 2 or more persons are available to perform this work. Attempting to perform the installation alone can cause an accident.
Mount Billboard on cabinet by ensuring the front lip of the Billboard is securely placed under the mounting bracket
1
already installed on the cabinet. Fasten with the 3 hexagon bolts.
2
Connect all of the 4 connectors inside the Billboard box (This needs to be done prior to final installation of
Billboard Assy).
11
3
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Be sure to have all the Adjusters make contact with the surface. Un­less the Adjusters come into contact with the surface, the Cabinet can move of itself, causing an accident.
This machine has 4 each of casters and adjusters (shown below). When the installation position is determined, cause the adjusters to come into contact with the floor directly, make adjustments in a manner so that the casters will be raised approximately 5mm. from the floor and make sure that the machine position is level.
Move the machine to the installation position.
1
Cause all of the leg levelers to make contact
2
with the floor. By using a wrench, make
adjustments in the height of the leg adjusters to
ensure that the machine's position is level.
After making adjustments, fasten the leg
3
adjuster nut upward and secure the height of the
leg adjuster.
12
4
Connect the game to the power supply and turn on power to the game. Before connecting power supply be sure that power switch is off
1
2
POWER SUPPLY
Ensure that the power cord is not exposed on the surface (passage, etc.). If exposed, they can be caught and are susceptible to damage. If damaged, the cord can cause an electric shock or short circuit. Ensure that the wiring position is not in the customer's passage way or the wiring has protective covering.
Turning the AC unit’s main switch on will cause the machine to start the power check and network check automatically.
In the Power On check, the steering wheel turns left and right, and then returns to the centering position and stops. In this check, the values of the VR inside the control panel are corrected.
Until this check is finished, and the steering wheel stops, do
3
not touch the steering wheel or play the game.
If you do, the steering reaction during the game (reaction at the time of course-out or crash) can not be obtained correctly. In the case of an abnormal reaction during the game, turn power on again from the beginning and complete the power on check.
13
5
The TEST MENU allows for each part of the cabinet to be checked, the Monitor to be adjusted, and the coin and game
related various functions to be performed.
Selecting the MEMORY TEST on the test mode menu screen causes the on-board memory to be tested automatically. The game board is satisfactory if the display beside each IC No. shows GOOD.
ASSEMBLING CHECK
Selecting the INPUT TEST on the Test Mode menu screen causes the screen (on Which each switch adnV.R. are tested) to be displayed. Press each switch. For the coin switch test, insert a coin from the coin inlet with the coin chute door being open. If the display beside each switch indicates “ON”, the switch and wiring connections are satisfactory. Check the display of V.R. value for steering wheel and accelerator & brake. If the V.R. values are not satisfactory, make adjustments as neccesary.
In the OUTPUT TEST mode, carry out lamp test to ensure that each lamp lights up satisfactory.
14
8
8
8
8
8
8
7
7
7
7
7
7
7
7
7
2
2
2
2
2
2
2
2
2
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
SOUND TEST
VOICE
EFFECT
B.G.M.
>EXIT
SELECT WITH SERVICE BUTTON AND PRESS TEST BUTTON TO EXIT
C.R.T. TEST 1/2
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
RED
GREEN
BLUE
In the TEST mode, selecting SOUND TEST causes the screen, on which sound related BD and wiring connec­tions are tested, to be displayed. Be sure to check if the sound is satisfactorily emitted from each of speaker and the sound volume is appropriate.
In the TEST mode menu, selecting C.R.T. TEST allows the screen (on which the projector is tested) to be displayed. Although the projector adjustments have been made at the same time of shipment from the factory, color deviation, etc., may occur due to the effect caused by geomagnitism, the location building’s steel frames and other game ma­chines in the periphery. By watching the test mode screen, make judgement as to whether an adjustment is needed. If it is neccessary, adjust the projector by refering to Section 9.
WHITE
PRESS TEST BUTTON TO CONTINUE
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
PRESS TEST BUTTON TO CONTINUE
C.R.T. TEST 2/2
Perform the above inspections also at the time of monthly inspection.
15
5 . PRECATIONS TO BE HEEDED WHEN MOVING THE MACHINE
When moving the machine, be sure to pull out the plug from the power supply. Moving the machine with the plug as is inserted can damage the power cord and cause a fire or elec­tric shock. When moving the machine on the floor, retract the Adjusters and ensure that Casters make contact with the floor. During transportation, pay careful attention so that Casters do not tread power cords. Damaging the power cords can cause an electric shock and/or short circuit. When lifting the cabinet, be sure to hold the catch portions or bottom part. Lifting the cabinet by holding other portions can damage parts and installation portions, due to the empty weight of the cabinet, and cause personal injury.
Use care when handling glass made parts. When the glass is dam­aged, fragments of glass can cause injury
16
6 . CONTENTS OF GAME
The following explanations apply to the case the product is functioning satisfactorily. Should there be any moves
different from the following contents, some sort of faults may have occured. Immediately look into the cause of the
fault and eliminate the cause thereof to ensure satisfactory operation. During the Advertise mode, the Billboard’s
Decoration Lamp lights up periodically. When the machine is energized, the Billboard’s Fluorescent Lamp is always lit.
The Steering Wheel repeats centering action periodically. Automatic centering will apply to the Steering Wheel if it is
not centered. During the Advertise Mode, sound is emitted from the Speaker beside the Monitor.
OUTLINE OF GAME
The player as a ranger that captures wild animals in Africa for investigation rides in a jeep and captures animals witha
rope and net. Capturing an animal increases the ranger point (displayed on the upper left screen) and the time.
Divided into 6 investigation areas, the various kinds of animals to capture as the norm set for the player (displayed on
the upper center) and ther time limit (displayed on the upper right) are provided in each area.
When the player fullfills the above norm within the time limit, the investigation in that area is finished and he/she can
proceed to the next area. Finishing the investigation in all areas results in clearing the game. When the time limit
becomes zero, the game is over.
HOW TO OPERATE
The operation of Steering Wheel, and Accelerator & Brake Pedals is similar to the actual car.
ROPE/NET LEVER:
Throw a rope with the monitor (the rear) side input and cast a net when the animal is caught by the rope. Draw in the
rope passed around with the front side input unit.
17
HOW TO PLAY
1
Insert a coin.
Coin insertion causes credit(s) to be displayed on the screen. For example, in the case of 2 coins one credits setting,
“INSERT MORE COIN(S) CREDIT(S) 1/2” is displayed when one coin is inserted.
2
Inserting one play worht of coin(s) causes “PRESS START BUTTON” to be displayed and START button to flash.
Press START button to have the Mode Select Screen appear on the monitor.
3
Select the play mode from either BEGINNER or EXPERT Mode in the Mode Select Screen. BEGINNER mode
consisits of 2 areas. In this mode, “instructions” is given during the game play. BEGINNER Mode is suitable for
those who first play this game. EXPERT Mode consists of 4 areas, and is suitable for those who have played this
game before. “Instructions” is not given during the game in the EXPERT Mode.
To select the mode, turn ther Steering Wheel left or right to shift the frame attached to the mode. Step on the
Acelerator Pedal to decide on the mode with the frame being attached.
While the Mode Select is displayed, countdown is executed. Counting down to 0 causes the mode with frame being
attached to be selected automatically.
In case BEGINNER is selected, the monitor proceeds tothe confirmation screen and the play mode to be selected
again. Deciding the play mode causes the Character Select Screen to appear.
In the Character Select Mode, select on-screen player character. Turn the Steering Wheel left or right to shift each
4
character. Press START button or step on the Accelerator Pedal to decide on the character being displayed.
While the Character Select Mode is displayed, countdown is executed. Counting down to 0 causes the character
being displayed to be selected automatically. Character ability is identical.
When the character is determined, the game starts.
5
By driving the jeep, move on the field and look for the animal you wish to catch. When you find the animal to aim
at, approach to the animal until sight is appeared on the monitor and throw a rope by inclining the lever to the back.
Zero-in on the animal unitl the rope captures the animal.
18
6
When the rope is passed around the animal, pull the rope by inclingin the Lever towards you and approach the
animal.
Time is increased by at least onesecond each time the player get s the ring attached to the rope.
When the rope flashes red and the tension gauge displays “ATTENTION”, release the Lever to loosen the rope.
Otherwise the rope will be broken.
Throw the net over the animal. When the player’s view changes and the screen displays the sight, throw the net by
7
inclining the Lever backward. Zero-in on the animal unitl the animal is captured by the net with the net.
When the player succeeds to capture the animal without spending much time, the on-screen replay scene of
capturing the animal is displayed.
8
When the animal is captured, the on-screen image changes to the evaluation mode. Operation is not allowed during
this time.
In the evaluation mode, the animals are taken into the cage after the dsescriptions and the rank (number of *) of
animals captured, the time earned, and the points earned are displayed.
The evaluation is based on the rank of ther animals the playeer captured. The higher the rank, the more time and
points the player can earn.
However, capturing the identical animals decreases the amount of time and points the player casn earn
19
9
Upon completion of the Evaluation Mode, the monitor shifts to the Binoculars Mode. In the Binoculars Mode,
various kinds of animals around the player and the distance to the animals are shown. In this mode, when the
Steering Wheel is turned, the view point is also shifted to the same direction. Step on the Accelerator pedal whe the
animal aimed at appears, and the screen shifts to the Searching for animals mode from thr Binoculars Mode and
displays the arrow pointing to the animal on the ground.
The time limit counts down more slowly while the Binoculars mode is displayed
10
After finishing the investigation, the screen shifts to the Report of Investigation Mode. The toal point and the rank
intechnique are displayed in this mode.
TOTAL POINT: The sum of the points that the player has earned so far and that the remaining time in
the area is converted to .
TECHNICAL LEVEL: Levels in accordance with the TOTAL POINT.
11
When the time limit becomes zero, the game is over. Total Level, Total Point, and the Total Ranking are displayed.
The Total Ranking is the point ranking based on the data of 99 players who have played the game on the machine.
then the screen proceeds to the “GAME OVER” screen. If any credit(s) which is one play worth or more remians,
the START LAMP unlit during the game will then flash.
20
KNACK OF PLAY
1
Always keep the animal on the center of the screen when drawing in the rope.
If you operate the Steering Wheel keeping the this in mind, you can smoothly get close to the animal.
2
Don’t chase the animal too far.
If it seems to take too much time to ge the animal you aim at, change to the animal of lower rank. Know your
technical level and pay attention to the time.
3
Use Commands.
DASH: With the Steering Wheel in the centering position, quickly step on the Accelerator pedal
twice. Speed can be greatly increased for a while. Effective for getting close to animals
who run fast or who are away from here.
DRIFT: Turn the Steering Wheel to the direction you wish and step on the Accelerator Pedal
again. This increases the turning ability without reducing speed. Efective for getting
animals who have high turning ability.
21
7 . EXPLANATION OF TEST AND DATA DISPLAY
By operating the switch unit, periodically perform the tests and data check. When installing the machine initially or collecting cash, or when the machine does not function correctly, perform checking in accordance with the explanations given in this section. The following shows tests and modes that should be utilized as applicable.
CAUTIONS TO BE HEEDED WHEN USING THE TEST MODE:
In the case where plural machines are linked for communication play, if even one seat enters the test mode, all of the linked seats will enter the test mode. Therefore, if any one of the linked machines is in play, use care so as not to use the test mode. The contents of the setting changes made will not be effective unless the test mode is finished in the test mode. When the setting is changed, be sure to “EXIT” in the menu mode. Do not press the TEST BUTTON during network check at the time of turning the power on or exiting from the test mode. If anyone of the linked machines uses the test mode during network check, all other Seats will continue network checking. Cause all of the Seats to
reenter the test mode and then have all of the Seats exit from the test mode simultaneously.
TABLE 7 EXPLANATION OF TEST MODE
ITEMS DESCRIPTION SECTIONS
INSTALLATION OF MACHINE
MEMORY
P
CONTROL SYSTEM
MONITOR
When the machine is installed, perform the following:
1. Check to see that each setting is as per standard setting made at the time of shipment.
2. In the INPUT TEST mode, check each SW and VR.
3. In the OUTPUT TEST mode, check each of lamps.
4. In the MEMORY TEST mode, check ICs on the IC Board.
Choose MEMORY TEST in the MENU mode to allow the MEMORY test to be performed. In this test, PROGRAM RAMs, ROMs, and ICs on the IC Board are checked.
Periodically perform the following:
1. MEMORY TEST
2. Ascertain each setting.
3. In the INPUT TEST mode, test the CONTROL device
4. In the OUTPUT TEST mode, check each of lamps.
1. In the INPUT TEST mode, check each SW and VR.
2. Adjust or replace each SW and VR.
3. If the problem can not be solved yet, check the CONTROL’s moves.
In the MONITOR ADJUSTMENT mode, check to see if the MONITOR adjustment is appropriately made.
7 - 10, 7 - 11 7 - 6
7 - 7 7 - 3, 7 - 4
7 - 3, 7 - 4
7 - 10, 7 - l1
7 - 6
7 - 7
7 - 6
8
12
IC BOARD
DATA CHECK
1. MEMORY TEST
2. In the SOUND TEST mode, check the sound related ROMs.
Check such data as game play time and histogram to adjust the difficulty level, etc
22
7 - 2
7 - 8
7 - 15
7 - 1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not specified can cause electric shock and short circuit.
Adjust to the optimum sound volume by considering the environmental requirements of the installation location. If the COIN METER and the game board are electrically disconnected, game play is not possible.
Open COIN CHUTE DOOR, and the switch unit shown appears. The function of each switch is as follows:
SWITCH UNIT
1
SOUND VOLUME
Controls the speaker volume of the right/left speakers.
2
TEST BUTTON (TEST SW)
For the handling of the TEST BUTTON, refer to the section on test mode.
3
SERVICE BUTTON (SERVICE SW)
Gives credits without registering on the coin meter.
23
7 - 2 SYSTEM TEST MODE
The contents of setings chnaged in the TEST mode are stored when the TEST mode is finished from EXIT in the MENU mode. If the power is turned off before the TEST mode is finished, the contents of setting chnage become ineffective.
Executing “BACKUP DATA CLEAR” in the SYSTEM TEST MODE does not clear the BOOKKEEPING data in the GAME TEST MODE. Entering the TEST mode clears fractional number of coins less than one credit and
BONUS ADDER data.
The SYSTEM TEST mode mainly allows for IC Board functioning check, monitor adjustment, coin assignments, etc.
For details, refer to NAOMI SERVICE MANUAL. The following assignments, however, should be designated for this
product.
CABINET TYPE: 1 PLAYER (S)
MONITOR TYPE: HORIZONTAL
COIN CHUTE TYPE: COMMON
7 - 3 GAME TEST MODE
SYSTEM MENU
RAM TEST JVS TEST SOUND TEST C.R.T. TEST SYSTEM ASSIGNMENTS COIN ASSIGNMENTS BOOKKEEPING BACK UP DATA CLEAR CLOCK SETTING
ROM BOARD TEST >GAME TEST MODE
EXIT
SELECT WITH SERVICE BUTTON AND PRESS TEST BUTTON TO EXIT
JAMBO SAFARI TEST MENU
INPUT TEST OUTPUT TEST SOUND TEST GAME ASSIGNMENTS VOLUME SETTING BOOKKEEPING BACK UP DATA CLEAR
>EXIT
SELECT WITH SERVICE BUTON AND PRESS TEST BUTTON
Press the TEST button to display the SYSTEM TEST MODE MENU.
By pressing the SERVICE button, move the arrow (->) to select the GAME TEST MODE.
Press the TEST button to enter GAME TEST MODE. The screen displays the GAME TEST MODE MENU.
By pressing the SERVICE button, move the arrow (->) to select the desired item. Press the TEST button to execute
the selected item.
Select EXIT and press the TEST button to exit from the GAME TEST MODE and return to the SYSTEM TEST
MODE MENU. Further, select EXIT and press the TEST button to finish SYSTEM TEST MODE and return to the
normal mode.
24
7 -4 INPUT TEST
Select INPUT TEST to have the screen shown below appear and to observe the status of each switch and the value of each V.R. on the Control Panel. Periodically check the status of each switch and V.R. on this screen.
INPUT TEST
COIN CHUTE #1 OFF COIN CHUTE #2 OFF SERVICE OFF TEST OFF START OFF LEVER UP OFF LEVER DOWN OFF HANDLE 7bH ACCEL 3fH BRAKE 33H
PRESS TEST AND SERVICE BUTTON TO EXIT
FIG. 7.4 INPUT TEST
By pressing each switch, if the display on the right-hand side of the name of each switch changes to ON from OFF, the SW and the wiring connections are satisfactory.
To check CHUTE 1 & CHUTE 2 coin switches, open the COIN CHUTE DOOR and insert a coin(s) in the slot.
Press either the TEST BUTTON and the START BUTTON to return to the test menu.
As a standard, refer to the following for each of the Volume’s adjustment. By operating the Handle (Steering Wheel) and Pedal, if the V of each Volume guage smoothly moves as the corresponding value varies ina natural manner, then it is satisfactory.
7 - 5 OUTPUT TEST
OUTPUT TEST
START LAMP OFF
>EXIT
PRESS TEST BUTTON TO EXIT
FIG. 7.5 OUTPUT TEST
Choose OUTPUT TEST to cause the following lower screen to appear. In this test, check the status of each lamp.
The right-hand side “ON” & “OFF” display of START LAMP automatically alternates. The lamp lights up when “ON” is displayed and goes off when “OFF” is displayed. Check to ensure that the lamp lights up and goes off in consistency with the display of “ON” and “OFF”.
Press the TEST button to return to the TEST MENU.
25
7 - 6 SOUND TEST
9
9
9
9
9
9
7
7
7
7
7
7
7
7
7
12345678901234567890123456789012123456789012
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
12345678901234567890123456789012123456789012
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
SOUND TEST
B.G.M: 0/47
EFFECT: 0/360
ICS: 0/7
>EXIT
SELECT WITH SERVICE BUTTON PRESS TEST BUTTON TO EXIT
7 - 7 C.R.T. TEST
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
234567890123456789012345678901212345678901
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
234567890123456789012345678
234567890123456789012345678
234567890123456789012345678
234567890123456789012345678
234567890123456789012345678
234567890123456789012345678
PRESS TEST BUTTON TO CONTINUE
(SOUND STOP)
(SOUND STOP)
(SOUND STOP)
FIG. 7.6 SOUND TEST
C.R.T. TEST 1/2
RED
GREEN
BLUE
WHITE
This test mode allows each sound related board and speaker to be checked.
Press the Service Button to select the sound to be tested, and press the Test Button to have the selected Sound Test screen appear.
Select EXIT and press the Test Button to return to the Test Menu.
Select C.R.T. TEST to cause the MONITOR to display the screen shown left, allowing MONITOR adjustment status to be checked.
Periodically check the MONITOR adjustment status on this screen.
The screen (1/2) enables color adjustment check to be performed. The color bar of each of the 4 colors, i.e.,red, green, blue, and white, is the darkest at the extreme left and becomes brighter towards the extreme right.
Press the TEST BUTTON to shift to the next screen (2/2).
The screen (2/2) allows screen size and distortion to be tested.
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
23456789012345678901234567
C.R.T. TEST 2/2
PRESS TEST BUTTON TO EXIT
FIG. 7.7 C.R.T. TEST
Check if the CROSSHATCH FRAME LINE goes out of the screen and if the crosshatch lines are distorted.
Press the TEST BUTTON to return to the MENU mode.
26
7 - 8 VOLUME SETTING
When VOLUME SETTING is selected, the following appears on the screen and each operating unit’s Volume can be
set.
If the operability is unsatisfactory, or when the Volume is adjusted or replaced, set the Volume in this mode.
The 3 kinds of Volume Settings for HANDLE, ACCEL, and BRAKE are to be set. The Max. value, Min. value for each
and the HANDLE’S CENTER value are to be set as applicable.
VOLUME SETTING
Press the SERVICE button to select the Volume value
HANDLE SETTING AD0:7bH
LEFT MAX 1aH <----> a4H RIGHT MAX
ACCEL SETTING AD1:30H
BRAKE SETTING AD2:38H
>EXIT
SELECT WITH SERVICE BUTTON PRESS TEST BUTTON TO EXIT
CENTER 7bH
MIN 31H <----> c0H MAX
MIN 39H <--->bcH MAX
FIG. 7.8 VOLUME SETTING
1
to be changed.
2
Press the TEST button to cause the characters of the selected Volume value to turn red.
3
Input the value in the manner corresponding to the selected item.
4
Press the SERVICE buton to select EXIT, and press the TEST button to return to the MENU mode. At the same time the VOLUME SETTING is finished, the input values are stored as the Max. and Min. values.
27
7 - 9 GAME ASSIGNMENTS
Selecting the GAME ASSIGNMENTS in the MENU mode causes the present game settings to be displayed and also the game settings changes (game difficulty, etc.) can be made. Each item displays the following content.
SETTING CHANGE PROCEDURE
Press the SERVICE BUTTON to move the “>” to the desired item.
1
Choose the desired setting change item by using the TEST BUTTON.
2
To return to the MENU mode, move the arrow to EXIT and press the TEST BUTTON.
3
GAME ASSIGNMENTS
START TIME This is the time alloted at the time of game start. Setting is
START TIME (NORMAL)
CONTINUE TIME (NORMAL)
GET TIME DIFFICULTY (NORMAL)
CABINET TYPE (STD)
>EXIT
SELECT WITH SERVICE BUTTON
AND PRESS TEST BUTTON TO EXIT
possible starting from the shortest time sequentially in order of 35, 40, 45, 50, 55, -60, 65, and 70.
CONTINUE TIME Sets the time limit given when the game is continued. Select from among 5 levels, i.e. Very Easy, Easy, Normal, Hard, Very Hard.
GET TIME DIFFICULTY Sets the Bonus Time given when an animal is caught. Sets the difficulty level in 5 categories, i.e., VERY EASY, EASY, NORMAL, HARD, and HARDEST.
CABINET TYPE Setting of Cabinet. Set to STD
28
7 - 10 COIN ASSIGNMENTS
The “COIN ASSIGNMENTS” mode permits you to set the start number of credits, as well as the basic numbers of coins and credits. This mode expresses “how many coins correspond to how many credits.”
SETTING CHANGE PROCEDURE
Setting changes cannot be stored unless the TEST BUTTON is pressed while the arrow is on EXIT.
Press the SERVICE BUTTON to move the arrow to the desired item.
1
Choose the desired setting change item by using the TEST BUTTON.
2
To return to the MENU mode, move the arrow to EXIT and press the TEST BUTTON.
3
7 - 10 COIN ASSIGNMENTS
COIN ASSIGNMENTS
COIN/CREDIT SETTING #1
CHUTE#1 1 COIN 1 CREDIT
CHUTE#2 1 COIN 1 CREDIT
ADDITIONAL SETTING
MANUAL SETTING
>EXIT
SELECT WITH SERVICE BUTTON AND PRESS TEST BUTTON
COIN/CREDIT SETTING Sets the CREDITS increase increment per coin insertion. There are 27 setings from #1 to #27, expressed in XX CREDIT as against XX COINS inserted. (TABLE 7.10a,
7.10b) #27 refers to FREE PLAY. When the COIN CHUTE TYPE is set to INDIVIDUAL, there are some setting numbers not displayed as indicated in TABLE 7.10b.
MANUAL SETTING This allows credit increase setting as against coin insertion to be further set in the manner finer than COIN/CREDIT SETTING (refer to TABLE 7.10c).
29
TABLE 7.10a COIN/CREDIT SETTING (COIN CHUTE COMMON TYPE)
SETTING FUNCTIONING OF CHUTE#1 SETTING #1 1 COIN 1 CREDIT SETTING #2 1 COIN 2 CREDITS SETTING #3 1 COIN 3 CREDITS SETTING #4 1 COIN 4 CREDITS SETTING #5 1 COIN 5 CREDITS SETTING #6 1 COIN 2 CREDITS SETTING #7 1 COIN 5 CREDITS SETTING #8 1 COIN 3 CREDITS SETTING #9 1 COIN 4 CREDITS SETTING #10 1 COIN 5 CREDITS SETTING #11 1 COIN 6 CREDITS SETTING #12 2 COINS 1 CREDIT SETTING #13 1 COIN 1 CREDIT SETTING #14 1 COIN 2 CREDITS SETTING #15 1 COIN 1 CREDIT
2 COINS 3 CREDITS SETTING #16 1 COIN 3 CREDITS SETTING #17 3 COINS 1 CREDIT SETTING #18 4 COINS 1 CREDIT SETTING #19 1 COIN 1 CREDIT
2 COINS 2 CREDITS
3 COINS 3 CREDITS
4 COINS 5 CREDITS SETTING #20 1 COIN 5 CREDITS SETTING #21 5 COINS 1 CREDIT SETTING #22 1 COIN 2 CREDITS SETTING #23 2 COINS 1 CREDIT
4 COINS 2 CREDITS
5 COINS 3 CREDITS SETTING #24 1 COIN 3 CREDITS SETTING #25 1 COIN 1 CREDIT
2 COINS 2 CREDITS
3 COINS 3 CREDITS
4 COINS 4 CREDITS
5 COINS 6 CREDITS SETTING #26 1 COIN 1 CREDITS SETTING #27 FREE PLAY
30
MANUAL SETTING
Selecting MANUAL SETTING in the COIN ASSIGNMENTS mode displays the following screen.
MANUAL SETTING
COIN TO CREDIT 1 COIN 1 CREDIT
BONUS ADDER NO BONUS ADDER
1
2
COIN CHUTE #1 MULTIPLIER 1 COIN COUNTS AS 1 COIN COIN 1 2 3 4 5 6 7 8 9 CREDIT 1 2 3 4 5 6 7 8 9
COIN CHUTE #2 MULTIPLIER 1 COIN COUNTS AS 1 COIN COIN 1 2 3 4 5 6 7 8 9 CREDIT 1 2 3 4 5 6 7 8 9
>EXIT
SELECT WITH SERVICE BUTTON AND PRESS TEST BUTTON
FIG. 7.11b MANUAL SETTING
1
Determines Coin/Credit setting.
2
This sets how many coins should be inserted to obtain one Service Coin.
This sets how many tokens one coin represents.
3
Table 7.10c MANUAL SETTING
COIN TO CREDIT 1 COIN 1 CREDIT
3
2 COINS 1 CREDIT 3 COINS 1 CREDIT 4 COINS 1 CREDIT 5 COINS 1 CREDIT 6 COINS 1 CREDIT 7 COINS 1 CREDIT 8 COINS 1 CREDIT 9 COINS 1 CREDIT
BONUS ADDER NO BONUS ADDER
2 COINS GIVE 1 EXTRA COIN 3 COINS GIVE 1 EXTRA COIN 4 COINS GIVE 1 EXTRA COIN 5 COINS GIVE 1 EXTRA COIN 6 COINS GIVE 1 EXTRA COIN 7 COINS GIVE 1 EXTRA COIN 8 COINS GIVE 1 EXTRA COIN 9 COINS GIVE 1 EXTRA COIN
COIN CHUTE MULTIPLIER 1 COIN COUNTS AS 1 COIN
1 COIN COUNTS AS 2 COINS 1 COIN COUNTS AS 3 COINS 1 COIN COUNTS AS 4 COINS 1 COIN COUNTS AS 5 COINS 1 COIN COUNTS AS 6 COINS 1 COIN COUNTS AS 7 COINS 1 COIN COUNTS AS 8 COINS 1 COIN COUNTS AS 9 COINS
31
7 - 11 BOOKKEEPING
Choosing BOOKKEEPING in the MENU mode displays the data of operating status up to the present are shown on 2 pages. Press the TEST BUTTON to proceed to PAGE 2/2.
BOOKKEEPING PAGE1/3
NUMBER OF GAMES 0 NUMBER OF CONTINUE 0 AVERAGE PLAY TIME 00H 00M 00S
PRESS TEST BUTTON TO CONTINUE
FIG. 7.11a BOOKKEEPING (1/3)
BOOKKEEPING PAGE 2/3
TIME HISTOGRAM
00M00S~00M59S 0 01M00S~01M59S 0 02M00S~02M59S 0 03M00S~03M59S 0 04M00S~04M59S 0 05M00S~05M59S 0 06M00S~06M59S 0 07M00S~07M59S 0 08M00S~08M59S 0 09M00S~09M59S 0 10M00S~10M59S 0 11M00S~11M59S 0 12M00S~12M59S 0 13M00S~13M59S 0 14M00S~14M59S 0
OVER ~ 15M00S 0
PRESS TEST BUTTON TO CONTINUE
FIG. 7.11b BOOKKEEPING (2/3)
NUMBER OF GAMES Total number of plays.
NUMBER OF CONTINUE Total number of continues.
In Page 2/3, Histogram of Number of Play as against Play Time is displayed. For setting the DIFFICULTY, refer to this histogram.
Page 3/3 displays Histogram of Number of Play as against Game Score.
For setting the DIFFICULTY, refer to this histogram.
BOOKKEEPING 3/3
TOTAL SCORE HISTOGRAM
- 19999 0
- 39999 0
- 59999 0
- 79999 0
- 99999 0
- 119999 0
- 139999 0
- 159999 0
- 179999 0
- 199999 0
- 219999 0
- 229999 0
SELECT WITH SERVICE BUTTON PRESS TEST BUTTON TO EXIT
FIG. 7.11c BOOKKEEPING (3/3)
7 - 12 BACKUP DATA CLEAR
BACKUP DATA CLEAR
YES (CLEAR) >NO (CANCEL)
SELECT WITH SERVICE BUTTON PRESS TEST BUTTON TO EXIT
FIG. 7.12 BACKUP DATA CLEAR
Clears the contents of BOOKKEEPING and high score player ranking entry.
When clearing, bring the arrow to “YES” and when not clearing, to “NO”, by using the SERVICE BUTTON, and push the TEST BUTTON.
When the data has been cleared, “COMPLETED” will be displayed. Bring the arrow to “NO” and press the TEST BUTTON to cause the MENU mode to return on to the screen.
Note that the contents of the GAME SETTING, COIN SETTING, and BOARD SETTING are not affected by BACKUP DATA CLEAR operation
32
.
8. HANDLE MECHA
In order to prevent an electric shock and short circuit, be sure to turn power off before performing work by touching the interior parts of the product. Be careful so as not to damage wirings. Damaged wiring can cause an electric shock or short circuit accident.
In the test mode, if the steering wheel’s VR variations are not within the allowable range, the VR installation
position adjustments or VR replacement is needed. Also, be sure to apply grease to the VR gear portion once
every 3 months.
8 - 1 REMOVING THE CONTROL PANEL
Turn the power switch off.
1
Remove a total of 4 tamperproof screws from both sides of the control panel’s front.
2
3
Remove the two tamperproof screws fromthe underside of the control panel.
4
Wiring connectors are connected inside the control panel. Carefully draw the control panel in a mnner so as not to
damage wiring.
Disconnect the wiring connector.
5
33
8 - 2 REPLACING AND ADJUSTING THE HANDLE’S VR
Never touch places other than those specified. Touching places not specified can cause electric shock and/or short circuit. After the replacement or adjustment of the VR, be sure to set the variable value of the VR in the test mode’s Volume Setting.
REPLACING THE VOLUME
Turn off the power.
1
Disconnect the connector.
2
3
Take out the 2 screws which secure the volume Bracket and remove the Volume Bracket.
4
Take out the 2 screws to remove the Volume Gear and replace the Volume.
5
After replacing the Volume, perform Volume setting in the Volume Setting Mode.
ADJUSTING THE VOLUME
In the Test Mode, have the Volume value indicating screen displayed.
1
Loosen the 2 screws which secure the Volume Bracket to disengage Gear Mesh.
2
With the Steering Wheel in the centering position, cause gears to be engaged in the manner so that the Volume
3
Shaft is in the status shown below.
4
Fasten screws which secure the Volume Bracket.
5
Perform Volume setting as per the Volume Setting Mode.
34
8 - 3 GREASING
Never touch places other than those specified. Touching places not specified can cause electric shock and/or short circuit. After the replacement or adjustment of the VR, be sure to set the variable value of the VR in the test mode’s Volume Setting.
Apply greasing to the Volume gear mesh portion every 3 months.
For spray greasing, use Grease Mate (Part No. 090-0066).
35
9. SHIFT LEVER
In order to prevent electric shock and short circuit, be sure to turn off the power
before performing work on the interior parts of the product. Be careful not to damage wiring. Damaged wiring can cause electric shock or short circuit.
Do not touch places other than those specified. Touching places other than those specified can cause an electric shock or short circuit accident.
If the Shift Lever operation is not satisfactory, remove the Shift Lever in the following procedure and replace the
microswitch.
9 - 1 REMOVING THE SHIFT LEVER
Turn Power off.
1
Take out the 4 SPECIAL BOLTS and pull the SHIFT LEVER UNIT upward by paying careful attention so as not
2
to damage the wiring.
Disconnect the 2 connectors to allow the unit to be removed.
3
When reinstalling, follow the procedure oppisite as when removing. At this time, ensure that“DOWN” display
4
appears on the upper part as shown.
36
9 - 2 SWITCH REPLACEMENT
Each microswitch is secured with 2 screws. Remove the 2 screws and replace the Microswitch.
After replacing the Switch, check to see if the switch is inputted as per Shift Lever operation in the Test Mode.
37
10. ACCEL & BRAKE(S)
In order to prevent an electric shock and short circuit, be sure to turn power off before performing work by touching the interior parts of the product.
Be careful so as not to damage wirings. Damaged wiring can cause an electric shock or short circuit accident. Do not touch places other than those specified. Touching places not specified can
cause an electric shock or short circuit accident.
If Accel and Brake operation is not satisfactory, adjustment of Volume installation position or Volume replacement is
needed. Also, be sure to apply greasing to the gear mesh portion once every three months.
10 - 1 ADJUSTING AND REPLACING THE V.R.
Check Volume values in the Test Mode.
Since work is performed inside the energized cabinet, be very careful so as not to touch undesignated portions. Touch-
ing places not specified can cause an electric shock or short circuit.
Take out the 2 truss screws and remove the Front Cover
1
from the Accel. & Brake unit.
2
Loosen the screw which secures the Potentiobase, and
adjust the Volume Value by moving the Base.
Secure the Potentiobase.
3
Perform Volume setting in the Volume Setting Mode.
4
38
Check Volume values in the Test Mode.
Since work is performed inside the energized
cabinet, be very careful so as not to touch
undesignated portions. Touching places not
specified can cause an electric shock or short
circuit.
Take out the 2 truss screws and remove the Front Cover
1
from the Accel. & Brake unit.
2
Loosen the screw which secures the Potentiobase, and
adjust the Volume Value by moving the Base.
Secure the Potentiobase.
3
Perform Volume setting in the Volume Setting Mode.
4
10 - 2 GREASING
Be sure to use designated grease. Using undesignated grease can cause parts damage.
Once every 3 months, apply greasing to the Spring and Gear Mesh portion. For spray greasing, use GREASE MATE
(PART No. 090-0066).
39

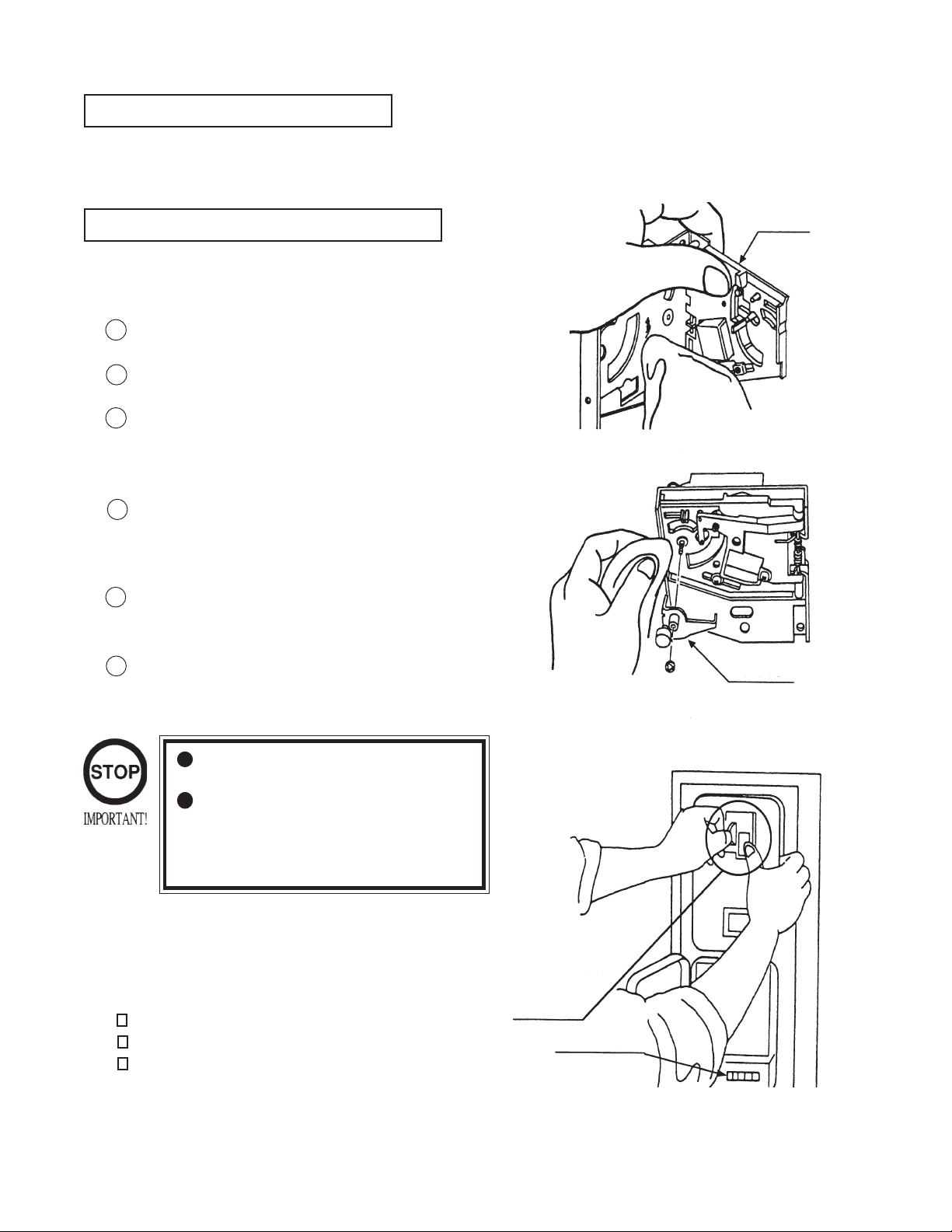

11 . COIN SELECTOR
HANDLING THE COIN JAM
If the coin is not rejected when the REJECT BUTTON is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions.
CLEANING THE COIN SELECTOR
The coin selector should be cleaned once every 3 months. When cleaning, follow the procedure below: Turn the power for the machine OFF.
1
Open the coin chute door. Open the gate and dust off by using a
2
soft brush (made of wool, etc.).
3
Remove and cleen smears by using a soft cloth dipped in water or diluted chemical detergent and then squeezed dry. Remove the CRADLE.
4
When removing the retaining ring(E­ring), be very careful so as not to bend the shaft. Remove stain from the shaft and pillow
5
portions by wiping off with a soft cloth, etc. After wiping as per #5 above, further
6
apply a dry cloth, etc. to cause the coin selector to dry completely.
GATE
FIG. 11a
CRADLE
FIG.11b
Never apply machine oil, etc. to the coin selector After cleaning the Coin Selecting, Insert a regular coin in the normal working status and ensure that the Selector correctly functions
COIN INSERTION TEST
Once a month, when performing the COIN SW TEST, simultaneously check the following:
Does the Coin Meter count satisfactorily? Does the coin drop into the Cashbox correctly? Is the coin rejected when inserted while keeping the REJECT BUTTON is pressed down?
.
Insert a coin while keeping the Reject Button pressed down and check if it is rejected.
COIN METER
FIG. 11c
40
OPTIONAL DOLLAR BILL ACCEPTOR
THE COIN DOOR ASSEMBLY USED ON
JAMBO SAFARI JAMBO SAFARI
JAMBO SAFARI COMES
JAMBO SAFARI JAMBO SAFARI EQUIPPED TO ACCEPT A DOLLAR BILL ACCEPTOR. ALL NEEDED WIRING CONNECTIONS ARE CONVIENENTLY LOCATED INSIDE THE GAME FOR THIS APPLICATION.
THE COIN DOOR CAN ACCCOMMODATE THE FOLLOWING VALIDATORS:
HOLE POSITION#1 Mars 2000 series (FORWARD-MOST POSITION)
HOLE POSITION#2 Mars 2000 series
DBV45 (JCM)
HOLE POSITION #3 CURRENTLY NOT USED
HOLE POSITION #4 DSI01*
*The back flange on the chute can be removed for hold position #4. If the flange is not removed, it may interfere with the back of the cabinent.
The frame and cashbox enclosure on this coindoor has been modified to accomodate a Mars 2000 series upstacker. A 2000 series stacker can be added by simply removing the top two entry door and replacing it with a one entry door with a cut-out for a stacker. This one entry door can be ordered through Coin Controls or one of Coin Controls authorized distributors. The part number is 91-4000-01. The Mars stacker can be obtained through an autherized Mars distibutor.
41
42

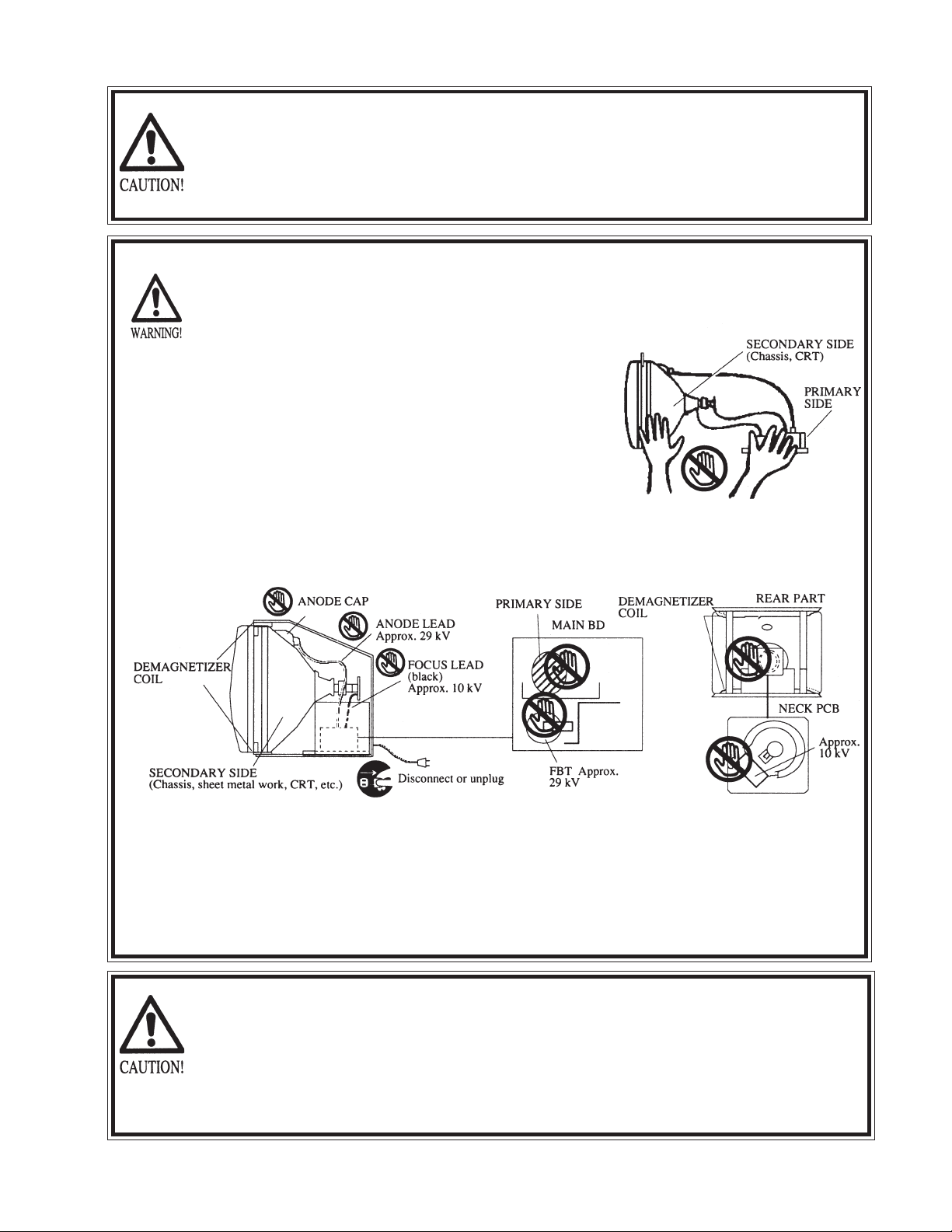

12. MONITOR
When performing such work as installing and removing the monitor, inserting and disconnect­ing the external connectors to and from monitor, be sure to disconnect the power connector (plug) before starting work. Proceeding the work without following this instruction can cause electric shock of malfunctioning. Using the monitor by converting it without obtaining a prior permission is not allowed. SEGA shall not be liable for any malfunctioning and accident caused by said conversion.
Primary side and secondary sidePrimary side and secondary side
Primary side and secondary side
Primary side and secondary sidePrimary side and secondary side The monitor’s circuit which is divided into the Primary side and secondary side, is electrically isolated. Do not touch the primary side and the secondary side simultaneously. Failing to observe the instruction can cause electric shock, and this is very dangerous. When making monitor adjustments, use a non­conductive driver and make adjustment without touching any other part other than the Adjustment V.R. and Knob. Also, be sure not to cause a short­circuit to the Primary side and the Secondary side. If short-circuited, it can cause electric shock or mal­functioning, which is very dangerous.
High tension VoltageHigh tension Voltage
High tension Voltage
High tension VoltageHigh tension Voltage Some of the parts inside the monitor are subject to high-tension voltage in excess of 20,000 volts and very dangerous. Therefore, do not touch the monitor interior. Should soldering & paper wastes, etc. be mixed in the monitor, turn the power off so as not to cause malfunc­tioning or fire hazard.
Connecting the CRT and PCBConnecting the CRT and PCB
Connecting the CRT and PCB
Connecting the CRT and PCBConnecting the CRT and PCB For combining the CRT and PCB, use the specified part No. to maintain the status of adjust­ments made at the factory. The anode of the CRT itself will be accumulitavely charged as time elapses, generating high tension voltage which is very dangerous. The monitor should be used with the Chassis, CRT and PCB assembled. When repair, etc. is required at the time of malfunc­tioning, be sure to send it in an “as assembled” condition. If these are disassembled, what’s charged to said high tension voltage can be discharged, causing a very hazardous situation. Therefore, under no circumstances should it be disassembled.
Static ElectricityStatic Electricity
Static Electricity
Static ElectricityStatic Electricity
Touching the CRT surface sometimes causes you to slightly feel electricity. This is because the
CRT surfaces are subject to static and will not adversly affect the human body.
Installation and removalInstallation and removal
Installation and removal
Installation and removalInstallation and removal
Ensure that the Magnetizer Coil, FBT (Fly-Back Transformer), Anode Lead and Focus Lead are
not positioned close to the sheet metal work’s sharp edges, etc. and avoid damaging the
insulated portions so as not to cause an electric shock and malfunctioning. (For the name of
parts, refer to the above figures.)
43
For the purpose of static prevention, special coating is applied to the CRT face of this product. To protect the coating, pay attention to the following points. Damaging the coating film can cause electric shock to the customers. For the caution to be heeded when clearing, refer to the Section of Periodic inspection Table. Do not apply or rub with a hard item (a rod with pointed edge, pen, etc.) to or on C.R.T. surfaces. Avoid applying stickers, seals, etc. on the C.R.T. face. Do not remove aluminum foils from the C.R.T. corners. Removing the aluminum foils can cause static prevention effects to be lowered.
Monitor adjustments have been made at the time of shipment. There­fore do not make further adjustment without a justifiable reason. Adjusting the monitor which contains high tension parts is dangerous work. Also, an erroneous adjustment can cause deviated synchroniza­tion and image fault, resulting in malfunctioning. When making adjustment, utilize a resinous Alignment Rod. Servicing with bare hands or using conductive tools can cause electric shock.
44
45
13. REPLACEMENT OF FLUORESCENT LAMP
When performing the work, be sure to turn power off. Working with power on can cause an electric shock or short circuit acci­dent. The Fluorescent Lamp, when it gets hot, can cause burns. Be very careful when replacing the Fluorescent Lamp.
To perform work safely and securely, be sure to prepare a step which is in a secure and stable condition. Not using a step or using an unstable step can cause violent falling down accidents.
13 -1 REPLACEMENT OF FLUORESCENT LAMP
Take out the 3 Tamperproof screws from
1
the rear of the billboard.
.
Be sure to disconnect all connectors
2
conected to the Marquee assembly before removing the Billboard and/or performing work.
3
Take out the two screws which secure the lower billboard plate mask and remove billboard
46
14. PERIODIC INSPECTION TABLE
The items listed below require periodic check and maintenance to retain the performance of
this machine and ensure safe operation.
Be sure to check once a year to see if Power Cords are damaged, the plug is securley inserted, dust is accumulated between the Socket Outlet and the Power Plug, etc. Using the product with dust as is accumulated can cause a fire or electrical shock. Periodically once a year, request the place of contact herin stated or the Distrib­uter, etc. where the product was purchased from, as regards to the interior cleaning. Using the product with dust as is accumulated in the interior without cleaning can cause a fire or short circuit accident. Note that cleaning the interior parts can be performed on a pay-basis.
CLEANING CABINET SURFACES
If the cabinet is badly stained, use a cloth which is dipped in the chemical detergent liquid diluted with water and then
squezzed dry. Do not use thinner, benzine, alcohol or chemical dustcloth as these can damage Cabinet surfaces.
SEAT (Greasing to Seat Rail Portion)
Move the Seat to the rearmost portion and apply spray greasing to the
portion shown at the right once every 3 months by using NOK KLUBER
L60 or GREASE MATE SEGA PART No. 090-0066. After greasing, move
seat a few times forward and backward so as to allow the grease to be
applied all over uniformly. Be sure to wipe grease which attaches to the
surfaces of the PROTECT RUBBER on the seat Rail, or any excess grease.
47
15. TROUBLESHOOTING
Should trouble occur, first check connector connections.
PROBLEMS CAUSE COUNTERMEASURES
With Main SW Power is not supplied. Plug in correctly ON, no activation
Power supply/voltage is not correct. Make sure that power supply/voltage is
correct. AC main fuse causes the Check fuse. Remove the cause of power to be cut off due to momentary overload and replace fuse overload.
Operation is Volume Setting Failure Perform Volume setting unsatisfactory Adjust or replace V.R.
Poor mesh of V.R. gear.
Adjust Gear mesh.. Spring failure due to secular change of Accelerator and Brake Mecha. Replace the Spring.
Irregular sound Greasing to gear mesh portion is not Apply greasing or eliminate extraneous emitted from satisfactory, or extraneous matter matter. inside Rear Cabinet mixed in.
The color of the Connector connections are defective. Check the connection for the RGB and image on PROJ. SYNC connectors of the PROJ. TERM. screen is incorrect. BD and VPM BUFFER BD.
The image on PROJ. Affected by the magnetic field of Make CONVERGENCE adjustment. screen has color installation location. (Refer to Section 12.) deviation.
No sound is emitted. Sound Volume adjustment is not Adjust sound volume. (see Section 7).
appropriate.
Sound BD and speaker are Perform sound test to find and replace malfunctioning. defective parts.(Refer to Section 7).
NETWORK check NOT AVAILABLE NOT AVAILABLE will not finish.
Communication play NOT AVAILABLE NOT AVAILABLE is not possible.
No sound from In correct Cabinet Type Setting. Correct Cabinet Type Setting. Cockpit.
The Fluorescent The Fluorescent tube is burnt out. Replace the Fluorescent tube lamp does not (Refer to Section 11). light up.
Shift operation is not Shift SW malfunctioning. Replace SW satisfactory in gameplay.
48
16. GAME BOARD
In order to prevent an electrical shock, be sure to turn power off before performing work by touching the interior parts of the product. Be careful so as not to damage wirings. Damaged wiring can cause an electric shock or short circuit accident.
Do not expose the Game BD, etc. without a good reason. In this product, setting changes are made during the test mode. The Game BD need not be operated. Use the Game BD, etc. as is with the same setting made at the time of shipment.
16 -1 REMOVING THE GAME BOARD
To replace the IC Board or to change dip switch settings, take out the IC board using the following procedure;
Turn main switch off.
1
Unlock the base, and remove the 2 truss screws from the side of the base.
2
Turn the knob to unlock. The seat can be inclined in the direction shown. When inclining the seat, be careful not to
3
damage seat parts. Carefully rest the backrest portion of the seat on the ground.
If neccessary, protect the seat from damage by using a cloth or blanket on the floor.
4
Take off the 3 screws to remove the case lid. The game board is inside the shield case.
5
Take off a total of 4 screws from both sides with the seat being in an inclined state and remove the base lid F.
6
Removing base lid F allows the Elec Base to be seen.
49
16 - 2 REPLACEMENT OF FUSE
In order to prevent an electric shock, be sure to turn power off before performing work by touching the interior parts of the product.
Be careful so as not to damage wirings. Damaged wiring can cause an electric shock or short circiut accident After eliminating the cause of the blowing of fuse, replace the fuse.
Depending on the cause of the fuse blowing, using the fuse as is blown can cause generation of heat resulting in fire.
Incline the Seat and remove the Base Lid to view the Base interior. The composition of the Base interior is as shown
below. There is a fuse on each of the Connect BD. and Motor Drive BD. When replacing the fuse, be sure to use the
specified one.
50
16 - 3 COMPOSITION OF GAME BOARD
Ensure that the DIP SW setting is performed as designated as designated. Failure to observe thisw may cause functioning not suitable for tyhe operation, or mal-
functioning.
ASSY CASE NAO USA (840-0002D-01) :USA
DIP SW SETTING
IN the product, set all of the DIP SWes to OFF.
51
17. DESIGN RELATED PARTS
ITEM NO. PART NO. DESCRIPTION
1 DYN-0011 DENOMI PLATE W/O ORIGINAL 2 LOCAL PURCHASE DENOMINATION SHEET 1 GAME 6 999-0885 DECAL SEAT ADJUSTMENT JBA 7 999-0870 DECAL INSTR SH JBA 8 SPG-1201-E METER PANEL
9 DYN-1214-C DESIGN PL TACO MTR TWIN 10 DYN-1214-D DESIGN PL OIL MTR TWIN 11 DYN-1214-E DESIGN PL WATER MTR TWIN 12 SPG-2002 STEERING EMBLEM 13 999-0868 DECAL MONITOR COVER L JBA 14 999-0869 DECAL MONITOR COVER R JBA 16 999-0871 DECAL MAIN BASE L JBA 17 999-0871 DECAL MAIN BASE R JBA 18 999-0883 DECAL CONTRL TOP JBA LEFT 19 999-0878 DECAL SEAT CENTER JBA 20 999-0872 MARQUEE PLEX JBA 21 999-0875 DECAL SEAT BACK UPPER JBA 22 999-0876 DECAL SEAT MIDDLE W/LOG JBA 23 999-0877 DECAL SEAT LEFT JBA 24 999-0879 DECAL SEAT RIGHT JBA 25 999-0880 DECAL INSTR SHIFTER JBA 26 999-0881 DECAL INSTR START BUTTON JBA 27 999-0882 DECAL CONTROL TOP RIGHT JBA 28 999-0884 DECAL CONTROL TOP CENTER JBA 29 999-0866 DECAL MARQUEE CAP LEFT JBA 30 999-0867 DECAL MARQUEE CAP RIGHT JBA
52
18. PARTS LIST
TOP ASSY JAMBO SAFARI STD
ITEM NO. PART NO. DESCRIPTION
1 999-0887 ASSY BILLBOARD 2 DUT5-0300 ASSY COIN CHUTE TOWER 3 999-0888 ASSY COCKPIT
4 200-5787 CLR DSPLY 29 TYPE 31K 100V 22 INY-0004 BACK LID INY 23 DYN-0008 BACK LID B 25 DYN-0011 DENOMI PLATE W/O ORIGINAL 29 LOCAL PURCHASE MARQUEE RETAINING PLATE
201 LOCAL PURCHASE 1/4-20X1 1/4” TMPR PRF SCREW 202 068-852216 FLT WSHR M8 203 000-T00440-0B M SCR PH W/FS BLK M4X40 204 LOCAL PURCHASE HEX BLT 8/32-20X1 205 LOCAL PURCHASE SPR WSHR 8/32-20X1 206 000-T00416-0C M SCR TH CRM M4X16 209 010-P00408-F S-TITE SCR PH W/F M4X8
53
ASSY BILLBOARD STDJBA (999-0887)
ITEM NO. PART NO. DESCRIPTION
1 999-0872 MARQUEE PLEX JAMBO SAFARI 2 999-0873 LOWER MARQUEE PLEX JBA 3 999-0731 MARQUEE COVER L 4 999-0732 MARQUEE COVER R
101 LOCAL PURCHASE ASSY FL 20W EX W/CONN HIGH S
54
ASSY COINCHUTE TOWER (DUT5-0300)
55
ASSY COINCHUTE TOWER (DUT5-0300)
ITEM NO. PART NO. DESCRIPTION
1 SPG1-0350 SW UNIT 2 SPG1-0301 COIN CHUTE TOWER 3 DYN-0302Y COIN METER BRKT 4 DP-1167 TNG LKG
5 BOX-CASH CASH BOX 10 DYN-0305 TOWER BRKT 11 105-5202 HOLE COVER 12 SPG-0302 WIRE BOX 13 SPG-0303 WIRE BOX LID
101 92-1003-05* ASSY C.C. 2DR 102 220-5412 MAG CNTR W/CONN 103 999-0169 CASTER 2 1/2” 104 220-5574 CAM LOCK W/KEYS 105 220-5575 CAM LOCK MASTER W/O KEY 106 999-0167 LEG LEVELER
* This coin door is produced by Coin Controls and can be ordered through your local distributor.
56

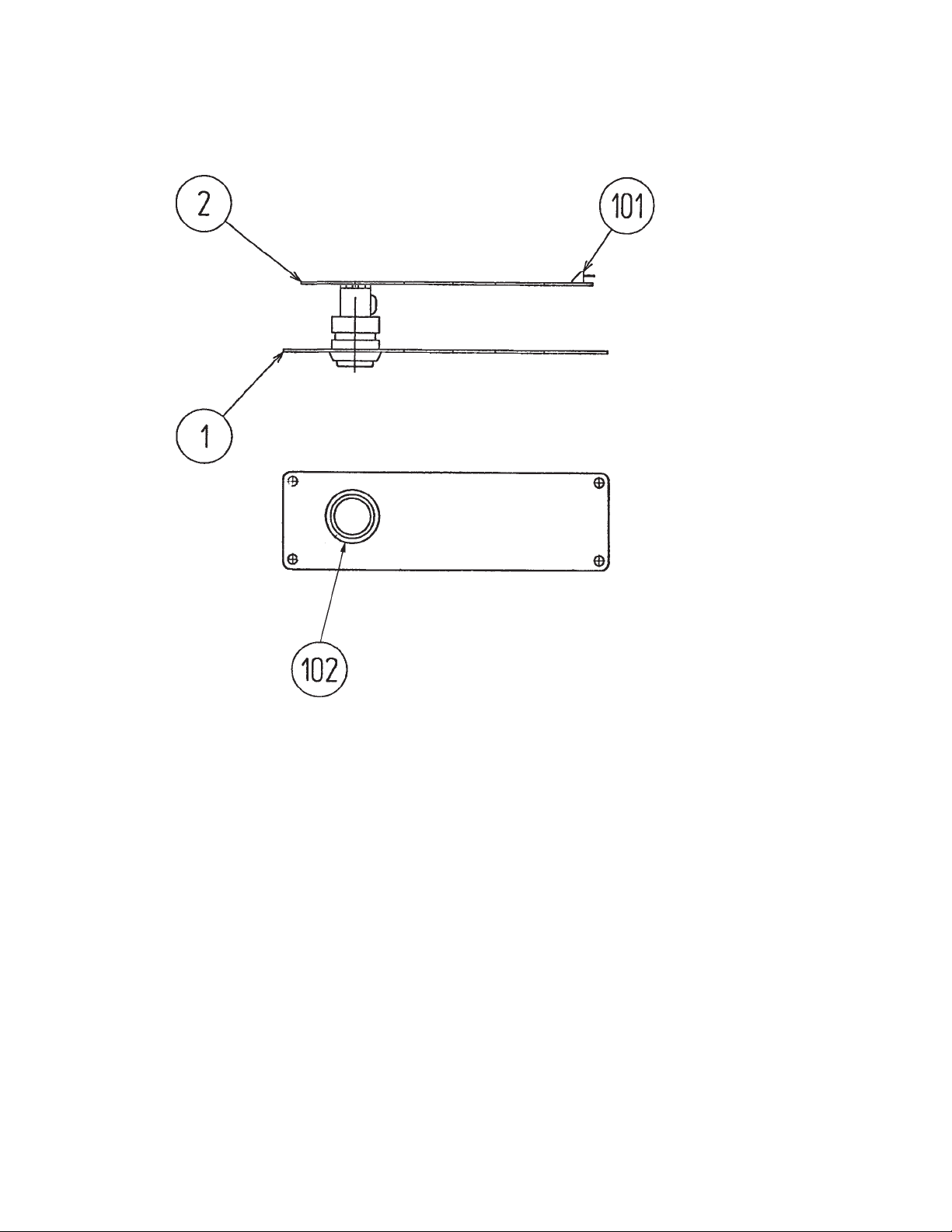

SW UNIT (SPG5-0350)
ITEM NO. PART NO. DESCRIPTION
1 SPG5-0351 SWITCH BRKT 101 509-5028 SW PB 1M 102 220-5179 VOL CONT B-5K OHM 103 601-0042 KNOB 22MM 104 220-5412 MAG CNTR W/CONN 105 509-5453-91-V-B ROCKER SWJ8 V-B
57
AC UNIT (DRT1-0400)
TEM NO. PART NO. DESCRIPTION
1 SPG5-0401 AC BRKT 101 600-5843-25 CA & PLUG ASSY 15A W/F-L=2.5M 102 280-5134-6N34 BUSHING STRAIN RELIEF 6N34 105 509-5453-91-V-B SW ROCKER J8 V-B
58

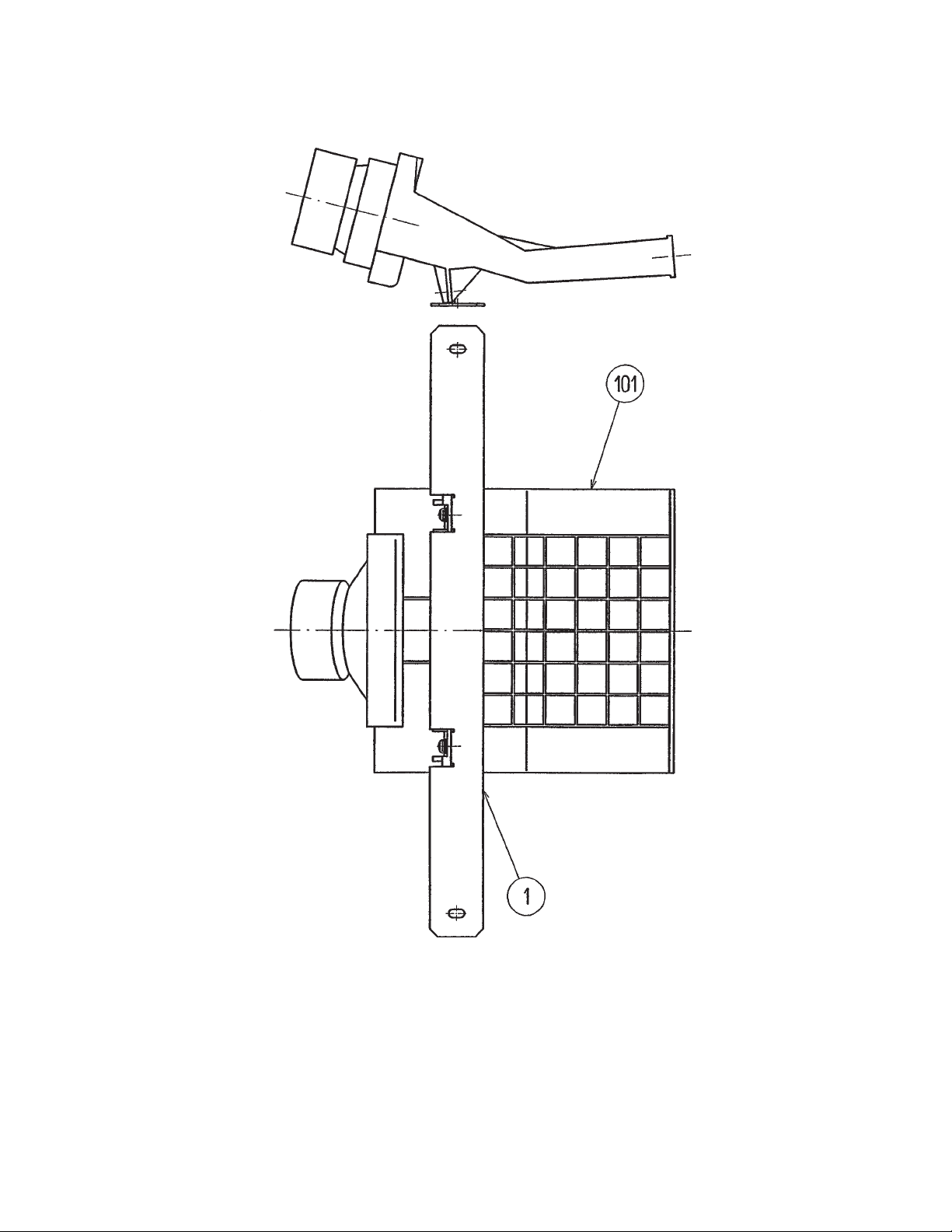

ASSY SPEAKER (SPG-1100)
ITEM NO. PART NO. DESCRIPTION
1 INY-1701 SPEAKER BRKT
101 130-5159 GULL BOX SPEAKER 8OHM 5W
59
ASSY VIRTUAL BUTTON TWIN (DRT5-1290)
ITEM NO. PART NO. DESCRIPTION
1 DRT5-1291 VR BUTTON BRKT
2 171-6478B PC BD LIGHTING SW 101 212-5205-12 CONN JST M 12P RTA 102 509-5560-Y PB SW W/L 6V 1L Y
60
ASSY BASE BOX (DRT1-1500)
ITEM NO. PART NO. DESCRIPTION
1 DRT1-1501 MAIN BASE 2 DYN-2003 BASE LID F 3 DYN-2004 LOCK TNG 4 DYN-2005X FLOOR MAT 5 DYN-2006 HINGE 480 6 DRT-1510 ASSY BASE LID R 7 DYN-2007X LID EDGE L 8 DYN-2009X LID EDGE R
101 220-5575 CAM LOCK MASTER W/O KEY
61
MAIN BASE (DRT1-1501)
ITEM NO. PART NO. DESCRIPTION
1 DYN-2002X-A MAIN BASE BLANK 2 999-0871 STICKER BASE L 3 999-0871 STICKER BASE R 4 999-0167 LEG ADJUSTER BOLT 1/2X13X3 5 999-0169 CASTER 2 1/2"
62
ASSY SEAT TWIN 1P (DRT-1600)
63
ASSY SEAT TWIN 1P (DRT1-1600)
ITEM NO. PART NO. DESCRIPTION
1 STC-1650 ASSY WOOFER 2 DRT-1602-A UPPER SEAT 3 DRT-1603-A LOWER SEAT 4 STC-2201 SEAT BASE 5 STC-1604 SEAT FRAME 6 999-0874 SEAT REAR COVER 1P 7 STC-1606 SEAT MOUNT TRAY 8 STC-1607 SP MOUNT BRKT 9 STC-1608 SPEAKER NET L
10 STC-1609 SPEAKER NET R
11 STC-1610 SAFETY GUARD 12 STC-1611 CABLE BEAR BRKT 13 STC-1612 PROTECT RUBBER 14 STC-1613 SAFETY GUARD F 15 INY-1302-B MASK CUSHION SIDE
101 601-9059 SEAT RAIL L 102 601-9060 SEAT RAIL R 103 130-5159 GULL BOX SPEAKER 8OHM 5W 105 601-6563-188 BUSH 2.4T 106 601-6563-100 BUSH 2.4T 107 280-5297 SCRIVET 8 1K31 201 000-P00410-W M SCR PH W/FS M4X10 203 030-000816-S HEX BLT W/S M8X16 205 050-H00800 HEX NUT M8 206 060-S00800 SPR WSHR M8 210 000-T00616-0B M SCR TH BLK M6X16 211 010-P00408-F S-TITE SCR PH W/F M4x8
64
ASSY WOOFER (STC-1650)
ITEM NO. PART NO. DESCRIPTION
1 STC-1651 WOOFER BRKT F 2 STC-1652 WOOFER BRKT R
101 130-5160 SUB WOOFER 4 OHM 30W
65
ASSY ACCEL&BRAKE (SPG-2200)
66
ASSY ACCEL&BRAKE (SPG-2200)
ITEM NO. PART NO. DESCRIPTION
1 SPG-2201 BASE 2 SPG-2202 ACCEL PEDAL 3 SPG-2203 BRAKE PEDAL 4 SPG-2204 ACCEL SPRING 5 SPG-2205 BRAKE SPRING 6 SPG-2206 SHAFT 7 SPG-2207 ACCEL GEAR 8 SPG-2208 BRAKE GEAR
9 SPG-2209 NUETRAL STOPPER 10 SPG-2210 VR PLATE ACCEL 11 SPG-2211 VR PLATE BRAKE 12 SPG-2212 AMPL GEAR 13 SPG-2213 GEAR SHAFT 14 SPG-2214 STOPPER 15 SPG-2215 RUBBER CUSHION 16 SPG-2216 COVER 17 SPG-2217 VR COVER 19 SPG-2219 GEAR STAY 20 SPG-2220 WSHR 21 SPG-2221 NUETRAL STOPPER
101 100-5263 BEARING 12 102 220-5484 VOL CONT B-5K OHM 104 601-7944 GEAR 15 105 310-5029-F15 SUMI TUBE F F 15MM 106 280-0419 HARNESS LUG 201 028-A00304-P SET SCR HEX SKT CUP P M3X4 202 020-000520-0Z HEX SKT H CAP SCR BLK M5X20 203 000-P00420 M SCR PH M4X20 204 000-P00508-W M SCR PH W/FS M5X8 205 000-T00408-0C M SCR TH CRM M4X20 206 FAS-450005 SPR PIN BLK OZ 6X10 207 000-P00405 M SCR PH M4X5 208 FAS-000001 M SCR TH CRM M3X6 209 050-H00500 HEX NUT M5 210 060-F00400 FLT WSHR M4
67
ASSY HANDLE MECHA (CTA-2100)
68
ASSY HANDLE MECHA (CTA-2100)
ITEM NO. PART NO. DESCRIPTION
1 CTA-2101 HANDLE BASE 2 CTA-2101 BASE LID 3 CTA-2103 HANDLE SHAFT 4 CTA-2104 STOPPER BOLT 5 CTA-2105 SPRING HOOK 6 CTA-2106 SPACER RING 7 CTA-2107 VR BRKT 8 DYN-1262 SWING ARM SHAFT
9 DYN-1269 EXT SPRING 10 DYN-1273 SWING ARM 11 BVG-1340 FLT WSHR 8.1-12X2 12 BVG-1341 FLT WSHR 4.1-12X2 13 SLC-1130 ADJUST RING 14 SLC-1141X WHITE CAM 15 SOR-2112 BEARING SHAFT 16 SOR-2113 SPACER 17 SOR-2115 KEY 5X10 18 SPG-2109 STOPPER RUBBER 19 601-6172 GEAR 48 20 601-6959 GEAR 64 21 601-8966 GEAR HOLDER 22 SLC-1108 WIRE HOLDER
101 100-5018 BEARING BALL 8 102 100-5112 BEARING 17 103 100-5041 BEARING NSK F688 ZZ 104 220-5484 VOL CONT B-5K OHM
201 028-A00408-P SET SCR HEX SKT CUP P M4X8 202 028-A00308-P SET SCR HEX SKT CUP P M3X8 203 FAS-650011 STP RING BLK OZ S17 204 000-P00408-W M SCR PH W/FS M4X8 205 000-P00412-W M SCR PH W/FS M4X12 206 060-F00600 FLT WSHR M6 207 050-U00600 U NUT M6 208 060-F00800 FLT WSHR M8 209 050-U00800 U NUT M8 210 065-E00700 E RING 7MM 211 060-S00800 SPR WSHR M8
69
ASSY SHIELD CASE NAO (840-0013D-01)
ITEM NO. PART NO. DESCRIPTION
1 840-0013A-01 SHIELD CASE JBA NAO USA 2 840-0013C ROM CASE NAO
70

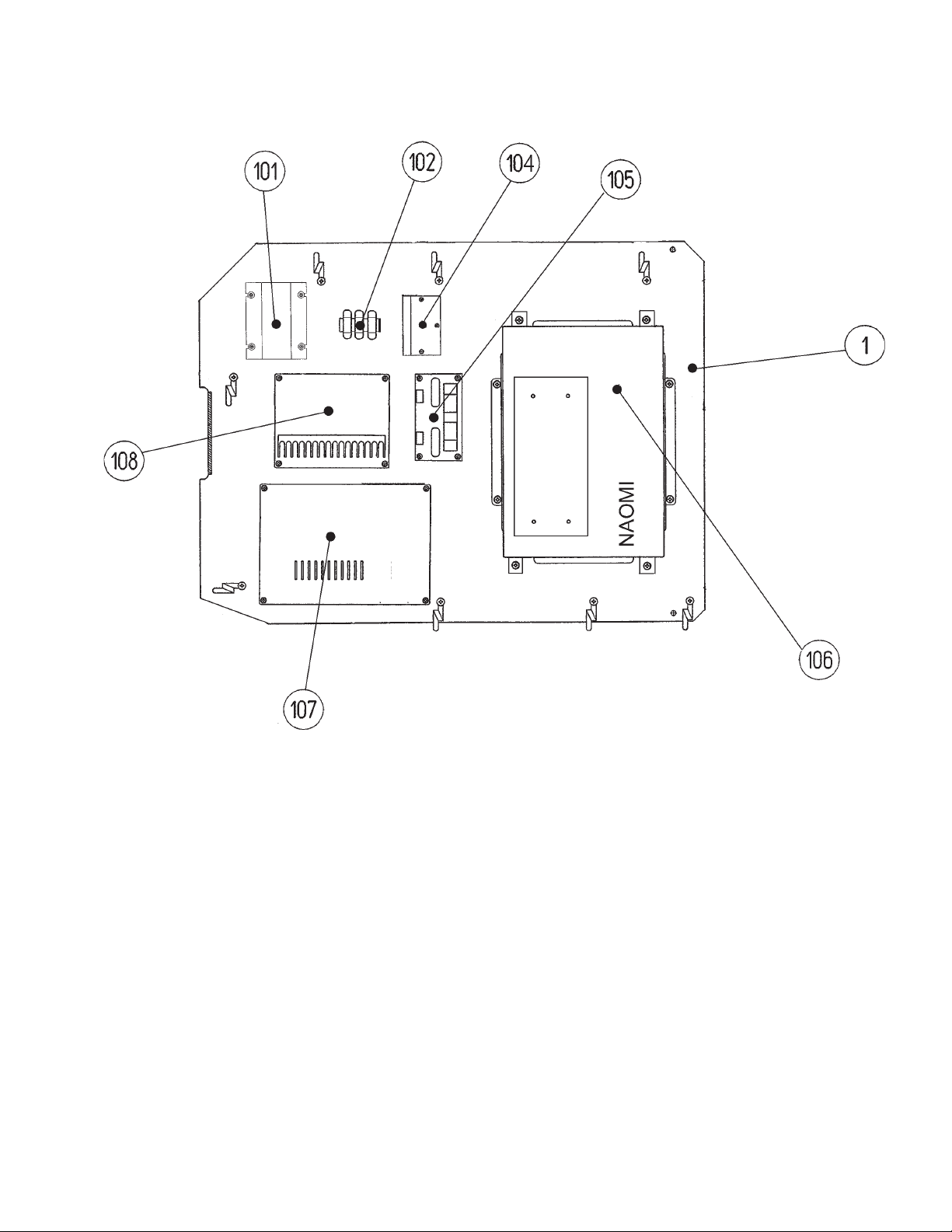

ASSY ELEC BASE (CTA1-4500-02)
ITEM NO. PART NO. DESCRIPTION
1 NOT AVAILABLE WOODEN BASE ELEC
101 560-5250-01 XFMR 12.8V 8A 102 LOCAL PURCHASE FUSE BLOCK W/ FUSES 104 838-11651-91 LOW PASS AMP 105 837-13551-92 I/O BD
106 840-0002D-01 NAOMI BD 107 400-5330-O3 PWR SPPLY
108 838-11650-29 EQ POWER AMP
71
ASSY COCKPIT 1P (DRT1-10001)
72
ASSY COCKPIT 1P (DRT1-10001)
ITEM NO. PART NO. DESCRIPTION
1 DRT5-20001 ASSY MAIN BASE 1P 2 DRT5-1031 MONITOR COVER L 1P 3 DRT5-1046 MONITOR COVER R 1P 4 DRT5-1201 ASSY CONTROL PANEL 5 SPG-1004 MONITOR STAND 6 SRT-1002 WIRE COVER BOX 7 INY-1016 MONITOR SUPPORT 8 SPG-1008 ROOF LID
9 TTR-1067X MONITOR MASK 10 SPG-1005 MASK HOLDER 11 DYN-1025 RUBBER CUSHION 12 INY-1015 CRT ADJUST PANEL
101 200-5787 ASSY CLR DSPL 29 TYPE 31K 100V 105 280-5112 BUSH FOR TV
106 280-5113 COLLAR FOR TV 107 280-5114 SPACER 6.4-25x2 108 280-5185-6 SPACER TUBE L=6 109 601-6231-C100 EDGING NEW TYPE
73
ASSY CONTROL PANEL (DRT5-1201)
74
ASSY CONTROL PANEL (DRT1-1201)
ITEM NO. PART NO. DESCRIPTION
1 DYN-1201 STEERING WHEEL 2 DYN-1209X HANDLE COLLAR 3 INY-1203 STEERING EMBLEM 4 JBA-2001 CONTROL PANEL COVER 5 SPG-1205 CONTROL PANEL BRKT 6 INY-1204 SHIFT COVER INY 7 DYN-1223X SHIFT COVER B
9 SPG-1204 SPL BLT M8 10 CTA-2100 ASSY HANDLE MECHA 11 610-0408-91 ASSY SHIFTER 12 DRT5-1290 ASSY VIRTUAL BUTTON 13 SPG-2039 SPACER RING
201 020-000820-0Z HEX SKT H CAP SCR BLK OZ M8X20 202 060-F00800 FLT WSHR M8 203 060-S00800 SPR WSHR M8 204 050-H00800 HEX NUT M8 205 FAS-200013 HEX SKT H CAP SCR CRM M4X16 206 000-T00416-0B M SCR TH BLK M4X16 207 000-P00412-W M SCR PH W/FS M4X12 208 008-T00516-0B TMP PRF SCR TH BLK M5X16 210 030-000820-S HEX BLT W/S M3X12 212 000-T00412-0C M SCR TH CRM M4X12
75
ASSY MAIN BASE 1P (DRT5-20001)
76
ASSY MAIN BASE 1P (DRT5-20001)
ITEM NO. PART NO. DESCRIPTION
1 DRT-1500 ASSY BASE BOX 2 DRT1-1600 ASSY SEAT TWIN 3 SPG-2200 ASSY ACCEL&BRAKE 5 CTA1-4500 ASSY ELEC BASE 6 SRT1-0400 AC UNIT 7 SPG-1502 PEDAL BASE 8 RAL-2007 RUBBER HOLDER R TWIN 9 RAL-2008 RUBBER HOLDER L TWIN
10 SPG-1503 FAN BRKT
101 260-0011 AXIAL FLOW FAN AC100V 50-60 HZ
77
VISIT OUR WEBSITE!
Loading...
