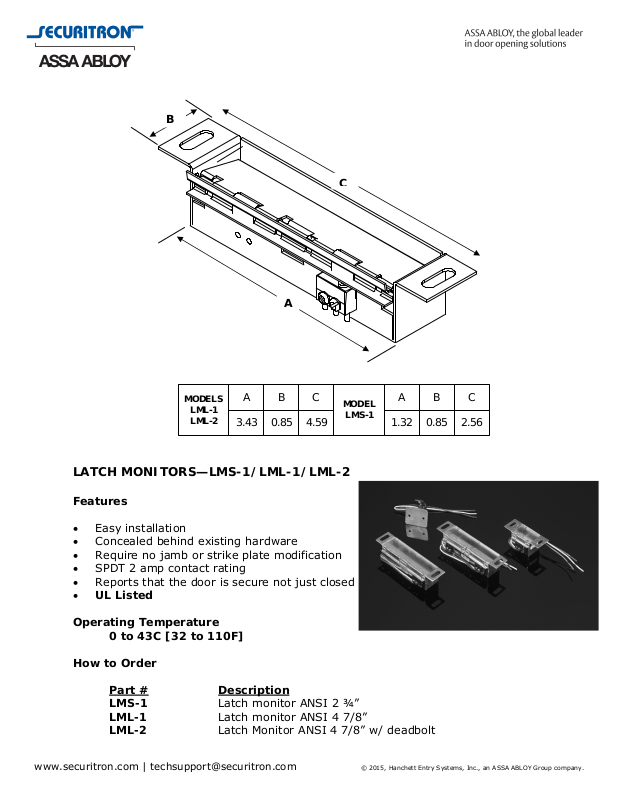

Securitron LMS-1, LML-2, LML-1 Specsheet

A

B

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

MODELS

LML-1
LML-2

A

3.43B0.85C4.59

MODEL

LMS-1

LATCH MONITORS—LMS-1/LML-1/LML-2

Features

• Easy installation

• Concealed behind existing hardware

• Require no jamb or strike plate modification

• SPDT 2 amp contact rating

• Reports that the door is secure not just closed

• UL Listed

Operating Temperature

0 to 43C [32 to 110F]

How to Order

A

1.32B0.85C2.56

Part #

Description
LMS-1 Latch monitor ANSI 2 ¾”
LML-1 Latch monitor ANSI 4 7/8”
LML-2 Latch Monitor ANSI 4 7/8” w/ deadbolt

LATCH MONITORS—LMS-1/LML-1/LML-2 (cont’d)

www.securitron.com | [e-mail]

Architectural Specifications--

A. The LM Series Latch Monitors shall be produced by an ISO 9001 certified

manufacturer

B. The LM Series Latch Monitor shall have a limited lifetime warranty covering

malfunction and abuse.

C. The MONITOR shall detect and report whether a door is latched or bolted (not

just closed).

D. The MONITOR shall be concealed when installed and shall not require

modification of the jamb or strike plate.

E. The MONITOR shall provide a SPDT Form C output which switches when a door is

latched or unlatched.

F. The MONITOR shall also be capable of monitoring a deadbolt.

LATCH MONITORS—(LMS-1/LML-1/LML-2)

G. The LML-2 shall provide two SPDT Form C outputs which can be used to monitor

a latch and deadbolt simultaneously.
