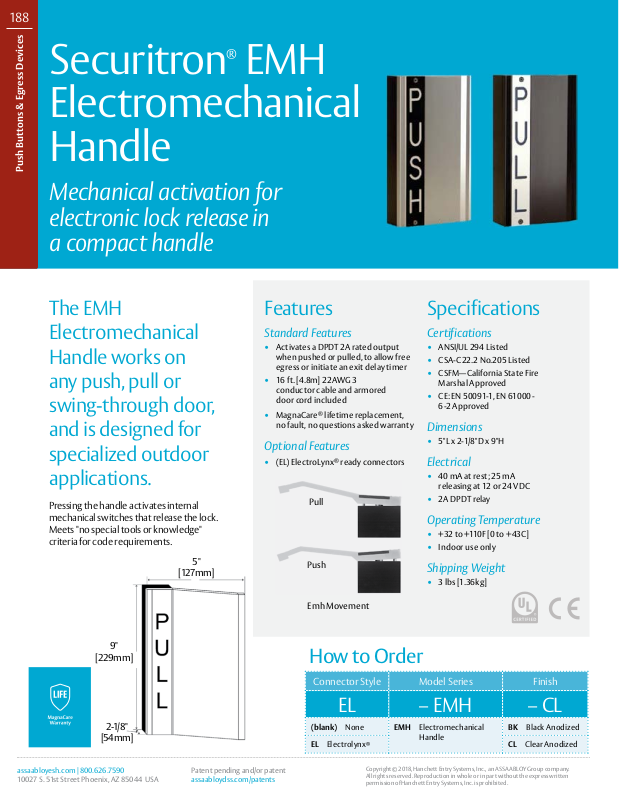

Securitron EMH-CL, EMH-BK, EL-EMH-CL Specsheet

Page 1

188

Securitron® EMH Electromechanical Handle

Push Buttons & Egress Devices

Mechanical activation for electronic lock release in a compact handle

The EMH Electromechanical Handle works on any push, pull or swing-through door, and is designed for specialized outdoor applications.

Pressing the handle activates internal mechanical switches that release the lock. Meets "no special tools or knowledge" criteria for code requirements.

[127mm]

Features

Standard Features

• Activates a DPDT 2A rated output

when pushed or pulled, to allow free egress or initiate an exit delay timer

• 16 ft. [4.8m] 22AWG 3

conductor cable and armored door cord included

• MagnaCare

no fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx

lifetime replacement,

ready connectors

Pull

Push

Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM— California State Fire

Marshal Approved

• CE: EN 50091-1, EN 61000-

6-2 Approved

Dimensions

• 5"L x 2-1/8"D x 9"H

Electrical

• 40 mA at rest; 25 mA

releasing at 12 or 24 VDC

• 2A DPDT relay

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

[229mm]

2-1/8"

[54mm]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

Patent pending and/or patent

assaabloydss.com/patents

Emh Movement

How to Order

Connector Style Model Series Finish

EL – EMH – CL

(blank) None EMH Electromechanical

EL Electrolynx

Copyr ight © 2018, Hanchett En try System s, Inc., an ASSA ABLOY Gr oup company. All righ ts reser ved. Reprodu ction in whole or in par t without th e express wr itten permi ssion of Hanche tt Entry Sys tems, Inc. is pro hibited.

Handle

BK Black Anodized

CL Clear Anodized
