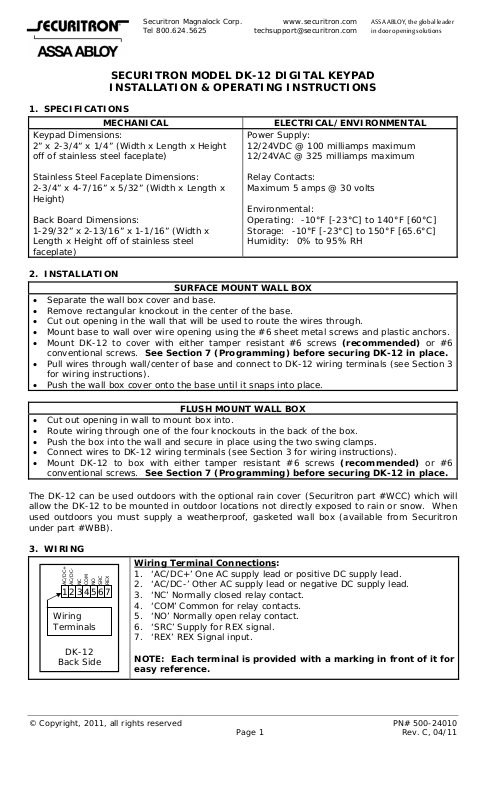

SECURITRON MODEL DK-12 DIGITAL KEYPAD
INSTALLATION & OPERATING INSTRUCTIONS
1. SPECIFICATIONS
MECHANICAL ELECTRICAL/ENVIRONMENTAL
Keypad Dimensions:
2” x 2-3/4” x 1/4” (Width x Length x Height
off of stainless steel faceplate)
Stainless Steel Faceplate Dimensions:
2-3/4” x 4-7/16” x 5/32” (Width x Length x
Height)
Back Board Dimensions:
1-29/32” x 2-13/16” x 1-1/16” (Width x
Length x Height off of stainless steel
faceplate)
2. INSTALLATION
Power Supply:
12/24VDC @ 100 milliamps maximum
12/24VAC @ 325 milliamps maximum
Relay Contacts:
Maximum 5 amps @ 30 volts
Environmental:
Operating: -10°F [-23°C] to 140°F [60°C]
Storage: -10°F [-23°C] to 150°F [65.6°C]
Humidity: 0% to 95% RH
SURFACE MOUNT WALL BOX
Separate the wall box cover and base.
Remove rectangular knockout in the center of the base.
Cut out opening in the wall that will be used to route the wires through.
Mount base to wall over wire opening using the #6 sheet metal screws and plastic anchors.
Mount DK-12 to cover with either tamper resistant #6 screws (recommended) or #6
conventional screws. See Section 7 (Programming) before securing DK-12 in place.
Pull wires through wall/center of base and connect to DK-12 wiring terminals (see Se ction 3
for wiring instructions).
Push the wall box cover onto the base until it snaps into place.
FLUSH MOUNT WALL BOX
Cut out opening in wall to mount box into.
Route wiring through one of the four knockouts in the back of the box.
Push the box into the wall and secure in place using the two swing clamps.
Connect wires to DK-12 wiring terminals (see Section 3 for wiring instructions).
Mount DK-12 to box with either tamper resistant #6 screws (recommended) or #6
conventional screws. See Section 7 (Programming) before securing DK-12 in place.
The DK-12 can be used outdoors with the optional rain cover (Securitron part #WCC) which will
allow the DK-12 to be mounted in outdoor locations not directly exposed to ra in or snow. When
used outdoors you must supply a weatherproof, gasketed wall box (available from Securitron
under part #WBB).
3. WIRING
Wiring Terminal Connections
:
1. ‘AC/DC+’ One AC supply lead or positive DC supply lead.
AC/DC+ AC/DC-
NC
COM
NO
SRC
REX
1 2 3 4 5 6 7
2. ‘AC/DC-’ Other AC supply lead or negative DC supply lead.
3. ‘NC’ Normally closed relay contact.
4. ‘COM’ Common for relay contacts.
Wiring
Terminals
5. ‘NO’ Normally open relay contact.
6. ‘SRC’ Supply for REX signal.
7. ‘REX’ REX Signal input.
DK-12
Back Side
NOTE: Each terminal is provided with a marking in front of it for
easy reference.
© Copyright, 2011, all rights reserved PN# 500-24010
Page 1 Rev. C, 04/11
Page 2
C
1 2 3 4 5 6 7
Power Supply
Basic Power and Electric Lock Connections
Connect supply to ‘AC/DC+’ and ‘AC/DC-’ terminals.
:
Connect ‘AC/DC+’ terminal to ‘COM’ terminal.
If Fail Safe
For fail-safe operation connect ‘NC’ terminal to one
lead of lock (positive lead if a DC lock).
If Fail
Secure
For fail-secure operation connect ‘NO’ terminal to one
lead of lock (positive lead if a DC lock).
Connect other lead of lock to the ‘AC/DC-’ terminal.
Electric
Lock
NOTE: Use a DC supply for a DC lock and an AC
supply for an AC lock. Ensure the supply has the
DK-12
Back Side
capacity to operate both the lock and the DK-12.
Relay contact MOV protection is built into the DK-
12.
4. REX SOURCE AND INPUT
The REX (Request To Exit) function allows the door to be opened from the inside when an
electric lock (such as a magnetic lock) is securing the door. To use the REX a normally open
switch is placed between the ‘SRC’ and “REX’ terminals. When this switch is pushed/closed it
operates the DK-12 relay the same as if a code were entered.
REX CHARACTERISTICS
Holding the REX switch closed will keep the lock released.
When the REX switch re-opens the lock will remain released for the programmed time.
When in toggle mode the REX switch will toggle the relay state.
When in lockout mode the REX switch will still release the lock.
When using exit switches the possibility must be considered that an electronic failure may occur
to the DK-12 and people will not be able to exit. If the DK-12 controls the only door exiting
the area additional steps should be taken to improve the reliability of the exiting so as
to avoid trapping people. This can most easily be done by implementing a secondary means
of releasing the lock not dependant on the DK-12’s REX input. Additional switch contacts should
be used which directly control the electric lock. In the case of a fail-safe lock, which should
always be employed when there is only one exit path, this can be easily accomplished with
“double break” wiring between the exit button, electric lock, and DK-12. The exit button must
have normally open and normally closed contacts and be of the DPDT type. Exit bu ttons that fit
this need are available from Securitron. Note that you should always consult your local
building department when securing doors that are part of an emergency exit path to
make sure you are complying with local codes.
Power Supply
Double Break Wiring For Free Egress
Connect supply to ‘AC/DC+’ and ‘AC/DC-’ terminals.
:
Connect ‘AC/DC+’ terminal to one common terminal of
the DPDT switch.
Connect the normally closed contact of that common to
1 2 3 4 5 6 7
Fail-Safe
Electric Lock
the ‘COM’ terminal.
Connect ‘NC’ terminal to one lead of lock (posi tive lead
if a DC lock).
Connect other lead of lock to the ‘AC/DC-’ terminal.
Connect ‘SRC’ to the other common terminal of the
DK-12
Back Side
C
NC
NO
NC
NO
DPDT switch.
Connect the normally open contact of that common to
the ‘REX” terminal.
DPDT Switch
Because the DK-12 was designed for use with AC and DC volta ges the ‘SRC’ output was provided
to supply a current limited DC source for the REX switch. The above diagram can be redrawn for
use with a SPDT switch if required, however, an external resistor must be provided and
this setup can only be done with a DC power supply; if an AC power supply is used the
REX must be connected to the ‘SRC’ output.
PN# 500-24010
Page 2 Rev. C, 04/11
Page 3
R
DC Power Supply
Double Break Wiring For Free Egress (SPDT)
Connect DC supply to ‘AC/DC+’ and ‘AC/DC-’
terminals.
Connect ‘AC/DC+’ terminal to the common terminal of
the SPDT switch.
1 2 3 4 5 6 7
Fail-Safe DC
Electric Lock
Connect the normally closed contact of the SPDT switch
to the ‘COM’ terminal.
Connect the normally open contact of the SPDT switch
to the ‘REX” terminal through resistor (R).
Connect ‘NC’ terminal to the positive lead of lock.
DK-12
Back Side
C
NC
NO
SPDT Switch
Connect other lead of lock to the ‘AC/DC-’ terminal.
NOTE: Resistor (R) is 3300 ohms, ½ watt.
5. WIRING WITH SECUTITRON’S TOUCH SENSE BAR AND MAGNALOCK
:
Power Supply
Touch Sense Bar and Magnalock Wiring
Connect supply to ‘AC/DC+’ and ‘AC/DC-’ terminals.
:
Connect ‘AC/DC+’ terminal to the red and white wires
of the Touch Sense Bar.
1 2 3 4 5 6 7
Magnalock
Black
Red
White
Sense Bar
Green
Red
Black
Touch
Connect ‘AC/DC-’ terminal to the black wires of both
the Touch Sense Bar and the Magnalock.
Connect ‘NC’ terminal to the red lead of the Magnalock.
Connect ‘COM’ terminal to the green lead of the Touch
Sense Bar.
DK-12
Back Side
6. FEEDBACK AND ENTRY OVERVIEW
The DK-12 comes with indictor lights above the keypad; left-hand side green, center yellow, and
right-hand side red. These three indictor lights, and the backlight, provide feedback during
operation. Note that the green and red LEDs could be reversed thru programming.

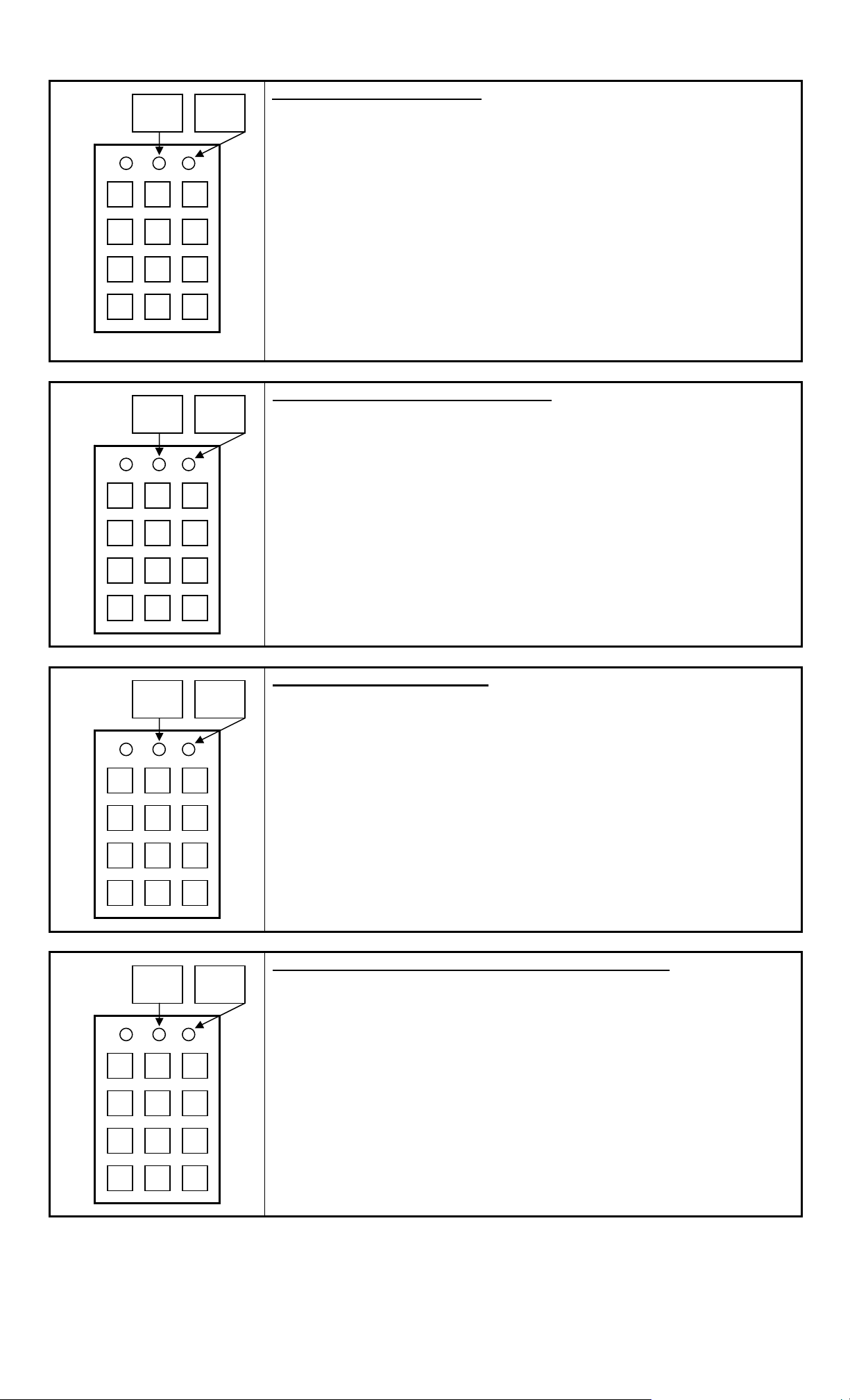

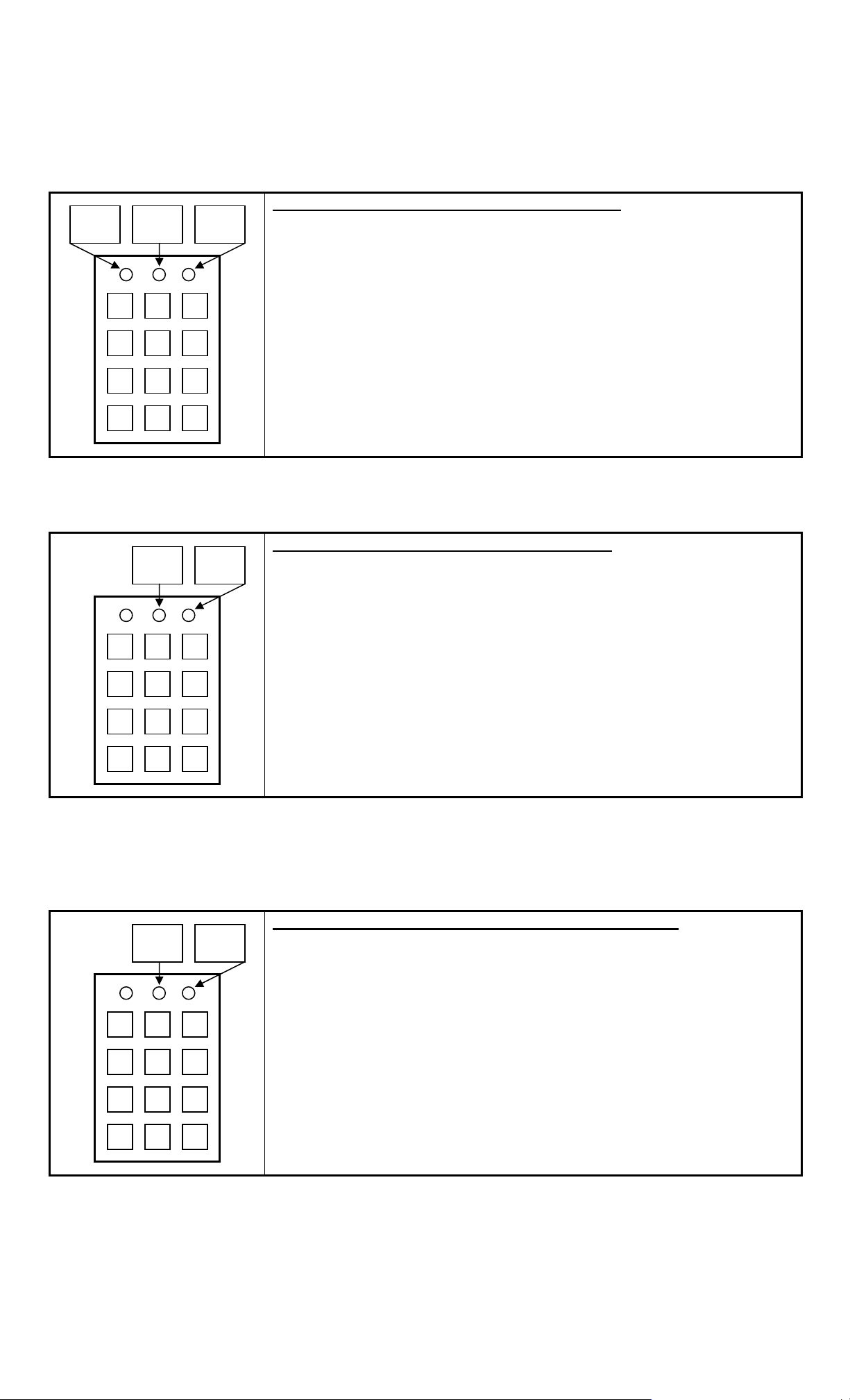

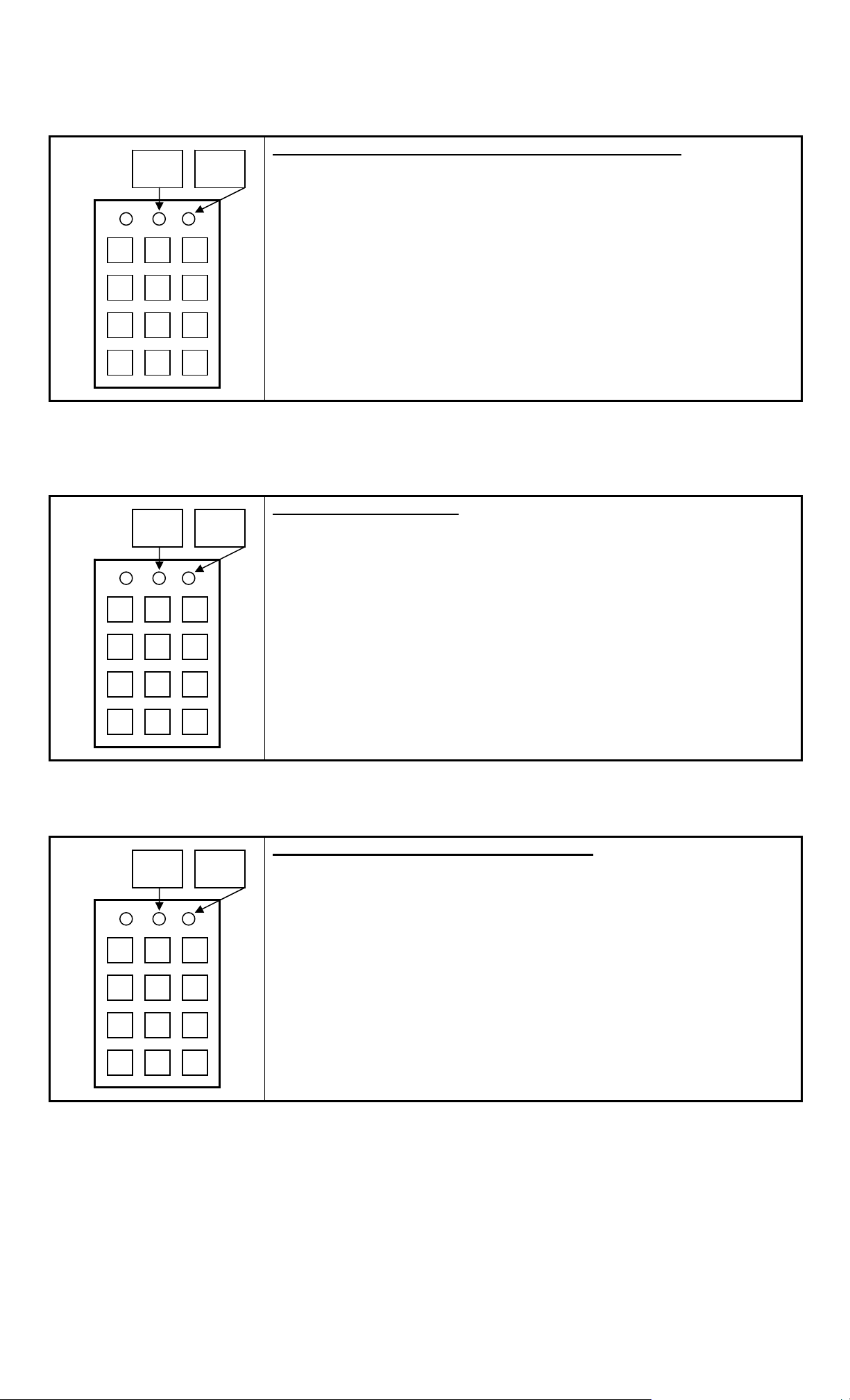

INDICATOR ACTION MEANING
While in programming mode an error was made during
program entry; or
The program entry was correct but the DK-12 can not accept
Red Light Single Flash
the programming, for example a code was trying to be set
that is a subset of another code; or
A 5 second timeout occurred at any time during a
programming step.
While in programming mode a confirmation that a valid
Red Light Double Flash
program entry was made; or
During normal operation the DK-12 was put into or taken out
of lockout mode.
Red Light
Red Light
Continuous
Flashing
Continuously
On
During normal operation the relay is energized while the DK-12
is in relay timer mode; flashes once per second.
While in normal operation the DK-12 is in passage mode; or
The DK-12 is in toggle mode and the relay is energized; or
The REX input is being held active.
While in programming mode the light will flash once per
Yellow Light
Continuous
Flashing
second; or
While the ‘PCR’ jumper is in the ‘ON’ position the light will
flash once per second.
Yellow Light
Continuously
On
While in normal operation this indicates that there are no codes
in memory.
Green Light Single Flash Key press detected.
PN# 500-24010
Page 3 Rev. C, 04/11
Page 4
INDICATOR ACTION MEANING
p
Green Light
Continuously
On
Backlight Double Flash
While in normal mode a 30-Second lockout occurred after 16
wrong digits were entered; light turns off after lockout time.
While in normal mode a valid code was entered while the DK12 was in lockout mode.
The DK-12 codes will operate the unit when their sequence is entered regardless if other
incorrect digits were entered before. For instance, if the correct code is 2-2-6-7 the unit will
operate if 8-2-2-6-7 is entered. An exception to this is if a total of 16 wrong digits are entered.
In this case a continuous audible alarm sound is made and the keypad will lock itself out for 30
seconds while the green light remains on constantly. After the 30 second lockout the audible
alarm will silence, the green light will turn off, and the keypa d will become active. This feature
discourages attempts to guess the code.
When entering a sequence the DK-12 has a 5 second timeout that will erase the internal bu ffer
when a key is not pressed within 5 seconds. For example, if the correct code is 2-2-6-7 and the
user enters 2-2-6 followed by a 5 second delay and then enters 7 the DK-12 will not operate.
The DK-12 is also provided with a beeper that can be used to indicate when a button is pressed
or the relay is energized. The beeper’s functions are detailed later in this manual. Note that
when shipped from the factory there is a pape r label applied to the top of the beeper.
This label decreases the volume of the beeper. If you find that more volume is needed
in your application simply remove the label off the beeper to obtain maximum volume.
7. PROGRAMMING
With the exception of one function (Program Code Replacement) all programming is done
through the keypad. The DK-12 employs memory that will retain all codes and settings in case
of a power failure. Up to 100 codes can be stored. Each code is stored in an area of memory
called a “code slot”.
CODE TYPE CODE SLOT DESCRIPTION
Program 0 Code used to enter into programming mode which allows
entering/changing of all the codes and keypad functions.
User 1 to 97 Standard code used to gain access.
Lockout 98 Will activate/deactivate lockout mode. When active no valid
user or passage codes will activate the relay.
Passage 99 Will activate/deactivate passage mode. When active the relay is
energized indefinitely.
When setting and/or changing codes a two digit prefix is always entered first before the code,
this prefix lets the DK-12 know what code slot the code is going into. T he prefixes are ‘00’ to
‘99’ for a total of 100 code slots. The DK-12 is shipped from the factory without any codes in
memory so before anything can be done with the DK-12 a pro gram code must be e ntered. Start
with the section below to get into programming mode through the hardware jumper. The
section immediately following it explains the entry of a program code. Once a program code is
entered all programming can be done easily through the keypad.
Entering Programming Mode Through the PCR Jumper
:
Disconnect the power supply.
Move the jumper from ‘OFF’ to ‘ON’.
1 2 3 4 5 6 7
Apply power, the yellow light will flash and the beeper will
sound continuously.
Move the jumper from ‘ON’ to ‘OFF’; the yellow light will
ON
OFF
continue to flash and the beeper will turn off.
The DK-12 is now in programming mode.
PCR
Jum
er
DK-12
Back Side
NOTE: PCR jumper only needs to be used during initial
installation or if the program code is ever lost/forgotten.
PN# 500-24010
Page 4 Rev. C, 04/11
Page 5
Yellow
g
g
g
g
Light
Red
Li
ht
Setting/Changing Codes
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
On the keypad enter either 0-0 (program code), 0-1 through 9-7
(user code), 9-8 (lockout code), or 9-9 (passage code).
1 2 3
4
5 6
Enter desired code on the keypad.
Press either ‘#’ or ‘’, or wait 5 seconds to complete entry.
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
If the error still occurs read Section 8 (Subset Codes).
7
12 Digit Keypad
8 9
0 #
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
Note: Program code length must be 5 to 7 digits long; all
others are 2 to 7 digits long.
Yellow
Light
Red
Li
ht
Deleting a Code Via Slot Number
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter desired code slot on the keypad (0-0 to 9-9).
Enter #-# on the keypad to complete entry.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
Yellow
Light
Red
Li
ht
Deleting Via Known Code
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter 7-9- on the keypad.
Enter known code to be deleted on the keypad.
1 2 3
4
5 6
Enter #-# on the keypad to complete entry.
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
12 Digit Keypad
8 9
0 #
Yellow
Light
Red
Li
ht
Deleting All User, Passage, and Lockout Codes
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter 8-8- on the keypad.
Enter #-# on the keypad to complete entry.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
PN# 500-24010
Page 5 Rev. C, 04/11
Page 6
As delivered the DK-12 echoes key presses by a short flash of the green light. The red light
g
g
g
flashes once per second while the relay is energized in timer mode or is on continuously in
toggle or passage mode. The red light is also on continuously while the REX button is being
pressed. These defaults can be changed so that these light’s functions are reversed. If the
functions are reversed they can later be changed back to their factory default setting.
Green
Light
Yellow
Light
Red
Li
ht
Changing Red and Green Light Functions
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter either 7-4- (reverse light’s functions) or 7-5- (default
light’s functions) on the keypad.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry if you set
the light’s function to default, otherwise the green light will flash
twice. If a single flash occurs then there was an error; try the
above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
7
12 Digit Keypad
8 9
0 #
light will stop flashing.
As delivered the DK-12 echoes key presses by a short beep. This key pr ess echo can be turned
off if desired. If you turn it off it can always be turned back on later.
Yellow
Light
Red
Li
ht
Changing Keypad Beeper Echo Function
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter either 7-2- (turn on beeper key press echo) or 7-3-
(turn off beeper key press echo) on the keypad.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
The default state of the DK-12 is that there is no audible announcement when the relay is
energized. However, the DK-12 can be setup so that it will produce a continuou s double beep
when the relay is energized in timer mode. If the DK-12 is in toggle or passage mode there is
no audible announcement option.
Yellow
Light
Red
Li
ht
Changing Beeper Door Announcement Function
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter either 7-0- (turn on continuous double beep) or 7-1-
(turn off continuous double beep) on the keypad.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
There are two modes the relay can operate in, timer and toggle mode. In timer mode, which is
the default mode of the DK-12, the relay will energize fo r a certain period of time and then de-
PN# 500-24010
Page 6 Rev. C, 04/11
Page 7
energize automatically after that timer period expires. The default time is 5 seconds but i t can
g
g
g
be changed to any value from 1 to 99 seconds.
Yellow
Light
Red
Li
ht
Entering Timer Mode and Changing Timer Value
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter 9- on the keypad.
Enter a timer value on the keypad from 0-1 to 9-9 (1 to 99
1 2 3
4
5 6
seconds).
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
12 Digit Keypad
8 9
0 #
In toggle mode the relay will energize when a valid code is entered and de-energize when a valid
code is entered a second time. When you have enabled toggle mode activation of the REX input
will energize and de-energize the relay just as if a valid User Code were entered.
Yellow
Light
Red
Li
ht
Entering Toggle Mode
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter 9--0-0 on the keypad.
The red light will flash twice to confirm a valid entry. If a single
1 2 3
4
5 6
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
The DK-12 gives you the ability to return all the functions, including th e timer, to their factory
default settings. However, all codes will remain unchanged.
Yellow
Light
Red
Li
ht
Returning to Factory Default Settings
Enter program code on the keypad.
Press either ‘#’ or ‘’ and the yellow light will flash.
:
Enter 8-9- on the keypad.
Enter #-# on the keypad to complete entry.
1 2 3
4
5 6
The red light will flash twice to confirm a valid entry. If a single
flash occurs then there was an error; try the above steps again.
Press either ‘#’ or ‘’ to exit programming mode and the yellow
light will stop flashing.
7
8 9
12 Digit Keypad
0 #
8. SUBSET CODES
When you recognize that the DK-12 accepts multiple codes of differ ent lengths it is possible that
one code will be a subset of another. For example, suppose you programmed 1-3-3-5-8 and
then programmed 3-3-5 as another code. When you try to enter 1-3-3-5-8 you can’t comple te
the entry because when the unit sees the sequence 3-3-5 it will operate. A real problem could
PN# 500-24010
Page 7 Rev. C, 04/11
Page 8
occur if a user code was a subset of the program code. The unit could not be put into
(
programming mode from the keypad.
The DK-12, however, avoids this problem by rejecting any code that is a subset of a nother code
in memory. It signals this rejection by flashing the red light once instead of the double flash
confirmation. You’ll get the same error if you try to enter a duplicate code as well. If you are
trying to enter a code and see it rejected by the error signal carefully check your list of other
codes. You are probably attempting to enter a subset code. If the security procedures of the
installation allow individuals to choose their own cod es without reference to a list the users need
to be advised that they may have to try alternate codes if the one they prefer is rejected as a
subset.
9. INSTALLING A DK-12 IN PLACE OF A DK-11
If you are putting a DK-12 in an installation that is currently using a DK-11 th e diagram below
will assist you in converting the wiring from the DK-11 to the DK-12. The terminals of the DK11 are not marked on the board so use the diagram below as a reference for the terminal
numbers. Note that when looking at the DK-11 from the back the terminal block is on the lefthand side and the jumper terminal is at the top of the board.
Converting a DK-11 Installation to a DK12:
NC
C
NO
REX
0VDC
+12 OR +24VDC
NEG)
JUMPER
6
5
4
3
2
1
RELAY
Move lead from terminal 1 (DK-11) to
terminal ‘AC/DC+’ (DK-12).
Move lead from terminal 2 (DK-11) to
terminal ‘AC/DC-’ (DK-12).
Move switch lead from terminal 3 (DK-11) to
terminal ‘REX’ (DK-12).
Move other switch lead from terminal 1 (DK-
11) to terminal ‘SRC’ (DK-12).
Move lead from terminal 4 (DK-11) to
terminal ‘NO’ (DK-12).
Move lead from terminal 5 (DK-11) to
terminal ‘COM’ (DK-12).
Move lead from terminal 6 (DK-11) to
terminal ‘NC’ (DK-12).
NOTE: Review Section 4 (REX Source and
Input) for more details on wiring the REX
of the DK-12 if used.
10. MAGNACARE
For warranty information visit: www.securitron.com/en/site/securitron/About/MagnaCare-Warranty/
®
LIFETIME REPLACEMENT WARRANTY
PN# 500-24010
Page 8 Rev. C, 04/11
Loading...
