Scott DRX 950 User Manual

DVD/VCD/CD/MP3/MPEG4/XVID CAR RADIO WITH 7” SCREEN

USB/SD/MMC INTERFACE

ESP ANTI-SHOCK SYSTEM

AM/FM RDS-TA/AF/PTY

160 WATT POWER

DETACHABLE PANEL

USER MANUAL AND INSTALLATION INSTRUCTIONS

CONTENTS

CONTENTS ………………………………………………………………………………………...………… GB 1

ACCESSORIES ………………………………………………………………………………………………… GB 2

PRECAUTION ………………………………………………………………………………………………… GB 3

INSTALLATION/REMOVAL AND ELECTRICAL CONNECTIONS

DUAL ZONE MODE SETUP…………………………………………………………………………………….. GB 5

FRONT PANEL ………………………………………………………………………………………………… GB 9

BASIC OPERATION …………………………………………………………………………………………. GB 10

REMOTE CONTROL ………………………………………………………………………………………. GB12

TOUCH SCREEN CONTROLS……………………………………………………………………………… GB17

RADIO OPERATION …………………………………………………………………………………………. GB21

DVD/VCD/CD/MP3/MPEG4/XVID OPERATION ………………………………………………………… GB24

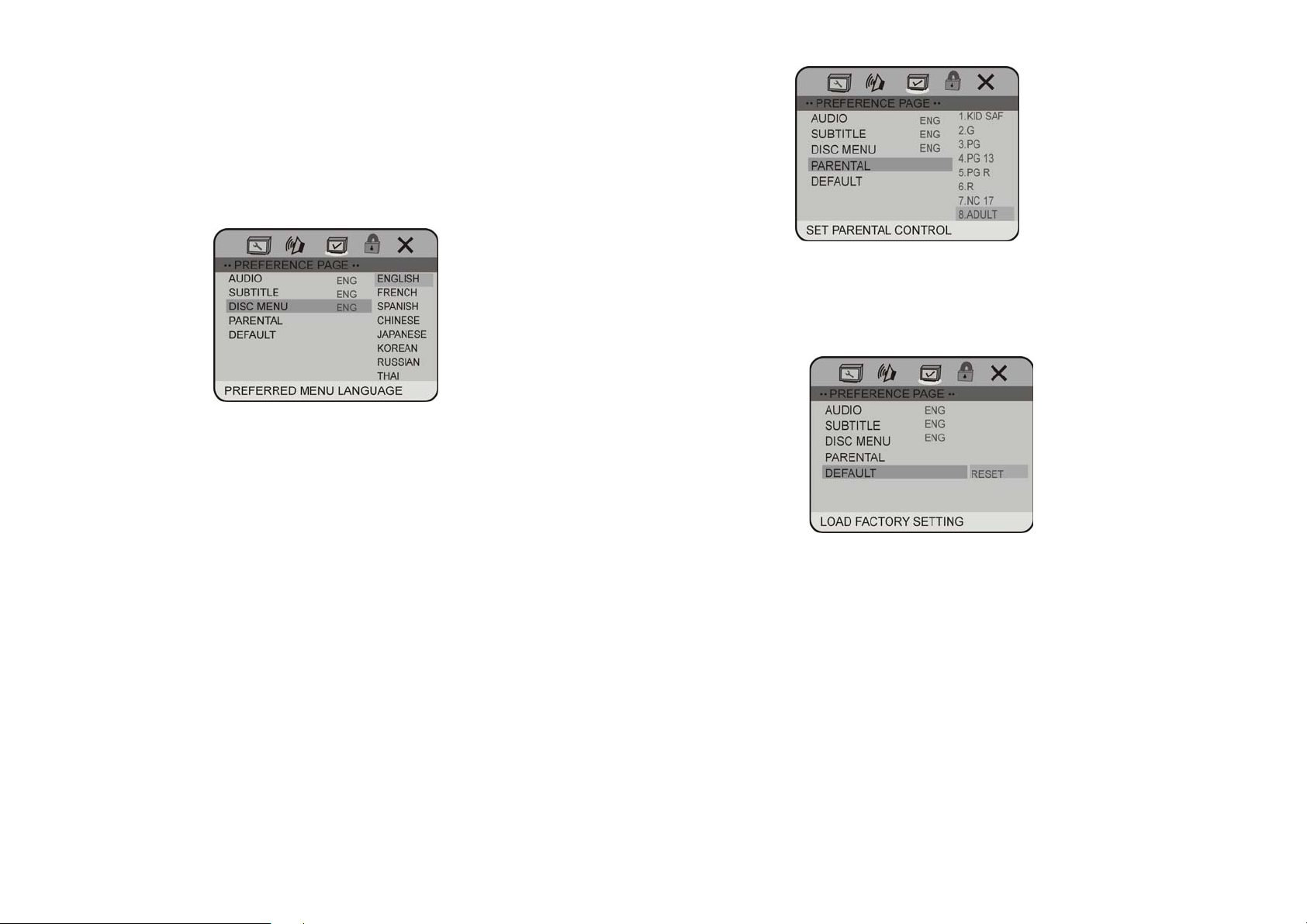

DVD SETUP …………………………………………………………………………………….………. GB34

TECHNICAL SPECIFICATIONS ……………………………………………………………………………. GB39

TROUBLESHOOTING …………………………………………………………………………………………. GB41

-GB 1-

ACCESSORIES

Mounting

Bracket x1

(already mounted

on the unit)

Removable Trim Ring

(already mounted on

the unit)

strip x 1

Washer x 1 Small metal

Rubber X1 Remote Control X1 Release key X2 AV in Cable x1

User manual X1 USB cable X1 screws X 4 ISO Wire connector X1 Removable control panel X1

(Already mounted on the unit)

-GB 2-

Nut x 1

PRECAUTION

This unit is designed and manufactured with the user’s safety in mind; however any improper use or operation may result in

ertain dangers. It is therefore highly recommended to read this manual thoroughly and adhere to the following precautions. c

AS FETY PRECAUTIONS

∗ To prevent an electrical shock, do not open the housing of the unit. In any case of malfunctioning, only have the unit

serviced by an approved and qualified service centre.

∗ Do not expose to any water or to a very humid environment. Do not operate the unit when your hands are wet as this

may cause a short circuit.

affic conditions. ∗ For safe driving, keep the volume low in order to concentrate on tr

∗ Do not clean the unit with alcohol, only clean with a soft dry cloth. ∗ If the unit has been kept at a high temperature or in a high humidity environment, cool down the car interior before

turning on the unit.

∗ Do not use the unit for a long time without running the vehicle engine, as this may drain the battery and the vehicle’s

engine may not be able to start.

g and make sure the unit is working properly. ∗ Before final installation in the dashboard opening, connect the wirin

∗ Only use parts provided with the unit to ensure proper installation. ∗ Do not route wiring in places that the heat may melt the wiring insulation.

When replacing the fuse, ensure that the new fuse has the capacity recommended by the manufacturer. ∗

-GB 3-

PRECAUTION

PO ERATION PRECAUTIONS

∗ Do not operate the player with scratched, bent or broken discs. When a disc is not loaded properly, do not force it into

the disc loader.

as this may cause damage or a short circuit. ∗ Never insert any other objects into the disc loader like a coin or pin, etc

∗ Do not use different disc formats other than 8 cm or 12cm round discs.

country. ∗ Please dispose of used batteries according to the regulations in your

∗ If the unit is disconnected to the battery, it will lose memorized data. ∗ If the source disc has poor sound quality due to scratches, dirt or a bad recording, the playback sound quality may be

poor.

Remote control:

it may become jammed under the brake or accelerator pedals. * Do not let the remote control fall onto the floor, where

at the battery. * Do not short-circuit, disassemble or he

e. * Do not dispose of the battery in a fir

Dispose of used batteries properly. *

it for the first time. IMPORTANT: Please adjust the touch effect on the TFT screen when you use the un

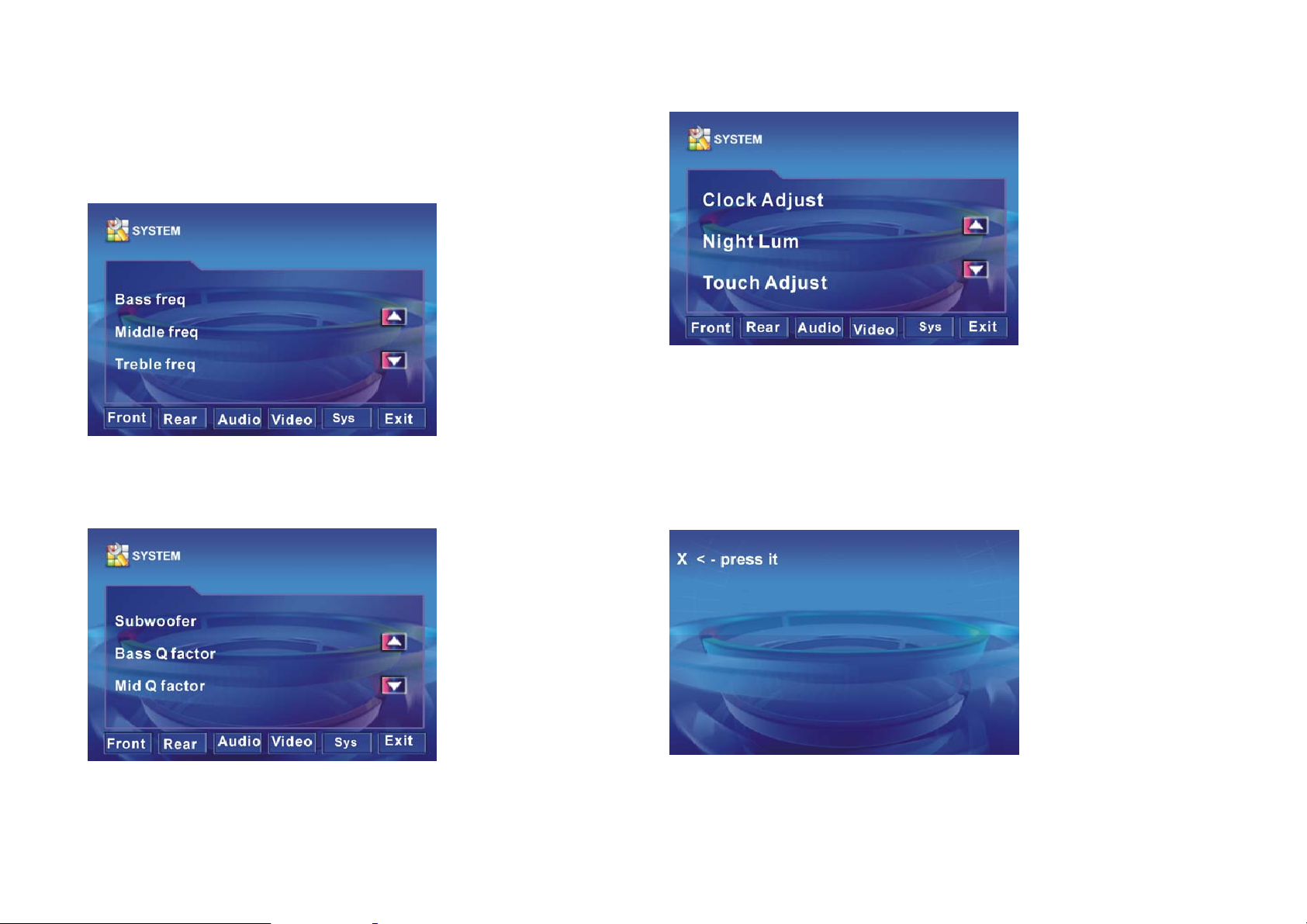

For more details, please refer to “SYSTEM SETUP – 5. SYSTEM: Touch Adjust”.) (

-GB 4-

NSTALLATION/REMOVAL AND ELECTRICAL CONNECTIONS I

NOTE of over 30° from to the horizontal) : The unit should be installed horizontally (do not go beyond an angle

Before the final installation, first complete the electrical connections.

DIN FRONT-MOUNT

nstallation of the unit I

1. Metal Sleeve

Install the metal sleeve in the dashboard. For optimum performance of the CD player, the unit should be positioned as

horizontally as possible (do not go beyond 30° from the horizontal). Fix the metal sleeve into place by pushing the metal tabs outwards using screwdriver. Then complete the electrical connections (page 7)

2. Front Mounting

Slide the main unit into the metal sleeve until the springs at either side of the

radio snap into the sleeve openings.

3. Removing the Radio

Insert the release keys supplied with the unit into the grooves at both sides of

the unit until you hear a click sound. Then remove the unit from the dashboard by pulling the release keys towards you.

-GB 5-

ATTACHING & REMOVING THE DETACHABLE FRONT PANEL Removing the detachable front panel

∗ Press the REL button to unlock the front panel. ∗ Push the front panel to right and pull the left side of the front panel away from the unit,

as shown in the figure：

Attaching the detachable front panel

∗ First insert the right side of the front panel as shown in the figure and gently push the

left side of the front panel onto the unit until you hear a click sound, which confirms that the front panel is firmly attached.

Note: Remove the protective plastic film from the screen in order to ensure optimum use of the touch screen.

-GB 6-

ELECTRICAL CONNECTIONS

Most vehicles are fitted with ISO connectors behind the dashboard, which makes it easier to connect your car radio. These

connections can be found in the dashboard where the car radio will be fitted. Use these cables to connect the car radio. If

your car is not fitted with these ISO connectors, we strongly advise you to consult your car dealer or a specialist to obtain

the right adaptor. Once you have these cables, you will need to connect your loudspeakers and the power supply to the ISO

connector, following the connection instructions below.

-GB 7-

NOTES: INCORRECT CONNECTIONS OR USE WILL VOID THE WARRANTY. The manufacturer cannot be held responsbile if the unit malfunctions due to incorrect connections.

- For safety reasons, the brown wire must be connected to the parking brake contact in order to activate the video display on the unit’s screen. The video display is activated permanently on the rear monitor.

- It is possible to connect a reversing camera (composite video) to the input provided for this purpose. In order to activate the reversing camera display, please also ensure that the orange cable is connected to the reversing contact or reversing light so that the unit

automatically enters reversing camera mode when the reverse gear is engaged.

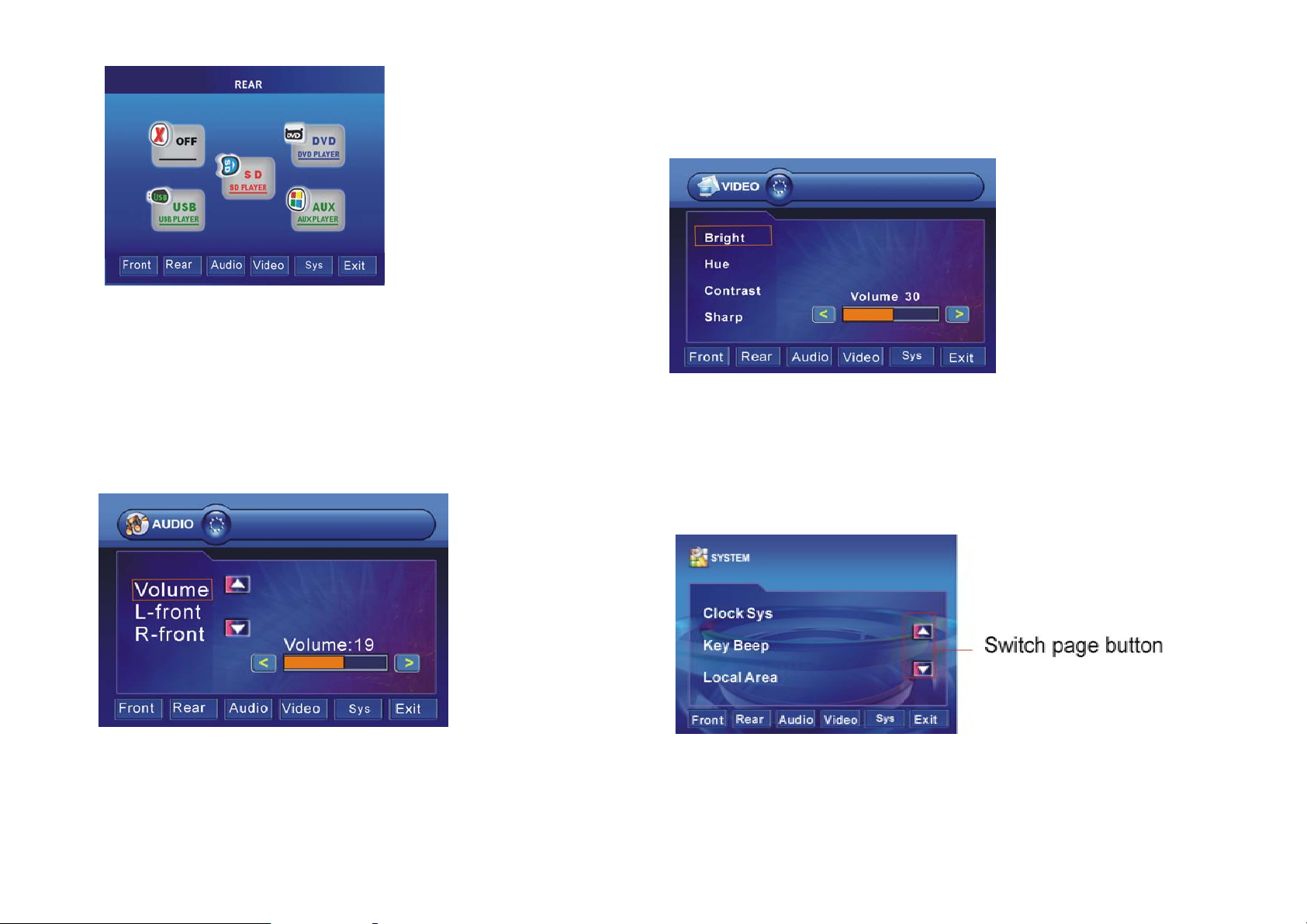

DUAL ZONE mode setup

This unit is equipped with a DUAL ZONE mode which allows the user, when one or two rear monitor(s) are (is) connected, to simultaneously obtain DVD, USB, SD or AUX mode on the rear monitor and radio mode on the unit. In this case, the DUAL AUDIO OUT output must be used to obtain the sound for the DVD, the USB device, the SD card or auxiliary source on the rear monitor.

Main source and source selected to display on the rear monitor(s) (refer to the “SYSTEM SETUP” section)

In any source menu, press the icon located at the top left of the screen to display the system setup menu. Next, press the source directly to select the front or rear zone.

1. When the unit is in radio mode, you can select any source for the rear monitor.

2. When the unit is in a mode other than radio mode, the rear monitors will display the same source as the one selected on the unit.

Controlling the unit or rear monitor

Press the IR-F/R button on the remote control to control the unit or the rear monitor.

Note: This function is switched off when the rear monitor is not available.

-GB 8-

FRONT PANEL

-GB 9-

BASIC OPERATION

1. TA (Traffic Announcement)

In radio mode, press the TA button to turn the traffic announcement function on /off.

2. PTY (Program Type)

In radio mode, press once to seek a station by program type. Press it repeatedly to select a program type.

3. LCD screen

4. REL button

Press this button to unlock the detachable front panel.

5. VOL/SEL

Adjust the volume by turning the button clockwise or counter clockwise. Press this button briefly to display the menu. You

can choose one of the following settings: L-front/R-front/L-rear/R -rear/ Sub woof / Bass / Middle / Treble / TILT / Volume. Rotate the button to adjust the desired settings.

6. IR window

Receives the infrared signal from the remote control.

7. POWER/MUTE

Press this button to turn on the unit. Press and hold down the button for 1 second to turn off the unit. When the unit is switched on, press the button briefly to shut off the sound output. Press it again to resume the previous

sound level.

8. In radio mode, press one of these buttons to seek a station automatically. Hold down one of the buttons to seek a station

manually.

In DVD/USB/CARD mode press these buttons to select the previous or next file. Hold down the button for 2 seconds to

fast forward or fast rewind.

9. Disc Loading Slot

10. BAND/

In radio mode, press this button repeatedly to select the one of the following frequency bands: FM1/FM2/FM3/MW1/MW2. In play mode, press this button to pause or resume playback.

11. MODE button

Press this button to select one of the following sources: RADIO/DVD/SD/USB/AV1/AV2.

+/- button

buttons

-GB 10-

12. AV IN (audio/video in)

Connect the jack on the AV cable (supplied) to the AV IN input on the detachable front panel of the unit. You can then

connect an external audio/video device to this adaptor, using a suitable A/V cable if necessary, then press the MODE

button to switch to AV1 mode.

BASIC OPERATION

13. SD/MMC card slot

Insert an SD/MMC card. The unit will read the files from the SD/MMC card automatically.

NOTE: If the unit does not eject the SD/MMC card when it is pressed, just pull it out manually.

14. AF/DISP button (alternative frequencies/information display)

In radio mode, press this button to turn the alternative frequencies function on/off. Hold down this button to display the following information: the current time, source selected for the main display, source

selected for the front and rear displays and available media.

15. OPEN

Press to open or close the TFT screen.

16. Press the button to eject a disc when it is loaded into the unit.

※

Press this button for a longer time to force the disc to eject if there is a malfunction while the disc is loading.

17. USB port

Insert a USB device, and the unit will automatically play the files on the device.

18. Anti-theft LED indicator

This indicator will flash when the detachable control panel is removed.

19. RESET

Insert a sharp object such as a pencil into the RESET button to reset the unit.

20. TFT touch screen

21.

- TILT+

Press one of these buttons to adjust the angle of the TFT screen.

22. SETUP

In DVD mode, press the button to display the DVD setup menu. Hold down this button to display the system setup menu. In other modes, press the SETUP button to display the system setup menu.

-GB 11-

REMOTE CONTROL

1. POWER

2. MODE

3. BAND/P/N (band/TV system: PAL/NTSC)

4. AMS/ANGLE (store stations automatically/angle

5. TITLE

6. [

8. VOL- /VOL+/SEL (select)

9. MUTE

/ ] [ / ] [▲/▼/◄/►]/ENTER

(Stop)

10. PROG/A-B (program/repeat A-B)

11. EQ (equalizer)

r buttons 12. 0-9, 10+ numbe

DI play) 13. SP (dis

14.

(Eject)

front/rear in Dual Zone mode) 15. IR-F/R (

16. SETUP

LOC (subtitles/local stations) 17. SUB-T/

M18. ENU

19.

20.

(play/pause)

/PTY (slow/program type)

21. ST/AUDIO (stereo/audio)

alternative frequencies) 22. ZOOM/AF (zoom/

23. LOUD (loudness)

dom/traffic announcement) 24. RDM/TA (ran

LEAR 25. RPT/C

26. GOTO

Installing the battery

Slide the tray out on the back of the remote control and insert the battery with polarity (+) on top as shown.

Use and care of the remote control

Point the remote control to the IR window on the detacha

ble front panel for operation.

Notes:

-GB 12-

Using the battery incorrectly can cause malfunctions. Take note of the following points for the remote control:

ons

children. Shou* Keep the battery out of the reach of

ult a doctor. battery be swallowed, immediately c

ld the

REMOTE CONTROL OPERATION

* Use one CR2025 (3V) lithium battery * Remove the battery if the remote control is not to be

used for a month or longer.

1. POWER

Press to turn the unit on or off.

2. MODE

utton to select one of the following sources: RADIO/DVD/SD/USB/AV1/AV2. Press this b

3. BAND/P/N

In radio mode, press this button to select a frequency band. In DVD/VCD mode, press it to select one of the following TV

AUTO or NTSC. systems: PAL,

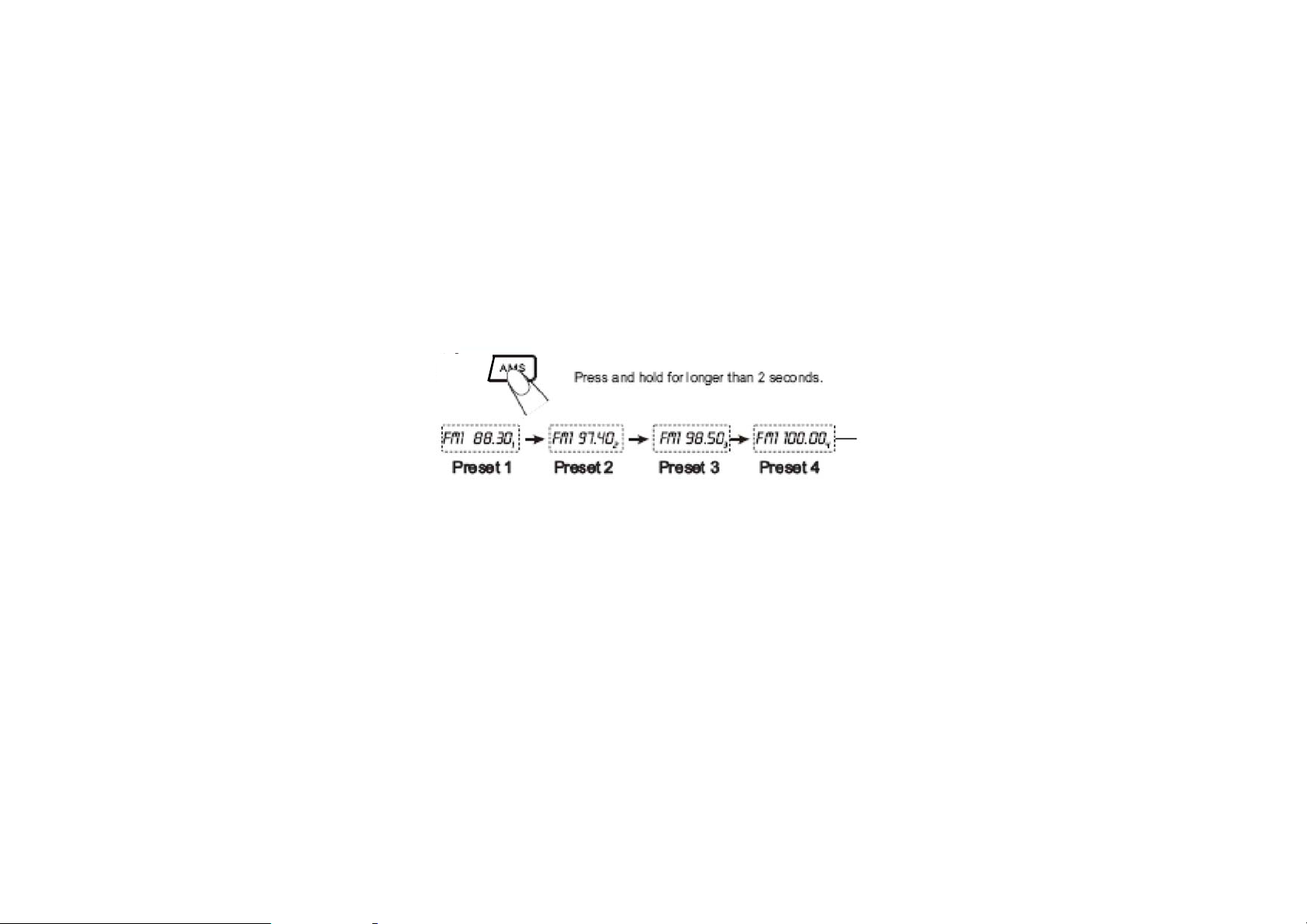

4. AMS/ANGLE

In radio mode, press this button briefly to scan through the preset stations. Press it for a longer time to automatically store stations.

mode, press it to change the viewing angle (if different angles are available on the disc). In DVD

5. TITLE

In DVD playback mode, pr tton to display the title menu. ess the bu

6. [

/ ] [ / ] [▲/▼/◄/►]/ENTER

In the setup menu, use the ▲/▼/◄/► buttons as cursors and then press ENTER to access the selected item or confirm

the selection.

In radio mode, press the

.station automatically Hold down the

In DVD/USB/CARD mode press the

/ buttons to go from one preset station to another. Press the or button to seek a

or button to seek a station manually.

/ buttons to select the previous or next file. Press the / buttons to fast

forward or fast rewind.

(stop)

Press to stop playback.

8. VOL-/VOL+ /SEL (select)

o point 5 in the “BASIC OPERATION” section. Refer t

9. MUTE

nd output. Press it again to resume the previous sound level. Press this button to shut off the sou

10. PROG/A-B (program/repeat A-B)

-GB 13-
