CXT 20
GB

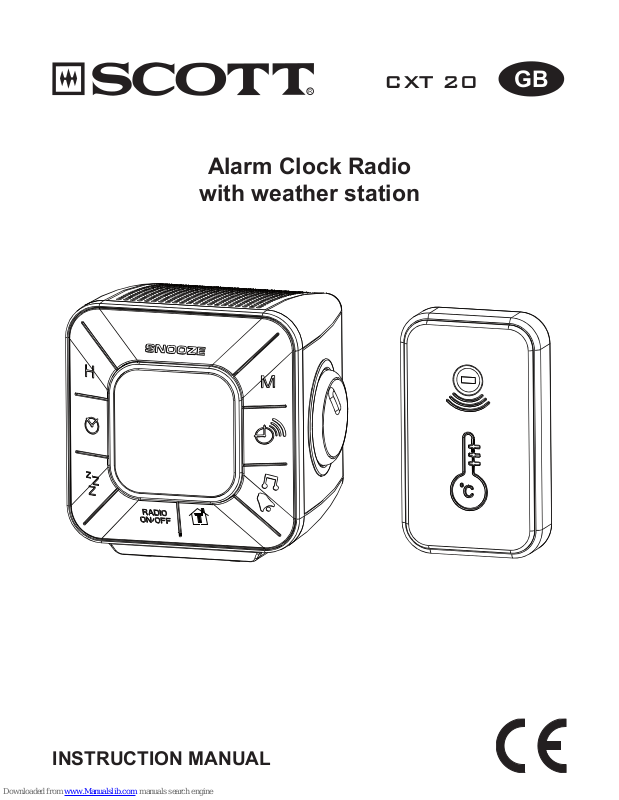

Alarm Clock Radio
with weather station
INSTRUCTION MANUAL
GB 1
PRECAUTIONS
Follow the instructions below to ensure the product is used safely and correctly.
PLACEMENT
. Do not use the unit in places which are extremely hot, cold, dusty, or humid.
. Place the unit on a at and even surface.
. Do not restrict the airow around the unit by placing it in a place with poor ventilation, covering it
with a cloth, or placing it on a carpet.
. Do not place the unit close to heat sources.
. Use the unit only in moderate climates (not in tropical climates).
. Do not expose the unit to rain or splash with water.
. Do not place objects lled with liquids such as vases on the unit.
SAFETY
. When connecting and disconnecting the AC power cord from the AC mains outlet, pull the plug
and not the cord itself. Pulling the cord may damage it and may be dangerous.
. The mains plug must remain easily accessible.
. When you are not going to use the unit for a long period of time, disconnect the AC power cord
from the AC mains outlet.
AC VOLTAGE
. Before use, check that the rated voltage of your unit matches your local voltage.
CONDENSATION
. The unit may not work properly if it has condensation inside.
. Unplug the unit for 1 to 2 hours before turning the power back on, or gradually heat the room up
and dry the unit before use.
. Ensure a minimum space of 5 cm around the apparatus for sufcient ventilation.
. Do not cover the ventilation openings.
BATTERIES
. Pay attention to the environmental aspects of battery disposal.
In case of malfunction due to electrostatic discharge, the apparatus has to be reset by disconnecting
it from mains supply.
ATTENTION : To reduce the risk
of electric shock, do not remove
the cover. There are no user
serviceable parts inside the unit.
Refer all servicing to qualied
personnel.
The exclamation mark within
a triangle is a warning sign
alerting the user to the
presence of important instructions accompanying the
product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with an
arrowhead symbol within a
triangle is a warning sign
alerting the user to the
presence of “dangerous
voltage” inside the unit.
GB 2
Main unit
BOX CONTENTS
1. Main unit 2. AC/DC adapter 3. Instruction manual
4. Temperature/humidity sensor with suction cup
DESCRIPTION OF THE UNIT
Wireless temperature/humidity sensor
1. LED transmission indicator
2. RF transmission antenna wire
3. Battery compartment screw closure
4. Hanger slot
5. Battery compartment
1. H/M: Hours, Minutes (°C/°F) buttons
2. : Time set button
3. SNOOZE button
4. LCD display
5. : Alarm set button
6. Speaker
7. : Sleep button
8. RADIO ON/OFF button
9. : Indoor/Outdoor reading
10. Alarm mode button
11. TUNING dial
12. FM antenna wire
13. DC IN 6V jack
14. RF receiving antenna wire
15. Clock back up battery
compartment
16. headphones jack
17. VOLUME dial
1 2
3
4
5 6
7 8 9 10 11 12 13 14 15 1716
1
1 2 3 4 5
LCD display
1. Outdoor- Very dry weather
2. PM indication (afternoon). This indication only appears
if the 12-hour clock display is selected
3. Time
4. Alarm indicator
5. Outdoor - Humid weather
6. Temperature in °C or °F
7. Outdoor - Mild weather
8. Outdoor readings indicator
9. Indoor readings indicator
10. % humidity
1 2 3 4 5
7 8 9 106
INSTALLING THE BATTERIES
Main unit
Clock back up
The clock and alarm time can be saved by using two AAA/LR03 (1.5V) batteries (not supplied). The
time may go forward or back slightly over time and may require resetting.
Battery insertion
1. Remove the battery compartment cover at the bottom of the unit.
2. Install two AAA/LR03 (1.5V) batteries matching the polarities shown in the battery
compartment.
3. Replace the battery compartment cover.
Note: For optimum performance, the battery should be replaced every 6 months.
Inserting batteries in the wireless sensor
1. Remove the screw from the battery compartment with a screwdriver.
2. Follow the steps in the previous section “Battery insertion”.
3. Tighten the screw.
Note: For optimum performance, the battery should be replaced every 10 months or when the outdoor
readings cannot be displayed properly.
Precautions when using batteries
1. Replace only with the same or equivalent type of battery.
2. Ensure you follow the correct polarities when installing the batteries (see marks in the battery
compartment). Reversing polarity may damage the unit.
3. Remove exhausted batteries as they may leak.
4. Dispose of batteries properly according to environmental regulations.
OPERATING INSTRUCTIONS
Connecting to the mains
Insert the AC/DC adapter plug into an AC mains outlet with a 230V AC ~ 50Hz power source, and the
other end into the DC IN 6V jack at the back of the unit.
GB 3
GB 4
Clock and Alarm time setting
Set the clock
1. Press the button and the digits will ash. Press the H/M buttons to set hours/ minutes.
2. Press the button to conrm.
Set the alarm time
1. Press the button and the digits will ash. Press the H/M buttons to set hours/minutes.
2. Press the button to conrm.
Note: Hold down the button to select 12-hour or 24-hour clock display.
Using the alarm function
The unit can wake you up with a buzzer or with the radio.
1. To adjust the alarm time, follow the steps in “Set the alarm time”.
2. To select buzzer “ ” or radio “ ” mode, press the
button repeatedly. The alarm indicator will be displayed.
3. The buzzer or radio will come on at the selected time.
4. To stop the alarm, press the RADIO ON/OFF button. The alarm will
sound again the next day. To disable the alarm function, press the button repeatedly to
select “ ”.
Note: While the buzzer alarm volume is xed and cannot be adjusted, the radio alarm volume can be
adjusted to your desired level using the VOLUME dial. To select the station, refer to “USING
THE RADIO”.
Snooze function
When the alarm sounds, press the SNOOZE button to stop the alarm temporarily. The alarm indicator
will ash and the alarm will sound again after 9 minutes. To cancel the SNOOZE function and repeat
the alarm at the same time the next day, press the RADIO ON/OFF button.
Sleep function
This function allows you to program the radio so that it switches off automatically after a certain duration (maximum 90 minutes).
1. When the unit is switched on, press the button, and “90” is displayed.
2. Press it repeatedly to select the duration: 90, 80…. 20, 10 minutes, or 0.
3. The radio will turn off automatically after the set length of time.
4. To cancel the Sleep function before the preset sleep duration elapses, press the
RADIO ON/OFF button to turn off the radio immediately.
USING THE WEATHER STATION
Wireless temperature/humidity sensor
After installing the batteries, position the remote sensor outdoors no more than 15 metres from the
main unit. It can be mounted in two different ways:
• Using the hanger slot at the back, hang the remote sensor on the wall with a screw.
• You can also insert the suction cup in the hanger slot and press the suction cup rmly against a
window or other smooth surface.
Note:
• The building’s construction materials and how the main unit and remote sensor are positioned
can inuence the transmission range.
• Extend and position the remote sensor RF transmission antenna wire so that it points to the
main unit and minimize obstructions such as doors, walls, and furniture.
• It should not be exposed to direct sunlight, rain or snow, and should not be placed near high
power electrical appliances or inside strong magnetic elds.
Indoor/ Outdoor temperature/humidity indication
Press the button to display indoor ( ) or outdoor ( ) readings.
Hold down the M button to display temperature in Celsius (°C) or Fahrenheit (°F).
Outdoor
When batteries are installed, the remote sensor will transmit the outdoor temperature and humidity
readings at two-minutes interval. The main unit may take up to two minutes to receive the readings if
the signal is good. The main unit will then automatically update readings every two minutes.
If no signal is received from the remote sensor after ve minutes, the outdoor readings will not be displayed properly. You should place the remote sensor closer to the main unit or replace the batteries.
Weather station
The remote sensor detects humidity. An icon is displayed depending on the level of humidity (see
table below) .
GB 5
Icons displayed Humidity range Weather
19% - 40% RH Very dry
41% - 65% RH Dry
66% - 75% RH Mild
76% - 91% RH Humid
USING THE RADIO
Listening to the FM radio
1. Press the RADIO ON/OFF button to turn on the radio.
2. Turn the TUNING dial to search for an FM station. The TUNING dial indicator points to the
selected frequency.
3. Adjust the volume by turning the VOLUME dial.
4. To turn off the radio, press the RADIO ON/OFF button.
Note: Extend and position the FM antenna wire to achieve optimum reception.
TROUBLESHOOTING GUIDE
Problem Solution
1. The unit or display is not
working properly
1.1 Press the RADIO ON/OFF button to go to Standby
mode and press it again to turn on the unit.
1.2 Reset by unplugging the AC/DC adapter for few
seconds, then plug it back in.
2. Outdoor readings are not
being displayed properly
2.1 Place the remote sensor closer to the main unit.
2.2 Replace the sensor batteries.
3. Noise or distorted sound
in radio mode
3.1 Extend and position the FM antenna to improve
reception.
MAINTENANCE
Care and maintenance
To clean the casing, unplug the unit and wipe off dust and stains with a soft, damp cloth. Do not use
benzene, thinner or similar chemicals to clean the casing.
If at any time in the future you want to dispose of this product, please note that waste
electrical products should not be disposed of with household waste. Find out where your
nearest recycling centre is. Consult your local authority or retailer for more details.
(Waste Electrical and Electronic Equipment Directive)
GB 6
TECHNICAL SPECIFICATIONS
Operating range Indoor Outdoor (Remote sensor)
Temperature 0 to +50°C -20°C to +70°C
Humidity 20% to 99% RH 20% to 99% RH
RF transmission frequency 433 MHz
Range of the RF sensor Maximum 15m
Radio
Tuning range FM 87.5 – 108 MHz
Antenna FM antenna wire
General
Output power 200 mW
Power consumption- Main unit 7 W
Speaker 2” diameter (50 mm), 8 Ohm impedance
Power source
Main unit: AC/DC adapter Input: AC 230V ~ 50Hz,
Output: 6V DC
Clock back up battery 3V, 2x AAA/LR03 (1.5V) (not supplied)
Remote sensor: Batteries 3V, 2x AAA/LR03 (1.5V) (not supplied)
Dimensions
Main unit 105 (H) x 100 (W) x 97 (D) mm
Sensor 100 (H) x 60 (W) x 20 (D) mm
Weight
Main unit 370 g, 540 g (with AC/DC adapter)
Sensor 70 g
Note: We are constantly working to improve our products. The technical specications
are therefore subject to change without notice.
GB 7
