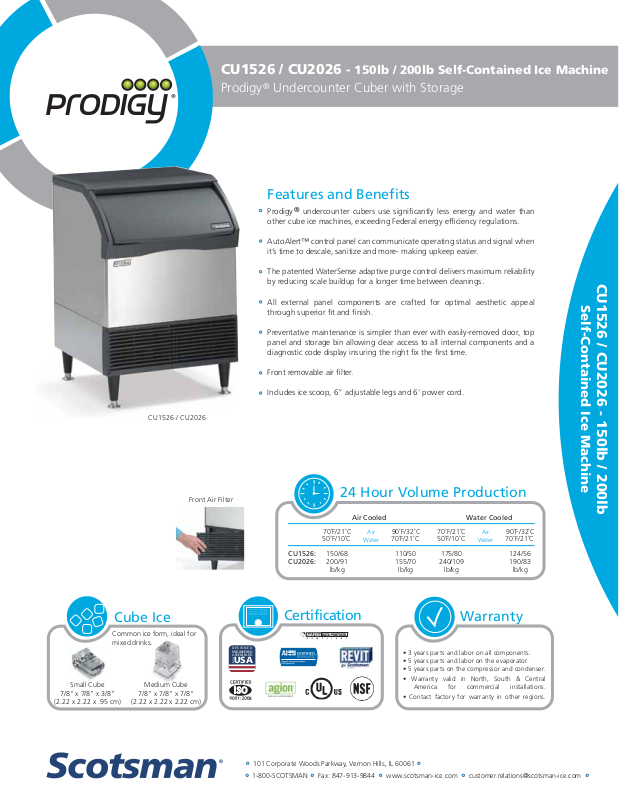

Scotsman CU2026SW32A Specifications
CU1526 / CU2026 - 150lb / 200lb Self-Contained Ice Machine
DESIGNED
ENGINEERED
ASSEMBLED
USA
IN THE
®
Prodigy Undercounter Cuber with Storage
®
Features and Benefits
®
Prodigy undercounter cubers use significantly less energy and water than
other cube ice machines, exceeding Federal energy efficiency regulations.
AutoAlert™ control panel can communicate operating status and signal when
it’s time to descale, sanitize and more- making upkeep easier.
CU1526 / CU2026
Front Air Filter
The patented WaterSense adaptive purge control delivers maximum reliability
by reducing scale buildup for a longer time between cleanings.
All external panel components are crafted for optimal aesthetic appeal
through superior fit and finish.
Preventative maintenance is simpler than ever with easily-removed door, top
panel and storage bin allowing clear access to all internal components and a
diagnostic code display insuring the right fix the first time.
Front removable air filter.
Includes ice scoop, 6” adjustable legs and 6’ power cord.
24 Hour Volume Production
CU1526:
CU2026:
Air Cooled
70˚F/21˚C
50˚F/10˚C
150/68
200/91
lb/kg lb/kg lb/kg lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
110/50
155/70
70˚F/21˚C
50˚F/10˚C
175/80
240/109
Water Cooled
Air
Water
90˚F/32˚C
70˚F/21˚C
124/56
190/83
CU1526 / CU2026 - 150lb / 200lb
Self-Contained Ice Machine
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Certification
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
• Warranty valid in North, South & Central
America for commercial installations.
8
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
• Contact factory for warranty in other regions.
Warranty
CU1526 / CU2026 - 150lb / 200lb Self-Contained Ice Machine
Prodigy Undercounter Cuber with Storage
®
3/8” Flare
Machine
Water Inlet
1/2” FPT
Condenser
Drain
WC Units Onl y
3/8” FPT
Condenser
Inlet
WC Units Only
3/4” FPT
Machine
Drain
CU1526 / CU2026
Electrical
Entrance
[69.5]
27.35
98.6
38.82
CU1526/CU2026 front view
Installation Note: Allow 6” at back for utilit y connections
Air In
56.2
22.12
Air Out
[15.2]
6.00
13.9
5.48
Specifications
Water Usage
Model Number*
Cube Size: medium or small
CU1526MA-1
CU1526MW-1
CU2026MA-1 Air 115/60/1 15 2 Cord 9.7 18.0/68.2 CU2026MA-32 Air 208-230/60/1 15 2 Cord 9.7 18.0/68.2 -80/36
CU1526SA-1
sm.med.
CU1526SW-1
CU2026SA-1
CU2026SW-1
Condenser
Unit
Air
Water
Air
Water
Water
Storage
Air 115/60/1 15 2 Cord 9.7 18.0/68.2 -
Basic Electrical
lb/kg
Volts/Hz/Phase
80/36
80/36
80/36
80/36
80/36
80/36
80/36 115/60/1 15 2 Cord 6.6 18.0/68.2 180/682
115/60/1
115/60/1
115/60/1
115/60/1
Max. Fuse Size
or HACR Circuit
Breaker (amps)
15
15
15
15
Circuit
Wires
2
2
2
2
Min. Circuit
Ampacity
Cord
Cord
Cord
Cord
Energy Consumption
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
11.5
8.8
11.5
8.8
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.0/68.2
18.0/68.2
18.0/68.2
18.0/68.2
[75.3]
29.65
160/606
160/606
-
-
Self-Contained Ice Machine
CU1526 / CU2026 - 150lb / 200lb
Dimensions (W x D x H):
Unit:
Shipping Carton:
Shipping Weight: CU1526: 150lb / 68kg
BTUs per hour: CU1526: 3,100
Refrigerant: R-404A
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
All Models
26” x 27 3/8” x 33”*
(66.0 x 69.5 x 83.8 cm)
* Add 6” for legs.
29” x 30” x 37”
(73.7 x 76.2 x 94.0 cm)
CU2026: 175lb / 80kg
CU2026: 3,900
101 Corporate Woods Parkway, Vernon Hills, IL 60061
Accessories
Model Number Description
Kit 6 inch leg SSKLP8S
KPUFM26
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Kit Prodigy undercounter floor mount 26 inch for CU1526 - CU2026
(add .5” to height)
Operating Requirements
Minimum
Air Temperatures
Water Temperatures
Remote Cond. Temps -20°F (-29°C) 120°F (49°C)
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
50°F (10°C)
40°F (4.4°C)
20 PSIG (1.4 bar)
-5%
Maximum
100°F (38°C)
100°F (38°C)
80 PSIG (5.5 bar)
+10%
SIS-SS-PRD-CU26 01-17© 2017 Scotsman Ice Systems.
