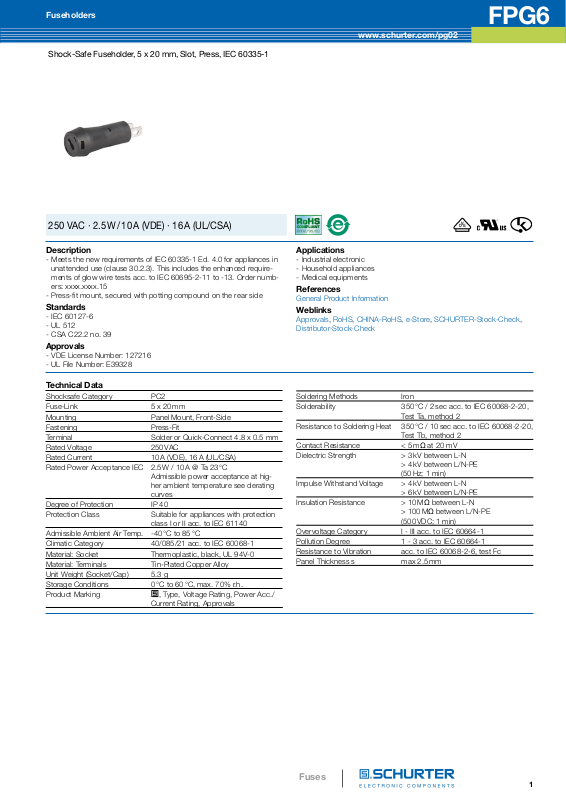

SCHURTER FPG6 Technical data
1
Fuseholders
FPG6
www.schurter.com/pg02
Fuses
Shock-Safe Fuseholder, 5 x 20 mm, Slot, Press, IEC 60335-1
250 VAC · 2.5 W / 10 A (VDE) · 16 A (UL/CSA)
Description
- Meets the new requirements of IEC 60335-1 Ed. 4.0 for appliances in
unattended use (clause 30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 to -13. Order numb
-
ers: xxxx.xxxx.15
- Press-fit mount, secured with potting compound on the rear side
Standards
- IEC 60127-6
- UL 512
- CSA C22.2 no. 39
Approvals
- VDE License Number: 127216
- UL File Number: E39328
Applications
- Industrial electronic
- Household appliances
- Medical equipments
References
General Product Information
Weblinks
Approvals, RoHS, CHINA-RoHS, e-Store, SCHURTER-Stock-Check,
Distributor-Stock-Check
Technical Data
Shocksafe Category PC2
Fuse-Link 5 x 20 mm
Mounting Panel Mount, Front-Side
Fastening Press-Fit
Terminal Solder or Quick-Connect 4.8 x 0.5 mm
Rated Voltage 250 VAC
Rated Current 10 A (VDE), 16 A (UL/CSA)
Rated Power Acceptance IEC 2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating
curves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight (Socket/Cap) 5.3 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Voltage Rating, Power Acc./
Current Rating, Approvals
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV between L-N
> 4 kV between L/N-PE
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between L-N
> 6 kV between L/N-PE
Insulation Resistance > 10 MΩ between L-N
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Panel Thickness s max 2.5 mm
2
Fuseholders
FPG6
www.schurter.com/pg02
Fuses
Dimensions
Length 41.5 mm
2.5
11
6
26.5
7
8
5
1
ø
1
.1
1 ø
72
.2
1 ø
26
.
7
41.5
8.1
+0.05
0
12.7
0
-0.05
Mounting holes
Derating Curves for Fuseholders
Admissible Power Ac-
ceptance in Watt
1.5
1.0
0.5
0.0
2.5
2.0
0 20 40 60 80 100
I = < < I
n
I = 0.7 I
n
I = 1.0 I
n
Ambient Air Temperature Ta °C
Variants
Holder Cap Terminal Degree of
Protection
Material Remark Order Number
l
Slot Knob Solder IP 40 Thermoplastic - 3101.0060
l
Slot Knob Solder IP 40 Spec. Thermoplastic 1 Approvals pending 3101.0060.15
l
Slot Knob Quick-Connect 4.8 x 0.5 mm IP 40 Thermoplastic - 3101.0260
l
Slot Knob Quick-Connect 4.8 x 0.5 mm IP 40 Spec. Thermoplastic 1 Approvals pending
3101.0260.15
l
Slot Knob Solder IP 67 Thermoplastic - 3101.0160
l
Slot Knob Solder IP 67 Spec. Thermoplastic 1 Approvals pending 3101.0160.15
Spec. thermoplastic 1 and 2 meet the new requirements of IEC 60335-1 Ed. 4.0 for appliances in unattended use (clause 30.2.3). This in
-
cludes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 to -13.
White and grey colours available on request
Distributor-Stock-Check | SCHURTER-Stock-Check | e-Store
Packaging Unit
Bulk 186 x 91 x 91 mm (100 pcs.)
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications anamendments.
