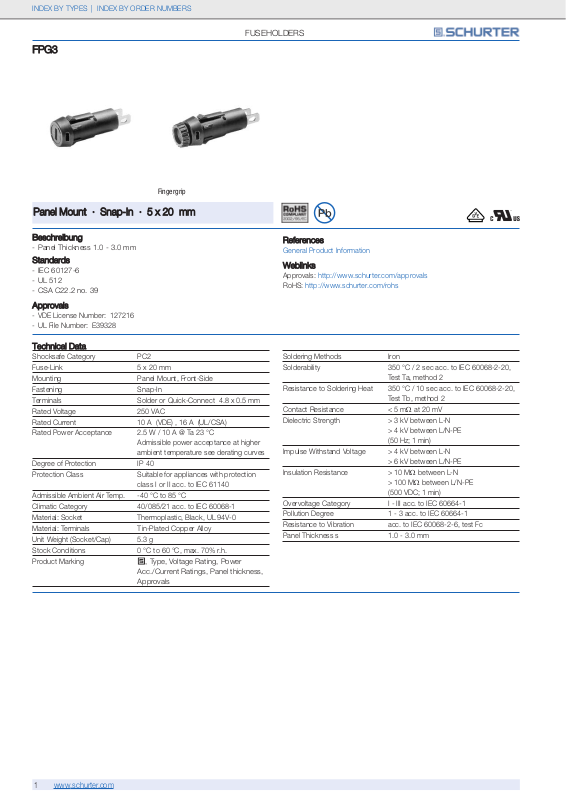

SCHURTER FPG3 Technical data
INDEX BY TYPES | INDEX BY ORDER NUMBERS
3
FFPPGG3
Fingergrip
FUSEHOLDERS
PPaanneell MMoouunntt··SSnnaapp--IInn··55 xx 2200mmm
BBeesscchhrreeiibbuunng
- Panel Thickness 1.0 - 3.0 mm
SSttaannddaarrdds
- IEC 60127-6
- UL 512
- CSA C22.2 no. 39
AApppprroovvaalls
- VDE License Number: 127216
- UL File Number: E39328
TTeecchhnniiccaall DDaatta
Shocksafe Category PC2
Fuse-Link 5 x 20 mm
Mounting Panel Mount, Front-Side
Fastening Snap-In
Terminals Solder or Quick-Connect 4.8 x 0.5 mm
Rated Voltage 250 VAC
Rated Current 10 A (VDE) , 16 A (UL/CSA)
Rated Power Acceptance 2.5 W / 10 A @ Ta 23 °C
Degree of Protection
Protection Class Suitable for appliances with protection
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, Black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight (Socket/Cap) 5.3 g
Stock Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking
g
s
s
a
Admissible power acceptance at higher
ambient temperature see derating curves
IP 40
class I or II acc. to IEC 61140
, Type, Voltage Rating, Power
Acc./Current Ratings, Panel thickness,
Approvals
m
RReeffeerreennccees
General Product Information
WWeebblliinnkks
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20,
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20,
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV between L-N
Impulse Withstand Voltage > 4 kV between L-N
Insulation Resistance > 10 MΩ between L-N
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Panel Thickness s 1.0 - 3.0 mm
s
s
Test Ta, method 2
Test Tb, method 2
> 4 kV between L/N-PE
(50 Hz; 1 min)
> 6 kV between L/N-PE
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
1
.schurter.com
www
INDEX BY TYPES | INDEX BY ORDER NUMBERS
S
26.5
5.5
8
1
.1
1 ø
26.7
40
ø 12.7
15 ø
6
8.1
S
26.5
10.5
8
1
.1
1 ø
26.7
45
ø 12.7
12.5 ø
15 ø
4
13
0
-0.1
12.35
0
-0.15
13
0
-0.1
11.7
0
-0.15
3
FFPPGG3
FUSEHOLDERS
DDiimmeennssiioonns
s
Length 40 mm
Variants 3101.0030, 3101.0230, 3101.0031 and 3101.0331
s = Panel thickness (see variants)
Variants Fingergrip 3101.0035, 3101.0235,3101.0036 and 3101.0336
s = Panel thickness (see variants)
Mounting holes
DDeerraattiinngg CCuurrvvees
tt
a
W
in
s
Admissible Power Acceptance
Ambient Air Temperature Ta °C
VVaarriiaanntts
s
OOrrddeerr NNuummbbeerr HHoollddeerr CCaapp PPaanneell TThhiicckknneessss ss
[[mmmm]]
3101.0030
3101.0230
3101.0031
3101.0331
3101.0035
3101.0235
3101.0036
3101.0336
White and gr
PPaacckkaaggiinngg UUnniitt
ey colours available on request
l
l
l
l
l
l
l
l
Slotted 1.0 - 1.8 mm Solder IP 40
Slotted 1.0 - 1.8 mm Quick-Connect 4.8 x 0.5 mm IP 40
Slotted 2.0 - 3.0 mm Solder IP 40
Slotted 2.0 - 3.0 mm Quick-Connect 4.8 x 0.5 mm IP 40
Fingergrip 1.0 - 1.8 mm Solder IP 40
Fingergrip 1.0 - 1.8 mm Quick-Connect 4.8 x 0.5 mm IP 40
Fingergrip 2.0 - 3.0 mm Solder IP 40
Fingergrip 2.0 - 3.0 mm Quick-Connect 4.8 x 0.5 mm IP 40
Bulk
(100 pcs.)
TTeerrmmiinnaallss DDeeggrreeee ooff PPrrootteecc--
ttiioonn
2
.schurter.com
www
