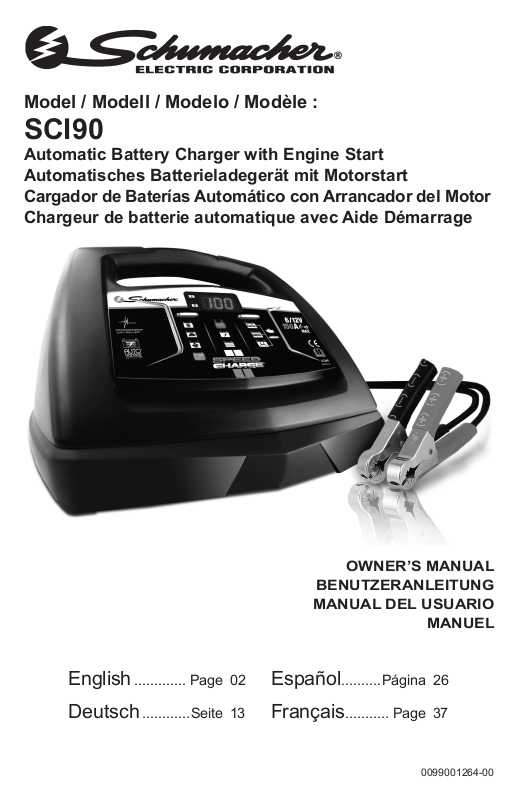

Schumacher SCI90 User Manual
Model / Modell / Modelo / Modèle :
SCI90
Automatic Battery Charger with Engine Start
Automatisches Batterieladegerät mit Motorstart
Cargador de Baterías Automático con Arrancador del Motor
Chargeur de batterie automatique avec Aide Démarrage
English ............. Page 02
Deutsch ............Seite 13
OWNER’S MANUAL
BENUTZERANLEITUNG
MANUAL DEL USUARIO
MANUEL
Español ..........Página 26
Français ........... Page 37
0099001264-00
ENGLISH
Model: SCI90
Automatic Battery Charger with Engine Start
OWNER’S MANUAL
Read manual
before using product.
Protect your eyes.
Wear protective clothing.
Risk of explosive gases.
Risk of electric shock.
Do not expose to rain or snow.
Never smoke or allow ames
and sparks.
Keep out of reach of children
Disconnect the main cable
before connecting
or disconnecting the clamps.
Use in a well-ventilated area.
1. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS.
This manual will show you how to use your charger safely and effectively. Please read,
understand and follow these instructions and precautions carefully, as this manual
contains important safety and operating instructions. The safety messages used
throughout this manual contain a signal word, a message and an icon.
The signal word indicates the level of the hazard in a situation.
DANGER
WARNING
IMPORTANT
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
damage to the equipment or vehicle or property damage.
WARNING
RISK OF ELECTRIC SHOCK OR FIRE.
1.1 To reduce the risk of damage to the electric plug or cord, pull by the plug rather than the
cord when disconnecting the charger.
1.2 An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in a risk of re and electric shock. If an extension cord must
be used, make sure:
• That the pins on the plug of the extension cord are the same number, size and shape
as those of the plug on the charger.
• That the extension cord is properly wired and in good electrical condition.
• That the wire size is large enough for the AC ampere rating of the charger as
specied in section 7.3.
1.3 Do not operate the charger with a damaged cord or plug; have the cord or plug replaced
immediately by a qualied service person.
1.4 Do not operate the charger if it has received a sharp blow, been dropped or otherwise
damaged in any way; take it to a qualied service person.
1.5 Do not disassemble the charger; take it to a qualied service person when service or
repair is required. Incorrect reassembly may result in a risk of re or electric shock.
• 2 •
WARNING
RISK OF EXPLOSIVE GASES.
1.6 WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU
FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
1.7 To reduce the risk of a battery explosion, follow these instructions and those published
by the battery manufacturer and the manufacturer of any equipment you intend to use
in the vicinity of the battery. Review the cautionary markings on these products and on
the engine.
2. PERSONAL PRECAUTIONS
WARNING
RISK OF EXPLOSIVE GASES.
2.1 Remove personal metal items such as rings, bracelets, necklaces and watches when
working with a lead-acid battery. A lead-acid battery can produce a short-circuit current
high enough to weld a ring or the like to metal, causing a severe burn.
2.2 Be extra cautious, to reduce the risk of dropping a metal tool onto the battery. It might
spark or short-circuit the battery or other electrical part that may cause an explosion.
2.3 Use this charger for charging LEAD-ACID batteries only. It is not intended to supply
power to a low voltage electrical system. Do not use this battery charger for charging
dry-cell batteries that are commonly used with home appliances. These batteries may
burst and cause injury to persons and damage to property.
2.4 NEVER charge a frozen battery.
2.5 Consider having someone nearby to come to your aid when you work near a
lead-acid battery. Have plenty of fresh water and soap nearby in case battery acid
contacts your skin, clothing or eyes.
2.6 If battery acid contacts your skin or clothing, immediately wash the area with soap and
water. If acid enters your eye, immediately ood the eye with cold running water for
at least 10 minutes and get medical attention right away. If battery acid is accidentally
swallowed, drink milk, the whites of eggs or water. DO NOT induce vomiting. Seek
medical attention immediately.
3. PREPARING TO CHARGE
WARNING
RISK OF CONTACT WITH BATTERY ACID.
BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID.
3.1 Remove all cord wraps and uncoil the cables prior to using the battery charger.
3.2 If it is necessary to remove the battery from the vehicle to charge it, always remove
the grounded terminal rst. Make sure all of the accessories in the vehicle are off to
prevent arcing.
3.3 Clean the battery terminals before charging the battery. During cleaning, keep airborne
corrosion from coming into contact with your eyes, nose and mouth. Use baking soda
and water to neutralize the battery acid and help eliminate airborne corrosion. Do not
touch your eyes, nose or mouth.
3.4 Add distilled water to each cell until the battery acid reaches the level specied by the
battery manufacturer. Do not overll. For a battery without removable cell caps, such
as valve regulated lead-acid batteries (VRLA), carefully follow the manufacturer’s
recharging instructions.
3.5 Read, understand and follow all instructions for the charger, battery, vehicle and any
equipment used near the battery and charger. Study all of the battery manufacturer’s
specic precautions while charging and recommended rates of charge.
3.6 Determine the voltage of the battery by referring to the vehicle owner’s manual. This
charger is equipped with Auto Voltage Detection of 6 or 12 volts.
3.7 Make sure that the charger cable clips make tight connections.
3.8 Included with your charger are two cord wrap cleats for storage of the clip cables. To install,
align the two tabs with the two receptacles on the back of the charger and push until you
hear a snap.
• 3 •
4. CHARGER LOCATION
WARNING
RISK OF EXPLOSION AND CONTACT WITH BATTERY ACID.
4.1 Locate the charger as far away from the battery as the DC cables permit.
4.2 Never place the charger directly above the battery being charged; gases from the
battery will corrode and damage the charger.
4.3 Do not set the battery on top of the charger.
4.4 Never allow battery acid to drip onto the charger when reading the electrolyte specic
gravity or lling the battery.
5. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE
WARNING
A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION.
TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:
5.1 Position the AC and DC cables to reduce the risk of damage by the hood, door and
moving or hot engine parts. NOTE: If it is necessary to close the hood during the
charging process, ensure that the hood does not touch the metal part of the battery clips
or cut the insulation of the cables.
5.2 Stay clear of fan blades, belts, pulleys and other parts that can cause injury.
5.3 Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually
has a larger diameter than the NEGATIVE (NEG, N, -) post.
5.4 Determine which post of the battery is grounded (connected) to the chassis.
5.5 For a negative-grounded vehicle, connect the POSITIVE (RED) clip from the battery
charger to the POSITIVE (POS, P, +) ungrounded post of the battery. Connect the
NEGATIVE (BLACK) clip to the vehicle chassis or engine block away from the battery.
Do not connect the clip to the carburetor, fuel lines or sheet-metal body parts. Connect
to a heavy gauge metal part of the frame or engine block.
5.6 For a positive-grounded vehicle, connect the NEGATIVE (BLACK) clip from the battery
charger to the NEGATIVE (NEG, N, -) ungrounded post of the battery. Connect the
POSITIVE (RED) clip to the vehicle chassis or engine block away from the battery. Do
not connect the clip to the carburetor, fuel lines or sheet-metal body parts. Connect to a
heavy gauge metal part of the frame or engine block.
5.7 Connect charger AC supply cord to electrical outlet.
5.8 When disconnecting the charger, disconnect the AC cord, remove the clip from the
vehicle chassis and then remove the clip from the battery terminal.
6. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE
WARNING
A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION.
TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:
6.1 Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually
has a larger diameter than the NEGATIVE (NEG, N, -) post.
6.2 Attach at least a 24-inch (61 cm) long 6-gauge (AWG) insulated battery cable to the
NEGATIVE (NEG, N, -) battery post.
6.3 Connect the POSITIVE (RED) charger clip to the POSITIVE (POS, P, +) post of the battery.
6.4 Position yourself and the free end of the cable you previously attached to the NEGATIVE
(NEG, N, -) battery post as far away from the battery as possible – then connect the
NEGATIVE (BLACK) charger clip to the free end of the cable.
6.5 Do not face the battery when making the nal connection.
6.6 Connect charger AC supply cord to electrical outlet.
6.7 When disconnecting the charger, always do so in the reverse order of the connecting
procedure and break the rst connection while as far away from the battery as practical.
6.8 A marine (boat) battery must be removed and charged on shore. To charge it onboard
requires equipment specially designed for marine use.
• 4 •
7. GROUNDING AND AC POWER CORD CONNECTIONS
WARNING
RISK OF ELECTRIC SHOCK OR FIRE.
7.1 This battery charger is for use on a nominal 230V, 50 Hz circuit. (See the warning
label on the charger for the correct input voltage.) The plug must be plugged into
an outlet that is properly installed and grounded in accordance with all local codes
and ordinances. The plug pins must t the receptacle (outlet). Do not use with an
ungrounded system.
7.2
DANGER
Never alter the AC cord or plug provided – if it does not t the outlet, have
a proper grounded outlet installed by a qualied electrician. An improper connection can
result in a risk of an electric shock or electrocution.
7.3 Recommended minimum AWG size for extension cord:
• 100 feet (30.5 meters) long or less – use a 16 gauge (1.31 mm2) extension cord.
• Over 100 feet (30.5 meters) long – use a 14 gauge (2.08 mm2) extension cord.
8. CONTROL PANEL
1
3
1. Digital Display
2
2. Charge Rate Button
3. Battery Type Button
NOTE: See the Operating Instructions section for a complete description of the
charger modes.
Charge Rate Button
Use this button to set the maximum charge rate. Press the button until the desired
charge rate is selected.
– Charges and maintains small batteries. Maintains large batteries.
– Charges small batteries, such as those commonly used in garden tractors,
snowmobiles and motorcycles. Not for charging large batteries.
– Charges automotive, marine and light truck batteries.
– Provides high amperage for cranking an engine with a weak or run-down battery.
Battery Type/Mode Button
Set the type of battery to be charged, or Desulfation Mode:
(Calcium) – Calcium batteries are acid batteries impregnated with calcium.
(Absorbed Glass Mat/Gel) – AGM batteries have electrolyte absorbed in
separators consisting of a sponge-like mass of matted glass ber. Gel batteries contain
gelled electrolytes. These batteries are sealed with valves and should not be opened.
(Desulfation Mode) – A special mode of operation designed for sulfated batteries.
NOTE: When charging a battery that is not marked, check the manual of the item which
uses the battery for the correct battery type. Make sure the battery complies with the
safety instructions in Section 2.3.
• 5 •
Digital Display
The Digital Display gives a digital indication of voltage, % of charge or time. The display
will show the battery VOLTAGE when the charger is not charging a battery. When it
goes into charging mode, the display will automatically change to ON (to show charging
has started) and then show the percent-of-charge of the battery being charged and
either 6 or 12 (the voltage the charger determined the battery is). If you manually stop
the charging process (by pressing the CHARGE RATE button) before the battery is fully
charged the display will show OFF.
• Battery % – The digital display shows an estimated charge percentage of the battery
connected to the charger battery clips.
• Voltage – The digital display shows the voltage at the charger battery clips in DC volts.
NOTE: Once the charger has started charging the battery; if you press the Charge Rate
button once, the output current is shut off and the display with show OFF and then the
battery voltage. If you press the Charge Rate button again, the current will go back on at
the same setting it was when it was turned off. For example: The charger is charging a
battery at the slow charge rate setting. If you press the Charge Rate button, the output is
turned off. If you press the Charge Rate button again, the output will turn back on at the
slow charge rate setting.
9. OPERATING INSTRUCTIONS
WARNING
This battery charger must be properly assembled in accordance with the
assembly instructions before it is used.
Battery Information
This charger can be used with 6 and 12V batteries with rated capacities of 12 Ah to 111 Ah.
Charging
1. Ensure that all of the charger components are in place and in good working
condition, for example, the plastic boots on the battery clips.
2. Connect the battery following the precautions listed in sections 5 and 6.
3. Connect the AC power following the precautions listed in section 7.
4. Select the appropriate settings for your battery.
IMPORTANT
This charger does not have an ON/OFF switch. ON and OFF are controlled
by plugging in the charger to the AC wall outlet. The charger will not supply current to
the battery clips until a battery is properly connected. The clips will not spark if touched
together.
Startup Defaults: When rst turned on, the charger will default to the following
startup settings:
• Battery Type: Standard
• Charge Rate: OFF (No charge rate selected)
After 10 minutes, if no charge rate is selected, the charger will automatically start
charging at the following defaults:
• Charge Current: The lowest charge rate setting available, 3 amps.
• Charge Voltage: The lowest charge rate voltage available, usually 14.7 volts (Gel
Cell), if not, then 15.4 volts (AGM), otherwise it will be 16.0 volts (Standard battery).
Battery Connection Indicator
If the charger does not detect a properly connected battery, the CONNECTED LED
will not light. Charging will not begin if the CONNECTED LED is not on.
Automatic Charging Mode
When a charge rate is selected, the charger is set to perform an automatic charge.
When an automatic charge is performed, the charger switches to the maintain mode
automatically after the battery is charged.
Aborted Charge
If charging cannot be completed normally, charging will abort. When charging aborts,
the charger’s output is shut off, all of the LEDs are turned off and the digital display
will show an error code (see Troubleshooting for a list of error codes). In that state, the
charger ignores all buttons. To reset after an aborted charge, unplug the charger.
• 6 •
Desulfation Mode
IMPORTANT
Battery must be removed from the car when using this mode, or damage to
the car’s electrical system may result.
If the battery is left discharged for an extended period of time, it could become sulfated
and not accept normal charge. If you select , the charger will switch to a special
mode of operation designed for sulfated batteries. If successful, the charger will fully
desulfate and charge the battery, then the green LED will go on. If desulfation fails, the
charger will abort and the CHARGING (yellow) LED will blink.
Completion Of Charge
Charge completion is indicated by the CHARGED LED. When lit, the charger has
stopped charging and switched to the Maintain Mode of operation.
Maintain Mode
When the CHARGED LED is lit, the charger has started Maintain Mode. In this
mode, the charger keeps the battery fully charged by delivering a small current when
necessary. The voltage is maintained at a level determined by the battery type selected.
NOTE: If the charger has to provide its maximum maintain current for a continuous 12
hour period it will go into Abort Mode. This is usually caused by a drain on the battery
or the battery could be bad. Make sure there are no loads on the battery. If there are,
remove them. If there are none, have the battery checked or replaced.
Maintaining a Battery (3A Charge Rate)
This charger has a maintenance setting that maintains both 6 and 12 volt batteries,
keeping them at full charge. On this setting, it can charge small batteries and maintain
both small and large batteries. We do not recommend charging a large battery on the
maintenance setting.
NOTE: The maintain mode technology utilized in Schumacher’s chargers allows you
to safely charge and maintain a healthy battery for extended periods of time. However,
problems with the battery, electrical problems in the vehicle, improper connections
or other unanticipated conditions could cause excessive current draws. As such,
occasionally monitoring your battery and the charging process is recommended.
Using the Engine Start feature
Your battery charger can be used to jumpstart your car if the battery is low. Follow these
instructions on how to use the ENGINE START feature.
IMPORTANT
Using the ENGINE START feature WITHOUT a battery installed in the
vehicle could cause damage to the vehicle’s electrical system. NOTE: If you have
charged the battery and it still will not start your car, do not use the ENGINE START
feature, or it could damage the vehicle’s electrical system.
1. With the charger plugged in and connected to the battery and chassis (see section 6),
press the CHARGE RATE button until the ENGINE START LED is lit.
2. This product is rated for 3 seconds of engine cranking.Crank the engine until it starts
or 3 seconds pass. If the engine does not start, wait 3 minutes before cranking
again. This allows the charger and battery to cool down.
NOTE: During extremely cold weather, or if the battery is under 2 volts, charge the
battery for 5 minutes before cranking the engine.
3. If the engine fails to start, charge the battery for 5 more minutes before attempting to
crank the engine again.
IMPORTANT
Do not leave the charger in Engine Start Mode for more than ten minutes at
a time, or you may damage the charger.
4. Clean and store the charger in a dry location.
NOTE: If the engine does turn over but never starts, there is not a problem with the
starting system; there is a problem somewhere else with the vehicle. STOP cranking the
engine until the other problem has been diagnosed and corrected.
• 7 •
Engine Starting Notes
During the starting sequence listed above, the charger is set to one of three states:
Wait for cranking – The charger waits until the engine is actually being cranked before
delivering the amps for engine start and will reset if the engine is not cranked within 15
minutes. (If the charger resets, it sets itself to the default start up settings). While waiting
for cranking, the digital display shows rdy.
Cranking – When cranking is detected, the charger will automatically deliver up to its
maximum output as required by the starting system for up to 3 seconds or until the engine
cranking stops. The digital display shows a countdown of the remaining crank time.
Cool Down – After cranking, the charger enters a mandatory 3 minute (180 second)
cool down state. The digital display indicates the remaining cool down time in seconds.
It starts at 180 and counts down to 0. After 3 minutes, the digital display will change from
displaying the countdown to displaying rdy. The CHARGING LED will then be lit.
Using the Battery Voltage Tester
1. With the charger unplugged from the AC outlet, connect the charger to the battery
following the instructions given in sections 6 and 7.
2. Plug the charger AC power cord into the AC outlet, following the instructions given in
section 8.
3. If necessary, press the BATTERY TYPE button until the correct type is indicated.
4. Read the voltage on the digital display.
NOTE: After 10 minutes, the charger will automatically switch from tester to charger.
Tester and Charger: When rst turned on, the unit operates only as a tester, not as a
charger. Selecting a charge rate activates the battery charger and deactivates the tester.
Pressing the CHARGE RATE button when the ENGINE START LED is lit (except during
the 180 second cool down) will shut off the charger and activate the tester.
Power-Up Idle Time Limit: If no button is pressed within 10 minutes after the battery
charger is rst powered up, the charger will automatically switch from tester to charger if a
battery is connected. In that case, the charger will be set to the start up default settings.
Testing After Charging: After the unit has been changed from tester to charger (by
selecting a charge rate), it remains a charger. To change the battery charger back to a
tester, press the CHARGE RATE button until all charge rate LEDs are off.
NOTE: The battery tester is only designed to test batteries. Testing a device with a
rapidly changing voltage could yield unexpected or inaccurate results.
Using the Alternator Performance Tester
1. With the charger unplugged from the AC outlet, connect the charger to the battery
following the instructions given in Sections 6 and 7.
2. Plug the charger AC power cord into the AC outlet, following the instructions given in
section 8.
3. Start the vehicle, and turn on the vehicle’s headlights. Read the voltage on the digital
display. If you get a reading between 13.4 volts and 14.6 volts, the alternator is
working properly. If the reading is less than 13.4 volts or more than 14.6 volts, have
the charging system checked by a qualied technician.
Fan: The charger is designed to control its cooling fan for efcient operation. It is normal
for the fan to start and stop when maintaining a fully charged battery. Keep the area
near the charger free of obstructions to allow the fan to operate efciently.
10. MAINTENANCE INSTRUCTIONS
10.1 After use and before performing maintenance, unplug and disconnect the battery
charger (see sections 5, 6 and 7).
10.2 Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clips,
cords and the charger case.
10.3 Ensure that all of the charger components are in place and in good working condition,
for example, the plastic boots on the battery clips.
10.4 Servicing does not require opening the unit, as there are no user-serviceable parts.
10.5 All other servicing should be performed by qualied service personnel.
• 8 •
11. MOVING AND STORAGE INSTRUCTIONS
11.1 Store the charger unplugged, in an upright position. The cord will still conduct electricity
until it is unplugged from the outlet.
11.2 If the charger is moved around the shop or transported to another location, take care to
avoid/prevent damage to the cords, clips and charger. Failure to do so could result in
personal injury or property damage.
12. SPECIFICATIONS
230V~50Hz
Input
– Slow
– Medium
– Fast
– Engine Start
.86A
1.15A
2.85A
8.5A
Output
– Slow
– Medium
– Fast
– Engine Start
6/12V 3A
6/12V 5A
6/12V 20A 105 seconds on / 5A 180 seconds on
12V 90A Peak 150A @ 0V
Weight 12.8 lbs. (5.82 kg)
Reverse Polarity Protection Yes
13. TROUBLESHOOTING AND ERROR CODES
Error Codes
ERROR
CODE
F01
The battery voltage is still under
10V (for a 12V battery) or 5V
(for a 6V battery) after 2 hours of
DESCRIPTION CAUSE
Could be caused by trying to charge a 6 volt
battery on the 12 volt setting, or the battery
could be bad; have it checked or replaced.
charging.
F02
F03
The charger cannot desulfate
the battery.
The battery was unable to reach
the “full charged” voltage.
The battery could not be desulfated; have it
checked or replaced.
Could be caused by trying to charge a large
battery or bank of batteries on too low of a
current setting, or the battery may have a
shorted cell. Try again with a higher current
setting, or have the battery checked or
replaced.
F04
The connections to the battery
are reversed.
The battery is connected backwards. Unplug
the charger and reverse the connections to
the battery.
F05
The charger was unable to
keep the battery fully charged in
maintain mode.
The battery won’t hold a charge. Could be
caused by a drain on the battery, or the
battery could be bad. Make sure there are
no loads on the battery. If there are, remove
them. If there are none, have the battery
checked or replaced.
F06
The charger detected that the
battery may be getting too hot
(thermal runaway).
The charger automatically shuts the current
off if it detects the battery may be getting too
hot or the battery may have a shorted cell.
Have the battery checked or replaced.
If you get an error code, check the connections and settings and/or replace the battery.
• 9 •
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
CONNECTED LED is
not on.
The battery is not connected
correctly.
Battery voltage is at zero volts.
Check for proper connection to
the battery.
Turn off everything in the car
and try to connect again.
CHARGING LED is
blinking.
FULL CHARGE LED
is on, but battery is not
fully charged.
All LEDs are lit in an
erratic manner.
Input fuse is bad.
Output breaker is bad.
Charger is in Abort Mode.
Battery is sulfated.
Battery is bad.
Surface charge voltage is high.
Battery voltage is very low and
the charger detects it as 6V,
not 12V.
A button may have been
pressed while the charger was
being plugged in.
Replace the fuse (5 Amp fuse).
Push button to reset the breaker.
Unplug the charger from the
AC and plug it back in.
Use (Desulfation Mode) for
8 hours.
Have the battery checked.
Replace the battery.
Unplug the charger from the
AC and plug it back in.
Unplug the charger from the
AC and plug it back in, without
touching the control board.
• 10 •
14. LIMITED WARRANTY
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED WARRANTY TO THE
ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY
IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this battery charger for 5
years from the date of purchase at retail against defective material or workmanship that
may occur under normal use and care. If your unit is not free from defective material or
workmanship, Manufacturer’s obligation under this warranty is solely to repair or replace
your product with a new or reconditioned unit at the option of the Manufacturer. It is the
obligation of the purchaser to forward the unit, along with proof of purchase and mailing
charges prepaid to the Manufacturer or its authorized representatives in order for repair
or replacement to occur.
Manufacturer does not provide any warranty for any accessories used with this product
that are not manufactured by Schumacher Electric Corporation and approved for use
with this product. This Limited Warranty is void if the product is misused, subjected to
careless handling, repaired, or modied by anyone other than Manufacturer or if this unit
is resold through an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to, express, implied or
statutory warranties, including without limitation, any implied warranty of merchantability
or implied warranty of tness for a particular purpose. Further, Manufacturer shall not be
liable for any incidental, special or consequential damage claims incurred by purchasers,
users or others associated with this product, including, but not limited to, lost prots,
revenues, anticipated sales, business opportunities, goodwill, business interruption
and any other injury or damage. Any and all such warranties, other than the limited
warranty included herein, are hereby expressly disclaimed and excluded. Some states
do not allow the exclusion or limitation of incidental or consequential damages or length
of implied warranty, so the above limitations or exclusions may not apply to you. This
warranty gives you specic legal rights and it is possible you may have other rights which
vary from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WARRANTY AND THE
MANUFACTURER NEITHER ASSUMES OR AUTHORIZES ANYONE TO ASSUME
OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT OTHER THAN
THIS WARRANTY.
Warranty, Repair Service and Distribution Centers:
For customers outside of the U.S.A., contact your local distributor.
North and South America: Hoopeston in U.S.A. 1-800-621-5485
services@schumacherelectric.com
Europe: Freightways in Netherlands +31 71 4090704
customerservice@freightways.nl
Schumacher® and the Schumacher Logo are registered trademarks
of Schumacher Electric Corporation.
• 11 •
DECLARATION OF CONFORMITY
We, Schumacher Electric Corporation
801 East Business Center Drive
Mount Prospect, Illinois, 60056, U.S.A.
certify that the Automatic Battery Charger Model SCI90 complies with the following
standards:
Low Voltage Directive (LVD) 2006/95/EC,
EN 60335-1:2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006 + A13:2008
EN 60335-2-29:2004
89/336/EEC and 93/68/EEC
and therefore conforms with the protection requirements relating to safety
and electromagnetic compatibility.
The year in which the CE marking was afxed is “2012”.
Manufacturer:
John Waldron
President
March 23, 2012
Hereby declares that the equipment Model SCI90 is compliant to the DIRECTIVE
2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January
2003 (RoHS) on the restriction of the use of certain hazardous substances in electrical and
electronic equipment while:
The parts do not exceed the maximum concentrations of 0.1% by weight in homogenous
materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBB)
and polybrominated diphenyl ethers (PBDE), and 0.01% for cadmium, as required in
Commission Decision 2005/618/EC of 18 August 2005.
March 23, 2012
President, Schumacher Electric Corporation – U.S.A.
• 12 •
DEUTSCH
Modell: SCI90
Automatisches Batterieladegerät mit Motorstart
BENUTZERANLEITUNG
Vor der Verwendung dieses
Produkts ist die Anleitung zu
lesen.
Augenschutz tragen.
Schutzkleidung tragen.
Gefahr explosiver Gase.
Stromschlaggefahr.
Weder Regen noch Schnee
aussetzen.
Niemals in der Nähe rauchen und
vor Flammen und Funken schützen.
Von Kindern fernhalten.
Vor dem Anschließen oder Trennen
der Klemmen das Hauptkabel
trennen.
In einem gut belüfteten Bereich
verwenden.
1. WICHTIGE SICHERHEITSHINWEISE – DIESE ANLEITUNG AUFBEWAHREN.
Diese Anleitung beschreibt den sicheren und wirkungsvollen Gebrauch des Ladegeräts.
Diese Anleitung enthält wichtige Sicherheits- und Bedienungsanweisungen. Machen Sie
sich mit diesen Anweisungen und Vorsichtshinweisen vollständig vertraut. Die in dieser
Anleitung verwendeten Sicherheitshinweise enthalten ein Signalwort, einen Hinweis und
ein Symbol.
Das Signalwort kennzeichnet die Gefahrenstufe in einer bestimmten Situation.
Kennzeichnet eine unmittelbar gefährliche Situation, die, wenn sie nicht vermieden
GEFAHR
wird, zu schweren oder tödlichen Verletzungen des Bedieners oder umstehender
Personen führen kann.
Kennzeichnet eine potenziell gefährliche Situation, die, wenn sie nicht vermieden
ACHTUNG
wird, zu schweren oder tödlichen Verletzungen des Bedieners oder umstehender
Personen führen kann.
WICHTIG
Kennzeichnet eine potenziell gefährliche Situation, die, wenn sie nicht vermieden
wird, zu einer Beschädigung der Geräte, von Fahrzeugen oder der Einrichtung
führen kann.
ACHTUNG
STROMSCHLAG- ODER BRANDGEFAHR.
1.1 Um die Gefahr von Schäden am Stecker oder Kabel zu reduzieren, beim Trennen des
Ladegeräts stets am Stecker selbst und nicht am Kabel ziehen.
1.2 Ein Verlängerungskabel nur dann verwenden, wenn dies absolut notwendig ist.
Die Verwendung eines ungeeigneten Verlängerungskabels kann die Gefahr eines Brandes
oder Stromschlags zur Folge haben. Muss ein Verlängerungskabel verwendet werden,
ist Folgendes zu gewährleisten:
• Anzahl, Größe und Form der Kontakte am Stecker des Verlängerungskabels
entsprechen denen am Stecker des Ladegeräts.
• Das Verlängerungskabel ist ordnungsgemäß verdrahtet und in einem guten
elektrischen Zustand.
• Die Größe des Leiters reicht für die in Abschnitt 7.3 angegebene Amperezahl des
Ladegeräts aus.
• 13 •
1.3 Das Ladegerät nicht verwenden, wenn das Kabel oder der Stecker beschädigt ist. In diesem
Fall Kabel oder Stecker sofort von einem qualizierten Servicetechniker ersetzen lassen.
1.4 Das Ladegerät nicht verwenden, wenn es einem schweren Schlag ausgesetzt, fallen
gelassen oder auf sonstige Weise beschädigt wurde. Bringen Sie es in diesem Fall zu
einem qualizierten Servicetechniker.
1.5 Das Ladegerät nicht zerlegen. Bei Wartungs- oder Reparaturbedarf zu einem qualizierten
Servicetechniker bringen. Bei einem unsachgemäßen Zusammenbau besteht Brand- oder
Stromschlaggefahr.
ACHTUNG
GEFAHR EXPLOSIVER GASE.
1.6 DAS ARBEITEN IN UNMITTELBARER NÄHE VON BLEISÄUREBATTERIEN IST
GEFÄHRLICH. BATTERIEN ERZEUGEN WÄHREND DES NORMALBETRIEBS
EXPLOSIVE GASE. AUS DIESEM GRUND MÜSSEN BEI JEDER VERWENDUNG
DES LADEGERÄTS UNBEDINGT ALLE ANWEISUNGEN BEFOLGT WERDEN.
1.7 Um das Risiko einer Batterieexplosion zu reduzieren, den folgenden Anweisungen und
der vom Batteriehersteller und dem Hersteller aller anderen in der Nähe der Batterie
eingesetzten Geräte veröffentlichten Anleitung folgen. Die Vorsichtshinweise an diesen
Produkten und am Motor beachten.
2. HINWEISE ZUM SCHUTZ VOR VERLETZUNGEN
ACHTUNG
GEFAHR EXPLOSIVER GASE.
2.1 Beim Arbeiten an Bleisäurebatterien Schmuck oder andere Metallgegenstände wie Ringe,
Armreifen, Halsketten und Uhren abnehmen. Die von Bleisäurebatterien erzeugten
Kurzschluss-Ströme können so stark sein, dass Ringe oder ähnliche Gegenstände mit
Metall verschweißt werden, wodurch schwere Verbrennungen entstehen können.
2.2 Insbesondere ist darauf zu achten, dass keine Metallwerkzeuge auf die Batterie fallen.
Die dadurch entstehende Funkenbildung oder ein Kurzschluss der Batterie oder anderer
Elektroteile kann zu einer Explosion führen.
2.3 Dieses Ladegerät nur zum Laden von BLEISÄURE-Batterien verwenden. Es ist nicht für
die Stromversorgung eines elektrischen Niederspannungssystems vorgesehen. Dieses
Batterieladegerät nicht zum Auaden von Trockenzellenbatterien verwenden, wie sie oft
in Haushaltsgeräten verwendet werden. Solche Batterien können bersten und dadurch
Körperverletzungen und Sachbeschädigungen verursachen.
2.4 NIEMALS eine eingefrorene Batterie auaden.
2.5 Ziehen Sie in Erwägung, Ihre Arbeiten in der Nähe einer Bleisäurebatterie nur dann zu
verrichten, während sich eine andere Person in der Nähe aufhält. Für den Fall, dass
Batteriesäure mit Haut, Kleidung oder Augen in Kontakt kommt, viel frisches Wasser und
Seife bereithalten.
2.6 Falls Batteriesäure mit Ihrer Haut oder Kleidung in Kontakt kommt, den betroffenen Bereich
sofort mit Wasser und Seife waschen. Falls Säure in die Augen gelangt, diese mindestens
10 Minuten lang mit ießendem kaltem Wasser spülen und sofort einen Arzt hinzuziehen.
Wird Batteriesäure versehentlich verschluckt, Milch, Eiweiß oder Wasser trinken. KEIN
Erbrechen herbeiführen. Sofort einen Arzt aufsuchen.
3. VORBEREITEN AUF DAS LADEN
ACHTUNG
RISIKO DES KONTAKTS MIT BATTERIESÄURE. BEI BATTERIESÄURE
HANDELT ES SICH UM STARK KORROSIVE SCHWEFELSÄURE.
3.1 Alle Kabelhüllen entfernen und die Kabel vor Verwendung des Batterieladegeräts abwickeln.
3.2 Falls die Batterie zum Auaden aus dem Fahrzeug entfernt werden muss, stets den
geerdeten Anschluss zuerst abtrennen. Alle Zubehörteile im Fahrzeug müssen abgeschaltet
sein, um eine Bogenbildung zu verhindern.
3.3 Batterieanschlüsse vor dem Auaden reinigen. Während des Reinigens verhindern, dass
Korrosionspartikel in der Luft in Kontakt mit Augen, Nase oder Mund kommen. Batteriesäure
mit Backnatron und Wasser neutralisieren, um ein Freisetzen von Korrosionspartikeln in die
Luft zu verhindern. Augen, Nase oder Mund nicht berühren.
3.4 Destilliertes Wasser in jede Zelle füllen, bis die Batteriesäure den vom Batteriehersteller
vorgegebenen Pegel erreicht. Nicht überfüllen. Bei einer Batterie ohne abnehmbare
Zellkappen, wie z. B. einer geschlossenen VRLA-Bleisäurebatterie, ist die Anleitung des
Herstellers zum Auaden einzuhalten.
• 14 •
3.5 Machen Sie sich mit allen Anleitungen zum Ladegerät, zur Batterie, zum Fahrzeug und
zu anderen Geräten vertraut, die in der Nähe der Batterie bzw. des Ladegeräts verwendet
werden, und halten Sie sich an alle Anweisungen. Machen Sie sich mit allen spezischen
Vorsichtshinweisen zum Wiederauaden und den empfohlenen Auadegeschwindigkeiten
des Batterieherstellers vertraut.
3.6 Schlagen Sie in der Betriebsanleitung Ihres Autos die Spannung der Batterie nach. Dieses
Ladegerät enthält eine Funktion zur automatischen Spannungserkennung von 6 oder 12 Volt.
3.7 Die Kabelklemmen des Ladegeräts müssen fest angeschlossen sein.
3.8 Das Ladegerät wird mit zwei Kabelwickelklemmen zum Lagern der Klemmkabel geliefert.
Zum Anbringen die zwei Laschen mit den zwei Buchsen an der Rückseite des Ladegeräts
ausrichten und drücken, bis ein Einrasten zu hören ist.
4. POSITION DES LADEGERÄTS
ACHTUNG
EXPLOSIONSGEFAHR UND GEFAHR DES KONTAKTS MIT
BATTERIESÄURE.
4.1 Das Ladegerät so weit von der Batterie entfernt aufstellen, wie die Länge der
Gleichstromkabel dies zulässt.
4.2 Das Ladegerät nie direkt über der zu ladenden Batterie aufstellen. Gase aus der Batterie
führen zu Korrosion und damit zur Beschädigung des Ladegeräts.
4.3 Die Batterie nicht auf das Ladegerät stellen.
4.4 Batteriesäure nicht auf das Ladegerät tropfen lassen, wenn die Elektrolytdichte gemessen
oder die Batterie gefüllt wird.
5. FOLGENDE SCHRITTE DURCHFÜHREN, WENN DIE BATTERIE IM FAHRZEUG
INSTALLIERT IST
ACHTUNG
EIN FUNKEN IN DER NÄHE DER BATTERIE KANN EINE
BATTERIEEXPLOSION VERURSACHEN. SO WIRD DAS RISIKO VON FUNKEN
IN DER NÄHE DER BATTERIE REDUZIERT:
5.1 Die Wechsel- und Gleichstromkabel so positionieren, dass das Risiko einer Beschädigung
durch Motorhaube, Tür und angetriebene oder heiße Motorteile reduziert wird. HINWEIS:
Falls die Motorhaube während des Ladevorgangs geschlossen werden muss, muss
gewährleistet werden, dass sie keine Metallteile der Batterieklemmen berührt und die
Kabelisolierung nicht beschädigt.
5.2 Von Lüfterügeln, Riemen, Scheiben und anderen Teilen, die Verletzungen verursachen
können, fernhalten.
5.3 Die Polarität der Batteriekontakte prüfen. Der POSITIVE (POS, P, +) Batteriekontakt weist in
der Regel einen größeren Durchmesser auf als der NEGATIVE (NEG, N, -).
5.4 Bestimmen, welcher Batteriekontakt über das Chassis geerdet (mit dem Chassis
verbunden) ist.
5.5 Bei einem über den negativen Kontakt geerdeten Fahrzeug die POSITIVE (ROTE)
Klemme des Batterieladegeräts mit dem nicht geerdeten POSITIVEN (POS, P, +) Kontakt
der Batterie verbinden. Die NEGATIVE (SCHWARZE) Klemme in einiger Entfernung von
der Batterie am Fahrzeugchassis oder Motorblock befestigen. Die Klemme nicht mit dem
Vergaser, den Kraftstofeitungen oder den Blechteilen verbinden. Die Klemme statt dessen
an einem schweren, dicken Metallteil, das zum Rahmen oder Motorblock gehört, befestigen.
5.6 Bei einem über den positiven Kontakt geerdeten Fahrzeug die NEGATIVE (SCHWARZE)
Klemme des Batterieladegeräts mit dem nicht geerdeten NEGATIVEN (NEG, N, -) Kontakt
der Batterie verbinden. Die POSITIVE (ROTE) Klemme in einiger Entfernung von der
Batterie am Fahrzeugchassis oder Motorblock befestigen. Die Klemme nicht mit dem
Vergaser, den Kraftstofeitungen oder den Blechteilen verbinden. Die Klemme statt dessen
an einem schweren, dicken Metallteil, das zum Rahmen oder Motorblock gehört, befestigen.
5.7 Das Netzstromkabel des Ladegeräts an einer Steckdose anschließen.
5.8 Wenn das Ladegerät abgetrennt wird, das Netzstromkabel abtrennen, die Klemme vom
Fahrzeugchassis entfernen und dann die Klemme vom Batteriekontakt trennen.
• 15 •
Loading...
