SCHUBERTH SC1 User Manual
SCHUBERTH SC1
English
www.schuberth.com
User’s Guide
SC1
CONTENTS
Safety Precautions .................................................................................................4
1 INTRODUCTION ...............................................................................................6
2 PACKAGE CONTENTS...................................................................................... 7
3 INSTALLING THE SC1 ON YOUR HELMET ........................................................ 8
3.1 Installing the SC1.............................................................................................................................. 9
3.2 Taking out the SC1 ........................................................................................................................... 9
4 GETTING STARTED .........................................................................................10
4.1 Button Operation ............................................................................................................................10
4.2 Powering On and O ......................................................................................................................10
4.3 Charging ..........................................................................................................................................10
4.4 Checking the Battery Level ............................................................................................................11
4.5 Volume Adjustment..........................................................................................................................11
4.6 Softwares ........................................................................................................................................12
5 PAIRING THE SC1 WITH BLUETOOTH DEVICES .............................................12
5.1 Mobile Phone Pairing - Mobile Phone, Bluetooth Stereo Device ...............................................13
5.2 Second Mobile Phone Pairing - Second Mobile Phone, GPS, and SR10 ...................................13
5.3 Advanced Selective Pairing - A2DP Stereo or Handsfree ..........................................................14
6 MOBILE PHONE, GPS, SR10 ...........................................................................15
6.1 Mobile Phone Call Making and Answering ...................................................................................15
6.2 Speed Dialing (SC1 Advanced Only) ............................................................................................. 16
6.3 GPS Navigation ...............................................................................................................................17
6.4 Sena SR10, Two-Way Radio Adapter .............................................................................................17
7 STEREO MUSIC ..............................................................................................18
7.1 Bluetooth Stereo Music ................................................................................................................. 18
7.2 Music Sharing (SC1 Advanced only) .............................................................................................18
8 INTERCOM .....................................................................................................19
8.1 Intercom Pairing ..............................................................................................................................19
8.2 Two-way Intercom ..........................................................................................................................21

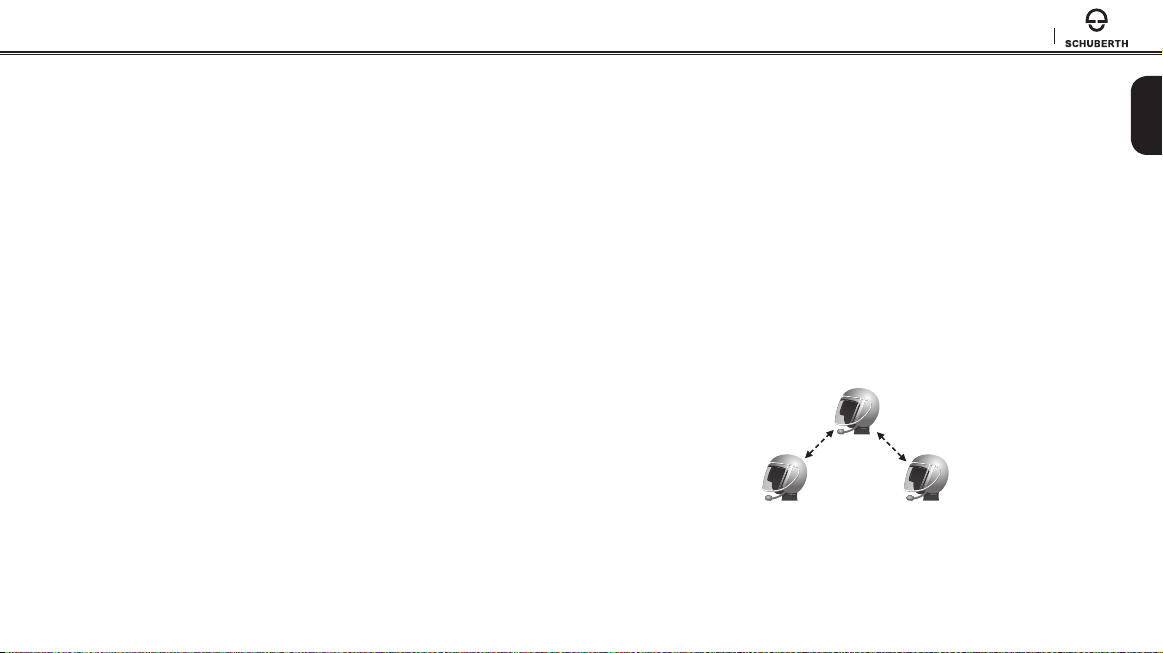

8.3 Three-way Intercom ....................................................................................................................... 21

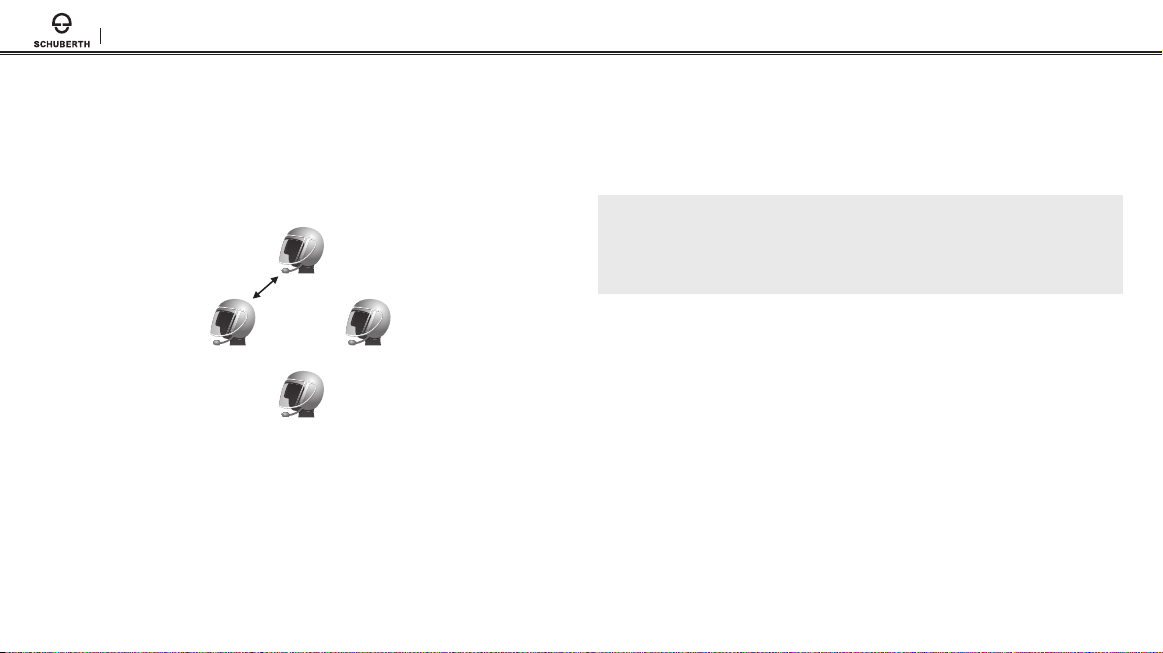

8.4 Four-way Intercom ........................................................................................................................ 23
8.5 Team Signal (SC1 Advanced Only) ............................................................................................... 23

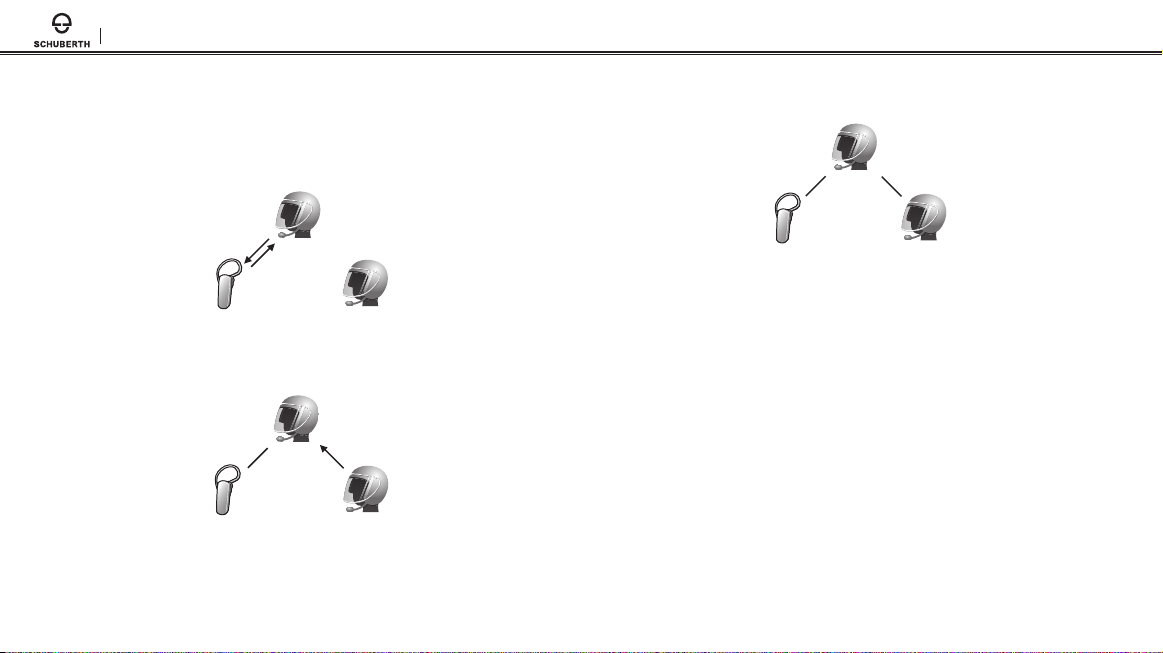

9 THREE-WAY CONFERENCE PHONE CALL
WITH INTERCOM PARTICIPANT .................................................................... 24
10 GROUP INTERCOM ....................................................................................... 25
11 UNIVERSAL INTERCOM .................................................................................25
11.1 Universal Intercom Pairing ............................................................................................................26
11.2 Two-way Universal Intercom .........................................................................................................27
11.3 Three-way Universal Intercom .......................................................................................................27
11.4 Four-way Universal Intercom ........................................................................................................ 28
12 FM RADIO ...................................................................................................... 30
12.1 FM Radio On and O .................................................................................................................... 30
12.2 Seek Frequencies ........................................................................................................................... 30
12.3 Preset Stations...............................................................................................................................30
12.4 FM Sharing ...................................................................................................................................... 31
12.5 Region Selection .............................................................................................................................31
13 FUNCTION PRIORITY ..................................................................................... 32
14 CONFIGURATION SETTING ........................................................................... 32
14.1 Headset Conguration Setting ..................................................................................................... 32
14.2 Software Conguration Setting ...................................................................................................36
15 REMOTE CONTROL ....................................................................................... 40
16 FIRMWARE UPGRADE ................................................................................... 40
17 TROUBLESHOOTING ......................................................................................41
17.1 Intercom Failure ..............................................................................................................................41
17.2 Intercom Reconnection ..................................................................................................................41
17.3 Factory Reset ..................................................................................................................................41
18 QUICK OPERATION REFERENCE ................................................................... 42
CERTIFICATION AND SAFETY APPROVALS .........................................................43
•
FCC Compliance Statement .............................................................................................................. 43
•
FCC RF Exposure Statement ............................................................................................................ 44
•
FCC Caution ........................................................................................................................................ 44
•
CE Declaration of Conformity............................................................................................................44
•
Industry Canada Statement .............................................................................................................. 45
•
Bluetooth License .............................................................................................................................. 45
•
WEEE (Waste Electrical and Electronic Equipment) ....................................................................... 45
PRODUCT WARRANTY AND DISCLAIMER ...........................................................46
•
Limited Warranty................................................................................................................................. 46
•
Warranty Exclusions ...........................................................................................................................48
•
Warranty Service ................................................................................................................................49
SC1
English
SC1
Safety Precautions
Please ensure that the product is properly used by observing the warnings and cautions
below to prevent any risk and/or damage to property.
Product Storage and Management
•
Keep the product free of dust. It may damage mechanical and electronic parts of the
product.
•
Do not store the product in high temperatures as this may reduce the life span of
electronic devices, damage the battery, and/or melt plastic parts of the product.
•
Do not store the product in cold temperatures. Abrupt changes in temperatures may
cause condensation and damage electronic circuits.
•
Do not clean the product with cleaning solvents, toxic chemicals, or strong detergents as
this may damage the product.
•
Do not paint the product. Paint may obstruct moving parts or interfere with the normal
operation of the product.
•
Do not drop or otherwise shock the product. It may damage the product or its internal
electronic circuits.
•
Do not disassemble, repair or modify the product as this may damage the product and
invalidate the product warranty.
•
Do not store the product in humid environments, especially for long time storage.
Product Use
•
In some regions, it is prohibited by law to ride motorcycles while wearing headsets or
earbuds. Therefore be certain to comply with all relevant laws in the region before using
the product.
•
The headset is for motorcycle helmets only. To install the headset, you must follow the
installation instructions shown in the User’s Guide.
•
Use of the product at a high volume for a long period of time may damage your eardrums
or hearing ability. Keep the volume at a modest level to prevent damage.
•
Do not cause impact to the product or touch it with sharp tools as this may damage the
product.
•
Do not use the product in high-temperatures or apply heat to the product as this may
cause damage, explosion, or re.
•
Keep product away from pets or small children. It may damage the product.
•
In any place where wireless communication is prohibited, such as hospitals or airplanes,
turn o the power and refrain from using the product. In a place where wireless
communication is prohibited, electromagnetic waves may cause hazards or accidents.
•
Do not use the product near hazardous explosives. When it is near any explosion hazards,
turn o the power and heed any regulations, instructions, and signs in the area.
•
When using the product, be certain to conform to laws regarding the use of
communications devices while riding.
•
Do not put the product where it may hamper the rider’s vision or manipulate it while
riding. This may cause trac accidents.
•
Before riding, fasten the product to the helmet, and double-check that it is fastened.
Separation of the product while riding may cause damage to the product or accidents.
•
If the product is damaged, stop using it immediately. It may cause damage, explosion, or
re.
4
SC1
Battery
This product has an irreplaceable rechargeable battery inside. Therefore, when using the
product, make sure to adhere to the following:
•
Never separate the battery from the product as this may damage the product.
•
The battery performance may be reduced over time with usage.
•
In recharging the battery, make sure to use an approved charger provided by the
manufacturer. Use of a non-approved charger may cause re, explosion, leakage, and
other hazards may also reduce the life time or performance of the battery.
•
Any 3rd party USB charger can be used with Sena products if the charger is approved by
either the FCC, CE, IC or other locally approved agencies that Sena accepts.
•
Do not use cigarette chargers other than the included cigarette charger to charge the
headset.
•
Store the battery at temperatures of 15°C~25°C (59°F~77°F). Higher or lower
temperatures may reduce the capacity and life of the battery, or may cause temporary
non-operation. Do not use the product in sub-zero temperature, because it may cause
serious reduction of the battery performance.
•
If you apply heat to the battery or throw it into re, it may explode.
•
Do not use the product with a damaged battery. It may explode and/or cause accidents.
•
Never use a damaged charger. It may explode and/or cause accidents.
•
Battery life may vary depending on conditions, environmental factors, functions of the
product in use, and devices used with it.
English
5
SC1
1 INTRODUCTION
Thank you for choosing the SCHUBERTH SC1. With the SC1, you can
call handsfree on your Bluetooth mobile phone, listen to stereo music or
voice instructions of GPS navigations wirelessly, and have intercom
conversations in full duplex with a passenger or other motorcycle
riders.
The SC1 is compliant with the Bluetooth 4.1 supporting the following
proles: Headset Prole, Hands-Free Prole (HFP), Advanced Audio
Distribution Prole (A2DP), and Audio Video Remote Control Prole
(AVRCP). Please check with the manufacturers of other device to
determine their compatibility with this headset.
Please read this User’s Guide carefully before using the headset. Also
check www.schuberth.com for the latest version of the User’s Guide
and additional information related to SCHUBERTH Bluetooth products.
The SC1 features:
•
Bluetooth 4.1
•
Invisible beauty with custom design
•
Bluetooth intercom with distance more than 1 kilometer for SC1
Advanced and up to 1 kilometer for SC1 Standard*
•
Audio Multitasking (SC1 Advanced only)
•
Audio Source Priority
•
Four-way intercom
•
Voice prompts
•
Smartphone App for iPhone and Android
•
Built-in FM radio tuner with a station scan and save function (SC1
Advanced only)
•
Universal Intercom™
•
Music sharing (SC1 Advanced only)
•
Advanced Noise Control™
•
Firmware upgradeable
* in open terrain
6
SC1
Key Specications:
•
Bluetooth 4.1
•
Supporting proles: Headset Prole, Hands-Free Prole (HFP),
Advanced Audio Distribution Prole (A2DP), and Audio Video Remote
Control Prole (AVRCP).
2 PACKAGE CONTENTS
•
SC1 Main Unit
English
7
SC1
•
Battery
•
Release Tool
3 INSTALLING THE SC1 ON YOUR
HELMET
LED
(+) Button
(-) Button
DC Power Charging &
Firmware Upgrade Port
8
SC1
3.1 Installing the SC1
1. Insert the main unit into the helmet and push it gently until you
hear a click.
Click
2. Insert the battery into the helmet and push it gently until it is all
the way in.
3.2 Taking out the SC1
1. Insert the release tool into the main unit and push it gently until you
hear a click.
Click
2. Pull the release tool until the main unit comes o the helmet.
English
9
SC1
4 GETTING STARTED
4.1 Button Operation
(+) Button
(–) Button
4.2 Powering On and O
To power on the headset, press and hold the (+) Button and the (-)
Button at the same time for 1 second while hearing ascending beeps
and a voice prompt, “Hello”. To power o the headset, press and hold
the (+) Button and the (-) Button at the same time for 3 seconds while
hearing descending beeps and a voice prompt, “Goodbye”.
4.3 Charging
You can charge the headset by connecting the supplied USB power &
data cable into a computer’s USB port or USB wall charger. You can use
any standard micro USB cable to charge the unit. The LED turns red
while charging and turns blue when fully charged. It takes about 2.5
hours to be completely charged.
AC Adapter
or
Note:
Please make sure to take o your SC1-installed helmet while charging. The
headset automatically turns o during charging.
10
SC1
4.4 Checking the Battery Level
4.4.1 LED Indicator
When the headset is powering on, the red LED ashes rapidly indicating
the battery level.
4 ashes = High, 70 ~ 100%
3 ashes = Medium, 30 ~ 70%
2 ashes = Low, 0 ~ 30%
4.4.2 Voice Prompt Indicator
When you power on the headset, keep pressing the (+) Button and the
(-) Button simultaneously for about 3 seconds until you hear three, high
toned beeps. Then you will hear a voice prompt indicating the battery
level. However, if you release the buttons as soon as the headset turns
on, you will not hear a voice prompt for the battery level indication.
4.5 Volume Adjustment
You can easily adjust the volume by tapping the (+) Button or the (-)
Button. You will hear a beep when the volume reaches the maximum or
minimum level. The volume is set and maintained independently at
dierent levels for each audio source even when you reboot the
headset. For example, once you set the volume for mobile phone
handsfree, it will not change even if you adjust the volume for your
Bluetooth MP3 music. However, if you adjust the volume during standby mode, it will aect volume levels of every audio source.
11
English
SC1
4.6 Softwares
4.6.1 Device Manager
The Device Manager allows you to upgrade the rmware and congure
the device settings directly from your PC. Using this software, you can
assign speed dial presets, FM radio frequency presets and more. It is
available for both Windows and Mac. For more information on
downloading the Device Manager, please visit oem.sena.com/
schuberth/.
4.6.2 Smartphone App
The Smartphone App allows you to congure device settings and read
the User’s Guide and the Quick Start Guide. Pair your phone with your
SC1 headset (please refer to
Phone, Bluetooth Stereo Device”
can congure its settings directly from your smartphone. You can
download the Smartphone App for Android or iPhone from oem.sena.
com/schuberth/.
section 5.1, “Mobile Phone Pairing - Mobile
). Run the Smartphone App and you
5 PAIRING THE SC1 WITH BLUETOOTH
DEVICES
Before using the SC1 Bluetooth headset with any other Bluetooth
devices for the rst time, you will need to pair them together. You can
pair the SC1 with Bluetooth mobile phones, Bluetooth stereo devices
such as MP3 players, or motorcycle specic Bluetooth GPS navigation,
and with other Sena Bluetooth headsets. The pairing operation is
required only once for each Bluetooth device. The headset remains
paired with the devices and automatically reconnects to them when
they are within range. You will hear a high toned single beep and a voice
prompt whenever the headset reconnects to the paired device:
“Phone connected” to a mobile phone, “Media connected” to a
Bluetooth stereo device.
12
SC1
5.1 Mobile Phone Pairing - Mobile Phone,
Bluetooth Stereo Device
1. Press and hold the (+) Button or the (-) Button for 10 seconds until
you hear the voice prompt, “Conguration menu”.
2. Tap the (+) Button until you hear a voice prompt, “Phone pairing”.
3. Search for Bluetooth devices on your mobile phone. Select the SC1
in the list of the devices detected on the mobile phone.
4. Enter 0000 for the PIN. Some mobile phones may not ask for the
PIN.
5. The mobile phone conrms that pairing has completed and the SC1
is ready to use. You will hear a voice prompt, “Your headset is
paired”.
6. If the pairing process is not completed within three minutes, the
SC1 will return to stand-by mode.
Note:
1.
If a Bluetooth connection between the headset and a mobile phone is
disconnected, press the (+) Button for 3 seconds until you hear a high tone
single beep to recover the Bluetooth connection immediately.
2.
If the Bluetooth connection between the headset and a media player is
disconnected, press the (+) Button for 1 second to recover the Bluetooth
connection and play.
5.2 Second Mobile Phone Pairing - Second Mobile
Phone, GPS, and SR10
Typical Bluetooth headsets can connect with only one Bluetooth device,
but a second mobile phone pairing allows the headset to connect with
another Bluetooth device such as a second mobile phone, an MP3
Player, or the Sena SR10, the Bluetooth adapter.
1. To enter the voice conguration menu, press and hold the (+)
Button or the (-) Button for 10 seconds until you hear the voice
prompt, “Conguration menu”.
2. Tap the (+) Button until you hear a voice prompt, “Second mobile
phone pairing”.
3. Search for Bluetooth devices on your mobile phone. Select the SC1
in the list of the devices detected on the mobile phone.
4. Enter 0000 for the PIN. Some mobile phones may not ask for the
PIN.
5. The mobile phone conrms that the pairing has completed and the
SC1 is ready to use. You will hear a voice prompt, “Your headset
is paired”.
13
English
SC1
Note:
1.
If you have two audio (A2DP) devices connected to your headset then the
audio from one device will interrupt the audio from the other device. For
example, if you are playing music from the primary mobile phone, then it can
be interrupted by playing music from the secondary mobile phone and vice
versa.
2.
You have to use a motorcycle specic GPS, which transmits turn-by-turn
voice instructions to the headset by Bluetooth. Most automotive GPS systems
do not have this feature.
3.
The Sena SR10 is a Bluetooth two-way radio adapter for group communication,
and uses Hands-Free Prole. The incoming audio from the two-way radio via
SR10 is heard in the background while having an intercom conversation or a
mobile phone call.
4.
The GPS navigation or a radar detector could be connected to the SR10 by
wire. The GPS voice instruction or the radar detector alarm is also heard in the
background via SR10 while having an intercom conversation or a phone call.
Please refer to the SR10 User’s Guide for details.
14
5.3 Advanced Selective Pairing - A2DP Stereo or
Handsfree
When you are using a smartphone, sometimes you may need to
selectively use the SC1 for A2DP stereo music only or for mobile phone
handsfree only. These instructions are for advanced users who want to
pair the SC1 to their smartphones with only one selective prole: A2DP
for stereo music of HFP for phone calls.
If you have previously paired a mobile phone to the SC1, you must clear
the previous pairing list on both devices: the mobile phone and the SC1.
To clear the pairing list on the SC1, please do a factory reset or following
the pairing list clearing procedure described in
Reset”
or
14.1.7, “Delete All Bluetooth Pairing Information”
pairing list on the mobile phone, please refer to the mobile phone
manual. For most smartphones, delete the SC1 from the list of Bluetooth
devices in the settings menu.
section 14.1.10, “Factory
. To clear the
SC1
5.3.1 A2DP Stereo Music Only
1. To enter the voice conguration menu, press and hold the (+)
Button or the (-) Button for 10 seconds until you hear the voice
prompt, “Conguration menu”.
2. Tap the (+) Button until you hear the voice prompt, “Media
selective pairing”.
3. Search for Bluetooth devices on your smartphone. Select the SC1
in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some mobile phones may not ask for the
PIN.
5.3.2 HFP for Phone Call Only
1. To enter the voice conguration menu, press and hold the (+)
Button or the (-) Button for 10 seconds until you hear the voice
prompt, “Conguration menu”.
2. Tap the (+) Button until you hear the voice prompt, “Phone
selective pairing”.
3. Search for Bluetooth devices on your smartphone. Select the SC1
in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some mobile phones may not ask for the
PIN.
6 MOBILE PHONE, GPS, SR10
6.1 Mobile Phone Call Making and Answering
1. When you have an incoming call, tap the (+) Button to answer the
call.
2. You can also answer the incoming call by loudly speaking any word
of your choice if
enabled, unless you are connected to intercom.
3. To end a call, press the (+) Button for 2 seconds until you hear a
mid-tone single beep, or wait for the called person to end the call.
4. To reject a call, press the (+) Button for 2 seconds until you hear a
beep while the phone is ringing.
5. There are several ways to make a phone call:
-
Enter numbers on your mobile phone’s keypad and make a call.
Then the call is automatically transferred to the headset.
-
In stand-by mode, press the (+) Button for 3 seconds, to activate
the voice dialing of your mobile phone. For this, the voice dialing
function must be available on the mobile phone. Refer to your
mobile phone manual for further instruction.
Voice Activated Phone Answering
(VOX Phone) is
15
English
Loading...
