Schneider Electric SSM1A120M7 Data Sheet

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Product data sheet

Characteristics

SSM1A120M7

solid state relay - DIN rail mount - input
90-280Vac, output 24-280Vac, 20A

Main

Range of product Zelio Relay

Product or component
type

Device short name SSM1

Number of phases 1 phase

Complementary

Mounting support Symmetrical DIN rail

[In] rated current 20 A

Output voltage 24...280 V AC

Control circuit voltage 90...280 V AC

Contacts type and configuration 1 NO

Tightening torque 1.36...1.7 N.m for output

0.6...0.7 N.m for input

Connections - terminals Screw terminals : 1 x 0.2...1 x 5.3 mm², (AWG 24...AWG 10) for output

Screw terminals : 1 x 0.2...1 x 5.3 mm², (AWG 24...AWG 10) for input

Maximum capacitance <= 8 pF for input/output

Insulation resistance 1000 MOhm at 500 V DC

Local signalling LED green for input status

Switching voltage 10 V AC turn-off

90 V AC turn-on

Input current 2...10 mA

Solid state output type Zero voltage switching

SCR output

Load current 0.15...20 A

Transient overvoltage 600 V

Surge current <= 250 A for 16.6 ms

Voltage drop 1.6 V on-state

Maximum I²t for fusing 260 A².s for 8.3 ms

Leakage current <= 10 mA off-state

DV/Dt 500 V/µs off-state at maximum voltage

Response time 40 ms turn-off

10 ms turn-on

Overvoltage category III

Product weight 0.28 kg

Solid state relay

Dec 1, 2015

1

Environment

Dielectric strength 4 kV AC for input or output to case

Pollution degree 2

Standards UL 508

Product certifications CSA

Marking CE

IP degree of protection IP20

Ambient air temperature for operation -40...80 °C

Ambient air temperature for storage -40...125 °C

4 kV AC for input/output

IEC 60950-1
CSA C22.2 No 14

UL
EAC

CSA
UL
EAC

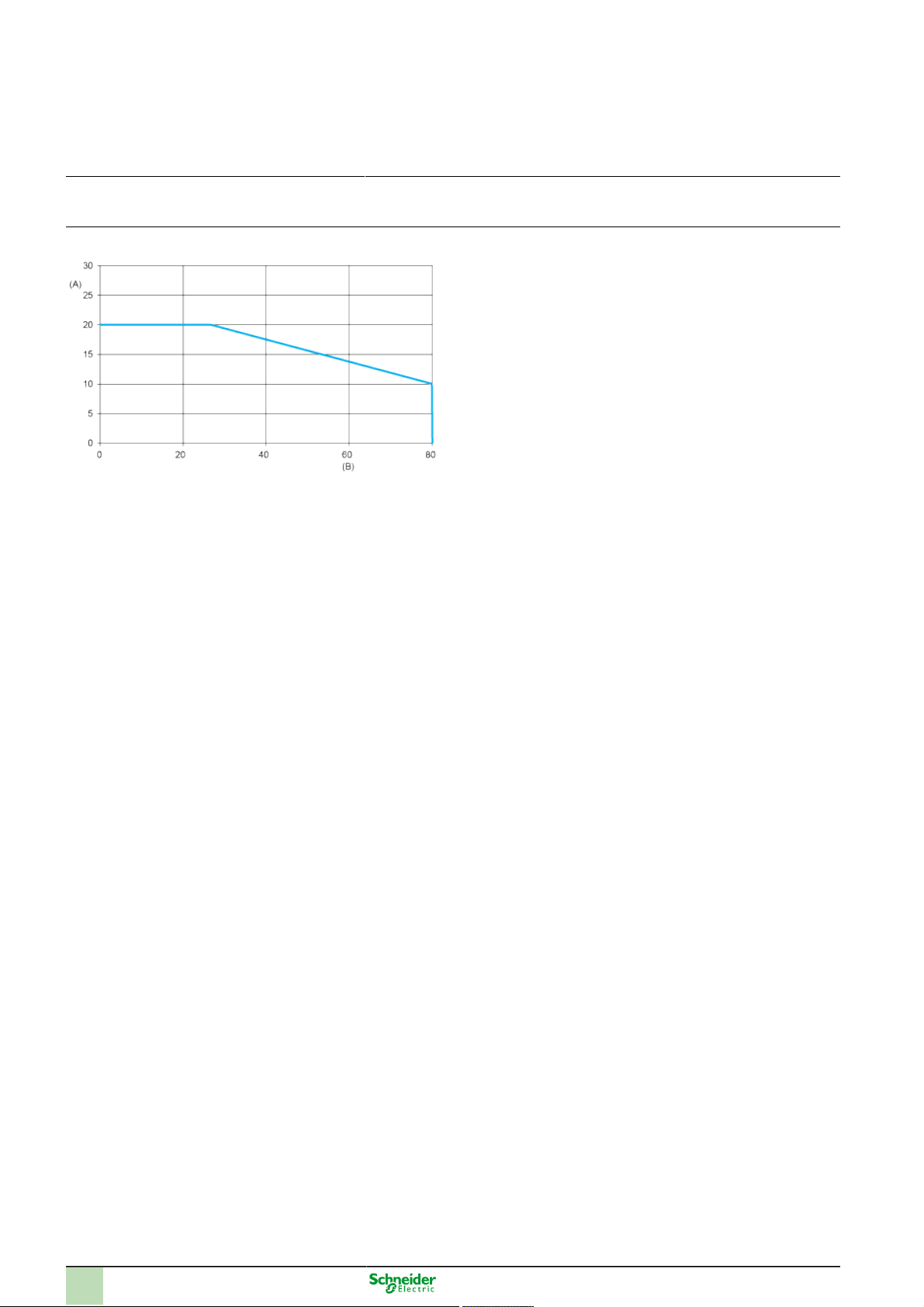

2
