Smart-UPS On-Line 208 V

Unity output power factor single-phase double-conversion, online UPS with advanced management features

A versatile UPS developed for unstable power conditions worldwide

Smart-UPS™ On-Line provides high-density, double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. TheSmart-UPS On-Line is capable of supporting loads from 5 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtimedemands.

The included PowerChute™ Network Shutdown management software provides unattended graceful shutdown of network operating systems. All models include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Page 2

Smart-UPS On-Line

Industry-leading power factor maximizing UPS density

Rackmount and Tower SRT 5 kVA – 10 kVA

Standard Features

Best-in-class Power Density

More real power in watts, 0.85 pf on 5 kVA, Unity on 6 kVA – 10 kVA units.

High-Efciency “Green Mode”

Achieves 98% efciency, which saves utility and cooling costs without compromising performance or reliability. Energy STAR compliant.

Graphical LCD Display With Multicolor Backlight

Intuitive interface provides detailed and accurate information with ability to congurelocally.

[ SRT5KXLT shown ]

Intelligent Battery Management

Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform the user which batteries need to be replaced andauto detect when additional battery packs areadded.

Built-in Energy Meter

Measures energy use and displays UPS efciency in various modes of operation foreasy energy tracking.

Operate Without Battery

Ability to immediately protect equipment when power returns after a complete

discharge of the battery.

Three-year Warranty on Electronics

Additional year of warranty protection forelectronics provides peace of mind.

Page 3

Smart-UPS On-Line

Proven performance with the world’s largest installed base of single-phase, double-conversion products

Rackmount and Tower SRT 5 kVA – 10 kVA

Additional Features

Embedded Network Management Card With Environmental Monitoring

Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlot™ socustomers can add accessories for additional communication options.

Switched Outlet Group(s)

Ability to control a group of output load receptacles independent from the main UPS. Enables:

[ SRT10KXLT shown ]

• Rebooting hung device without cycling the entire UPS.

• Sequenced turn on/off.

• Shedding of noncritical loads based on

a variety of parameters (battery time, runtime remaining, and overload).

• Scheduled time off to conserve energy.

Emergency Power Off (EPO)

Remote UPS shutoff in the event of a re or other emergency. The UPS can accept normally open (NO) or normally closed (NC)contacts.

Communication Ports

Serial, USB, Ethernet, and SmartSlot fornetwork accessory cards.

Communication Protocols

Modbus Serial, USB PowerSummary, HTTP, SNMP, and Telnet.

Page 4

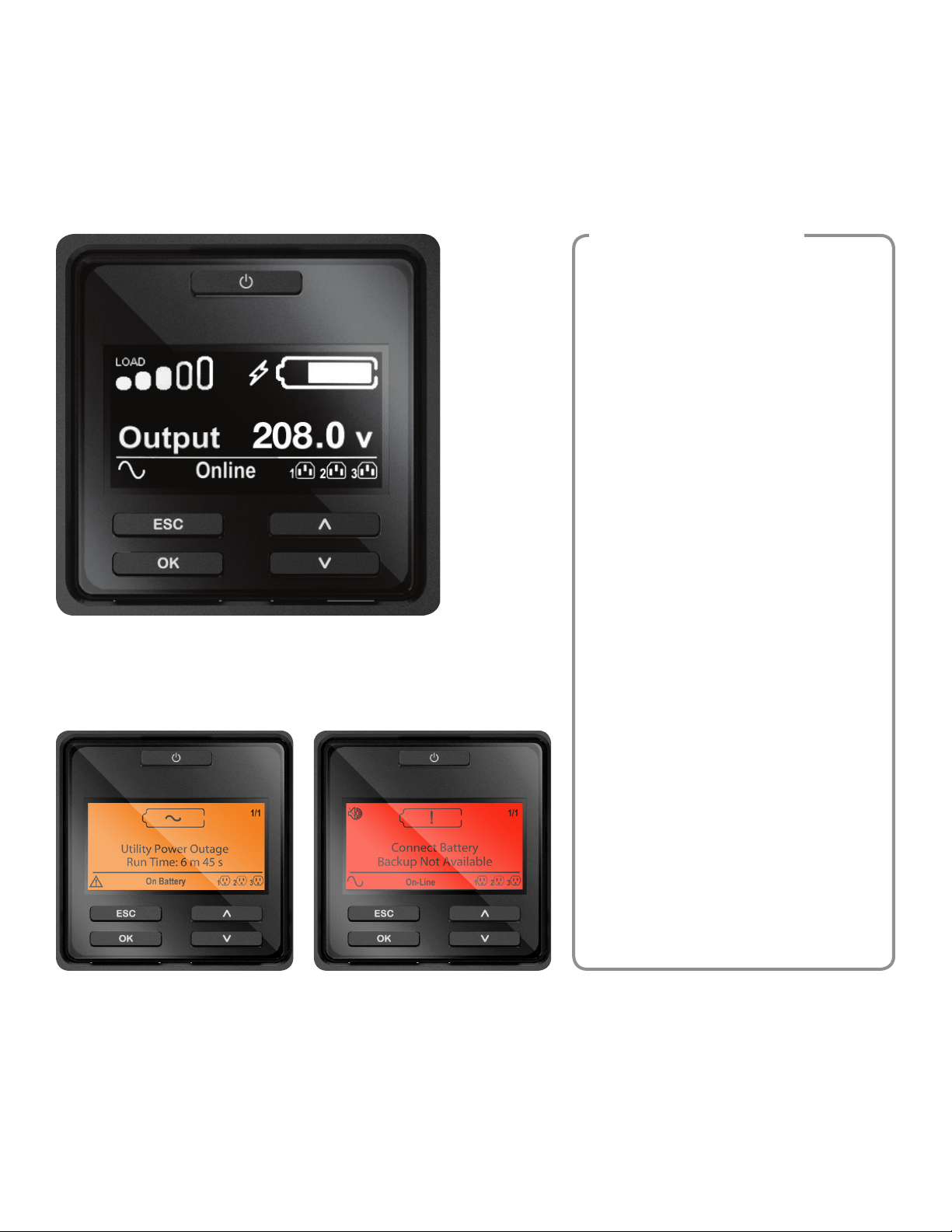

Smart-UPS On-Line Display

Intuitive, easy-to-use LCD provides clear and accurate information in multiple languages

Standard Features

LCD Display Screen

Accurately provides real-time status updates in your choice of basic or advanced menus.

UPS Status (Scrolling)

• Output voltage

• Input voltage

• Output frequency

• Run time

• Load

• Battery health

Control

• UPS and outlet group settings

• Bypass control

Conguration

• Output voltage, frequency

• Language, brightness, contrast

Backlight screens:

Amber: Indication of condition that

requires attention

Red: Indication of UPS alarm that

requires immediate attention

• Alarm volume

• IP address

Test and Diagnostics

• Initiate battery and runtime

About

• UPS serial number, battery part number

• Battery install and suggested

calibrationtests

replacement dates

Page 5

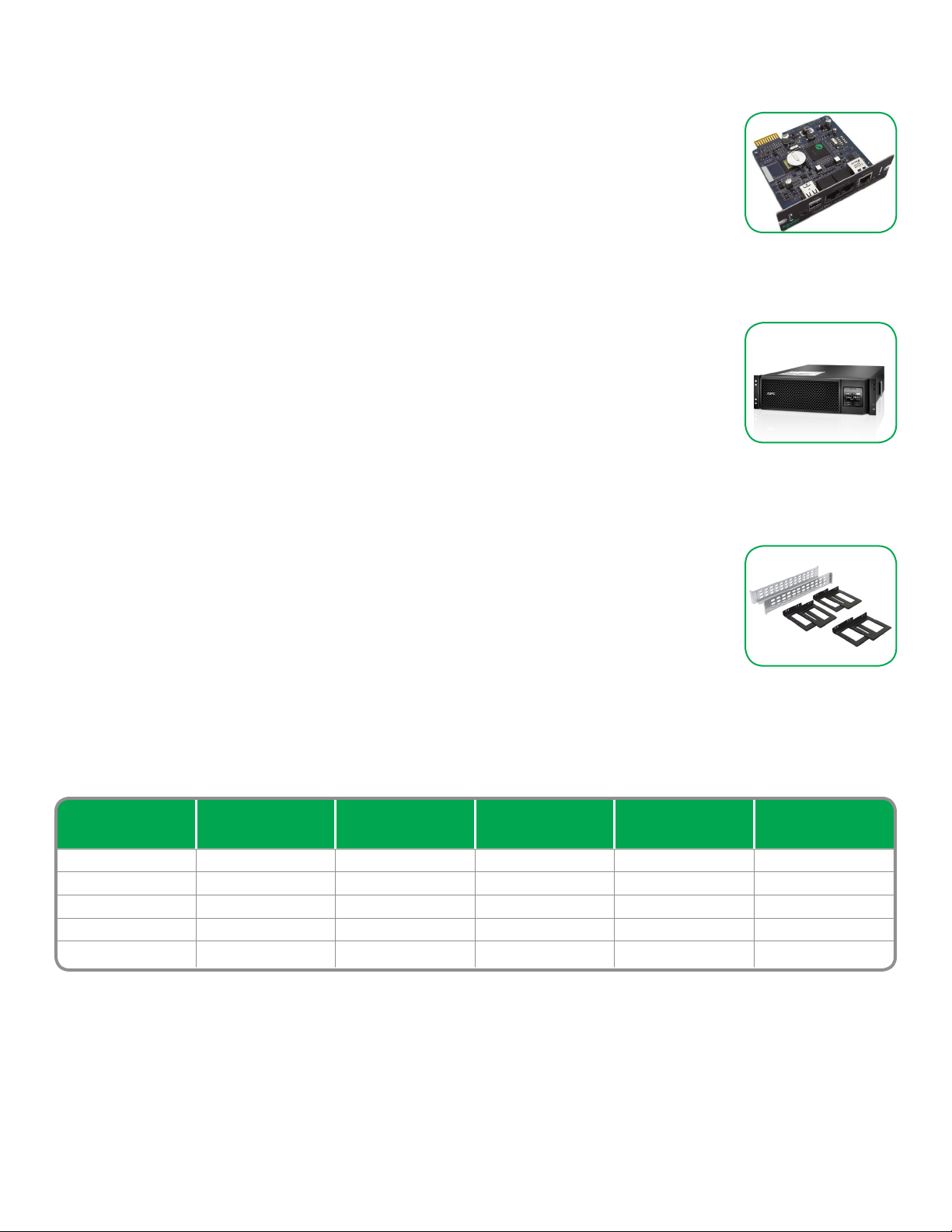

Product Accessories

Management Cards

AP9630: UPS Network Management Card

with PowerChute Network Shutdown

AP9631: UPS Network Management Card with PowerChute Network Shutdown & Environmental Monitoring

AP9335TH: APC™ by Schneider Electric™ Temperature & Humidity Sensor

AP9810: APC Dry Contact I/O Accessory

AP9624: UPS Interface Expander

Battery Packs

SRT192BP:

APC Smart-UPS SRT 192V

5 kVA and6 kVA Battery Pack

SRT192RMBP: APC Smart-UPS SRT 192V 5 kVA and 6 kVA RM Battery Pack

SRT192BP2: APC Smart-UPS SRT 192 V 8 kVA and10 kVA Battery Pack

SRT192RMBP2: APC Smart-UPS SRT 192V 8 kVA and 10 kVA RM Battery Pack

SRT002: APC Smart-UPS SRT 15ft. Extension Cable for 192 VDC External Battery Packs 5/6kVAUPS

SRT003: APC Smart-UPS SRT 15ft. Extension Cable for 192 VDC External Battery Packs 8/10kVAUPS

Rail Kits

SRTRK2: APC Smart-UPS SRT 19 inch Rail

Kit forSmart-UPS SRT 5/6/8/10 kVA

SRTRK3: APC Smart-UPS SRT 2 post Mounting Rail Kit for Smart-UPS SRT 5/6/8/10 kVA

Backplate Kit

SRT001: APC Smart-UPS SRT 5 kVA Output HW Kit

SRT004: APC Smart-UPS SRT

5kVA PDU, 208V(4) L6-20

SRT005: APC Smart-UPS SRT 6 kVAPDU, 208V(4) L6-20, (1) L6-30

SRT008: APC Smart-UPS SRT 8/10kVA PDU, 208V(6) L6-30

Service Bypass Panels

SBP5KRMT2U: APC Service Bypass

Panel — 200/208/240 V; 30 A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output

SBP6KRMT2U: APC Service Bypass Panel — 200/208/240 V; 50 A; MBB; L6-30P/HW input; (1) L6-30R (2) L6-20R output

SBP10KRMT4U: APC Service Bypass Panel — 200/208/240 V; 100 A; MBB; Hardwire input; (3) L6-30R (3) L6-20R output

Other

SURT013: SURT Equipment Cart

Replacement Battery Cartridge

APCRBC140

Network Management Card

Battery Pack

Rail Kits

Runtime Estimates at Half and Full Load (Minutes)

UPS

Half/Full Loads

Internal 11.8/4 12.6/4.4 8.3/2.3 14.4/5.2 11.4/3.7

(1) Battery pack 46.2/20.5 49/21.8 34.7/14.9 34.2/14.6 27. 9/ 11. 5

(2) Battery packs 83/38 87.8 /40. 4 62.9/28.3 55/ 24.4 45.1/19.7

(3) Battery packs 121/56.4 128.1/59.7 92.1/42.2 76.4/34.6 62.8/28.1

(4) Battery packs 160.4/75.1 169.5/79.5 122.1/56.5 98 .3/45 81/36.7

SRT5KRMXLW-HW

2,250 W/4,500 W

SRT5KXLT (RM)

SRT5KXLT-IEC (RM)

2,125 W/4,250 W

SRT6KXLT (RM)

SRT6KXLT-IEC (RM)

3,000 W/6,000 W

SRT8KXLT (RM)

SRT8KXLT-IEC (RM)

4,000 W/8,000 W

SRT10KXLT (RM)

SRT10KXLT-IEC (RM)

5,000 W/10,000 W

Page 6

Smart-UPS On-Line SRT 5 kVA – 10 kVA Technical Specifications

PRODUCT FEATURE

SRT5KRMXLW-HW

Output

Power rating

Nominal output voltage

Output frequency

Topology

Online efficiency at full load (typical)

Green mode efficiency at full load (typical)

Output connections

5,000 VA/4,500 W 5,000 VA/4,250 W 6,000 VA/6,000 W

(208, 220, 230, 240 V

user selectable)

Input

Nominal input voltage

Input voltage range full load (half load)

Input frequency

Input connection

(208, 220, 230, 240 V

User Selectable)

Hardwire 3-wire

(L1+L 2/N+G)

Batteries and Runtime

Battery type

Typical backup time at 1/2 load (min.)

Typical backup time at full load (min.)

Replacement battery (qu anti ty)

Externa l battery pack (tower/rack mount)

11. 8 min. 12.6 min . 8.3 min.

Communication and Management

Interface ports

Control panel

Emergency power off (EPO)

Embedded network management with environmental monitoring

Physical

Rack height

Maximum height (RM)

Maximum width (RM)

Maximum depth (RM)

Net weight

Conformance

Regulatory

Warranty

CE, VDE, UL-1778, FCC

Part 15 Class A, cUL

SRT5KXLT

SRT5KRMXLT

230 V

50/60 Hz ± 3 Hz (auto sense) 50/60 Hz ± 0.1 Hz (user selectable)

230 V

Maintenance-free sealed lead-acid battery with suspended electrolyte, leak proof

4 min. 4.4 min. 2.3 min.

RJ-45 with Status LEDs (10/100 Base-T), Serial (RJ45), USB (Type B) and Smart-Slot

(2) L6-20R (2) L6-30R

High Resolution Graphical LCD display

3 U 4 U

5.1” (13 0 m m) 6.85” (174 mm)

17” (432 mm) 17” (432 mm)

28.32” (719 mm) 28.32” (719 mm)

123 lbs (55.8 kg) 135 lbs (61.25 kg)

3 years for electronics, 2 years for battery

SRT5KXLT-IEC

SRT5KRMXLT-IEC

208 V (240 V user selectable)

Double-conversion Online

94% (ENERGY STAR)

98%

(4) IEC 320 C13 (4) IEC 320 C19

208 V (240 V User Selectable)

160 – 275 V (100 – 275 V)

40 – 70 Hz auto-selecting

L6-30P

APCRBC140 (1)

SR T192BP/SR T192 RM BP

Yes (NO/NC connections)

Yes

UL-1778, FCC Part 15 Class A, cUL

SRT6KXLT

SRT6KRMXLT

(4) L6-20R

(2) L6-30R, HW

Hardwire 3-wire

(L1+L 2+G )

SRT6KXLT-IEC

SRT6KRMXLT-IEC

(6) IEC 320 C13

(4) IEC 320 C19, HW

Page 7

Smart-UPS On-Line SRT 5 kVA – 10 kVA Technical Specifications

PRODUCT FEATURE

Output

Power rating

Nominal output voltage

Output frequency

Topology

Online efficiency at full load (typical)

Green mode efficiency at full load (typical)

Output connections

Input

Nominal input voltage

Input voltage range full load (half load)

Input frequency

Input connection

SRT8KXLT

SRT8KRMXLT

8000 VA/8000 W

50/60 Hz ± 3 Hz (auto sense) 50/60 Hz ± 0.1 Hz (user selectable)

(4) L6-20R

(2) L6-30R, HW

SRT8KXLT-IEC

SRT8KRMXLT-IEC

208 V (240 V User Selectable)

Double-conversion Online

94% (ENERGY STAR)

98%

(6) IEC 320 C13

(4) IEC 320 C19, HW

208 V (240 V User Selectable)

160 – 275 V (100 – 275 V)

40 – 70 Hz auto-selecting

Hardwire 3-wire (L1+L2+G)

SRT10KXLT

SRT10KRMXLT

10000 VA/10000 W

(4) L6-20R

(2) L6-30R, HW

SRT10KXLT-IEC

SRT10KRMXLT-IEC

(6) IEC 320 C13

(4) IEC 320 C19, HW

Batteries and Runtime

Battery type

Typical backup time at 1/2 load (min.)

Typical backup time at full load (min.)

Replacement battery (qu anti ty)

Externa l battery pack (tower/rack mount)

Maintenance-free sealed lead-acid battery with suspended electrolyte, leak proof

Communication and Management

Interface ports

Control panel

Emergency power off (EPO)

Embedded network management with environmental monitoring

RJ-45 with Status LEDs (10/100 Base-T), Serial (RJ45), USB (Type B) and Smart-Slot

Physical

Rack height

Maximum height (RM)

Maximum width (RM)

Maximum depth (RM)

Net weight

Conformance

14.4 m in. 11.4 min.

5.2 min. 3.7 m in.

APCRBC140 (2)

SR T192BP 2/SR T192RMBP2

High Resolution Graphical LCD display

Yes (NO/NC connections)

Yes

10.35” (263 mm)

17” (432 mm)

28.15” (715 mm)

246 lbs (111.82 kg)

Regulatory

Warranty

UL-1778, FCC Part 15 Class A, CSA C22.2 No.107.3-05

3 years electronics, 2 years battery
