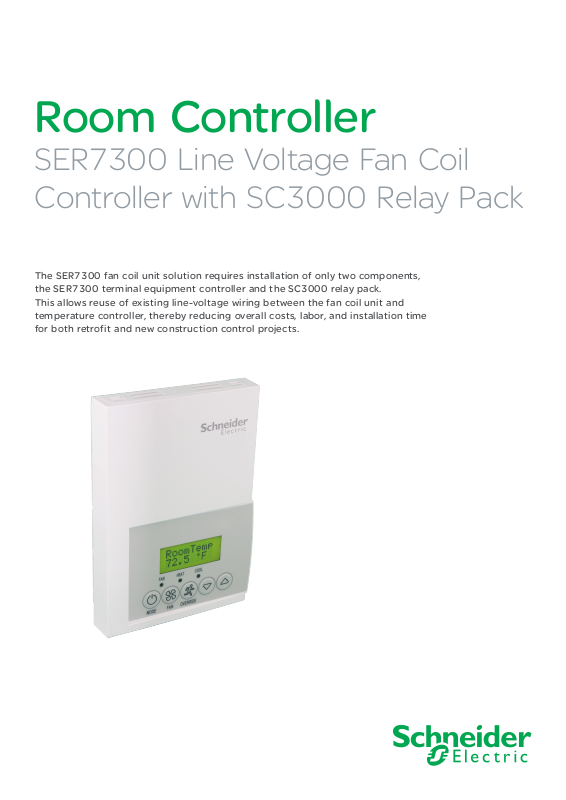

Room Controller
SER7300 Line Voltage Fan Coil
Controller with SC3000 Relay Pack
The SER7300 fan coil unit solution requires installation of only two components,
the SER7300 terminal equipment controller and the SC3000 relay pack.
This allows reuse of existing line-voltage wiring between the fan coil unit and
temperature controller, thereby reducing overall costs, labor, and installation time
for both retrofit and new construction control projects.
Page 2
Schneider Electric | SDS-SER730 0SC300 0-EN.A4.08.2015.v2 August 2015
SER7300 and SC3000 Series Features
The SER7300 fan coil unit room controllers are available as
stand-alone, Network Ready, BACnet® MS/TP or wireless ZigBee®
Pro networked models. The stand-alone Network Ready models
can be easily retrofitted on-site with our network communication
modules for BACnet® MS/TP or wireless ZigBee® Pro protocols.
Introduction
Now, a new cost-effective solution is available for upgrading line-voltage fan
coil unit thermostats. The SER7300 fan coil unit solution requires installation
of only two components; the SER7300 room controller and the SC3000 relay
pack. This allows reuse of existing line-voltage wiring between the fan coil
unit and temperature controller, thereby reducing overall costs, labour, and
installation time for both retrot and new construction control projects.
Fan coil terminal equipment controlles with relay packs
Upgrading an existing fan coil unit controlled by a line-voltage thermostat
is an expensive option with poor return on investment. Extra components
to upgrade, such as relays, transformers, controllers, sensors, and network
wiring, caused proposals to be quickly dismissed. This resulted in fan coil
units being controlled by stand-alone thermostats with no capacity for
energy optimisation. As such, features available such as set point limitations,
AT A GLANCE
Custom design
• Suitable for commercial and hospitality
markets and systems
• Available as a stand-alone unit with
Network Ready functionality
• Available with ZigBee® Pro wireless mesh
network or BACnet® MS-TP communication
module
• Advanced occupancy functions for
commercial and lodging applications
• Configurable fan sequence operation
• On board configuration interface utility
Options and accessories
• PIR occupancy sensor
• Humidity sensor with on-board
dehumidification strategy functions
• Wireless door and window switches
communication
advanced occupancy routines, and other functions offered by central iBMS
systems were simply not an option.
The SC3000 relay pack features an onboard 90 - 277Vac power supply and
line-voltage relays, which directly drives fractional horsepower fan motors
and valves. This eliminates the need to install and wire costly pilot relays and
transformers.
The SER7300 wall mounted controller features a digital display and built-in
commissioning and conguration utility, temperature sensor, and optional
humidity and Passive Infrared (PIR) occupancy sensor. No previous building
management training is required for the easy installation and commissioning
process, which can be completed in fteen minutes, reducing overall
installation time and providing increased savings.
The SER7300 terminal equipment fan coil unit controllers are available
as stand-alone, network ready, BACnet
networked models. The stand-alone network ready models can be easily
retrotted on-site with our network communication modules for BACnet
MS/TP or wireless ZigBee Pro protocols. The stand-alone network-ready
controllers allow for easy expandability, which ensures longevity and the
possibility for future system upgrades.
®
MS/TP or wireless ZigBee® Pro
2
Page 3
Schneider Electric | SDS-SER730 0SC300 0-EN.A4.08.2015.v2 August 2015

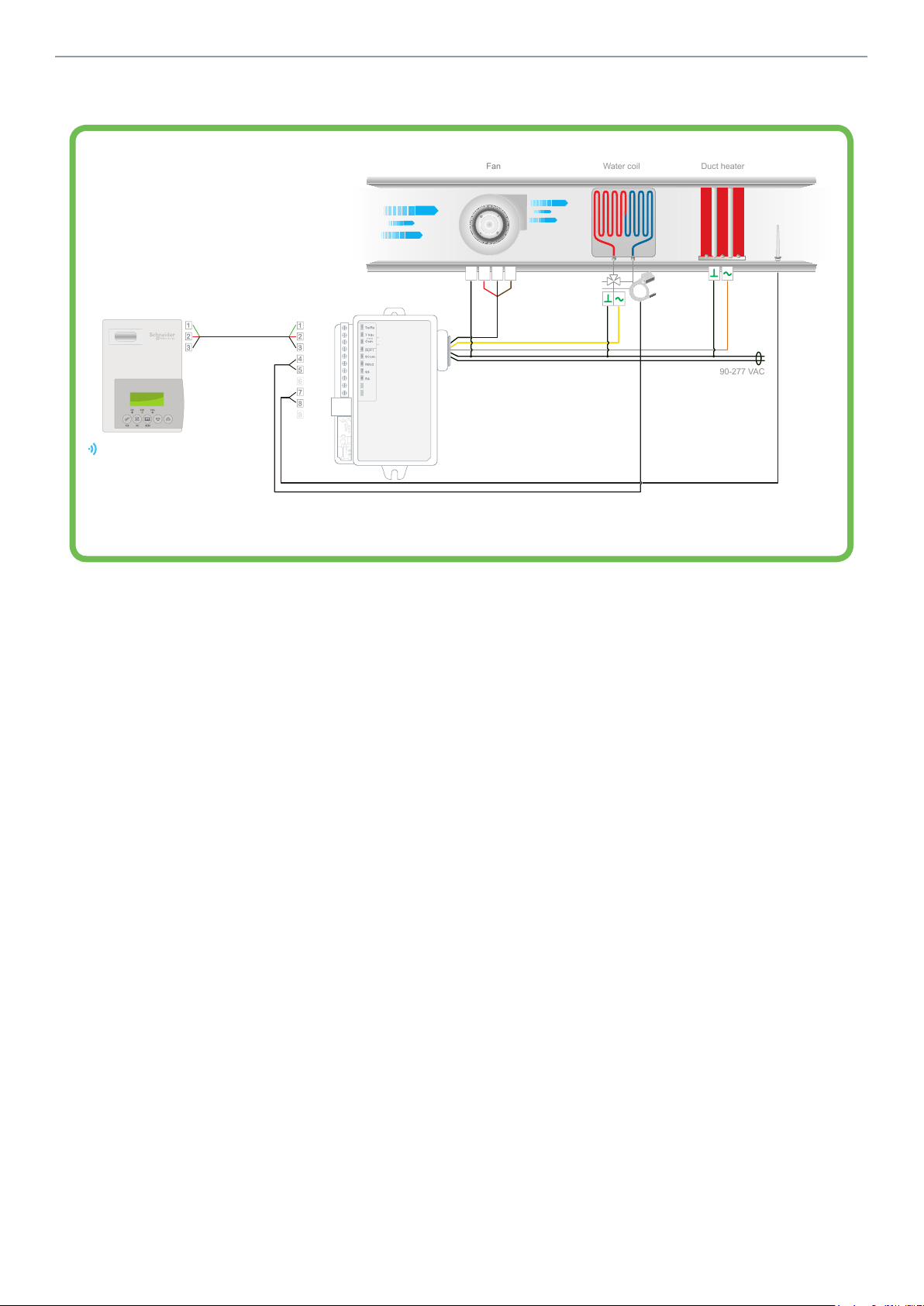

SER7300 and SC3000 Series Applications
90-277 VAC
Fan Water coil Duct heater
TYPICAL APPLICATION
Fresh Air
3
SER7300
ZigBee® Pro
Optional wireless communication
BACnet MS/TP
Wired communication protocol
SC3504E5045
Tx/Rx
7.0 Vdc
Com
RUI1
Scom
RBI2
SS
Scom
RS
N L M H
Supply
Water
Sensor
Supply
Air
Sensor
Page 4
Schneider Electric | SDS-SER730 0SC300 0-EN.A4.08.2015.v2 August 2015
SER7300 Specifications
Specifications
4
Dimensions
12.5cm/4.9in (H) x 8.6cm/3.38in (W) x 2.9cm/1in (D)
Power Requirements (SER7300)
7.0 VDC +/- 10%, 2.4 watts minimum
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 95% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 95% R.H. non-condensing
Temperature Sensor
Local 10 K NTC thermistor
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F ) @ 21 °C ( 70 °F ) typical
calibrated
Humidity Sensor and Calibration
Single point calibrated bulk polymer type sensor
Humidity Sensor Precision
Reading range from 10-90 % R.H. non-condensing
10 to 20% precision is 10%
20% to 80% precision is 5%
80% to 90% precision is 10%
Humidity Sensor Stability
Less than 1.0 % yearly (typical drift)
Dehumidication Setpoint Range
30% to 95% R.H.
Occ, Stand-By and Unocc Cooling
Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ, Stand-By and Unocc Heating
Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room Temperature Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Proportional Band for Room Temperature
control
Cooling & Heating: Default: 1.8°C ( 3.2°F )
Binary Inputs
Dry contact across terminal BI1,BI2 to Scom
Wire Gauge
14 gauge maximum, 22 gauge recommended
Approximate Shipping Weight
0.75 lb (0.34 kg)
Agency Approvals All Models
cTUVus: UL: UL 873 (US) and CSA C22.2 No. 24
(Canada), XAPX (US) and XAPX7 (Canada)
Industry Canada: ICES-003 (Canada)
FCC: Compliant to CFR 47, Part 15, Subpart B (US)
CE: EMC Directive 89/336/EEC (Europe Union)
C-Tick: AS/NZS CISPR 22 Compliant (Australia /
New Zealand) Supplier Code Number N10696
Agency Approvals Wireless Models
FCC: Compliant to: Part 15, Subpart C
CE: R&RTTE Directive 1999/5/EC (Europe Union)
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Check with your
local government
for instruction on
disposal of these
products.
Ordering information
SER73
Programmability:
-0 = No humidity sensor
-5 = Internal humidity
sensor
Economizer / Humidity
Control:
-0 = Override for commercial
applications
-5 = °C/°F, for hotels/lodging
applications
A
PIR options:
-50 = PIR ready but PIR
cover not included
-55 = Factor y as sembled
with PIR cover
45
Communication options:
-B = BACnet® MS/TP
-E = LonWorks
-P = ZigBee Pro wireless
-W = ZigBee® wireless
- = Network ready
* Some part number configurations
may not be available.
®
