Room Temperature Sensors
Description
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 90% RH
• Accuracy of +/- 0.55°F (0.30°C)
• 3-Pole Stereo Jack
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 90% RH
• Accuracy of +/- 0.55°F (0.30°C)
• 3-Pole Stereo Jack
• With Setpoint Offset & Bypass
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator
• Modular RJ-10 Jack
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator & Setpoint Offset
• Modular RJ-10 Jack
TAC Vista
1.8k ohm
STR100 --- ---
--- STR200 ---
---
STR101 --- ---
STR102 --- ---
I/NET
10k ohm, T2
STR202 ---
10k ohm, T3
Continuum
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator & Bypass
• Modular RJ-10 Jack
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator, Setpoint Offset & Bypass
• Modular RJ-10 Jack
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator, Setpoint Offset, Bypass &
3-Speed Fan Speed Control
• Modular RJ-10 Jack
Room Temperature Sensor
• 32 to 120°F (0 to +50°C), Max. 95% RH
• Accuracy of +/- 0.65°F (0.35°C)
• With Mode Indicator, Setpoint Offset, Bypass &
Auto-Off-On Fan Speed Control
• Modular RJ-10 Jack
STR103 --- ---
STR104 --- ---
STR106 --- ---
STR107 --- ---
1
Page 6

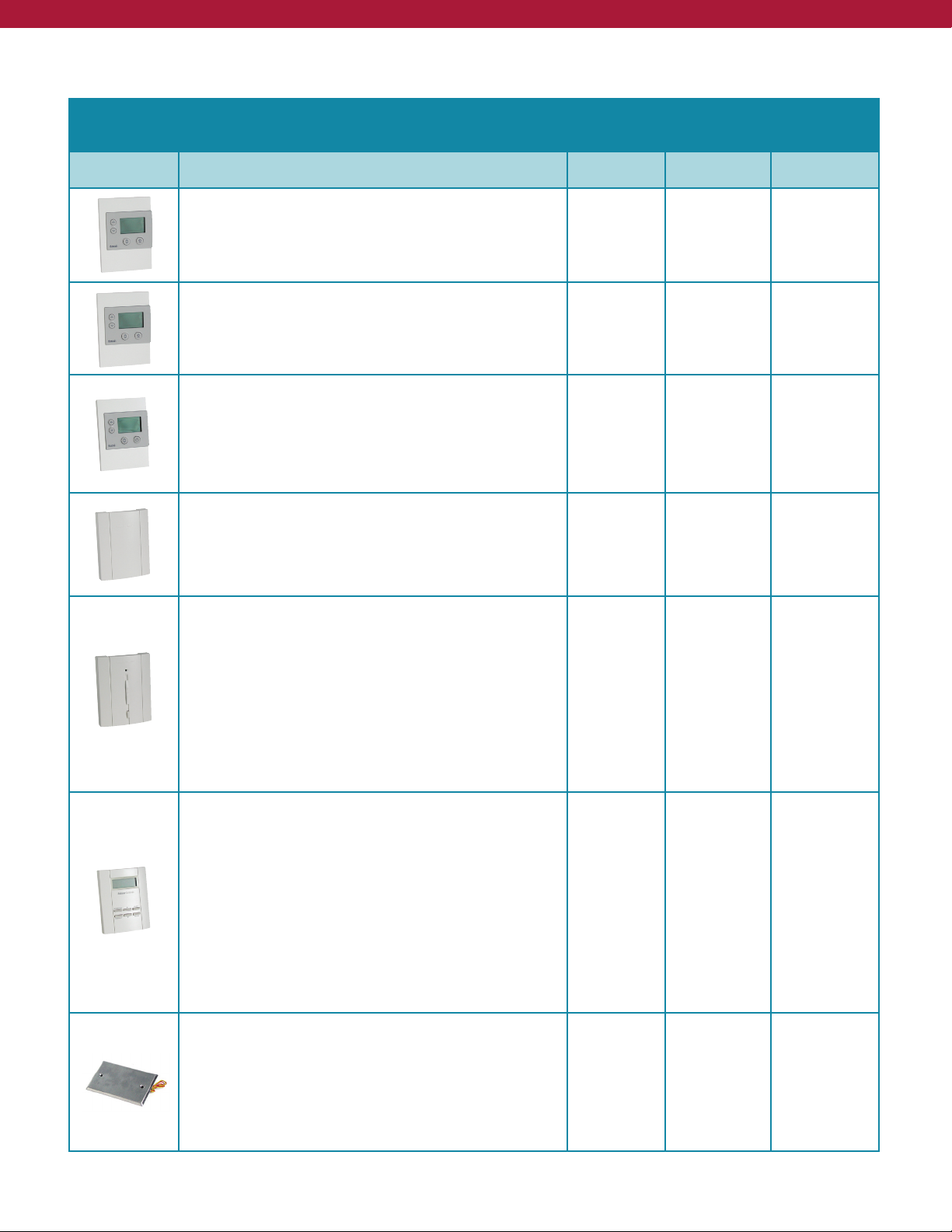

Room Temperature Sensors (continued)
Description
Room Temperature Sensor
• 32 to 122°F (0 to +50°C), Max. 90% RH
• Accuracy of +/- 0.9°F (0.5°C)
• With Mode Indicator, Setpoint Offset, Bypass & Fan Speed Control
• LCD Display
Room Temperature Sensor
• 32 to 122°F (0 to +50°C), Max. 90% RH
• Accuracy of +/-1°F (0.6°C)
• With Mode Indicator, Setpoint Offset, Bypass & Fan Speed Control
• LCD Display
Room Temperature Sensor
• 32 to 122°F (0 to +50°C), Max. 90% RH
• Accuracy of +/-1°F (0.6°C)
• Lonworks
• With Mode Indicator, Setpoint Offset, Bypass & Fan Speed Control
• Multifunction: Light Control, Blind Control, CO2 Display, RH Display
• LCD Display (STR351 LCD Display has Backlight)
Room Temperature Sensor
• 32 to 105°F (0 to +40°C)
• Accuracy of +/- 0.36°F (0.2°C)
• Optional No Logo Version
• Andover Controls Logo Versions Available Through 2nd Qtr 2006/
TAC Labeled Versions Coming Soon
Room Temperature Sensor
• 32 to 105°F (0 to +40°C)
• Accuracy of +/- 0.36°F (0.2°C)
• Setpoint Adjustment Slider
• Override Pushbutton
• Programmable LED Indicator
• Built-in Service Port
• Optional No Logo Version
• Optional No Slider Version
• Optional No Logo/No Slider Version
• Andover Controls Logo Versions Available Through 2nd Qtr 2006/
TAC Labeled Versions Coming Soon
Room Temperature Sensor
• 32 to 105°F (0 to +40°C)
• Accuracy of +/- 0.36°F (0.2°C)
• 4-Digit LCD Display
• 6-Button Programmable Keypad
• Programmable Icons (PM, %, °, Setpoint, Cool, Heat, CFM, Fan, OA, SP)
• Built-in Service Port
• Powered Directly From Controller
• Optional Two 7-Segment LED Display
• Optional No Logo Version
• Optional 4-Button Version (No Logo)
• Andover Controls Logo Versions Available Through 2nd Qtr 2006/
TAC Labeled Versions Coming Soon
TAC Vista
1.8k ohm
STR150 --- ---
STR250 STR250 ---
STR350,
STR351
---
---
---
---
---
---
---
---
I/NET
10k ohm, T2
--- ---
---
---
---
---
---
---
---
---
Continuum
10k ohm, T3
TTS-S-1
TTS-S-B-1
TTS-SE-1
TTS-SE-B-1
TTS-SE-NS-1
TTS-SE-BNS-1
TTS-SD-LCD-1
TTS-SD-LED-1
TTS-SD-LCD-B-1
TTS-SD-LED-B-1
TTS-SD-LCD-4-2
Stainless Steel Wallplate Temperature Sensor
• 32 to 105°F (0 to +40°C)
• Accuracy of +/- 0.36°F (0.2°C)
• Stainless Steel Wallplate Insulated With Foil-Backed Foam
• No Logo
• Optional Version With Security Screws (No Logo)
2
---
---
---
---
01-0100-295
01-0100-296
Page 7

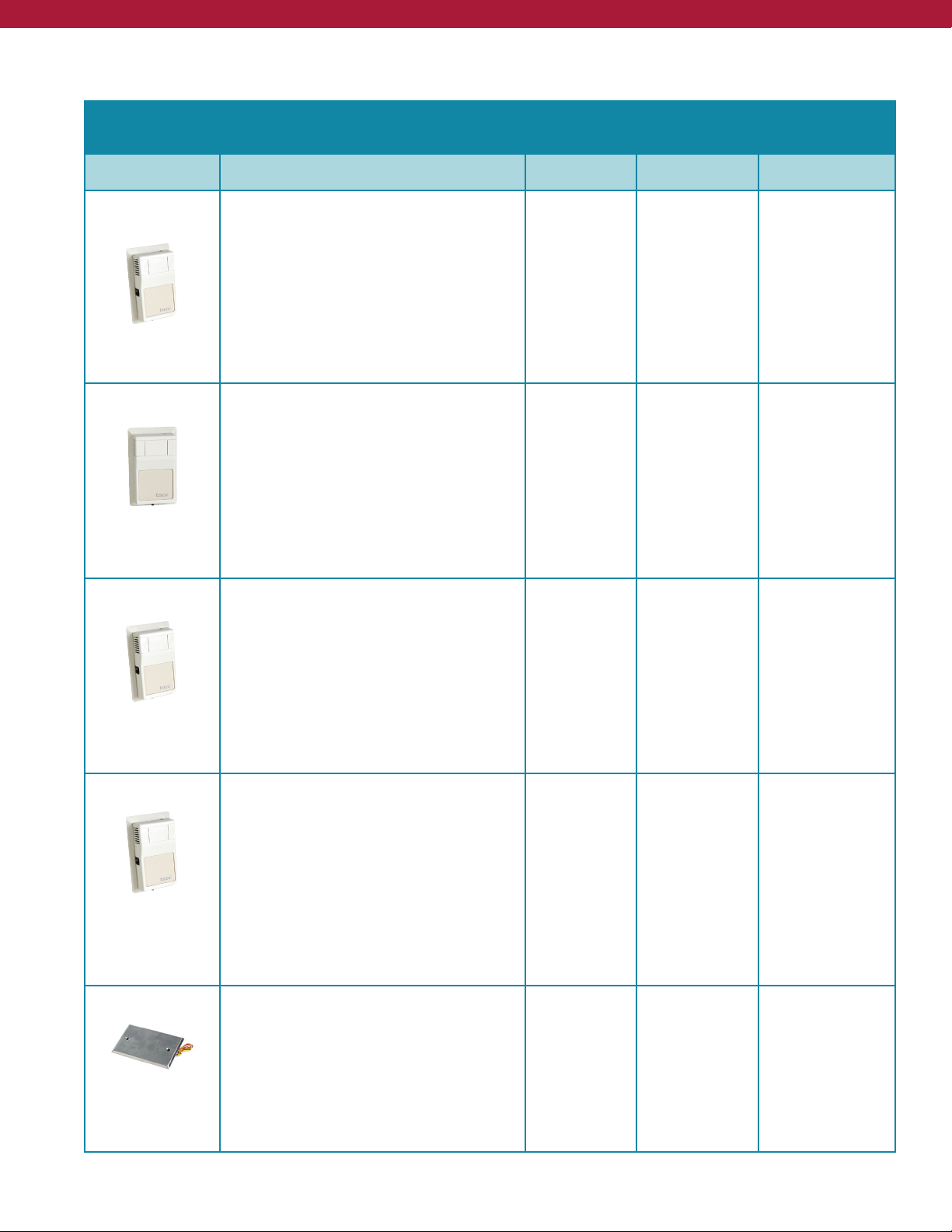

Room Temperature Sensors (continued)
Description
Room Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Optional Thermometer Indicator (-TI)
• Optional LCD Display (-LCD)
• Optional LED Display (-LED)
• Optional RS232 (-RS232)
• Optional RJ4 Communication Jack (-RJ4)
• Optional RJ6 Communication Jack (-RJ6)
Room Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Setpoint Indicator (55°F to 85°F)
• Optional Thermometer Indicator (-TI)
• Optional LCD Display (-LCD)
• Optional LED Display (-LED)
• Optional RS232 (-RS232)
• Optional RJ4 Communication Jack (-RJ4)
• Optional RJ6 Communication Jack (-RJ6)
Room Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Override Pushbutton
• Optional Thermometer Indicator (-TI)
• Optional LCD Display (-LCD)
• Optional LED Display (-LED)
• Optional RS232 (-RS232)
• Optional RJ4 Communication Jack (-RJ4)
• Optional RJ6 Communication Jack (-RJ6)
TAC Vista
1.8k ohm
ETR100 ETR200 ETR500
ETR101 ETR201 ETR501
ETR102 ETR202 ETR502
I/NET
10k ohm, T2
Continuum
10k ohm, T3
Room Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Setpoint Indicator (55°F to 85°F)
• Override Pushbutton
• Optional Thermometer Indicator (-TI)
• Optional LCD Display (-LCD)
• Optional LED Display (-LED)
• Optional RS232 (-RS232)
• Optional RJ4 Communication Jack (-RJ4)
• Optional RJ6 Communication Jack (-RJ6)
Stainless Steel Wallplate Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Stainless Steel Wallplate With Foam Insulation Pad
• No Logo
3
ETR103 ETR203 ETR503
ETP100 ETP200 ETP500
Page 8

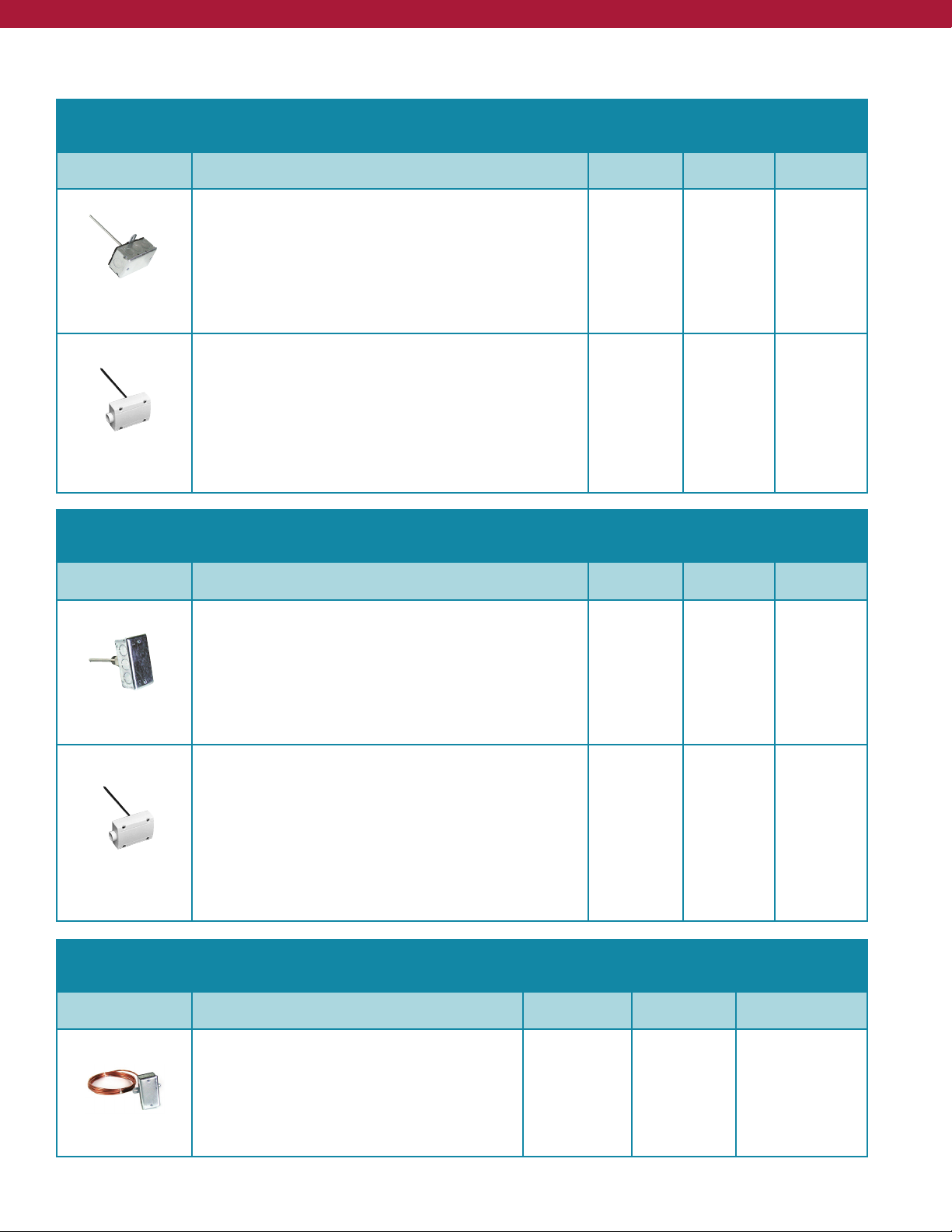

Duct Temperature Sensors
Description
Duct Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Stainless Steel Probe
• Foam Backed Metal Enclosure
• Available Lengths of 4, 6, 8, 12 inches (-4, -6, -8, -12)
• Optional Version Without Enclosure (-NE)
Duct Temperature Sensor
• -30 to 230°F (-34 to +110°C)
• Accuracy of ±0.36°F (0.2°C)
• Stainless Steel Probe (Replaceable)
• Plastic Enclosure
• Available Lengths of 4, 6, 9, 15.75 inches (-4-1, -6-1, -9-1, -15.75-1)
• Andover Controls Logo Versions Available Through 2nd Qtr 2006/
TAC Labeled Versions Coming Soon
Immersion Temperature Sensors
Description
Immersion Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• 1/4" Stainless Steel Probe
• Foam Backed Metal Enclosure
• Separately Ordered Brass or Stainless Steel Wells
• Available Lengths of 4 and 6 Inches (-4, -6)
TAC Vista
1.8k ohm
ETD100 ETD200 ETD500
--- --- TT-D
TAC Vista
1.8k ohm
ETI100 ETI200 ETI500
I/NET
10k ohm, T2
I/NET
10k ohm, T2
Continuum
10k ohm, T3
Continuum
10k ohm, T3
Immersion Temperature Sensor
• -30 to 230°F (-34 to +110°C)
• Accuracy of ±0.36°F (0.2°C)
• Stainless Steel Probe (Replaceable)
• Plastic Enclosure
• Separately Ordered Brass or Stainless Steel Wells in 1/2" or 3/4" NPT
• Available Lengths of 4 and 6 inches (-4-1, -6-1)
• Andover Controls Logo Versions Available Through 2nd Qtr 2006/
TAC Labeled Versions Coming Soon
Averaging Temperature Sensors
Description
Averaging Temperature Sensor
• -40° to 302°F (-40° to 150°C)
• Accuracy of ±0.36°F (0.2°C)
• Bendable Copper
• Foam Backed Metal Enclosure
• Available Lengths of 8, 12, 24 Feet (-8, -12, -24)
4
TAC Vista
1.8k ohm
ETA100 ETA200 ETA500
--- --- TT-I
I/NET
10k ohm, T2
Continuum
10k ohm, T3
Page 9

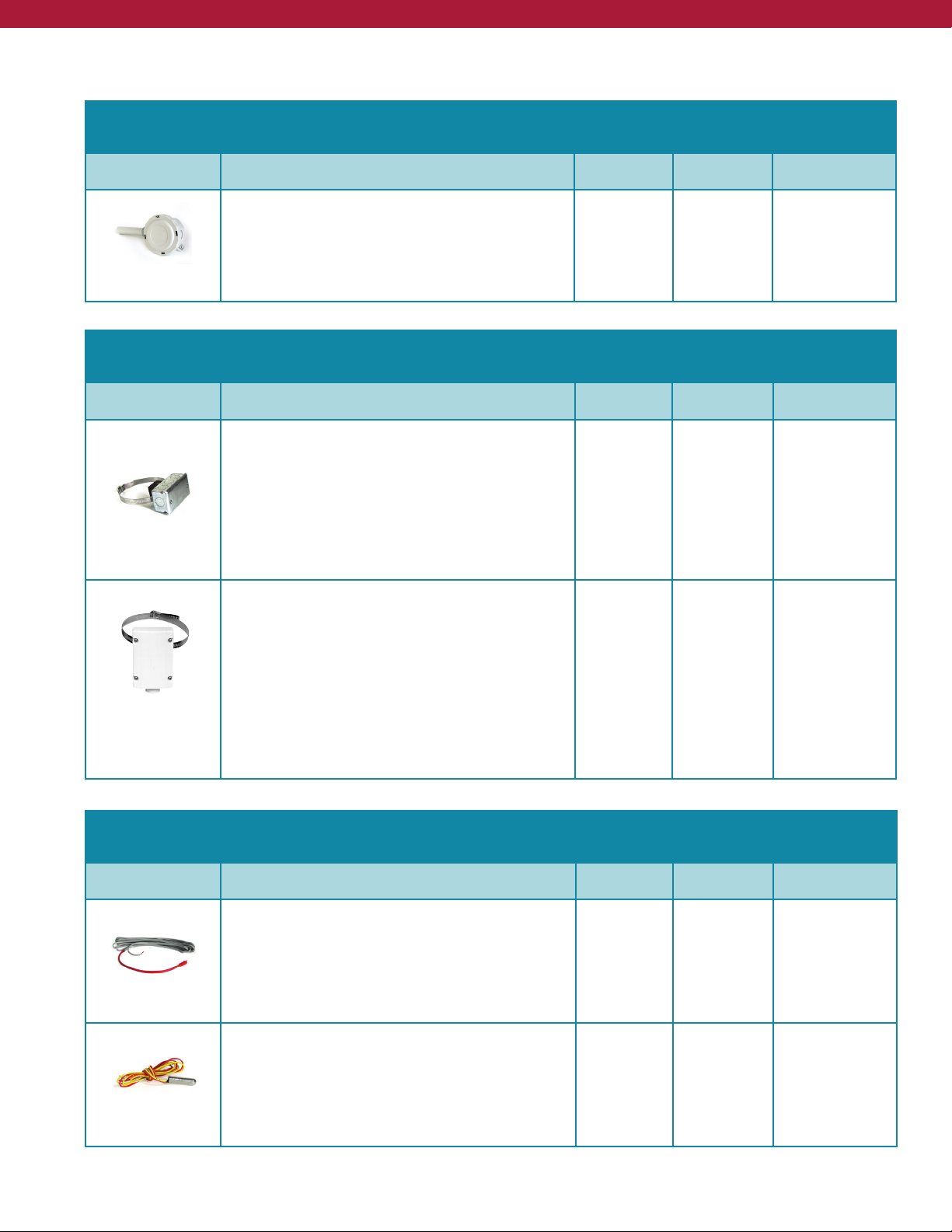

Outside Air Temperature Sensors
Description
Outside Air Temperature Sensor
• -40 to 302°F (-40 to +150°C)
• Accuracy of ±0.36°F (0.2°C)
• Weatherproof Enclosure
Strap-On Temperature Sensors
Description
Strap-On Temperature Sensor
• -40 to 302°F (-40 to +150°C)
• Accuracy of ±0.36°F (0.2°C)
• Metal Enclosure
• 1.5 Inch Copper Plate With Foam-Backed Pad
• Stainless Steel Strap
• Fits Up to 5 Inch Diameter Pipes
Strap-On Temperature Sensor
• -30 to 230°F (-34 to +110°C)
• Accuracy of ±0.36°F (0.2°C)
• Plastic Enclosure
• Aluminum Mounting Disk
• Stainless Steel Strap
• Fits 2 to 6 Inch Diameter Pipes
• Andover Controls Logo Versions Available
Through 2nd Qtr 2006/TAC Labeled Versions Coming Soon
TAC Vista
1.8k ohm
ETO100 ETO200 ETO500
TAC Vista
1.8k ohm
ETS100 ETS200 ETS500
--- --- TT-ST
I/NET
10k ohm, T2
I/NET
10k ohm, T2
Continuum
10k ohm, T3
Continuum
10k ohm, T3
Bead Temperature Sensors
Description
Bead Temperature Sensor
• -35 to 140°F (1.7 to +60°C)
• Accuracy of ±0.36°F (0.2°C)
• Attached 8 Foot Leads
• Optional Ruggedized Version (-30 to 230°F (-34 to +110°C))
Bead Temperature Sensor
• -40 to 302°F (-40 to +150°C)
• Accuracy of ±0.36°F (0.2°C)
• 1 Inch x 1/4 Inch O.D. Stainless Steel Probe
• Attached 18 Inch Leads
5
TAC Vista
1.8k ohm
---
---
ETB100 ETB200 ETB500
I/NET
10k ohm, T2
---
---
Continuum
10k ohm, T3
01-2085-001
01-2085-001-R
Page 10

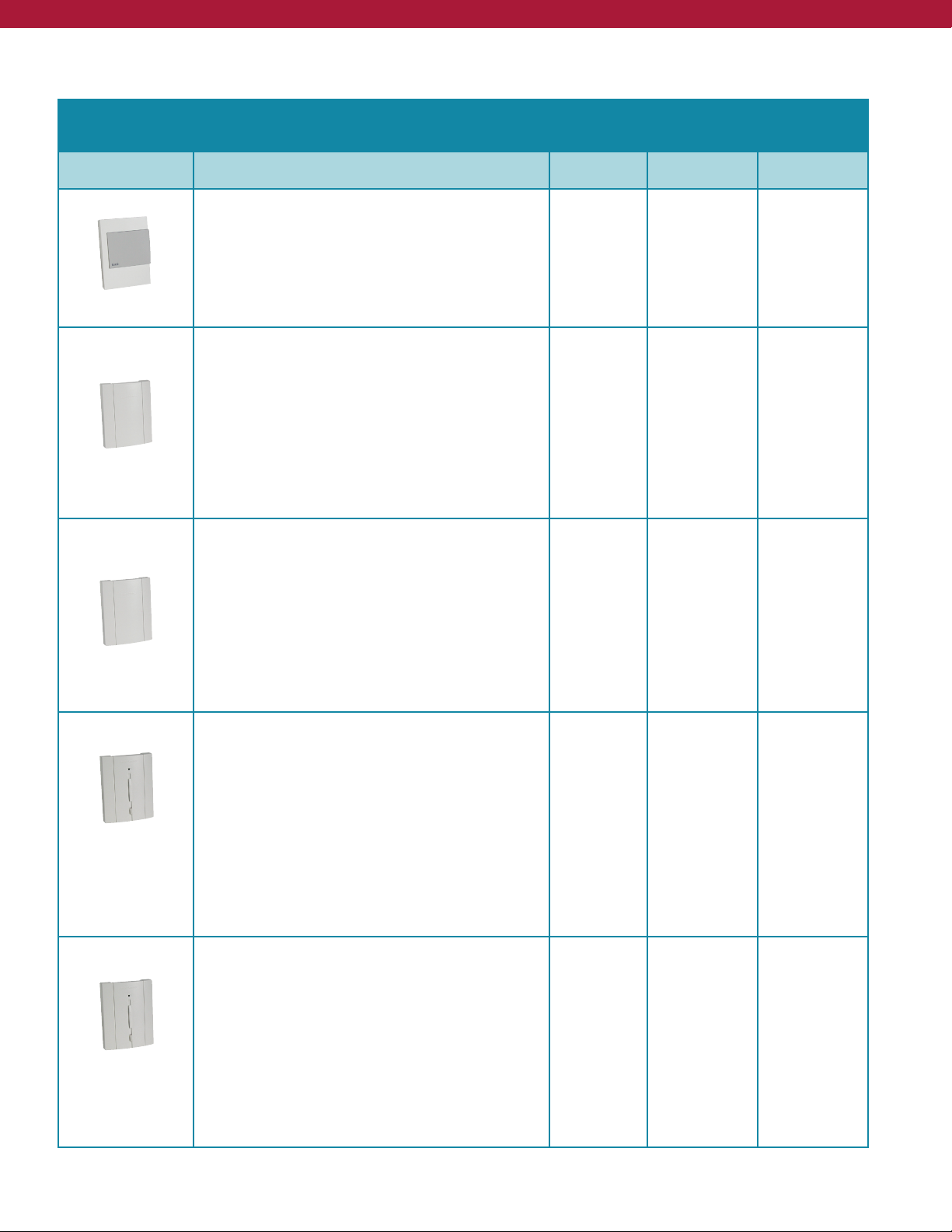

Room Humidity Sensors
Description
Room Humidity Sensor
• 2% RH Accuracy
• Selectable 4-20 mA, 0-10 V
• 24 VAC / 15…36 VDC Power
• Optional 1.8K Thermistor /10K T2 Thermistor (-T)
• Optional 1.8K Thermistor /10K T3 Thermistor (-T5)
Room Humidity Sensor
• 2% RH Accuracy
• Factory Calibrated / Field Replaceable Sensor Element
• 2-Wire 4-20 mA Output (-MA-AC)
• 3-Wire 0-5/0-10 VDC Output (-V-AC)
• 12-24 VDC/24 VAC (VDC Model)
• 12-24 VDC Only (mA Model)
• Optional Version with 10K Type 3 Thermistor
• Andover Controls Logo Versions Available
Through 2nd Qtr 2006
Room Humidity Sensor
• 3% RH Accuracy
• Factory Calibrated / Field Replaceable Sensor Element
• 2-Wire 4-20 mA Output (-MA-AC)
• 3-Wire 0-5/0-10 VDC Output (-V-AC)
• 12-24 VDC/24 VAC (VDC Model)
• 12-24 VDC Only (mA Model)
• Optional Version with 10K Type 3 Thermistor
• Andover Controls Logo Versions Available
Through 2nd Qtr 2006
TAC Vista
1.8k ohm
SHR100
SHR100-T
SHR100-T5
---
---
---
---
I/NET
10k ohm, T2
SHR100
SHR100-T
SHR100-T5
---
---
---
---
Continuum
10k ohm, T3
---
---
SHR100-T5
ZVW-2
ZVW/10K-2
ZVW-3
ZVW/10K-3
Room Humidity Sensor
• 2% RH Accuracy
• 10K Type 3 Thermistor
• Setpoint Slider, 10K Potentiometer, Override Buttons, Shorts
Thermistor, LED u/ 820 Ohm Resistor
• Factory Calibrated / Field Replaceable Sensor Element
• 2-Wire 4-20 mA Output (-MA-AC)
• 3-Wire 0-5/0-10 VDC Output (-V-AC)
• 12-24 VDC/24 VAC (VDC Model)
• 12-24 VDC Only (mA Model)
• Andover Controls Logo Versions Available
Through 2nd Qtr 2006
Room Humidity Sensor
• 3% RH Accuracy
• 10K Type 3 Thermistor
• Setpoint Slider, 10K Potentiometer, Override Buttons, Shorts
Thermistor, LED u/ 820 Ohm Resistor
• Factory Calibrated / Field Replaceable Sensor Element
• 2-Wire 4-20 mA Output (-MA-AC)
• 3-Wire 0-5/0-10 VDC Output (-V-AC)
• 12-24 VDC/24 VAC (VDC Model)
• 12-24 VDC Only (mA Model)
• Andover Controls Logo Versions Available
Through 2nd Qtr 2006
--- --- ZVW/SE-2
--- ---
ZVW/SE-3
6
Page 11

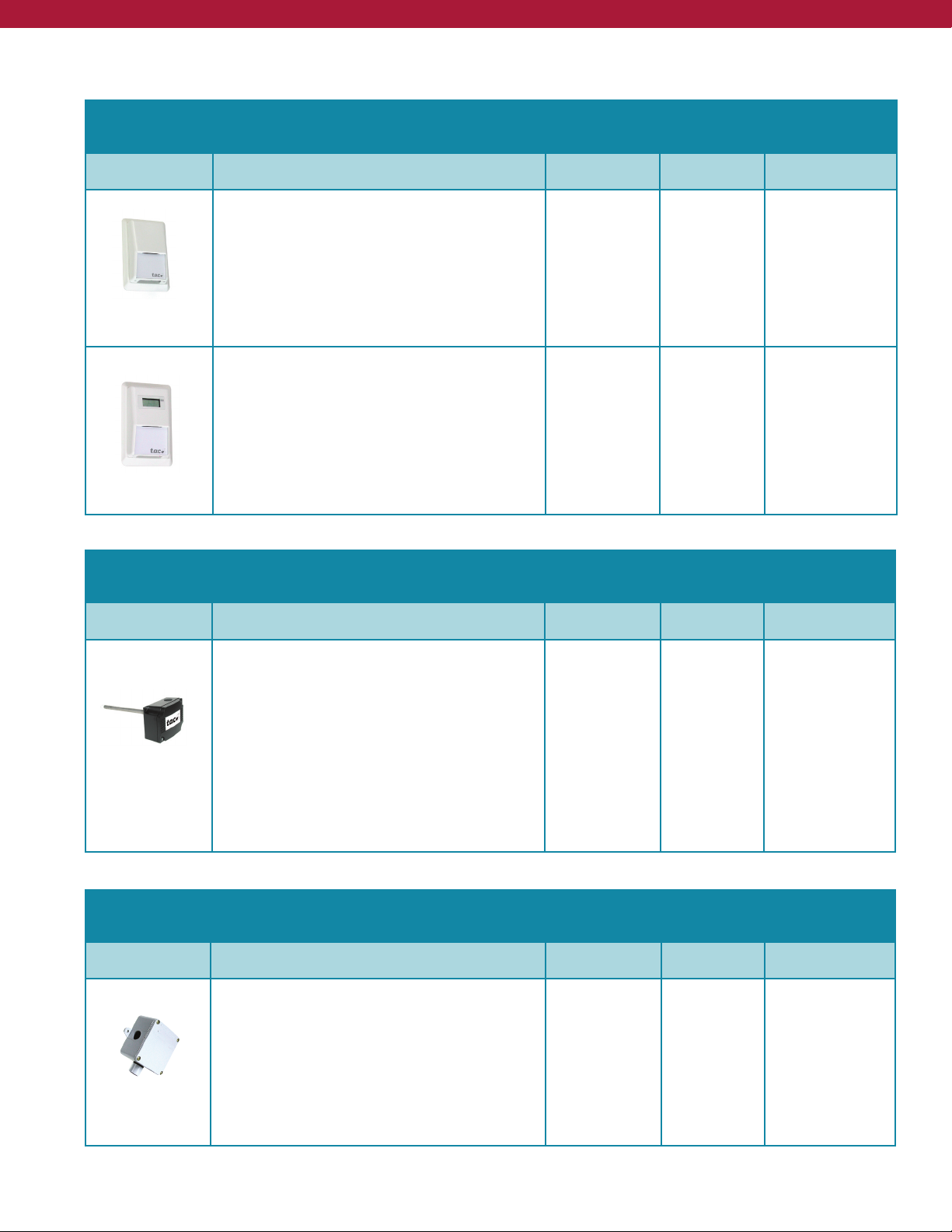

Room Humidity Sensors (continued)
Description
Room Humidity Sensor
• 2% RH Accuracy
• Jumper Selectable 4-20 mA, 0-1 V, 0-10 V, 0-5 V Output
• 17 to 37 VAC/DC Power
• Integral Zero and Span Adjustments
• Plastic Enclosure
• Optional Thermistor
Room Humidity Sensor with LCD
• 2% RH Accuracy
• LCD Display (Displays RH Only)
• 4-20 mA Output
• 17 to 37 VAC/DC Power
• Integral Zero and Span Adjustments
• Plastic Enclosure
Duct Humidity Sensors
Description
Duct Humidity Sensor
• 2% RH Accuracy
• 9 Inch Stainless Steel Probe
• Jumper Selectable 4-20 mA, 0-1 V, 0-10 V, 0-5 V Output
• 17 to 37 VAC/DC Power
• Integral Zero and Span Adjustments
• Plastic Enclosure
• Optional LCD Display (-LCD) (Displays RH Only)
• Optional Thermistor
TAC Vista
1.8k ohm
EHR100
EHR100-100
EHR100-LCD EHR100-LCD EHR100-LCD
TAC Vista
1.8k ohm
EHD100
EHD100-LCD
EHD100-100
I/NET
10k ohm, T2
EHR100
EHR100-200
I/NET
10k ohm, T2
EHD100
EHD100-LCD
EHD100-200
Continuum
10k ohm, T3
EHR100
EHR100-500
Continuum
10k ohm, T3
EHD100
EHD100-LCD
EHD100-500
Outside Air Humidity Sensors
Description
Outdoor Air Humidity Sensor
• 2% RH Accuracy
• Jumper Selectable 4-20 mA, 0-1 V, 0-10 V, 0-5 V Output
• 17 to 37 VAC/DC Power
• Integral Zero and Span Adjustments
• NEMA 4 Enclosure
• Optional Thermistor
7
TAC Vista
1.8k ohm
EHO100
EHO100-100
I/NET
10k ohm, T2
EHO100
EHO100-200
Continuum
10k ohm, T3
EHO100
EHO100-500
Page 12

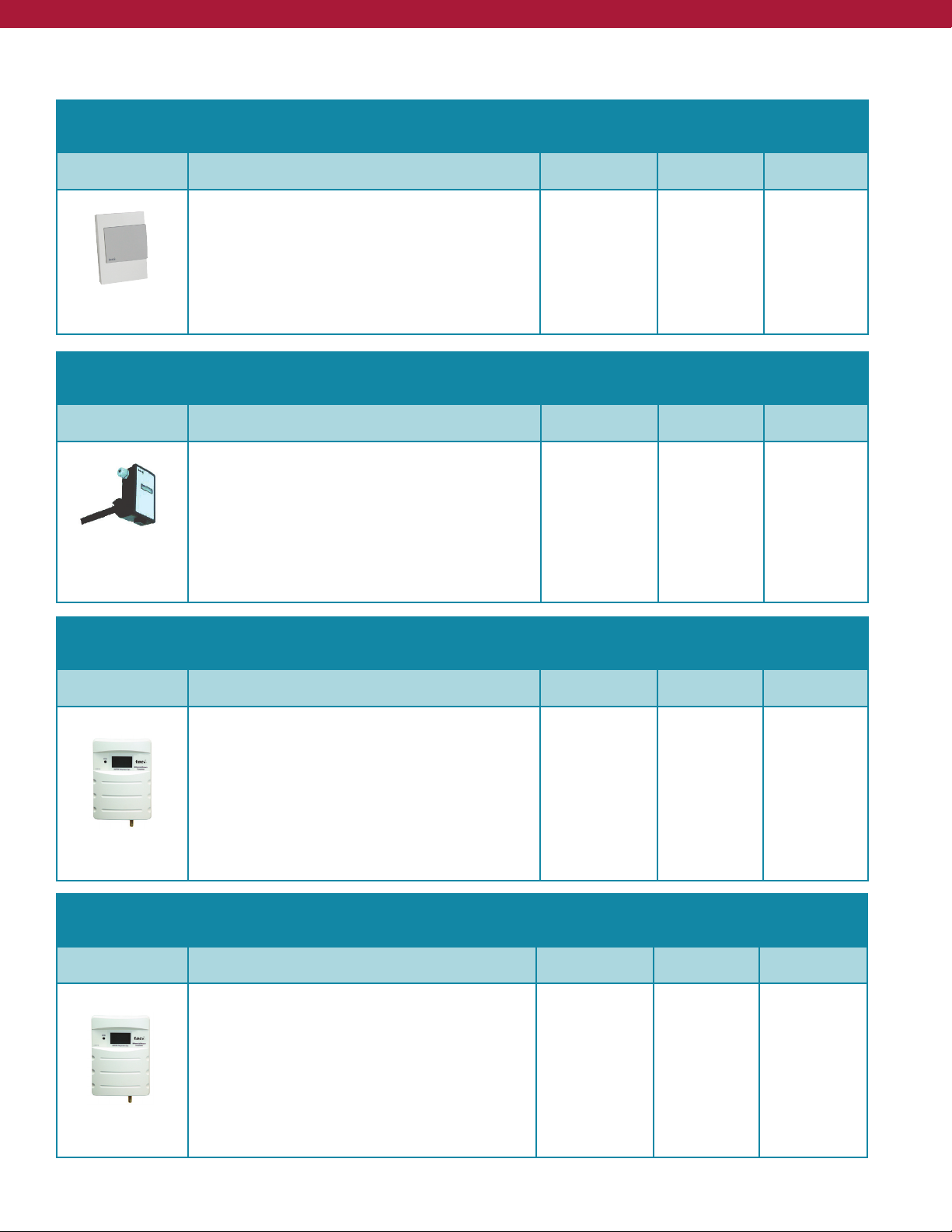

CO2 Room Sensors
Description
Room CO2 Sensor
• 0-10 V / 0-5 V
• 0-2000 ppm
• 24 VAC
• 1.8K Thermistor for TAC Vista
• 10K Type 2 Thermistor for I/NET
• 10K Type 3 Thermistor for Continuum
CO2 Duct Sensors
Description
Duct CO2 Sensor
• 0-10 V / 0-5 V
• 0-2000 ppm
• 24 VAC
• 1.8K Thermistor for TAC Vista
• 10K Type 2 Thermistor for I/NET
• 10K Type 3 Thermistor for Continuum
• Display Option (-D)
TAC Vista
1.8k ohm
SCR100 SCR100 SCR100
™
TAC Vista
1.8k ohm
SCD100 SCD100 SCD100
™
I/NET
10k ohm, T2
I/NET
10k ohm, T2
Continuum
10k ohm, T3
Continuum
10k ohm, T3
Dry Media Panel Pressure Sensors
Description TAC Vista I/NET
Panel Differential Pressure Transducer - Dry Media
• 12-30 VDC/24 VAC Supply Voltage
• Field Selectable 4-20mA, 0-5/0-10V Output
• Pushbutton and Remote Zero Adjustment
• 4 Field Selectable Bidirectional Ranges:
±0.1/±0.25/±0.5/±1.0” W.C.
• 4 Field Selectable Bidirectional
Ranges: ±1.0/±2.5/±5.0/±10” W.C.
• Optional LCD Display (-LCD)
Dry Media Duct Pressure Sensors
Description TAC Vista I/NET
Duct Differential Pressure Transducer - Dry Media
• 12-30 VDC/24 VAC Supply Voltage
• Field Selectable 4-20 mA, 0-5/0-10V Output
• Pushbutton and Remote Zero Adjustment
• 4 Field Selectable Bidirectional Ranges:
±0.1/±0.25/±0.5/±1.0” W.C.
• 4 Field Selectable Bidirectional Ranges:
±1.0/±2.5/±5.0/±10” W.C.
• Optional LCD Display (-LCD)
EPP101
EPP102
EPD101
EPD102
EPP101
EPP102
EPD101
EPD102
Continuum
EPP101
EPP102
Continuum
EPD101
EPD102
8
Page 13

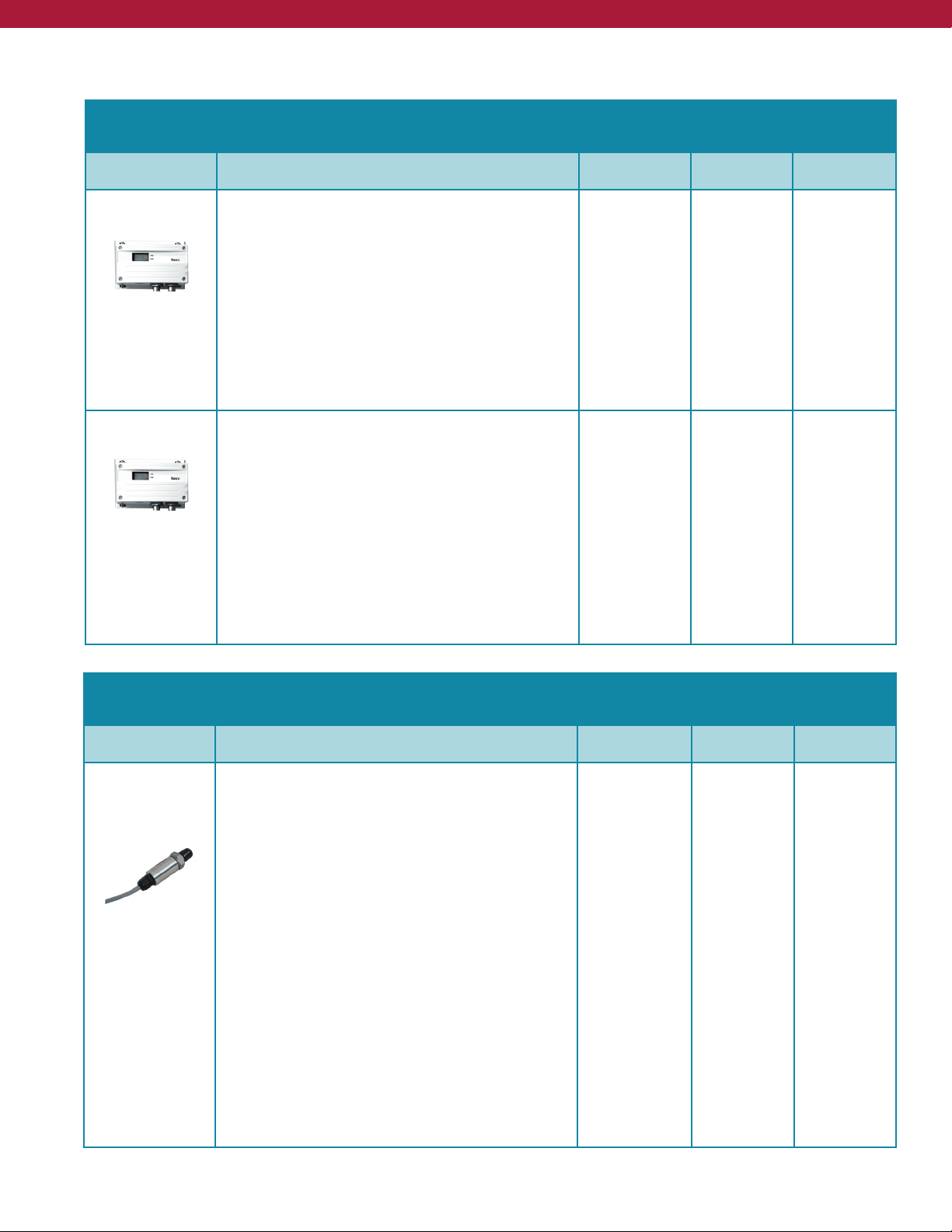

Wet Media Pressure Sensors
Description
Differential Pressure Transducer - Wet Media
• 12-30 VDC / 24 VAC Supply Voltage
• Field Selectable 4-20mA, 0-5/0-10V Output
• Pushbutton and Remote Zero Adjustment
• 4 Field Selectable Ranges: 0-5/10/25/50 psid
• 4 Field Selectable Ranges: 0-10/20/50/100 psid
• 4 Field Selectable Ranges: 0-25/50/125/250 psid
• Optional LCD Display (-LCD)
Differential Pressure Transducer - Wet Media - 2 Wire
• 12-24 VDC Supply Voltage
• Output 4 - 20mA
• Pushbutton and Remote Zero Adjustment
• 2-Wire Version
• 4 Field Selectable Ranges: 0-5/10/25/50 psid
• 4 Field Selectable Ranges: 0-10/20/50/100 psid
• 4 Field Selectable Ranges: 0-25/50/125/250 psid
• Optional LCD Display (-LCD)
TAC Vista
EPW103
EPW104
EPW105
EPW2103
EPW2104
EPW2105
I/NET
EPW103
EPW104
EPW105
EPW2103
EPW2104
EPW2105
Continuum
EPW103
EPW104
EPW105
EPW2103
EPW2104
EPW2105
Gauge Pressure Sensors
Description
Gauge Pressure Sensor
• 8-28 VDC Supply Voltage
• 2-Wire 4-20 mA Output (-AM)
• 3-Wire 0-5 VDC Output (-AJ)
• 3-Wire 0-10 VDC Output (-AV)
• 0-15 psig Pressure Range
• 0-25 psig Pressure Range
• 0-50 psig Pressure Range
• 0-75 psig Pressure Range
• 0-100 psig Pressure Range
• 0-250 psig Pressure Range
• 0-500 psig Pressure Range
• 0-1000 psig Pressure Range
• Optional 4-20 mA Powered LCD (-AA04)
TAC Vista I/NET
EPG103
EPG104
EPG105
EPG106
EPG107
EPG108
EPG109
EPG110
EPG103
EPG104
EPG105
EPG106
EPG107
EPG108
EPG109
EPG110
Continuum
EPG103
EPG104
EPG105
EPG106
EPG107
EPG108
EPG109
EPG110
9
Page 14
Notes
Page 15
Page 16
Copyright © 2006, TAC
All brand names, trademarks and registered trademarks are the property
of their respective owners. Information contained within this document is
subject to change without notice.
All rights reserved.
BR-SENSOR-US
03/06
Loading...
