Kundendienst-Handbuch Service Manual
SYSTEMEINHEIT EURO PC EURO PC II EURO XT
Page 2
******* ACHTUNG! *******
Für Daten aller Art, die sich bei Einsendung an die Firma Schneider im Servicefall oder in jedem anderen Fall noch auf einem Datenträger befinden, wird bei Verlust oder Beschädigung keinerlei Haftung übernommen!
Bitte, sichern Sie sich Ihre Daten vorher von Ihrem Datenträger. Wie man eine Sicherungskopie erstellt, können Sie in Ihrer MS-DOS-Betriebsanleitung nachlesen.
******** IMPORTANT! ********
We accept no responsibility for the loss of or damage to data of any kind which is still contained on a data carrier which is sent to Schneider for servicing or for any other reason!
Please copy your data from your data carrier beforehand. You can read how to produce a backup copy in your MS-DOS operating instructions.
Page 3
Kundendienst-Handbuch Service Manual
SYSTEMEINHEIT EURO PC
Ident-Nr.: 43006
Page 4
Page 5

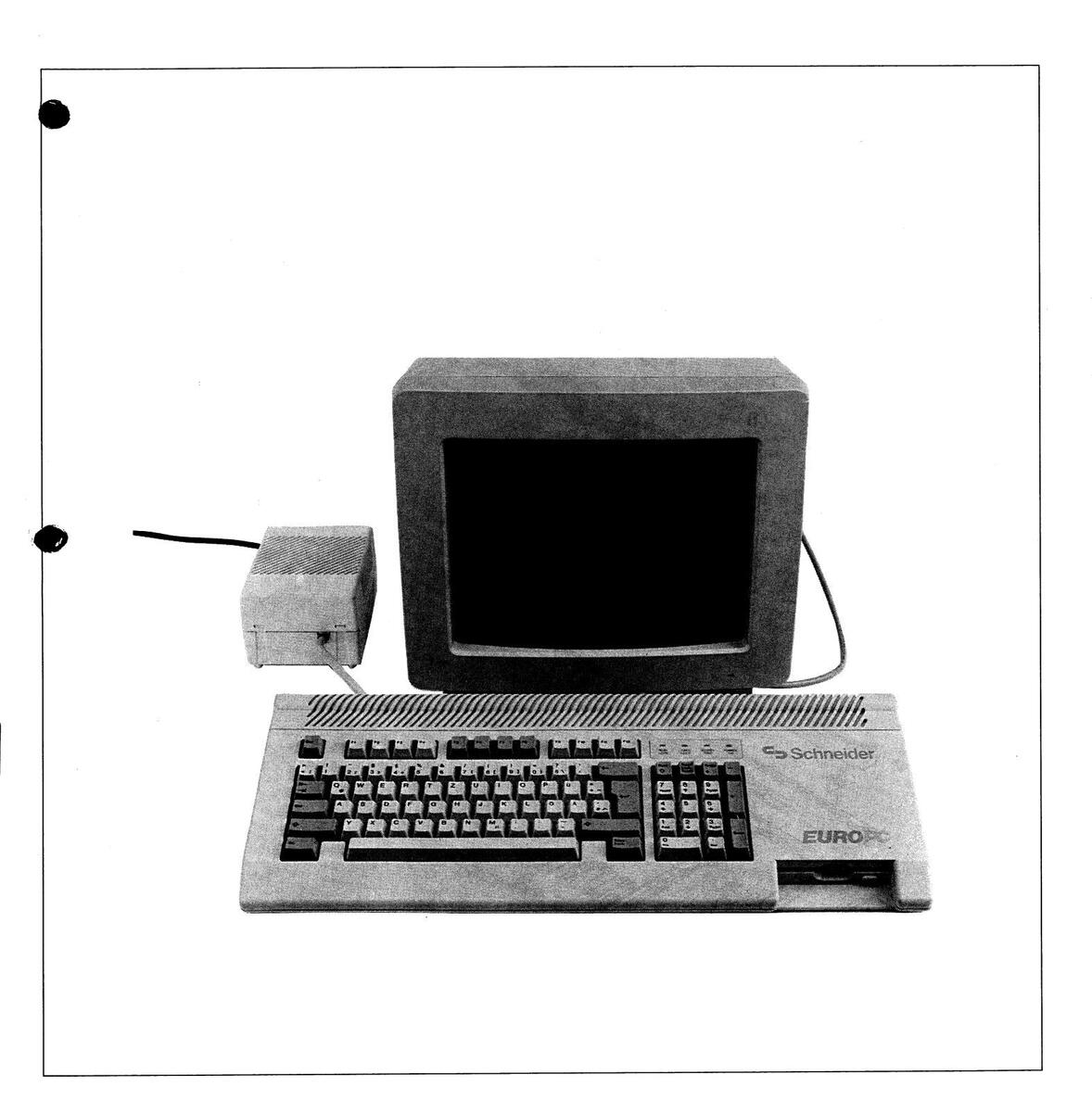

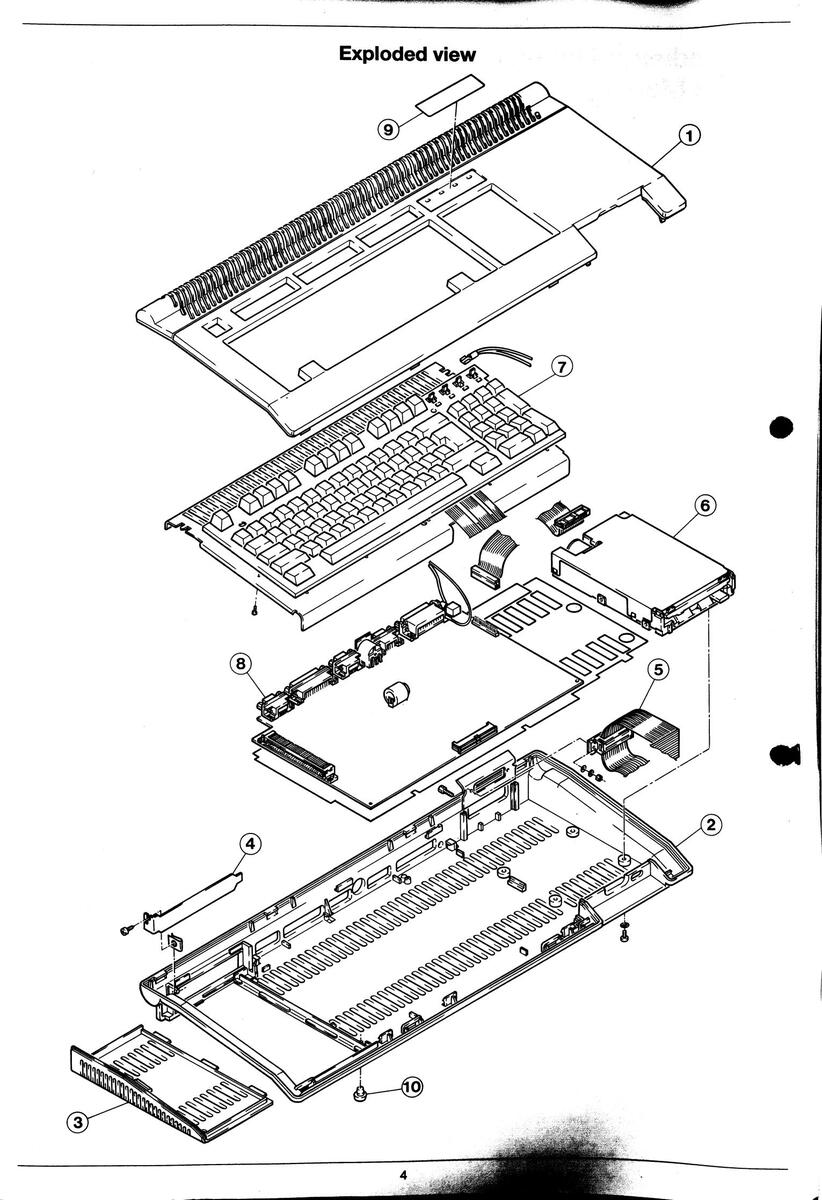

Ersatzteilliste für Systemeinheit Euro PC Parts List for System Unit Euro PC
|
BestNr.
PartNo. |
Bezeichnung | Description |
ZeichPos.
RefNo. |
Preisgruppe |
|---|---|---|---|---|
|
50 058 00
50 024 00 |
Styropor Euro PC
Faltkarton Euro PC |
Polyfoam
Gift box |
B 7
B 7 |
|
|
51 509 00
50 842 00 50 012 00 50 020 00 50 018 00 50 017 00 50 056 00 50 294 00 |
Gehäuseoberteil
Gehäuseboden Gehäuseklappe Blindblech Kabelbaum FDD Floppylaufwerk Druckknopf für Floppy (Toshiba) Druckknopf für Floppy (Sony) |
Cabinet, top
Cabinet, bottom Cabinet, door Plate, blind Cord FDD Floppy disk drive Push-button, Floppy (Toshiba) Push-button, Floppy (Sony) |
1
2 3 4 5 6 |
C 7
C 6 B 4 A 7 C 5 G 1 A 5 A 5 |
|
50 016 00
50 148 00 50 149 00 50 161 00 50 162 00 50 163 00 50 165 00 50 565 00 50 566 00 50 566 00 50 567 00 52 183 00 |
Tastatur (D)
Tastatur (F) Tastatur (GB) Tastatur (CH) Tastatur (DK) Tastatur (E) Tastatur (K) Tastatur (S/SF) Tastatur (TR) Tastatur (P) Tastatur (GR) Tastatur (GU) Tastatur (UAE) |
Switch keyboard (D)
Switch keyboard (F) Switch keyboard (GB) Switch keyboard (CH) Switch keyboard (DK) Switch keyboard (DK) Switch keyboard (E) Switch keyboard (S/SF) Switch keyboard (TR) Switch keyboard (P) Switch keyboard (GR) Switch keyboard (SU) Switch keyboard (UAE) |
7 |
E 5
E 5 E 5 E 5 E 5 E 5 E 5 E 5 E 5 E 5 |
|
50 015 00
50 014 00 50 141 00 50 023 00 50 003 00 |
Platine CPU
Klebeschild Gehäusefuß Typenschild Netzteil Euro PC |
CPU-board
Sheet Leg, cabinet Sheet, rating Power supply |
8
9 |
J 1
A 6 A 2 A 3 F 0 |
Note: All spare parts with country-index are reserved for foreign distributors only.
All 3.5" and 5.25" floppydisks must be replaced by new ones. Schneider passes no exchange price to the distributor or dealer.
Page 6

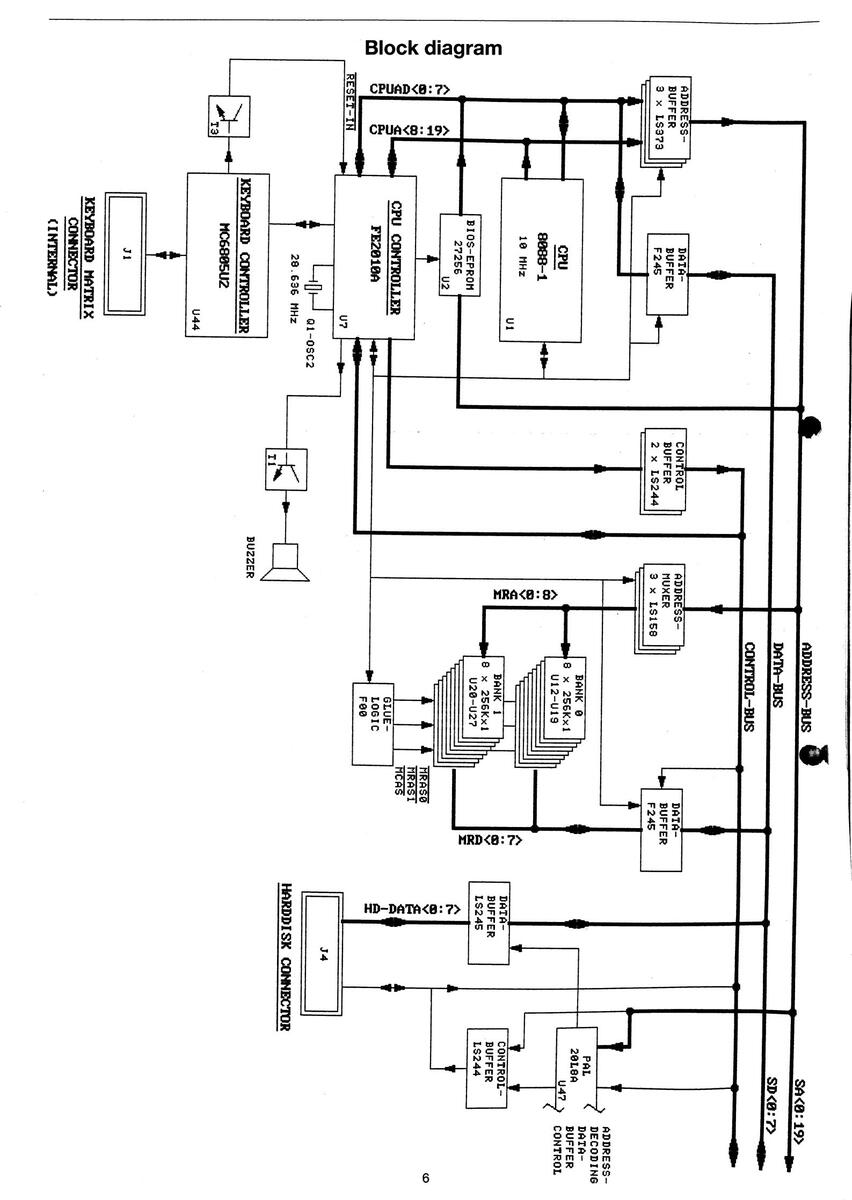

Page 7
Page 8
|
۵
۲- |
||
|---|---|---|
|
ם
ני- |
||
| 7 | ||
| 7 | ||
|
-
の - - - - - - - - - - |
~ | |
|
□
□ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ |
1 | |
|
で
4 のの4 ひの レ 多星星紫癜 袋 |
+ | |
|
4
4 4 4 7 6 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 |
ហ | |
| 4 / | ||
| LTT | ||
| 4 | ||
| RED IN THE REAL PROVIDED THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED IN THE REAL PROVIDED INTERPORT IN THE REAL PROVIDED INTERPORT I | DESC | ¢ |
| ■ PCB | RIPTIO | ω |
| NISIONS | ||
|
12-27-
03-01- 04-131- 04-131- 05-05- 05-05- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17- 05-17-105-17- 05-17-105-17- 05-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-17-105-105-105-105-105-105-105-105-105-105 |
DATE | 2 |
| H. ULLE | APPR | |
| ĝ | ||
| OVED |
Page 9
Page 10
Page 11

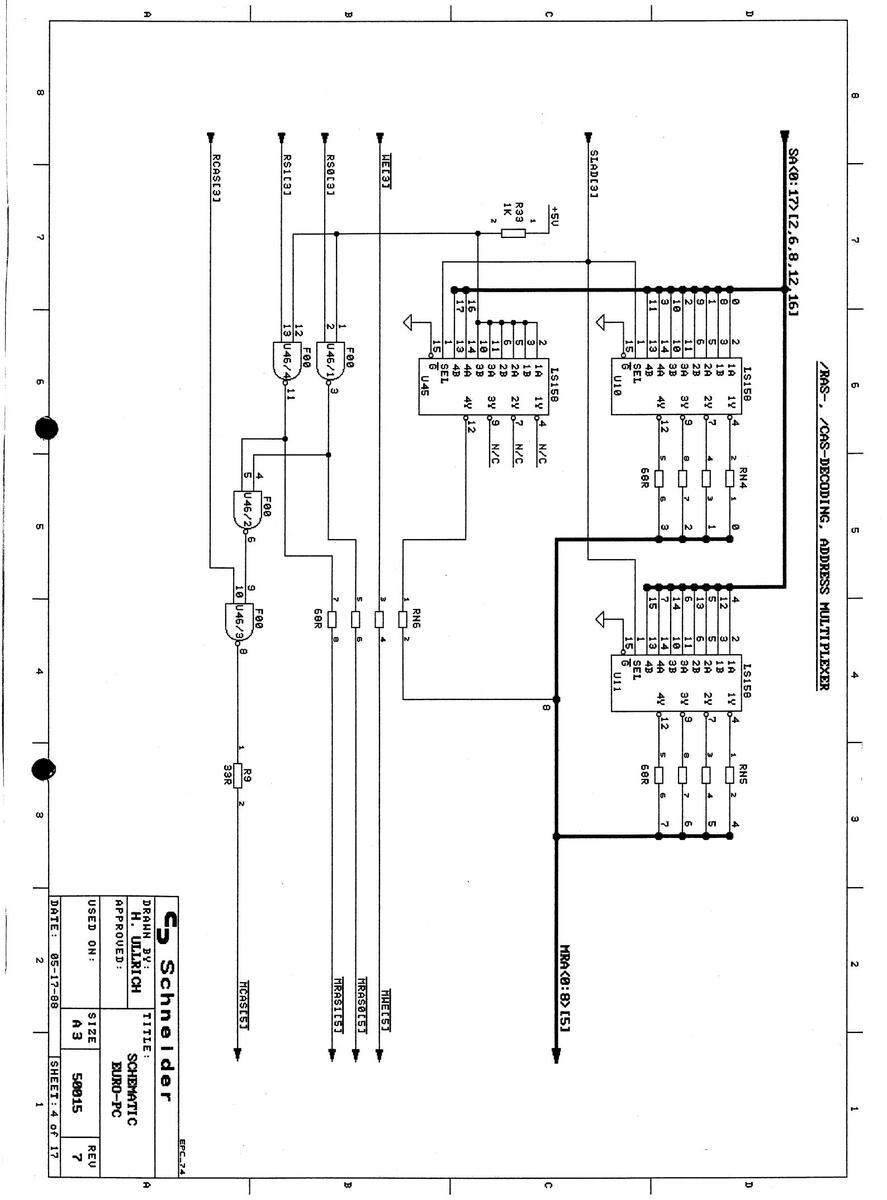

Page 12
Page 13
Page 14
Page 15

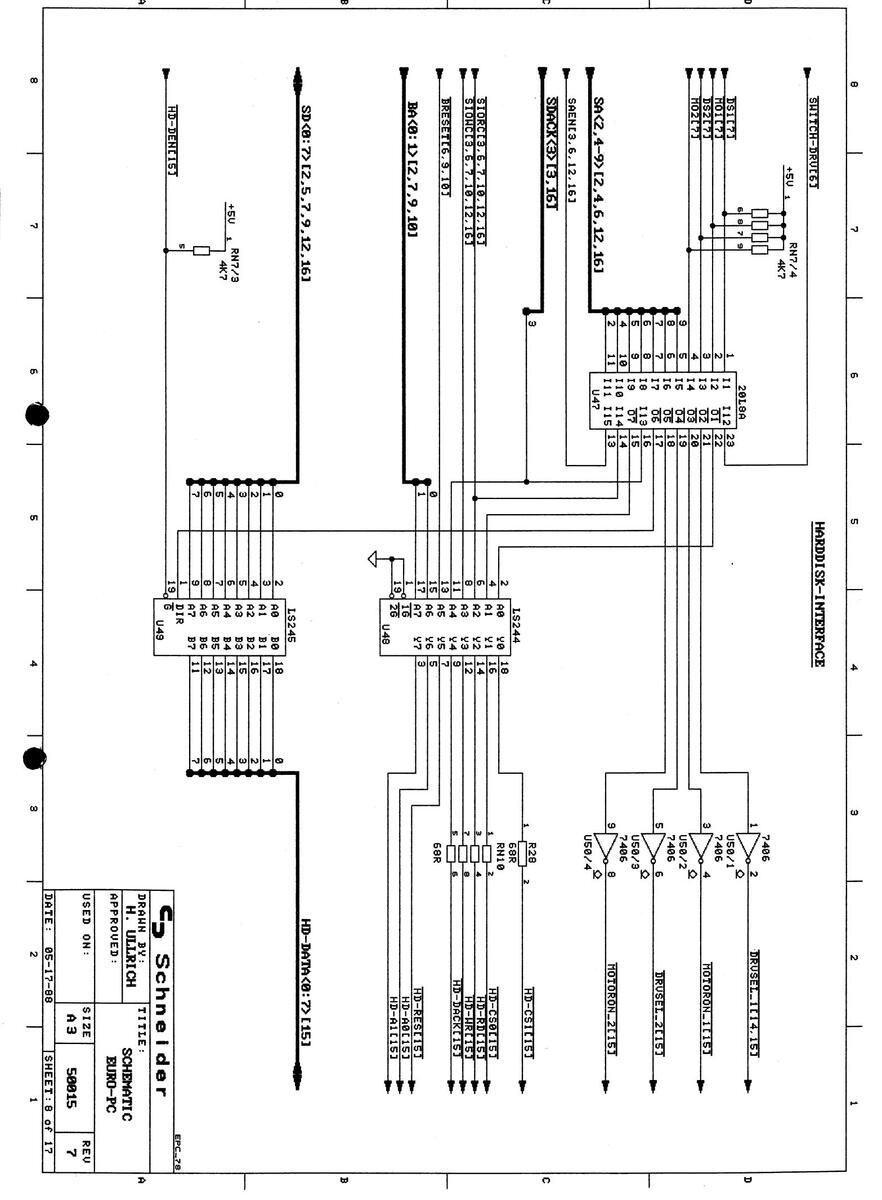

Page 16
Page 17
Page 18

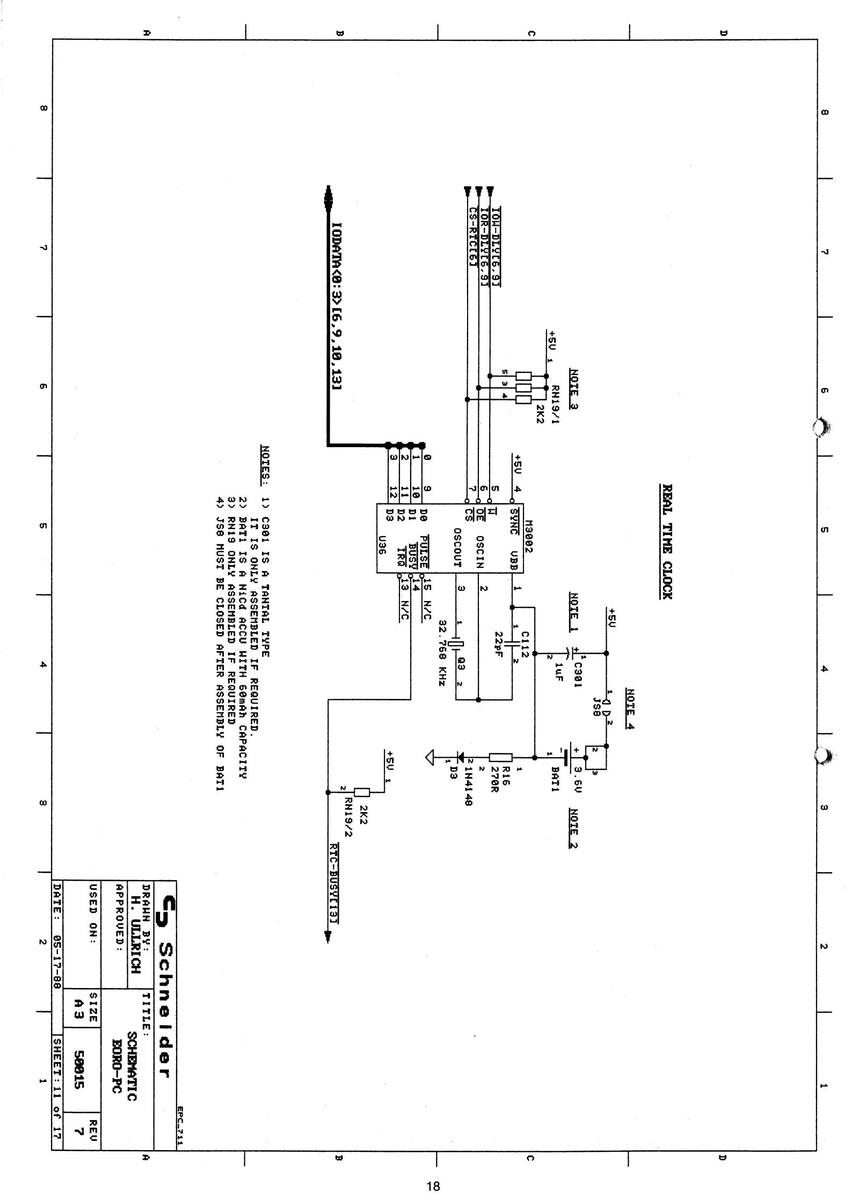

Page 19
Page 20
Page 21
Page 22

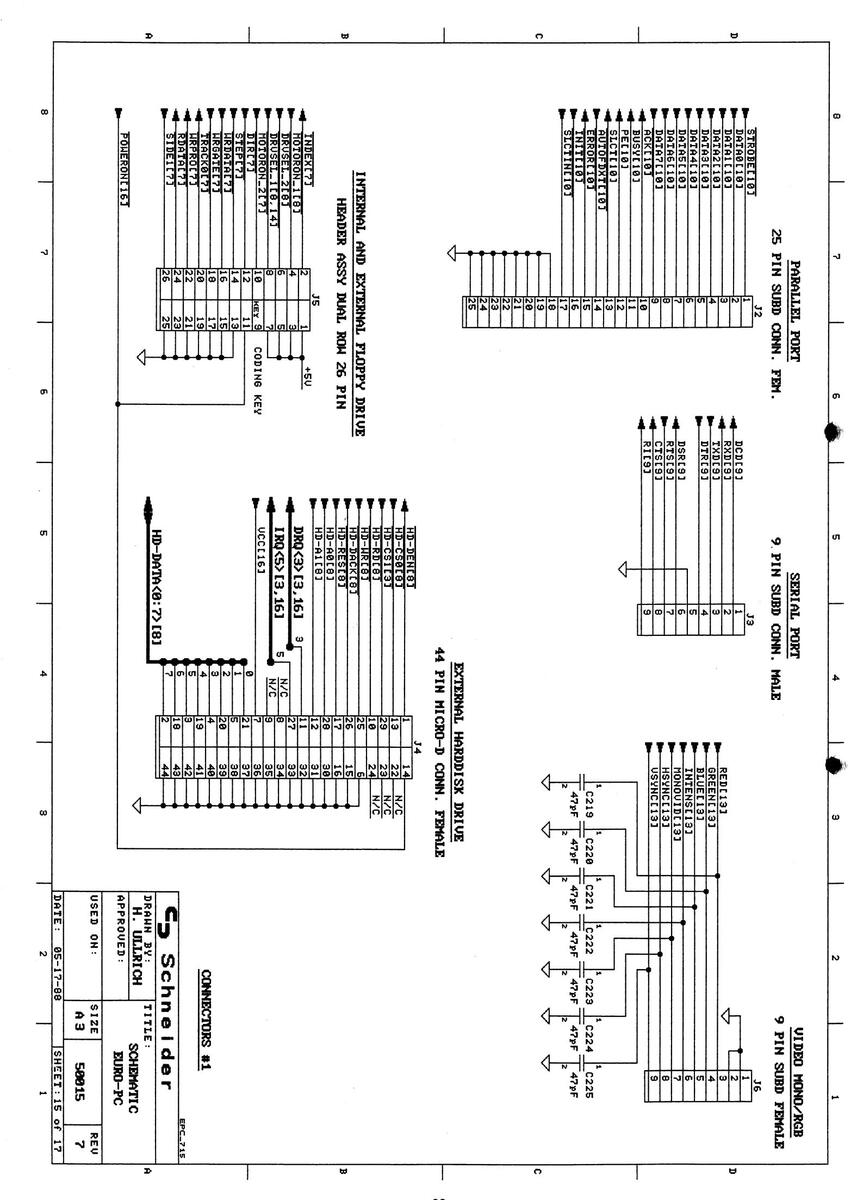

Page 23

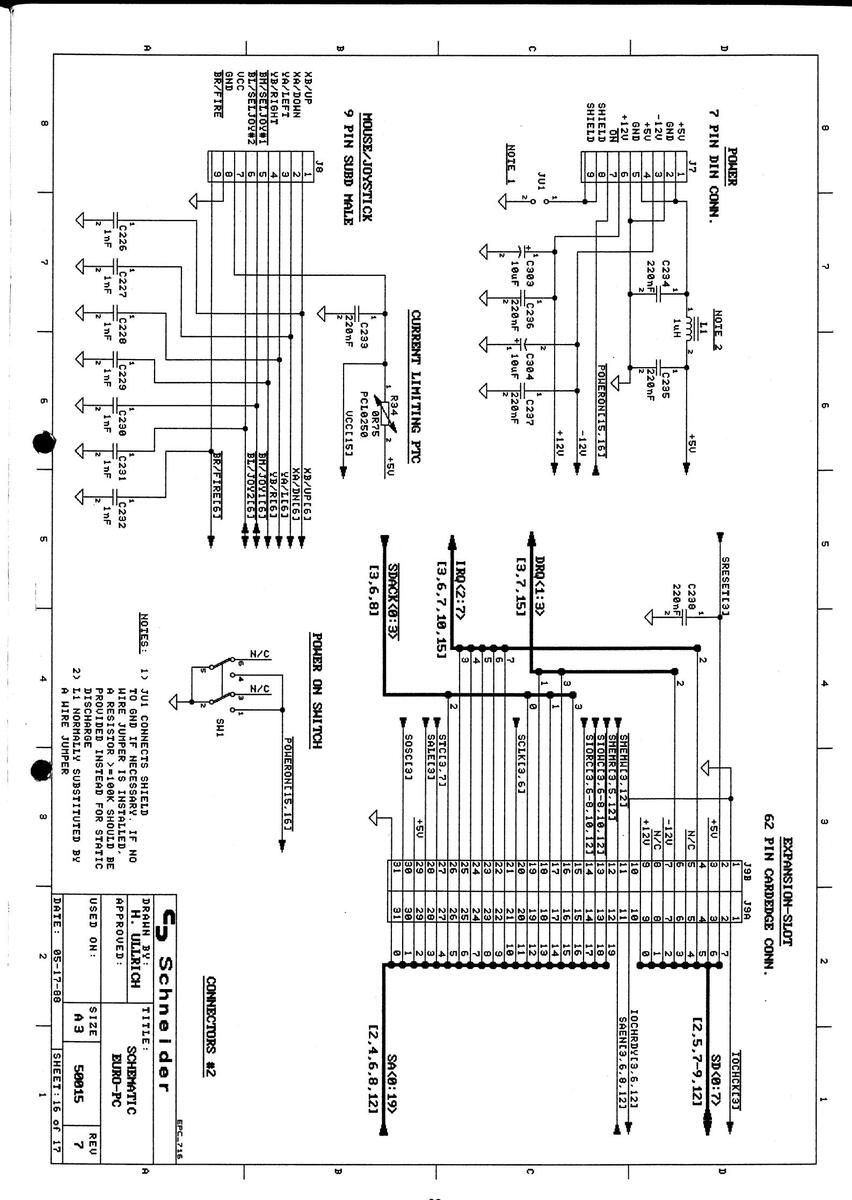

Page 24

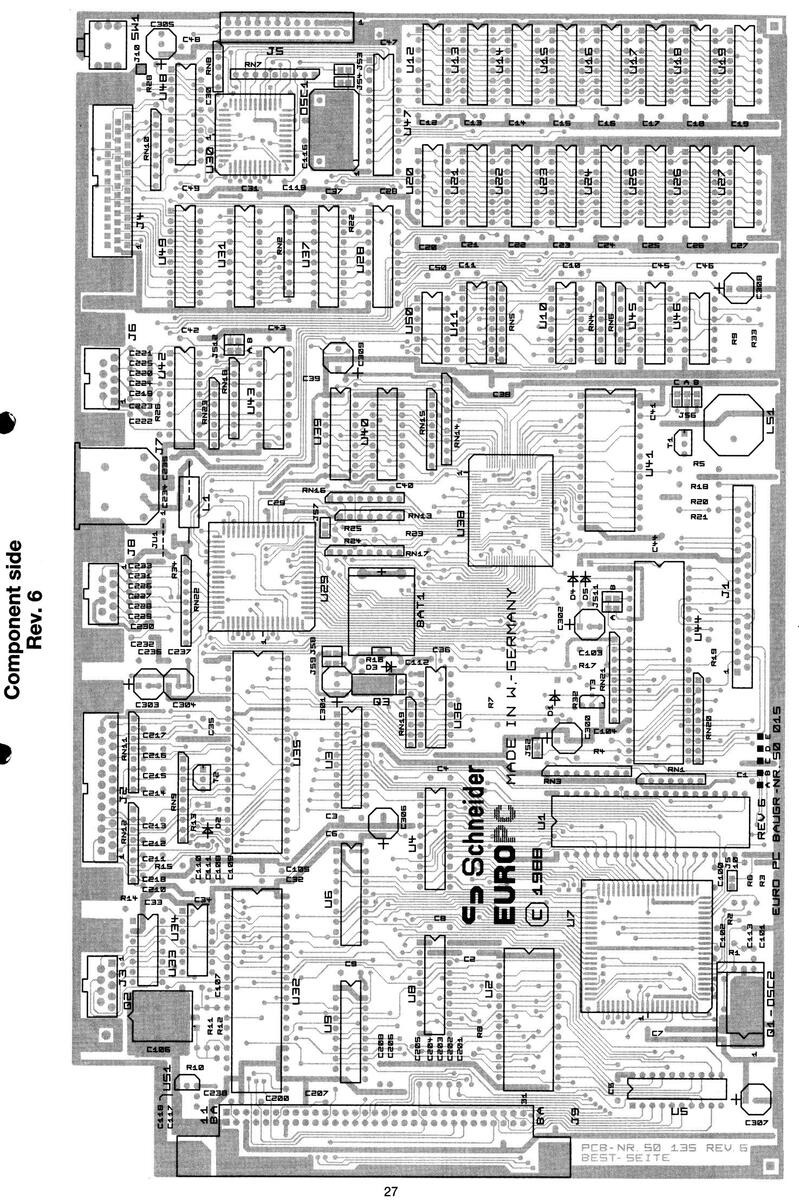

Page 25
Page 26

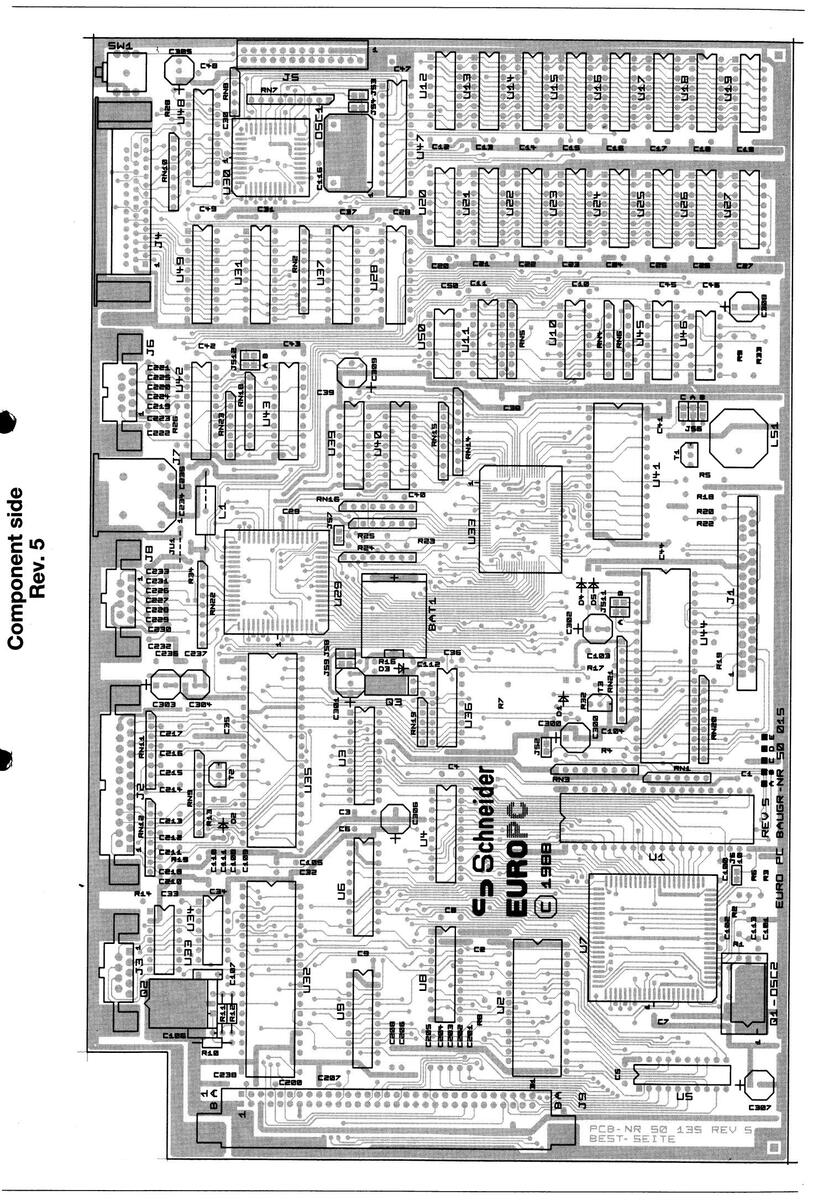

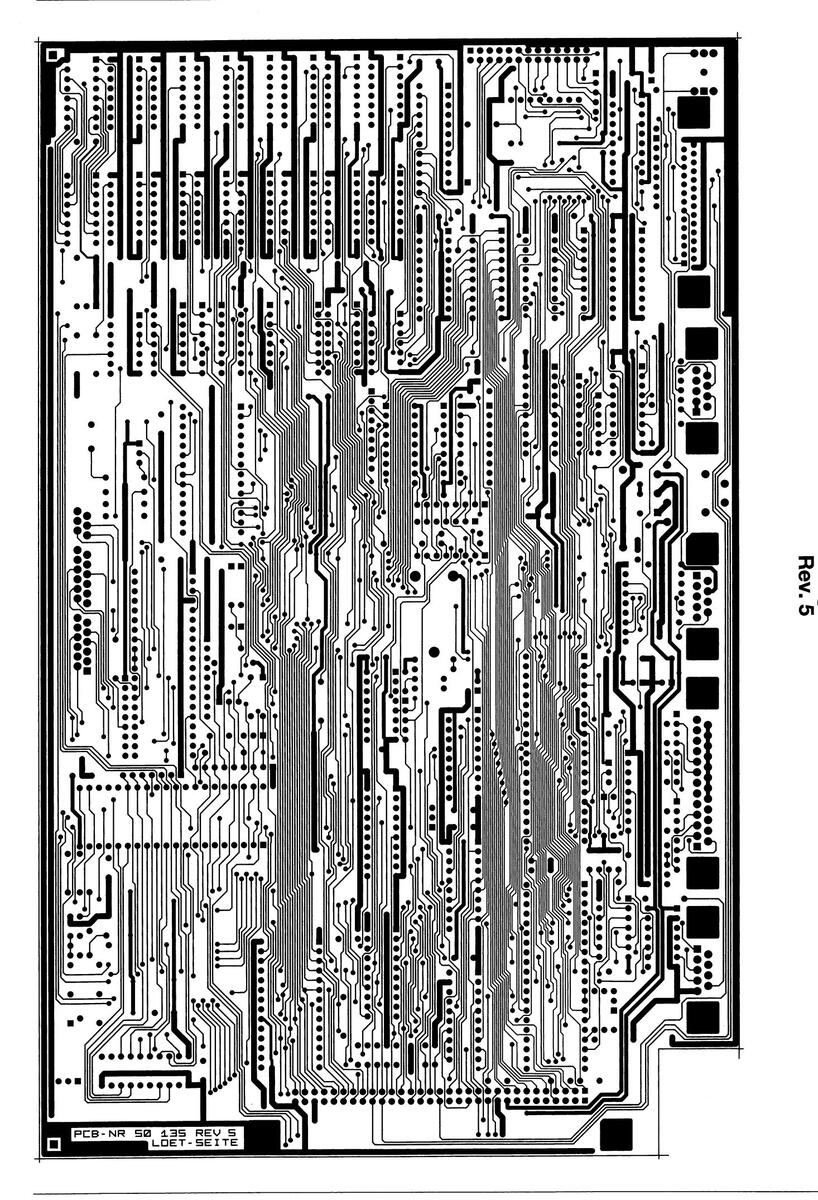

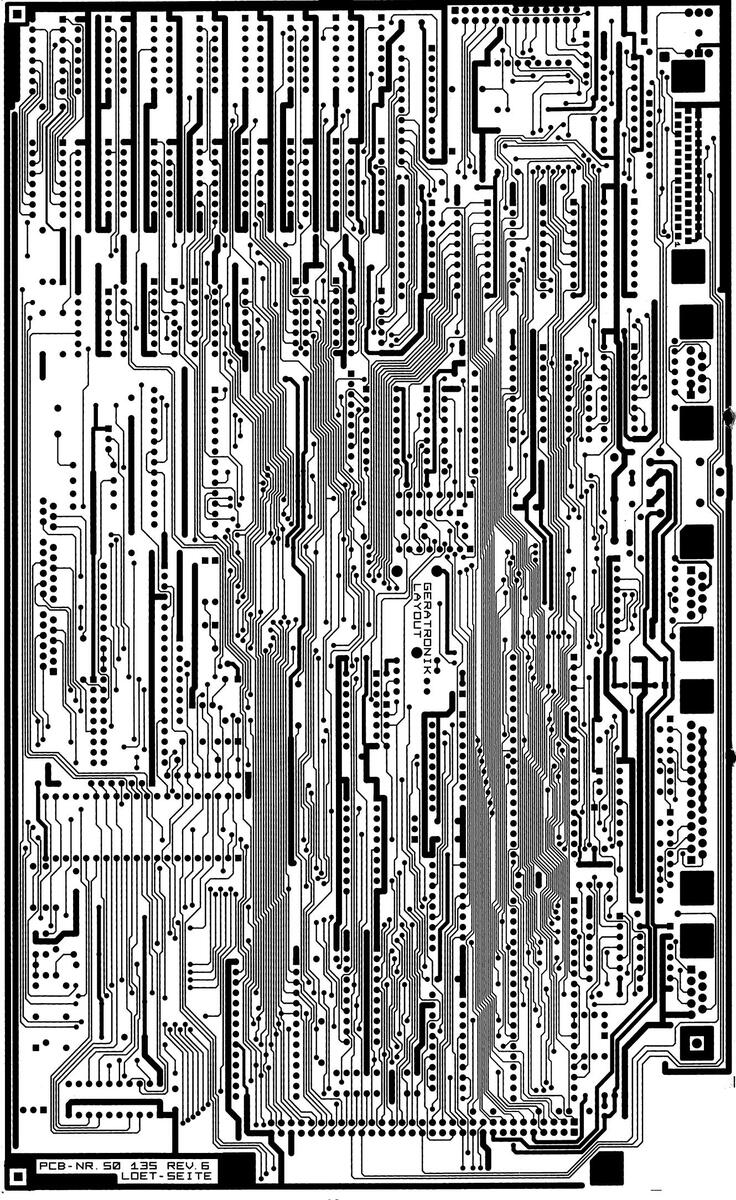

Soldering side
Page 27
Page 28
Page 29
Ersatzteilliste für Systemeinheit Euro PC Parts List for System Unit Euro PC
|
BestNr.
PartNo. |
Bezeichnung | Description |
ZeichPos.
RefNo. |
Preisgruppe |
|---|---|---|---|---|
| IC | ||||
| 50 100 00 | IC SAB 80 88-1-P | IC SAB 80 88-1-P | U 1 | C 9 |
| 50 111 00 | IC 27256-17 | IC 27256-17 | U 2 | C 9 |
| 50 124 00 | IC 74F245 | IC 74F245 | U 3 | Α7 |
| 50 130 00 | IC 74LS373 | IC 74LS373 | U 4–U 6 | Α7 |
| 50 103 00 | IC FE2010A-ES | IC FE2010A-ES | U 7 | E 3 |
| 26 354 00 | IC 74LS244 | IC 74LS244 | U 8, U 9 | В0 |
| 50 127 00 | IC 74LS158 | IC 74LS158 | U 10, U 11 | A 7 |
| 50 109 00 | IC 41256-12 | IC 41256-12 | U 12–U 27 | D 0 |
| 50 124 00 | IC 74F245 | IC 74F245 | U 28 | A 7 |
| 50 101 00 | IC JIM TC17G022AT | IC JIM TC17G022AT | U 29 | DO |
| 50 105 00 | IC WD37C65A-JM00 | IC WD37C65A-JM00 | U 30 | D 5 |
| 34 772 00 | IC 74LS245 | IC 74LS245 | U 31 | BO |
| 50 107 00 | IC WD8250-PL00 | IC WD8250-PL00 | Ū 32 | Č4 |
| 50 120 00 | IC MC1488P | IC MC1488P | Ŭ 33 | Ă 5 |
| 50 121 00 | IC MC1489P | IC MC1489P | Ŭ 34 | A 5 |
| 50 106 00 | IC PPC1 | IC PPC1 | Ŭ 35 | C 3 |
| 50 108 00 | IC M3002 | IC M3002 | Ū 36 | Č 3 |
| 34 772 00 | IC 74LS245 | IC 74LS245 | Ū 37 | BÖ |
| 50 104 00 | IC PVC4 | IC PVC4 | Ŭ 38 | Ē Š |
| 50 110 00 | IC 41464-12 | IC 41464-12 | U 39. U 40 | D 4 |
| 50 146 00 | IC 64K ROM 200nS (D) | IC 64K ROM 200nS (D) | U 41 | Č 3 |
| 26 354 00 | IC 74LS244 | IC 74LS244 | Ŭ 42 | BÖ |
| 50 125 00 | IC 74HC373 | IC 74HC373 | Ŭ 43 | Ă Ź |
| 50 102 00 | IC MC6805U2 | IC MC6805U2 | Ŭ 44 | C 3 |
| 50 127 00 | IC 74L S158 | IC 74LS158 | U 45 | A 7 |
| 40 918 00 | IC 74F00 | IC 74F00 | U 46 | A 5 |
| 50 119 00 | IC PAL2018A | IC PAL20L8A | U 47 | C 2 |
| 26 354 00 | IC 741 S244 | IC 741 S244 | U 48 | BÓ |
| 34 772 00 | IC 74 S245 | IC 741 S245 | 11 49 | BÓ |
| 15 241 00 | IC 7406 | IC 7406 | U 50 | A 7 |
| 10 241 00 | 10,7400 | 10 / 400 | 0.00 | A 1 |
| 50 711 00 | IC 64K BOM 200nS (P) | IC 64K BOM 200nS (P) | 11.41 | 6.3 |
| 50 712 00 | IC 64K BOM 200nS (GB) | IC 64K BOM 200nS (GB) | 11 41 | 63 |
| 50 713 00 | IC 64K BOM 200nS (DK/N) | IC 64K BOM 200nS (DK/N) | 11 41 | 63 |
| 0071000 | 0 11 | 00 |
Note: All spare parts with countryindex are reserved for foreign distributors only.
All 3.5" and 5.25" floppydisks must be replaced by new ones. Schneider passes no exchange price to the distributor or dealer.
Page 30
Ersatzteilliste für Systemeinheit Euro PC Parts List for System Unit Euro PC
|
BestNr.
PartNo. |
Bezeichnung | Description |
ZeichPos.
RefNo. |
Preisgruppe | |||
|---|---|---|---|---|---|---|---|
| Verschiedenes/Miscellaneous | |||||||
|
10 801 00
10 802 00 |
Transistor BC327B
Transistor BC337B |
T 1
T 2, T 3 |
A 6
A 6 |
||||
| 11 241 00 | Diode 1IV4148 | D 1–D 5 | A 2 | ||||
|
44 671 00
44 672 00 44 673 00 |
Quarz 28,636 MHz HC-18U
Quarz 1,8432 MHz HC-18U Quarz 32,768 kHz |
Q 1
Q 2 Q 3 |
C 3
B 5 A 7 |
||||
|
44 674 00
45 066 00 |
Oszillator 16 MHz
Oszillator 28,6 MHz |
OSC 1 | C 3 | ||||
|
44 675 00
44 676 00 44 677 00 44 676 00 44 678 00 44 678 00 44 679 00 44 680 00 44 681 00 44 681 00 44 682 00 44 682 00 44 683 00 44 683 00 44 685 00 |
Widerstand/Netzwerk 6 × 4K7
Widerstand/Netzwerk 8 × 4K7 Widerstand/Netzwerk 4 × 68R Widerstand/Netzwerk 4 × 1K Widerstand/Netzwerk 8 × 4K7 Widerstand/Netzwerk 4 × 68R Widerstand/Netzwerk 4 × 33R Widerstand/Netzwerk 6 × 33K Widerstand/Netzwerk 8 × 33K Widerstand/Netzwerk 4 × 68R Widerstand/Netzwerk 4 × 68R Widerstand/Netzwerk 4 × 68R Widerstand/Netzwerk 4 × 10K Widerstand/Netzwerk 8 × 10K Widerstand/Netzwerk 8 × 10K Widerstand/Netzwerk 6 × 680K |
R Network 6 × 4K7
R Network 8 × 4K7 R Network 4 × 68R R Network 8 × 4K7 R Network 4 × 1K R Network 8 × 4K7 R Network 4 × 68R R Network 4 × 33R R Network 6 × 33K R Network 8 × 33K R Network 4 × 68R R Network 4 × 68R R Network 4 × 68R R Network 4 × 68R R Network 4 × 68R R Network 4 × 68R R Network 8 × 10K R Network 8 × 10K R Network 6 × 680K |
RN 1
RN 2, RN 3 RN 4, RN 6 RN 7 RN 8 RN 9 RN 10 RN 11, RN 12 RN 13 RN 14 RN 15–RN 17 RN 18 RN 19 RN 20 RN 21, RN 22 RN 23 |
A 3
A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 |
|||
|
44 686 00
44 687 00 44 688 00 44 689 00 44 690 00 |
PTC PCL 0250.0
Spule 1 μH Schalter 2 × Um Batterie 3,6 V Piepser |
PTC PCL 0250.0
Coil 1 μH Switch Battery 3.6 V Buzzer |
R 34
L 1 SW 1 BAT 1 LS 1 |
A 9
A 7 B 0 B 9 A 9 |
|||
|
50 137 00
50 133 00 50 131 00 50 134 00 50 139 00 50 132 00 50 140 00 50 138 00 |
Stecker FPC 30pol.
Buchse SUB-D 25pol. Stecker SUB-D 9pol. Buchse HDD 22 44pol. Stift sterker 2 × 13pol. Buchse SUB-D 9pol. Buchse DIN 7pol. Stecker 2 × 31pol. |
Socket FPC
Socket SUB-D Socket SUB-D Socket HDD 22 Socket Socket SUB-D Jack DIN Socket |
J 1
J 2 J 3, J 8 J 4 J 5 J 6 J 7 J 9 |
B 5
B 2 A 9 C 7 A 7 B 0 A 8 C 1 |
|||
CAUTION:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.
Ref.: IEC/74 (Central Office) 104.
Page 31

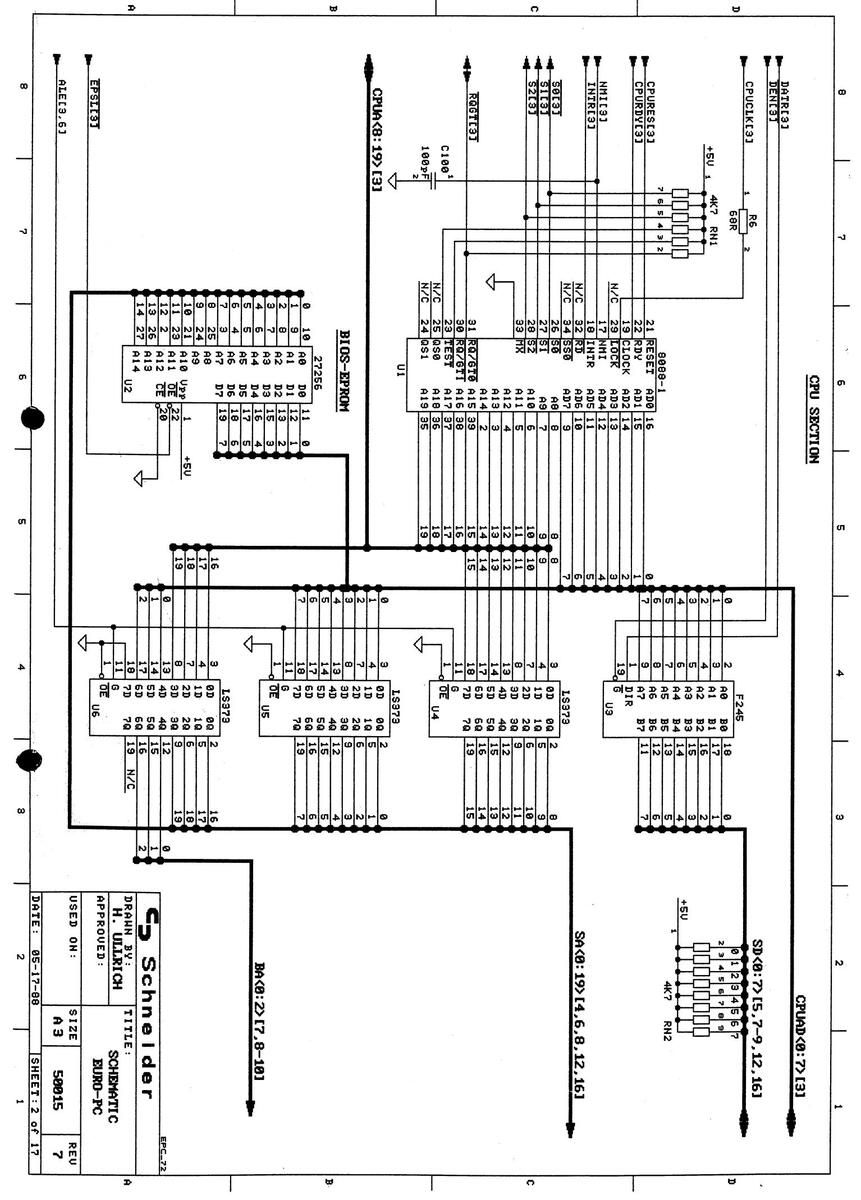

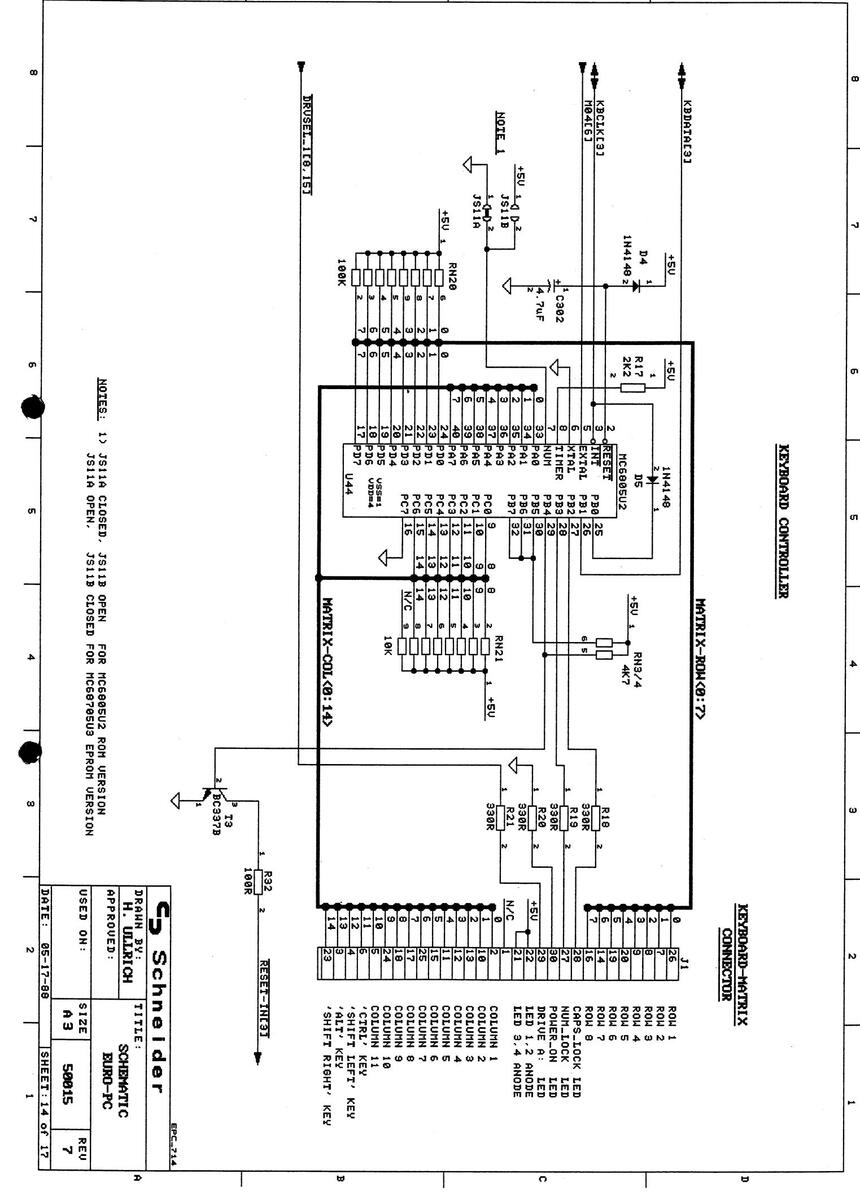

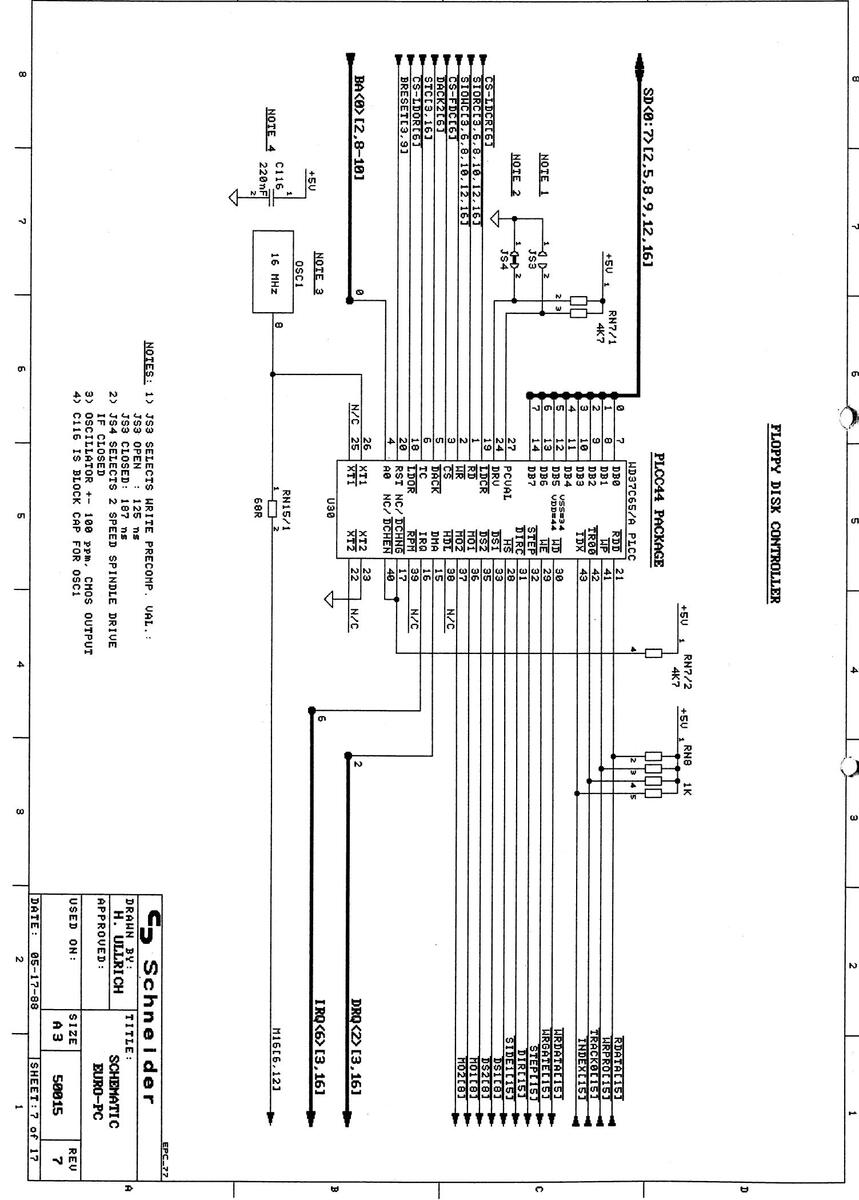

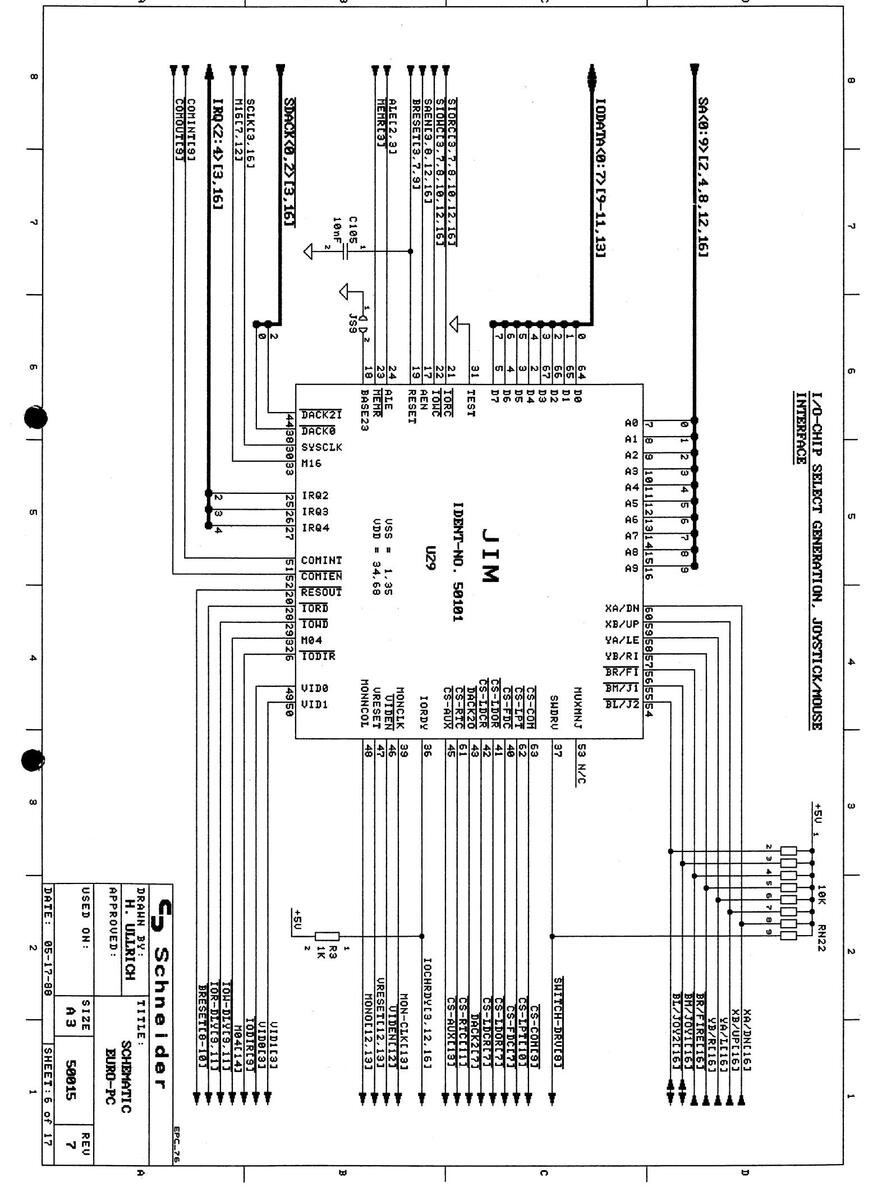

Euro PC Appendix A:
Different schematics Rev. 7 - Rev. 8
Page 32
Page 33
Page 34
