SBO SBOBTEUP Installation Guide

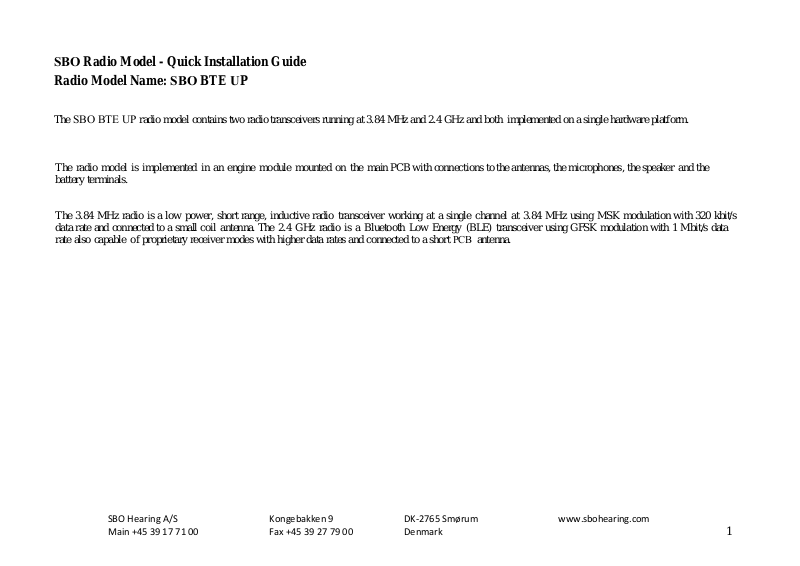

SBO Radio Model - Quick Installation Guide
Kongebakken 9
DK-2765 Smørum
1
Radio Model Name: SBO BTE UP
The SBO BTE UP radio model contains two radio transceivers running at 3.84 MHz and 2.4 GHz and both implemented on a single hardware platform.
The radio model is implemented in an engine module mounted on the main PCB with connections to the antennas, the microphones, the speaker and the
battery terminals.
The 3.84 MHz radio is a low power, short range, inductive radio transceiver working at a single channel at 3.84 MHz using MSK modulation with 320 kbit/s
data rate and connected to a small coil antenna. The 2.4 GHz radio is a Bluetooth Low Energy (BLE) transceiver using GFSK modulation with 1 Mbit/s data
rate also capable of proprietary receiver modes with higher data rates and connected to a short PCB antenna.
SBO Hearing A/S
Main +45 39 17 71 00
Fax +45 39 27 79 00
www.sbohearing.com
Denmark
SBO Radio Model - Quick Installation Guide
Kongebakken 9
DK-2765 Smørum
2
Radio Model Name: SBO BTE UP
Below the main flex PCB of the SBO BTE UP radio model with the most important electrical and electro-mechanical components can be seen:
The most important part of the radio model is the Engine Module mounted on the main flex PCB, which connects it to both the EEPROM memory and all external
connections: On the top side these are the microphones, the battery terminals and the push button. The telecoil is also used for wireless battery charging.
The SBO BTE UP radio model requires only a single cell rechargeable battery and an external speaker (also incl. the wire antenna for the Bluetooth radio
part) to be attached and plastic shells, defining the industrial design of a hearing aid end product and holding everything together, in order to be operational.
SBO Hearing A/S
Main +45 39 17 71 00

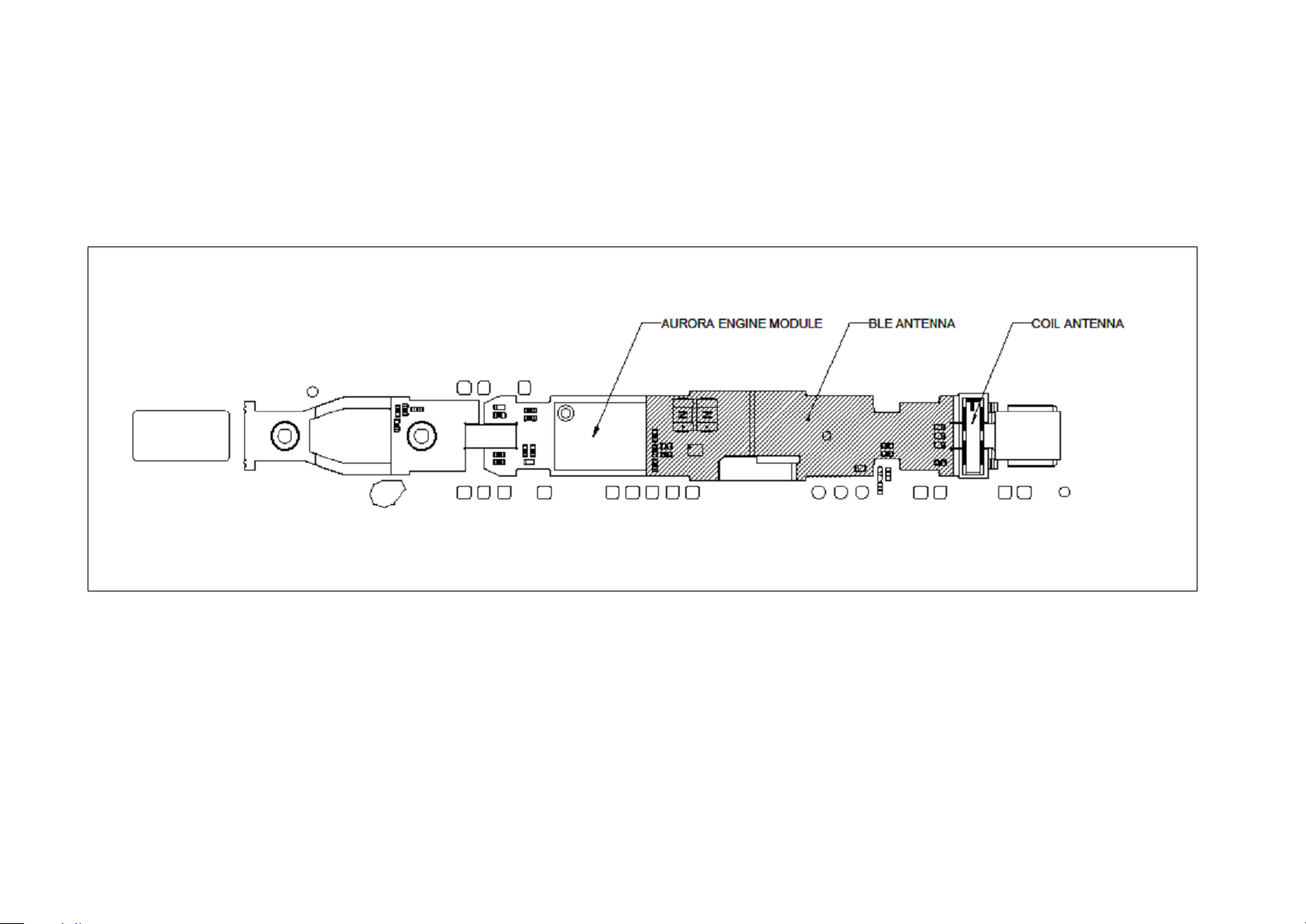

SBO BTE UP Radio Model – Main PCB – Top side
Fax +45 39 27 79 00
Denmark
www.sbohearing.com
