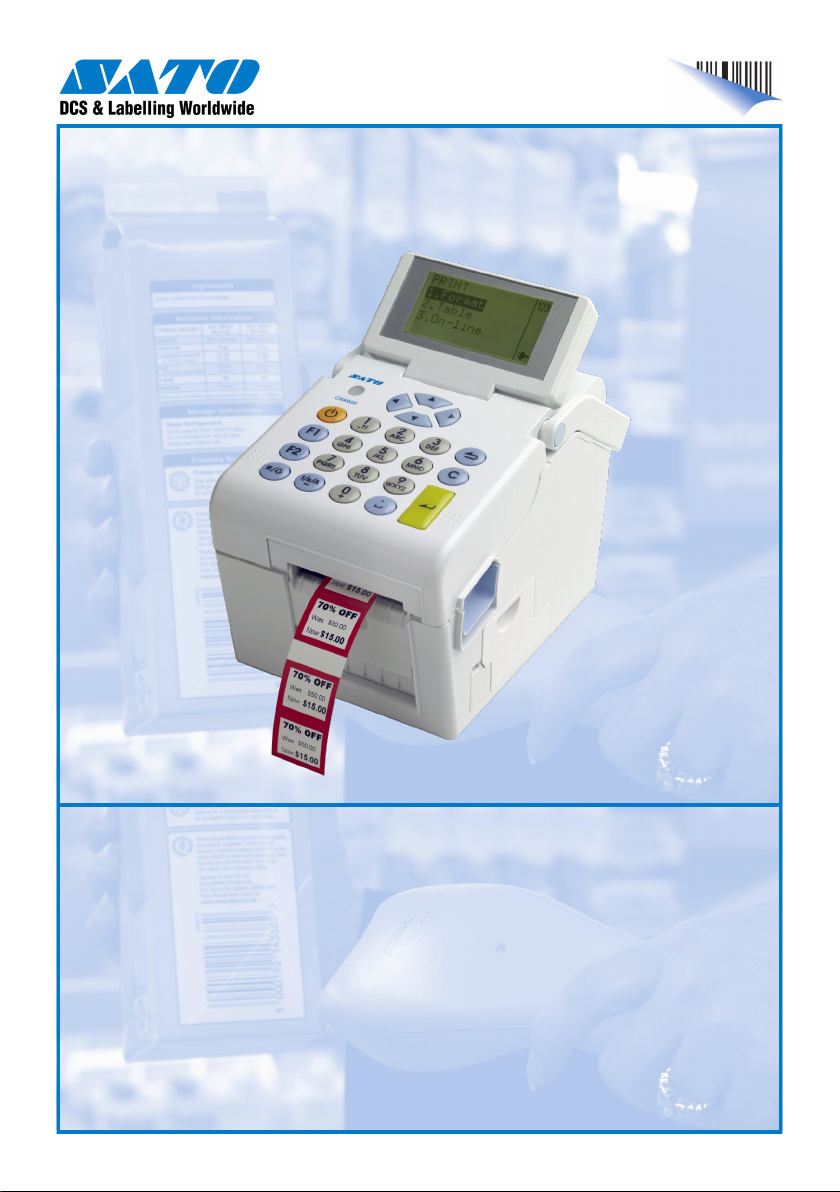

THE SATO TH2 RETAIL
LABEL PRINTER
USER GUIDE
Help & Service for your SATO Printer 2
Setting up your Printer 3
The Keypad 6
Loading the Label Roll 7
Using the Dispenser 9
Label Formats 11
Printing Labels 13
Charging the Battery 15
Cleaning Procedures 16
RS\Mktg\InstGuides\OOB\Mar11
About your SATO Retail Printer
Your SATO TH2 printer will immediately provide professional labels with the
simplest of operation.
Being designed using the most up-to-date technology, the printer is fully
future-proofed and can be programmed to take care of any labelling requirements that your business may need.
If you should wish to upgrade your printer a number of enhancements are
available:
High Capacity Rechargeable Battery
The High-capacity rechargeable battery makes the TH2 fully portable and can
print up to 5,000 labels without re-charging. The battery can be fully recharged
in the printer in about 6 hours or even faster when using the optional charging
unit.
Barcode Scanner
Adding a Barcode Scanner enables you to scan an existing product barcode and
produce a new label without manual entry of the product details.
Anti-Microbial Keypad Cover
The casing of your TH2 is manufactured from anti-microbial material which discourages the growth of bacteria. A keypad cover with the same properties can
be added to prevent ingress of food and dust into the keypad.
Automatic Calculations
Automatic calculation of percentage reductions can be added as well as
Best Before date printing and product database options . Indeed, The TH” can
be programmed to perform almost any business function. Please do not hesitate to contact us with your requirements.
1
Assistance for your SATO Printer
You should find that your SATO printer is straightforward to operate. However, if
you should experience any difficulty, please contact our Helpdesk for assistance:
Call: 01255 252828
or
e-mail: techsupport@satouk.com
Ordering more labels
The high quality TH2 labels are manufactured by SATO in the UK and have been
especially developed to give the best results in the TH2 printer. These labels are
relied upon by many household name stores in UK retail.
Label Type Size
Yellow 45 X 34.925mm
White 32x 25.4mm
Red & White
Reduced
Red & White
Sale
Orange
Red
White 45 X 47.625mm
28 x 33mm
28 x 33mm
40mm circular
23mm circular
SATO Product
Code
P70011017451
Permanent Adhesive
P70010101601
Peel adhesive
P70010109921
Peel adhesive
P70010109961
Peel adhesive
P70011014331
Peel adhesive
P70010144861
Peel adhesive
P70010101571
Peel adhesive
2
Setting up your SATO Printer (1)
Inside the box:
- TH2 Retail Label Printer
- Quick Guide
- Mains AC Adaptor
- Mains Cable
Battery
Charge LED
Top cover
Label Out
Dispenser
Label Out
Printer Parts
3
LCD Display
Carrying Handle
Top Cover
Open Latch
Battery Cover
Scanner
Connector cover
Dispenser
Sensor
Print head
Print head cover
Media compartment
Label roll guides
Platen Roller
Dispenser plate
Dispenser frame
DC Input
from Power
Adaptor
Power connector
Cover Open Parts
Setting up your SATO Printer (2)

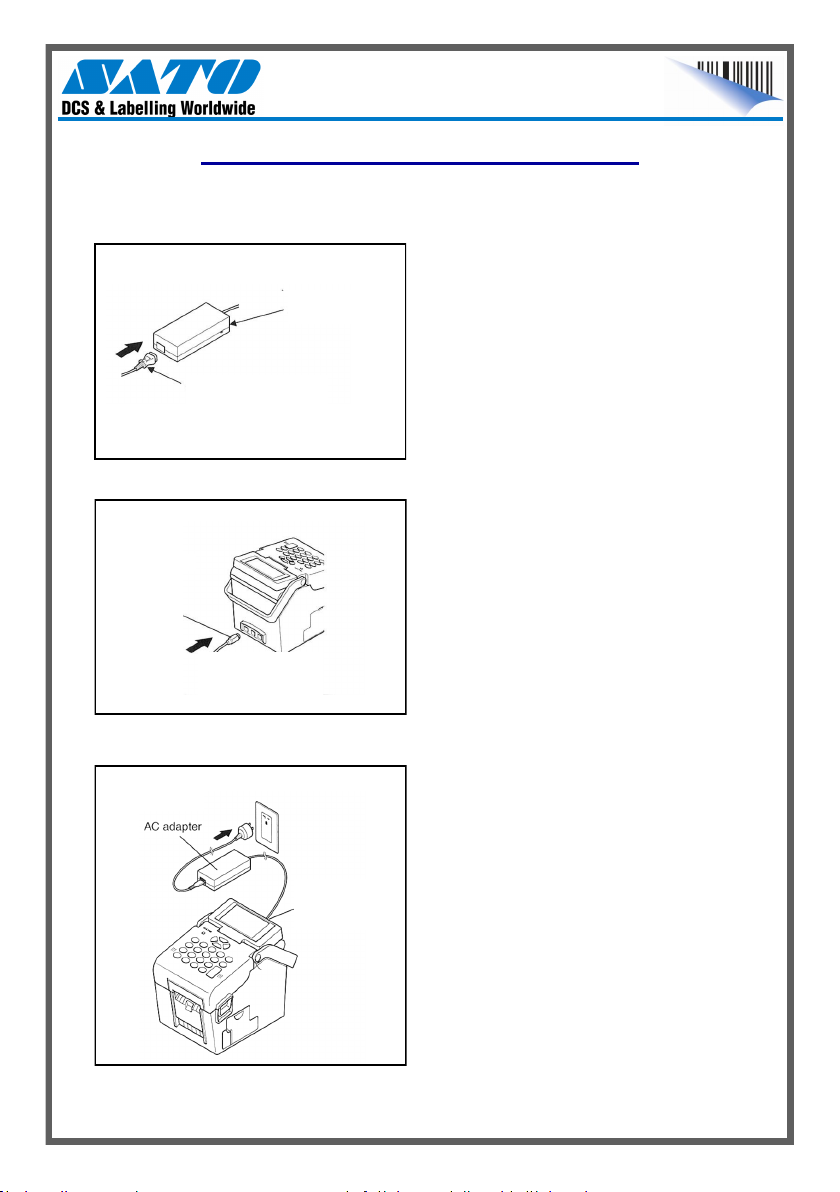

Power Connection
Mains Power Cable
Flat of the
plug to top!
AC Adaptor
1. Plug the Mains Power Cable into the AC
Adaptor
2. Plug the DC Output plug into it’s socket at the
rear of the printer.
THIS PLUG ONLY FITS ONE WAY ROUND! The flat
area of the plastic plug should be upwards.
AC Adaptor
DC input
connector
3. Plug the Mains Power Cable into the
Mains supply socket.
4
Notes:
5
