INSTRUCTION MANUAL
VSP-CB10
COAX-SSP Converter
COAX-SSP-Umwandler
Convertisseur COAX-SSP
Convertidor COAX-SSP
Convertitore COAX-SSP
English GB
Deutsch D
Français F
Español E
Italiano I
Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for
later reference.
This unit converts coaxial signals to SSP signals, and also SSP signals to coaxial signals.
Precautions
In case of problems
Do not use the unit if smoke or a strange odor
comes from the unit, or if it seems not to function
correctly. Disconnect the power cord immediately,
and consult your dealer (or a Sanyo Authorized
Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous
and cause damage to the unit. For internal settings
and repairs, consult your dealer (or a Sanyo
Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable
substance get inside the unit. If used with a foreign
object inside, it could cause a fire, short-circuits or
damages.
If water or other liquid gets inside the unit,
disconnect the power cord immediately, and
consult your dealer (or a Sanyo Authorized Service
Centre). Be careful to protect the unit from rain,
seawater, etc.
Be careful when handling the unit
To prevent damage, do not drop the unit or subject
it to strong shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet,
electric motor, transformer, or audio speakers, the
magnetic field they generate may distort the image.
Protect from humidity and dust
To prevent damage to the unit, do not install it
where there is greasy smoke or steam, where the
dampness may get too high, or where there is a lot
of dust.
Protect from high temperatures
Do not install close to stoves or other heat
generating devices, such as spotlights, or where the
unit could be subject to direct sunlight, as that
could cause deformation, discoloration or other
damage.
Be careful when installing close to the ceiling in a
kitchen or boiler room, as the temperature may rise
to high levels.
Install where the temperature range will stay
between 5°C and 40°C. (no condensation)
Cleaning
● Dirt can be removed from the cabinet by wiping
it with a soft cloth. To remove stains, wipe with
a soft cloth moistened with a neutral detergent
solution and wrung dry, then wipe dry with a
dry soft cloth.
● Do not use solvents, thinner or other chemical
product on the cabinet, as that may cause
deformation and paint peeling. Before using a
chemical cloth, make sure to read all
accompanying instructions. Make sure that no
plastic or rubber material comes in contact with
the cabinet for a long period of time, as that
may cause damage or paint peeling.
Contents
Main features. . . . . . . . . . . . . . . . . . . 1
Part names . . . . . . . . . . . . . . . . . . . . . 2
Connections . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . 6
English
Main features
● Can convert SSP (RS-485) signals to coaxial
signals.
● Can convert coaxial signals to SSP (RS-485)
signals.
● Can change alarm signals between multiplex and
separate signals by switch operation.
● The grooves at both sides of the unit can be
used to install the unit to a structure such as a
rack.
– 1 –
Part names
Be sure to turn off the power before changing the settings for any of the setting switches (1, 2 and 3).
If you change a switch setting while the power is still turned on, the setting may not change correctly.
1
SEPAMIX
CAMERA
VIDEO
OUT
IN
5678 9
Control signal switch (CONTROL SIGNAL)
1
Set to “MIX” to convert SSP
●
(RS-485) and video signals to
coaxial signals.
Set to “SEPA” to convert
●
coaxial signals to SSP (RS-485)
and video signals.
Termination switch (TERMINATE)
2
When multiple units are
connected together, set the
switch for the first and last unit in
the series to “ON”.
Communication speed select switches
3
Move the left and right switches to set the
communication speed. Set so that the speed matches
the speed of other connected equipment.
Setting to 19200 bps
19200
9600
bps
2400
4800
Setting to 2400 bps
19200
9600
bps
2400
4800
Power indicator (POWER)
4
Illuminates when the unit’s power is turned on.
Video input terminal (CAMERA IN)
5
Connect a camera to this terminal.
(BNC termination)
CONTROL SIGNAL
MIX SEPA
CONTROL SIGNAL
MIX SEPA
TERMINATE
OFF ON
Setting to 9600 bps
19200
9600
2400
4800
Setting to 4800 bps
19200
9600
2400
4800
243
TERMINATECONTROL SIGNAL
ONOFF
RS485
ALARM
A
BCAL
6
7
bps
bps
8
9
19200
9600
bps
2400
4800
CLASS 2 WIRING
GND
POWER
24V AC
12V DC
Video output terminal (VIDEO OUT)
This terminal is for camera output.
(BNC termination)
Connect a multiplexer or other similar device.
RS-485 control terminals (RS485)
Connect to the RS-485 control terminals of a
multiplexer or system controller using twisted-pair
cables (sold separately).
Connect signal A to signal A and signal B to signal B.
Push and insert cables
RS485
ALARM
A
BCAL
Twisted-pair cable
Ground
To signal B
To signal A
Alarm terminals (ALARM)
Connect the alarm signal from a multiplexer or camera
to these terminals.
The C terminal is used for both the RS-485 ground and
the AL ground. Be sure to connect to the C terminal
also when making an AL connection.
This terminal is used for alarm output when the control
signal switch is set to MIX, and alarm input when the
control signal switch is set to SEPA.
Power input terminals
Connect a 24 V AC or 12 V DC.
– 2 –
English
Connections
Note:
● Up to two COAX-SSP converters can be connected when making an SSP (RS-485) connection. If more than
two units are connected together, delays may occur in SSP (RS-485) signal response and communication
may not proceed correctly.
● After connecting, change the communication speed settings, alarm settings and address settings for the
camera or multiplexer to match the settings for other peripheral equipment. If the settings are not correct,
the system may not operate correctly.
Operating a SSP (RS-485) signal-type camera using a coaxial-type
multiplexer
This unit can convert coaxial signals into SSP (RS-485) signals, so that an SSP (RS-485) signal-type camera can
be operated using a coaxial-type multiplexer.
Camera unit
(sold separately)
VIDEO IN
connector
CONTROL SIGNAL
SEPAMIX
SSP (RS-485)
ALARM IN
connector
2
1
3
4
6
5
7
8
10
9
11
12
14
13
15
16
TV monitor
(sold separately)
19200
9600
bps
2400
4800
CLASS 2 WIRING
GND
VIDEO IN
connector
CAMERA
IN
SEPAMIX
VIDEO
OUT
TERMINATECONTROL SIGNAL
ONOFF
RS485
ALARM
A
BCAL
Coaxial-type multiplexer (sold separately)
24V AC
12V DC
POWER
SSP
(RS-485)
System controller
(sold separately)
GND
or
This installation should be made by qualified service person and should
conform to all local codes.
WARNING: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
English
– 3 –
Connections

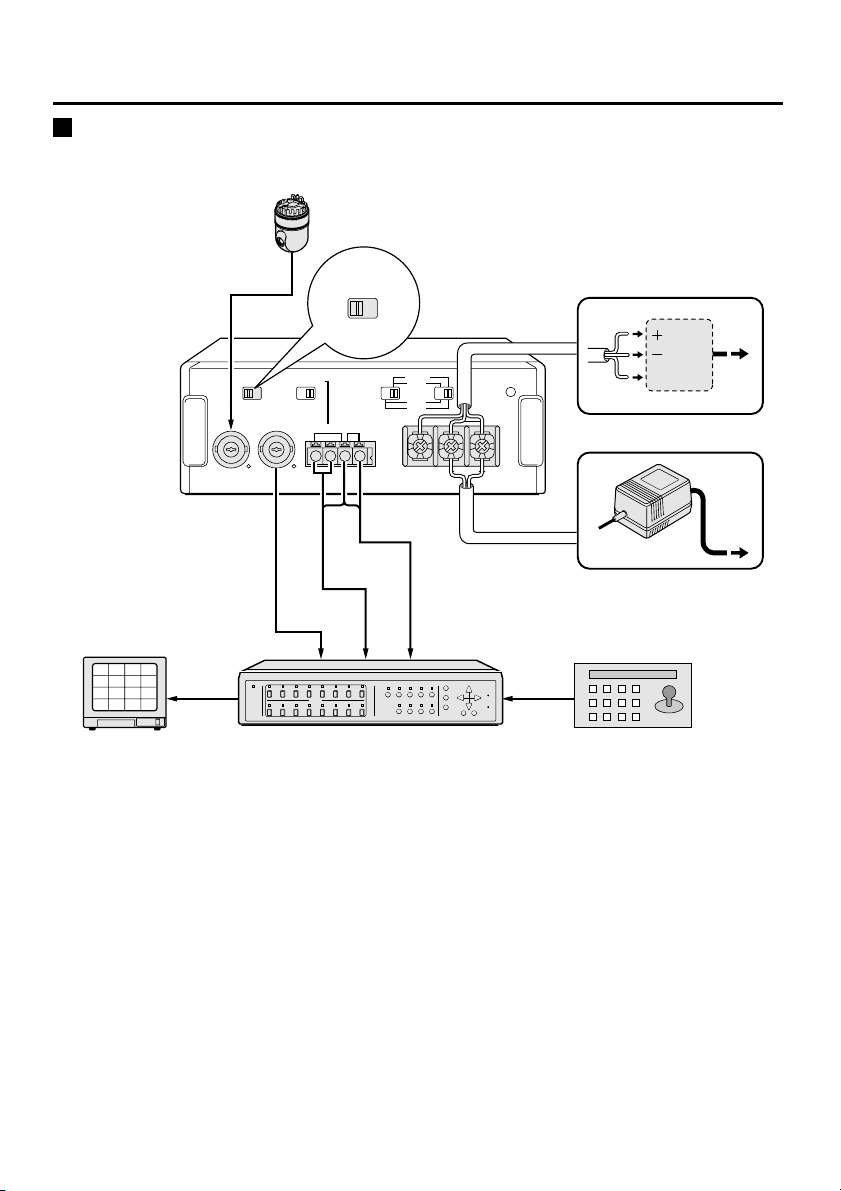

Operating a coaxial-type camera using a system controller
This unit can convert SSP (RS-485) signals into coaxial signals, so that a coaxial-type camera can be operated
using a system controller.
Dome-type camera unit (PTZ)
(sold separately)
VIDEO IN
connector
CONTROL SIGNAL
SEPAMIX
2
1
3
4
6
5
7
8
10
9
11
12
14
13
15
16
TV monitor
(sold separately)
TERMINATECONTROL SIGNAL
ONOFF
SEPAMIX
VIDEO
CAMERA
IN
OUT
RS485
A
BCAL
ALARM
CLASS 2 WIRING
ALARM IN
connector
SSP
(RS-485)
VIDEO IN
connector
SSP (RS-485) signal-type multiplexer
(sold separately)
19200
9600
2400
4800
bps
POWER
24V AC
GND
or
GND
12V DC
SSP
(RS-485)
System controller
(sold separately)
– 4 –
English
Connections
The COAX-SSP converter can be secured by using bolts (M4) or nuts (M4) as described below.
Installation example 1 (using bolts)
Insert bolts into each of the two grooves on both sides of the converter.
Bolt (M4)
1
2
Installation example 2 (using nuts)
Insert nuts into each of the two grooves on both sides of the converter.
However, if using threaded fasteners such as bolts to secure the converter, select bolts which will not go
any more than 5 mm past the surface of the converter. If longer bolts are used, they may damage the
converter.
Nut (M4)
1
2
Note: Parts such as the bolts and nuts required above are not supplied with the converter and must be
purchased separately.
English
– 5 –
Specifications
Camera input BNC termination
Camera output BNC termination
Operating environment Temperature: –10°C – 50°C
Dimensions 123 (W) x 189.8 (D) x 46 (H) mm
Weight Approx. 600 g
Power supply 24 V AC/12 – 15 V DC: 100 mA 1.3 W
LED illuminates when power supplied
189.8
182
44
46
123
(Unit: mm)
Option
12 V DC power supply (VCA-35E)
1
1
– 6 –
English
1AC6P1P2465-L8ZBA/XE (0102KP-CZ)
