SANYO VPC-C40EX, VPC-C40E, VPC-C40, VPC-C40GX STORAGE INFORMATION

4. USB STORAGE INFORMATION REGISTRATION

USB storage data is important for when the camera is connected to a computer via a USB connection. If there are any errors in the USB storage data, or if it has not been saved, the USB specification conditions will not be satisfied, so always check and save the USB storage data.

Preparation:

POWER switch: ON

Adjustment method:

1. Connect the camera to a computer. (Refer to 3-5. Connecting the camera to the computer on the page 16.)

2. Double-click on the DscCalDi.exe.

3. Click on the Get button in the USB storage window and check the USB storage data. VID: SANYO PID: C40 Serial: Rev. : 1.00

4. Check the “Serial” in the above USB storage data. If the displayed value is different from the serial number printed on the base of the camera, enter the number on the base of the camera. Then click the Set button.

5. Next, check VID, PID and Rev. entries in the USB storage data. If any of them are different from the values in 3. above, make the changes and then click the corresponding Set button.

Calibration

AWB

Focus

UV Matrix

Cal Mode

Cal Data

USB storage

VID

Get

PID

Set

Backrush pulse :

Upload

Firmware

Data

PAF Cal.

EVF

LCD Type

Get

LCD

R Bright

RGB Offset

Tint

VCO

H AFC Test

Serial

Set

Rev.

B Bright

Gain

Phase

Set Set

Set

VCOMDC

VCOMPP

Hall Cal.

Setting

Language

Video Mode

Factory Code

– 21 –

5. TROUBLESHOOTING GUIDE

POWER LOSS INOPERTIVE

PUSH THE POWER

SW FOR A WHILE

IC301-42 (SCAN OUT2) PULSE INPUT

IC302-7 5.3 V

(BOOST 5.3 V)

YES

IC301-9, 36, 59

(VDD)

HIGH

IC301-53

(RESET)

HIGH

IC301-49

(BAT OFF)

HIGH

IC301-58 OSCILLATION

YES

IC301-55 OSCILLATION

YES

LOW

CHECK S3002

CHECK CP1, IC531,

CHECK IC302

CHECK IC302, RB305

CHECK RB305

CHECK X3001

CHECK X3002

Q5301

TAKING INOPERATIVE

PUSH SHUTTER

BUTTON

IC301-31, 30 (SCAN IN 3, 4) PULSE INPUT

YES

CL525, CL529

(P ON, P(A) ON)

HIGH

SERIAL

COMMUNICATION

CHECK CP1 DMA

BLOCK

LOW

CONTROL PANEL,

CP1 DMA BLOCK

CHECK UNIT

D3012, D3011

CHECK IC301,

PWA BLOCK

CHECK IC301,

CHECK IC301

NO PICTURE

CHECK X1102-3

OSCILLATION

IC301-63, 64

(ASIC_SO, ASIC_SI)

CHECK SOLDERING

OF MEMORY

EACH PIN

MAIN CLOCK FOR SYSTEM

OPERATION NO OPERATION IF ABSENT

INCORRECT HANDSHAKING

BETWEEN 8-BIT CPU AND ASIC CHECK EACH INTERFACE

– 22 –

6. PARTS LIST

ELECTRICAL PARTS

Note:

1. Materials of Capacitors and Resistors are abbreviated as follows ; Resistors Capacitors MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor

2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.

F ............1% G ............2% J ............5% K ............10%

M ..........20% N ..........30% Z ..........+80% ~ -20%

3. Capacitors U : µF P : pF

4. Inductors UH : µH MH : mH

5. N.S.P. : Not available as service parts.

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

COMPL PWB,CP-1(F/W)

636 092 8794

(SEMICONDUCTORS)

Q1304 405 172 4700 TR UNR32A3 OR 405 168 3700 TR DTC144EM OR 405 207 5009 TR RN1104FV Q1501 405 168 4509 TR 2SA2029-R OR 405 168 4608 TR 2SA2029-S Q5001 405 207 4309 TR RSR025N03 Q5002 405 182 9009 TR EMF18 Q5003 405 168 3908 TR EMZ1 Q5004 405 202 1303 TR MCH5812-E Q5007 405 169 4508 TR DTC114EM Q5008 405 183 6700 TR CPH3409-TL-E Q5009 405 207 4408 TR US5U2 Q5204 405 212 7500 TR RTL030P02 Q5205 405 184 6006 TR UP03396 Q5206 405 206 7707 TR SI3473DV-E3 Q5301 405 208 8603 TR FDC633N-NF Q9561 405 165 1204 TR EMD2 Q9702 405 182 8507 TR EMH16

(INTEGRATED CIRCUITS)

IC101 410 585 8306 IC KS755U2464CBP BGA (N.S.P.) IC102 410 577 7706 IC MBG124PBS-ME1 BGA (N.S.P.) IC103 409 588 5405 IC EDS2532AABH-75 BGA (N.S.P.) IC121 409 647 9702 IC S29PL032J60BFI120 BGA (N.S.P.) IC151 409 638 7601 IC BH76806FVM IC501 409 668 0603 IC FA7724AR-H4 IC502 409 523 0502 IC TK11134CSCL IC503 409 648 3709 IC TK11100CSC-G IC524 409 629 4008 IC LTC4053EDD-4.2PBF IC531 409 526 4002 IC XC9104D095M IC951 409 652 2507 IC AN41921A-VB IC971 409 646 8706 IC AK7331

(DIODES)

D5001 407 221 7403 DIODE DAN217U D5002 407 208 0304 DIODE MA2S111 D5003 407 232 3609 DIODE SD833-04SC D5005 407 238 1203 DIODE CUS01,Q D5006 407 238 1203 DIODE CUS01,Q D5007 407 210 5403 DIODE RB551V-30 D5008 407 246 3602 DIODE RB055LA-40 D5013 407 238 1203 DIODE CUS01,Q D5209 407 210 1108 ZENER DIODE UDZS7.5B D5301 407 232 3609 DIODE SD833-04SC

(OSCILLATOR)

X1102 645 069 4967 OSC,CRYSTAL 48.00000MHZ

(VARIABLE RESISTOR)

VR501 645 049 3232 VR,SEMI,10K S

(INDUCTORS)

L1001 645 020 1912 INDUCTOR,240 OHM

AL-SOLID Aluminum Solid Capacitor NP-ELECT Non-Polarized Electrolytic Capacitor OS-SOLID Aluminum Solid Capacitors with Organic

Semiconductive Electrolytic Capacitor DL-ELECT Double Layered Electrolytic Capacitor POS-SOLID Polymerized Organic Semiconductor Capacitor

L1002 645 059 8111 IMPEDANCE,1000 OHM P L1003 645 020 1912 INDUCTOR,240 OHM L1004 645 020 1912 INDUCTOR,240 OHM L1005 645 059 8111 IMPEDANCE,1000 OHM P L1006 645 059 8111 IMPEDANCE,1000 OHM P L1007 645 059 8111 IMPEDANCE,1000 OHM P L1008 645 059 8111 IMPEDANCE,1000 OHM P L1011 645 079 1611 IMPEDANCE,33 OHM P L1012 645 079 1611 IMPEDANCE,33 OHM P L1013 645 079 1628 IMPEDANCE,47 OHM P L1080 645 059 8111 IMPEDANCE,1000 OHM P L1302 645 078 8246 IMPEDANCE,65 OHM L5001 645 082 1011 INDUCTOR,4.7U N L5002 645 061 7416 INDUCTOR,47U M L5005 645 071 9707 INDUCTOR,4.7U M L5006 645 082 1011 INDUCTOR,4.7U N L5007 645 077 6434 INDUCTOR,10U M L5008 645 077 6434 INDUCTOR,10U M L5014 645 084 0357 INDUCTOR,2.2U N L5111 645 041 1977 INDUCTOR,330 OHM L5301 645 058 0918 INDUCTOR,10U M

(CAPACITORS)

CB970 403 392 5507 CERAMIC 1U K 6.3V C1002 403 381 8106 CERAMIC 1U K 6.3V C1003 403 381 8106 CERAMIC 1U K 6.3V C1005 403 276 1304 CERAMIC 1000P K 50V C1010 403 338 0306 CERAMIC 0.1U K 10V C1012 403 338 0306 CERAMIC 0.1U K 10V C1013 403 338 0306 CERAMIC 0.1U K 10V C1014 403 338 0306 CERAMIC 0.1U K 10V C1015 403 338 0306 CERAMIC 0.1U K 10V C1017 403 338 0306 CERAMIC 0.1U K 10V C1018 403 276 1007 CERAMIC 0.01U K 16V C1019 403 276 1007 CERAMIC 0.01U K 16V C1020 403 276 1007 CERAMIC 0.01U K 16V C1021 403 276 1007 CERAMIC 0.01U K 16V C1028 403 381 8106 CERAMIC 1U K 6.3V C1029 403 381 8106 CERAMIC 1U K 6.3V C1030 403 338 0306 CERAMIC 0.1U K 10V C1031 403 338 0306 CERAMIC 0.1U K 10V C1032 403 338 0306 CERAMIC 0.1U K 10V C1033 403 338 0306 CERAMIC 0.1U K 10V C1042 403 381 8106 CERAMIC 1U K 6.3V C1043 403 338 0306 CERAMIC 0.1U K 10V C1044 403 338 0306 CERAMIC 0.1U K 10V C1045 403 338 0306 CERAMIC 0.1U K 10V C1046 403 343 3101 CERAMIC 1U K 6.3V C1050 403 343 3101 CERAMIC 1U K 6.3V C1051 403 338 0306 CERAMIC 0.1U K 10V C1052 403 383 5202 CERAMIC 4.7U K 6.3V C1054 403 343 3101 CERAMIC 1U K 6.3V C1082 403 383 5202 CERAMIC 4.7U K 6.3V

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTIONLOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

C1083 403 381 8106 CERAMIC 1U K 6.3V C1084 403 381 8106 CERAMIC 1U K 6.3V C1085 403 381 8106 CERAMIC 1U K 6.3V C1086 403 381 8106 CERAMIC 1U K 6.3V C1111 403 314 6407 CERAMIC 7P D 50V C1112 403 314 6407 CERAMIC 7P D 50V C1201 403 381 8106 CERAMIC 1U K 6.3V C1202 403 381 8106 CERAMIC 1U K 6.3V C1303 403 343 3101 CERAMIC 1U K 6.3V C1501 403 381 8106 CERAMIC 1U K 6.3V C1502 403 383 5202 CERAMIC 4.7U K 6.3V C1503 403 381 8106 CERAMIC 1U K 6.3V C1504 403 381 8106 CERAMIC 1U K 6.3V C1901 403 383 5202 CERAMIC 4.7U K 6.3V C1902 403 383 5202 CERAMIC 4.7U K 6.3V C2801 403 276 1304 CERAMIC 1000P K 50V C5001 403 276 1007 CERAMIC 0.01U K 16V C5003 403 283 5708 CERAMIC 2200P K 50V C5004 403 383 5004 CERAMIC 1U K 16V C5005 403 381 8106 CERAMIC 1U K 6.3V C5006 403 381 8106 CERAMIC 1U K 6.3V C5007 403 381 8106 CERAMIC 1U K 6.3V C5008 403 276 1007 CERAMIC 0.01U K 16V C5009 403 381 8106 CERAMIC 1U K 6.3V C5010 403 381 8106 CERAMIC 1U K 6.3V C5011 403 346 9803 CERAMIC 0.047U K 10V C5012 403 279 5101 CERAMIC 3300P K 50V C5013 403 276 1304 CERAMIC 1000P K 50V C5014 403 276 1007 CERAMIC 0.01U K 16V C5016 403 378 0601 CERAMIC 0.47U K 6.3V C5025 403 346 9803 CERAMIC 0.047U K 10V C5026 403 326 2701 CERAMIC 0.015U K 16V C5033 403 392 5002 CERAMIC 22U M 6.3V C5034 403 294 6107 CERAMIC 100P J 50V C5035 403 383 5004 CERAMIC 1U K 16V C5041 403 371 8901 CERAMIC 10U M 6.3V C5042 403 408 5507 CERAMIC 2.2U K 16V C5043 403 279 5002 CERAMIC 4700P K 25V C5045 403 420 7503 CERAMIC 4.7U K 16V C5046 403 323 6306 CERAMIC 0.1U K 16V C5047 403 323 6306 CERAMIC 0.1U K 16V C5048 403 383 5004 CERAMIC 1U K 16V C5049 403 420 7503 CERAMIC 4.7U K 16V C5072 403 381 6201 POS-SOLID 33U M 8V C5073 403 346 9803 CERAMIC 0.047U K 10V C5075 403 338 0306 CERAMIC 0.1U K 10V C5076 403 343 3101 CERAMIC 1U K 6.3V C5091 403 392 5002 CERAMIC 22U M 6.3V C5093 403 277 1303 CERAMIC 330P K 50V C5101 403 392 5002 CERAMIC 22U M 6.3V C5102 403 344 0406 CERAMIC 0.033U K 10V C5111 403 383 5004 CERAMIC 1U K 16V C5112 403 276 1304 CERAMIC 1000P K 50V C5202 403 372 7507 CERAMIC 2.2U K 6.3V C5204 403 341 7002 CERAMIC 0.068U K 10V C5302 403 392 5002 CERAMIC 22U M 6.3V C5303 403 381 6201 POS-SOLID 33U M 8V C5304 403 276 1908 CERAMIC 22P J 50V C9526 403 338 0306 CERAMIC 0.1U K 10V C9530 403 338 0306 CERAMIC 0.1U K 10V C9534 403 356 6205 CERAMIC 2.2U K 10V C9535 403 338 0306 CERAMIC 0.1U K 10V C9545 403 338 0306 CERAMIC 0.1U K 10V C9567 403 338 0306 CERAMIC 0.1U K 10V C9701 403 381 8106 CERAMIC 1U K 6.3V C9711 403 322 1005 CERAMIC 0.1U Z 16V C9712 403 294 6107 CERAMIC 100P J 50V C9714 403 381 8106 CERAMIC 1U K 6.3V C9716 403 338 0306 CERAMIC 0.1U K 10V C9717 403 311 7704 CERAMIC 4700P K 25V C9718 403 282 5105 CERAMIC 470P K 50V C9719 403 276 1304 CERAMIC 1000P K 50V C9720 403 338 0306 CERAMIC 0.1U K 10V C9721 403 338 0306 CERAMIC 0.1U K 10V C9722 403 381 8106 CERAMIC 1U K 6.3V

(RESISTOR PACKS)

RB100 645 028 0696 R-NETWORK 100X4 1/32W RB102 645 037 4371 R-NETWORK 220X4 1/32W

RB108 645 061 3647 R-NETWORK 100X2 1/16W RB109 645 028 0696 R-NETWORK 100X4 1/32W RB110 645 061 3647 R-NETWORK 100X2 1/16W RB111 645 028 0696 R-NETWORK 100X4 1/32W RB112 645 028 0696 R-NETWORK 100X4 1/32W RB113 645 028 0696 R-NETWORK 100X4 1/32W RB114 645 028 0696 R-NETWORK 100X4 1/32W RB974 645 032 8886 R-NETWORK 47KX4 1/32W RB975 645 064 1664 R-NETWORK 56KX2 1/16W RB976 645 061 3708 R-NETWORK 33KX2 1/16W

(RESISTORS)

R1003 401 225 7902 MT-GLAZE 220 JA 1/16W R1004 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1005 401 228 4502 MT-GLAZE 2.2 JA 1/16W R1006 401 262 1802 MT-GLAZE 3.6K DC 1/16W R1007 401 262 2304 MT-GLAZE 1.0K DC 1/16W R1008 401 269 3908 MT-GLAZE 4.7K DC 1/16W R1009 401 225 1801 MT-GLAZE 47 JA 1/16W R1011 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1012 401 262 2304 MT-GLAZE 1.0K DC 1/16W R1013 401 224 9006 MT-GLAZE 10K JA 1/16W R1014 401 224 9709 MT-GLAZE 22 JA 1/16W R1016 401 224 9006 MT-GLAZE 10K JA 1/16W R1017 401 224 9006 MT-GLAZE 10K JA 1/16W R1018 401 224 9006 MT-GLAZE 10K JA 1/16W R1019 401 224 9006 MT-GLAZE 10K JA 1/16W R1020 401 225 1405 MT-GLAZE 47K JA 1/16W R1021 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1023 401 224 8801 MT-GLAZE 100 JA 1/16W R1024 401 225 1405 MT-GLAZE 47K JA 1/16W R1025 401 225 1405 MT-GLAZE 47K JA 1/16W R1026 401 224 9006 MT-GLAZE 10K JA 1/16W R1027 401 225 1900 MT-GLAZE 68 JA 1/16W R1028 401 224 9006 MT-GLAZE 10K JA 1/16W R1029 401 262 2502 MT-GLAZE 68 DD 1/16W R1031 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1034 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1035 401 224 8801 MT-GLAZE 100 JA 1/16W R1036 401 224 8801 MT-GLAZE 100 JA 1/16W R1042 401 224 9006 MT-GLAZE 10K JA 1/16W R1046 401 262 2502 MT-GLAZE 68 DD 1/16W R1060 401 224 9006 MT-GLAZE 10K JA 1/16W R1062 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1066 401 224 9006 MT-GLAZE 10K JA 1/16W R1068 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1069 401 224 9006 MT-GLAZE 10K JA 1/16W R1072 401 224 9006 MT-GLAZE 10K JA 1/16W R1073 401 224 9006 MT-GLAZE 10K JA 1/16W R1074 401 224 9006 MT-GLAZE 10K JA 1/16W R1075 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1083 401 290 2604 MT-GLAZE 11K DC 1/16W R1084 401 262 5206 MT-GLAZE 1.5K DC 1/16W R1085 401 262 5206 MT-GLAZE 1.5K DC 1/16W R1086 401 301 1602 MT-GLAZE 39 DD 1/16W R1087 401 301 1602 MT-GLAZE 39 DD 1/16W R1090 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1092 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1111 401 224 9402 MT-GLAZE 1.0M JA 1/16W R1112 401 225 1306 MT-GLAZE 470 JA 1/16W R1201 401 225 8107 MT-GLAZE 10 JA 1/16W R1352 401 286 4704 MT-GLAZE 30K JA 1/16W R1353 401 224 9204 MT-GLAZE 15K JA 1/16W R1502 401 277 5406 MT-GLAZE 75 DD 1/16W R1503 401 262 2908 MT-GLAZE 220 DC 1/16W R1504 401 225 3805 MT-GLAZE 1.5K JA 1/16W R1511 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1852 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5001 401 225 1207 MT-GLAZE 4.7K JA 1/16W R5005 401 226 2401 MT-GLAZE 560 JA 1/16W R5009 401 267 3207 MT-GLAZE 330 DC 1/16W R5010 401 262 1604 MT-GLAZE 2.2K DC 1/16W R5011 401 275 2001 MT-GLAZE 30K DC 1/16W R5012 401 302 3407 MT-GLAZE 13K JA 1/16W R5014 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5016 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5018 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5022 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5023 401 258 6804 MT-GLAZE 15K DC 1/16W

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

R5024 401 224 9303 MT-GLAZE 1K JA 1/16W R5025 401 258 9102 MT-GLAZE 5.6K DC 1/16W R5026 401 267 0909 MT-GLAZE 150 DC 1/16W R5032 401 258 0406 MT-GLAZE 120K DC 1/16W R5033 401 258 6705 MT-GLAZE 12K DC 1/16W R5034 401 262 1604 MT-GLAZE 2.2K DC 1/16W R5035 401 224 9006 MT-GLAZE 10K JA 1/16W R5036 401 224 8900 MT-GLAZE 100K JA 1/16W R5037 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5038 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5041 401 258 7009 MT-GLAZE 150K DC 1/16W R5042 401 224 9006 MT-GLAZE 10K JA 1/16W R5043 401 263 2105 MT-GLAZE 5.1K DC 1/16W R5044 401 275 6108 MT-GLAZE 18 DD 1/16W R5045 401 257 4009 MT-GLAZE 68K DC 1/16W R5046 401 262 1000 MT-GLAZE 33K DC 1/16W R5047 401 262 1604 MT-GLAZE 2.2K DC 1/16W R5048 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5049 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5050 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5070 401 224 8900 MT-GLAZE 100K JA 1/16W R5071 401 225 0903 MT-GLAZE 82K JA 1/16W R5072 401 225 1405 MT-GLAZE 47K JA 1/16W R5073 401 274 9704 MT-GLAZE 24K DC 1/16W R5074 401 290 2703 MT-GLAZE 3K DC 1/16W R5075 401 305 0908 MT-GLAZE 430K DC 1/16W R5091 401 240 5600 MT-GLAZE 3K JA 1/16W R5092 401 258 6606 MT-GLAZE 10K DC 1/16W R5093 401 316 4209 MT-GLAZE 1.82K DC 1/16W R5101 401 234 9904 MT-GLAZE 6.8K JA 1/16W R5102 401 258 6804 MT-GLAZE 15K DC 1/16W R5103 401 312 6306 MT-GLAZE 10.7K DC 1/16W R5111 401 234 4909 MT-GLAZE 150K JA 1/16W R5112 401 225 1207 MT-GLAZE 4.7K JA 1/16W R5113 401 224 9303 MT-GLAZE 1K JA 1/16W R5114 401 302 1106 MT-GLAZE 12 DD 1/16W R5201 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5203 401 262 1307 MT-GLAZE 2.4K DC 1/16W R5207 401 224 8900 MT-GLAZE 100K JA 1/16W R5208 401 224 8900 MT-GLAZE 100K JA 1/16W R5219 401 224 9303 MT-GLAZE 1K JA 1/16W R5301 401 309 2601 MT-GLAZE 470K DC 1/16W R5302 401 257 4108 MT-GLAZE 100K DC 1/16W R5303 401 258 6903 MT-GLAZE 20K DC 1/16W R9501 401 337 9108 MT-FILM 2.7 FD 1/6W R9502 401 337 9108 MT-FILM 2.7 FD 1/6W R9503 401 337 9108 MT-FILM 2.7 FD 1/6W R9504 401 337 9108 MT-FILM 2.7 FD 1/6W R9505 401 224 9709 MT-GLAZE 22 JA 1/16W R9720 401 225 8107 MT-GLAZE 10 JA 1/16W R9721 401 262 1901 MT-GLAZE 6.8K DC 1/16W R9722 401 262 1604 MT-GLAZE 2.2K DC 1/16W R9723 401 262 2304 MT-GLAZE 1.0K DC 1/16W R9724 401 224 9501 MT-GLAZE 2.2K JA 1/16W R9726 401 225 0507 MT-GLAZE 33K JA 1/16W R9728 401 257 4108 MT-GLAZE 100K DC 1/16W R9731 401 224 9709 MT-GLAZE 22 JA 1/16W R9732 401 257 4108 MT-GLAZE 100K DC 1/16W R9733 401 257 4108 MT-GLAZE 100K DC 1/16W R9734 401 226 1503 MT-GLAZE 0.000 ZA 1/16W

(THERMISTOR)

TH191 408 054 7707 TH NCP15WF104F03-RC

(FUSES)

F5001 423 031 5606 FUSE 32V 2A F5002 423 031 8508 FUSE 24V 2.5A F5003 423 031 5606 FUSE 32V 2A F5004 423 031 5606 FUSE 32V 2A F5005 423 031 5606 FUSE 32V 2A

(JACK)

JK501 645 073 0795 SOCKET,DC

(CONNECTORS)

CN102 645 069 4851 PLUG,PWB-PWB 50P (N.S.P) CN103 645 063 4581 PLUG,PWB-PWB 60P (N.S.P) CN106 645 075 2049 PLUG,PWB-WIRE 8P (N.S.P) CN107 645 075 2063 PLUG,PWB-WIRE 10P(N.S.P) CN110 645 080 6032 SOCKET,10P (N.S.P) CN501 645 062 2366 TERMINAL,5P SX613 (N.S.P) CN951 645 081 3610 SOCKET,FPC 22P (N.S.P)

COMPL PWB,CA-1 SV-SX814

636 091 9723

(SEMICONDUCTORS)

Q9001 405 153 6709 TR 2SC3931-D (N.S.P) Q9002 405 102 5609 TR 2SD1819A-R (N.S.P) OR 405 092 4101 TR 2SC4081-R (N.S.P)

(INTEGRATED CIRCUITS)

IC902 409 543 2807 IC CXD3440EN-1 (N.S.P) IC903 409 543 2807 IC CXD3440EN-1(N.S.P) IC905 409 594 7400 IC AD9949KCPZ (N.S.P) IC906 409 505 9400 IC TK11130CS (N.S.P)

(DIODES)

D9001 407 235 1008 DIODE MA2J72700L(N.S.P) D9002 407 210 1900 DIODE 1SS400 (N.S.P)

(FILTER)

XF901 645 057 0551 FILTER,EMI 1000000PF (N.S.P)

(CAPACITORS)

C9001 403 390 6407 CERAMIC 4.7U M 16V (N.S.P) C9003 403 189 0807 CERAMIC 0.1U K 25V (N.S.P) C9004 403 376 4304 CERAMIC 3.3U K 10V (N.S.P) C9005 403 320 5500 CERAMIC 1U Z 25V (N.S.P) C9006 403 164 0204 CERAMIC 0.1U Z 25V (N.S.P) C9007 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9008 403 312 6805 CERAMIC 0.1U Z 16V (N.S.P) C9009 403 379 0808 CERAMIC 1U M 16V (N.S.P) C9010 403 189 0807 CERAMIC 0.1U K 25V (N.S.P) C9011 403 381 8106 CERAMIC 1U K 6.3V (N.S.P) C9013 403 379 0808 CERAMIC 1U M 16V (N.S.P) C9014 403 381 8106 CERAMIC 1U K 6.3V (N.S.P) C9015 403 381 8106 CERAMIC 1U K 6.3V (N.S.P) C9016 403 381 8106 CERAMIC 1U K 6.3V (N.S.P) C9017 403 381 8106 CERAMIC 1U K 6.3V (N.S.P) C9018 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9020 403 320 5302 CERAMIC 0.15U K 25V (N.S.P) C9021 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9022 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9023 403 329 6508 TA-SOLID 10U M 6.3V (N.S.P) C9024 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9025 403 329 6508 TA-SOLID 10U M 6.3V (N.S.P) C9026 403 276 1304 CERAMIC 1000P K 50V (N.S.P) C9027 403 276 1304 CERAMIC 1000P K 50V (N.S.P) C9028 403 338 0306 CERAMIC 0.1U K 10V (N.S.P) C9029 403 338 0306 CERAMIC 0.1U K 10V (N.S.P)

(RESISTOR PACKS)

RB901 645 037 0830 R-NETWORK 47X4 1/32W (N.S.P) RB902 645 037 0830 R-NETWORK 47X4 1/32W (N.S.P) RB903 645 037 0830 R-NETWORK 47X4 1/32W (N.S.P)

(RESISTORS)

R9002 401 225 0200 MT-GLAZE 3.3K JA 1/16W (N.S.P) R9003 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9004 401 225 0903 MT-GLAZE 82K JA 1/16W (N.S.P) R9005 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9006 401 224 8900 MT-GLAZE 100K JA 1/16W (N.S.P) R9007 401 224 9402 MT-GLAZE 1.0M JA 1/16W (N.S.P) R9009 401 105 7909 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9010 401 225 3805 MT-GLAZE 1.5K JA 1/16W (N.S.P) R9011 401 240 9004 MT-GLAZE 3.9 JA 1/16W (N.S.P) R9012 401 224 9006 MT-GLAZE 10K JA 1/16W (N.S.P) R9013 401 285 1308 MT-GLAZE 1.3K JA 1/16W (N.S.P) R9014 401 225 1801 MT-GLAZE 47 JA 1/16W (N.S.P) R9015 401 234 4800 MT-GLAZE 3.3 JA 1/16W (N.S.P) R9016 401 234 4800 MT-GLAZE 3.3 JA 1/16W (N.S.P) R9018 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9019 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9024 401 234 4800 MT-GLAZE 3.3 JA 1/16W (N.S.P) R9025 401 234 4800 MT-GLAZE 3.3 JA 1/16W (N.S.P)

(MISCELLANEOUS)

409 593 6107 IC ICX488EQF-S (N.S.P) 636 072 5454 MOUNTING,LENS(N.S.P)

(CONNECTORS)

CN901 645 069 4875 SOCKT,PWB-PWB 50P (N.S.P)

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

COMPL PWB,TB-1

636 091 4025

(SWITCH)

S3501 645 078 7294 SWITCH,DETECTOR 1P-1T

(MISCELLANEOUS)

636 091 9327 ASSY,WIRE VF1&TB1-SX814/J (N.S.P.) 636 081 4554 SPACER JOINT-SX718/J

COMPL PWB,VF-1

636 091 3752

(SEMICONDUCTORS)

Q1735 405 173 3207 TR 12A01SS-TL-E Q1736 405 168 3700 TR DTC144EM

(DIODES)

D1702 407 205 5203 DIODE RB521S-30 D1703 407 205 5203 DIODE RB521S-30

(CAPACITORS)

C1701 403 382 7801 CERAMIC 2.2U K 10V C1702 403 397 7605 CERAMIC 1U K 25V C1703 403 418 0004 CERAMIC 4.7U K 25V C1704 403 387 1507 CERAMIC 4.7U K 10V C1705 403 397 7605 CERAMIC 1U K 25V C1706 403 397 7605 CERAMIC 1U K 25V C1707 403 382 7801 CERAMIC 2.2U K 10V C1708 403 397 7605 CERAMIC 1U K 25V C1734 403 381 8106 CERAMIC 1U K 6.3V C1736 403 381 8106 CERAMIC 1U K 6.3V C1751 403 418 0004 CERAMIC 4.7U K 25V

(RESISTORS)

R1701 401 225 8602 MT-GLAZE 560K JA 1/16W R1702 401 258 6606 MT-GLAZE 10K DC 1/16W R1733 401 038 9506 MT-GLAZE 75 JA 1/10W R1734 401 038 3405 MT-GLAZE 33 JA 1/10W R1735 401 224 9006 MT-GLAZE 10K JA 1/16W R1736 401 224 8900 MT-GLAZE 100K JA 1/16W R1739 401 225 1405 MT-GLAZE 47K JA 1/16W

(CONNECTORS)

CN171 645 070 3645 SOCKET,FPC 33P (N.S.P) CN172 645 074 6680 PLUG,PWB-WIRE 2P (N.S.P) CN173 645 075 2063 PLUG,PWB-WIRE 10P(N.S.P) CN176 645 075 2001 PLUG,PWB-WIRE 8P (N.S.P) CN177 645 075 2056 PLUG,PWB-WIRE 10P(N.S.P) CN178 645 074 6680 PLUG,PWB-WIRE 2P (N.S.P) CN179 645 074 6680 PLUG,PWB-WIRE 2P (N.S.P)

COMPL PWB,SY-1(F/W)

636 092 1726

(BATTERY)

Z3001 645 051 6009 BATTERY,RECHARGE

(VARISTORS)

VA181 408 050 0504 VARISTOR AVR-M1005C080MT VA182 408 050 0504 VARISTOR AVR-M1005C080MT VA301 408 050 0504 VARISTOR AVR-M1005C080MT VA302 408 050 0504 VARISTOR AVR-M1005C080MT

(SEMICONDUCTORS)

Q1402 405 168 3809 TR DTA144EM OR 405 172 4908 TR UNR31A3 Q1403 405 167 0403 TR EMD12 Q3001 405 200 9004 TR EML17 Q3002 405 208 3905 TR EMB11 Q3003 405 168 3700 TR DTC144EM OR 405 172 4700 TR UNR32A3 Q3004 405 195 5302 TR DTC123EM Q3005 405 183 7707 TR EMH10

(INTEGRATED CIRCUITS)

IC183 409 641 9401 IC WM8978GEFL IC187 409 505 9400 IC TK11130CS IC301 410 598 3602 IC LC87F5932AUTQ7-TBM-E OR 410 581 7709 IC LC87F5932AU-TQFP7-E IC302 409 582 6200 IC BD4289FVM

(DIODES)

D3002 407 210 1900 DIODE 1SS400

D3002 407 226 4803 DIODE BAS516 OR 407 208 0304 DIODE MA2S111 D3010 407 227 3102 DIODE EMP11 D3011 407 227 3102 DIODE EMP11 D3012 407 227 3102 DIODE EMP11 D3013 407 227 3102 DIODE EMP11

(OSCILLATORS)

X3001 645 046 1415 OSC,CERAMIC 4.00MHZ X3002 645 054 3791 OSC,CRYSTAL 32.768KHZ

(CAPACITORS)

CB181 403 392 5507 CERAMIC 1U K 6.3V CB183 403 392 5507 CERAMIC 1U K 6.3V CB184 403 392 5507 CERAMIC 1U K 6.3V CB185 403 404 3606 CERAMIC 2200P M 25V CB311 403 409 1409 CERAMIC 1000P K 50V C1401 403 338 0306 CERAMIC 0.1U K 10V C1825 403 383 5202 CERAMIC 4.7U K 6.3V C1826 403 338 0306 CERAMIC 0.1U K 10V C1827 403 338 0306 CERAMIC 0.1U K 10V C1828 403 383 5202 CERAMIC 4.7U K 6.3V C1829 403 381 8106 CERAMIC 1U K 6.3V C1830 403 383 5202 CERAMIC 4.7U K 6.3V C1831 403 338 0306 CERAMIC 0.1U K 10V C1832 403 383 5202 CERAMIC 4.7U K 6.3V C1841 403 381 8106 CERAMIC 1U K 6.3V C3001 403 391 0503 CERAMIC 10U K 6.3V C3002 403 369 0306 CERAMIC 1U Z 4V C3003 403 312 6805 CERAMIC 0.1U Z 16V C3004 403 312 6805 CERAMIC 0.1U Z 16V C3005 403 338 0306 CERAMIC 0.1U K 10V C3007 403 381 8106 CERAMIC 1U K 6.3V C3011 403 338 0306 CERAMIC 0.1U K 10V C3012 403 311 4505 CERAMIC 1000P K 50V C3013 403 381 8106 CERAMIC 1U K 6.3V C3014 403 317 2505 CERAMIC 20P J 50V C3015 403 317 2505 CERAMIC 20P J 50V C3016 403 381 8106 CERAMIC 1U K 6.3V C3017 403 311 4505 CERAMIC 1000P K 50V C3018 403 311 4505 CERAMIC 1000P K 50V

(RESISTOR PACKS)

RB143 645 028 0719 R-NETWORK 10KX4 1/32W RB181 645 061 3722 R-NETWORK 47KX2 1/16W RB182 645 064 1510 R-NETWORK 2.2KX2 1/16W RB183 645 061 3630 R-NETWORK 0X2 1/16W RB187 645 061 3722 R-NETWORK 47KX2 1/16W RB302 645 028 0702 R-NETWORK 1KX4 1/32W RB303 645 061 3654 R-NETWORK 1KX2 1/16W RB304 645 068 6405 R-NETWORK 150KX2 1/16W RB305 645 064 1527 R-NETWORK 22KX2 1/16W RB306 645 061 3678 R-NETWORK 100KX2 1/16W RB307 645 028 0719 R-NETWORK 10KX4 1/32W RB308 645 032 8886 R-NETWORK 47KX4 1/32W RB309 645 032 8886 R-NETWORK 47KX4 1/32W RB310 645 061 3654 R-NETWORK 1KX2 1/16W RB311 645 028 0726 R-NETWORK 100KX4 1/32W

(RESISTORS)

R1432 401 224 9006 MT-GLAZE 10K JA 1/16W R1435 401 224 9006 MT-GLAZE 10K JA 1/16W R1437 401 224 9006 MT-GLAZE 10K JA 1/16W R1831 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1836 401 225 8107 MT-GLAZE 10 JA 1/16W R1837 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1894 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1895 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1896 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1897 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R3002 401 224 9303 MT-GLAZE 1K JA 1/16W R3003 401 225 8008 MT-GLAZE 330 JA 1/16W R3004 401 225 1306 MT-GLAZE 470 JA 1/16W R3005 401 225 1405 MT-GLAZE 47K JA 1/16W R3007 401 224 9006 MT-GLAZE 10K JA 1/16W R3008 401 225 3805 MT-GLAZE 1.5K JA 1/16W R3009 401 261 8703 MT-FILM 22K DD 1/16W R3011 401 224 8801 MT-GLAZE 100 JA 1/16W R3013 401 225 0408 MT-GLAZE 330K JA 1/16W R3014 401 224 9006 MT-GLAZE 10K JA 1/16W R3015 401 263 2303 MT-GLAZE 750 JA 1/16W R3016 401 225 7902 MT-GLAZE 220 JA 1/16W

LOCATION PARTS NO. DESCRIPTION

R3017 401 224 8801 MT-GLAZE 100 JA 1/16W R3018 401 225 7902 MT-GLAZE 220 JA 1/16W

S3001 645 053 3822 SWITCH,DETECTOR 1P-1T S3002 645 045 2857 SWITCH,PUSH,

CN141 645 069 7548 SOCKET,CARD(SD) 1(N.S.P) CN182 645 075 2056 PLUG,PWB-WIRE 10P(N.S.P) CN301 645 073 0061 SOCKET,FPC 18P (N.S.P) CN302 645 063 4598 SOCKET,PWB-PWB 60(N.S.P) CN303 645 073 7770 SOCKET,FPC 12P (N.S.P)

(SWITCHES)

(CONNECTORS)

COMPL PWB,ST-1

636 091 3745

Q5405 405 170 0308 TR CPH5504-E Q5407 405 183 4003 TR 3LN01S-TL-E Q5409 406 019 6505 TR CY25BAH-8F-T13 F10

IC541 409 623 9108 IC RD3CYD08CM D5402 407 237 8302 DIODE CRF02,Q

D5403 407 233 9709 DIODE RR264M-400 D5404 407 205 5203 DIODE RB521S-30 D5405 407 247 4004 DIODE RR255M-400 D5407 407 162 8507 DIODE DAN222 OR 407 151 6507 DIODE MA132WK

T5401 645 068 7129 TRANS,STEP UP T5402 645 069 2420 TRANS,STEP UP

C5401 403 381 6201 POS-SOLID 33U M 8V C5402 403 155 1807 CERAMIC 0.01U K 25V C5403 403 357 3302 CERAMIC 0.01U K 630V C5404 403 276 1304 CERAMIC 1000P K 50V C5405 403 383 5004 CERAMIC 1U K 16V C5407 403 317 1706 CERAMIC 6800P K 25V C5408 403 276 1304 CERAMIC 1000P K 50V C5410 403 428 3408 CERAMIC 0.018U K 350V C5412 404 098 1008 ELECT 60U A 300V C5413 403 317 1706 CERAMIC 6800P K 25V

R5401 401 224 9006 MT-GLAZE 10K JA 1/16W R5402 401 225 7902 MT-GLAZE 220 JA 1/16W R5403 402 077 7409 MT-GLAZE 100K JKG 1/8W R5404 402 079 0200 MT-GLAZE 220K JKG 1/8W R5405 402 099 5902 MT-GLAZE 10M FKE 1/8W R5406 401 262 9006 MT-GLAZE 91K DC 1/16W R5407 401 224 9006 MT-GLAZE 10K JA 1/16W R5408 401 225 7902 MT-GLAZE 220 JA 1/16W R5409 401 224 9600 MT-GLAZE 2.7K JA 1/16W R5410 401 224 9303 MT-GLAZE 1K JA 1/16W R5411 401 224 9303 MT-GLAZE 1K JA 1/16W R5413 401 224 9006 MT-GLAZE 10K JA 1/16W R5414 401 224 9303 MT-GLAZE 1K JA 1/16W

CN541 645 071 1060 SOCKET,FPC 12P (N.S.P)

(SEMICONDUCTORS)

(INTEGRATED CIRCUIT) (DIODES)

(TRANSFORMERS)

(CAPACITORS)

(RESISTORS)

(CONNECTORS)

LOCATION PARTS NO. DESCRIPTION

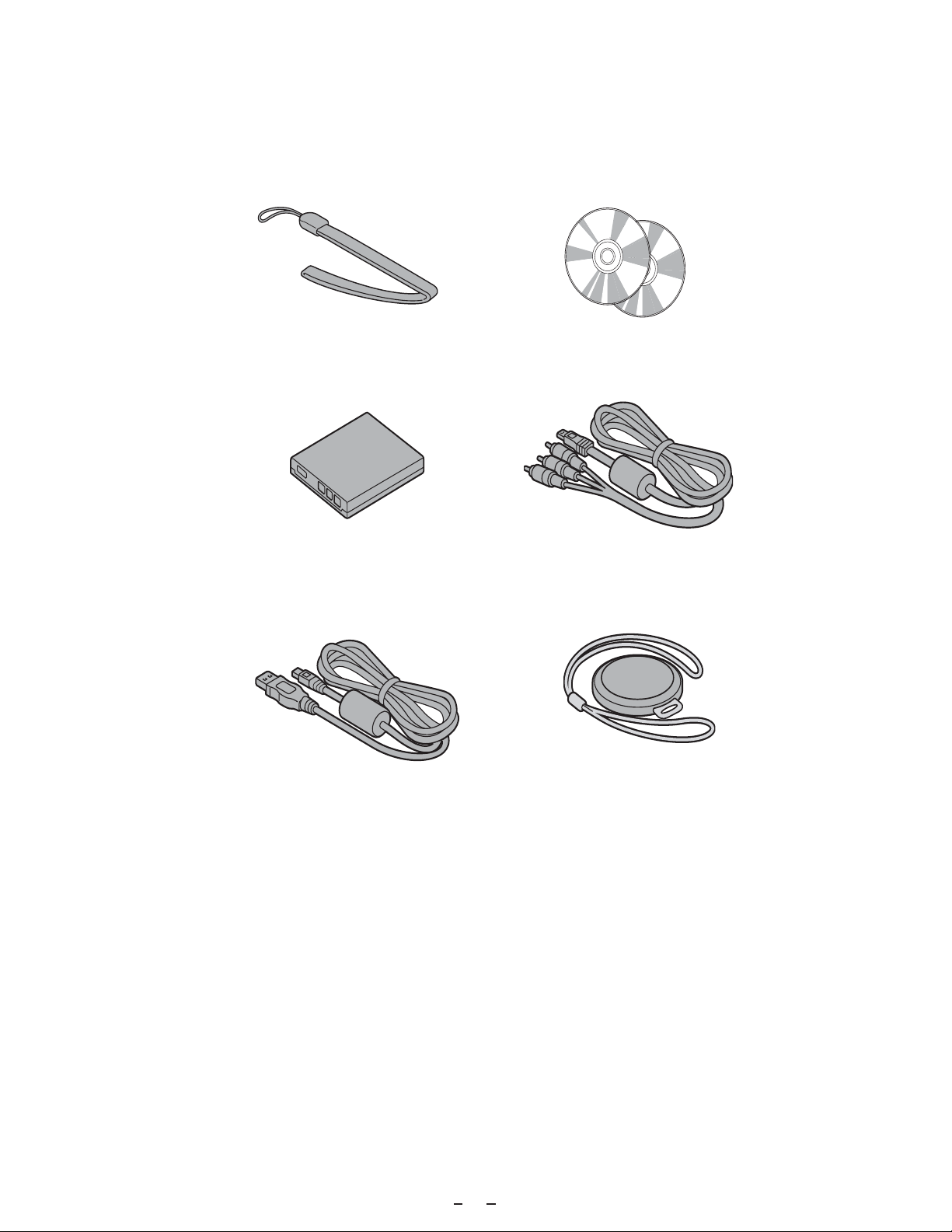

ACCESSORIES

1 636 092 1474 STRAP -SX814/J 2 645 081 7090 DISC,CD-ROM SSP 814 U1 (N.S.P.) 2 645 081 7106 DISC,CD-ROM SSP 814 U2 (N.S.P.) 3 645 063 5816 BATTERY,RECHARGE,LI-ION 4 645 080 8470 CABLE,DSC A/V 5 645 080 8463 CABLE,DSC USB 6 636 078 4789 ASSY,CAP LENS-SX613/J2,

645 080 1846 ADAPTOR,AC-DC 645 076 0228 CORD,POWER-1.5MK,VPC-C40 ONLY 645 080 8876 CORD,POWER-1.2MK,VPC-C40E ONLY

OR 645 036 7434 CORD,POWER-1.2MK,VPC-C40E ONLY

645 076 0235 CORD,POWER-1.5MK,

OR 645 057 1503 CORD,POWER-1.2MK,

636 091 6944 INSTRUCTION MANUAL

VPC-C40,VPC-C40EX

VPC-C40EX,VPC-C40GX VPC-C40EX,VPC-C40GX (CAMERA, SOFT, English)

PACKING MATERIALS

636 092 1405 CARTON INNER-SX814/EX, 636 092 1399 CARTON INNER-SX814/U,VPC-C40

636 061 9258 CUSHION SHEET-SP451/JO, 636 078 4659 CUSHION SHEET-SX792/KRNK, 636 092 1436 REINFOECE PAD,A-SX814/J

VPC-C40EX,VPC-C40E,VPC-C40GX

VPC-C40EX,VPC-C40E VPC-C40,VPC-C40GX

LOCATION PARTS NO. DESCRIPTION

CABINET & CHASSIS PARTS 1

1 636 089 9766 COVER BATTERY-SX814/J 2 636 089 9971 HOLDER STRAP-SX814/J 3 636 089 9674 CABINET LEFT-SX814/J 4 636 089 9834 DEC GRIP FRONT-SX814/J 5 636 089 9841 DEC GRIP BACK-SX814/J 6 636 080 4289 SPACER CABI LEFT-SX718/J 7 636 082 4874 SPACER CABI LEFT2-SX718/J 8 636 076 5337 SPACER LENS-SX613/J 9 636 072 3634 SPACER LENS LEFT-SX613/J 10 636 081 9108 SPRING COVER BAT-SX718/J 11 636 072 3474 LEVER COVER BATT-SX613/J 12 636 072 3443 HOLDER STAND-SX613/J 13 636 090 0202 STAND-SX814/J, 14 636 091 8566 SPACER WIRE FLASH-SX814/J 15 636 091 3745 COMPL PWB,ST-1 16 636 080 3756 SPACER F CON-SX718/J 17 636 094 1885 SHIELD TAPE FRASH-SX814 18 636 080 7907 FLEXIBLE PWB,718 ST1-SY1 19 636 072 3481 RING LENS-SX613/J 20 636 089 9698 CABINET FRONT-SX814/J 21 636 089 9995 HOLDER CABI FRONT-SX814/J 22 636 072 3351 DEC FLASH-SX613/J 23 645 068 7945 ASSY,LAMP-SX718 24 636 080 3725 SPACER FLASH-SX718/J 25 636 072 3184 ADHESIVE DEC FLASH-SX613 26 636 089 9704 CABI FRONT INNER-SX814/J 27 636 072 3450 HOLDER RING A-SX613/J 28 636 072 3924 HOLDER RING B-SX613/J 29 636 094 1908 SPACER CP1_A-SX814 30 636 090 0899 SPACER CP1 B-SX814/J 31 636 090 0219 SHIELD CP1-SX814/J 32 636 090 0189 SPACER CP1-SX814/J 33 636 092 8794 COMPL PWB,CP-1(F/W) 34 636 092 1726 COMPL PWB,SY-1(F/W) 35 636 089 9773 COVER CARD-SX814/J 36 645 082 0519 LENS(ASSY) 37 645 083 7012 OPTICAL FILTER 38 636 070 2134 SPACER 39 636 091 9723 COMPL PWB,CA-1 SV-SX814 40 645 069 3199 UNIT,CONTROL-SX718/J2 101 412 067 5407 SP SCR HMPN1.7X5A NEW-R 102 411 018 3509 SCR PAN PCS 1.7X4.0 103 411 175 5705 SCR PAN PCS 1.7X3 104 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0 105 411 177 6502 SCR S-TPG PAN PCS 1.7X4 106 411 189 3100 SCR PAN PCS 1.4X4 107 411 018 2304 SCR PAN PCS 1.7X3 108 411 181 8707 SCR S-TPG PAN PCS 1.4X3.5 109 412 064 5905 SPECIAL SCREW-1.4X1.5

CABINET & CHASSIS PARTS 1

107

104

108

103

104

105

106

101

102

SX814/J Parts List 1

104

109

103

101

LOCATION PARTS NO. DESCRIPTION

CABINET & CHASSIS PARTS 2

1 636 080 0311 SPRING BUTTON-SX718/J 2 636 080 0250 HOLDER JOINT-SX718/J 3 636 089 9544 BUTTON LCD-SX814/J 4 645 079 5725 SPEAKER,8 5 636 089 9452 ASSY,BUTTON POWER-SX814/J 6 636 089 9681 CABINET RIGHT-SX814/J 7 636 082 4072 SPACER LENS RIGHT-SX718/J 8 636 076 5337 SPACER LENS-SX613/J 9 636 081 5032 DEC LCD-SX718/J2 10 636 089 9926 DEC RIGHT-SX814/J 11 636 081 1256 SPACER CABI RIGHT-SX718/J 12 636 080 2766 COVER JOINT-SX718/J 13 636 091 4025 COMPL PWB,TB-1 14 636 091 9303 ASSY,WIRE VF1&CP1-2-SX814 15 636 091 9310 ASSY,WIRE VF1&SY1-SX814/J 16 636 091 9297 ASSY,WIRE VF1&CP1-1-SX814 17 636 080 2612 ASSY,JOINT-SX718/J 18 636 089 9469 ASSY,COVER JOINT BASE-814 19 636 089 9537 BADGE-SX814/J 20 636 089 9643 COVER LCD BACK-SX814/J 21 645 070 3638 MICROPHONE 22 636 080 2797 HOLDER MIC-SX718/J 23 636 094 1915 SPACER LCD-SX814 24 636 094 1861 SHIELD TAPE LCD-SX814 25 636 091 3752 COMPL PWB,VF-1 26 636 090 0172 SPACER VF-SX814/J 27 636 089 9988 HOLDER MONITOR-SX814/J 28 636 091 9341 ASSY,WIRE WHITE-SX814/J 29 636 091 9358 ASSY,WIRE PINK-SX814/J 30 636 093 7123 SPACER LCD BACK-SX814/J 31 636 094 1472 ADHESIVE LCD BACK-SX814/J 32 645 080 4175 LCD(COM18T1850GLB) 33 636 089 9780 COVER LCD FRONT-SX814/J 34 636 094 1878 SHIELD TAPE RIGHT-SX814 104 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0 110 412 060 9501 SPECIAL SCREW-1.7X2.5 111 411 181 2705 SCR PAN PCS-1.4X2 112 411 184 0005 SCR PAN PCS 1.7X2.0 113 411 186 8207 SCR PAN PCS-1.4X3 114 411 178 6204 SCR PAN PCS 1.7X4

CABINET & CHASSIS PARTS 2

110

104

110

113

1617

113

111

110

112

114

SX814/J Parts List 2

110

112
