Sanyo CCTV range 2009

Sharper CCTV technology

SANYO Solar Ark

Delivering over 40 years of CCTV

Over 40 years experience in the CCTV industry has enabled SANYO to produce
a CCTV product range that is one of the most comprehensive, easy to use and install
and reliable in the industry. This coupled with our industry renowned technical back up
and service support makes SANYO a popular choice for installers and end users alike.

Contents

CAMERAS (6 - 25)

High-Definition Camera
Network Cameras
High-Speed Dome Cameras
Advanced Wide Dynamic Range Cameras
Pan Focus Cameras
30x Zoom Cameras
Colour & Day / Night Cameras
Vandal Resistant & Mini Dome Cameras

RECORDING (26 - 29)

Digital Hard Disk Recorders

CONTROLLERS (30)

VSP-9000
VSP-8500
VAC-70

MONITORS (31 - 33)

LCD Monitors
Colour Metal Case Monitors
Weatherproof Outdoor LCD Monitor
Industrial LCD Monitor

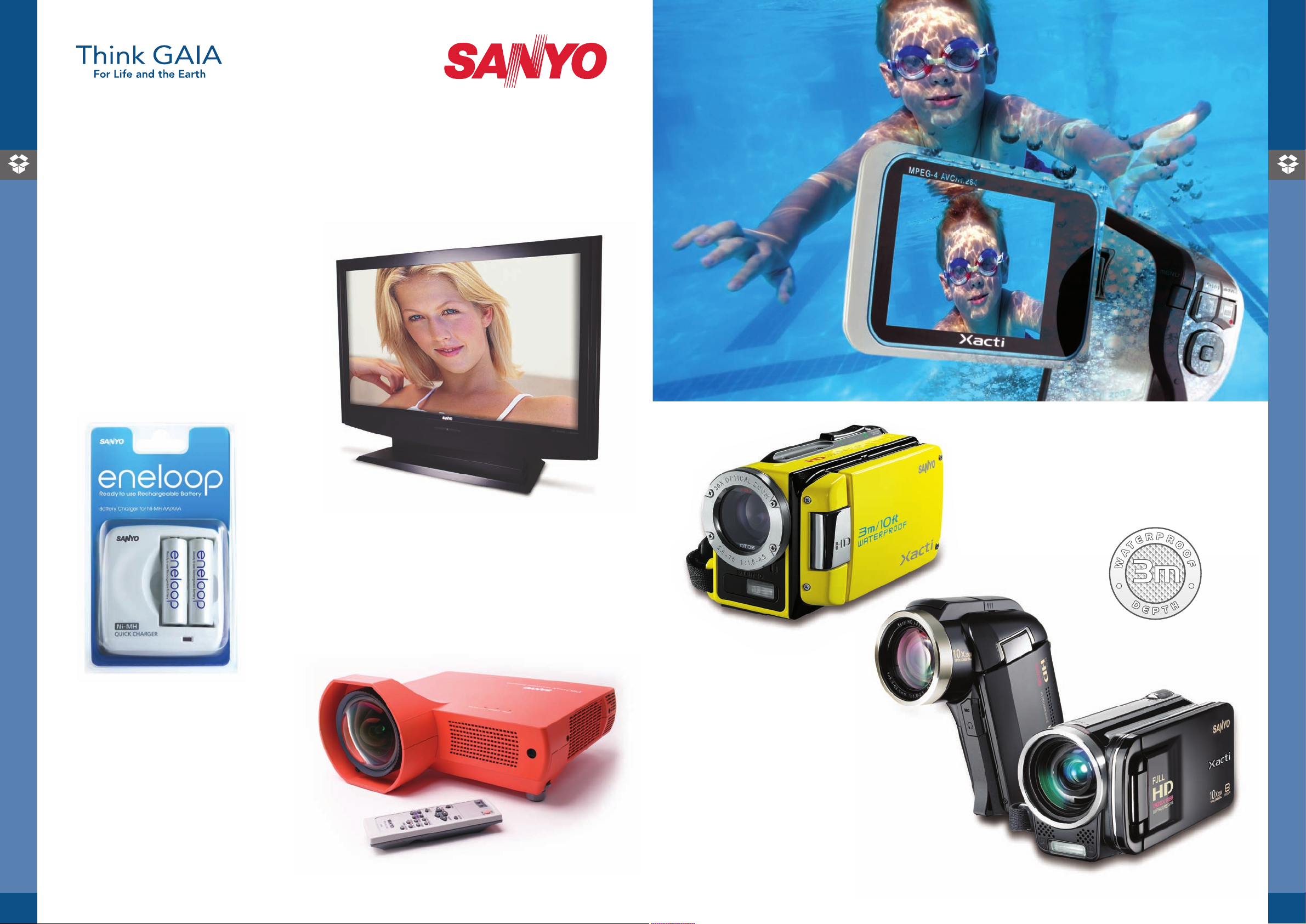

PRODUCT RANGE (34 - 35)

HD Ready TV
Eneloop Batteries
Education Projectors
Xacti Waterproof Camera
Xacti High Definition Camera

Capturing quality images

From image capturing to recording and downloading SANYO can provide the solution

CC-WD8875P Advanced Wide Dynamic Range Camera

V

Control Keyboard with backlit LCD touchscreen VCC-HD4000P Full HD MegaPixel Camera VCC-P7575PA Pan-Focus Camera

Digital Hard Disk Recorder

CC-9500/9600/9700/9800 Speed Dome Camera

V

OPTION

DAY NIGHT

R/G/B

30x

36x

WD

AWD

VAC 70

HD

Network

Network/Option

Day/Night Camera

Colour Camera

30 x Zoom Lens

36 x Zoom Lens

Wide - Dynamic

Advanced Wide - Dynamic

Vandal Resistant

VAC 70 Compatible

High Definition

A product for every application

In 2009 we are pleased to be able to further enhance our already
extensive product range with more technological enhancements
which enable you to utilise next generation technology today.
Our Full High Definition camera the VCC-HD4000P offers a level
of picture quality not previously seen in CCTV cameras.
Our new Advanced Wide Dynamic Range cameras use a new
advanced image processing engine to achieve images comparable
with those achieved with the human eye.

These ground-breaking technologies allied to our comprehensive
range of DVR's, Pan Focus camera range and fully functional dome
cameras mean we are perfectly placed to ensure a successful year
for all of our customers

he HD Camera features include:

T

CAMERAS

• Full HD (1920 x 1080/25p) H.264 Network camera

• 4 million pixel progressive scan CMOS image sensor for ultimate surveillance video quality

CAMERAS

• Latest H.264 compression technology enable to stream very high resolution real time moving image to the network

• Simultaneous stream of H.264 and JPEG data and also high resolution HDMI video out

• Internal recording to SD/SDHC card or HDD via USB for alarm / network failure to safe guard data integrity

• HDMI output(1080i) for Full High Definition video monitoring

• Optical 10x zoom mega pixel lens for optimum image quality

• 16x digital zoom for further image enlargement without losing vital detail

High Definition

Full HD (1920 x 1080/25p) H.264 Network camera

Our high definition camera uses groundbreaking technology to offer improved picture quality, giving vast
improvement in image sharpness. The dual streaming of H.264 and JPEG enable high definition recording,
(internally or externally) and real time H.264 live monitoring at the same time. Images can be recorded onto
SD/SDHC memory card and also to a external hard drive via USB.

These features allied with a 4 million mega pixel progressive scan sensor and 10 x built in optical zoom lens mean
crystal clear images are available for a range of applications and situations where it was not previously possible.
Ideal for banking, retail and all remote surveillance applications, the VCC-HD4000P brings broadcast quality
imaging to the CCTV industry.

VCC-HD4000P

Full-High Definition network zoom camera

NETWORK

• H.264 / JPEG dual streaming and Video output

• Video out : COAX or HDMI output

• H.264 Image Data Size (16:9) : 1920 x 1080, 1280 x 720, 960 x 540,

640 x 360, 320 x 180 H.264 Image Data Size (4:3) : 1080 x 864,
720 x 576, 360 x 288

• JPEG image data size (16:9): 1920 x 1080, 1280 x 720, 1024 x 576,

640 x 360 JPEG image data size (4:3): 2288 x 1712, 1600 x 1200,
1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240

• Bandwidth Max 12 Mbps

• Independent streaming

H.264 Frame rate max 25ips (1920 x 1080)
JPEG Frame rate max 1ips (2288 x 1712)

• Simultaneous streaming

H.264 Frame rate max 25ips (640 x 480)
JPEG Frame rate max 25ips (640 x 480)

• Support SANYO Dynamic DNS for fixed host name

• Schedule transmission of image (FTP) / e-mail (SMTP)

• Alarm transmission of image (FTP) / e-mail (SMTP)

• Internal Alarm Buffer

• Max. 16 user access

• Power over Ethernet

• Internet Explorer access

• VA-SW3050LITE viewing software

HD

DAY NIGHT

CAMERA

• 1/2.5" CMOS 4Mega pixel

• 10x Optical Zoom & 16x digital Zoom

• IR sensitive with mechanical IR Cut filter release

• Minimum illumination 0.1lx (B/W, F1.8, Gain High) 2lx (colour)

• 3 mode Backlight Compensation

• Electronic Shutter

• Sensitivity Boost

• Optical Zoom upon Alarm in / Motion detection

• Alarm out upon Motion detection

• External Alarm terminal In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu set-up by VAC-70

• Internal recording to SD/SDHC memory card or External HDD via USB

• DC12-15V/AC24V/PoE

OPTIONS

• Wide conversion lens

• VA-HDC4000 HDD Caddy

A standard network camera image A SANYO (HD) network camera image

Full technical specification online at www.uk.sanyo.com

6

SANYO CCTV - Next Generation Technology

7

CAMERAS

CAMERAS

Network Cameras

SANYO’s Network Cameras are full of great features

SANYO network camera and network optional board
with the latest H.264 compression technology provide
the optimum surveillance applications with high quality
real time moving image at low bandwidth.

Simultaneous stream of H.264 and JPEG data and also
COAX video out to provide flexible solution for digital
and analogue combined system.

A network camera is a system that allows the user
to view the image captured by a camera on a network­connected PC. The camera is suitable for remote
surveillance systems, distribution of live video, and other
security systems and supports JPEG/H.264. Its ability to
transmit stable video over a network makes it an ideal
choice for remote surveillance. Images monitored over
a network can be checked using a general-purpose web
browser (Internet Explorer) or Network Monitoring
Software VA-SW50, VA-SW60 and VA-SW3050.

Transmission using 2 types of codecs

For video compression, H.264, optimized for transmission of moving
images over a network with low bit transfer rates, is used to enable
real-time high image-quality monitoring, and for still images JPEG is
used to offer high image-quality in a common image format. Monitoring
can be performed according to the user's application, so that any
important scene is not missed.

Use of a PC for Monitoring

By simply using a standard web browser, like Internet Explorer, on a
personal computer, the user has access to the full color video image
from the camera. The 30x optical zoom function of the 600 series
makes it possible to obtain a clear picture, even in the zoom-in mode.
Recording the JPEG image on a PC is also possible by the use of
VASW3050S (for server) software.

Power-over-Ethernet (PoE)

The VCC-N6695P, VCC-ZMN600P and VCC-XZN600P support the IEEE

802.3af standard for Power-over-Ethernet (PoE) application to allow
power to be supplied over LAN cabling. In addition to making installation
easier, this allows camera installation in places where it would
otherwise be difficult to secure a power source.

E-mail Function

A setting for automatic sending of mail (up to 5 addresses can be set)
is provided. By using this setting, an alarm notification e-mail can be
set when an alarm is detected. Or, e-mails can be sent at regular
intervals. In either case, an image can be attached to the e-mail.

Schedule Setting

Timer sending or alarm notification can be performed during a
specified time period. The following 5 functions are provided: TIMER
(SMTP) for timer sending of e-mail, TIMER (FTP) for timer sending
of images via FTP mode, ALARM (SMTP) for e-mail notification of an
alarm, ALARM (FTP) for sending of alarm images via FTP mode,
and REMOTE ALARM "ACTIVE" for enabling camera alarm output 2
by remote operation.

Audio Communication & Remote
Operating

Selected products support bi-directional audio communication
and remote operation using alarm output terminal.

Full technical specification online at www.uk.sanyo.com

8

SANYO CCTV - Next Generation Technology

9

Network Cameras

CAMERAS

CAMERAS

VCC-ZMN600P

Day/Night Zoom Network Camera

NETWORK

• H.264 / JPEG dual streaming and COAX Video output

• H.264 Frame rate max 25ips (720 x 576)

• JPEG Frame rate max 25ips (720 x 576)

• Support SANYO Dynamic DNS for fixed host name

• Schedule transmission of image (FTP) / e-mail (SMTP)

• Alarm transmission of image (FTP) / e-mail (SMTP)

• Internal Alarm Buffer

• Max. 16 user access

• Power over Ethernet

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA

• 1/4" CCD, 540Tvl Resolution

• 30x Optical Zoom & 16x digital Zoom

• IR sensitive with mechanical IR Cut filter release

• Minimum illumination 0.04lx (B/W, F1.4, Gain High) 0.8lx (colour)

• 3 mode Backlight Compensation

• 13 mode Electronic Shutter Speeds

• 32x Sensitivity Boost

• Image Stabilizer

• Optical Zoom upon Alarm in / Motion detection

• Alarm out upon Motion detection

• External Alarm terminal In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu set-up by VAC-70

• DC12-15V/AC24V/PoE

DAY NIGHT

30x

VCC-XZN600P

Weatherproof Day/Night Zoom Network Camera

NETWORK

• H.264 / JPEG dual streaming and COAX Video output

• H.264 Frame rate max 25ips (720 x 576)

• JPEG Frame rate max 25ips (720 x 576)

• Support SANYO Dynamic DNS for fixed host name

• Schedule transmission of image (FTP) / e-mail (SMTP)

• Alarm transmission of image (FTP) / e-mail (SMTP)

• Internal Alarm Buffer

• Max. 16 user access

• Power over Ethernet

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA

• IP66 weatherproof housing for easy external installation

• 1/4" CCD, 540Tvl Resolution

• 30x Optical Zoom & 16x digital Zoom

• IR sensitive with mechanical IR Cut filter release

• Minimum illumination 0.04lx (B/W, F1.4, Gain High) 0.8lx (colour)

• 3 mode Backlight Compensation

• 13 mode Electronic Shutter Speeds

• 32x Sensitivity Boost

• Image Stabilizer

• Optical Zoom upon Alarm in / Motion detection

• Alarm out upon Motion detection

• External Alarm terminal In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu set-up by VAC-70

• DC12-15V/AC24V/PoE

OPTIONS

• DPTCH : Pole Mount Adapter

• DCWGH : Corner Mount Adapter

• VA-XZBX : Back box

DAY NIGHT

30x

NEW

VCC-N6695P

High-Resolution Colour/Mono Network Camera

NETWORK

• H.264 / JPEG dual streaming and COAX Video output

• H.264 Frame rate max 25ips (720 x 576)

• JPEG Frame rate max 25ips (720 x 576)

• Support SANYO Dynamic DNS for fixed host name

• Schedule transmission of image (FTP) / e-mail (SMTP)

• Alarm transmission of image (FTP) / e-mail (SMTP)

• Internal Alarm Buffer

• Max. 16 user access

• Power over Ethernet

• Network settings reset switch

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA

• 1/3" CCD, 540 TVL Resolution

• Automatically switch to B/W (non-IR sensitive)

• Colour / DN setting selectable

• Minimum illumination 0.25lx (B/W, F1.2, Gain High) 0.35lx (colour)

• 2 mode Backlight Compensation

• Electronic iris

• External Alarm terminal In (1) Out (1)

• CS mount

• DC iris lens only

• DC12-15V/AC24V/PoE

DAY NIGHT

10

Full technical specification online at www.uk.sanyo.com

SANYO CCTV - Next Generation Technology

11

Network Recording

CAMERAS

CAMERAS

VA-80LAN / VA-82LAN

Network option board for
PTZ High Speed Dome Cameras

• H.264 / JPEG dual streaming and COAX Video output (VA-82LAN)

• JPEG streaming and COAX Video output (VA-80LAN)

• H.264 Frame rate max 25ips (720 x 576) (VA-82LAN)

• JPEG Frame rate max 25ips (720 x 576) (VA-82LAN)

• JPEG Frame rate max 25ips (720 x 286) (VA-80LAN)

• Bi-directional Audio

• Support SANYO Dynamic DNS for fixed host name (VA-82LAN)

• Schedule transmission of image (FTP) / e-mail (SMTP)

• Alarm transmission of image (FTP) / e-mail (SMTP)

• Scheduled Auto-mode (SEQ/APN/TOUR/PRESET/AUX)

• Internal Alarm Buffer

• Max. 16 user access

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA

Please refer VCC-9500/9600/9700/9800 series specifications

DSR-HB8000

Hybrid DVR

• 16ch DVR/NVR can record up to 8 SANYO network cameras

(JPEG Video)

• Network PTZ camera control

• Monitor plus function to operate another 4units DSR-HB8000

• Support NAS (Network Attached Storage)

• Max. 20 network user access

• Network Utility software

• Internet Explorer access

• Central Management Software (Connect up to 4 DVR's)

OPTION

• Central Management Software USB Key

(Connect up to 100 DVR's and MAP function)

VA-SW3050S / VA-SW3050C

Network Recording Software

• Record and monitoring up to 128 SANYO network cameras (JPEG Video & Audio)

(Maximum 16 cameras recording per PC recommended)

• Network PTZ camera control

• Time/Date search

• 16 / 4 / 1 Screen display

• Timer /Alarm recording

• Max 10 Client per Server (each Client PC requires VA-SW3050C)

• Client access to Server (Playback) using Windows Share folder facility

• Client access to Server (Playback) over Router using VPN

Network Cameras

VA-50LAN / VA-51LAN

Network option board for Pan-Focus Cameras

NETWORK

• JPEG streaming and COAX Video output

• JPEG Frame rate max 25ips (720 x 286)

• Bi-directional Audio (VA-51LAN)

• Internal Alarm Buffer

• Max. 16 user access

• Power over Ethernet (VA-51LAN)

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA Please refer VCC-P7575PA, VDC-DP7585P specifications

VA-20LAN

Network option board for Pan-Focus Weatherproof Camera

NETWORK

• JPEG streaming and COAX Video output

• JPEG Frame rate max 25ips (720 x 286)

• Internal Alarm Buffer

• Max. 16 user access

• Internet Explorer access

• VA-SW3050LITE viewing software

CAMERA Please refer VCC-XZ200P specifications

NEW

VA-SW60 (ENTERPRISE EDITION)

Video Management software

• Client / Server system

• Unlimited number of camera support

• SANYO DVRs supported (live view / remote recording / PTZ

camera operation via DVR)

• Unlimited number of client access

• Client can be connected to multiple server

• Time-lapse recording and Motion recording

• Network PTZ camera operation

• User friendly GUI operation

• JPEG & H.264 live / record support

NEW

VA-SW50 (ADVANCED EDITION)

Video Management software

• Client / Server system

• Up to 16 camera

• Up to 5 clients

• Client can be connected to multiple server

• Time-lapse recording and Motion recording

• Network PTZ camera operation

• User friendly GUI operation

• JPEG & H.264 live / record support

10

12

Full technical specification online at www.uk.sanyo.com

13

CAMERAS

Model Selector

Select the perfect camera for your application by entering

CAMERAS

the options listed in the diagram below.

Optional Accessories

30x & 36x Optical Zoom High-Speed Dome Cameras

VCC-9700P

x36 Colour PTZ High Speed Dome Camera

36x

R/G/B

OPTION OPTION

VA-80BP

Indoor Pendant
MountingBracket

VA-80BW

Wall Mount Bracket

VA-80A

Indoor Dome
BackCover

NETWORK OPTION

VA-80 LAN Jpeg
VA-82 LAN Jpeg/H.264

VCC-9800P

x36 Day/night PTZ High Speed Dome Camera

36x

DAY NIGHT

VA-80AC

Corner MountBracket
forVA-80BW

VA-80AP

PoleMount Bracket
forVA-80BW

VA-80AB

SwanNeckBracket
Adapter

The camera makes it possible to capture the image of exact point
of surveillance with high speed panning of 435º/sec. between pre-set
positions. This accurate mechanism is capable of capturing quickly
moving objects and objects approaching the camera when it is zoomed in.

VCC-9500P

x30 Colour PTZ High Speed Dome Camera

• 540 TV lines

• ¼” colour CCD

• 30x optical zoom

• 16x digital zoom

• Lens f=3.5-105 mm, F1.4 – 3.7, 30x optical zoom

• Minimum illumination 0.8 lx (F1.4, 50IRE,Gain: high)

• Panning speed 435°/sec (1-120°/sec at manual)

• 128 preset position

• 8 alarm inputs/2 alarm outputs

• Motion detection

• Digital auto flip

• Backlight compensation

• Extended privacy masking (24x)

• Network (optional)

• 24V AC operation

30x

R/G/B

OPTION

VCC-9600P

x30 Day/Night PTZ High Speed Dome Camera

• 540 TV lines

• ¼” colour CCD

• x30 optical zoom

• x16 digital zoom

• Lens f=3.5-105 mm, F1.4 – 3.7,

• Day/Night function

• Minimum illumination0.04lx (F1.4, 50IRE,B/Wmode)

• Panning speed 435°/sec. (1-120°/sec at manual)

• 128 preset position

• 8 alarm inputs/2 alarm outputs

• Motion detection

• Digital auto flip

• Backlight compensation

• Extended privacy masking (24x)

• Network (optional)

• 24V AC operation

30x

DAY NIGHT

OPTION

• 540 TV lines

• ¼” colour CCD

• x36 optical zoom

• x16 digital zoom

• Lens f=3.4-122.4 mm, F1.6 – 4.5

• Minimum illumination 1.0 lx (F1.6, 50IRE, Gain: high)

• Panning speed 435°/sec (1-120°/sec at manual)

• 256 preset position

• 8 alarm inputs/2 alarm outputs

• Image Stabilizer

• Motion detection

• Digital auto flip

• Backlight compensation

• Automatic pursuit

• Extended privacy masking (24x)

• Network (optional)

• 24V AC operation

• 540 TV lines

• ¼” colour CCD

• x36 optical zoom

• x16 digital zoom

• Lens f=3.4-122.4 mm, F1.6 – 4.5, 36x optical zoom

• Day/Night Function

• Minimum illumination 0.05lx (F1.6, 50IRE, B/W mode)

• Panning speed 435°/sec. (1-120°/sec at manual)

• 256 preset position

• 8 alarm inputs/2 alarm outputs

• Image Stabilizer

• Motion detection

• Digital auto flip

• Backlight compensation

• Automatic pursuit

• Extended privacy masking (24x)

• Network (optional)

• 24V AC operation

14

Full technical specification online at www.uk.sanyo.com

15

CAMERAS

CAMERAS

Full of fantastic features...

Advanced Wide Dynamic Range Cameras

New CMOS sensor delivers the widest dynamic range yet.

SANYO Advanced Image processing engine produces
richer and smoother gradations than previously possible.

New and advanced linear output method captures quick
motion with great stability and reproduces contours with
a clarity never previously achieved.

Premium Bayer Mosaic RGB filter delivers highly realistic
and vivid colours.

Auto White Balancing System ensures consistent
and natural lifelike colours.

High sensitivity with minimum illumination of 0.8 lux allows
dimly lit subjects to be reproduced in fantastic colour.

Digital Noise Reduction achieves images virtually
free of noise.

Enhanced surveillance that compares favourably to the human eye

Reproducing images more naturally and with greater
clarity, the SANYO “Advanced WDR” Surveillance
Camera achieves significantly greater dynamic range
utilizing SANYO’s own innovative technologies.

By adopting a radically new linear output method,
SANYO has created a security-optimized camera

delivering superb performance under varying light
conditions and one which utilizes a new “retina-morphic
processing algorithm” for capabilities approaching the
human retina. Surveillance now reaches a higher level
of performance than thought possible.

Advanced WDR Image Procession System

VCC-W8775P / W8770P

Advanced Wide-D Colour Camera

• 1/3" CMOS, 550 TVL Resolution

• Wide Dynamic range 65dB

• SANYO AIP Engine

• Digital Noise Reduction

• Minimum illumination 0.8lx (F1.2)

• Backlight Compensation

• 8 mode Electronic Shutter Speeds

• Electronic iris

• Remote Menu set-up by VAC-70

• CS mount

• DC iris lens only

• DC12-15V/AC24V (VCC-W8775P)

• AC220-230V (VCC-W8770P)

AWD AWD

NEW NEW

R/G/B

VAC 70

VCC-WD8875P / 8870P

Advanced Wide-D Day/Night Camera

• 1/3" CMOS, 550 TVL Resolution

• IR sensitive with mechanical IR Cut filter release

• Wide Dynamic range 65dB

• SANYO AIP Engine

• Digital Noise Reduction

• Minimum illumination 0.08lx (B/W, F1.2) 0.8lx

(colour)

• Backlight Compensation

• 8 mode Electronic Shutter Speeds

• Electronic iris

• Remote Menu set-up by VAC-70

• CS mount

• DC iris lens only

• DC12-15V/AC24V (VCC-WD8875P)

• AC220-230V (VCC-WD8870P)

DAY NIGHT

VAC 70

16

Full technical specification online at www.uk.sanyo.com

17

CAMERAS

CAMERAS

The vandal-resistant dome camera that makes installation easy
and features a Pan-Focus lens for a picture that’s always in focus

Realises a high-definition picture and a reduction of resources
spent on installation and management with a Pan-Focus lens that
brings all points on screen into focus while maintaining a horizontal
resolution of more than 520 TV lines. Mountable on ceilings and
walls and enclosed in a rugged, weatherproof housing (IP66 rating)
that provides protection against the elements for outdoor use and
allows it to withstand attempts by intruders to disable it.

More than this, it analyses changes in the area under surveillance
and senses moving objects in the field of view via a motion
detector; allows surveillance on a 24/7 basis under conditions
of both day and night; and enables the development of more robust
surveillance systems.

Pan-Focus Range

When using a varifocal lens, objects in front and behind
the main focus point appear blurred. This has led to the
development of deep-focus techniques allowing
simultaneous focusing on all objects in the field of view.
Early research and development by SANYO has resulted

Pan-Focus Lens Image

• Clear focusing on shooting area with great depth of field.

• No focus adjustments.

• Remote zoom adjustment possible with VAC-70 camera

control unit and VA-50ST board option.

in the successful product development of a x2.6 pan-focus
lens offering a picture with a greater depth of field.

Now clearer pictures, even of distant objects, can be
achieved with cameras for surveillance applications.

Varifocal Lens Image

• Clear focusing on a specific area

• Manual focus adjustments

• Manual zoom adjustments

18

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

19

Colour Dome Cameras - Internal Use Dome Cameras - Vandal Resistant

Weatherproof Camera

CAMERAS

CAMERAS

OPTION

OPTION

R/G/B

VAC 70

VCC-P7575PA

Pan-Focus Colour
Dome Camera

• ¼” Interline Transfer Method CCD

• 520 TV Lines of Horizontal Resolution

• 2.6x Motorised Zoom Pan Focus Lens

• Minimum Illumination 1.9 Lux (F1.9 High Gain)

• Motion Detection

• Privacy Masking

• Remote Zoom/Focus/Menu Set-up via Coax

• Easy Installation, Adjustment and Set-up

• 24 V AC / 12V to 15V DC

OPTIONS

• VA-50ST – Twisted Pair, NVT, SSP

• VA-50LAN Network option board (Motion JPEG)

• VA-51LAN Network option board (PoE, Audio)

• VCZ-50 Smoked Cover

• VA-DK02 Flash Mount Bracket

DAY NIGHT

VAC 70

VDC-DP7585P

Pan-Focus Day/Night
Vandal Resistant Dome Camera

• ¼” Interline Transfer Method CCD

• 520 TV Lines of Horizontal Resolution

• IP66 Rated

• Vandal Resistant Mini Dome

• 2.6x Motorised Zoom Pan-Focus Lens

• Minimum Illumination 1.2Lux (F1.9 Colour)

0.06Lux (F1.9 B/W)

• Motion Detection

• Privacy Masking

• Remote Zoom/Focus/Menu Set-up via Coax

• Easy Installation, Adjustment and Set-up

• 12-15V DC / 24V AC

OPTIONS

• VA-50ST – Twisted Pair, SSP, NVT

• VA-50LAN Network Option Board (Motion JPEG)

• VA-51LAN Network Option Board (PoE, Audio)

• VA-DK02 Flash Mount Bracket

• VA-50H – Heater for Pan-Focus range

VCC-XZ200P

Pan-Focus Day/Night Weatherproof Zoom Camera

CAMERA

• 1/4” Interline Transfer Method CCD

• IP66 Rated

• External Housing

• 520 TV Lines of Horizontal Resolution

• Minimum Illumination 1.2 Lux (F1.9, Colour Mode)

0.06 Lux (F1.9, B/W Mode)

• 2.6 X Motorised Zoom Pan-Focus Lens

VAC 70

DAY NIGHT

OPTION

• Motion Detection

• Privacy Masking

• Remote Zoom / Focus / Menu Set-Up Via Coax
(with Optional VAC-70)

• 24 V AC / 12V To 15V DC

• Easy Installation, Adjustment and Set-Up

OPTIONS

• VA-20ST – Twisted Pair, NVT, SSP

• VA-20LAN – Network Option Board (Motion JPEG)

• VA-50H – Heater for Pan-Focus Range

• DPTCH – Pole Mount Adapter

• DCWGH – Corner Mount Adapter

• VA-XZBX – Back box

Exceptionally tough vandal resistant covers

Rugged Construction

SANYO’s Pan-Focus Dome Cameras are housed in an exceptionally tough
die-cast aluminium enclosure and a polycarbonate dome for extra durability
under the most demanding of conditions. To protect against tampering,
the fixing screws of the enclosure cover have a unique shape that prevents
it from being opened with ordinary tools.

IP66 Rated Weatherproof Design

The camera’s protective enclosure safely meets the IP66 standard
for resistance against water and dust.

Optional Accessories

• VA-DK02 Flash-mount bracket

• VCZ-50 Smoked Cover (For Internal Dome)

Accessories for Pan-Focus Cameras

VA-50LAN - Jpeg Expansion board for network connection
for VDC-DP7585P and VCC-P7575PA.
Please refer to Page 13 for further detail.

VA-51LAN – Jpeg Expansion board for network connection
for VDC-DP7585P and VCC-P7575PA.
Please refer to Page 13 for further detail.

VA-50ST – SSP + Twisted pair board for VDC-DP7585P and
VCC-P7575PA. Enables the control via RS-485 (SSP/PELCO-D)
and coaxial cable (SSP/H-SSP/PELCO-C), Twisted pair Terminal
(CAT5) for Video signal (NVT built-in UTP video)

VA-20LAN - Jpeg Network board for Pan-Focus VCC-XZ200P
Please refer to Page 13 for further details

VA-20ST – SSP + Twisted pair board for VCC-XZ200P
Enables the control via RS-485 (SSP/PELCO-D) and coaxial cable
(SSP/H-SSP/PELCO-C) , Twisted pair Terminal (CAT5) for Video
signal (NVT built-in UTP video)

VA-50H - Heater board for Pan-Focus VCC-XZ200P,
VDC-DP7585P, VDC-DPN9585P and VDC-DP9585P
The heater board protects the camera from cold weather.
It allows the camera to operate at temperatures of -30°C to +50°C
and with humidity within 90%. (For VDC-DP9585P, AC24V use only)

• VA-50BW - Wall mounting bracket (indoor use)

• VA-50BPL - Ceiling suspension bracket (long)

• VA-50BPS - Ceiling suspension bracket (short)

• VA-50AL - VA-50BW attachment (Vandal Resistant Pan-Focus Dome)

• VA-50AS - VA-50BW attachment (Internal Pan Focus Dome)

• VCZ-50 - Smoked cover for Pan-Focus Camera

• VA-DK02 - Flash Mount Bracket for:

Pan-Focus Domes (Internal & Vandal Resistant)
Vandal Resistant Domes
VCC-9685VP

20

SANYO CCTV - Next Generation Technology

21

30x Zoom Cameras

CAMERAS

CC-XZ600P

V

Weatherproof Day/Night Zoom Camera

CAMERAS

• IP66 weatherproof housing for easy external installation

• 1/4" CCD, 540Tvl Resolution

• 30x Optical Zoom & 16x digital Zoom

• IR sensitive with mechanical IR Cut filter release

• Minimum illumination 0.04lx

(B/W, F1.4, Gain High) 0.8lx (colour)

• 3 mode Backlight Compensation

• 13 mode Electronic Shutter Speeds

• 32x Sensitivity Boost

• Image Stabilizer

• Optical Zoom upon Alarm in / Motion detection

• Alarm out upon Motion detection

• External Alarm terminal In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu set-up by RS485 & COAX

(Pelco-D, Pelco-C, SANYO RS485, SANYO COAX, VAC-70)

• Twisted pair video (NVT)

• DC12-15V/AC24V

OPTIONS

• DPTCH : Pole Mount Adapter

• DCWGH : Corner Mount Adapter

• VA-XZBX : Back box

DAY NIGHT

V

AC 70

30x

Colour & Day/Night Cameras

SANYO’s range of Colour and

Day/Night cameras are perfect for

a host of different applications

VCC-ZM600P

Day/Night Zoom Camera

• 1/4" CCD, 540Tvl Resolution

• 30x Optical Zoom & 16x

digital Zoom

• IR sensitive with mechanical

IR Cut filter release

• Minimum illumination 0.04lx(B/W,

F1.4, Gain High) 0.8lx (colour)

• 3 mode Backlight

Compensation

• 13 mode Electronic Shutter

Speeds

• 32x Sensitivity Boost

• Image Stabilizer

VCC-ZM500P

Colour Zoom Camera

• 1/4" CCD, 540Tvl Resolution

• 30x Optical Zoom & 16x digital Zoom

• Minimum illumination 0.8lx

(Max AGC)

• 3 mode Backlight Compensation

• 13 mode Electronic Shutter Speeds

• 32x Sensitivity Boost

• Optical Zoom upon Alarm in /

Motion detection

DAY NIGHT

R/G/B

VAC 70

30x

• Optical Zoom upon Alarm in /

Motion detection

• Alarm out upon Motion

detection

• External Alarm terminal

In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view

settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu

set-up by RS485 & COAX
(Pelco-D, Pelco-C, SANYO
RS485, SANYO COAX, VAC-70)

• Twisted pair video (NVT)

• DC12-15V/AC24V

VAC 70

30x

• Alarm out upon Motion detection

• External Alarm terminal In (2) Out (1)

• 8 Zoom Preset position

• 2 Pre-defined camera view settings

• 4 Privacy masking

• Remote Zoom/Focus/Menu set-up

by RS485 & COAX
(Pelco-D, Pelco-C, SANYO RS485,
SANYO COAX, VAC-70)

• DC12-15V/AC24V

VCC-6695P/6690P

High-Resolution Colour/Mono Camera

• 1/3" CCD, 540Tvl Resolution

• Automatically switch to B/W

(non-IR sensitive)

• Colour / DN setting selectable

• Minimum illumination 0.25lx (B/W,

F1.2, Gain High) 0.35lx (colour)

• 2 mode Backlight Compensation

VCC-5995P

High-Resolution Colour Camera

• 1/3" CCD, 540 TVL Resolution

• Compact size cabinet

W63 x H68 x D52mm

• Minimum illumination 0.5lx (F1.2,

Gain High)

• Center-Zone Backlight

DAY NIGHT

• 8 mode Electronic Shutter Speeds

• Electronic iris

• CS mount

• DC iris lens only

• DC12-15V/AC24V (VCC-6695P)

• AC220-230V (VCC-6690P)

R/G/B

NEW

(VCC-6690P only)

Compensation

• Electronic iris

• CS mount

• DC iris lens only

• DC12-15V/AC24V

NEW

VCC-4790P / 4795P

High-Resolution Day/Night Camera

• 1/3" CCD, 540Tvl Resolution

• IR sensitive with mechanical

IR Cut filter release

• Minimum illumination 0.01lx (B/W,

F1.2, Gain High) 0.45lx (colour)

• 2 mode Backlight Compensation

DAY NIGHT

• 7 mode Electronic Shutter Speeds

• Electronic iris

• CS mount

• DC iris lens only

• DC12-15V/AC24V (VCC-4795P)

• AC220-230V (VCC-4790P)

22

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

23

Vandal Resistant Dome Cameras

CAMERAS

CAMERAS

WD

VDC-W1595VP

Vandal resistant Wide Dynamic Range Camera

• 1/3" CCD, 480Tvl Resolution

• IP66 rated

• Vandal resistant

• Dual exposure wide dynamic mode (54dB)

• 2.6mm to 6.0mm Auto Iris Varifocal lens

• Minimum illumination 1.0lx (F1.4)

• Wall and Ceiling mount

• DC12-15V/AC24V

OPTIONS

• VA-DK02 : In-ceiling bracket

DAY NIGHT

VDC-D1585VP

Vandal resistant Day/Night Camera

• 51/3" CCD, 520Tvl Resolution

• IP66 rated

• Vandal resistant

• IR sensitive with mechanical IR Cut filter release

• 2.6mm to 6.0mm Auto Iris Varifocal lens

• Minimum illumination0.05lx (B/W, F1.4) 1.0lx (colour)

• Backlight Compensation

• Wall and Ceiling mount

• DC12-15V/AC24V

OPTIONS

• VA-DK02 : In-ceiling bracket

NEW

Mini Dome Camera

24

R/G/B

VDC-C1575VP

Vandal resistantColour Camera

• 1/3" CCD, 520Tvl Resolution

• IP66 rated

• Vandal resistant

• 2.6mm to 6.0mm Auto Iris Varifocal lens

• Minimum illumination 1.0lx (F1.4)

• Backlight Compensation

• Wall and Ceiling mount

• DC12-15V/AC24V

OPTIONS

• VA-DK02 : In-ceiling bracket

DAY NIGHT

VDC-D1785IRVP

Vandal resistant Day/Night Dome Camera
with IR LED

• 1/3" CCD, 540 TVL Resolution

• 18 IR LEDs (850nm)

• IP67 rated

• Vandal resistant

• 3.7mm to 12mm Auto Iris Varifocal IR lens

• Minimum illumination 0lx (B/W, F1.4, LED ON)

0.7lx (colour)

• Backlight Compensation

• Wall and Ceiling mount (surface / embedded)

• DC12V/AC24V

VCC-9685VP

High-Resolution Colour Mini Dome Camera

R/G/B

• 1/4" CCD, 540Tvl Resolution

• 2.8mm to 8mm Auto Iris Varifocal lens

• Minimum illumination 0.5lx (F0.95)

• 2 mode Backlight Compensation

• 4 mode Electronic Shutter Speeds

• Wall and Ceiling mount

• DC12-15V/AC24V

OPTIONS

• VA-10T : Twisted pair video board(NVT)

• VCZ-50 : Smoked dome cover

• VA-DK02 : Flash mount bracket

25

RECORDING

RECORDING

DSR HB8000 Centred Network System

Realize high-quality recording and delivery of streams from up to 16 analogue and IP camera in real-time

NAS

NETWORK
ATTACHED
STORAGE

Digital Hard Disk Recorders

Whether you require the highest digital quality, extensive capacity, ultimate flexibility
or simply a reliable recording CCTV system, SANYO can provide the right solution.

DSR-HB8000

Hybrid Digital Video Recorder

• Monitor Plus enables monitoring of up to 80 cameras

• Camera coaxial telemetry control

• Hybrid specs for connection of up to 16 analogue

and IP cameras (8 units max.)

• Expandable large capacity HDD for up to 3.75 TB

(750GB x 5 bays) including removable drive

• Simultaneous recording and playback

• Live picture monitoring (400 IPS/16 ch)

• Real-time recording speeds for high picture quality:

400 IPS (360 x 288), 200 IPS (720 x 288),
100 IPS (720 x 576)

• Versatile full network capability

• Central Management Software

PTZ Cameras + Network Board

Up to eight IP cameras connectable to network:

System Controller

N

etworked control

Analogue Cameras

Up to 16 units connectable in total with IP cameras

Monitor

Full motion playback of camera feeds
ranging from full to 16 screen display

Printer

Audio Input

Keyboard

Mouse

Alarm

Out

(x16)

of surveillance cameras

E

asy to manage data storage with
large capacity HDD for up to 3.75
TB of data

• One system disk (S-ATA)

• TwoS-ATAHDD bays

• One removable S-ATA HDD tray

• TwoHDD w/S-ATA cards

PCI bus/S-ATA
expansion board for
functional upgrading

Easy Backup

• Internal DVD/CD drive

• Internal Removable

In

HDD(S-ATA)

• USB 2.0 ports
(front x 2, rear x 2)

Alarm

(x16)

Camera Coaxial Telemetry Control

The DSR-HB8000 allows the user to control PTZ and zoom
cameras. The unit transmits H-SSP signals by overlaying them
on to the video signal through a coaxial cable. This makes
it possible to control cameras that support coaxial HSSP
transmission without any additional device other video cable,
and also from a SANYO controller or over a network. In addition,
Pelco and BBV cameras can also be controlled if they support
coaxial signal transmission.

DVR 1

DSR-HB8000

Adoption of MPEG-4+ for high-quality moving pictures

The DSR-HB8000 employs a unique image compression format
called MPEG-4+, which has been adapted for speedy, high-quality
data transmission over a network and special fastforward and
reverse playback. The conventional MPEG-4 format can of course
also be selected to meet a broad range of needs, including long­term image recording, high-quality audio playback and secure
transmission of control signals.

PC

Text Input

Network

TCP/IP Access

Emulation of up to
four networked
external DVR servers

VA - EXH

External HDD Storage

AVE Video serial
interfaces for
POS/ATM*

*To be confirmed

DVR 2

DSR-HB8000

DVR 3

DSR-HB8000

DVR 4

DSR-HB8000

DVR 5

DSR-HB8000

Monitor Plus

Feeds from up to 80
surveillance cameras
can be monitored from
a single monitor.

ATM

POS

26

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

27

Expert digital security systems

RECORDING

RECORDING

New digital security systems
integrating analogue and IP
cameras into a single system

The DSR-HB8000’s hybrid design allow concurrent connection
and control of both IP network and conventional analogue
cameras. Up to four IP cameras such as network pan-focus
PTZ cameras or the PTZ cameras with network board options
can be connected for use with analogue cameras for a total
of 16 surveillance cameras in all.

Up to 8 IP Cameras

IP Cameras Analogue Cameras

Up to 16 Analogue Cameras

DSR-5709PD/DSR-5716PD

9/16-Channel Hard Disk Recorder with CD/DVD Writer

• HDD recorder with 9 or 16 channel multiplexer

• Simultaneous recording and playback at 100 IPS

• Picture Resolution 720 x 288 (pixels)

• Live picture monitoring at 450 (50 x 9) IPS/800 (50 x 16) IPS

• Built-in H-SSP controller with camera telemetry control

• Network Capability

• JPEG2000 compression

• VA-SW5000 DVR management software

OPTIONS

• VZU-SATB1, S-ATA board for VA-EXH Connection

DSR-5716P/DSR-5709P

9/16-Channel Hard Disk Recorder

• HDD recorder 9 or16 channel multiplexer

• Simultaneous recording and playback at 100 IPS

• Picture Resolution 720 x 288 (pixels)

• Live picture monitoring at 450 (50 x 9) IPS/800 (50 x 16) IPS

• Built-in H-SSP controller with camera telemetry control

• Network Capability

• JPEG2000 compression

• VA-SW5000 DVR management software

OPTIONS

• VZU-SATB1, S-ATA board for VA-EXH Connection

DSR-2004

4-Channel Hard Disk Recorder

• MPEG 4 Compression

• Up to 100ips Recording rate

• Simultaneous Record and Playback

• Camera telemetry (Front panel and Network operation) via RS485

• Motion detection

• Pre & Post Alarm recording

• 4ch Audio recording

• Time/Date, event and timeline search

• Full integration with LAN connection

• USB 2.0 port (Flash drive) for data download (JPEG & AVI)

• COAX and VGA monitor out (exclusive)

• IR remote control

• 4 Alarm input, 1 Alarm output

• Compact Size 350mm width

DSR-2016

16-Channel Hard Disk Recorder

• MPEG 4 Compression

• Up to 200ips Recording rate

• Simultaneous Record and Playback

• Camera telemetry (Front panel, Controller & Network operation) via RS485

• Motion detection

• Pre & Post Alarm recording

• 4ch Audio recording

• Time/Date, event and timeline search

• Full integration with LAN connection

• Built in CD writer & USB 2.0 port (Flash drive) for data

download (JPEG & AVI)

• COAX and VGA Main monitor out (exclusive)

• COAX spot monitor out

• IR remote control

• 16 Alarm input, 4 Alarm output

28

Via Ethernet Via Video Cable

DSR-HB8000

These models feature the following:

• JPEG 2000 Compression Technology

• Network Capability: Live/Playback/Multichannel Download

• Telemetry Control and Preset upon Alarm recording

• Storage Capacity with External HDD Unit VA-EXH or RAID unit

• Special 'Region of Interest' feature (ROI) - Variable resolution

within an image

VA-EXH

• External HDD Unit for DSR-57XX series

• Storage for up to 4 HDD's

• HDD Size up to 3Tb

29

System Controllers

Monitors

MONITORS

A range of monitors including LCD and

RTs. Sizes vary from 15” to 20”, providing

VSP-9000 Touch-Screen Control Keyboard

SYSTEM CONTROLLERS

The VSP-9000 keyboard allows the control of SANYO Digital Recorders and dome cameras
through the implementation of the proprietor Marco Protocol. The Graphical User Interface
(GUI) and control keys can be tailored to meet the needs of the individual end user, making
it a very easy yet flexible solution. Additional pictures or maps can be imported on to the
main screen to enable ease of identification and direction.

C
high quality displays for any application.

VMC-L2019P

19" LCD video & data monitor

• 500Tvl Resolution (Y/C input)

VSP-9000

Touch-Screen Control Keyboard

• Touch Screen Control Keyboard

• Telemetry Control

• Graphic Display 320x240 pixels

• Three axis Joystick

• Communication

- RS485 Serial Communication
towards DVR
Two Independent RS485
Telemetry Lines

- RS 232C/485 Serial Communication
towards PC for Software Configuration

• Virtual Keyboard Touch Screen

• Possibility to customise start up screen

• Possibility to customise 26 maps and 40 virtual keys

• 4:3 SXGA LCD panel

• 1000:1 contrast ratio

• 300 cd/m2 brightness

• Viewing angle 160 deg(H/V)

• Picture in Picture

• 2 composite BNC in/out

• 1 Y/C in/out

• 1 VGA input

• 2 Audio inputs (1W+1W stereo speaker)

• Height and Tilt adjustment

VSP-8500

Control Keyboard

• Three axis joystick (Pan/Tilt/Zoom)

• Four line backlit LCD display

• Up to 256 units of RS485 equipment can be controlled.

(up to 98units DVRs, 254units cameras (port A & B) and
1unit Matrix switcher)

• 5 x VSP-8500 can be used in a RS485 system

• Communication, 1 x RS485 Video port, 2 x RS485

Independent telemetry port

Single Camera Controller

The VAC-70 is a remote camera controller
compatible with many SANYO cameras, and allows
the user remote control for easy set-up

VMC-L2017P

17" LCD video & data monitor

• 500Tvl Resolution (Y/C input)

• 4:3 SXGA LCD panel

• 1000:1 contrast ratio

• 300 cd/m2 brightness

• Viewing angle 160 deg(H/V)

• Picture in Picture

• 2 composite BNC in/out

• 1 Y/C in/out

• 1 VGA input

• 2 Audio inputs (1W+1W stereo speaker)

• Height and Tilt adjustment

Colour Metal Case Monitor

VMC-8615FP

15" High-Res Colour Video Monitor

• More than 800 TV Lines

• 3 Channels of Audio and Video

(2 composite, 1 S-VIDEO) Input /
Output Selectable from the Front
Panel

• Images Signal Input / Output

Terminal allows a Bridge
Connection (75 ohms/ High
Impedance Automatic Switching)

• Built-in Compact Loudspeaker(1W)

• Automatic Voltage selector,

AC 100 V to 240 V

• Durable Metal Cabinet

• Multi-system Compatibility to

detect PAL or NTSC Input Signals
Automatically

• Overscan / Underscan Selectable

from Front Panel

• 2 Composite, 1 s-video, 2 Audio

Inputs Selectable from Front Panel

30

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

31

Professional LCD Monitors

MONITORS

MONITORS

Model

Type
IP rating
Screen size (diagonal image)
Active screen area (W x H)
Aspect ratio

esolution in pixels

R
Pixel pitch

rightness

B

ontrast ratio

C
Viewing angle
Response time
Grey scale value
Number of colours
Colour Systems
Computer compatibility

Input terminals

Output terminals

Operating temperature
Maximum resilience
Voltage
Power consumption
Dimensions (W x H x D)
Weight
Vesa mounting sizes
Colour of cabinet
Warranty
Standard accessories

Optional accessories

Touch Panel

SANYO has developed an especially high-performance
range of professional monitors for all areas of ap plication

- whether in traditional environments, places with oil,
dust and smoke, or even outdoors in all conditions,

ncluding rain, snow and extreme temperatures from

i
–20 °C to +45 °C. High-quality components and materials
combined with sophisticated solutions designed down to
the smallest detail translate into the uncompromising
quality of SANYO LCD monitors.

WEATHERPROOF ROBUSTSUNLIGHT READABLE PROFESSIONAL

42LM5WP

Liquid crystal display panel
IP66*
42" (105 cm)

93.0 x 52.3 cm
16 : 9

,366 x 768 (WXGA)

1

0.227 x 0.681 mm

2

00 cd/m

5

,500 : 1

1
178° (horizontal and vertical)
6 ms (gray to gray)
8 bit

16.7 M
PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 6 W)

–20 °C to +45 °C (winter mode)

2

100 N/mm
100–240 V (50/60 Hz)
200 W/2 W (stand-by mode)
1,027 x 620 x 167.5 mm

35.5 kg
200 x 200 mm
Silver
2 years
User manual, remote control,
batteries, power cable
PJ Net Organizer Plus (POA-LN01)
LCD200 Bracket
LCD200 Security Bracket
–

52LH1WP

Liquid crystal display panel
IP66*
52" (132 cm)

115.2 x 64.8 cm
16 : 9

,920 x 1,080 (HDTV 1.080p)

1

0.2 x 0.6 mm

2

00 cd/m

5

,500 : 1

1
176° (horizontal and vertical)

6.5 ms (gray to gray)
8 bit

16.7 M
PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 10 W)

–20 °C to +45 °C (winter mode)

2

100 N/mm
100–240 V (50/60 Hz)
290 W/2 W (stand-by mode)
1,304 x 800 x 236 mm
74 kg
997 x 420 mm, 420 x 516 mm
Silver
2 years
User manual, remote control,
batteries, power cable
PJ Net Organizer Plus (POA-LN02)

–

All monitor solutions can be installed horizontally
or vertically (portrait mode). Solutions also feature
advanced technologies such as a sunlight readable
monitor, an environmentally friendly solution for excellent

nd efficient image reproduction even in direct sunlight.

a
SANYO LCD monitors are the top choice in the following

three areas of application where impressive and
bright images are required, regardless of the location
or situation:

42SR1

Liquid crystal display panel
IP66*
42" (105 cm)

93.0 x 52.3 cm
16 : 9

,366 x 768 (WXGA)

1

0.227 x 0.681 mm
ax 1,500 cd/m

M
sunlight

.500 : 1

1
178° (horizontal and vertical)
8 ms (gray to gray)
8 bit

16.7 M

PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 6 W)

–20 °C to +45 °C (winter mode)
100 N/mm
100–240 V (50/60 Hz)
240 W/2 W (stand-by mode)
1,027 x 620 x 167.5 mm

38.5 kg

200 x 200 mm
Silver
2 years
User manual, remote control,
batteries, power cable
PJ Net Organizer Plus (POA-LN01)
LCD200 Bracket
LCD200 Security Bracket
–

2

ith ideal condition under

w

2

42SRE1

Liquid crystal display panel
–
42" (105 cm)

93.0 x 52.3 cm
16 : 9

,366 x 768 (WXGA)

1

0.227 x 0.681 mm
ax 1,500 cd/m2 with ideal

M
conditions under sunlight

,500 : 1

1
178° (horizontal and vertical)
6 ms (gray to gray)
8 bit

16.7 M

PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
3,5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 6 W)
0 °C to +35 °C
–
220–240 V (50 Hz)
188 W/1.2 W (stand-by mode)
1,032 x 625 x 127 mm

22.5 kg

400 x 400 mm, 800 x 400 mm
Black / Silver
2 years
User manual, remote control,
batteries, power cable, base
–

–

WEATHERPROOF MONITORS

LCD monitors for all indoor and outdoor installations

ubject to water exposure or temperature variation

s

ROBUST MONITORS

Protection against oil, smoke and dust. Robust, reliable

erformance in even the most adverse conditions.

p

SUNLIGHT READABLE MONITORS

Transflective monitor structure uses light and sunlight
as a light source for higher image brightness

52SR1

Liquid crystal display panel
IP66*
52" (132cm)

115.2 x 64.8cm
16 : 9

920 x 1080 (HDTV 1080P)

1

1.2 x 0.6 mm
70 cd/m Max> 1000c/dm with ideal

9
conditions under sunlight

.500 : 1

1
176° (horizontal and vertical)

6.5 ms (gray to gray)

8 bit

16.7 M

PAL, NTSC3.58 (AV in), SECAM
VGA, SVGA, XGA, SXGA, WXGA, UXGA

DVI- D (digital/HDCP)
D-Sub 15,
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 X RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr),
Component (Y, Pb, Pr),
BNC (Video)
RS232 (D-Sub 9 pin)

–20 °C to +45 °C (winter mode)

2

100 N/mm
100–240 V (50/60 Hz)
290 W
1,304 x 800 x 234.5 mm

83.5 kg

997 x 420 mm, 420 x 516 mm
Silver
2 years
User manual, remote control,
power cable
POA-LN02 (network module)
ONE-TP-S (wall mount bracket)

–

42LM5R

Liquid crystal display panel
–
42" (105 cm)

93.0 x 52.3 cm
16 : 9

,366 x 768 (WXGA)

1

0.227 x 0.681 mm

2

00 cd/m

5

,500 : 1

1
178° (horizontal and vertical)
6 ms (gray to gray)
8 bit

16.7 M
PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 6 W)

0 °C to +45 °C
–
100–240 V (50/60 Hz)
200 W/2 W (stand-by mode)
1,027 x 620 x 162 mm

35.5 kg
200 x 200 mm
Silver
2 years
User manual, remote control,
batteries, power cable
PJ Net Organizer Plus (POA-LN01),
LCD200 Bracket
LCD200 Security Bracket
–

52LH1R

Liquid crystal display panel
–
52" (132 cm)

115.2 x 64.8 cm
16 : 9

,920 x 1,080 (HDTV 1,080p)

1

0.2 x 0.6 mm

2

00 cd/m

5

,500 : 1

1
176° (horizontal and vertical)

6.5 ms (gray to gray)
8 bit

16.7 M
PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA, SVGA, VGA

DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB), Video
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio

3.5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 10 W)

0 °C to +45 °C
–
100–240 V (50/60 Hz)
290 W/2 W (stand-by mode)
1,304 x 800 x 236 mm
66 kg
997 x 420 mm, 420 x 516 mm
Silver
2 years
User manual, remote control,
batteries, power cable
PJ Net Organizer Plus (POA-LN02)

–

42LE1

Liquid crystal display panel
–
42" (105 cm)

93.0 x 52.3 cm
16 : 9

,366 x 768 (WXGA)

1

0.227 x 0.681 mm

2

00 cd/m

5

,500 : 1

1
178° (horizontal and vertical)
6 ms (gray to gray)
8 bit

16.7 M
PAL, NTSC3.58 (AV in), SECAM
UXGA, WXGA, SXGA, XGA,
SVGA, VGA
DVI-D (digital/HDCP)
D-Sub15
5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
3,5 mm Stereo Jack for Audio

5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr)
Component (Y, Pb, Pr)
BNC (Video)
Scart (RGB)
RS232 (D-Sub 9 pin)
2 x RCA (R/L mono) for Audio
External speaker output (2 x 6 W)
0 °C to +35 °C
–
220–240 V (50 Hz)
188 W/1.2 W (stand-by mode)
1,032 x 625 x 127 mm

22.5 kg
400 x 400 mm, 800 x 400 mm
Black
2 years
User manual, remote control,
batteries, power cable, base
–

–

Model

Type

Screen size (diagonal image)

Active screen area (W x H)

Computer compatibility

Operating temperature

Dimensions (W x H x D)

Standard accessories

IP rating

Aspect ratio

esolution in pixels

R

Pixel pitch

rightness

B

ontrast ratio

C

Viewing angle

Response time

Grey scale value

Number of colours

Colour Systems

Input terminals

Output terminals

Maximum resilience

Voltage

Power consumption

Vesa mounting sizes

Optional accessories

Weight

Colour of cabinet

Warranty

Touch Panel

32

Special features

Anodized aluminium case,
anti-reflective tempered glass,
24h/7 approved, portrait mode,
extensive input & output terminals

* IP = Protection class

Anodized aluminium case,
reinforced, 24h/7 approved,
portrait mode, anti-reflective
tempered glass, extensive input
& output terminals

Sunlightreadable – adaptive
brightness in accordance with
prevailing light conditions,
anti-reflective temperedglass,
anodized aluminium case, 24h/7
approved, portrait mode, extensive input
& output terminals

Sunlightreadable – adaptive
brightness in accordance with
prevailing light conditions,
24h/7 approved, portrait mode,
extensive input & output terminals

SunlightReadable - adapative brightness in
accorandace with prevailing ligt conditions,
weatherproof, reinforce anti-reflective
temperedglass, anodized aluminium case,
24/7 approved, extensiveinput & output
terminals

Protection against oil, smoke and dust,
anodized aluminium case, 24h/7
approved, portrait mode, anti-reflective
acrylic panel, extensive input & output
terminals

Protection against oil, smoke and dust,
anodized aluminium case, 24h/7 approved,
portrait mode, anti-reflective acrylic panel,
extensive input & output terminals

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

24h/7 approved, portrait mode,
slim frame, extensive input &
output terminals

Special features

33

SANYO PRODUCTS

SANYO PRODUCTS

Other great SANYO products on the market

Throughout all of SANYO's activities worldwide, there are common strands - environmental awareness innovative technologies - user friendly
procedures - and underlying all of these is the basic philosophy of a company who believes in the twin tenets of enhancing human lives
and using technological advances to create a better world. These are just some of our latest products which represent these core values.

HD Ready LCD Televisions

SANYO now has it’s widest ever range of LCD TV’s. This 52”
model is our largest TV to date. Features include a full 1080p
picture resolution, a high contrast ratio of 1000:1 and an ultra
wide viewing angle of 178 degrees. With an in-built digital tuner,
this TV is set to meet the demands of the consumer looking to
invest in a large screen, state of the art HD ready television.

Xacti Waterproof Camera

Introducing to you the world’s first high definition fully waterproof
Dual Camera. Perfectly at home whether used above or below water,
in fact it’s the only Dual Camera you will ever need. Fully submersible
to 3 metres it’s the perfect travel companion, take it to the sea,
the pool, skiing or a sandy beach.

Evolutionary Eneloop Batteries

Eneloop is a combination of a rechargeable and a disposable battery, the next
evolutionary step for batteries into the 21st century. The key-advantage of the
eneloop compared to usual rechargeable batteries is its extremely low self-discharge.
Once charged, eneloop keeps its charge even if you store it for 6 or 12 months.
For a rechargeable battery this is a revolutionary advantage. No more worries
about the state of charge of your battery. Just, charge them and keep them.

Education Projectors

SANYO have developed one of the first projectors specifically
for the education market - with the emphasis clearly placed
on security. The SANYO SafeGuard Projector has been
designed with the needs of schools, colleges and universities
in mind. With a host of anti-theft features, the SafeGuard is
fully protected from increasing levels of theft and comes
fully approved by the Crime and Loss Prevention Board.

High Definition
Dual Cameras

The new range of SANYO Xacti Dual Cameras
include the worlds first Dual Camera to offer 1080p
high defintiion recording at 60fps, this allied with
still images at a fantastic 8mp mean the Dual
Camera is more than just a camcorder.

34

Full technical specification online at www.uk.sanyo.com SANYO CCTV - Next Generation Technology

35

SANYO Piccadilly Circus, London, Since 1980

01923 477226 01923 477225 [e-mail] www.uk.sanyo.com

Because SANYO’s policy is one of continuous improvement, it is possible that alterations to specifications may have occurred since printing. For clarification on any point, please contact your local appointed dealer,

Whilst every care is taken to ensure that the details in this brochure are correct at time of going to press, they are intended as a guide only and do not constitute an offer.

or write to SANYO at the address shown on the website. All companies brands featured in this brochure are trademarks and are the copyright of their respective owners. All rights reserved.
