INSTRUCTION MANUAL
COLOR CCD CAMERA
About this manual
• Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
VCC-9624
COLOR VIDEO CAMERA LIMITED WARRANTY
SANYO INDUSTRIAL VIDEO
In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and
addresses of Authorized Sanyo Service Centers may be obtained by writing to SFS Corporation, SFC’s warranty administrator, at any of the addresses listed below, or by calling (toll-free) 1-800-421-5013.
New Jersey Office
210 Riser Road
Little Ferry, NJ 07643
201-641-3000
THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED OR RENTED IN THE UNITED STATES OF AMERICA, EXCLUDING HAWAII AND ALL U.S. TERRITORIES AND PROTECTORATES. THIS
WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER. THE ORIGINAL DATED BILL OF SALE, SALES SLIP OR RENTAL AGREEMENT MUST BE SUBMITTED TO THE AUTHORIZED SANYO SERVICE CENTER
AT THE TIME WARRANTY SERVICE IS REQUESTED.
Subject to the OBLIGATIONS above and EXCLUSIONS below, SANYO FISHER (USA) CORPORATION warrants this SANYO product against defects in materials and workmanship for the periods specified below. SFC
will repair or replace (at its option) the product and any of its parts which fail to conform to this warranty. The warranty period commences on the date the product was first purchased or rented at retail.
California Office
1200 W. Artesia Blvd.
Compton, CA 90220
310-537-5830
LABOR PARTS IMAGE DEVICE
2 YEARS 2 YEARS 2 YEARS
This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the repair of any product whose serial number has been altered, defaced
or removed.
This warranty shall not apply to the cabinet or cosmetic parts, antenna, knobs, batteries or image burns to projection or picture tubes caused by electronic devices or games.
This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.
This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized
service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, incorrect power line voltage, fire,
flood or other Acts of God, or normal wear and tear.
The foregoing is in lieu of all other expressed warranties and SFC does not assume or authorize any party to assume for it any other obligation or liability.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT
SHALL SFC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS
UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please fill in the infor mation below for you own personal records.
Model No._____________________________________________________________________ Serial No. _____________________________________________________________________
Date of Purchase _______________________________________________________________ Purchase Price_________________________________________________________________
OBLIGATIONS
EXCLUSIONS
ATTENTION
(Located on back or bottom side of unit.)
Illinois Office
900 N. Arlington Heights Rd.
Itasca, IL 60143
708-775-1414
Where Purchased _________________________________________________________________________________________________________________________________________________
18 English
INFORMATION TO USER
Safety Guard
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING
THIS UNIT.
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK , DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Pour la clientèle canadienne
Cet appareil numerique de la Classe B est conforme a la norme
NMB-003 du Canada.
This installation should be made by a qualified service person and
should conform to all local codes.
English 1
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by Sanyo may
void the user’s authority to operate this camera.
CONTENTS
FEATURES
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PARTS NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PREPARATIONS AND CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONNECTIONS AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 8
SETTINGS AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Accessories
Screws for base installation
(4 x 35 tapping screws)
The rated value label is located on the back of the camera.
• Built-in interline transfer method 1/3" CCD, approx. 410,000
picture elements
• Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device
• Built-in Vari Focal type auto iris lens, F=2.0 - 2.7, f=2,6 - 5.6 mm
• 100% solid state components giving excellent immunity to shock
and vibration
• Not subject to interference from magnetic or electrostatic fields
• High sensitivity mininum required illumination is approx. 6 lux at
F2.0
• TTL auto-white balance, auto-tracking system
• With manual PAN/TILT/ROUND mechanism
• Horizontal resolution, more than 470 TV lines
• Power supply: 24 V AC operation
2 English
PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from the
unit, or if it seems not to function correctly. Disconnect the power
cord immediately, and consult your dealer (or a Sanyo Authorized
Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For internal settings and repairs, consult your dealer (or a
Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside
the camera. If used with a foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power cord
immediately, and consult your dealer (or a Sanyo Authorized Service
Centre). Be careful to protect the camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to strong
shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, audio speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there is
greasy smoke or steam, where the dampness may get too high, or
where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices, such
as spotlights, etc., or where it could be subject to direct sunlight, as
that could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10˚C and
50˚C. (no condensation)
Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with a
soft detergent solution and wrung dry, then wipe dry with dry soft
cloth.
• Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling. Before
using a chemical cloth, make sure to read all accompanying
instructions. Make sure that no plastic or rubber material comes in
contact with the cabinet for a long period of time, as that may
cause damage or paint peeling.
English 3
PARTS NAMES AND FUNCTIONS
4
3
1
5
1
2
A
F
G
L
H IO
JKMN
1
2
1
6
9
8
7
Manual pan, tilt and rotation
The angle of the lens can be adjusted
manually in ranges indicated below.
A: Horizontally ± 45˚
B: Vertically ± 60˚
C: Rotation of the camera unit ± 35˚
B
A
GND
MONITOR
C
1
M
B
A
R
BLCWB
L-PHASE
L
0
E
V
E
L
SYC
4 English
PARTS NAMES AND FUNCTIONS
1 Camera unit fixing screws (4)
These screws are used to attach the camera unit to the base.
Tighten the four screws evenly when attaching the camera unit.
2 Screw openings for base installation
These openings are to attach the base to the ceiling or a wall
using the four supplied tapping screws.
3 CAMERA (VIDEO) OUT terminal screw
Video signal output terminal. Insert the center wire of the coaxial
cable into the CAMERA OUT terminal, then tighten the screw to
secure it.
4 GND (ground) terminal screw
Video signal ground terminal. Insert the shielding mesh of the
coaxial cable under the GND terminal plate, then tighten the
screw to secure it.
5 Cabling tab
When the cables cannot be run behind the ceiling, etc., remove
this tab to allow the coaxial cable to go through.
6 24 V AC input terminal
(24 V AC, GND)
With this camera use only the 24 V AC
power adaptor model No. VPT-115
available from Sanyo.
Power supply connections
Use a 3 wire grounded cable (22 AWG
or more), and connect as shown by the
illustration.
CAUTION:
• To prevent camera and/or AC
adaptor failure, pay close attention
polarity when making the connections.
• To prevent fire hazard any UL listed
wire rated VW-1, should be used for
the 24 V AC cable input terminal.
GND
AC
7 Lens cover
This cover will protect the lens from dust and damage. Turn the
cover in the direction of the arrow, shown on the illustration, to
remove it. To install the cover, align the tabs (A) with the
openings, then turn it in the opposite direction.
AC
English 5
PARTS NAMES AND FUNCTIONS
8 Secondary lens cover
9 Lens
F Focus ring
To set the focus, loosen the focus ring knob, then turn the ring
towards ∞ (infinity) or N (near) as necessary. When the focus is
set as desired, tighten the focus ring knob.
G Zoom ring
To adjust the viewing range (zoom), loosen the zoom ring knob,
then turn the ring towards T (the range will be smaller and the
subject larger) or W (the range will be wider and the subject
smaller) as necessary. When the zoom is set as desired, tighten
the zoom ring knob.
H GND (ground) pin
For monitor use. (See I)
I MONITOR output pin
When setting up the camera, connect a monitor to this video
output pin and to the GND pin using alligator clip cables, then
using the image displayed on the monitor, set the surveillance
angle and range, the lens focus, etc.

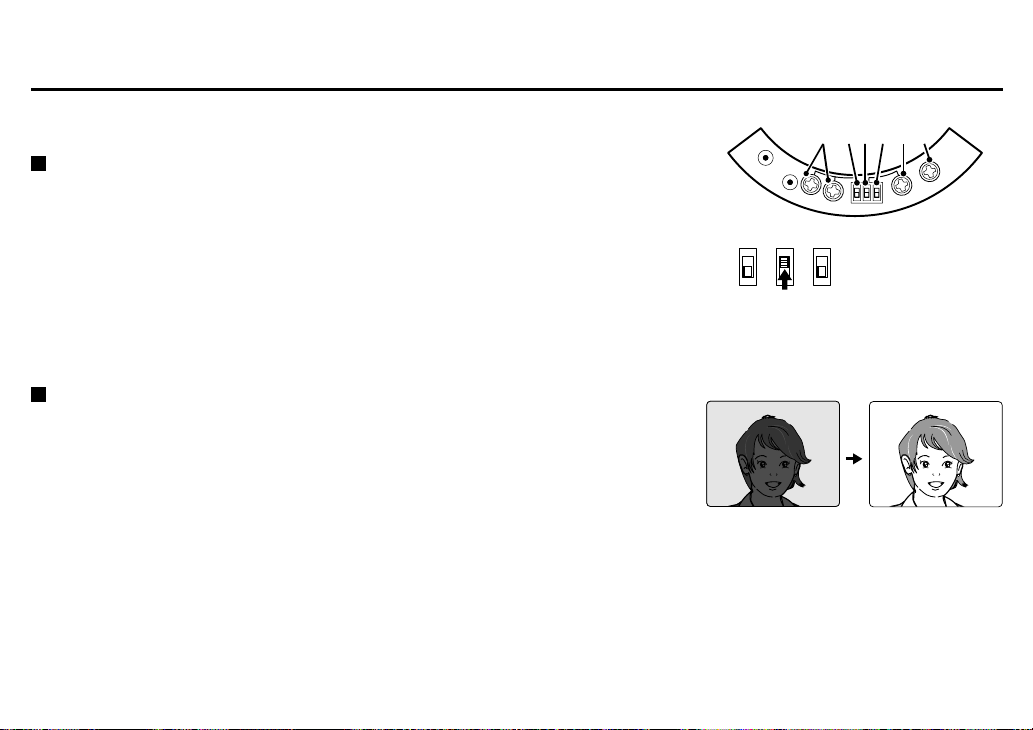

J Color adjustment (B: blue gain, R: red gain) volume
controls
K WB (white balance) switch
A: Automatic white balance
M: Manual white balance
To set the white balance manually, set the WB switch to M, then
adjust the color by turning the B and R volume controls.
L BLC (backlight compensation) switch
0: Backlight compensation off
1: Backlight compensation on
For backlight compensation, set the BLC switch to 1, then, if
necessary, adjust the LEVEL volume control.
M SYC (synchronization) switch
0: Internal sync
1: L-L (line lock) sync
N LEVEL volume control
Used when the BLC switch is set to 1. Under normal conditions, it
should be turned all the way to the left. When adjusting the
backlight compensation, turn it to the right until the desired
correction level is obtained.
O L-PHASE (line phase) volume control
Used when the SYC switch is set to 1. Turn it to adjust the line
phase between two or more cameras.
6 English
PREPARATIONS AND CONNECTIONS
Concerning the coaxial cable
To connect the camera to peripheral devices, use a coaxial cable with BNC plug.
• Cable type RG-6U (5C-2V), 500 m maximum.
• Cable type RG-11U (7C-2V), 600 m maximum.
If the type of peripheral devices connected, the type of cable used and/or the cable length
are not as specified, the image and synchronization signals may not be transmitted
correctly.
CAUTION:
Use CCTV/Video grade coaxial cable. Due to its construction, an RG-59U cable will not
transmit the signal properly when installed through conduits or through the air, and
therefore cannot be used.
Installing the BNC plug (sold separately)
1 Cut the extremity of the coaxial cable (sold separately), as illustrated.
2 Insert the cable through the adaptor, then turn the shielding mesh over.
3 Loosen the center wire securing screw of the plug, then install the cable in the BNC
plug, so that the center wire is threaded through the plug center opening.
Before tightening the center wire securing screw, make sure the center wire comes out
through the plug center opening.
4 Screw the adaptor onto the plug.
1 2
7mm 8mm
3 4
English 7
CONNECTIONS AND INSTALLATION
Basic connections for monitoring or recording
The peripheral devices (VCR, monitor, etc.) and cables are sold separately.
1 Make the video signal connection between the camera and the monitor or time lapse
VCR.
2 Plug the AC adaptor to a wall outlet.
Adjust the picture on the monitor using the Brightness and Contrast controls.
Fig. 1
VIDEO IN
Time lapse VCR
(sold separately)
VIDEO OUT VIDEO IN
Monitor
(sold separately)
Multiple cameras connection
You can use multiple cameras by connecting them a camera switcher or a quad unit (sold
separately), then conducting the surveillance from one location by splitting the monitor screen
to view the image from each camera, or by switching the image from each camera on the
monitor screen. For detailed information, please refer to the installed devices instruction
manuals.
(Example of connection to a monitor)
VIDEO IN
: VIDEO IN
: VIDEO OUT
NOTE: (Fig. 1)
• Make sure the AC adaptor is not
connected to the wall outlet before
connecting it to the 12 V DC input
terminals.
• When making the connections be careful
to respect the polarity and not to
shortcut the terminals.
8 English
CONNECTIONS AND INSTALLATION
Coaxial cable connection
1 Cut and prepare the extremity of the coaxial cable (sold separately), as illustrated.
2 Attach the coaxial cable to the base.
Loosen the CAMERA (VIDEO) OUT terminal screw (A) and the GND terminal screw (B), then
insert the center wire of the coaxial cable in the CAMERA (VIDEO) OUT terminal and make
sure the shielding mesh part of the cable is located under the GND terminal plate, then
tighten both screws (A and B) to attach the cable.
CAUTION:
If the base is installed on a wall or if for any other reason the cable cannot be run behind
the installation surface, break-off the tab (C) with nippers to allow the cable to go through.
Camera installation
1 Install the base on the ceiling, etc., using the four supplied tapping screws (A).
• This camera is not waterproof. It cannot be installed outside.
• When installing the base, make sure to verify that the installation surface will allow full
tightening of the screws. Plaster board, etc., may not give a strong enough installation,
and it is recommended to use a reinforcement, or other method so that the screws are
anchored securely.
CAUTION:
When installing the base on a wall, make sure to align it as indicated in Fig. 1.
27mm 14 10mm3
1
(Cut the shielding mesh here)
A
2
B
C
A
( )
Fig 1.
()
English 9
CONNECTIONS AND INSTALLATION
2 Install the camera unit onto the base.
Connect the video signal cable plug (B) and the power supply cable plug (C) from the base
to their respective connectors on the camera unit. Then install the camera unit onto the
base.
3 Securely tighten the four camera unit fixing screws (D) evenly.
Camera removal
1 Loosen the four camera unit fixing screws (A) evenly.
2 Turn the camera unit of about 80˚, in the direction of the arrow shown on the
illustration.
Turn the camera unit all the way until screw (B) on the base reaches the tab.
3 Remove the camera unit.
To remove the camera unit, carefully apply a slight force until the screw (B) goes over the
tab, then carefully remove the camera unit.
CAUTION:
• When removing the camera unit, be careful not to hurt yourself with the camera unit
fixing screws.
• When removing the camera unit, be careful as the video signal plug (B) or power supply
plug (C) cables are short and may become unplugged.
B
A
A
B
C
A
A
B
SETTINGS AND ADJUSTMENTS
The digital process may disturb the image for about 5 seconds after the camera is
turned on.
Factory settings
The camera is shipped from the factory with the following settings. These settings should give
adequate results under normal conditions. If the settings need to be modified, please consult
the reseller or installer.
A: Color adjustment (B: blue gain, R: red gain) volume controls . . . About the center
B: WB (white balance) switch . . . . . . . . . . . . . . . . . . . . . . . A (automatic)
C: BLC (backlight compensation) switch . . . . . . . . . . . . . . . . . . . . . 0 (OFF)
D: SYC (synchronization) switch . . . . . . . . . . . . . . . . . . . . . . 0 (Internal)
E: LEVEL volume control . . . . . . . . . . . . . . . . . . . . All the way to the left
F: L-PHASE (line phase) volume control . . . . . . . . . . . . . . . About the center
Backlight compensation setting
When the subject is backlit, set the BLC switch to 1 (ON).
The backlight compensation will measure the light in the center area of the image and the lens
iris will be automatically set for optimum image quality. The subject contained in this area will
be clear and bright.
• When the sides of the subject background are very bright, and the subject itself is dark.
G
N
D
M
ONITOR
M
A
WB BLC SYC
AB
B
M
A
R
1
0
CDE F
1
0
LEVEL
BLCWB SYC
E
S
HA
L-P
English
SETTINGS AND ADJUSTMENTS
☞ In this case, the backlight compensation default setting may not give good results. To
obtain a better image, set the BLC switch to 1 (ON), then turn the LEVEL volume control
to the right until the desired correction level is obtained.
LEVEL
Manual white balance adjustment
To set the colors, first set the WB switch to M, then adjust as desired, using the (B and R) color
adjustment volume controls.
BR
M
A
WB
12 English
SETTINGS AND ADJUSTMENTS
Line phase adjustment
When using a camera switcher to connect two cameras or more to one monitor, there may be
a vertical roll of the images when switched, if the phases differ. In such a case, adjust as
described below.
1 Set the SYC switch, on the connected cameras, to 1.
2 Using the camera switcher, switch the display on the monitor from camera 1 to
camera 2.
Adjust the L-PHASE volume control on camera 2 until the vertical roll of the image stops.
If more than two cameras are used, please repeat this procedure for all the cameras.
NOTE:
If the vertical roll cannot be corrected by adjusting the L-PHASE volume on camera 2, try
adjusting the L-PHASE volume on camera 1. If it still cannot be corrected, please check that
the polarity of the power cords of all connected devices is correct.
1
0
SYC
L-PHASE
Camera 1
English 13
OUT
IN IN
1234
SYC
1
0
L-PHASE
Camera 2
SETTINGS AND ADJUSTMENTS
Zoom and focus adjustments
After the camera has been installed, the zoom and focus must be adjusted while viewing on a
monitor the transmitted image.
1 Remove the lens cover, then press on both sides of the secondary lens cover to
remove it.
2 Loosen the zoom ring knob, then turn the ring towards T or W as necessary.
• T (zoom in) side
The range will be smaller and the subject larger.
• W (Zoom out) side
The range will be wider and the subject smaller.
3
Loosen the focus ring knob, then turn the ring towards ∞ (infinity) or N (near) as
necessary.
4 Repeat steps 2 and 3 until the desired image is obtained.
When finished, tighten the zoom ring and the focus ring knobs. Then, install the secondary lens
cover, making sure it snaps in place and install the lens cover.
NOTE:
While making these settings, be very careful not to scratch or damage the lens.
1
2
3
14 English
TROUBLESHOOTING
Before taking the camera for repairs, please check below to make sure that the camera is used correctly. If it still does not perform correctly,
please consult your dealer or a Sanyo Authorized Service Center.
No picture on the monitor screen
• Is the power turned on to all connected devices? Is the voltage correct?
• Are all the signal connecting cables correctly connected?
• Is the lighting sufficient?
The picture is not clear
• Is the monitor correctly adjusted?
• Is the lens focus correctly adjusted?
• Are the lens surfaces clean?
If there is dust or finger prints on the lens, the image quality will deteriorate. To clean the lens use a soft cloth or a commercially available lens
cleaning set.
SERVICE:
This camera is a precision instruments and, if treated with care, it will provide years of satisfactory performance. However, in the event of a
problem, the owner is advised not to attempt to make repairs or open the cabinet. Servicing should always be referred to your dealer or Sanyo
Authorized Service Center.
English 15
SPECIFICATIONS
TV system Based on the NTSC color system
Scanning system 525 TV lines, 60 field/sec.,
Image device Interline transfer method, 1/3 inch
Picture elements 811 (H) × 508 (V)
Effective picture elements 768 (H) × 494 (V)
Synchronization system Internal sync./L-L(Line lock)
Resolution 470 TV lines horizontally, 350 TV
Video output signal level 1.0 Vp-p/75Ω (screw-on terminal)
S/N ratio More than 48 dB
Minimum required
illumination
White balance A(Automatic:TTLsystem)/M
Backlight compensation 1 (ON)/0 (OFF) manual switching,
Backlight compensation iris
level adjustment
Gain control Automatic
MONITOR output pin 1.0 Vp-p/75Ω, test point pin
2:1 interlace
solid state CCD
lines vertically
6 lux (F2.0 lens)
(Manual) manual switching
Active zone center area light
measuring system
Manual LEVEL volume control
Lens F2.0 ∼ 2.7, f=2.6 ∼ 5.6 mm,
Iris system Mechanical auto iris
Manual adjustment image
angle range
Operational environmental
conditions
Storage environmental
conditions
Power supply 24 V AC
Power consumption 24 V AC/approx. 3.1 W
Weight Approx. 430 g
Features and specifications are subject to change without prior notice
or obligations.
varifocal lens, manual zoom and
focus adjustment
Horizontally (pan): ±45˚,
Vertically (tilt): ± 60˚, Rotation of
the camera unit: ±35˚
Temperature: -10˚C ∼ +50˚C
Humidity: less than 90% RH
Temperature: -20˚C ∼ +60˚C
Humidity: less than 70% RH
16 English
SPECIFICATION
DIMENSIONS
English 17
112mm
11mm
110mm
φ
φ
83.5mm
83.5mm
φ
4.3mm
6-
66.7mm
Loading...
