Sanyo PLC-XL51A User Manual

Download

Multimedia Projector

MODEL PLC-XL51A

Network Supported

  ❏Wireless LAN IEEE802.11b/g

❏ Wired LAN 100-Base-TX/10-Base-T

Memory Viewer

  ❏SD Memory Card Viewer

✽Refer to the owner’s manual below for details

about network and memory viewer function.

  ■Network Set-up and Operation

(For Windows / For Macintosh)

■Memory Viewer function

  ■PJ Network Manager (For Windows)

Owner’s Manual

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Large Screen in Limited Space

Short focus lens allows you to project large images from short distance (p.14). Images can be projected on the floor.

◆Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.51). PIN code lock functions prevents unauthorized use of the projector (pp.20, 52–53).

◆Logo Function

The Logo function allows you to customize the screen logo. The Logo page identifies the owner of the projector (pp.47, 48).

◆Simple Computer System Setting

The projector has a Multi-scan system to conform to almost all computer output signals quickly (p.28).

◆Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, or PAL-N), Component video, S-Video and RGB scart.

◆Quick Termination

The AC power cord can be unplugged immediately after turning off the projector without waiting for the projector to cool down (p.21).

◆Switchable Interface Terminal

The pr oje ctor provides a switchab le inter face terminal. You can use the terminal as computer input or monitor output conveniently (p.49).

◆Useful Functions for Presentations

The digital zoom function expands (to approx. 16

times of the screen size) the image size, allowing you to focus on crucial information during the presentation. (p.36)

- A blackboard can be used as a projection screen.

(pp.32-33, 40-41) *The board color is limited to Green.

- At the time of simple projection on the colored

wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

◆Multilanguage Menu Display

The Operation menu is available in 16 languages: Eng lish , Ger man, Fr ench, Itali a n, Span ish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, and Japanese (p.45).

◆Power Management

The Power management function reduces power consumption and maintains lamp life (p.50).

◆Input Search Function

Input signal can be searched automatically. (p.49)

◆LAN Network Function

This proje ctor is loade d with the Wir ed and Wireless LAN network function. You can project an image on a computer as well as operate and manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.”

◆Memory Viewer Function

Insert the dedicated SD memor y card into the projector to project images or presentation data stored within. You do not have to carry computers or other equipment for a presentation. *SD memory card is not supplied with the projector. For details, refer to the owner’s manual of Memory viewer.

✔Note:

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

Features and Design .......................2

Table of Contents ..........................3

To the Owner ..............................4

Safety Instructions .........................5

Air Circulation 6

Moving the Projector 6

Installing the Projector in Proper Position 7

Compliance ...............................8

Part Names and Functions ..................9

Front 9

Back 9

Bottom 9

Side Terminal 10

Top 11

Remote Control 12

Remote Control Battery Installation 13

Operating Range 13

Installation...............................14

Positioning the Projector 14

Adjustable Feet 14

Mounting the Rear Leg 15

Connecting to a Computer 16

Connecting to Video Equipment (Video, S-Video) 17

Connecting to Video Equipment (Component and RGB Scart) 18

Connecting the AC Power Cord 19

Basic Operation ..........................20

Turning On the Projector 20

Turning Off the Projector 21

How to Operate the On-Screen Menu 22

Menu Bar 23

Zoom Adjustment 24

Screen Position Adjustment 24

Focus Adjustment 24

Keystone Correction 24

Sound Adjustment 25

Remote Control Operation 25

Computer Input ...........................27

Input Source Selection 27

Computer System Selection 28

Auto PC Adjustment 29

Manual PC Adjustment 30

Image Level Selection 32

Image Level Adjustment 34

Screen Size Adjustment 35

Video Input...............................37

Input Source Selection (Video, S-Video, Component) 37

Input Source Selection (RGB Scart 21-pin) 38

Video System Selection 39

Image Level Selection 40

Image Level Adjustment 42

Screen Size Adjustment 44

Setting...................................45

Setting 45

Maintenance and Cleaning ................56

Warning Indicator 56

Cleaning the Air Filter 57

Resetting the Filter Counter 57

Cleaning the Projection Window 58

Cleaning the Projector Cabinet 58

Lamp Replacement 59

Lamp Replacement Counter 60

Appendix ................................61

Troubleshooting 61

Menu Tree 64

Indicators and Projector Condition 66

Compatible Computer Specifications 68

Technical Specifications 69

Optional Parts 70

Configurations of Terminals 71

Dimensions 71

PIN Code Number Memo 72

PJ Link Notice 73

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

To the Owner

1.5' (50 cm)

3' (1 m)

Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PA RT S I N S I D E E XC E P T L A M P REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VO LTAG E CONSTITUT I N G A RI S K OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL I NDI CATE S TH AT TH ERE A R E I M P O R TA N T O P E R AT I N G A N D MAI NTE NANC E INSTRUCTIO NS IN TH E OWNER'S MANUAL WITH THIS UNIT.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-oflife, should be disposed of separately from your household waste.

Note: If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

Safety Precaution

WARNING: lTHIS APPARATUS MUST BE EARTHED. lTO REDUCE THE RISK OF FIRE OR ELECT RIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Avoid staring directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. Otherwise it may

result in fire hazard.

– Allowing the proper amount of space on the projector

cabinet is critical for proper air circulation and cooling of the unit. The dimensions shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

– If the projector is unused for an extended time, unplug the

projector from the power outlet.

– Do not project the same image for a long time. The

afterimage may remain on the LCD panels by the characteristic of panel.

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean air intake vents, air filters, or top of the projector periodically with a vacuum cleaner. If you leave the projector without cleaning for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE.

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do n ot expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not u se a tt a ch ment s no t rec omme nded by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An ap pli ance a nd car t c omb ina tion should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment. This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified ser vice personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in performance

this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

NOTE FOR CUSTOMERS IN THE US

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

Safety Instructions

Air Circulation

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable objects or spray can

near the projector. Hot air is exhausted from the air vents.

– Keep the exhaust vent at least 3’ (1 m) away from

any objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic part. This area will become hot while the projector is being used.

– Do not put anything on the projector. Objects put

on the cabinet will not only get damaged but also

may cause fire hazard by heat. Cooling fans are provided to cool down the projector. The fan’s running speed is changed according to the temperature inside the projector.

Moving the Projector

When the projector is not in use for an extended period, put it into a suitable case. Handle the projector carefully; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

CAUTION IN CARRYING OR

TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, otherwise

damages or malfunctions may result. – Do not hold the rear leg. – When carrying the projector, use a suitable carrying

case.

– Do not transport the projector by courier or any

other transport service in an unsuitable transport

case. This may cause damage to the projector. For

information about transporting the projector by

courier or any other transport service, consult your

dealer. – Do not put the projector in a case before it is cooled

enough.

Exhaust Vent (Hot air exhaust)

Air Intake Vent

10˚

5˚

Safety Instructions

Installing the Projector in Proper Position

Install the projector properly. Improper Installation may reduce the lamp life and cause fire hazard.

Side C

Side A

Side D

Side E

Side B

CAUTION

– Do not put anything or sit on the

projector, otherwise, it may fall down or cause failure of the projector or injury.

– Choose the running speed of cooling

fans in the fan control setting according to the altitude in which the projector is being used (p.54). Failure to do so may affect the projector life.

Side F

Do not roll the projector more than 10 degrees from side to side.

✔Note:

• Fix the projector when installing it so that the projector would not fall down.

CAUTION ON CEILING MOUNTING

For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any nonrecommended ceiling mount kit or installation of the ceiling mount kit in an improper location.

This side is Side A or B.

Do not put the projector on either side C or E to project an image.

Do not roll the projector more than 5 degrees from side to side when side A or B is downward.

Compliance

A S A

GROUND

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s) : PLC-XL51A Trade Name : Sanyo

Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

or coloured green or green-and-yellow.

WARNING: THIS APPARATUS MUST BE EARTHED.

. If the fuse

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

Part Names and Functions

Front

Back

q Infrared Remote Receiver

CAUTION

The Infrared Remote Receiver sticks out of the cabinet surface. If the Infrared Remote Receiver is put on the wall or floor directly, the Infrared Remote Receiver may damage.

w Top controls and Indicators e Exhaust Vent

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

r Rear Leg t Adjustable Feet y Air Intake Vent u Terminals and Connectors i Power Cord Connector o Focus Lever !0 Projection Window

Bottom

✔Note:

✽

Do not touch the projection window,

otherwise, the window may be soiled and the image can be smudgy.

!1 Speaker !2 Lamp Cover !3 Air Filter

✽Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

* Kensington is a registered trademark of ACCO Brands

Corporation.

Part Names and Functions

Side Terminal

q w e r

y u i

q AUDIO IN

Connect the audio output from video equipment connected to output is monaural, connect it to L (MONO) jack (pp.17-

18).

t y

or to this jack. [When the audio

w VIDEO IN

Connect the composite video output from video equipment to VIDEO jack (p.17).

e AUDIO IN COMPUTER

Connect the audio output (stereo) from a computer connected to u or i to this jack (pp.16, 18).

r AUDIO OUT(VARIABLE)

Connect an external audio amplifier to this jack (pp.16-

18). This terminal outputs sound from AUDIO IN terminal (q

e).

o !0

i COMPUTER IN 1

Connect output signal from a computer, or RGB scart 21pin video output to this terminal (pp.16, 18). When the cable is of the longer variety, it is advisable to use this terminal and not COMPUTER IN 2/MONITOR O U T.

o SERVICE PORT

This jack is used to service the projector. When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable.

!0 LAN Connection Terminal

Connect the LAN cable (refer to the owner’s manual “Network Set-up and Operation”).

!1 WIRELESS INDICATOR

Display the status of wireless network. Refer to the owner’s manual “Network Set-up and Operation”.

t S-VIDEO IN

Connect the S-VIDEO output from video equipment to this jack (p.17).

y COMPONENT IN

Connect the component video output signal to these jacks (p.18).

u COMPUTER IN 2/MONITOR OUT

This terminal is switchable and can be used for input from a computer or output to the other monitor. Set the terminal up as either Computer input or Monitor output properly. [Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1 terminal (pp. 16, 49)].

!2 SD MEMORY CARD INDICATOR

Display the status of SD memory card. When inserting SD memory card, the indicator lights, and when removing SD memory card, the indicator turns off.

!3 SD MEMORY CARD SLOT

Insert the SD memory card (not supplied) for Memory viewer operation (refer to the owner’s manual of Memory Viewer function).

Top

Part Names and Functions

e r

q POWER indicator

– Lights red when the projector is in stand-by mode. – Lights green during operations. – Blinks green in the Power management mode (pp.50,

66).

w WARNING TEMP. indicator

– Lights red when the projector detects an abnormal

condition.

– Blinks red when the internal temperature of the

projector exceeds the operating range (pp.56, 67).

WARNING FILTER indicator

– Light orange when the ﬁlter counter reaches a

time set in the timer setting, clean the air ﬁlter promptly (pp.55, 67).

r LAMP REPLACE indicator

Turn yellow when the life of the projection lamp draws to an end (pp.59, 67).

t ON/STAND-BY button

Turn the projector on or off (pp.20-21).

y INPUT button

Select input source (pp.27, 37, 38).

u POINT ( ed7 8 ) buttons

– Select an item or adjust the value in the On- Screen

Menu (p.22). – Pan the image in Digital zoom + mode (p.36). – Adjust the volume level (Point – Adjust the screen size (Point ed buttons) (p.24).

7 8 buttons) (p.25).

i SELECT button

– Execute the selected item (p.22). – Expand or compress the image in Digital zoom mode

(p.36).

o KEYSTONE button

Correct the keystone distortion (pp.24, 45).

!0 MENU button

Open or close the On-Screen Menu (p.22).

Part Names and Functions

Remote Control

@0 !9

q ON/STAND-BY button

Turn the projector on or off (pp.20, 21).

w COMPONENT button

q@3

Select COMPONENT input source.

e AUTO PC button

Automatically adjust the computer image to its optimum setting (pp.26, 29).

r KEYSTONE button

Correct the keystone distortion (pp.24, 45).

t CANCEL button

Return to the menu bar in Memory Viewer menu. See the owner's manual of “Memory Viewer function”.

y CEILING button

Reverse the top/bottom and left/right of image (p.49).

u IMAGE button

Select the image level (pp.26, 32, 40).

i P-TIMER button

Operate the P-timer function (p.26).

o MUTE button

Mute the sound (p.25).

t y

!0 LAMP CONTROL button

Select the lamp mode (pp.26, 51).

!1 NO SHOW button

Temporarily turn off the image on the screen (p.26).

!2 FREEZE button

Freeze the picture (p.25).

!3 VOLUME +/- buttons

Adjust the volume level (p.25).

!4 D.ZOOM ed buttons

Zoom in and out the images (pp.26, 36).

!5 SELECT button

– Execute the selected item (p.22). – Expand or compress the image in Digital zoom mode. (p.36).

✔Note:

To ensure safe operation, observe the following precautions: – Do not bend, drop, or expose the remote

control to moisture or heat.

– For cleaning, use a soft dry cloth. Do

not apply benzene, thinner, spray, or any other chemicals.

!6 Point ed 7 8 buttons

– Select an item or adjust the value in the On-Screen Menu (p.22). – Pan the image in Digital zoom + mode (p.36).

!7 MENU button

Open or close the On-Screen Menu (p.22).

!8 AUTO SET button

Execute the setting of Auto setup (includes Input search function, and Auto PC adj. function). (pp.25, 49).

!9 VIDEO button

Select VIDEO input source (pp.26, 37).

@0 S-VIDEO button

Select S-VIDEO input source (pp.26, 37).

@1 COMPUTER 1 button

Select Computer 1 input source (pp.26, 27, 38).

@2 COMPUTER 2 button

Select Computer 2 input source (p.26, 27).

@3 NETWORK button

Select the Network input. See the owner's manual of “Network Set-up and Operation”.

Remote Control Battery Installation

Part Names and Functions

Open the battery

1 2 3

compartment lid.

To ensure safe operation, please observe the following precautions:

lUse two (2) AA or LR6 type alkaline batteries. lAlways replace batteries in sets. lDo not use a new battery with a used battery. lAvoid contact with water or liquid matter. lDo not expose the remote control to moisture or heat. lDo not drop the remote control. lIf the battery has leaked on the remote control, carefully wipe the case clean and install new batteries. lRisk of explosion if a battery is replaced by an incorrect type. lDispose of used batteries according to the instructions or your local disposal rule and guidelines.

Install new batteries into the compartment.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

Replace the compartment lid.

Operating Range

Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. See the right figures indicating Maximum operating range for the remote control.

16.4’ (5 m)

11.5’ (3.5 m)

16.4’ (5 m)

80”

60”

Installation

Positioning the Projector

For the projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.

0.265’ ( 8.1 cm)

-0.131’ ( -4.0 cm)

✔Note:

• This projector is not equipped with an optical zoom. To adjust the screen size, change the throw distance.

• The brightness in the room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image.

• All measurements are approximate and may vary from the actual sizes. Make sure to check the position of images by projecting images on the screen before installing the projector and screen, since each projector shows slight variations.

• Make sure to project images on a flat screen.

• Even slight warpage or irregularities of the screen may have an effect on the quality of the projected images.

(Inch Diagonal)

Screen Size

(W x H) mm

4:3 aspect ratio

A -0.131’ (-4.0 cm) 0.068’ (2.1 cm) 0.265’ (8.1 cm)

60” 70” 80”

1219 x 914 1422 x 1067 1626 x 1219

(30.8 cm)

1.010’

Adjustable Feet

Projection angle can be adjusted up to 1.0 degree with the adjustable feet.

Rotate the adjustable feet to adjust the position and tilt.

Keystone distortion of the projected image can be corrected by menu operation (pp.24, 45).

1.106’

(33.7 cm)

1.198’

(36.5 cm)

Adjustable Feet

Mounting the Rear Leg

Rear Leg

Turn off the projector and unplug the AC power cord.

Secure the rear leg with the four (4) screws.

Installation

Screw

Rear leg

✔Note:

• Make sure not to lose screws when installing the rear leg.

Installation

Connecting to a Computer

Cables used for connection

• VGA Cables (Mini D-sub 15 pin)*

• Audio Cables (Mini Plug: stereo)

(*One cable is supplied; other cables are not supplied with the projector.)

Monitor Output

Audio Output

Monitor Input

Monitor Output

External Audio Equipment

VGA cable

Audio cable (stereo)

COMPUTER IN 2/ MONITOR OUT

AUDIO IN COMPUTER

This terminal is switchable. Set up the terminal as either Computer input or Monitor output (see page 49).

COMPUTER IN 1

✔Note:

• Input sound to the AUDIO IN COMPUTER terminal when using the COMPUTER IN 1 and the COMPUTER IN 2/ MONITOR OUT terminal as input.

• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 and not the COMPUTER IN 2 /MONITOR OUT.

•See page 70 for ordering optional cables.

Audio Input

VGA cable

Audio cable (stereo)

AUDIO OUT (stereo)

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

Connecting to Video Equipment (Video, S-Video)

Cables used for connection

• Video and Audio Cable (RCA x 3)

• S-VIDEO Cable

• Audio Cable (Mini Plug: stereo)

(Cables are not supplied with the projector.)

Installation

Composite Video and Audio Output

(L)

(R)

Video and audio cable

(R)

(L)

(Video)

AUDIO IN

VIDEO IN

(Video)

S-Video Output

S-Video cable

S-VIDEO IN

External Audio Equipment

Audio Input

Audio cable (stereo)

✔Note:

• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

• The S-VIDEO jack connection overrides the VIDEO jack connection when AUTO is selected in the Input Menu (p.37).

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

AUDIO OUT (stereo)

Installation

Connecting to Video Equipment (Component and RGB Scart)

Cables used for connection

• Audio Cables (Mini Plug: stereo, RCA x 2)

• Scart-VGA Cable

• Component Cable

(Cables are not supplied with the projector.)

Component Video Output (Y, Pb/Cb, Pr/Cr)

Component cable

COMPONENT IN

Audio Output

Audio cable

(stereo)

AUDIO IN

RGB Scart 21pin Output

COMPUTER IN 1

External Audio Equipment

Audio Input

Scart-VGA cable

Audio cable (stereo)

AUDIO OUT (stereo)

✔Note:

• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

•See page 70 for ordering optional cables.

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

Connecting the AC Power Cord

This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning it on.

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

Installation

✔Note:

• Unplug the AC power cord when the projector is not in use.

When the projector is connected to an outlet with AC power cord, it is in stand-by mode and consumes a little electric po we r.

Connect the AC power cord (supplied) to the projector.

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If the supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side AC outlet side

For Continental EuropeFor the U.S.A. and Canada

Ground

To power cord connector on your projector.

To the AC outlet.

(120 V AC)

To the AC outlet.

(200–240 V AC)

For the U.K.

To the AC outlet.

(200–240 V AC)

Basic Operation

Turning On the Projector

Complete peripheral connections (with a computer,

VCR, etc.) before turning on the projector.

Connect the projector’s AC power cord into an AC

outlet. The POWER indicator turns red.

Press the ON/STAND-BY button on the top control or

on the remote control. The POWER indicator becomes green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

After the countdown, the input source that was

selected the last time and the Lamp mode status icon (see page 51) will appear on the screen. If the projector is locked with a PIN code, a PIN code Input Dialog Box appears. Enter the PIN code as instructed below.

Enter a PIN code

Select a number by pressing the Point ed buttons, and then press the Point 8 button to fix the number and move the pointer. The number changes to "✳". If you fixed an incorrect number, move the pointer to the number you want to correct by pressing the Point 7 button, and then select the correct number by pressing the Point ed buttons.

The preparation display disappears after 30 seconds.

Selected Input Source and Lamp Mode

Lamp mode

See page 51 for the Lamp mode.

✔Note:

• The Lamp replacement icon and the Filter warning icon may appear on the screen depending on the usage state of the projector.

PIN Code Input Dialog Box

Repeat this step to complete entering a four-digit number. "1234" is set as the initial PIN code at the factory.

After entering the four-digit number, move the pointer to "Set" by pressing the Point 8 button. Press the SELECT button so that you can start to operate the projector.

If you entered an incorrect PIN code, "PIN code" and the number (✳✳✳✳) turns red. Enter the correct PIN code all over again.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting the PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 52-53 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING THE PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 75 of this manual and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

After the OK icon disappears, you can operate the projector.

✔Note:

• When the Input Search function is set to On2, the input signal will be searched automatically (p.49).

• When the Logo select function is "Off,” the logo will not be displayed on the screen (p.47).

• When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen (p.46).

• During the countdown period, all operations are invalid.

• If the PIN code number is not entered for 3 minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

Turning Off the Projector

Press the ON/STAND-BY button on the top control or

on the remote control, and “Power off?” appears on the screen.

Press the ON/STAND-BY button again to turn off the

projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of the fans’ quietness and running speed. See page

54.) At this time you can unplug the AC power cord even if the fans are still running.

When the projector has cooled down enough to be

turned on again, the POWER indicator stops blinking.

TO MAINTAIN THE LAMP LIFE, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.

Basic Operation

“Power off” disappears after 4 seconds.

✔Note:

• When the On start function is “On,” this projector is turned on automatically by connecting the AC power cord to an AC outlet (p. 50).

• The running speed of cooling fans is changed according to the temperature inside the projector.

• Do not put the projector in a case before the projector is cooled enough.

• If the WARNING indicator blinks or emits a red light, see “Warning Indicator” on page 56.

• While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.

• The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.

• The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.

Basic Operation

How to Operate the On-Screen Menu

The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual.

Press the MENU button on the top control or on the

remote control to display the On-Screen Menu.

Use the Point

the Point ed buttons to select an item.

Press the SELECT button to show the item data. To

adjust the data, use the Point relevant pages for more details about each adjustment.

To close the On-Screen Menu, press the MENU button again.

✔Note:

• The selected item is not active until the SELECT button is pressed.

7 8 buttons to select a Menu icon; use

7 8 buttons. Refer to the

Top Control

Remote Control

SELECT button

On-Screen Menu

MENU button

POINT buttons

SELECT button

MENU button POINT buttons

Menu icon

Press the SELECT button here to display previous items.

Press the SELECT button here to display next items.

Menu bar

Pointer (red frame)

Press the Point buttons to move the pointer.

Item

SELECT

button

Quit

Exit this menu.

Pointer (red frame)

Item data

Press the Point buttons to adjust the value.

7 8

Menu Bar

For detailed functions, see Menu Tree on pages 64-65.

For computer source

q w

y u o

Basic Operation

!0 !1

q Guide Window

Shows the selected Menu of the On-Screen Menu.

Input Menu

Used to select the input source, Computer or Video (p.27).

PC System Menu

Used to select the computer system (p.28).

PC Adjust Menu

Used to adjust parameters to match with input signal format (pp.29-31).

t Image Select Menu

Used to select an image level from Dynamic, Standard, Real, Blackboard (Green), Colorboard and Image 1–4 (pp.32-33).

y Image Adjust Menu

Used to adjust the computer image from Contrast, Brightness, Color temp., White balance (R/G/B), Sharpness, and Gamma (pp.34-35).

For video source

u Screen Menu

Used to adjust the size of image from Normal, True, Wide, Full and Digital zoom +/– (pp.35-36).

i Sound Menu

Used to adjust the volume or mute the sound (p.25).

o Setting Menu

Used to set the projector’s operating configurations (pp.45–55).

Wired Menu

See owner’s manual “Network Set-up and Operation”.

!1 Wireless Menu

See owner’s manual “Network Set-up and Operation”.

✔Note:

• Items will be the same as the items in video source when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected.

t y u i

o !0

Guide Window

Shows the selected Menu of the On-Screen Menu.

Input Menu

Used to select input source, Video or Computer (pp.37-

38).

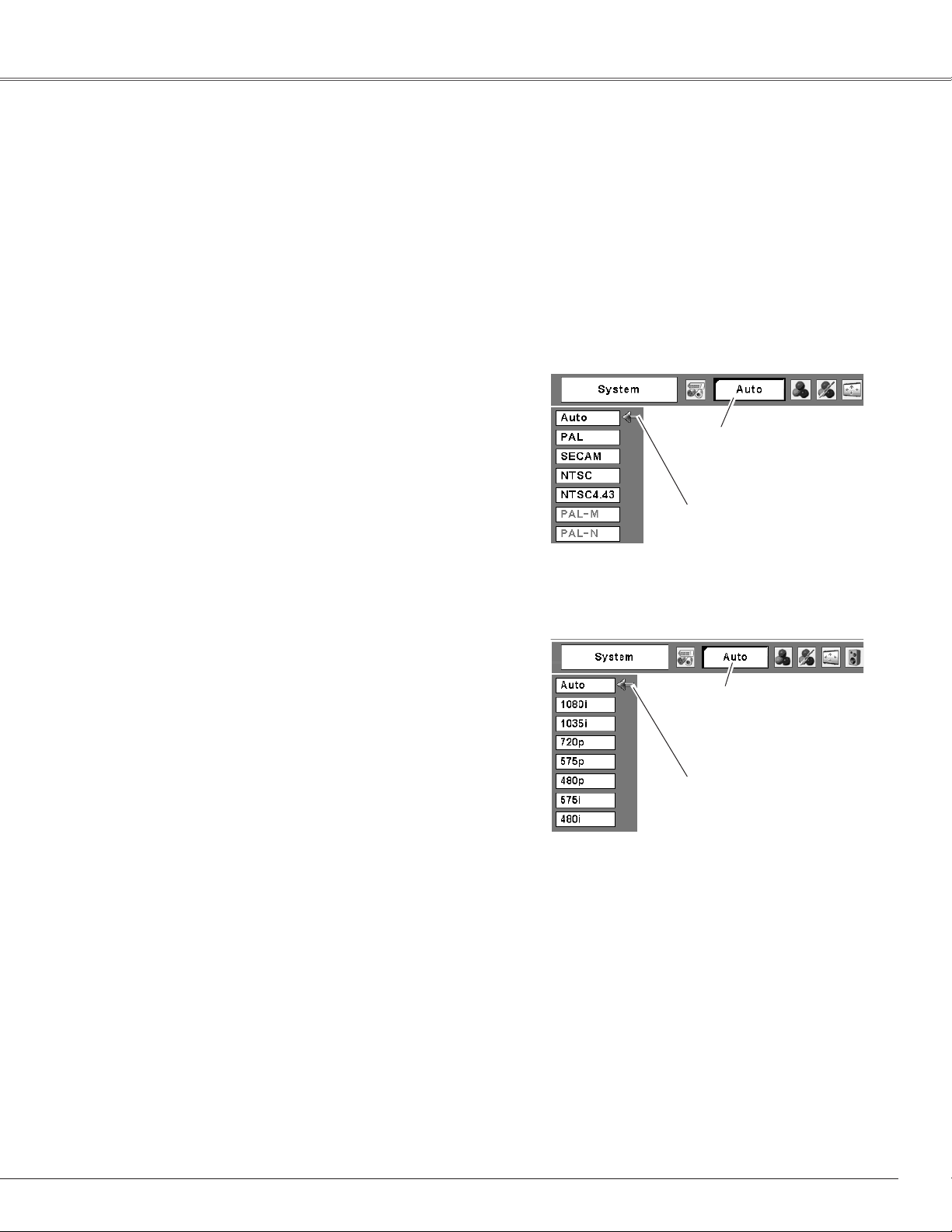

e AV System Menu

Used to select the system of selected video source (p.39).

Image Select Menu

Used to select an image level from Dynamic, Standard, Cinema, Blackboard (Green), Colorboard and Image 1–4 (pp.40-41).

Image Adjust Menu

Used to adjust the picture image from Contrast, Brightness, Color, Tint, Color temp., White balance (R/G/B), Sharpness, Gamma, Noise reduction, and Progressive (pp.42-43).

Screen Menu

Used to set the size of image to Normal or Wide (p.44).

Sound Menu

Used to adjust the volume or mute the sound (p.25).

i Setting Menu

Used to set the projector’s operating configurations (pp.45-55).

Wired Menu

See owner’s manual “Network Set-up and Operation”.

!0 Wireless Menu

See owner’s manual “Network Set-up and Operation”.

Basic Operation

Zoom Adjustment

Press the ZOOM +/- buttons on the top control to adjust the screen size. Screen size can be adjusted 84% to 100% from its maximum screen size.

It is not available when On-Screen menu is displayed.

Zoom adjustment can be memorized. (p.45)

Screen Position Adjustment

Screen position can be adjusted in the Zoom Adjustment.

Press the ZOOM+ or ZOOM- buttons on the top

control.

While ZOOM+ or ZOOM- is displayed on the screen,

press the SELECT button. Arrow marks displayed on the screen.

Press the point ed7 8 buttons to adjust screen

positions.

Screen position can not be adjusted at ZOOM maximum.

Focus Adjustment

Adjust the lens focus with the focus lever.

Keystone Correction

If a projected picture has keystone distortion, correct the image with the Keystone function.

Top Control

ZOOM +/- buttons

Focus Lever

•The arrows are white when there is no correction.

•The direction of the arrow which are being corrected

turns red.

•The arrows disappear at the maximum correction.

•If you press the KEYSTONE button on the top control

or on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment is canceled.

•The adjustable range can be limited depending on the

input signal.

•The projected picture may fluctuate momently

depending on the keystone adjustment.

•“Keystone” disappears after 4 seconds.

Top Control

KEYSTONE button

Press the KEYSTONE button on the top control or on the remote control. The keystone dialog box appears. Correct keystone distortion with the Point ed buttons. Keystone adjustment can be stored (p.45).

Reduce the upper width with the Point

e button.

Reduce the lower width with the Point

d button.

POINT ed buttons

Remote Control

KEYSTONE button

POINT ed buttons

Sound Adjustment

Basic Operation

Direct Operation

Volume

Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds.

Mute

Press the MUTE button on the remote control to temporarily turn off the sound. To turn the sound back on, press the MUTE button again or press the VOLUME +/– buttons. The Mute function is also effective for the AUDIO OUT jack.

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Sound Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired item, and then press the SELECT button.

Volume

Top Control

VOLUME+/buttons

Remote Control

VOLUME+ button

MUTE button

VOLUME- button

Approximate level of the volume.

Press the MUTE button to set the Mute function On or Off. The display disappears after 4 seconds.

Press the Point 8 button to turn up the volume; press the Point 7 button to turn down the volume.

Mute

Press the Point 7 8 buttons to switch the mute function On/ Off. When the sound is turned off, “On” is displayed. Press the Point 7 8 buttons again to turn the sound back on.

Sound Menu

Sound Menu icon

Approximate level of the volume.

Exit the Sound Menu.

Remote Control Operation

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.

AUTO SET button

Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search and Auto PC adj.) in the setting menu by just pressing the AUTO SET　 button. Refer to page 49 for the setting of the Auto setup function.

FREEZE button

Remote Control

AUTO SET button

FREEZE button

Press the FREEZE button to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button.

✔Note:

• See the next page for the description of other buttons.

Basic Operation

COMPUTER/NETWORK/VIDEO/S-VIDEO/ COMPONENT buttons

Press the COMPUTER, NETWORK, VIDEO, S-VIDEO, or COMPONENT button to select an input source. See pages 27, 37-38 for more details. Refer to the owner's manual “Network Set-up and Operation” for details about the network input.

AUTO PC button

Press the AUTO PC button to operate the Auto PC function. See page 29 for more details.

D.ZOOM buttons

Press the D.ZOOM buttons to zoom in and zoom out the images. See page 36 for more details.

CEILING button

Press the CEILING button to reverse the top/bottom and left/right of image (p49).

NO SHOW button

Press the NO SHOW button to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as “User” in the Logo selection (p.47), the screen changes each time you press the NO SHOW button as follows.

black out ➜ the captured image ➜ normal ➜

• • • • •

Remote Control

COMPUTER 1/2 buttons

NETWORK button

COMPONENT button S-VIDEO button

VIDEO button

✔Note:

• When the COMPUTER 2 button is pressed, if Monitor Out is selected at the Terminal setting, “Monitor out” is displayed on the screen. (p.49)

Remote Control

CEILING button

D.ZOOM buttons

NO SHOW button

AUTO PC button

KEYSTONE button

(See page 24.)

POINT ed buttons

IMAGE button

P-TIMER button

LAMP CONTROL button

KEYSTONE button

For details, see page 24.

IMAGE button

Press the IMAGE button to select an image level of the screen. See pages 32, 40 for more details.

P-TIMER button

Press the P-TIMER button. The timer display “00:00” appears on the screen and the timer starts to count time (00:00–59:59). To stop the P-Timer, press the P-TIMER button. Press the P-TIMER button again, then the P-Timer display disappears.

LAMP CONTROL button

Press the LAMP CONTROL button to select the lamp mode to change the brightness of the screen.

Normal … Normal brightness Auto …… Brightness according with the input signal Eco …… Lower brightness reduces the lamp power

consumption and extends the lamp life.

✔Note:

• See the previous page for the description of other buttons.

“No show” disappears after 4 seconds.

P-Timer display

Computer Input

Input Source Selection

Direct Operation

Press the INPUT button on the top control to select either Computer 1 or Computer 2, or press the COMPUTER 1 on the remote control to select Computer 1 button or press the COMPUTER 2 button on the remote control to select Computer 2. Before using the INPUT or COMPUTER 1 / 2 buttons, select the correct input source through Menu operation as described below.

Top Control

Remote Control

COMPUTER 1 button

*See Notes at the bottom of this page.

INPUT button

Computer 1

Computer 2*

Video

Wired

Wireless

COMPUTER 2 button

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Input Menu icon.

Use the Point ed buttons to move the red arrow

pointer to either Computer 1 or Computer 2, and then press the SELECT button.

After the Source Select Menu appeared for Computer

1, move the pointer to RGB and then press the SELECT button.

✔Note:

• Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is set as Monitor out (p.49).

• Computer 2 (COMPUTER IN 2/MONITOR OUT) can accept only the RGB signal.

• Wired and Wireless are for the Network function. See

owner’s manual “Network Set-up and Operation”.

Input Menu icon

Input Menu

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

Source Select Menu

Move the pointer to RGB and press the SELECT button.

Input Menu

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

Computer Input

Computer System Selection

The projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. (Signal formats provided in this projector is shown on page 68.)

One of the following messages may appear when:

PC System Menu

Auto

The projector cannot recognize the connected signal conforming to the provided PC Systems. “Auto” is displayed on the PC System Menu icon and the Auto PC Adjustment function works to display proper images. If images are not projected properly, adjust manually. (pp.30-31)

The Auto PC Adjustment function operates to adjust the projector.

-----

Mode 1

SVGA 1

*Mode 1 and SVGA 1 are examples.

Selecting Computer System Manually

PC system can also be selected manually.

There is no signal input from computer. Check the connection between your computer and the projector. (See “Troubleshooting” on page 61.)

The preset system is manually adjusted in the PC Adjust Menu. The adjusted data can be stored in Mode 1–5 (pp.30-31).

A PC System provided in the projector is selected. The projector selects a proper system provided in the projector and displays it.

Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the PC System Menu icon.

Use the Point ed buttons to move the red arrow pointer to the desired system, and then press the SELECT button.

PC System Menu

The PC System Menu icon The selected system is displayed.

Available system selection.

Custom Mode (1–5) set in the PC Adjust Menu (pp.30-31).

Computer Input

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical positions to conform to your computer.

Direct Operation

The Auto PC adjustment function can be operated directly with the AUTO PC button on the remote control.

Menu Operation

Auto PC adj.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to PC Adjust Menu.

Use the Point ed buttons to move the red frame

pointer to Auto PC Adj. and then press the SELECT button twice.

To store the adjusted parameters

The system parameters adjusted in the Auto PC Adjustment can be stored in the projector. Once parameters are stored, the setting can be done just by selecting a Mode in the PC System Menu (p.28). See “Store” on page 31, for details.

Remote Control

AUTO PC button

PC Adjust Menu

PC Adjust Menu icon

Move the red frame pointer to the Auto PC Adj. item and press the SELECT button.

“Please wait...” appears while Auto PC adjustment is in process.

✔Note:

• Fine sync, Total dots, Horizontal, and Vertical positions of some computers cannot be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.30-31).

• The Auto PC Adjustment cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i, or 1080i is selected in the PC System Menu (p.28).

• AUTO PC adj. cannot be selected when the projector is on a network.

Computer Input

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas (Mode 1–5) to store those parameters manually adjusted, which allows you to recall the setting for a specific computer.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the PC Adjust Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT button to display the adjustment dialog box. Press the Point 7 8 buttons to adjust the value.

Fine sync

Use the Point 7 8 buttons to adjust the value to cut off flicker from the image displayed (from 0 to 31).

Total dots

Use the Point 7 8 buttons to adjust the number of total dots in one horizontal period to match your PC image.

Horizontal

Use the Point 7 8 buttons to adjust the horizontal picture position.

Vertical

PC Adjust Menu

Move the red frame pointer to the desired item and press the SELECT button.

PC Adjust Menu icon

Status (Stored/Free) of the selected Mode

Selected Mode

Use the Point to adjust the value.

7 8 buttons

Use the Point 7 8 buttons to adjust the vertical picture position.

Current mode

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Use the Point 7 8 buttons to adjust the clamp level. When the image has dark bars, try this adjustment.

Press the SELECT button here to move on to other items.

Press the SELECT button at “Current mode” to show the information of the connected computer.

Display area H

Use the Point 7 8 buttons to adjust the horizontal area displayed by this projector.

Display area V

Use the Point 7 8 buttons to adjust the vertical area displayed by this projector.

Reset

Computer Input

To reset the adjusted data, select “Reset” and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

Mode free

To clear the stored data, select “Mode free” and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

Store

To store the adjusted data, select “Store” and then press the SELECT button. Move the red arrow pointer to one of the Mode 1 to 5 in which you want to store, and then press the SELECT button.

Quit

Exit the PC Adjust Menu.

✔Note:

• Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 720p, 1035i, or 1080i is selected in the PC System Menu (p.28).

Move the red frame pointer to an item and press the SELECT button.

To clear adjusted data

Vacant Mode

To store adjusted data

Thi s M o d e ha s stored parameters.

Values of “Total dots,” “Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

Close this dialog box.

Computer Input

Image Level Selection

Direct Operation

Select an image level from among Dynamic, Standard, Real, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3, or Image 4 with the IMAGE button on the remote control.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on the projector.

Real

Picture level with improved halftone for graphics.

Blackboard (Green)

For viewing the image projected on a blackboard. This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Colorboard

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. See the next page.

Remote Control

IMAGE button

Dynamic

Standard

Real

Blackboard(Green)

Colorboard

Image 1

Image 2

Image 3

Image 4

Image 1–4

User preset image in the Image Adjust Menu (p.35).

Computer Input

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired level and then press the SELECT button.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

Image Select Menu icon

Image Select Menu

Move the red frame pointer to the desired level and press the SELECT button.

The image level being selected.

Colorboard

Image 1–4

User preset image in the Image Adjust Menu (p.35).

Computer Input

Image Level Adjustment

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired item, and then press the SELECT button. The level of each item is displayed. Use the Point 7 8 buttons to adjust each level.

Contrast

Press the Point 7 button to decrease the contrast; press the Point 8 button to increase the contrast (from 0 to 63).

Brightness

Press the Point 7 button to decrease the brightness; press the Point 8 button to increase the brightness (from 0 to 63).

Color temp.

Use the Point 7 8 buttons to select the desired Color temp. level (XLow, Low, Mid, or High).

White balance (Red)

Press the Point 7 button to lighten the red tone; press the Point 8 button to deepen the red tone (from 0 to 63).

Image Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the desired item and then press the SELECT button.

Selected Image level

Use the Point 7 8 buttons to adjust the value.

White balance (Green)

Press the Point 7 button to lighten the green tone; press the Point 8 button to deepen the green tone (from 0 to 63).

White balance (Blue)

Press the Point 7 button to lighten the blue tone; press the Point 8 button to deepen the blue tone (from 0 to 63).

Sharpness

Press the Point 7 button to decrease the sharpness of the image; press the Point 8 button to increase the sharpness of the image (from 0 to 15).

Gamma

Use the Point 7 8 buttons to adjust the gamma value to get better balance of contrast (from 0 to 15).

Reset

To reset the adjusted data, select “Reset” and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

✔Note:

• After adjusting the White balance Red, Green, or Blue, the Color temp. level will change to “Adj.”.

Store

To store the adjusted data, select “Store” and press the SELECT button. The Image Level Menu appears. Use the Point ed buttons to choose one of the four image level and press the SELECT button. A confirmation box appears and then select “Yes.” The stored data can be called up by selecting “Image” in the Image Level Selection on pages 32-33.

Computer Input

Move the red frame pointer to the desired image level (from Image 1 to 4) and then press the SELECT button.

Quit

Exit the Image Adjust Menu.

Store item Press the SELECT button at this item to store the adjusted data.

A confirmation box appears, then select “Yes.”

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon.

Use the Point ed buttons and move the red frame

pointer to the desired function and then press the SELECT button.

Normal

Provide the image to fit the screen size with the original aspect ratio of input signal.

True

Provide the image in its original size. When the original image size is larger than the screen size (1024 x 768), the projector automatically switches to the panning mode. Use the Point ed7 8 buttons to pan the image. When adjusted, the arrows turn red. When reached to the correction limit, the arrows disappear.

Wide

Provide the image to fit wide video aspect ratio (16:9) by expanding the image width uniformly. This function can be used to provide the squeezed video signal at 16:9.

Full

Screen Menu

Screen Menu icon

Move the red frame pointer to the function and press the SELECT button.

✔Note:

• The Screen Menu cannot be operated when 720p, 1035i, or 1080i is selected in the PC System Menu (p.28).

• This projector cannot display any resolution higher than 1920 x 1200. If your computer’s resolution is higher than that, lower the resolution before connecting to the projector.

• The image data other than 1024 x 768 is modified to fit the screen size in initial mode.

• True, Full, and Digital zoom +/– cannot be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p.28).

Provide the full screen image.

Computer Input

For zooming in and out the images

Digital zoom +

When Digital zoom + is selected, the On-Screen Menu disappears and “D. zoom +” is displayed. Press the SELECT button to expand the image size. Use the Point ed7 8 buttons to pan the image. The Panning function can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the D.ZOOM e button on the remote control.

Digital zoom –

Digital zoom - is used to reduce the image size into its original size when the image size is expanded.

When Digital zoom – is selected, the On-Screen Menu disappears and “D. zoom –” is displayed. Press the SELECT button to compress image size. The projected image can be also compressed by pressing the D.ZOOM d button on the remote control.

To exit the Digital zoom +/– mode, press any button except the D.ZOOM ed, SELECT, and Point buttons.

Remote Control

POINT buttons

SELECT button

D.ZOOM + button

D.ZOOM - button

✔Note:

• The panning function may not operate properly if the stored Mode in the PC Adjust Menu is used (p.31).

• True, Full, and Digital zoom +/– cannot be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p.28).

• Digital zoom +/– cannot be selected when Full or True is selected.

To return to the previous screen size, select a screen size in the Screen Size Adjustment or select an input source from the Input Source Selection (p.27) again, or adjust the screen size with the D.ZOOM ed buttons.

Video Input

Input Source Selection (Video, S-Video, Component)

Direct Operation

Press the INPUT button on the top control to select Video, or press the VIDEO button on the remote control to select Video, the S-VIDEO button on the remote control to select S-video, or the COMPONENT button on the remote control to select Component. Before using the INPUT or VIDEO / S-VIDEO / COMPONENT buttons, select the correct input source through menu operation as described below.

Menu Operation

Use the MENU button to display the On-Screen Menu.

Press the Point 7 8 buttons to move the red frame pointer to the Input Menu icon.

Use the Point ed buttons to move the red arrow

pointer to Video and then press the SELECT button to display the Source Select Menu .

Move the pointer to the desired source and then press

the SELECT button.

Auto

When selecting “Auto,” the projector automatically detects the incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order:

Top Control

Remote Control

VIDEO button

Input Menu

INPUT button

Computer 1

Computer 2*

Video

Wired

Wireless

S-VIDEO button

COMPONENT button

Input Menu icon

1. Component

2. S-video

3. Video

Video

S-video

Component

✔Note:

• Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is set as Monitor out (p.49).

• Wired and Wireless are for the Network function. See

owner’s manual “Network Set-up and Operation” .

When the video input signal is connected to the VIDEO jack, select Video.

When the video input signal is connected to the S-VIDEO jack, select S-video.

When the input source is coming from video equipment connected to the COMPONENT IN terminal with a Component Cable (not supplied), select Component.

Move the pointer to Video and press the SELECT button.

VIDEO

Source Select Menu (VIDEO)

Move the pointer to the desired source and press the SELECT button.

Video Input

Input Source Selection (RGB Scart 21-pin)

Direct Operation

Press the INPUT button on the top control or COMPUTER 1 button on the remote control to select Computer 1. Before using INPUT or COMPUTER 1 buttons, select the correct input source through Menu operation as described below.

Menu Operation

Use the MENU button to display the On-Screen Menu.

Press the Point 7 8 buttons to move the red frame pointer to the Input Menu icon.

Use the Point ed buttons to move the red arrow

pointer to Computer 1 and then press the SELECT button.

After the Source Select Menu appeared for Computer

1, move the pointer to RGB (Scart) and then press the SELECT button.

Top Control

Remote Control

COMPUTER 1 button

*See Note at the bottom of this page.

Input Menu

Input Menu icon

INPUT button

Computer 1

Computer 2*

Video

Wired

Wireless

RGB (Scart)

✔Note:

• Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is set as Monitor out (p.49).

• Computer 2 (COMPUTER IN 2/MONITOR OUT) can accept only RGB signal.

• Wired and Wireless are for the Network function. See

owner’s manual “Network Set-up and Operation” .

When the input source is coming from video equipment connected to the COMPUTER IN 1 terminal with a Scart-VGA Cable (not supplied), select RGB (Scart).

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

Source Select Menu

Move the pointer to RGB (Scart) and press the SELECT button.

Video System Selection

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the AV System Menu icon.

Use the Point ed buttons to move the red arrow

pointer to the desired system and then press the SELECT button.

Video Input

Video or S-Video

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Component

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

AV System Menu (Video or S-Video)

AV System Menu icon The selected system is displayed.

Move the pointer to the desired system and press the SELECT button.

AV System Menu (Component)

AV System Menu icon The selected system is displayed.

Move the pointer to the desired system and press the SELECT button.

✔Note:

• The AV System Menu cannot be selected when selecting RGB (Scart).

Video Input

Image Level Selection

Direct Operation

Select an image level from among Dynamic, Standard, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3, and Image 4 with the IMAGE button on the remote control.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard(Green)

Colorboard

Remote Control

IMAGE button

Dynamic

Standard

Cinema

Blackboard

Colorboard

Image 1

Image 2

Image 3

Image 4

(Green)

Image 1–4

User preset image in the Image Adjust Menu (pp.42-43).

Video Input

Menu Operation

Use the MENU button to display the On-Screen Menu.

Press the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired level and then press the SELECT button.

Dynamic

For viewing picture in a bright room.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard (Green)

Image Select Menu

Move the red frame pointer to the desired image level and press the SELECT button.

The image level being selected.

Image Select Menu icon

Colorboard

Image1–4

User preset image in the Image Adjust Menu (pp.42-43).

Video Input

Image Level Adjustment

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point 7 8 buttons.

Contrast

Press the Point 7 button to decrease the contrast; press the Point 8 button to increase the contrast (from 0 to 63).

Brightness

Press the Point 7 button to decrease the brightness; press the Point 8 button to increase the brightness (from 0 to 63).

Color

Press the Point 7 button to decrease the intensity of the color; press the Point 8 button to increase the intensity of the color (from 0 to 63).

Tint

Image Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the desired item and th en p res s th e SE LEC T button.

Selected Image level

Use the Point 7 8 buttons to adjust the value.

Use the Point 7 8 buttons to adjust the tint value to get a proper color balance (from 0 to 63).

Color temp.

Use the Point 7 8 buttons to select the desired Color temp. level (XLow, Low, Mid, or High).

White balance (Red)

Press the Point 7 button to lighten the red tone; press the Point 8 button to deepen the red tone (from 0 to 63).

White balance (Green)

Press the Point 7 button to lighten the green tone; press the Point 8 button to deepen the green tone (from 0 to 63).

White balance (Blue)

Press the Point 7 button to lighten the blue tone; press the Point 8 button to deepen the blue tone (from 0 to 63).

✔Note:

• The Tint cannot be selected when the video system is PAL, SECAM, PAL-M, or PAL-N.

• After adjusting the White balance Red, Green or Blue, the Color temp. level will change to “Adj.”.

Sharpness

Press the Point 7 button to decrease the sharpness of the image; press the Point 8 button to increase the sharpness of the image (from 0 to 15).

Gamma

Use the Point 7 8 buttons to adjust the gamma value to get better balance of contrast (from 0 to 15).

Noise reduction

Noise interference on the screen can be reduced. Select one of the following options to get smoother images.

Off……… Disabled. L1 ……… Lower reduction L2 ……… Higher reduction

Progressive

Video Input

An interlaced video signal can be displayed in a progressive picture. Select one of the following options.

Off………Disabled. L1……… For an active picture. L2……… For a still picture. Film…… For watching a film. With this function, the projector

reproduces pictures faithful to the original film quality.

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

Store

To store the adjusted data, select Store and press the SELECT button. Select a level from Image 1 to 4 with the Point ed buttons and press the SELECT button. A confirmation box appears and then select “Yes.” Stored data can be called up by selecting “Image” in the Image Level Selection on pages 40-41.

Quit

Store item

Image Level Menu Move the red frame pointer to an image item to be set and then press the SELECT button.

A confirmation box appe ar s and then select “Yes.”

Exit the Image Adjust Menu.

✔Note:

• Noise reduction and Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is selected (p.39).

Video Input

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon.

Use the Point ed buttons and move the red frame

pointer to the desired function and then press the SELECT button.

Normal

Provide the image at a normal video aspect ratio of 4:3.

Wide

Provide the image at a wide screen ratio of 16:9.

✔Note:

• Wide is not available when 720p, 1035i, or 1080i is selected in the AV System Menu (p.39).

Screen Menu

Screen Menu icon

Move the red frame pointer to the desired function and press the SELECT button.

Setting

This projector has Setting menu that allows you to set up the other various functions described as follows:

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame

pointer to the item that you want to set and then press the SELECT button. The Setting dialog box appears.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, or Japanese.

Zoom

This function is used to memorize the Zoom adjustment with the ZOOM +/- buttons on the top control. Press the Point 7 8 buttons to select Store 1, Store 2 or Reset.

Store 1…… Store the Zoom setting even when the projector

is turned off. Zoom setting is cleared when the AC power cord is unplugged.

Store 2…… Store the Zoom setting even when the AC power

cord is unplugged.

Reset…….. Reset the Zoom adjustment when the projector is

turned off or the AC power cord is unplugged.

Setting Menu (Language)

Set the red framed pointer to the item and press the SELECT button.

Press the SELECT button

SELECT

button

at Language item, the Language Menu appears.

Setting Menu icon

Press the SELECT button at this item to display the other languages.

Keystone

This function corrects distortion of a projected image. Select either Store or Reset with the Point 7 8 buttons, and then press the SELECT button. Adjust the balance with the Point ed buttons.

Store…… Store the keystone correction even when the AC

power cord is unplugged.

Reset…… Reset the keystone correction when the AC　power

cord is unplugged.

Press the SELECT button at this item to close the dialog box.

Setting

Uniformity adj.

This function adjusts the brightness uniformity on a screen. Select either Store 1, Store 2 or Reset with the Point 7

buttons, and then press the SELECT button. Press the Point 7 8 buttons to adjust the brightness uniformity (from 0 to 7).

Store 1…… Store the uniformity adjustment even when the

projector is turned off. Reset the uniformity adjustment when the AC power cord is unplugged.

Store 2…… Store the uniformity adjustment even when the

projector is turned off or the AC power cord is unplugged.

Reset…….. Reset the Uniformity adjustment when the

projector is turned off or the AC power cord is unplugged.

✔Note:

• Sometimes, the brightness uniformity can not be adjusted under certain conditions. With the adjustment of brightness uniformity, the balance of color or contrast also changes.

Blue back

Press the Point 7 8 buttons to switch on/off. When this function is “On,” a blue image is displayed while the input signal is not detected.

Display

Press the Point 7 8 buttons to switch on/off. This function decides to display the On-Screen Displays.

On ………………… Display all the On-Screen Displays. Use this

function when you want to project images after the lamp becomes bright enough. This mode is set as a default.

Countdown off… Display the input image instead of the

countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Off………………… Do not show the On-Screen Displays. except:

lOn-Screen Menu l “Power off?” lP-Timer l “No signal” for Power management item (p.50)

l”Please wait...” lArrows for panning mode (p.36)

Setting

Logo (Logo and Logo PIN code lock settings)

This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions.

✔Note:

• When “On” is selected in Logo PIN code lock function,

Logo select and Capture functions cannot be selected.

Logo select

This function decides the start-up display as follows:

User………The image you captured Default……The factory-set logo Off…………Countdown only

Capture

This function enables you to capture the image being projected and use it for a start-up display or interval of presentations. After capturing the projected image, go to the Logo select function and set it to “User.” Then the captured image is displayed when the projector is turned on next time or the NO SHOW button is pressed (p 26). To capture the image, select “Yes.” To cancel the Capture function, select “No.”

Logo select

Capture

✔Note:

• Before capturing an image, select "Standard" in the Image Select Menu to capture a proper image (pp.3233, 40-41).

• A signal from a computer can be captured up to XGA(1024x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.

• When you capture the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone adjustment.

• When the Logo PIN code lock function is “On,” Capture menu cannot be selected.

• When you start to capture a new image, the previously stored image is cleared even if you cancel the capturing.

• “User” cannot be selected when the image is not

captured.

Select "Yes" to capture the projected image.

Select "Yes" to stop capturing.

Setting

Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.

Off…… the screen logo can be changed freely from the

Logo select menu (p.47).

On…… the screen logo cannot be changed without the

Logo PIN code.

If you want to change the Logo PIN code lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set “4321” at the factory.

Enter a Logo PIN code

Select a number by pressing the Point ed buttons. And then press the Point 8 button to fix the number and move the pointer. The number changes to "✳". If you fixed an incorrect number, move the pointer to the number you want to correct by pressing the Point 7 button, and then select the correct number by pressing the Point ed buttons.

Repeat this step to complete entering a four-digit number.

Logo PIN code lock

Logo PIN code lock Dialog Box

After a correct Logo PIN code is entered, the following dialog box appears.

After entering the four-digit number, move the pointer to "Set" by pressing the Point 8 button. Press the SELECT button so that you can change the following Logo PIN code lock settings.

If you entered an incorrect PIN code, "Logo PIN code" and the number (✳✳✳✳) turns red. Enter a correct Logo PIN code all over again.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit number. Select “Logo PIN code change” with the Point

d button and press the SELECT button. Set a new Logo

PIN code.

Be sure to note the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN code lock function on pages 52-53.

CAUTION: WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 75, AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED.

Select On/Off by pressing the Point change the Logo PIN code.

7 8 buttons or

Setting

Ceiling

When this function is set to “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output (p.10). Select Computer 2 or Monitor Out with the Point 7 8 buttons.

Computer 2……computer input Monitor Out……monitor out

Terminal function is not available when Computer 2 to the input source is selected. Change the input source to the others (Computer1 or Video) so that the Terminal function is available (pp.27, 37–38).

Auto setup

Ceiling

Rear

This function enables Input search and Auto PC adjustment by pressing the AUTO SET button on the remote control. Settings for those functions can be altered as follows:

Input search

This function detects the input signal automatically. When finding a signal, the search will stop. Use the Point 7 8 buttons to select one of the followings.

Off …… Input search does not work. On1 …… Input search works under the situation below.

• When the AUTO SET button on the remote

control is pressed.

On2 …… Input search works under the situation below.

• When the projector is turned on with

pressing the ON/STAND-BY button on the top control or on the remote control. (After the countdown)

• When the AUTO SET button on the remote

control is pressed.

•When the current input signal is missed.✳

✳If the No show or Freeze function is active, cancel it

to activate the Input search. It is not available when On-Screen menu is displayed.

Auto PC adj.

On . . . . . Enables Auto PC Adjustment when pressing

the AUTO SET button on the remote control.

Off . . . . . Disables Auto PC Adjustment.

✔Note:

• Input search and Auto PC Adj. cannot be set to “Off” at the same time.

• While Input search is set On1 or On2, the

status of Input and Lamp are displayed every time the signal is switched.

• Only the input source selected at the last time can be detected.

• If the AUTO SET button on the remote control is pressed while Input search is on, Input search will stop and go back to the previous input signal.

• The input source can be switched by

pressing the COMPUTER, VIDEO, S-VIDEO, COMPONENT, or NETWORK button on the remote control while Input search is on.

• Sync on Green signal does not support Input search.

• Input search does not work for Wired/ Wireless Network input sources.

• If the INPUT button on the top control is pressed while Input search is on, Input search will stop.

• The Auto PC adjustment function can be

operated directly with the AUTO PC button on the remote control even when Auto PC adj. is set to “Off” in the Auto setup setting.

Setting

Standby mode

This function is available when operating the projector via network.

Eco............. Select “Eco” when you do not use the projector

via network. The projector’s network function will stop when turning off the projector.

Network ....... Supply the power to the network function

even after turning off the projector. You can turn on/off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off.

Refer to the owner’s manual “Network Setup and Operation.”

Power management

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the input signal is interrupted and no button is pressed for a certain period. When the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with “No signal” appears. The countdown starts to turn off the lamp.

✔Note:

• When selecting Network, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off.

• When “Eco” is selected, several functions will be restricted. (pp. 16-18 )

• When “Eco” is selected, it is only

possible to turn on the projector while using the RS-232C serial port.

Power management

Time left before Lamp is off.

Select one of the operations.

Ready……… When the lamp has been fully cooled down, the

POWER indicator changes to green blinking. In this condition, the projection lamp is turned on if the input signal is reconnected or any button on the remote control is pressed.

Shut down… When the lamp has been fully cooled down, the

power is turned off.

Off………… Power management function is off.

Then set the countdown timer with the Point 7 8 buttons.

✔Note:

• Factory default is “Ready: 5 min.”

On start

When this function is set to “On,” the projector is automatically turned on just by connecting the AC power cord to an outlet.

✔Note:

• Be sure to turn the projector off properly (see “Turning Off the Projector” on page 21). If the projector is turned off in the incorrect sequence, the On start function does not operate properly.

On start

Press the SELECT button at Power management and this box appears. Select one of three settings with the Point go to the timer with the Point time with the Point buttons.

7 8 buttons, and

ed buttons and set

7 8

Lamp control

You can change the brightness of the screen.

Normal … Normal brightness Auto …… Brightness according with the input signal Eco …… Lower brightness reduces the lamp power

consumption and extends the lamp life.

Remote control

This projector provides two different remote control codes; the factory-set, initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when several projectors or video equipment are operated at the same time. When the projector is operated in “Code 2,” both the projector and the remote control must be switched to “Code 2.”

To change the code for the projector:

Select either “Code 1” or “Code 2” in this Setting Menu.

Setting

Remote control

Press and hold MENU and IMAGE buttons for more than 5 seconds.

To change the code for the remote control:

Press and hold both the MENU and IMAGE buttons together for more than 5 seconds. After changing the code, make sure the remote control operates properly.

✔Note:

• When different codes are set on the projector and on the remote control, any operation cannot be made. In that case, switch the code on the remote control to fit the code on the projector.

• If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.

Security (Key lock, PIN code lock settings)

This function allows you to use the Key lock, PIN code lock function to set the security for the projector operation.

Key lock

This function locks the top control and remote control buttons to prevent operation by unauthorized persons.

..... Unlocked.

..... Lock the operation of the top control. To

unlock, use the remote control.

..... Lock the operation of the remote control.

To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center.

Key lock

Select Key lock. Use the Point to choose one of the options and select [Yes] to activate it.

ed buttons

Setting

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.

Off…… The projector is not locked with the PIN code. On1…… Requires to enter a PIN code every time turning on

the projector.

On2…… Requires to enter a PIN code to operate the

projector once the power cord is unplugged; as long as the AC power cord is connected, the projector can be operated without a PIN code.

Whenever you change the PIN code lock setting or the PIN code (a four-digit number), you are required to enter the PIN code. “1234” is set as the initial PIN code at the factory.

Enter a PIN code

PIN code lock

When the projector is locked with the PIN code, the PIN code lock symbol appears on the menu bar.

Enter a PIN code

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to "Set" by pressing the Point 8 button. Press the SELECT button so that you can change the following PIN code lock settings. If you entered an incorrect PIN code, "PIN code" and the number (✳✳✳✳) turns red. Enter a correct PIN code all over again.

The input numbers change to “✳” for security reasons.

Move the pointer to "Set" by pressing the Point And then press the SELECT button.

8 button.

5252

Setting

Change the PIN code lock setting

Select Off, On1, or On2 with the Point 7 8 buttons and then move the red frame pointer to “Quit” with the Point

d button. Press the SELECT button to close the dialog

box.

Change the PIN code

The PIN code can be changed to your desired four-digit number. Select "PIN code change" with the Point d button, and press the SELECT button to display the New PIN code input dialog box. Select a number by pressing the Point ed buttons. And then press the Point 8 button to fix the number and move the pointer. Repeat it to complete entering a fourdigit number. After entering the four-digit number, move the pointer to "Set" by pressing the Point 8 button. Then press the SELECT button.

CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 72, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.

Change the PIN code lock setting

Select a desired setting with the

7 8 buttons.

Point

Change the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box appears.

The input numbers are being displayed for confirmation.

5353

Setting

Fan

This function provides the following options in the cooling fans’ operation after turning off the projector (p.21).

L1 …… Normal operation L2 …… Slower and lower-sound than the normal operation (L1),

but it takes longer to cool down the projector.

Fan Control

Choose the running speed of cooling fans from the following options according to the altitude in which the projector is being used.

Off....... Normal speed. Set this function to “Off” when using

the projector in non-high altitude environment.

On 1... Faster than Off mode. Select this mode when using

the projector in high altitudes (about 1,200 meters or more above the sea level) where the fans have less cooling effect.

On 2.... Faster than On 1 mode. Select this mode when using

the projector in higher altitudes than above where the fans have lesser cooling effect.

Warning log

This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

✔Note:

• Setting “Fan control” to On1 or On2 affects L2 operation in “Fan.”

✔Note:

• Fan noise becomes louder in On 1 and On2.

• Failure to set the running speed of cooling fans properly may affect the projector life.

✔Note:

• When the Factory default function is executed,

all the warning log records will be deleted.

Lamp counter

This function is used to reset the lamp counter.

When the lamp life is left less than 100 hours, the Lamp replacement icon appears on the screen, indicating that the end of lamp life is approaching.

When the lamp life is counted down to 0 hour, the Lamp replacement icon (Fig.2) will appear on the screen, indicating that the end of lamp life is reached.

When replacing the projection lamp, reset the lamp counter. See “Lamp Replacement Counter” on page 60.

✔Note:

• The Lamp replacement icon will not appear when the Display function is set to “Off” (p.46), during “Freeze” (p.25), or “No show” (p.26).

Lamp Replacement icon

Fig.1 Lamp replacement icon

This icon appears on the screen when the end of lamp life is approaching.

✔Note:

• This icon also appears at turning on and　

selecting input source.

Fig.2 Lamp replacement icon

This icon appears on the screen when the end of lamp life is reached.

✔Note:

• At turning on, the icon (Fig.2) will appear.　

At selecting input source, the icon (Fig.1) will appear.

Setting

Filter counter

This function is used to set a frequency for the filter cleaning.

When the projector reached a specified time between cleanings, a Filter warning icon appears on the screen, notifying the cleaning is necessary. After cleaning the filter, be sure to select RESET and set the timer. The Filter warning icon will not turn off until the filter counter is reset.

For details about resetting the timer, refer to “Resetting the Filter Counter” on page 57.

✔Note:

• At selecting input source, the icon (Fig.4) will appear.

• The Filter warning icon (Fig.3 and Fig.4) will not appear when

the Display function is set to “Off” (p.46), during “Freeze” (p.25), or “No show” (p.26).

Filter counter

Use the Point 7 8 buttons to set the timer. Select from (Off/100H/ 200H/ 300H) depending on the use environment.

Fig.3 Filter warning icon

Filter warning icon (Fig.3) appears on the screen at a set time.

✔Note:

• The icon (Fig.3) appears at turning on.

Fig.4 Filter warning icon

Test pattern

Various test patterns are available for use when setting up the projector.

Factory default

This function returns all setting values except for the user logo, PIN code lock, Logo PIN code lock, the lamp counter, and the filter counter to the factory default settings.

Quit

Exit the Setting Menu.

Factory default

Select Factory default and this box appears. Select “Yes,” and the next box appears.

Select “Yes” to activate it.

Maintenance and Cleaning

Warning Indicator

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

The projector is shut down and the WARNING TEMP. indicator is blinking red.

When the temperature inside the projector reaches a certain level, the projector is automatically shut down to avoid overheating. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/STAND-BY button.

✔Note:

• The WARNING TEMP. indicator continues to blink even

after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING TEMP. indicator stops blinking.

Indicators

WARNING TEMP. blinking red

Then check the matters below:

– Did you provide appropriate space for the projector to

be ventilated? Check the installing condition to see if ventilation slots are not blocked.

– Has the projector been installed near an Air-Conditioning/

Heating Duct or Vent? Move the installation of the projector away from the duct or vent.

– Are the air filters clean? Clean the air filters periodically.

(p.57)

The projector is shut down and the WARNING TEMP. indicator lights red.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the WARNING TEMP. indicator lights red. In this case, unplug the AC power cord and plug it, and then turn on the projector once again to verify operation. If the projector cannot be turned on and the WARNING TEMP. indicator lights red, unplug the AC power cord and contact the service station.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Indicators

WARNING TEMP. emit a red light

Maintenance and Cleaning

Cleaning the Air Filter

The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. Should the air filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in a buildup of internal heat and adversely affects the life of the projector. Clean the air filter by following the steps below.

Turn off the projector, and unplug the AC power cord

from the AC outlet.

Turn over the projector and remove the air filter by

pulling the latches upward.

Clean up the dust on the projector and around the air

vents.

Gently clean the filter by using a brush or blower.

WARNING: Do not wash the filter with water and any other liquid matter. Otherwise the filter may be damaged.

Reinstall the filter into the projector properly.

Reset the filter counter in the Setting Menu. See

“Resetting the Filter Counter” below.

CAUTION

Do not operate the projector with the air filter removed. Dust may accumulate on the optical elements degrading picture quality. Do not put anything into the air intake vents. Otherwise it may result in malfunction of the projector.

Air filter Pull up the tab and remove.

✔Note:

• When cleaning the air filter, protect the infrared remote receiver with a soft cloth to avoid damaging it.

• If the filter is heavily clogged and unable to

clean, replace it with a new one. Consult your dealer for details.

Replacement Filter Part No.: 610 335 4057

RECOMMENDATION

We recommend avoiding dusty/smoky environments when you operate the projector. Usage in these environments may cause poor image quality.

When you use the projector under dusty or smoky conditions, dust may accumulate on the lens, LCD panels, or optical elements inside the projector degrading the quality of a projected image. When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

Resetting the Filter Counter

Be sure to reset the Filter counter after cleaning or replacing the filter.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame

pointer to Filter counter and then press the SELECT button. A dialog box appears showing the total accumulated time of the filter use, a timer setting option, and the reset option. Select Reset and the “Filter counter Reset?” appears. Select [Yes] to continue.

Another confirmation dialog box appears, select [Yes]

to reset the Filter counter.

Filter counter

Select Reset and the “Filter counter Reset?” appears.

Select [Yes], then another confirmation box appears.

Select [Yes] again to reset the Filter counter.

Maintenance and Cleaning

Cleaning the Projection Window

CAUTION

This projector is equipped with a projection window. Do not rub the projection window with a hard fiber cloth or hit it with a something hard to prevent the projection window from scratching. Do not use a chemical cleaner (liquid and solid) to avoid deteriorating the projection window.

Unplug the AC power cord before cleaning.

First, remove the dust with a blower. Then gently wipe the projection window surface. Use a cleaning paper moistened with methyl alcohol (methanol). Avoid excessive use of cleaner. Do not use abrasive cleaners, solvents, or other harsh chemical cleaners to avoid damaging the projection window.

Cleaning the Projector Cabinet

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning cloth. When it is heavily soiled, use a small amount of mild detergent and finish with the cleaning cloth. Avoid excessive use of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.

When the projector is not in use, put the projector in an appropriate case to avoid dust and being scratched.

Lamp Replacement

When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

WARNING: TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER

✔Note:

• The Lamp replacement icon will not appear when the Display function is set to “Off” (p.46), during “Freeze” (p.25), or “No show” (p.26).

Maintenance and Cleaning

Indicators

Lamp replacement icon

LAMP REPLACE indicator

CAUTION

Allow a projector to cool for at least 45 minutes before you open the Lamp cover. The inside of the projector can become very hot.

Follow these steps to replace the lamp.

Turn off the projector and unplug the AC power cord.

Let the projector cool for at least 45 minutes.

Remove the screw from the lamp cover and open the

cover.

Loosen the two (2) screws that secure the lamp. Lift

the lamp out of the projector by using the handle.

Replace the lamp with a new one and secure the two

(2) screws. Make sure that the lamp is set properly. Close the lamp cover and secure the screw.

Connect the AC power cord to the projector and turn

on the projector.

Reset the lamp counter.

See “Lamp Replacement Counter” on the next page.

CAUTION

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

Lamp Cover

Screw

Handle

Screw

✔Note:

• When replacing the projection lamp, protect the infrared remote receiver with a soft cloth to avoid damaging it.

Lamp

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

 l Model No. of your projector : PLC-XL51A  l Replacement Lamp Type No. : POA-LMP121

(Service Parts No. 610 337 9937)

Maintenance and Cleaning

Lamp Replacement Counter

Be sure to reset the Lamp replacement counter after the lamp is replaced. When the Lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting.

Turn the projector on and press the MENU button

to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame

pointer to Lamp counter and then press the SELECT button. The first dialog box appears showing the total accumulated lamp time and reset option. If you select Reset, “Lamp replacement counter Reset?” appears. Select “Yes” to continue.

Another confirmation dialog box appears, and select

“Yes” to reset the Lamp replacement counter.

✔Note:

• Do not reset the Lamp replacement counter without implementing lamp replacement. Be sure to reset the Lamp replacement counter only after replacing the lamp.

To reset the lamp counter, move the pointer to Reset and then press the SELECT button. the “Lamp replacement counter Reset?” dialog box appears.

Select “Yes” again to reset the lamp counter.

Select “Yes,” then another confirmation box appears.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

l Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee

of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.

l If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

　 (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of

the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

l A Lamp may explode as a result of vibration, shock, or degradation as a result of hours of use, as it

comes to the end of life. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

Appendix

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 16-18. – Make sure all equipment is connected to the AC outlet and the power is turned on. – When you operate the projector with a computer and it does not project an image, restart the computer.

Problem:

No power

PIN code dialog box appears at start-up.

The initial display is not shown.

The initial display is not same with the default one.

Input signal switches automatically. (or does not switch automatically)

When the projector is on and you press the input button, an icon other than the Lamp mode icon appears.

– Solutions

– Plug the power cord of the projector into the AC outlet. – See if the POWER indicator lights red. – Wait until the POWER indicator stops blinking to turn on the projector

again. The projector can be turned on after the POWER indicator turns red. (see page 21).

– Check the WARNING indicator. If the WARNING indicator lights red, the

projector cannot be turned on (see on page 56). – Check the projection lamp (see page 59). – Check if the projector is installed in proper position. (See page 7) – Unlock the Key lock function for the projector. See page 51.

– PIN code lock is being set. Enter a PIN code; the “1234” or numbers you

have set (see pages 20, 52-53)

– Make sure “Off ” or “Countdown Off” are not chosen at Display function.

(See “SETTING” section on page 46)

– Make sure “User” or “Off” are not chosen at Logo select function.　(See

“SETTING” section on page 47)

– Make sure Input search function is adjusted properly. See page 49.

– That is the Filter warning icon. Refer to page 55.

An icon other than Input mode or Lamp mode icon appears.

No image

– That is the Lamp replacement icon or the Filter warning icon. See page

54.

– Check the connection between your computer or video equipment and the

projector (see pages 16-18). – See if the input signal is correctly output from your computer. Some laptop

computers may need to be changed the setting for monitor output when

connected to the projector. See your computer’s instruction manual for the

setting. – It takes about 30 seconds to display an image after turning on the

projector. – See if the selected system is corresponding with your computer or video

equipment (see pages 28, 39). – Select correct input source once again through menu operation (see pages

27, 37–38). – Make sure the temperature is not out of the specified operating

temperature (41 ˚F–104 ˚F [5 ˚C–40 ˚C]). – When "No Show" is operating, the image can not be displayed. Press the

NO SHOW button or any other button on the remote control.

Appendix

Image is out of focus.

Picture is not bright enough.

The color is strange.

– Adjust focus of the projector (see page 24). – Provide proper distance between the projector and the projection screen

(see page 14). – Check the projection window to see if it needs cleaning (see page 58). – Moving the projector from a cool to warm place may result in moisture

condensation on the projection lens. If this occurs, leave the projector off

and wait until condensation evaporates. – Projecting from excessive slant angle to the screen may cause keystone

distortion and partial imperfect focus.

– Check if “Contrast” or “Brightness” are adjusted properly. (See page 34,

42) – Check if “Image level” is selected properly. (See pages 32-33, 40-41) – Check the Lamp control function. ( See “SETTING” section on page 51) – Check the Lamp replace indicator. If it lights, the end of lamp life is

approaching. Replace the lamp with a new one promptly. (See page 63)

– Check the Input signal, color system, video system, or computer system

mode.

– Adjust the Image Level properly. See pages 32-33, 40-41.

Image is Left/Right reversed. Image is Top/Bottom reversed

The image is distorted or runs off.

No sound

Auto PC adjustment function does not work.

Some displays are not seen during the operation.

The setting does not remain after turning off power.

Power management function does not work.

– Check the Ceiling/Rear function (see page 49). – Check the Ceiling function (see page 49).

– Check “PC Adjustment” menu or “Screen” menu and adjust them.

– Check the audio cable connection from audio input source. – Adjust the audio source. – Press the Volume + button (see page 25). – Press the Mute button (see page 25).

– Is the image projected? You will hear the sound only when the

image is projected.

– When the AUDIO OUT is plugged in, the projector’s built-in speaker is not

available.

– Check the Input signal. Auto PC Adjustment function can not work when

480p, 575p, 720p, 480i, 575i, 1035i, or 1080i is selected. (See page 29)

– Check the Display function (see page 46).

– Make sure you selected “Store” after adjusting settings. Some settings

can not be stored if not registered with “Store”.

– Power management function can not work while “Freeze” or “No Show”

function is running.

Image disappears automatically.

Capture function does not work.

– Check the power management funct ion in the Setting . The power

management is set to "On" at the factory.

– Check the connection and input signal to see if there is signal.

The Remote Control does not work.

Appendix

– Check the batteries. – Make sure no obstruction is between the projector and the remote

control.

– Make sure you are not too far from the projector when using the remote

control. Maximum operating range is 11.5’ (3.5 m).

– Make sure the code of the remote control is conformed to that of the

projector (see page 51).

– Unlock the Key lock function for the remote control. (see page 51).

Indicators blinks or lights.

Computer 2 cannot be selected.

The Terminal function cannot be selected.

appears on the screen

Unable to unlock the Logo PIN code lock, Security key lock or Security PIN code lock.

– Check the status of the projector with referring to “ INDICATORS AND

PROJECTOR CONDITION” on pages 66-67.

– Select Computer 2 in the Terminal function (see page 49).

– The Terminal function cannot be selected after Computer 2 is selected.

Select other input source such as Computer 1 or Video with the COMPUTER button or the VIDEO button on the remote control so that the Terminal function can be selected.

– Your operation is invalid. Operate correctly.

– Contact the dealer where you purchased the projector or the service

center.

WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

The CE Mark is a Directive conformity mark of the European Community (EC).

Pixelworks ICs used.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Appendix

Menu Tree

Computer Input/Video Input

Input

Sound

Computer Input

System (1)

RGBComputer 1

RGB( Scart )

Quit

Computer 2

Video

Wired

Wireless

Volume

Mute

Quit

Mode 1 Mode 2 SVGA 1

- - - -

✽Systems displayed in the System Menu vary

depending on an input signal.

Go to System (1)

Auto

Video

S-Video

Component

Quit

0 - 63

On / Off

Go to System (1)

Go to System (2) or (3)

Go to System (3)

Go to System (2)

See owner’s manual “Network Setup and Operation.”

PC Adjust

Image Select

Auto PC Adj. Fine sync. Total dots Horizontal Vertical Current mode Clamp

Display area H Display area V Reset Mode free

Store

Quit

Dynamic Standard Real Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4

0 - 31

H-sync freq. V-sync freq. Quit

Yes / No Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Quit Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Quit

Image Adjust

Screen

Contrast Brightness Color temp.

Red Green Blue Sharpness 0 - 15 Gamma Reset Yes / No Store

Quit

Normal True Wide Full

Digital zoom + Digital zoom –

0 - 63 0 - 63 High Mid Low XLow Adj. 0 - 63 0 - 63 0 - 63

0 - 15

Image 1 Image 2 Image 3 Image 4 Quit

Appendix

Video Input

Image Select

Image Adjust

Screen

System (2)

System (3)

Auto 1080i 1035i 720p 575p 480p 575i 480i

Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N

Dynamic Standard Cinema Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4

Contrast Brightness Color Tint Color temp.

Red Green Blue Sharpness Gamma

Progressive

Reset Store

Quit

Normal Wide

0 - 63 0 - 63 0 - 63 0 - 63 High Mid Low XLow Adj. 0 - 63 0 - 63 0 - 63 0 - 15 0 - 15 OffNoise reduction L1 L2 Off L1 L2 Film Yes / No Image 1 Image 2 Image 3 Image 4 Quit

Setting

Language

Zoom Reset / Store 1 / Store 2

Keystone

Uniformity Adj. Reset / Store 1 / Store 2

Blue back

Display Logo

Ceiling Rear

Auto setup

Power management

On start Lamp control Remote control Security

Warning log

Lamp counter Hour(s)

Test pattern

Factory default Quit

16 languages provided. Quit

Store / Reset

On / Off

Off/ Countdown off / On Logo select

Capture

Logo PIN code lock

On / Off On / Off Computer 2 /Monitor outTerminal

Input search

Auto PC adj.

Quit

Key lock

PIN code lock

Quit

Hour(s)Filter counter Off/100H/200H/300H Reset Quit 8 test patterns provided

Quit

Logo PIN code entry On / Off

Logo PIN code change Quit

Eco / NetworkStandby mode

Off Ready Shut down Timer(1-30 Min) Quit On / Off Normal / Auto / Eco Code 1 / Code 2

L1 / L2Fan Off / On1 / On2 Fan control

Reset Quit

Yes/No

Yes / No

Off Default User

Yes / No

Off / On1 / On2

On / Off

Off Projector Remote control Quit

PIN code lock entry

Off / On1 / On2 PIN code change Quit

Appendix

Indicators and Projector Condition

Check the indicators for projector condition.

The projector is operating normally.

Indicators

POWER

red/green

red

green

WARNING

TEMP.

red

WARNING

FILTER

orange

✽

LAMP

REPLACE

yellow

✽

Projector Condition

The projector is off. (The AC power cord is unplugged.)

The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.

The projector is ready to be turned on with the ON/STAND-BY button.

The projector is operating normally.

The projector is in the Power management mode.

• • •on

• • • off

• • • blinking.

• • • Differs according to conditions.

✽

The projector is detecting abnormal condition.

Indicators

Appendix

POWER

red/green

red

✽

WARNING

TEMP.

red

WARNING

FILTER

orange

✽

✽ ✽

✽

LAMP

REPLACE

yellow

Projector Condition

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and

✽

the temperature returns to normal, the POWER indicator lights red and the projector can be turned on. (The WARNING indicator keeps blinking.) Check and clean the air filters.

The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops blinking. Check and clean the air filters.

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

The Filter counter reached a set time. Clean or replace the filter as soon as possible.

LAMP REPLACE

When the projection lamp reaches the end of its life, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp replacement counter after replacing the lamp. See pages 59-60.

Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock.

When these modes are selected, PC adjustment can be limited.

ON-SCREEN

DISPLAY

VGA1 640x480 31.47 59.88 VGA2 720x400 31.47 70.09 VGA3 640x400 31.47 70.09 VGA4 640x480 37.86 74.38 VGA5 640x480 37.86 72.81 VGA6 640x480 37.50 75.00 VGA7 640x480 43.269 85.00

MAC LC13 640x480 34.97 66.60

MAC 13 640x480 35.00 66.67

480p 640x480 31.47 59.88 575p 768x575 31.25 50.00

575i

480i

SVGA1 800x600 35.156 56.25 SVGA2 800x600 37.88 60.32 SVGA3 800x600 46.875 75.00 SVGA4 800x600 53.674 85.06 SVGA5 800x600 48.08 72.19 SVGA6 800x600 37.90 61.03 SVGA7 800x600 34.50 55.38 SVGA8 800x600 38.00 60.51

SVGA9 800x600 38.60 60.31 SVGA10 800x600 32.70 51.09 SVGA11 800x600 38.00 60.51

MAC16 832x624 49.72 74.55

XGA1 1024x768 48.36 60.00 XGA2 1024x768 68.677 84.997 XGA3 1024x768 60.023 75.03 XGA4 1024x768 56.476 70.07 XGA5 1024x768 60.31 74.92 XGA6 1024x768 48.50 60.02 XGA7 1024x768 44.00 54.58 XGA8 1024x768 63.48 79.35

XGA9

XGA10 1024x768 62.04 77.07

XGA11 1024x768 61.00 75.70

XGA12

XGA13 1024x768 46.90 58.20

XGA14 1024x768 47.00 58.30

XGA15 1024x768 58.03 72.00

MAC19 1024x768 60.24 75.08

SXGA1 1152x864 64.20 70.40

SXGA2 1280x1024 62.50 58.60

SXGA3 1280x1024 63.90 60.00

SXGA4 1280x1024 63.34 59.98

SXGA5 1280x1024 63.74 60.01

SXGA6 1280x1024 71.69 67.19

RESOLUTION

768x576

(Interlace)

640x480

(Interlace)

1024x768

(Interlace)

1024x768

(Interlace)

H-Freq.

(kHz)

15.625 50.00

15.734 60.00

36.00 87.17

35.522 86.96

V-Freq.

(Hz)

ON-SCREEN

DISPLAY

SXGA7 1280x1024 81.13 76.107 SXGA8 1280x1024 63.98 60.02

SXGA9 1280x1024 79.976 75.025 SXGA10 1280x960 60.00 60.00 SXGA11 1152x900 61.20 65.20 SXGA12 1152x900 71.40 75.60

SXGA13

SXGA14

SXGA15 1280x1024 63.37 60.01 SXGA16 1280x1024 76.97 72.00 SXGA17 1152x900 61.85 66.00

SXGA18

SXGA19 1280x1024 63.79 60.18

SXGA20 1280x1024 91.146 85.024 SXGA+ 1 1400x1050 63.970 60.190 SXGA+ 2 1400x1050 65.350 60.120 SXGA+ 3 1400x1050 65.120 59.900

MAC21 1152x870 68.68 75.06

MAC 1280x960 75.00 75.08

MAC 1280x1024 80.00 75.08 WXGA1 1366x768 48.36 60.00 WXGA2 1360x768 47.70 60.00 WXGA3 1376x768 48.36 60.00 WXGA4 1360x768 56.16 72.00

WXGA 6 1280x768 47.776 59.870 WXGA 7 1280x768 60.289 74.893 WXGA 8 1280x768 68.633 84.837

WXGA 9 1280x800 49.600 60.050 WXGA 10 1280x800 41.200 50.000 WXGA 11 1280x800 49.702 59.810 WXGA 12 1280x800 63.980 60.020

WUXGA 1 1920x1200 74.556 59.885

WSXGA+1 1680x1050 65.290 59.954

WXGA+1 1440x900 55.935 59.887 WXGA+2 1440x900 74.918 60.000

UXGA1 1600x1200 75.00 60.00 UXGA2 1600x1200 81.25 65.00 UXGA3 1600x1200 87.5 70.00 UXGA4 1600x1200 93.75 75.00

720p 1280x720 45.00 60.00

1035i

1080i

RESOLUTION

1280x1024

(Interlace)

1280x1024

(Interlace)

1280x1024

(Interlace)

1920x1035

(Interlace)

1920x1080

(Interlace)

1920x1080

(Interlace)

H-Freq.

(kHz)

50.00 86.00

50.00 94.00

46.43 86.70

33.75 60.00

28.125 50.00

V-Freq.

(Hz)

Appendix

Technical Specifications

Mechanical Information

Projector Type Multi-media Projector Dimensions (W x H x D) 14.72” x 7.75” x 19.49” (374.0 mm x 196.8 mm x 495.0 mm) (Not including protrusions) Net Weight 16.5 lbs (7.5 kg) Feet Adjustment 0˚ to 1.0˚

Panel Resolution

LCD Panel System 0.8” P-Si TFT Active Matrix type Panel Resolution 1,024 x 768 dots Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)

Signal Compatibility

Color System SD/HDTV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50–100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 60” to 80” Projection Lens F 1.85 lens with f 4.83 mm with manual focus Distance (Screen - Projector) -0.131’ – 0.265’ (-4.0 cm – 8.1 cm) Projection Lamp 275 W

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

Interface

Video Input Jack RCA Type x 1 S-Video Input Jack Mini DIN 4 pin x 1 Audio Input Jacks RCA Type x 2 Component Input Jacks RCA Type x 3 Computer Input 1 Input Terminal Computer Input 2 / Monitor Output Terminal Audio Input Computer Jack Service Port Connector Mini DIN 8 pin x 1 Audio Output Jack Mini Jack (stereo) x 1 (Variable) LAN Connection Terminal 100 Base-TX (100Mbps)/10 Base-T (10Mbps), RJ45 SD Memory Card Slot

Analog RGB (Mini D-sub 15 pin) Terminal x 1 Analog RGB (Mini D-sub 15 pin) Terminal x 1 (In/Out switchable) Mini Jack (stereo) x 1

Audio

Internal Audio Amp 2.0 W RMS Built-in Speaker 1 speaker, ø2.0” (50 mm)

Power

Voltage and Power Consumption AC 100–120 V (4.4 A Max. Ampere), 50/60 Hz (The U.S.A and Canada)

AC 200–240 V (2.1 A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)

Operating Environment

Operating Temperature 41˚F–104˚F (5˚C–40˚C) Storage Temperature 14˚F–140˚F (-10˚C–60˚C)

Remote Control

Battery AA or LR6 1.5V ALKALINE TYPE x 2 Operating Range 11.5’ (3.5 m) / ±90˚ Dimensions 1.9” (W) x 0.87” (H) x 5.7” (D) (49 mm x 22 mm x 145.3 mm) Net Weight 3.5 oz (100 g) (including batteries)

Appendix

Accessories

Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable PIN Code Label Ferrite Core Cable Tie Network Application (CD-ROM)

l The specifications are subject to change without notice. l LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are

effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer.

Model No.

SCART-VGA Cable : POA-CA-SCART

VGA-Cable (10 m) : KA-MC-DB10

Ceiling Hanger : POA-CHS-PS02 (for low ceiling)

: POA-CHL-PL02 (for high ceiling)

: POA-CHB-XL50

Wall Anchor Kit : POA-CH-EX03, POA-CH-EX03A

345

876

3 4

96 7 8

131112

Configurations of Terminals

7.75 (196.8)

7.91 (201)

4.50 (114.3)

2.36 (60)

8.78 (223)

9.49 (241)

2.99 (76)

3.43 (87)

Lens center

7.09 (180)

4.29 (109)

8.58 (218)

14.72 (374)

1.0°

0.17 (4.2)

19.49 (495)

16.59 (421.5)

3.65 (92.8)

0.41 (10.5)

0.33 (8.5)

9.37 (238)

0.37 (9.5)

16.73 (425)

7.17 (182)

4.61 (117)

0.63 (16)

1.87 (47.5)

0.63 (16)

5.0 (127)

スタンド取り付け穴と天吊り用穴４カ所共通

PLC-XL51

Screw Holes for Ceiling Mount Screw: M4 Depth: 0.393 (10.0)

87654321

COMPUTER INPUT / MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : Analog RGB (Mini D-sub 15 pin)

Appendix

SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN

1 2 3 4 5 6 7 8

Dimensions

Unit: inch (mm)

Serial

R X D

-----

GND

RTS / CTS

T X D

GND GND

Red Input / Output

Green Input / Output

Blue Input / Output

3 4

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

-----

LAN TERMINAL

5V / ----Ground (Vert.sync.)

Ground /

DDC data / ----Horiz. sync. Input/Output (Composite H/V sync.)

Vert. sync.

14 15

DDC clock/ -----

-----

TX +

2 3

TX –

RX +

5 6 7 8

-----

RX –

-----

----------

Appendix

PIN Code Number Memo

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.

PIN Code Lock No.

Factory default set No: 1 2 3 4*

Logo PIN Code Lock No.

Factory default set No: 4 3 2 1*

While the projector is locked with the PIN code...

Put the label below (supplied) to a prominent place of the projector’s body while it is locked with a PIN code.

*Should the four-digit number be changed,

the factory set number will be invalid.

Appendix

PJ Link Notice

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

For PJ Link password, see page 49 on the owner’s manual “Network Set-up and Operation.”

Projector Input PJLink Input Parameter

Computer 1 RGB RGB 1 11

RGB (Scart) RGB 2 12 Computer 2 RGB RGB 3 13 Video Auto VIDEO 1 21

Video VIDEO 2 22

S-Video VIDEO 3 23

Component Wired NETWORK 1 51 Wireless

VIDEO 4

NETWORK 2

PJLink is a registered trademark of JBMIA and pending trademark in some countries.

KV7AE

SANYO Electric Co., Ltd.

Sanyo PLC-XL51A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features and Design

Table of Contents

To the Owner

Safety Instructions

Air Circulation

Moving the Projector

Installing the Projector in Proper Position

Compliance

Part Names and Functions

Front

Back

Bottom

Side Terminal

Remote Control

Remote Control Battery Installation

Operating Range

Installation

Positioning the Projector

Adjustable Feet

Mounting the Rear Leg

Connecting to a Computer

Connecting to Video Equipment (Video, S-Video)

Connecting to Video Equipment (Component and RGB Scart)

Connecting the AC Power Cord

Basic Operation

Turning On the Projector

Turning Off the Projector

How to Operate the On-Screen Menu

Menu Bar

Zoom Adjustment

Screen Position Adjustment

Focus Adjustment

Keystone Correction

Sound Adjustment

Remote Control Operation

Computer Input

Input Source Selection

Computer System Selection

Auto PC Adjustment

Manual PC Adjustment

Image Level Selection

Image Level Adjustment

Screen Size Adjustment

Video Input

Input Source Selection (Video, S-Video, Component)

Input Source Selection (RGB Scart 21-pin)

Video System Selection

Image Level Selection

Image Level Adjustment

Screen Size Adjustment

Setting

Setting

Maintenance and Cleaning

Warning Indicator

Cleaning the Air Filter

Resetting the Filter Counter

Cleaning the Projection Window

Cleaning the Projector Cabinet

Lamp Replacement

Lamp Replacement Counter

Appendix

Troubleshooting

Menu Tree

Indicators and Projector Condition

Compatible Computer Specifications

Technical Specifications

Optional Parts

Configurations of Terminals

Dimensions

PIN Code Number Memo

PJ Link Notice
